Music Alley Junior Drum Kit
Assembly Instructions
�
Adult assembly required
Unpack the box and carefully and check that all items are correct
before proceeding.
Contents
•
Bass drum
•
Snare drum
•
Tom tom drum
•
Bass drum heads (x2)
•
Bass drum hoops (x2)
•
Cymbal
•
Padded drum throne and tripod leg assembly
•
Bass drum pedal and beater
•
Bass drum spurs (x2)
•
Tension rods and washers (x8)
•
Spare bass drum lug insert
•
Tom tom/snare drum holders (x2)
•
Cymbal holder
•
Drum key
•
Drum sticks (x2)
In the unlikely event that any parts are missing, please contact
[email protected] for assistance

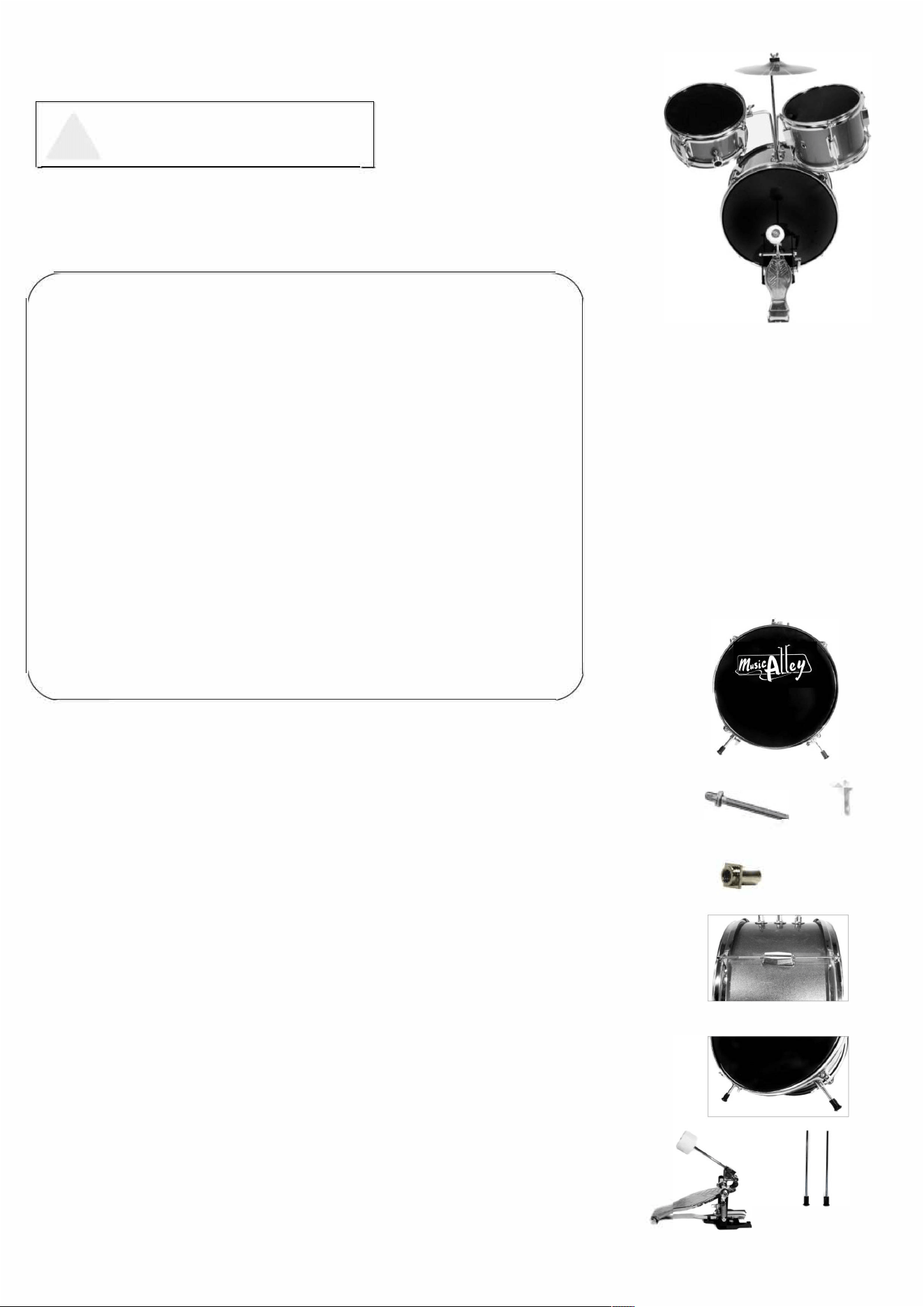

Bass Drum Assembly
a) Take the drum head with the 'Music Alley' logo and place it on the front of
the bass drum. (The front is the side nearest to the leg support brackets.)
Line up the logo with the top of the drum.
Place a bass drum hoop over the rim of the drum aligning the four holes with
the lugs around the side of the drum.
Take the tension rods and thread a washer onto each one before inserting
them through the hoop and screwing them into the lugs. (A spare lug insert
is included if required.) Hand tighten all four tensions rods then use the drum
key to tighten them further. Be careful not to over-tighten them as this could
result in splitting the skin or damage to the lugs.
Repeat this procedure for the other bass drum head.
b) Insert the bass drum spurs into the brackets near the front of the drum.
Adjust them to the required length and tighten the wing nuts to secure them.
c) Inse the beater into the pedal and tighten the nut using the drum key.
Attach the pedal claw to the hoop of the bass drum and tighten the wing nut
to hold it in place.

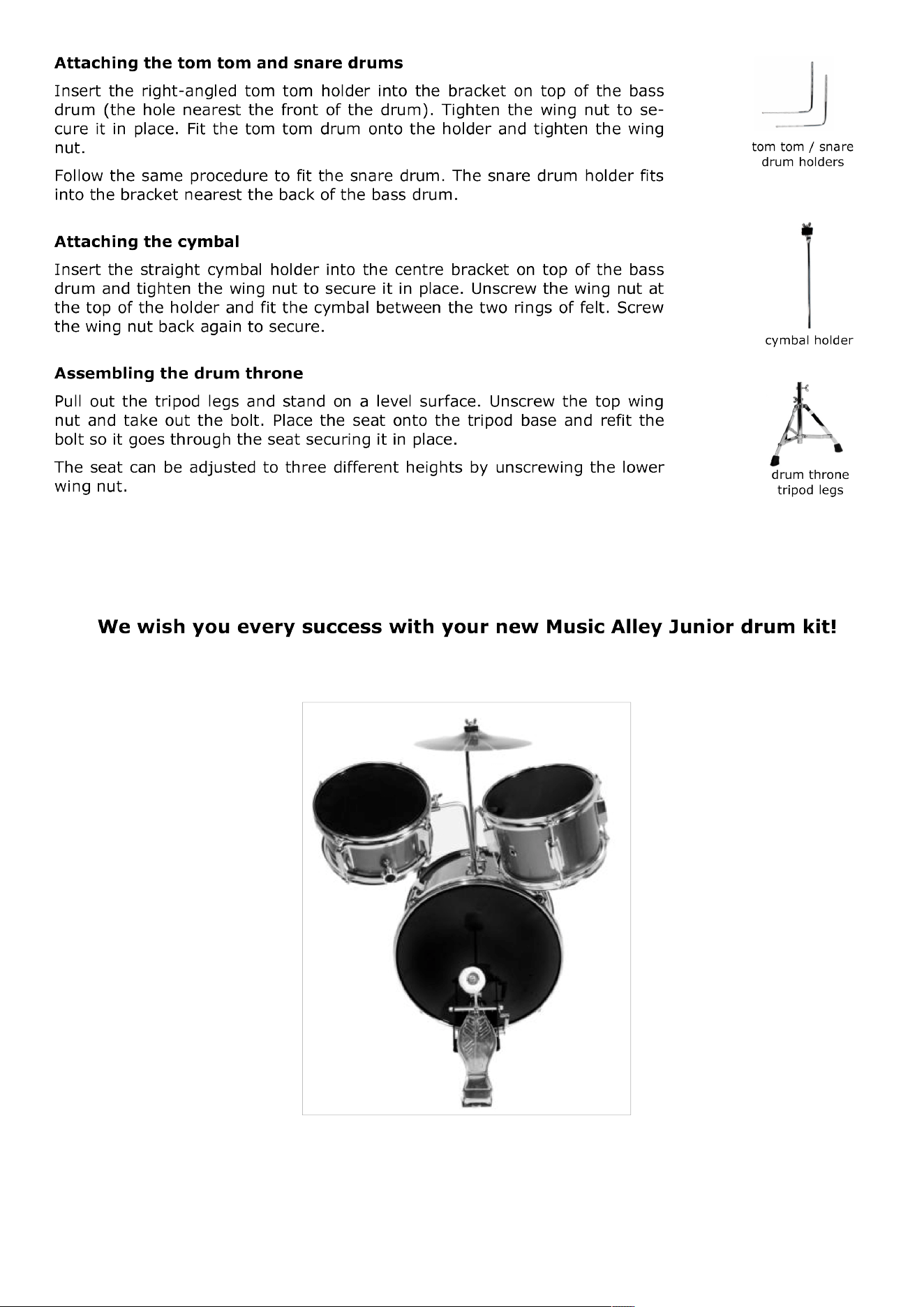

continued oveeaf ...
,-
tension rod -
drum key
spare bass drum
lug insert
bass drum
spurs
WARNING
.
N
ot suitable
f
or children under
36
months
Congratulations on purchasing this Music Alley Junior Drum Kit! The kit
requires some minimal assembly and this setup guide will take you through
each step.
