E-CLAV91219BD
Washing Machine / User Manual
EN
Icon Type Meaning
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of fire / flammable materials
CAUTION Injury or property damage risk
IMPORTANT / NOTE Operating the system correctly
Thank you for choosing this product.
This User Manual contains important safety information and instructions on the operation
and maintenance of your appliance.
Please take the time to read this User Manual before using your appliance and keep this
book for future reference.
CONTENTS
1. SAFETY INSTRUCTIONS ................................................................................ ................1
1.1 General Safety Warnings ...............................................................................................2
1.2 During Use ....................................................................................................................6
1.3 Packaging and Environment...........................................................................................7
1.4 Savings Information ........................................................................................................7
2. TECHNICAL SPECIFICATIONS ....................................................................... ................8
2.1 General Appearance.......................................................................................................8
2.2 Technical Specifications .................................................................................................8
3. INSTALLATION ................................................................................................. ................9
3.1 Removing the Transit Bolts.............................................................................................9
3.2 Adjusting the Feet / Adjusting Adjustable Stays..............................................................9
3.3 Electrical Connection ......................................................................................................9
3.4 Water Inlet Hose Connection ........................................................................................10
3.5 Water Discharge Connection ........................................................................ ................11
4. CONTROL PANEL OVERVIEW .......................................................................................11
4.1 Detergent Drawer ......................................................................................... ................11
4.2 Sections ...................................................................................................................12
4.3 Program Dial.................................................................................................................12
4.4 Electronic Display ......................................................................................... ................12
5. USING YOUR WASHING MACHINE .............................................................. ................13
5.1 Preparing Your Laundry ................................................................................ ................13
5.2 Putting Laundry in the Machine .................................................................... ................13
5.3 Adding Detergent to the Machine .................................................................................14
5.4 Operating Your Machine ...............................................................................................14
5.5 Selecting a Programme ................................................................................ ................14
5.6 Half-Load Detection System .........................................................................................14
5.7 Additional Functions ....................................................................................................15
5.8 Child Lock ...................................................................................................................17
5.9 Cancelling the Programme ........................................................................... ................17
5.10 Programme End .........................................................................................................18
6. PROGRAMME TABLE .................................................................................... ................19
7. CLEANING AND MAINTENANCE ................................................................. ................20
7.1 Warning ...................................................................................................................20
7.2 Water Inlet Filters .........................................................................................................20
7.3 Pump Filter ...................................................................................................................21
7.4 Detergent Drawer .........................................................................................................21
8. FLUSH STOPPER / BODY / DRUM ............................................................... ................22
9. TROUBLESHOOTING .................................................................................... ................23
10. AUTOMATIC FAULT WARNINGS AND WHAT TO DO ............................... ................24
11. DESCRIBING THE ENERGY LABEL AND SAVING ENERGY.................... ................25
EN - 1
1. SAFETY INSTRUCTIONS
Operating voltage / frequency (V/Hz) (220-240)
V~/50Hz
Total current (A) 10
Water pressure (Mpa) Maximum 1 Mpa /
Minimum 0. 1Mpa
Total power (W) 2200
Maximum washing capacity
(dry laundry) (kg)
9.0
• Do not install your machine on a carpet or such
grounds that would prevent the ventilation of its
base.
• The appliance is not intended for use by people
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
• Children of less than 3 years should be kept away
unless continuously supervised.
• Call the nearest authorized service centre for a
replacement if the power cord malfunctions.
• Use only the new water inlet hose coming with your
machine when making water inlet connections to
your machine. Never use old, used or damaged
water inlet hoses.
• Children should not play with the appliance.
Cleaning and user maintenance should not be made
by children without supervision.
EN - 2
NOTE: For a softcopy of this user manual, please
contact the following address: “washingmachine@
standardtest. info”. In your e-mail, please provide the
model name and serial number (20 digits) which you
can find on the appliance door.
Read this user manual carefully.
Your machine is for domestic use only.
Using it for commercial purposes will cause
your warranty to be cancelled.
This manual has been prepared for more than
one model therefore your appliance may not have
some of the features described within. For this
reason, it is important to pay particular attention to
any figures whilst reading the operating manual.
1.1 General Safety Warnings
• The necessary ambient temperature for operation of
your Washing Machine is 15-25 °C.
• Where the temperature is below 0 °C, hoses may
split or the electronic card may not operate correctly.
• Please ensure that garments loaded into your
Washing Machine are free from foreign objects such
as nails, needles, lighters and coins.
• It is recommended that for your first wash,
you select the 90˚ Cotton programme without
laundry and half fill compartment II of the
detergent drawer with a suitable detergent.
• Residue may build up on detergent and softeners
exposed to air for a long period of time. Only put
softener or detergent in the drawer at the beginning
of each wash.
• Unplug your Washing Machine and switch off the
EN - 3
water supply if the Washing Machine is left unused
for a long time. We also recommend that you leave
the door open to prevent build up of humidity inside
the Washing Machine.
• Some water may be left in your Washing Machine
as a result of quality checks during production.
This will not affect the operation of your Washing
Machine.
• The packaging of the machine could be hazardous
to children. Do not allow children to play with the
packaging or small parts from the Washing Machine.
• Keep the packaging materials in a place where
children cannot reach them, or dispose of them
appropriately.
• Use pre-wash programs only for very dirty laundry.
Never open the detergent drawer while the machine
is running.
• In the event of a breakdown, unplug the machine
from the mains supply and turn the water supply
off. Do not attempt to carry out any repairs. Always
contact an authorised service agent.
• Do not exceed the maximum load for the washing
programme you have chosen.
Never force the door open when your Washing
Machine is running.
• Washing laundry containing flour may damage your
machine.
• Please follow the manufacturers’ instructions
regarding the use of fabric conditioner or any similar
products that you intend to use in your Washing
Machine.
• Make sure that the door of your Washing Machine is
not restricted and can be opened fully.
EN - 4
• Install your machine in a location that can be
fully ventilated and preferably has constant air
circulation.
Read these warnings. Follow the advice given
to protect yourself and others from risks and fatal
injuries.
RISK OF BURNS
Do not touch the drain hose or any discharged
water while your Washing Machine is running. The
high temperatures involved pose a burn risk.
RISK OF DEATH FROM ELECTRICAL
CURRENT
• Do not connect your Washing Machine to the mains
electricity supply using an extension lead.
• Do not insert a damaged plug into a socket.
• Never remove the plug from the socket by
pulling the cord. Always hold the plug.
• Never touch the power cord/plug with wet
hands as this could cause a short circuit or
electric shock.
• Do not touch your Washing Machine if your
hands or feet are wet.
• A damaged power cord/plug can cause fire or
give you an electric shock. When damaged it
must be replaced, this should only be done by
qualified personnel.
Risk of flooding
• Check the speed of water flow before placing the
drain hose in a sink.
• Take necessary measures to prevent the hose from
slipping.
• Water flow may dislodge the hose if it is not properly
EN - 5
secured. Make sure the plug in your sink does not
block the plug hole.
Danger of Fire
• Do not store inflammable liquids near your machine.
• The sulphur content of paint removers may cause
corrosion. Never use paint removing materials in
your machine.
• Never use products that contain solvents in your
machine.
• Please ensure that garments loaded into your
Washing Machine are free from foreign objects such
as nails, needles, lighters and coins.
Risk of fire and explosion
Risk of falling and injury
• Do not climb on your Washing Machine.
• Make sure hoses and cables do not cause a trip
hazard.
• Do not turn your Washing Machine upside down or
on its side.
• Do not lift your Washing Machine using the door or
detergent drawer.
The machine must be carried by at least 2
people.
Child safety
• Do not leave children unattended near the machine.
Children might lock themselves in the machine
resulting in risk of death.
• Do not allow children to touch the glass door during
operation. The surface becomes extremely hot and
may cause damage to skin.
• Keep packaging material away from children.
• Poisoning and irritation may occur if detergent
EN - 6
and cleaning materials are consumed or come
into contact with the skin and eyes. Keep cleaning
materials out of the reach of children.
1.2 During Use
• Keep pets away from your machine.
• Please check the packaging of your machine before
installation and the outer surface of the machine
once the packaging has been removed. Do not
operate the machine if it appears damaged or if the
packaging has been opened.
• Your machine must only be installed by an
authorised service agent. Installation by anyone
other than an authorised agent may cause your
warranty to be void.
• This appliance can be used by children aged
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be done
by children without supervision.
• Only use your machine for laundry that is labelled as
suitable for washing by the manufacturer.
• Before operating the washing machine, remove
the 4 transit bolts and rubber spacers from
the rear of the machine. If the bolts are not
removed they may cause heavy vibration, noise
and malfunction of the machine and cause the
guarantee to be void.
• Your warranty does not cover damage caused by
external factors such as fire, flooding and other
EN - 7
sources of damage.
• Please do not throw away this user manual; keep it
for future reference and pass it onto the next owner.
NOTE: Specifications for the machine may vary
depending on the product purchased.
1.3 Packaging and Environment
Removal of packaging materials
Packaging materials protect your machine from any
damage that might occur during transportation. The
packaging materials are environmentally friendly as
they are recyclable. Use of recycled material reduces
raw material consumption and decreases waste
production.
1.4 Savings Information
Some important information to get the most efficient
use out of your machine:
• Do not exceed the maximum load for the washing
programme you have chosen. This will allow your
machine to run in energy saving mode.
• Do not use the pre-wash feature for lightly soiled
laundry. This will help you save on the amount of
electricity and water consumed.
CE Declaration of conformity
We declare that our products meet the applicable European Directives, Decisions and
Regulations and the requirements listed in the standards referenced.
Disposal of your old machine
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed over to
the applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service or the shop
where you purchased the product.
EN - 8
2. TECHNICAL SPECIFICATIONS
123
4
5
6
7
8
9
10
2.1 General Appearance

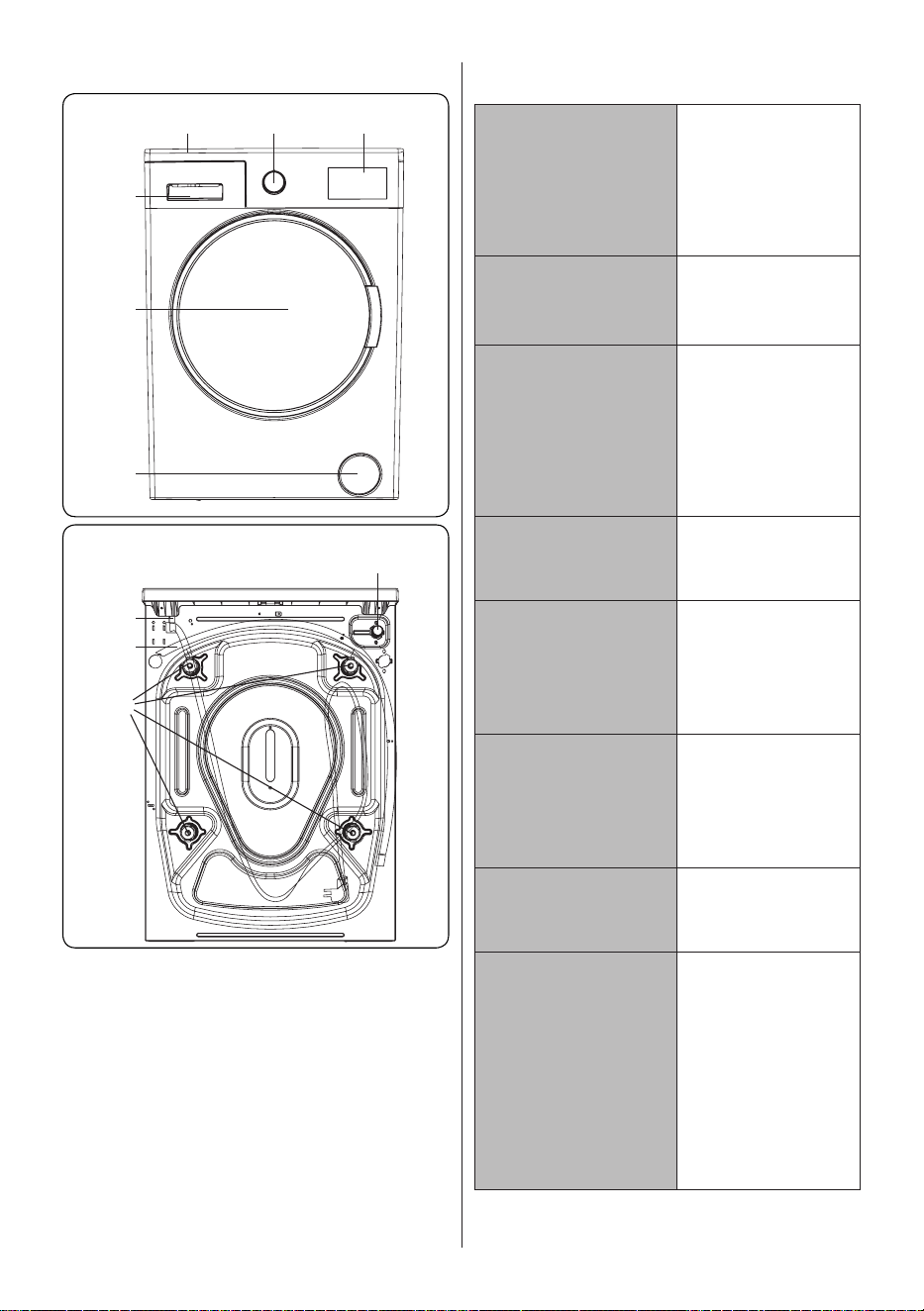

1. Electronic Display
2. Programme Dial
3. Upper Tray
4. Detergent Drawer
5. Drum
6. Pump Filter Cover
7. Water Inlet Valve
8. Power Cable
9. Discharging Hose
10. Transit Bolts
2.2 Technical Specifications
Operating
voltage /
frequency
(V/Hz)
(220-240)
V~/50Hz
Total current
(A)
10
Water
pressure
(Mpa)
Maximum:
1 Mpa
Minimum :
0. 1 Mpa
Total power
(W)
2200
Maximum
dry laundry
capacity (kg)
9
Spinning
revolution
(rev / min)
1200
Programme
number
15
Dimensions
(mm)
Height
Width
Depth
845
597
582
EN - 9
3. INSTALLATION

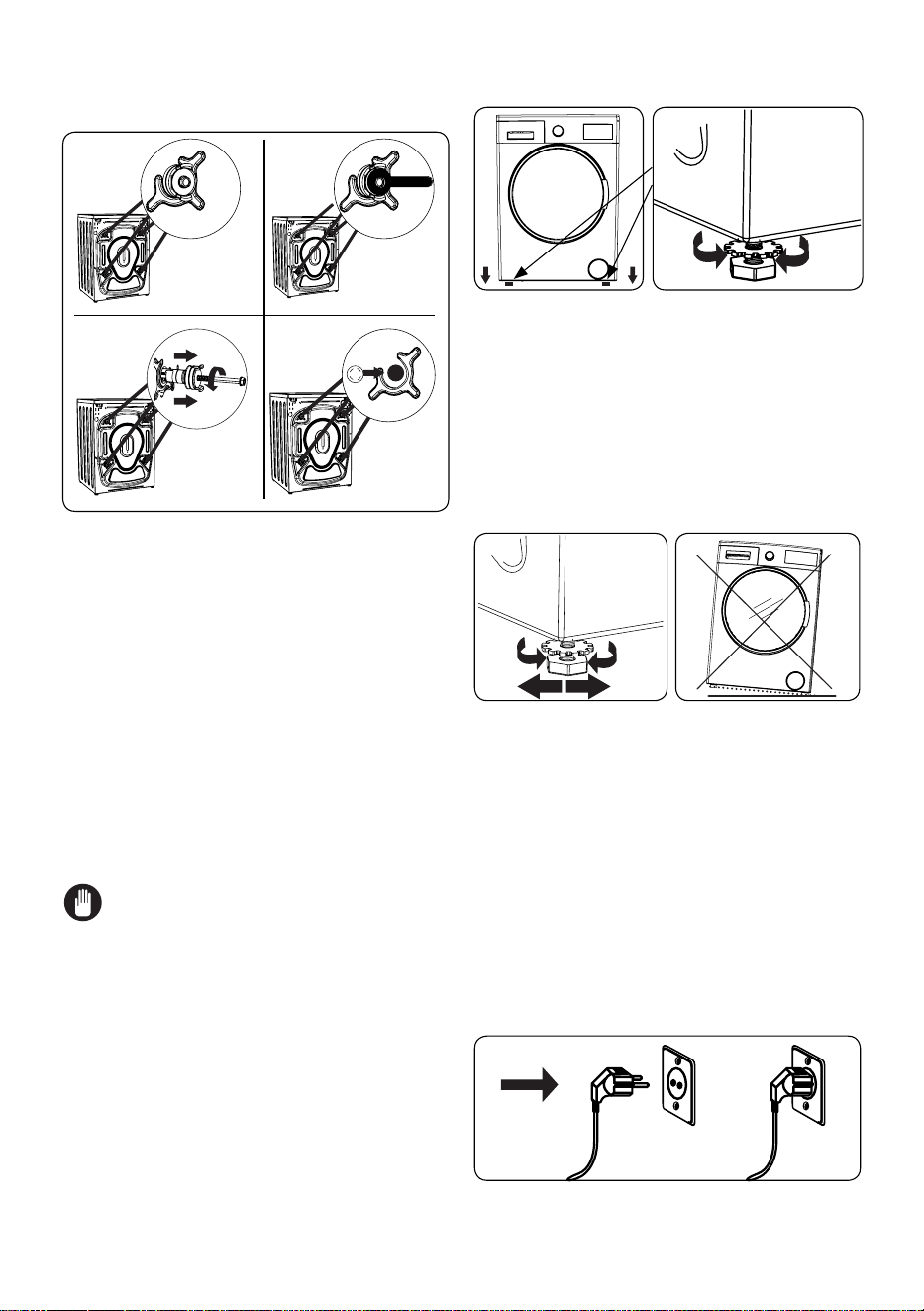

3.1 Removing the Transit Bolts
X X4 4
X4
1
3
2
4
1. Before operating the washing machine,
remove the 4 transit bolts and rubber
spacers from the rear of the machine.
If the bolts are not removed, they
may cause heavy vibration, noise and
malfunction of the machine and void the
warranty.
2. Loosen the transit bolts by turning
them anticlockwise with an appropriate
spanner.
3. Remove the transit bolts with a straight
pull.
4. Fit the plastic blanking caps supplied in
the accessories bag into the gaps left
by the removal of the transit bolts. The
transit bolts should be stored for future
use.
NOTE: Remove the transit bolts
before using the machine for the first time.
Faults occurring due to the machine being
operated with transit bolts fitted are out of
the scope of the warranty.
3.2 Adjusting the Feet /
Adjusting Adjustable Stays
1
1. Do not install your machine on a surface
(such as carpet) that would prevent
ventilation at the base.
• To ensure silent and vibration-free
operation of your machine, install it on a
firm surface.
• You can level your machine using the
adjustable feet.
• Loosen the plastic locking nut.
X4
2 3
2. To increase the height of the machine,
turn the feet clockwise. To decrease
the height of the machine, turn the feet
anticlockwise.
• Once the machine is level, tighten the
locking nuts by turning them clockwise.
3. Never insert cardboard, wood or other
similar materials under the machine to
level it.
• When cleaning the ground on which
the machine is located, take care not to
disturb the level of the machine.
3.3 Electrical Connection
• Your Washing Machine requires a 220-
240V, 50Hz mains supply.
EN - 10
• The mains cord of your washing
machine is equipped with an earthed
plug. This plug should always be
inserted to an earthed socket of 10
amps.
• If you do not have a suitable socket and
fuse conforming with this, please ensure
the work is carried out by a qualified
electrician.
• We do not take responsibility for
damage that occurs due to the use of
ungrounded equipment.
NOTE: Operating your machine
with low voltage will cause the life cycle
of your machine to be reduced and its
performance to be restricted.

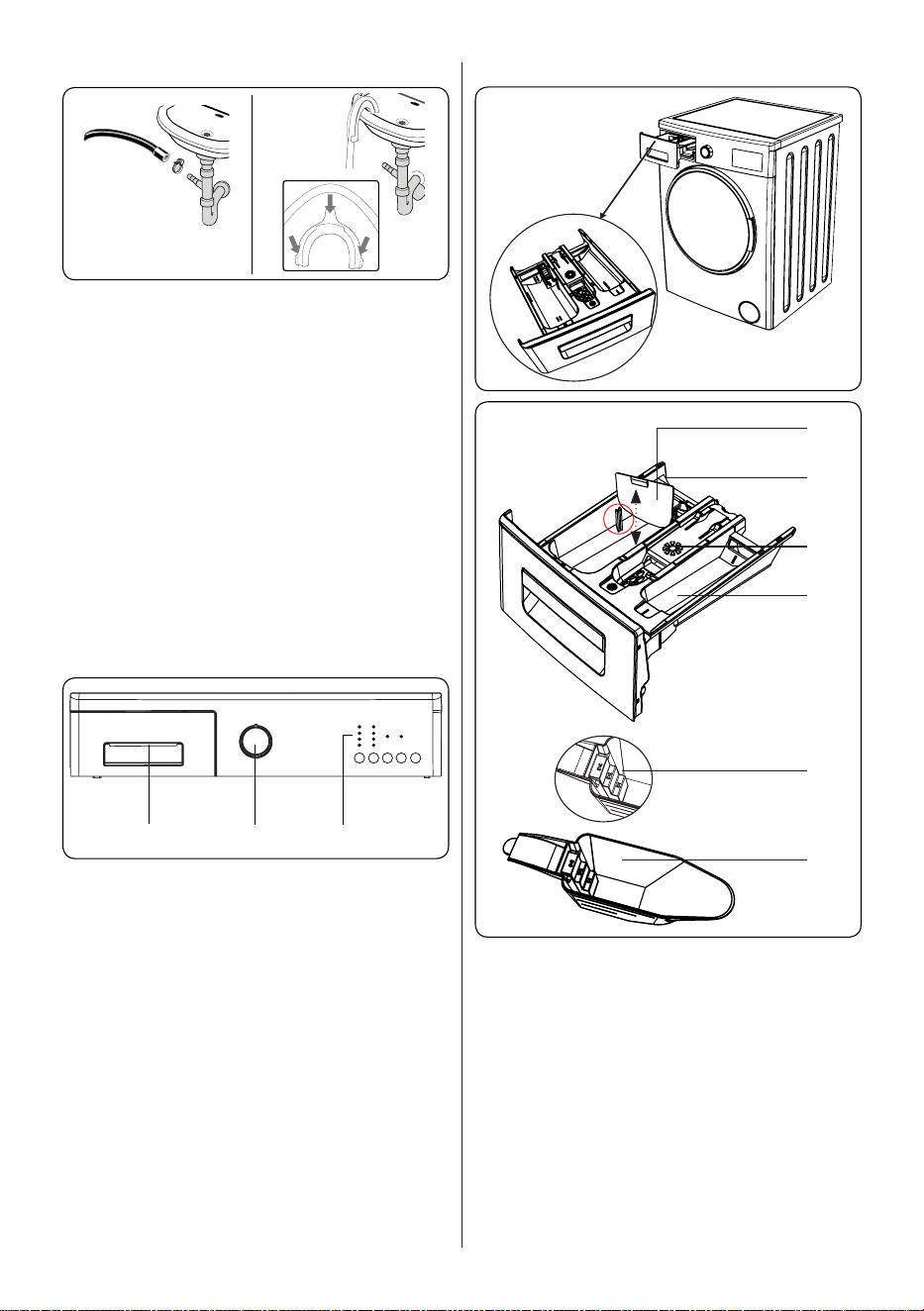

3.4 Water Inlet Hose Connection
3/4”
10 mm
1
3
2
4
1. Your machine may have either a
single water inlet connection (cold)
or double water inlet connection (hot
and cold) depending on the machine
specifications. The white capped hose
should be connected to cold water inlet
and red capped hose to the hot water
inlet (if applicable).
• To prevent water leaks at the joints,
either 1 or 2 nuts (depending on your
machine’s specifications) are supplied
in the packaging with the hose. Fit these
nuts to the end(s) of the water inlet hose
that connect to the water supply.
2. Connectnewwaterinlethosestoa¾˝,
threaded tap.
• Connect the white capped end of the
water inlet hose to the white water inlet
valve on the rear side of the machine
and the red capped end of the hose to
the red water inlet valve (if applicable).
• Hand tighten the connections. If in any
doubt, consult a qualified plumber.
• Water flow with pressure of 0. 1-1 Mpa
will allow your machine to operate at
optimum efficiency (pressure of 0. 1
Mpa means that more than 8 litres of
water per minute will flow through a fully
opened tap).

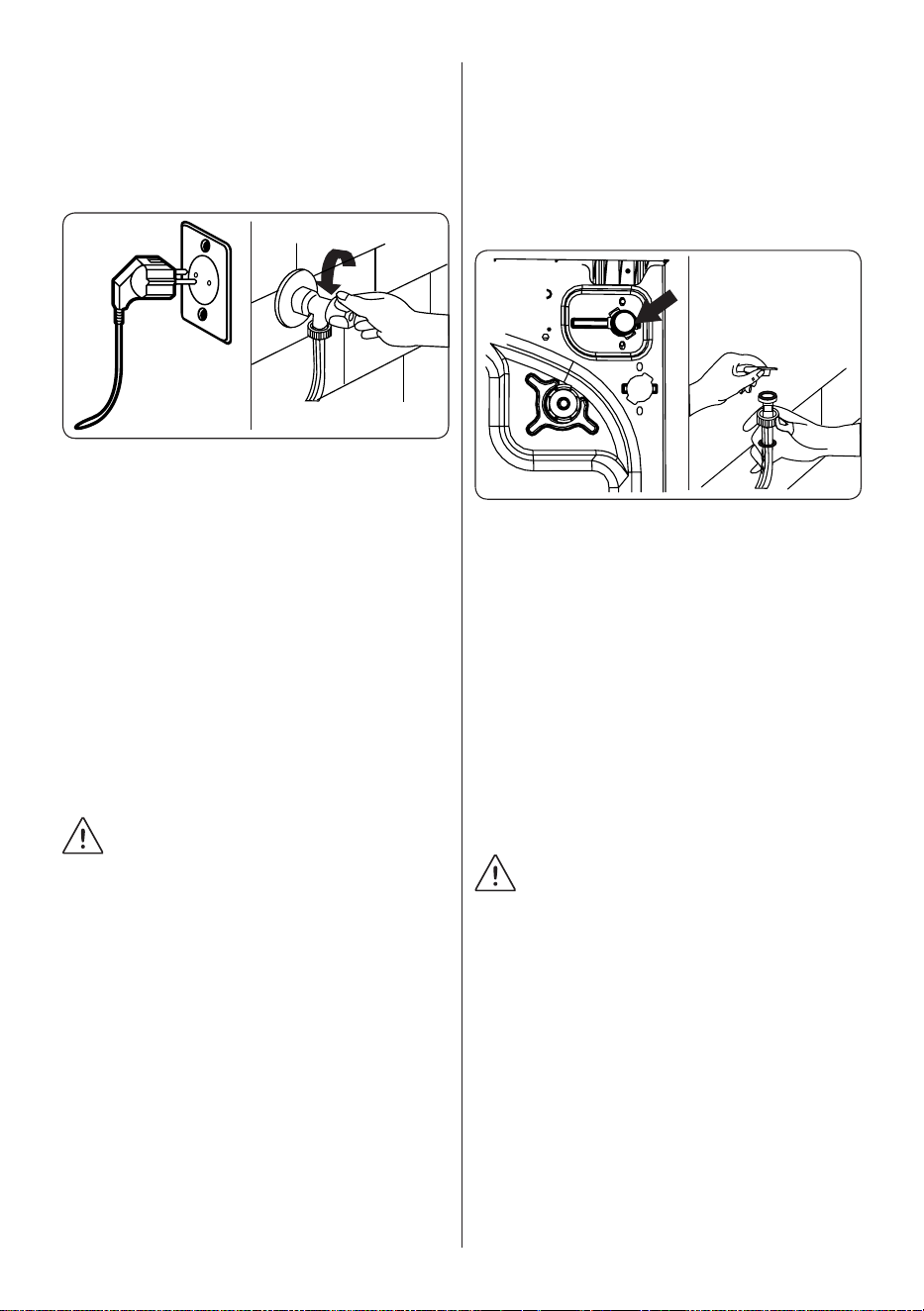

3. Once you have made all of the
connections, carefully turn the water
supply on and check for leaks.
4. Ensure that the new water inlet hoses
are not trapped, kinked, twisted, folded
or crushed.
• If your machine has a hot water inlet
connection, the temperature of the hot
water supply should not be higher than
70°C.
NOTE: Your Washing Machine
must only be connected to your water
supply using the supplied new fill hose. Old
hoses must not be reused.
~ 95 cm ~ 140 cm
~ 145 cm ~ 95 cm
0 – max. 100 cm
˜
˜
95 cm
150 cm
EN - 11
3.5 Water Discharge Connection

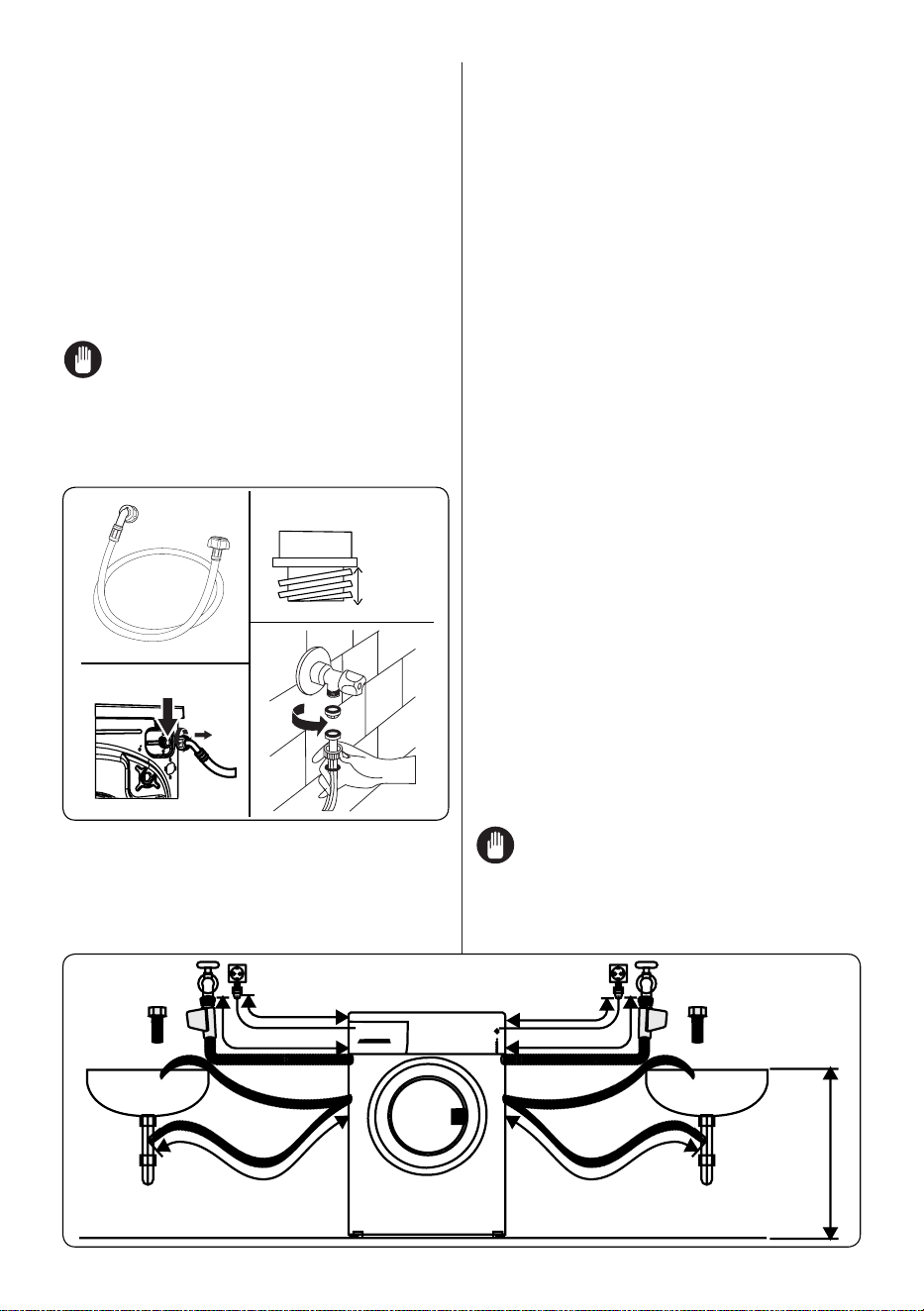

• Connect the water drain hose to a
standpipe or to the outlet elbow of
a household sink, using additional
equipment.
• Never attempt to extend the water drain
hose.
• Do not put the water drain hose from
your machine into a container, bucket or
bathtub.
• Make sure that the water drain hose is
not bent, buckled, crushed or extended.
• The water drain hose must be installed
at a maximum height of 100 cm from the
ground.
4. CONTROL PANEL OVERVIEW
1 2 3
1. Detergent Drawer
2. Programme Dial
3. Display Panel
4.1 Detergent Drawer
1
2
3
4
5
6
1. Liquid Detergent Attachments
2. Main Wash Detergent Compartment
3. Softener Compartment
4. Pre-Wash Detergent Compartment
5. Powder Detergent Levels
6. Powder Detergent Scoop (*)
(*) Specifications may vary depending on
the machine purchased.
EN - 12
4.2 Sections
Main wash detergent compartment:
This compartment is for liquid or powder
detergents or limescale remover. The fluid
detergent level plate will be supplied inside
your machine. (*)
Fabric conditioner, starch, detergent
compartment:
This compartment is for softeners,
conditioners or starch. Follow the
instructions on the packaging. If softeners
leave residue after use, try diluting them or
using a liquid softener.
Pre-wash detergent compartment:
This compartment should be used only
when the pre-wash feature is selected. We
recommend that the pre-wash feature is
used only for very dirty laundry.
(*) Specifications may vary depending on
the machine purchased.

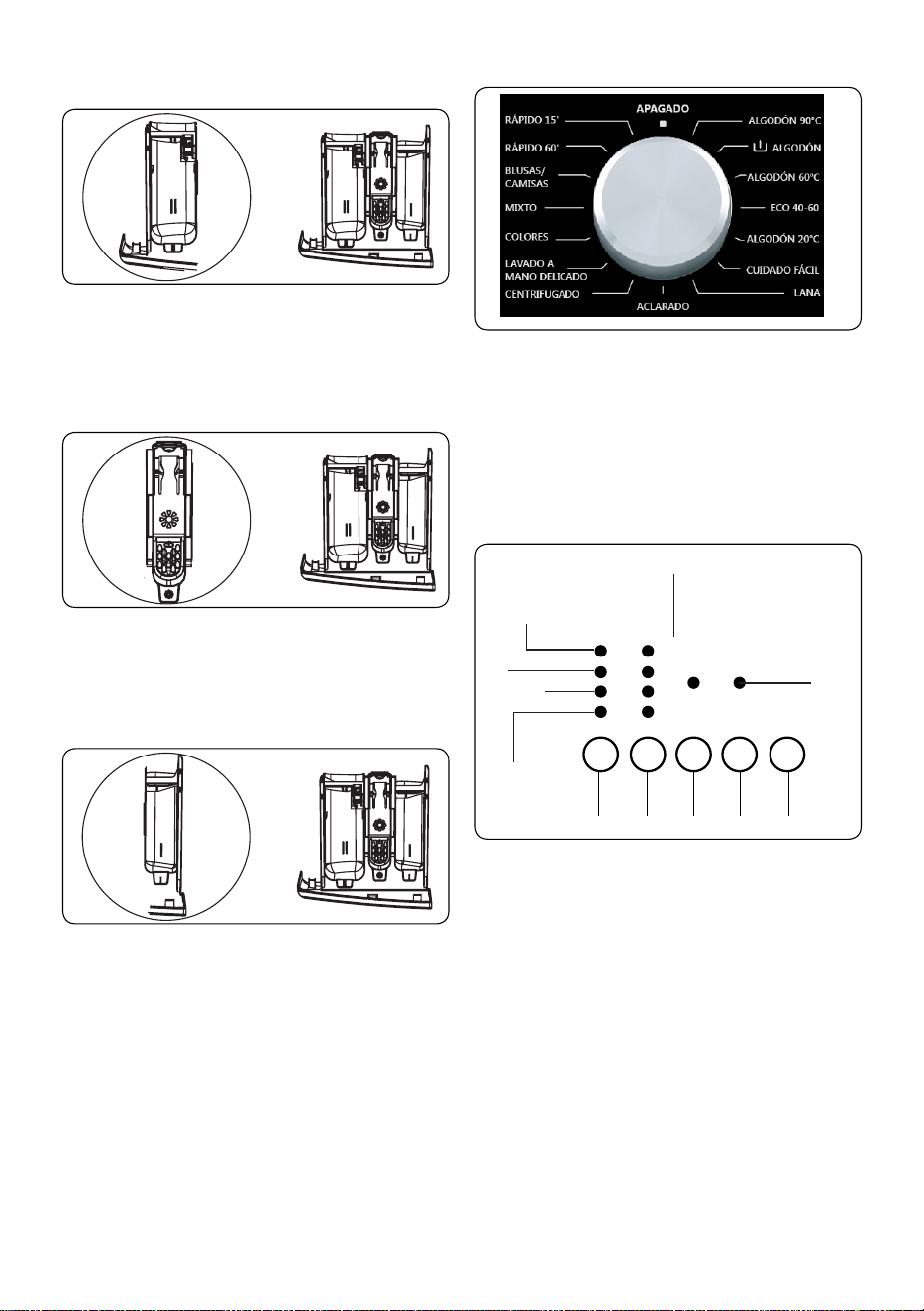

4.3 Program Dial
• To select the desired programme, turn
the programme dial either clockwise or
anti-clockwise until the marker on the
programme dial points to the chosen
programme.
• Make sure that the programme dial is
set exactly to the programme you want.
4.4 Electronic Display
1
6 7 8 9 10
2
3
4
5
11
1. Display Panel
2. Washing
3. Rinsing
4. Spinning
5. End
6. Water Temperature Adjustment Button
7. Rpm Speed Adjustment Button
8. Additional Function Button 1
9. Additional Function Button 2
10. Start/Pause Button
11. Additional Function LEDs
The display panel shows “Finished” when
the selected programme is complete. The
display panel also indicates if a fault has
occurred with your machine.
EN - 13
5. USING YOUR
WASHING MACHINE
5.1 Preparing Your Laundry
1
3
5
7
2
4
6

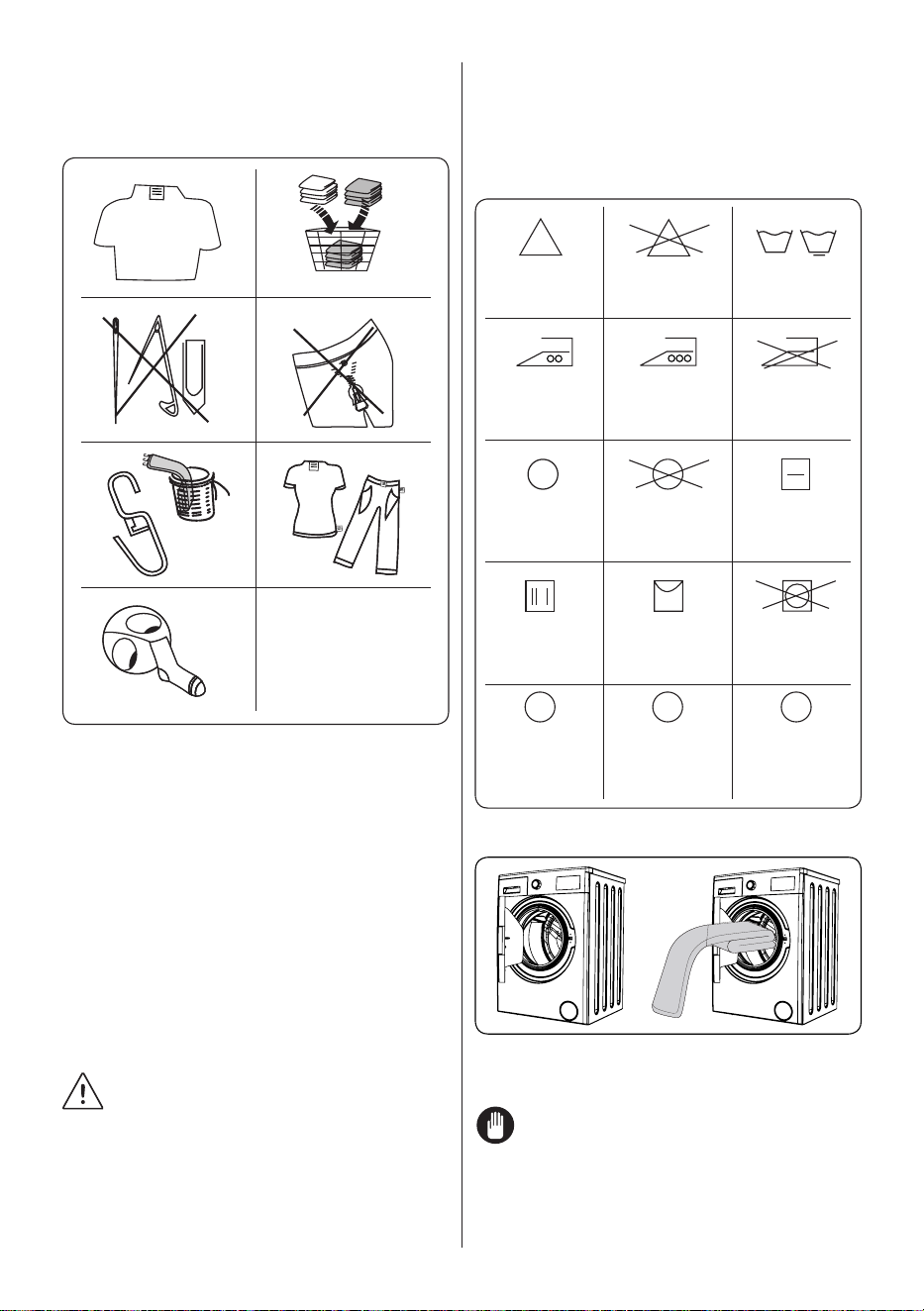

1. Follow the instructions given in the care
labels on the clothing.
• Separate your laundry according to type
(cotton, synthetic, sensitive, wool etc.
), washing temperature (cold, 30°, 40°,
60°, 90°) and the degree of dirtiness
(slightly stained, stained, highly stained).
2. Never wash coloured and white laundry
together.
• Dark textiles may contain excess dye
and should be washed separately
several times.
3. Ensure that there are no metallic
materials on your laundry or in the
pockets; if so, remove them.
CAUTION: Any malfunctions
which occur due to foreign materials
damaging your machine are not covered by
the warranty.
4. Close zips and fasten any hooks and
eyes.
5. Remove the metallic or plastic hooks of
curtains or place them in a washing net
or bag.
6. Reverse textiles such as pants,
knitwear, t-shirts and sweat shirts.
7. Wash socks, handkerchiefs and other
small items in a washing net.
Maximum
ironing
temperature
150°C
Can be dry
cleaned
Drip dry
Dry cleaning
in gas oil,
pure alcohol
and R113 is
allowed
Maximum
ironing
temperature
200°C
No dry
cleaning
Hang to dry
Perchloroethylene
R11, R13,
Petroleum
Normal
washing
Do not iron
Dry flat
Do not tumble
dry
Perchlorinetyhlene
R11, R113, Gas
oil
Can be
bleached
Do not bleach
F P A
5.2 Putting Laundry in the Machine
• Open the door of your machine.
• Spread your laundry evenly in the
machine.
NOTE: Take care not to exceed
the maximum load of the drum as this will
give poor wash results and cause creasing.
Refer to the washing programme tables for
information on load capacities.
The following table shows approximate
EN - 14
weights of typical laundry items:

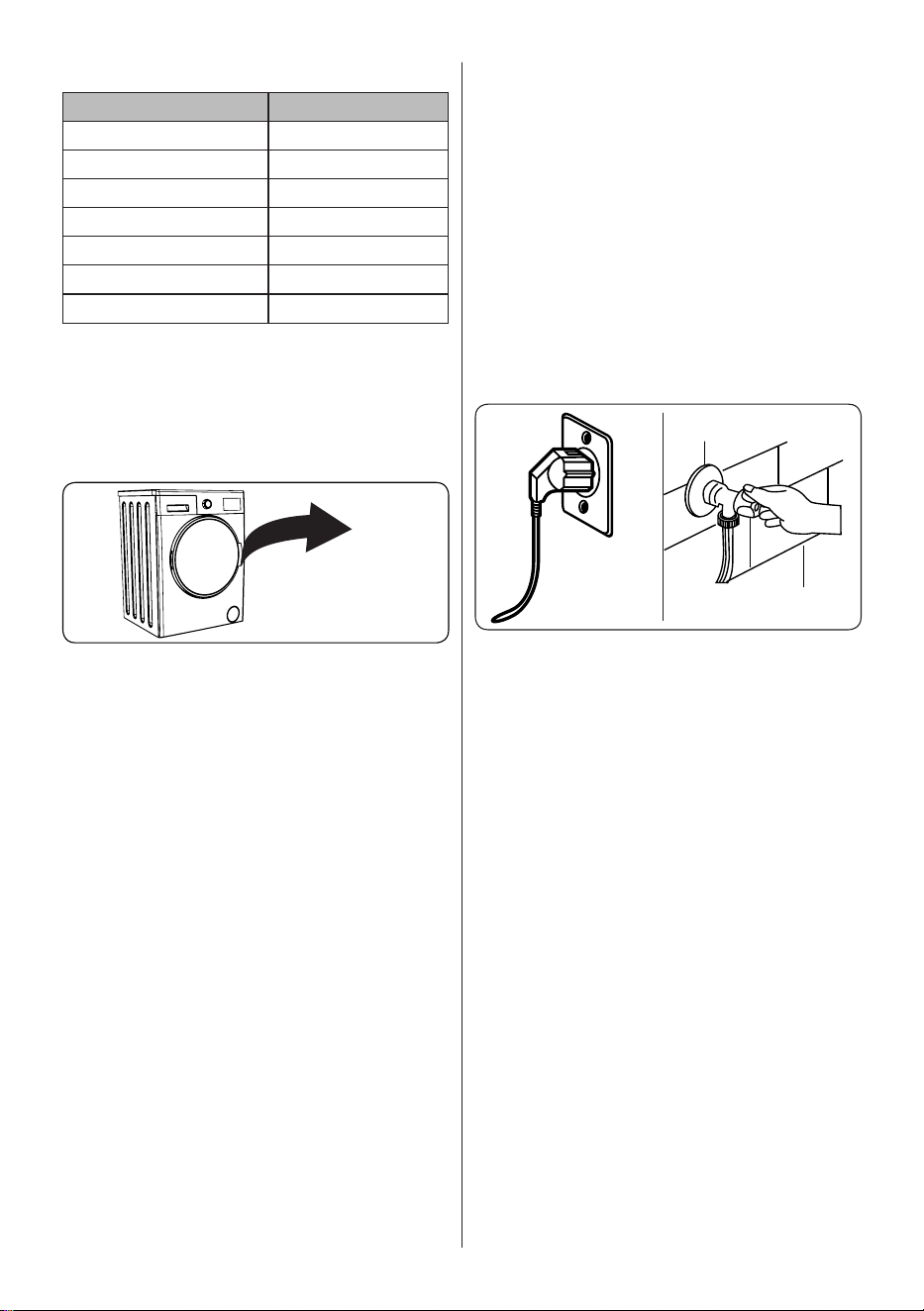

LAUNDRY TYPE WEIGHT (gr)
Towel 200
Linen 500
Bathrobe 1200
Quilt cover 700
Pillow slip 200
Underwear 100
Tablecloth 250
• Load each item of laundry separately.
• Check that no items of laundry are
trapped between the rubber seal and
the door.
• Gently push the door until it clicks shut.
click
• Make sure the door is fully closed,
otherwise the programme will not start.
5.3 Adding Detergent to the Machine
The amount of detergent you will need to
put in your machine will depend on the
following criteria:
• If your clothes are only slightly soiled,
do not pre-wash. Put a small amount
of detergent (as specified by the
manufacturer) into compartment II of the
detergent drawer.
• If your clothes are excessively soiled,
select a programme with pre-wash and
put ¼ of the detergent to be used into
compartment I of the detergent drawer
and the rest in compartment II.
• Use detergents produced for automatic
washing machines. Follow the
manufacturer’s instructions on the
amount of detergent to use.
• In areas of hard water, more detergent
will be required.
• The amount of the detergent required
will increase with higher washing loads.
• Put softener in the middle compartment
of the detergent drawer. Do not exceed
the MAX level.
• Thick softeners may cause clogging of
the drawer and should be diluted.
• It is possible to use fluid detergents in
all programmes without a pre-wash. To
do this, slide the fluid detergent level
plate (*) into the guides in compartment
II of the detergent drawer. Use the lines
on the plate as a guide to fill the drawer
to the required level.
(*) Specifications may vary depending on
the machine purchased.
5.4 Operating Your Machine
1 2
1. Plug your machine in to the mains
supply.
2. Turn on the water supply.
• Open the machine door.
• Evenly spread your laundry in the
machine.
• Gently push the door until it clicks shut.
5.5 Selecting a Programme
Use the programme tables to select the
most appropriate programme for your
laundry.
5.6 Half-Load Detection System
Your machine features a half-load detection
system.
If you put less than half the maximum
load of laundry into your machine it will
automatically set the half-load function,
regardless of the programme you selected.
This means that the selected programme
will take less time to complete and will use
less water and energy.
(*) Model Dependant
EN - 15

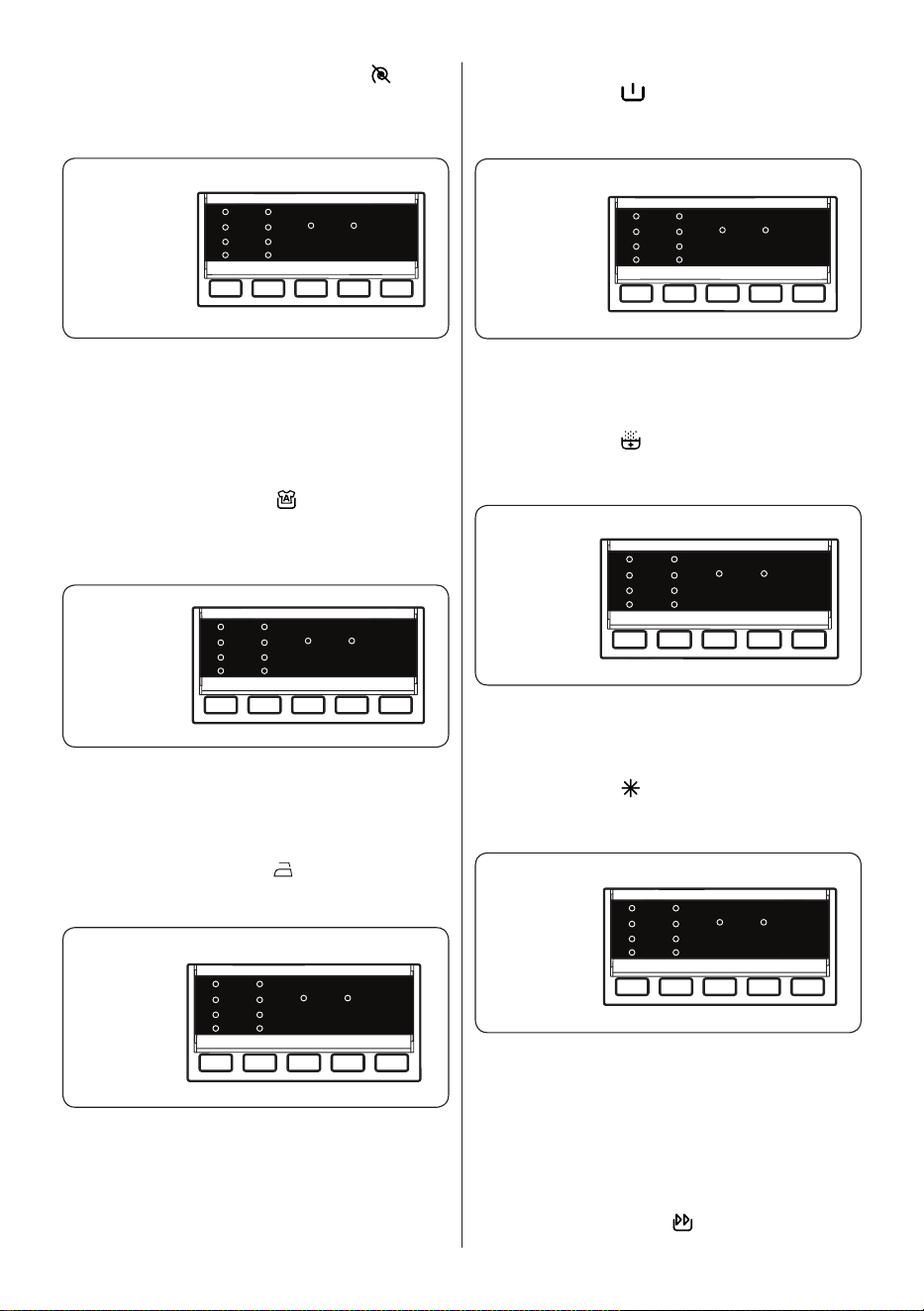

5.7 Additional Functions
Before starting a programme, you can
select an additional function.
• Press the button on the Control Panel
below the symbol of the additional
function you wish to select.
• If the symbol of the additional function
flashes continuously, the function has
been activated.
• If the symbol of the additional function
blinks, the function has not been
selected.
Reason for non-activation:
• The additional function is not
compatible with the selected washing
programme.
• Your machine has progressed too far
into the selected programme for the
additional function to be possible.
• The additional function you have
chosen is not compatible with
another additional function you have
already selected.
3. Temperature Selection
Temp.
Use the washing water temperature
adjustment button to alter the automatically
programmed washing water temperature.
When you select a programme the
maximum temperature for that programme
is automatically selected. To adjust the
temperature, press the water temperature
adjustment button until the desired
temperature is displayed on the digital
display.
You can gradually reduce the washing
water temperature between the maximum
temperature for the selected programme
and cold washing
selections by pressing
the temperature adjustment button.
If you have skipped the washing water
temperature you wanted, keep pressing
the washing water temperature adjustment
button until the desired temperature is
displayed again.
NOTE: 90°C is not displayed in the
Wash Temperature Indicators section of the
display panel. When the temperature value
is decreased to 60°, 40°, 30°, (cold
washing) temperature levels by pressing
the temperature adjustment button, the
decreased temperature value is displayed
on the display panel.
4. Spin Speed Selection
Spin
Speed
When you select a programme, the
maximum spin speed is automatically
selected. To adjust the spin speed, press
the Spin button ( ) until the desired speed
is displayed.
When the spin speed selection reaches
the lowest speed setting, pressing the Spin
button returns to the highest speed setting.
If you miss the spin speed you want to set,
keep pressing the Spin button until you
reach the option you want.
5. No Spin(*)
Auxiliary
function
button 3 or 4
No Spin
If you don’t want your laundry to be spun at
the end of the selected wash programme,
EN - 16
press the No Spin button when the
symbol is displayed.
6. Anti- Allergic(*)
Auxiliary
function
button 3 or 4
Anti-allergic
You can add an additional rinse operation to
your laundry using this additional function.
Your machine will carry out all rinsing steps
with hot water. We recommend this setting
for laundry worn on delicate skin, baby
clothes and underwear.
To select this function, press the Anti-
allergic button when the
symbol is
displayed.
7. Easy Ironing(*)
Auxiliary
function
button 3 or 4
Easy ironing
Using this function will result in your laundry
being less wrinkled at the end of the
selected washing programme.
To select this function, press the Easy
ironing button when the
symbol is
displayed.
8. Pre-Wash(*)
Auxiliary
function
button 3 or 4
Pre-wash
This allows you to give heavily soiled
laundry a pre-wash before the main
washing programme takes place. When
using this function, put detergent in front
washing compartment of the detergent
drawer.
To select this function, press the Pre-wash
button when the symbol is displayed.
9. Extra Rinse(*)
Auxiliary
function
button 3 or 4
Extra rinse
You can add an additional rinse operation
to the end of the selected wash programme
using this additional function.
To select this function, press the Extra rinse
button when the
symbol is displayed.
10. Cold Wash(*)
Auxiliary
function
button 3 or 4
Cold Wash
You can set the selected wash programme
to use cold water using this additional
function.
To select this function, press the Cold Wash
button when the
symbol is displayed.
11. Rapid Wash(*)
Auxiliary
function
button 3 or 4
Rapid wash
You can wash your laundry in a shorter
time, using less energy and water by
selecting this additional function.
We recommend that you only use this
option if you are washing less than half
the maximum dry load for the selected
programme.
To select this function, press the Rapid
wash button when the
symbol is
displayed.
EN - 17
NOTE: If you put less than half
the maximum load of laundry into your
machine, the half-load function will be
automatically set, regardless of the
programme you selected. This means
that the selected programme will take less
time to complete and will use less water
and energy. When your machine detects
half load, the symbol is displayed
automatically.
(*) Model Dependant
12. Start/Pause Button
Start-Pause
Washing
Rinsing
Spinning
End
To start the selected programme, press the
Programme Start/Pause button.
If you switch your machine to standby
mode, the Start/Pause indicator on the
electronic display will blink.

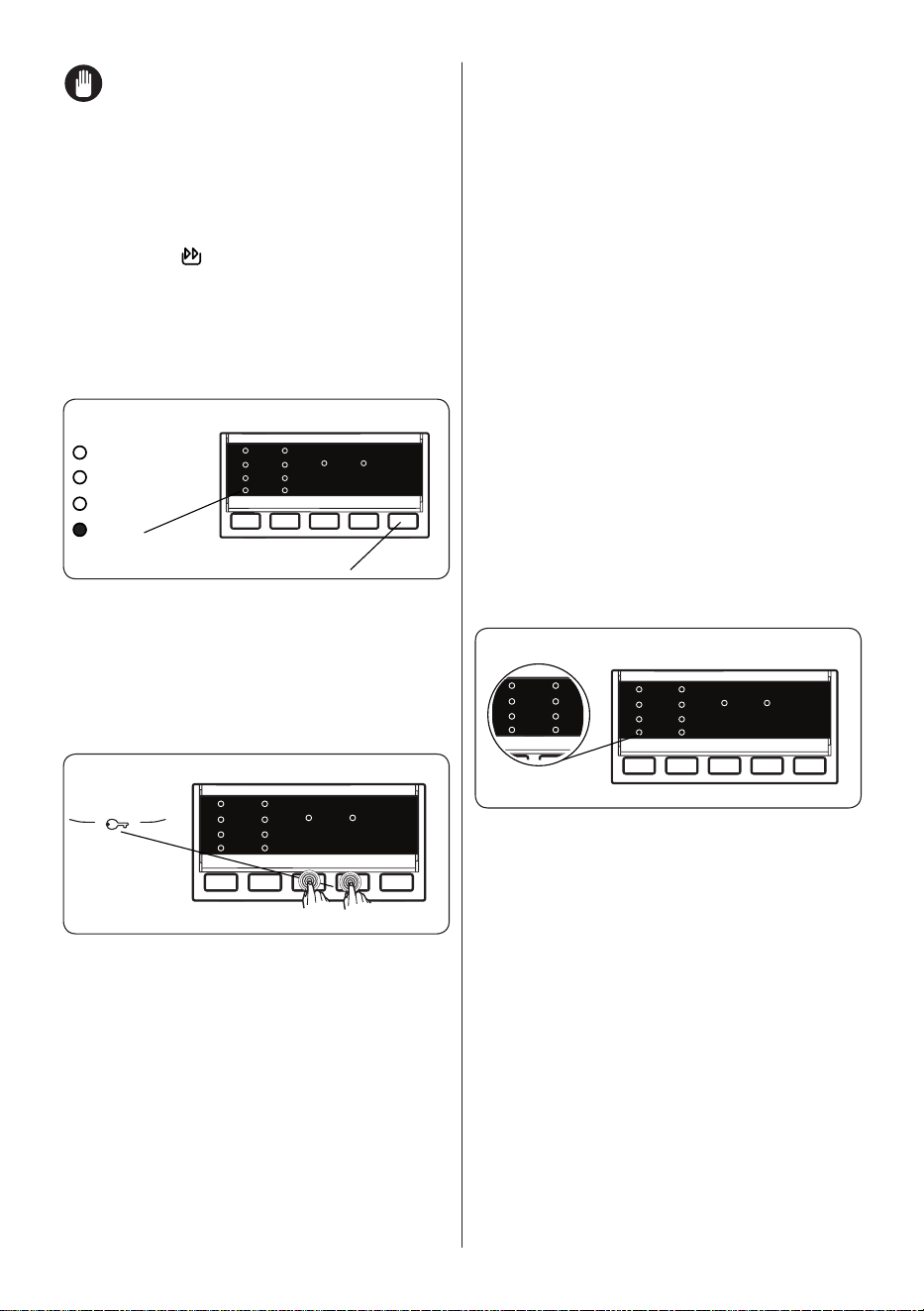

5.8 Child Lock
The child lock function prevents the
machine being operated unintentionally or
by unsupervised children.
To activate the child lock, press and hold
additional functions 3 and 4 simultaneously
for at least 3 seconds. The Additional
Function LEDs will be lit on the control
panel when the child lock is activated.
If any button is pressed while the child lock
is active, the Additional Function LEDs on
the control panel will blink.
If the child lock is engaged and any
programme is running, when the
programme dial is turned to the CANCEL
position and another programme selected,
the previously selected programme
continues from where it was left.
To deactivate the child lock, press and hold
additional functions 3 and 4 simultaneously
for at least 3 seconds. The Additional
Function LEDs will will blink on the display.
5.9 Cancelling the Programme
To cancel a running programme at any
time:
1. Turn the programme dial to the “STOP”
position.
2. Your machine will stop the washing
operation and the programme will be
cancelled.
3. Turn the programme dial to any other
programme to drain the machine.
4. Your machine will perform the
necessary discharge operation and
cancel the programme.
You can now select and run a new
programme.
5.10 Programme End
Your machine will stop by itself as soon as
the programme you have selected finishes.
• “END” will flash on the display panel
• You can open the machine’s door and
remove the laundry.
• Leave the door of your machine open
to allow the inner part of your machine
to dry.
• Switch the programme dial to STOP
position.
• Unplug your machine.
• Turn the water tap off.
EN - 18
6. PROGRAMME TABLE
Programme
Washing
temperature (°C)
Maximum dry
laundry amount
(kg)
Detergent
compartment
Programme
duration (Min.)
Laundry type / Descriptions
COTTON 90°C 90° 9,0 2 193
Very dirty, cotton and flax textiles. (Underwear, linen,
tablecloth, towel (maximum 4.5 kg), bedclothes, etc. )
Cotton Pre-Wash 60° 9,0 1&2 164
Dirty cotton and flax textiles. (Underwear, linen,
tablecloth, towel (maximum 4.5 kg), bedclothes, etc. )
COTTON 60°C 60° 9,0 2 230
Dirty cotton and flax textiles. (Underwear, linen,
tablecloth, towel (maximum 4.5 kg), bedclothes, etc. )
ECO 40-60 40° 9,0 2 228
Dirty cotton and flax textiles. (Underwear, linen,
tablecloth, towel (maximum 4.5 kg), bedclothes, etc. )
COTTON 20°C 20° 4,5 2 96
Less dirty, cotton and linen textiles. (Underwear,
bedsheet, tablecloth, towel (max. 2 kg) bedcloth, etc. )
EASY CARE 40° 3,5 2 110
Very dirty or synthetic-mixed textiles. (Nylon socks,
shirts, blouses, synthetic-including trousers etc. )
WOOL 30° 2,5 2 43 Woollen laundries with machine wash labels.
RINSING - 9,0 - 45
Provides an additional rinse to any type of laundry
after the washing cycle.
SPINNING - 9,0 - 17
Provides an additional spin cycle to any type of laundry
after the washing cycle.
Hand Wash/
Delicate
30° 2,5 2 90
Laundry recommended for hand wash or sensitive
laundry.
COLORS 40°C 40° 3,5 2 200
Less dirty, cotton and linen textiles. (Underwear,
bedsheet, tablecloth, towel (max. 2 kg) bedcloth, etc. )
MIXED 30° 3,5 2 82
Dirty cotton, synthetics, colour and flax textiles can be
washed together.
BLOUSES /
SHIRTS
60° 4,0 2 114
Dirty cotton, synthetic and synthetic-mixed shirts and
blouses can be washed together.
Fast 60 min. 60° 4,0 2 60
Dirty, cotton, coloured and linen textiles washed at
60°C in 60 minutes.
(*) RAPID 15 min.
30° 2,0 2 15 Lightly soiled, cotton, colored and linen textiles.
NOTE:PROGRAMME DURATION MAY CHANGE ACCORDING TO THE
AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED
ADDITIONAL FUNCTIONS.
(*) Due to the short washing time of this programme, we recommend that less detergent is used. The programme may last longer than
15 minutes if your machine detects an uneven load. You can open the door of your machine 2 minutes after the completion of a washing
operation. (The 2 minute period is not included in the programme duration).
According to regulation 1015/2010 and 1061/2010, the programme 3 and the programme 4 are respectively the ‘Standard 60°C cotton
programme’ and the ‘Standard 40°C cotton programme’.
The Eco 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the
same cycle, and that this programme is used to assess the compiance with the EU ecodesign legislation.
• The most efficient programmes in terms of energy consumption are generally those
that perform at lower temperatures and longer duration.
EN - 19
• Loading the household washing machine up to the capacity indicated by the
manufacturer for the respective programmes will contribute to energy and water
savings.
• Program duration, energy consumption and water consumption values may vary
according to wash load weight and type, selected extra functions, tap water and
ambient temperature.
• It’s recommended to use liquid detergent for the washing programmes at low
temperature. The amount of detergent to be used may vary depending on the amount
of laundry and the level of dirtiness of the laundry. Please follow the detergent
manufacturers’ recommendations for the amount of the detergent to be used.
• The noise and remaining moisture content are influenced by the spinning speed. The
higher spinning speed in the spinning phase, the higher noise and the lower remaining
moisture content.
• You can access the product database where the model information is stored by reading
the QR code on the energy label.
Programme
Name
Rated
Capacity kg
Energy
Consumption
kWh/cycle
Programme Duration
Hours:Minutes
Water
Consumption
Litres/Cycle
max.
Temperature
°C
Remaining
Moisture Content
%
1200 Rpm
Rated
Capacity
1/2 Load
1/4 Load
Rated
Capacity
1/2 Load
1/4 Load
Rated
Capacity
1/2 Load
1/4 Load
Rated
Capacity
1/2 Load
1/4 Load
Rated
Capacity
1/2 Load
1/4 Load
COTTON
90°C
9 2,65
03:13
73 81 53%
COTTON
60°C
9 0,87
03:50
57 40 53%
ECO
40-60
9 1,14 0,56 0,30 03:40 02:54 02:50 57 47 37 42 28 23 53% 53% 53%
EASY CARE
3,5 0,8
01:50
44 42 62%
FAST
60’.
4 0,95
01:00
32 58 53%
COTTON
20°C
4,5 0,25
01:36
54 20 53%
EN - 20
6.1 Important Informations
• Use detergents, softeners and other additives suitable for automatic washing machines
only. Excessive foam has occurred and automatic foam absorption system has been
activated due to too much detergent usage.
• We recommend that periodic cleaning for washing machine every 2 months. For
periodic cleaning please use Drum Clean programme. If your machine do not have
Drum Clean programme, use Cottons-90 programme. When required, use limescale
removers manufactured specifically for washing machines only.
• Never force the door open when your Washing Machine is running. You can open the
door of your machine 2 minutes after the completion of a washing operation. *
• Never force the door open when your Washing Machine is running. The door will open
immediately after the washing cycle has ended. *
• The installation and repairing procedures should always carried out by the Authorised
Service Agent in order to avoid possible risks. The manufacturer shall not be held liable
for damages that may arise from procedures carried out by unauthorised persons.
(*) Specifications may vary depending on the machine purchased.
EN - 21
EN - 22
7. CLEANING AND
MAINTENANCE
7.1 Warning
Turn your mains power
supply off and remove
the plug from the socket
before carrying out
maintenance and cleaning
of your machine.
Turn off the water
supply before starting
maintenance and cleaning
of your machine.
CAUTION: Do not
use solvents, abrasive
cleaners, glass cleaners
or all-purpose cleaning
agents to clean your
Washing Machine. They
may damage the plastic
surfaces and other
components with the
chemicals they contain.
7.2 Water Inlet Filters
Water inlet filters prevent dirt and foreign
materials from entering your machine. We
recommend that these filters are cleaned
when your machine is unable to receive
sufficient water, although your water supply
is on and the tap is open. We recommend
that you clean your water inlet filters every
2 months.
• Unscrew the water inlet hose(s) from
the Washing Machine.
• To remove the water inlet filter from the
water inlet valve, use a pair of long-
nosed pliers to gently pull on the plastic
bar in the filter.
• A second water inlet filter is located in
the tap end of the water inlet hose. To
remove the second water inlet filter, use
a pair of long-nosed pliers to gently pull
on the plastic bar in the filter.
• Clean the filter thoroughly with a soft
brush and wash with soapy water and
rinse thoroughly. Re-insert the filter by
gently pushing it back into place.
CAUTION: The filters at the
water inlet valve may become clogged
due to water quality or lack of required
maintenance and may break down.
This may cause a water leak. Any such
breakdowns are out of the scope of the
warranty.
EN - 23

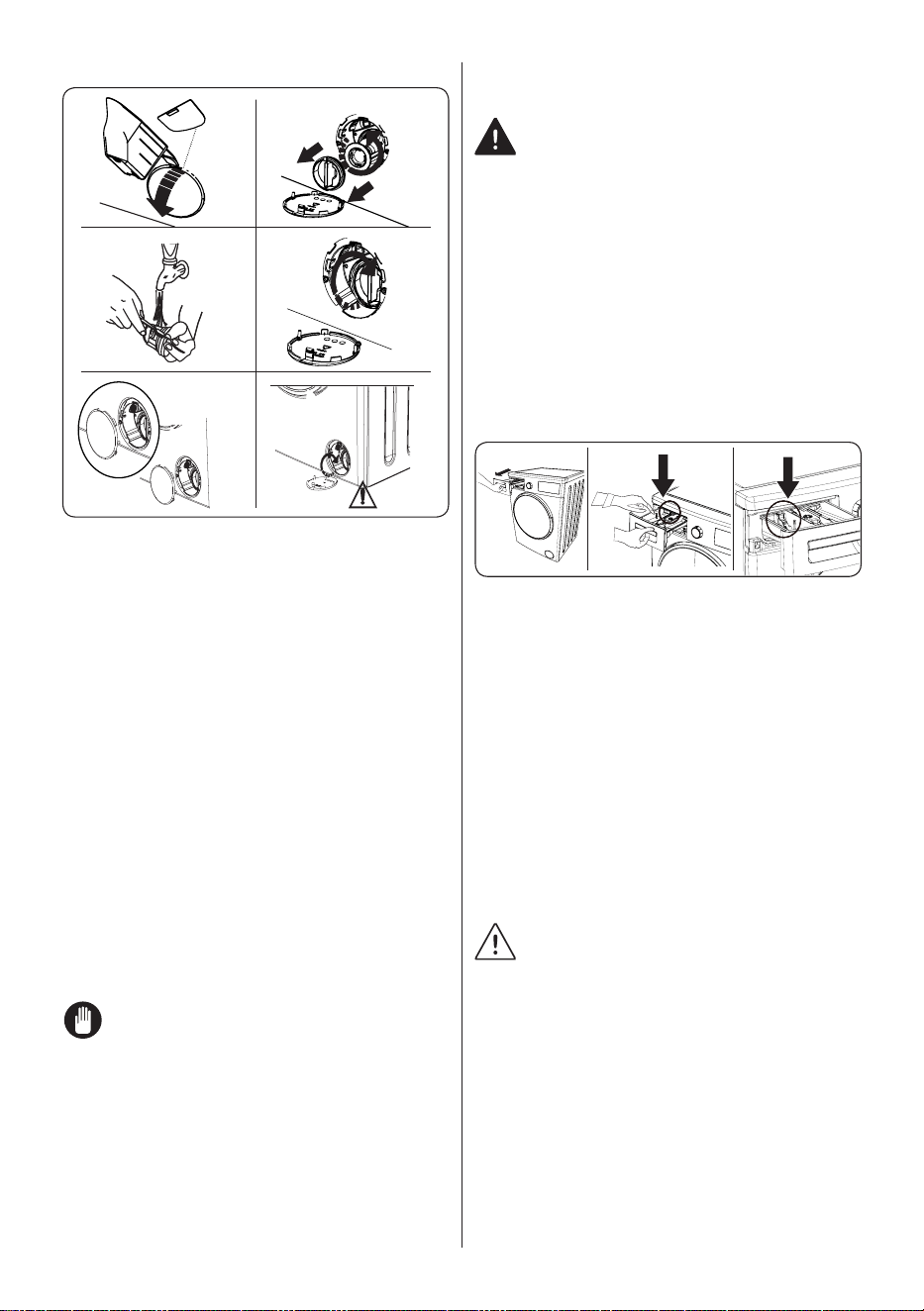

7.3 Pump Filter
1
3
5
2
4
6
The pump filter system in your Washing
Machine prolongs the life of the pump by
preventing lint from entering your machine.
We recommend that you clean the pump
filter every 2 months.
The pump filter is located behind the cover
on the front-lower right corner.
To clean the pump filter:
1. You may use the washing powder spade
(*) supplied with your machine or liquid
detergent level plate to open the pump
cover.
2. Lodge the end of the powder spade
or liquid detergent level plate in the
opening of the cover and gently press
backwards. The cover will open.
• Before opening the filter cover, place a
container under the filter cover to collect
any water left in the machine.
• Loosen the filter by turning anticlockwise
and remove by pulling. Wait for the
water to drain.
NOTE: Depending on the
amount of water inside the machine, you
may have to empty the water collection
container a few times.
3. Remove any foreign materials from the
filter with a soft brush.
4. After cleaning, re-fit the filter by inserting
it and turning clockwise.
5. When closing the pump cover, ensure
that the mountings inside the cover
meet the holes on the front panel side.
6. Close the filter cover.
WARNING: The water in the
pump may be hot, wait until it has cooled
down before carrying out any cleaning or
maintenance.
(*) Specifications may vary depending on
the machine purchased.

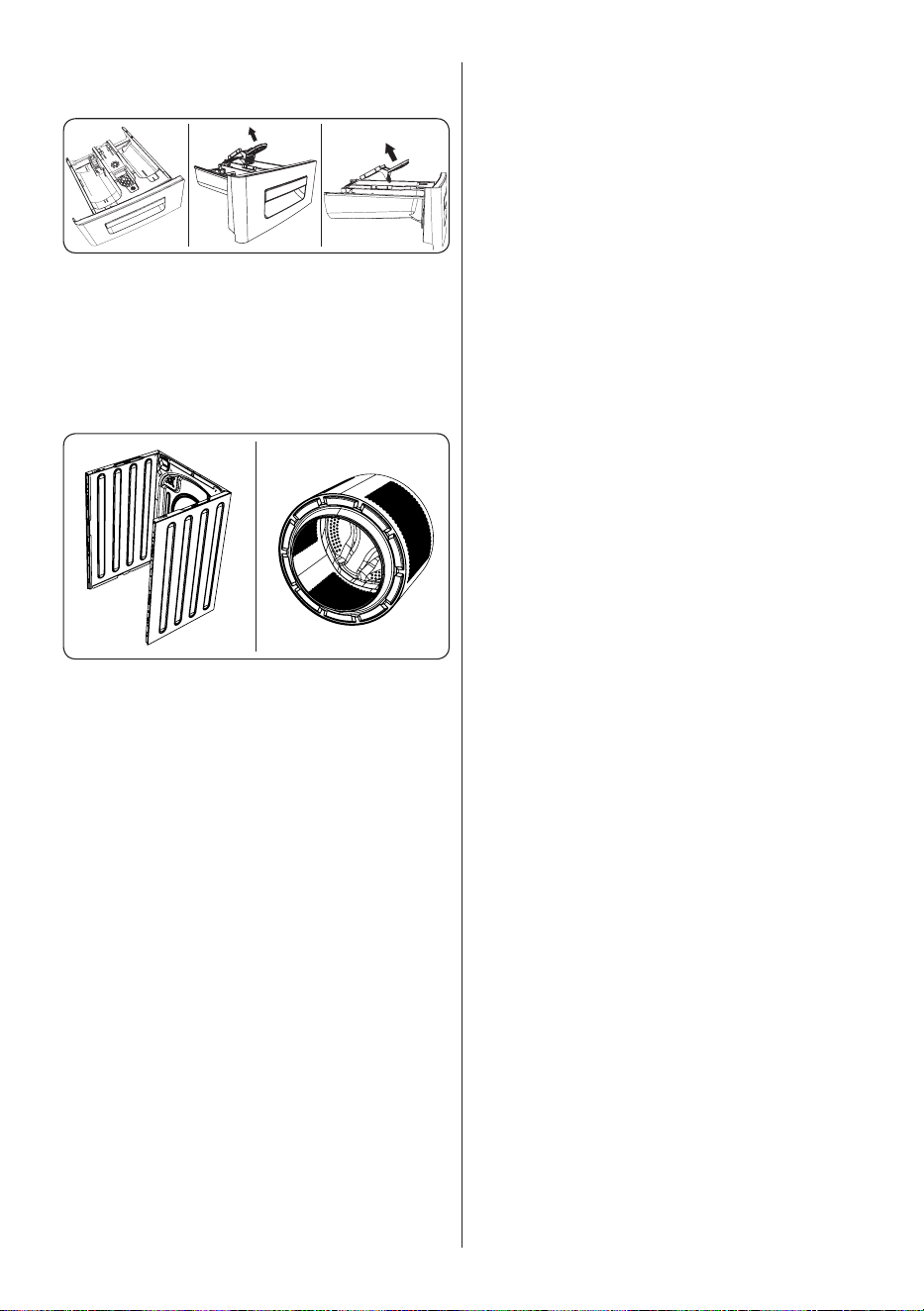

7.4 Detergent Drawer
The use of detergent may cause residual
build up in the detergent drawer over time.
We recommend that you remove the drawer
every 2 months to clean the accumulated
residue.
To remove the detergent drawer:
• Pull the drawer forwards until it is fully
extended.
• Gently press down on the drawer (as
shown below) and pull the drawer from
its housing.
• Clean the drawer with water and a soft
brush.
• If there is any residue in the drawer
housing, remove with a soft brush.
Take care to prevent any residue from
dropping into the machine.
• Dry the drawer thoroughly and slide it
back into the housing.
Do not wash your detergent drawer
in dishwasher.
EN - 24
8. FLUSH STOPPER
/ BODY / DRUM
1
1. Flush stopper
Remove the detergent drawer and
disassemble the flush stopper. Clean
thoroughly to completely remove any
softener residue. Refit the flush stopper
after cleaning and check that it is seated
properly.
2 3
2. Body
Use a mild, non-abrasive cleaning agent,
or soap and water, to clean the external
casing. Wipe dry with a soft cloth.
3. Drum
Do not leave metallic objects such as
needles, paper clips, coins etc. in your
machine. These objects lead to the
formation of rust stains in the drum. To
clean such rust stains, use a non-chlorine
cleaning agent and follow the instructions of
manufacturer of the cleaning agent. Never
use wire wool or similar hard objects for
cleaning rust stains.
EN - 25
9. TROUBLESHOOTING
Repair of your machine should be carried out by an authorised service company. If your
machine requires repair or if you cannot solve an issue with the information provided
below, then you should:
• Unplug your machine from the mains power supply.
• Turn off the water supply.
FAULT POSSIBLE CAUSE TROUBLESHOOTING
Your machine does not start.
Machine not plugged in. Plug machine in.
Fuses are faulty. Replace the fuses.
No mains power supply. Check mains power.
Start/Pause button not pressed. Press the Start/Pause button.
Programme dial ‘stop’ position. Turn the programme dial to the desired position.
The machine door is not
completely closed.
Close the machine door.
Your machine does not
intake water.
Water tap is turned off. Turn tap on.
Water inlet hose may be twisted. Check water inlet hose and untwist.
Water inlet hose clogged. Clean water inlet hose filters. (*)
Inlet filter clogged. Clean the inlet filters. (*)
The machine door is not
completely closed.
Close the machine door.
Your machine does not
discharge water.
Drain hose clogged or twisted.
Check the drain hose, then either clean or
untwist.
Pump filter clogged. Clean the pump filter. (*)
Laundry is too tighly packed
together in the drum.
Spread your laundry in the machine evenly.
Your machine vibrates.
The feet have not been adjusted. Adjust the feet. (**)
Transit bolts fitted for
transportation have not been
removed.
Remove the transit bolts from the machine. (**)
Small load in the drum. This will not prevent operation of your machine.
Your machine is overloaded with
laundry or laundry is unevenly
spread.
Do not overload the drum. Spread laundry evenly
in the drum.
Your machine rests on a hard
surface.
Do not set up your Washing Machine on a hard
surface.
Excessive foam is formed in
the detergent drawer.
Excessive amount of detergent
used.
Press the Start/Pause button. To stop the foam,
dilute one tablespoon of softener into 1/2 litre of
water and pour into the detergent drawer. Press
the Start/Pause button after 5-10 mins.
Wrong detergent used.
Only use detergents produced for automatic
Washing Machines.
Unsatisfactory washing
result.
Your washing is too dirty for the
programme selected.
Use the information in the programme tables to
select the most appropriate programme.
Amount of detergent used
insufficient.
Use the amount of detergent as instructed on the
packaging.
There is too much laundry in your
machine.
Check that the maximum capacity for the
selected programme has not been exceeded.
EN - 26
FAULT POSSIBLE CAUSE TROUBLESHOOTING
Unsatisfactory washing
result.
Hard water.
Increase the amount of detergent following the
manufacturer’s instructions.
Your laundry is too tightly packed
together in the drum.
Check that your laundry is spread out.
As soon as the machine is
loaded with water, water
discharges.
The end of water drain hose is too
low for the machine.
Check that the drain hose is at a suitable height.
(**) .
No water appears in the
drum during washing.
No fault. Water is in the unseen
part of the drum.
. . . . . . . . . . . . . . . . . . . . .
Laundry has
detergent residue.
Non-dissolving particles of some
detergents may appear on your
laundry as white spots.
Perform an extra rinse, or clean your laundry with
a brush after it dries.
Grey spots appear on the
laundry.
There is untreated oil, cream or
ointment on your laundry.
Use the amount of detergent as instructed on the
packaging in the next wash.
The spin cycle does not take
place or takes place later
than expected.
No fault. The Unbalanced load
control system has been activated.
The Unbalanced load control system will try to
spread your laundry. The spinning cycle will begin
once your laundry is spread. Load the drum
evenly for the next wash.
(*) See the chapter regarding maintenance and cleaning of your machine.
(**) See the chapter regarding installation of your machine.
10. AUTOMATIC FAULT WARNINGS AND WHAT TO DO
Your Washing Machine is equipped with a built-in fault detection system, indicated by a
combination of flashing wash operation lights. The most common failure codes are shown
below.
TROUBLE CODE POSSIBLE FAULT WHAT TO DO
E01
Wash
Rinse
Spin
End
The door of your machine is not shut
properly.
Shut the door properly until you hear a click. If
your machine persists to indicate fault, turn off
your machine, unplug it and contact the nearest
authorised service agent immediately.
E02
Wash
Rinse
Spin
End
The water pressure or the water level
inside the machine may be low.
Check the tap is fully turned on. Mains water
may be cut-off. If the problem still continues, your
machine will stop after a while automatically. Unplug
the machine, turn off your tap and contact the
nearest authorised service agent.
E03
Wash
Rinse
Spin
End
The pump is faulty or pump filter is
clogged or electrical connection of the
pump is faulty.
Clean the pump filter. If the problem persists,
contact the nearest authorised service agent. (*)
E04
Wash
Rinse
Spin
End
Your machine has excessive amount of
water.
Your machine will discharge water by itself. Once
the water has drained, turn off your machine and
unplug it. Turn off the tap and contact the nearest
authorised service agent.
(*) See the chapter regarding maintenance and cleaning of your machine.
CERTIFICADO DE GARANTÍA
Imprescindible la presentación de la factura de compra acompañada del presente certificado de garantía.
Riesgos cubiertos.
Este aparato está garantizado contra cualquier defecto de funcionamiento, siempre que se destine a uso doméstico,
procediéndose a su reparación dentro del plazo de garantía y sólo por la red de SAT autorizados.
Nuestros electrodomésticos Corberó cuentan con la garantía legal del fabricante que cubre cualquier avería o defecto durante36
meses, desde su fecha factura de 1 de enero del 2022. En caso de que fuera necesario, nosotros nos ocupamos de cualquier posible
incidencia siempre que se deba a un componente defectuoso o fallo de fabricación.
Excepciones de garantía.
• Que la fecha del certificado no coincida con la fecha de venta de la factura original.
• Averías producidas por golpe, por caída o cualquier otra causa de fuerza mayor.
• Si el apa
rato ha sido manipulado por personal no autorizado.
• Las averías producidas o derivadas como consecuencia de un uso inadecuado, por defectos de instalación,
por introducir modificaciones en el aparato que alteren su funcionamiento.
• Puestas en marcha, mantenimiento, limpiezas, componentes sujetos a desgaste, lámparas, piezas estéticas,
oxidaciones, plásticos, gomas, carcasas y cristales.
“ESTAS EXCEPCIONES ANULAN LA GARANTÍA, SIENDO LA REPARACIÓN CON CARGO AL CLIENTE”
Periodo amparado en aparatos según ley de garantias en la venta de bienes de consumo Ley vigente es “RD 7/2021”
Horario de atención Lunes a Viernes de 9h00 a 19h00. Teléfono de contacto_ 911 08 08 08 Mail de contacto_ [email protected] web_ www.corbero.es
Dirección de Servicio técnico oficial_Vidal i Ribes 8-10 08950 Esplugues de Llobregat Barcelona
Sevicio Técnico Oficial: 911 08 08 08
Los hornos microondas (a excepción de los integrables) y los hornos sobremesa en el caso de cualquier incidencia de
funcionamiento, deben de llevarse al servicio técnico más próximo por parte del cliente. No se recojen ni reparan en el
domicilio.
•
Garantía termos eléctricos. Garantía de 3 años incluyendo los costes de desplazamiento y mano de obra que
correspondan de la reparación del producto, teniendo que tener un mantenimiento una vez cada 12 meses.
Especialmente si Ud. ha instalado un aparato a gas, tenga presente como titular de la instalación, la obligatoriedad de
realizar una revisión completa de los equipos, (según Real Decreto 238 / 2013, del 5 Abril. RITE. IT3, M. Lo termos
eléctricos y calderas que incluyen depósitos acumuladores de agua caliente, para que se aplique la prestación de la
Garantía, es obligatorio que el ánodo de magnesio esté operativo y que realice la función de protección
adecuadamente. Para ello es recomendable que el ánodo se revise bianualmente por el Servicio Oficial y sea renovado
cuando fuera necesario. Periodicidad que deberá ser anual en aquellas zonas con aguas críticas (contenido de CaCO3
superiores a 200mg/L, es decir a partir de 20ºfH de dureza). Depósitos sin el correcto estado del ánodo de protección, no
tienen la cobertura de la garantía. Independientemente del tipo de depósito o producto, todas las válvulas de
sobrepresión de calefacción o a.c.s., deberán ser canalizadas para evitar daños en Ia vivienda por descargas de agua. La
garantía del producto no asume los daños causados por Ia no canalización del agua derramada por esta válvula.
•
CERTIFICATE OF GUARANTEE
The presentation of the purchase invoice accompanied by this guarantee certificate is essential.
Covered Risks.
This appliance is guaranteed against any malfunction, provided that it is intended for domestic use, proceeding to its repair within
the warranty period and only by the authorized SAT network.
Our Corberó appliances have the manufacturer's legal warranty that covers any breakdown or defect for 36 months, from the
invoice date of January 1, 2022. If necessary, we take care of any possible incident whenever it is due to a defective component or
manufacturing fault. Warranty Exceptions
Warranty Exceptions
•
That the date of the certificate does not coincide with the date of sale of the original invoice.
•
Faults produced by blow, by fall or any other cause of force majeure.
•
If the device has been manipulated by unauthorized personnel.
•
Faults produced or derived as a consequence of improper use, installation defects, or modifications to the device that
alter its operation.
•
Start-up, maintenance, cleaning, components subject to wear, lamps, aesthetic parts,
oxidation, plastics, rubbers, housings and crystals.
“THESE EXCEPTIONS VOID THE WARRANTY, THE REPAIR BEING CHARGED TO THE CUSTOMER”
Period covered in devices according to the law of guarantees in the sale of consumer goods Current law is “RD 7/2021”
Hours of operation Monday to Friday from9h00 a 19h00. Telephone contact_ 911 08 08 08 Contact email_ [email protected] web_ www.corbero.es
Official Technical Service Address_Vidal i Ribes 8-10 08950 Esplugues de Llobregat Barcelona
Official Technical Service: 911 08 08 08
Microwave ovens (with the exception of built-in ones) and tabletop ovens in the event of any incident of
operation, they must be taken to the nearest technical service by the customer. They are not collected or repaired at
home.
•
Electric thermos guarantee. 3-year warranty including travel and labor costs that correspond to the repair of the
product, having to have maintenance once every 12 months. Especially if you have installed a gas appliance, keep in
mind as the owner of the installation, the obligation to carry out a complete review of the equipment, (according to
Royal Decree 238 / 2013, of April 5. RITE. IT3, M. Lo thermos electrical and boilers that include hot water storage tanks,
for the benefit of the Guarantee to apply, it is mandatory that the magnesium anode is operational and that it performs
the protection function adequately.For this, it is recommended that the anode be checked biannually by the Official
Service and is renewed when necessary Periodicity that must be annual in those areas with critical waters (CaCO3
content greater than 200mg/L, that is, from 20ºfH of hardness) Deposits without the correct state of the protection
anode are not covered by the warranty Regardless of the type of tank or product, all heating or DHW overpressure
valves must be channeled to avoid damage and n the house due to water discharges. The product warranty does not
cover damages caused by not channeling the water spilled by this valve.
•
