MODEL:CT-IN-D-YL-IF7208S
INDUCTION
COOKTOP
USER MANUAL
Please read this manual carefully before installing and
using
the product to avoid product damage and personal injury. Please
retain this manual for future
reference.
2
Safety Warnings
Your safety is important to us. Please read this
information before using your cooktop.
Installation
Electrical Shock Hazard
• Disconnect the appliance from the mains
electricity supply before carrying out any work
or maintenance on it.
• Connection to a good earth wiring system is
essential and mandatory.
• Alterations to the domestic wiring system must
only be made by a qualified electrician.
• Failure to follow this advice may result in
electrical shock or death.
Cut Hazard
• Take care - panel edges are sharp.
• Failure to use caution could result in injury or
cuts.
Important safety instructions
• Read these instructions carefully before
installing or using this appliance.
• No combustible material or products should be
placed on this appliance at any time.
• Please make this information available to the
person responsible for installing the appliance
as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must
3
be installed according to these instructions for
installation.
• This appliance is to be properly installed and
earthed only by a suitably qualified person.
• This appliance should be connected to a circuit
which incorporates an isolating switch
providing full disconnection from the power
supply.
• Failure to install the appliance correctly could
invalidate any warranty or liability claims.
Operation and maintenance
Electrical Shock Hazard
• Do not cook on a broken or cracked cooktop. If
the cooktop surface should break or crack,switch
the appliance off immediately at the mains power
supply (wall switch) and contact a qualified
technician.
• Switch the cooktop off at the wall before
cleaning or maintenance.
• Failure to follow this advice may result in
electrical shock or death.
Health Hazard
• This appliance complies with electromagnetic
safety standards.
• However, persons with cardiac pacemakers or
other electrical implants (such as insulin
pumps) must consult with their doctor or
implant manufacturer before using this
4
appliance to make sure that their implants will
not be affected by the electromagnetic field.
• Failure to follow this advice may result in death.
Hot Surface Hazard
• During use, accessible parts of this appliance
will become hot enough to cause burns.
• Do not let your body, clothing or any item other
than suitable cookware contact the Induction
glass until the surface is cool.
• Metallic objects such as knives, forks, spoons
and lids should not be placed on the hob surface
since they can get hot
• Keep children away.
• Handles of saucepans may be hot to touch.
Check saucepan handles do not overhang other
cooking zones that are on. Keep handles out of
reach of children.
• Failure to follow this advice could result in
burns and scalds.
Cut Hazard
• The razor-sharp blade of a cooktop scraper is
exposed when the safety cover is retracted.Use
with extreme care and always store safely and
out of reach of children.
• Failure to use caution could result in injury or
cuts.
Important safety instructions
• Never leave the appliance unattended when in
use. Boilover causes smoking and greasy
spillovers that may ignite.
• Never use your appliance as a work or storage
5
surface.
• Never leave any objects or utensils on the
appliance.
• Do not place or leave any magnetisable objects
(e.g. credit cards, memory cards)or electronic
devices (e.g. computers, MP3 players) near the
appliance, as they may be affected by its
electromagnetic field.
• Never use your appliance for warming or
heating the room.
• After use, always turn off the cooking zones
and the cooktop as described in this manual (i.e.
by using the touch controls). Do not rely on the
pan detection feature to turn off the cooking
zones when you remove the pans.
• Do not allow children to play with the appliance
or sit, stand, or climb on it.
• Do not store items of interest to children in
cabinets above the appliance. Children climbing
on the cooktop could be seriously injured.
• Do not leave children alone or unattended in
the area where the appliance is in use.
• Children or persons with a disability which
limits their ability to use the appliance should
have a responsible and competent person to
instruct them in its use. The instructor should be
satisfied that they can use the appliance without
danger to themselves or their surroundings.
• Do not repair or replace any part of the
6
appliance unless specifically recommended in the
manual. All other servicing should be done by a
qualified technician.
• Do not use a steam cleaner to clean your
cooktop.
• Do not place or drop heavy objects on your
cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans
across the Induction glass surface as this can
scratch the glass.
• Do not use scourers or any other harsh
abrasive cleaning agents to clean your cooktop,
as these can scratch the Induction glass.
• If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a
hazard.
•This appliance is intended to be used in
household and similar applications such as:
-staff kitchen areas in shops, offices and other
working environments; -farm houses; -by
clients in hotels, motels and other residential
type environments ; -bed and breakfast type
environments.
•WARNING: The appliance and its accessible
parts become hot during use.
Care should be taken to avoid touching heating
elements.
Children less than 8 years of age shall be kept
away unless continuously supervised.
7
•This appliance can be used by children aged
from 8 years and above and persons with
reduced physical,sensory or mental capabilities
or lack of experience and knowledge if they have
been given supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved.
•Children shall not play with the appliance.
Cleaning and user maintenance shall not be
made by children without supervision.
•WARNING: Unattended cooking on a hob with
fat or oil can be dangerous and may result in
fire.NEVER try to extinguish a fire with water, but
switch off the appliance
and then cover flame e.g. with a lid or a fire
blanket.
•WARNING: Danger of fire: do not store items on
the cooking surfaces.
• Warning: If the surface is cracked, switch off
the appliance to avoid
the possibility of electric shock, for hob surfaces
of glass-ceramic or similar material which protect
live parts
•A steam cleaner is not to be used.
•The appliance is not intended to be operated by
means of an external timer or separate
remote-control system.
CAUTION:The cooking process has to be
supervised.A short term cooking process has to
8
be supervised continuously.
WARNING:In order to prevent tipping of the
appliance,this stabilizing means must be
installed.Refer to the instructions for installation.
WARNING:Use only hob guards designed by the
manufactuer of the cooking appliance or
indicated by the manufacture of the appliance in
the instruction for use as suitable or hob guards
incorporated in the appliance.The use of
inappropriate guards can cause accidents.
This appliance incorporates an earth connection
for functional purposes only.
Congratulations on the purchase of your new Induction Hob.
We recommend that you spend some time to read this Instruction / Installation
Manual in order to fully understand how to install correctly and operate it.
For installation, please read the installation section.
Read all the safety instructions carefully before use and keep this Instruction /
Installation Manual for future reference.
9

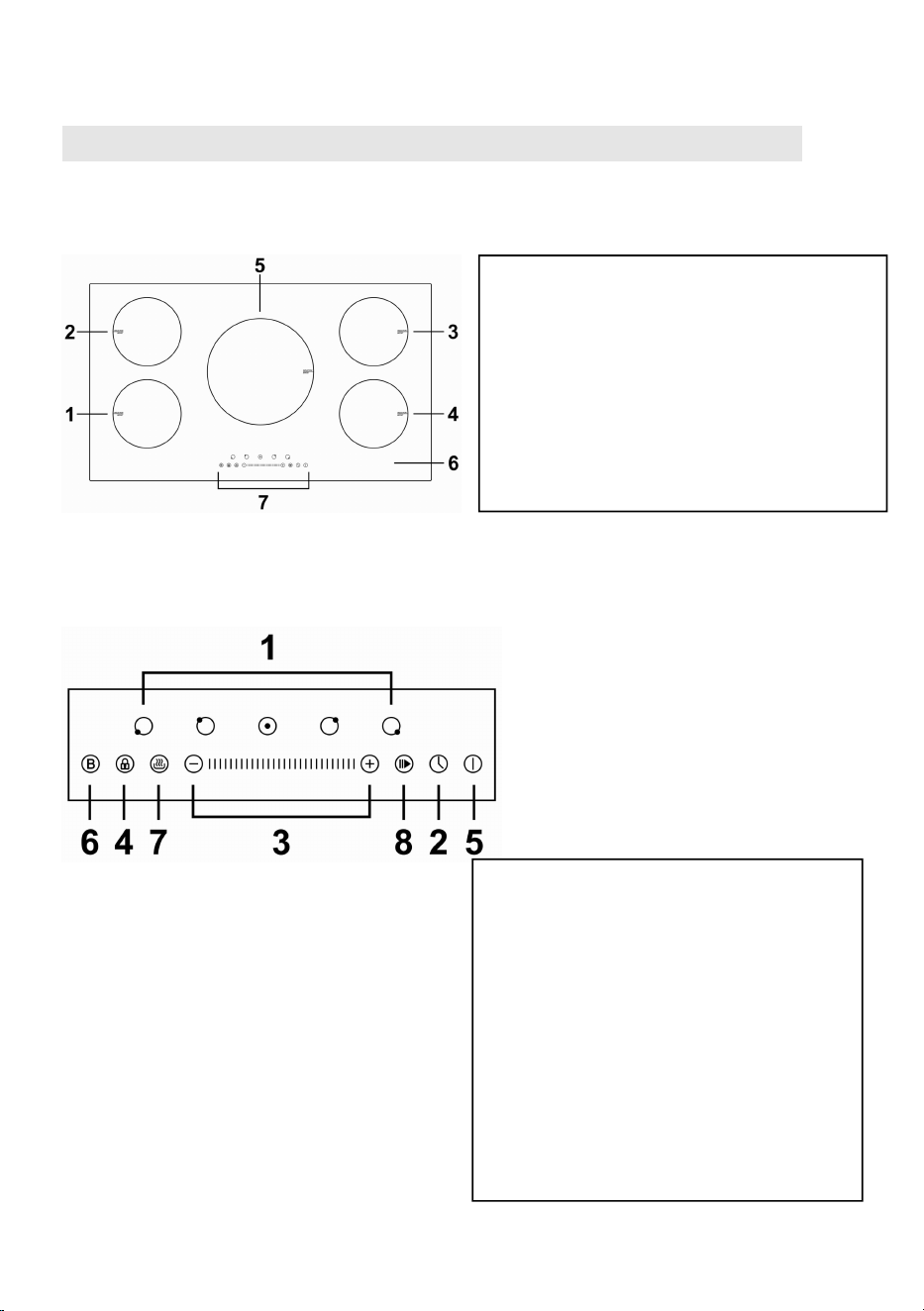

Product Overview
Top View
Control Panel
1. Heating zone selection controls
2. Timer control
3. Power / Timer regulating
controls
4. Key lock control
5. ON/OFF control
6. Boost function control
7. Keep warm function
8.Stop & go function control
1. 2000W Boost to 2600W
2. 1500W Boost to 2000W
3. 2000W Boost to 2600W
4. 1500W Boost to 2000W
5. 2300W Boost to 3000W
6. Glass plate
7. Control panel
10

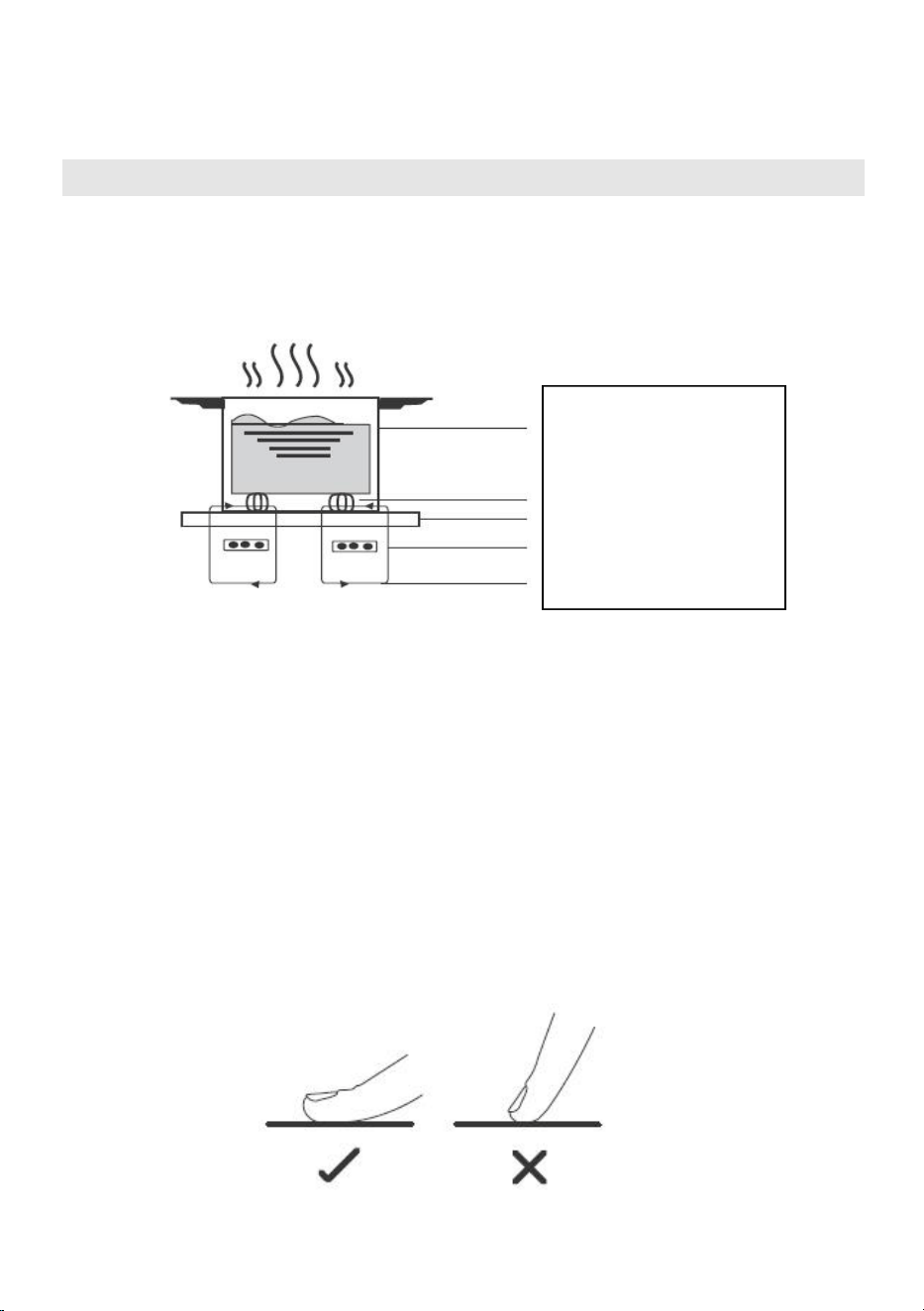

A Word on Induction Cooking
Induction cooking is a safe, advanced, efficient, and economical cooking
technology. It works by electromagnetic vibrations generating heat directly in the
pan, rather than indirectly through heating the glass surface. The glass becomes
hot only because the pan eventually warms it up.
Before using your New Induction Hob
• Read this guide, taking special note of the ‘Safety Warnings’ section.
• Remove any protective film that may still be on your Induction hob.

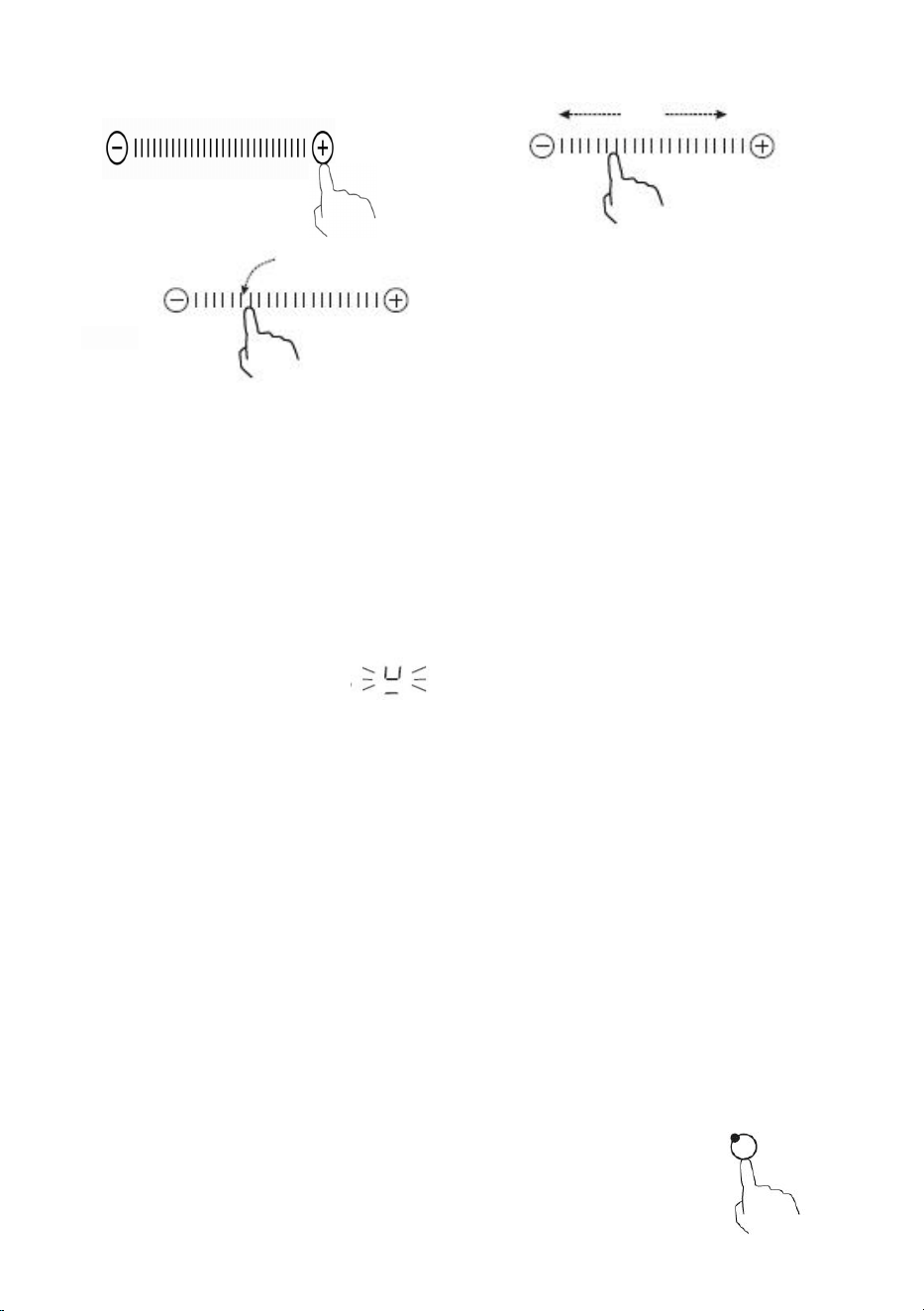

Using the Touch Controls
• The controls respond to touch, so you don’t need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object (e.g. a
utensil or a cloth) covering them. Even a thin film of water may make the
controls difficult to operate.
iron pot
magnetic circuit
ceramic glass plate
induction coil
induced currents
11

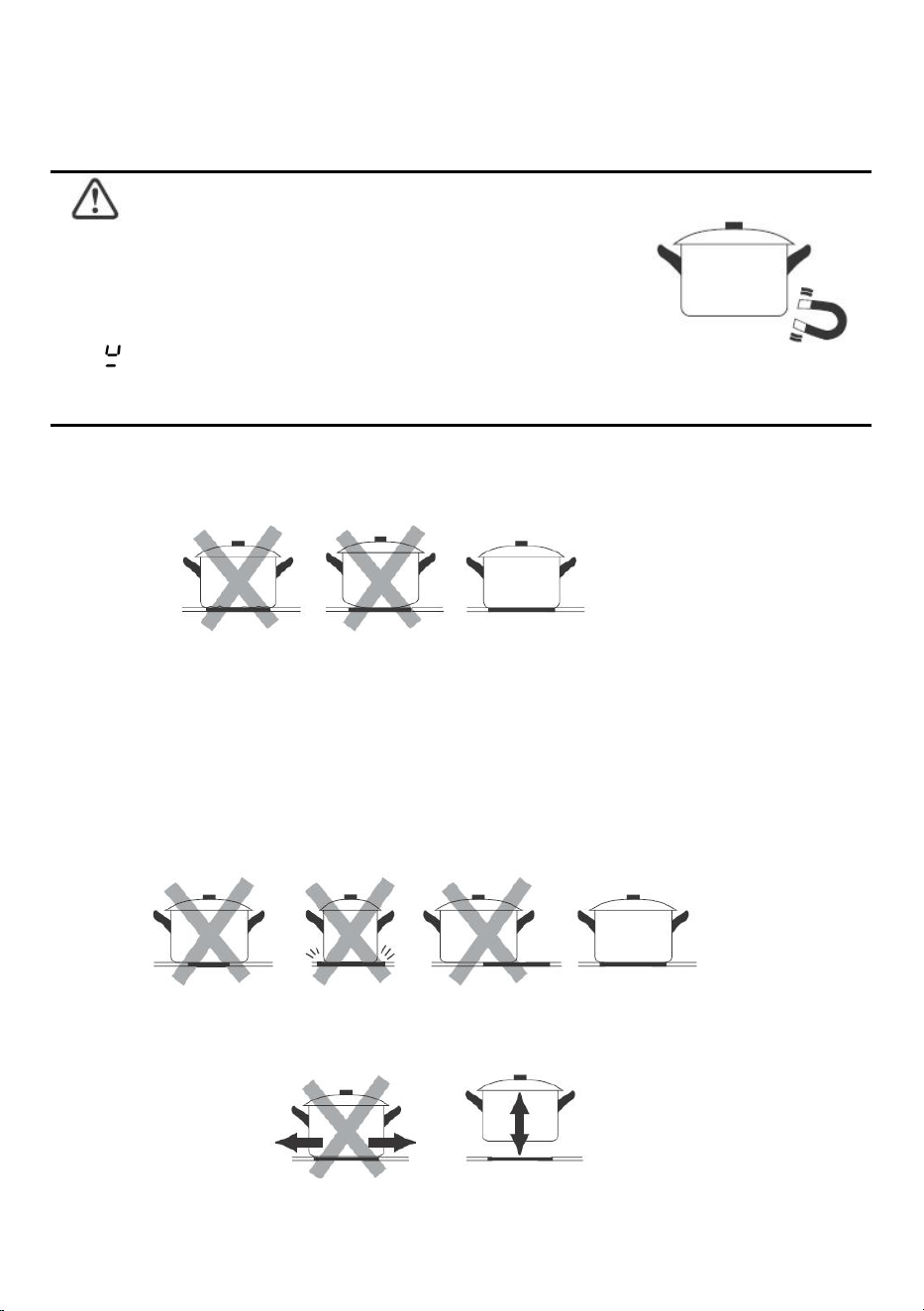

Choosing the right Cookware
• Only use cookware with a base suitable for induction
cooking. Look for the induction symbol on the
packaging or on the bottom of the pan.
• You can check whether your cookware is suitable by carrying out
a magnet test. Move a magnet towards the base of the pan. If it
is attracted, the pan is suitable for induction.
• If you do not have a magnet:
1. Put some water in the pan you want to check.
2. If does not flash in the display and the water is heating, the pan is suitable.
• Cookware made from the following materials is not suitable: pure stainless steel, aluminium or
copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits flat against the glass, and is
the same size as the cooking zone. Use pans whose diameter is as large as the
graphic of the zone selected.Using a pot a slightly wider energy will be used at its
maximum efficiency.If you use smaller pot efficiency could be less than
expected.Pot less than 120 mm could be undetected by the hob. Always centre
your pan on the cooking zone.
Always lift pans off the Induction hob – do not slide, or they may scratch the glass.
12
Pan
dimensions
The cooking zones are up to a limit, automatically adapted to the diameter of
the pan. However the bottom of this pan must have a minimum of diameter
according to the corresponding cooking zone. To obtain the best efficiency
of your hob, please place the pan in the center of the cooking zone.

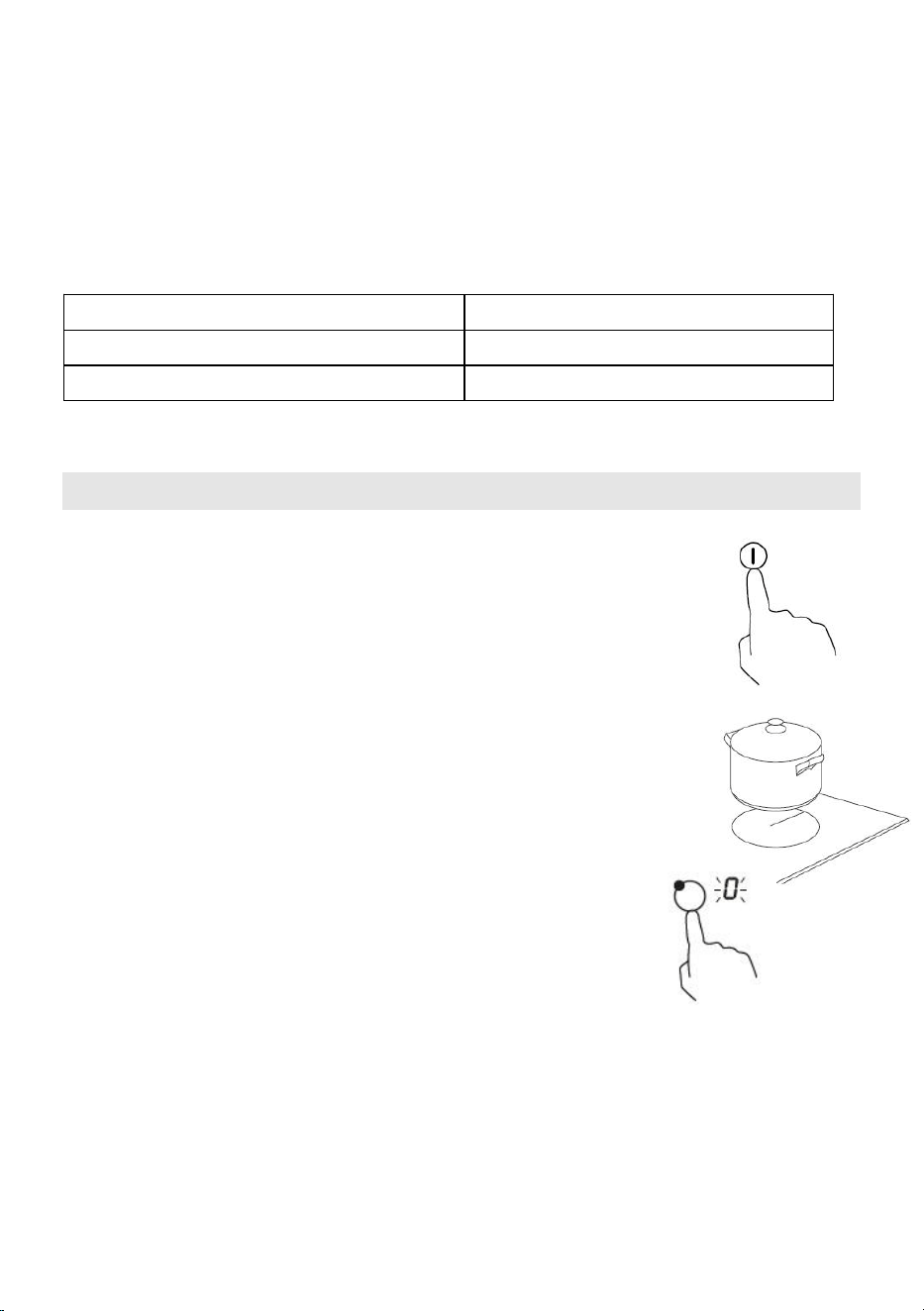

Cooking zone diameter (mm) Min. pot diameter (mm)
zone 1/2/3/4 :180 120
zone 5 :280 180
Using your Induction Hob
To start cooking
1. Touch the ON/OFF control.
After power on, the buzzer beeps once, all displays
show “ – “ or “ – – “, indicating that the induction
hob has entered the state of standby mode.
2. Place a suitable pan on the cooking zone that
you wish to use.
• Make sure the bottom of the pan and the surface
of the cooking zone are clean and dry.
3.Touching the heating zone selection control, and
a indicator next to the key will flash.
4. Select a heat setting by touching the “-”, “+”control,or slide along the
“—”control, or just touch any point of the “—”.
13
Or
Or
a. If you don’t select a heat zone within 1 minute, the induction hob will
automatically switch off. You will need to start again at step 1.
b. You can modify the heat setting at any time during cooking.
c. If slide along the “—”, power will vary from stage 2 to stage 8.
Press “-”, power will decrease by one stage each time till stage 0.
Press “+”, power will increase by one stage each time till stage 9.
If the display flashes alternately with the heat
setting
This means that:
• You have not placed a pan on the correct cooking zone or,
• The pan you’re using is not suitable for induction cooking or,
• The pan is too small or not properly centered on the cooking zone.
No heating takes place unless there is a suitable pan on the cooking zone.
The display will automatically turn off after 1 minutes if no suitable pan is
placed on it.

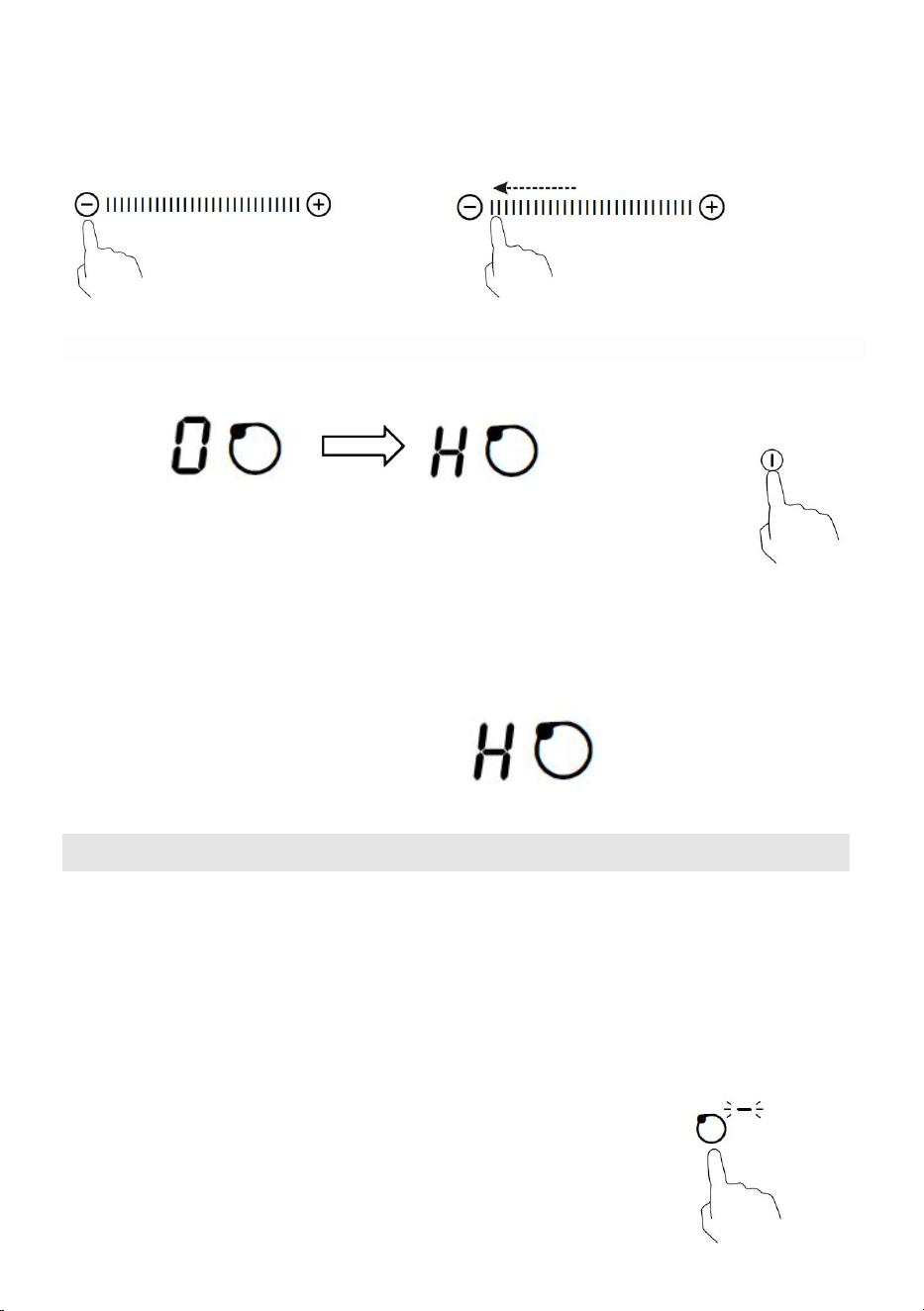

When you have finished cooking
1. Touching the heating zone selection control that you wish to switch off.
14
2.Turn the cooking zone off by touching the "-" and scrolling down to “0” or sliding
along the "---" to the left side,and then touching the “-”.
or
3.Make sure the power display show “0”,then shows “H”
4.Turn the whole cooktop off by touching the ON/OFF control.
5. Beware of hot surfaces
‘H’ will show which cooking zone is hot to touch. It will disappear when
the surface has cooled down to a safe temperature. It can also be used
as an energy saving function if you want to heat further pans, use the
hotplate that is still hot.
Using the Boost Function
Boost is the function that one zone rising to a larger power in one second and
lasting for 5 minutes. Then you can get a more powerful and faster cooking.

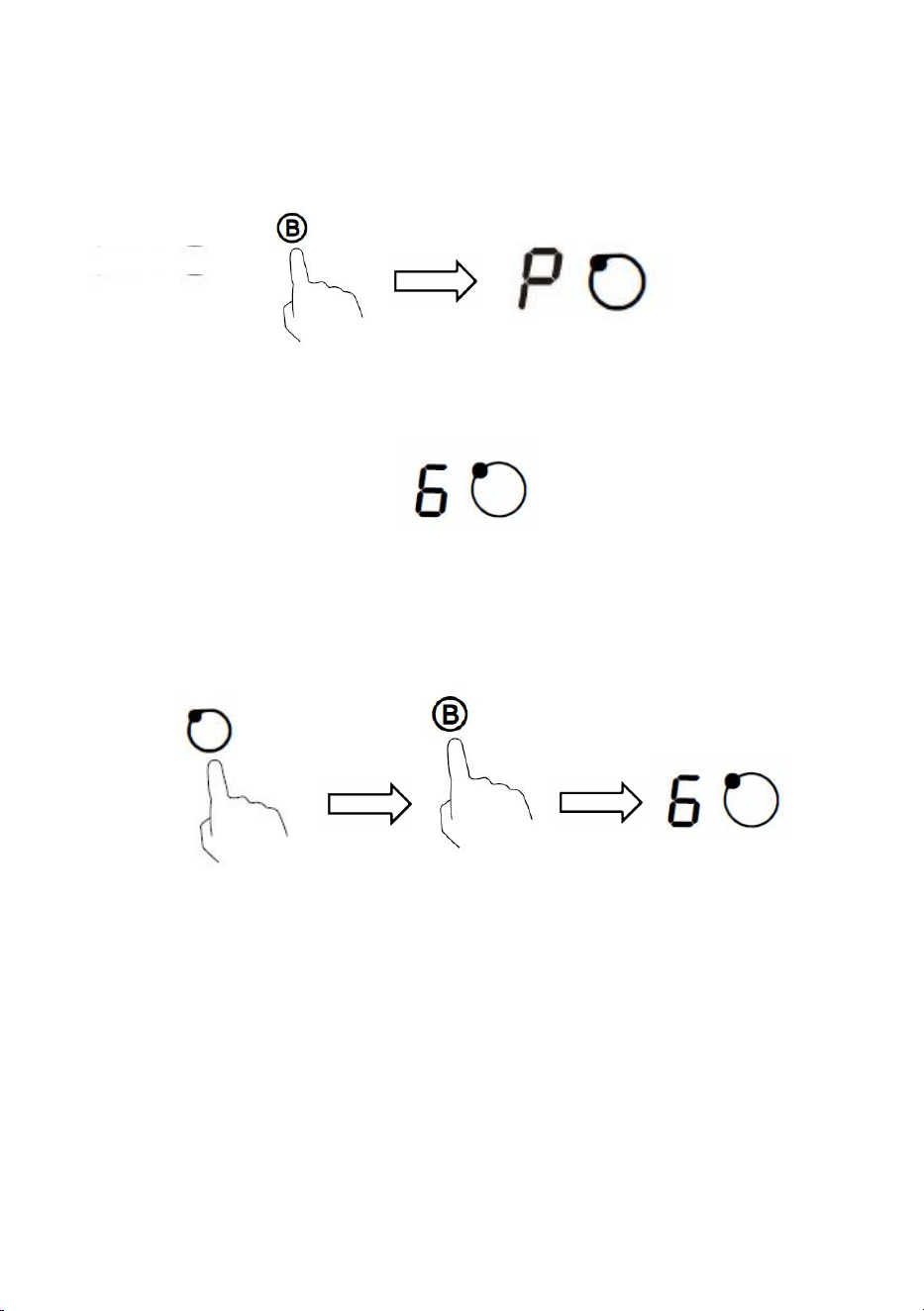

Using the Boost to get larger power
1. Touch the heating zone selection button that you wish to boost,
an indicator next to the key will flash.
15
2. Touch the boost button, the heating zone will begin to work at boost mode.
The power display will show “P” to indicate that the zone is boosting.
3. The Boost power will last for 5 minutes and then the zone will go back to the
power stage which was set before boost.
4. If you want to cancel Boost during this 5 minutes, touch the heating zone
selection button first, an indicator next to the key will flash. And then touch
the boost button . The heating zone will go back to the power stage which was
set before boost.

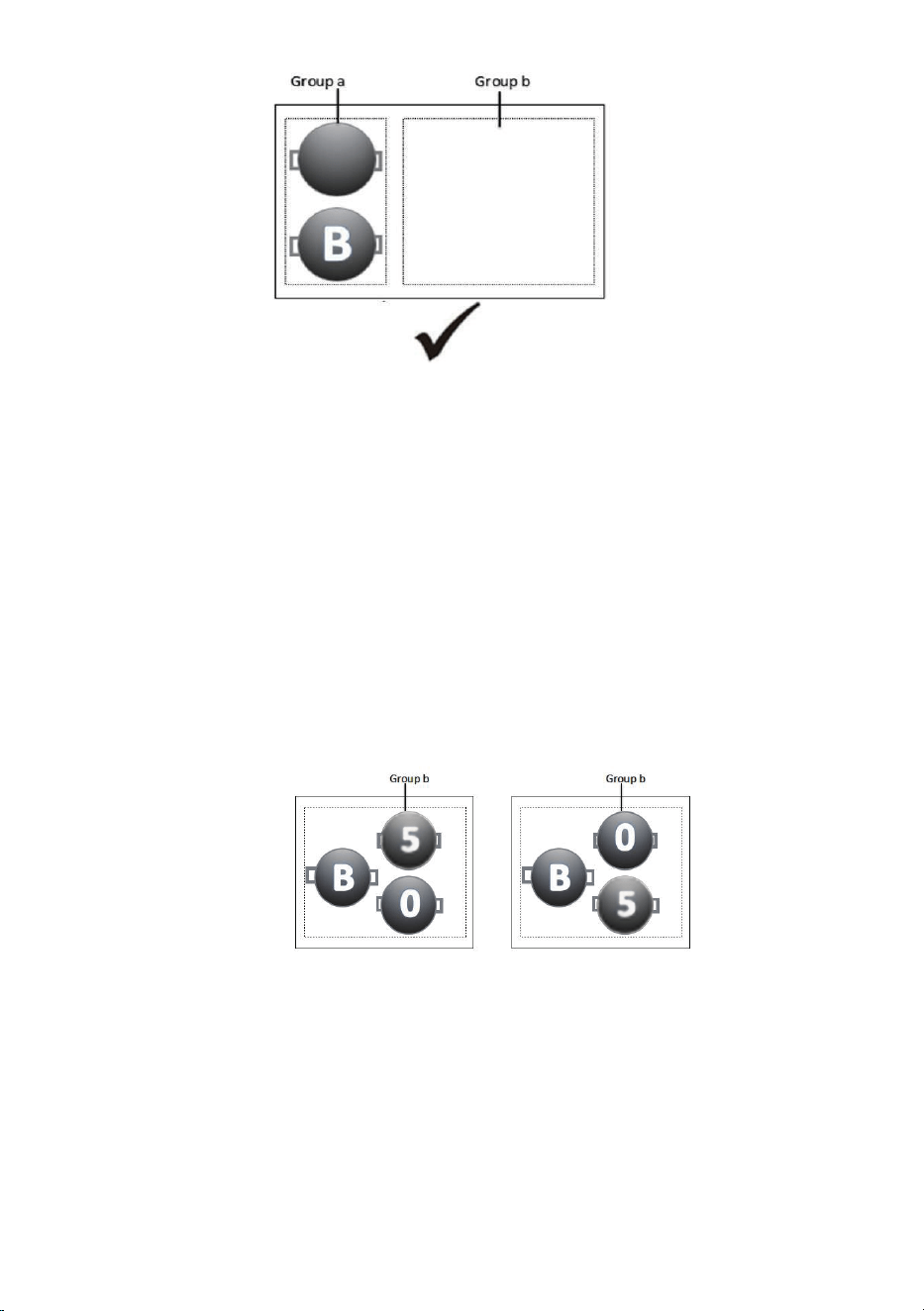

Restrictions for using
In this cooktop every zone can work with Boost function.
1. In group a, if you need to use boost please decrease the power level of
the other zone in the same group to “5" or less first, otherwise "P"and "9"
symbols will flash on the display of the selected zone and power level "9" is
automatically set. Both zones can be operated with full power as their total
power is 3500W.
16

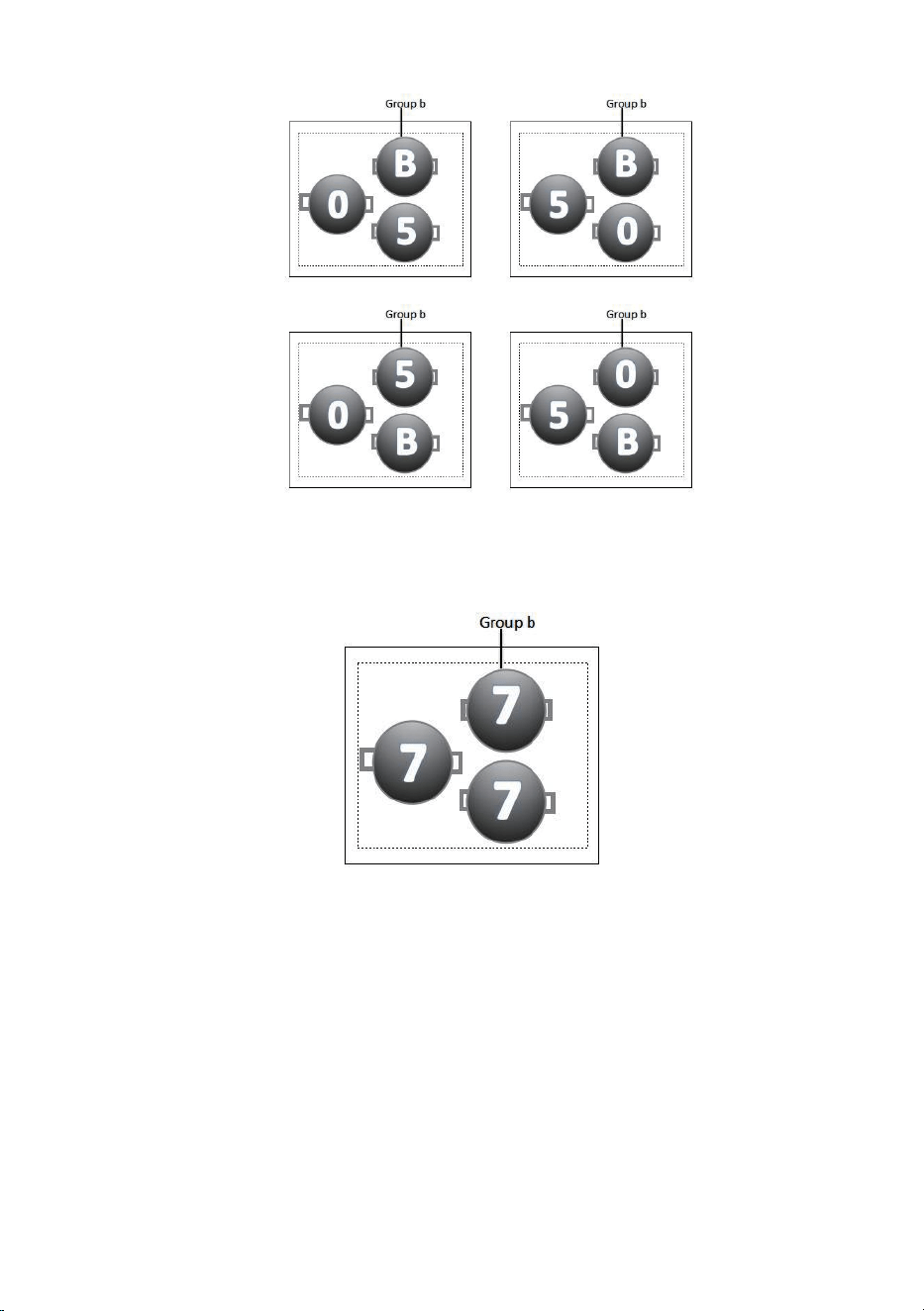

2.In group b, if you want to use boost function, you can only use two zone at the
same time.
a. lf you want to use the middle zone's boost function, only one of the
zone on the right side can be used at the same time.First make sure the
power stage selected zone of the right zone set power stage “5" or less, then
set the middle zone boost. lf the selected zone on the right side was set higher
than “5", the "P" and “9" symbols will flash on the display of the middle zone
and power level will be automatically set as 9.
lf you change the power stage of the right selected zone while the middle zone
working as boost, the boost function will quit automatically.
b. lf you want to use the boost function of group b, only two zone can be used
at the same time.You need to decrease the power level of the other zone in
the same group to “5" or less first, otherwise “P” and “9” symbols will flash on
the display of the selected zone and power level “9” is automatically set.
17
3. In group b, you can use three zones at the same time if you don't
active the boost, but the max power level collocation is 7-level,7-level,7-level.

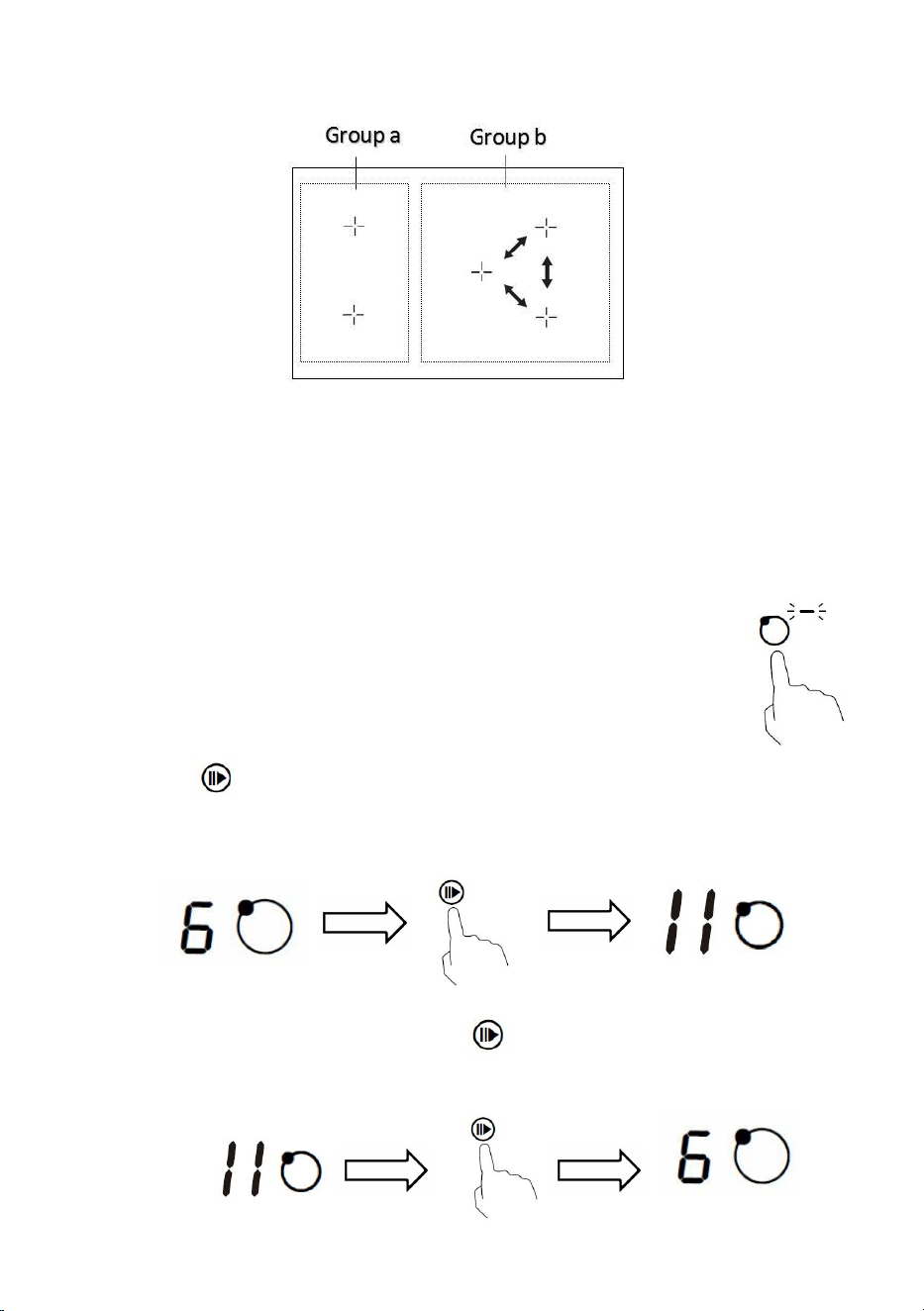

Power Management function
· Cooking zones are grouped according to the two phases in the cooktop
(see illustration).Each phase has a maximum electricity loading of 3500W.
The function divides the power between cooking zones connected to the
same phase.
· only Group b has this function.The function will activate when the total
electricity loading of the cooking zones exceeds 3500W.
18
. The function decreases the power to the other cooking zones.
Using the Pause Function-STOP + GO
Pause function can be used at any time during cooking. It allows to stop the
induction cooktop and come back to it.
Make sure the cook zone is working.
1. Touch the heating zone selection button that you wish to use
STOP+GO, an indicator next to the key will flash.
2. Touch
the button , the cooking zone indicator will show “II".
And then the operation of the induction cooktop will be deactivate within the scope
of all cooking zones, except the STOP+GO, on/off and lock keys.
3.To cancel the pause status, touch the button , then the cooking zone will
go back to the power stage which you set before.
19

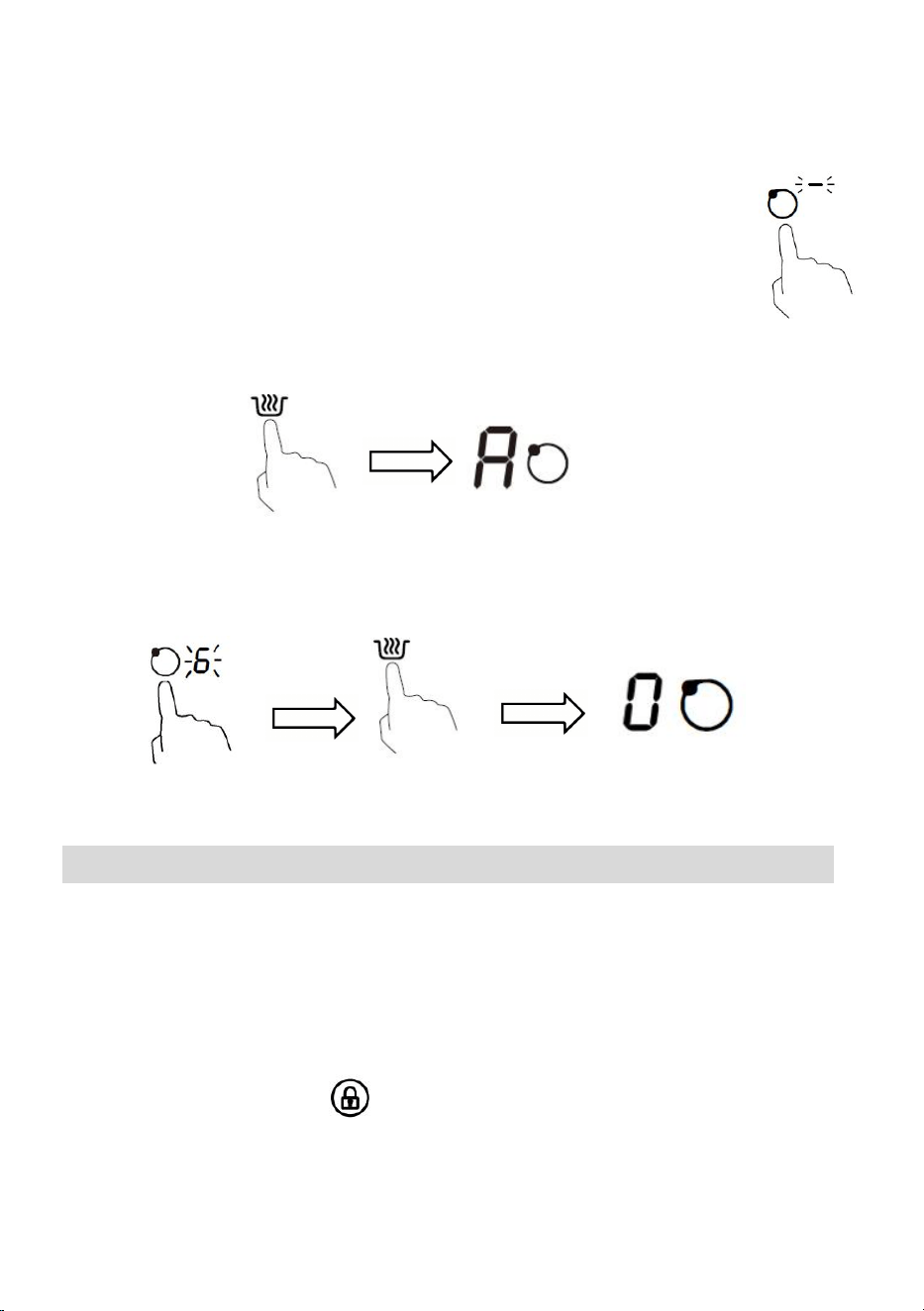

Using the keep warm function
Keep warm function is suitable for keeping food warm.
Using the keep warm to get stable temperature
1. Touch the heating zone selection button that you wish to use
keep warm,an indicator next to the key will flash.
2. Touch the keep warm function control, the cooking zone indicator will
display “A”
3. lf you want to cancel the keep warm, touch the heating zone selection
button,an indicator next to the key will flash.And then touch the keep warm
function control,the heating zone will go back to "O" power stage.
Locking the Controls
• You can lock the controls to prevent unintended use (for example children
accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF control are
disabled.
To lock the controls
Touch the key lock
control , The timer indicator will show “Lo “
20
To unlock the controls
1. Make sure the Induction hob is turned on.
2. Touch and hold the key lock control
for a while.
3. You can now start using your Induction hob.
When the hob is in the lock mode, all the controls are disable except the
ON/OFF , you can always turn the induction hob off with the ON/OFF
control in an emergency, but you shall unlock the hob first in the next
operation.
Over-Temperature Protection
A temperature sensor equipped can monitor the temperature inside the Induction
hob. When an excessive temperature is monitored, the Induction hob will stop
operation automatically.
Detection of Small Articles
When an unsuitable size or non-magnetic pan (e.g. aluminium), or some other
small item (e.g. knife, fork, key) has been left on the hob, the hob automatically
go on to standby in 1 minute. The fan will keep cooking down the induction hob for
a further 1 minute.
Auto Shutdown Protection
Auto shut down is a safety protection function for your induction hob. It shut down
automatically if ever you forget to turn off your cooking. The default working times
for various power levels are shown in the below table:
Power level
1
2
3
4
5
6
7
8
9
Default working timer (hour)
8
8
8
4
4
4
2
2
2
When the pot is removed, the induction hob can stop heating immediately and the
hob automatically switch off after 2 minutes.
People with a heart pace maker should consult with their doctor before
using this unit.
21
Using the Timer
You can use the timer in two different ways:
• You can use it as a minute minder. In this case, the timer will not turn any
cooking zone off when the set time is up.
• You can set it to turn one cooking zone off after the set time is up.
• You can set the timer up to 99 minutes.

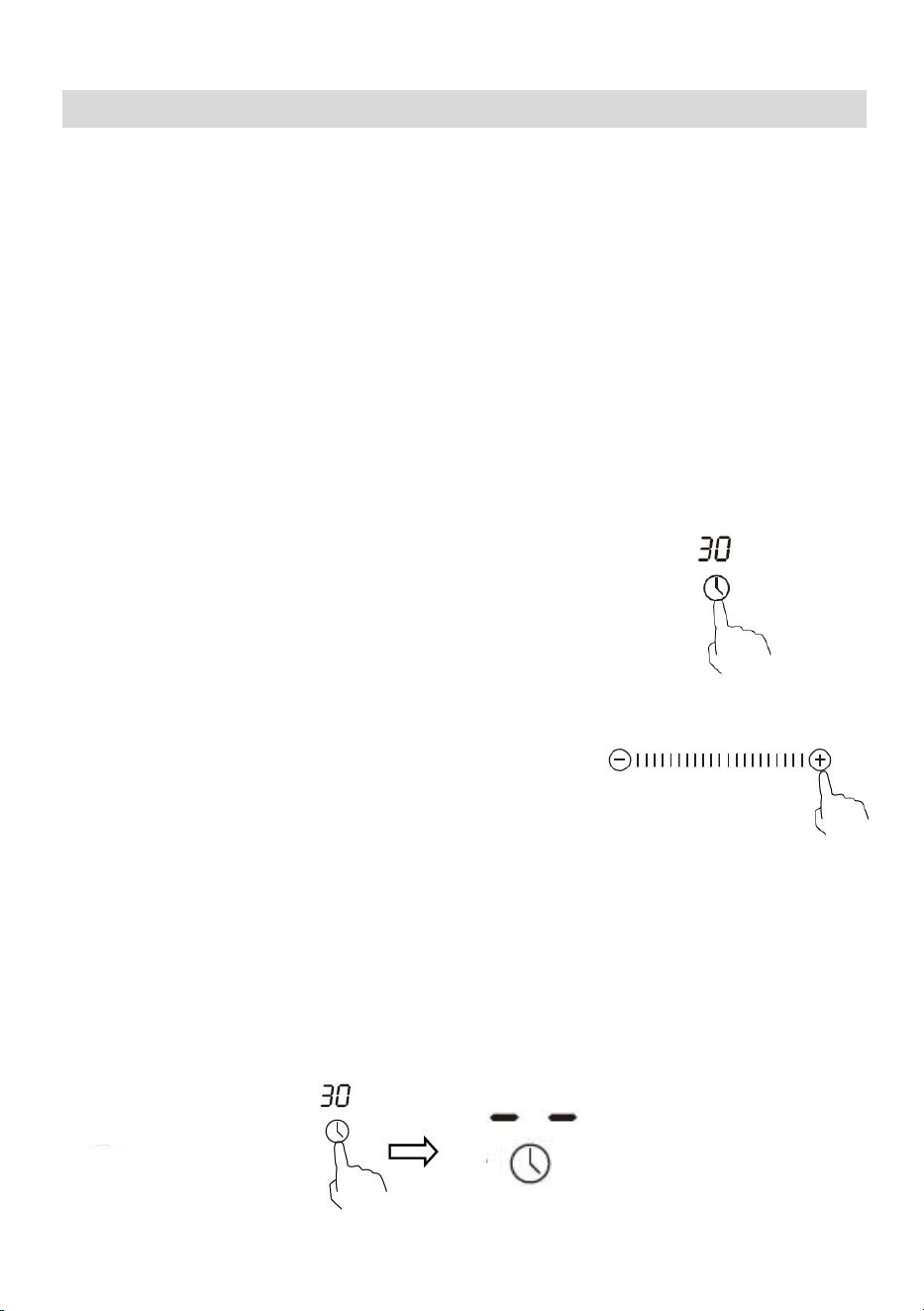

Using the Timer as a Minute Minder
If you are not selecting any cooking zone
1. Make sure the cooktop is turned on.
Note: you can use the minute minder even if you’re not selecting any cooking
zone.
2. Touch timer control ,the minder indicator will start
flashing and “30” will show in the timer display.
3. Set the time by touching the “-“ or “+” control.The
minute minder indicator will start flashing and will
show in the timer display.
Hint: Touch the “-“ or “+” control of the timer
once to decrease or increase by 1 minute.
Touch and hold the “-“or ”+” control of the timer to decrease or increase
by 10 minutes.
If the setting time exceeds 99 minutes, the timer will automatically
return to 0 minute.
4. To cancel the timer,touch the timer control, and the”--“will show in the minute
display.
22
5. When the time is set, it will begin to count down
immediately. The display will show the remaining
time and the timer indicator will flash for 5 seconds.
6. Buzzer will bips for 30 seconds and the timer indicator
shows “- - “ when the setting time finished.

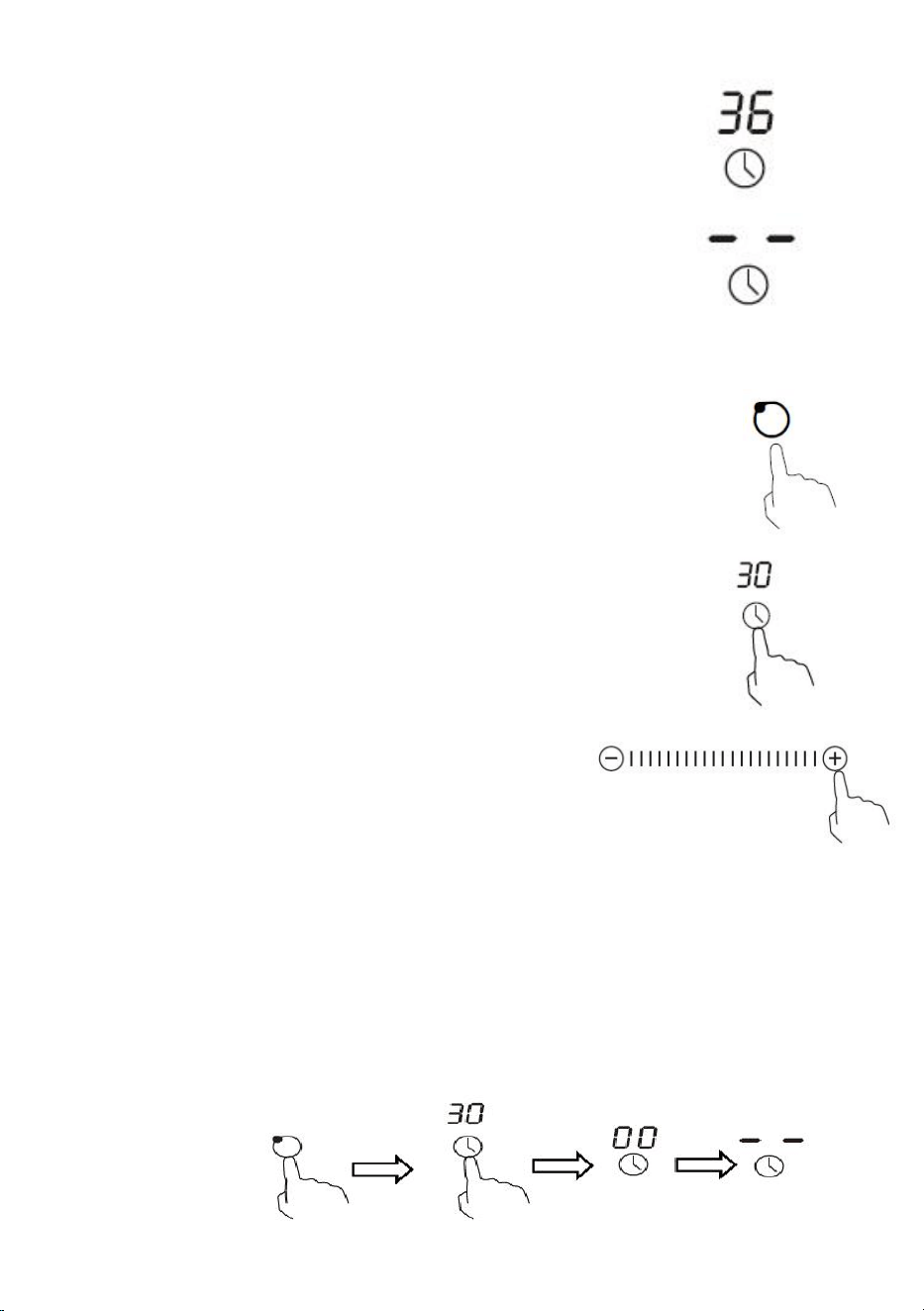

Setting the timer to turn one cooking zone off
1. Touching the heating zone selection control that you want to set
the timer for.
2.
Touch timer control , the minder indicator will start flashing
and “30” will show in the timer display.
3. Set the time by touching the control of the timer .
Hint: Touch the “-“ or “+” control of the timer
once will decrease or increase by 1 minute.
Touch and hold the “-“ or “+” control of the timer will decrease or
increase by 10 minutes.
If the setting time exceeds 99 minutes, the timer will automatically
return to 0 minute.
3. To cancel the timer, touch the heating zone selection control, and then touch
the “Timer”, the timer is cancelled, and the “00”will show in the minute display,
and then “--”.
23
5. When the time is set, it will begin to count
down immediately. The display will show the
remaining time and the timer indicator flash for 5 seconds.
NOTE: The red dot next to power level indicator
will illuminate indicating that zone is selected.
6.When cooking timer expires, the corresponding cooking zone
will be switch off automatically and show “H”.
Other cooking zone will keep operating if they are turned on previously.

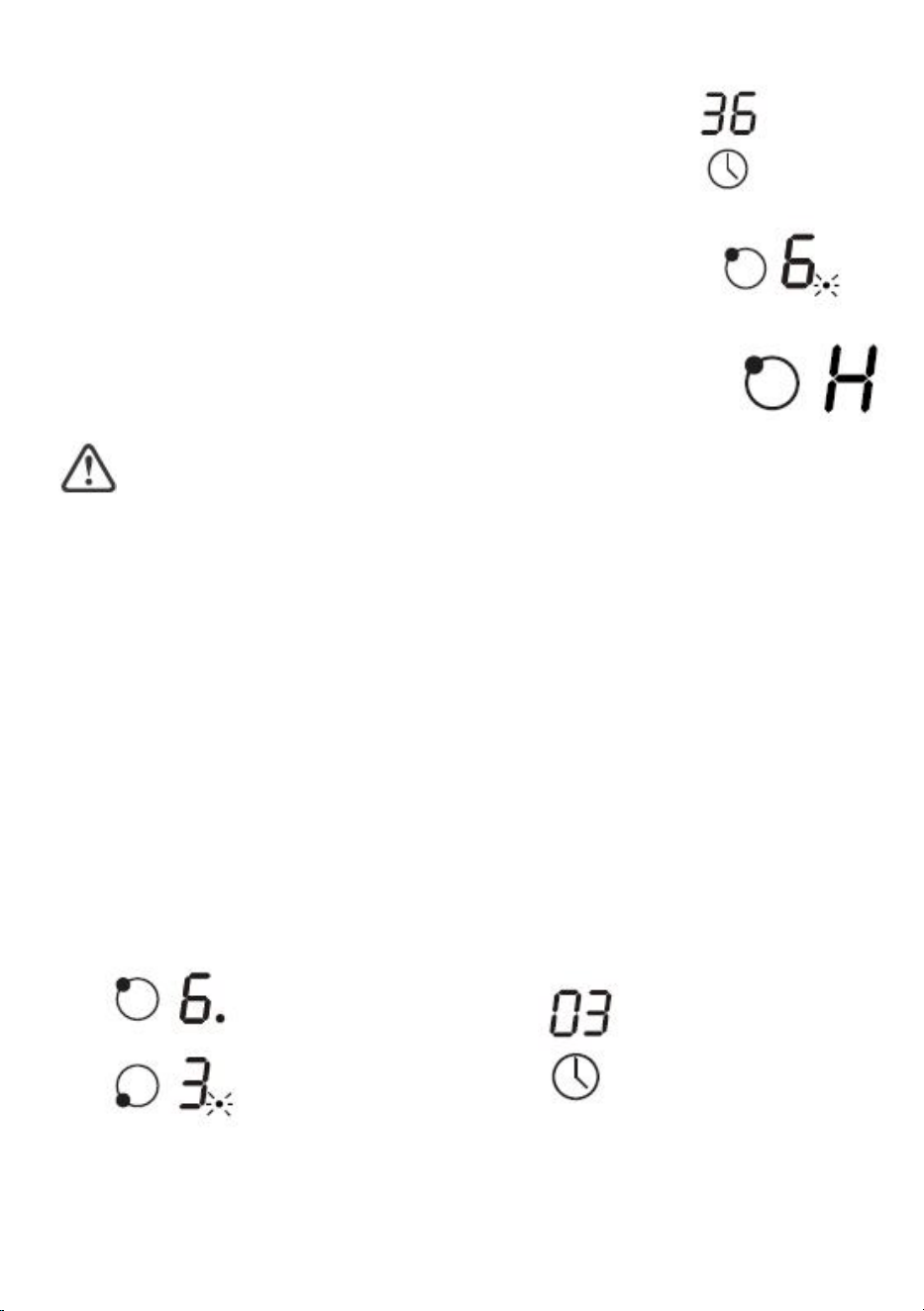

Setting the timer to turn more than one cooking zone
off
1. If use this function to more than one heating zone, the timer indicator will show
the shortest time. When the short timer finish counting, the longer time will
show on the display.
(e.g. zone 2# setting time of 6 minutes, zone 1# setting time of 3 minutes,
the timer indicator shows “03”.)
NOTE: The flashing red dot next to power level indicator means the timer
indicator is showing time of the heating zone.
If you want to check the set time of other heating zone, touch the heating
zone selection control. The timer will indicate its set time.
(set to 6minutes)
(set to 3 minutes)
24
2.When cooking timer expires, the corresponding heating zone will be
automatically switch off and show “H”.
NOTE: If you want to change the time after the timer is set, you have to start
from step 1.
Cooking Guidelines
Take care when frying as the oil and fat heat up very quickly, particularly
if you’re using PowerBoost. At extremely high temperatures oil and fat
will ignite spontaneously and this presents a serious fire risk.
Cooking Tips
• When food comes to the boil, reduce the temperature setting.
• Using a lid will reduce cooking times and save energy by retaining the heat.
• Minimise the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated
through.
Simmering, cooking rice
• Simmering occurs below boiling point, at around 85˚C, when bubbles are just
rising occasionally to the surface of the cooking liquid. It is the key to delicious
soups and tender stews because the flavours develop without overcooking the
food. You should also cook egg-based and flourthickened sauces below boiling
point.
• Some tasks, including cooking rice by the absorption method, may require a
setting higher than the lowest setting to ensure the food is cooked properly in
the time recommended.
Searing steak
To cook juicy flavoursome steaks:
1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot
pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend
on the thickness of the steak and how cooked you want it. Times may vary
25
from about 2 – 8 minutes per side. Press the steak to gauge how cooked it is
– the firmer it feels the more ‘well done’ it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax
and become tender before serving.
For stir-frying
1. Choose an induction compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If
cooking large quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking
zone to a lower setting, return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.
Heat Settings
The settings below are guidelines only. The exact setting will depend on several
factors, including your cookware and the amount you are cooking. Experiment
with the induction hob to find the settings that best suit you.
Heat setting
Suitability
1 - 2
• delicate warming for small amounts of food
• melting chocolate, butter, and foods that burn quickly
• gentle simmering
• slow warming
3 - 4
• reheating
• rapid simmering
• cooking rice
5 - 6
• pancakes
7 - 8
• sautéing
• cooking pasta
9
• stir-frying
• searing
• bringing soup to the boil
• boiling water
26
Care and Cleaning
What?
How?
Important!
Everyday soiling on
glass (fingerprints,
marks, stains left by
food or non-sugary
spillovers on the
glass)
1. Switch the power to the
cooktop off.
2. Apply a cooktop cleaner
while the glass is still warm
(but not hot!)
3. Rinse and wipe dry with a
clean cloth or paper towel.
4. Switch the power to the
cooktop back on.
• When the power to the cooktop is
switched off, there will be no ‘hot
surface’ indication but the cooking
zone may still be hot! Take extreme
care.
• Heavy-duty scourers, some nylon
scourers and harsh/abrasive
cleaning agents may scratch the
glass. Always read the label to
check if your cleaner or scourer is
suitable.
• Never leave cleaning residue on the
cooktop: the glass may become
stained.
Boilovers, melts,
and
hot sugary spills on
the glass
Remove these immediately
with a fish slice, palette knife or
razor blade scraper suitable for
Induction glass cooktops, but
beware of hot cooking zone
surfaces:
1. Switch the power to the
cooktop off at the wall.
2. Hold the blade or utensil at a
30° angle and scrape the
soiling or spill to a cool area
of the cooktop.
3. Clean the soiling or spill up
with a dish cloth or paper
towel.
4. Follow steps 2 to 4 for
‘Everyday soiling on glass’
above.
• Remove stains left by melts and
sugary food or spillovers as soon
as possible. If left to cool on the
glass, they may be difficult to
remove or even permanently
damage the glass surface.
• Cut hazard: when the safety cover
is retracted, the blade in a scraper
is razor-sharp. Use with extreme
care and always store safely and
out of reach of children.
Spillovers on the
touch controls
1. Switch the power to the
cooktop off.
2. Soak up the spill
3. Wipe the touch control area
with a clean damp sponge or
cloth.
4. Wipe the area completely
dry
with a paper towel.
5. Switch the power to the
cooktop back on.
• The cooktop may beep and turn
itself off, and the touch controls
may not function while there is
liquid on them. Make sure you wipe
the touch control area dry before
turning the cooktop back on.
27
Hints and Tips
Problem
Possible causes
What to do
The induction hob
cannot be turned on.
No power.
Make sure the induction hob is
connected to the power supply
and that it is switched on.
Check whether there is a power
outage in your home or area. If
you’ve checked everything and the
problem persists, call a qualified
technician.
The touch controls are
unresponsive.
The controls are locked.
Unlock the controls. See section
‘Using your induction cooktop’ for
instructions.
The touch controls are
difficult to operate.
There may be a slight film of
water over the controls or you
may be using the tip of your
finger when touching the
controls.
Make sure the touch control area is
dry and use the ball of your finger
when touching the controls.
The glass is being
scratched.
Rough-edged cookware.
Unsuitable, abrasive scourer or
cleaning products being used.
Use cookware with flat and smooth
bases. See ‘Choosing the right
cookware’.
See ‘Care and cleaning’.
Some pans make
crackling or clicking
noises.
This may be caused by the
construction of your cookware
(layers of different metals
vibrating differently).
This is normal for cookware and
does not indicate a fault.
The induction hob
makes a low humming
noise when used on
a high heat setting.
This is caused by the technology
of induction cooking.
This is normal, but the noise should
quieten down or disappear
completely when you decrease the
heat setting.
Fan noise coming from
the induction hob.
A cooling fan built into your
induction hob has come on to
prevent the electronics from
overheating. It may continue to
run even after you’ve turned the
induction hob off.
This is normal and needs no action.
Do not switch the power to the
induction hob off at the wall while the
fan is running.
Pans do not become
hot and appears in the
display.
The induction hob cannot
detect the pan because it is not
suitable for induction cooking.
The induction hob cannot detect
the pan because it is too small
for the cooking zone or not
properly centred on it.
Use cookware suitable for induction
cooking. See section ‘Choosing the
right cookware’.
Centre the pan and make sure that its
base matches the size of the cooking
zone.
28
The induction hob or a
cooking zone has
turned itself off
unexpectedly, a tone
sounds and an error
code is displayed
(typically alternating
with one or two digits
in the cooking timer
display).
Technical fault.
Please note down the error
letters and numbers, switch
the power to the induction hob
off at the wall, and contact a
qualified technician.
Failure Display and Inspection
If an abnormality comes up, the induction hob will enter the protective state
automatically and display corresponding protective codes:
Problem
Possible causes
What to do
F3/F4
Temperature sensor of the
induction coil failure
Please contact the supplier.
F9/FA
Temperature sensor of the IGBT
failure.
Please contact the supplier.
E1/E2
Abnormal supply voltage
Please inspect whether power
supply is normal.
Power on after the power
supply is normal.
E3
High temperature of the induction
coil temperature sensor
Please contact the supplier.
E5
High temperature of the IGBT
temperature sensor
Please restart after the hob
cools down.
The above are the judgment and inspection of common failures.
Please do not disassemble the unit by yourself to avoid any dangers and damages
to the induction hob.
29
Technical Specification
Weight and Dimensions are approximate. Because we continually strive to
improve our products we may change specifications and designs without prior
notice.
Installation
Selection of installation equipment

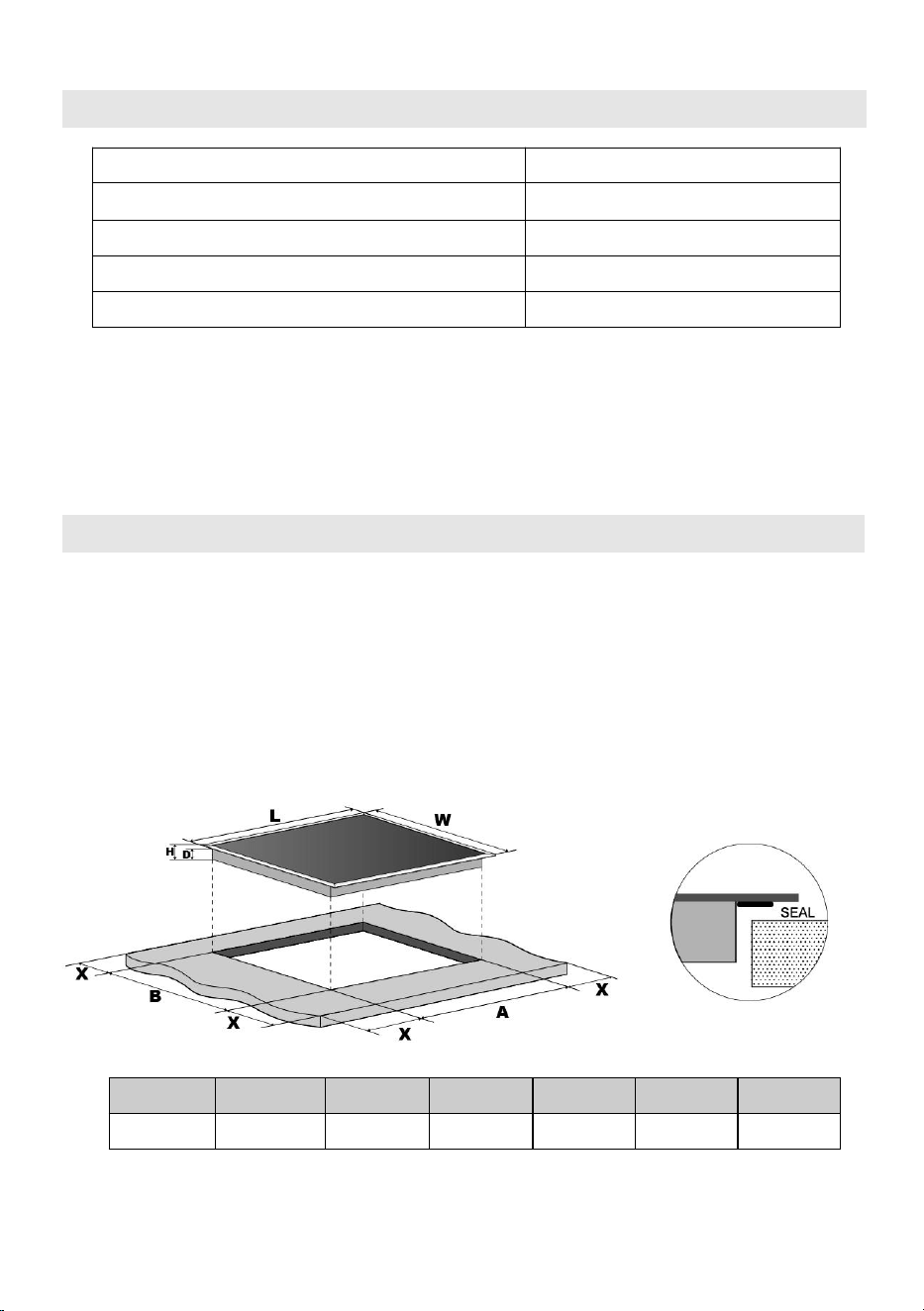

Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 5 cm space shall be
preserved around the hole.
Be sure the thickness of the work surface is at least 30mm. Please select
heat-resistant work surface material to avoid larger deformation caused by the
heat radiation from the hotplate. As shown below:
Cooking Zones
5 Zones
Supply Voltage
220-240V~,50-60Hz
Installed Electric Power
6800-7400W
Product Size L×W×H(mm)
900X520X60
Building-in Dimensions A×B (mm)
870X490
L(mm)
W(mm)
H(mm)
D(mm)
A(mm)
B(mm)
X(mm)
900
520
60
56
870
490
50 mini
30

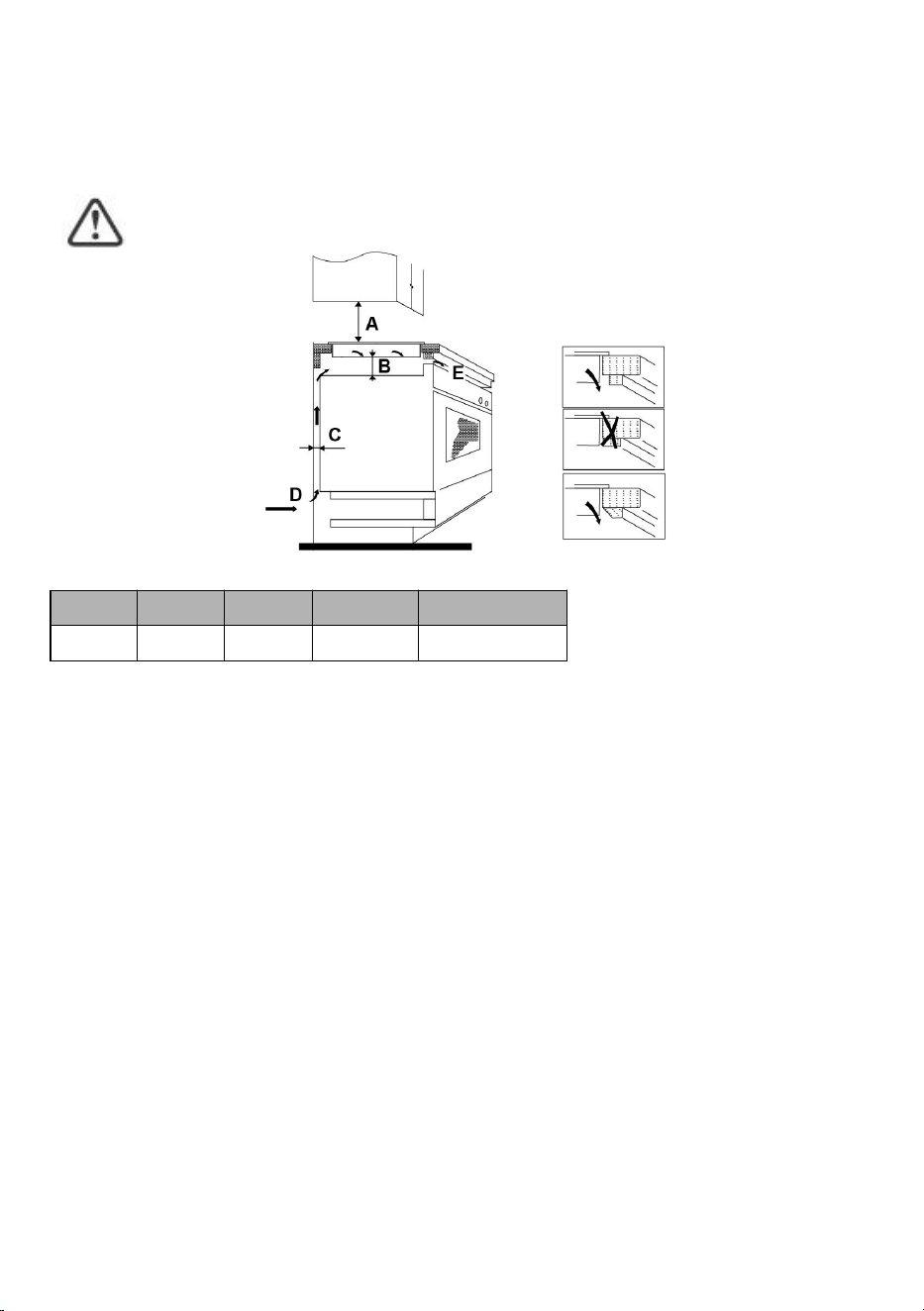

Under any circumstances, make sure the Induction cooker hob is well ventilated
and the air inlet and outlet are not blocked. Ensure the Induction cooker hob is in
good work state. As shown below
Note: The safety distance between the hotplate and the cupboard above
the hotplate should be at least 760mm.
A(mm)
B(mm)
C(mm)
D
E
760
50 mini
20 mini
Air intake
Air exit 5mm
Before you install the hob, make sure that
• the work surface is square and level, and no structural members interfere with
space requirements
• the work surface is made of a heat-resistant material
• if the hob is installed above an oven, the oven has a built-in cooling fan
• the installation will comply with all clearance requirements and applicable
standards and regulations
• a suitable isolating switch providing full disconnection from the mains power
supply is incorporated in the permanent wiring, mounted and positioned to
comply with the local wiring rules and regulations.
The isolating switch must be of an approved type and provide a 3 mm air gap
contact separation in all poles (or in all active [phase] conductors if the local
wiring rules allow for this variation of the requirements)
• the isolating switch will be easily accessible to the customer with the hob
installed
• you consult local building authorities and by-laws if in doubt regarding
installation
• you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the
wall surfaces surrounding the hob.
31
When you have installed the hob, make sure that
• the power supply cable is not accessible through cupboard doors or drawers
• there is adequate flow of fresh air from outside the cabinetry to the base of the
hob
• if the hob is installed above a drawer or cupboard space, a thermal protection
barrier is installed below the base of the hob
• the isolating switch is easily accessible by the customer
Before locating the fixing brackets
The unit should be placed on a stable, smooth surface (use the packaging). Do not
apply force onto the controls protruding from the hob.

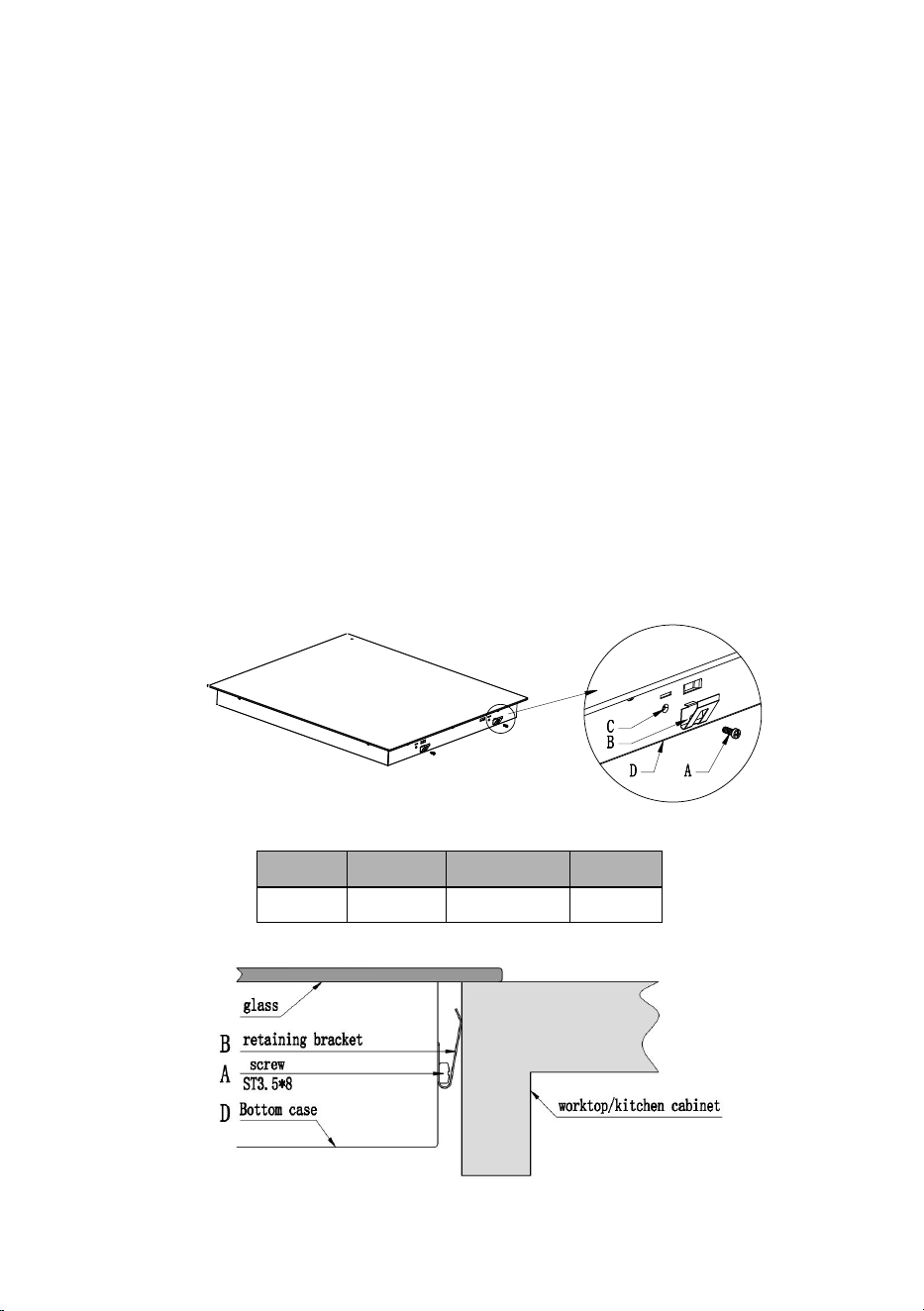

Adjusting the bracket position
Fix the hob on the work surface by screw 4 brackets on the bottom of hob(see
picture) after installation.
A
B
C
D
screw
bracket
Screw hole
base
32
Cautions
1. The induction hotplate must be installed by qualified personnel or technicians.
We have professionals at your service. Please never conduct the operation by
yourself.
2. The hob will not be installed directly above a dishwasher, fridge, freezer,
washing machine or clothes dryer, as the humidity may damage the hob
electronics
3. The induction hotplate shall be installed such that better heat radiation can be
ensured to enhance its reliability.
4. The wall and induced heating zone above the table surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to
heat.
Connecting the hob to the mains power supply
This hob must be connected to the mains power supply only by a suitably qualified person.
Before connecting the hob to the mains power supply, check that:
1. the domestic wiring system is suitable for the power drawn by the hob.
2. the voltage corresponds to the value given in the rating plate
3. the power supply cable sections can withstand the load specified on the rating plate.
To connect the hob to the mains power supply, do not use adapters, reducers, or branching
devices, as they can cause overheating and fire.
The power supply cable must not touch any hot parts and must be positioned so that its
temperature will not exceed 75˚C at any point.
Check with an electrician whether the domestic wiring system is suitable
without alterations. Any alterations must only be made by a qualified electrician.

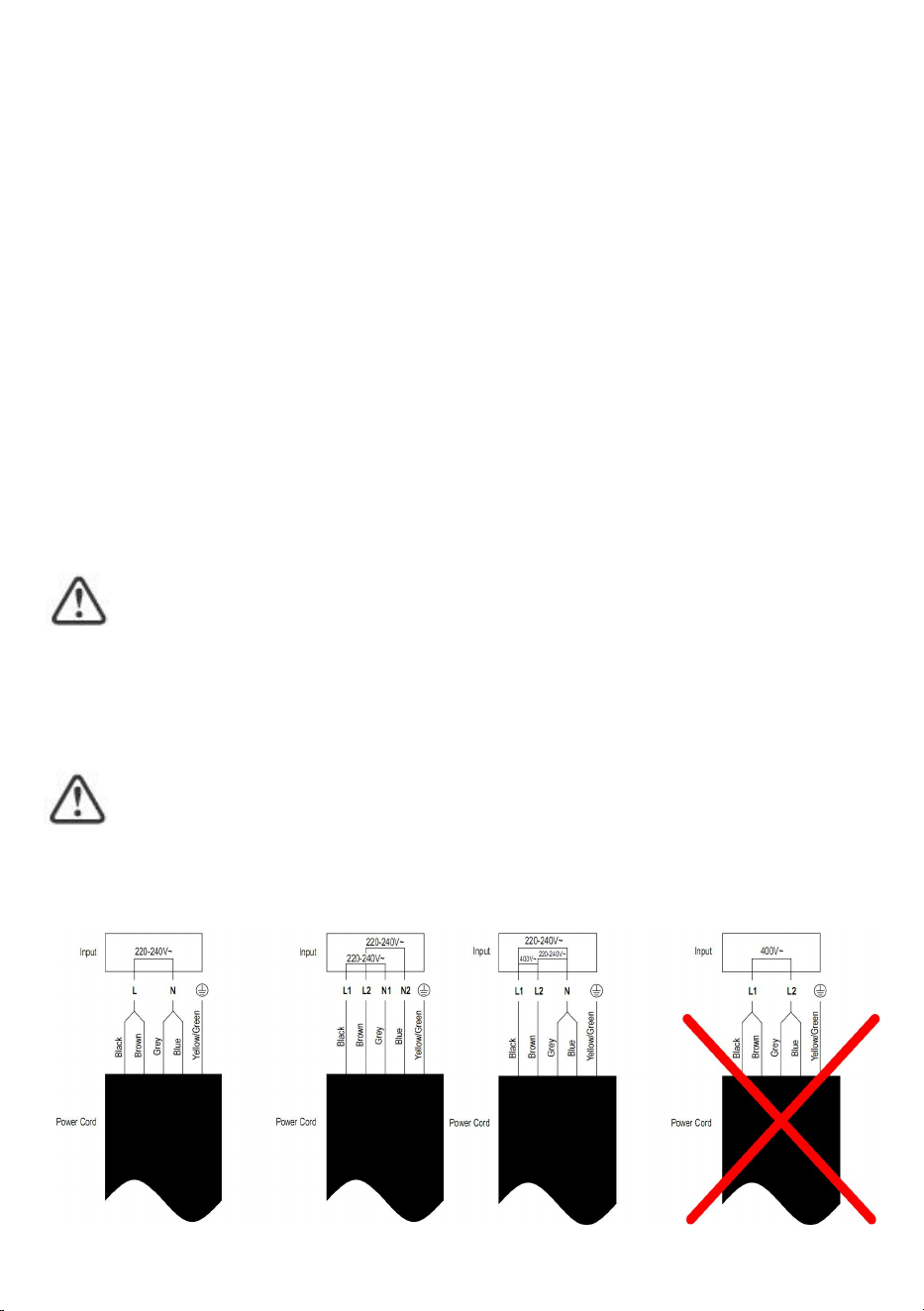

The power supply should be connected in compliance with the relevant standard,
or a single-pole circuit breaker, the method of connection is shown below.
33
• If the cable is damaged or to be replaced, the operation must be carried out the
by after-sale agent with dedicated tools to avoid any accidents.
• If the appliance is being connected directly to the mains an omnipolar
circuit-breaker must be installed with a minimum opening of 3mm between
contacts.
• The installer must ensure that the correct electrical connection has been made
and that it is compliant with safety regulations.
• The cable must not be bent or compressed.
• The cable must be checked regularly and replaced by authorised technicians
only.
DISPOSAL: Do not
dispose this product
as unsorted municipal
waste. Collection of
such waste separately
for special treatment is
necessary.
This appliance is labeled in compliance with European directive
2012/19/EU for Waste Electrical and Electronic Equipment (WEEE).
By ensuring that this appliance is disposed of correctly, you will help
prevent any possible damage to the environment and to human
health, which might otherwise be caused if it were disposed of in the
wrong way.
The symbol on the product indicates that it may not be treated as
normal household waste. It should be taken to a collection point for
the recycling of electrical and electronic goods.
This appliance requires specialist waste disposal. For further
information regarding the treatment, recover and recycling of this
product please contact your local council, your household waste
disposal service, or the shop where you purchased it.
For more detailed information about treatment, recovery and
recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased
the product.
