User Manual
Tumble Dryer
WDH904N7WA
WDH904N7SA
2 www.westinghouse.com.au / www.westinghouse.co.nz
Electrolux. Think of you.
Westinghouse. We are part of the Electrolux family.
Share more of our thinking at www.electrolux.com
Before the installation and use of the appliance,
carefully read the supplied instructions. The
manufacturer is not responsible if an incorrect
installation and use causes injuries and damage.
Always keep the instructions with the appliance
for future reference.
- Read the supplied instructions.
- Warning: Risk of fire / Flammable materials.
The appliance contains flammable gas, propane
(R290), a gas with a high level of environmental
compatibility. Keep fire and ignition sources
away from the appliance. Be careful not to cause
damage to the refrigerant circuit containing
propane.
Contents
1. SAFETY INFORMATION ............................................................................................................................ 2
2. CONDITIONS OF USE ................................................................................................................................. 6
3. SAFETY INSTRUCTIONS ........................................................................................................................... 6
4. PRODUCT DESCRIPTION ......................................................................................................................... 8
5. CONTROL PANEL ........................................................................................................................................9
6. PROGRAM TABLE ........................................................................................................................................11
7. OPTIONS .........................................................................................................................................................12
8. SETTINGS .......................................................................................................................................................14
9. BEFORE FIRST USE ...................................................................................................................................16
10. DAILY USE ....................................................................................................................................................16
11. HINTS AND TIPS .........................................................................................................................................18
12. CARE AND CLEANING ............................................................................................................................18
13. TROUBLESHOOTING ...............................................................................................................................21
14. TECHNICAL DATA ....................................................................................................................................23
15. WARRANTY ................................................................................................................................................24
16. ENVIRONMENTAL CONCERNS ..........................................................................................................26
1. SAFETY INFORMATION
Subject to change without notice.
3
ENGLISH
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
• This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning the use of
the appliance in a safe way and understand the
hazards involved.
• Children between 3 and 8 years of age and
persons with very extensive and complex
disabilities shall be kept away from the appliance
unless continuously supervised.
• Children of less than 3 years of age should be
kept away from the appliance unless continuously
supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and
dispose of it appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance
when the door is open.
• If the appliance has a child safety device, it should
be activated.
• Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
• Do not change the specification of this appliance.
• The appliance can be installed as freestanding or
below a kitchen counter with correct space (refer
to the Installation Instruction).
4 www.westinghouse.com.au / www.westinghouse.co.nz
• Do not install the appliance behind a lockable
door, a sliding door or a door with a hinge on the
opposite side, that would prevent the appliance
door from being fully open.
• The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
• WARNING: The appliance must not be supplied
through an external switching device, such as a
timer, or connected to a circuit that is regularly
switched on and off by a utility.
• Connect the mains plug to the mains socket only
at the end of the installation process. Make sure
that the mains plug is accessible after installation.
• Ensure good air ventilation in the room where the
appliance is installed to avoid the back flow of
unwanted gases into the room from appliances
burning gas or other fuels, including open fires.
• WARNING: Do not install the appliance in an
environment with no air exchange.
The appliance contains flammable gas, propane
(R290), a gas with a high level of environmental
compatibility. Keep fire and ignition sources
away from the appliance. Be careful not to cause
damage to the refrigerant circuit containing
propane.
• WARNING: In the appliance enclosure or in the
built-in structure, keep ventilation opening clear of
obstruction.
• WARNING: Do not damage the refrigerant circuit.
• If the mains power supply cable is damaged,
it must be replaced by the manufacturer, its
Authorized Service Centre or similarly qualified
persons to avoid an electrical hazard.
• Do not exceed the maximum load of 9 kg (refer to
the “Program chart” chapter).
• Do not use the appliance if items have been soiled
with industrial chemicals.
5
ENGLISH
• Wipe away lint or packaging debris that has
accumulated around the appliance.
• Do not run the appliance without a filter. Clean the
lint filter before or after each use.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such
as cooking oil, acetone, alcohol, petrol, kerosene,
spot removers, turpentine, waxes and wax
removers should be washed in hot water with an
extra amount of detergent before being dried in
the tumble dryer.
• Items such as foam rubber (latex foam), shower
caps, waterproof textiles, rubber backed articles
and clothes or pillows fitted with foam rubber
pads should not be dried in the tumble dryer.
• Fabric softeners, or similar products, should
only be used as specified by the product
manufacturer’s instructions.
• Oil-affected items can ignite spontaneously,
especially when exposed to heat sources such
as in a tumble dryer. The items become warm,
causing an oxidation reaction in the oil. Oxidation
creates heat.
If the heat cannot escape, the items can become
hot enough to catch fire. Piling, stacking or storing
oil-affected items can prevent heat from escaping
and create a fire hazard.
• If it is unavoidable that fabrics that contain
vegetable or cooking oil or have been
contaminated by hair care products be placed in
a tumble dryer they should first be washed in hot
water with extra detergent this will reduce, but not
eliminate, the hazard.
• Remove all objects from items that could be a
source of fire ignition such as lighters or matches.
• WARNING: Never stop a tumble dryer before
the end of the drying cycle unless all items are
quickly removed and spread out so that the heat is
dissipated.
6 www.westinghouse.com.au / www.westinghouse.co.nz
2. CONDITIONS OF USE
This appliance is intended to be
used in household and similar
applications such as:
• farm houses;
• by clients in hotels, motels, bed
& breakfast and other residential
type environments;
3. SAFETY INSTRUCTIONS
3.1 Installation
WARNING!
Risk of fire / Flammable
materials.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Do not install the appliance in an
environment with no air exchange
The appliance contains flammable
gas, propane (R290), a gas with
a high level of environmental
compatibility. Keep fire and
ignition sources away from the
appliance. Be careful not to cause
damage to the refrigerant circuit
containing propane.
• Always take care when moving the
appliance as it is heavy. Always
use safety gloves and enclosed
footwear.
• Do not install or use the appliance
where the temperature can be
lower than 5°C or higher than
35°C.
• The floor area on which the
appliance is to be installed must
be flat, stable, heat resistant and
clean.
• Make sure that there is air
circulation between the appliance
and the floor.
• Always keep the appliance vertical
when it is being moved.
• The rear surface of the appliance
must be put against a wall.
• When the appliance is in its
permanent position, check if it is
leveled correctly with the aid of a
spirit level. If it is not, adjust the
feet accordingly.
• WARNING: In the appliance
enclosure or in the built-in
structure, keep ventilation
openings clear of obstruction
3.2 Electrical connection
WARNING!
Risk of fire and electric shock.
• Connect the mains plug to the
mains socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• The appliance must be earthed.
• Make sure that the parameters on
the rating plate are compatible
with the electrical ratings of the
mains power supply.
• Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
• areas for communal use in blocks
of flats or in launderettes.
7
ENGLISH
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters
and extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always
pull the mains plug.
• Do not touch the mains cable or
the mains plug with wet hands.
3.3 Use
WARNING!
Risk of injury, electric shock,
fire, burns or damage to the
appliance.
Warning: Risk of fire /
Flammable materials. The
appliance contains flammable
gas, propane (R290), a
gas with a high level of
environmental compatibility.
Keep fire and ignition sources
away from the appliance. Be
careful not to cause damage
to the refrigerant circuit
containing propane.
• This appliance is for household
(indoors) use only.
• Do not dry damaged (torn, frayed)
items that contain padding or
fillings.
• If laundry has been washed
with a stain remover, carry out
an additional rinse cycle before
starting a drying cycle.
• Dry only fabrics that are suitable
to dry in the appliance. Follow the
cleaning instruction on the item
label.
• Do not drink or prepare food with
the condensed water/distilled
water. It can cause health problems
to people and pets.
• Do not sit or stand on the open
door of the appliance.
• Do not dry dripping wet clothes in
the appliance.
3.4 Internal lighting
WARNING!
Risk of injury.
• Visible LED radiation, do not look
directly into the beam.
• To replace the internal lighting,
contact the Authorized Service
Center.
3.5 Care and cleaning
WARNING!
Risk of injury or damage to the
appliance.
Warning: Risk of fire /
Flammable materials. The
appliance contains flammable
gas, propane (R290), a
gas with a high level of
environmental compatibility.
Keep fire and ignition sources
away from the appliance. Be
careful not to cause damage
to the refrigerant circuit
containing propane.
• Do not use water spray and steam
to clean the appliance.
• Clean the appliance with a moist
soft cloth. Use only neutral
detergents. Do not use abrasive
products, abrasive cleaning pads,
solvents or metal objects.
• Be careful when you clean the
appliance to prevent damage to
the cooling system.
3.6 Compressor
WARNING!
Risk of damage to the
appliance.
• The compressor and its system in
the tumble dryer is filled with a
special agent which is free from
fluoro-chloro-hydrocarbons.
This system must stay tight. The
damage of the system can cause a
leakage.
8 www.westinghouse.com.au / www.westinghouse.co.nz

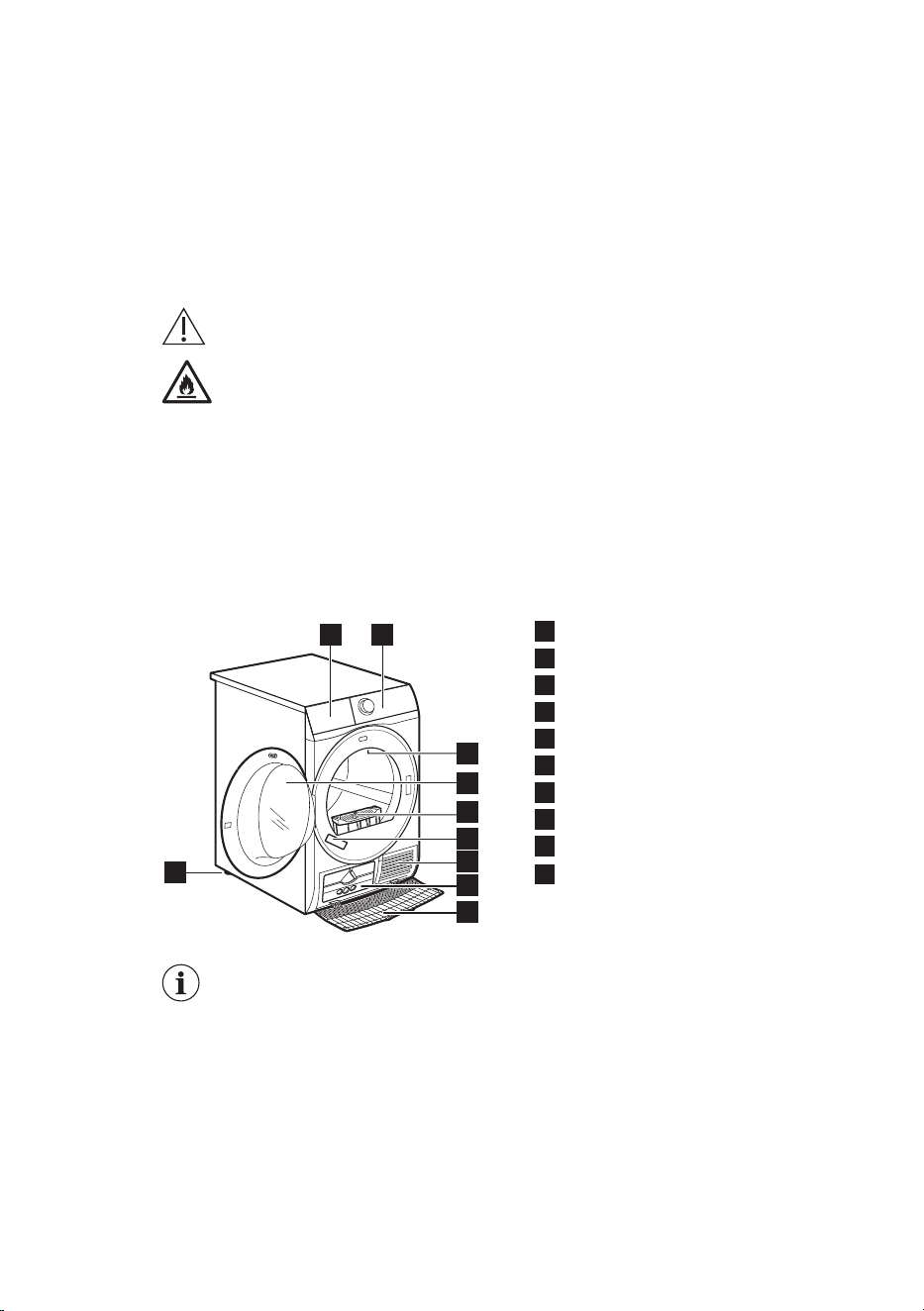

4. PRODUCT DESCRIPTION
For ease of loading laundry
or ease of installation the
door is reversible. (see in the
installation instruction).
Water container
Control panel
Internal light
Appliance door
Filter
Rating plate
Airflow slots
Heat Exchanger lid
Heat Exchanger cover
Adjustable feet
1 2
6
4
5
7
8
9
10
1
2
3
4
5
6
7
8
9
10
3
3.7 Service
• To repair the appliance contact the
Authorized Service Center.
• Use original spare parts only.
3.8 Disposal
WARNING!
Risk of injury or suffocation.
Warning: Risk of fire / Risk of
material damage and damage
to the appliance.
• Disconnect the appliance from
the mains electrical and water
supplies.
• Cut off the mains electrical cable
close to the appliance and dispose
of it.
• The appliance contains flammable
gas (R290). Contact your
municipal authority for information
on how to discard the appliance
correctly.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance
in accordance with local
requirements for the disposal of
Waste Electrical and Electronic
Equipment (WEEE).
9
ENGLISH
5. CONTROL PANEL
1
89 7 6
3
5
2
1
2
3
4
5
6
7
8
9
4
Program knob
Display
Time Dry touch button
Start/Pause touch button
Delay Start touch button
Extra Anticrease touch button
Reverse Plus touch button
Dryness Level touch button
On/Off button
Press the touch buttons with
your finger in the area with the
symbol or name of the option.
Do not wear gloves when you
operate the control panel.
Make sure that the control
panel is always clean and dry.
10 www.westinghouse.com.au / www.westinghouse.co.nz
5.1 Display
Symbol on the display Symbol description
time drying option on
delay start option on
indicator: check condenser
indicator: clean filter
indicator: drain the water container
indicator: drying phase
indicator: cooling phase
indicator: anticrease phase
wrong selection
program duration
time drying duration
delay start duration
11
ENGLISH
6. PROGRAM TABLE
Program Load
1)
Properties / Fabric type
2)
Favourite
Depends on
a memorized
program
You can do your configuration of program and
options and memorize in the appliance memory
(See chapter “Settings - Favourite
“).
Cotton 9 kg Cotton fabrics.
Mixed 3 kg
Cotton and synthetic fabrics.
Low temperature program.
Delicate program with warm air.
Bedding 3 kg
Bed linen such as single and
double sheets, pillowcases,
duvet cover.
Synthetic 3.5 kg Synthetic and mixed fabrics.
Eco
Cotton
3)
9 kg
Cycle to be used to dry cotton
with “cupboard” dryness
level, with maximum energy
saving.
Refresh 1 kg Refreshing textiles that were in storage.
Denim 4 kg
Leisure clothing such as jeans,
sweat-shirts of different material
thicknesses (e.g. at the neck,
cuffs and seams).
Gym Wear 2 kg
Sportswear, thin and light
fabrics, microfiber, polyester.
Easy Iron
1 kg
(or 5 shirts)
Easy care fabrics for which a minimum
of ironing is necessary. The drying
results can be different from one
type of fabric to an other. Shake
the items before putting them in
the appliance. When the program has
ended, immediately remove the items
and put them on a hanger.
Shirts
1.5 kg
(or 7 shirts)
Limits the formation of creases on
cotton, synthetic, and mixed-fiber shirts.
Garments will not be fully dried upon
completion of the cycle.
For best results, remove and hang
dry or iron immediately.
12 www.westinghouse.com.au / www.westinghouse.co.nz
1) The maximum weight refers to dry items.
2) For fabric mark meaning see chapter HINTS AND TIPS: Preparing the
laundry.
3) Eco Cotton program is the reference program for Energy Label, tested
according to AS/NZS2442.2.
7. OPTIONS
7.1 Dryness Level
This function helps to increase
dryness of the laundry. There are 3
options:
• Extra Dry
• Cupboard Dry
• Iron Dry
7.2 Reverse Plus
Increase drum reversing frequency
to reduce items twisting and
entanglement. To increase uniformity
of drying result and help reduce
creases. Recommended for large or
long items (e.g. sheets, trousers, long
dresses).
Program Load
1)
Properties / Fabric type
2)
Wool
1 kg
The wool drying cycle of this machine has
been approved by The Woolmark Company
for the drying of machine washable wool
products provided that the products are
washed and dried according to the instructions
on the garment label and those issued by the
manufacturer of this machine. Mxxxx
Delicate 4 kg
Delicate fabrics such as viscose,
rayon, acrylic, and their blends.
7.3 Extra Anticrease
Extends the anti-crease phase by
60 minutes at the end of the drying
cycle. This function reduces creases.
The laundry can be removed during
the anticrease phase.
7.4 Time Dry
You can set the program duration,
from a minimum of 10 minutes to a
maximum of 2 hours. The required
duration is related to the quantity of
laundry in the appliance.
13
ENGLISH
We recommend that you set
a short duration for small
quantities of laundry or for
only one item.
TIME DRYING
RECOMMENDATION
10 min
action of cool air
only (no heater).
20 - 40 min
additional drying
to improve dryness
after previous
drying cycle.
>40 min
full drying of the
small laundry loads
up to 4 kg, well
spun (>1200 rpm).
7.5 Time Dry on Wool pro-
gram
Option suitable for Wool program to
adjust final dryness level.
7.6 Options table
Programs
1)
Dryness Level
Reverse
Plus
Extra
Anticrease
Time
Dry
Delay
Start
Favourite
Depends on a memorized program
Cotton
Mixed
Bedding
Synthetic
Eco Cotton
Refresh
Denim
Gym Wear
Easy Iron
Shirts
Wool
Delicate
1) Together with the program you can set 1 or more options. To activate or
deactivate them, press the related touch button.
14 www.westinghouse.com.au / www.westinghouse.co.nz
8. SETTINGS
E DF
A
BC
A. Time Dry touch button
B. Start/Pause touch button
C. Delay Start touch button
D. Extra Anticrease touch button
E. Reverse Plus touch button
F. Dryness Level touch button
8.1 Child lock function
This function prevents children
playing with the appliance while
a program is operating. The touch
buttons are locked.
Only the on/off button is unlocked.
Activating the child lock
function:
1. Press the on/off button to activate
the appliance.
2. Press and hold touch button (D)
for a few seconds, the icon “
“
will flash on the display.
8.2 Favourite
You can do your configuration of
program and options and memorize
in the appliance memory.
To memorize your
configuration:
1. Press the on/off button to activate
the appliance
2. Set the program and available
options.
3. Press the (E) button for some
seconds.
The sound and the message
on the display confirm that the
configuration is memorized.
To activate your memorized
configuration:
1. Press the on/off button to activate
the appliance.
2. Use the program knob to set
Favourite
position.
Previously memorized configuration
of program and options will be
restore.
8.3 Water container indicator
By default, the water container
indicator is on. It comes on when
the program is completed or when
it is necessary to empty the water
container.
If a draining kit is installed
(additional accessory), the
appliance automatically
drains the water from the
water container. In this case
we recommend that you
deactivate the indicator of the
water container.
To deactivate function, Press
and hold the same touch
buttons few seconds, the icon
“ ” show in the display.
This function remains enabled
even after the appliance is
switched off.
15
ENGLISH
Deactivating the water
container indicator:
1. Press the on/off button to activate
the appliance.
2. Wait approximately 8 seconds.
3. Press and hold touch buttons (A)
and (C) at the same time.
The display shows one of these 2
configurations:
• The display shows “Off”. After 5
s the display returns to normal
mode.
• The display shows “On”. After 5
s the display returns to normal
mode.
8.4 Adjustment of default
dryness setting
Every time you enter in the
“Adjustment of default dryness
setting” mode, previously set
degree of remaining moisture
will change into next value
( e.g previously set will
change into ).
To change the default degree of
remaining moisture:
1. Press the on/off button to activate
the appliance.
2. Use the program knob to set any
program.
3. Wait approximately 8 seconds.
4. Press and hold buttons (E) and (D)
at the same time.
One of these indicators comes on:
• the maximum dryness
• the more dry laundry
• the standard dry laundry
5. Press and hold buttons (E) and
(D) again until the indicator of the
correct level comes on.
If the display returns to the
normal mode (the time of the
selected program from step
2. will be displayed), while
setting the degree of remaining
moisture, press and hold
buttons (E) and (D) once again
to enter to the “Adjustment of
remaining laundry moisture”
mode (previously set degree of
remaining moisture will change
into next value).
6. After 5 s the display returns to
normal mode.
8.5 Buzzer on/off
This setting permits you to either
enable or disable the buzzer at the
end of the program. As an example,
you might wish to disable this buzzer
when you start a wash when going to
bed, so that when the drying finished
approximately 1 hour later, it will not
disturb you through the night.
Error warning beeps such as
critical faults are not disabled.
• To disable the buzzer sound,
press
and hold for approximately 2
seconds touch buttons (E) and (F)
at the same time, the icon “ ”
will show on display along with
buzzer sound.
• To return to default configuration
press these 2
touch buttons and
hold approximately 2 seconds, the
icon “ ” will show on display
along with buzzer sound.
16 www.westinghouse.com.au / www.westinghouse.co.nz
10. DAILY USE
10.1 Start a program without
delay start
1. Prepare the laundry and load the
appliance.
CAUTION!
Make sure that when you close
the door, the laundry does
not get caught between the
appliance door and the rubber
seal.
2. Press the on/off button to activate
the appliance.
3. Set the correct program and
options for the type of load.
The display shows the program
duration.
Real drying time will depend
on type of the load (quantity
and composition), the room
temperature and the humidity
of your laundry after spin
drying phase.
9. BEFORE FIRST USE
Rear drum packaging is
removed automatically when
dryer is activated for the first
time. Possible to hear some
noise.
To unlock the rear drum locks:
1. Switch on the appliance.
2. Set any program.
3. Press the Start/Pause button.
Drum starts to rotate. Rear drum
locks are automatically deactivated.
Before you use the appliance to dry
items:
• Clean the tumble dryer drum with
a moist cloth.
• Start a 1 hour program with moist
laundry.
At the beginning of the drying
cycle (first 3-5 min) there
could be a slightly higher
sound level. This is due to
the compressor starting up.
This is normal for compressor
powered appliances such as
refrigerators and freezers.
4. Press the Start/Pause touch
button. The program starts.
10.2 Starting the program
with delay start
1. Set the correct program and
options for the type of load.
2. Press the delay start button again
and again until the display shows
the delay time you want to set.
You can delay the start of a
program from a minimum of
30 minutes to a maximum of
20 hours.
3. Press the Start/Pause touch
button.
The display shows the countdown of
the delay start.
When the countdown is completed,
the program starts.
10.3 Change a program
1. Press the on/off button to
deactivate appliance
2. Press the on/off button to activate
the appliance.
3. Set the program.
17
ENGLISH
Possible causes of unsatisfactory
drying results:
• Inadequate default dryness level
settings. See chapter Adjustment
of default dryness level
• Room temperature is too low
or too high. Optimal room
temperature is between 18°-25°C.
Always clean the filter and
empty the water container
when a program is completed.
10.5 Stand-by function
To reduce energy consumption, this
function automatically deactivates
the appliance:
• After 5 minutes if you do not start
the program.
• After 5 minutes from the end of
the program.
10.4 At the end of the
program
When the program is completed:
• An intermittent acoustic signal
operates.
• The display shows .
• The indicator is blink.
• The indicators Filter and
Tank may come on.
• The Start/Pause indicator is on.
The appliance continues to operate
with the anticrease phase for
approximately 30 minutes or more if
Extra Anticrease option was set (see
chapter Option -Extra Anticrease).
The anticrease phase reduces
creasing.
You can remove the laundry before
the anticrease phase is completed.
We recommend, for better results,
that you remove the laundry when
the phase is almost completed.
When the anticrease phase is
completed:
• The display still shows .
• The indicator is off.
• The indicators Filter and
Tank remain on.
• Start/Pause indicator goes off.
1. Press the on/off button to
deactivate the appliance.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.
18 www.westinghouse.com.au / www.westinghouse.co.nz
11. HINTS AND TIPS
11.1 Preparing the laundry
Very often the clothes after
washing cycle are kneaded
and tangled altogether. Drying
kneaded and tangled clothes is
inefficient.
To assure proper air flow and
even drying it is recommended
to shake and load one by one
the clothes to the tumble dryer.
To assure proper drying process:
• Close the zips.
• Close the fasteners of duvet
covers.
• Do not dry ties or ribbons loose
(e.g. apron ribbons). Tie them
before you start a program.
• Remove all items from pockets.
• Turn items with the internal layer
made of cotton inside out. Cotton
layer must be faced outwards.
• Always set the program suitable
for the type of laundry.
• Do not put light and dark colors
together.
• Use suitable program for cottons,
jersey and knitwear to reduce
shrinkage.
• Do not exceed the maximum load
stated in the programs chapter or
shown on the display.
• Dry only the laundry that is
suitable for tumble drying. Refer to
the fabric label on the items.
• Do not dry large and small items
together. Small items can be
trapped inside the large items and
remain wet.
• Shake the large clothes, fabrics
before placing in the tumble dryer.
It is to avoid moist places inside
the fabric after the drying cycle.
12. CARE AND CLEANING
12.1 Cleaning the filter
CAUTION!
Avoid the use of water to
clean the filter. Instead throw
away lint in the dustbin (avoid
dispersion of plastic fiber in
water ambient).
To achieve the best drying
performances clean the filter
regularly, clogged filter lead
to longer cycles and energy
consumption increase. Use
your hand to clean the filter,
and if necessary, a vacuum
cleaner.
Fabric label Description
Laundry is suitable for tumble drying.
Laundry is suitable for tumble drying at higher
temperatures.
Laundry is suitable for tumble drying at low temperatures
only.
Laundry is not suitable for tumble drying.
19
ENGLISH
1) If necessary remove fluff from the filter socket and gasket. You can use a
vacuum cleaner.
1
.
2
.
1
2
3
.
1
2
4
.
5
.
1)
6
.
2
1
12.2 Emptying the water container
1. 2.
3. 4.
You can use the water from the water container as an alternative to distilled
water (e.g. for steam ironing). Before you use the water, remove dirt
residues with a fi lter.
20 www.westinghouse.com.au / www.westinghouse.co.nz
12.3 Cleaning the condenser
1
.
2
.
1
2
3
.
4
.
11
2
2
5
.
6
.
7
.
8
.
9
.
2
1
21
ENGLISH
CAUTION!
Do not touch the metal surface
with bare hands. Risk of injury.
Wear protective gloves. Clean
carefully to avoid damaging
the metal surface.
12.4 Cleaning the drum
WARNING!
Disconnect the appliance
before you clean it.
Use a standard neutral soap
detergent to clean the inner surface
of the drum and drum lifters. Dry the
cleaned surfaces with a soft cloth.
CAUTION!
Do not use abrasive materials
or steel wool to clean the
drum.
12.5 Cleaning the control
panel and housing
Use a standard neutral soap
detergent to clean the control panel
and housing.
Use a moist cloth to clean. Dry the
cleaned surfaces with a soft cloth.
CAUTION!
Do not use furniture cleaning
agents or cleaning agents
which can cause corrosion.
12.6 Cleaning the airflow slots
Use a vacuum cleaner to remove fluff
from the airflow slots.
13. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
13.1 Error Codes
The appliance does not start or it stops during operation.
First try to find a solution to the problem (refer to the table). If the problem
persists, contact the Authorized Service Center.
WARNING!
Deactivate the appliance before carrying out any check.
In case of major problems, the acoustic signals operate, the display shows
an error code and the Start/Pause button may flash continuously:
Error
code
Possible cause Remedy
E91 Internal fail. No
communication
between electronic
elements of the
appliance.
The program was not finished properly or
the appliance stopped too early. Switch
the appliance off and on again. If the
error code appears again, contact the
Authorized Service Center.
EH0 The mains supply is
unstable.
When the appliance is showing EH0,
please wait until main supply is stable
than press start. If the appliance pause the
cycle without any indication then press the
cycle start. If the warning will occur check
the power cord /socket integrity or main
supply.
22 www.westinghouse.com.au / www.westinghouse.co.nz
If the display shows other error codes, deactivate and activate the appliance.
If the problem continues, contact the Authorized Service Center.
In case of different problem with the tumble dryer check the table below for
possible solutions.
13.2 Troubleshooting
1) After maximum 5 hours, the program ends automatically.
2) It can happen that some area remains humid when drying big items (e.g.
bed sheets).
Problem Possible solution
You cannot activate the
appliance.
Make sure that the mains plug is connected
to the mains socket.
Check fuse in fuse box (domestic
installation).
The drum does not rotate. Release the rear drum locks manually
(see chapter Before First Use).
The program does not start. Press Start/Pause.
Make sure that the appliance door is
closed.
The appliance door does not
close.
Make sure that the installation of the filter
is correct.
Make sure that the laundry is not caught
between the appliance door and the
rubber seal.
The appliance stops during
operation.
Make sure that the water container is
empty. Press Start/Pause to start the
program again.
Load is too small, increase the load or use
the Time Drying program.
The cycle time is too long or
unsatisfactory drying result.
1)
Make sure that the weight of the laundry is
suitable for the duration of the program.
Make sure that the filter is clean.
The laundry is too wet. Spin the laundry in
the washing machine again.
Ensure that the room temperature is higher
than +5°C and lower than +35°C. Optimal
room temperature is 18°C to 25°C.
Set the Time Drying or the Extra Dry
program.
2)
The display shows
.
If you want to set a new program,
deactivate and activate the appliance.
Make sure that the options are suitable for
the program.
23
ENGLISH
If the drying results are not
satisfactory
• The set program was incorrect.
• The filter is clogged.
• The Heat Exchanger is clogged.
• There was too much laundry in the
appliance.
• The drum is dirty.
• Incorrect setting of the
conductivity sensor ( See chapter
“Settings -Adjustment of the
remaining laundry moisture degree
“ for better setting).
• The airflow slots are clogged.
• Room temperature is too low
or too high (optimal room
temperature 18°C to
25°C).
Height x Width x Depth 850 x 596 x 662 mm
Max. depth with the appliance door
open
1107 mm
Max. width with the appliance door
open
958 mm
Adjustable height 850 mm (+ 15 mm - feet
adjustment)
Drum volume 113 l
Maximum load 9 kg
Voltage 230-240 V
Frequency 50 Hz
Total power 800 W
Type of use Household
Permitted ambient temperature + 5°C to + 35°C
Level of protection against ingress of
solid particles and moisture ensured
by the protective cover, except where
the low voltage equipment has no
protection against moisture
IPX4
Gas designation R290
Gas Weight 0.149 kg
14. TECHNICAL DATA
24 www.westinghouse.com.au / www.westinghouse.co.nz
15. WARRANTY
FOR SALES IN AUSTRALIA AND NEW
ZEALAND
APPLIANCE: WESTINGHOUSE DRYER
This document sets out the terms and
conditions of the product warranties
for Westinghouse Appliances. It is an
important document. Please keep it with
your proof of purchase documents in a
safe place for future reference should
there be a manufacturing defect in your
Appliance. This warranty is in addition
to other rights you may have under the
Australian Consumer Law.
1. In this warranty:
a) ‘ACL’ or ‘Australian Consumer
Law’ means Schedule 2 to the
Competition and Consumer Act
2010;
b) ‘Appliance’ means any Electrolux
product purchased by you and
accompanied by this document;
c) ‘ASC’ means Electrolux authorised
service centres;
d) ‘Westinghouse’ is the brand
controlled Electrolux Home
Products Pty Ltd of 163 O’Riordan
Street, Mascot NSW 2020, ABN
51 004 762 341 in respect of
Appliances purchased in Australia
and Electrolux (NZ) Limited
(collectively “Electrolux”) of
3-5 Niall Burgess Road, Mount
Wellington, in respect of Appliances
purchased in New Zealand;
e) ‘Warranty Period’ means the
period specified in clause 3 of this
warranty;
f) ‘you’ means the purchaser of the
Appliance not having purchased the
Appliance for re-sale, and
‘your’ has a corresponding meaning.
2. Application: This warranty only applies
to new Appliances, purchased and
used in Australia or New Zealand and
is in addition to (and does not exclude,
restrict, or modify in any way) other
rights and remedies under a law to
which the Appliances or services relate,
including any nonexcludable statutory
guarantees in Australia and New
Zealand.
3. Warranty Period: Subject to these
terms and conditions, this warranty
continues for in Australia for a period
of 24 months and in New Zealand for a
period of 24 months, following the date
of original purchase of the Appliance.
4. Repair or replace warranty: During
the Warranty Period, Electrolux or its
ASC will, at no extra charge if your
Appliance is readily accessible for
service, without special equipment and
subject to these terms and conditions,
repair or replace any parts which it
considers to be defective. Electrolux
may, in its absolute discretion, choose
whether the remedy offered for
a valid warranty claim is repair or
replacement. Electrolux or its ASC
may use refurbished parts to repair
your Appliance. You agree that any
replaced Appliances or parts become
the property of Electrolux.
5. Travel and transportation costs:
Subject to clause 7, Electrolux will bear
the reasonable cost of transportation,
travel and delivery of the Appliance to
and from Electrolux or its ASC. Travel
and transportation will be arranged by
Electrolux as part of any valid warranty
claim.
6. Proof of purchase is required before
you can make a claim under this
warranty.
7. Exclusions: You may not make a claim
under this warranty unless the defect
claimed is due to faulty or defective
parts or workmanship. This warranty
does not cover:
a) light globes, batteries, filters or
similar perishable parts;
b) parts and Appliances not supplied
by Electrolux;
c) cosmetic damage which does
not affect the operation of the
Appliance;
d) damage to the Appliance caused
by:
1. negligence or accident;
2. misuse or abuse, including
failure to properly maintain or
service;
3. improper, negligent or faulty
servicing or repair works
done by anyone other than an
Electrolux authorised repairer
or ASC;
4. normal wear and tear;
5. power surges, electrical storm
damage or incorrect power
supply;
6. incomplete or improper
installation;
7. incorrect, improper or
inappropriate operation;
8. insect or vermin infestation;
9. failure to comply with any
additional instructions supplied
with the Appliance;
25
ENGLISH
In addition, Electrolux is not liable under
this warranty if:
a. the Appliance has been, or
Electrolux reasonably believes
that the Appliance has been, used
for purposes other than those for
which the Appliance was intended,
including where the Appliance has
been used for any non-domestic
purpose;
b. the Appliance is modified without
authority from Electrolux in writing;
c. the Appliance’s serial number or
warranty seal has been removed or
defaced
8. How to claim under this warranty:
To enquire about claiming under this
warranty, please follow these steps:
a. carefully check the operating
instructions, user manual and the
terms of this warranty;
b. have the model and serial number
of the Appliance available;
c. have the proof of purchase (e.g.
an invoice) available;
d. telephone the numbers shown
below.
9. Australia: For Appliances and
services provided by Electrolux in
Australia: Electrolux goods come with
guarantees that cannot be excluded
under the Australian Consumer Law.
You are entitled to a replacement
or refund for a major failure and for
compensation for any other reasonably
foreseeable loss or damage. You are
also entitled to have the Appliance
repaired or replaced if the Appliance
fails to be of acceptable quality and
the failure does not amount to a major
failure. ‘Acceptable quality’ and ‘major
failure’ have the same meaning as
referred to in the ACL.
10. New Zealand: For Appliances and
services provided by Electrolux in New
Zealand, the Appliances come with
a guarantee by Electrolux pursuant
to the provisions of the Consumer
Guarantees Act, the Sale of Goods
Act and the Fair Trading Act. Where
the Appliance was purchased in New
Zealand for commercial purposes the
Consumer Guarantee Act does not
apply.
11. Confidentiality: You accept that if you
make a warranty claim, Electrolux and
its agents including ASC may exchange
information in relation to you to enable
Electrolux to meet its obligations
under this warranty.
WDryer_Warr_Apr_20
Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above
have been followed.
AUSTRALIA
FOR SERVICE
or to fi nd the address of your
nearest authorised service
centre in Australia
PLEASE CALL 13 13 49
For the cost of a local call
FOR SPARE PARTS
or to fi nd the address of your
nearest spare parts centre in
Australia
PLEASE CALL 13 13 50
For the cost of a local call
NEW ZEALAND
FOR SERVICE
or to fi nd the address of your
nearest authorised service
centre in New Zealand
PLEASE CALL 0800 10 66 10
FOR SPARE PARTS
or to fi nd the address of your
nearest spare parts centre in
New Zealand
PLEASE CALL 0800 10 66 20
26 www.westinghouse.com.au / www.westinghouse.co.nz
16. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol .
Put the packaging in relevant
containers to recycle it. Help protect
the environment and human health
by recycling waste of electrical and
electronic appliances. Do not dispose
of appliances marked with the symbol
with the household waste. Return
the product to your local recycling
facility or contact your municipal
o ce.
27
ENGLISH
Notes
www.westinghouse.com.au
www.westinghouse.co.nz
G0042147-001-A23568317
