VHW-HWPS-B4
QUICK START GUIDE
4 PORT EOC BASE WITH POE PLUS
HIGHWIRE
POWERSTAR BASE 4
05 0706
110 mm
22 mm
121.1 mm
154 mm
172.6 mm
SFP LED OPERATION
Top Red = No module inserted
Green = Device inserted
Bottom Off = No module inserted
Red = No device link
detected
Green = Link detected
4
5
FUNCTIONS
1 57V DC Power
2 57V DC Power
3 SFP Module
4 SFP Top LED
5 SFP Bottom LED
4 x BNC connectors. Connect to any 75 Ohm coaxial cable. 57V Power Supply Options : Connect to either option 1 OR option 2

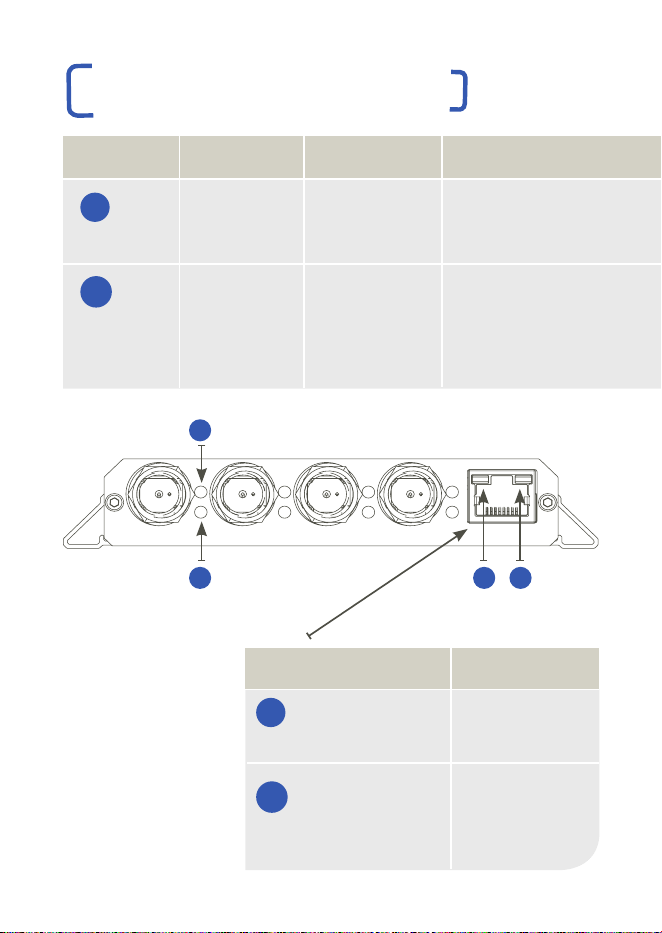

POE LED
COAX LINK
ACTIVITY
COAX POE
(Power)
FUNCTION
Coax data
connection
POE over
coax status
GREEN
Blink = No link to camera
On = 100Base-TX to camera
Flash = 100Base-TX activity
On = Device detected
ORANGE
Blink = 10Base-T link to camera
Flash = 10Base-T activity
On = Approaching power limit
Flash = Short circuit. Check
for cable faults or incompatible
equipment
RED
On = Data rate <100%
Cable distance at limit
On = Power limit reached
Flash = POE discontinued
due to overload
321
4
5
A
B
ETHERNET LED FUNCTION
RJ45 Yellow On = link
Blink = activity
RJ45 Green On = Power on
C D
A
B
C
D
LOCATION
CONNECTIONS AND LEDS
CONNECTIONS AND LEDS

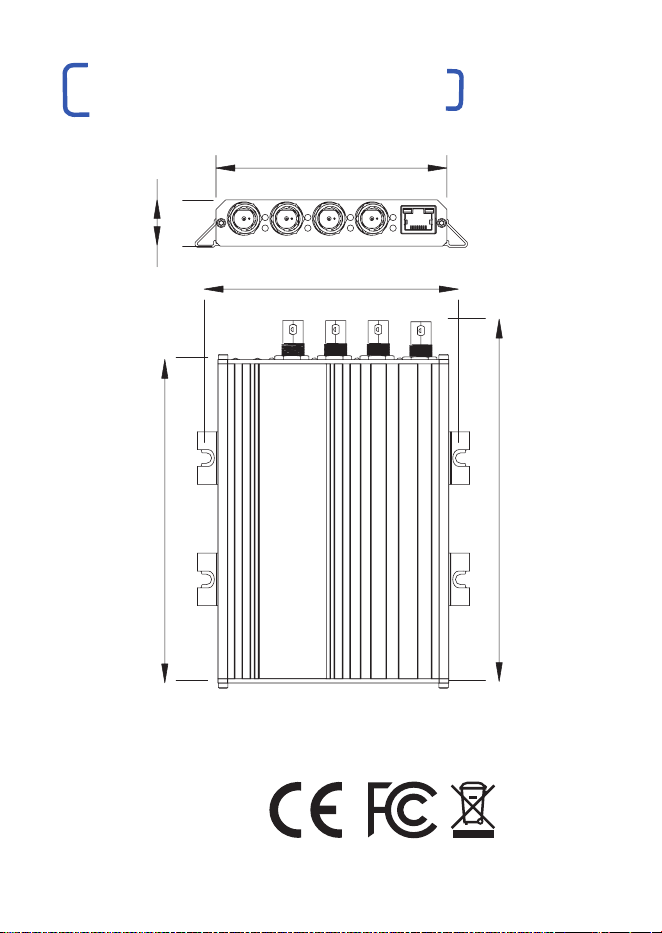

PRODUCT DIMENSIONS
© Veracity UK Ltd 2016 QSGV1.2 UK
HIGHWIRE POWERSTAR BASE 4 is a trademark of Veracity UK Ltd
RoHS
