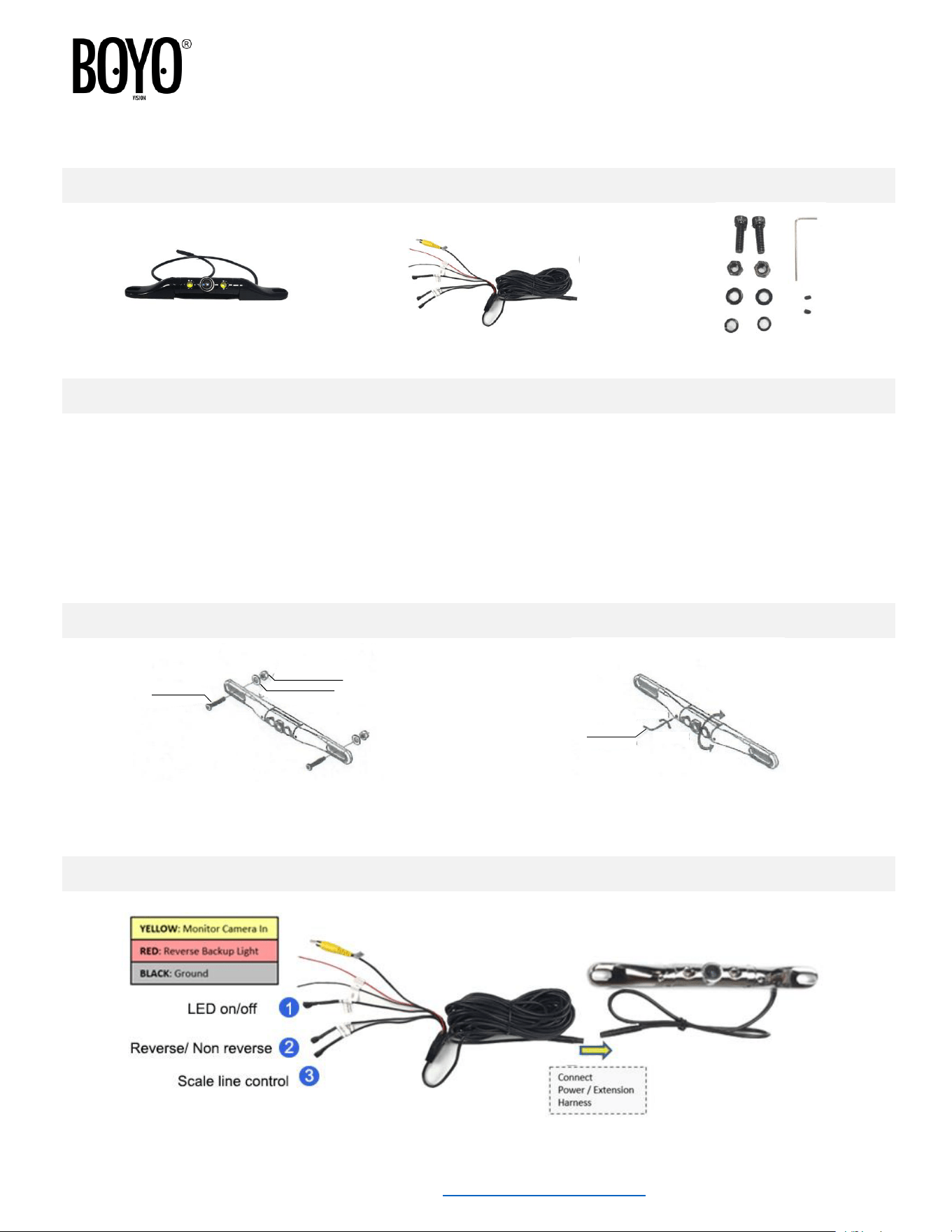

USER MANUAL
VTL402CLS / VTL422CLS
Bar-Type License Plate Camera
With 3W LEDs for Color Night Vision
1. Part List
Camera
Video / Power Extension
Hex Wrench / Spare Hex Bolts
License Plate Bolts and Nuts
2. Features & Specifica�on
Bar-Type License Plate Camera with 3 Wa� LEDs
Excellent Color Contrast
Excellent Low Light Performance
Reverse / Non-reverse Image Switch
Parking Guidelines On/Off Switch
Adjustable Ver�cal Camera Angle
The� Deterrence License Plate Bolts and Nuts
An�-Corrosive Long-Las�ng Camera Body
¼” Color CMOS Sensor
640(H) x 480(V) Effec�ve Pixel Resolu�on
600TVL Resolu�on Details
170º Wide Viewing Angle
0.5Lux Min. Ill. w/o LED Lights
IP68 Waterproof
Zinc Metal An�-Corrosive Camera Body
*U.S. DESIGN PATENT No. D734,804
3. Installa�on 4. Ver�cal Camera Angle Adjustment
F
or the� deterrence, use the bolts and nuts to
lock the license plate camera. Drilling holes for
bolts may be required.
1. Loosen the ca
mera: Use the provided hex wrench
to loosen the screws on both sides of the camera.
2. Tilt camera to adjust the angle.
3. Tighten the screws to lock the camera angle.
5. Wiring
Screws
PM0.2×1.18''×2
Hexagon Lockunt
Φ0.32×M0.2×0.2''×2
Round gasket
Φ0.39×M0.2×0.04''×2
L-shaped
hex.Wrench
fix tight
Loosen
