USER MANUAL
VTL402TJS / VTL422TJS
Bar-Type License Plate Camera
With Built-in Intelligent Reverse Trajectory Guidelines

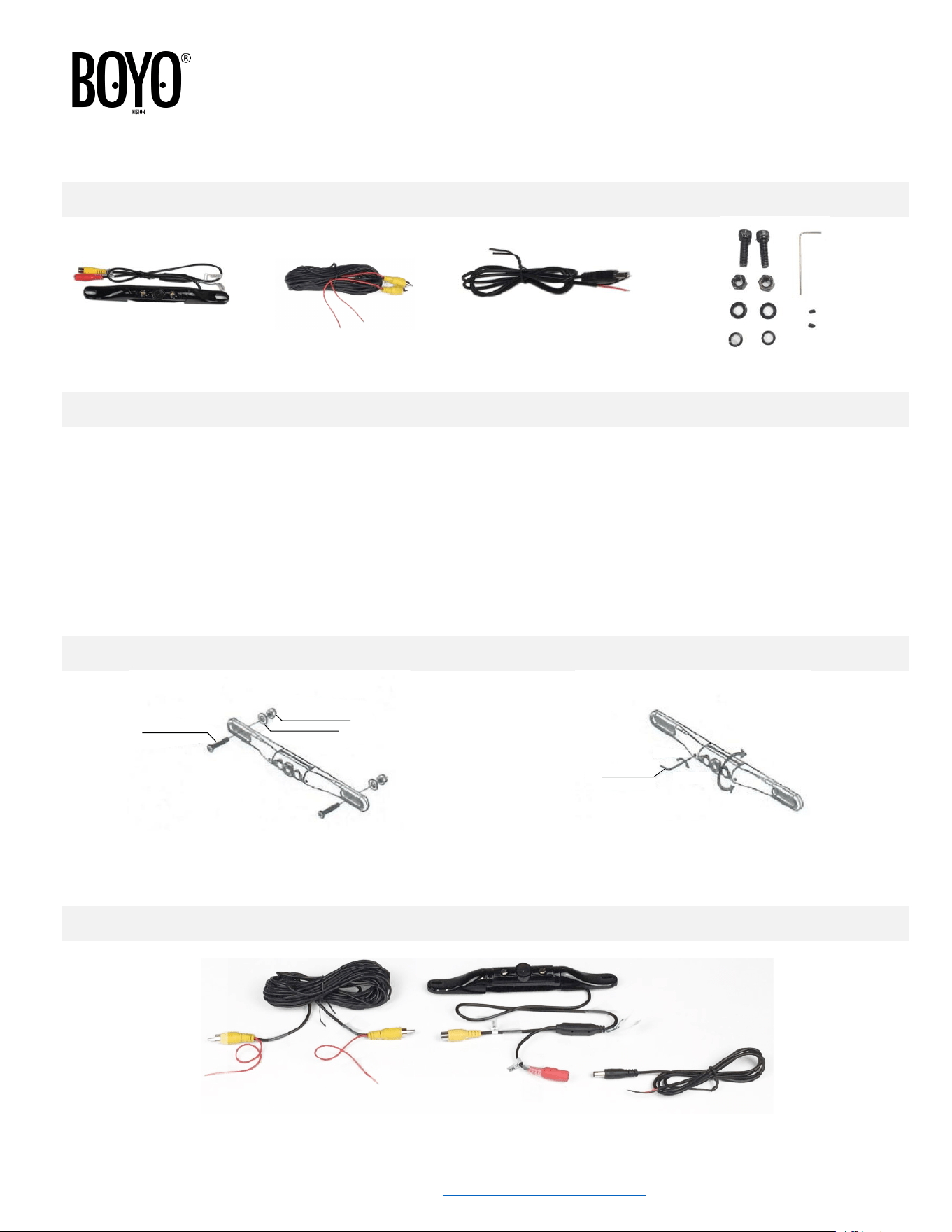

1. Part List
Camera
Video Extension with
Reverse Trigger Wire
Power Cable for Camera
Hex Wrench / Spare Hex Bolts
License Plate Bolts and Nuts
2. Features & Specifica�on
Bar-Type License Plate Camera with 3 Wa� LEDs
Intelligent Reverse Trajectory Guidelines
Excellent Color Contrast
Excellent Low Light Performance
Reverse / Non-reverse Image Selectable
Parking Guidelines On/Off Selectable
LED Trigger Wire
Adjustable Ver�cal Camera Angle
The� Deterrence License Plate Bolts and Nuts
An�-Corrosive Long-Las�ng Camera Body
1/3” Color CMOS Sensor
960(H) x 480(V) Effec�ve Pixel Resolu�on
600TVL Resolu�on Details
170º Wide Viewing Angle
0.5Lux Min. Ill. w/o LED Lights
IP68 Waterproof
Zinc Metal An�-Corrosive Camera Body
*U.S. DESIGN PATENT No. D734,804
3. Installa�on 4. Ver�cal Camera Angle Adjustment
F
or the� deterrence, use the bolts and nuts to
lock the license plate camera. Drilling holes for
bolts may be required.
1. Loosen the ca
mera: Use the provided hex wrench
to loosen the screws on both sides of the camera.
2. Tilt camera to adjust the angle.
3. Tighten the screws to lock the camera angle.
5. Wiring
Select Loop Wires
White: Cut = Non-reverse Image
Blue: Cut = Parking guidelines off
Green: Connect to backup light =
LED Lights on when backup light is on
Yellow RCA: to the
monitor backup
camera input
RED: to the monitor
reverse gear trigger
input
RED: to the reverse
backup light posi�ve
Screws
PM0.2×1.18''×2
Hexagon Lockunt
Φ0.32×M0.2×0.2''×2
Round gasket
Φ0.39×M0.2×0.04''×2
L-shaped
hex.Wrench
fix tight
Loosen
