Congratulations!
Thank you for purchasing the TRC-1080 Wi-Fi remote control for your Total Control
system. The TRC-1080 connects to the local wireless network to control devices
throughout your home/business automation system.
Use the TRC-1080 to navigate through Total Control’s menus to control your system’s
audio/video devices, climate, lighting, and more.
The Total Control Rooms Menu makes controlling devices in other areas (up to 32 zones)
easy and intuitive!
Features & Benefits
• Quick Connect Wi-Fi: When woken up, the remote connects to the
wireless network (2.4 GHz only) almost instantly for control of your
system and devices.
• Two-way Metadata Feedback: Experience feedback directly on the
TRC-1080’s display when used with an ever expanding line of 3rd Party
modules (HEOS, Ecobee, Sonos and many more).
Consult with your certied URC integrator to learn more about
3rd party integration.
• Pick-up Sensor: Lifting the TRC-1080 immediately wakes it up, turns
on the button backlight, and quickly connects the device to the local
wireless network.
• Rechargeable Lithium Polymer Battery & Charging Cradle: Save
money and protect the environment by using the included charging cradle
and rechargeable lithium polymer battery.
2
Total Control
TRC-1080
Owner’s Manual
Requirements & Compatibility
• Total Control: When used with an MRX Advanced System Controller, the
TRC-1080 is capable of controlling devices around the home/business without
being within “line-of- sight” of the equipment. The TRC-1080 sends commands
over the system’s local area network (Wi-Fi).
Parts
• TRC-1080 Wi-Fi Remote Control
• Rechargeable Battery
• Charging Cradle
• AC Power Adapter for Charging Cradle
TRC-1080
Rechargeable Battery
Charging Cradle
AC Power Adapter
3
Total Control
TRC-1080
Owner’s Manual
Connecting the Battery Pack
A battery is included in the box when shipped from the factory. Press the spring lock
down to unlock and remove the cover. Place the battery into the battery
compartment, making sure to align the contacts on the battery with the contacts
within the TRC-1080’s battery compartment. The battery snaps into place when
aligned properly. Replace the battery cover.

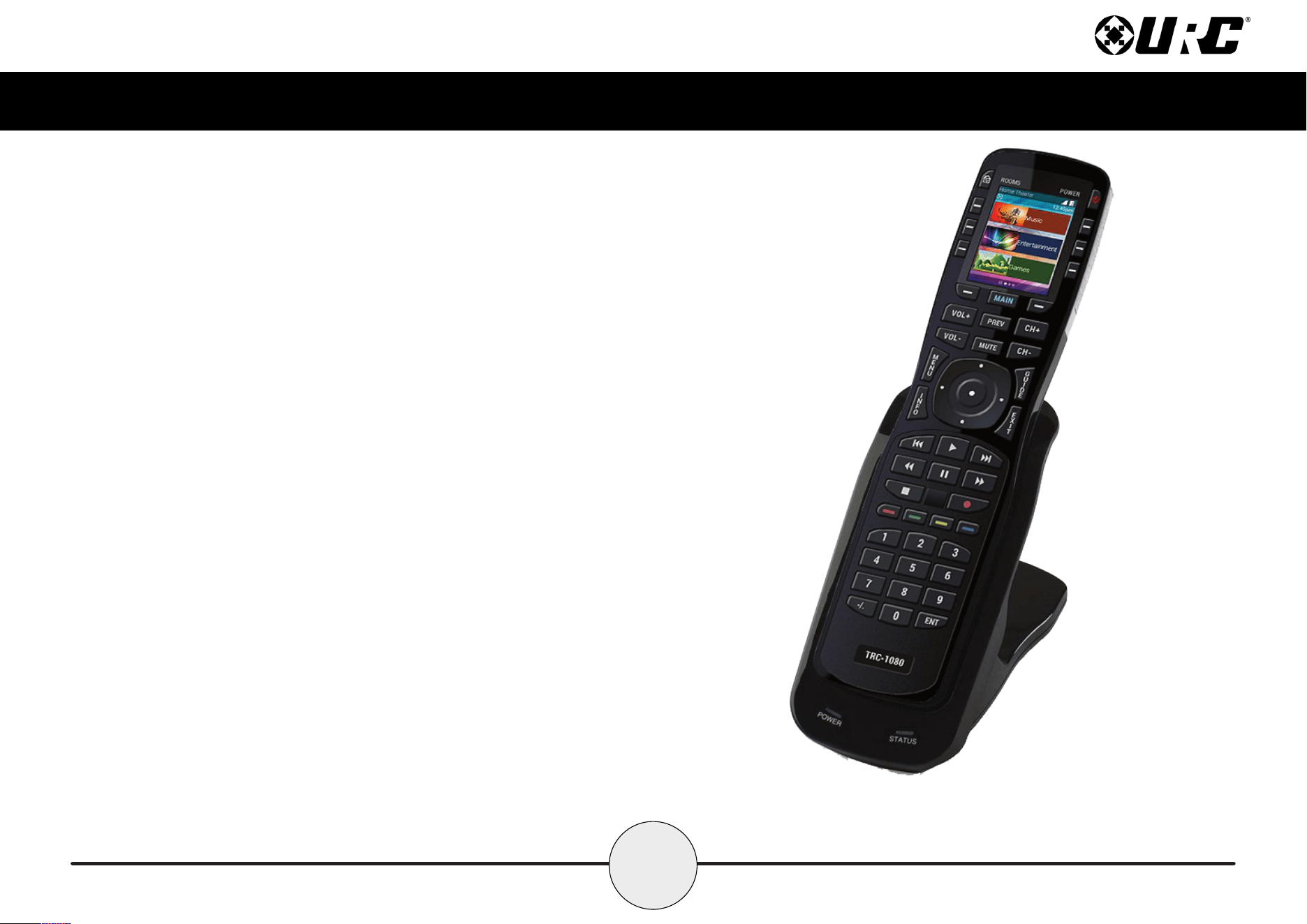

Using the Charging Cradle
Plug the 5V DC adapter into a power outlet and into the rear of the charging cradle.
Gently place the TRC-1080 into the cradle, so that the remote automatically aligns
itself to the contacts on the charging cradle. The status light immediately
illuminates.
There are two (2) status light conditions:
• Red: Indicates the the remote’s battery is charging.
• Blue: Indicates that the remote’s battery is fully charged.
Two-way via Wi-Fi (2.4 GHz)
The TRC-1080 has the capability of providing two-way control on supported devices
directly on the 2” LCD display. These devices must be congured into the Total
Control program le, consult your custom integrator for additional details.
4
Total Control
TRC-1080
Owner’s Manual

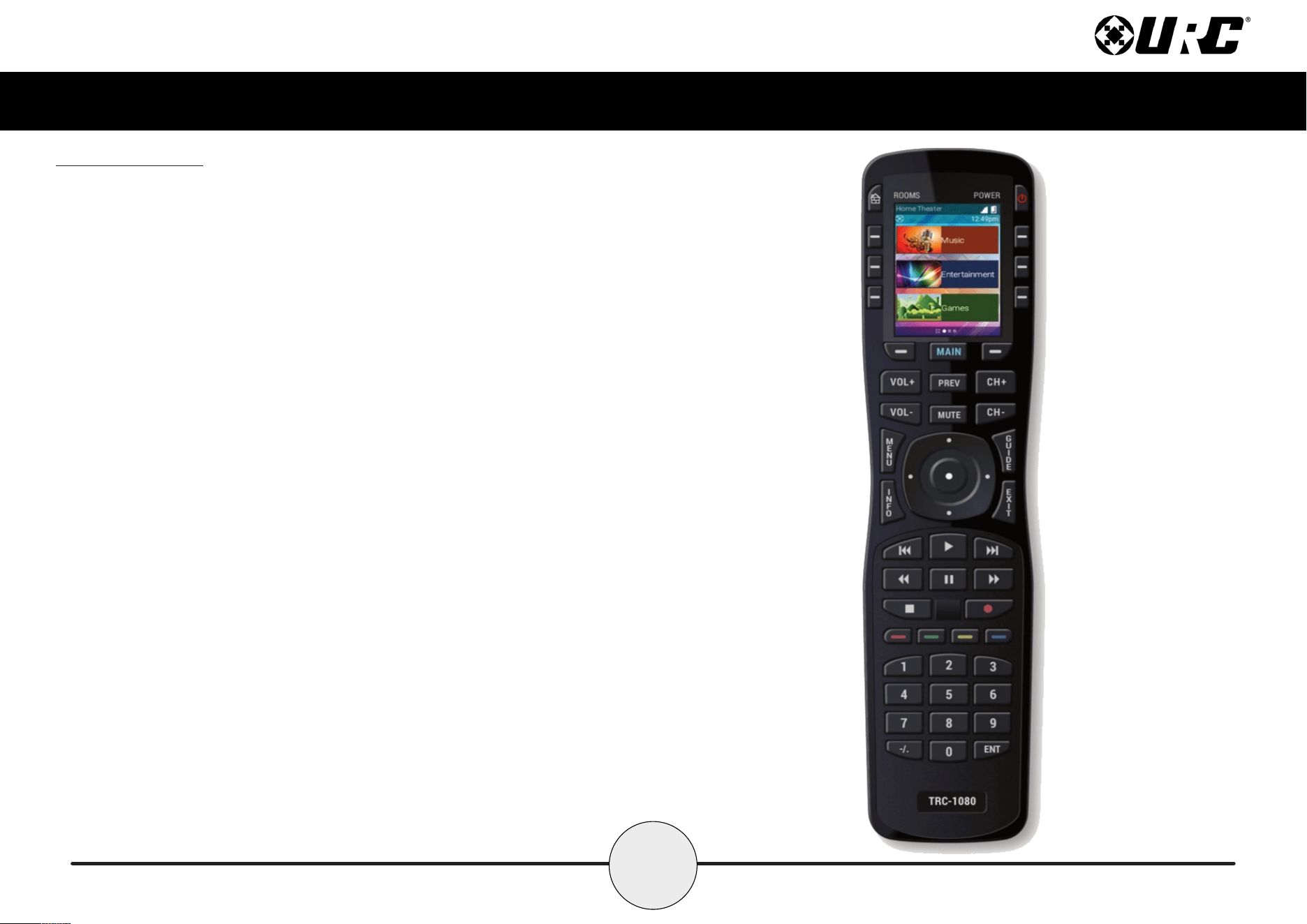

Using the TRC-1080
The Main Menu pages display the activities and devices in the system. Press the Main
button to access the Main Menu. Larger systems may have more than one (1) page.
Press either of the Page buttons to view additional Main Menu pages.
Although the TRC-1080 is programmed with custom layouts and devices, there are
persistent buttons that maintain a steady function:
A. Rooms Menu: This button displays a list of rooms and allows the user to swap
between them for control.
B. Room Off/House Off: With a single press of this button, the Total Control
system turns off all the devices of the current room. Press-n-hold this button for
greater than three (3) seconds to display the system’s Power Menu. This menu
allows the user to turn off the room, the entire system, or any custom activity
programmed by the custom integrator.
C. LCD Buttons: The specic function of each button is linked to the screen icon
associated to the LCD button. These buttons are used to select activities,
devices, functions, navigate, and more. Speak with your custom integrator for
more details.
D. Page Left/Right: These buttons are used to navigate through the various Main
Menu and Device/Activity Menu pages.
E. Main: By default, this button returns the user to the previous menu.
F. Vol+, Vol-, & Mute: Used to increase, decrease, or toggle the mute status of
the active audio device.
G. CH+, CH-, & Prev: Used to change a Cable/Sat channel up or down or to
navigate through a device’s on-screen menus. The Prev button returns to the
device’s previous channel or can be used to return the user to a previous menu.
5
Total Control
TRC-1080
Owner’s Manual
H. Shortcuts: Comprised of up, down, left, right, and select. These buttons are
used to navigate through the menus of a device.
There are four (4) buttons available that serve different functions for
different devices:
• Menu: Displays the on-screen menu of the active device.
• Guide: Displays the channel guide for the device’s on-screen display.
• Info: Displays channel information for the device’s on-screen display.
• Select: Center button of directional keypad, used to conrm selections
displayed on a viewing device.
• Exit: Closes out any open menus or guides on the display or return to
the previous menu.
I. Transport Buttons: Primarily used with video or audio activities (Blu-ray,
Netix, Pandora, etc.):
• Play
• Pause
• Stop
• Record
• Skip+
• Skip-
• Rew
• Fwd
• Red
• Green
• Yellow
• Blue
J. Color Keys: Can provide additional functionality to specic devices such as
cable boxes and/or satellite boxes:
K. Numerical Keypad: Numbered buttons to change channels.
6
Total Control
TRC-1080
Owner’s Manual

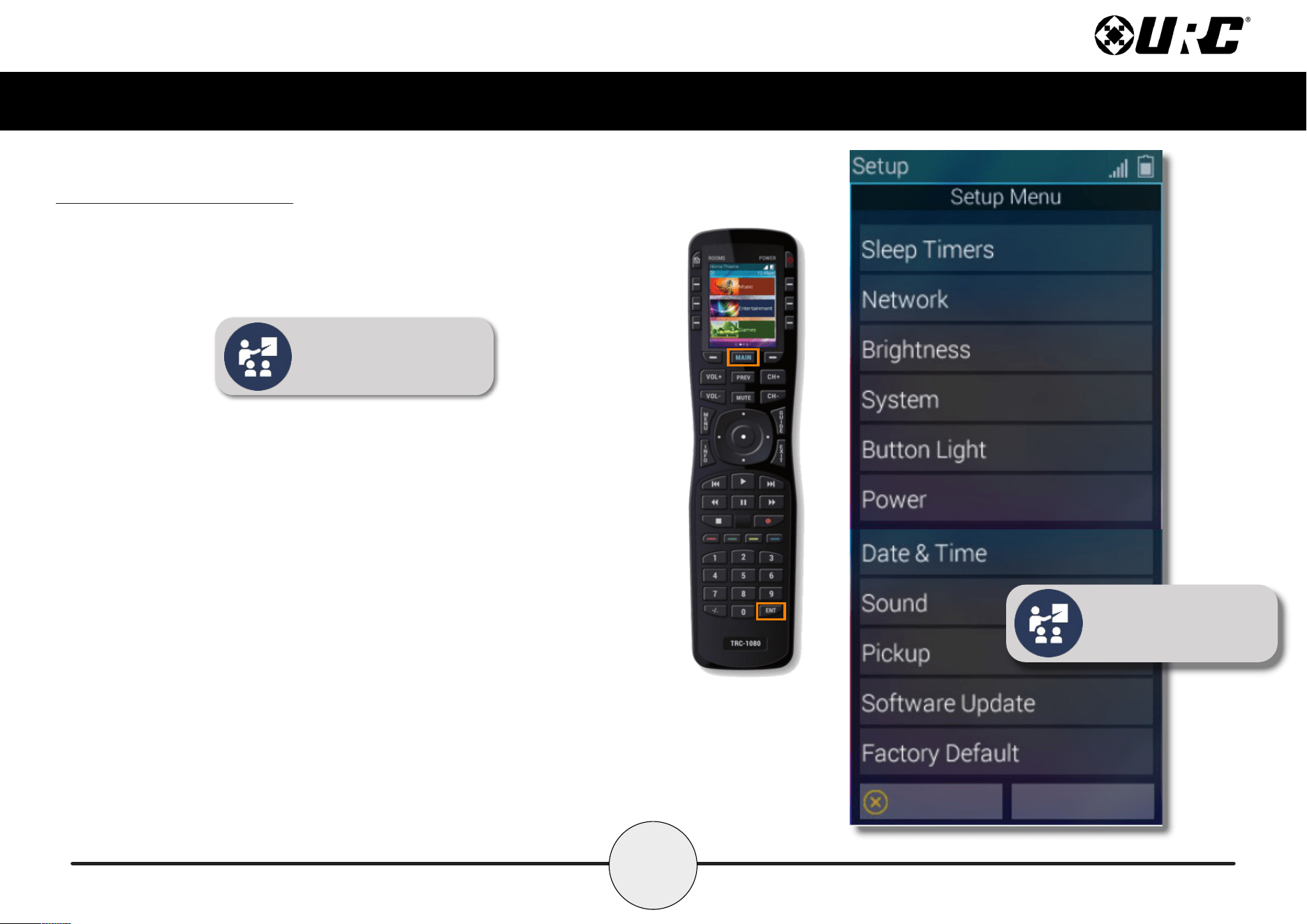

Displaying the Setup Menu
The Setup Menu allows users to congure or change certain behaviors of the TRC-1080.
Enter the Setup Menu by pressing and holding the Main and Enter (see image at the
right) buttons for greater than ve (5) seconds.
Use the up and down navigation buttons to maneuver between the two Setup pages. To
select an option, highlight the desired setting and press the “Select” key at the center of
the navigation keys.
To return to a previous page press the left page button (at the left of Main Menu). Press
the Main or Exit button to return the remote to the Main Menu.
The Setup Menu times out after
sixty (60) seconds and returns
the TRC-1080 to the system’s
Main Menu.
• Sleep Timers
• Network
• Brightness
• System
• Button Light
• Power
• Date & Time
• Sound
• Pickup
• Software Update
• Factory Default
Image on display presents all the
options available on the two (2)
Settings Menu pages.
7
Total Control
TRC-1080
Owner’s Manual

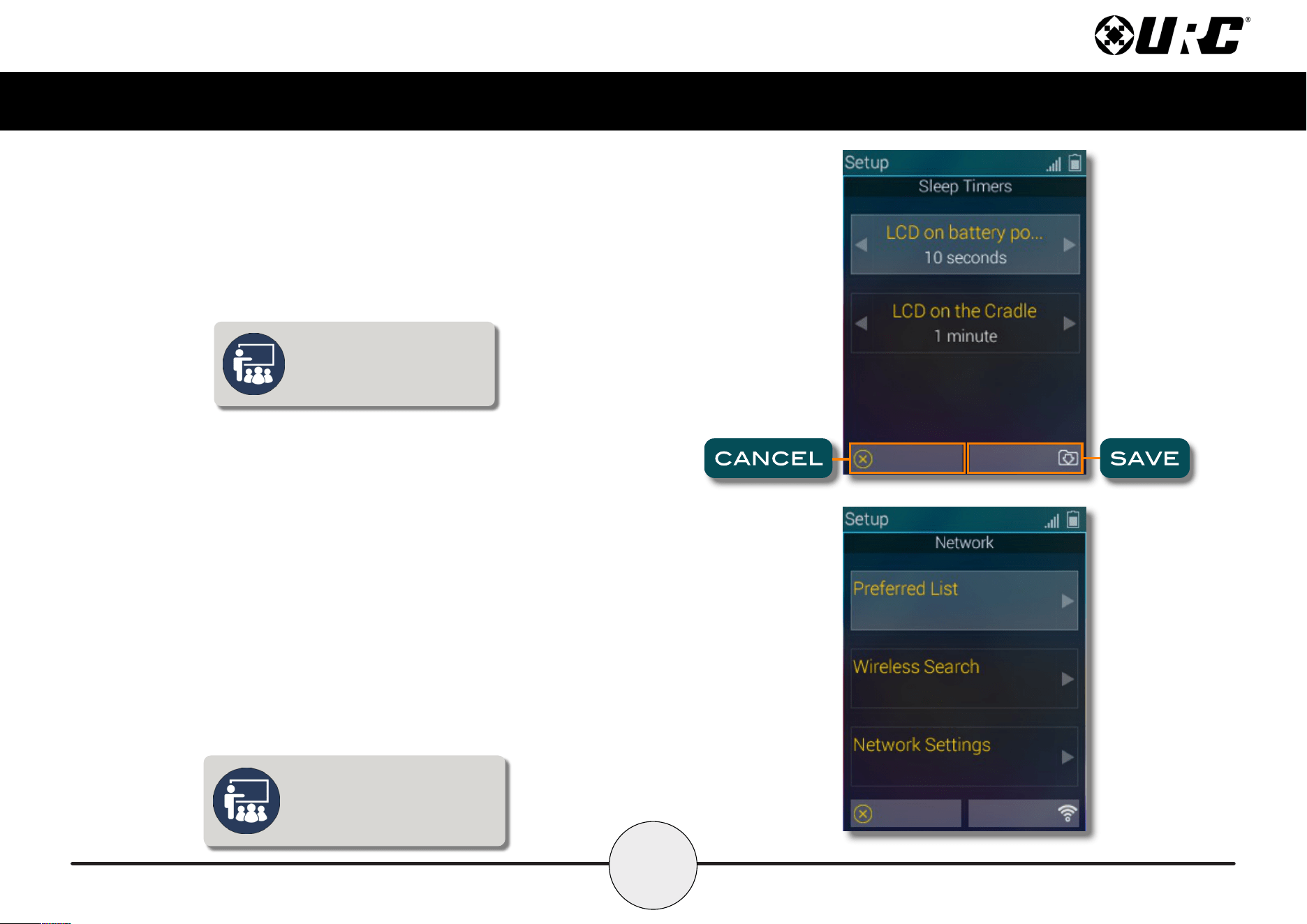

Sleep Timers
Adjust the amount of time the screen remains on when the remote is not in use. The
time can be set independently based on whether the remote is using battery power
or sitting on the charging cradle.
Once the settings are adjusted, press the Save button. Pressing Cancel reverts the
remote to the last saved setting.
Network
The following options are displayed:
• Preferred List: Displays all stored wireless networks. This option allows
the user to connect to any network stored on the remote.
• Wireless Search: Select to connect to an available wireless network.
SSID and Password may be required.
• Network Settings: Allows the user to congure the remote’s network
properties such as IP address, Gateway, DNS, and more.
WARNING! Only use this option when instructed by URC’s Technical Support
team or your custom install professional.
Leaving the remote’s display on
for long periods of time may
reduce your device’s battery life.
Do not make changes on this screen.
Changing network settings may lead
to issues controlling the system.
8
Total Control
TRC-1080
Owner’s Manual
Brightness
Adjust the screen brightness by pressing the adjacent LCD buttons to increase or
decrease the brightness level.
Once the brightness has been adjusted, press the Save button. Pressing Cancel
reverts the remote to the last saved setting.
High brightness levels may reduce
the TRC-1480’s battery life.
System
Displays information about the remote’s operating system, memory, etc. Press the
More button to view further system information. Pressing the Cancel button exits
to the remote’s Setup Menu.
9
Total Control
TRC-1080
Owner’s Manual
Button Light
Adjust the brightness of the remote’s button backlighting. Press the adjacent LCD
buttons to increase or decrease the button backlighting.
Once the button back light has been adjusted, press the Save button. Pressing
Cancel reverts the remote to the last saved setting.
Power
Displays the remote’s remaining battery level. Adjust when the “Low Battery”
warning screen appears.
Once the Power settings have been adjusted, press the Save button. Pressing
Cancel reverts the remote to the last saved setting.
Brighter button light levels may
reduce the TRC-1480’s battery life.
10
Total Control
TRC-1080
Owner’s Manual

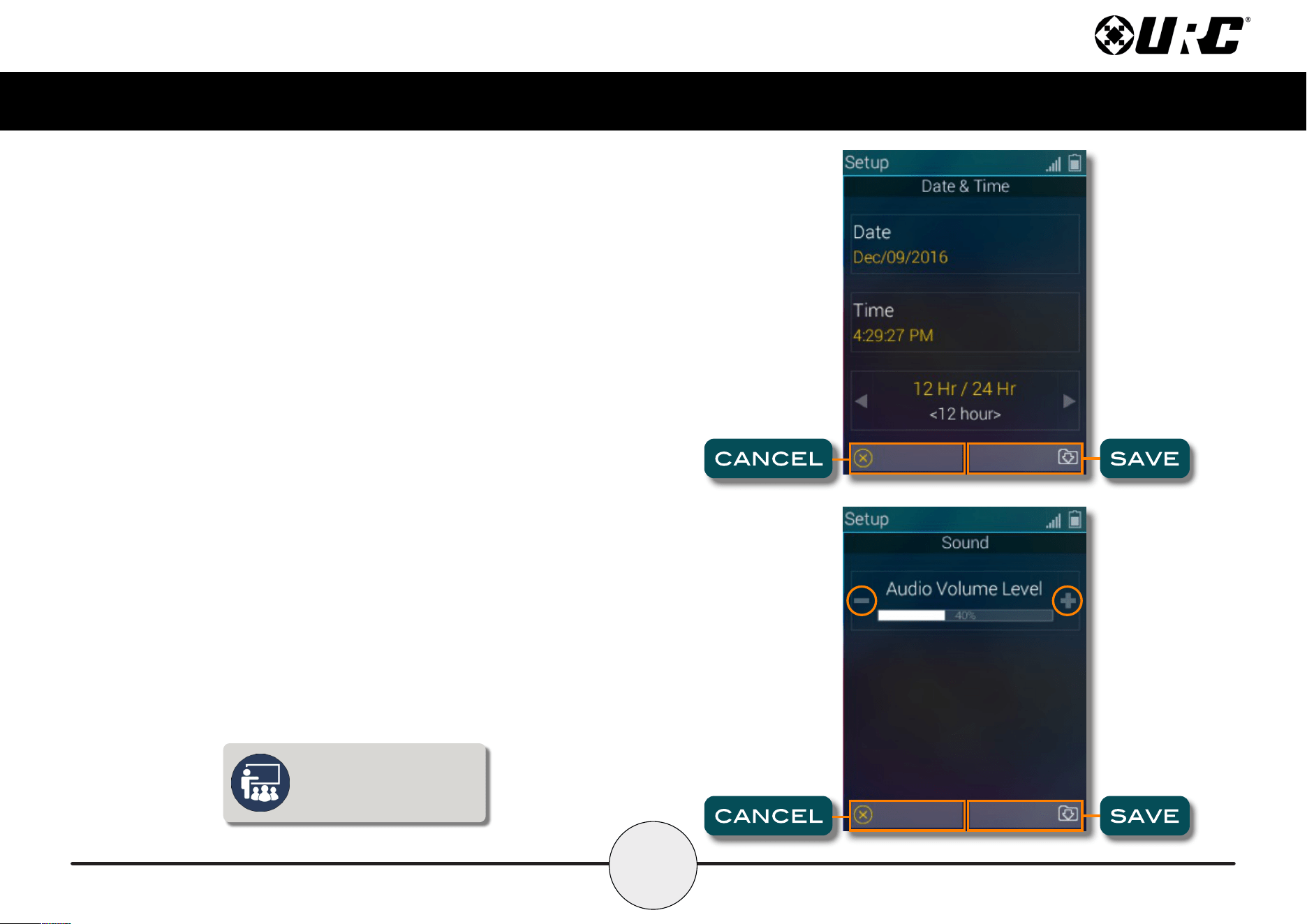

Date & Time
The remote’s date and time settings have been set by your certied custom
integrator. If needed, the date and time settings can be manually changed here.
If the system’s date and time are adjusted, the Total Control system adopts the new
date and time globally.
If the advanced system controller is reset, it defaults to the program’s default
location using the Internet. If Internet is not present, the date and time must be
entered manually from a URC interface such as the TRC-1080.
Once the date and time settings have been adjusted, press the Save button.
Pressing Cancel reverts the remote to the last saved setting.
Higher sound levels may reduce
the TRC-1480’s battery life.
Sound
Adjust the button “beep” of the remote. Press the adjacent LCD buttons to increase
or decrease the volume level.
Once the sound has been adjusted, press the Save button. Pressing Cancel reverts
the remote to the last saved setting.
11
Total Control
TRC-1080
Owner’s Manual
Pickup

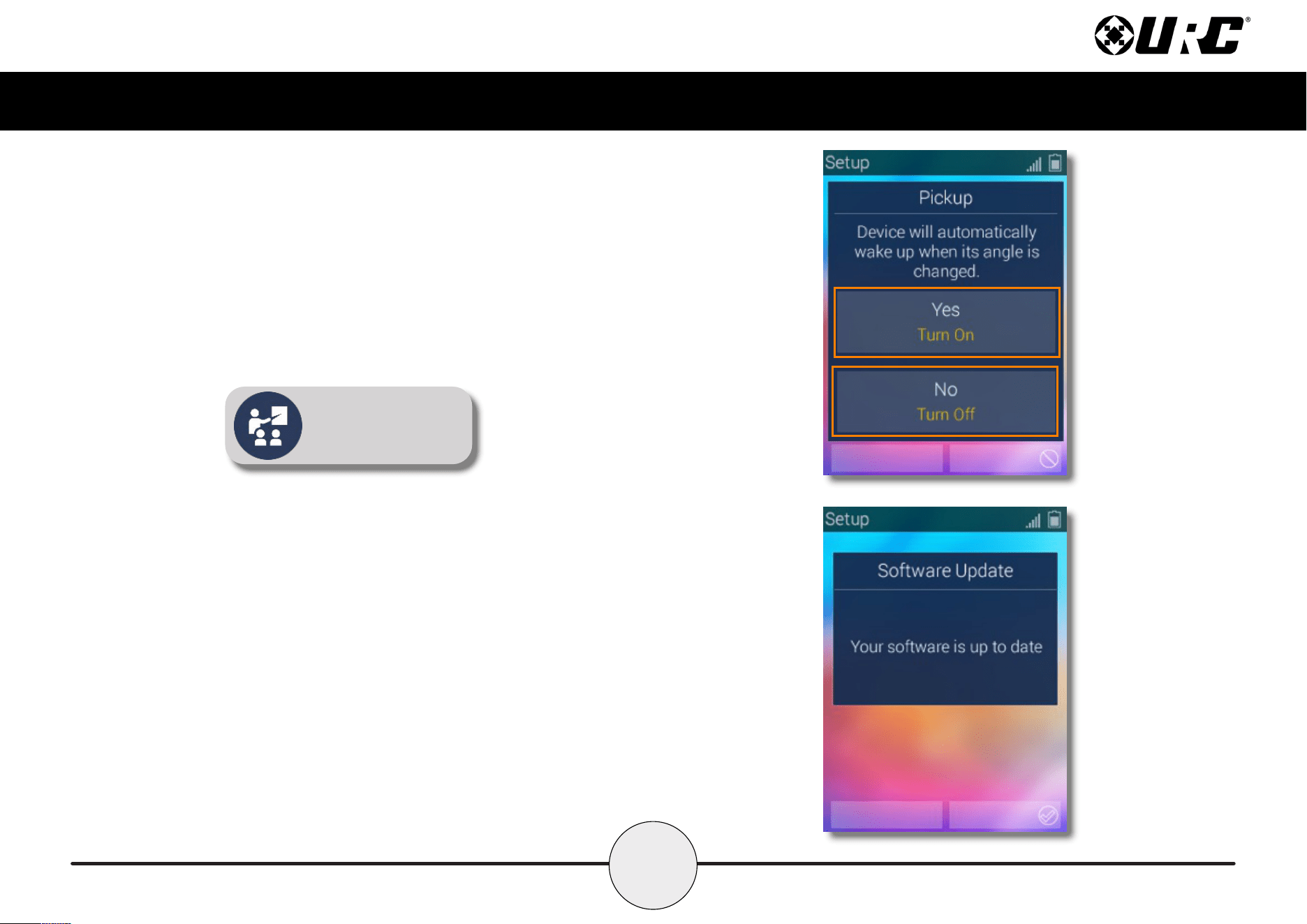

Turn on or off the remote’s pickup sensor. When enabled, the TRC-1080 turns on
when the remote is picked up. Select Yes (turn on) or No (turn off).
Enabling the pickup sensor
may reduce the TRC-1480’s
battery life.
Software Update
URC’s system has the ability to be programmed by a certied URC programmer
remotely (after initial installation). There may be situations where the device may
need to have the software update applied manually.
Select this option only when instructed by your certied URC integrator or URC’s
Technical Support Team.
12
Total Control
TRC-1080
Owner’s Manual
Factory Default
Resets the memory of the TRC-1080 to the factory settings. All existing
programming is erased. The device requires reconguration by your certied
URC integrator.
WARNING! Only use this button when instructed by URC’s Technical Support team.
13
Total Control
TRC-1080
Owner’s Manual
Specifications
These are the technical specications for the TRC-1080:
Microprocessor: ARM9 454MHz
RAM: 64MB Mobile DDR
NAND: 128MB
LCD: 2” display (240 x 320) LCD, backlighting by LED
Sound: Mono 1 watt
Devices: Supports up to 255 devices with text, less with heavy graphics
Usage Pages: Supports up to 255 pages on each devices with text
Macro Capability: Up to 255 steps each; however, nesting is supported.
Wi-Fi: IEEE 802.11 b/g/n
Battery: Lithium polymer, 1,960mAh
Battery Charging Time: 5 hours
Size: 8.46” H x 2.04” W x 1.02” D
Weight (with battery loaded): 6.04oz
Limited Warranty Statement
https://www.urc-automation.com/legal/warranty-statement/
End User Agreement
The terms and conditions of the End User Agreement available at
https://www.urc-automation.com/legal/end-user-agreement/ shall apply.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
14
Total Control
TRC-1080
Owner’s Manual
Regulatory Information to the User
• CE conformity Notice Products with “CE” marking comply EMC Directive
2014/30/EU issued by the commission of the European Community.
1. EMC Directive
• Emission
• Immunity
• Power
• Declaration of Conformity
“Hereby, Universal Remote Control Inc. declares that this TRC-1080 is in compliance
with the Essential requirements.”
Warning!
The manufacturer is not responsible for any Radio or TV interference caused by
unauthorized modications to this equipment.
Changes or modications not expressly approved by the manufacturer could void the
user's authority to operate the equipment.
