English
®
717 Series
Pressure Calibrators
Instruction Sheet
Introduction
The Fluke 717 Series Pressure Calibrators are compact, battery-powered, 5-digit
instruments that perform the following calibration and measurement functions:
• Calibrates P/I (pressure to current) transmitters
• Measures pressure using a 1/8-inch NPT pressure fitting and an internal
pressure sensor
• Measures pressure via a Fluke 700 Series Pressure Module
• Measures current up to 24 mA
• Sources loop voltage (to 24 V dc)
• Displays simultaneously pressure and current measurements
• Calculates mA percentage in Percent Mode
• Calculates mA error in Percent Error Mode
The 717 Pressure Calibrators (hereafter, “the Calibrator”) include:
• 717 1G
• 717 30G
• 717 100G
• 717 300G
• 717 500G
• 717 1000G
• 717 1500G
• 717 3000G
• 717 5000G
Full Scale Pressure sensor is as listed in the “Specifications” section under
“Pressure Specifications”. The Calibrator is an IEC 61010, CAT I 30 V, Pollution
Degree 2 instrument. A CAT I instrument is designed to protect against transients
from low-energy sources like, for example, electronic circuits or a copy machine.

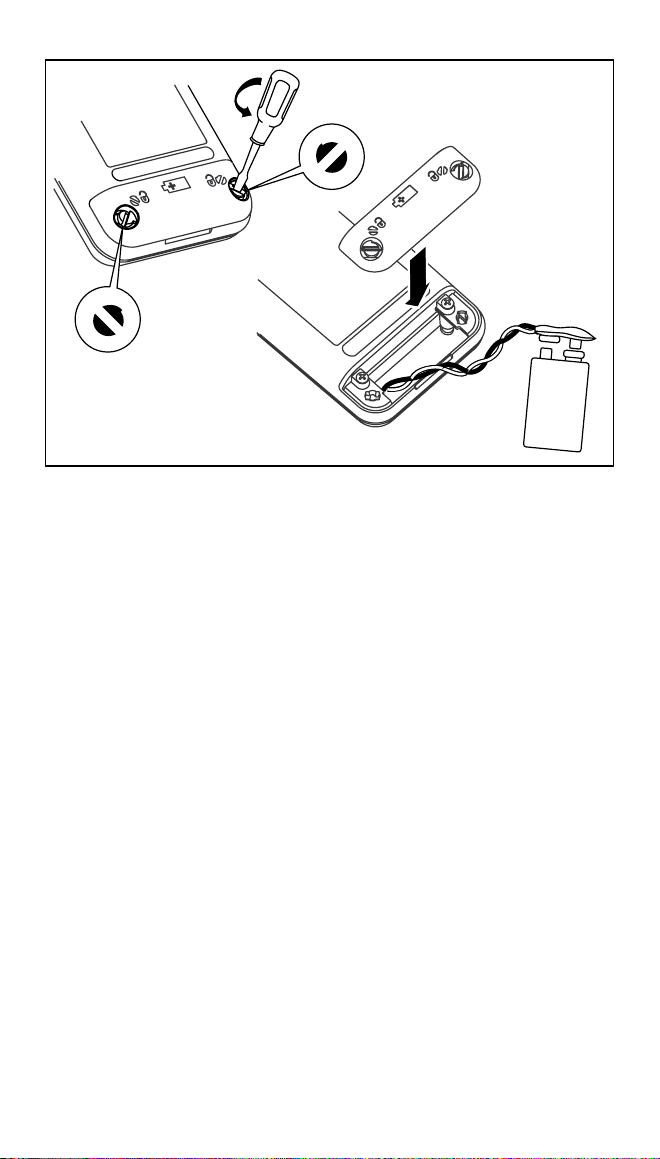

The Calibrator comes with a holster, an installed 9 V battery, a set of test leads and
alligator clips, and a 14-language instruction sheet pack. If the Calibrator is
damaged or something is missing, contact the place of purchase immediately.
PN 690013 March 1998, Rev. 2, 3/06 (English)
1998-2006 Fluke Corporation. All rights reserved. Printed in USA
