SKU:DPWS-IN001-US
5" PROJECTION ALARM
CLOCK WITH FM RADIO
Manual
FEATURES IDENTIFYING PARTS
MANUAL SETTING
FM RADIO
NOTE
LED screen display
Two alarms
Buzzer or FM radio as the alarm
Automatic snooze function (OFF or 5~60min)
FM radio
FM frequency range: 87.5MHz ~ 108.0MHz
Searching radio frequency automatically or manually
LED backlight brightness settings: 3 levels or OFF
Adjustable time projection
Projection brightness settings: 2 levels or OFF
Power supply:
USB power cable: DC5V (Input current is more than 500mA)
Battery (for saving settings only): 1*3.0V CR2032
Please plug in the clock using the USB power cable to turn it
on (the clock will not operate on the CR2032 battery.)
Note: please plug in the clock using the included USB cable to
get it operate.
Press and hold the “SET” button for 3 seconds to enter the
setting mode.
If you need to turn off the radio, press the “ ” button to turn
it off.
Press the “VOL” button to set the volume when FM radio is on.
Press “▲” or “▼” button to adjust the volume from L00 to L15.
When the radio is turned on for the first time, the clock will
automatically search for frequencies from “FM87.5”. Then, it
will stop at a receivable broadcast station and preset it as
C:01. The automatic searching and presetting will go on until
the frequency is "FM108.0". Now, the clock will stop at the
preset C:01 station to play.
You can press “SET” to browse the preset stations. If the clock
stops at “C:01”, press the “SET” button once to switch to the
next frequency “C:02”.
Press the “▲” or “▼” buttons to select the previous or next
frequency. You can also press and hold the “▲” or “▼” buttons
to speed up searching.
Press and hold the “SET” button to save a receivable station.
Preset station numbers start to flash (such as C:01). Next,
press “▲” or “▼” to select a station number to save the station
and press the “SET” button to confirm your setting.
Press and hold the “▲” and “▼” buttons for more than 3
seconds to automatically search for broadcast stations.
Use the button “▲” or “▼” to set the correct hour. Then, press
the “SET” button to confirm your setting and move on.
Use the button “▲” or “▼” button to set the correct minute.
Then, press the “SET” button to confirm your setting and move
on.
When “24Hr” starts to flash, use the button “▲” or “▼” button
to select 24 Hr mode or 12 Hr mode. Press the “SET” button to
confirm your setting and to exit settings.
In normal time mode, press the “RADIO/SLEEP” button once
to turn on the radio.
1.
Insert a 3.0V CR2032 battery and make sure it is installed
correctly [ “+” and “-” marks].
2.
To save time settings, please insert a CR2032 battery.
Otherwise, the clock will reset and lose all memory including
the time settings, FM radio settings when the power is cut off
suddenly.
3.

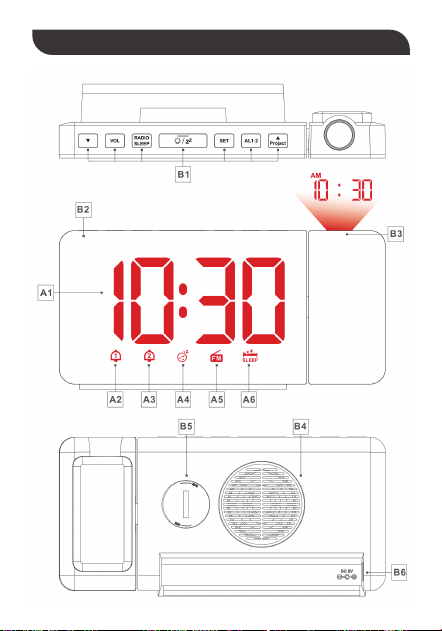

Part A - Clock
A1: Time
A2: ALARM1 icon “ ”
A3: ALARM2 icon “ ”
A4: SNOOZE icon “ ”
A5: RADIO icon “ ”
A6: SLEEP icon “ ”
Part B – Buttons and switches
1
2
FM
B1: Buttons
B2: LED screen
B3: Projection
B4: Speaker
B5: Battery compartment
B6: Power supply socket
