1745
Power Quality Logger
Users Manual
PN 2560366
April 2006 Rev.1, 7/06
© 2006 Fluke Corporation, All rights reserved.
All product names are trademarks of their respective companies.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
LIMITED WARRANTY AND LIMITATION OF LIABILITY
Each Fluke product is warranted to be free from defects in material and workmanship
under normal use and service. The warranty period is two years and begins on the date of
shipment. Parts, product repairs, and services are warranted for 90 days. This warranty
extends only to the original buyer or end-user customer of a Fluke authorized reseller,
and does not apply to fuses, disposable batteries, or to any product which, in Fluke's
opinion, has been misused, altered, neglected, contaminated, or damaged by accident or
abnormal conditions of operation or handling. Fluke warrants that software will operate
substantially in accordance with its functional specifications for 90 days and that it has
been properly recorded on non-defective media. Fluke does not warrant that software will
be error free or operate without interruption.
Fluke authorized resellers shall extend this warranty on new and unused products to end-
user customers only but have no authority to extend a greater or different warranty on
behalf of Fluke. Warranty support is available only if product is purchased through a Fluke
authorized sales outlet or Buyer has paid the applicable international price. Fluke re-
serves the right to invoice Buyer for importation costs of repair/replacement parts when
product purchased in one country is submitted for repair in another country.
Fluke's warranty obligation is limited, at Fluke's option, to refund of the purchase price,
free of charge repair, or replacement of a defective product which is returned to a Fluke
authorized service center within the warranty period.
To obtain warranty service, contact your nearest Fluke authorized service center to obtain
return authorization information, then send the product to that service center, with a de-
scription of the difficulty, postage and insurance prepaid (FOB Destination). Fluke as-
sumes no risk for damage in transit. Following warranty repair, the product will be re-
turned to Buyer, transportation prepaid (FOB Destination). If Fluke determines that failure
was caused by neglect, misuse, contamination, alteration, accident, or abnormal condition
of operation or handling, including overvoltage failures caused by use outside the prod-
uct’s specified rating, or normal wear and tear of mechanical components, Fluke will pro-
vide an estimate of repair costs and obtain authorization before commencing the work.
Following repair, the product will be returned to the Buyer transportation prepaid and the
Buyer will be billed for the repair and return transportation charges (FOB Shipping Point).
THIS WARRANTY IS BUYER'S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PAR-
TICULAR PURPOSE. FLUKE SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, INCLUDING LOSS OF
DATA, ARISING FROM ANY CAUSE OR THEORY.
Since some countries or states do not allow limitation of the term of an implied warranty,
or exclusion or limitation of incidental or consequential damages, the limitations and ex-
clusions of this warranty may not apply to every buyer. If any provision of this Warranty is
held invalid or unenforceable by a court or other decision-maker of competent jurisdiction,
such holding will not affect the validity or enforceability of any other provision.
Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
U.S.A.
Fluke Europe B.V.
P.O. Box 1186
5602 BD Eindhoven
The Netherlands
11/99
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
LIMITES DE GARANTIE ET DE RESPONSABILITE
La société Fluke garantit l’absence de vices de matériaux et de fabrication de ses
produits dans des conditions normales d’utilisation et d’entretien. La période de garantie
est de deux ans et prend effet à la date d’expédition. Les pièces, les réparations de
produit et les services sont garantis pendant une période de 90 jours. Cette garantie ne
s’applique qu’à l’acheteur d’origine ou à l’utilisateur final s’il est client d’un distributeur
agréé par Fluke, et ne s’applique pas aux fusibles, aux batteries/piles interchangeables
ni à aucun produit qui, de l’avis de Fluke, a été malmené, modifié, négligé, contaminé ou
endommagé par accident ou soumis à des conditions anormales d’utilisation et de mani-
pulation. Fluke garantit que le logiciel fonctionnera en grande partie conformément à ses
spécifications fonctionnelles pendant une période de 90 jours et qu’il a été correctement
enregistré sur des supports non défectueux. Fluke ne garantit pas que le logiciel est
exempt d’erreurs ou qu’il fonctionnera sans interruption.
Les distributeurs agréés par Fluke appliqueront cette garantie à des produits vendus
neufs et qui n’ont pas servi, mais ne sont pas autorisés à offrir une garantie plus étendue
ou différente au nom de Fluke. Le support de garantie est offert uniquement si le produit a
été acquis par l’intermédiaire d’un point de vente agréé par Fluke ou bien si l’acheteur a
payé le prix international applicable. Fluke se réserve le droit de facturer à l’acheteur les
frais d’importation des pièces de réparation ou de remplacement si le produit acheté dans
un pays a été expédié dans un autre pays pour y être réparé.
L’obligation de garantie de Fluke est limitée, au choix de Fluke, au remboursement du
prix d’achat, ou à la réparation/remplacement gratuit d’un produit défectueux retourné
dans le délai de garantie à un centre de service agréé par Fluke.
Pour avoir recours au service de la garantie, mettez-vous en rapport avec le centre de
service agréé Fluke le plus proche pour recevoir les références d’autorisation de renvoi,
ou envoyez le produit, accompagné d’une description du problème, port et assurance
payés (franco lieu de destination), à ce centre de service. Fluke décline toute responsabi-
lité en cas de dégradations survenues au cours du transport. Après la réparation sous
garantie, le produit est renvoyé à l’acheteur, frais de port payés d’avance (franco lieu
de destination). Si Fluke estime que le problème est le résultat d’une négligence, d’un
traitement abusif, d’une contamination, d’une modification, d’un accident ou de conditions
de fonctionnement ou de manipulation anormales, notamment de surtensions liées à
une utilisation du produit en dehors des spécifications nominales, ou de l’usure normale
des composants mécaniques, Fluke fournira un devis des frais de réparation et ne
commencera la réparation qu’après en avoir reçu l’autorisation. Après la réparation, le
produit est renvoyé à l’acheteur, en port payé (franco point d’expédition) et les frais de
réparation et de transport lui sont facturés.
LA PRESENTE GARANTIE EST EXCLUSIVE ET TIENT LIEU DE TOUTES AUTRES
GARANTIES, EXPRESSES OU IMPLICITES, Y COMPRIS, MAIS NON EXCLUSIVE-
MENT, TOUTE GARANTIE IMPLICITE DE VALEUR MARCHANDE OU D’ADEQUATION
A UN USAGE PARTICULIER. FLUKE NE POURRA ETRE TENU RESPONSABLE
D’AUCUN DOMMAGE PARTICULIER, INDIRECT, ACCIDENTEL OU CONSECUTIF, NI
D’AUCUN DEGAT OU PERTE, DE DONNEES NOTAMMENT, SUR UNE BASE
CONTRACTUELLE, EXTRA-CONTRACTUELLE OU AUTRE.
Etant donné que certaines juridictions n’admettent pas les limitations d’une condition
de garantie implicite, ni l’exclusion ou la limitation des dommages directs ou indirects, il
se peut que les limitations et les exclusions de cette garantie ne s’appliquent pas à
chaque acheteur. Si une disposition quelconque de cette garantie est jugée non valide ou
inapplicable par un tribunal ou un autre pouvoir décisionnel compétent, une telle décision
n’affectera en rien la validité ou le caractère exécutoire de toute autre disposition.
Fluke Corporation
P.O. Box 9090
Everett, WA 98206-0777
États-Unis
Fluke Europe B.V.
P.O. Box 1186
5602, boul. Eindhoven
Pays-Bas
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
BESCHRÄNKTE GARANTIE UND HAFTUNGSBEGRENZUNG
Fluke gewährleistet, dass jedes Fluke-Produkt unter normalem Gebrauch und Service frei von
Material- und Fertigungsdefekten ist. Die Garantiedauer beträgt zwei Jahre ab Versanddatum.
Ersatzteile, Produktreparaturen und Servicearbeiten haben eine Garantie von 90 Tagen. Diese
Garantie wird ausschließlich dem Ersterwerber bzw. dem Endverbraucher, der das betreffende
Produkt von einer von Fluke autorisierten Verkaufsstelle erworben hat, geleistet und erstreckt sich
nicht auf Sicherungen, Einwegbatterien oder irgendwelche anderen Produkte, die nach dem
Ermessen von Fluke unsachgemäß verwendet, verändert, vernachlässigt, verunreinigt, durch
Unfälle beschädigt oder abnormalen Betriebsbedingungen oder einer unsachgemäßen
Handhabung ausgesetzt wurden. Fluke garantiert für einen Zeitraum von 90 Tagen, dass die
Software im Wesentlichen in Übereinstimmung mit den einschlägigen Funktionsbeschreibungen
funktioniert und dass diese Software auf fehlerfreien Datenträgern gespeichert wurde. Fluke
übernimmt jedoch keine Garantie dafür, dass die Software fehlerfrei ist und störungsfrei arbeitet.
Von Fluke autorisierte Verkaufsstellen dürfen diese Garantie ausschließlich für neue und nicht
benutzte, an Endverbraucher verkaufte Produkte leisten. Die Verkaufsstellen sind jedoch nicht dazu
berechtigt, diese Garantie im Namen von Fluke zu verlängern, auszudehnen oder in irgendeiner
anderen Weise abzuändern. Der Käufer hat nur dann das Recht, aus der Garantie abgeleitete
Unterstützungsleistungen in Anspruch zu nehmen, wenn das Produkt bei einer von Fluke
autorisierten Vertriebsstelle erworben oder der jeweils geltende internationale Preis gezahlt wurde.
Fluke behält sich das Recht vor, dem Käufer Einfuhrgebühren für Ersatzteile in Rechnung zu
stellen, falls der Käufer das Produkt nicht in dem Land zur Reparatur einsendet, in dem er das
Produkt ursprünglich erworben hat.
Die Garantieverpflichtung von Fluke beschränkt sich darauf, dass Fluke nach eigenem Ermessen
den Kaufpreis ersetzt oder aber das defekte Produkt unentgeltlich repariert oder austauscht, wenn
dieses Produkt innerhalb der Garantiefrist einem von Fluke autorisierten Servicezentrum zur
Reparatur übergeben wird.
Um die Garantieleistung in Anspruch zu nehmen, wenden Sie sich bitte an das nächstgelegene von
Fluke autorisierte Servicezentrum, um Rücknahmeinformationen zu erhalten, und senden Sie dann
das Produkt mit einer Beschreibung des Problems und unter Vorauszahlung von Fracht- und
Versicherungskosten (FOB-Bestimmungsort) an das nächstgelegene von Fluke autorisierte
Servicezentrum. Fluke übernimmt keine Haftung für Transportschäden. Im Anschluss an die
Reparatur wird das Produkt unter Vorauszahlung der Frachtkosten (Frachtfrei-Bestimmungsort) an
den Käufer zurückgesandt. Wenn Fluke feststellt, dass der Defekt auf Vernachlässigung,
unsachgemäße Handhabung, Verunreinigung, Veränderungen am Gerät, einen Unfall oder auf
anormale Betriebsbedingungen, einschließlich durch außerhalb der für das Produkt spezifizierten
Belastbarkeit verursachter Überspannungsfehler oder normaler Abnutzung mechanischer
Komponenten, zurückzuführen ist, wird Fluke dem Erwerber einen Voranschlag der
Reparaturkosten zukommen lassen und erst die Zustimmung des Erwerbers einholen, bevor die
Arbeiten in Angriff genommen werden. Nach der Reparatur wird das Produkt unter Vorauszahlung
der Frachtkosten an den Käufer zurückgeschickt, und es werden dem Käufer die Reparaturkosten
und die Versandkosten (Frachtfrei-Versandort) in Rechnung gestellt.
DIE VORSTEHENDEN GARANTIEBESTIMMUNGEN STELLEN DEN EINZIGEN UND
ALLEINIGEN RECHTSANSPRUCH AUF SCHADENERSATZ DES KÄUFERS DAR UND GELTEN
AUSSCHLIESSLICH UND AN STELLE ALLER ANDEREN VERTRAGLICHEN ODER
GESETZLICHEN GEWÄHRLEISTUNGSPFLICHTEN, EINSCHLIESSLICH - JEDOCH NICHT
DARAUF BESCHRÄNKT - DER GESETZLICHEN GEWÄHRLEISTUNG DER MARKTFÄHIGKEIT
UND DER EIGNUNG FÜR EINEN BESTIMMTEN ZWECK. FLUKE HAFTET NICHT FÜR
SPEZIELLE, UNMITTELBARE, MITTELBARE, BEGLEIT- ODER FOLGESCHÄDEN ODER
VERLUSTE, EINSCHLIESSLICH VERLUST VON DATEN, UNABHÄNGIG VON DER URSACHE
ODER THEORIE.
In einigen Ländern ist die Begrenzung einer gesetzlichen Gewährleistung und der Ausschluss oder
die Begrenzung von Begleit- oder Folgeschäden nicht zulässig, sodass die oben genannten
Einschränkungen und Ausschlüsse möglicherweise nicht für jeden Käufer gelten. Sollte eine Klausel
dieser Garantiebestimmungen von einem zuständigen Gericht oder einer anderen
Entscheidungsinstanz für unwirksam oder nicht durchsetzbar befunden werden, so bleiben die
Wirksamkeit oder Durchsetzbarkeit anderer Klauseln dieser Garantiebestimmungen von einem
solchen Spruch unberührt.
Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
USA
Fluke Europe B.V.
P.O. Box 1186
5602 BD Eindhoven
Niederlande
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
GARANZIA LIMITATA E LIMITAZIONE DI RESPONSABILITÀ
Si garantisce che ogni prodotto Fluke è esente da difetti nei materiali e nella manodopera
per normali situazioni di uso. II periodo di garanzia è di due anni a decorrere dalla data di
spedizione. La garanzia sulle parti sostituite, sulle riparazioni e sugli interventi di
assistenza è di 90 giorni. La garanzia è valida solo per l’acquirente originale o l’utente
finale che abbia acquistato il prodotto presso un rivenditore Fluke autorizzato. Sono
esclusi i fusibili, le pile monouso e i prodotti che, a parere della Fluke, siano stati
adoperati in modo improprio, alterati, trascurati, contaminati o danneggiati in seguito a
incidente o condizioni anomale d’uso e maneggiamento. La Fluke garantisce che il
software funzionerà sostanzialmente secondo le specifiche per un periodo di 90 giorni e
che è stato registrato su supporti non difettosi. Non garantisce che il software sarà esente
da errori o che funzionerà senza interruzioni.
I rivenditori autorizzati Fluke estenderanno la garanzia sui prodotti nuovi o non usati
esclusivamente ai clienti finali, ma non potranno emettere una garanzia differente o più
completa a nome della Fluke. La garanzia è valida solo se il prodotto è stato acquistato
attraverso la rete commerciale Fluke o se I’acquirente ha pagato il prezzo internazionale
pertinente. La Fluke si riserva il diritto di fatturare all’acquirente i costi di importazione per
la riparazione/sostituzione delle parti nel caso in cui il prodotto acquistato in un Paese sia
sottoposto a riparazione in un altro.
L’obbligo di garanzia è limitato, a scelta della Fluke, al rimborso del prezzo d’acquisto,
alla riparazione gratuita o alla sostituzione di un prodotto difettoso che sia inviato ad un
centro di assistenza autorizzato Fluke entro il periodo di garanzia.
Per usufruire dell’assistenza in garanzia, rivolgersi al più vicino centro di assistenza
autorizzato Fluke per ottenere informazioni sull’autorizzazione alla restituzione, quindi
spedire il prodotto al centro di assistenza, allegando una descrizione del difetto, franco
destinatario e assicurato. La Fluke declina ogni responsabilità di danni durante il
trasporto. Una volta eseguite le riparazioni in garanzia, il prodotto sarà restituito
all’acquirente, franco destinatario. Se la Fluke stabilisce che il guasto è stato causato da
negligenza, uso improprio, contaminazione, alterazione, incidente o condizioni anomale di
uso o maneggiamento (comprese le sovratensioni causate dall’uso dello strumento oltre
la portata nominale e l’usura dei componenti meccanici dovuta all’uso normale dello
strumento), la Fluke darà una stima dei costi di riparazione e attenderà l’autorizzazione
dell’utente prima di procedere con la riparazione. A seguito della riparazione, il prodotto
sarà restituito all’acquirente con addebito delle spese di riparazione e di spedizione.
LA PRESENTE GARANZIA È L’UNICO ED ESCLUSIVO RICORSO DISPONIBILE
ALL’ACQUIRENTE ED È EMESSA IN SOSTITUZIONE DI OGNI ALTRA GARANZIA,
ESPRESSA O IMPLICITA, COMPRESA , MA NON LIMITATA A ESSA, QUALSIASI
GARANZIA IMPLICITA DI COMMERCIABILITÀ O DI IDONEITÀ PER SCOPI
PARTICOLARI. LA FLUKE NON SARÀ RESPONSABILE DI NESSUN DANNO O
PERDITA SPECIALI, INDIRETTI O ACCIDENTALI, DERIVANTI DA QUALUNQUE
CAUSA O TEORIA.
Poiché alcuni Paesi non consentono di limitare i termini di una garanzia implicita né
l’esclusione o la limitazione di danni accidentali o indiretti, le limitazioni e le esclusioni
della presente garanzia possono non valere per tutti gli acquirenti. Se una clausola
qualsiasi della presente garanzia non è ritenuta valida o attuabile dal tribunale o altro foro
competente, tale giudizio non avrà effetto sulla validità delle altre clausole.
Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
USA
Fluke Europe B.V.
P.O. Box 1186
5602 BD Eindhoven
Paesi Bassi
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
GARANTIA LIMITADA E LIMITAÇÃO DE RESPONSABILIDADE
Todos os produtos da Fluke são garantidos contra defeitos de material e de mão-de-obra,
sob condições de uso e serviço normal. O período de garantia é de dois anos, a partir da
data de remessa do produto. As peças, reparos do produto, e serviços são garantidos por
90 dias. Esta garantia aplica-se apenas ao comprador original, ou ao cliente usuário-final de
um revendedor autorizado da Fluke, e não cobre fusíveis, baterias descartáveis, nem
qualquer produto que, na opinião da Fluke, tenha sido usado de forma inadequada,
alterado, contaminado, ou tenha sido danificado por acidente ou condições anormais de
operação ou manuseio. A Fluke garante que o software funcionará de acordo com as suas
especificações técnicas pelo período de 90 dias, e que foi gravado de forma adequada em
meio físico sem defeitos. A Fluke não garante que o software não apresentará erros nem
que funcionará ininterruptamente.
Os revendedores Fluke autorizados devem conceder esta garantia somente para produtos
novos e não-usados, mas não estão autorizados a ampliá-la ou modificá-la de qualquer
forma em nome da Fluke. A assistência técnica coberta pela garantia está disponível se o
produto houver sido adquirido de uma loja autorizada da Fluke, ou se o Comprador tiver
pago o preço internacional aplicável. A Fluke reserva-se o direito de cobrar do Comprador
os custos de importação das peças de reposição/reparo nos casos em que o produto tenha
sido comprado em um país e remetido para reparos em outro país.
A obrigação da Fluke no tocante a esta garantia é limitada, a critério da Fluke, à
devolução da importância correspondente ao preço pago pelo produto, a consertos
gratuitos, ou à substituição de produto defeituoso que seja devolvido a um centro de
assistência técnica autorizado Fluke dentro do período coberto pela garantia.
Para obter serviços cobertos pela garantia, entre em contato com o centro de assistência
técnica autorizado Fluke mais próximo, ou remeta o produto, com uma descrição do
problema encontrado e com frete e seguro pagos (FOB no destino), ao centro de
assistência técnica mais próximo. A Fluke não se responsabiliza por nenhum dano que
possa ocorrer durante o transporte. Após serem efetuados os serviços cobertos pela
garantia, o produto será remetido de volta ao Comprador, com frete pago (FOB no destino).
Se a Fluke constatar que a falha do produto foi causada por negligência, uso inadequado,
contaminação, alterações, acidente, ou condições anormais de operação ou manuseio,
inclusive falhas devidas a sobrevoltagem causadas pelo uso do produto fora das faixas e
classificações especificadas, ou pelo desgaste normal de componentes mecânicos, a Fluke
dará uma estimativa dos custos de reparo, e obterá autorização do Comprador antes de
efetuar tais reparos. Após a realização dos reparos, o produto será remetido de volta ao
Comprador com frete pago, e este reembolsará a Fluke pelos custos do reparo e da
remessa (FOB no local de remessa).
ESTA GARANTIA É O ÚNICO E EXCLUSIVO RECURSO JURÍDICO DO COMPRADOR,
E SUBSTITUI TODAS AS OUTRAS GARANTIAS, EXPRESSAS OU IMPLÍCITAS,
INCLUINDO, MAS NÃO SE LIMITANDO A, QUALQUER GARANTIA IMPLÍCITA DE
COMERCIABILIDADE OU ADEQUAÇÃO PARA UM DETERMINADO FIM. A FLUKE NÃO
SE RESPONSABILIZA POR NENHUM DANO OU PERDA, INCIDENTAL OU
CONSEQÜENTE, QUE POSSA OCORRER POR QUALQUER MOTIVO OU QUE SEJA
DECORRENTE DE QUALQUER CAUSA OU TEORIA JURÍDICA.
Como alguns estados ou países não permitem a exclusão ou limitação dos termos de
garantias implícitas, nem de danos incidentais ou conseqüentes, esta limitação de
responsabilidade poderá não se aplicar ao seu caso. Se alguma provisão desta Garantia for
considerada inválida ou inexeqüível por algum tribunal ou outro órgão de jurisdição
competente, tal decisão judicial não afetará a validade ou exeqüibilidade de nenhuma
outra provisão.
Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090,
EUA
Fluke Europe B.V.
P.O. Box 1186
5602 BD Eindhoven
Holanda
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
GARANTÍA LIMITADA Y LIMITACIÓN DE RESPONSABILIDAD
Todo producto de Fluke está garantizado contra defectos en los materiales y en la mano
de obra en condiciones normales de utilización y mantenimiento. El periodo de garantía es de tres
años y comienza en la fecha de despacho. Las piezas de repuesto, reparaciones y servicios están
garantizados por 90 días. Esta garantía se extiende sólo al comprador
original o al cliente usuario final de un revendedor autorizado por Fluke y no es válida para
fusibles, baterías desechables ni para ningún producto que, en opinión de Fluke, haya sido
utilizado incorrectamente, modificado, maltratado, contaminado, o sufrido daño accidental
o por condiciones anormales de funcionamiento o manipulación. Fluke garantiza que el
software funcionará substancialmente de acuerdo con sus especificaciones funcionales
durante 90 días y que ha sido grabado correctamente en un medio magnético sin defectos. Fluke
no garantiza que el software no contenga errores ni que operará permanentemente.
Los revendedores autorizados por Fluke podrán extender esta garantía solamente a los Comprado-
res finales de productos nuevos y sin uso previo, pero carecen de autoridad para extender una
garantía mayor o diferente en nombre de Fluke. El soporte técnico en garantía está disponible sólo
si el producto se compró a través de un centro de distribución autorizado por Fluke o si el compra-
dor pagó el precio internacional correspondiente. Cuando un producto comprado en un país sea
enviado a otro país para su reparación, Fluke se reserva el derecho de facturar al Comprador los
gastos de importación de las reparaciones/repuestos.
La obligación de Fluke de acuerdo con la garantía está limitada, a elección de Fluke, al
reembolso del precio de compra, la reparación gratuita o el reemplazo de un producto
defectuoso que sea devuelto a un centro de servicio autorizado de Fluke dentro del
período de garantía.
Para obtener servicio de garantía, póngase en contacto con el centro de servicio autorizado por
Fluke más cercano para obtener la información correspondiente a la autorización de la devolución,
después envíe el producto a ese centro de servicio, con una descripción del fallo, con los portes y
seguro prepagados (FOB destino). Fluke no se hace responsable de los daños ocurridos durante el
transporte. Después de la reparación de garantía, el producto se devolverá al Comprador con los
fletes ya pagados (FOB destino). Si Fluke determina que el problema fue debido a negligencia,
mala utilización, contaminación, modificación, accidente
o una condición anormal de funcionamiento o manipulación, incluidas las fallas por sobretensión
causadas por el uso fuera de los valores nominales especificados para el producto, o al desgaste
normal de los componentes mecánicos, Fluke preparará una estimación de los costes de repara-
ción y obtendrá la debida autorización antes de comenzar el trabajo. Al concluir la reparación, el
producto se devolverá al Comprador con los fletes ya pagados, facturándosele la reparación y los
gastos de transporte (FOB en el sitio de despacho).
ESTA GARANTÍA ES EL ÚNICO Y EXCLUSIVO RECURSO DEL COMPRADOR Y SUBSTITUYE
A TODAS LAS OTRAS GARANTÍAS, EXPRESAS O IMPLÍCITAS, INCLUYENDO, PERO SIN
LIMITARSE A, TODA GARANTÍA IMPLÍCITA DE COMERCIABILIDAD O IDONEIDAD PARA UN
PROPÓSITO DETERMINADO. FLUKE NO SE RESPONSABILIZA DE PÉRDIDAS NI DAÑOS
ESPECIALES, INDIRECTOS, IMPREVISTOS O CONTINGENTES, INCLUIDA LA PÉRDIDA DE
DATOS, QUE SURJAN POR CUALQUIER TIPO DE CAUSA
O TEORÍA.
Como algunos países o estados no permiten la limitación de la duración de una garantía implícita ni
la exclusión ni limitación de los daños contingentes o resultantes, las limitaciones y exclusiones de
esta garantía pueden no regir para todos los Compradores. Si una cláusula de esta Garantía es
conceptuada no válida o inaplicable por un tribunal u otra instancia de jurisdicción competente, tal
concepto no afectará la validez o aplicabilidad de cualquier otra cláusula.
Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
EE.UU.
Fluke Europe B.V.
P.O. Box 1186
5602 BD Eindhoven
Holanda
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
有限担保和有限责任
Fluke 担保在正常使用和保养的情况下，其产品没有材料和工艺上的缺陷。
两年的担保期间由产品发货之日算起。部件、产品修理和服务的担保期限为
90 天。 本担保仅限于 Fluke 授权零售商的原购买人或最终用户，并且不适用
于一次性电池、电缆接头、电缆绝缘转换接头或 Fluke 认为由于误用、改装、
疏忽、污染及意外或异常操作或处理引起的任何产品损坏。Fluke 担保软件能
依照功能规格正常运行 90 天，并且软件是记录在无缺陷的媒介上。Fluke 并不
担保软件毫无错误或在运行中不会中断。
Fluke 授权的零售商应仅对最终用户就新的和未使用的产品提供本担保，但
无权代表Fluke 公司提供额外或不同的担保。 只有通过 Fluke 授权的销售店购
买的产品或者买方已经按适用的国际价格付款才能享受 Fluke 的担保支持。
在一国购买的产品需在他国修理时，Fluke 有权向买方要求负担重大修理/零
件更换费用。
Fluke 的担保为有限责任，由 Fluke 决定是否退还购买金额、免费修理或更换
在担保期间退还 Fluke 授权服务中心的故障产品。
如需要保修服务，请与您就近的 Fluke 授权服务中心联系，获得退还授权信息；
然后将产品寄至服务中心，并附上产品问题描述，同时预付运费和保险费（目的
地离岸价格）。Fluke 不承担运送途中发生的损坏。在保修之后，产品将被寄
回给买方并提前支付运输费（目的地交货）。 如果Fluke 认定产品故障是由于疏
忽、误用、污染、修改、意外或不当操作或处理状况而产生，包括未在产品规定
的额定值下使用引起的过压故障；或是由于机件日常使用损耗，则 Fluke 会估算
修理费用，在获得买方同意后再进行修理。在修理之后，产品将被寄回给买方并
预付运输费；买方将收到修理和返程运输费用（寄发地交货）的帐单。
本担保为买方唯一能获得的全部补偿内容，并且取代所有其它明示或隐含的担
保，包括但不限于适销性或满足特殊目的任何隐含担保。FLUKE 对任何特殊、
间接、偶发或后续的损坏或损失概不负责，包括由于任何原因或推理引起的数据
丢失。
由于某些国家或州不允许对隐含担保的期限加以限制、或者排除和限制意外或后
续损坏，本担保的限制和排除责任条款可能并不对每一个买方都适用。如果本担
保的某些条款被法院或其它具有适当管辖权的裁决机构判定为无效或不可执行，
则此类判决将不影响任何其它条款的有效性或可执行性。
Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
U.S.A.
Fluke Europe B.V.
P.O. Box 1186
5602 BD Eindhoven
The Netherlands
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
i
Table of Contents
Title Page
Introduction .......................................................................................... 1
Information and PC Software CD..................................................... 1
Logger Power Supply ....................................................................... 2
Logging Functions ............................................................................ 2
Symbols ............................................................................................ 4
Safety Instructions ................................................................................ 4
Qualified Personnel........................................................................... 6
Standard Equipment and Optional Accessories ................................ 6
Features............................................................................................. 8
Power Network Configurations ........................................................ 11
Working with Logged Data............................................................... 11
Using the 1745 Power Quality Logger.................................................. 12
About Logging Jobs.......................................................................... 12
Preparing the Logger for Use............................................................ 13
Test Leads - Markings .................................................................. 15
Connecting Current Probes ........................................................... 15
Logging with Voltage Converters................................................. 15
Connecting the Logger...................................................................... 16
Connections in 3-Phase 4-Wire (Wye) Systems ........................... 19
Connections in 3-Phase 3-Wire (Delta) Systems .......................... 20
Connections for Single-Phase Logging......................................... 21
Connections for Medium Voltage Networks................................. 22
Logging............................................................................................. 24
Completing the Logging Job......................................................... 24
Evaluating the Logged Data.............................................................. 25
Methods of Logging.......................................................................... 25
Voltage Ranges................................................................................. 26
Signal Sampling............................................................................ 27
Resolution Accuracy......................................................................... 27
Voltage Variations ............................................................................ 27
Averaging Period .............................................................................. 28
Min/Max Values ........................................................................... 29
Voltage Interruptions .................................................................... 30
Voltage Dips and Swells............................................................... 31
Voltage Harmonics ........................................................................... 31
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
ii
Current Harmonics ........................................................................... 32
Mains Signaling............................................................................ 32
THD V – In Function A................................................................ 33
Calculation of THD in Measuring Function P.............................. 34
Flicker .......................................................................................... 35
Unbalance..................................................................................... 36
Frequency..................................................................................... 36
Current Logging ........................................................................... 36
Logging Function A ..................................................................... 36
Crest Factor (CF).......................................................................... 36
Power ............................................................................................... 37
Measurement Theory............................................................................ 38
Maintenance ......................................................................................... 42
Lithium Battery ................................................................................ 42
Disposal............................................................................................ 42
Technical Specifications....................................................................... 43
Logging Parameters – Overview ...................................................... 43
Maximum Number of Intervals for Logging Funtion P................ 44
General Information ..................................................................... 44
Environmental Specifications....................................................... 45
EMC ............................................................................................. 45
Power Supply ............................................................................... 45
Measurement ................................................................................ 46
Input Voltage................................................................................ 46
Current Input with Flexi Set ......................................................... 47
Current Input for Clamp ............................................................... 47
General Specifications...................................................................... 48
RMS Logging Slow Voltage Variations....................................... 48
Current Logging Values ............................................................... 48
Events Dips, Swells, Interruptions................................................ 48
Flicker .......................................................................................... 48
Power P, S, |P| .............................................................................. 49
Harmonics (Logging Function A Only)........................................ 49
Statistics ....................................................................................... 49
Logging Function Parameters........................................................... 50
Logging Values ............................................................................ 50
Applications ................................................................................. 51
PQ Log PC Application Software ........................................................ 52
Live Reading (Online Test) .......................................................... 53
ASCII Export................................................................................ 54
Timeplot Diagram ........................................................................ 55
UNIPEDE DISDIP Table............................................................. 56
Cumulative Frequency – Harmonics ............................................ 56
Index
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
iii
List of Tables
Table Title Page
1. Symbols.............................................................................................. 4
2. Standard Equipment........................................................................... 7
3. Optional Accessories.......................................................................... 7
4. 1745 Power Quality Logger - Controls and Indicators....................... 9
5. Test Leads - Markings........................................................................ 15
6. Measuring Ranges.............................................................................. 26
7. Logging Parameters - Overview......................................................... 43
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
iv
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
v
List of Figures
Figure Title Page
1. 1745 Power Quality Logger ............................................................... 3

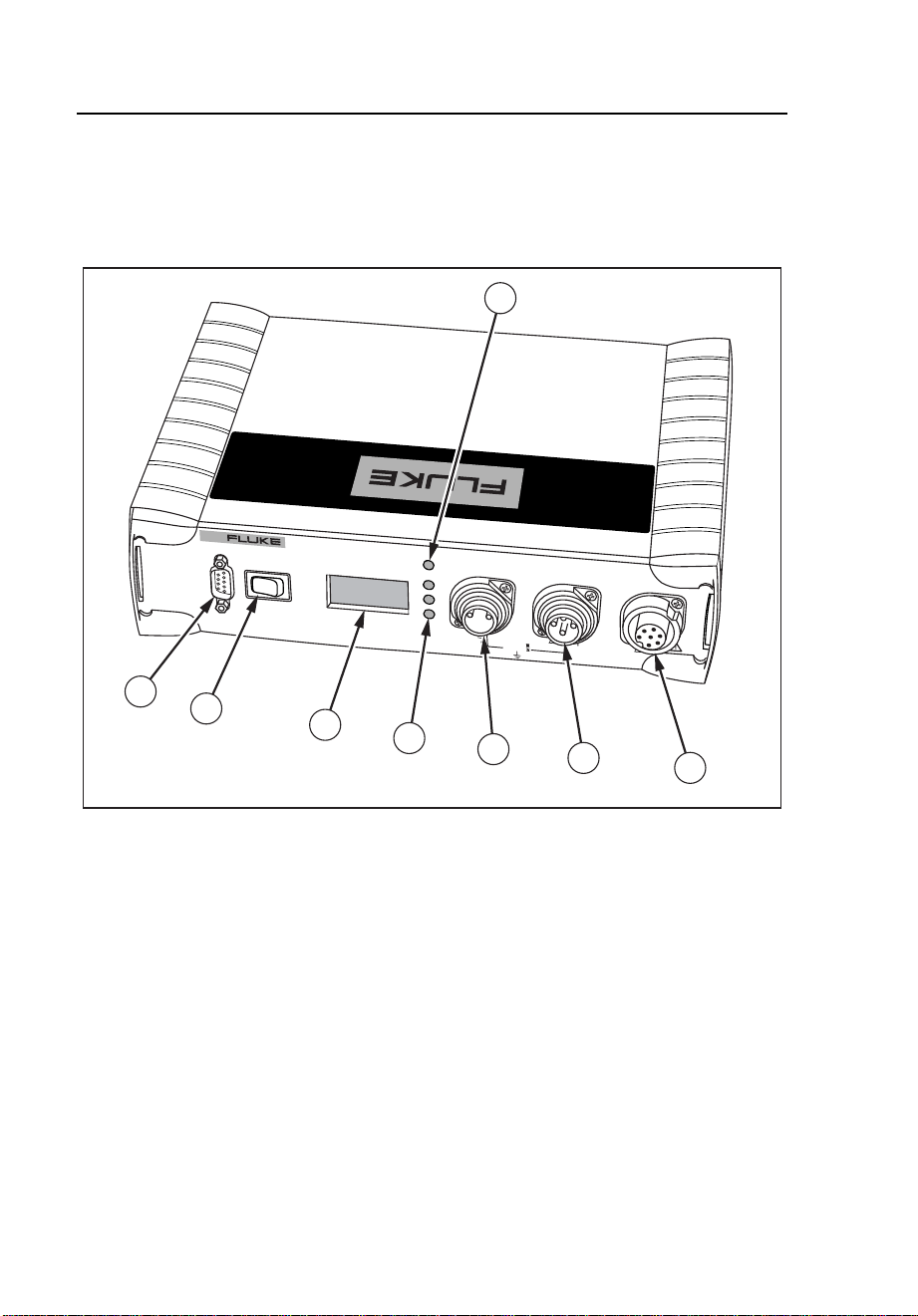

2. 1745 Power Quality Logger - Front View.......................................... 8

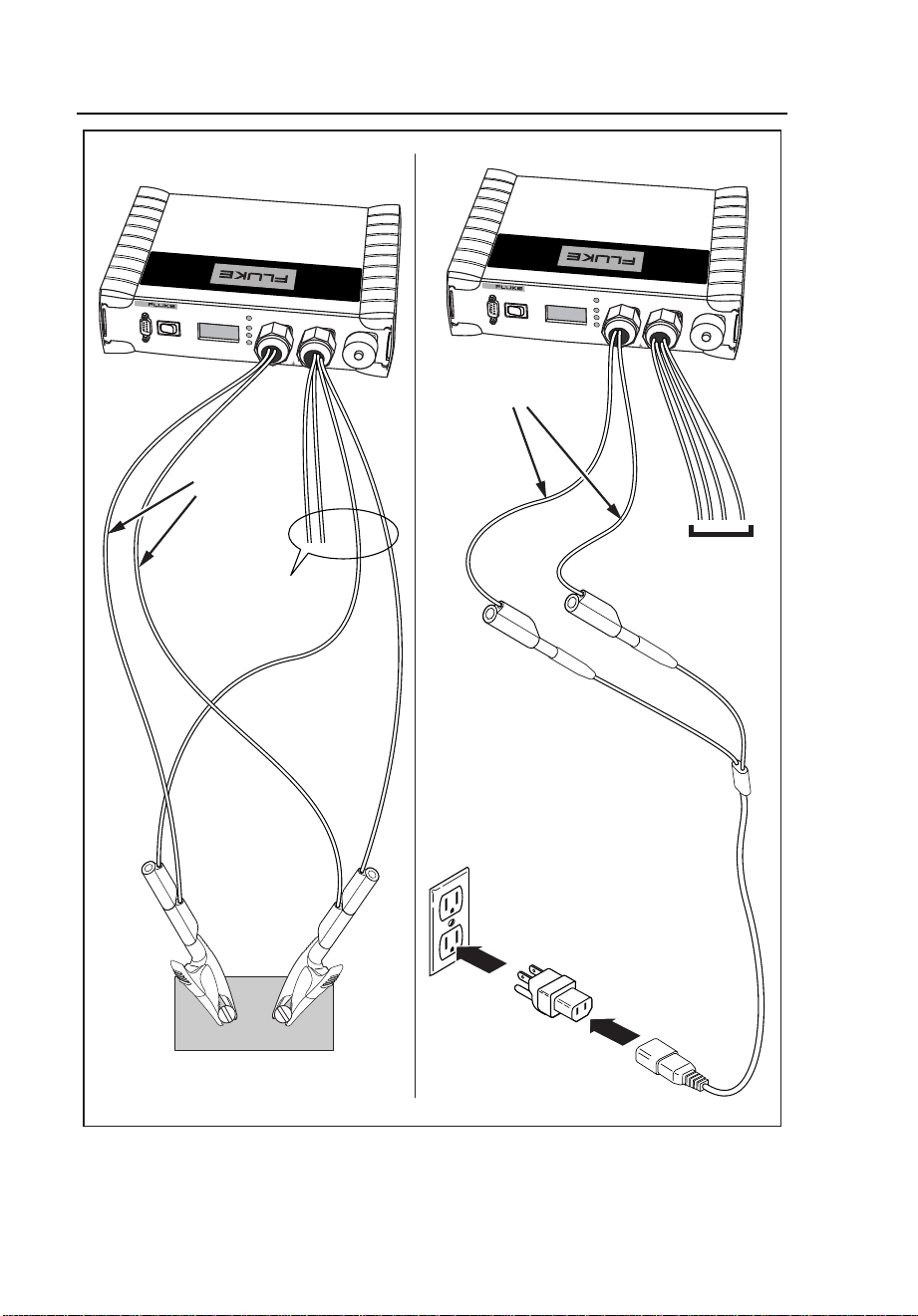

3. Supplying Operating Power to the Logger......................................... 14

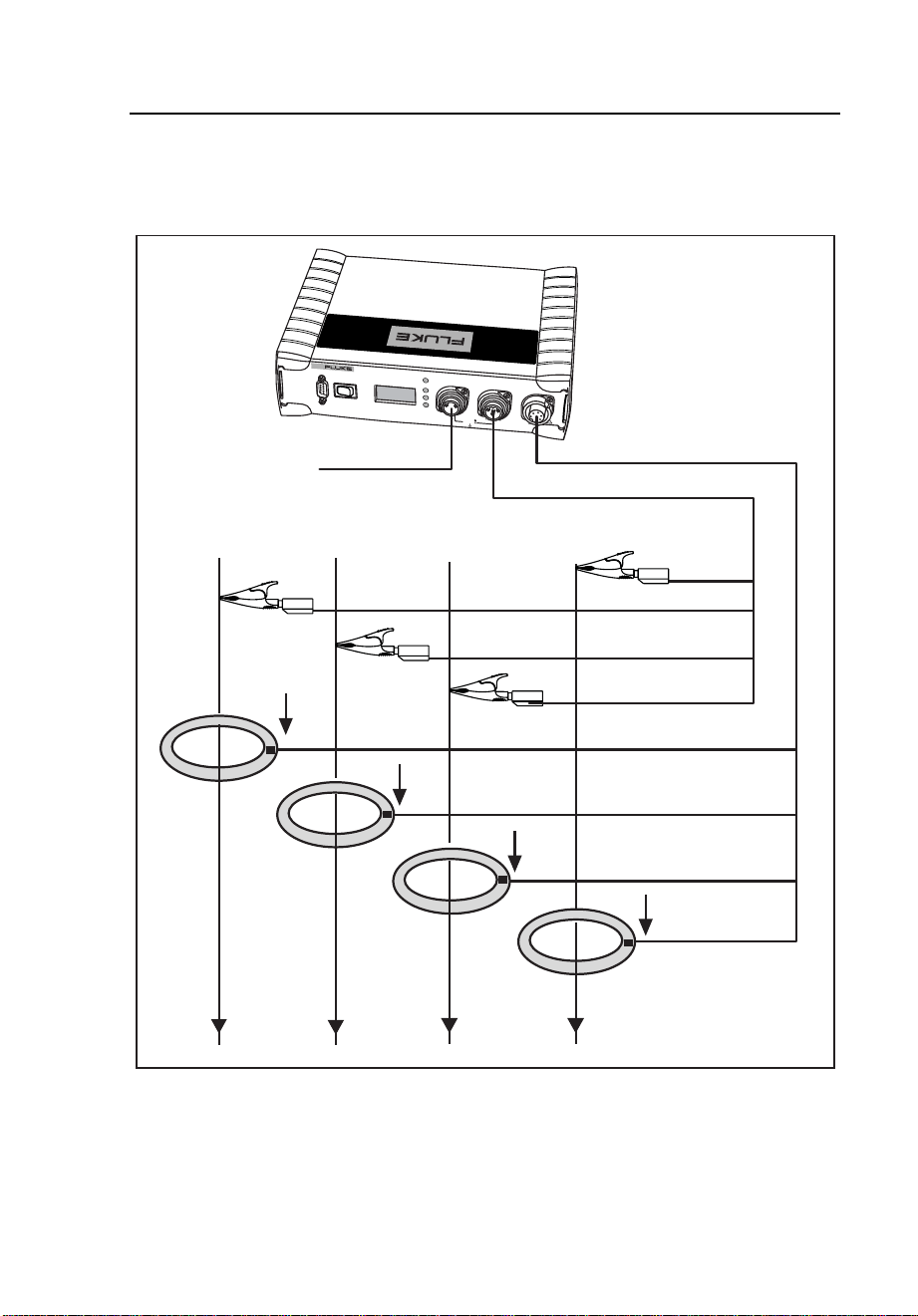

4. Logging in a 3-Phase 4-Wire System................................................. 19

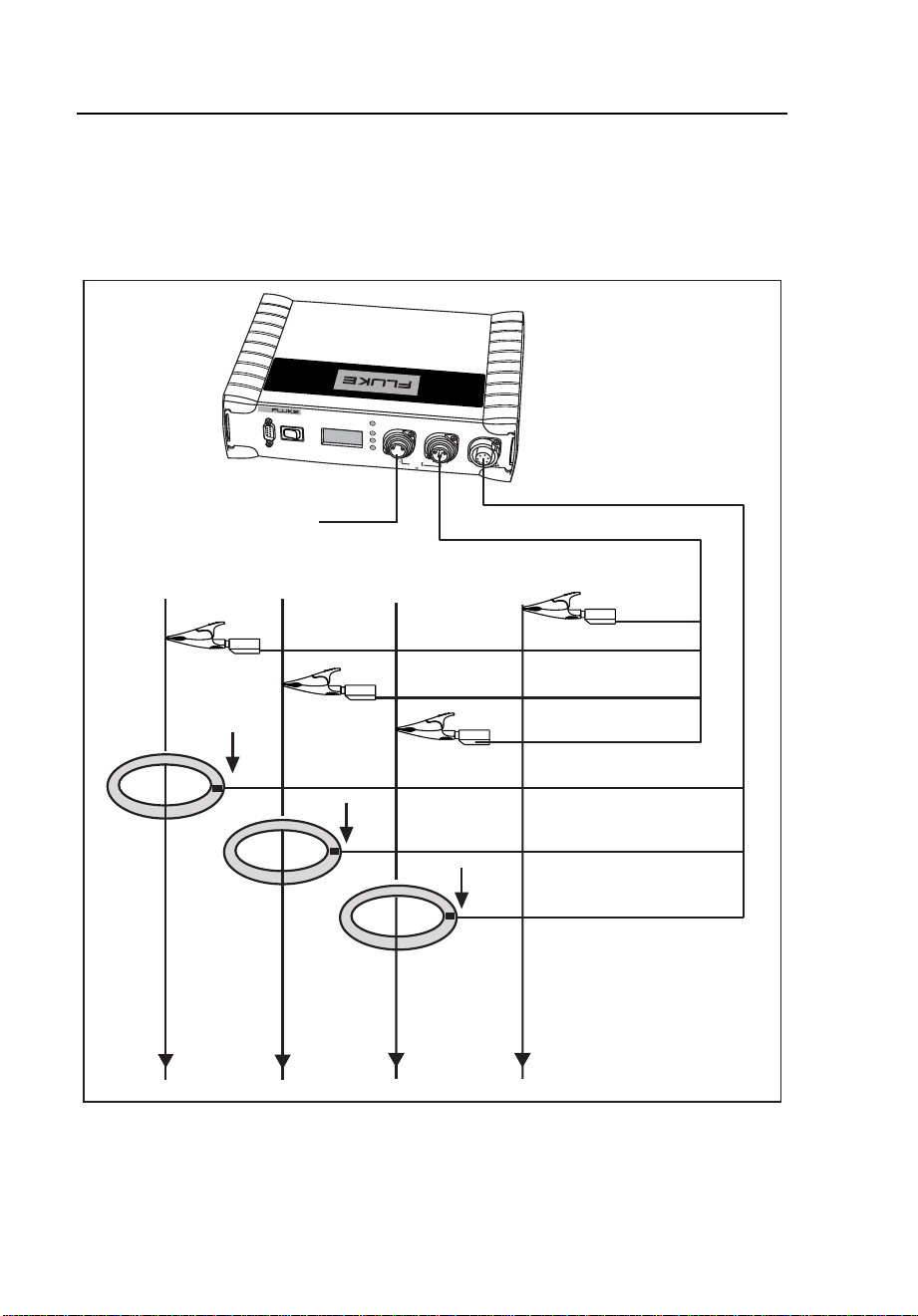

5. Logging in a 3-Phase 3-Wire (Delta) System..................................... 20

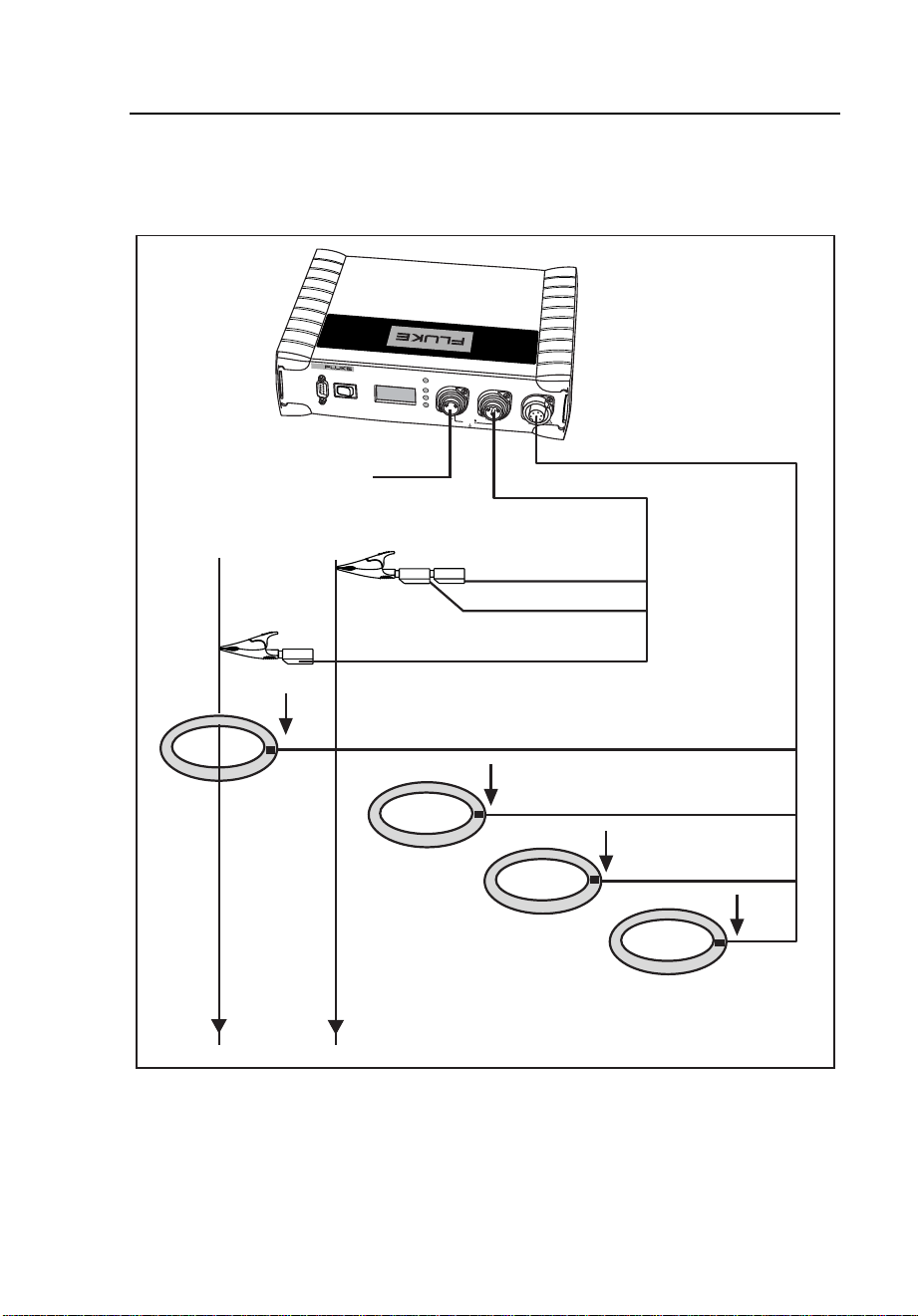

6. Single-Phase Logging ........................................................................ 21

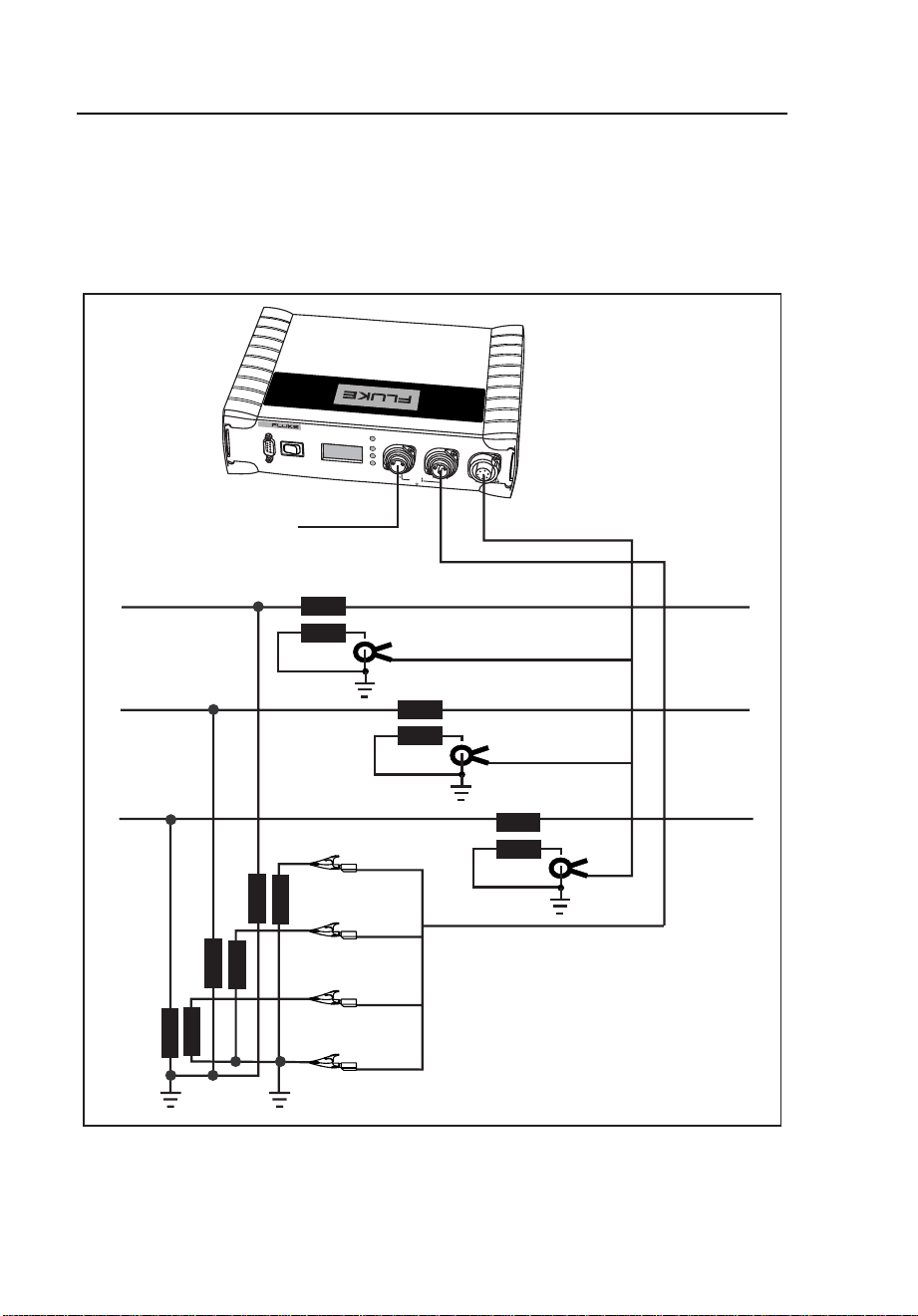

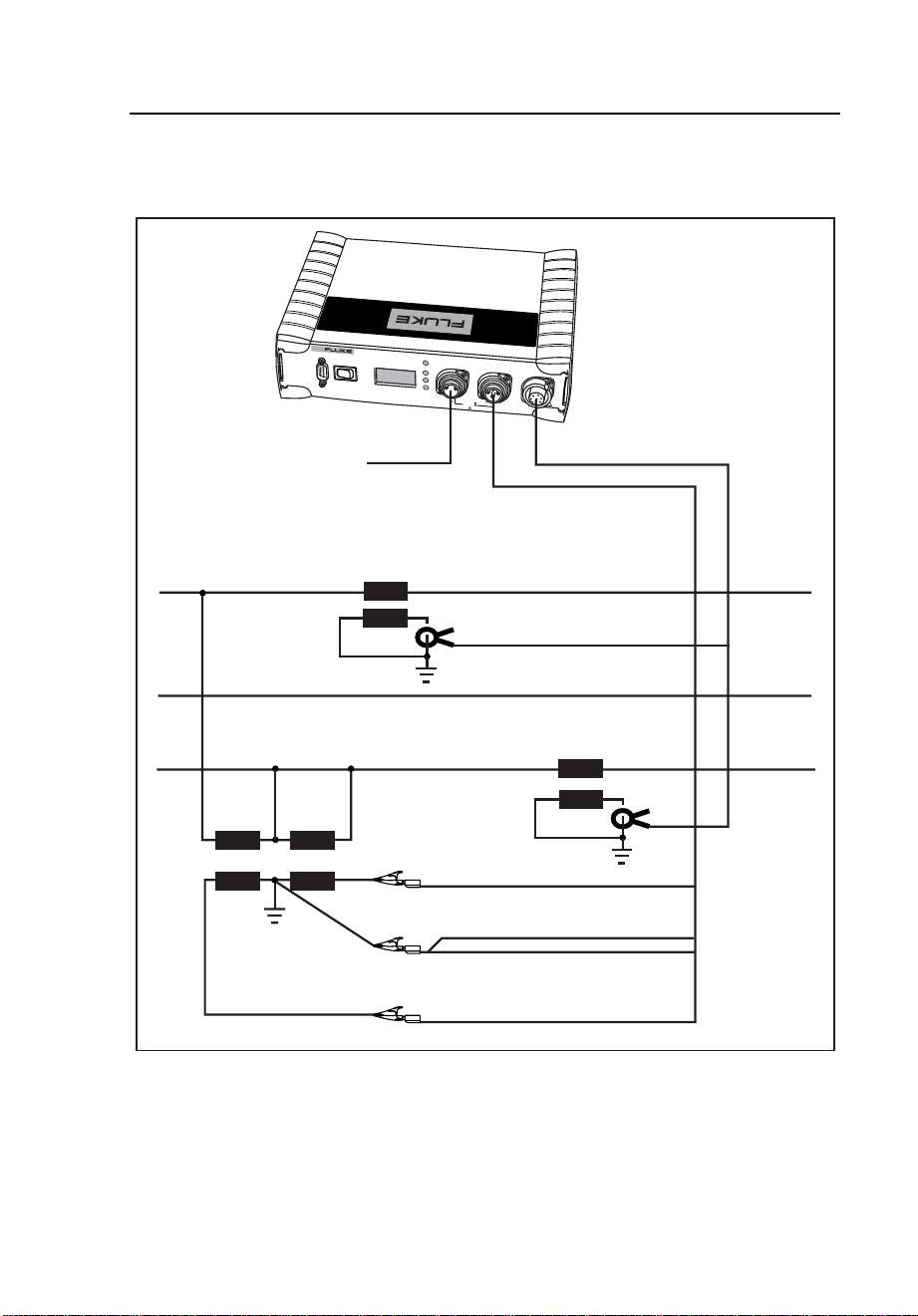

7. Measuring 3 Phase Voltages in a 3-Wire (Delta)
System with Three Voltage Converters.............................................. 22
8. Two-Element Delta Connections ....................................................... 23

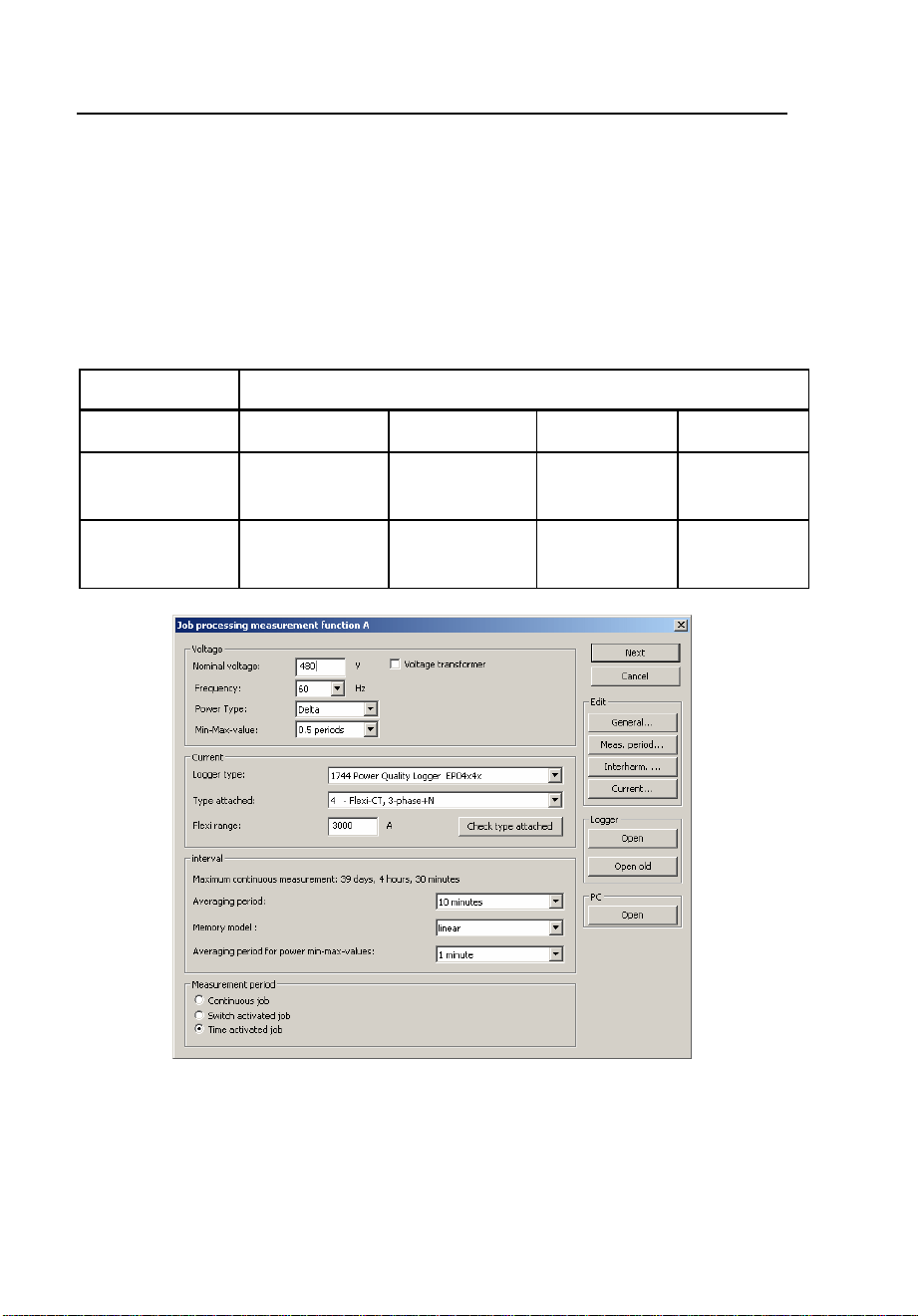

9. Basic Logger Setup Parameters.......................................................... 26
10. Measuring Voltage Variations............................................................ 28
11. Logging Min and Max Values............................................................ 29
12. Voltage Interruption........................................................................... 30
13. Voltage Dips and Swells .................................................................... 31
14. Measuring Flicker Values .................................................................. 35
15. Live Reading (Online Test)................................................................ 53
16. ASCII Export ..................................................................................... 54

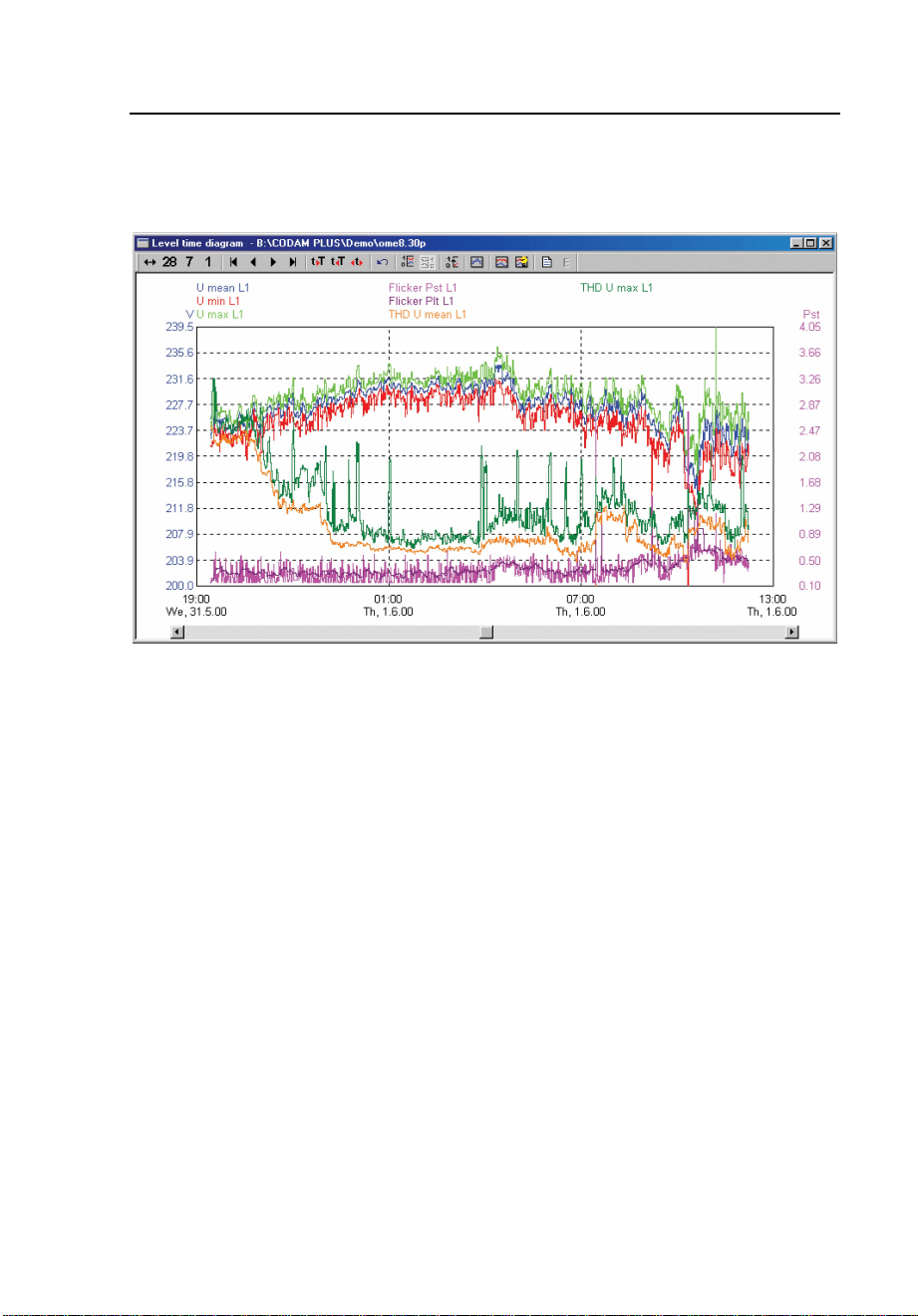

17. Timeplot Diagram .............................................................................. 55

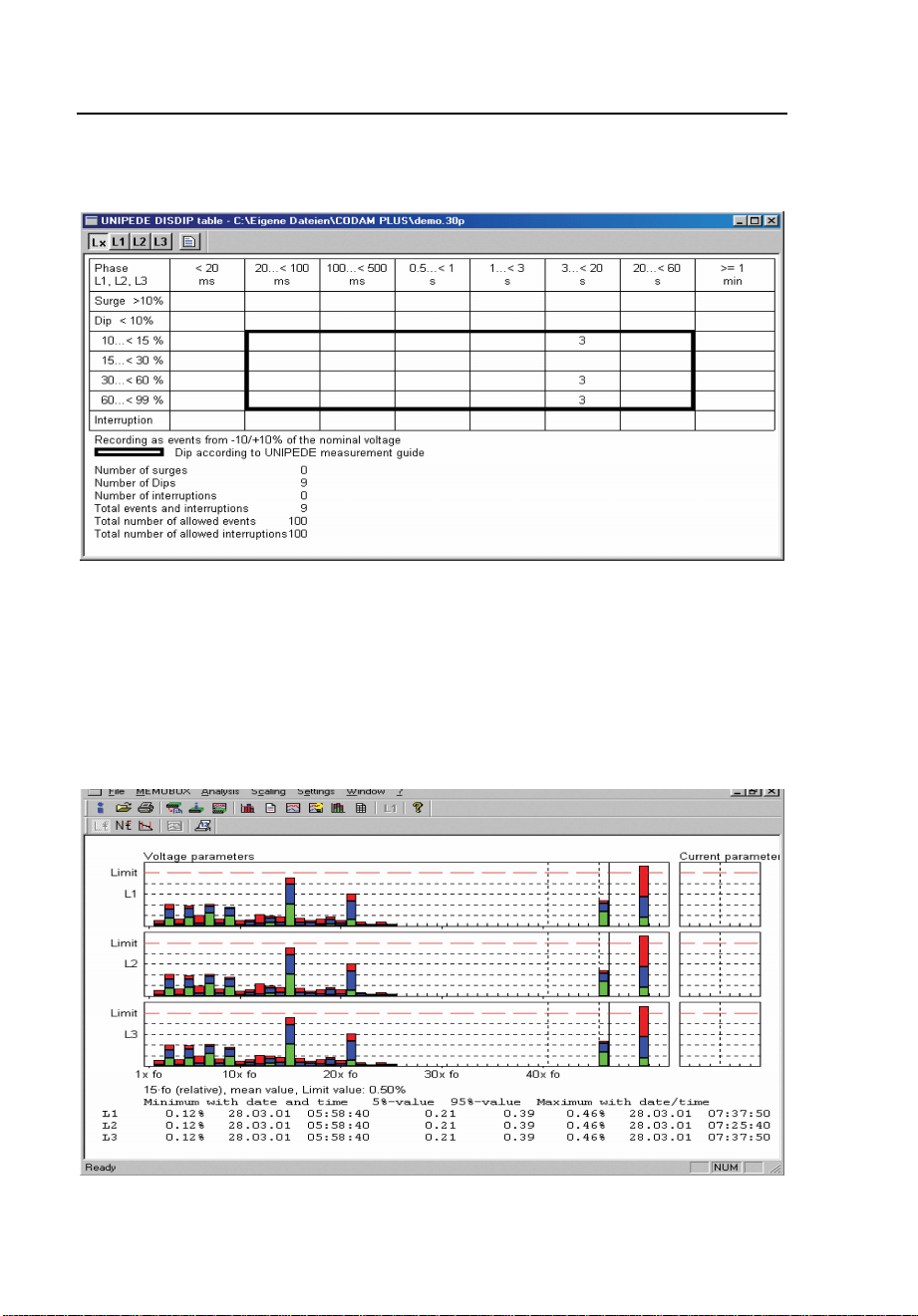

18. UNIPEDE DISDIP Table................................................................... 56
19. Cumulative Frequency - For Voltage and Current Harmonics........... 56
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
vi
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1
1745
Power Quality Logger
Introduction

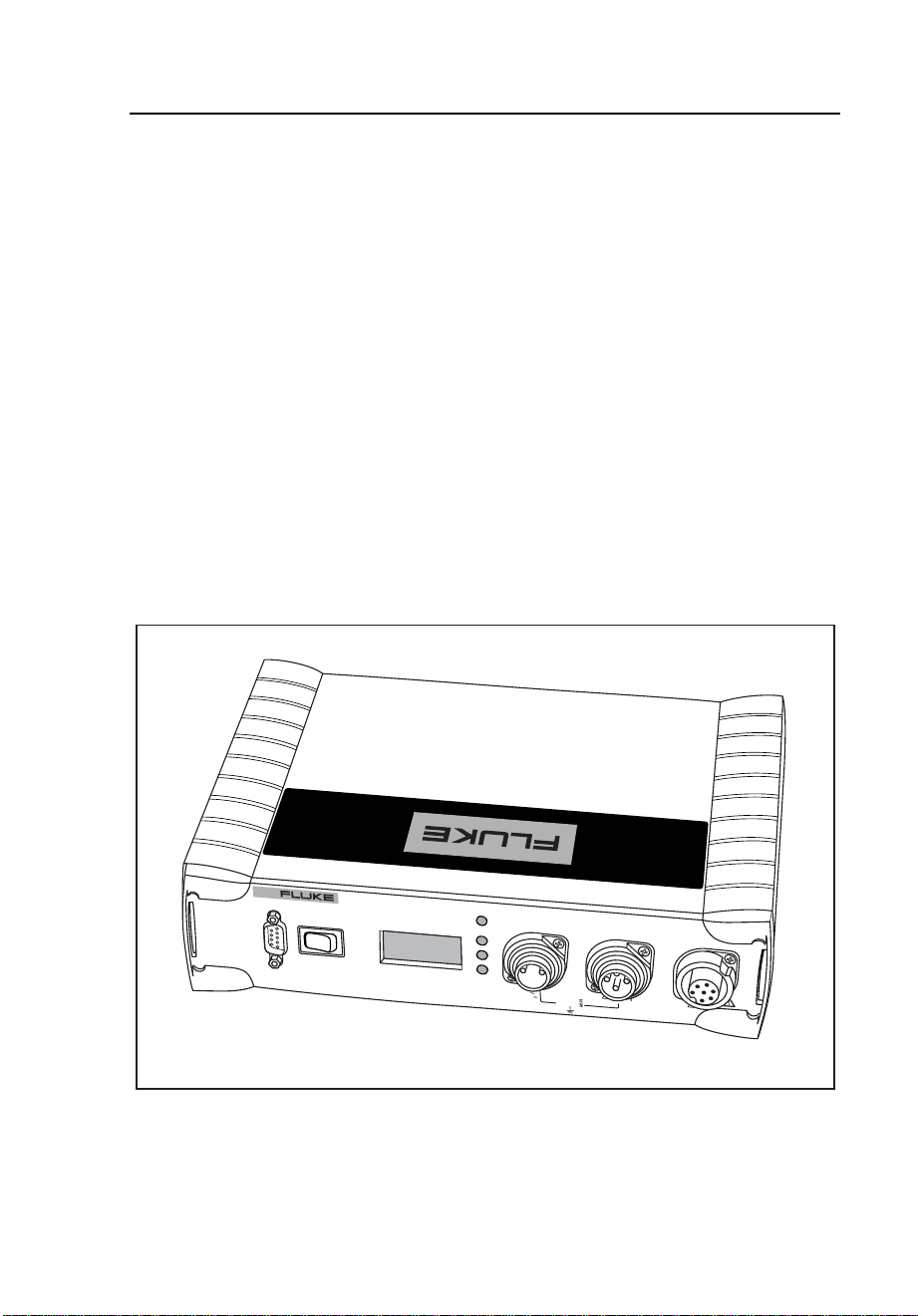

The Fluke 1745 Power Quality Logger, see Figure 1, is a sophisticated, easy-
to-use, electrical power-recording device for the electrician or power-quality
specialist.
Note
This manual also refers to the 1745 Power Quality Logger simply as
“the Logger”.
The Logger conatins an automatically charged 8-hour UPS (uninterruptable
power supply) battery for long-term voltage interruption ride-through, and an
LCD status display to provide confidence in setup before you leave the Logger
in place to collect data.
You can power the logger in parallel with the test leads or through an outlet.
Adapter cords for both methods of power in the Logger are included as
standard equipment.
You’ll prepare the Logger for use with the included PQ Log software. You can
then connect the Logger to an electrical power-distribution network to log a
variety of power parameters, recorded as sequential averaged values over an
averaging period you can define. The Logger can measure up to three voltages
and four currents simultaneously.
Information and PC Software CD
The CD included with the Logger contains the PQ Log application software for
Windows, along with users manuals in multiple languages.
The PQ Log software prepares the Logger for use, and downloads data from
the Logger to a connected PC.You can then view the logged data in graphical
and tabular form, export it to a spreadsheet, or create reports for printing. For
details and instructions, see the PQ Log Users Manual on the CD.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
2
Logger Power Supply
The Logger does not include a power switch, but turns on automatically
whenever its power supply leads are connected to a voltage in its allowed
range. You can plug the Logger’s power supply leads into a standard wall
outlet (using the included adapter cord), or you can connect them directly to
the power network under test (in parallel with the test leads) if there is no
convenient wall outlet (only if the voltage at the test leads is below 660V
RMS.)
Logging Functions
The Logger monitors power quality and locates disturbances in low and
medium voltage distribution networks. It measures up to 3 voltages and
4 currents. Logged values are saved in your choice of sequential averaging
periods. You graphically or numerically evaluated measured values with PQ
Log.
The Logger has two types of logging functions: logging function A
(Advanced) and logging function P (Power). Function A is the full set of
parameters, and function P provides logging capability optimized for load
studies and basic power logging. Function P contains every parameter in
Function A except voltage and current harmonics and interharmonics.
Logging function P allows longer logging periods because it does not save
harmonics values.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Introduction
3
Logging function parameters:
• RMS Voltage of each phase (average, min, max)
• RMS Current of each phase and neutral (average, min, max)
• Voltage events (dips, swells, interruptions)
• Power (kW, kVA, kVAR, Power PF, Power tangent)
• Energy, total energy
• Flicker (Pst, Plt)
• Voltage THD
• Current THD
• Current CF
• Voltage harmonics to the 50
th
(not in P function)
• Voltage interharmonics (not in P function)
• Mains signalling voltage
• Unbalance
• Frequency
L
1
A
L
2
B
L
3
C
LOGGING S
T
A
TUS
CURRENT INPUT
10
V
RMS
M
A
X
5VA
4
5
-
65
H
z
SUPPL
Y INPUT
10
0
-
350
V
660V MAX
8
8
-
660V
V
O
L
TA
GE INPUT
60
0
V
C
AT
30
0
V
C
A
T
T
RS232
P
O
WER QU
ALITY LOGGER
1745
830
V
48
0V
MAX
L
-
L
L
-
N
/
S
T
AR
T / ST
OP
/
egc001.eps
Figure 1. 1745 Power Quality Logger
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
4
Symbols
Table 1 lists the symbols used on the instrument and in this manual.
Table 1. Symbols
Symbol Description
W
Important information. See the manual.
X
Hazardous voltage.
J
Earth ground.
T
Double insulation.
F
Direct Current (DC).
P
Conforms to European Union requirements
)
Canadian Standards Association is the certified body used
for testing compliance to safety standards.
~
Do not dispose of this product as unsorted municipal waste.
Contact Fluke or a qualified recycler for disposal.
;
Conforms to relevant Australian Standards.
Safety Instructions
Please read this section carefully. It will make you familiar with the most
important safety instructions for using the Logger.
Warnings identify conditions and actions that pose safety hazards to the
user and Cautions identify conditions and actions that can damage the
Logger.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Safety Instructions
5
W X Warnings
• To avoid electrical shock, do not connect any part of
the Logger to systems that have higher voltages to
ground (earth) than are marked on the Logger.
• Areas between the power company meter and the
source of the distribution system are characterized as
CAT IV areas. To avoid electrical shock or equipment
damage, never connect the Logger to power in CAT IV
areas if the voltage-to-earth ground is greater than
300 V.
• To avoid damaging the Logger, never connect its
voltage measuring inputs to phase-to-phase voltages
higher than 830 V.
• To avoid damaging the Logger, never connect the
power supply leads to voltages higher than 660 V-RMS
AC.
• The Logger is to be used and handled only by qualified
personnel (see page 8).
• Maintenance work on the Logger must be done only by
qualified service personnel.
• Use only the current probes specified in this manual. If
you use flexible current probes, wear suitable
protective gloves or work on de-energized conductors.
• Do not expose the Logger to moisture or humidity.
• To prevent electrical shock, always connect power
supply and voltage test leads to the Logger before
connecting to the load.
• All accessories must be approved for 600 V CAT III or
higher.
• Use the Logger only with its original standard
equipment or with approved optional accessories, as
listed in Table 2 and Table 3 in this manual.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
6
• Connect clip-on current transformers and/or Flexi Set
to insulated live conductors only.
• If measuring sensors are to be connected to non-
insulated live conductors, additional personal
protective measures must be taken as required by local
government agencies.
WCaution
To avoid damage, use the 1745 Power Quality Logger, only
with the following nominal voltages:
• Single/3 phase, 4-wire (Wye) systems (P-N): 69 V to
480 V
• 3-phase-3-wire(Delta) systems (P-P): 120 V to 830 V
WX Warning
To avoid electrical shock, or damaging the Logger’s
internal protective circuitry weatherproof seal, do not open
the Logger.
Qualified Personnel
The following qualifications are required for using the Logger safely:
• Trained and authorized to switch on/off, ground (earth), and mark
power distribution circuits and devices in accordance with electrical
engineering safety standards.
• Trained or instructed in safety engineering standards for maintaining
and using appropriate safety equipment.
• Trained in first aid.
Standard Equipment and Optional Accessories
Table 2 lists the standard equipment for the 1745 Power Quality Logger and
Table 3 lists optional accessories.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Safety Instructions
7
Table 2. Standard Equipment
Equipment Model/Part
Number
Power Quality Logger 1745
International IEC Power Plug Adapter Set 2441372
RS232 Cable, Red, Null-Modem 2540511
Shielded 4-Phase Flexi Set (15 A/150 A/1500 A/3000 A) FS17XX
Dolphin Clip, Black (4x) 2540726
Color Coding Wire Clips WC17XX
Soft Case 2715509
English Users Manual 2560366
CD with Users Manual (English, German, French, Spanish,
Portuguese, Simplified Chinese, Italian), and PQ Log
software (same languages as the manual)
2583507
Power cord adapter for parallel connection to test leads 2651702
Power cord 2715492
USB Adapter 2539565
Table 3. Optional Accessories
Description Accessory
3-Phase Flexi Set MBX 3FLEX
3-Phase 1 A/10 A micro CT EPO405A
C425 Hardcase 2654865
Permlink Software for Modem E631820090
3-Phase Voltage Leads 2645854
Inspect the contents of the shipping box for completeness and damage. Report
any damage, to the shipper.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
8
Features
This section introduces the Logger’s controls, indicators and other features.
Refer to Figure 2 and Table 4.
L
1
A
L
2
B
L
3
C
LO
G
GING
S
T
ATUS
CURRENT INPUT
10
V
R
M
S
M
A
X
5VA
4
5
-
65
H
z
SUPPL
Y INPUT
10
0
-
350
V
660V MAX
8
8
-
660V
V
O
L
TA
GE INPUT
60
0
V
C
AT
30
0
V
C
A
T
T
RS232
P
O
WER QUALITY LOGGER
1745
830
V
48
0V
MAX
L
-
L
L
-
N
/
S
T
AR
T / S
T
O
P
/
6
2
3
8
1
4
5
7
egc002.eps
Figure 2. 1745 Power Quality Logger - Front View
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Safety Instructions
9
Table 4. 1745 Power Quality Logger - Controls and Indicators
Item Name Description
1
Connector for
Logger power
supply.
This is where the power cord attaches to the
Logger. The power cord connects in parallel
to any two test leads as long as the voltage
is below 660 V absolute maximum.
Whenever there is any risk that voltage
could be higher, connect the power cord to a
wall outlet using the appropriate
international power plug (supplied).
Power supply voltage range: 88-660 V AC or
100-350 VDC, 50 Hz / 60 Hz, 600 V CAT III.
2
START/STOP switch The START/STOP button is used to start or
end switch-operated logging sessions.
3
LCD status display Shows measured input values to provide
confidence in proper setup and test lead
connections. Every 3 seconds, the display
changes to the next set of readings in the
following sequence:
1. The three voltage levels
2. The main three phase currents
3. Neutral current and real-time clock
4. Active (true) power on each phase
The cycle repeats continuously. Make sure
the readings look reasonable before leaving
the Logger to collect data.
4
Power supply leads
and 3-phase plus
neutral voltage test
leads
Fixed installed voltage input cables for L1 or
A, L2 or B, L3 or C, N.
The highest permissible nominal voltage is
830 V in a 3-wire network with Delta
connection.
In a 4-wire network with Wye connection,
the highest permissible nominal voltage is
480 V.
When using PTs and CTs for measuring
voltage and current in a medium-voltage
network, refer to the IEC 60044 international
standard for guidelines.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
10
Table 4. 1745 Power Quality Logger - Controls and Indicators (cont)
Item Name Description
5
Connector for Flexi
Set or current
clamps
Flexi sets or current clamps are detected
automatically at power-up. If you change the
current probe type, be sure to remove and
restore power so the Logger will detect the
new current probe.
Nominal ranges for the Flexi Set are 15 A,
150 A, 1500 A, and 3000 A AC. Nominal
input for current clamps is 0.5 V.
6
RS232 interface port The serial RS232 interface is used to
communicate with a PC. The Logger is
connected to the PC’s serial port (or a
modem for remote communication) using
the interface cable. Use a USB adapter if
necessary.
7
Logging Status LED
Yellow blinking = Logging job not set up yet,
or waiting for start time or START button.
Green blinking = logging is in progress
Steady green = Logging session is finished.
Data are ready to upload to a PC.
8 Channel LEDs The logging channel LEDs indicate
whether the applied voltages are within the
nominal range set using the PQ Log
software.
Red = Overload
Green = OK
Yellow = Underload
(There is no detection for the current input)
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Safety Instructions
11
Power Network Configurations
You can set up the Logger to work with several power network configurations
(listed below). You make these settings using PQ Log software while
connected to the Logger using the interface cable. See the PQ Log Users
Manual for details.
• Delta system
• Delta 2 element system (2 voltage/current transformer)
• Wye (Star) system
• Single phase
• Split single phase
Working with Logged Data
See the PQ Log manual for full details. Logged data can be evaluated using the
PQ Log software to provide the following:
• Amount, date/time, and duration of quick and slow voltage variations
• Half-cycle: 10 ms-extreme values for 50 Hz (8.3 ms at 60 Hz) MIN
and MAX for each measuring interval
• Depth and duration of voltage dips
• Correlation between peak current and voltage dips
• 95 %-flicker values according to EN50160
• Number and duration of interruptions
• Compliance of harmonic levels with defined limits
• Mean and peak values of phase currents
• Value of neutral conductor current
• Current total harmonic distortion (THD) of phase and neutral
conductor currents
• Profile of active, reactive, and apparent power versus time
• Monitoring of power factor (PF) and information about effectiveness
of compensation systems
• Graphical representations of logging data and statistics
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
12
Using the 1745 Power Quality Logger
This section explains how to operate the 1745 Power Quality Logger. You
should also refer to the PQ Log Users Manual to become familiar with the
software you use to prepare the Logger for use and download logged data.
A typical logging session includes four steps:
1. Preparing the Logger for use with the PQ Log software.
2. Installing the Logger at the logging site.
3. Leaving the Logger to collect data for a period.
4. Downloading and evaluating the logged data.
These steps are described in the following pages.
About Logging Jobs
Logging jobs are defined using the PQ Log software, and transferred to the
Logger over the RS-232 cable. Each job contains the following information:
• Logging function P or A
• Measuring period, defined by start and end times
• Time activated, switch or immediate job
• Nominal voltage
• Power type (wye, delta, etc.)
• Averaging period length
• Logging time period
• Interharmonics and signaling voltages
• Limit values for events
• Memory model for events: circular (first-in/first-out, continuous), or
linear (quit logging when logging period is finished)
• Logging of current - neutral wire
• Optional converter ratios for current and voltage if using potential
transformers (PTs) and current transformers (CTs) at a medium-
voltage network site
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Using the 1745 Power Quality Logger
13
Preparing the Logger for Use
Prepare the 1745 Logger for use with PQ Log software as follows (see
Figure 3):
1. Connect the Logger to line power. Use the power supply cables to
connect to an outlet, or to the test leads phase and neutral for Wye
configurations, or any two-phase leads for delta.
W Caution
If you are powering the Logger in parallel with the test
leads, and the voltage under test at the Logger power
supply connections could be greater than 660 V RMS AC,
plug the power supply leads into an outlet instead.
Otherwise, you could damage the Logger.
2. Connect the RS232 interface cable to the serial port of your PC. Use a
USB adapter if your PC does not have a serial port.
3. Run the PQ Log software as described in the PQ Log Users Manual.
4. Set up the Logging job and transfer the settings to the Logger.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
14
Voltage
Test Leads
Voltage
Test Leads
Power in Parallel
with Test Leads
Power from Wall Outlet
Max 660 V
Power
Supply
Leads
Power Supply
Leads
L
1
A
L
2
B
L
3
C
LOGGING S
T
ATUS
C
U
R
R
E
N
T
I
N
P
U
T
1
0
V
R
M
S
M
AX
5VA
4
5
-
6
5
Hz
S
U
P
P
L
Y
I
N
P
U
T
1
0
0
-
3
5
0
V
6
6
0
V
M
A
X
8
8
-
6
6
0
V
V
O
L
TAGE
I
N
P
U
T
6
00
V
C
AT
3
0
0
V
C
A
T
T
R
S232
P
O
WER
QUALITY LOGGER
1
7
45
8
3
0
V
4
8
0V
M
A
X
L
-
L
L
-
N
/
S
T
AR
T
/ ST
O
P
L
1
A
L
2
B
L
3
C
LOGG
ING S
T
ATUS
C
U
R
R
E
N
T
I
N
P
U
T
10
V
R
M
S
M
AX
5VA
4
5
-
6
5
Hz
S
U
P
P
L
Y
IN
P
U
T
1
0
0
-
3
5
0V
6
6
0
V
M
A
X
8
8
-6
6
0
V
V
O
L
T
A
G
E
I
N
P
U
T
6
00
V
C
AT
3
0
0
V
C
A
T
T
RS232
P
O
WER
QUALITY LOGGER
1
7
4
5
8
3
0
V
4
8
0V
M
A
X
L
-
L
L
-
N
/
S
T
ART / STOP
egc031.eps
Figure 3. Supplying Operating Power to the Logger
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Using the 1745 Power Quality Logger
15
Test Leads - Markings
The 1745 Logger includes detachable labeled test leads for voltage terminals
L1 or A, L2 or B, L3 or C, and N. Another detachable set of leads provides
operating power to the Logger. The Flexi Set or current clamp sets are
connected by a seven-pin plug to the Logger A connector. Color coding clips
are provided for your convenience.
Table 5 shows the test leads and markings of the Logger.
Table 5. Test Leads - Markings
Test Leads Markings
Phase L1 or A L1 / A
Phase L2 or B L2 / B
Phase L3 or C L3 / C
Neutral wire N N
Connecting Current Probes
Connect current clamps and Flexi Set probes so that current will flow in the
direction marked by arrows on the probes. Current must flow from the energy
generator to the energy consumer (the load) in order to maintain a positive
active power. Orient the Flexi probe so that the arrow points towards the load.
(The polarization of the test lead for neutral conductor current is not
significant, because the phase angle of the neutral conductor current is not
evaluated.)
Logging with Voltage Converters
The 1745 Logger includes an adjustable convertor ratio that enables it to be
used with voltage convertors (potential transformers, or PTs).
Note
When logging with voltage convertors, make sure the power supply
cables are not connected in parallel to the voltage test leads, or the
Logger’s power consumption can reduce accuracy.
The convertor ratio is defined using the PQ Log software.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
16
Connecting the Logger
W X Warnings
• To avoid electrical shock, do not connect any part of
the Logger to systems that have higher voltages to
ground (earth) than are marked on the Logger.
• Areas between the power company meter and the
source of the distribution system are characterized as
CAT IV areas. To avoid electrical shock or equipment
damage, never connect the Logger to power in CAT IV
areas if the voltage-to-earth ground is greater than
300 V.
• To avoid damaging the Logger, never connect its
voltage measuring inputs to phase-to-phase voltages
higher than 830 V.
• To avoid damaging the Logger, never connect the
power supply leads to voltages higher than 660 V RMS
AC.
• The Logger is to be used and handled only by qualified
personnel (see page 6).
• Maintenance work on the Logger must be done only by
qualified service personnel.
• Use only the current probes specified in this manual. If
you use flexible current probes, wear suitable
protective gloves or work on de-energized conductors.
• Do not expose the Logger to moisture or humidity.
• To prevent electrical shock, always connect power
supply and voltage test leads to the Logger before
connecting to the load.
• All accessories must be approved for 600 V CAT III or
higher.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Using the 1745 Power Quality Logger
17
• Use the Logger only with its original standard
equipment or with approved optional accessories as
listed in Table 2 and Table 3 in this manual.
• Connect clip-on current transformers and/or Flexi Set
to insulated live conductors only.
• If measuring sensors are to be connected to non-
insulated live conductiors, additional personal
protective measures must be taken as required by local
government agencies.
WCaution
To avoid damage, use the 1745 Power Quality Logger only
with the following nominal voltages:
Single/3-phase 4-wire (Wye) systems (P-N): 69 V to 480 V
3-phase-3-wire (Delta) systems (P-P): 120 V to 830 V
WX Warning
To avoid electrical shock, or damaging the Logger’s
internal protective circuitry or weatherproof seal, do not
open the Logger.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
18
Connect the Logger as follows.
Note
∆- (delta) or Υ- (wye) measurements.
The 1745 Logger is prepared for logging in Delta, Delta 2 Element,
Wye (Star), single and split phase. Please note the different types of
connection and configuration in the PQ Log software.
1. Connect all required measuring leads.
2. If you want to supply the Logger from an outlet use the supplied
power cord and plug adapter. The power supply leads can also be
connected in parallel to the voltage test leads, but the voltage is
limited to 660 V RMS AC.
3. Connect the current clamp set or Flexi Set to the Logger.
4. Connect the current sensor to the conductor under test.
5. Connect the dolphin clips to the test leads. For 3-phase, 4-wire
systems, connect the N-test lead first, and then the other phases.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Using the 1745 Power Quality Logger
19
Connections in 3-Phase 4-Wire (Wye) Systems
Figure 4 shows the connections for logging 3-phase 4-wire (Wye) systems:
L
1
A
L
2
B
L
3
C
LO
G
GIN
G S
T
A
T
U
S
C
U
R
R
E
N
T
I
N
P
U
T
10
V
R
M
S
M
A
X
5VA
4
5
-
6
5
H
z
S
U
P
P
L
Y
I
N
P
U
T
1
0
0
-
3
5
0
V
6
6
0
V
M
A
X
8
8
-
6
6
0V
V
O
L
T
A
G
E
IN
P
U
T
6
00V
C
AT
3
0
0
V
C
A
T
T
R
S
23
2
POWER
QU
ALITY LOGGER
17
45
8
3
0
V
4
8
0
V
M
A
X
L
-
L
L
-
N
/
S
T
A
R
T / ST
OP
/
L1 L2
L3
N
Power Supply
egc003.eps
Figure 4. Logging in a 3-Phase 4-Wire (Wye) System
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
20
Connections in 3-Phase 3-Wire (Delta) Systems
Figure 5 shows the connections for logging 3-phase 3-wire (Delta) systems.
The test lead “N” can be left open or connected to ground potential.
L
1
A
L
2
B
L
3
C
LOGGING S
T
A
TUS
C
U
R
RE
N
T IN
PU
T
10
V
R
M
S
M
A
X
5VA
4
5
-
6
5H
z
SU
PP
L
Y IN
PU
T
1
0
0
-
3
5
0
V
6
6
0
V
M
A
X
8
8
-
6
6
0
V
V
O
L
T
A
G
E IN
P
UT
6
0
0
V
C
A
T
3
0
0
V
C
A
T
T
RS232
P
OWER QU
ALITY LOGGER
1745
8
3
0
V
4
8
0
V
M
A
X
L
-
L
L
-
N
/
S
T
A
R
T / ST
O
P
/
L1 L2
L3
N
Power Supply
egc004.eps
Figure 5. Logging in a 3-Phase 3-Wire (Delta) System
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Using the 1745 Power Quality Logger
21
Connections for Single-Phase Logging
Figure 6 shows the connections for logging single-phase logging systems:
L
1
A
L
2
B
L
3
C
LO
G
GIN
G S
T
A
T
U
S
C
U
R
R
E
N
T
I
N
P
U
T
10
V
R
M
S
M
A
X
5VA
4
5
-
6
5
H
z
S
U
P
P
L
Y
I
N
P
U
T
1
0
0
-
3
5
0
V
6
6
0
V
M
A
X
8
8
-
6
6
0V
V
O
L
T
A
G
E
IN
P
U
T
6
00V
C
AT
3
0
0
V
C
A
T
T
R
S
23
2
POWER
QU
ALITY LOGGER
17
45
8
3
0
V
4
8
0
V
M
A
X
L
-
L
L
-
N
/
S
T
A
R
T / ST
OP
/
L1
Power Supply
N
L3
L2
egc005.eps
Figure 6. Single-Phase Logging
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
22
Connections for Medium Voltage Networks
In a 3-phase 3-wire (Delta) system with three separate voltage converters and
three current transformers, the Logger can measure phase-phase (P-P, Delta) or
phase - N (P-N, Wye). See Figure 7.
L
1
A
L
2
B
L
3
C
LO
G
G
IN
G
S
T
A
T
US
C
U
R
R
E
N
T
IN
P
U
T
1
0
V
R
M
S
M
A
X
5
V
A
4
5
-
6
5
H
z
S
U
P
P
L
Y
IN
P
U
T
1
00
-
3
5
0
V
6
6
0
V
M
A
X
8
8
-
6
6
0V
V
O
L
T
A
G
E
IN
P
U
T
6
00V
C
A
T
3
0
0
V
C
A
T
T
RS
232
POWER
QU
ALITY LOGGER
1
7
4
5
8
3
0
V
4
8
0
V
M
A
X
L
-
L
L
-
N
/
S
T
A
R
T / ST
OP
/
L1
Power Supply
L2
L3
N
L1
L1
L2
L2
L3
L3
egc006.eps
Figure 7. Measuring 3 Phase Voltages in a 3-Wire (Delta) System with
Three Voltage Converters
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Using the 1745 Power Quality Logger
23
Figure 9 shows the connections for two-element Delta (Aron or Blondel)
metering connections.
L
1
A
L
2
B
L
3
C
LO
G
G
ING
S
T
A
TU
S
C
U
R
R
E
N
T
IN
P
U
T
10
V
R
M
S
M
A
X
5V
A
4
5
-
6
5
H
z
S
U
P
P
L
Y
IN
P
U
T
1
00
-
3
5
0
V
6
6
0
V
M
A
X
8
8
-
6
6
0V
V
O
L
T
A
G
E
I
N
P
U
T
6
00V
C
A
T
3
0
0
V
C
A
T
T
RS
232
POWER
QU
ALITY LOGGER
1
7
4
5
8
3
0
V
4
8
0
V
M
A
X
L
-
L
L
-
N
/
S
T
A
R
T
/ ST
OP
/
L1
L2, N
L1
L3
L2
L3
Power Supply
egc009.eps
Figure 8. Two-Element Delta Connections
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
24
Logging
When the Logger is connected and ready, you can perform three types of
logging:
Switch-activated job: The status LED is blinking. Press the
START/STOP button once. As soon as the job is active, the LED is
on continuously. If needed, the job can be cancelled after running for
at least one minute, and restarted later.
Time-activated job: The Logger starts logging as soon as the pre-
programmed start time is reached and stops at the defined end time.
Immediate job: The Logger starts logging as soon as power is on.
Note the following about logging jobs:
1. The connection can be verified with the LCD (voltage, current,
power). If all three LEDs are lit continuously, the voltage connections
and signal levels are within nominal range. For details, see Table 4 in
the Features section.
2. The Logging job status is indicated by the status LED. For details, see
Table 4 in the Features section.
Completing the Logging Job
1. Terminate the job as follows:
• For switch activated jobs: At the end of the logging period,
stop the logging job by pressing the START/STOP button.
• For time activated and immediate jobs: Stop the job in PQ
Log with the icon, or with menu Logger/Stop logging
Note
Make sure the logging job is stopped with the START/STOP button
(switch activated jobs) or PQ Log (time activated jobs) before the
terst leads or power supply leads are removed. Otherwise, the Logger
will record a voltage interruption.
Only switch-activated jobs can be aborted. Time activated jobs are
terminated only when the programmed measuring time has elapsed.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Using the 1745 Power Quality Logger
25
2. Remove the test leads of the three phases. Be sure to remove the
measuring cable of the neutral wire last.
3. Remove the current probes.
Evaluating the Logged Data
You’ll use PQ Log to evaluate the logged data. Data can be read out during
logging as well as at the end.
1. Connect the Logger to line power.
2. Connect the RS232 interface cable to your PC’s serial port, then to the
Logger.
3. Start the PQ Log software.
4. Use PQ Log to transfer the data from the Logger to the PC.
5. Once the data is transferred, remove the RS232 interface cable and
operating power from the Logger.
6. Evaluate the data using PQ Log.
For details, refer to the PQ Log manual.
Methods of Logging
The following section describes methods of logging using the 1745 Logger.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
26
Voltage Ranges
The software calculates the correct measuring range depending on the nominal
voltage (20 % overflow with C
F
= 1.4).
Table 6 shows the measuring ranges of the Logger and Figure 9 shows the
selection for input ranges during job processing.
Table 6. Measuring Ranges
Connection Nominal Voltages (Wye/Delta) Max. Input Voltage
Wye/Delta 69 V / 120 V 115 V / 200 V 230 V / 400 V 480 V / 830 V
Phase/Neutral
3-phase 4 wire
69 V ~, +20 % 115 V ~, +20 % 230 V ~, +20 % 480 V ~, +20 %
Phase/Phase
3-phase 3 wire
120 V ~, +20 % 200 V ~, +20 % 400 V ~, +20 % 830 V ~, +20 %
Figure 9. Basic Logger Setup Parameters
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Using the 1745 Power Quality Logger
27
Signal Sampling
Input signals (up to three voltages and four currents) are filtered with an anti-
aliasing filter and digitized with a 16-bit A/D converter. The sampling rate is
10.24 kHz. All parameters are calculated from this data.
Resolution Accuracy
Resolution and accuracy depend on the logging parameter. For details see
“Technical Specifications”.
Voltage Variations
The interval value of the voltage is defined as the mean value of the RMS
values over the interval length defined in PQ Log.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
28
Averaging Period
Averaging period can be set in PQ Log to the following:
• 1, 3, 5, 10, or 30 seconds
• 1, 5, 10, 15, or 60 minutes
Figure 10 shows the measuring voltage variations of the Logger.
1 Interval
Measuring period
Time
V
N
egb016.eps
Figure 10. Measuring Voltage Variations
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Using the 1745 Power Quality Logger
29
Min/Max Values
Logging detects the highest and lowest voltage RMS values and the highest
current RMS value during the test interval, using a minimum resolution of
10 ms.
The response time can be set in PQ Log to the following:
0.5, or 1 line power period
200 ms
1, 3, or 5 seconds.
Figure 11 shows the logging min and max values of the Logger.
U
t
Max. Value
Min. Value
Measuring Interval
egb017.eps
Figure 11. Logging Min and Max Values
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
30
Voltage Interruptions
The Logger records two types of interruptions:
• All measured RMS values of input voltages that are < 1 % of the
nominal voltage. This threshold can be adjusted in PQ Log.
• Interruptions > 1 half-cycle
The start time and duration of each interruption are registered. See Figure 12.
Time
90% Vn
1%
Duration
100% Vn
110% Vn
Vn
egb018.eps
Figure 12. Voltage Interruption
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Using the 1745 Power Quality Logger
31
Voltage Dips and Swells
If the voltage passes the upper limit (V
N
+ 10 %) or lower limit (V
N
- 10 %),
the event is registered as a voltage swell or dip respectively (thresholds are
adjustable in PQ Log).
The duration, time and extreme value of the dip or swell is also recorded. See
Figure 13.
Time
90% Vn
Duration
Depth
Height
Duration
100% Vn
110% Vn
egb019.eps
Figure 13. Voltage Dips and Swells
Voltage Harmonics
Voltage harmonics are defined as voltage components that have a frequency
that is an integer multiple of the fundamental frequency. Logging function A
records each individual voltage harmonic, up to the 50
th
. These values are
averaged over the interval length defined in PQ Log.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
32
Current Harmonics
Current harmonics are defined as current components that have a frequency
that is an integer multiple of the fundamental frequency of the line power
current. Logging function A records ech individual harmonic of the phase
currents and the neutral current, up to the 50
th
order, and presents the
harmonics as absolute values. The values are averaged over the interval length
defined in PQ Log.
Mains Signaling
Voltage components that have frequencies hat are not integer multiples of the
fundamental frequency of the line power voltage are called Mains Signaling
voltages or ripple-control voltages (“interharmonics”). The Logger can be
programmed to record up to five interharmonics with a resolution of 5 Hz. This
function can also be used to monitor ripple-control signals by entering the
signal frequency of the local utility.
The Logger measures the three second RMS value of each interharmonic and
establishes statistics for EN50160 (European standard) evaluation. These
statistics are available after a minimum recording time of 24 hours, or after
regular termination of the measuring job and can be exported from PQ Log and
evaluated later.
Additionally, the Logger provides a long term recording of the interharmonics.
You can select from the following special measurement methods in the PQ
Log software:
• 200 ms maximum value (recommended for estimating ripple-control
signal levels)
• 200 ms minimum value
• 3 seconds maximum value
• Average value over interval
In PQ Log, the frequency can be entered with a resolution of 0.5 Hz, but for
evaluation, the values are corrected to a bandwidth of 5 Hz. One frequency can
be defined for each band: for example, for a ripple-control signal of 183 Hz,
the values will be corrected to 185 Hz). Interharmonics of voltages and
currents with these frequencies are recorded.
See the PQ Log manual for details.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Using the 1745 Power Quality Logger
33
THD V – In Function A
Function A:
1
50
2
2
V
V
VTHD
n
n
∑
=
=
V
n:
RMS value of harmonic frequency #n.
V
1:
RMS value of the fundamental frequency.
THDV: total contents of harmonics of the line power voltage as a percentage
of the fundamental.
This algorithm is according to EN 61000-4-7.
THD of currents:
Function A:
1
50
2
2
I
I
THDI
n
n
∑
=
=
and
()
∑
=
=
50
2
2
n
n
IATHDI
I
n:
RMS value of harmonic frequency #n.
I
1:
RMS value of the fundamental frequency.
THDI: total contents of harmonics of the current as a percentage of the
fundamental.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
34
Calculation of THD in Measuring Function P
THD – Measuring Function P
Function P does not measure harmonic values.
Voltages:
1
2
1
2
V
VV
THDV
RMS
−
=
V
RMS:
RMS value of the total signal
V
1
: RMS value of the fundamental
Currents:
1
2
1
2
I
II
THDI
RMS
−
=
I
RMS:
RMS value of the total signal
I
1:
RMS value of the fundamental
Note
THDI for currents < 5 % of IE (measuring range) can have
additional uncertainties, or can be suppressed.
Harmonics up to 50th order are taken into account.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Using the 1745 Power Quality Logger
35
Flicker
Flicker is the visual impression of unsteadiness in a light source whose
luminance or spectral distribution changes over time. Flicker, see Figure 14, is
logged in accordance with the IEC 61000-4-15 standard. The short-term (st)
flicker P
st
is logged over a default standard interval of 10 minutes, and is used
to calculate the long-term (lt) flicker P
lt
by taking the sliding average of 12
short term values. The interval value can be changed as needed in PQ Log.
Formula for Plt Function
3
12
1
3
12
∑
=
=
i
Pst
Plt
Time
Flicker [%]
Interval length => 1 Pst
12 x interval length => 1 flicker value Plt
egb020.eps
Figure 14. Measuring Flicker Values
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
36
Unbalance
The ratio of negative-to-positive-sequence harmonics is calculated with the
angles and magnitudes of the phase voltages taken into account. These values
are averaged over the interval length defined in PQ Log.
Frequency
The line power frequency is measured and averaged over 10 seconds and the
resulting values are divided into 42 classes for establishing statistics. Values
are also averaged over the interval length defined in PQ Log.
Current Logging
The maximum values of the currents (L1 or A, L2 or B, L3 or C and N) are
measured, and the interval value of the current is calculated using the mean
value over the RMS values of the interval defined in PQ Log.
Logging Function A
If a 3-phase current sensor is connected, the neutral current is calculated on a
sample basis from the phase currents. If a 3-phase+N sensor is detected, you
can select between logging and calculating the neutral current in PQ Log.
Ipeak
The peak values of the current (samples, not RMS values) are averaged in the
PQ Log software over the predefined measuring interval.
Note
Short peak values do not contribute much to the average value and so I
max
can
be higher than I
peak
.
Crest Factor (CF)
The crest factor (CF) of the currents (L1 or A, L2 or B, L3 or C, and N) is the
ratio of current peak value divided by current RMS value, and is averaged over
the interval length defined in PQ Log. For sinusoidal signals, CF = 1.41, and
for square waves, CF =1.00
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Using the 1745 Power Quality Logger
37
Power
The power values (L1 or A, L2 or B, L3 or C and N) are averaged over the
interval length, and the maximum value of each is recorded.
The response time can be set to 1 second or 1 minute, and is independent of the
response time for voltage and current.
In logging function P, the active power, apparent power, and reactive power of
the phases and total power of all three phases is calculated.
Logging function A also calculates the distorting power D of the phases and
D
total
.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
38
Measurement Theory
The following are the equations used by the Logger and PQ Log to produce the
results you see in PQ Log. Measurement Function A logs current and voltage
harmonics, while Measurement Function P does not:
TRMS value of voltage
and current. Basic values
on 200 ms per phase
∑
=
=
N
i
ibas
V
N
V
1
2
.
1
∑
=
⋅=
N
i
ibas
I
N
I
1
2
1
N: Number of samples in 200 ms intervals (2048)
RMS value of voltage and
current per logging
interval per phase
∑
=
=
M
j
basjRMS
V
M
V
1
2
.
1
∑
=
⋅=
M
j
j
bas
RMS
I
M
I
1
2
1
M: Number of samples in 200 ms intervals per
logging interval
Active power calculated
from FFT from samples of
voltage and current. Basic
value on 200 ms per phase
nnnn
IVP
ϕ
cos..=
V
n
: RMS value of voltage harmonics of order n
I
n
: RMS value of current harmonics of order n
n Order of the harmonics
φ
n
: Phase angle between current and voltage
harmonics of order n
P
n
: Harmonics of the active power of order n
Fundamental
∑
=
=
50
1n
nbas
PP
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Measurement Theory
39
1
1 PPh
bas
=
Active power of logging
interval per phase
∑
=
⋅=
M
j
j
bas
P
M
P
1
1
P
bas j
to 200 ms value
M: Number of 200 ms intervals per logging
intervals
Total active power on all
three phases
∑
=
=
3
1k
ktotal
PP
P
k
: Active power of the phase
k: Phase (k = 1, 2, 3)
Absolute value of the
active power per interval
per phase
∑
=
⋅=
M
j
j
basbetr
P
M
P
1
1
Sum of the absolute
values of the active
power on all three phases
∑
=
++=
M
j
basbasbas
total
betr
PPP
M
P
1
321
1
Apparent power based on
RMS values of voltage
and current. Basic values
on 200 ms per phase
basbasbas
IVS .=
Apparent power per
logging interval per phase
∑
=
⋅=
M
j
j
bas
S
M
S
1
1
S
bas j
: 200 ms value
M: Number of 200 ms intervals per logging
intervals
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
40
Total apparent power on
three phases
∑
=
=
3
1K
ktotal
SS
k: Phase (k = 1, 2, 3)
Distortion power. Basic
value on 200 ms per
phase
222
basbasbasbas
QPSD −−=
Distortion power per
interval per phase
∑
=
⋅=
M
j
j
bas
D
M
D
1
1
D
bas j
: 200 ms value
M: Number of 200 ms intervals per logging interval
Total distortion power on
three phases
∑
=
=
3
1k
ktotal
DD
Distortion power per
phase
Q
Q
S
P
PF ⋅==
λ
Total distortion power on
three phases
total
total
total
total
totaltotal
Q
Q
S
P
PF ⋅==
λ
Tangent φ per phase
P
Q
=
ϕ
tan
Total tangent φ on three
phases
total
total
total
P
Q
=
ϕ
tan
Active power of the
fundamental per phase
Basic value for 200 ms
1
1 PPh
bas
=
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Measurement Theory
41
Active power of the
fundamental per phase
per interval
∑
=
⋅=
M
j
j
basbas
Ph
M
Ph
1
1
1
1
Total active power of the
fundamental for three
phases
∑
=
⋅=
3
1
11
k
ktotal
PhPh
Apparent power of the
fundamental per phase.
Basic value for 200 ms.
11
.1 IVSh
bas
=
Apparent power of the
fundamental per phase
per interval
∑
=
⋅=
M
j
j
bas
Sh
M
Sh
1
1
1
1
Power factor of the
fundamental per phase
1
1
1
1
cos
1
Qh
Qh
Sh
Ph
total
⋅=
ϕ
Total power factor on all
three phases
total
total
total
total
Qh
Qh
ShShSh
Ph
1
1
111
1
cos
321
1
⋅
++
=
ϕ
Active energy per phase
and total
Active power accumulated on each logging
interval
Sign of PF, tan φ, cos φ:
Sign “+” : Q positive (“inductive”)
Sign “-“ : Q negative (“capacitive”) independent of the sign of active power P
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
42
Maintenance
WCaution
Maintenenca work on the done only by trained and
qualified personnel at a company approved service center
within the warranty period. For locations of Fluke Service
Centers worldwide and contact information, see the Fluke
website: www.fluke.com
.
With the proper use, the Logger does not require special maintenance other
than periodic calibration at a Fluke calibration center.
If the Logger gets dirty, wipe it off carefully with a damp cloth without
cleaning agents.
Lithium Battery
The 1745 Logger contains a vanadium pentoxide lithium rechargeable battery
and a sealed gel-type, lead-acid battery. These batteries are automatically
recharged during normal operation. Neither one is user-servicable.
Disposal
If you discard the Logger, you must recycle it at an appropriate recycling
center as required by local regulations.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Technical Specifications
43
Technical Specifications
Logging Parameters – Overview
Table 7 shows an overview of the logging parameters.
Table 7. Logging Parameters - Overview
Measuring Function P A
Voltage: mean, min, max
values
z z
Current: Mean, max-values z z
Neutral current N z z
Voltage events z z
Power: P, |P|, S, D, PF,
tangent
z z
Power total P, |P|, S, D, PF,
tangent
z z
Energy z z
Flicker: Pst, Plt z z
Voltage harmonics z
Current harmonics (L1 or A,
L2 or B, L3 or C, N,
up to 50
th
order)
z
Interharmonics, ripple-control
signals
z z
THDV (voltage) z z
THDI (current) z z
CF (crest factor current) z z
Unbalance z z
Frequency z z
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
44
Maximum Number of Intervals for Logging Funtion P
The maximum recording period can be calculated by multiplying the interval
time defined in PQ Log with the maximum number of intervals in the
following table.
Version P, V+I A, V+I
Averaged periods > 24,000 > 10,000
General Information
Intrinsic uncertainty Valid for reference conditions, and guaranteed for
two years.
Quality system Developed, designed, and manufactured according to
DIN ISO 9001.
Recalibration interval Fluke recommends a recalibration interval of no
more than two years, depending on use.
Reference conditions 23 C ±2 K, 230 V ±10 %
50 Hz ± 0.1 Hz / 60 Hz ± 0.1 Hz
Phase sequence: L1 or A, L2 or B, L3 or C
Interval length: 10 minutes, 3-phase Wye
configuration.
Power supply: 88 to 265 V AC
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Technical Specifications
45
Environmental Specifications
Working temperature
range
-10°C to +55°C
Operating temperature
range
0°C to +35°C
Storage temperature range -20°C to +60°C
Reference temperature
range
23°C ± 2 K
Relative humidity 10 to 90 %, no condensation
Housing Robust, compact housing of CYCOLOY
Protection IP50 per EN 60529
Safety EN 61010-1 600 V CAT III, 300 V CAT IV
pollution degree 2, double insulation
Type test voltage 5.2 kV AC, 50 Hz / 60 Hz, 5 s
EMC
Emission IEC/EN 61326-1, EN 55022
Immunity IEC/EN 61326-1
Power Supply
Functional range 88 to 660 V RMS AC absolute, 50 Hz / 60 Hz
Safety EN 61010-1 600 V CAT III, 300 V CAT IV,
pollution degree 2, double insulation
Fuse Power supply fuse can be replaced only in service
facility. Supply can be connected in parallel to
measuring inputs (up to 660 V RMS AC).
Power consumption 5 W
Memory capacity 8 MB Flash-EPROM
Intervals > 10000 intervals, > 70 days with 10 min intervals
Events > 13000
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
46
Memory model Linear or circular, user-selectable
Interface RS-232, 9600 to 115.000 Baud, automatic selection,
3-wire communication.
Dimensions 170 mm x 125 mm x 55 mm
Weight
Approx. 0.9 kg
Measurement
A/D converter 16 bit
Sampling frequency 10.24 kHz
Anti-aliasing filter FIR-Filter, fC = 4.9 kHz
Frequency response Uncertainty < 1 % of Vm for 40 Hz to 2500 Hz
Interval length 1, 3, 5, 10, or 30 seconds,
1, 5, 10, 15, or 60 minutes
Averaging time for
min/max values
½ , 1 line power period, 200 ms
1, 3, 5 s
Time base Resolution: 10 ms (at 50 Hz) deviation: 2 s/day at
23°C.
Input Voltage
Input range V
I
P-N: 69, 115, 230, or 480 V AC
Input range V
I
P-P 120, 200, 400, or 830 V AC
Max. overload voltage 1.2 V
I
Input range selection Automatically set by user-entered nominal voltage
value.
Connections P-P or P-N, 1- or 3-phase
Nominal voltage V
N
≤ 999 kV (using PTs and ratios)
Input resistance Approx. 820 ke per channel. Lx-N Single phase
(L1 or A, L2 or B, L3 or C connected): app. 300 ke
Intrinsic uncertainty 0.1 % of V
I
Voltage transformer Ratio : < 999 kV / V
I
Ratio selection Optional: user-selectable
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Technical Specifications
47
Current Input with Flexi Set
Input ranges I
I
L1 or A, L2
or B, L3 or C, N:
15, 150, 1500, or 3000 A AC
Measuring range 0.75 A to 3000 A AC
Intrinsic uncertainty < 2 % of I
I
Position influence Max. ±2 % of m.v. for distance conductor to
measuring head >30 mm
Stray field influence <± 2 A for Iext= 500 A AC and distance to
measuring head >200 mm
Temperature coeff < 0.005 % / K
Current transformer Ratio : ≤ 999 kA / I
I
Ratio selection Optional: user-selectable
Connection Power type selectable in PQ Log
Current Input for Clamp
Input signal: 0.5 V AC nominal (for I
I
) 1.4 V peak
Intrinsic uncertainty < 0.3 % of I
I
Max. overload 10 V AC
Input resistance App. 8.2 ke
Current transformer Ratio : ≤ 999 kA / ≤ I
I
Ratio selection By job programming
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
48
General Specifications
RMS Logging Slow Voltage Variations
Logging values: Mean value RMS values averaged over interval length
Min, Max values Averaging with selectable averaging time from
half-cycle to 5 s
Max value Max. 10 ms RMS value per interval
Min value: Min. 10 ms RMS value per interval
Current Logging Values
Mean value RMS values averaged over interval length
Max value Highest RMS value per interval
Events Dips, Swells, Interruptions
Limit value Variable
Lower limit: 0 to 95 % V
N,
Upper limit: 105 to 120 % V
N
Set in PQ Log
Range 0 to V
I
+ 20 %
Logging value Half-cycle RMS value
Operating uncertainty < 2 % of V
I
Response time ½ line power period
Flicker
Logging value Flicker severity (P
lt
/ P
st
) according to
IEC 61000-4-15
Intrinsic uncertainty P
st
< 5 % of measured value
Measuring range P
st
0.4 to 4
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Technical Specifications
49
Power P, S, |P|
Active power P As per EN 61036, class 2
Distorting power D As per EN 61268, class 2 (A-version only)
Max value Highest value per interval
Min value Smallest value per interval
Phase uncertainty < 0.3 degrees
Conditions Conductor centered within clamp jaws or
Flexi Set.
Harmonics (Logging Function A Only)
V
m
, I
m
, THDV, THDI per IEC/EN 61000-4-7, class B
Voltage harmonics (function A)
intrinsic uncertainty:
For V
m
< 3 % V
N
: < 0.15 % V
N
For V
m
≥ 3 % V
N
: < 5 % V
m
Current harmonics (function A)
Intrinsic uncertaintyi
For I
m
< 10 % I
N
: < 0.5 % I
N
For I
m
≥ 10 % I
N
: < 5 % I
m
THD V (function A) intrinsic
uncertainty at V
N
For THD V < 3 %: < 0.15 %
For THD V ≥ 3 %: < 5 %
THD V (function P) intrinsic
uncertainty at V
N
For THD V < 3 %: < 1 %
For THD ≥3 %: < 5 %
THD I (functions A, P) intrinsic
uncertainty at I
I
For THD I < 3 %: < 2 %
For THD I ≥ 3 %: < 5 %
Statistics
Frequency 42 classes for 10 s mean values
Ripple-control signals.
Interharmonics 21 classes for 3 s mean values.
Analysis of logging data
Programming and analysis is done by PQ Log software on PC.
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
50
Logging Function Parameters
Logging Values
Voltage L1 or A, L2 or B, L3 or C: phase-phase or phase-neutral:
• Voltage (mean, max, min values)
• Voltage harmonics 1
st
to 50
th
order (Logging Function A only)
• THDV (harmonic contents of voltage)
• Interharmonics 5 to 2500 Hz (in steps of 0.5 Hz) (Logging Function A
only)
• Flicker P
st
,P
lt
• Unbalance
• Signaling voltages
• Frequency
• Voltage events (dips, swells, interruptions)
Current L1 or A, L2 or B, L3 or C, and N:
• Current (mean, max values)
• Harmonics of phase and neutral currents up to 50
th
order (Logging
Function A only)
• Crest factor and peak values of the currents
Power:
• Active power P (mean, min, and max values)
• Absolute values active power |P| (mean, min, and max values)
• Distorting power D (mean, min, and max values)
• Apparent power S (mean, min, and max values)
• Power Factor PF, tangent
• Energy per averaging interval
Total power:
• Total power P, |P|, D, S
• 3-wattmeter method
• 2-wattmeter method (Aron circuitry)
• 2 ½ wattmeter method
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
Technical Specifications
51
Applications
Power quality:
• Voltage quality analysis according to EN 50160 over a 1-week period
(time-activated job)
• Examination of measurement quantities per standards
Disturbance analysis:
• Long-term analysis of line power voltage
• Examination of voltage dips, swells, and harmonic problems
(Logging Function A only)
• Flicker measurement
• Examination of ripple control signals (level) (Logging Function A
only)
• Specific search for disturbances through correlation of relevant
logging quantities (e.g. current, voltage, and flicker), time of
occurrence, periodicity
Network Optimization:
• Load logging
• Current logging (with Flexi Set 5 to 3000 A or clamps 1 to 1000 A)
• Capture of current peaks
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
52
PQ Log PC Application Software
PQ Log for PCs is the application for use with the 1745 Power Quality
Logger. The data are also available in ASCII format.
Programs available for setting up the Logger:
• Averaging period length
• Memory model
• Nominal voltage
• Response time for min, max values
• Power type (wye, delta, etc.)
• Thresholds for event detection, interruptions
Setup:
• Internal clock (date/time)
• Assign 1745 Power Quality Logger instrument name
• Parameters for data export
• Software updates
Analysis:
• ASCII data export
• Graphical summary of all EN50160 parameters
• Live reading viewing
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
PQ Log PC Application Software
53
Live Reading (Online Test)
Figure 15 shows a typical display of online test:
Figure 15. Live Reading (Online Test)
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
54
ASCII Export
Figure 16 shows a typical display of ASCII export.
Figure 16. ASCII Export
For special cases, additional evaluations are available:
• Graphic representation of measured data
• Timeplot diagrams
• Application oriented analysis
• Logging value list
• Table of events (UNIPEDE DISDIP)
• Table summary
• Cumulative frequency, harmonics (Logging Function A only)
• Statistical values
• All exceeding table
• Most critical values
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
Power Quality Logger
PQ Log PC Application Software
55
Timeplot Diagram
Figure 17 shows a typical display of Timeplot diagram:
Figure 17. Timeplot Diagram
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
1745
Users Manual
56
UNIPEDE DISDIP Table
Figure 18 shows a typical display of UNIPEDE DISDIP table:
Figure 18. UNIPEDE DISDIP Table
Cumulative Frequency – Harmonics
Figure 19 shows a typical display of cumulative frequencies for current and
voltage harmonics:
Figure 19. Cumulative Frequency - For Voltage and Current Harmonics
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct.com
57
Index
—A—
Anti aliasing filter, 27
Apparent Power, 37
—C—
Completing the Logging, 24
Connecting the clip on probes, 15
Connection modes, 26
Connections for Medium Voltage
Networks, 22
Crest Factor, 36
Current, 36
Current Harmonics, 32
—D—
Disposal, 42
—E—
Evaluation, 25
Extreme values, 29
—F—
Flicker, 35
Frequency, 36
—I—
Installation at the measuring site, 18
Interharmonics, 12
Interval length, 12
Ipeak, 36
—L—
Limit values for events, 12
Lithium Battery, 42
Logging Configurations, 11
Logging input for voltages, 10
Logging segments, 12
—M—
Maximum nominal voltages, 6, 17
Methods of Logging, 25
—N—
Nominal Voltage, 26
—P—
Power factor, 37
Program a logging job, 13
—R—
Reactive Power, 37
—S—
Sampling rate, 27
signaling voltages, 12
Signaling voltages, interharmonics, 32
—T—
THD I, 34
THD V, 33
—U—
Unbalance, 36
User Interface, 1
—V—
Voltage dips/swells, 31
Voltage Harmonics, 31
Voltage interruptions, 30
Voltage variations, 28
