Quick Install SurroundMount
Installation
Before installing the sensor modules, make sure that the sensor cables will reach the intended mounting position without placing a strain
on the cables. Separate the sensor modules from the sensor cables before installing the modules. Further information on the individual
camera connectors can be found in Section 2.2.1, “Overview Of Cable Connections” of the S14/S15 camera manuals. Install the base
module as described in Section 2.3.1.
• For surveillance of long and narrow spaces (e.g., bus, train, hallway, etc.)
• Two optical sensor modules are integrated in the mount (S14D or S15D)
• Concealed cabling, weatherproof from -30 to +60 °C (IP65)
• Suitable for ceiling installation, with a 25° tilt of the lenses
Ceiling Mount For Optical
MOBOTIX Sensor Modules
Max. 10cm!
Ceiling
Seal
Seal
Ceiling
Backing plate
MX-OPT-SM-PW
31.823_EN_V4_12/2014

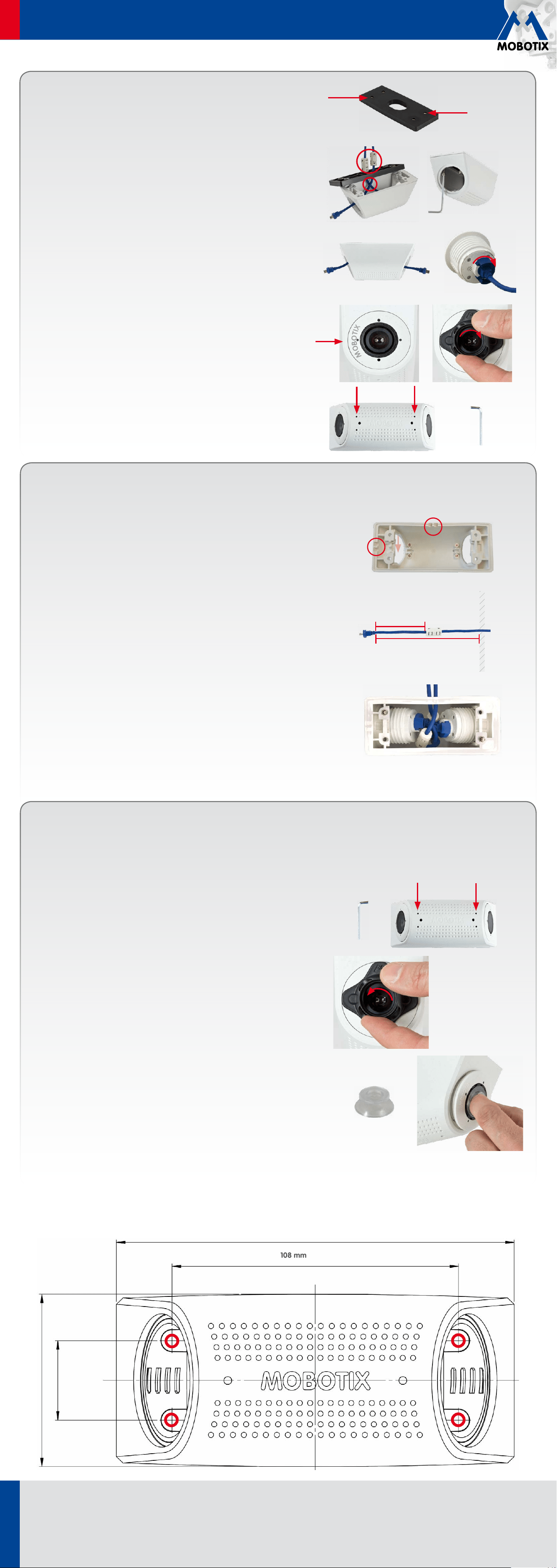

1. Prepare opening
Prepare an opening at the desired mounting position of the SurroundMount
that is large enough (diameter about 30 to 40mm) to allow the sensor cables
to pass through so that you can connect them.
2. Lead the sensor cables through the opening
Lead the sensor cables through the opening in the ceiling and allow them to
protrude through (the longer they extend, the easier the installation).
3. Attach the hinged ferrites
Attach one hinged ferrite to each sensor cable (maximal distance to the
connector 10cm).
4. Select mounting type
Select the appropriate mounting type. Depending on the material and the
thickness of the mounting surface, you can mount the SurroundMount
• directly to the ceiling using the four stainless steel wood screws (item
1.6) with or without the dowels (item 1.7).
• to the ceiling (max. thickness 12 mm) using the backing plate (item 1.2)
and the four stainless steel Allen screws (item 1.8). To do this, you have
to push the screws through the ceiling and tighten them to the backing
plate positioned to the back of the ceiling.

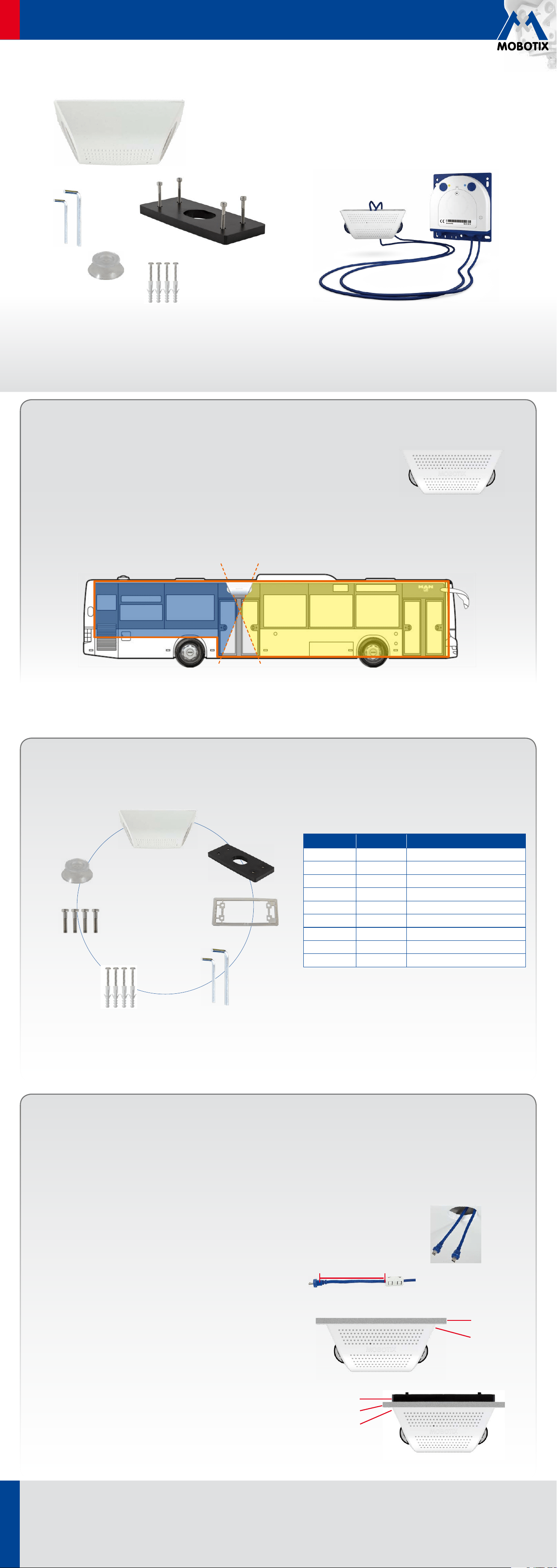

Delivered Parts
For the S14D/S15D FlexMount cameras, two sensor modules with integrated lens, image sensor, LEDs and microphone are connected
(via connector plugs) to the camera housing, which is installed hidden behind a wall or ceiling panel.
Installing two sensor modules that are pointing in opposite directions in long and narrow spaces (e.g.,
buses, air planes or trains) delivers double hemispheric images of up to 6 megapixels that, in terms
of sharpness of detail, significantly outperforms a single hemispheric camera with just one lens. For
these kinds of installations, MOBOTIX oers the SurroundMount. The 25° tilt of the two sensor modules
on the SurroundMount allows the area directly underneath them to be captured without blind spots.
The SurroundMount can only be used with the following sensor modules of the S14D and S15D (day or night):
L11/L12, L22/L25 and L43/L51.
Item Number Part Name
1.1 1 Housing
1.2 1 Backing plate
1.3 1 Seal
1.4 1 Allen wrench 1.5mm
1.5 1 Allen wrench 3mm
1.6 4 Stainless steel wood screws 4x40
1.7 4 Dowels 6mm
1.8 4 Stainless steel Allen screws M4x30
1.9 1 Removal tool
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
