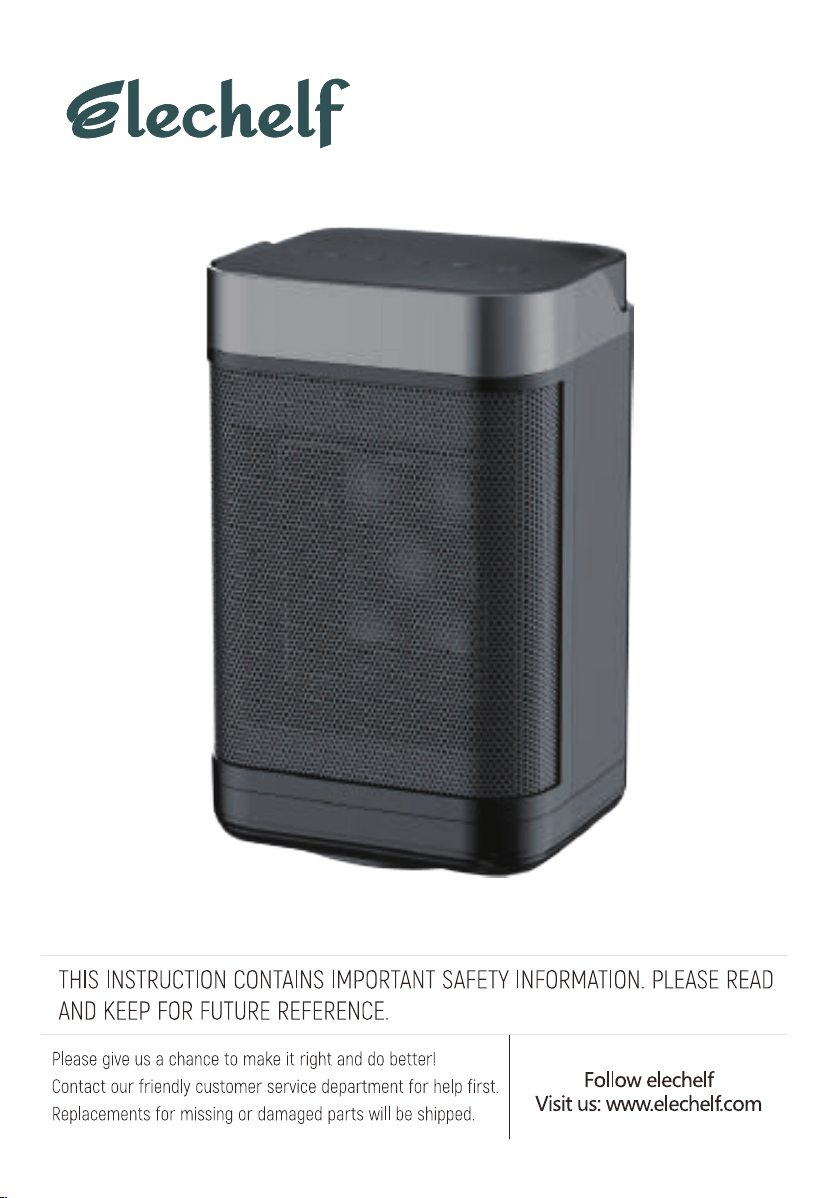

USER MANUAL
PTC SPACE HEATER
MODEL:GD9215AD06
Please do not disassemble the heater. Do not
operate the heater with a damaged cord or
plug, nor after the heater malfunctions, has
been dropped, or damaged in any manner.
Return heater to authorized service facility for
examination, electrical or mechanical
adjustment, or repair.
1. This heater is hot when in use. To avoid burns, do not let bare skin touch
hot surface. Recommend to use protective gloves when moving this heater.
2. Keep combustible materials such as cloth and papers at least 3 feet away
from the mess of the heater and keep them away from the sides and rear.
3. Extreme caution is necessary when the heater using near children or
invalids and whenever the heater is left working and unattended.
4. Always unplug the heater when not in use.
5. Do not o
perate the heater with a damaged cord or plug, nor after the
heater malfunctions. Return the heater to an authorized service facility
for examination and repair.
6. Do not use the heater outdoors.
7. This heater is not intended for use in bathrooms, laundry areas, and similar
moist indoor locations. Never locate the heater where it may fall into a bathtub
or other water containers.
8. Do not run cord under carpeting. Do not cover the cord with throw rugs,
runners, or the like. Ar
range the cord away from traffic areas where it will
not be tripped over.
9. This heater draws 12.5 amps during working. To prevent overloading a
circuit, do not plug the heater into a circuit that already has other
appliances working.
M
Start or Stop Heater’s
90° Oscillation
Press °F + to Increase
Temperature Up to 99°F
Press °F- to Decrease
Temperature Down to 41°F
ON/OFF
Set Timer From 1
Hour to 12 Hours
Heat Switch of Fan Only/
LO (900W) HI (1500W)/
ECO Mode
Turn the Heater
"ON" to Display
the Room
Temperature
Switch to Fan mode
To turn the Touch
Screen On or Off,
on behalf of power
up
Switch to ECO
mode to adjust
the temperature
Switch to LO
mode to get low
heat of 900W
Switch to HI mode
to get high heat of
1500W
LO
ECO
HI
Set Timer From 1 Hour to 12 Hours
Start or Stop Heater's 90° Oscillation
Switch to ECO mode to adjust
Thermostat from 41°F to 99°F
(in 1°F Increments)
Note: Space Heater in ECO mode will always adjust its
output based in the temperature of the ambient it is in.
Start or Stop Heater’s
90° Oscillation
Press °F + to Increase
Temperature Up to 99°F
Press °F- to Decrease
Temperature Down
to 41°F
ON/OFF
Set Timer From
1 Hour to 12 Hours
Heat Switch of Fan Only/
LO (900W) HI (1500W)/
ECO Mode
M
POWER MODE
OSC TIMER
UP DOWN
Note: Switch to ECO mode to adjust thermostat
from 41°F to 99°F (in 1°F Increments)

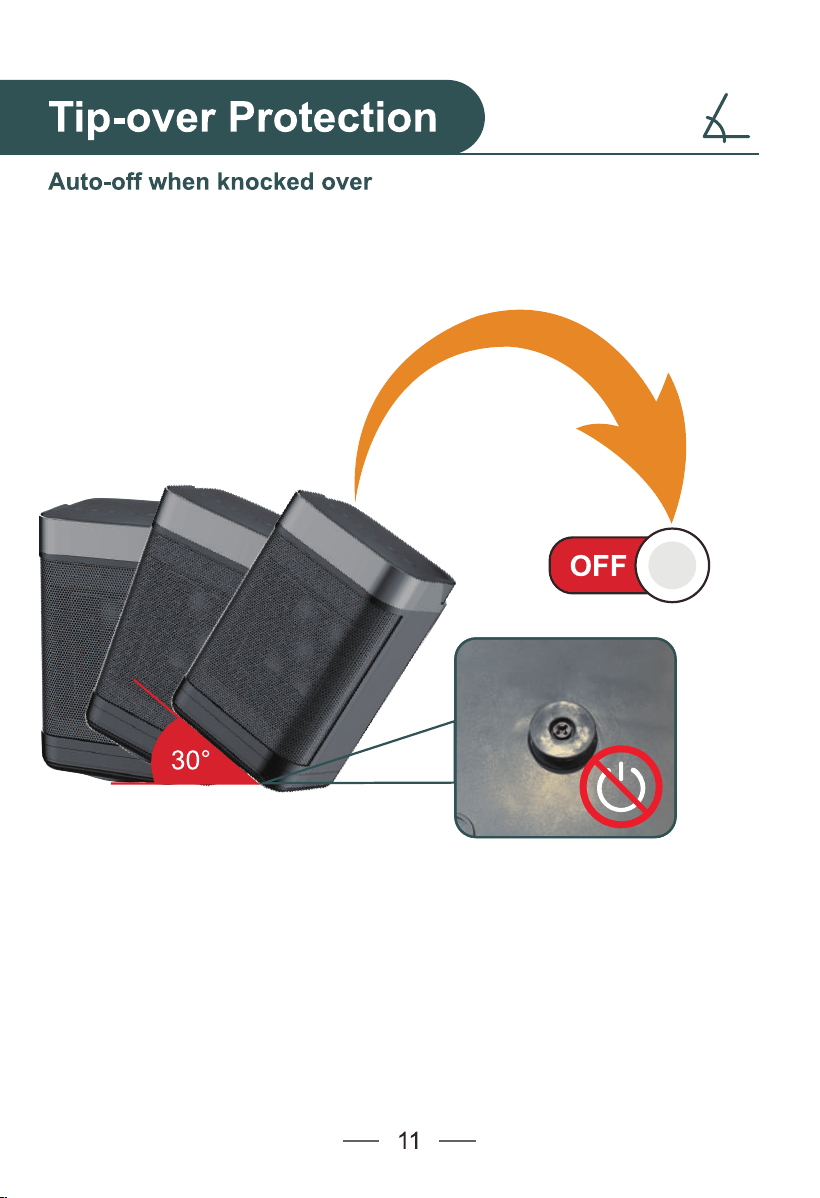

Tip-over Protection
When the heater is tipped forward or
backward, or knocked down by accident,the
tip-over switch in the bottom will activate and
shut off the heater automatically.So please put
it on a flat surface to use the heater.
Tips:after tipping over, if you want to continue
using it, place it horizontally, then turn on the
power switch and reset the mode you want.

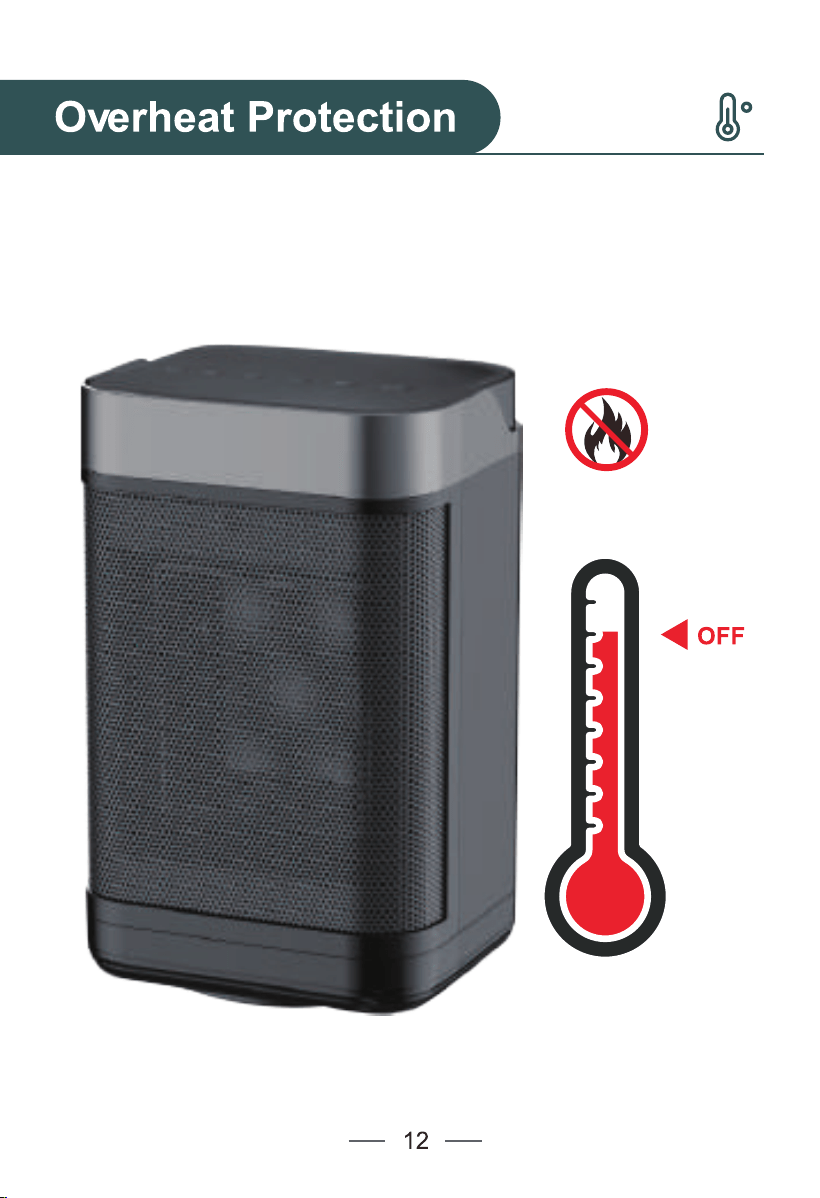

It's well designed for your safety. The automatic overheat
protection system will shut the unit off when the parts of the
heater overheat.

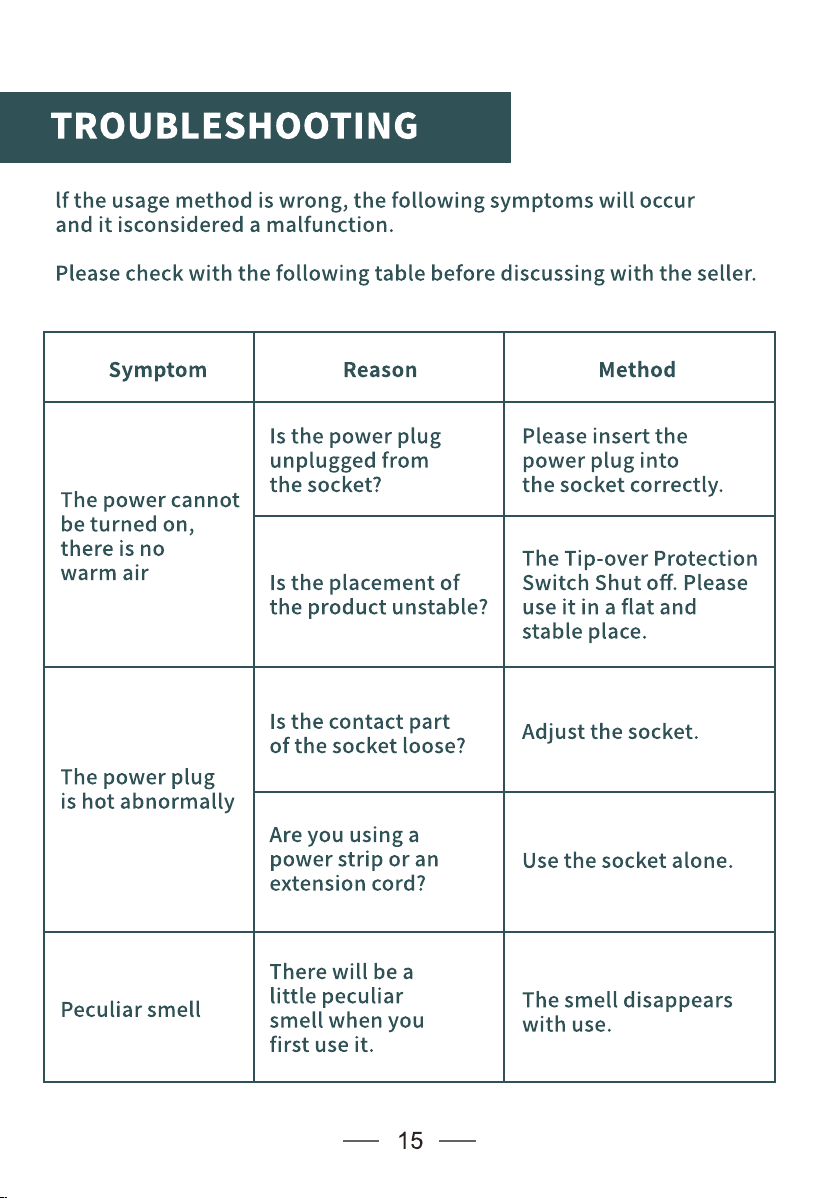

1. Be sure the heater is plugged in the electrical outlet well, and the outlet is
working.
2. Check for any obstruction. If you find any obstruction, turn off and unplug
the heater and wait at least ten minutes for it to cool. Carefully remove the
obstruction. Plug the heater back in and restart it.
3. If the issue still exists, remove the plug from the socket and have the
appliance serviced by authorized service personnel only.
4. Check whether the thermostat is set too low. If th
is is the case, use the
remote control to adjust the thermostat heating button until the heater
restarts.
1. Turn the heater off and unplug it. Allow it to cool.
2. Use a dry cloth to clean the external surfaces of the heater.
NOTE: DO NOT USE WATER, WAX, POLISH, OR ANY CHEMICAL SOLUTION.
3. Pack the heater in its original container and store it in a cool, dry place.
4. Please do not disassemble the heater. Its motor is factory lubricated for life
and will require no further lubrication.
3
90°
Model No.
Voltage
Frequency
Height( inch)
Weight(lb)
Oscillation
Noise
Safety Protection
Mode Options
Usage scene
Temperature Range
(ECO MODE)
Ultra quiet
110V-120V
60Hz
6.3X5.5X10.2
GD9215AD06
Tip-over Protection/ Over-
heat Protection
Fan
Mode,LO(900W);HI(1500W);
Indoor use/bedroom/
office/living room
41 F ~99 F
We offer a 12 month warranty for this heater. During the warranty
period, if there is a quality problem with the product, you are entitled
to get a free replacement or request a refund. It will be much appre-
ciated if you contact us for a solution first. This is a big help to
improve our products and after-sale service.
Email: [email protected]
Even after the warranty
period, we will continue
to provide you with all
kinds of support,
so please feel free to
contact us.
E-mail: [email protected]
MADE IN CHINA
Manufacturer: Ningbo Hailian Electric Appliance Technology Co.,Ltd.
Address: Xinpu industrial east zone, Xinpu Town, Cixi City, Zhejiang, China
