Revision History
1. Rev. 1.0: Initial release.
Package Contents
■ VS8100
■ Quick Installation Guide
VIVOTEK
4 - User's Manual
Overview
VIVOTEK VS8100 is a small-sized H.264 1-CH video server that helps you migrate from analog to digital
surveillance system with ease. Its power sharing with CCTV and tiny design make it ideal for front-end
installation and surveillance applications such as home, ofces, retail stores, banks, and city surveillance,
where their power supply and IP network connections are already settled. VS8100 supports a variety
types of analog cameras, including PTZ cameras with its Pan/Tilt/Zoom control through the built-in RS-
485 port.
With the high-performance H.264 compression format, it drastically reduces the le sizes and conserves
valuable bandwidth and storage space. Supporting simultaneous multiple streams, the video streams
can be transmitted in either H.264 or MJPEG formats for versatile applications. The streams can also
be individually congured with separate frame rates, resolution, and image quality so as to meet different
platforms or bandwidth constraints.
Together with the ST7501 multi-lingual 32-channel recording software, users can set up an easy-to-use
IP surveillance system with ease. VIVOTEK also provides the smart phone application iViewer, both for
iPhone and Android phones, enable users to monitor live video off-site.
Read Before Use
The use of surveillance devices may be prohibited by law in your country. The video server is not only
a high-performance web-ready camera but can also be part of a exible surveillance system. It is the
user’s responsibility to ensure that the operation of such devices is legal before installing this unit for its
intended use.
It is important to rst verify that all contents received are complete according to the Package Contents
listed below. Take note of the warnings in the Quick Installation Guide before the video server is installed;
then carefully read and follow the instructions in the Installation chapter to avoid damage due to faulty
assembly and installation. This also ensures the product is used properly as intended.
The video server is a network device and its use should be straightforward for those who have basic
networking knowledge. It is designed for various applications including video sharing, general security/
surveillance, etc. The Conguration chapter suggests ways to best utilize the video server and ensure
proper operations. For creative and professional developers, the URL Commands of the video server
section serves as a helpful reference to customizing existing homepages or integrating with the current
web server.
VIVOTEK
User's Manual - 5
Physical Description
1 BNC input (male)
2 DC 12V output (to camera)
3 DC 12V input (to power source)
4 Reset button
5 Audio input phonejack
6 RS485
7 RJ-45 Ethernet connector
1
2
3
4 5
6
7
RS
NOTE:
The video server consumes approximately 12V
@
0.15A = 1.8W power.
VIVOTEK
6 - User's Manual
Installation
Please refer to the following illustration for the connection method.
DC12V
1
2
3
4 5
6
7
LAN
VS8100
Analogue camera
8
9
RS
1. Connect the BNC input connector to that on an analogue camera.
2. Connect the DC 12V output to the 12V input on the analogue camera.
3. Connect the DC 12V input to a 12V power source. Normally a 12V 1.5A power adapter will be
sufcient.
4. The Reset button can be used to re-start the video server.
5. If the camera has an embedded microphone, connect a stereo jack to the Audio input.
6. If a camera is mounted on a PTZ scanner, you may connect the RS485 pins for PTZ control.
7. Connect an Ethernet cable to the RJ45 Ethernet port, and connect another end to an Ethernet
switch.
8. See the table below for LED denitions.
9. Visit www.vivotek.com to download the IW2 utility program. Use the IW2 utility to locate and
access your video server.
VIVOTEK
User's Manual - 7
Status LED
Item LED status Description
1
Steady Orange Powered on, and system booting
Orange LED off Power is off.
2
Steady Orange & Green blinking every 1 sec.
(Green LED on for 1 sec., and off for another 1
sec.)
Network is working (heartbeat)
Steady Orange & Green LED off Network failed.
3
Orange blinks every 0.15 sec. + Green blinks every
1 sec. (Orange on for 0.15 sec. and off for 0.15
sec. ) (Green on for 1 sec and off for 1 sec.)
Upgrading firmware
4
Orange blinks every 0.15 sec. + Green blinks every
0.15 sec. (LEDs on together on for 0.15 sec and off
for 0.15 sec., and repeat the pattern)
Restoring defaults
VIVOTEK
8 - User's Manual
Hardware Reset
The reset button is used to reset the system or restore the factory default settings. Sometimes
resetting the system can return the video server to normal operation. If the system problems
remain after reset, restore the factory settings and install again.
Reset: Press and release the recessed reset button using a straightened paper clip. Wait for the
video server to reboot.
VIVOTEK
User's Manual - 9
Network Deployment
Setting up the Video Server over the Internet
There are several ways to set up the video server over the Internet. The rst way is to set up
the
video server behind a router. The second way is to utilize a static IP. The third way is to use
PPPoE
.
Internet connection via a router
Before setting up the video server over the Internet, make sure you have a router and follow the
steps below.
1. Connect your video server behind a router, the Internet environment is illustrated below.
Regarding how to obtain your IP address, please refer to Software Installation on page 12 for
details.
IP address : 192.168.0.3
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
IP address : 192.168.0.2
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
LAN (Local Area Network)
Router IP address : 192.168.0.1
WAN (Wide Area Network )
Router IP address : from ISP
Cable or DSL Modem
POWER
COLLISION
LINK
RECEIVE
PARTITION
1
2
3
4
5
Internet
2. In this case, if the Local Area Network (LAN) IP address of your Video server is
192.168.0.3, please forward the following ports for the Video server on the router.
■ Secondary HTTP port: 8080
■ RTSP port: 554
■ RTP port for audio: 5558
■ RTCP port for audio: 5559
■ RTP port for video: 5556
■ RTCP port for video: 5557
If you have changed the port numbers on the Network page, please open the ports accordingly
on your router. For information on how to forward ports on the router, please refer to your
router’s user’s manual.
3. Find out the public IP address of your router provided by your ISP (Internet Service Provider).
Use the public IP and the secondary HTTP port to access the Video server from the
Internet. Please refer to Network Type on page 89 for details.
VIVOTEK
10 - User's Manual
For example, your router and IP settings may look like this:
Device IP Address: internal
port
IP Address: External Port (Mapped port on the
router)
Public IP of router 122.146.57.120
LAN IP of router 192.168.2.1
Camera 1 192.168.2.10:80 122.146.57.120:8000
Camera 2 192.168.2.11:80 122.146.57.120:8001
... ... ...
Congure the router, virtual server or rewall, so that the router can forward any data coming
into a precongured port number to a network camera on the private network, and allow data
from the camera to be transmitted to the outside of the network over the same path.
From Forward to
122.146.57.120:8000 192.168.2.10:80
122.146.57.120:8001 192.168.2.11:80
... ...
When properly congured, you can access a camera behind the router using the HTTP request
as follows: http://122.146.57.120:8000
If you change the port numbers on the Network conguration page, please open the ports
accordingly on your router. For example, you can open a management session with your router
to congure access through the router to the camera within your local network. Please consult
your network administrator for router conguration if you have troubles with the conguration.
For more information with network conguration options (such as that of streaming ports), please
refer to Conguration > Network Settings. VIVOTEK also provides the automatic port forwarding
feature as an NAT traversal function with the precondition that your router must support the
UPnP port forwarding feature.
VIVOTEK
User's Manual - 11
Internet connection with static IP
Choose this connection type if you are required to use a static IP for the Video server. Please
refer to LAN on page 45 for details.
Internet connection via PPPoE (Point-to-Point over Ethernet)
Choose this connection type if you are connected to the Internet via a DSL Line. Please refer to
PPPoE on page 41 for details.
VIVOTEK
12 - User's Manual
Software Installation
Download Installation Wizard 2 (IW2) from VIVOTEK’s website. The utility helps you set up your
video server on the LAN.

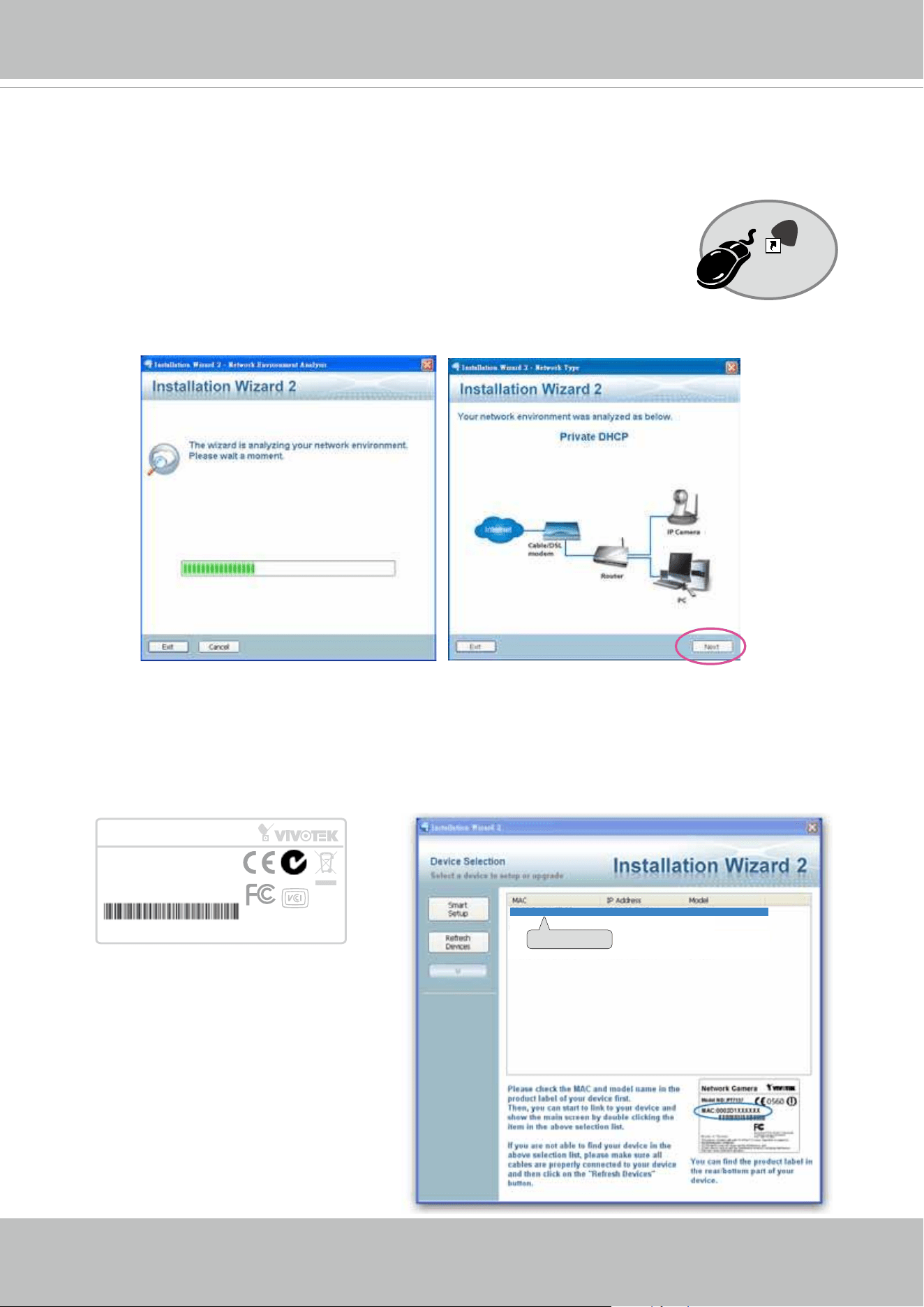

1. Install IW2. When done, double click the IW2 shortcut on your desktop
to launch the program.
2. The program will conduct an analysis of your network environment.
After your network environment is analyzed, please click Next to continue the program.
3. The program will search for all VIVOTEK network devices on the same LAN.
4.
After a brief search, the main installer window will prompt. Double-click on the MAC and
model name which matches the product label on your device to connect to the Network
Camera via a web browser.
0002D1730202
00-02-D1-73-02-02 192.168.5.151 VS8100
Installation
Wizard 2
IW
2
Video Server
Model No: VS8100
Made in Taiwan
MAC:0002D1730202
R o HS
Class A
xxxxx
VIVOTEK
User's Manual - 13
Ready to Use

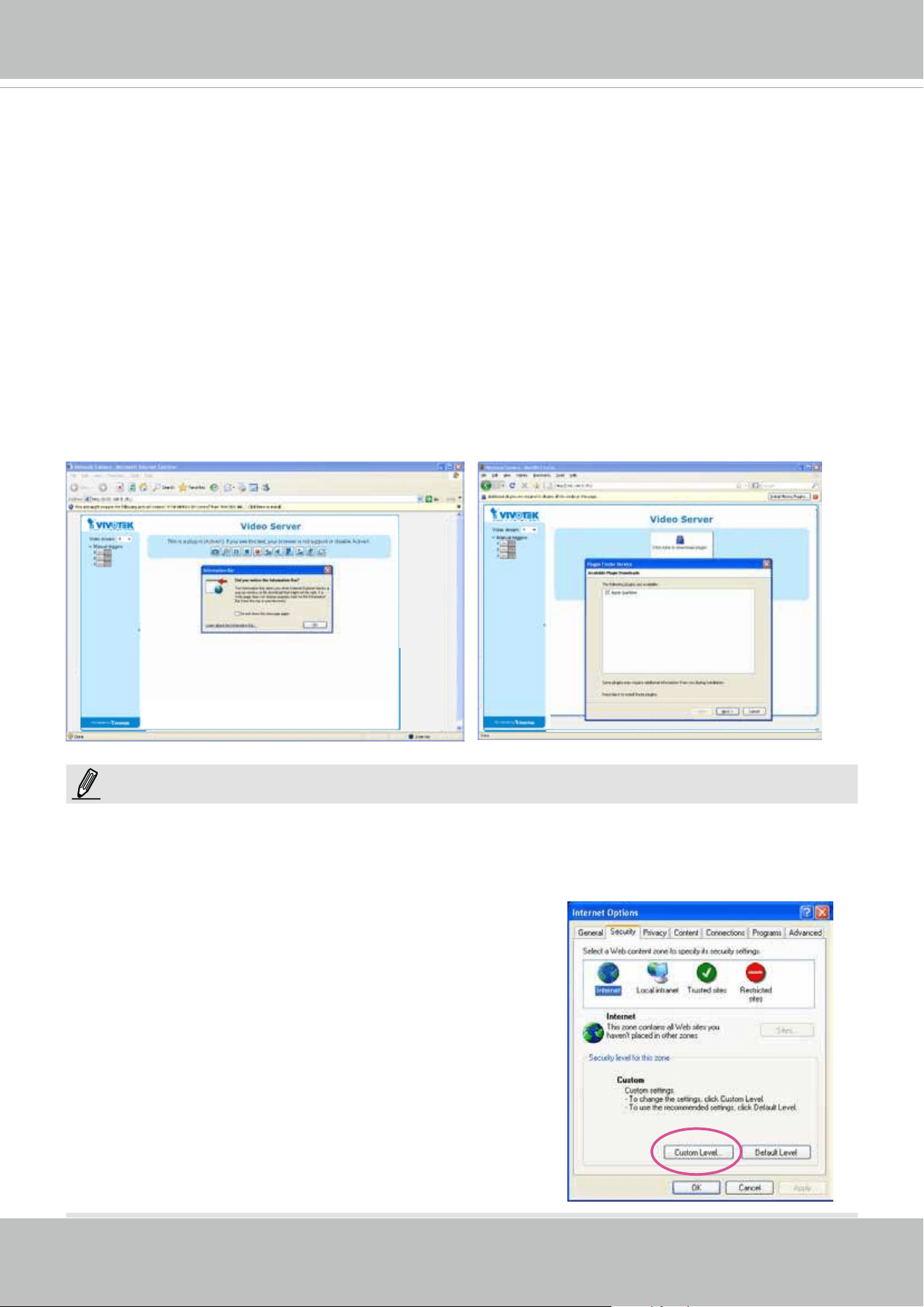

1. A browser session with the Video Server should prompt as shown below.
2. You should be able to see live video from your camera. You may also install the 32-channel
recording software from VIVOTEK's website in a deployment consisting of multiple cameras.
For its installation details, please refer to its related documents.
VIVOTEK
14 - User's Manual
Accessing the Video Server
This chapter explains how to access the video server through web browsers, RTSP players,
3GPP-compatible mobile devices, and VIVOTEK recording software.
Using Web Browsers
Use Installation Wizard 2 (IW2) to access to the video servers on the LAN.
If your network environment is not a LAN, follow these steps to access the Netwotk Camera:
1. Launch your web browser (e.g., Microsoft
®
Internet Explorer or Mozilla Firefox).
2. Enter the IP address of the video server in the address eld. Press Enter.
3. The live video will be displayed in your web browser.
4. If it is the rst time installing the VIVOTEK video server, an information bar will pop up as
shown below. Follow the instructions to install the required plug-ins on your computer.
► By default, the video server is not password-protected. To prevent unauthorized access, it is
highly recommended to set a password for the video server. For more information about how
to enable password protection, please refer to Security on page 82.
► If you see a dialog box indicating that your security
settings prohibit running ActiveX
®
Controls, please
enable the ActiveX
®
Controls for your browser.
1. Choose Tools > Internet Options > Security
> Custom Level.
NOTE:
VIVOTEK
User's Manual - 15
2. Look for Download signed ActiveX
®
controls; select Enable or Prompt. Click OK.
3. Refresh your web browser, then install the Active X
®
control. Follow the instructions to
complete installation.
VIVOTEK
16 - User's Manual
Using RTSP Players
To view the MPEG-4 streaming media using RTSP players, you can use one of the following
players that support RTSP streaming.
Quick Time Player
VLC Player
VLC media player
mpegable Player
pvPlayer
As most ISPs and players only allow RTSP streaming through port number 554, please set the
RTSP port to 554. For more information, please refer to RTSP Streaming on page 53.
For example:
4. The live video will be displayed in your player.
For more information on how to configure the RTSP access name,
please refer to RTSP
Streaming on page 53
for details.
rtsp://192.168.5.151:554/live.sdp
Video 16:38:01 2011/03/10
1. Launch the RTSP player.
2. Choose File > Open URL. A URL dialog box will pop up.
3. The address format is rtsp://<ip address>:<rtsp port>/<RTSP streaming access name for
stream1 or stream2>
VIVOTEK
User's Manual - 17
Using 3GPP-compatible Mobile Devices
To view the streaming media through 3GPP-compatible mobile devices, make sure the video
server can be accessed over the Internet. For more information on how to set up the video
se
rver over the Internet, please refer to Setup the video server over the Internet on page 9.
To utilize this feature, please check the following settings on your video server:
1. Because most players on 3GPP mobile phones do not support RTSP authentication, make
sure the authentication mode of RTSP streaming is set to disable.
For more information, please refer to RTSP Streaming on page 53.
2. As the the bandwidth on 3G networks is limited, you will not be able to use a large video size.
Please congure the video and audio streaming parameters as listed below.
Video Mode MPEG-4
Frame size QCIF
Maximum frame rate 5 fps
Intra frame period 1S
Video quality (Constant bit rate) 40kbps
Audio type (G.711) 64kbps
3. As most ISPs and players only allow RTSP streaming through port number 554, please set
the RTSP port to 554. For more information,
please refer to RTSP Streaming on page 53
.
4. Launch the player on the 3GPP-compatible mobile devices (e.g., VLC Player).
5. Type the following URL commands into the player.
The address format is rtsp://<public ip address of your camera>:<rtsp port>/<RTSP streaming
access name for stream 3>.
For example:
rtsp://192.168.5.151:554/live.sdp
VIVOTEK
18 - User's Manual
Using VIVOTEK Recording Software
The recording software, allowing simultaneous monitoring and video recording for multiple video
servers. Please install the recording software; then launch the program to add the video server
to the Channel list. For detailed information about how to use the recording software, please
refer to the user’s manual of the software or download it from
http://www.vivotek.com.
VIVOTEK
User's Manual - 19
Main Page

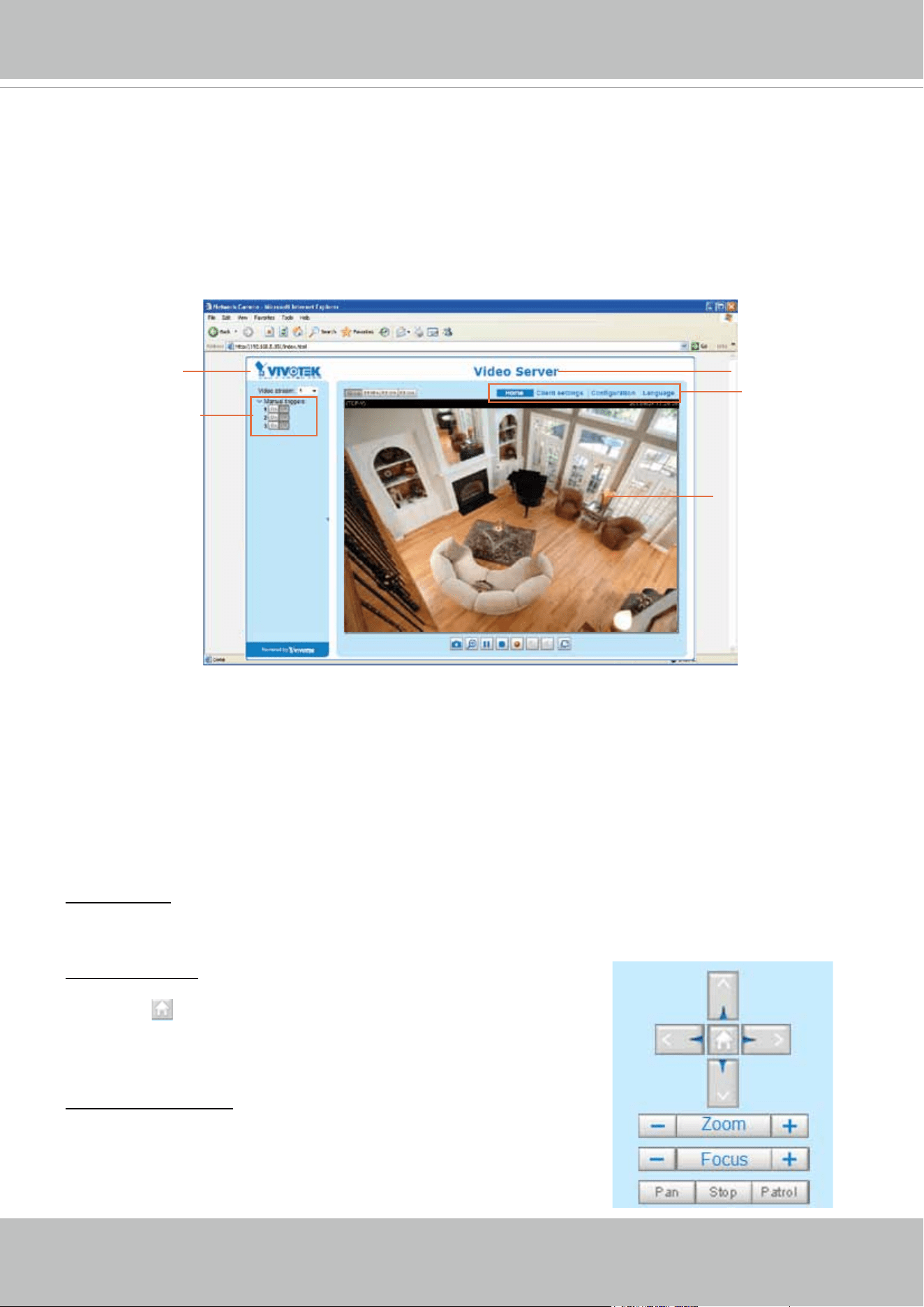

This chapter explains the layout of the main page. It is composed of the following sections:
VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, Menu, and
Live Video Window. The Manual Trigger and Digital Input/Digital Output control menus are
expandable and collapsible, while the PTZ navigation panel is available only when a PTZ
camera is attached.
VIVOTEK INC. Logo
Click this logo to visit the VIVOTEK website.
Host Name
The host name can be customized to t your needs. For more information,
please refer to
System settings
on page 26.
VIVOTEK INC. Logo
Configuration Area
Manual Trigger Area
Host Name
Live View Window
Camera Control Area
Video Stream: VS8100 supports 1 channel for video live viewing. The channel allows you to view only
one stream. For more information about video settings, please refer to page 40 for detailed information.
PTZ Control Area: The up/down/left/right/zoom/focus/pan buttons allow
you to adjust the video in the viewing window to the spot you wish
to watch.
Home button allows you to resume the center of the
screen. Click Patrol to move from one point to another; click it again to
stop patroling. Click Stop to stop the pan movement. Please refer to
Conguration > PTZ on page 75 for more information.
Pan/Tilt/Zoom Speed: In the drop-down list, the speed ranges from
-5~5 (slow/fast).
Note that PTZ panel is only available when the Mechanical PTZ
function is enabled.
VIVOTEK
20 - User's Manual
Conguration Area
Client Settings: Click this button to access the client setting page. For more information, please refer to
Client Settings on page 22.
Conguration: Click this button to access the conguration page of the video server. It is suggested that
a password be applied to the video server so that only the administrator can congure the video server.
For more information, please refer to Conguration on page 25.
Language: Click this button to choose a language for the user interface. Language options are available
in: English, Deutsch, Español, Français, Italiano,
日本語
, Português,
簡体中文
, and
繁體中文
.
Live Video Window
Video Title: The video title can be congured. For more information, please refer to Video settings on
page 40.
MPEG-4 Protocol and Media Options: The transmission protocol and media options for MPEG-4 video
streaming. For further conguration, please refer to Client settings on page 22.
Time: Display the current time. For further conguration, please refer to Video settings on page 40.
Video (UDP-AV)
Video 14:46:09 2013/7/19
Video and Audio Control Buttons
MPEG-4 Protocol and Media Options
Video Title
Time
Title and Time
2013/7/19 14:46:09
Manual Trigger Area
Click to enable/disable an event trigger manually. Please congure an event setting on Application page
before enable this function. A total of 4 event settings can be congured. For more information about
event settings, please refer to page 81.
If you want to hide this item on the homepage, please go to the Homepage layout page to uncheck “show
manual trigger button”. Please refer to page 27 for details.
VIVOTEK
User's Manual - 21
Title and Time: The video title and time can be stamped on the streaming video. For further conguration,
please refer to Video settings on page 40.
Video and Audio Control Buttons: Depending on the video server model and video server conguration,
some buttons may not be available.
Snapshot: Click this button to capture and save still images. The captured images will be displayed
in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP
(*.bmp) format.
Digital Zoom: Click and uncheck “Disable digital zoom” to enable the zoom operation. The navigation
screen indicates the part of the image being magnied. To control the zoom level, drag the slider bar. To
move to a different area you want to magnify, drag the navigation screen.
Pause: Pause the transmission of the streaming media. The button becomes the Resume button
after clicking the Pause button.
Stop: Stop the transmission of the streaming media. Click the Resume button to continue
transmission.
Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer.
Press the
Stop MP4 Recording button to end recording. When you exit the web browser, video
recording stops accordingly. To specify the storage destination and le name, please refer to MP4 saving
options on page 23 for details.
Volume: When the Mute function is not activated, move the slider bar to adjust the volume on the
local computer.
Mute: Turn off the volume on the local computer. The button becomes the Audio On button after
clicking the Mute button.
Full Screen: Click this button to switch to full screen mode. Press the “Esc” key to switch back to normal
mode.
Go to: The drop-down menu enables you to locate and move to a preset location instantly on the viewing
window.
VIVOTEK
22 - User's Manual
Client settings
This chapter explains how to select the stream transmission mode and saving options on the
local computer. When completed with the settings on this page, click Save on the page bottom
to enable the settings.

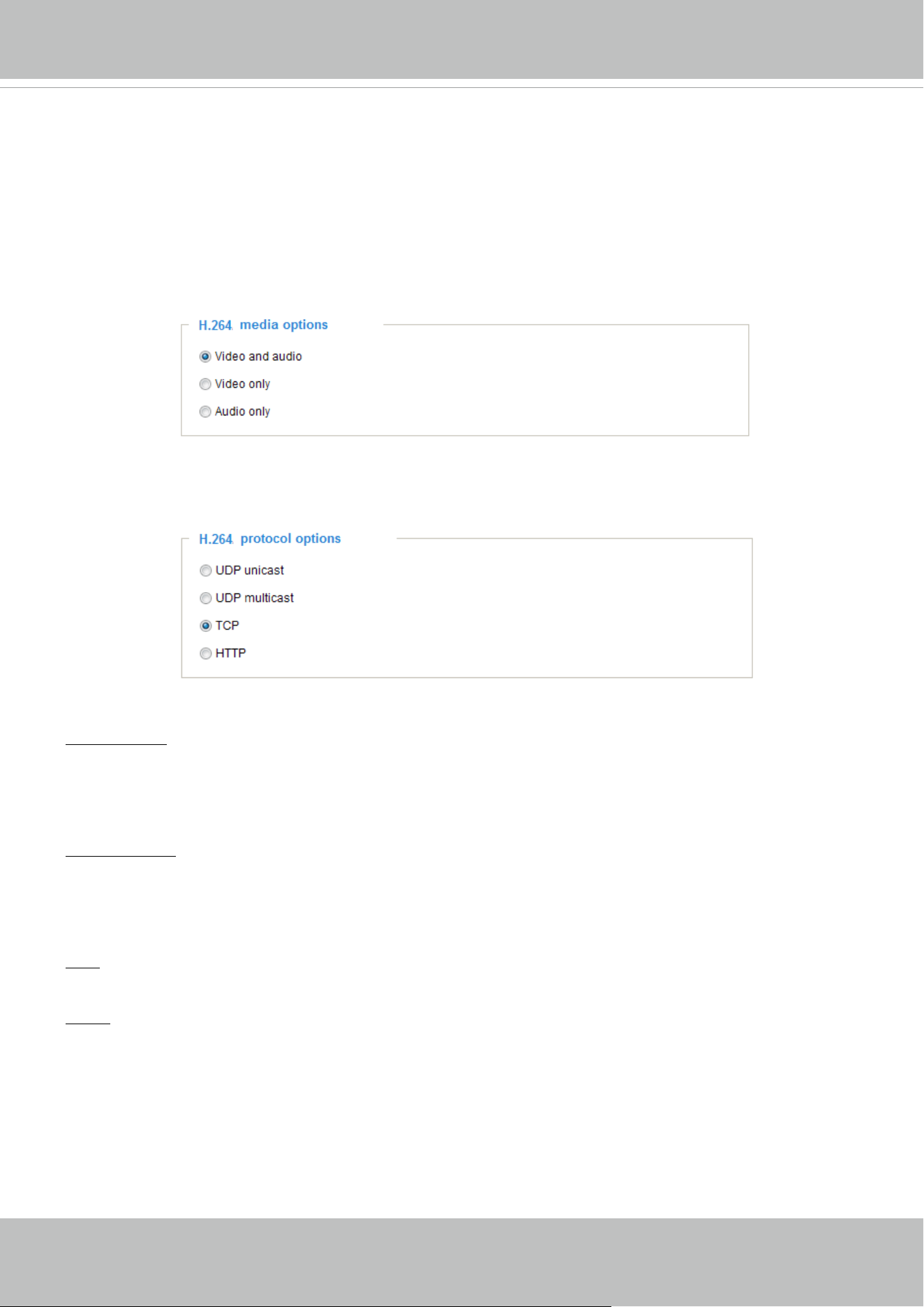

H.264 media options
Select to stream video or audio data or both. This is enabled only when the video mode is set to H.264.
H.264 protocol options
Depending on your network environment, there are four transmission modes of H.264:
UDP unicast: This protocol allows for more real-time audio and video streams. However, network
packets may be lost due to network burst trafc and images may be broken. Activate UDP connection
when occasions require time-sensitive responses and the video quality is less important. Note that each
unicast client connecting to the server takes up additional bandwidth and the video server allows up to
ten simultaneous accesses.
UDP multicast: This protocol allows multicast-enabled routers to forward network packets to all clients
requesting streaming media. This helps to reduce the network transmission load of the video server
while serving multiple clients at the same time. Note that to utilize this feature, the video server must be
congured to enable multicast streaming at the same time. For more information, please refer to RTSP
Streaming on page 53.
TCP: This protocol guarantees the complete delivery of streaming data and thus provides better video
quality. The downside of this protocol is that its real-time effect is not as good as that of the UDP protocol.
HTTP: This protocol allows the same quality as TCP protocol without needing to open specic ports for
streaming under some network environments. Users inside a firewall can utilize this protocol to allow
streaming data through.
VIVOTEK
User's Manual - 23
MP4 saving options

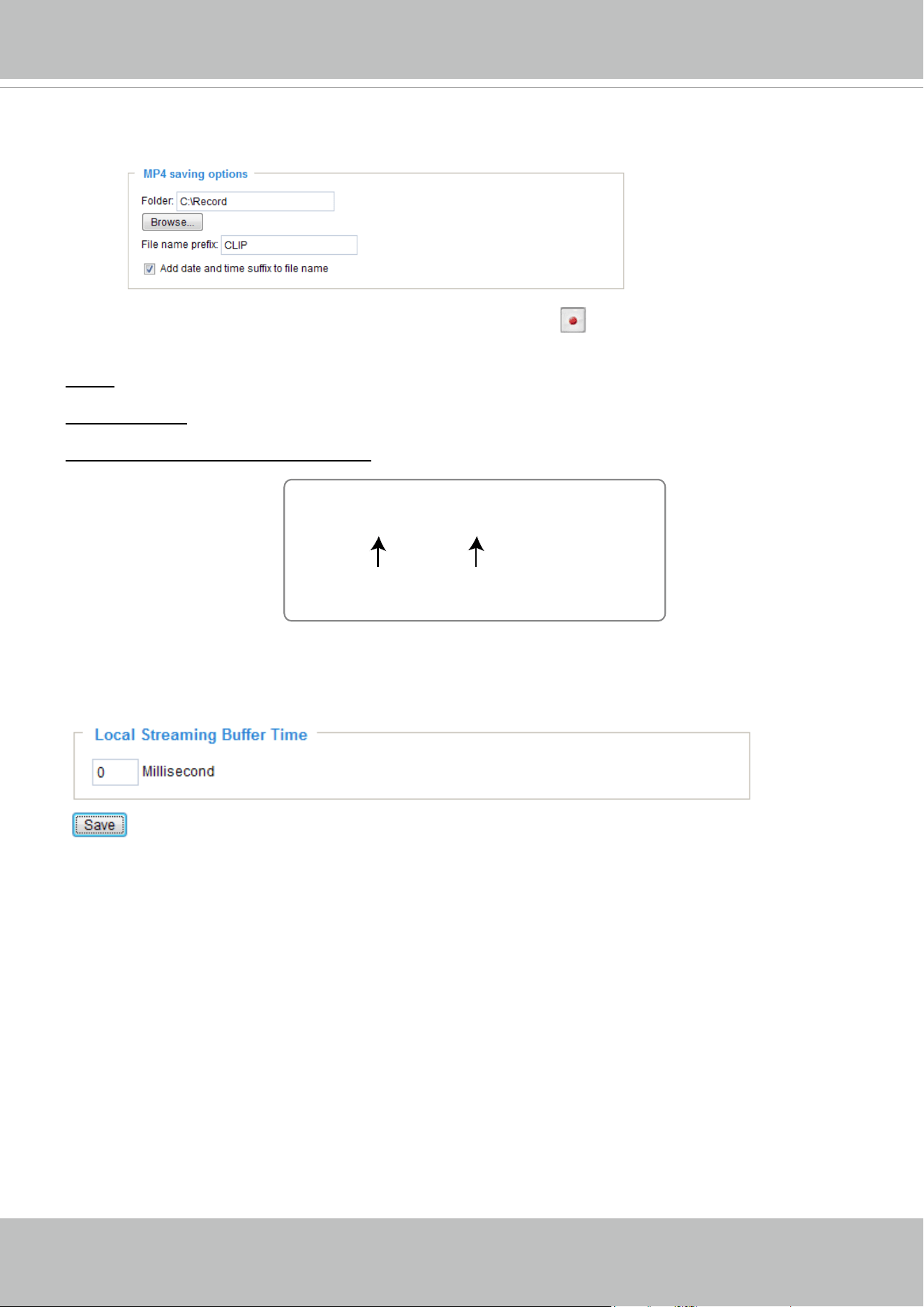

Users can record live video as they are watching it by clicking Start MP4 Recording on the main
page. Here, you can specify the storage destination and le name.
Folder: Specify a storage destination for the recorded video les.
File name prex: Enter the text that will be appended to the front of the video le name.
Add date and time sufx to the le name: Select this option to append the date and time to the end of the
le name.
Local Streaming Buffer Time
Due to the unsteady bandwidth ow, the live streaming may lag and not be very smoothly. If you enable
this option, the live streaming will be stored temporarily on your client PC’s cache memory for a few
seconds/milli-seconds before being played on the live viewing window. This will help you see the
streaming more smoothly. If you enter 3,000 Millisecond, the streaming will delay for 3 seconds.
CLIP_20110114-180853
Date and time suffix
The format is: YYYYMMDD_HHMMSS
File name prefix
VIVOTEK
24 - User's Manual
Joystick settings
Calibrate: Make sure a joystick is already attached to your COM port or USB port on your client
computer. Click on the Calibrate button and the Windows Game Controller function will be started.
If properly connected, your operating system should have already detected the joystick. Follow the
onscreen instructions to calibrate your joystick.
Configure buttons: You can define individual joystick buttons using this function. Click to open a
configuration window and assign functions to joystick buttons using the following steps: 1. Select a
button uing the pull-down menu. 2. Select an Action to be toggled by the button. 3. Click on the Assign
button, and then repeat the process to dene other buttons.
1
2
3
VIVOTEK
User's Manual - 25
Conguration
Click Configuration on the main page to enter the camera setting pages. Note that only
Administrators can access the conguration page.
VIVOTEK offers an easy-to-use user interface that helps you set up your video server with
minimal effort.
In order to simplify the user interface, the detailed information will be hidden unless you click on
the function item. When you click on the rst sub-item, the detailed information for the rst sub-
item will be displayed; when you click on the second sub-item, the detailed information for the
second sub-item will be displayed and that of the rst sub-item will be hidden.
The following is the main conguration page:
Configuration List
VIVOTEK
26 - User's Manual
System
This section explains how to congure the basic settings for the video server, such as the host
name and system time. It is composed of the following three columns: System, System Time
and DI and DO. When nished with the settings on this page, click Save at the bottom of the
page to enable the settings.

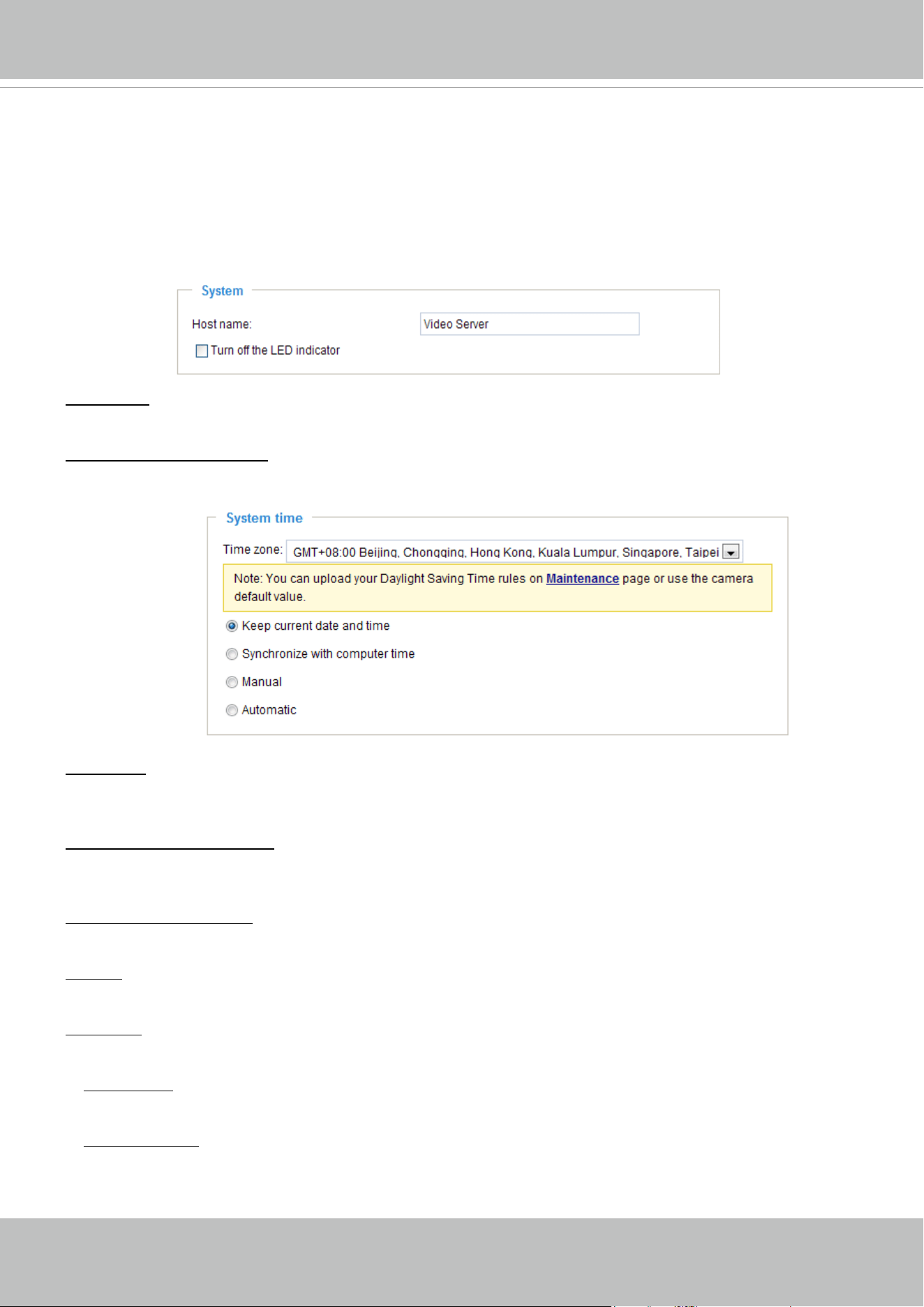

System
Host name: Enter a desired name for the video server. The text will be displayed at the top of the main
page.
Turn off the LED indicators: If you do not want to let others know that the video server is in operation, you
can select this option to turn off the LED indicators.
System time
Time zone : Select the appropriate time zone from the list. If you want to upload Daylight Savings Time
rules on the Maintenance page, please refer to Upload / Export daylight saving time conguration le on
page 34 for details.
Keep current date and time: Select this option to preserve the current date and time of the Video server.
The video server’s internal real-time clock maintains the date and time even when the power of the
system is turned off.
Sync with computer time: Select this option to synchronize the date and time of the video server with the
local computer. The read-only date and time of the PC is displayed as updated.
Manual: The administrator can enter the date and time manually. Note that the date and time format are
[yyyy/mm/dd] and [hh:mm:ss].
Automatic: The Network Time Protocol is a protocol which synchronizes computer clocks by periodically
querying an NTP Server.
NTP server: Assign the IP address or domain name of the time-server. Leaving the text box blank
connects the video server to the default time servers.
Update interval: Select to update the time using the NTP server on an hourly, daily, weekly, or monthly
basis.
VIVOTEK
User's Manual - 27
System > Homepage layout
This section explains how to set up your own customized homepage layout.
General settings
This column shows the settings of your hompage layout. You can manually select the background and
font colors in Theme Options (the second tab on this page). The settings will be displayed automatically
in this Preview eld. The following shows the homepage using the default settings:
■ Hide Powered by VIVOTEK: If you check this item, it will be removed from the homepage.

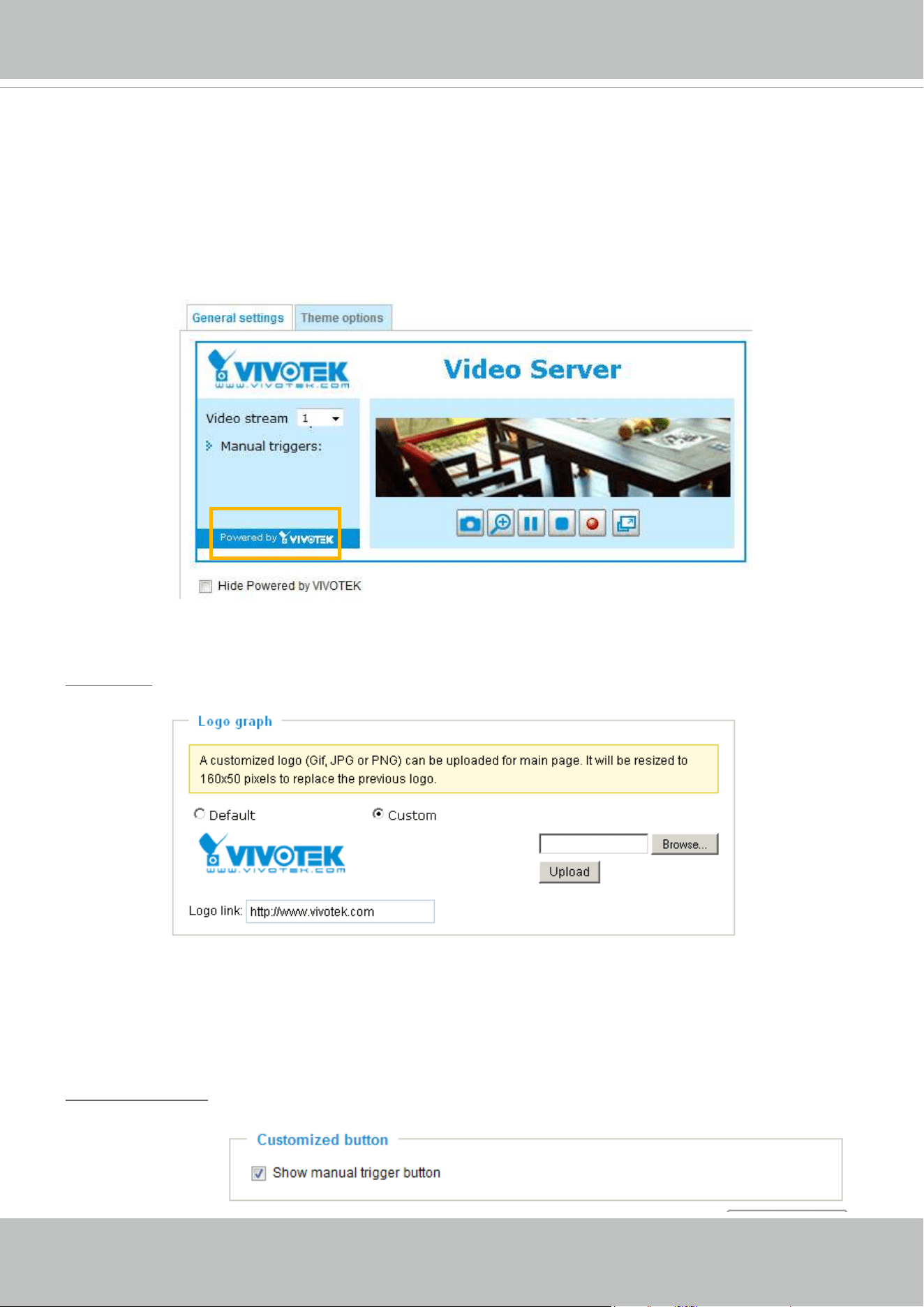

Logo graph
Here you can change the logo that is placed at the top of your homepage.
Follow the steps below to upload a new logo:
1. Click Custom and the Browse eld will appear.
2. Select a logo from your les.
3. Click Upload to replace the existing logo with a new one.
4. Enter a website link if necessary.
5. Click Save to enable the settings.
Customized button
If you want to hide manual trigger buttons on the homepage, please uncheck this item. This item is
checked by default.
VIVOTEK
28 - User's Manual
Theme Options
Here you can change the color of your homepage layout. There are three types of preset patterns for you
to choose from. The new layout will simultaneously appear in the Preview led. Click Save to enable the
settings.
Font Color of the
Video Title
Background Color of
the Video Area
Frame Color
Font Color
Background Color of the
Control Area
Font Color of
the Configuration Area
Background Color of the
Configuration Area
Preset patterns
VIVOTEK
User's Manual - 29
■ Follow the steps below to set up the customed homepage:
1. Click Custom on the left column.
2. Click the eld where you want to change the color on the right column.
3. The palette window will pop up as shown below.
4. Drag the slider bar and click on the left square to select a desired color.
5. The selected color will be displayed in the corresponding elds and in the Preview column.
6. Click Save to enable the settings.
1
2
3
4
Color Selector
Custom
Pattern
VIVOTEK
30 - User's Manual
System > Logs
This section explains how to congure the Network Camera to send the system log to a remote
server as backup.
Log server settings
Follow the steps below to set up the remote log:
1. Select Enable remote log.
2. In the IP address text box, enter the IP address of the remote server.
2. In the port text box, enter the port number of the remote server.
3. When completed, click Save to enable the setting.
You can congure the Network Camera to send the system log le to a remote server as a log backup.
Before utilizing this feature, it is suggested that the user install a log-recording tool to receive system log
messages from the Network Camera. An example is Kiwi Syslog Daemon. Visit
http://www.kiwisyslog.
com/kiwi-syslog-daemon-overview/
.
System log
This column displays the system log in a chronological order. The system log is stored in the Network
Camera’s buffer area and will be overwritten when reaching a certain limit.
VIVOTEK
User's Manual - 31
PC with
ST7501 Recording Software
Internet
VIVOTEK Network Cameras
3G Cell phone
Cell phone
Short message
Email
GSM
Modem
HTTP
PTZ
Digital output
You can install the included ST7501 recording software, which provides an Event Management
function group for delivering event messages via emails, GSM short messages, onscreen event
panel, or to trigger an alarm, etc. For more information, refer to the ST7501 User Manual.
VIVOTEK
32 - User's Manual
Access log
Access log displays the access time and IP address of all viewers (including operators and
administrators) in a chronological order. The access log is stored in the Network Camera’s buffer area
and will be overwritten when reaching a certain limit.
System > Parameters
The View Parameters page lists the entire system’s parameters. If you need technical
assistance, please provide the information listed on this page.
VIVOTEK
User's Manual - 33
System > Maintenance
This chapter explains how to restore the Network Camera to factory default, upgrade rmware
version, etc.
General settings > Upgrade rmware
This feature allows you to upgrade the firmware of your Network Camera. It takes a few minutes to
complete the process.
Note: Do not power off the Network Camera during the upgrade!
Follow the steps below to upgrade the rmware:
1. Download the latest rmware le from the VIVOTEK website. The le is in .pkg le format.
2. Click Browse… and locate the rmware le.
3. Click Upgrade. The Network Camera starts to upgrade and will reboot automatically when the upgrade
completes.
If the upgrade is successful, you will see “Reboot system now!! This connection will close”. After that, re-
access the Network Camera.
The following message is displayed when the upgrade has succeeded.
The following message is displayed when you have selected an incorrect rmware le.
General settings > Reboot
This feature allows you to reboot the Network Camera, which takes about one minute to complete. When
completed, the live video page will be displayed in your browser. The following message will be displayed
during the reboot process.
If the connection fails after rebooting, manually enter the IP address of the Network Camera in the
address eld to resume the connection.
Starting firmware upgrade...
Do not power down the server during the upgrade.
The server will restart automatically after the upgrade is
completed.
This will take about 1 - 5 minutes.
Wrong PKG file format
Unpack fail
Reboot system now!!
This connection will close.
VIVOTEK
34 - User's Manual

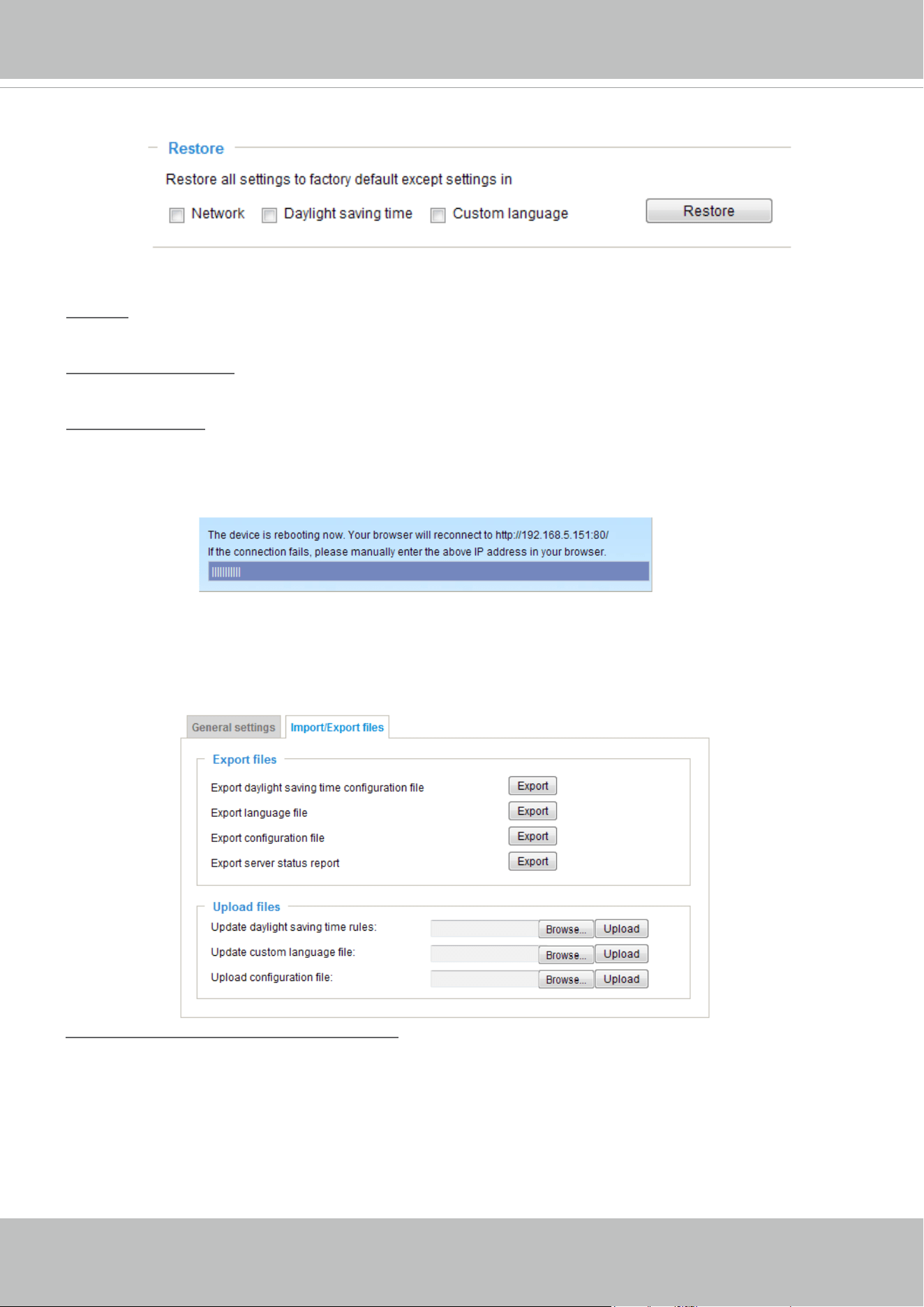

General settings > Restore
This feature allows you to restore the Network Camera to factory default settings.
Network: Select this option to retain the Network Type settings (please refer to Network Type on page
45).
Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to
Import/Export les below on this page).
Custom Language: Select this option to retain the Custom Language settings.
If none of the options is selected, all settings will be restored to factory default. The following message is
displayed during the restoring process.
Import/Export les
This feature allows you to Export / Update daylight saving time rules, custom language le, conguration
le, and server status report.
Export daylight saving time conguration le: Click to set the start and end time of DST (Daylight Saving).
Follow the steps below to export:
1. In the Export les column, click Export to export the daylight saving time conguration le from the
Network Camera.

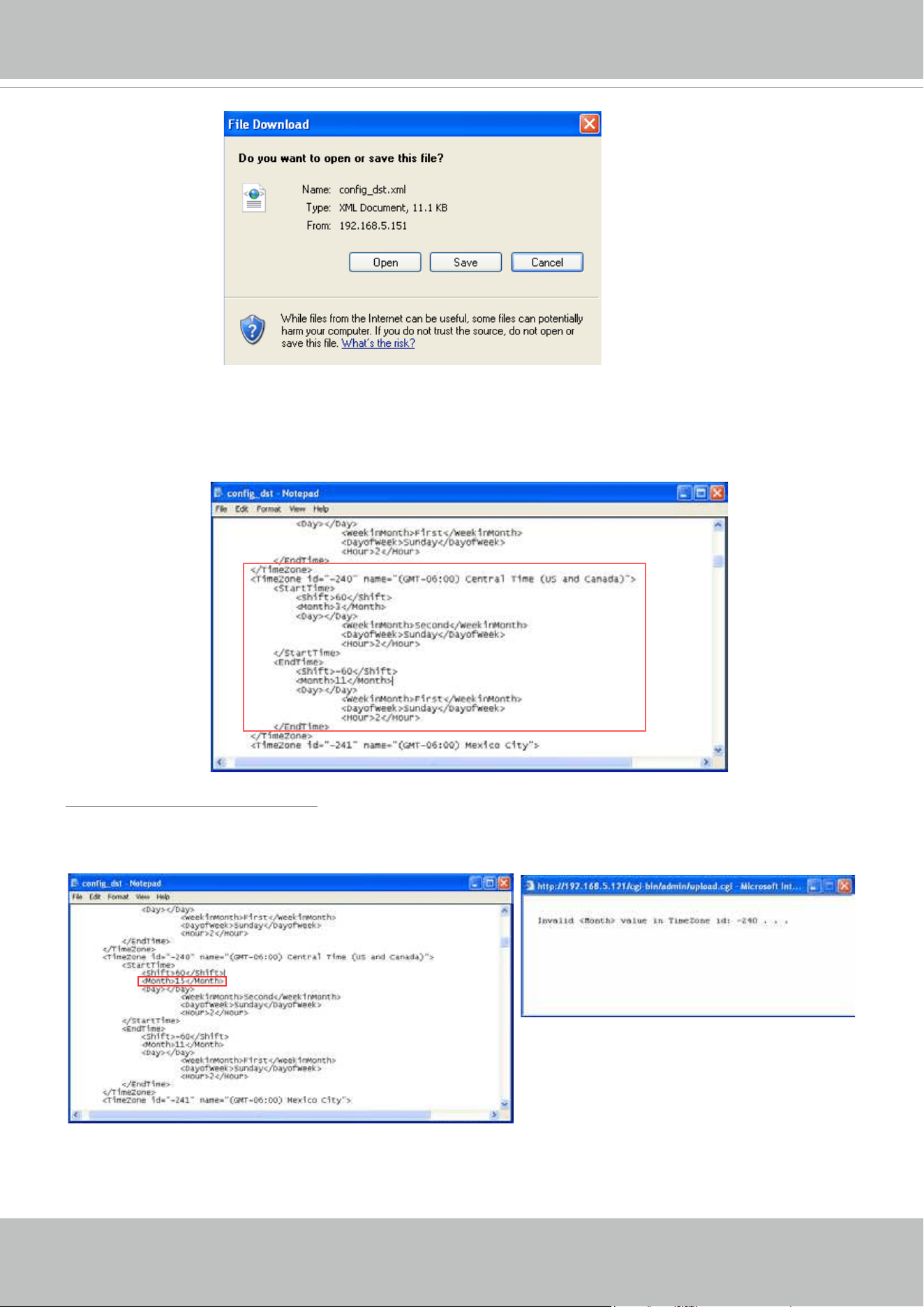

2. A le download dialog will pop up as shown below. Click Open to review the XML le or click Save to
store the le for editing.
VIVOTEK
User's Manual - 35
3. Open the le with Microsoft
®
Notepad and locate your time zone; set the start and end time of DST.
When completed, save the le.
In the example below, DST begins each year at 2:00 a.m. on the second Sunday in March and ends at
2:00 a.m. on the rst Sunday in November.

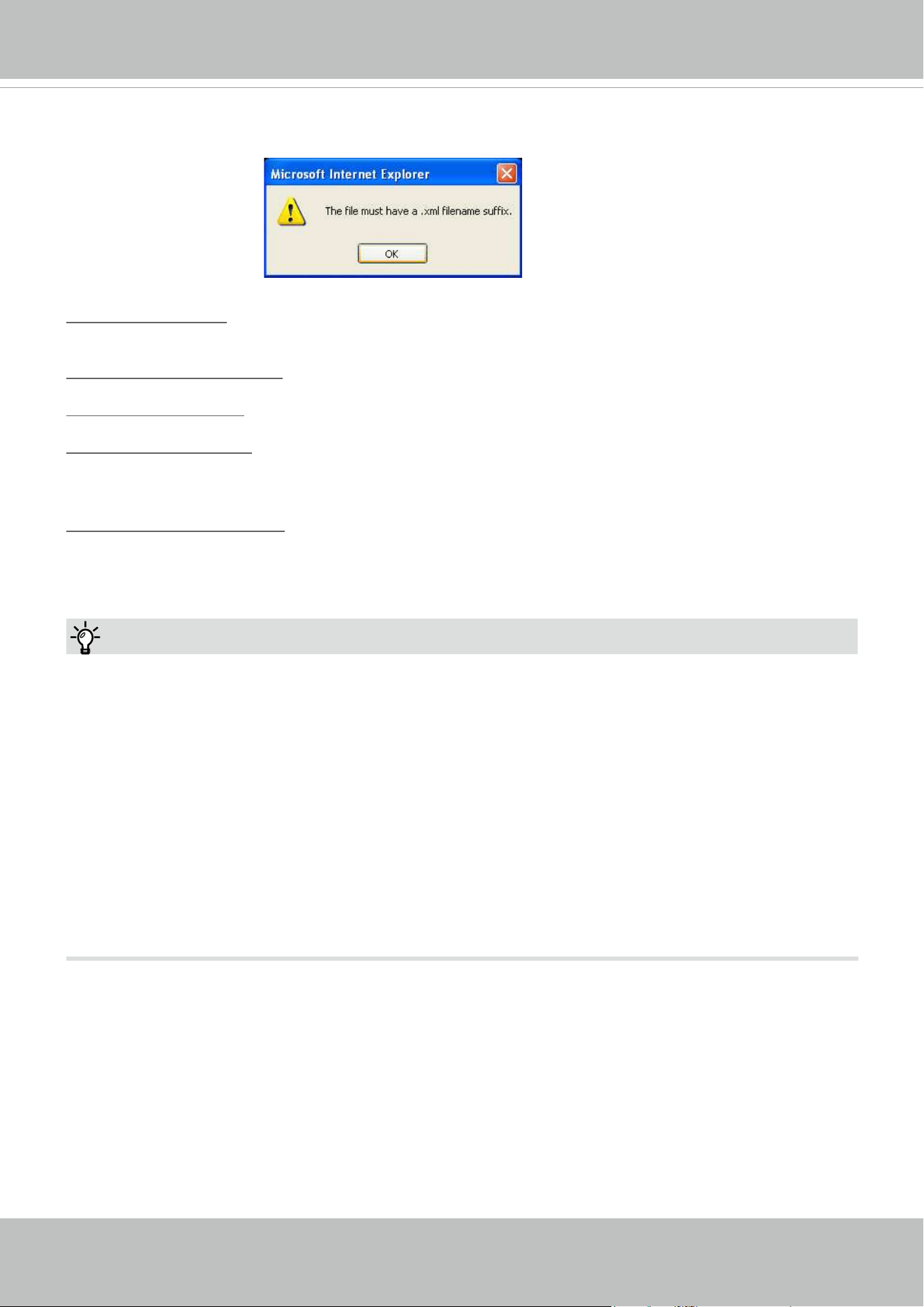

Update daylight saving time rules: Click Browse… and specify the XML le to update.
If the incorrect date and time are assigned, you will see the following warning message when uploading
the le to the Network Camera.
VIVOTEK
36 - User's Manual
The following message is displayed when attempting to upload an incorrect le format.
Export language file: Click to export language strings. VIVOTEK provides nine languages: English,
Deutsch, Español, Français, Italiano,
日本語,
Português,
簡体中文
, and
繁體中文
.
Update custom language le: Click Browse… and specify your own custom language le to upload.
Export conguration le: Click to export all parameters for the device and user-dened scripts.
Update conguration le: Click Browse… to update a conguration le. Please note that the model and
rmware version of the device should be the same as the conguration le. If you have set up a xed IP
or other special settings for your device, it is not suggested to update a conguration le.
Export server staus report: Click to export the current server status report, such as time, logs,
parameters, process status, memory status, le system status, network status, kernel message ... and so
on.
Tips:
• If a firmware upgrade is accidentally disrupted, say, by a power outage, you still have a last resort
method to restore normal operation. See the following for how to bring the camera back to work:
Applicable scenario:
(1) Power disconnected during rmware upgrade.
(2) Unknown reason causing abnormal LED status, and a Restore cannot recover normal working
condition.
You can use the following methods to activate the camera with its backup rmware:
(1) Press and hold down the reset button for at least one minute.
(2) Power on the camera until the Red LED blinks rapidly.
(3) After boot up, the rmware should return to the previous version before the camera hanged. (The
procedure should take 5 to 10 minutes, longer than the normal boot-up process). When tthis
process is completed, the LED status should return to normal.
VIVOTEK
User's Manual - 37
Media > Image
This section explains how to configure the image settings of the Network Camera. It is
composed of the following four columns: General settings, Image settings, Exposure, and
Privacy mask.
General settings
Video title
Show_timestamp_and video_title_in_video_and_snapshots: Enter a name that will be displayed on the
title bar of the live video as the picture shown below.
Video Title
2013/02/09 17:08:56
Title and Time
Video 17:08:56 2013/02/09
Color: Select to display color or black/white video streams.
Video orientation: Flip - vertically reflect the display of the live video; Mirror - horizontally reflect the
display of the live video. Select both options if the Network Camera is installed upside-down (e.g., on the
ceiling) to correct the image orientation. Please note that if you have preset locations, those locations will
be cleared after ip/mirror setting.
VIVOTEK
38 - User's Manual
Image settings

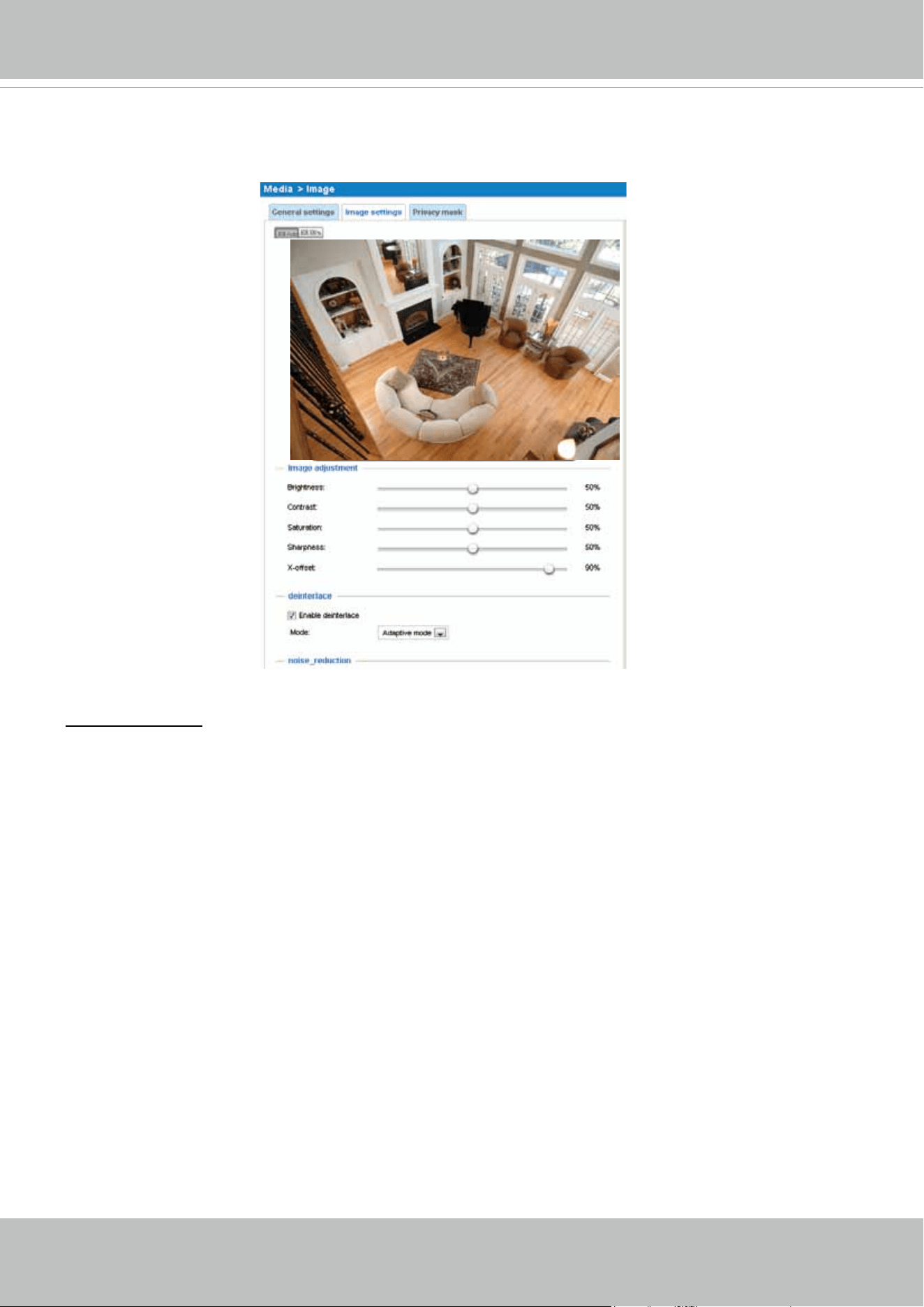

On this page, you can tune the White balance and Image adjustment.
Image Adjustment
■ Brightness: Adjust the image brightness level, which ranges from 0% to 100%.
■ Contrast: Adjust the image contrast level, which ranges from 0% to 100%.
■ Saturation: Adjust the image saturation level, which ranges from 0% to 100%.
■ Sharpness:
Adjust the image sharpness level, which ranges from
0% to 100%
.
■ X-offset: Adjust the image to the proper position horizontally.
■ Enable deinterlace: Check to enable deinterlace, and choose Adaptive mode or Blend mode in the
drop-down list. Adaptive mode provides the best image quality, while Blend mode provides better
image quality (than not using the deinterlace function at all).
■ Enable noise reduction: Check to enable noise reduction in order to reduce noises and flickers in
image. This applies to the onboard 3D Noise Reduction feature. Use the pull-down menu to adjust
the reduction strength. Note that applying this function to the video channel will consume system
computing power.
3D Noise Reduction is mostly applied in low-light conditions. When enabled in a low-light condition
with fast moving objects, trails of after-images may occur. You may then select a lower strength level
or disable the function.
■ Restore: Click to restore the default setting.
■ Save: When nished with the setting, click Save to enable the settings.
VIVOTEK
User's Manual - 39
Privacy mask

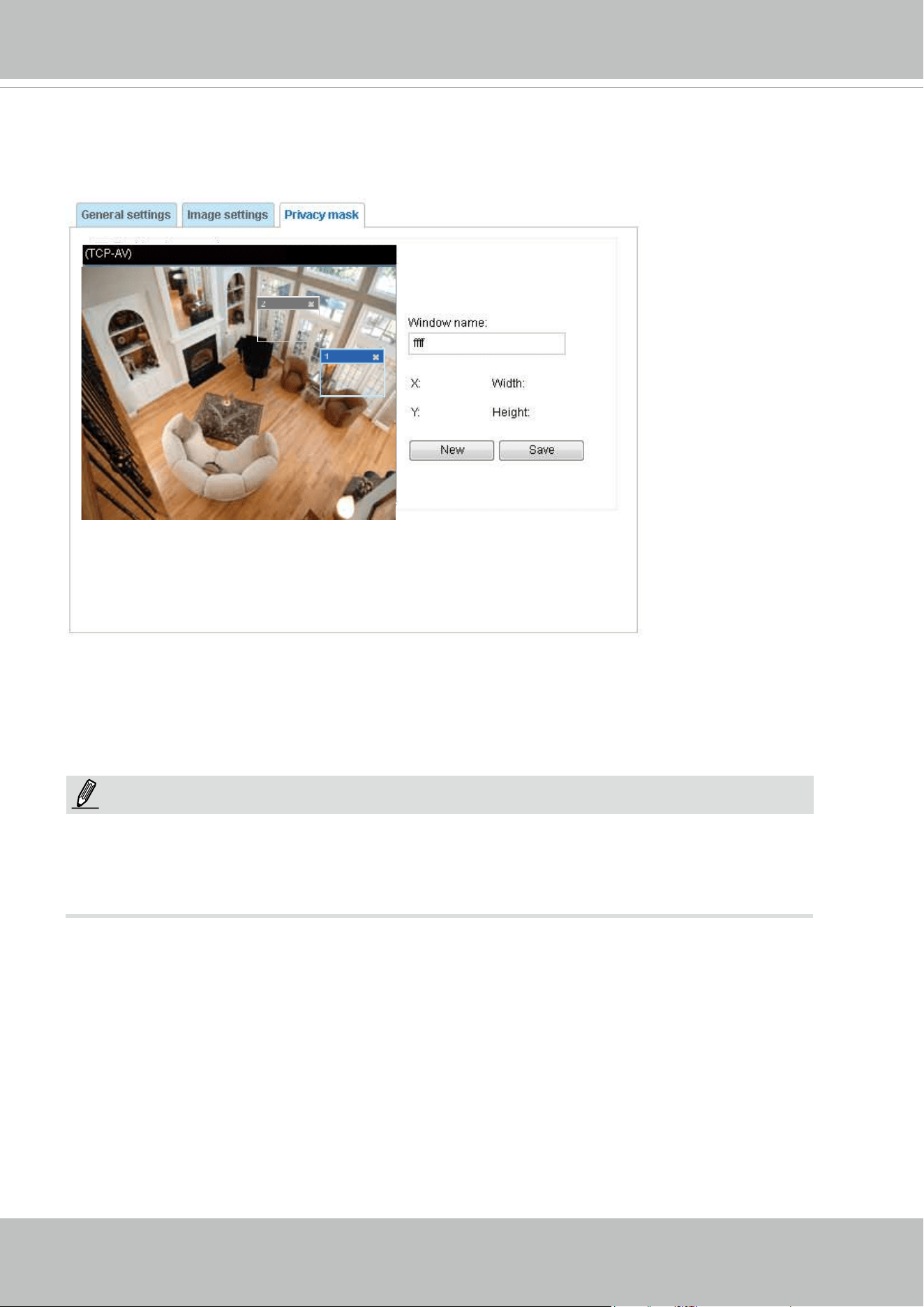

Click Privacy Mask to open the settings page. On this page, you can block out sensitive zones to
address privacy concerns.
■ To set the privacy mask windows, follow the steps below:
1. Click New to add a new window.
2. You can use the mouse cursor to size and drag-drop the window, which is recommended to be
at least twice the size of the object (height and width) you want to cover.
3. Enter a Window Name and click Save to enable the setting.
4. Click on the Enable privacy mask checkbox to enable this function.
►
Up to 5 privacy mask windows can be set up on the same screen.
► If you want to delete the
privacy mask
window, please click the ‘x’ on the upper right corner of
the window.
2013/09/09 17:08:56
NOTE:
VIVOTEK
40 - User's Manual
Media > Video
Stream settings
This Network Camera supports multiple streams with frame sizes ranging QCIF (176x144) to D1
(704x480 NTSC pixels).
Click the stream item to display the detailed information. The maximum frame size will follow your
settings in the above Viewing Window sections.
VIVOTEK
User's Manual - 41
This Network Camera provides real-time H.264 and MJPEG compression standards (Dual Codec) for
real-time viewing. If the
H.264 mode is selected, the video is streamed via RTSP protocol. There are
several parameters through which you can adjust the video performance:
■ Frame size
You can set up different video resolutions for different viewing devices. For example, set a smaller
frame size and lower bit rate for remote viewing on mobile phones and a larger video size and a higher
bit rate for live viewing on web browsers. Note that a larger frame size takes up more bandwidth.
■ Maximum frame rate
This limits the maximum refresh frame rate per second. Set the frame rate higher for smoother video
quality and for recognizing moving objects in the eld of view.
If the power line frequency is set to 50Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps,
10fps, 12fps, 15fps, 20fps, and 25fps. If the power line frequency is set to 60Hz, the frame rates are
selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 12fps, 15fps, 20fps, 25fps, and 30fps. You can also
select Customize and manually enter a value.
The frame rate will decrease if you select a higher resolution.
■ Intra frame period
Determine how often for rmware to plant an I frame. The shorter the duration, the more likely you
will get better video quality, but at the cost of higher network bandwidth consumption. Select the intra
frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds,
and 4 seconds.
VIVOTEK
42 - User's Manual
■
Video quality
• Constant bit rate: A complex scene generally produces a larger file size, meaning that
higher bandwidth will be needed for data transmission. The bandwidth utilization is
configurable to match a selected level, resulting in mutable video quality performance.
The bit rates are selectable at the following rates:
20Kbps, 30Kbps, 40Kbps, 50Kbps, 64Kbps,
128Kbps, 256Kbps, 512Kbps, 768Kbps, 1Mbps, 2Mbps, 3Mbps, 4Mbps, 6Mbps, and 8Mbps
. You
can also select Customize and manually enter a value.
- Target bit rate: select a bit rate from the pull-down menu. The bit rate ranges from 20kbps
to a maximum of 40Mbps. The bit rate then becomes the Average or Upper bound bit rate
number. The Network Camera will strive to deliver video streams around or within the bit
rate limitation you impose.
- Policy: If Frame Rate Priority is selected, the Network Camera will try to maintain the
frame rate per second performance, while the image quality will be compromised. If Image
quality priority is selected, the Network Camera may drop some video frames in order to
maintain image quality.
• Fixed quality: On the other hand, if Fixed quality is selected, all frames are transmitted
with the same quality; bandwidth utilization is therefore unpredictable. The video quality
can be adjusted to the following settings: Medium, Standard, Good, Detailed, and
Excellent. You can also select Customize and manually enter a value.
- Maximum bit rate: With the guaranteed image quality, you might still want to place a bit
rate limitation to control the size of video streams for bandwidth and storage concerns.
The congurable bit rate starts from 1Mbps to 40Mbps. This can ensure bandwidth is not
exhausted when extra-high bit rate is accidentally produced, e.g., lots of noises in a video
taken by the night time.
You may also manually enter a bit rate number by selecting the Customized option.
VIVOTEK
User's Manual - 43
If JPEG mode is selected, the Network Camera sends consecutive JPEG images to the client,
producing a moving effect similar to a lmstrip. Every single JPEG image transmitted guarantees
the same image quality, which in turn comes at the expense of variable bandwidth usage. Because
the media contents are a combination of JPEG images, no audio data is transmitted to the client.
There are three parameters provided in MJPEG mode to control the video performance:
■ Frame size
You can set up different video resolution for different viewing devices. For example, set a smaller
frame size and lower bit rate for remote viewing on mobile phones and a larger video size and
a higher bit rate for live viewing on web browsers. Note that a larger frame size takes up more
bandwidth.
■ Maximum frame rate
This limits the maximum refresh frame rate per second. Set the frame rate higher for smoother
video quality.
If the power line frequency is set to 50Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps,
8fps, 10fps, 12fps, 15fps, 20fps, and 25fps. If the power line frequency is set to 60Hz, the frame
rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 12fps, 15fps, 20fps, 25fps, and 30fps.
You can also select Customize and manually enter a value. The frame rate will decrease if you
select a higher resolution.
■ Video quality
Refer to the previous page setting an average or upper bound threshold for controlling the
bandwidth consumed for transmitting motion jpegs. The conguration method is identical to that
for H.264.
For Constant Bit Rate and other settings, refer to the previous page for details.
NOTE
►
Video quality and xed quality refers to the compression rate, so a lower value will produce higher
quality.
►
Converting high-quality video may signicantly increase the CPU loading, and you may encounter
streaming disconnection or video loss while capturing a complicated scene. In the event of
occurance, we suggest you customize a lower video resolution or reduce the frame rate to obtain
smooth video.
NOTE:
VIVOTEK
44 - User's Manual
Media > Audio
Audio Settings

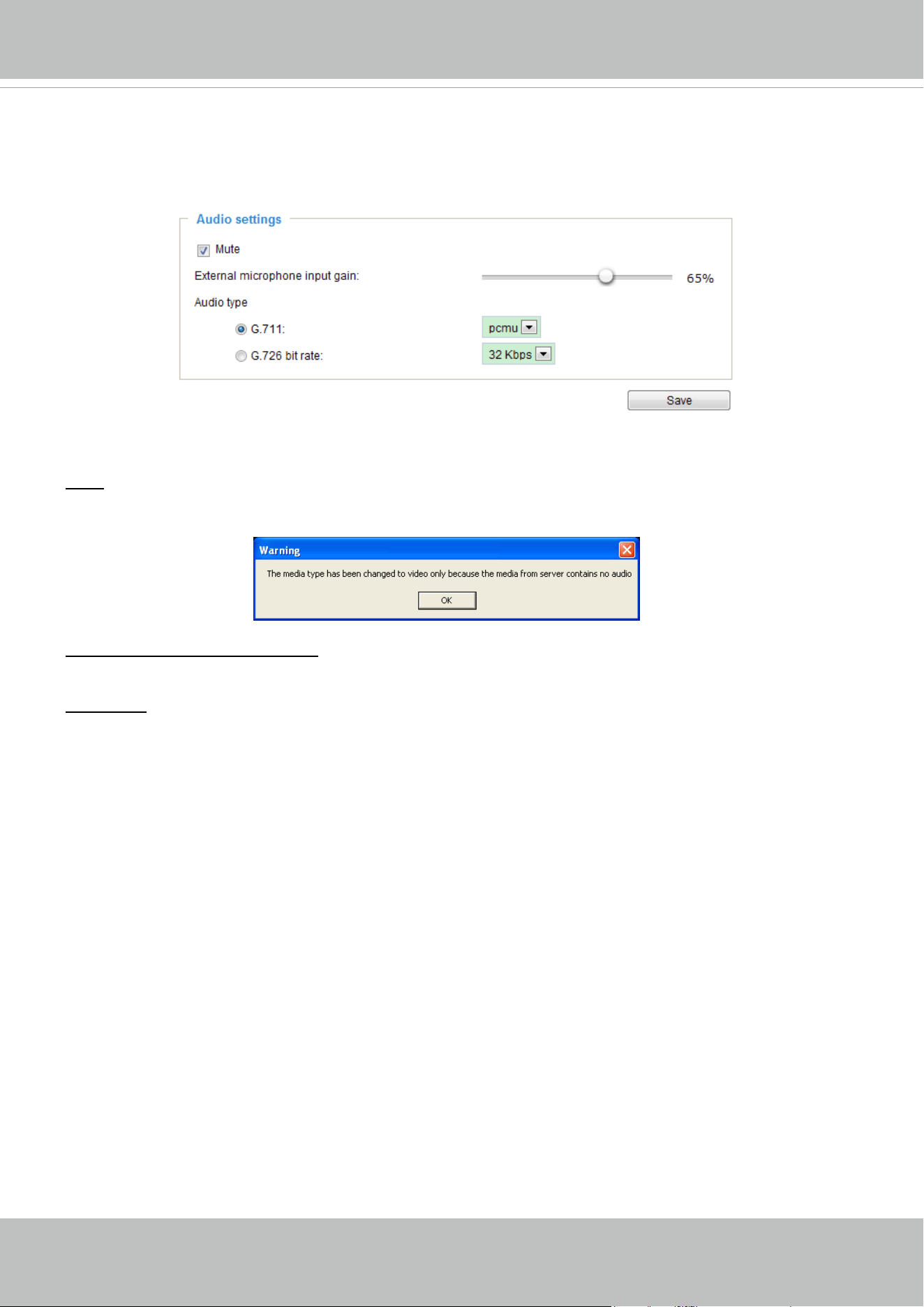

Mute: Select this option to disable audio transmission from the Network Camera to all clients. Note that
if muted, no audio data will be transmitted even if audio transmission is enabled on the Client Settings
page. In that case, the following message is displayed:
Internal microphone input gain: Select the gain of the internal audio input according to ambient
conditions. Adjust the gain from 100% (most sensitive) to 0% (least sensitive).
Audio type: .
■ G.711 provides good sound quality and requires about 64Kbps. Select the operation mode as pcmu
(μ-Law) or pcma (A-Law) mode.
■ G.726 is a speech codec standard covering voice transmission at rates of 16, 24, 32, and 40kbit/s.
When completed with the settings on this page, click Save to enable the settings.
VIVOTEK
User's Manual - 45
Network > General settings

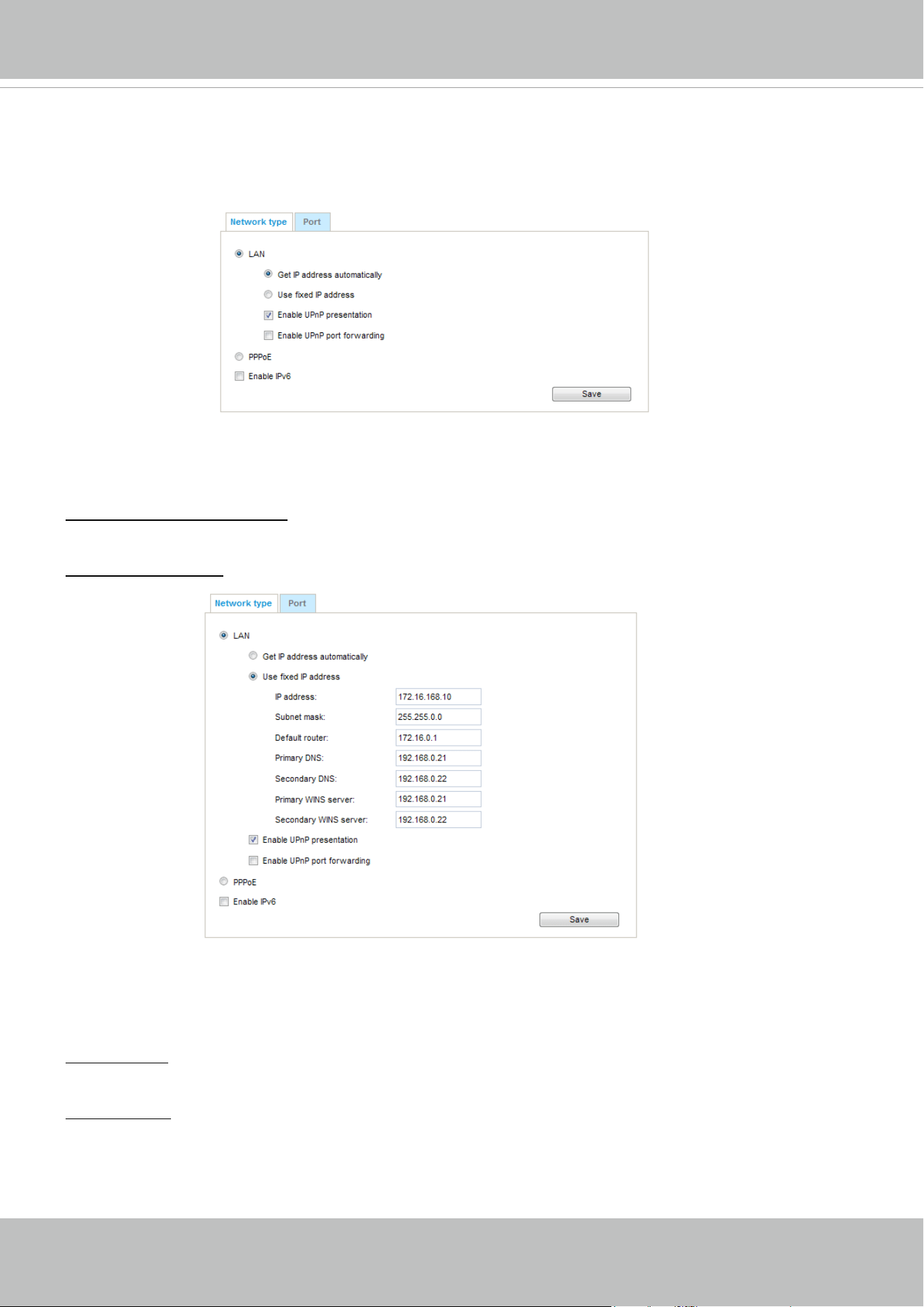

This section explains how to congure a wired network connection for the Network Camera.
Network Type
LAN
Select this option when the Network Camera is deployed on a local area network (LAN) and is intended
to be accessed by local computers. The default setting for the Network Type is LAN. Please rememer to
click on the Save button when you complete the Network setting.
Get IP address automatically: Select this option to obtain an available dynamic IP address assigned by
the DHCP server each time the camera is connected to the LAN.
Use xed IP address: Select this option to manually assign a static IP address to the Network Camera.
1. You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network
Camera on LAN. Please refer to Software Installation on page 12 for details.
2. Enter the Static IP, Subnet mask, Default router, and Primary DNS provided by your ISP or network
administrator.
Subnet mask: This is used to determine if the destination is in the same subnet. The default value is
“255.255.255.0”.
Default router: This is the gateway used to forward frames to destinations in a different subnet. Invalid
router setting will disable the transmission to destinations across different subnets.
VIVOTEK
46 - User's Manual
Primary DNS: The primary domain name server that translates hostnames into IP addresses.
Secondary DNS: Secondary domain name server that backups the Primary DNS.
Primary WINS server: The primary WINS server that maintains the database of computer names and IP
addresses.
Secondary WINS server: The secondary WINS server that maintains the database of computer names
and IP addresses.
Enable UPnP presentation: Select this option to enable UPnP
TM
presentation for your Network Camera
so that whenever a Network Camera is presented to the LAN, the shortcuts to connected Network
Cameras will be listed in My Network Places. You can click the shortcut to link to the web browser.
Currently, UPnP
TM
is supported by Windows XP or later. Note that to utilize this feature, please make
sure the UPnP
TM
component is installed on your computer.
Enable UPnP port forwarding: To access the Network Camera from the Internet, select this option to
allow the Network Camera to open ports automatically on the router so that video streams can be sent
out from a LAN. To utilize of this feature, make sure that your router supports UPnP
TM
and it is activated.
PPPoE (Point-to-point over Ethernet)
Select this option to congure your Network Camera to make it accessible from anywhere as long as
there is an Internet connection. Note that to utilize this feature, it requires an account provided by your
ISP.
Follow the steps below to acquire your Network Camera’s public IP address.
1. Set up the Network Camera on the LAN.

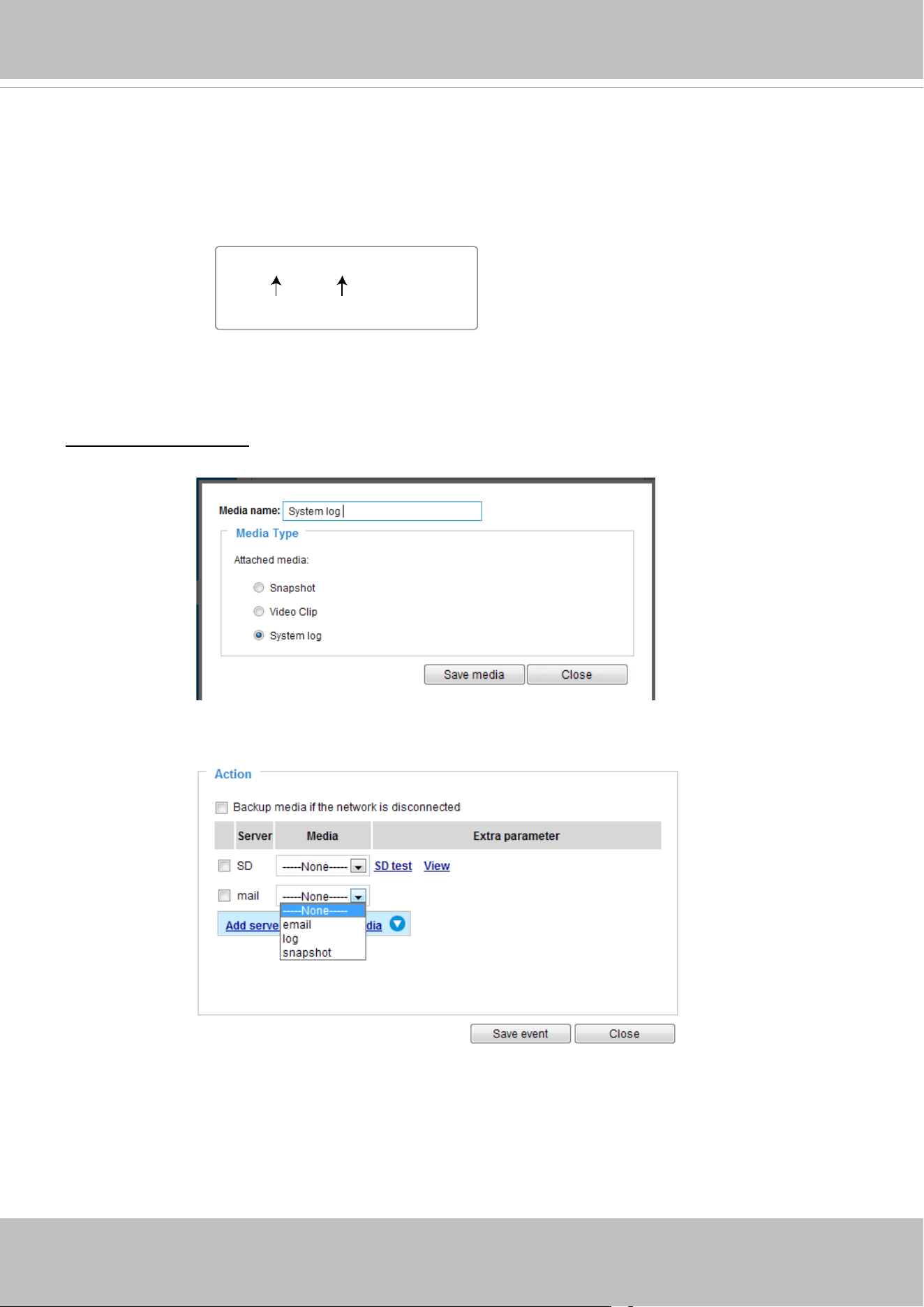

2. Go to Conguration > Event > Event settings > Add server (please refer to Add server on page 84) to
add a new email or FTP server.
3. Go to Conguration > Event > Event settings > Add media (please refer to Add media on page 89).
Select System log so that you will receive the system log in TXT le format which contains the
Network Camera’s public IP address in your email or on the FTP server.

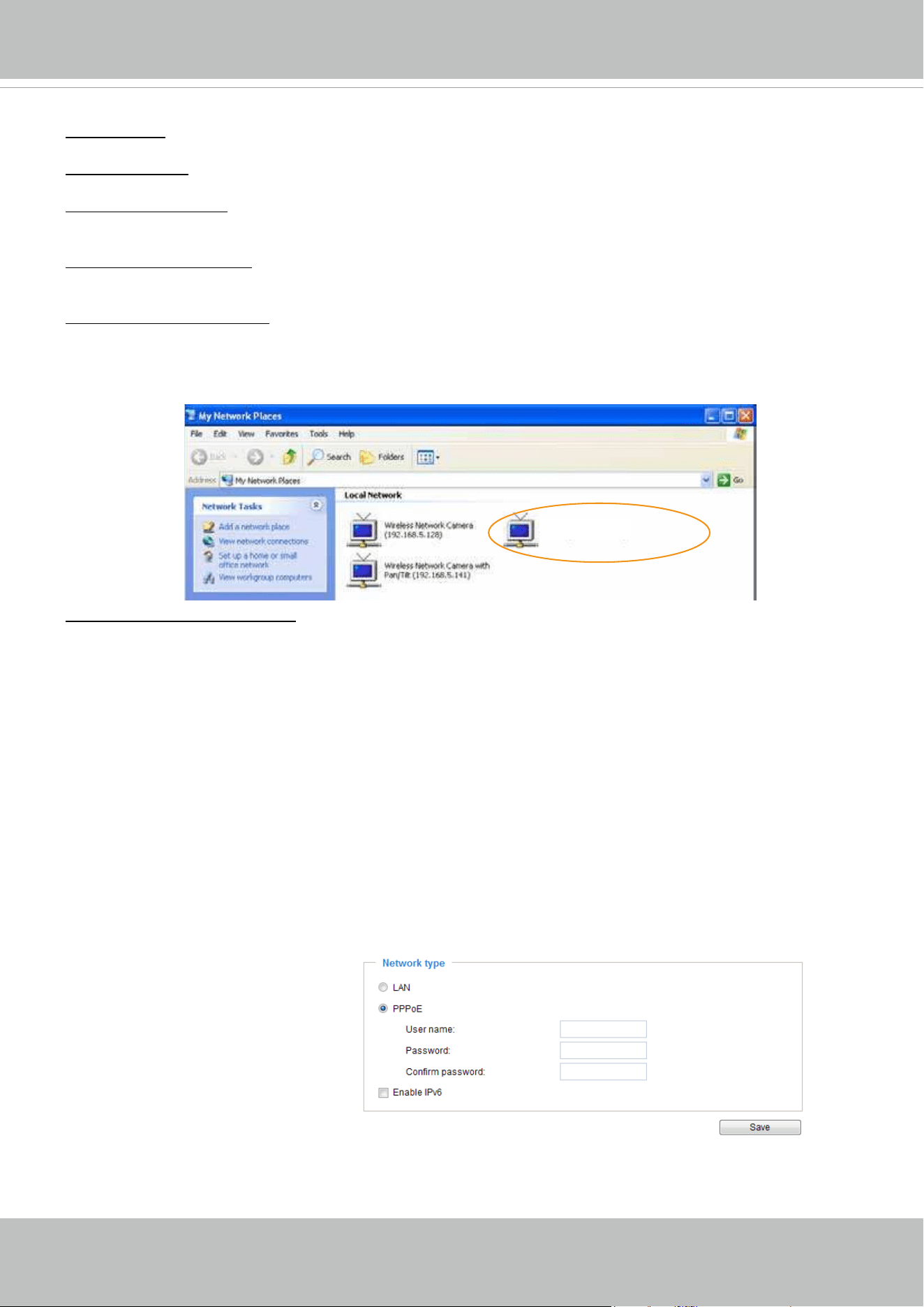

4. Go to Conguration > Network > General settings > Network type. Select PPPoE and enter the user
name and password provided by your ISP. Click Save to enable the setting.
5. The Network Camera will reboot.
6. Disconnect the power to the Network Camera; remove it from the LAN environment.
Mega-pixel Network Camera (192.168.5.151)
VIVOTEK
User's Manual - 47
NOTE
► If the default ports are already used by other devices connected to the same router, the Network
Camera will select other ports for the Network Camera.
► If UPnP
TM
is not supported by your router, you will see the following message:
Error: Router does not support UPnP port forwarding.
► Steps to enable the UPnP
TM
user interface on your computer:
Note that you must log on to the computer as a system administrator to install the UPnP
TM
components.

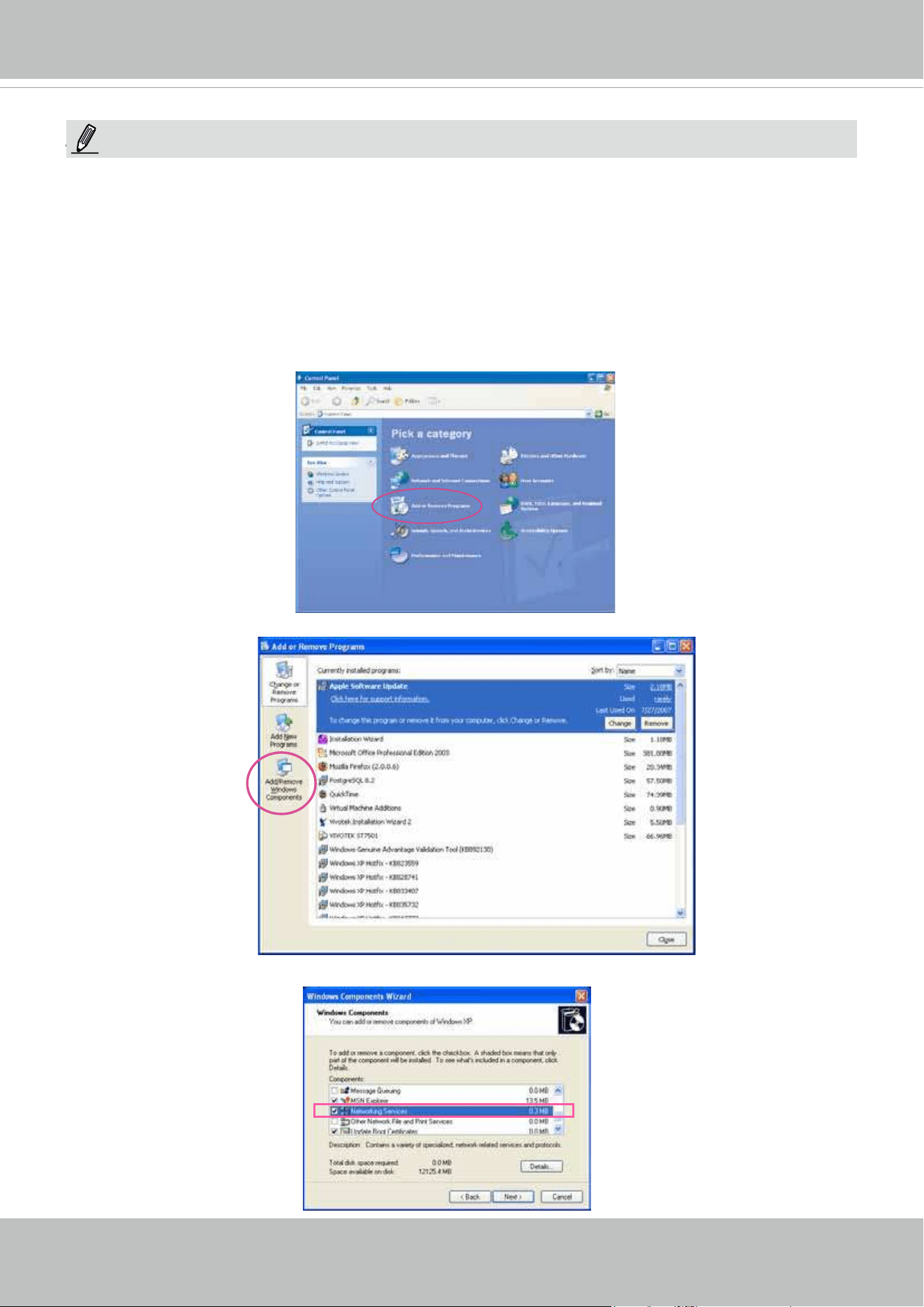

1. Go to Start, click Control Panel, then click Add or Remove Programs.
2. In the Add or Remove Programs dialog box, click Add/Remove Windows Components.
3.
In the Windows Components Wizard dialog box, select Networking Services and click Details.
NOTE:
VIVOTEK
48 - User's Manual

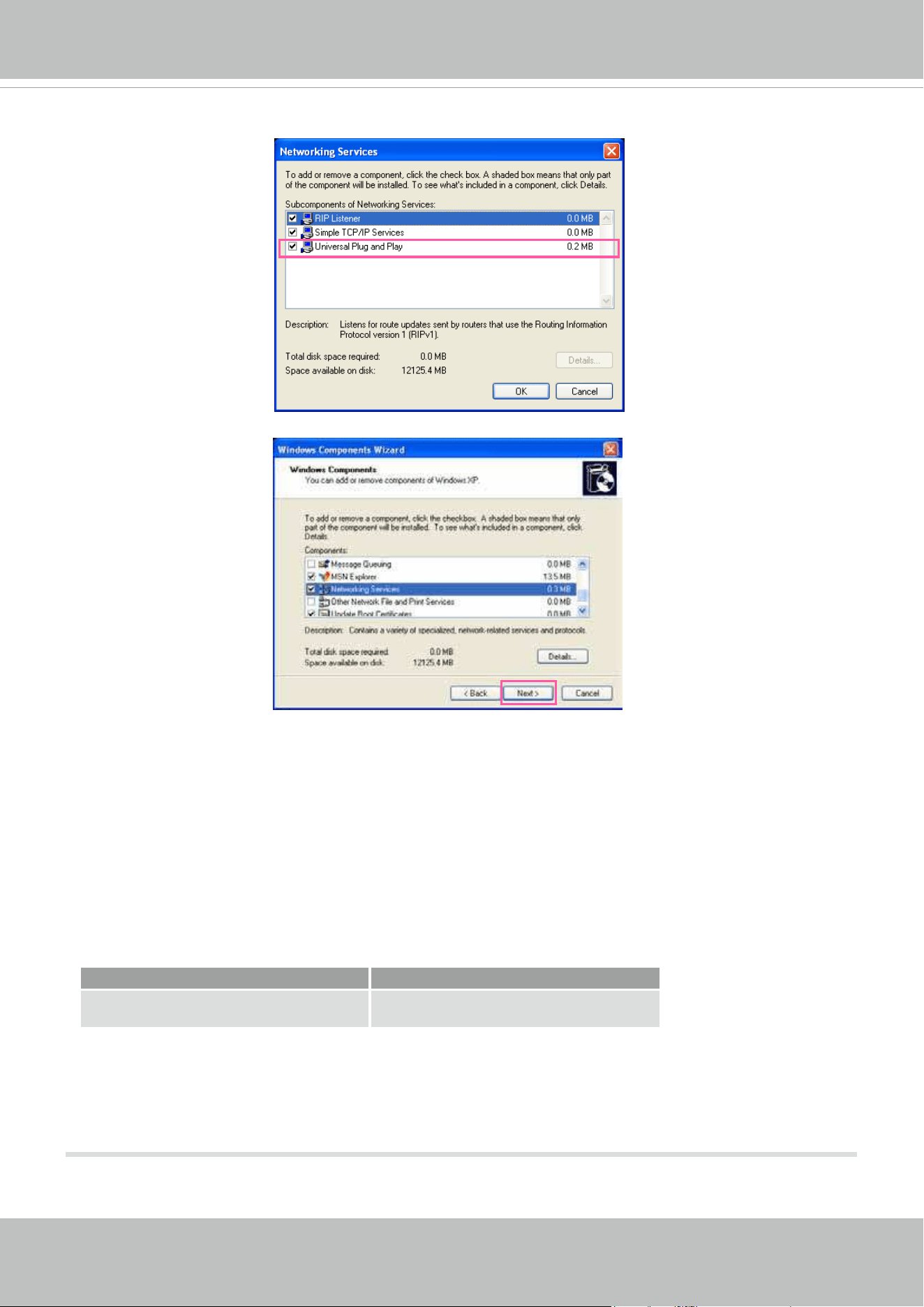

4. In the Networking Services dialog box, select Universal Plug and Play and click OK.
5. Click Next in the following window.
6. Click Finish. UPnP
TM
is enabled.
► How does UPnP
TM
work?
UPnP
TM
networking technology provides automatic IP conguration and dynamic discovery of devices
added to a network. Services and capabilities offered by networked devices, such as printing and le
sharing, are available among each other without the need for cumbersome network conguration. In
the case of Network Cameras, you will see Network Camera shortcuts under My Network Places.
► Enabling UPnP port forwarding allows the Network Camera to open a secondary HTTP port on the
router-not HTTP port-meaning that you have to add the secondary HTTP port number to the Network
Camera’s public address in order to access the Network Camera from the Internet. For example,
when the HTTP port is set to 80 and the secondary HTTP port is set to 8080, refer to the list below for
the Network Camera’s IP address.
From the Internet In LAN
http://203.67.124.123:8080 http://192.168.4.160 or
http://192.168.4.160:8080
► If the PPPoE settings are incorrectly configured or the Internet access is not working, restore the
Network Camera to factory default; please refer to Restore on page 33 for details. After the Network
Camera is reset to factory default, it will be accessible on the LAN.
VIVOTEK
User's Manual - 49

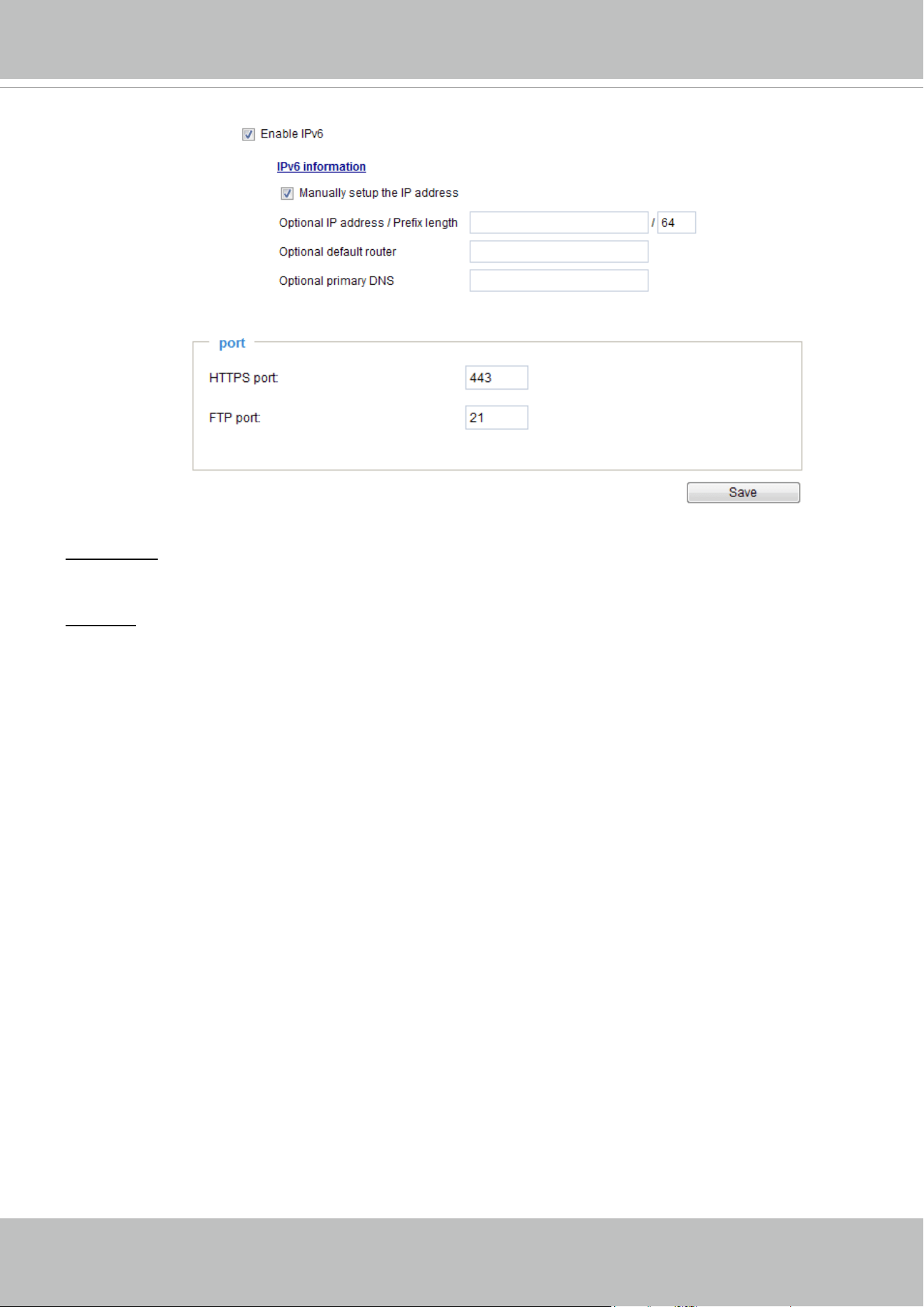

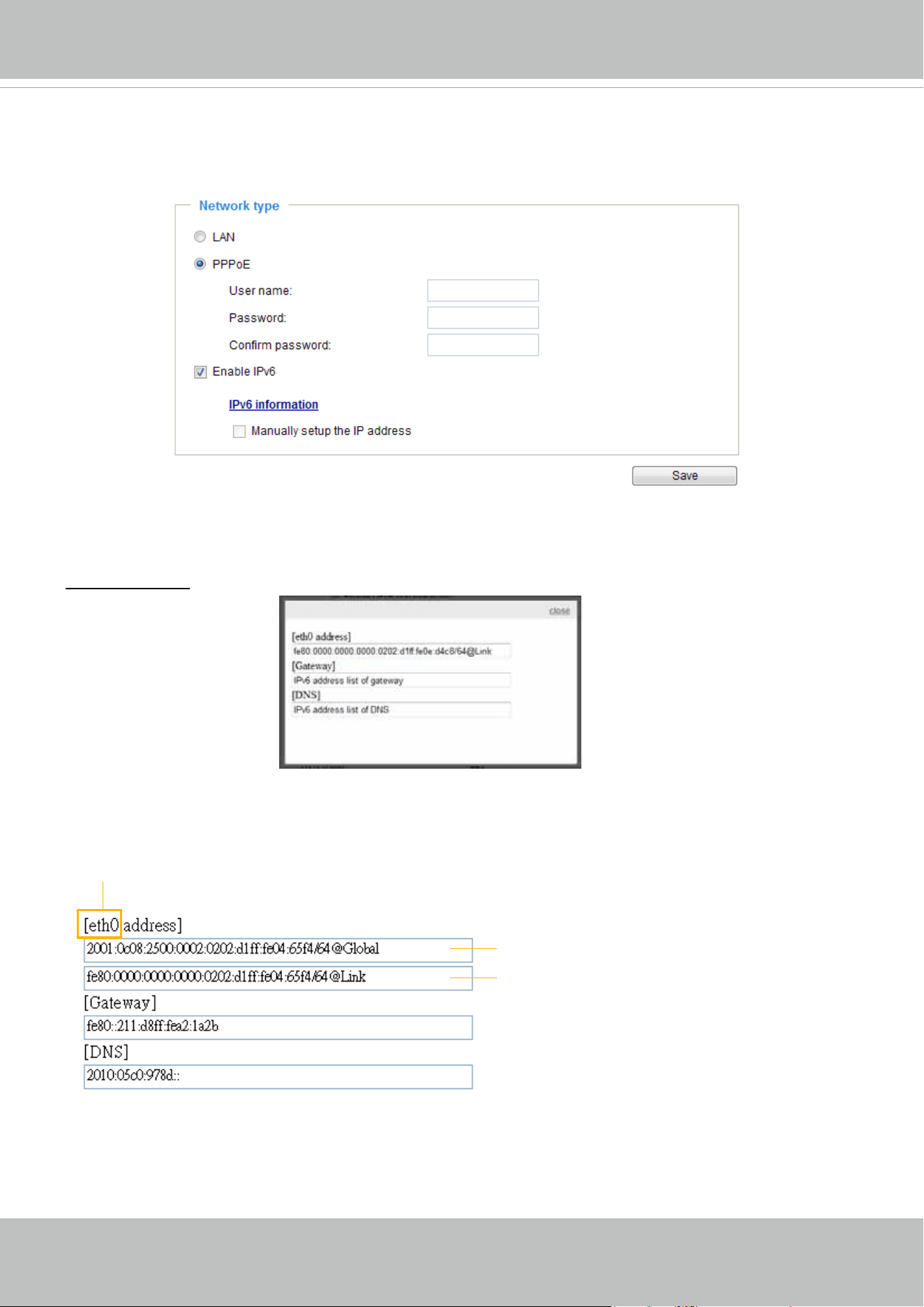

Enable IPv6
Select the Enable IPv6 checkbox and click Save to enable IPv6 settings.
Please note that this only works if your network environment and hardware equipment support IPv6. The
browser should be Microsoft
®
Internet Explorer 7 or 8, Mozilla Firefox 13.0 or above.
When IPv6 is enabled, by default, the network camera will listen to router advertisements and be
assigned with a link-local IPv6 address accordingly.
IPv6 Information: Click this button to obtain the IPv6 information as shown below.
If your IPv6 settings are successful, the IPv6 address list will be listed in the pop-up window. The IPv6
address will be displayed as follows:
Link-global IPv6 address/network mask
Link-local IPv6 address/network mask
Refers to Ethernet
VIVOTEK
50 - User's Manual
Please follow the steps below to link to an IPv6 address:
1. Open your web browser.
2. Enter the link-global or link-local IPv6 address in the address bar of your web browser.
3. The format should be:
4. Press Enter on the keyboard or click Refresh button to refresh the webpage.
For example:
► If you have a Secondary HTTP port (the default value is 8080), you can also link to the webpage using
the following address format: (Please refer to HTTP streaming on page 52 for detailed information.)
► If you choose PPPoE as the Network Type, the [
PPP0 address] will be displayed in the IPv6
information column as shown below.
Manually setup the IP address: Select this option to manually configure IPv6 settings if your network
environment does not have DHCPv6 server and router advertisements-enabled routers. If you check this
item, the following blanks will be displayed for you to enter the corresponding information:
http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/
IPv6 address
http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/:8080
IPv6 address
Secondary HTTP port
NOTE:
VIVOTEK
User's Manual - 51
Port
HTTPS port: By default, the HTTPS port is set to 443. It can also be assigned to another port number
between 1025 and 65535.
FTP port: The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK's
Installation Wizard 2 to upgrade the rmware via FTP server. By default, the FTP port is set to 21. It also
can be assigned to another port number between 1025 and 65535.
VIVOTEK
52 - User's Manual

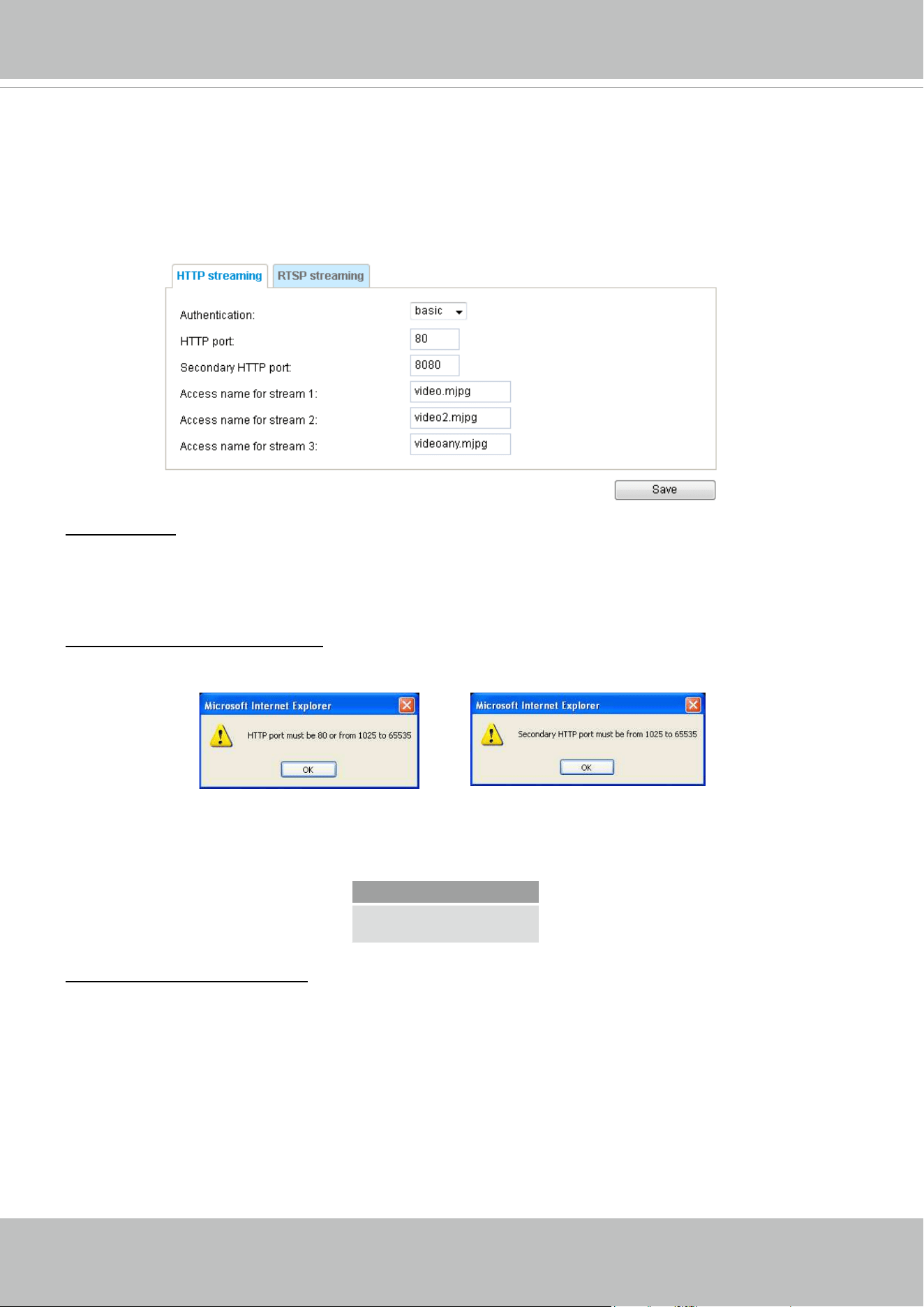

Network > Streaming protocols
HTTP streaming
To utilize HTTP authentication, make sure that your have set a password for the Network Camera rst;
please refer to Security > User account on page 62 for details.
Authentication: Depending on your network security requirements, the Network Camera provides two
types of security settings for an HTTP transaction: basic and digest.
If
basic authentication is selected, the password is sent in plain text format and there can be potential
risks of being intercepted. If
digest authentication is selected, user credentials are encrypted using MD5
algorithm and thus provide better protection against unauthorized accesses.
HTTP port / Secondary HTTP port: By default, the HTTP port is set to 80 and the secondary HTTP port is
set to 8080. They can also be assigned to another port number between 1025 and 65535. If the ports are
incorrectly assigned, the following warning messages will be displayed:
To access the Network Camera on the LAN, both the HTTP port and secondary HTTP port can be used
to access the Network Camera. For example, when the HTTP port is set to 80 and the secondary HTTP
port is set to 8080, refer to the list below for the Network Camera’s IP address.
Access name for stream 1 ~ 3: This Network camera supports multiple streams simultaneously. The
access name is used to identify different video streams. Users can click Media > Video > Stream
settings to set up the video quality of linked streams. For more information about how to set up the video
quality, please refer to Stream settings on page 40.
When using Mozilla Firefox to access the Network Camera and the video mode is set to JPEG, users
will receive video comprised of continuous JPEG images. This technology, known as “server push”,
allows the Network Camera to feed live pictures to Mozilla Firefox.
On the LAN
http://192.168.4.160 or
http://192.168.4.160:8080
VIVOTEK
User's Manual - 53

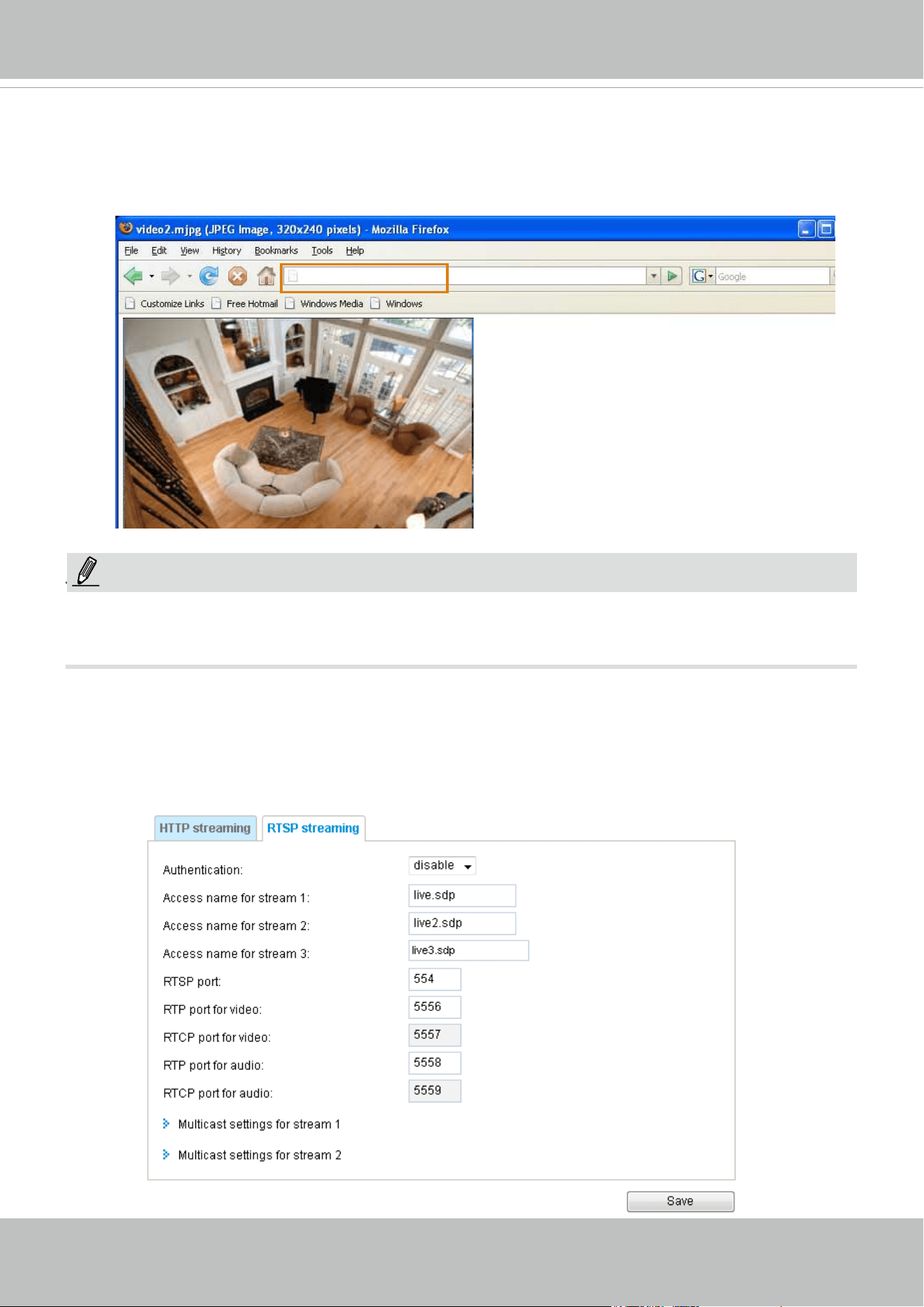

URL command -- http://<ip address>:<http port>/<access name for stream 1~3>
For example, when the Access name for stream 2 is set to video2.mjpg:
1. Launch Mozilla Firefox or Netscape.
2. Type the above URL command in the address bar. Press Enter.
3. The JPEG images will be displayed in your web browser.
NOTE
► Microsoft
®
Internet Explorer does not support server push technology; therefore, you will not be able
to access a video stream using
http://<ip address>:<http port>/<access name for stream 1~3> .
RTSP Streaming
To utilize RTSP streaming authentication, make sure that you have set a password for controlling the
access to video stream rst. Please refer to Security > User account on page 62 for details.
http://192.168.5.151/video2.mjpg
NOTE:
VIVOTEK
54 - User's Manual
Authentication: Depending on your network security requirements, the Network Camera provides three
types of security settings for streaming via RTSP protocol: disable, basic, and digest.
If basic authentication is selected, the password is sent in plain text format, but there can be potential
risks of it being intercepted. If
digest authentication is selected, user credentials are encrypted using
MD5 algorithm, thus providing better protection against unauthorized access.
The availability of the RTSP streaming for the three authentication modes is listed below:
Access name for stream 1 ~ 3: This Network camera supports multiple streams simultaneously. The
access name is used to differentiate the streaming source.
If you want to use an
RTSP player to access the Network Camera, you have to set the video mode to
H.264 and use the following RTSP URL command to request transmission of the streaming data.
rtsp://<ip address>:<rtsp port>/<access name for stream 1 to 3>
For example, when the access name for stream 1 is set to live.sdp:
1. Launch an RTSP player.
2. Choose File > Open URL. A URL dialog box will pop up.
3. Type the above URL command in the text box.
4. The live video will be displayed in your player as shown
below.
RTSP port /RTP port for video and RTCP port for video
■ RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default, the port
number is set to 554.
■ The RTP (Real-time Transport Protocol) is used to deliver video data to the clients. By default, the RTP
port for video is set to 5556.
■ The RTCP (Real-time Transport Control Protocol) allows the Network Camera to transmit the data by
monitoring the Internet trafc volume. By default, the RTCP port for video is set to 5557.
The ports can be changed to values between 1025 and 65535. The RTP port must be an even number
and the RTCP port is the RTP port number plus one, and thus is always an odd number. When the RTP
port changes, the RTCP port will change accordingly.
If the RTP ports are incorrectly assigned, the following warning message will be displayed:
rtsp://192.168.5.151:554/live.sdp
Quick Time player VLC
Disable O O
Basic O O
Digest O X
Video 16:38:01 2013/02/25
VIVOTEK
User's Manual - 55
Multicast settings for stream 1 ~ 3: Click the items to display the detailed configuration information.
Select the Always multicast option to enable multicast for stream 1 ~ 3.
Unicast video transmission delivers a stream through point-to-point transmission; multicast, on the other
hand, sends a stream to the multicast group address and allows multiple clients to acquire the stream at
the same time by requesting a copy from the multicast group address. Therefore, enabling multicast can
effectively save Internet bandwith.
The ports can be changed to values between 1025 and 65535. The multicast RTP port must be an even
number and the multicast RTCP port number is the multicast RTP port number plus one, and thus is
always odd. When the multicast RTP port changes, the multicast RTCP port will change accordingly.
If the multicast RTP video ports are incorrectly assigned, the following warning message will be
displayed:
Multicast TTL [1~255]: The multicast TTL (Time To Live) is the value that tells the router the range a
packet can be forwarded.
Initial TTL Scope
0 Restricted to the same host
1 Restricted to the same subnetwork
32 Restricted to the same site
64 Restricted to the same region
128 Restricted to the same continent
255 Unrestricted in scope
VIVOTEK
56 - User's Manual
Network > DDNS
This section explains how to configure the dynamic domain name service for the Network
Camera. DDNS is a service that allows your Network Camera, especially when assigned with a
dynamic IP address, to have a xed host and domain name.
Express link
Express Link is a free service provided by VIVOTEK server, which allows users to register a
domain name for a network device. One URL can only be mapped to one MAC address. This
service will examine if the host name is valid and automatically open a port on your router. If
using DDNS, the user has to manually congure UPnP port forwarding. Express Link is more
convenient and easier to set up.
Please follow the steps below to enable Express Link:
1. Make sure that your router supports UPnP port forwarding and it is activated.
2. Check Enable express link.
3. Enter a host name for the network device and click Save. If the host name has been used by
another device, a warning message will show up. If the host name is valid, it will display a
message as shown below.
https://0002D1123456.2bthere.net
VIVOTEK
User's Manual - 57

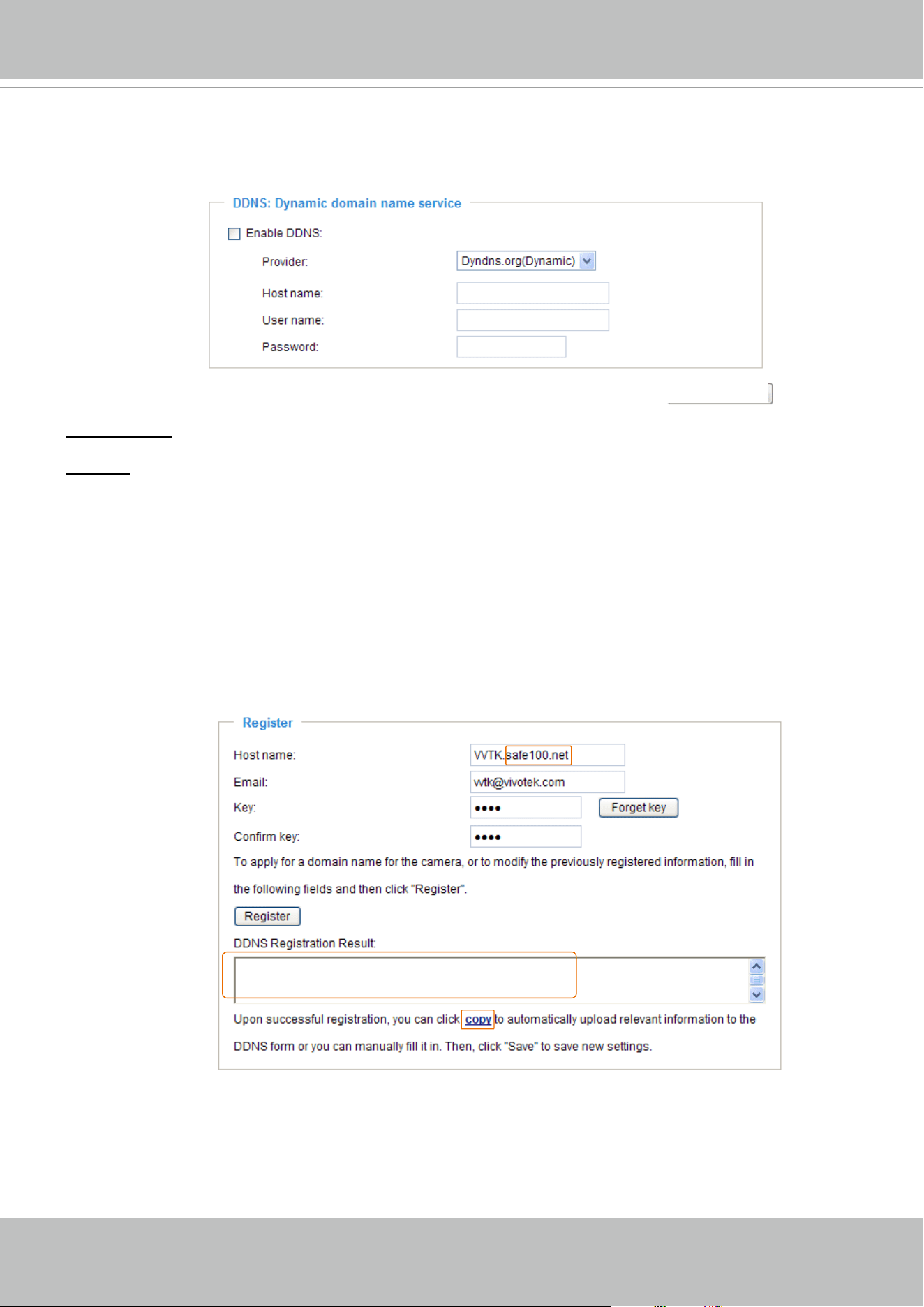

Manual setup
DDNS: Dynamic domain name service
Enable DDNS: Select this option to enable the DDNS setting.
Provider: Select a DDNS provider from the provider drop-down list.
VIVOTEK offers
Safe100.net, a free dynamic domain name service, to VIVOTEK customers. It is
recommended that you register
Safe100.net to access VIVOTEK’s Network Cameras from the Internet.
Additionally, we offer other DDNS providers, such as Dyndns.org(Dynamic), Dyndns.org(Custom), TZO.
com, DHS.org, CustomSafe100, dyn-interfree.it.
Note that before utilizing this function, please apply for a dynamic domain account rst.
■
Safe100.net
1. In the DDNS column, select Safe100.net from the drop-down list. Click I accept after reviewing the
terms of the Service Agreement.
2. In the Register column, ll in the Host name (xxxx.safe100.net), Email, Key, and Conrm Key, and
click Register. After a host name has been successfully created, a success message will be displayed
in the DDNS Registration Result column.
3. Click Copy and all the registered information will automatically be uploaded to the corresponding elds
in the DDNS column at the top of the page as seen in the picture.
[Register] Successfully Your account information has
been mailed to registered e-mail address
VIVOTEK
58 - User's Manual
[Register] Successfully Your account information has
been mailed to registered e-mail address
4. Select Enable DDNS and click Save to enable the setting.
■
CustomSafe100
VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system
integrators. You can use CustomSafe100 to register a dynamic domain name if your distributor or system
integrators offer such services.
1. In the DDNS column, select CustomSafe100 from the drop-down list.
2. In the Register column, ll in the Host name, Email, Key, and Conrm Key; then click Register. After a
host name has been successfully created, you will see a success message in the DDNS Registration
Result column.
3. Click Copy and all for the registered information will be uploaded to the corresponding elds in the
DDNS column.
4. Select Enable DDNS and click Save to enable the setting.
Forget key: Click this button if you have forgotten the key to Safe100.net or CustomSafe100. Your
account information will be sent to your email address.
Refer to the following links to apply for a dynamic domain account when selecting other DDNS
providers:
■
Dyndns.org(Dynamic) / Dyndns.org(Custom): visit http://www.dyndns.com/
■ dyn-interfree.it: visit http://dyn-interfree.it/
VIVOTEK
User's Manual - 59
Network > QoS (Quality of Service)
Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality
to different services on the network. Quality of service guarantees are important if the network capacity
is insufcient, especially for real-time streaming multimedia applications. Quality can be dened as, for
instance, a maintained level of bit rate, low latency, no packet dropping, etc.
The following are the main benets of a QoS-aware network:
■
The ability to prioritize trafc and guarantee a certain level of performance to the data ow.
■
The ability to control the amount of bandwidth each application may use, and thus provide higher
reliability and stability on the network.
Requirements for QoS
To utilize QoS in a network environment, the following requirements must be met:
■
All network switches and routers in the network must include support for QoS.
■
The network video devices used in the network must be QoS-enabled.
QoS models
CoS (the VLAN 802.1p model)
IEEE802.1p defines a QoS model at OSI Layer 2 (Data Link Layer), which is called CoS, Class of
Service. It adds a 3-bit value to the VLAN MAC header, which indicates the frame priority level from 0
(lowest) to 7 (highest). The priority is set up on the network switches, which then use different queuing
disciplines to forward the packets.

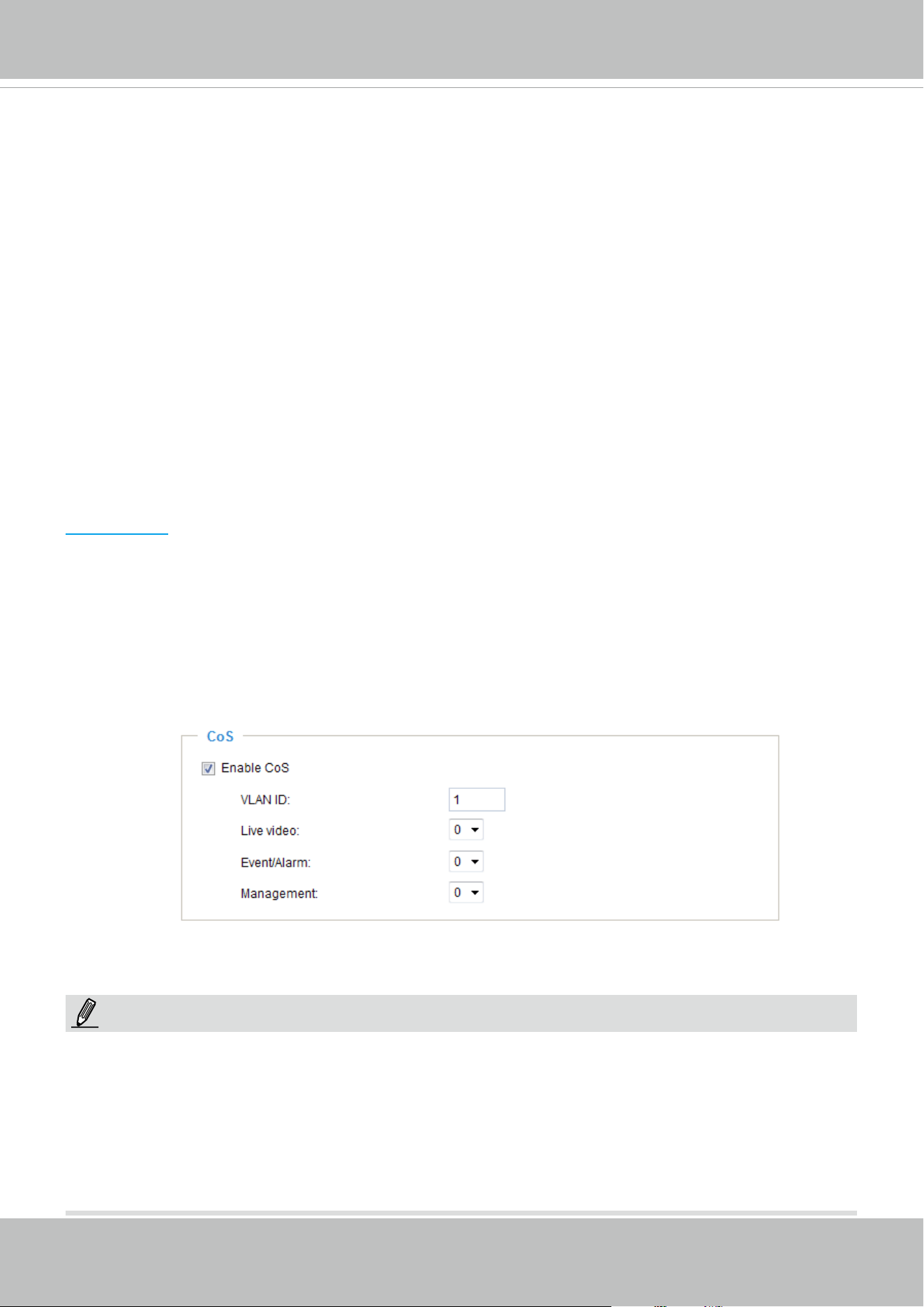

Below is the setting column for CoS. Enter the VLAN ID of your switch (0~4095) and choose the priority
for each application (0~7).
If you assign Video the highest level, the switch will handle video packets rst.
► A VLAN Switch (802.1p) is required. Web browsing may fail if the CoS setting is incorrect.
►The Class of Service technologies do not guarantee a level of service in terms of bandwidth and
delivery time; they offer a "best-effort." Users can think of CoS as "coarsely-grained" trafc control and
QoS as "nely-grained" trafc control.
► Although CoS is simple to manage, it lacks scalability and does not offer end-to-end guarantees since
it is based on L2 protocol.
NOTE:
VIVOTEK
60 - User's Manual
QoS/DSCP (the DiffServ model)
DSCP-ECN defines QoS at Layer 3 (Network Layer). The Differentiated Services (DiffServ) model is
based on packet marking and router queuing disciplines. The marking is done by adding a eld to the
IP header, called the DSCP (Differentiated Services Codepoint). This is a 6-bit field that provides 64
different class IDs. It gives an indication of how a given packet is to be forwarded, known as the Per Hop
Behavior (PHB). The PHB describes a particular service level in terms of bandwidth, queueing theory,
and dropping (discarding the packet) decisions. Routers at each network node classify packets according
to their DSCP value and give them a particular forwarding treatment; for example, how much bandwidth
to reserve for it.

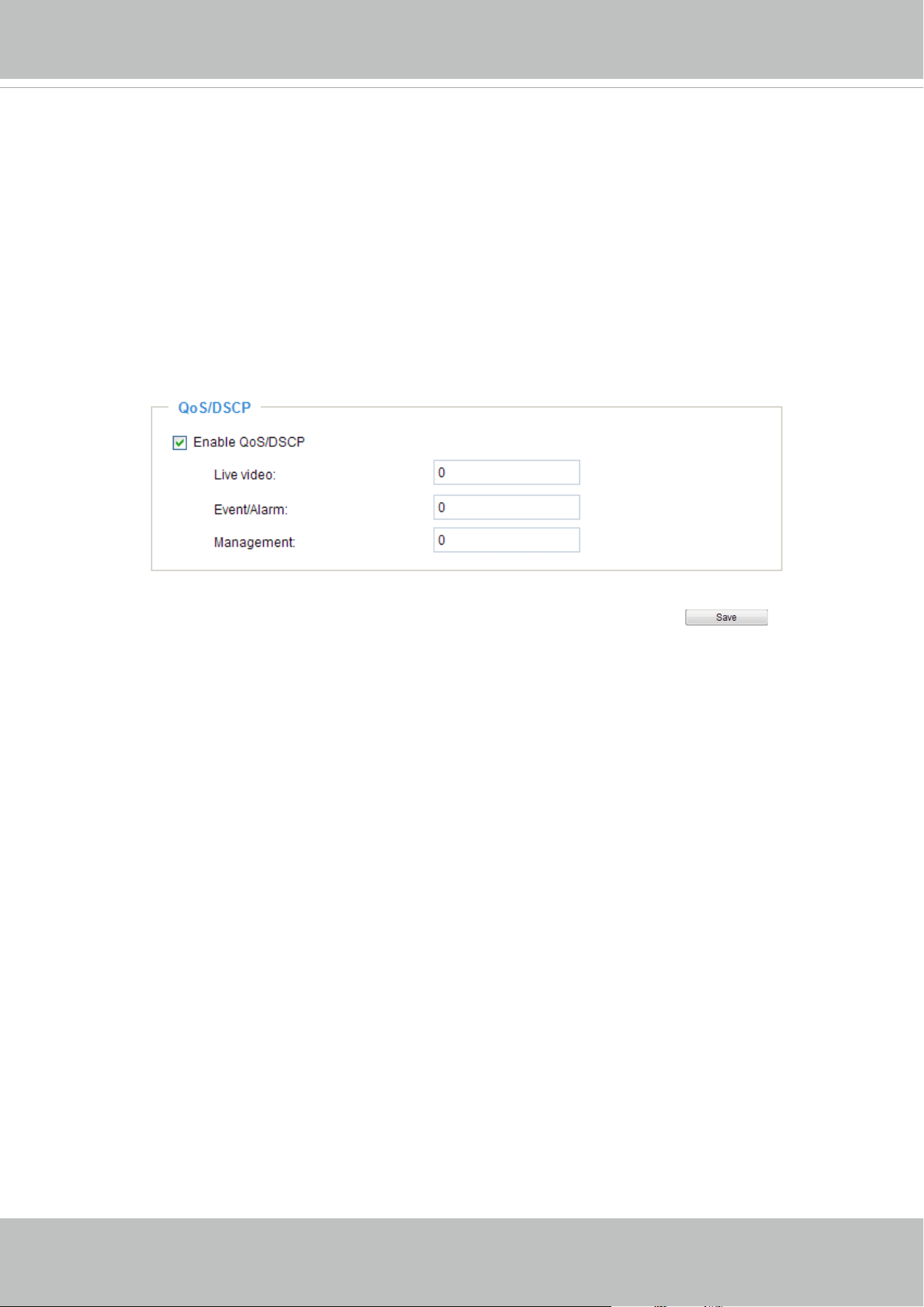

Below are the setting options of DSCP (DiffServ Codepoint). Specify the DSCP value for each application
(0~63).
VIVOTEK
User's Manual - 61
Network > SNMP
(Simple Network Management Protocol)
This section explains how to use the SNMP on the network camera. The Simple Network
Management Protocol is an application layer protocol that facilitates the exchange of
management information between network devices. It helps network administrators to remotely
manage network devices and nd, solve network problems with ease.
■ The SNMP consists of the following three key components:
1. Manager: Network-management station (NMS), a server which executes applications that monitor and
control managed devices.
2. Agent: A network-management software module on a managed device which transfers the status of
managed devices to the NMS.
3. Managed device: A network node on a managed network. For example: routers, switches, bridges,
hubs, computer hosts, printers, IP telephones, network cameras, web server, and database.
Before conguring SNMP settings on the this page, please enable your NMS rst.

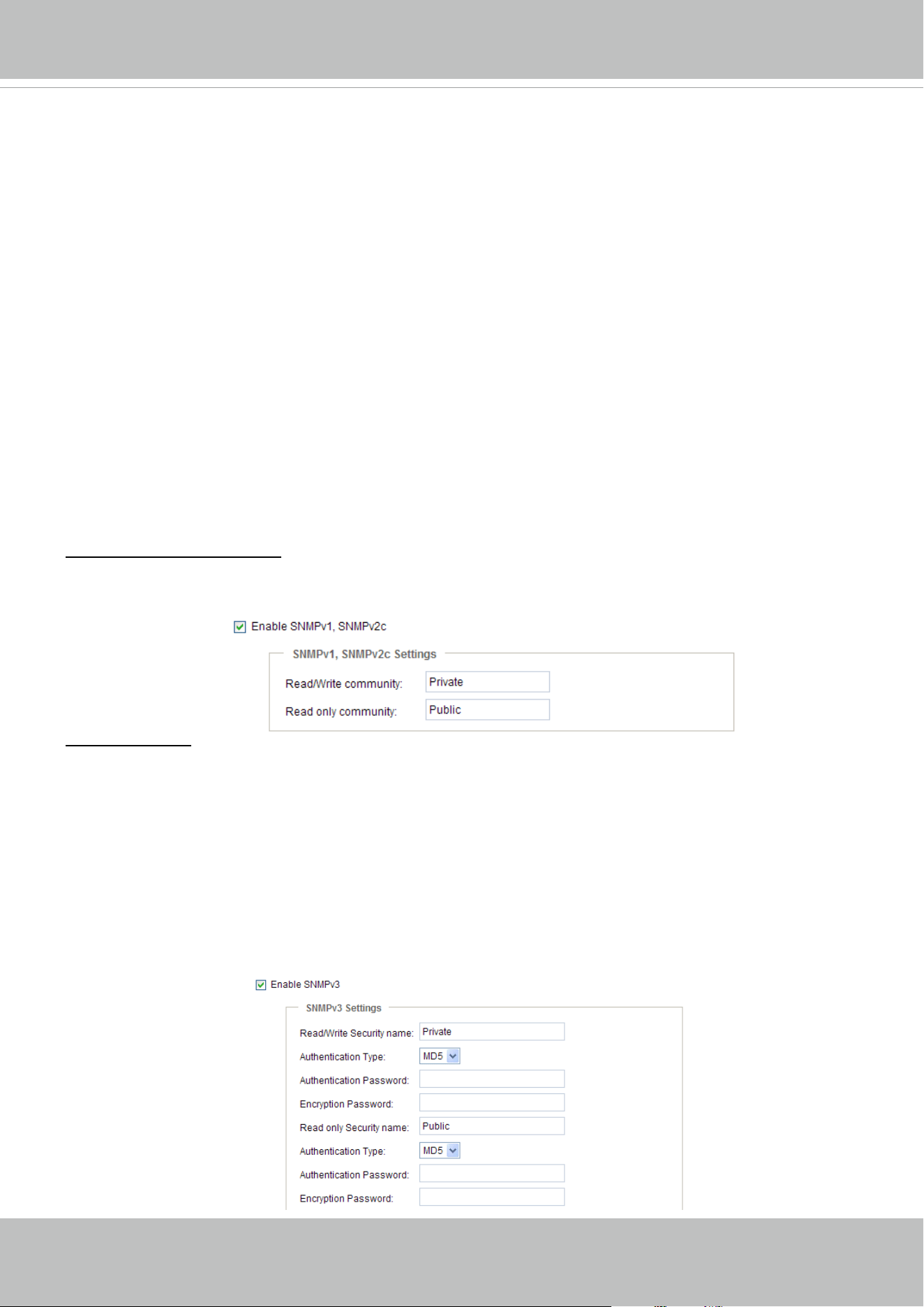

SNMP Conguration
Enable SNMPv1, SNMPv2c
Select this option and enter the names of Read/Write community and Read Only community according to
your NMS settings.
Enable SNMPv3
This option contains cryptographic security, a higher security level, which allows you to set the
Authentication password and the Encryption password.
■ Security name: According to your NMS settings, choose Read/Write or Read Only and enter the
community name.
■ Authentication type: Select MD5 or SHA as the authentication method.
■ Authentication password: Enter the password for authentication (at least 8 characters).
■ Encryption password: Enter a password for encryption (at least 8 characters).
VIVOTEK
62 - User's Manual

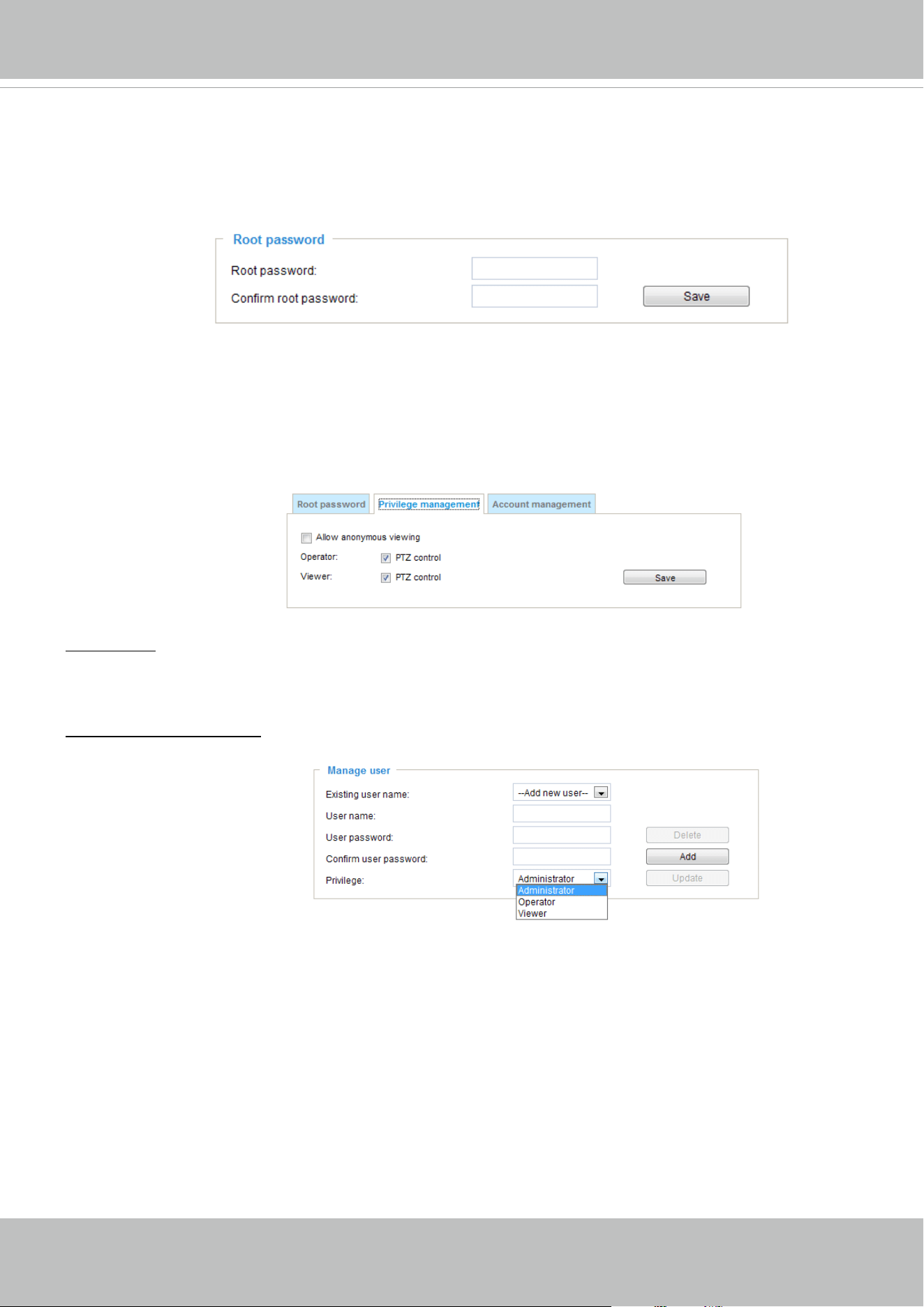

Security > User accounts
This section explains how to enable password protection and create multiple accounts.
Root Password
The administrator account name is “root”, which is permanent and can not be deleted. If you want to add
more accounts in the Manage User column, please apply the password for the “root” account rst.
1. Type the password identically in both text boxes, then click Save to enable password protection.
2. A window will be prompted for authentication; type the correct user’s name and password in their
respective elds to access the Network Camera.
Privilege Management
PTZ control: You can modify the management privilege for operators or viewers. Select or deselect the
checkboxes, then click Save to enable the settings. If you give Viewers the privilege, Operators will also
have the ability to control the Network Camera through the main page. (Please refer to Conguration on
page 25).
Allow anonymous viewing: If you check this item, any client can access the live stream without entering a
User ID and Password.
Account Management
Administrators can create up to 20 user accounts.
1. Input the new user’s name and password.
2. Select the privilege level for the new user account. Click Add to enable the setting.
Access rights are sorted by user privilege (Administrator, Operator, and Viewer). Only administrators
can access the Conguration page. Although operators cannot access the Conguration page, they can
use the URL Commands to get and set the value of parameters. For more information, please refer to
URL Commands of the Network Camera on page 103. Viewers can only access the main page for live
viewing.
Here you also can change a user’s access rights or delete user accounts.
1. Select an existing account to modify.
2. Make necessary changes and click Update or Delete to enable the setting.
VIVOTEK
User's Manual - 63
Security > HTTPS
(Hypertext Transfer Protocol over SSL)
This section explains how to enable authentication and encrypted communication over SSL
(Secure Socket Layer). It helps protect streaming data transmission over the Internet on higher
security level.
Create and Install Certicate Method
Before using HTTPS for communication with the Network Camera, a Certicate must be created rst.
There are three ways to create and install a certicate:
Create self-signed certificate
1. Select this option from a pull-down menu.
2. In the rst column, select Enable HTTPS secure connection, then select a connection option: “HTTP
& HTTPS” or “HTTPS only”.
3. Click Create certicate to generate a certicate.
4. The Certicate Information will automatically be displayed as shown below. You can click Certicate
properties to view detailed information about the certicate.
VIVOTEK
64 - User's Manual
5. Click Save to preserve your conguration, and your current session with the camera will change to the
encrypted connection.
6. If your web session does not automatically change to an encrypted HTTPS session, click Home to re-
turn to the main page. Change the URL address from “
http://” to “https://“ in the address bar and press
Enter on your keyboard. Some Security Alert dialogs will pop up. Click OK or Yes to enable HTTPS.
https://192.168.5.151/index.html
https://
VIVOTEK
User's Manual - 65

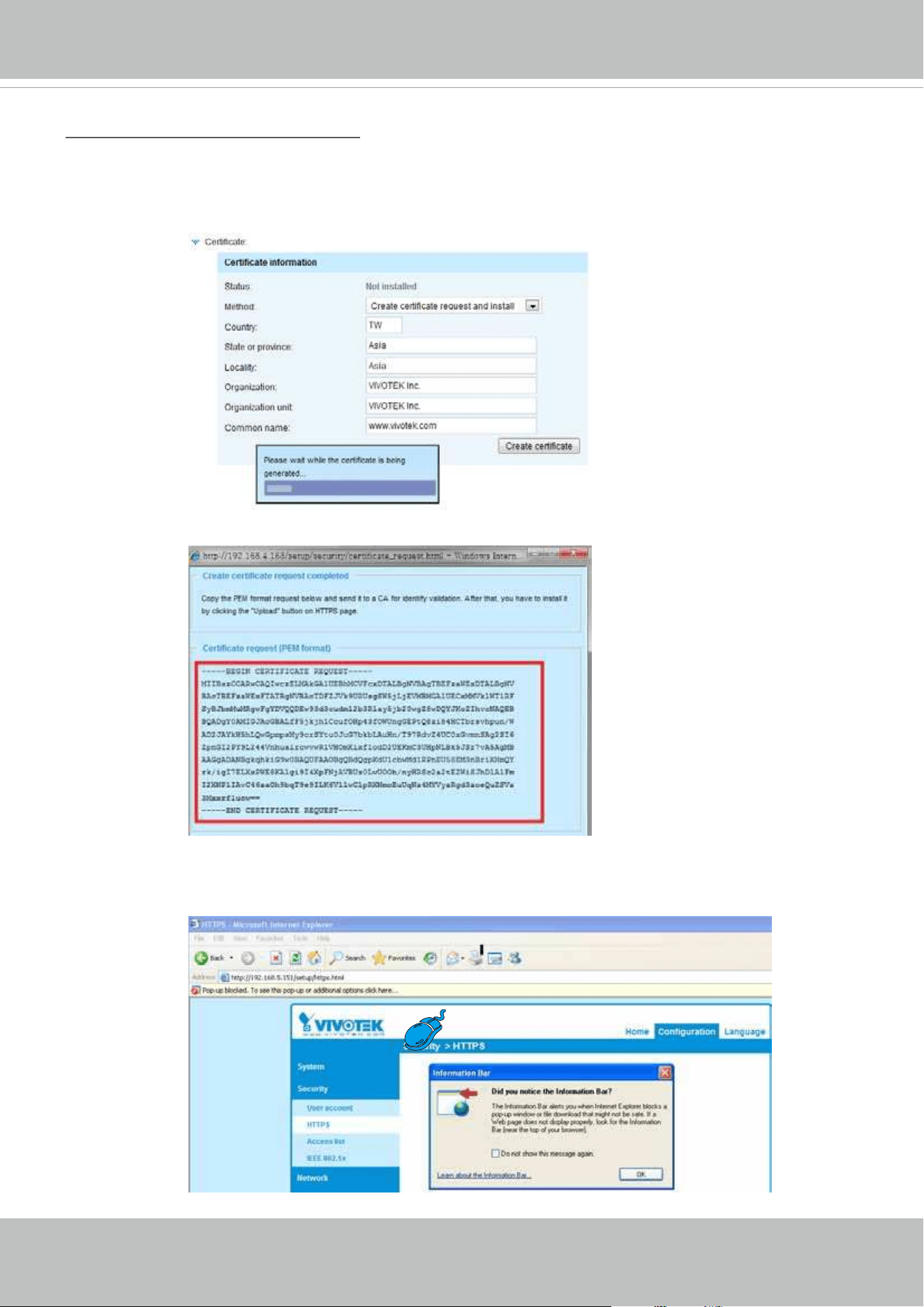

Create certificate request and install
1. Select the option from the Method pull-down menu.
2. Click Create certicate to proceed.
3. The following information will show up in a pop-up window after clicking Create. Then click Save to
generate the certicate request.
4. The Certicate request window will prompt.
If you see the following Information bar, click OK and click on the Information bar at the top of the page
to allow pop-ups.
VIVOTEK
66 - User's Manual
5. Look for a trusted certificate authority, such as Symantec’s VeriSign Authentication Services, that
issues digital certificates. Sign in and purchase the SSL certification service. Copy the certificate
request from your request prompt and paste it in the CA’s signing request window. Proceed with the
rest of the process as CA’s instructions on their webpage.
6. Once completed, your SSL certicate should be delivered to you via an email or other means. Copy
the contents of the certicate in the email and paste it in a text/HTML/hex editor/converter, such as
IDM Computer Solutions’ UltraEdit.
VIVOTEK
User's Manual - 67

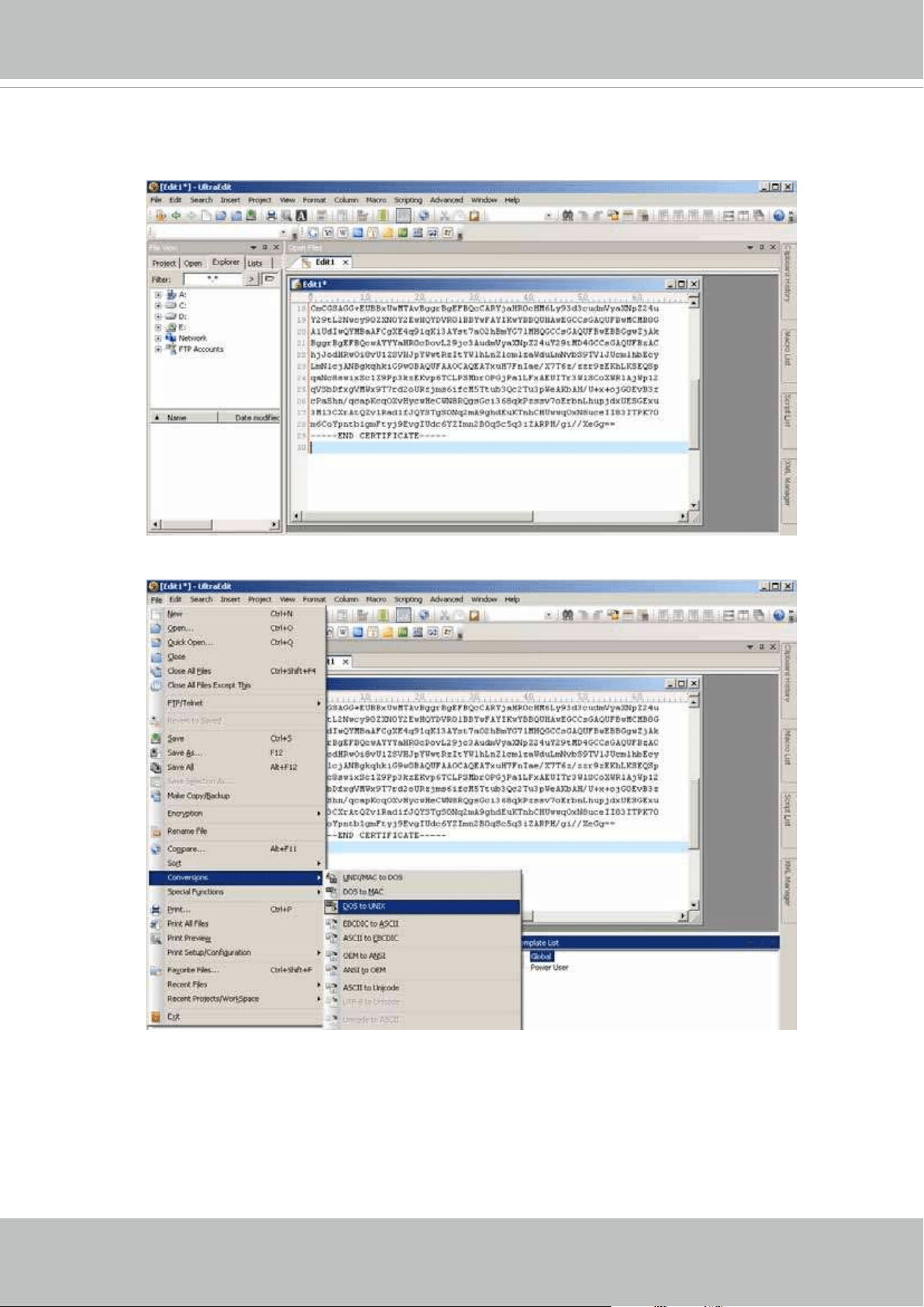

7. Open a new edit, paste the certicate contents, and press ENTER at the end of the contents to add an
empty line.
8. Convert le format from DOS to UNIX. Open File menu > Conversions > DOS to Unix.
VIVOTEK
68 - User's Manual
9. Save the edit using the “.crt” extension, using a le name like “CAcert.crt.”
10. Return to the original rmware session, use the Browse button to locate the crt certicate le, and
click Upload to enable the certication.
VIVOTEK
User's Manual - 69

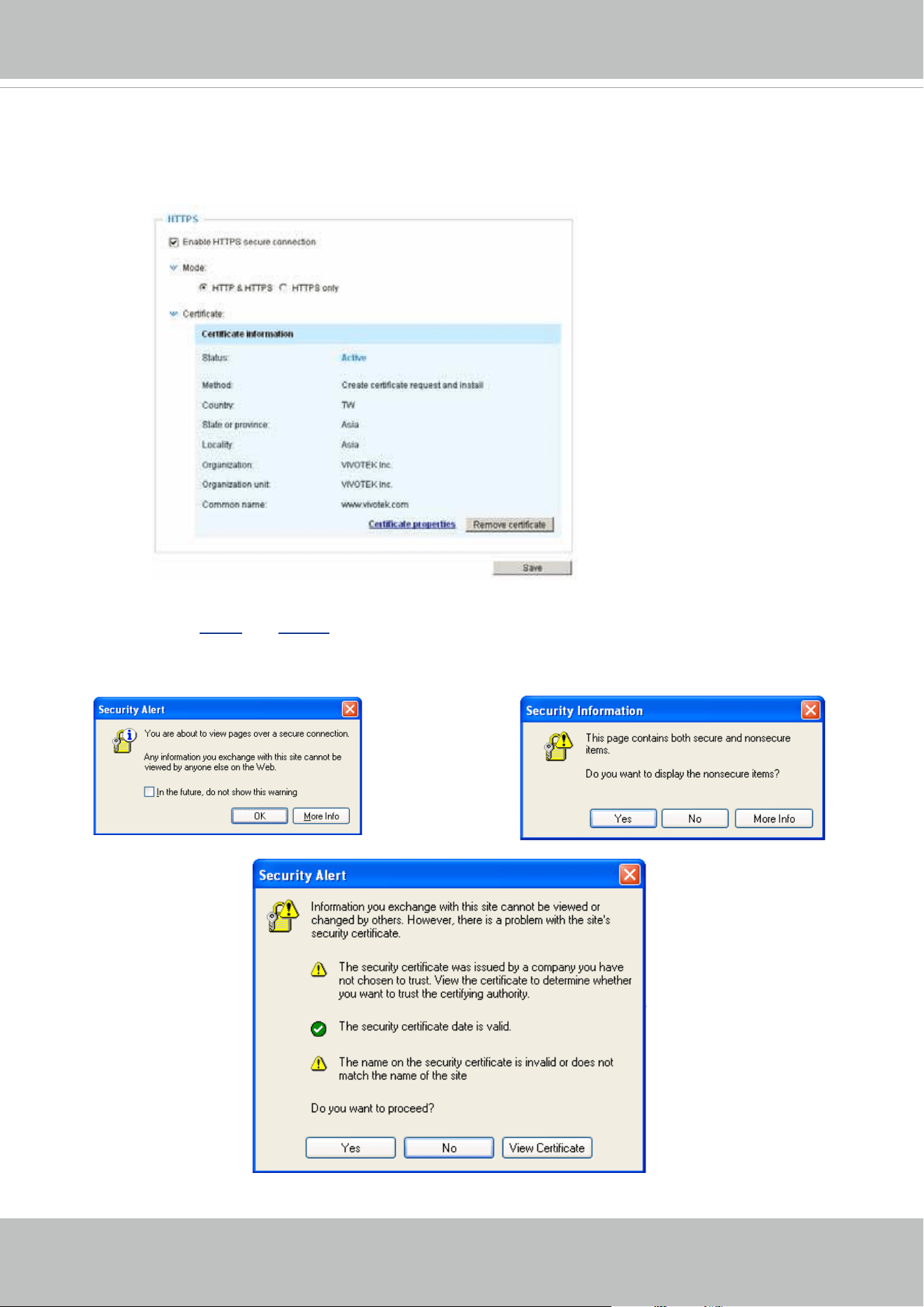

11. When the certifice file is successfully loaded, its status will be stated as Active.
Note that a
certicate must have been created and installed before you can click on the “Save" button
for the conguration to take effect.
12.To begin an encrypted HTTPS session, click Home to return to the main page. Change the URL
address from “
http://” to “https://“ in the address bar and press Enter on your keyboard. Some Se-
curity Alert dialogs will pop up. Click OK or Yes to enable HTTPS.
VIVOTEK
70 - User's Manual

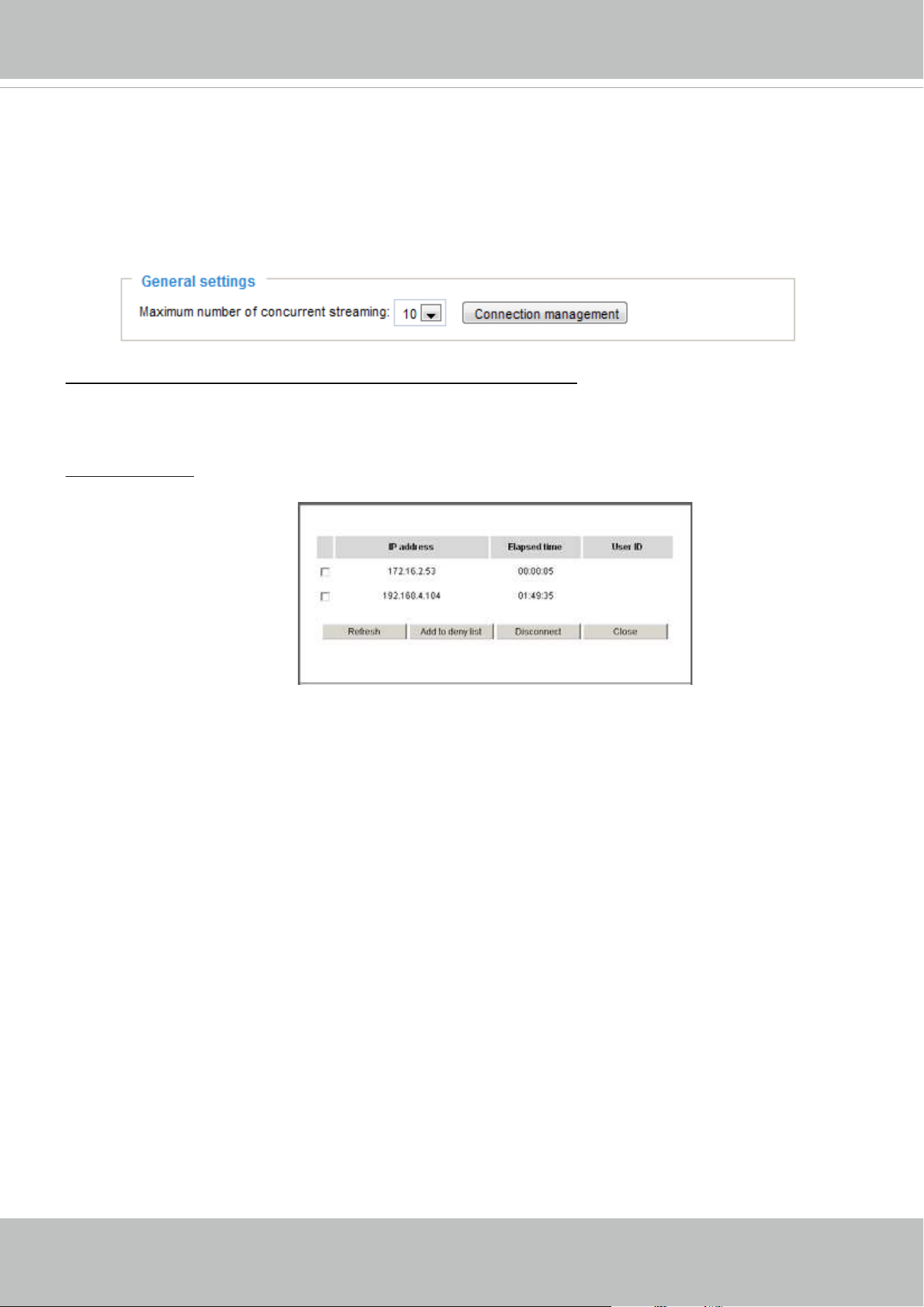

Security > Access List
This section explains how to control access permission by verifying the client PCs’ IP addresses.
General Settings
Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1~10
clients (including stream 1 to stream 3). The default value is 10. If you modify the value and click Save,
all current connections will be disconnected and automatically attempt to re-link (IE Explorer or Quick
Time Player).
View Information: Click this button to display the connection status window showing a list of the current
connections. For example:
Note that only consoles that are currently displaying live streaming will be listed in the View Information
list.
■ IP address: Current connections to the Network Camera.
■ Elapsed time: How much time the client has been at the webpage.
■ User ID: If the administrator has set a password for the webpage, the clients have to enter a user name
and password to access the live video. The user name will be displayed in the User ID column. If the
administrator allows clients to link to the webpage without a user name and password, the User ID
column will be empty.
There are some situations that allow clients access to the live video without a user name and
password:
1. The administrator does not set up a root password. For more information about how to set up a root
password and manage user accounts, please refer to Security > User account on page 62.
2. The administrator has set up a root password, but set RTSP Authentication to “disable“. For more
information about RTSP Authentication, please refer to RTSP Streaming on page 53.
3. The administrator has set up a root password, but allows anonymous viewing. For more information
about Allow Anonymous Viewing, please refer to page 62.
VIVOTEK
User's Manual - 71
■ Refresh: Click this button to refresh all current connections.
■ Add to deny list: You can select entries from the Connection Status list and add them to the Deny List
to deny access. Please note that those checked connections will only be disconnected temporarily
and will automatically try to re-link again (IE Explore or Quick Time Player). If you want to enable the
denied list, please check Enable access list ltering and click Save in the rst column.
■ Disconnect: If you want to break off the current connections, please select them and click this
button. Please note that those checked connections will only be disconnected temporarily and will
automatically try to re-link again (IE Explore or Quick Time Player).
Filter
Enable access list ltering: Check this item and click Save if you want to enable the access list ltering
function.
Filter type: Select Allow or Deny as the lter type. If you choose Allow Type, only those clients whose
IP addresses are on the Access List below can access the Network Camera, and the others cannot. On
the contrary, if you choose Deny Type, those clients whose IP addresses are on the Access List below
will not be allowed to access the Network Camera, and the others can.
Then you can Add a rule to the following Access List. Please note that the IPv6 access list column
will not be displayed unless you enable IPv6 on the Network page. For more information about IPv6
Settings, please refer to Network > General settings on page 49 for detailed information.
VIVOTEK
72 - User's Manual

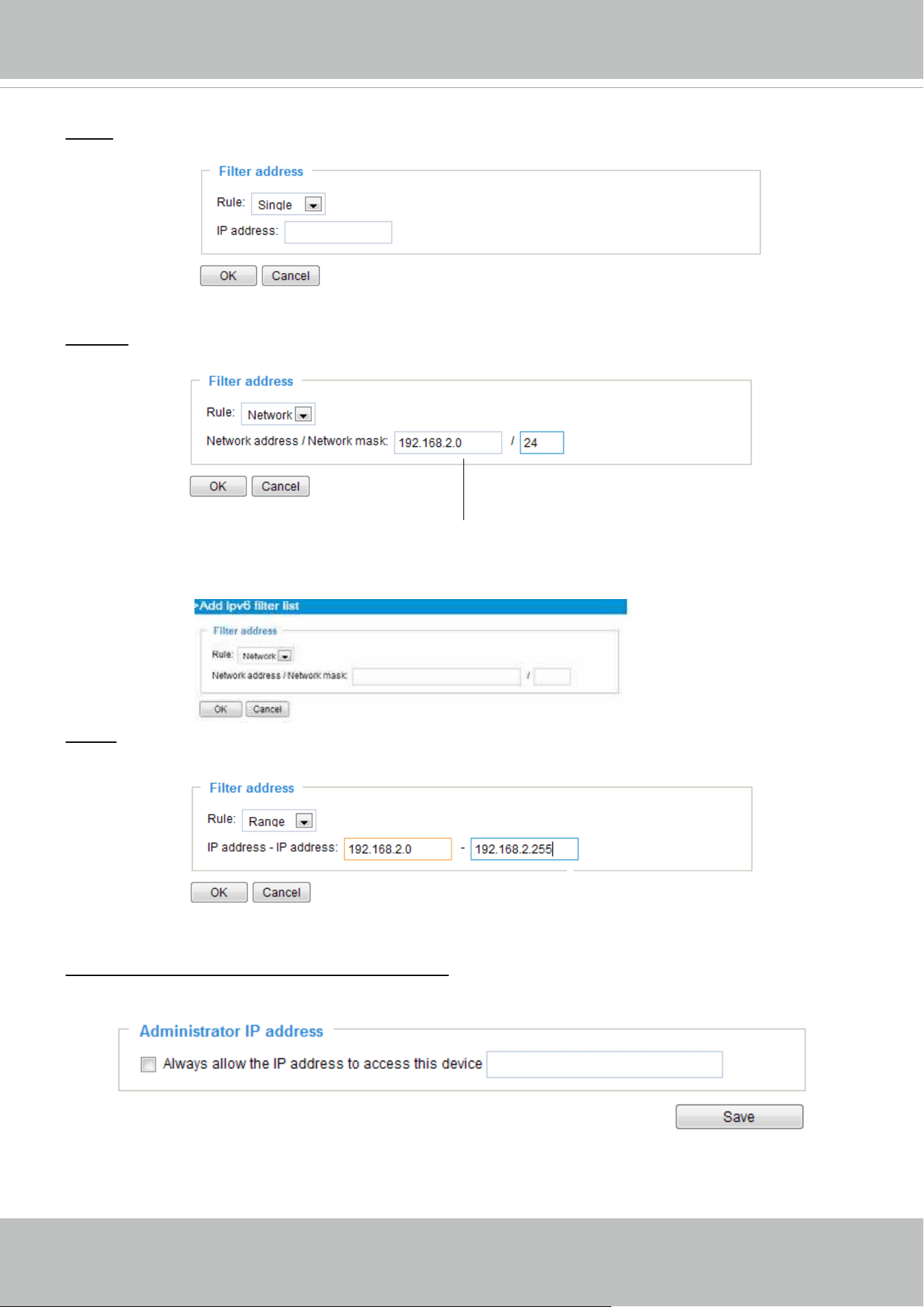

Network: This rule allows the user to assign a network address and corresponding subnet mask to the
Allow/Deny List. The address and network mask are written in CIDR format.
For example:
Range: This rule allows the user to assign a range of IP addresses to the Allow/Deny List.
Note: This rule only applies to IPv4 addresses.
For example:
Administrator IP address
Always allow the IP address to access this device: You can check this item and add the Administrator’s
IP address in this eld to make sure the Administrator can always connect to the device.
IP address range 192.168.2.x will be bolcked.
There are three types of rules:
Single: This rule allows the user to add an IP address to the Allowed/Denied list.
For example:
192.168.2.1
If IPv6 lter is preferred, you will be prompted by the following window. Enter the IPv6 address and
the two-digit prex length to specify the range of IP addresses in your conguration.
VIVOTEK
User's Manual - 73

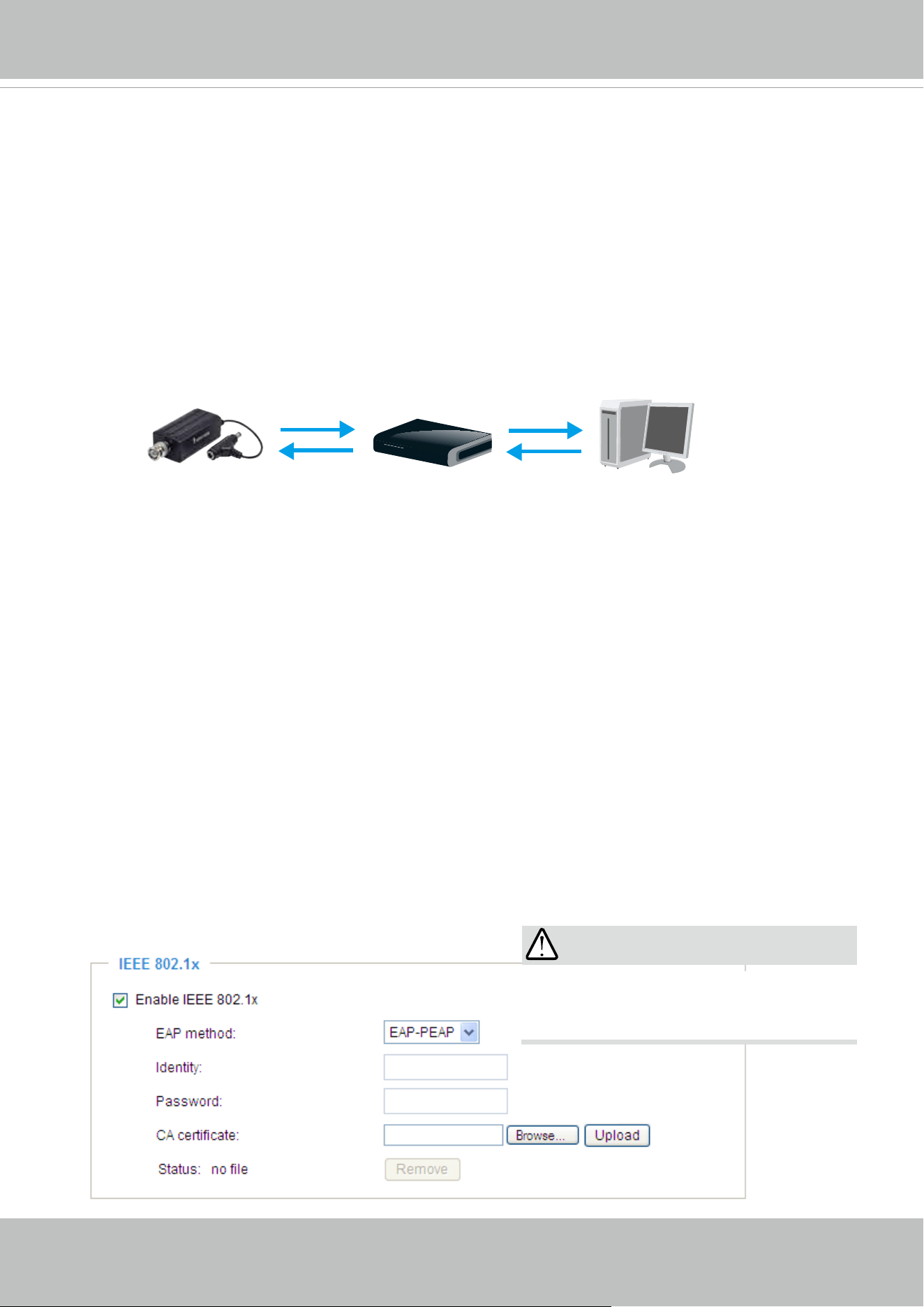

Security > IEEE 802.1X
Enable this function if your network environment uses IEEE 802.1x, which is a port-based network
access control. The network devices, intermediary switch/access point/hub, and RADIUS server must
support and enable 802.1x settings.
The 802.1x standard is designed to enhance the security of local area networks, which provides
authentication to network devices (clients) attached to a network port (wired or wireless). If all certicates
between client and server are veried, a point-to-point connection will be enabled; if authentication fails,
access on that port will be prohibited. 802.1x utilizes an existing protocol, the Extensible Authentication
Protocol (EAP), to facilitate communication.
■
The components of a protected network with 802.1x authentication:
1.
Supplicant: A client end user (camera), which requests authentication.
2.
Authenticator (an access point or a switch): A “go between” which restricts unauthorized end users
from communicating with the authentication server.
3.
Authentication server (usually a RADIUS server): Checks the client certicate and decides whether to
accept the end user’s access request.
■
VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP-PEAP
and EAP-TLS.
Please follow the steps below to enable 802.1x settings:
1. Before connecting the Network Camera to the protected network with 802.1x, please apply a digital
certicate from a Certicate Authority (i.e., your network administrator) which can be validated by a
RADIUS server.
2. Connect the Network Camera to a PC or notebook outside of the protected LAN. Open the
conguration page of the Network Camera as shown below. Select EAP-PEAP or EAP-TLS as the
EAP method. In the following blanks, enter your ID and password issued by the CA, then upload
related certicate(s).
Supplicant
(Network Camera)
Authenticator
(Network Switch)
Authentication Server
(RADIUS Server)
IMPORTANT
The maximum length of password is 200
symbols.
VIVOTEK
74 - User's Manual
3. When all settings are complete, move the Network Camera to the protected LAN by connecting it to an
802.1x enabled switch. The devices will then start the authentication automatically.
► The authentication process for 802.1x:
1. The Certicate Authority (CA) provides the required signed certicates to the Network Camera (the
supplicant) and the RADIUS Server (the authentication server).
2. A Network Camera requests access to the protected LAN using 802.1X via a switch (the authenticator).
The client offers its identity and client certicate, which is then forwarded by the switch to the RADIUS
Server, which uses an algorithm to authenticate the Network Camera and returns an acceptance or
rejection back to the switch.
3. The switch also forwards the RADIUS Server’s certicate to the Network Camera.
4. Assuming all certificates are validated, the switch then changes the Network Camera’s state to
authorized and is allowed access to the protected network via a pre-congured port.
VIVOTEK
Network Camera
RADIUS Server
Certificate Authority
(CA)
Protected LAN
Certificate
1
1
2
3
4
Network Switch
Certificate
NOTE:
VIVOTEK
User's Manual - 75

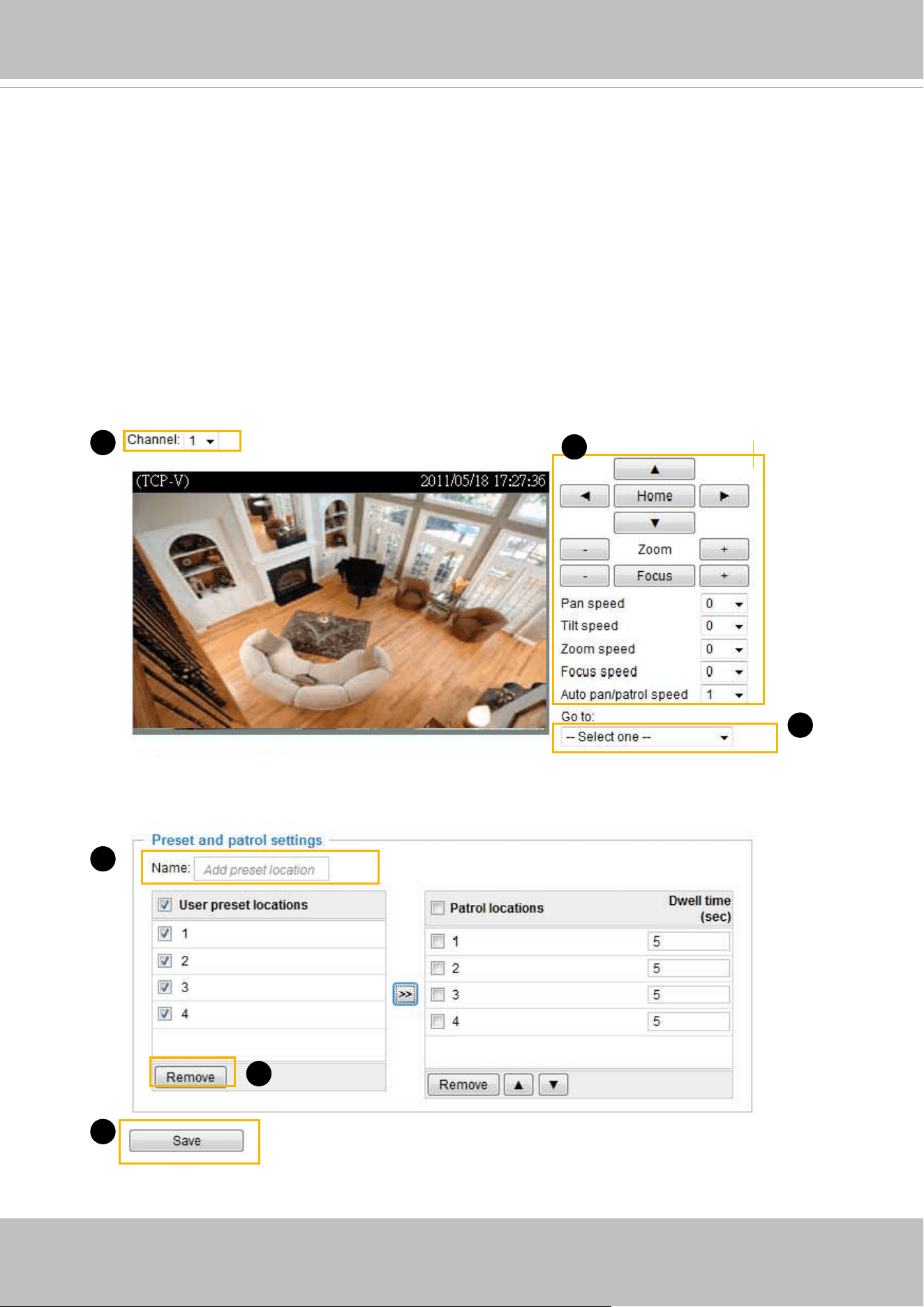

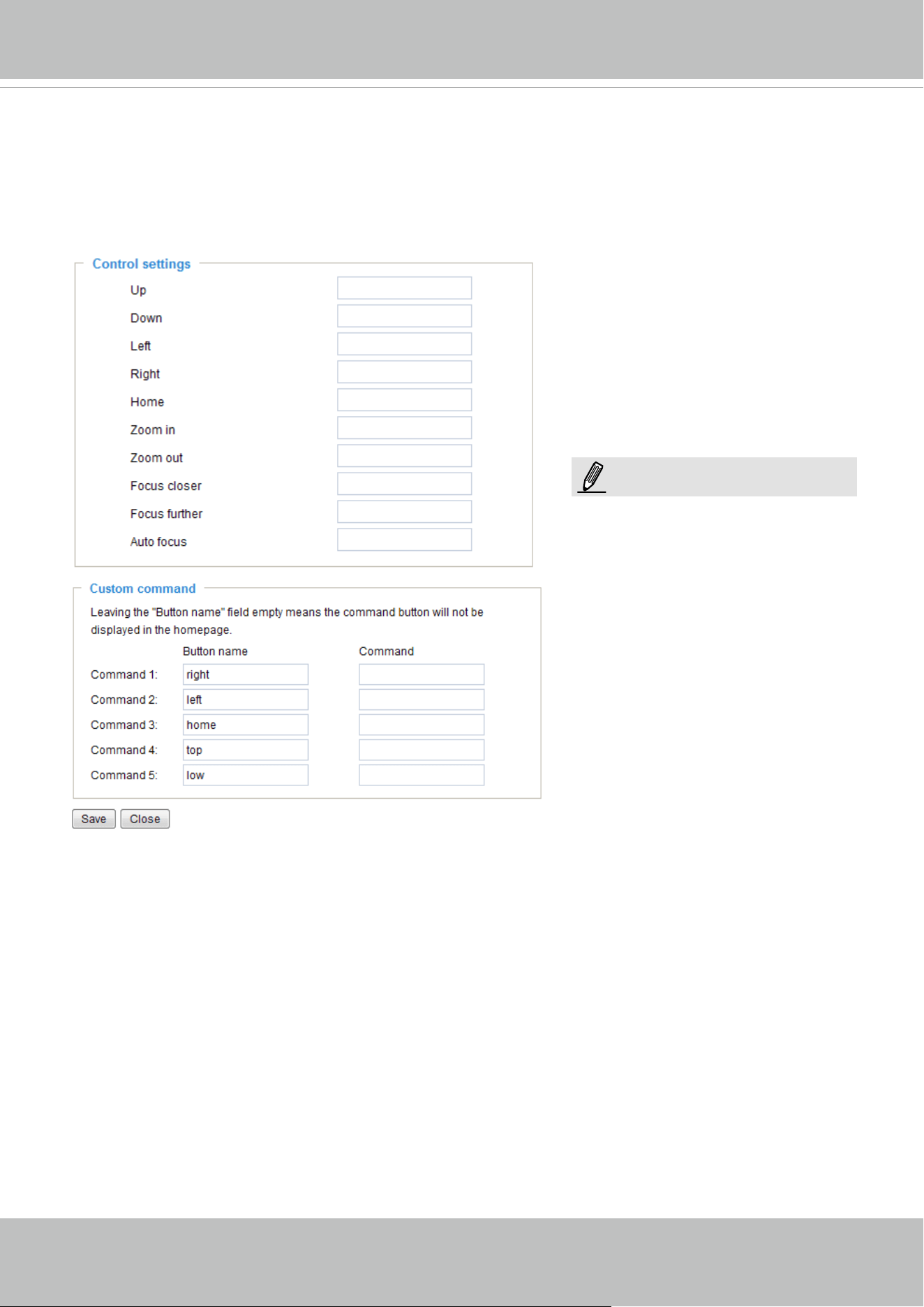

PTZ > PTZ settings
This section explains how to control the Network Camera’s Pan/Tilt/Zoom operation by
connecting to a PTZ driver or scanner via RS485 interface. Before conguration, connect the
video server to a PTZ camera or PTZ scanner via RS485 interface.
RS485 settings
Disable: Select this option to disable this function.
PTZ camera: Select this option to enable PTZ operation.
To utilize this feature, please connect the Network Camera to a PTZ camera or PTZ scanner via RS485
interface rst. Then you can congure the PTZ driver and RS485 port with the following settings.
VIVOTEK provides several PTZ drivers: DynaDome/SmartDOME, Lilin PIH-7x00, Pelco D, Pelco P, and
Samsung Scc643 protocol. If none of the above PTZ drivers is supported by your PTZ scanner, please
select Custom camera (scanner). Please refer to the user’s manual of your PTZ scanner to determine
the Camera ID, PTZ driver, and Port settings. The Camera ID is necessary to control multiple cameras.
If you click Save to enable this function, the camera control panel will be displayed on the main page.
Please refer to the illustration on page 80.
Transparent HTTP Tunnel: If you want to use your own RS-485 device, you can use UART commands to
build a Transparent HTTP Tunnel. The UART commands will be sent through HTTP tunnel established
between the RS-485 device and the linked camera. For detailed application notes, please refer to URL
Commands on page 103 or the FAQ pages on VIVOTEK’s website.
VIVOTEK
76 - User's Manual
Preset positions
If you select DynaDome/SmartDOME, Lilin PIH-7x00, or Pelco D, Pelco P protocol, Samsung scc643
protocol
protocol as the PTZ driver and click the Save button, the Preset Position button will be enabled.
Click Preset Position to open the settings page. You can also select preset positions for the camera to
patrol. A total of 20 preset positions can be congured.
Please follow the steps below to preset a position:
1. Select Channel in the drop-down list.
2. Adjust the shooting area to the desired position by using the buttons on the right.
The default Home
position is set as the center position.
3. Enter a name for the preset position, which allows up to forty characters. Click Add to enable the
settings. The preset positions will be displayed under User preset locations.
4. To add additional preset positions, please repeat steps 1~2.
5. Select the preset positions and click on Save to enable the settings.
6. The positions saved will show up in Go to drop down list on the Home page. See next page
7. To remove a preset position from the list, select it and click Remove.
Functions are the same
as the Control Panel on
the home page
1
3
6
5
2
7
VIVOTEK
User's Manual - 77
■ The Camera Control Panel and Preset positions will be displayed on the home page:
■ Click Go to: Select one from the drop-down list, and the Network Camera will move to the selected
preset position.
The Camera ID is necessary to control multiple cameras. If you click Save to enable this function, the
camera control panel will be displayed on the main page.
Camera ID settings
VIVOTEK
78 - User's Manual

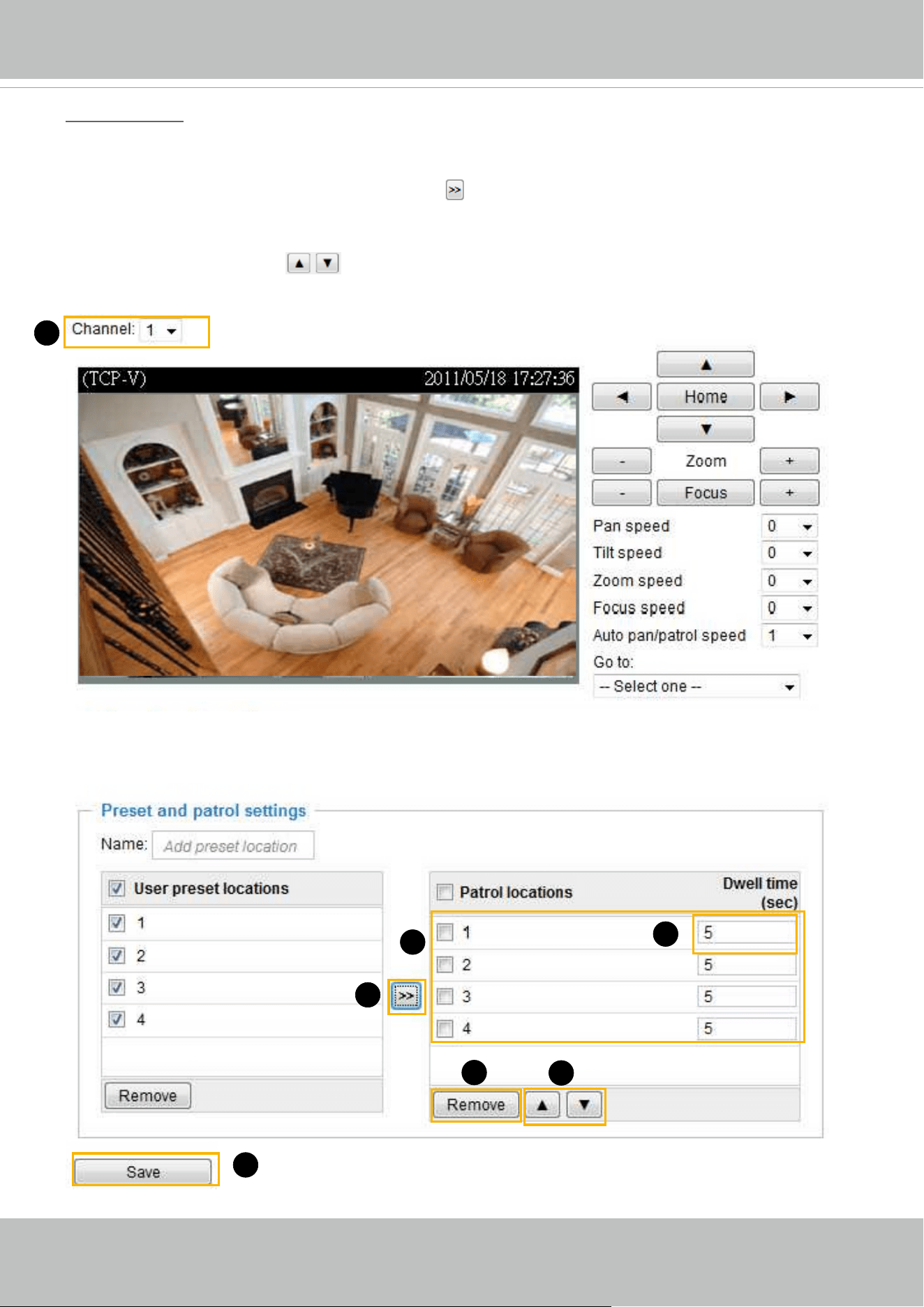

Patrol settings
You can select some preset positions for the Network Camera to patrol.
Please follow the steps below to set up a patrol schedule:
1. Select Channel in the drop-down list.
2. Select the preset locations on the list, and click
.
3. The selected preset locations will be displayed on the Patrol locations list.
4. Set the Dwelling time for the preset location during auto patrol.
5. If you want to delete a preset location from the Patrol locations list, select it and click Remove.
6. Select a location and click
to rearrange the patrol order.
7. Select patrol locations you want to save in the list and click Save to enable the patrol settings.
8. To implement the patrol schedule, please go to homepage and click on Patrol button.
1
2
65
4
3
7
VIVOTEK
User's Manual - 79
Custom Command
If Custom Camera (scanner) is selected as the PTZ driver, the Preset Position and PTZ Control
Panel on the main page will be disabled. You will need to congure command buttons to control the PTZ
scanner. Click Custom Command to open the Custom Command page to set the commands in the
Control Settings session. Please refer to your PTZ scanner user's manual to enter the commands in the
following elds. Click Save to enable the settings and click Close to exit the page.
► If you select DynaDome/
SmartDOME, Lilin PIH-7x00,
or Pelco D protocol as the PTZ
driver, the Control Settings
column will not be displayed.
►For all PTZ drivers, a total of
five additional command buttons
can be configured.
NOTE:
VIVOTEK
80 - User's Manual
►The command buttons will be displayed on the main page:
VIVOTEK
User's Manual - 81

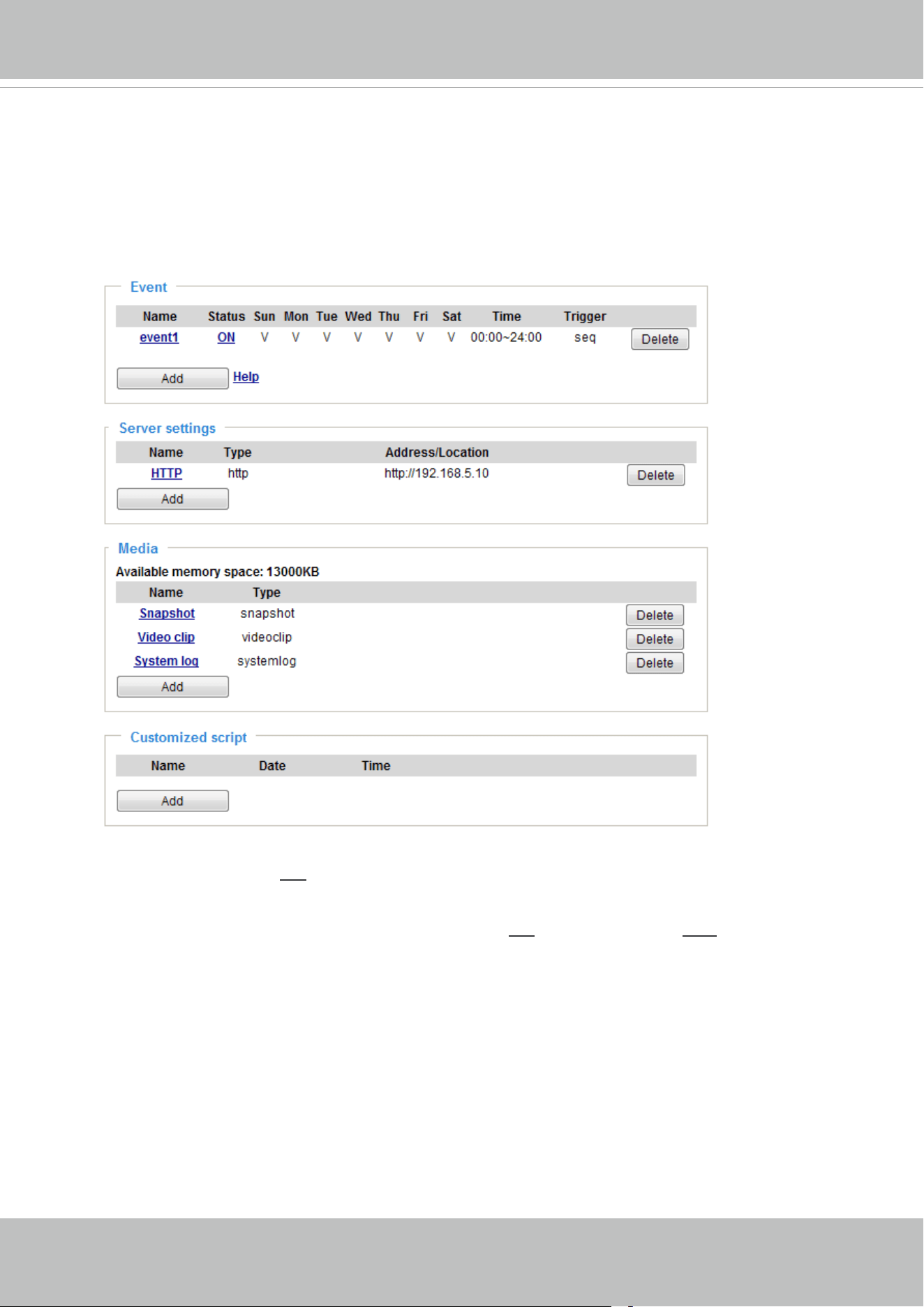

Event > Event settings
This section explains how to congure the Network Camera to responds to particular situations
(event). A typical application is that when a motion is detected, the Network Camera sends
buffered images to an FTP server or e-mail address as notifications. Click on Help, there is
an illustration shown in the pop-up window explaining that an event can be triggered by many
sources, such as motion detection or external digital input devices. When an event is triggered,
you can specify what type of action that will be performed. You can configure the Network
Camera to send snapshots or videos to your email address or FTP site.
Advanced Mode
Event
To congure an event with reactive measures such as recording video or snapshots, it is necessary to
congure the server and media settings so that the Network Camera will know what action to take (such
as which server to send the media les to) when a trigger is activated. An event is an action initiated by a
user-dened trigger source
.
In the Event column, click Add to open the event settings window. Here you
can arrange three elements -- Schedule, Trigger, and Action to set an event. A total of 3 event settings
can be congured.
VIVOTEK
82 - User's Manual
■ Event name: Enter a name for the event setting.
■ Enable this event: Select this option to enable the event setting.
■ Priority: Select the relative importance of this event (High, Normal, or Low). Events with a higher
priority setting will be executed rst.
■ Detect next event after
seconds: Enter the duration in seconds to pause motion detection after
a motion is detected. This can prevent event-related actions to take place too frequently.
1.
Schedule
Specify the period of them during which the event trigger will take effect. Please select the days of the
week and the time in a day (in 24-hr time format) for the event triggering schedule. For example, you
may prefer an event to be triggered only during the off-ofce hours.
2. Trigger
This is the cause or stimulus which denes when to trigger the Network Camera. The trigger source can
be congured to use the Network Camera’s built-in motion detection mechanism or external digital input
devices.
There are several choices of trigger sources as shown on the next page.
Select the item to display the
detailed conguration options.
■ Video motion detection
This option makes use of the built-in motion detection mechanism as a trigger source. To enable this
function, you need to congure a Motion Detection Window rst. For more information, please refer to
Motion Detection on page 94 for details.
■ Periodically
This option allows the Network Camera to trigger periodically for every other dened minute. Up to 999
minutes are allowed.
■ System boot
This option triggers the Network Camera when the power to the Network Camera is disconnected and
re-connected.
■ Recording notify
This option allows the Network Camera to trigger when the recording disk is full or when recording
starts to overwrite older data.
VIVOTEK
User's Manual - 83

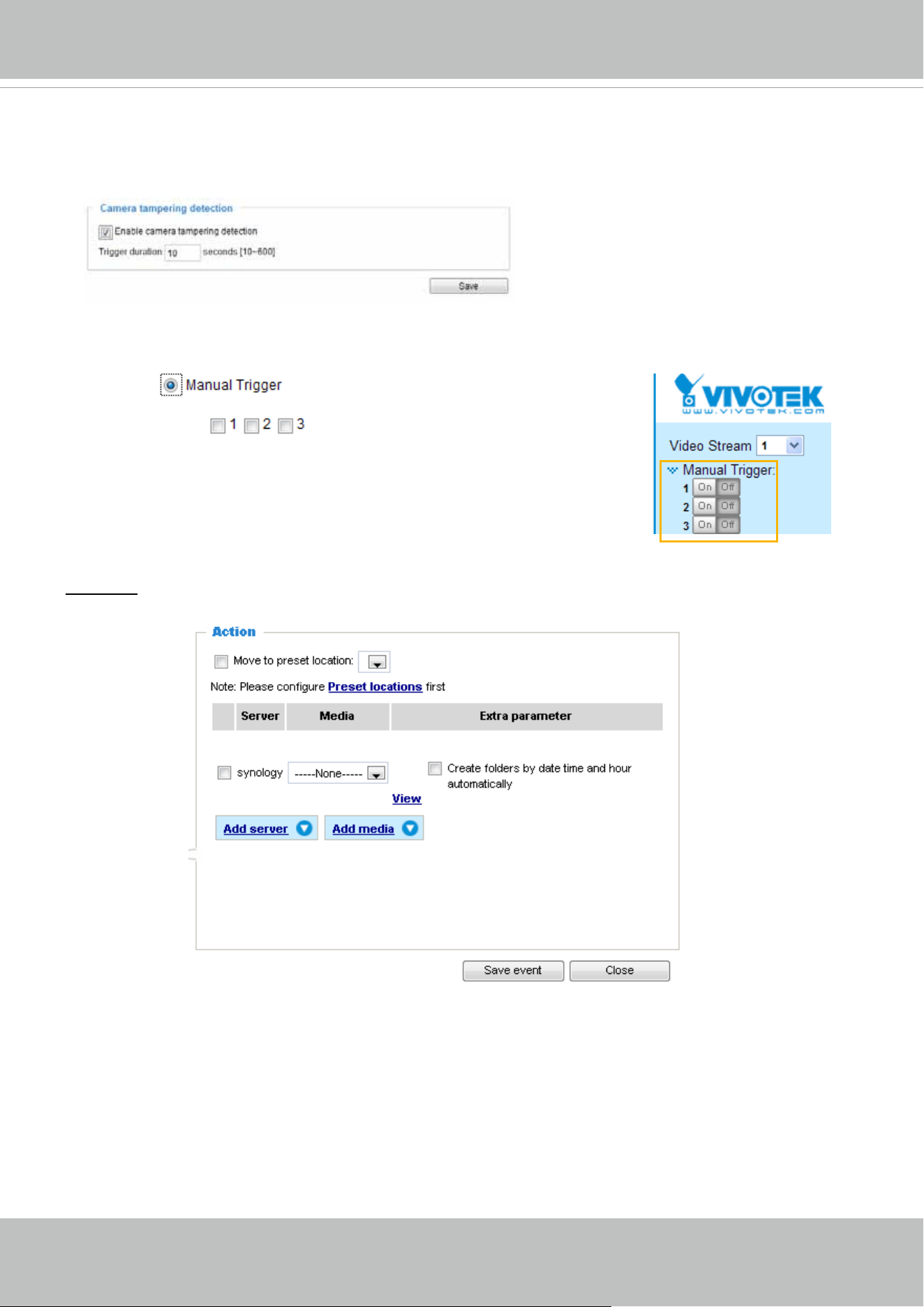

■ Camera tampering detection
This option allows the Network Camera to trigger when the camera detects that is is being tampered
with. To enable this function, you need to congure the Tampering Detection option rst. Please refer
to page 97 for detailed information.
■ Manual Trigger
This option allows users to enable event triggers manually by clicking the on/off button on the
homepage. Please congure 1 to 3 associated events before using this function.
■ Video loss: triggers an event when video transaction is discontinued.
■ Video restore: triggers an event when video transaction is re-established.
3. Action
Dene the actions to be performed by the Network Camera when a trigger is activated.
VIVOTEK
84 - User's Manual
Add server
It is necessary to congure the server and media settings so that the Network Camera will know what
action to take (such as which server to send the media les to) when a trigger is activated. Click
Add
server
to open the server setting window. You can specify where the notication messages are sent to
when a trigger is activated. A total of 5 server settings can be congured.
There are four choices of server types available: Email, FTP, HTTP, and Network storage.
Select the item
to display the detailed conguration options. You can congure either one or all of them.
Server type - Email
Select to send the media les via email when a trigger is activated.
■ Server name: Enter a name for the server setting.
■ Sender email address: Enter the email address of the sender.
■ Recipient email address: Enter the email address of the recipient.
■ Server address: Enter the domain name or IP address of the email server.
■ User name: Enter the user name of the email account if necessary.
■ Password: Enter the password of the email account if necessary.
■ Server port: The default mail server port is set to 25. You can also manually set another port.
If your SMTP server requires a secure connection (SSL), select This server requires a secure
connection (SSL).
VIVOTEK
User's Manual - 85
To verify if the email settings are correctly congured, click Test. The result will be shown in a pop-up
window. If successful, you will also receive an email indicating the result.
Click Save server to enable the settings.
Note that after you congure the rst event server, the new event server will automatically display on the
Server list. If you wish to add other server options, click Add server.
Server type - FTP
Select to send the media les to an FTP server when a trigger is activated.
■ Server name: Enter a name for the server setting.
■ Server address: Enter the domain name or IP address of the FTP server.
■ Server port: By default, the FTP server port is set to 21. It can also be assigned to another port number
between 1025 and 65535.
■ User name: Enter the login name of the FTP account.
■ Password: Enter the password of the FTP account.
■ FTP folder name
Enter the folder where the media les will be placed. If the folder name does not exist, the Network
Camera will automatically create one on the FTP server.
VIVOTEK
86 - User's Manual
■ Passive mode
Most firewalls do not accept new connections initiated from external requests. If the FTP server
supports passive mode, select this option to enable passive mode FTP and allow data transmission to
pass through the rewall. The rmware default has the Passive mode checkbox selected.
To verify if the FTP settings are correctly congured, click Test. The result will be shown in a pop-up
window as shown below. If successful, you will also receive a test.txt le on the FTP server.
Click Save server to enable the settings.
Server type - HTTP
Select to send the media les to an HTTP server when a trigger is activated.
■ Server name: Enter a name for the server setting.
■ URL: Enter the URL of the HTTP server.
■ User name: Enter the user name if necessary.
■ Password: Enter the password if necessary.
To verify if the HTTP settings are correctly congured, click Test. The result will be shown in a pop-up
window as shown below. If successful, you will receive a test.txt le on the HTTP server.
Click Save server to enable the settings.
VIVOTEK
User's Manual - 87

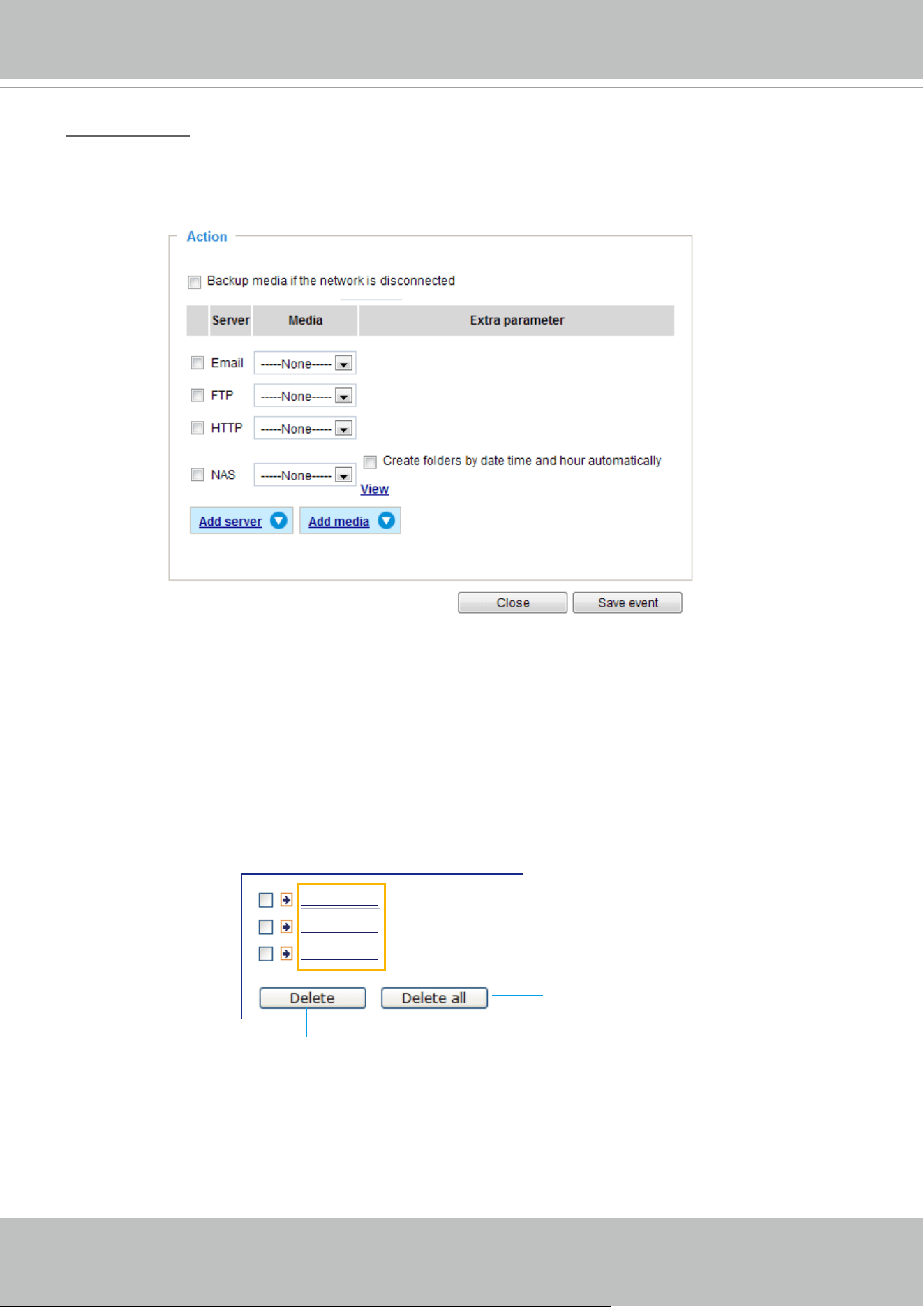

Network storage:
Select to send the media les to a networked storage when a trigger is activated. Please refer to NAS
server on page 100 for details. Note that only one NAS server can be congured.
Click Save server to enable the settings.
■ View: Click this button to open a le list window. This function is only for Networked Storage.
If you click the View button, a storage share's page will prompt so that you can manage the recorded
les on it. A le directory window will prompt for you to view recorded data on Networked storage. For
detailed illustration, please refer to the next page.
■ Create folders by date, time, and hour automatically: If you select this item, the system will
automatically create folders by the date when video footages are stored onto the networked storage.
The following is an example of a le destination with video clips:
20130120
20130121
20130122
Click to delete selected items
Click to delete all recorded data
The format is: YYYYMMDD
Click to open the directory
VIVOTEK
88 - User's Manual
Click 20130120 to open the directory:
Click to delete
selected items
Click to delete all
recorded data
Click to go back to the previous
level of the directory
The format is: HH (24r)
Click to open the le list for that hour
The format is: File name prex + Minute (mm)
You can set up the le name prex on Add media page. Please
refer to
next page for detailed information.
2013/01/20
2013/01/20
2013/01/20
2013/01/20
VIVOTEK
User's Manual - 89

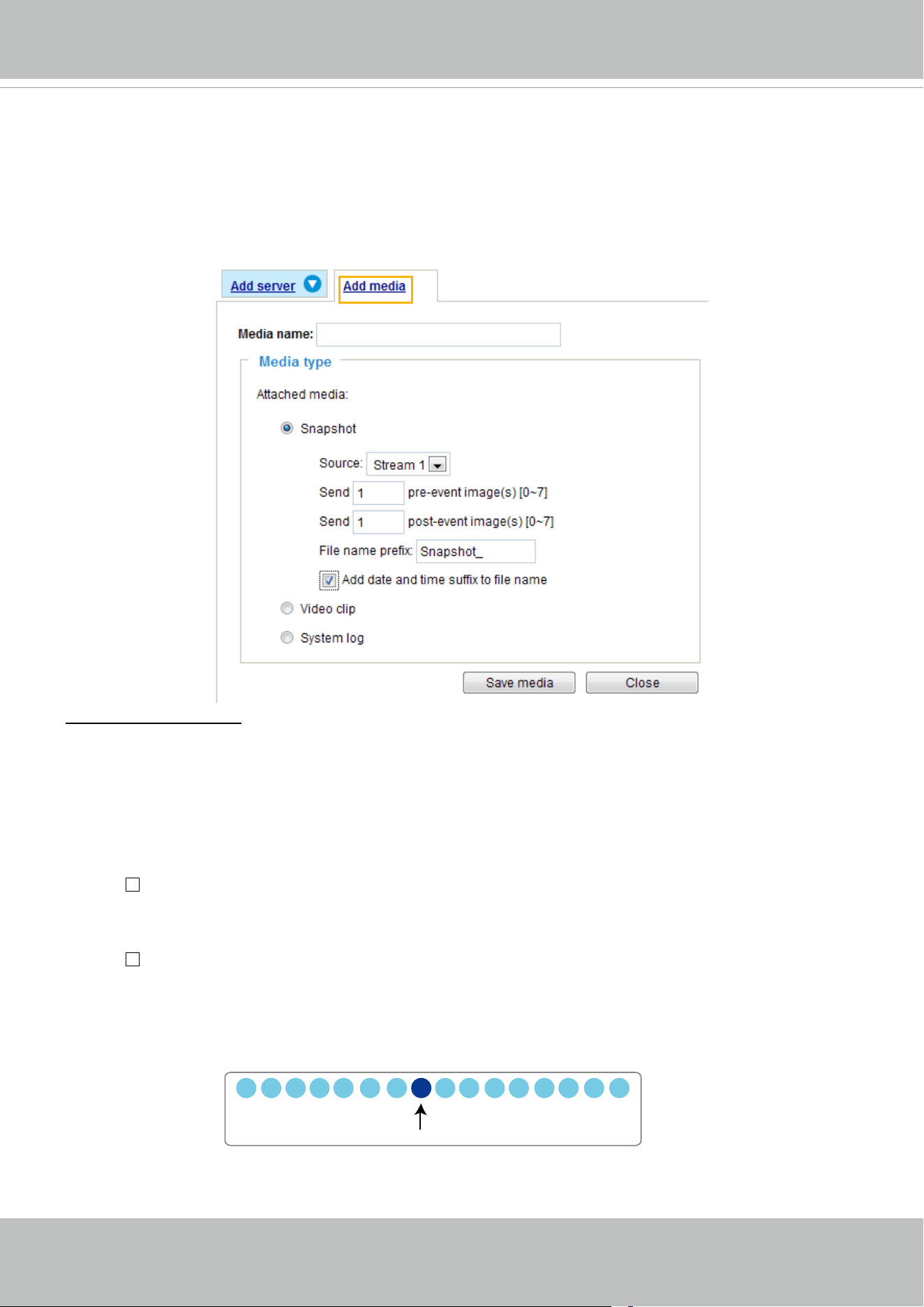

Add media
Click
Add media
to open the media setting window. You can specify the type of media that will be
sent when a trigger is activated. A total of 5 media settings can be congured. There are three choices
of media types available: Snapshot, Video Clip, and System log.
Select the item to display the detailed
conguration options. You can congure either one or all of them.
Media type - Snapshot
Select to send snapshots when a trigger is activated.
■ Media name: Enter a name for the media setting.
■ Source: Select to take snapshots from any of the video streams.
■ Send
pre-event images
The Network Camera has a buffer to temporarily hold data for a short period of time. Enter a number
to decide how many images to capture before a trigger is activated. Up to 7 images can be generated.
■ Send
post-event images
Enter a number to decide how many images to capture after a trigger is activated. Up to 7 images can
be generated.
For example, if both the Send pre-event images and Send post-event images are set to 7, a total of 15
images can be generated after a trigger is activated.
■ File name prex
Enter the text that will be appended to the front of the le name.
1 pic. 2 pic. 3 pic. 4 pic. 5 pic. 6 pic. 7 pic. 8 pic. 9 pic.
10 pic. 11 pic. 10 pic. 12 pic. 13 pic. 14 pic. 15 pic.
Trigger Activation
VIVOTEK
90 - User's Manual
■ Add date and time sufx to the le name
Select this option to add a date/time sufx to the le name.
For example:
Click Save media to enable the settings.
Note that after you set up the rst media server, a new column for media server will automatically display
on the Media list. If you wish to add more media options, click Add media.
Media type -
Video clip
Select to send video clips when a trigger is activated.
■ Media name: Enter a name for the media setting.
■ Source: Select a video stream as the source of video clip.
■ Pre-event recording
The Network Camera has a buffer to temporarily hold data up to a certain limit. Enter a number to
decide the duration of recording before a trigger is activated. Up to 9 seconds can be set.
■ Maximum duration
Specify the maximum recording duration in seconds. The duration can be up to 10 seconds.
For example, if pre-event recording is set to five seconds and the maximum duration is set to ten
seconds, the Network Camera continues to record for another 4 seconds after a trigger is activated.
Snapshot_20101213_100341
Date and time suffix
The format is: YYYYMMDD_HHMMSS
File name prefix
1 sec. 2 sec. 3 sec. 4 sec. 5 sec. 6 sec. 7 sec. 8 sec. 9 sec. 10 sec.
Trigger Activation
VIVOTEK
User's Manual - 91
■ Maximum le size
Specify the maximum le size allowed. Some users may need to stitch the video clips together when
searching and packing up forensic evidence.
■ File name prex
Enter the text that will be appended to the front of the le name.
For example:
Click Save media to enable the settings.
Media type - System log
Select to send a system log when a trigger is activated.
Click Save media to enable the settings, then click Close to exit the page.
Video_20101213_100341
Date and time suffix
The format is: YYYYMMDD_HHMMSS
File name prefix
VIVOTEK
92 - User's Manual
In the Event settings column, the Servers and Medias you congured will be listed; please make sure the
Event -> Status is indicated as ON, in order to enable the event triggering action.
When completed, click the Save event button to enable the settings and click Close to exit Event
Settings page. The new Event / Server settings / Media will appear in the event drop-down list on the
Event setting page.
Please see the example of the Event setting page below:
When the Event Status is ON, the event configuration above is triggered by motion detection, the
Network Camera will automatically send snapshots via e-mail.
If you want to stop the event trigger, you can click on the
ON button to turn it to OFF status or click the
Delete button to remove the event setting.
To remove a server setting from the list, select a server name from the drop-down list and click Delete.
Note that you can only delete a server setting when it is not applied in an existing setting.
To remove a media setting from the list, select a media name from the drop-down list and click Delete.
Note that you can only delete a media setting when it is not applied in an existing setting.
VIVOTEK
User's Manual - 93
Customized Script
This function allows you to upload a sample script (.xml le) to the webpage, which will save your time on
conguring the settings. Please note that there is a limited number of customized scripts you can upload;
if the current amount of customized scripts has reached the limit, an alert message will prompt. If you
need more information, please contact VIVOTEK technical support.
20130213
20130213
Click to upload a le
Click to modify the
script online
VIVOTEK
94 - User's Manual
Applications > Motion detection
This section explains how to congure the Network Camera to enable motion detection. A total
of three motion detection windows can be congured.
Follow the steps below to enable motion detection:
1. Click New to add a new motion detection window.
2. In the Window Name text box, enter a name for the motion detection window.
■ To move and resize the window, drag it to a preferred location, and let cursor stay on the edge of the
window until it changes into the resize cursor.
■ To delete a window, click X on the upper right corner of the window.
3. Define the sensitivity to moving objects and the space ratio of all alerted pixels by moving the
Sensitivity and Percentage slider bar.
4. Click Save to enable the settings.
5. Select Enable motion detection to enable this function.
For example:
The Percentage Indicator will rise or fall depending on the variation between sequential images. When
motions are detected by the Network Camera and are considered to exceed the preset threshold, the
red bar rises. Meanwhile, the motion detection window will be outlined in red for 2 or 3 seconds. Photos
or videos can be captured instantly and congured to be sent to a remote server (via an Email or FTP
server). For more information on how to configure an event setting, please refer to Event settings on
page 81.
2010/12/10 17:08:56
hallway
2013/2/3 14:39:12
Video(TCP-AV)
2010/12/10 17:08:56
hallway
2013/2/3 14:39:12
Motion Detection Setting 2:
For special situations
Motion Detection Setting 1:
For normal situations
VIVOTEK
User's Manual - 95
A green bar indicates that even though motions have been detected, the event has not been triggered
because the image variations still fall under the preset threshold.
If you want to congure other motion detection settings for day/night/schedule mode (e.g., for a different
lighting condition), please click on Prole to open the Motion Detection Prole Settings page as shown
below. Another three motion detection windows can be congured on this page.
Please follow the steps beolw to set up a prole:
1. Create a new motion detection window.
2. Check Enable this prole.
3. Select the applicable period of time for the Schedule mode. Please manually enter a range of time.
4. Click Save to enable the settings and click Close to exit the page.
This motion detection window will also be displayed on the Event Settings page. You can go to Event >
Event settings > Trigger to select it as a trigger source. Please refer to page 82 for detailed information.
Percentage = 30%
Video(TCP-AV)
2010/12/10 17:08:56
2013/2/3 14:39:12
hallway
VIVOTEK
96 - User's Manual
NOTE
► How does motion detection work?
There are two motion detection parameters: Sensitivity and Percentage. In the illustration above,
frame A and frame B are two sequential images. Pixel differences between the two frames are
detected and highlighted in gray (frame C) and will be compared with the sensitivity setting. Sensitivity
is a value that expresses the sensitivity to moving objects. Higher sensitivity settings are expected to
detect slight movements while smaller sensitivity settings will neglect them. When the sensitivity is set
to 70%, the Network Camera denes the pixels in the purple areas as “alerted pixels” (frame D).
Percentage is a value that expresses the proportion of “alerted pixels” to all pixels in the motion
detection window. In this case, 50% of pixels are identied as “alerted pixels”. When the percentage is
set to 30%, the motions are judged to exceed the dened threshold; therefore, the motion window will
be outlined in red.
For applications that require a high level of security management, it is suggested to use higher
sensitivity settings and smaller percentage values.
A
B D
C
NOTE:
VIVOTEK
User's Manual - 97

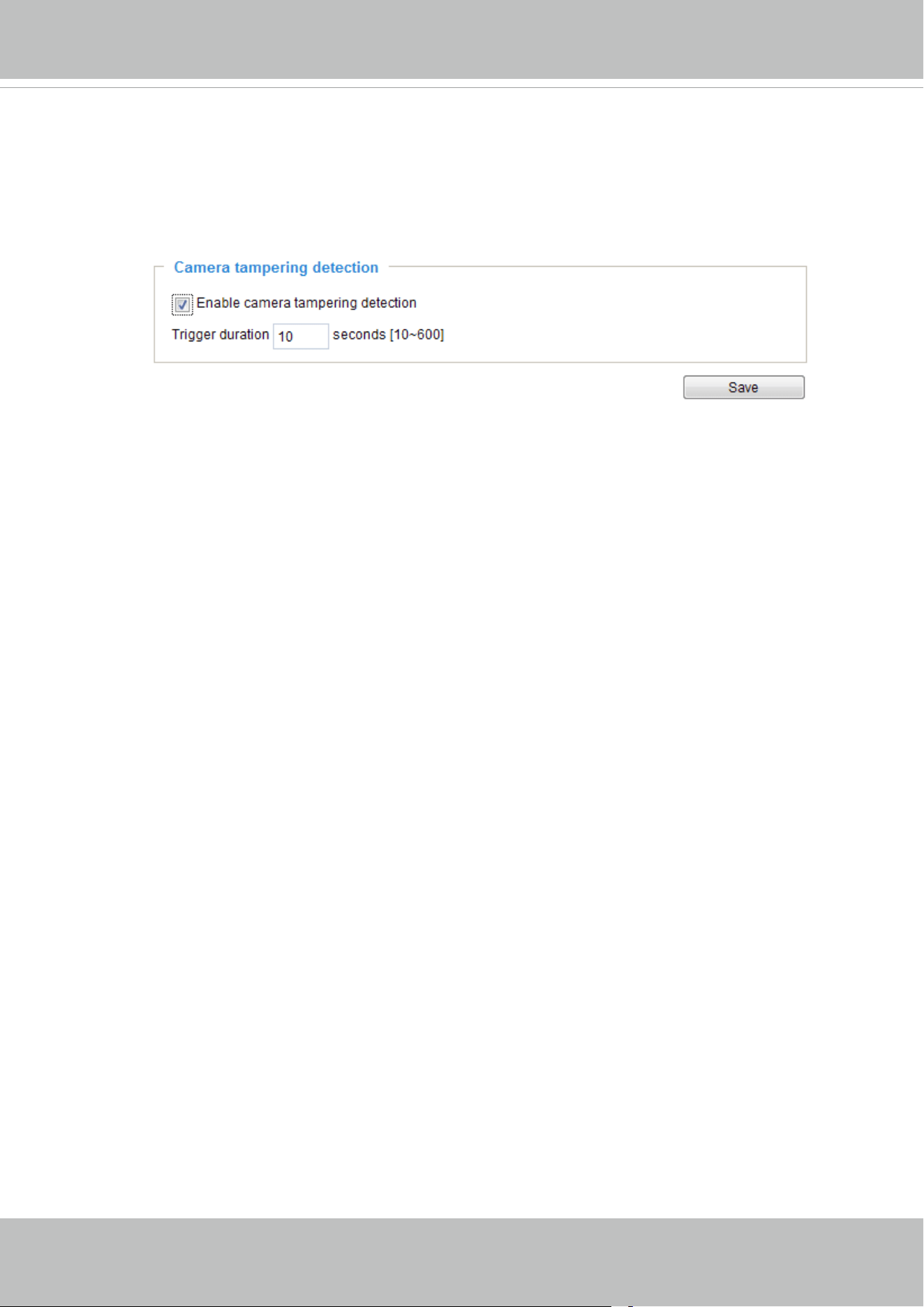

Applications > Tampering detection
This section explains how to set up camera tamper detection. With tamper detection, the
camera is capable of detecting incidents such as redirection, blocking or defocusing, or even
spray paint.
Please follow the steps below to set up the camera tamper detection function:
1. Check Enable camera tampering detection.
2. Enter the tamper trigger duration. (10 sec. ~ 10 min.) The tamper alarm will be triggered only
when the tampering factor (the difference between current frame and pre-saved background)
exceeds the trigger threshold.
3. Set up the event source as Camera Tampering Detection on Event > Event settings >
Trigger. Please refer to page 82 for detailed information.
VIVOTEK
98 - User's Manual
Recording > Recording settings
Advanced Mode
This section explains how to congure the recording settings for the Network Camera.
Recording Settings
Recording Settings
Click Add to open the recording setting window. On this page, you can dene the adaptive recording,
recording source, recording schedule, and recording capacity. A total of 2 recording settings can be
congured.
■ Recording name: Enter a name for the recording setting.
■ Enable this recording: Select this option to enable video recording.
■ With adaptive recording:
Select this option will activate the frame rate control according to alarm trigger.
The frame control means that when there is a triggered alarm, the frame rate will raise up to the value
you’ve congured on the Video quality page. Please refer to page 40 for more information.
VIVOTEK
User's Manual - 99
The alarm trigger includes: motion detection and DI detection. Please refer to Event Settings on page 81.
■ Pre-event recording and post-event recording
The Network Camera has a buffer that temporarily holds data for a period of time. Therefore, when an
event occurs, the camera can restrieve image frames taken several seconds ago. Enter a number to
dene the duration of recording before and after a trigger is activated.
■ Priority: Select the relative importance of this recording (High, Normal, or Low). Recording with a higher
priority setting will be processed rst.
■ Source: Select a video stream as the recording source.
► To enable recording notication please congure Event settings rst . Please refer to page 81.
If you enable adaptive recording on a camera, only when an event is triggered on Camera A will the
server record the full frame rate streaming data; otherwise, it will only request the I frame data during
normal monitoring, thus effectively saves bandwidths and storage space.
Time
Bandwidth
Bandwidth
Activity Adaptive Streaming
for Dynamic Frame Rate Control
I frame ---> Full frame rate ---> I frame
Continuous recording
► To enable adaptive recording, please make sure
you’ve set up the trigger source such as Motion
Detection, DI Device, or Manual Trigger.
► When there is no alarm trigger:
- JPEG mode: record 1 frame per second.
- H.264 mode: record the I frame only.
► When the I frame period is >1s on Video settings
page, firmware will force decrease the I frame
period to 1s when adaptive recording is enabled.
Please follow the steps below to set up the recording.
1. Trigger
Select a trigger source.
■ Schedule: The server will start to record les on the local storage or network storage (NAS).
NOTE:
NOTE:
VIVOTEK
100 - User's Manual

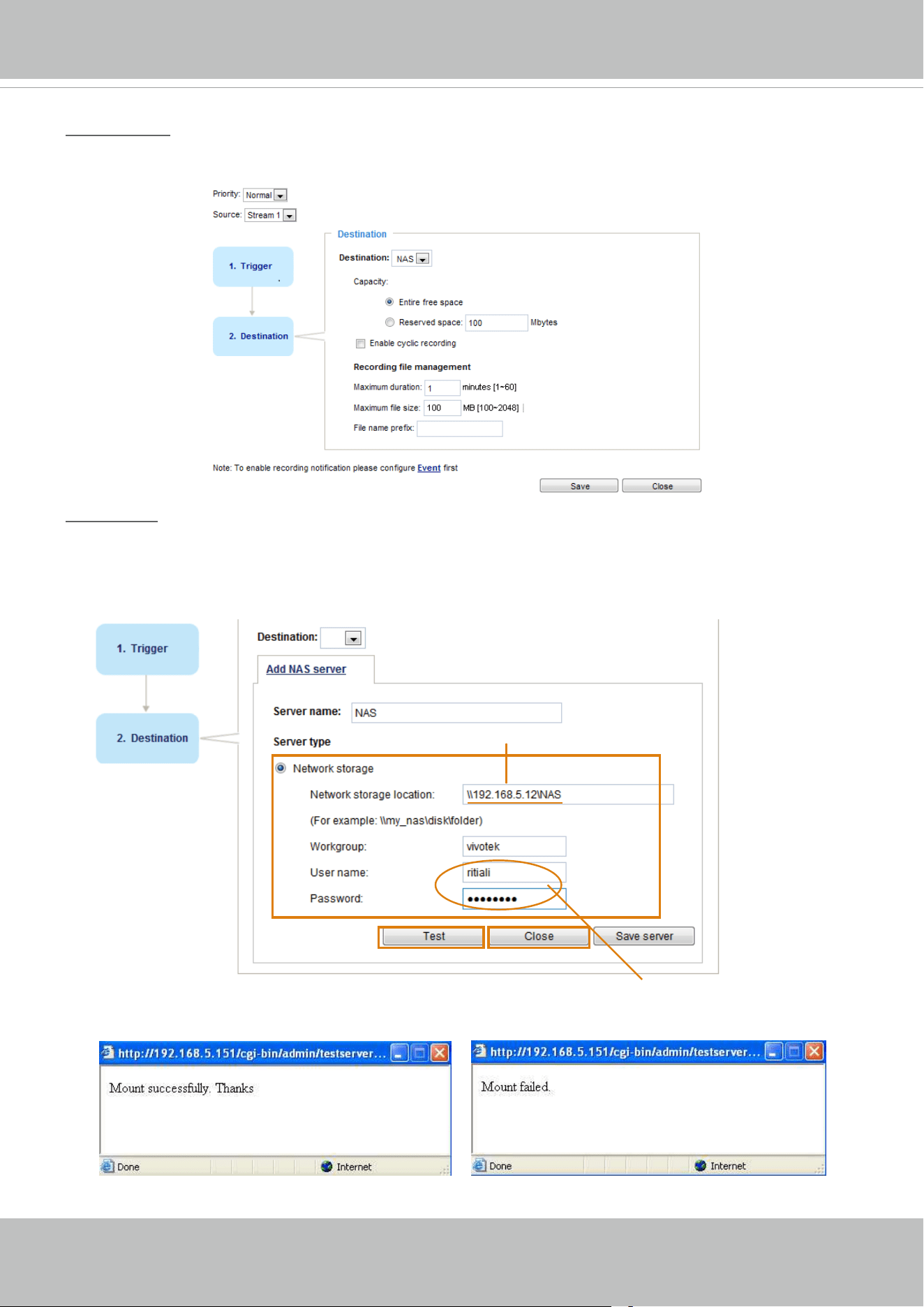

2. Destination
You can select a networked storage (NAS) for the recorded video les. If you have not congured a NAS
server, see details in the following.
NAS server
Click Add NAS server to open the server setting window and follow the steps below to set up:
1. Fill in the information for your server.
For example:
2. Click Test to check the setting. The result will be shown in the pop-up window.
1
2
3
4
Network storage path
(\\server name or IP address\folder name)
User name and password for your server
VIVOTEK
User's Manual - 101
If successful, you will receive a test.txt le on the network storage server.
3. Enter a server name.
4. Click Save to complete the settings and click Close to exit the page.
■ Capacity: You can choose either the entire free space available or limit the reserved space. The
recording size limit must be larger than the reserved amount for cyclic recording.
■ Enable cyclic recording: If you check this item, when the maximum capacity is reached, the oldest le
will be overwritten by the latest one. The reserved amount is reserved for the transaction stage when
the storage space is about to be full and new data arrives. The minimum for the Reserved space must
be larger than 15 MegaBytes.
■ Recording file management: You can manually assign the Maximum duration and the Maximum
file size for each recording footage. You may need to stitch individual files together under some
circumstances. You may also designate a le name prex by lling in the responsive text eld.
■ File name prex: Enter the text that will be appended to the front of the le name.
VIVOTEK
102 - User's Manual

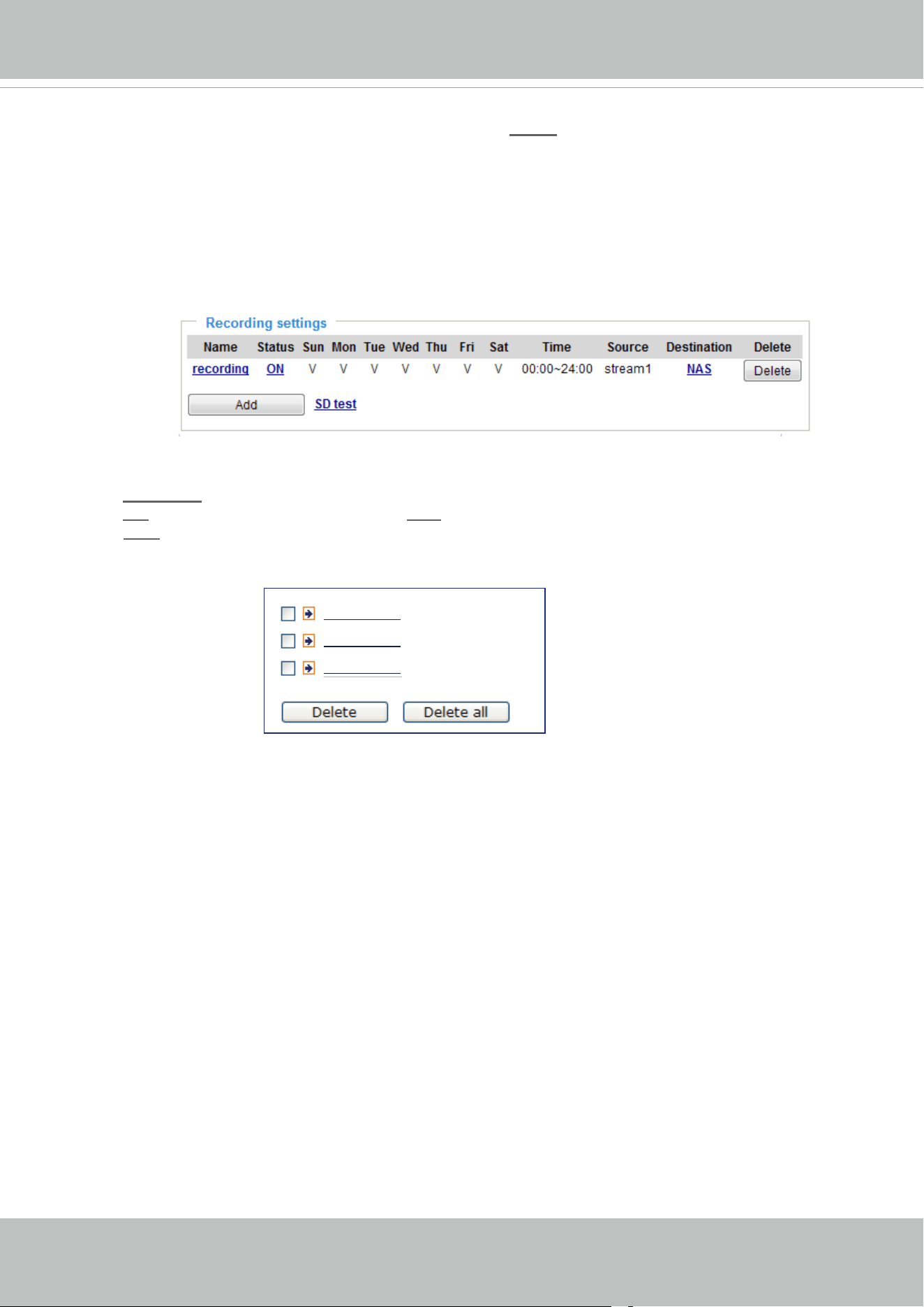

To remove a recording setting from the list, select a recording name from the drop-down list and click
Delete.
■ Click
recording (Name): Opens the Recording Settings page to modify.
■ Click
ON (Status): The Status will become OFF and stop recording.
■ Click
NAS (Destination): Opens the le list of recordings as shown below. For more information about
folder naming rules, please refer to page 87 for details.
20130210
20130211
20130212
f you want to enable recording notification, please click
Event
to configure event triggering settings.
Please refer to Event > Event settings on page 81 for more details.
When completed, select Enable this recording. Click Save to enable the setting and click Close to exit
this page. When the system begins recording, it will send the recorded les to the network storage. The
new recording name will appear in the drop-down list on the recording page as shown below.
VIVOTEK
User's Manual - 103
Appendix
URL Commands for the Network Camera/Video Server
1. Overview
For some customers who already have their own web site or web control application, the Network
Camera/Video Server can be easily integrated through URL syntax. This section specifies the external
HTTP-based application programming interface. The HTTP-based camera interface provides the
functionality to request a single image, control camera functions (PTZ, output relay etc.), and get and set
internal parameter values. The image and CGI-requests are handled by the built-in Web server.
2. Style Convention
In URL syntax and in descriptions of CGI parameters, text within angle brackets denotes content that
is to be replaced with either a value or a string. When replacing the text string, the angle brackets
should also be replaced. An example of this is the description of the name for the server, denoted with
<servername> in the URL syntax description below, that is replaced with the string myserver in the URL
syntax example further down in the page.
URL syntax is denoted with the word "Syntax:" written in bold face followed by a box with the referenced
syntax as shown below. For example, name of the server is written as <servername> and is intended to
be replaced with the name of the actual server. This can either be a name, e.g., "mywebcam" or "thecam.
adomain.net" or the associated IP number for the server, e.g., 192.168.0.220.
Syntax:
http://<servername>/cgi-bin/viewer/video.jpg
Description of returned data is written with "Return:" in bold face followed by the returned data in a box. All data is
returned in HTTP format, i.e., each line is separated with a Carriage Return and Line Feed (CRLF) printed as \r\n.
Return:
HTTP/1.0 <HTTP code> <HTTP text>\r\n
URL syntax examples are written with "Example:" in bold face followed by a short description and a light grey box
with the example.
Example: request a single snapshot image
http://mywebserver/cgi-bin/viewer/video.jpg
VIVOTEK
104 - User's Manual
3. General CGI URL Syntax and Parameters
When the CGI request includes internal camera parameters, these parameters must be written exactly
as they are named in the camera or video server. The CGIs are organized in functionally-related
directories under the cgi-bin directory. The file extension .cgi is required.
Syntax:
http://<servername>/cgi-bin/<subdir>[/<subdir>...]/<cgi>.<ext>
[?<parameter>=<value>[&<parameter>=<value>...]]
Example: Set digital output #1 to active
http://mywebserver/cgi-bin/dido/setdo.cgi?do1=1
VIVOTEK
User's Manual - 105
4. Security Level
SECURITY
LEVEL
SUB-DIRECTORY DESCRIPTION
0 anonymous Unprotected.
1 [view] anonymous, viewer,
dido, camctrl
1. Can view, listen, talk to camera.
2. Can control DI/DO, PTZ of the camera.
4 [operator] anonymous, viewer,
dido, camctrl, operator
Operator access rights can modify most of the camera’s
parameters except some privileges and network
options.
6 [admin] anonymous, viewer,
dido, camctrl, operator,
admin
Administrator access rights can fully control the
camera’s operations.
7 N/A Internal parameters. Unable to be changed by any
external interfaces.
VIVOTEK
106 - User's Manual
5. Get Server Parameter Values
Note: The access right depends on the URL directory.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/
anonymous/getparam.cgi?[<parameter>]
[&<parameter>…]
http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>]
[&<parameter>…]
http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>]
[&<parameter>…]
http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>]
[&<parameter>…]
Where the <parameter> should be <group>[_<name>]. If you do not specify any parameters, all the
parameters on the server will be returned. If you specify only <group>, the parameters of the related
group will be returned.
When querying parameter values, the current parameter values are returned.
A successful control request returns parameter pairs as follows:
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: <length>\r\n
\r\n
<parameter pair>
where <parameter pair> is
<parameter>=<value>\r\n
[<parameter pair>]
<length> is the actual length of content.
Example: Request IP address and its response
Request:
http://192.168.0.123/cgi-bin/admin/getparam.cgi?network_ipaddress
VIVOTEK
User's Manual - 107
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: 33\r\n
\r\n
network_ipaddress=192.168.0.123\r\n
VIVOTEK
108 - User's Manual
6. Set Server Parameter Values
Note: The access right depends on the URL directory.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/
anonymous/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>…][&return=<return page>]
http://<servername>/cgi-bin/viewer/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>…][&return=<return page>]
http://<servername>/cgi-bin/operator/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>…][&return=<return page>]
http://<servername>/cgi-bin/admin/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>…][&return=<return page>]
PARAMETER VALUE DESCRIPTION
<group>_<name>
value to assigned Assign <value> to the parameter <group>_<name>.
return
<return page> Redirect to the page <return page> after the parameter is
assigned. The <return page> can be a full URL path or
relative path according to the current path. If you omit this
parameter, it will redirect to an empty page.
(Note: The return page can be a general HTML file
(.htm, .html). It cannot be a CGI command or have any
extra parameters. This parameter must be placed at the end
of the parameter list
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: <length>\r\n
\r\n
<parameter pair>
where <parameter pair> is
<parameter>=<value>\r\n
[<parameter pair>]
Only the parameters that you set and are readable will be returned.
VIVOTEK
User's Manual - 109
Example: Set the IP address of server to 192.168.0.123:
Request:
http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: 33\r\n
\r\n
network_ipaddress=192.168.0.123\r\n
VIVOTEK
110 - User's Manual
7. Available parameters on the server
This chapter defines all the parameters which can be configured or retrieved from VIVOTEK network
camera or video server. The general format of description is listed in the table below
Valid values:
VALID VALUES DESCRIPTION
string[<n>] Text strings shorter than ‘n’ characters. The characters “,’, <,>,& are
invalid.
string[n~m] Text strings longer than `n’ characters and shorter than `m’ characters.
The characters “,’, <,>,& are invalid.
password[<n>] The same as string but displays ‘*’ instead.
integer Any number between (-2
31
– 1) and (2
31
– 1).
positive integer Any number between 0 and (2
32
– 1).
<m> ~ <n> Any number between ‘m’ and ‘n’.
domain name[<n>] A string limited to a domain name shorter than ‘n’ characters (eg.
www.ibm.com).
email address [<n>] A string limited to an email address shorter than ‘n’ characters (eg.
joe@www.ibm.com).
ip address A string limited to an IP address (eg. 192.168.1.1).
mac address A string limited to contain a MAC address without hyphens or colons.
boolean A boolean value of 1 or 0 represents [Yes or No], [True or False],
[Enable or Disable].
<value1>,
<value2>,
<value3>,
…
Enumeration. Only given values are valid.
blank A blank string.
everything inside <> A description
integer primary key SQLite data type. A 32-bit signed integer. The value is assigned a unique
integer by the server.
text SQLite data type. The value is a text string, stored using the database
encoding (UTF-8, UTF-16BE or UTF-16-LE).
coordinate x, y coordinate (eg. 0,0)
window size window width and height (eg. 800x600)
NOTE: The camera should not be restarted when parameters are changed.
VIVOTEK
User's Manual - 111
7.1 system
Group: system
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
hostname string[64] Video
Server
1/6 Host name of server
(Network Camera,
Wireless Network Camera,
Video Server,
Wireless Video Server).
ledoff <boolean> 0 6/6 Turn on (0) or turn off (1) all
led indicators.
date <YYYY/MM/
DD>,
keep,
auto
<current
date>
6/6 Current date of system. Set to
‘keep’ to keep date
unchanged. Set to ‘auto’ to
use NTP to synchronize date.
time <hh:mm:ss>,
keep,
auto
<current
time>
6/6 Current time of the system.
Set to ‘keep’ to keep time
unchanged. Set to ‘auto’ to
use NTP to synchronize time.
datetime <MMDDhhmm
YYYY.ss>
<current
time>
6/6 Another current time format
of the system.
ntp <domain
name>,
<ip address>,
<blank>
<blank> 6/6 NTP server.
*Do not use “skip to invoke
default server” for default
value.
timezoneindex -489 ~ 529 320 6/6 Indicate timezone and area.
-480: GMT-12:00 Eniwetok,
Kwajalein
-440: GMT-11:00 Midway
Island, Samoa
-400: GMT-10:00 Hawaii
-360: GMT-09:00 Alaska
-320: GMT-08:00 Las Vegas,
San_Francisco,
Vancouver
-280: GMT-07:00 Mountain
Time, Denver
VIVOTEK
112 - User's Manual
-281: GMT-07:00 Arizona
-240: GMT-06:00 Central
America, Central Time,
Mexico City, Saskatchewan
-200: GMT-05:00 Eastern
Time, New York, Toronto
-201: GMT-05:00 Bogota,
Lima, Quito, Indiana
-180: GMT-04:30 Caracas
-160: GMT-04:00 Atlantic
Time, Canada, La Paz,
Santiago
-140: GMT-03:30
Newfoundland
-120: GMT-03:00 Brasilia,
Buenos Aires,
Georgetown, Greenland
-80: GMT-02:00 Mid-Atlantic
-40: GMT-01:00 Azores,
Cape_Verde_IS.
0: GMT Casablanca,
Greenwich Mean Time:
Dublin,
Edinburgh, Lisbon, London
40: GMT 01:00 Amsterdam,
Berlin, Rome, Stockholm,
Vienna, Madrid, Paris
41: GMT 01:00 Warsaw,
Budapest, Bern
80: GMT 02:00 Athens,
Helsinki, Istanbul, Riga
81: GMT 02:00 Cairo
82: GMT 02:00 Lebanon,
Minsk
83: GMT 02:00 Israel
120: GMT 03:00 Baghdad,
Kuwait, Riyadh, Moscow, St.
Petersburg, Nairobi
121: GMT 03:00 Iraq
140: GMT 03:30 Tehran
VIVOTEK
User's Manual - 113
160: GMT 04:00 Abu Dhabi,
Muscat, Baku,
Tbilisi, Yerevan
180: GMT 04:30 Kabul
200: GMT 05:00
Ekaterinburg, Islamabad,
Karachi, Tashkent
220: GMT 05:30 Calcutta,
Chennai, Mumbai, New Delhi
230: GMT 05:45 Kathmandu
240: GMT 06:00 Almaty,
Novosibirsk, Astana, Dhaka,
Sri Jayawardenepura
260: GMT 06:30 Rangoon
280: GMT 07:00 Bangkok,
Hanoi, Jakarta, Krasnoyarsk
320: GMT 08:00 Beijing,
Chongging, Hong Kong,
Kuala Lumpur, Singapore,
Taipei
360: GMT 09:00 Osaka,
Sapporo, Tokyo, Seoul,
Yakutsk
380: GMT 09:30 Adelaide,
Darwin
400: GMT 10:00 Brisbane,
Canberra, Melbourne,
Sydney, Guam, Vladivostok
440: GMT 11:00 Magadan,
Solomon Is., New Caledonia
480: GMT 12:00 Aucklan,
Wellington, Fiji, Kamchatka,
Marshall Is.
520: GMT 13:00 Nuku'Alofa
daylight_enable <boolean> 0 6/6 Enable automatic daylight
saving time in time zone.
daylight_auto_begintime string[19] NONE 6/7 Display the current daylight
saving start time.
daylight_auto_endtime string[19] NONE 6/7 Display the current daylight
saving end time.
VIVOTEK
114 - User's Manual
daylight_timezones string ,-360,-320,
-280,-240,
-241,-200,
-201,-160,
-140,-120,
-80,-40,0,
40,41,80,
81,82,83,
120,140,
380,400,48
0
6/6 List time zone index which
support daylight saving time.
updateinterval 0,
3600,
86400,
604800,
2592000
0 6/6 0 to Disable automatic time
adjustment, otherwise, it
indicates the seconds between
NTP automatic update
intervals.
restore 0,
<positive
integer>
N/A 7/6 Restore the system
parameters to default values
after <value> seconds.
reset 0,
<positive
integer>
N/A 7/6 Restart the server after
<value> seconds if <value> is
non-negative.
restoreexceptnet <Any value> N/A 7/6 Restore the system
parameters to default values
except (ipaddress, subnet,
router, dns1, dns2, pppoe).
This command can cooperate
with other
“restoreexceptXYZ”
commands. When
cooperating with others, the
system parameters will be
restored to the default value
except for a union of the
combined results.
restoreexceptdst <Any value> N/A 7/6 Restore the system
parameters to default values
except all daylight saving
time settings.
This command can cooperate
VIVOTEK
User's Manual - 115
with other
“restoreexceptXYZ”
commands. When
cooperating with others, the
system parameters will be
restored to default values
except for a union of
combined results.
restoreexceptlang <Any Value> N/A 7/6 Restore the system
parameters to default values
except the custom language
file the user has uploaded.
This command can cooperate
with other
“restoreexceptXYZ”
commands. When
cooperating with others, the
system parameters will be
restored to the default value
except for a union of the
combined results.
7.1.1 system.info
Subgroup of system: info (The fields in this group are unchangeable.)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
modelname string[40] VS8100 0/7 Internal model name of the server
(eg. IP7139)
extendedmodelname string[40] VS8100 0/7 ODM specific model name of
server (eg. DCS-5610). If it is not
an ODM model, this field will be
equal to “modelname”
serialnumber <mac
address>
<product
mac
address>
0/7 12 characters MAC address
(without hyphens).
firmwareversion string[40] <product
dependent>
0/7 Firmware version, including
model, company, and version
number in the format:
<MODEL-BRAND-VERSION>
VIVOTEK
116 - User's Manual
language_count <integer> 9 0/7 Number of webpage languages
available on the server.
language_i<0~(count-1)> string[16] <product
dependent>
0/7 Available language lists.
customlanguage_maxcount <integer> 1 0/6 Maximum number of custom
languages supported on the
server.
customlanguage_count <integer> 0 0/6 Number of custom languages
which have been uploaded to the
server.
customlanguage_i<0~(max
count-1)>
string N/A 0/6 Custom language name.
7.2 status
Group: status
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
onlinenum_rtsp integer 0 6/7 Current number of RTSP
connections.
onlinenum_httppush integer 0 6/7 Current number of HTTP push
server connections.
eth_i0 <string> <blank> 1/7 Get network information from
mii-tool.
vi_i<0~(nvi-1)> <boolean> 0 1/7 Virtual input
0 => Inactive
1 => Active
(capability.nvi > 0)
signal_c<0~(nvideoin-1)> <Boolean> 0 1/7 0=> No signal.
1=> Signal detected.
videomode_c<0~(nvideoin-1)> ntsc,
pal
ntsc 1/7 Video modulation type
7.3 security
Group: security
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
privilege_camctrl view, operator, view 1/6 Indicate which privileges and
VIVOTEK
User's Manual - 117
admin above can control PTZ
(capability.ptzenabled > 0 or
capability.eptz > 0)
user_i0_name string[64] root 6/7 User name of root
user_i<1~20>_name string[64] <blank> 6/7 User name
user_i0_pass password[64] <blank> 6/6 Root password
user_i<1~20>_pass password[64] <blank> 7/6 User password
user_i0_privilege admin admin 6/7 Root privilege
user_i<1~20>_
privilege
view,
operator,
admin
<blank> 6/6 User privilege
7.4 network
Group: network
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
preprocess <positive
integer>
NULL 6/6 An 32-bit integer, each bit can be set separately as
follows:
Bit 0 => HTTP service;
Bit 1=> HTTPS service;
Bit 2=> FTP service;
Bit 3 => Two way audio and RTSP Streaming
service;
To stop service before changing its port settings.
It’s recommended to set this parameter when
change a service port to the port occupied by
another service currently. Otherwise, the service
may fail.
Stopped service will auto-start after changing port
settings.
Ex:
Change HTTP port from 80 to 5556, and change
RTP port for video from 5556 to 20480.
Then, set preprocess=9 to stop both service first.
”/cgi-bin/admin/setparam.cgi?
network_preprocess=9&network_http_port=5556
& network_rtp_videoport=20480”
type lan, lan 6/6 Network connection type.
VIVOTEK
118 - User's Manual
pppoe
resetip <boolean> 1 6/6 1 => Get ipaddress, subnet, router, dns1, dns2
from DHCP server at next reboot.
0 => Use preset ipaddress, subnet, rounter, dns1,
and dns2.
ipaddress <ip
address>
<product
dependent>
6/6 IP address of server.
subnet <ip
address>
<blank> 6/6 Subnet mask.
router <ip
address>
<blank> 6/6 Default gateway.
dns1 <ip
address>
<blank> 6/6 Primary DNS server.
dns2 <ip
address>
<blank> 6/6 Secondary DNS server.
wins1 <ip
address>
<blank> 6/6 Primary WINS server.
wins2 <ip
address>
<blank> 6/6 Secondary WINS server.
7.4.1 802.1x
Subgroup of network: ieee8021x (capability.protocol.ieee8021x > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 6/6 Enable/disable IEEE 802.1x
eapmethod eap-peap,
eap-tls
eap-peap 6/6 Selected EAP method
identity_peap String[64] <blank> 6/6 PEAP identity
identity_tls String[64] <blank> 6/6 TLS identity
password String[254] <blank> 6/6 Password for TLS
privatekeypassword String[254] <blank> 6/6 Password for PEAP
ca_exist <boolean> 0 6/6 CA installed flag
ca_time <integer> 0 6/7 CA installed time. Represented
in EPOCH
ca_size <integer> 0 6/7 CA file size (in bytes)
certificate_exist <boolean> 0 6/6 Certificate installed flag (for
TLS)
VIVOTEK
User's Manual - 119
certificate_time <integer> 0 6/7 Certificate installed time.
Represented in EPOCH
certificate_size <integer> 0 6/7 Certificate file size (in bytes)
privatekey_exist <boolean> 0 6/6 Private key installed flag (for
TLS)
privatekey_time <integer> 0 6/7 Private key installed time.
Represented in EPOCH
privatekey_size <integer> 0 6/7 Private key file size (in bytes)
7.4.2 QOS
Subgroup of network: qos_cos (capability.protocol.qos.cos > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 6/6 Enable/disable CoS (IEEE 802.1p)
vlanid 1~4095 1 6/6 VLAN ID
video 0~7 0 6/6 Video channel for CoS
audio 0~7 0 6/6 Audio channel for CoS
(capability.naudio > 0)
eventalarm 0~7 0 6/6 Event/alarm channel for CoS
management 0~7 0 6/6 Management channel for CoS
eventtunnel 0~7 0 6/6 Event/Control channel for CoS
Subgroup of network: qos_dscp (capability.protocol.qos.dscp > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 6/6 Enable/disable DSCP
video 0~63 0 6/6 Video channel for DSCP
audio 0~63 0 6/6 Audio channel for DSCP
(capability.naudio > 0)
eventalarm 0~63 0 6/6 Event/alarm channel for DSCP
management 0~63 0 6/6 Management channel for DSCP
eventtunnel 0~63 0 6/6 Event/Control channel for DSCP
VIVOTEK
120 - User's Manual
7.4.3 IPV6
Subgroup of network: ipv6 (capability.protocol.ipv6 > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 6/6 Enable IPv6.
addonipaddress <ip address> <blank> 6/6 IPv6 IP address.
addonprefixlen 0~128 64 6/6 IPv6 prefix length.
addonrouter <ip address> <blank> 6/6 IPv6 router address.
addondns <ip address> <blank> 6/6 IPv6 DNS address.
allowoptional <boolean> 0 6/6 Allow manually setup of IP
address setting.
7.4.4 FTP
Subgroup of network: ftp
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
port 21, 1025~65535 21 6/6 Local ftp server port.
7.4.5 HTTP
Subgroup of network: http
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
port
80, 1025 ~
65535
80 1/6 HTTP port.
alternateport 1025~65535 8080 6/6 Alternate HTTP port.
authmode basic,
digest
basic 1/6 HTTP authentication mode.
s0_accessname string[32] video.mjpg 1/6 HTTP server push access name for
stream 1.
(capability.protocol.spush_mjpeg
=1 and capability.nmediastream >
0)
s1_accessname string[32] video2.mjpg 1/6 HTTP server push access name for
stream 2.
(capability.protocol.spush_mjpeg
VIVOTEK
User's Manual - 121
=1 and capability.nmediastream >
1)
s2_accessname string[32] video3.mjpg 1/6 Http server push access name for
stream 3
(capability.protocol.spush_mjpeg
=1 and capability.nmediastream >
2)
anonymousviewing <boolean> 0 1/6 Enable anoymous streaming
viewing.
7.4.6 HTTPS port
Subgroup of network: https_port
(capability.protocol.https > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
port 443, 1025 ~
65535
443 1/6 HTTPS port.
7.4.7 RTSP
Subgroup of network: rtsp (capability.protocol.rtsp > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
port 554, 1025 ~
65535
554 1/6 RTSP port.
(capability.protocol.rtsp=1)
anonymousviewing <boolean> 0 1/6 Enable anoymous streaming
viewing.
authmode disable,
basic,
digest
disable 1/6 RTSP authentication mode.
(capability.protocol.rtsp=1)
s0_accessname string[32] live.sdp 1/6 RTSP access name for stream1.
(capability.protocol.rtsp=1 and
capability.nmediastream > 0)
s1_accessname string[32] live2.sdp 1/6 RTSP access name for stream2.
(capability.protocol.rtsp=1 and
capability.nmediastream > 1)
s2_accessname string[32] live3.sdp 1/6 RTSP access name for stream3
(capability.protocol.rtsp=1 and
capability.nmediastream > 2)
VIVOTEK
122 - User's Manual
7.4.7.1 RTSP multicast
Subgroup of network_rtsp_s<0~(n-1)>: multicast, n is stream count
(capability.protocol.rtp.multicast > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
alwaysmulticast <boolean> 0 4/4 Enable always multicast.
ipaddress <ip address> For n=0,
239.128.1.99
For n=1,
239.128.1.100,
and so on.
4/4 Multicast IP address.
videoport 1025 ~ 65535 5560+n*2 4/4 Multicast video port.
audioport 1025 ~ 65535 5562+n*2 4/4 Multicast audio port.
(capability.naudio > 0)
ttl 1 ~ 255 15 4/4 Mutlicast time to live value.
7.4.8 RTP port
Subgroup of network: rtp
NAME VALUE DEFAULT SECURIT
Y
(get/set)
DESCRIPTION
videoport 1025 ~ 65535 5556 6/6 Video channel port for RTP.
(capability.protocol.rtp_unicast=1)
audioport 1025 ~ 65535 5558 6/6 Audio channel port for RTP.
(capability.protocol.rtp_unicast=1)
7.4.9 PPPoE
Subgroup of network: pppoe (capability.protocol.pppoe > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
user string[128] <blank> 6/6 PPPoE account user name.
pass password[64] <blank> 6/6 PPPoE account password.
VIVOTEK
User's Manual - 123
7.5 IP Filter
Group: ipfilter
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 6/6 Enable access list filtering.
admin_enable <boolean> 0 6/6 Enable administrator IP
address.
admin_ip String[44] <blank> 6/6 Administrator IP address.
maxconnection 0~10 10 6/6 Maximum number of
concurrent streaming
connection(s).
type 0, 1
1
6/6 Ipfilter policy :
0 => allow
1 => deny
ipv4list_i<0~9> Single address:
<ip address>
Network
address: <ip
address /
network mask>
Range
address:<start ip
address - end ip
address>
<blank>
6/6 IPv4 address list.
ipv6list_i<0~9> String[44]
<blank>
6/6 IPv6 address list.
7.6 video input
Group: videoin
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
color 0, 1 1 4/4 0 =>monochrome
1 => color
flip <boolean> 0 4/4 Flip the image.
mirror <boolean> 0 4/4 Mirror the image.
ptzstatus <integer> 2 1/7 A 32-bit integer, each bit can be
set separately as follows:
VIVOTEK
124 - User's Manual
Bit 0 => Support camera control
function; 0(not support),
1(support)
Bit 1 => Built-in or external
camera; 0 (external), 1(built-in)
Bit 2 => Support pan operation;
0(not support), 1(support)
Bit 3 => Support tilt operation;
0(not support), 1(support)
Bit 4 => Support zoom operation;
0(not support), 1(support)
Bit 5 => Support focus operation;
0(not support), 1(support)
text string[60] <blank> 1/4 Enclose caption.
imprinttimestamp <boolean> 0 4/4 Overlay time stamp on video.
7.6.1 video input setting per channel
Group: videoin_c<0~(n-1)> for n channel products, and m is stream number
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
color 0, 1 1 4/4 0 =>monochrome
1 => color
flip <boolean> 0 4/4 Flip the image.
mirror <boolean> 0 4/4 Mirror the image.
ptzstatus <integer> 2 1/7 A 32-bit integer, each bit can
be set separately as follows:
Bit 0 => Support camera
control function; 0(not
support), 1(support)
Bit 1 => Built-in or external
camera; 0 (external),
1(built-in)
Bit 2 => Support pan
operation; 0(not support),
1(support)
Bit 3 => Support tilt
operation; 0(not support),
1(support)
Bit 4 => Support zoom
VIVOTEK
User's Manual - 125
operation; 0(not support),
1(support)
Bit 5 => Support focus
operation; 0(not support),
1(support)
text string[60] <blank> 1/4 Enclose caption.
imprinttimestamp <boolean> 0 4/4 Overlay time stamp on
video.
s<0~(m-1)>_codectype mjpeg, h264 h264 1/4 Video codec type.
svc is only supported with
stream 0.
s<0~(m-1)>_resolution QCIF,
CIF,
4CIF,
D1
D1 1/4 Video resolution in pixels.
s<0~(m-1)>_ratiocorrect <boolean> 0 1/4 Change resolution to fit 4:3
ratio.
For PAL:
D1/4CIF(720/704x576) ->
(768x576)
CIF(352x288)->(384x288)
For NTSC:
D1/4CIF(720/704x480) ->
(640x480)
CIF(352x240)->(320x240)
s<0~(m-1)>_h264_intraperio
d
250, 500, 1000,
2000, 3000,
4000
1000 4/4 Intra frame period in
milliseconds.
s<0~(m-1)>_h264_prioritypo
licy
framerate,
imagequality
framerate 4/4 The policy to apply when the
target bit rate is not
sufficient to satisfy current
encoded conditions.
“framerate” indicates frame
rate first.
“imagequality” indicates
image quality first.
s<0~(m-1)>_h264_ratecontro
lmode
cbr, vbr cbr 4/4 cbr, constant bitrate
vbr, fix quality
VIVOTEK
126 - User's Manual
s<0~(m-1)>_h264_quant 1~5,99,100 3 4/4 Quality of video when
choosing vbr in
“ratecontrolmode”.
Set the pre-defined quality
level:
1: Median
2: Standard
3: Good
4: Detailed
5: Excellent
100: Use the quality level in
"qpercent"
99: Use the quality level in
"qvalue"
s<0~(m-1)>_h264_qpercent 1~100 50 4/4 Set quality by percentage.
1: Worst quality
100: Best quality
(s<0~(m-1)>_h264_quant =
100)
s<0~(m-1)>_h264_qvalue 0~51 29 4/4 Manual video quality level
input.
(s<0~(m-1)>_h264_quant =
99)
s<0~(m-1)>_h264_bitrate 1000~4000000
0
3000000 4/4 Set bit rate in bps when
choosing cbr in
“ratecontrolmode”.
s<0~(m-1)>_h264_maxframe 1~25,
26~30 (only for
NTSC or 60Hz
CMOS)
25 => PAL
CCD or
50Hz
CMOS
30 =>
NTSC
CCD or
60Hz
CMOS
1/4 Set maximum frame rate in
fps (for h264).
s<0~(m-1)>_h264_profile 0~2 1 1/4 Indicate H264 profiles
0: baseline
1: main profile
2: high profile
s<0~(m-1)>_mjpeg_priorit framerate, framerate 4/4 The policy to apply when
VIVOTEK
User's Manual - 127
ypolicy imagequality the target bit rate is not
sufficient to satisfy current
encoded conditions.
“framerate” indicates
frame rate first.
“imagequality” indicates
image quality first.
s<0~(m-1)>_mjpeg_rateco
ntrolmode
cbr, vbr vbr 4/4 cbr, constant bitrate
vbr, fix quality
s<0~(m-1)>_mjpeg_quant 1~5,99,100 3 4/4 Quality of JPEG video.
Set the pre-defined quality
level:
1: Median
2: Standard
3: Good
4: Detailed
5: Excellent
100: Use the quality level in
"qpercent"
99: Use the quality level in
"qvalue"
s<0~(m-1)>_mjpeg_maxfram
e
1~25,
26~30 (only for
NTSC or 60Hz
CMOS)
25 => PAL
CCD or
50Hz
CMOS
30 =>
NTSC
CCD or
60Hz
CMOS
1/4 Set maximum frame rate in
fps (for JPEG).
s<0~(m-1)>_mjpeg_qvalue 10~200 49 4/4 Manual video quality level
input.
(s<0~(m-1)>_mjpeg_quant =
0)
s<0~(m-1)>_mjpeg_qpercent 1~100 50 4/4 Set quality by percentage.
1: Worst quality
100: Best quality
(s<0~(m-1)>_mjpeg_quant =
100)
VIVOTEK
128 - User's Manual
s<0~(m-1)>_mjpeg_bitrate 1000~800000
0
6000000 4/4 Set bit rate in bps when
choosing cbr in
“ratecontrolmode”.
s<0~(m-1)>_forcei 1 N/A 7/6 Force I frame.
7.7 image setting per channel
Group: image_c<0~(n-1)> for n channel products
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
brightness -5 ~ 5,100 100 4/4 Adjust brightness of image
according to mode settings.
saturation -5 ~ 5,100 100 4/4 Adjust saturation of image
according to mode settings.
contrast -5 ~ 5,100 100 4/4 Adjust contrast of image according
to mode settings.
sharpness -3 ~ 3,100 100 4/4 Adjust sharpness of image
according to mode settings.
brightnesspercent 0 ~ 100 50 4/4 Adjust brightness of image by
percentage.
Darker 0 <-> 100 Brighter
saturationpercent 0 ~ 100 50 4/4 Adjust saturation of image by
percentage.
Less 0 <-> 100 More saturation
contrastpercent 0 ~ 100 50 4/4 Adjust contrast of image by
percentage.
Less 0 <-> 100 More contrast
sharpnesspercent 0~100 50 4/4 Adjust sharpness of image by
percentage.
Softer 0 <-> 100 Sharper
IBPE_nrenable <boolean> 0 4/4 Enable noise reduction.
IBPE_nrstrength 0 ~ 100 5 4/4 Adjust noise reduction strength. 0
is minimum and 100 is maximum.
xoffset 0 ~ 100 13 4/4 Change start point of input image
in horizontal.
deinterlace_enable <boolean> 1 4/4 Enable de-interlace. This is
enabled by default.
deinterlace_mode adaptive, adaptive 4/4 Adaptive: Detect moving area and
VIVOTEK
User's Manual - 129
blend perform de-interlace on it. This
mode leads to better image quality,
but consumes more resource.
Blend: Use blend method to
perform de-interlace.
7.8 Audio input per channel
Group: audioin_c<0~(n-1)> for n channel products (capability.audioin>0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
source linein linein 4/4 linein => use external
microphone input.
mute 0, 1 1 1/4 Enable audio mute.
0 => Audio is enabled
1 => Audio is muted
gain 0~100 65 4/4 Gain of input.
(audioin_c<0~(n-1)>_source =
linein)
s<0~(m-1)>_codectype g711, g726 g711 4/4 Set audio codec type for input.
s<0~(m-1)>_g711_mode pcmu,
pcma
pcmu 4/4 Set G.711 mode.
s<0~(m-1)>_g726_bitrate 16000,
24000,
32000,
40000
32000 4/4 Set G.726 bitrate in bps.
VIVOTEK
130 - User's Manual
7.9 Time Shift settings
Group: timeshift, c for n channel products, m is stream number
(capability.timeshift > 0)
NAME VALUE DEFAUL
T
SECURIT
Y
(get/set)
DESCRIPTION
enable <boolean> 0 4/4 Enable time shift streaming.
c<0~(n-1)>_s<0~(
m-1)>_allow
<boolean> 0 4/4 Enable time shift streaming for
specific stream.
7.10 Motion detection settings
Group: motion_c<0~(n-1)> for n channel product
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 4/4 Enable motion detection.
win_i<0~2>_enable <boolean> 0 4/4 Enable motion window 1~3.
win_i<0~2>_name string[40] <blank> 4/4 Name of motion window 1~3.
win_i<0~2>_left 0 ~ 320 0 4/4 Left coordinate of window
position.
win_i<0~2>_top 0 ~ 240 0 4/4 Top coordinate of window
position.
win_i<0~2>_width 0 ~ 320 0 4/4 Width of motion detection
window.
win_i<0~2>_height 0 ~ 240 0 4/4 Height of motion detection
window.
win_i<0~2>_objsize 0 ~ 100 0 4/4 Percent of motion detection
window.
win_i<0~2>_sensitivity 0 ~ 100 0 4/4 Sensitivity of motion detection
window.
Group: motion_c<0~(n-1)>_profile for m profile and n channel product (capability.nmotionprofile >
0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
i<0~(m-1)>_enable <boolean> 0 4/4 Enable profile 1 ~
(m-1).
i<0~(m-1)>_policy schedule schedule 4/4 The mode which the
VIVOTEK
User's Manual - 131
profile is applied to.
i<0~(m-1)>_begintime hh:mm 18:00 4/4 Begin time of
schedule mode.
i<0~(m-1)>_endtime hh:mm 06:00 4/4 End time of
schedule mode.
i<0~(m-1)>_win_i<0~2>_enable <boolean> 0 4/4 Enable motion
window.
i<0~(m-1)>_win_i<0~2>_name string[40] <blank> 4/4 Name of motion
window.
i<0~(m-1)>_win_i<0~2>_left 0 ~ 320 0 4/4 Left coordinate of
window position.
i<0~(m-1)>_win_i<0~2>_top 0 ~ 240 0 4/4 Top coordinate of
window position.
i<0~(m-1)>_win_i<0~2>_width 0 ~ 320 0 4/4 Width of motion
detection window.
i<0~(m-1)>_win_i<0~2>_height 0 ~ 240 0 4/4 Height of motion
detection window.
i<0~(m-1)>_win_i<0~2>_objsize 0 ~ 100 0 4/4 Percent of motion
detection window.
i<0~(m-1)>_win_i<0~2>_sensitivity 0 ~ 100 0 4/4 Sensitivity of
motion detection
window.
7.11 Tampering detection settings
Group: tampering_c<0~(n-1)> for n channel product (capability.tampering > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 4/4 Enable or disable tamper detection.
threshold 0 ~ 255 32 1/7 Threshold of tamper detection.
duration 10 ~ 600 10 4/4 If tampering value exceeds the ‘threshold’ for
more than ‘duration’ second(s), then tamper
detection is triggered.
VIVOTEK
132 - User's Manual
7.12 DDNS
Group: ddns (capability.ddns > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 6/6 Enable or disable the dynamic DNS.
provider Safe100,
DyndnsDynamic,
DyndnsCustom,
DynInterfree,
CustomSafe100
DyndnsDy
namic
6/6 Safe100 => safe100.net
DyndnsDynamic => dyndns.org
(dynamic)
DyndnsCustom => dyndns.org
(custom)
DynInterfree =>dyn-interfree.it
CustomSafe100 =>
Custom server using safe100 method
<provider>_h
ostname
string[128] <blank> 6/6 Your DDNS hostname.
<provider>_use
rnameemail
string[64] <blank> 6/6 Your user name or email to login to
the DDNS service provider
<provider>_pas
swordkey
string[64] <blank> 6/6 Your password or key to login to the
DDNS service provider.
<provider>_ser
vername
string[128]
<blank> 6/6 The server name for safe100.
(This field only exists if the provider
is customsafe100)
7.13 Express link
Group:expresslink
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 6/6 Enable or disable express link.
state onlycheck,
onlyoffline,
checkonline,
badnetwork
badnetwork 6/6 “onlycheck” : You have to input the
host name of your camera and press
"Register" button to register it.
“onlyoffline” : Express link is
active, you can now connect to this
camera at expresslink_url.
“checkonline” : Express link is not
VIVOTEK
User's Manual - 133
active.
“badnetwork” : Express Link is not
supported under this network
environment.
url string[64] <blank> 6/6 The URL to connect to this camera
by express link.
7.14 UPnP presentation
Group: upnppresentation
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 1 6/6 Enable or disable the UPnP
presentation service.
7.15 UPnP port forwarding
Group: upnpportforwarding
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 6/6 Enable or disable the UPnP port
forwarding service.
upnpnatstatus 0~3 0 6/7 The status of UPnP port forwarding,
used internally.
0 = OK, 1 = FAIL, 2 = no IGD
router, 3 = no need for port
forwarding
7.16 System log
Group: syslog
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enableremotelog <boolean> 0 6/6 Enable remote log.
serverip <IP address> <blank> 6/6 Log server IP address.
serverport 514, 1025~65535 514 6/6 Server port used for log.
level 0~7 6 6/6 Levels used to distinguish the
importance of the information:
0: LOG_EMERG
1: LOG_ALERT
2: LOG_CRIT
VIVOTEK
134 - User's Manual
3: LOG_ERR
4: LOG_WARNING
5: LOG_NOTICE
6: LOG_INFO
7: LOG_DEBUG
7.17 camera PTZ control
Group: camctrl (capability.camctrl.httptunnel > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enableptztunnel <boolean> 0 1/4 Enable HTTP tunnel for
camera control.
Group: camctrl_c<0~(n-1)> for n channel product (capability.ptzenabled)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
panspeed -5 ~ 5 0 1/4 Pan speed
tiltspeed -5 ~ 5 0 1/4 Tilt speed
zoomspeed -5 ~ 5 0 1/4 Zoom speed
focusspeed -5 ~ 5 0 1/4 Auto focus speed
preset_i<0~(npreset-1)
>_name
string[40] <blank> 1/4 Name of the preset location.
preset_i<0~(npreset-1
)>_ dwelling
0 ~ 999 0 1/4 The dwelling time of each
preset location
uart 0 ~ (m-1), m
is UART
count
0 1/4 Select corresponding uart
(capability.nuart>0).
cameraid 0~255 1 1/4 Camera ID controlling external
PTZ camera.
isptz 0 ~ 2 0 1/4 0: disable PTZ commands.
1: enable PTZ commands with
PTZ driver.
2: enable PTZ commands with
UART tunnel.
disablemdonptz <boolean> 0 1/4 Disable motion detection on PTZ
operation.
patrolseq string[120] <blank> 1/4 (For external device)
The indexes of patrol points,
VIVOTEK
User's Manual - 135
separated by “,”
patroldwelling string[160] <blank> 1/4 (For external device)
The dwelling time of each patrol
point, separated by “,”
7.18 UART control
Group: uart (capability.nuart > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
ptzdrivers_i<0~19,
127>_name
string[40] <blank> 1/4 Name of the PTZ driver.
ptzdrivers_i<0~19,
127>_location
string[128] <blank> 1/4 Full path of the PTZ driver.
enablehttptunnel <boolean> 0 1/4 Enable HTTP tunnel channel to
control UART.
Group: uart_i<0~(n-1)> n is uart port count (capability.nuart > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
baudrate 110,300,600,120
0,2400,3600,480
0,7200,9600,192
00,38400,57600,
115200
9600 4/4 Set baud rate of COM port.
databit 5,6,7,8 8 4/4 Data bits in a character frame.
paritybit none,
odd,
even
none 4/4 For error checking.
stopbit 1,2 1 4/4 1
2-1.5 , data bit is 5
2-2
uartmode rs485 rs485 4/4 UART transmission mode.
customdrvcmd_i<0~9
>
string[128] <blank> 1/4 PTZ command for custom
camera.
speedlink_i<0~4>_na
me
string[40] <blank> 1/4 Additional PTZ command
name.
speedlink_i<0~4>_c string[40] <blank> 1/4 Additional PTZ command list.
VIVOTEK
136 - User's Manual
md
ptzdriver 0~19,
127 (custom),
128 (no driver)
128
(no driver)
1/4 The PTZ driver is used by this
COM port.
7.19 SNMP
Group: snmp
(capability.snmp > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
v2 0~1 0 6/6 SNMP v2 enabled. 0 for disable, 1
for enable
v3 0~1 0 6/6 SNMP v3 enabled. 0 for disable, 1
for enable
secnamerw string[31] Private 6/6 Read/write security name
secnamero string[31] Public 6/6 Read only security name
authpwrw string[8~128] <blank> 6/6 Read/write authentication password
authpwro string[8~128] <blank> 6/6 Read only authentication password
authtyperw MD5,SHA MD5 6/6 Read/write authentication type
authtypero MD5,SHA MD5 6/6 Read only authentication type
encryptpwrw string[8~128] <blank> 6/6 Read/write passwrd
encryptpwro string[8~128] <blank> 6/6 Read only password
encrypttyperw DES DES 6/6 Read/write encryption type
encrypttypero DES DES 6/6 Read only encryption type
rwcommunity string[31] Private 6/6 Read/write community
rocommunity string[31] Public 6/6 Ready only community
VIVOTEK
User's Manual - 137
7.20 Layout configuration
Group: layout (New version)
NAME VALUE DEFAULT SECURIT
Y
(get/set)
DESCRIPTION
logo_default <boolean> 1 1/6 0 => Custom logo
1 => Default logo
logo_link string[64] http://www.
vivotek.co
m
1/6 Hyperlink of the logo
logo_powerbyvvtk_hidden <boolean> 0 1/6 0 => display the power by
vivotek logo
1 => hide the power by vivotek
logo
theme_option 1~4 1 1/6 1~3: One of the default themes.
4: Custom definition.
theme_color_font string[7] #ffffff 1/6 Font color
theme_color_configfont string[7] #ffffff 1/6 Font color of configuration
area.
theme_color_titlefont string[7] #098bd6 1/6 Font color of video title.
theme_color_controlbackgroun
d
string[7] #565656 1/6 Background color of control
area.
theme_color_configbackground string[7] #323232 1/6 Background color of
configuration area.
theme_color_videobackground string[7] #565656 1/6 Background color of video area.
theme_color_case string[7] #323232 1/6 Frame color
custombutton_manualtrigger_s
how
<boolean> 1 1/6 Show or hide manual trigger
(VI) button in homepage
0 -> Hidden
1 -> Visible
VIVOTEK
138 - User's Manual
7.21 Privacy mask
Group: privacymask_c<0~(n-1)> for n channel product
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 4/4 Enable privacy mask.
win_i<0~4>_enable <boolean> 0 4/4 Enable privacy mask
window.
win_i<0~4>_name string[40] <blank> 4/4 Name of the privacy mask
window.
win_i<0~4>_left 0 ~ 320 0 4/4 Left coordinate of window
position.
win_i<0~4>_top 0 ~ 240 0 4/4 Top coordinate of window
position.
win_i<0~4>_width 0 ~ 320 0 4/4 Width of privacy mask
window.
win_i<0~4>_height 0 ~ 240 0 4/4 Height of privacy mask
window.
7.22 Capability
Group: capability
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
api_httpversion 0300a 0300a 0/7 The HTTP API version.
bootuptime <positive integer> 60 0/7 Server bootup time.
nir 0,
<positive integer>
0 0/7 Number of IR interfaces.
(Recommand to use ir for
built-in IR and extir for
external IR)
npir 0,
<positive integer>
0 0/7 Number of PIRs.
ndi 0,
<positive integer>
0 0/7 Number of digital inputs.
nvi 0,
<positive integer>
3 0/7 Number of virtual inputs
(manual trigger)
ndo 0,
<positive integer>
0 0/7 Number of digital outputs.
VIVOTEK
User's Manual - 139
naudioin 0,
<positive integer>
1 0/7 Number of audio inputs.
naudioout 0,
<positive integer>
0 0/7 Number of audio outputs.
nvideoin <positive integer> 1 0/7 Number of video inputs.
nvideoinprofile <positive integer> 0 0/7 Number of video input
profiles.
nmediastream <positive integer> 3 0/7 Number of media stream per
channels.
naudiosetting <positive integer> 1 0/7 Number of audio settings per
channel.
nuart 0,
<positive integer>
1 0/7 Number of UART interfaces.
nmotion 0, <positive
integer>
3 0/7 Number of motion window.
nmotionprofile 0, <positive
integer>
1 0/7 Number of motion profiles.
ptzenabled 0, <positive
integer>
189 0/7 An 32-bit integer, each bit can
be set separately as follows:
Bit 0 => Support camera
control function;
0(not support), 1(support)
Bit 1 => Built-in or external
video source;
0(external), 1(built-in)
Bit 2 => Support pan
operation, 0(not support),
1(support)
Bit 3 => Support tilt operation;
0(not support), 1(support)
Bit 4 => Support zoom
operation;
0(not support), 1(support)
Bit 5 => Support focus
operation;
0(not support), 1(support)
Bit 6 => Support iris
operation;
0(not support), 1(support)
VIVOTEK
140 - User's Manual
Bit 7 => External or built-in
PT; 0(built-in), 1(external)
Bit 8 => Invalidate bit 1 ~ 7;
0(bit 1 ~ 7 are valid),
1(bit 1 ~ 7 are invalid)
Bit 9 => Reserved bit; always
1.
Examples:
PT8133: 0b1111
SD8362: 0b111111
VS8102: 0b10111101
windowless <boolean> 1 0/7 Indicate whether to support
windowless plug-in.
eptz 0, <positive
integer>
0 0/7 A 32-bit integer, each bit can
be set separately as follows:
Bit 0 => stream 1 supports
ePTZ or not.
Bit 1 => stream 2 supports
ePTZ or not.
The rest may be deduced by
analogy
remotefocus <boolean> 0 0/7 Indicate whether to support
remote focus function.
npreset 0, <positive
integer>
20 0/7 Number of preset locations.
protocol_https < boolean > 1 0/7 Indicate whether to support
HTTP over SSL.
protocol_rtsp < boolean > 1 0/7 Indicate whether to support
RTSP.
protocol_sip <boolean> 0 0/7 Indicate whether to support
SIP.
protocol_maxconnecti
on
<positive integer> 10 0/7 The maximum allowed
simultaneous connections.
protocol_maxgenconn
ection
<positive integer> 10 0/7 The maximum general
streaming connections .
protocol_maxmegacon
nection
<positive integer> 0 0/7 The maximum megapixel
streaming connections.
VIVOTEK
User's Manual - 141
protocol_rtp_multicast
_
scalable
<boolean> 1 0/7 Indicate whether to support
scalable multicast.
protocol_rtp_multicast
_
backchannel
<boolean> 0 0/7 Indicate whether to support
backchannel multicast.
protocol_rtp_tcp <boolean> 1 0/7 Indicate whether to support
RTP over TCP.
protocol_rtp_http <boolean> 1 0/7 Indicate whether to support
RTP over HTTP.
protocol_spush_mjpeg <boolean> 1 0/7 Indicate whether to support
server push MJPEG.
protocol_snmp <boolean> 1 0/7 Indicate whether to support
SNMP.
protocol_ipv6 <boolean> 1 0/7 Indicate whether to support
IPv6.
protocol_pppoe <boolean> 1 0/7 Indicate whether to support
PPPoE.
protocol_ieee8021x <boolean> 1 0/7 Indicate whether to support
IEEE802.1x.
protocol_qos_cos <boolean> 1 0/7 Indicate whether to support
CoS.
protocol_qos_dscp <boolean> 1 0/7 Indicate whether to support
QoS/DSCP.
protocol_ddns <boolean> 1 0/7 Indicate whether to support
DDNS.
videoin_type 0, 1, 2 0 0/7 0 => Interlaced CCD
1 => Progressive CCD
2 => CMOS
videoin_resolution <a list of available
resolution separated
by commas>
QCIF,CIF,4
CIF,D1
0/7 Available resolutions list.
videoin_nresolution
< number of
available resolution
list>
4 0/7 Available resolutions list.
(
only for 5M series)
videoin_maxframerate <a list of available
maximum frame
30,30,30,30 0/7 Available maximum frame list.
VIVOTEK
142 - User's Manual
rate separated by
commas>
videoin_mjpeg_maxfr
amerate
<a list of available
maximum frame
rate separated by
commas>
30,30,30,30 0/7 Available maximum frame list.
videoin_h264_maxfra
merate
<a list of available
maximum frame
rate separated by
commas>
30,30,30,30 0/7 Available maximum frame list.
videoin_streamcodec < 1 ~ 15, 1~15,
1~15 (3 streams)
>
6,6,6 0/7
Available stream
codectype
(Bit 0 -> mpeg4, Bit 1 ->
mjpeg, Bit 2 -> h264, Bit 3
-> svc).
videoin_codec
mjpeg, h264 mjpeg,
h264
0/7 Available codec list.
videoin_flexiblebitra
te
<boolean> 1 0/7 Indicate whether to support
flexible bitrate.
timeshift
<boolean> 1 0/7 Indicate whether to support
time shift caching stream.
audio_aec <boolean> 0 0/7 Indicate whether to support
acoustic echo cancellation.
audio_mic <boolean> 0 0/7 Indicate whether to support
built-in microphone input.
audio_extmic <boolean> 0 0/7 Indicate whether to support
external microphone input.
audio_linein <boolean> 1 0/7 Indicate whether to support
external line input.
(It will be replaced by
audio_mic and audio_extmic.)
audio_lineout
<boolean> 0 0/7 Indicate whether to support
line output.
audio_headphoneout <boolean> 0 0/7 Indicate whether to support
headphone output.
audioin_codec
g711,g726 g711,g726 0/7 Available codec list for audio
input.
VIVOTEK
User's Manual - 143
uart_httptunnel <boolean> 1 0/7 Indicate whether to support
HTTP tunnel for UART
transfer.
camctrl_httptunnel <boolean> 1 0/7 The attribute indicates whether
sending camera control
commands through HTTP
tunnel is supported.
0: Not supported
1: Supported
camctrl_privilege <boolean> 1 0/7 Indicate whether to support
“Manage Privilege” of PTZ
control in the Security page.
1: support both
/cgi-bin/camctrl/camctrl.cgi
and
/cgi-bin/viewer/camctrl.cgi
0: support only
/cgi-bin/viewer/camctrl.cgi
transmission_mode
Tx,
Rx,
Both
Tx 0/7 Indicate transmission mode of
the machine: TX = server, Rx
= receiver box, Both = DVR.
network_wire <boolean> 1 0/7 Indicate whether to support
Ethernet.
network_wireless <boolean> 0 0/7 Indicate whether to support
wireless.
wireless_s802dot11b <boolean> 0 0/7 Indicate whether to support
wireless 802.11b+.
wireless_s802dot11g <boolean> 0 0/7 Indicate whether to support
wireless 802.11g.
wireless_encrypt_wep <boolean> 0 0/7 Indicate whether to support
wireless WEP.
wireless_encrypt_wpa <boolean> 0 0/7 Indicate whether to support
wireless WPA.
wireless_encrypt_wpa
2
<boolean> 0 0/7 Indicate whether to support
wireless WPA2.
derivative_brand <boolean> 1 0/7 Indicate whether to support the
upgrade function for the
derivative brand. For example,
if the value is true, the VVTK
VIVOTEK
144 - User's Manual
product can be upgraded to
VVXX. (TCVV<->TCXX is
excepted)
evctrlchannel <boolean> 1 0/7 Indicate whether to support
HTTP tunnel for event/control
transfer.
joystick <boolean> 1 0/7 Indicate whether to support
joystick control.
storage_dbenabled <boolean> 0 0/7 Media files are indexed in
database.
nanystream 0, <positive
integer>
0 0/7 number of any media stream
per channel
iva <boolean> 0 0/7 Indicate whether to support
Intelligent Video analysis
ir <boolean> 0 0/7 Indicate whether to support
built-in IR led.
extir <boolean> 0 0/7 Indicate whether to support
external IR led.
whitelight <boolean> 0 0/7 Indicate whether to support
white light led.
iris <boolean> 0 0/7 Indicate whether to support iris
control.
tampering <boolean> 1 0/7 Indicate whether to support
tampering detection.
temperature <boolean> 0 0/7 Indicate whether to support
temperature detection.
localstorage_manage
able
<boolean> 0 0/7 Indicate whether
manageable local storage is
supported.
localstorage_seamles
s
<boolean> 0 0/7 Indicate whether seamless
recording is supported.
localstorage_modnu
m
0,
<positive integer>
0 0/7 The maximum MOD
connection numbers.
adaptiverecording <boolean> 1 0/7 Indicate whether to support
adaptive recording.
adaptivestreaming <boolean> 1 0/7 Indicate whether to support
adaptive streaming.
supportsd <boolean>
0
0/7 Indicate whether to support
local storage.
VIVOTEK
User's Manual - 145
7.23 Customized event script
Group: event_customtaskfile_i<0~2>
PARAMETER VALUE Default SECURITY
(get/set)
DESCRIPTION
name string[40] NULL 6/6 Custom script identification of this
entry.
date string[20] NULL 6/6 Date of custom script.
time string[20] NULL 6/6 Time of custom script.
7.24 Event setting
Group: event_i<0~2>
PARAMETER VALUE Default SECURITY
(get/set)
DESCRIPTION
name string[40] NULL 6/6 Identification of this entry.
enable 0, 1 0 6/6 Enable or disable this event.
priority 0, 1, 2 1 6/6 Indicate the priority of this event:
“0” = low priority
“1” = normal priority
“2” = high priority
delay 1~999 20 6/6 Delay in seconds before detecting the
next event.
trigger boot,
di,
motion,
seq,
visignal,
virestore,
recnotify
tampering,
vi,
Boot 6/6 Indicate the trigger condition:
“boot” = System boot
“di”= Digital input
“motion” = Video motion detection
“seq” = Periodic condition
“visignal” = Video input signal loss.
“virestore” = Video input signal
restore.
“recnotify” = Recording notification.
“tampering” = Tamper detection.
“vi”= Virtual input (Manual trigger)
triggerstatus String[40] trigger 6/6 The status for event trigger
VIVOTEK
146 - User's Manual
vi 0 ~ 7 0 6/6 Indicate the source id of vi trigger.
This field is required when trigger
condition is “vi”.
One bit represents one digital input.
The LSB indicates VI 0.
visignal 0 ~ 1 0 6/6 Indicate the source of video input
signal loss. Each bit represents one
channel, and the LSB indicates
channel 1.
virestore 0 ~ 1 0 6/6 Indicate the source of video input
signal restore. Each bit represents one
channel, and the LSB indicates
channel 1.
mdwin 0 ~ 7 0 6/6 Indicate the source window id of
motion detection.
This field is required when trigger
condition is “md”.
One bit represents one window.
The LSB indicates the 1
st
window.
For example, to detect the 1
st
and 3
rd
windows, set mdwin as 5.
mdwin0 0 ~ 7 0 6/6 Similar to mdwin. The parameter
takes effect when profile 1 of motion
detection is enabled.
inter 1~999 1 6/6 Interval of snapshots in minutes.
This field is used when trigger
condition is “seq”.
weekday 0~127 127 6/6 Indicate which weekday is scheduled.
One bit represents one weekday.
bit0 (LSB) = Saturday
bit1 = Friday
bit2 = Thursday
bit3 = Wednesday
bit4 = Tuesday
bit5 = Monday
bit6 = Sunday
For example, to detect events on
Friday and Sunday, set weekday as
66.
VIVOTEK
User's Manual - 147
begintime hh:mm 00:00 6/6 Begin time of the weekly schedule.
endtime hh:mm 24:00 6/6 End time of the weekly schedule.
(00:00 ~ 24:00 sets schedule as
always on)
action_server_i<0~4>_en
able
0, 1 0 6/6 Enable or disable this server action.
action_server_i<0~4>_m
edia
NULL, 0~4 NULL 6/6 Index of the attached media.
action_server_i<0~4>_da
tefolder
<boolean> 0 6/6 Enable this to create folders by date,
time, and hour automatically.
action_goto_enable <Boolean> 0 6/6 Enable/disable ptz goto preset
position on event triggered.
action_goto_name string[40] <blank> 6/6 Specify the preset name that ptz goto
on event triggered.
VIVOTEK
148 - User's Manual
7.25 Server setting for event action
Group: server_i<0~4>
PARAMETER VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
name string[40] NULL 6/6 Identification of this entry
type email,
ftp,
http,
ns
email 6/6 Indicate the server type:
“email” = email server
“ftp” = FTP server
“http” = HTTP server
“ns” = network storage
http_url string[128] http:// 6/6 URL of the HTTP server to upload.
http_username string[64] NULL 6/6 Username to log in to the server.
http_passwd string[64] NULL 6/6 Password of the user.
ftp_address string[128] NULL 6/6 FTP server address.
ftp_username string[64] NULL 6/6 Username to log in to the server.
ftp_passwd string[64] NULL 6/6 Password of the user.
ftp_port 0~65535 21 6/6 Port to connect to the server.
ftp_location string[128] NULL 6/6 Location to upload or store the media.
ftp_passive 0, 1 1 6/6 Enable or disable passive mode.
0 = disable passive mode
1 = enable passive mode
email_address string[128] NULL 6/6 Email server address.
email_sslmode 0, 1 0 6/6 Enable support SSL.
email_port 0~65535 25 6/6 Port to connect to the server.
email_username string[64] NULL 6/6 Username to log in to the server.
email_passwd string[64] NULL 6/6 Password of the user.
email_senderemail string[128] NULL 6/6 Email address of the sender.
email_recipientemail string[640] NULL 6/6 Email address of the recipient.
ns_location string[128] NULL 6/6 Location to upload or store the media.
ns_username string[64] NULL 6/6 Username to log in to the server.
ns_passwd string[64] NULL 6/6 Password of the user.
ns_workgroup string[64] NULL 6/6 Workgroup for network storage.
VIVOTEK
User's Manual - 149
7.26 Media setting for event action
Group: media_i<0~4> (media_freespace is used internally.)
PARAMETER VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
name string[40] NULL 6/6 Identification of this entry
type snapshot,
systemlog,
videoclip,
snapshot 6/6 Media type to send to the server or
store on the server.
snapshot_source 0 ~ 2 0 6/6 Indicate the source of media stream.
0 means the first stream.
1 means the second stream and etc.
2 means the third stream and etc.
3 means the fourth stream and etc.
snapshot_prefix string[16] NULL 6/6 Indicate the prefix of the filename.
snapshot_datesuffix 0, 1 0 6/6 Add date and time suffix to
filename:
1 = Add date and time suffix.
0 = Do not add.
snapshot_preevent 0 ~ 7 1 6/6 Indicates the number of pre-event
images.
snapshot_postevent 0 ~ 7 1 6/6 The number of post-event images.
videoclip_source 0 ~ 2 0 6/6 Indicate the source of media stream.
0 means the first stream.
1 means the second stream and etc.
2 means the third stream and etc.
3 means the fourth stream and etc.
videoclip_prefix string[16] NULL 6/6 Indicate the prefix of the filename.
videoclip_preevent 0 ~ 9 0 6/6 Indicates the time for pre-event
recording in seconds.
videoclip_maxduration 1 ~ 20 5 6/6 Maximum duration of one video
clip in seconds.
videoclip_maxsize 50 ~ 4096 500 6/6 Maximum size of one video clip
file in Kbytes.
VIVOTEK
150 - User's Manual
7.27 Recording
Group: recording_i<0~1>
PARAMETER VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
name string[40] NULL 6/6 Identification of this entry.
enable 0, 1 0 6/6 Enable or disable this recording.
priority 0, 1, 2 1 6/6 Indicate the priority of this
recording:
“0” indicates low priority.
“1” indicates normal priority.
“2” indicates high priority.
source 0~2 0 6/6 Indicate the source of media
stream.
0 means the first stream.
1 means the second stream and so
on.
limitsize 0,1 0 6/6 0: Entire free space mechanism
1: Limit recording size mechanism
cyclic 0,1 0 6/6 0: Disable cyclic recording
1: Enable cyclic recording
notify 0,1 1 6/6 0: Disable recording notification
1: Enable recording notification
notifyserver 0~31 0 6/6 Indicate which notification server
is scheduled.
One bit represents one application
server (server_i0~i4).
bit0 (LSB) = server_i0.
bit1 = server_i1.
bit2 = server_i2.
bit3 = server_i3.
bit4 = server_i4.
For example, enable server_i0,
server_i2, and server_i4 as
notification servers; the
notifyserver value is 21.
VIVOTEK
User's Manual - 151
weekday 0~127 127 6/6 Indicate which weekday is
scheduled.
One bit represents one weekday.
bit0 (LSB) = Saturday
bit1 = Friday
bit2 = Thursday
bit3 = Wednesday
bit4 = Tuesday
bit5 = Monday
bit6 = Sunday
For example, to detect events on
Friday and Sunday, set weekday as
66.
begintime hh:mm 00:00 6/6 Start time of the weekly schedule.
endtime hh:mm 24:00 6/6 End time of the weekly schedule.
(00:00~24:00 indicates schedule
always on)
prefix string[16] NULL 6/6 Indicate the prefix of the filename.
cyclesize 100~ 100 6/6 The maximum size for cycle
recording in Kbytes when choosing
to limit recording size.
reserveamount 0~ 100 6/6 The reserved amount in Mbytes
when choosing cyclic recording
mechanism.
dest NULL, 0 ~ 4 NULL 6/6 The destination to store the
recorded data.
“0 ~ 4” means the index of the
network storage.
cffolder string[128] NULL 6/6 Folder name.
trigger schedule schedule 6/6 The event trigger type
schedule: The event is triggered by
schedule
networkfail: The event is triggered
by the failure of network
connection.
adaptive_enable 0,1 0 6/6 Indicate whether the adaptive
recording is enabled
VIVOTEK
152 - User's Manual
adaptive_preevent 0~9 5 6/6 Indicate when is the adaptive
recording started before the event
trigger point (seconds)
adaptive_postevent 0~10 5 6/6 Indicate when is the adaptive
recording stopped after the event
trigger point (seconds)
maxsize 100~2048 100 6/6
Unit: Mega bytes.
When this condition is reached,
recording file is truncated.
maxduration 60~3600 60 6/6
Uuit: Minute
When this condition is reached,
recording file is truncated.
7.28 HTTPS
Group: https (capability.protocol.https > 0)
NAME VALUE DEFAULT SECURITY
(get/set)
DESCRIPTION
enable <boolean> 0 6/6 To enable or disable secure
HTTP.
policy <Boolean> 0 6/6 If the value is 1, it will force
HTTP connection redirect to
HTTPS connection
method auto,
manual,
install
Auto 6/6 auto => Create self-signed
certificate automatically.
manual => Create self-signed
certificate manually.
install => Create certificate
request and install.
status -3 ~ 1 0 6/6 Specify the https status.
-3 = Certificate not installed
-2 = Invalid public key
-1 = Waiting for certificate
0 = Not installed
1 = Active
countryname string[2] TW 6/6 Country name in the certificate
information.
stateorprovincename string[128] Asia 6/6 State or province name in the
certificate information.
VIVOTEK
User's Manual - 153
localityname string[128] Asia 6/6 The locality name in the
certificate information.
organizationname string[64] VIVOTEK
Inc.
6/6 Organization name in the
certificate information.
unit string[32] VIVOTEK
Inc.
6/6 Organizational unit name in the
certificate information.
commonname string[64] www.vivotek
.com
6/6 Common name in the certificate
information.
validdays 0 ~ 3650 3650 6/6 Valid period for the
certification.
VIVOTEK
154 - User's Manual
8. Useful Functions
8.1 Drive the Digital Output
(capability.ndo > 0)
Note: This request requires Viewer privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>]
[&do3=<state>][&do4=<state>]
Where state is 0 or 1; “0” means inactive or normal state, while “1” means active or triggered state.
PARAMETER VALUE DESCRIPTION
do<num> 0, 1 0 – Inactive, normal state
1 – Active, triggered state
Example: Drive the digital output 1 to triggered state and redirect to an empty page.
http://myserver/cgi-bin/dido/setdo.cgi?do1=1
8.2 Query Status of the Digital Input (capability.ndi > 0)
Note: This request requires Viewer privileges
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/dido/getdi.cgi?[di0][&di1][&di2][&di3]
If no parameter is specified, all of the digital input statuses will be returned.
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <length>\r\n
\r\n
[di0=<state>]\r\n
[di1=<state>]\r\n
[di2=<state>]\r\n
[di3=<state>]\r\n
where <state> can be 0 or 1.
VIVOTEK
User's Manual - 155
Example: Query the status of digital input 1 .
Request:
http://myserver/cgi-bin/dido/getdi.cgi?di1
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: 7\r\n
\r\n
di1=1\r\n
8.3 Query Status of the Digital Output
(capability.ndo > 0)
Note: This request requires Viewer privileges
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3]
If no parameter is specified, all the digital output statuses will be returned.
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <length>\r\n
\r\n
[do0=<state>]\r\n
[do1=<state>]\r\n
[do2=<state>]\r\n
[do3=<state>]\r\n
where <state> can be 0 or 1.
Example: Query the status of digital output 1.
Request:
http://myserver/cgi-bin/dido/getdo.cgi?do1
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: 7\r\n
VIVOTEK
156 - User's Manual
\r\n
do1=1\r\n
8.4 Capture Single Snapshot
Note: This request requires Normal User privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>][&resolution=<value>]
[&quality=<value>][&streamid=<value>]
If the user requests a size larger than all stream settings on the server, this request will fail.
PARAMETER VALUE DEFAULT DESCRIPTION
channel 0~(n-1) 0 The channel number of the video source.
resolution <available
resolution>
0 The resolution of the image.
quality 1~5 3 The quality of the image.
streamid 0~(m-1) 0 The stream number.
The server will return the most up-to-date snapshot of the selected channel and stream in JPEG format.
The size and quality of the image will be set according to the video settings on the server.
Return:
HTTP/1.0 200 OK\r\n
Content-Type: image/jpeg\r\n
[Content-Length: <image size>\r\n]
<binary JPEG image data>
VIVOTEK
User's Manual - 157
8.5 Account Management
Note: This request requires Administrator privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/admin/editaccount.cgi?
method=<value>&username=<name>[&userpass=<value>][&privilege=<value>]
[&privilege=<value>][…][&return=<return page>]
PARAMETER VALUE DESCRIPTION
method Add Add an account to the server. When using this method, the
“username” field is necessary. It will use the default value
of other fields if not specified.
Delete Remove an account from the server. When using this
method, the “username” field is necessary, and others are
ignored.
edit Modify the account password and privilege. When using
this method, the “username” field is necessary, and other
fields are optional. If not specified, it will keep the original
settings.
username <name> The name of the user to add, delete, or edit.
userpass <value> The password of the new user to add or that of the old user
to modify. The default value is an empty string.
Privilege <value> The privilege of the user to add or to modify.
viewer Viewer privilege.
operator Operator privilege.
admin Administrator privilege.
Return <return page> Redirect to the page <return page> after the parameter is
assigned. The <return page> can be a full URL path or
relative path according to the current path. If you omit this
parameter, it will redirect to an empty page.
VIVOTEK
158 - User's Manual
8.6 System Logs
Note: This request require Administrator privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/admin/syslog.cgi
Server will return the most up-to-date system log.
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <syslog length>\r\n
\r\n
<system log information>\r\n
8.7 Upgrade Firmware
Note: This request requires Administrator privileges.
Method: POST
Syntax:
http://<servername>/cgi-bin/admin/upgrade.cgi
Post data:
fimage=<file name>[&return=<return page>]\r\n
\r\n
<multipart encoded form data>
Server will accept the file named <file name> to upgrade the firmware and return with <return page>
if indicated.
VIVOTEK
User's Manual - 159
8.8 Camera Control (capability.ptzenabled)
Note: This request requires Viewer privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/camctrl/camctrl.cgi?[channel=<value>][&camid=<value>]
[&move=<value>]
– Move home, up, down, left, right
[&focus=<value>] – Focus operation
[&iris=<value>] – Iris operation
[&auto=<value>] – Auto pan, patrol
[&zoom=<value>] – Zoom in, out
[&zooming=<value>&zs=<value>] – Zoom without stopping, used for joystick
[&vx=<value>&vy=<value>&vs=<value>] – Shift without stopping, used for joystick
[&x=<value>&y=<value>&videosize=<value>&resolution=<value>&stretch=<value>] – Click on
(Move the center of image to the coordination (x,y) based on resolution or videosize.)
[ [&speedpan=<value>][&speedtilt=<value>][&speedzoom=<value>][&speedapp=<value>][&spee
dlink=<value>] ] – Set speeds
[&return=<return page>]
Example:
http://myserver/cgi-bin/camctrl/camctrl.cgi?channel=0&camid=1&move=right
http://myserver/cgi-bin/camctrl/camctrl.cgi?channel=0&camid=1&zoom=tele
http://myserver/cgi-bin/camctrl/camctrl.cgi?channel=0&camid=1&x=300&y=200&resolution=704x
480&videosize=704x480&strech=1
PARAMETER VALUE DESCRIPTION
channel <0~(n-1)> Channel of video source.
camid 0,<positive integer> Camera ID.
move home Move to camera to home position.
up Move camera up.
down Move camera down.
left Move camera left.
right Move camera right.
speedpan -5 ~ 5 Set the pan speed.
speedtilt -5 ~ 5 Set the tilt speed.
VIVOTEK
160 - User's Manual
speedzoom -5 ~ 5 Set the zoom speed.
speedfocus -5 ~ 5 Set the focus speed.
speedapp -5 ~ 5 Set the auto pan/patrol speed.
auto pan Auto pan.
patrol Auto patrol.
stop Stop camera.
zoom wide Zoom larger view with current speed.
tele Zoom further with current speed.
stop Stop zoom.
focus auto Auto focus.
far Focus on further distance.
near Focus on closer distance.
iris auto Let the Network Camera control iris size.
open Manually control the iris for bigger size.
close Manually control the iris for smaller size.
speedlink 0 ~ 4 Issue speed link command.
gaptime 0~32768 The gaptime between two consecutive ptz commands for
device. (unit: ms)
return <return page> Redirect to the page <return page> after the parameter is
assigned. The <return page> can be a full URL path or
relative path according to the current path. If you omit this
parameter, it will redirect to an empty page.
8.9 ePTZ Camera Control (capability.eptz > 0)
Note: This request requires camctrl privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/camctrl/eCamCtrl.cgi?channel=<value>&stream=<value>
[&move=<value>]
– Move home, up, down, left, right
[&auto=<value>] – Auto pan, patrol
[&zoom=<value>] – Zoom in, out
[&zooming=<value>&zs=<value>] – Zoom without stopping, used for joystick
[&vx=<value>&vy=<value>&vs=<value>] – Shift without stopping, used for joystick
VIVOTEK
User's Manual - 161
[&x=<value>&y=<value>&videosize=<value>&resolution=<value>&stretch=<value>]
– Click on
(Move the center of image to the coordination (x,y) based on resolution or videosize.)
[ [&speedpan=<value>][&speedtilt=<value>][&speedzoom=<value>][&speedapp=<value>] ] – Set
speeds
[&return=<return page>]
Example:
http://myserver/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=0&move=right
http://myserver/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=1&vx=2&vy=2&vz=2
http://myserver/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=1&x=100&y=100&
videosize=640x480&resolution=640x480&stretch=0
PARAMETER VALUE DESCRIPTION
channel <0~(n-1)> Channel of video source.
stream <0~(m-1)> Stream.
move home Move to home ROI.
up Move up.
down Move down.
left Move left.
right Move right.
auto pan Auto pan.
patrol Auto patrol.
stop Stop auto pan/patrol.
zoom wide Zoom larger view with current speed.
tele Zoom further with current speed.
zooming wide or tele Zoom without stopping for larger view or further view with
zs speed, used for joystick control.
zs 0 ~ 6 Set the speed of zooming, “0” means stop.
vx <integer> The direction of movement, used for joystick control.
vy <integer>
vs 0 ~ 7 Set the speed of movement, “0” means stop.
x <integer> x-coordinate clicked by user.
It will be the x-coordinate of center after movement.
y <integer> y-coordinate clicked by user.
It will be the y-coordinate of center after movement.
VIVOTEK
162 - User's Manual
videosize <window size> The size of plug-in (ActiveX) window in web page
resolution <window size> The resolution of streaming.
stretch <boolean>
0 indicates that it uses resolution (streaming size) as the
range of the coordinate system.
1 indicates that it uses videosize (plug-in size) as the range
of the coordinate system.
speedpan -5 ~ 5 Set the pan speed.
speedtilt -5 ~ 5 Set the tilt speed.
speedzoom -5 ~ 5 Set the zoom speed.
speedapp 1 ~ 5 Set the auto pan/patrol speed.
return <return page> Redirect to the page <return page> after the parameter is
assigned. The <return page> can be a full URL path or
relative path according to the current path.
8.10 Recall (capability.ptzenabled)
Note: This request requires Viewer privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/viewer/recall.cgi?
recall=<value>[&channel=<value>][&return=<return page>]
PARAMETER VALUE DESCRIPTION
recall Text string less than
30 characters
One of the present positions to recall.
channel <0~(n-1)> Channel of the video source.
return <return page> Redirect to the page <return page> after the parameter is
assigned. The <return page> can be a full URL path or
relative path according to the current path. If you omit this
parameter, it will redirect to an empty page.
VIVOTEK
User's Manual - 163
8.11 ePTZ Recall
(capability.eptz > 0)
Note: This request requires camctrl privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/camctrl/eRecall.cgi?channel=<value>&stream=<value>&
recall=<value>[&return=<return page>]
PARAMETER VALUE DESCRIPTION
channel <0~(n-1)> Channel of the video source.
stream <0~(m-1)> Stream.
recall Text string less than
40 characters
One of the present positions to recall.
return <return page> Redirect to the page <return page> after the parameter is
assigned. The <return page> can be a full URL path or
relative path according to the current path.
8.12 Preset Locations (capability.ptzenabled)
Note: This request requires Operator privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/operator/preset.cgi?[channel=<value>]
[&addpos=<value>][&delpos=<value>][&return=<return page>]
PARAMETER VALUE DESCRIPTION
addpos <Text string less than
30 characters>
Add one preset location to the preset list.
channel <0~(n-1)> Channel of the video source.
delpos <Text string less than
30 characters>
Delete preset location from preset list.
return <return page> Redirect to the page <return page> after the parameter is
assigned. The <return page> can be a full URL path or
VIVOTEK
164 - User's Manual
relative path according to the current path. If you omit this
parameter, it will redirect to an empty page.
8.13 ePTZ Preset Locations (capability.eptz > 0)
Note: This request requires Operator privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/operator/ePreset.cgi?channel=<value>&stream=<value>
[&addpos=<value>][&delpos=<value>][&return=<return page>]
PARAMETER VALUE DESCRIPTION
channel <0~(n-1)> Channel of the video source.
stream <0~(m-1)> Stream.
addpos <Text string less than
40 characters>
Add one preset location to the preset list.
delpos <Text string less than
40 characters>
Delete preset location from the preset list.
return <return page> Redirect to the page <return page> after the parameter is
assigned. The <return page> can be a full URL path or
relative path according to the current path.
VIVOTEK
User's Manual - 165
8.14 IP Filtering
Note: This request requires Administrator access privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/admin/ipfilter.cgi?
method=<value>&[start=<ipaddress>&end=<ipaddress>][&index=<value>]
[&return=<return page>]
PARAMETER VALUE DESCRIPTION
method addallow Add allowed IP address range to the server. Start and end
parameters must be specified. If the index parameter is
specified, it will try to add starting from the index position.
adddeny Add denied IP address range to the server. Start and end
parameters must be specified. If the index parameter is
specified, it will try to add starting from the index position.
deleteallow Remove allowed IP address range from server. If start and
end parameters are specified, it will try to remove the
matched IP address. If index is specified, it will try to
remove the address from given index position. [start, end]
parameters have higher priority then the [index] parameter.
deletedeny Remove denied IP address range from server. If start and
end parameters are specified, it will try to remove the
matched IP address. If index is specified, it will try to
remove the address from given index position. [start, end]
parameters have higher priority then the [index] parameter.
start <ip address> The starting IP address to add or to delete.
end <ip address> The ending IP address to add or to delete.
index <value> The start position to add or to delete.
return <return page> Redirect to the page <return page> after the parameter is
assigned. The <return page> can be a full URL path or
relative path according to the current path. If you omit this
parameter, it will redirect to an empty page.
VIVOTEK
166 - User's Manual
8.14.1 IP Filtering for ONVIF
Syntax:
http://<servername>/cgi-bin/admin/ipfilter.cgi?type[=<value>]
http://<servername>/cgi-bin/admin/ipfilter.cgi?method=add<v4/v6>&ip=<ipaddress>[&index=<val
ue>][&return=<return page>]
http://<servername>/cgi-bin/admin/ipfilter.cgi?method=del<v4/v6>&index=<value>[&return=<retu
rn page>]
PARAMETER VALUE DESCRIPTION
type NULL Get IP filter type
allow, deny Set IP filter type
method addv4 Add IPv4 address into access list.
addv6 Add IPv6 address into access list.
delv4 Delete IPv4 address from access list.
delv6 Delete IPv6 address from access list.
ip <IP address> Single address: <IP address>
Network address: <IP address / network mask>
Range address:<start IP address - end IP address>
index <value> The start position to add or to delete.
return <return page> Redirect to the page <return page> after the parameter is
assigned. The <return page> can be a full URL path or
relative path according to the current path. If you omit this
parameter, it will redirect to an empty page.
8.15 UART HTTP Tunnel Channel (capability.nuart > 0)
Note: This request requires Operator privileges.
Method: GET and POST
Syntax:
http://<servername>/cgi-bin/operator/uartchannel.cgi?[channel=<value>]
-------------------------------------------------------------------------
GET /cgi-bin/operator/uartchannel.cgi?[channel=<value>]
x-sessioncookie: string[22]
accept: application/x-vvtk-tunnelled
pragma: no-cache
cache-control: no-cache
VIVOTEK
User's Manual - 167
-------------------------------------------------------------------------
POST /cgi-bin/operator/uartchannel.cgi
x-sessioncookie: string[22]
content-type: application/x-vvtk-tunnelled
pragma : no-cache
cache-control : no-cache
content-length: 32767
expires: Sun, 9 Jam 1972 00:00:00 GMT
User must use GET and POST to establish two channels for downstream and upstream. The
x-sessioncookie in GET and POST should be the same to be recognized as a pair for one session. The
contents of upstream should be base64 encoded to be able to pass through a proxy server.
This channel will help to transfer the raw data of UART over the network.
Please see UART tunnel spec for detail information
PARAMETER VALUE DESCRIPTION
channel 0 ~ (n-1) The channel number of UART.
8.16 Event/Control HTTP Tunnel Channel (capability.
evctrlchannel > 0)
Note: This request requires Administrator privileges.
Method: GET and POST
Syntax:
http://<servername>/cgi-bin/admin/ctrlevent.cgi
-------------------------------------------------------------------------
GET /cgi-bin/admin/ctrlevent.cgi
x-sessioncookie: string[22]
accept: application/x-vvtk-tunnelled
pragma: no-cache
cache-control: no-cache
-------------------------------------------------------------------------
POST /cgi-bin/admin/ ctrlevent.cgi
x-sessioncookie: string[22]
content-type: application/x-vvtk-tunnelled
pragma : no-cache
VIVOTEK
168 - User's Manual
cache-control : no-cache
content-length: 32767
expires: Sun, 9 Jam 1972 00:00:00 GMT
User must use GET and POST to establish two channels for downstream and upstream. The
x-sessioncookie in GET and POST should be the same to be recognized as a pair for one session. The
contents of upstream should be base64 encoded to be able to pass through the proxy server.
This channel will help perform real-time event subscription and notification as well as camera control
more efficiently. The event and control formats are described in another document.
See Event/control tunnel spec for detail information
8.17 Get SDP of Streams
Note: This request requires Viewer access privileges.
Method: GET
Syntax:
http://<servername>/<network_rtsp_s<0~m-1>_accessname>
“m” is the stream number.
“network_accessname_<0~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to
the “subgroup of network: rtsp” for setting the accessname of SDP.
You can get the SDP by HTTP GET.
When using scalable multicast, Get SDP file which contains the multicast information via HTTP.
8.18 Open the Network Stream
Note: This request requires Viewer access privileges.
Syntax:
For HTTP push server (MJPEG):
http://<servername>/<network_http_s<0~m-1>_accessname>
For RTSP (MP4), the user needs to input the URL below into an RTSP compatible player.
rtsp://<servername>/<network_rtsp_s<0~m-1>_accessname>
“m” is the stream number.
For details on streaming protocol, please refer to the “control signaling” and “data format” documents.
VIVOTEK
User's Manual - 169
8.19 Senddata
(capability.nuart > 0)
Note: This request requires Viewer privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/viewer/senddata.cgi?
[com=<value>][&data=<value>][&flush=<value>] [&wait=<value>] [&read=<value>]
PARAMETER VALUE DESCRIPTION
com 1 ~ <max. com port
number>
The target COM/RS485 port number.
data <hex decimal
data>[,<hex decimal
data>]
The <hex decimal data> is a series of digits from 0 ~ 9, A ~
F. Each comma separates the commands by 200
milliseconds.
flush yes,no yes: Receive data buffer of the COM port will be cleared
before read.
no: Do not clear the receive data buffer.
wait
1 ~ 65535
Wait time in milliseconds before read data.
read
1 ~ 128
The data length in bytes to read. The read data will be in the
return page.
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <system information length>\r\n
\r\n
<hex decimal data>\r\n
Where hexadecimal data is digits from 0 ~ 9, A ~ F.
VIVOTEK
170 - User's Manual
8.20 Storage managements
(capability.storage.dbenabled > 0)
Note: This request requires administrator privileges.
Method: GET and POST
Syntax:
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=<cmd_type>[&<parameter>=<value>…]
The commands usage and their input arguments are as follows.
PARAMETER VALUE DESCRIPTION
cmd_type <string> Required.
Command to be executed, including search, insert, delete,
update, and queryStatus.
Command: search
PARAMETER VALUE DESCRIPTION
label <integer primary key> Optional.
The integer primary key column will automatically be
assigned a unique integer.
triggerType <text> Optional.
Indicate the event trigger type.
Please embrace your input value with single quotes.
Ex. mediaType=’motion’
Support trigger types are product dependent.
mediaType <text> Optional.
Indicate the file media type.
Please embrace your input value with single quotes.
Ex. mediaType=’videoclip’
Support trigger types are product dependent.
destPath <text> Optional.
Indicate the file location in camera.
Please embrace your input value with single quotes.
Ex. destPath =’/mnt/auto/CF/NCMF/abc.mp4’
resolution <text> Optional.
Indicate the media file resolution.
Please embrace your input value with single quotes.
Ex. resolution=’800x600’
isLocked <boolean> Optional.
VIVOTEK
User's Manual - 171
Indicate if the file is locked or not.
0: file is not locked.
1: file is locked.
A locked file would not be removed from UI or cyclic
storage.
triggerTime <text> Optional.
Indicate the event trigger time. (not the file created time)
Format is “YYYY-MM-DD HH:MM:SS”
Please embrace your input value with single quotes.
Ex. triggerTime=’2008-01-01 00:00:00’
If you want to search for a time period, please apply “TO”
operation.
Ex. triggerTime=’2008-01-01 00:00:00’+TO+’2008-01-01
23:59:59’ is to search for records from the start of Jan 1
st
2008 to the end of Jan 1
st
2008.
limit <positive integer> Optional.
Limit the maximum number of returned search records.
offset <positive integer> Optional.
Specifies how many rows to skip at the beginning of the
matched records.
Note that the offset keyword is used after limit keyword.
To increase the flexibility of search command, you may use “OR” connectors for logical “OR” search
operations. Moreover, to search for a specific time period, you can use “TO” connector.
Ex. To search records triggered by motion or di or sequential and also triggered between 2008-01-01
00:00:00 and 2008-01-01 23:59:59.
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=search&triggerType=’motion’+OR+’di’+OR+’seq’
&triggerTime=’2008-01-01 00:00:00’+TO+’2008-01-01 23:59:59’
Command: delete
PARAMETER VALUE DESCRIPTION
label <integer primary key> Required.
Identify the designated record.
Ex. label=1
Ex. Delete records whose key numbers are 1, 4, and 8.
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=delete&label=1&label=4&label=8
Command: update
VIVOTEK
172 - User's Manual
PARAMETER VALUE DESCRIPTION
label <integer primary key> Required.
Identify the designated record.
Ex. label=1
isLocked <boolean> Required.
Indicate if the file is locked or not.
Ex. Update records whose key numbers are 1 and 5 to be locked status.
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=update&isLocked=1&label=1&label=5
Ex. Update records whose key numbers are 2 and 3 to be unlocked status.
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=update&isLocked=0&label=2&label=3
8.20.1 Return Message
The returned results are always in XML format, except for storage status related elements that can be
returned in javascript format. (i.e. status, totalSize, freeSize, and usedSize.)
The elements are listed as follows.
Group: stormgr
Element name Type Description
counts <Positive Integer> Total number of matched records.
limit <Positive Integer> Limit the maximum number of returned search records.
Could be empty if not specified.
offset <Positive Integer> Specifies how many rows to skip at the beginning of the
matched records.
Could be empty if not specified.
statusCode <Integer> The reply status (see table below)
Value of return-code Description
200 OK
400 Unrecognized Message Type/Content
500 Server executes command error.
501 Parse Input Message Failed.
502 Error Occurs When Searching
Database.
503 Storage is Not Ready.
statusString string Return string describing the reason that status code is not
OK.
Subgroup of stormgr: i<0~(n-1)>: n is the total number of displayed records.
VIVOTEK
User's Manual - 173
Element name Type Description
label <Integer Primary Key> A unique integer.
triggerType <Text> Indicate the event trigger type.
mediaType <Text> Indicate the file media type.
destPath <Text> Indicate the file location in camera.
resolution <Text> Indicate the media file resolution.
isLocked <Boolean> Indicate if the file is locked or not.
triggerTime <Text> Indicate the event trigger time.
Format is “YYYY-MM-DD HH:MM:SS”
backup <Boolean> Indicate if the file is generated when network loss.
Subgroup of stormgr_disk: i<0~(n-1)>: n is the total number of storage devices.
Element name Type Description
name string Description of specified storage device.
status ready, detached, error,
and readonly
The storage device status.
ready: storage is ready for access.
detached: storage is not mounted.
error: failed to open storage device.
readonly: storage is write protected.
totalSize <Positive Integer> The overall storage size in kilobytes.
freeSize <Positive Integer> The available storage size in kilobytes.
usedSize <Positive Integer> The used storage size in kilobytes.
path string Location of database of storage sink
Ex. Returned results of search command
<?xml version="1.0" encoding="ISO-8859-1" ?>
<stormgr version="0.0.0.1">
<counts>5</counts>
<limit>2</limit>
<offset>0</offset >
<i0>
<label>1</label>
<triggerType>motion</triggerType>
<mediaType>videoclip</mediaType>
<destPath>/mnt/auto/NCMF/abc/abc.jpg</destPath>
<resolution>800x600</resolution>
<isLocked>0</isLocked>
<triggerTime>2009-01-24 12:00:00</triggerTime>
<backup>0</backup>
VIVOTEK
174 - User's Manual
</i0>
<i1>
<label>2</label>
<triggerType>di</triggerType>
<mediaType>snapshot</mediaType>
<destPath>/mnt/auto/NCMF/123/123.jpg</destPath>
<resolution>800x600</resolution>
<isLocked>0</isLocked>
<triggerTime>2009-01-24 12:01:00</triggerTime>
<backup>0</backup>
</i1>
</stormgr>
Ex. Local storage status in XML format.
<?xml version="1.0" encoding="ISO-8859-1" ?>
<stormgr version="0.0.0.1">
<disk>
<i0>
<name>SDcard</name>
<status>ready</status>
<totalSize>7824444</totalSize>
<freeSize>7824388</freeSize>
<usedSize>56</usedSize>
</i0>
</disk>
</stormgr>
Ex. Local storage status in javascript format.
disk_i0_name=’SDcard’
disk_i0_status='ready'
disk_i0_totalSize='7824444'
disk_i0_freeSize='7824388'
disk_i0_usedSize='56'
disk_i0_path=i0/NCMF/.db/.localStorage.db
Command: queryStatus
PARAMETER VALUE DESCRIPTION
retType xml or javascript Optional.
Ex. retype=javascript
The default return message is in XML format.
VIVOTEK
User's Manual - 175
Ex. Query local storage status and call for javascript format return message.
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=queryStatus&retType=javascript
There are two cgi commands for download and composing jpegs to avi format.
For download single selected file, you can use “/cgi-bin/admin/downloadMedias.cgi”. Just assign the
request file path to this cgi.
Syntax:
http://<servername>/cgi-bin/admin/downloadMedias.cgi?<File_Path>
The <File_Path> is in queryststus return message.
Ex.
http://<servername>/cgi-bin/admin/downloadMedias.cgi?/mnt/auto/CF/NCMF/20090310/07/02.
mp4
For creating an AVI file by giving a list of JPEG files, you can use “/cgi-bin/admin/jpegtoavi.cgi”.
Syntax:
http://<servername>/cgi-bin/admin/jpegtoavi.cgi?<resolution>=<width>x<height>&<fps>=<num
>&<list>=<fileList>
PARAMETER VALUE DESCRIPTION
resolution <width>x<height> Resolution
fps <positive integer> Frame rate
list <fileList> The JPEG file list.
The file path should be embraced by single quotation
marks
Ex.
http:// <servername>/cgi-bin/admin/
jpegtoavi.cgi?resolution=800x600&fps=1&list=’/mnt/auto/CF/NCMF/video1650.jpg’, ’/mnt/auto/C
F/NCMF/video1651.jpg’, ’/mnt/auto/CF/NCMF/video1652.jpg’,
VIVOTEK
176 - User's Manual
8.21 Virtual input
(capability.nvi > 0)
Note: Change virtual input (manual trigger) status.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/admin/setvi.cgi?vi0=<value>[&vi1=<value>][&vi2=<value>]
[&return=<return page>]
PARAMETER VALUE DESCRIPTION
vi<num> state[(duration)nstate]
Where "state" is 0, 1. “0”
means inactive or
normal state while “1”
means active or
triggered state.
Where "nstate" is next
state after duration.
Ex: vi0=1
Setting virtual input 0 to trigger state
Ex: vi0=0(200)1
Setting virtual input 0 to normal state, waiting 200
milliseconds, setting it to trigger state.
Note that when the virtual input is waiting for next
state, it cannot accept new requests.
return
<return page>
Redirect to the page <return page> after the
request is completely assigned. The <return
page> can be a full URL path or relative path
according the current path. If you omit this
parameter, it will redirect to an empty page.
Return Code Description
200 The request is successfully executed.
400 The request cannot be assigned, ex. incorrect parameters.
Examples:
1. setvi.cgi?vi0=0(10000)1(15000)0(20000)1
No multiple duration.
2. setvi.cgi?vi3=0
VI index is out of range.
3. setvi.cgi?vi=1
No VI index is specified.
503 The resource is unavailable, ex. Virtual input is waiting for next state.
VIVOTEK
User's Manual - 177
Examples:
1. setvi.cgi?
vi0=0(15000)1
2. setvi.cgi?vi0=1
Request 2 will not be accepted during the execution time(15 seconds).
8.22 Open Timeshift Stream (capability.timeshift > 0,
timeshift_enable=1, timeshift_c<n>_s<m>_allow=1)
Note: This request requires Viewer access privileges.
Syntax:
For HTTP push server (MJPEG):
http://<servername>/<network_http_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&refti
me=<value>&forcechk&minsft=<value>]
For RTSP (MP4 and H264), the user needs to input the URL below into an RTSP compatible player.
rtsp://<servername>/<network_rtsp_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&refti
me=<value>&forcechk&minsft=<value>]
“n” is the channel index.
“m” is the timeshift stream index.
For details on timeshift stream, please refer to the “TimeshiftCaching” documents.
PARAMETER VALUE DEFAULT DESCRIPTION
maxsft <positive
integer>
0 Request cached stream at most how many seconds
ago.
tsmode normal,
adaptive
normal Streaming mode:
normal => Full FPS all the time.
adaptive => Default send only I-frame for MP4 and
H.264, and send 1 FPS for MJPEG. If DI or motion
window are triggered, the streaming is changed to
send full FPS for 10 seconds.
(*Note: this parameter also works on non-timeshift
streams.)
reftime mm:ss The time
camera
receives the
request.
Reference time for maxsft and minsft.
(This provides more precise time control to eliminate
the inaccuracy due to network latency.)
Ex: Request the streaming from 12:20
rtsp://10.0.0.1/live.sdp?maxsft=10&reftime=12:30
VIVOTEK
178 - User's Manual
forcechk N/A N/A Check if the requested stream enables timeshift,
feature and if minsft is achievable.
If false, return “415 Unsupported Media Type”.
minsft <positive
integer>
0 How many seconds of cached stream client can
accept at least.
(Used by forcechk)
Return Code Description
400 Bad Request Request is rejected because some parameter values are illegal.
415 Unsupported Media Type Returned, if forcechk appears, when minsft is not achievable or
the timeshift feature of the target stream is not enabled.
8.23 Export Files
Note: This request requires Administrator privileges.
Method: GET
Syntax:
For daylight saving time configuration file:
http://<servername>/cgi-bin/admin/exportDst.cgi
For language file:
http://<servername>/cgi-bin/admin/export_language.cgi?currentlanguage=<value>
PARAMETER VALUE DESCRIPTION
currentlanguage 0~20
Available language lists.
Please refer to:
system_info_language_i0 ~ system_info_language_i19.
For setting backup file:
http://<servername>/cgi-bin/admin/export_backup.cgi?backup
VIVOTEK
User's Manual - 179
8.24 Upload Files
Note: This request requires Administrator privileges.
Method: POST
Syntax:
For daylight saving time configuration file:
http://<servername>/cgi-bin/admin/upload_dst.cgi
Post data:
filename =<file name>\r\n
\r\n
<multipart encoded form data>
For language file:
http://<servername>/cgi-bin/admin/upload_lan.cgi
Post data:
filename =<file name>\r\n
\r\n
<multipart encoded form data>
For setting backup file:
http://<servername>/cgi-bin/admin/upload_backup.cgi
Post data:
filename =<file name>\r\n
\r\n
<multipart encoded form data>
Server will accept the file named <file name> to upload this one to camera.
VIVOTEK
180 - User's Manual
8.25 Media on demand
(capability.localstorage.modnum > 0)
Media on demand allows users to select and receive/watch/listen to metadata/video/audio contents on
demand.
Note: This request requires Viewer access privileges.
Syntax:
rtsp://<servername>/mod.sdp?[&stime=<value>][&etime=<value>][&length =<value>][&loctime
=<value>][&file=<value>][&tsmode=<value>]
PARAMETER VALUE DEFAULT DESCRIPTION
stime <YYYYMMDD_HHMMSS.MMM> N/A Start time.
etime <YYYYMMDD_HHMMSS.MMM> N/A End time.
length <positive integer> N/A The length of media of interest.
The unit is second.
loctime <boolean> 0 Specify if start/end time is local
time format.
1 for local time, 0 for UTC+0
file <string> N/A The media file to be played.
tsmode <positive integer> N/A Timeshift mode, the unit is
second.
Ex.
stime etime length file Description
V
V X X
Play recordings between stime and etime
rtsp://10.10.1.2/mod.sdp?stime=20110312_040400.000&etim
e=2011_0312_040510.000
V X V X
Play recordings for length seconds which start from
stime
rtsp://10.10.1.2/mod.sdp?stime=20110312_040400.000&leng
th=120
X V V X
Play recordings for length seconds which ends at
etime
rtsp://10.10.1.2/mod.sdp?etime=20110312_040400.000&leng
th=120
X X X V
Play file file
rtsp://10.10.1.2/mod.sdp?filename=/mnt/link0/
VIVOTEK
User's Manual - 181
8.26 Start wireless connection
Note: This request requires Administrator privileges.
Syntax:
http://<servername>/cgi-bin/admin/connect_ap.cgi
This command is only used in pure wireless model (e.g., a model without Ethernet. Ex: IP8336W).
This command triggers camera to start to connect to a Wi-Fi access point. Before use this command,
please setup your wireless settings properly. Note that this command force your camera to switch to
DHCP.
8.27 Site survey
Note: This request requires Administrator privileges.
Syntax:
http://<servername>/cgi-bin/admin/site_survey.cgi
This command is only used in pure wireless model (e.g., a model without Ethernet. Ex: IP8336W)
who is using Realtek RTL8188CUS.
This command returns site survey results with the following fomat:
result = [["1st AP's SSID",1st AP's signal strength,"1st AP's encryption / algorithm"], ["2nd AP's
SSID",2nd AP's signal strength,"2nd AP's encryption / algorithm"], ....., ["last AP's SSID",last AP's
signal strength,"last AP's encryption / algorithm"]];
Ex:
result = [["cerio-gary",68,"WPA2 /
AES"],["TP-LINK_710N",42,"None"],["Guest",26,"None"],["Vatics",10,"None"],["Vivotek",0,"None
"],["CHT Wi-Fi Auto",0,"WPA2 / AES"],["dlink635",7,"WPA2 / AES"],["TL-WR720N",0,"WPA2 /
AES"]];
VIVOTEK
182 - User's Manual
8.28 Remote Camera Control
(capability.remotecamctrl.master
> 0)
Note: This request requires Viewer access privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/camctrl/rCamCtrl.cgi?[channel=<value>]
[&x=<value>&y=<value>&r=<value>&videosize=<value>&resolution=<value>&stretch=<value>]
– Click on image
[&camid=<value>]
[&return=<return page>]
Example:
http://myserver/cgi-bin/camctrl/rcamctrl.cgi?channel=0&x=300&y=200&r=100&resolution=1920x
1920&videosize=1920x1920&strech=1&camid=0
PARAMETER VALUE DESCRIPTION
channel <0~(n-1)> Channel of video source.
x <integer> x-coordinate clicked by user.
It will be the x-coordinate of client side camera after
movement.
y <integer> y-coordinate clicked by user.
It will be the y-coordinate of client side camera after
movement.
r <integer> radius select by user. It will be the roi view area radius of
client side camera after movement and zooming.
videosize <window size> The size of plug-in (ActiveX) window in web page
resolution <window size> The resolution of streaming.
stretch <boolean>
0 indicates that it uses resolution (streaming size) as the
range of the coordinate system.
1 indicates that it uses videosize (plug-in size) as the range
of the coordinate system.
camid 0,<positive integer> slave camera ID
VIVOTEK
User's Manual - 183
return <return page> Redirect to the page <return page> after the parameter is
assigned. The <return page> can be a full URL path or
relative path according to the current path. If you omit this
parameter, it will redirect to an empty page.
Return code: clickimg_return="$Error_code"
Error code Code - Hexa
Code -
Decimal
Description SysLog message
CLICKIMG_SUCCESS 0x000000C8 200
Success to
control auxiliary
camera
ERR_CONNECTION 0x000001F4 500
Controller
camera connect
to auxiliary
camera fail.
PPTZ_Connection fail
ERR_UNSUPPORT_POS 0x000001F5 501
Controller
camera can't get
the correspond
position from
mapping table.
PPTZ_Unsupported
position
ERR_MODULE_DISABLE 0x000001F6 502
Panoramic PTZ
function is
disable
PPTZ_Function is
disabled
ERR_INVALID_CAM_ID 0x000001F7 503
Invalid auxiliary
camera id.
PPTZ_Invalid
auxiliary camera ID
ERR_INVALID_FORMAT 0x000001F8 504
Invalid CGI
command, if you
lost any one of
the required
parameter, it will
cause fail.
PPTZ_Invalid cgi
command format
VIVOTEK
184 - User's Manual
8.29 Upload map file
(capability.remotecamctrl.master > 0)
Note: This request requires Admin privileges.
Method: POST
Syntax:
http://<servername>/cgi-bin/admin/upload_map.cgi?camid=<value>
– Upload map file
Return code
- Upload fail:
upload_result=1
upload_msg=<value>
- Upload success:
upload_result=0
upload_msg=<value>
[ip=<value>] , not exist in map file: default ip = ""
[port=<value>] , not exist in map file: default port = 80
[username=<value>] , not exist in map file : default username = ""
[passwd=<value>] , not exist in map file : default passwd = ""
8.30 Export map file (capability.remotecamctrl.master > 0)
Note: This request requires Admin privileges.
Method: GET
Syntax:
http://<servername>/cgi-bin/admin/export_map.cgi?camid=<value>
– Export map file
<End of document>
VIVOTEK
User's Manual - 185

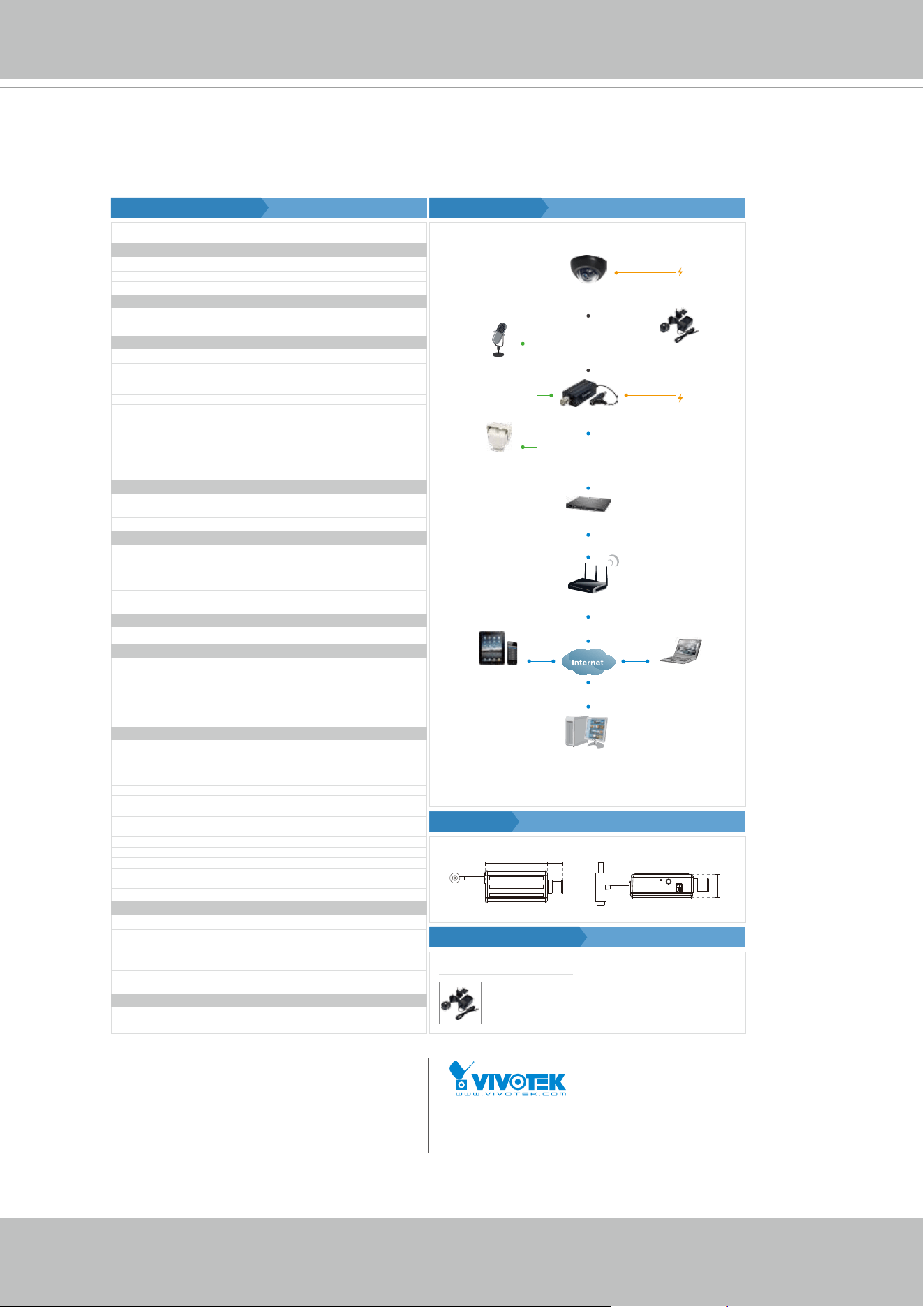

Technical Specications
All specifications are subject to change without notice. Copyright © 2013 VIVOTEK INC. All rights reserved.
Ver 1.0
Distributed by:
VIVOTEK INC.
6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.
VIVOTEK USA, INC.
2050 Ringwood Avenue, San Jose, CA 95131
Model
CPU
Flash
RAM
Compression
Maximum Frame Rate
Maximum Streams
Video Streaming
Image Settings
Audio Capability
Compression
Interface
Users
Protocols
Interface
ONVIF
Video Motion Detection
Alarm Triggers
Alarm Events
Connectors
Supported P/T/Z
Protocol
LED Indicator
Power Input
Power Consumption
Dimensions
Weight
Casing
Safety Certifications
Operating Temperature
Warranty
Operating System
Web Browser
Other Players
Others
System Information
Camera Control
Video
Audio
Network
Intelligent Video
Alarm and Event
General
System Requirements
Included Accessories
VS8100
Multimedia SoC (System-on-Chip)
16MB
128MB
PTZ camera control through RS-485
Supports CGI command serial driver
H.264 & MJPEG
30 fps @ 720x480
25 fps @ 720x576
In both compression
3 simultaneous streams
Adjustable resolution, quality and bitrate
Adjustable image size, quality and bit rate
Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness
Privacy masks
Aspect ratio correction
Deinterlace, 2D Noise Reduction
Line in
G.726, G.711
3.5mm Phone Jack
Live viewing for up to 10 clients
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP,
RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP,
DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
10Base-T/100 BaseTX Ethernet (RJ-45)
Supported
Triple-window video motion detection
Video motion detection, Video loss/restore detection,
periodical trigger, manual trigger, recording notification,
system boot, camera tampering detection
Event notification using HTTP, SMTP, FTP and NAS
server
File upload via HTTP, SMTP, FTP and NAS server
RJ-45 for Network connection
Male BNC for Analog video input
RS-485 Terminal Block
3.5mm Phone Jack
DynaDome/SmartDome, Pelco D, Pelco P, Lilin,
Samsung scc643 and customized
System power and status indicator
DC 12V
Max. 5 W
25mm x 34mm x 65mm
Net: 64g
Plastic
CE, LVD, FCC Class A, VCCI, C-Tick
0°C ~ 50 °C (32°F ~ 122°F)
24 months
Microsoft Windows XP/Vista/7/2000
Mozilla Firefox 7~10, Google Chrome, Safari
(streaming only)
Internet Explorer 7.x or 8.x or 9.x
32 bit
VLC: 1.1.11 or above
QuickTime: 7 or above
Quick installation guide, Warranty card
Technical Specifications
Compatible Accessories
Dimensions
System Overview
65 mm
34 mm
25 mm
17 mm
AA-221
DC 12V Power Adapter
Power Adapter
Analog
Camera
VS8100
Router
Notebook with
Web Browser
NVR
Mobile Device
with iViewer
PC with
Recording Software
External
Microphone
Scanner
Coaxial Cable Ethernet Cable
DC 12V Power
Power Supply
Power Supply
VIVOTEK
186 - User's Manual
Technology License Notice
MPEG-4 AAC Technology
THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE. THIS PRODUCT MAY
NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT WITH REGARD TO PC SOFTWARE,
OF WHICH YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES. FOR MORE INFORMATION,
PLEASE REFER TO HTTP://WWW.VIALICENSING.COM.
MPEG-4 Visual Technology
THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE
PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE
WITH THE MPEG-4 VISUAL STANDARD ("MPEG-4 VIDEO") AND/OR (ii) DECODING MPEG-4 VIDEO THAT
WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/
OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO.
NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION
INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY
BE OBTAINED FROM MPEG LA, LLC. PLEASE REFER TO HTTP://WWW.MPEGLA.COM.
AMR-NB Standard
THIS PRODUCT IS LICENSED UNDER THE AMR-NB STANDARD PATENT LICENSE AGREEMENT. WITH
RESPECT TO THE USE OF THIS PRODUCT, THE FOLLOWING LICENSORS’ PATENTS MAY APPLY:
TELEFONAKIEBOLAGET ERICSSON AB: US PAT. 6192335; 6275798; 6029125; 6424938; 6058359. NOKIA
CORPORATION: US PAT. 5946651; 6199035. VOICEAGE CORPORATION: AT PAT. 0516621; BE PAT. 0516621;
CA PAT. 2010830; CH PAT. 0516621; DE PAT. 0516621; DK PAT. 0516621; ES PAT. 0516621; FR PAT. 0516621;
GB PAT. 0516621; GR PAT. 0516621; IT PAT. 0516621; LI PAT. 0516621; LU PAT. 0516621; NL PAT. 0516621;
SE PAT 0516621; US PAT 5444816; AT PAT. 819303/AT E 198805T1; AU PAT. 697256; BE PAT. 819303; BR PAT.
9604838-7; CA PAT. 2216315; CH PAT. 819303; CN PAT. ZL96193827.7; DE PAT. 819303/DE69611607T2; DK
PAT. 819303; ES PAT. 819303; EP PAT. 819303; FR PAT. 819303; GB PAT. 819303; IT PAT. 819303; JP PAT. APP.
8-529817; NL PAT. 819303; SE PAT. 819303; US PAT. 5664053. THE LIST MAY BE UPDATED FROM TIME TO
TIME BY LICENSORS AND A CURRENT VERSION OF WHICH IS AVAILABLE ON LICENSOR’S WEBSITE AT
HTTP://WWW.VOICEAGE.COM.
VIVOTEK
User's Manual - 187
Electromagnetic Compatibility (EMC)
FCC Statement
This device compiles with FCC Rules Part 15. Operation is subject to the following two conditions.
■ This device may not cause harmful interference, and
■ This device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the installation manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio interference, in which
case the user may be required to take adequate measures.
VCCI Warning
この装置は、クラスA情報技術装置です。この装置を家庭環境で使用すると電波妨害を引き起こすこと
があいます。この場合には使用者が適切な対策を講ずるよう要求されるこたがあります。
Liability
VIVOTEK Inc. cannot be held responsible for any technical or typographical errors and reserves the right
to make changes to the product and manuals without prior notice. VIVOTEK Inc. makes no warranty
of any kind with regard to the material contained within this document, including, but not limited to, the
implied warranties of merchantability and fitness for any particular purpose.
