HW65716

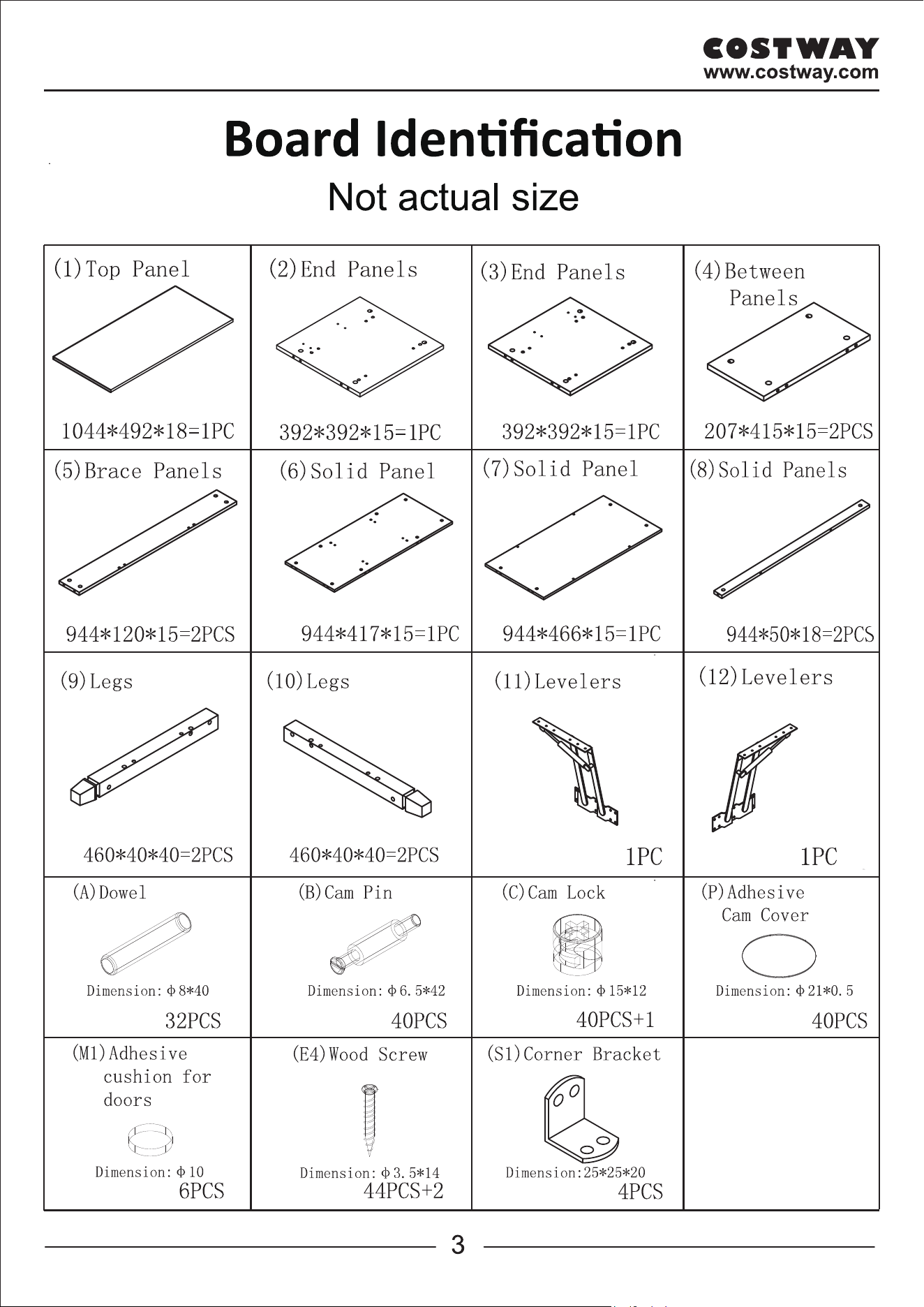

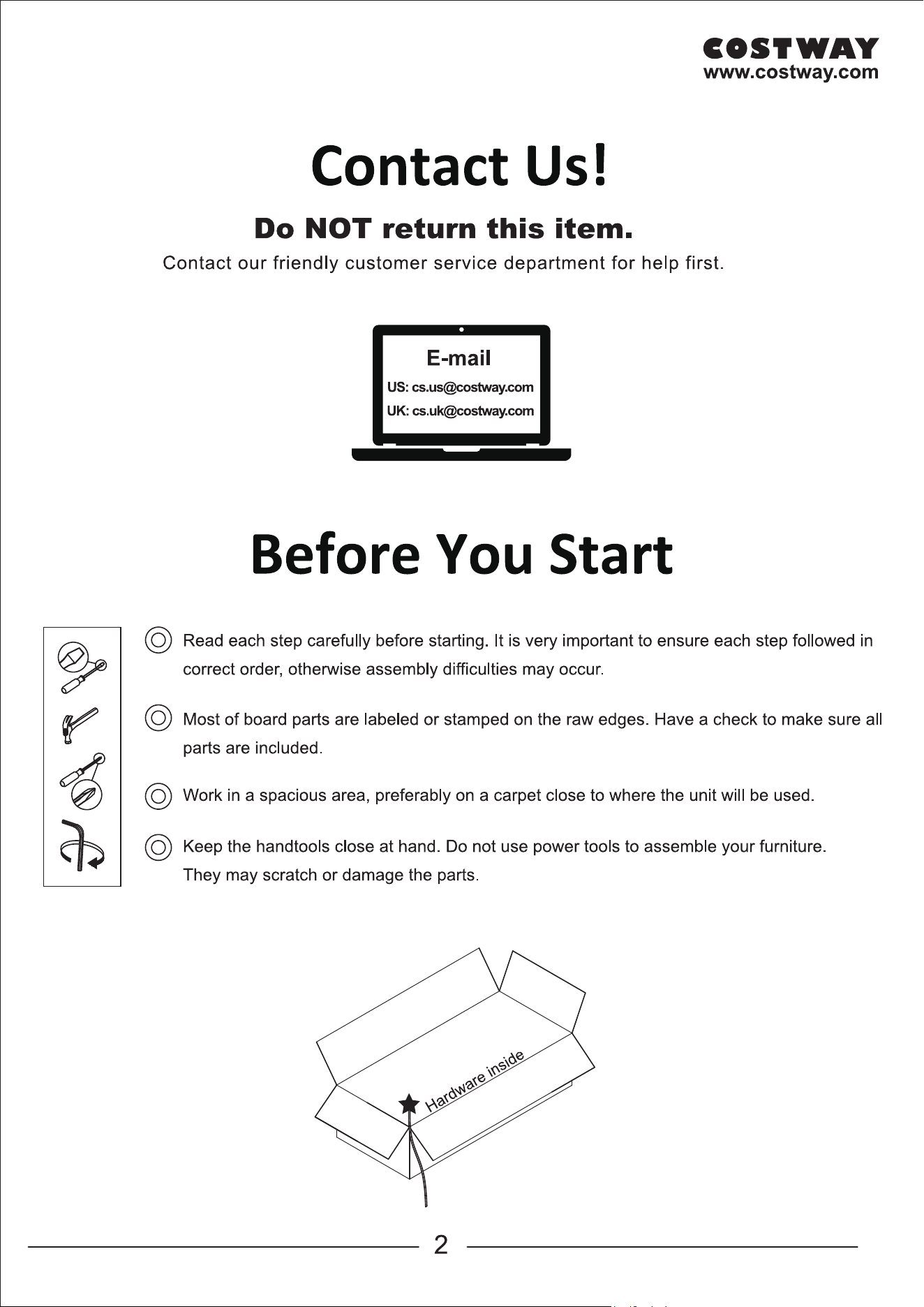

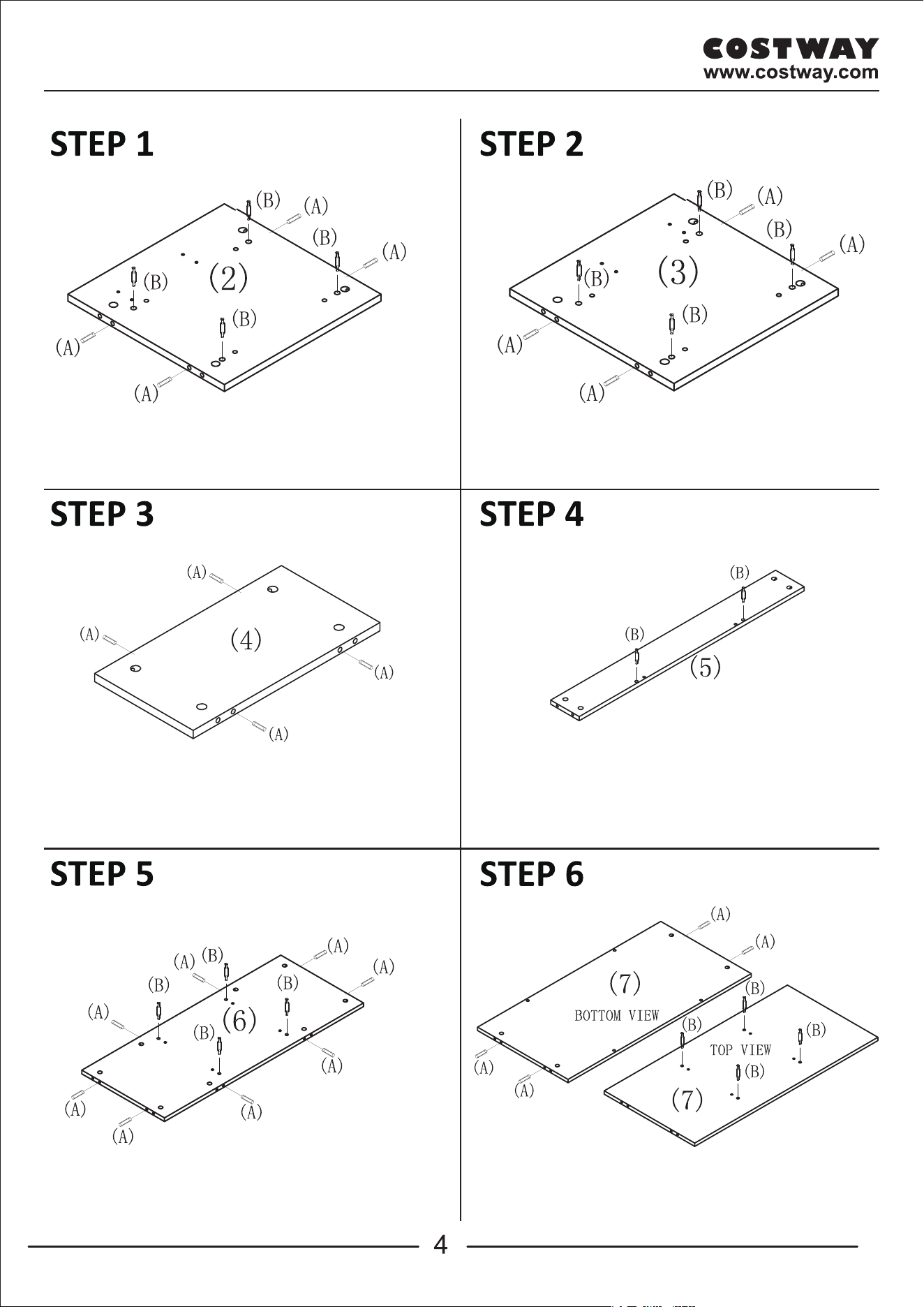

Install 4 pcs dowels (A) and 4 pcs cam pins (B) to End panel (2)
Part A x 4 Part B x 4 Part 2 x 1
Install 8 pcs dowels (A) to Between panel (4)
Part A x 8 Part 4 x 2
Install 8 pcs dowels (A) and 4 pcs cam pins (B) to Middle panel (6)
Part A x 8 Part B x 4 Part 6 x 1
Install 4 pcs cam pins (B) to 2 Brace panels (5)
Part B x 4 Part 5 x 2
Install 4 pcs dowels (A) and 4 pcs cam pins (B) to Bottom panel (7)
Part A x 4 Part B x 4 Part 7 x 1
Install 4 pcs dowels (A) and 4 pcs cam pins (B) to End panel (3)
Part A x 4 Part B x 4 Part 3 x 1

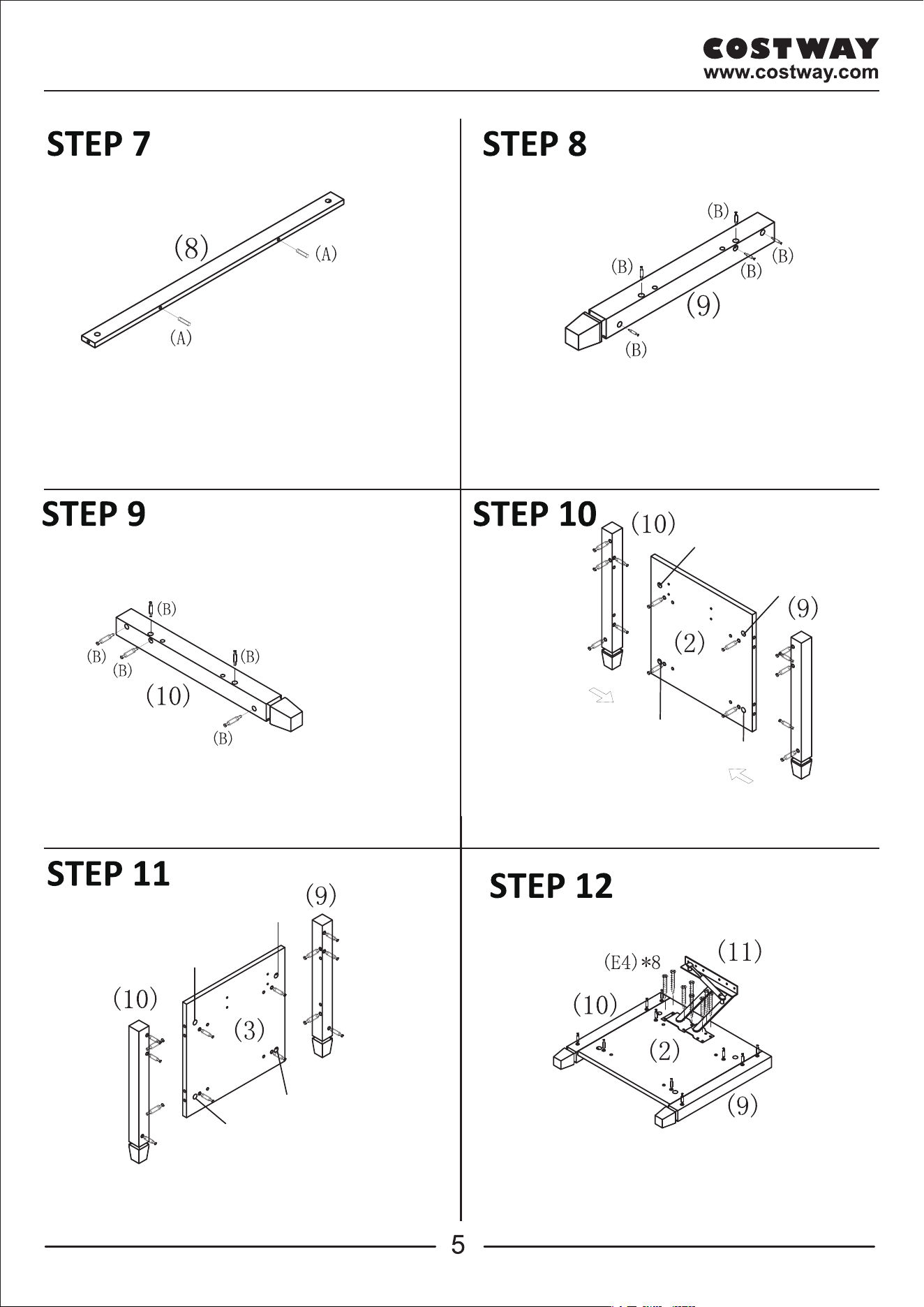

Install 4 pcs dowels (A) to 2 Solid Panels (8)
Part A x 4 Part 8 x 2
Install 10 pcs cam pins (B) to 2 Legs (9)
Part B x 10 Part 9 x 2
Install 8 pcs cam pins (B) to 2 Legs (10)
Part B x 10 Part 10 x 2
Install one Front Leg (9) and one Rear Leg (10) to End panel (3)
and lock with 4 pcs Cam locks (C)
Part C x 4
Install lever (11) to End panel (2) with 8 pcs Screws (E4)
Part E4 x 8
Part 11 x 1
Install one Front Leg (9) and one Rear Leg (10) to End panel (2)
and lock with 4 pcs Cam locks (C)
Part C x 4
x2
x2x2
x2
x2
BOTTOM
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
Install 4 pcs dowels (A) and 4 pcs cam pins (B) to End panel (2)
Part A x 4 Part B x 4 Part 2 x 1
Install 8 pcs dowels (A) to Between panel (4)
Part A x 8 Part 4 x 2
Install 8 pcs dowels (A) and 4 pcs cam pins (B) to Middle panel (6)
Part A x 8 Part B x 4 Part 6 x 1
Install 4 pcs cam pins (B) to 2 Brace panels (5)
Part B x 4 Part 5 x 2
Install 4 pcs dowels (A) and 4 pcs cam pins (B) to Bottom panel (7)
Part A x 4 Part B x 4 Part 7 x 1
Install 4 pcs dowels (A) and 4 pcs cam pins (B) to End panel (3)
Part A x 4 Part B x 4 Part 3 x 1
Install 4 pcs dowels (A) to 2 Solid Panels (8)
Part A x 4 Part 8 x 2
Install 10 pcs cam pins (B) to 2 Legs (9)
Part B x 10 Part 9 x 2
Install 8 pcs cam pins (B) to 2 Legs (10)
Part B x 10 Part 10 x 2
Install one Front Leg (9) and one Rear Leg (10) to End panel (3)
and lock with 4 pcs Cam locks (C)
Part C x 4
Install lever (11) to End panel (2) with 8 pcs Screws (E4)
Part E4 x 8
Part 11 x 1
Install one Front Leg (9) and one Rear Leg (10) to End panel (2)
and lock with 4 pcs Cam locks (C)
Part C x 4
x2
x2x2
x2
x2
BOTTOM
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)

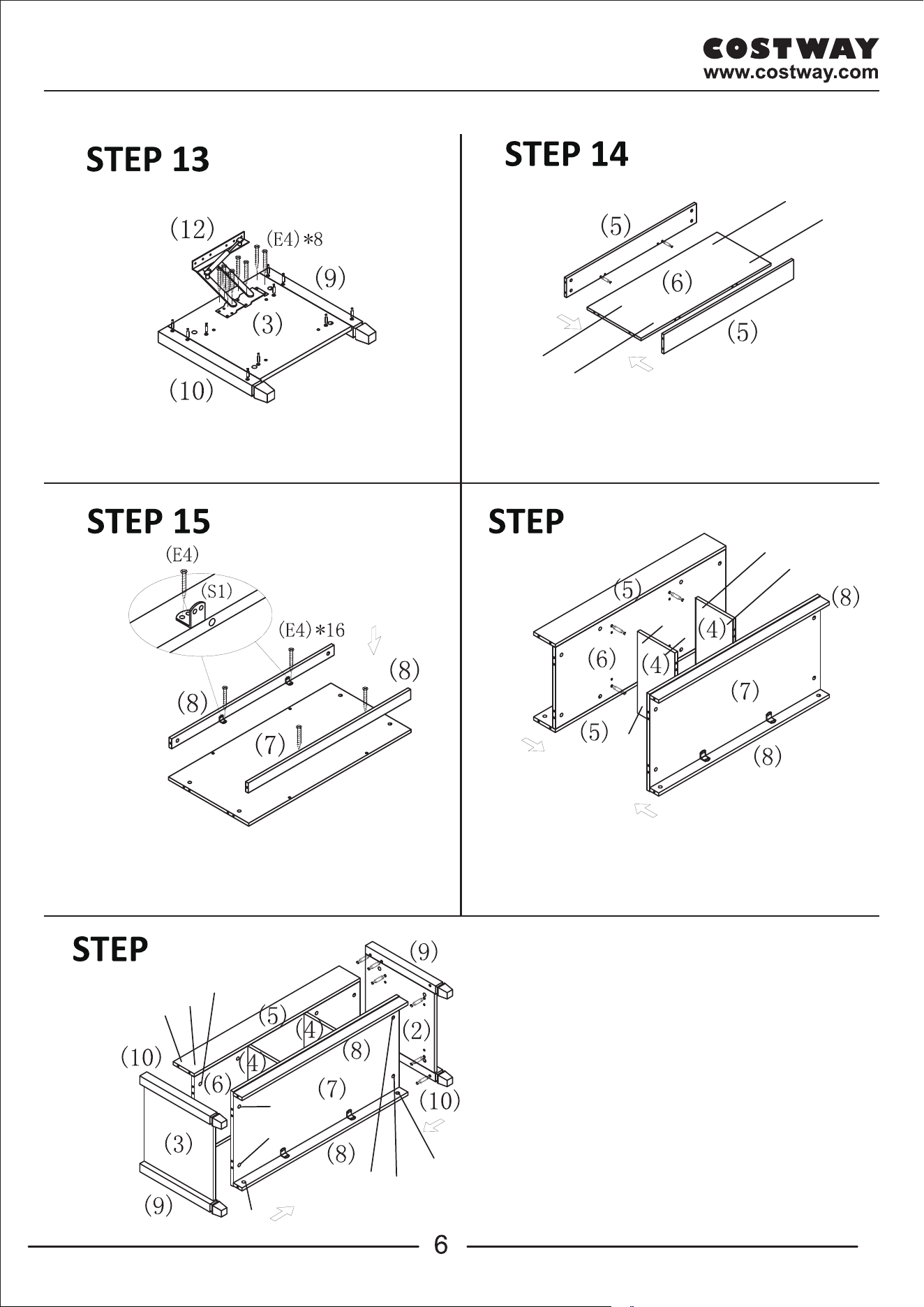

Install lever (12) to End panel (3) with 8 pcs Screws (E4)
Part E4 x 8 Part 1 2 x 1
Install 2 Support panels (8) to Bottom panel (7) with 16 pcs Screws (E4)
and reinforce with 4 sets of Corner brackets (S1) (S1 has equipped
with self-tapping screws with no drilling holes)
Part E4 x 16 Part S1 x 4
Attach 2 Brace panels (5) to Middle panel (6) and lock with
4 pcs Cam locks (C)
Part C x 4
Install 2 Between panels (4) to the middle of Solid panel (6)
and Solid panel (7), then lock with 8 pcs Cam locks (C)
Part C x 8
Integrate End panel (2), (3) and the table legs with the main body,
then secure with 20 pcs Cam locks (C)
Part C x 20
16
17
18
19

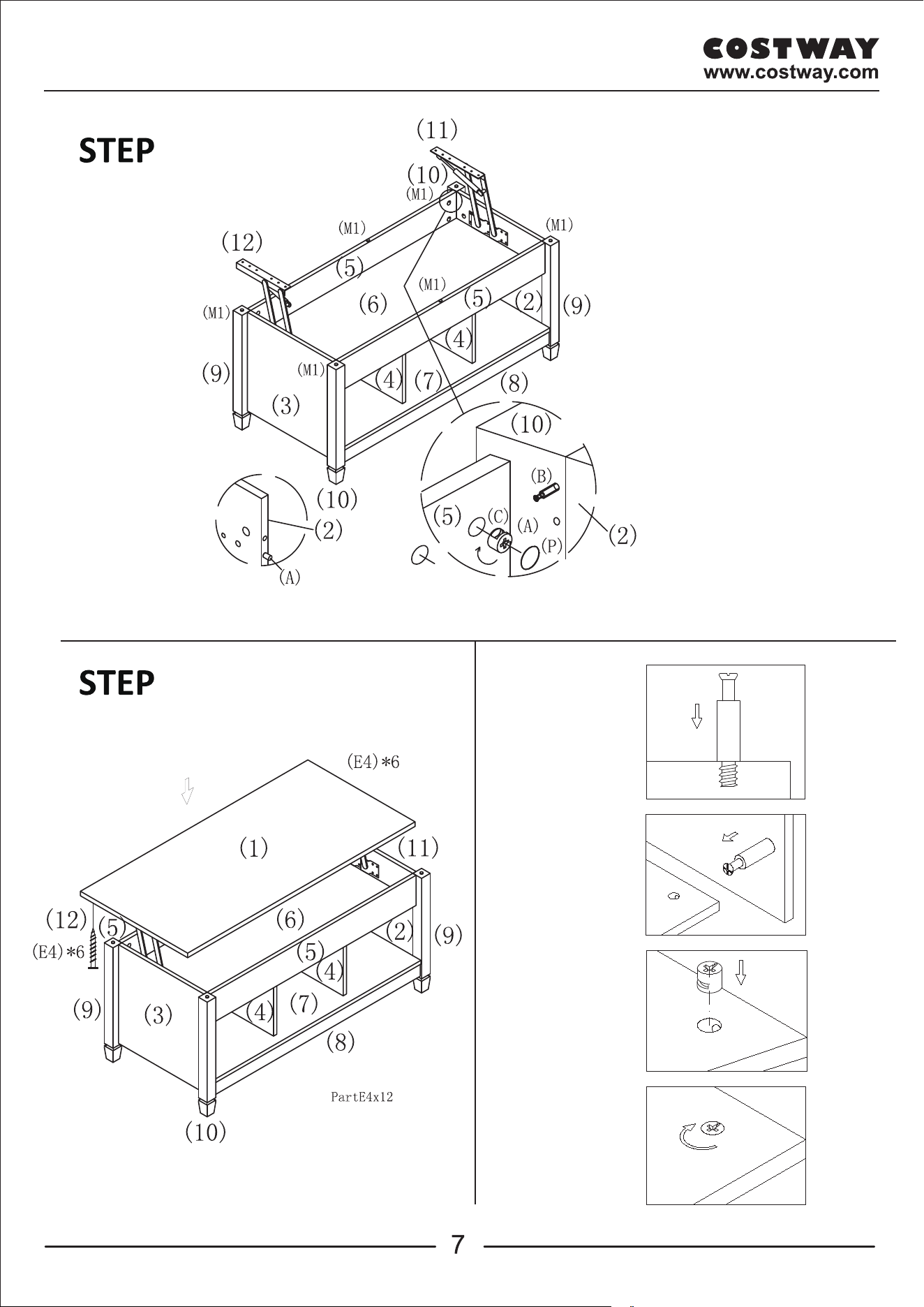

TIPS
1
2
3
4
Stick 40 pcs Cam covers (P) on
Cam locks (C) and stick 6 pcs
(M1) to the corresponding places
shown in the figure.
Part M1 x 6
Part P x 40
Installation of
cam pin and
cam lock
Install the Top panel (1) to the lifters (11), (12) with 12 pcs
Screws (E4)
Part 1x 1 Part E4 x 12
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
Install lever (12) to End panel (3) with 8 pcs Screws (E4)
Part E4 x 8 Part 1 2 x 1
Install 2 Support panels (8) to Bottom panel (7) with 16 pcs Screws (E4)
and reinforce with 4 sets of Corner brackets (S1) (S1 has equipped
with self-tapping screws with no drilling holes)
Part E4 x 16 Part S1 x 4
Attach 2 Brace panels (5) to Middle panel (6) and lock with
4 pcs Cam locks (C)
Part C x 4
Install 2 Between panels (4) to the middle of Solid panel (6)
and Solid panel (7), then lock with 8 pcs Cam locks (C)
Part C x 8
Integrate End panel (2), (3) and the table legs with the main body,
then secure with 20 pcs Cam locks (C)
Part C x 20
16
17
18
19
TIPS
1
2
3
4
Stick 40 pcs Cam covers (P) on
Cam locks (C) and stick 6 pcs
(M1) to the corresponding places
shown in the figure.
Part M1 x 6
Part P x 40
Installation of
cam pin and
cam lock
Install the Top panel (1) to the lifters (11), (12) with 12 pcs
Screws (E4)
Part 1x 1 Part E4 x 12
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
