Appearance
1
This product and - if applicable - the supplied accessories too are marked with
"CE" and comply therefore with the applicable harmonized European standards
listed under the Directive 2014/30/EU (EMCD), Directive 2014/35/EU (LVD),
Directive 2011/65/EU (RoHS).
Use the power adapter provided by a qualified manufacturer. Refer to the
product specification for detailed power requirements.
Use the battery provided by a qualified manufacturer. Refer to the product
specification for detailed battery requirements.
1. CAUTION: Risk of explosion if the battery is replaced by an incorrect type.
2. Improper replacement of the battery with an incorrect type may defeat a safeguard (for example, in the case of some lithium battery types).
3. Do not dispose of the battery into fire or a hot oven, or mechanically crush or cut the battery, which may result in an explosion.
4. Do not leave the battery in an extremely high temperature surrounding environment, which may result in an explosion or the leakage of flammable liquid or gas.
5. Do not subject the battery to extremely low air pressure, which may result in an explosion or the leakage of flammable liquid or gas.
6. Dispose of used batteries according to the instructions.
+ identifies the positive terminal(s) of equipment which is used with, or generates direct current. - identifies the negative terminal(s) of equipment which is used with, or generates direct current.
1. Install the equipment according to the instructions in this manual.
2. To prevent injury, this equipment must be securely attached to the floor/wall in accordance with the installation instructions.
3. The additional force shall be equal to three times the weight of the equipment but not less than 50N. The equipment and its associated mounting means shall remain secure during the installation.
4. After the installation, the equipment, including any associated mounting plate, shall not be damaged.
1. In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region.
2. No naked flame sources, such as lighted candles, should be placed on the equipment.
Directive 2012/19/EU (WEEE Directive): Products marked with this symbol cannot be disposed of
as unsorted municipal waste in the European Union. For proper recycling, return this product to
your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated
collection points. For more information see: www.recyclethis.info
Directive 2006/66/EC and its amendment 2013/56/EU (Battery Directive): This product contains a
battery that cannot be disposed of as unsorted municipal waste in the European Union. See the
product documentation for specific battery information. The battery is marked with this symbol,
which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper
recycling, return the battery to your supplier or to a designated collection point. For more
information see:www.recyclethis.info.
1
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
DS-PDQP15AM-LM-WE/WB
Indicator
75 mm
202 mm
Vertical Pole Mount
Wiring Hole
Screw Hole
Masked:
PIR Triggered: (top)
Alarm:
(bottom)
Note: The terminals are limited to connecting
the designated detector backpack.
Fault:
+
Top/Bottom Cover Front Panel PCBA Rear Panel
Power Switch
Detector Backpack Terminals
PIR Module(Top)
PIR Module(Bottom)
2
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
2

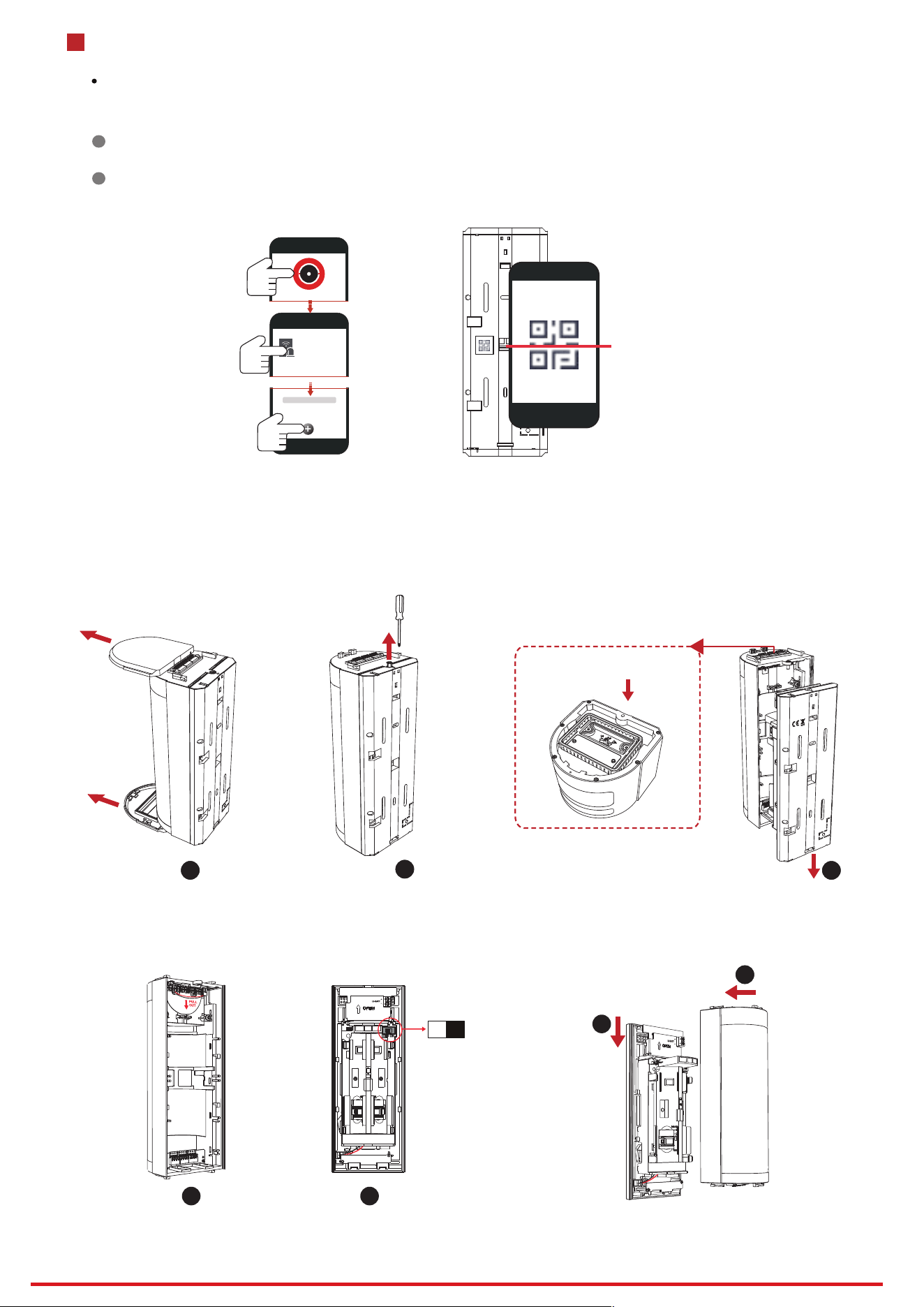

Set Up
Enrollment Preparation
Log in to the APP Store, download and install the App.
Power on the security control panel.
Log in the APP and tap the icon "+" . Scan the QR code or input the control panel serial No. to add the control panel.
In the APP, tap the "Enrollment Mode" button on the control panel page to make the control panel enter the enrollment status.
1
Enroll the Peripheral Locally
2
Enroll the Peripheral with QR and serial No.
In the APP, tap the icon "+"and scan the QR code or serial No. on the peripheral.
1. Enrollment
Hik-Connect
Control Panel
Device
2. Push the top and bottom covers forward and remove them.
3. Loosen the screw.
4. Push the rear shell and the middle frame downward and remove them.
5. Remove the battery insulator.
6. Power on the detector.
7-8. Install the front shell back.
4
4
2
3
Note: The 12PIN spring interfaces on the top and
bottom sides of the detector are limited to connecting
the Hikvision CAM modules(DS-PDCM15PF-WL/IR).
44
OFF ON
4 45 6
47
8
3
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
9. Check signal strength.
(1) Enrollment succeeded: Flash green for 7 times.
(2) Check Signal Strength
Solid Green for 3 s - Strong Signal
Solid Orange for 3 s - Medium Signal
Solid Red for 3 s - Weak Signal
Flash Red for 6 times - Lost Signal
Signal Strength Test
1 2
3
Installation
1. Push the rear shell and the middle frame downward and remove them again.
2. Separate the rear shell and the middle frame.
3. Secure the rear panel with 2 screws.
4. Install the middle frame back to the rear shell.
5-6. Install the front panel back.
7. Tighten the screw.
8. Loosen the screws of the CAM modules, and open the cover.
9. Adjust the lever of the CAM modules to ensure the angle of the upper and lower modules can cover 180°.
10. Put the cover back and fix it with screws.
4 4 4
4
1 2 3
4
45
46
4 48 9 10
7
1-3
L
1-3
L
7-9
R
7-9
R
TOP
CAM
BOTTOM
CAM
4
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
4
Detection Range
412 13411
11. Push and fix the CAM modules. Check whether the edges are aligned.
12. Tighten the screws.
13. Put the TPU cover.
When the CAM modules are successfully added to the control panel, green light flashes.
You can see the live video through the APP.
2.5m
5m5m
5m
10m10m
10m
15m15m
15m
4.5m
6.5m
15m
15m
15m
10m 15m
15m
0m
0m
1m
1m
0m
1m
0m
1m
0m
1m
A
B
C
D
E
A
B
C
D
E
A
B
C
D
E
A
B
C
D
E
A
B
C
D
E
5m 15m
15m
15m
5m
5m
0m
0m
0m
1m
1m
1m
Not Detected
Not Detected
Detected
5
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
Cut Reserve
Used As Dual Curtain Partially Masked (by trees, etc.)
Masking Seal 2 topMasking Seal 1 top
Masking Seal 1 bottom
Masking Seal 2 bottom
1 2 3 4 5 6 7 8 9 10
1 2 3 4 5 6 7 8 9 10
111213141516 171819 20
111213141516 171819 20
212223242526 272829 30
212223242526 272829 30
313233343536 373839 40
313233343536 373839 40
Masking Seal 1 Masking Seal 2
Cut off the knockout portion with a cutter knife.
Stick it on the lens in the corresponding area.
5
Anti-Masking Alarm
+
<1 min
<3 min
WEAK INVERSE
STRONG INVERSE
<30 s
DISARMED
ARMED
+
+
6
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
8
Specification
UD30136B
7
Operation Caution and Device Maintenance
- All the electronic operation should be strictly compliance with the electrical safety regulations, re prevention regulations and other related
regulations in your local region.
- Do not drop the device or subject it to physical shock, and do not expose it to high electromagnetism radiation. Avoid the equipment
installation on vibrations surface or places subject to shock (ignorance can cause equipment damage).
- Please make sure that the power has been disconnected before you wire, install or dismantle the device.
- If smoke, odors or noise rise from the device, turn o the power at once and unplug the power cable, and then please contact the service
center.
- Do not drop the device or subject it to physical shock, and do not expose it to high electromagnetism radiation. Avoid the equipment
installation on vibrations surface or places subject to shock (ignorance can cause equipment damage).
- Do not place the device in extremely hot (refer to the specication of the device for the detailed operation temperature), cold, dusty or
damp locations, and do not expose it to high electromagnetic radiation.
- The device for indoor use shall be kept from rain and moisture.
Exposing the equipment to direct sun light, low ventilation or heat source such as heater or radiator is forbidden (ignorance can cause re
danger).
- Do not aim the device at the sun or extra bright places. A blooming or smear may occur otherwise (which is not a malfunction however), and
aecting the endurance of sensor at the same time.
- Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or equivalent type only. Dispose of
used batteries according to the instructions provided by the battery manufacturer.
- Do not expose the device to the corrosive gas. Otherwise the equipment damage may occur.
- Do not expose the device to the explosive situation.
6
Set Up with App
You can view the device status including temperature, signal intensity, battery level, lid, external input, etc.,on the device page.
Tap the button to enter the settings page.
Detection Method Passive Infrared
Detection Range 15 m(12m according to EN50131-2-2)
Detection Angle 180°
Detection Zones 40
Detectable Speed 0.3 to 2 m/s
Sensitivity Auto, Low
White Light Filter 20000lux
Pet Immunity Up to 40 Kg
Digital Temperature Compensation Support
Anti-masking Support
Adaptable Coverage Pattern mask included
Digital Processing Support
Sealed Optics Support
Tamper Protection Front, Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support
Power Switch Power Up Enrolling
LED Indicator Blue(Alarm), Green+Orange(Mask), Orange(Fault)
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868/433 MHz
Transmission Security AES-128 Encryption
Transmission Range(Free Space) 1.6/1.2 Km
Frequency Hopping Support
Enrolling Method Power up, Remote ID, QR Code
Standard Battery Life
5 years in work status
(Standalone: being triggered 20 times per day
With camera integrated: being triggered and
completely uploading captures once per day)
Power Supply Battery Powered
Battery Type CR123A × 5
Typical Voltage 3 V
Operation Temperature -25 °C to 60 °C (-13 °F to 140 °F)
Storage Temperature -25 °C to 60 °C (-13 °F to 140 °F)
Operation Humidity 10% to 90%
IP Rate IP65
Dimension(W × H × D) 75 mm × 202 mm × 73 mm
Weight 512.5 g
Mounting Height 0.8 to 1.2m(traditional 1 m)
Mounting Method Wall
Application Scenario Outdoor
