nUT/BOLT DRILL JIG
mODEL NO: VS559
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
9 Store the tool in a safe childproof place when not in use.
9 Use in a suitable, clean and tidy work area, free from unrelated materials. Ensure there is adequate lighting.
8 DO nOT allow untrained people to use the tool.
8 DO nOT allow children to use or play with the tool.
8 DO nOT use the tool for tasks it is not designed to perform.
88 88 DO nOT operate tool if any parts are damaged or missing as this may cause failure and/or personal injury.
8 DO nOT
operate the tool when you are tired or under the influence of alcohol, drugs or intoxicating medication.
2. InTRODUcTIOn
An essential race-day tool. Compact design ensures accurate drilling of nuts and bolts. Supplied in a pouch.
3. SpEcIFIcATIOn
model no ..................................................................... VS559
Sizes:
m6 x 1, m8 x 1, m8 x 1.25, m10 x 1.25, m10 x 1.5, m12 x 1.5mm
4. OpERATIOn
8 DO nOT hand-hold; Always mount in a vice or clamp to pillar drill table.

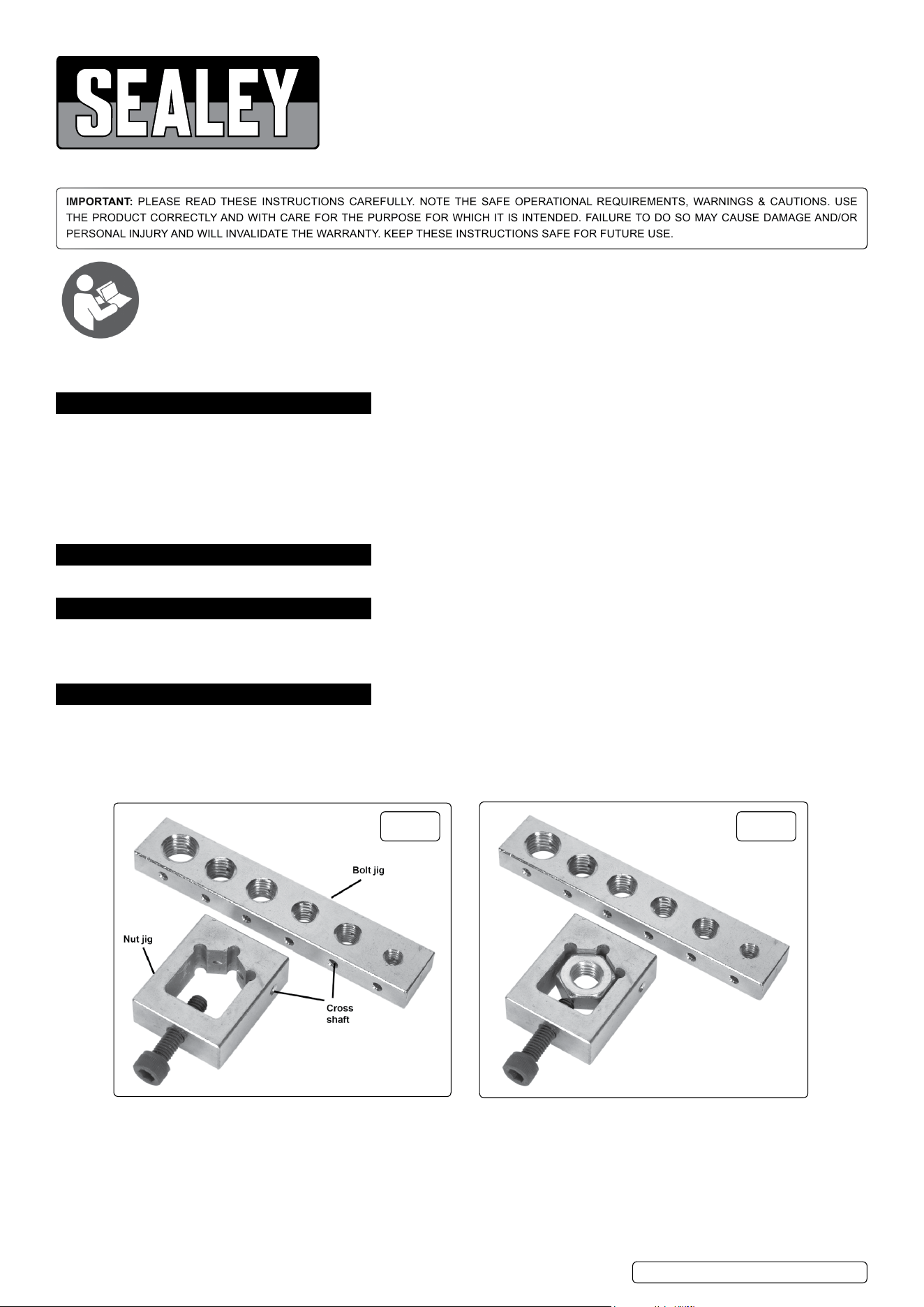

4.1. Screw bolt into bolt jig until shank is past the cross shaft.(See Fig.1)
4.2. Apply a 1.5mm drill to the smaller end of the cross shaft and drill through the bolt.
4.3. Similarly, clamp nut into nut jig (see Fig.2) and drill through the jig from the smaller end of the cross shaft using a 1.5mm drill. This will
pierce the corner of the nut allowing a safety wire to be inserted.
Refer to
instruction
manual
Original Language Version
© Jack Sealey Limited
fig.
1
fig.
2
VS559| Issue:2 (H,F) 25/06/19
Original Language Version
© Jack Sealey Limited
4.4.
4.5.
.
Sealey Group, Kempson Way, Suffolk Business park, Bury St Edmunds, Suffolk. Ip32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
EnVIROnMEnT pROTEcTIOn
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
