JBL CINEMA SB180 User Manual

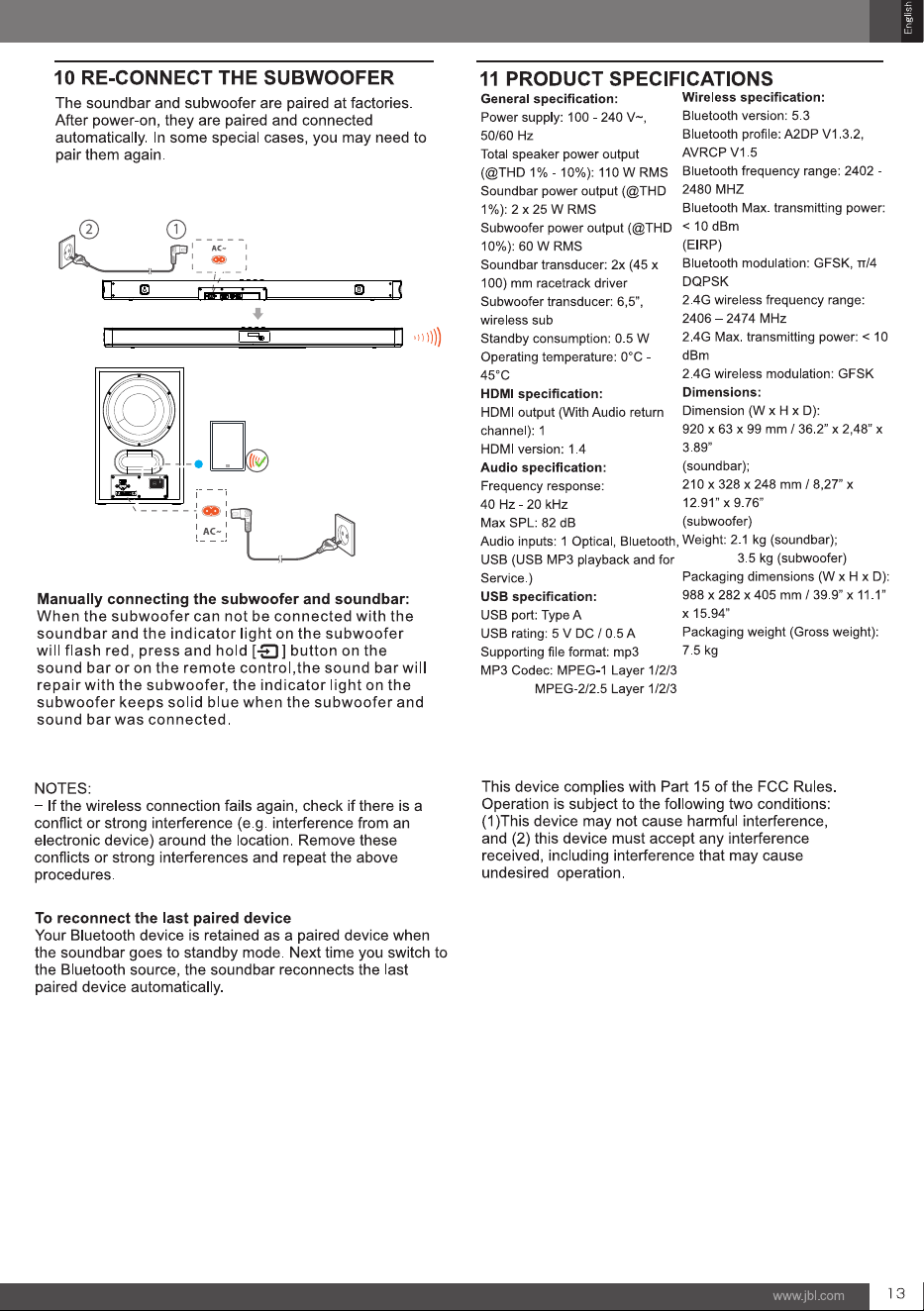

Specifications

Brand: JBL

Model: CINEMA SB180

Operating temperature: 0 °C - 45 °C

Total speaker power output @THD 1-10%: 110W RMS

Soundbar power output Max. @THD 1%: 2 x 25W RMS

Subwoofer power output Max. @THD 1%: 60W RMS

Frequency Response: 40Hz - 20kHz

Bluetooth frequency range: 2402-2480 MHZ

Bluetooth Max. transmitting power: < 10 dBm EIRP

2.4G wireless frequency range: 2406-2474 MHz

2.4G Max. transmitting power: < 10 dBm

Soundbar transducer: 2 45x100 mm racetrack drivers

Audio Inputs: 1 Optical, Bluetooth, USB USB MP3 Playback and for service

HDMI Video output With Audio return channel: 1

HDMI HDCP version: 1.4

USB port: Type A

USB Rating: 5V DC/ 0.5A

HDMI Output With Audio Return Channel: 1

HDMI Version: 1.4

Bluetooth version: 5.3

Bluetooth profile: A2DP V1.3.2, AVRCP V1.5

Bluetooth modulation: GFSK, π/4 DQPSK

2.4G wireless modulation: GFSK

Dimension W x H x D: 920 x 63 x 99 mm / 36.2" x 2,48" x 3.89" soundbar; 210 x 328 x 248 mm / 8,27" x 12.91" x 9.76" subwoofer

Weight: 2.1 kg soundbar; 3.5 kg subwoofer

Packaging dimensions W x H x D: 988 x 282 x 405 mm / 39.9" x 11.1"x 15.94"

Packaging weight Gross weight: 7.5 kg
