BAUMR-AG TBLSAWBRMAX55 2000W 254mm Corded Table Saw User Manual

User Manual

[Revision 6.0]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY

VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance,

assembly, inclusions, specifications, description, and packaging.

BTB55 10” Electric Table Saw

E&OE © Baumr-AG 2

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

• Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

• Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases, or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

• Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

• Wor

k areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

• Wear

appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

• Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

• Do not use the equipment if tired or under

the influence of drugs, alcohol, or

medication.

• This equipment is not intended for use by

persons with reduced physical, sensory, or

mental capabilities.

General Fuel Safety

• P

etrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start, or run the

engine until all leaks are fixed.

General Carbon-Monoxide Safety

• U

sing a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

• Use combustion engines OUTSIDE only,

and far away from windows, doors, and

vents.

General Equipment Use and Care

• K

eep packaging away from children and

pets, potential risk of suffocation or

choking.

• The equipment is designed for domestic

use only.

• Handle the equipment safely and carefully.

• Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage, or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

• Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

• Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

• Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases, or liquids etc.

• The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

• Do not clean equipment with solvents,

flammable liquids, or harsh abrasives.

• For specific equipment safety use and care,

see Equipment Safety.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

E&OE © Baumr-AG 3

General Electrical Safety

• I

nspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

• Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and safety

codes.

• Always use a Residual Current Device

(RCD) (GFCI) / Earth Leakage Circuit

Breaker / Safety Switch when operating this

item (electrical items only).

• High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

• E

lectrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

• Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

• Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift, move or

carry equipment.

• Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

• T

he equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

• Do NOT attempt any maintenance or repair

work not described in this manual.

• After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories, or performing repair or

maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service-related activities in suitable

conditions, such as a workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Important Safety Reminders

DANGER! W

HEN USING THE EQUIPMENT, A FEW SAFETY PRECAUTIONS MUST BE OBSERVED TO AVOID INJURIES AND DAMAGE.

PLEASE READ THE COMPLETE OPERATING INSTRUCTIONS AND SAFETY REGULATIONS WITH DUE CARE. KEEP THIS MANUAL IN A

SAFE PLACE, SO THAT THE INFORMATION IS ALWAYS AVAILABLE. IF YOU GIVE THE EQUIPMENT TO ANY OTHER PERSON, HAND

OVER THESE OPERATING INSTRUCTIONS AND SAFETY REGULATIONS AS WELL. WE CANNOT ACCEPT ANY LIABILITY FOR DAMAGE

OR ACCIDENTS WHICH ARISE DUE TO A FAILURE TO FOLLOW THESE INSTRUCTIONS AND THE SAFETY INSTRUCTIONS.

WARNING! READ ALL THE SAFETY INFORMATION, INSTRUCTIONS, ILLUSTRATIONS, AND TECHNICAL DATA PROVIDED ON OR WITH

THIS POWER TOOL. FAILURE TO ADHERE TO THE FOLLOWING INSTRUCTIONS MAY RESULT IN ELECTRIC SHOCK, FIRE AND/OR

SERIOUS INJURY.

• Keep all the safety information and instructions in a safe place for future use.

• The manufacturer cannot accept any liability for damage due to non-observance of the safety information.

Proper Use

• T

he bench-type circular saw is designed for the slitting and cross-cutting (only with the cross stop) of all types of timber commensurate with the

machine’s size. The equipment is not to be used for cutting any type of round wood.

• The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the

manufacturer will be liable for any damage or injuries of any kind caused because of this.

• Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the

machine is used in commercial, trade or industrial businesses or for equivalent purposes.

• The equipment is to be operated only with suitable saw blades (saw blades made of HM or CV) It is prohibited to use any type of HSS saw blade

and cutting-off wheel.

• To use the equipment properly you must also observe the safety information, the assembly instructions, and the operating instructions to be

found in this manual.

• All persons who use and service the equipment must be acquainted with these operating instructions and must be informed about the

equipment’s potential hazards. It is also imperative to observe the accident prevention regulations in force in your area. The same applies for the

general rules of health and safety at work.

• The manufacturer will not be liable for any changes made to the equipment nor for any damage resulting from such changes. Even when the

equipment is used as prescribed it is still impossible to eliminate certain residual risk factors.

• The following hazards may arise in connection with the machine’s construction and design:

• Contact with the saw blade in the uncovered saw zone.

• Reaching into the running saw blade (cut injuries).

• Kick-back of workpieces and parts of workpieces.

• Saw blade fracturing.

• Catapulting of faulty carbide tips from the saw blade.

• Damage to hearing if essential earmuffs are not used.

• Harmful emissions of wood dust when used in closed rooms.

• Operating mode S6 40%: Continuous operation with idling (cycle time 10 minutes). To ensure that the motor does not become excessively hot, it

may only be operated for 40% of the cycle at the specified rating and must then be allowed to idle for 60% of the cycle.

• DANGER! NOISE THE NOISE EMISSION VALUES WERE MEASURED IN ACCORDANCE WITH EN 62841.

WEAR EARMUFFS

• The impact of noise can cause damage to hearing.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

E&OE © Baumr-AG 4

• The stated noise emission values were measured in accordance with a set of standardized criteria and can be used to compare one power tool

with another.

• The stated noise emission values can also be used to make an initial assessment of exposure.

• Warning: The noise emission levels may vary from the level specified during actual use, depending on the way in which the power tool is used,

especially the type of workpiece it is used for.

• Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.

• Service and clean the appliance regularly.

• Adapt your working style to suit the appliance.

• Do not overload the appliance.

• Have the appliance serviced whenever necessary.

• Switch the appliance off when it is not in use.

LIMIT THE OPERATING TIME!

• All stages of the operating cycle must be considered (for example, times in which the electric tools are switched off and times in which the tool is

switched on but operates without load).

• CAUTION! RESIDUAL RISKS EVEN IF YOU USE THIS ELECTRIC POWER TOOL IN ACCORDANCE WITH INSTRUCTIONS, CERTAIN

RESIDUAL RISKS CANNOT BE RULES OUT. THE FOLLOWING HAZARDS MAY ARISE IN CONNECTION WITH THE EQUIPMENT’S

CONSTRUCTION AND LAYOUT:

• Lung damage if no suitable protective dust mask is used.

• Damage to hearing if no suitable ear protection is used.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

E&OE © Baumr-AG 5

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases, or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases, or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing, and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

E&OE © Baumr-AG 6

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp, or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

E&OE © Baumr-AG 7

Table of Contents

Safety ......................................................................................................................................................... 2

Safety Symbols ........................................................................................................................................................... 5

Parts Identification .................................................................................................................................... 8

Before Starting the Equipment ............................................................................................................... 11

Assembly ................................................................................................................................................. 12

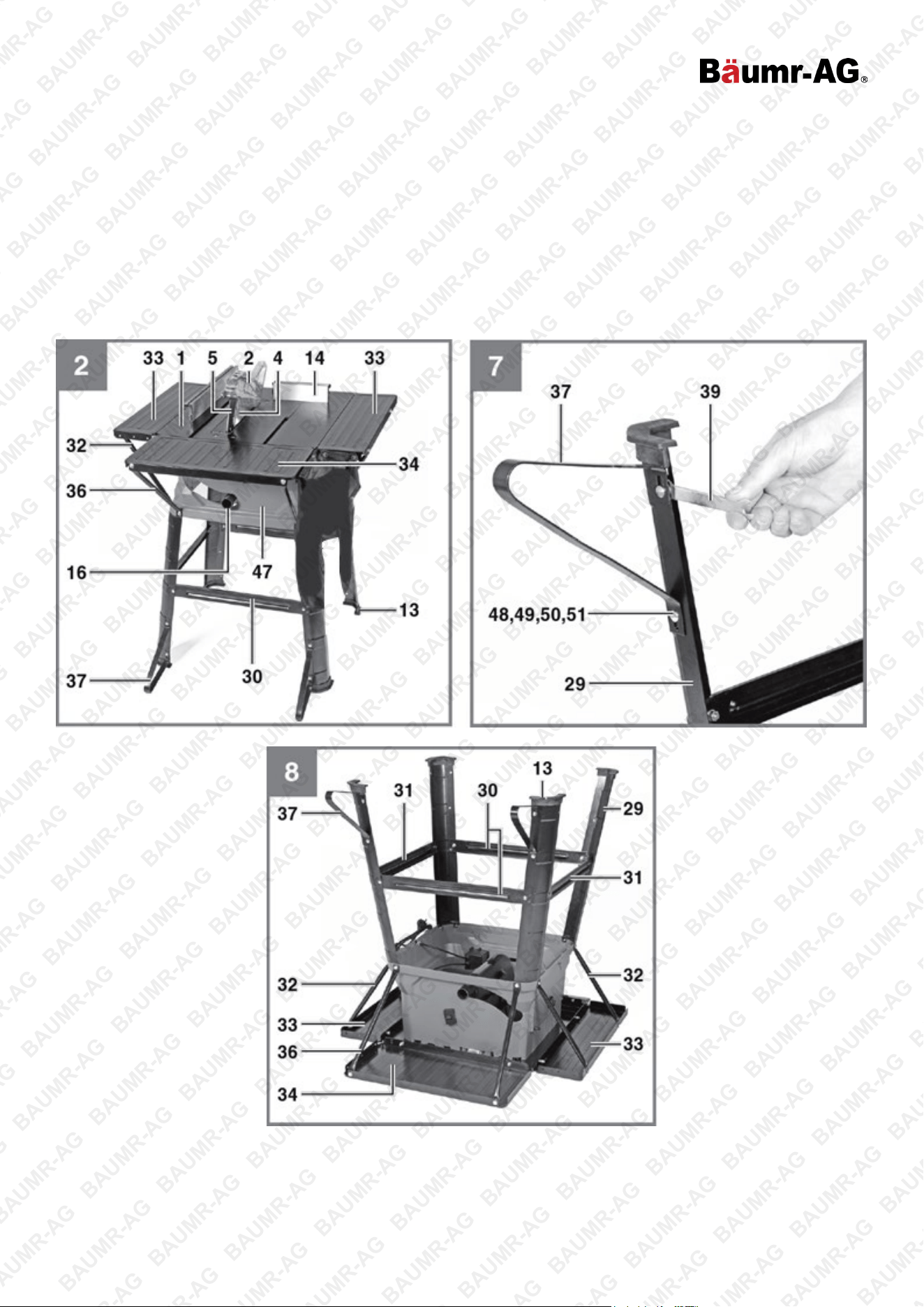

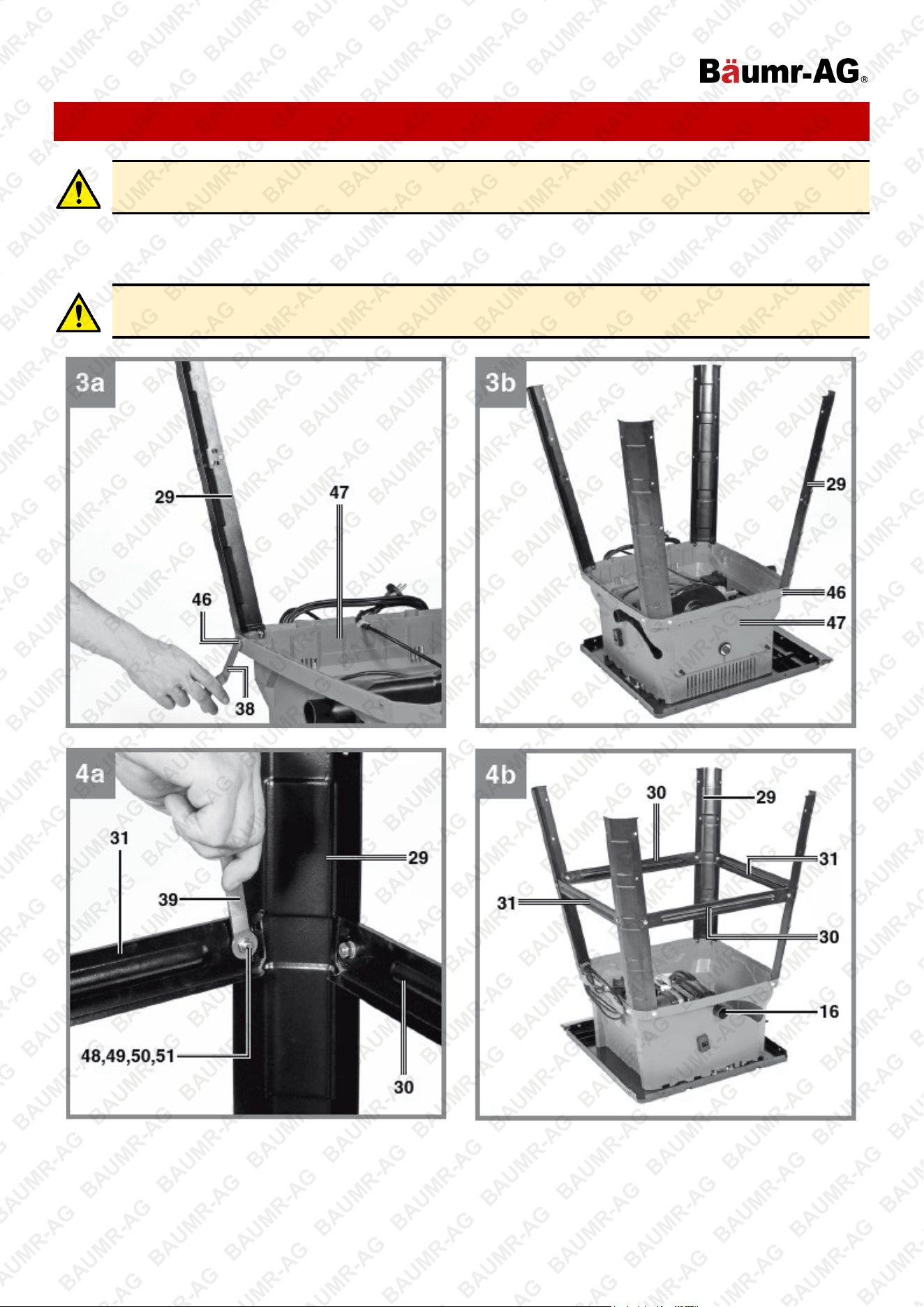

Assembling the Base Frame .................................................................................................................................... 12

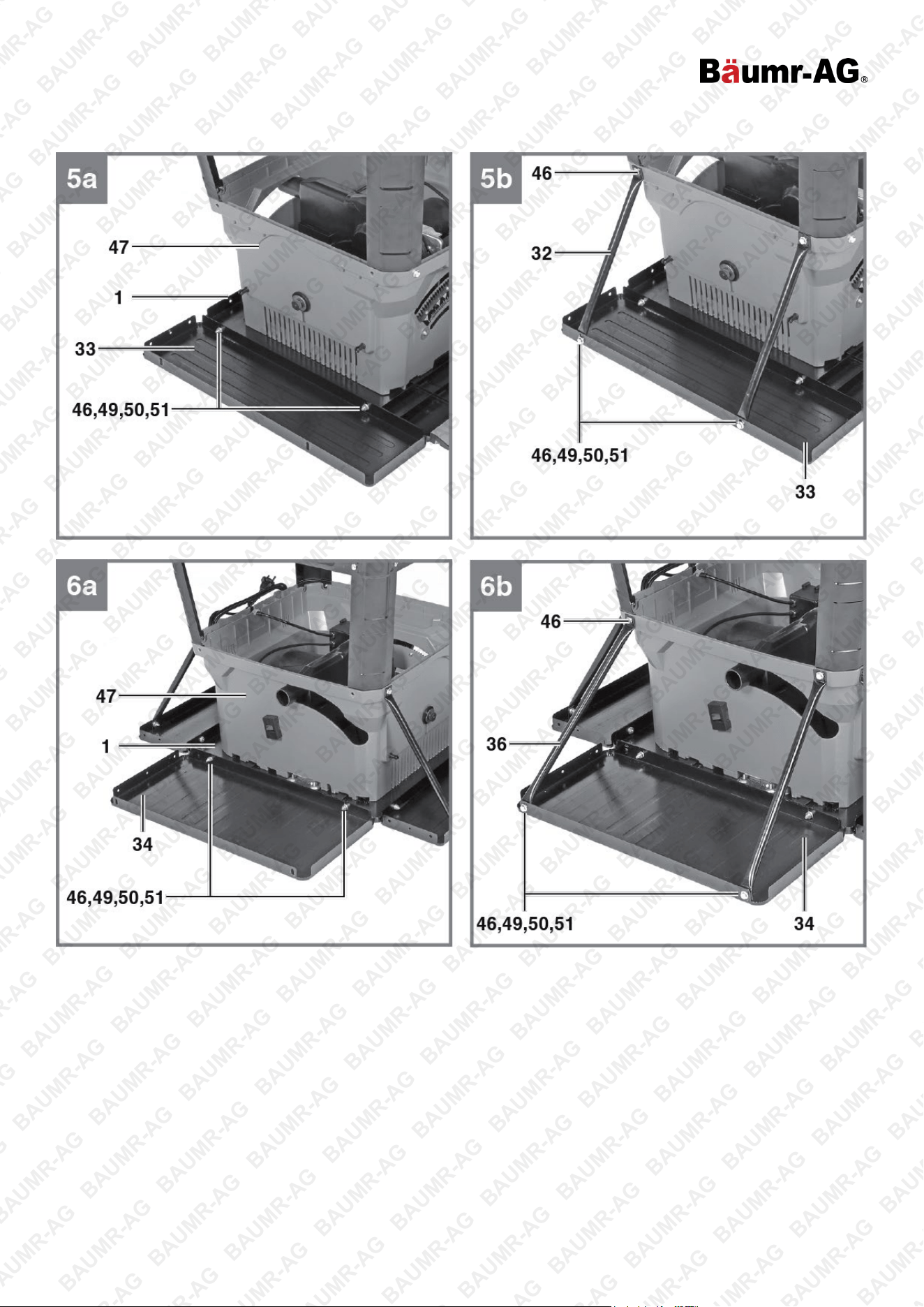

Assembling the Table Width Extension/Length Extension ....................................................................................... 14

Standing the Bench-Type Circular Saw Upright ....................................................................................................... 15

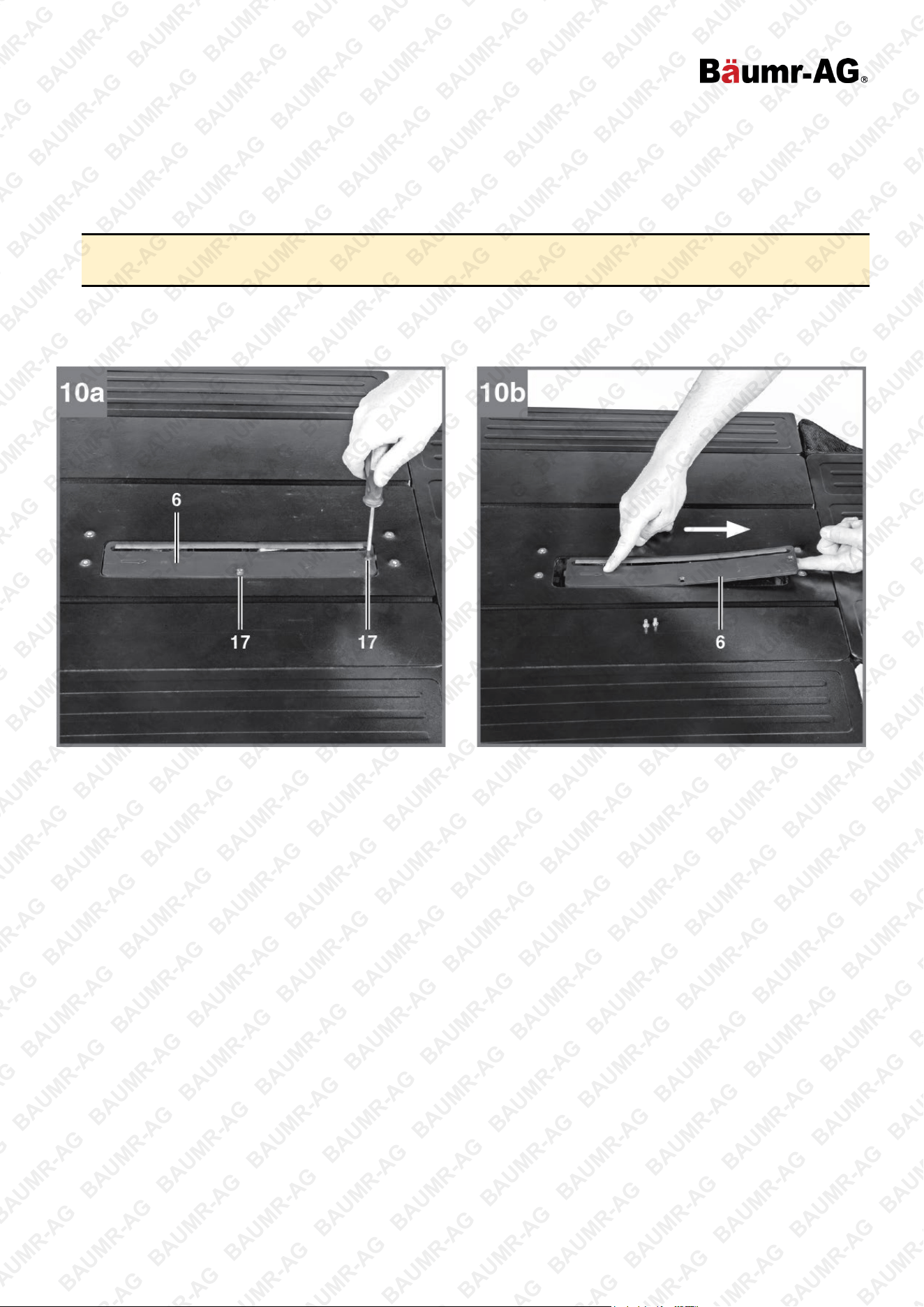

Changing the Table Insert ........................................................................................................................................ 16

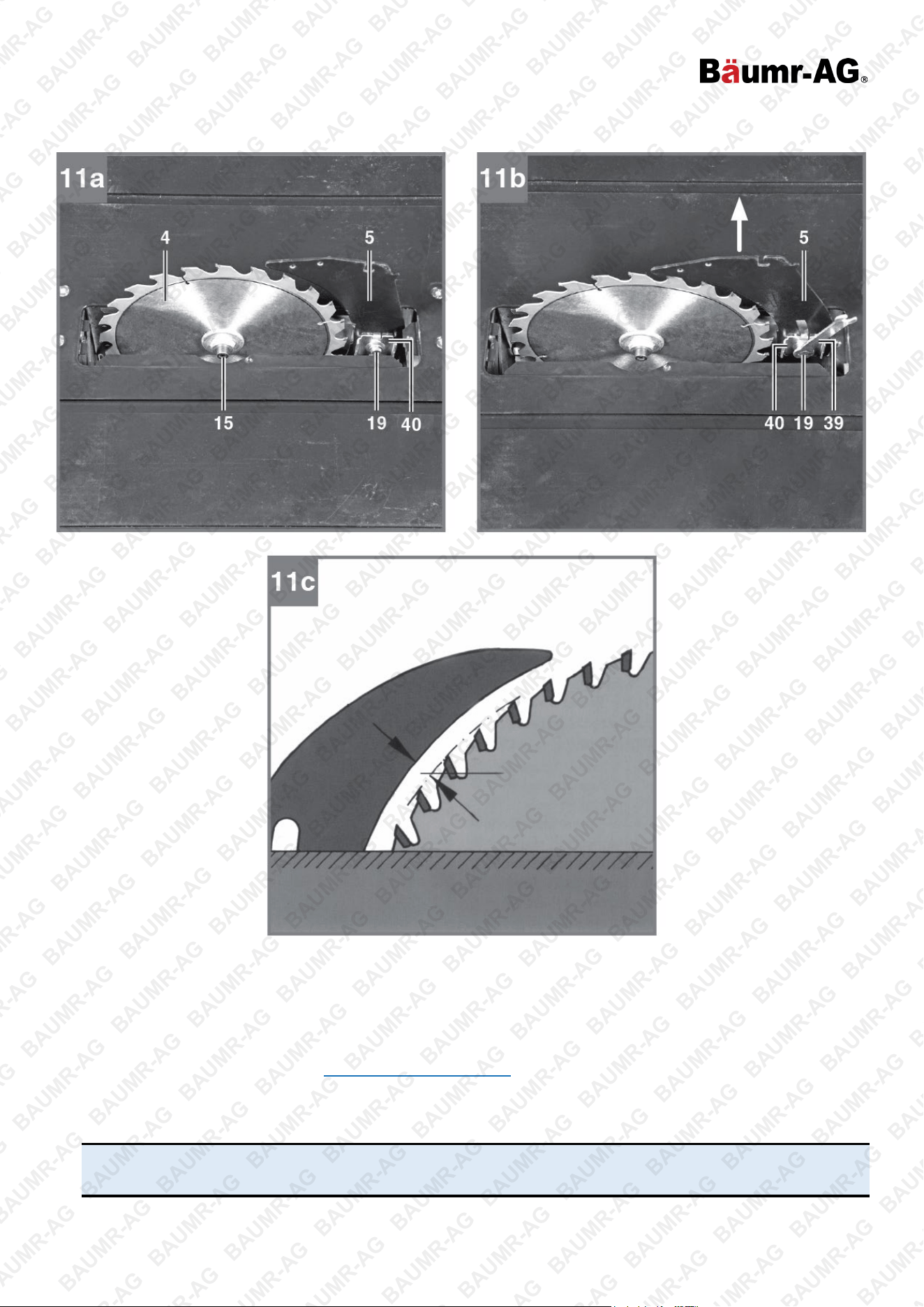

Fitting/Replacing the Splitter ..................................................................................................................................... 17

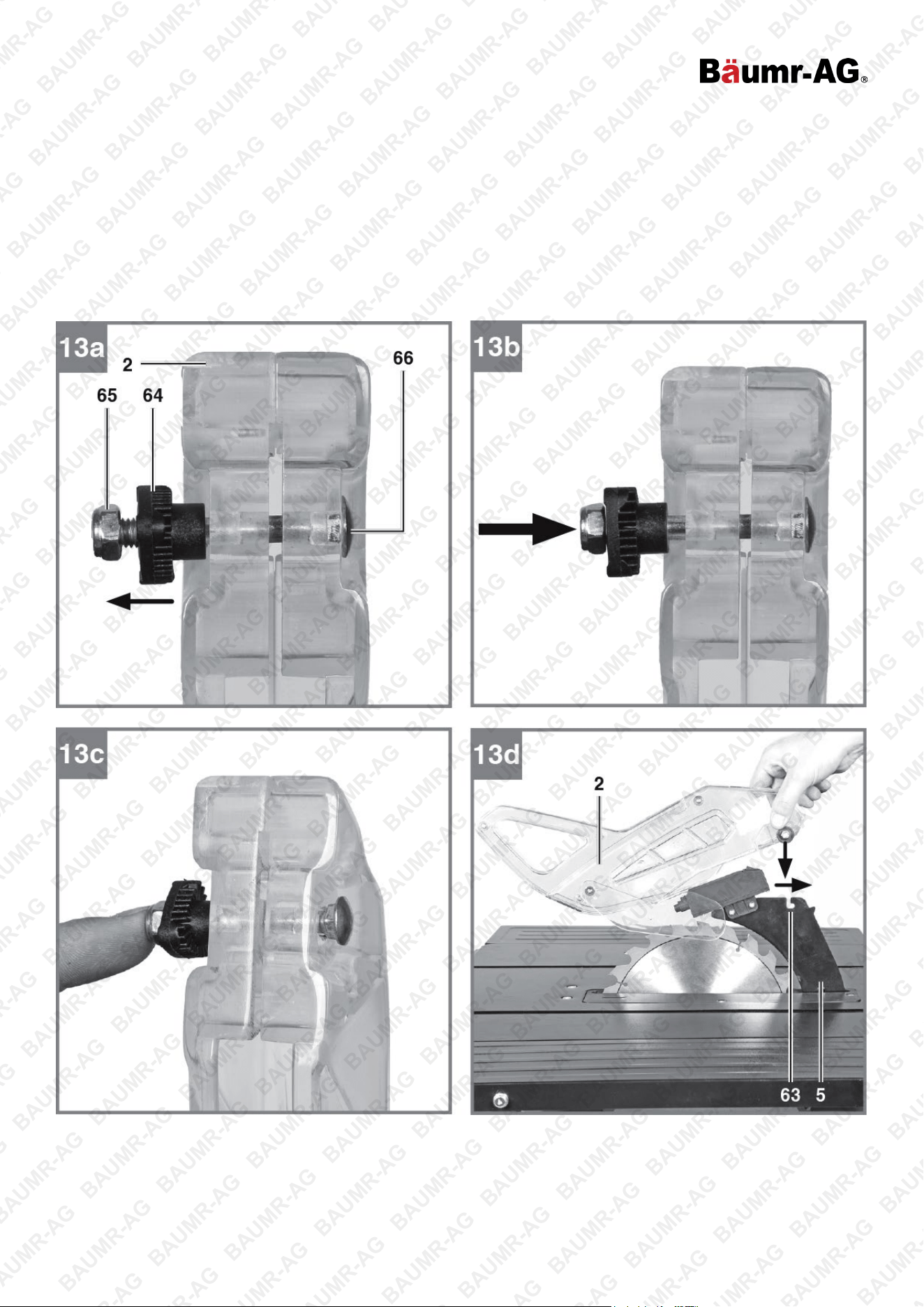

Fitting/Changing the Saw Blade Guard .................................................................................................................... 18

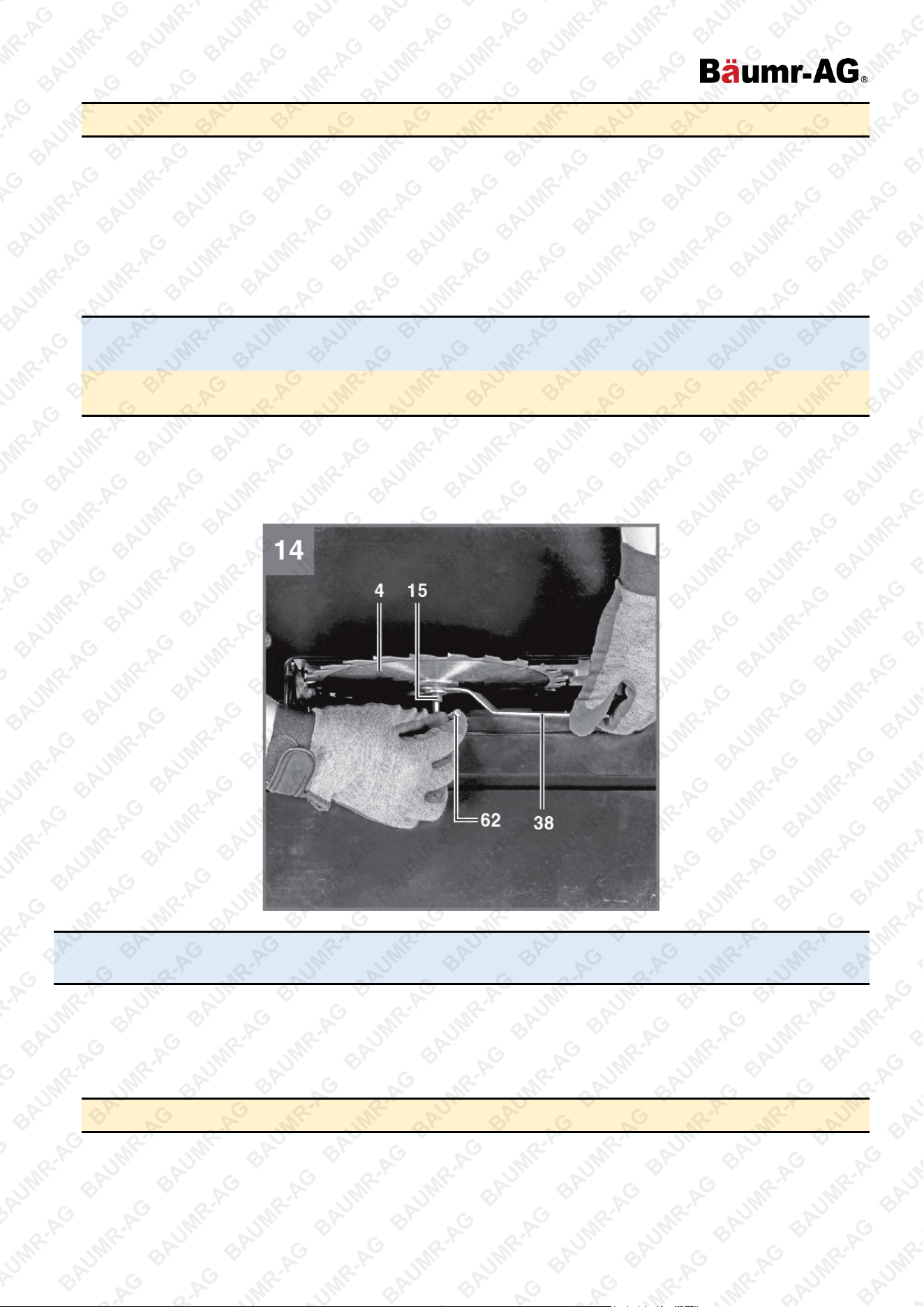

Fitting/Changing the Saw Blade ............................................................................................................................... 19

Putting Away Loose Parts ........................................................................................................................................ 21

Connection for Vacuum Cleaner .............................................................................................................................. 22

Using the Saw .......................................................................................................................................... 23

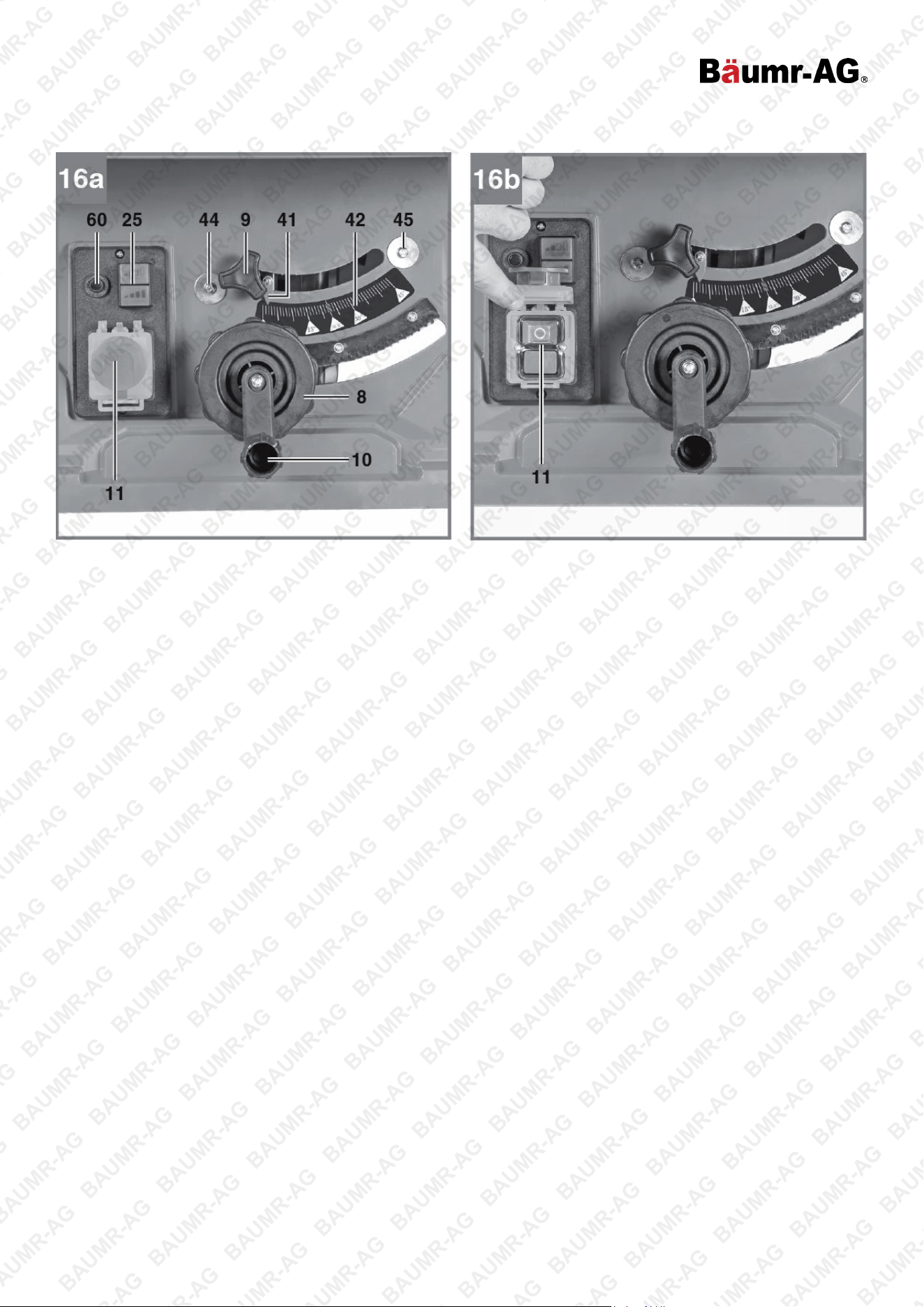

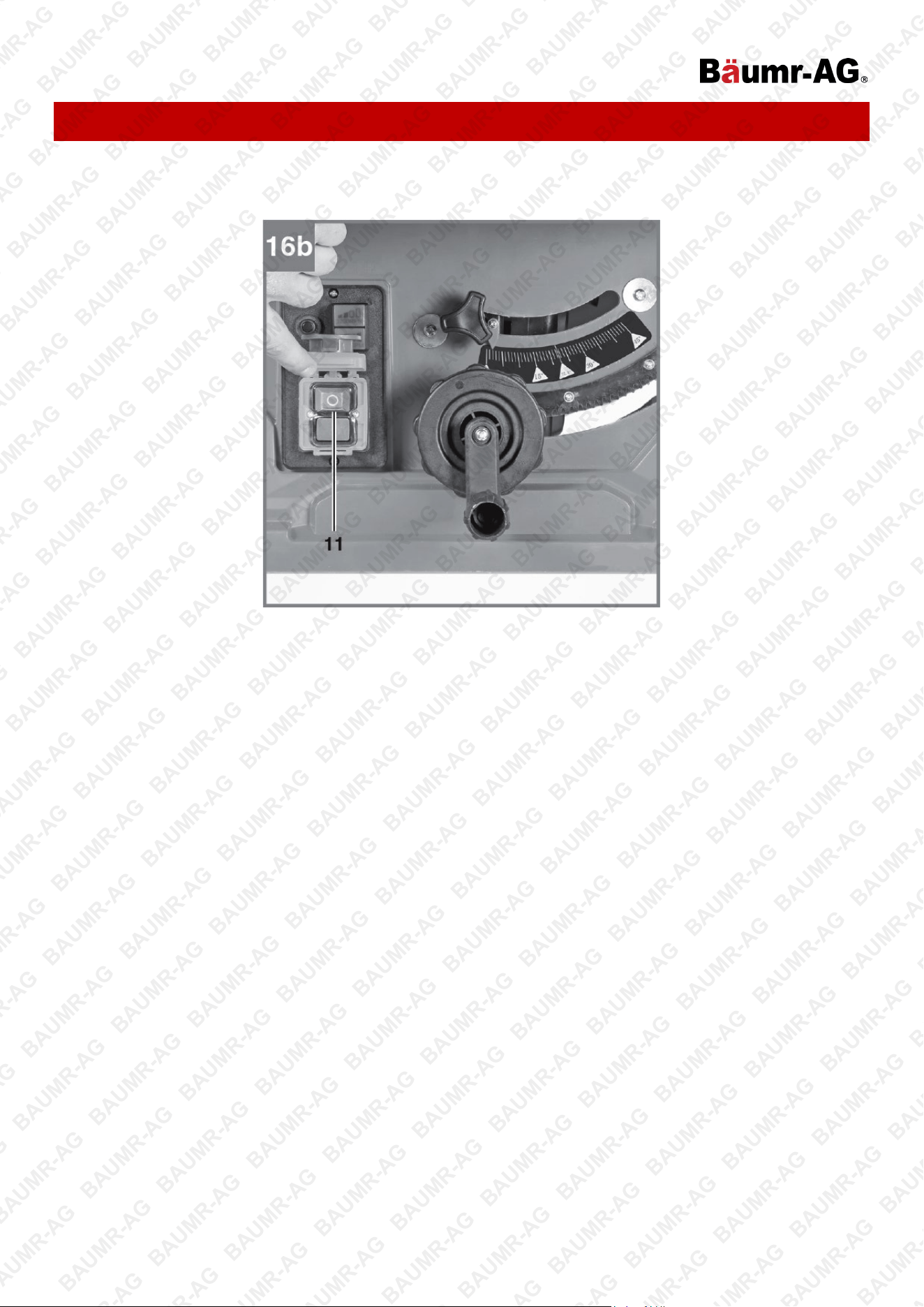

ON/OFF Switch ......................................................................................................................................................... 23

Cutting Depth ............................................................................................................................................................ 24

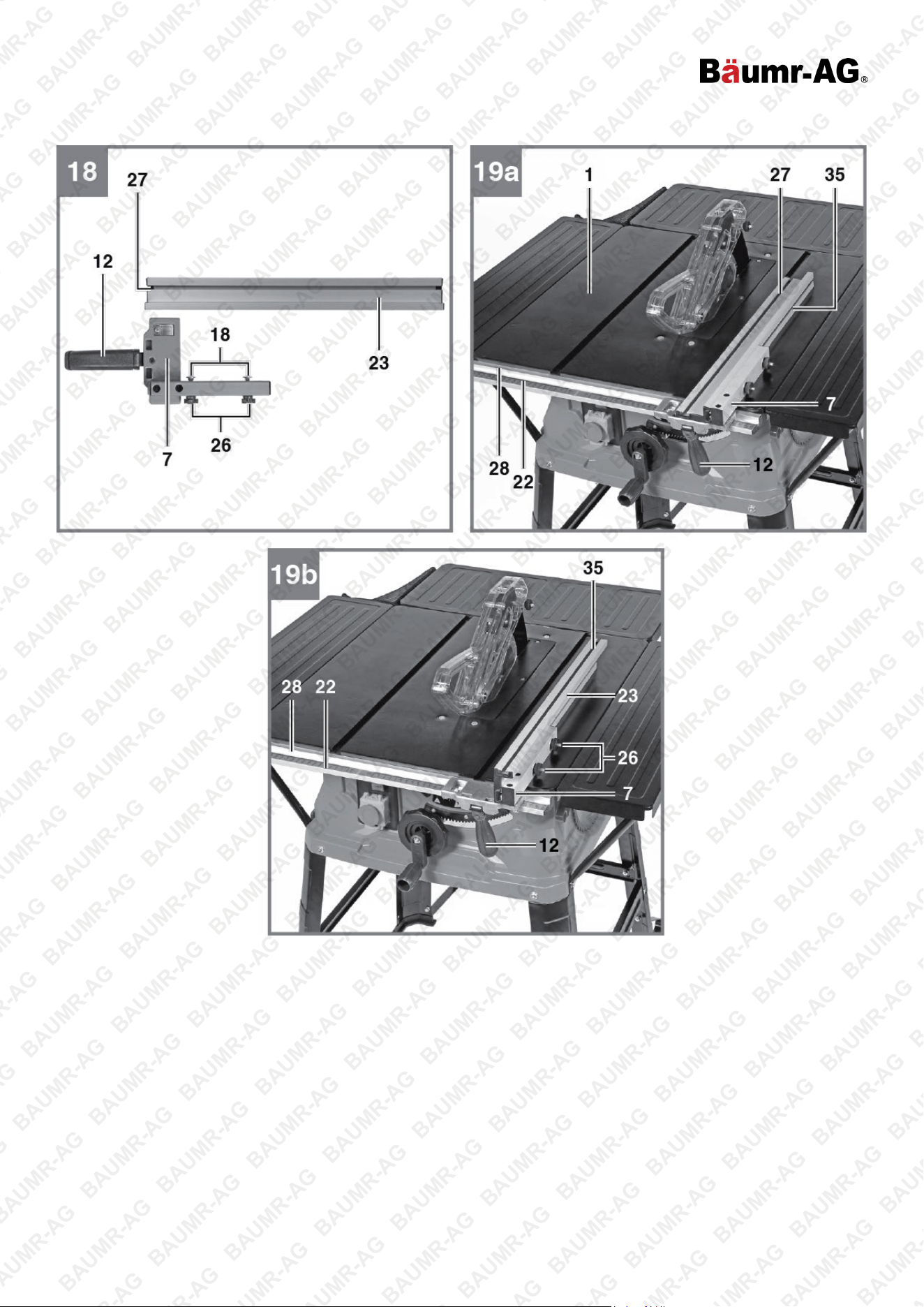

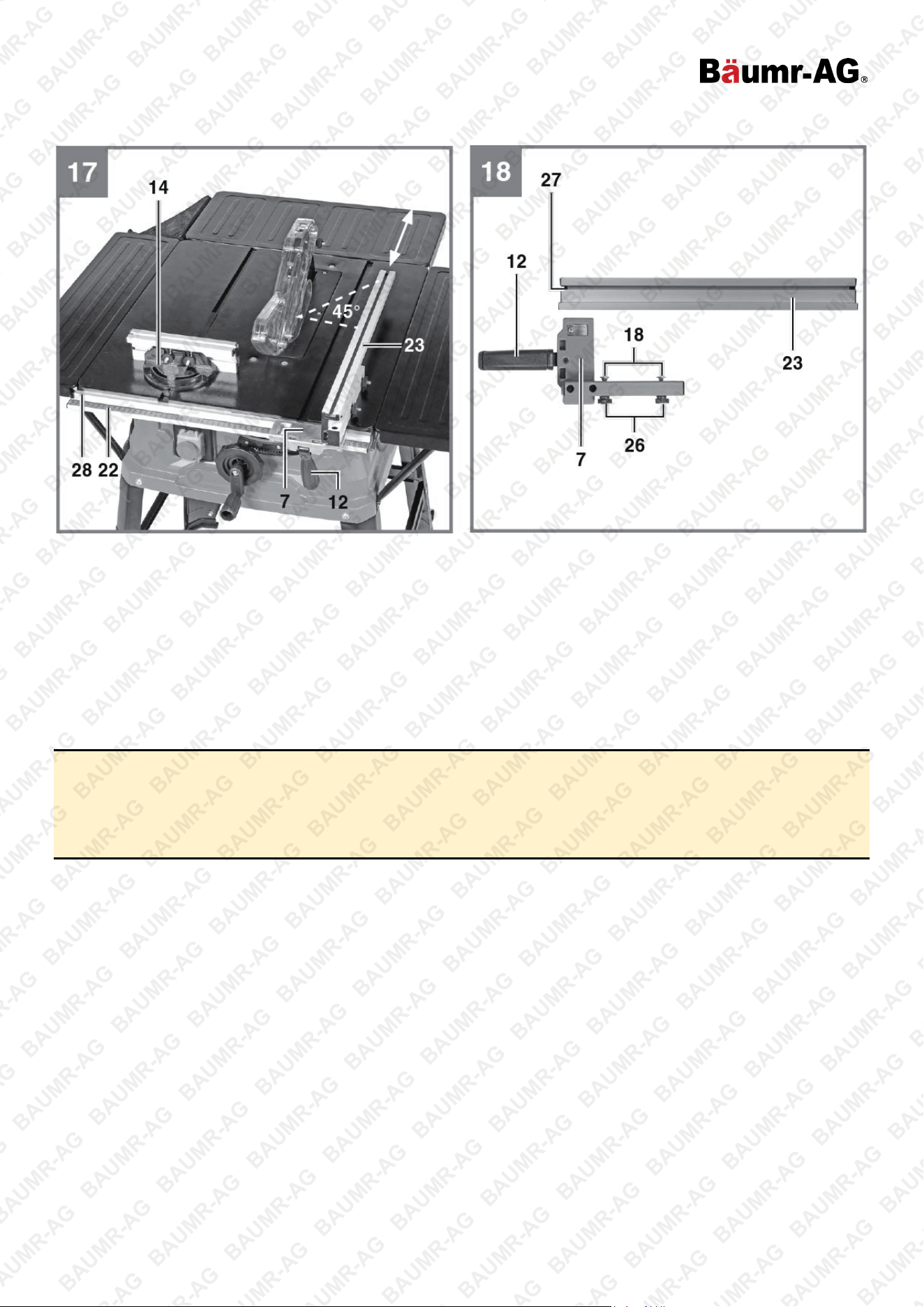

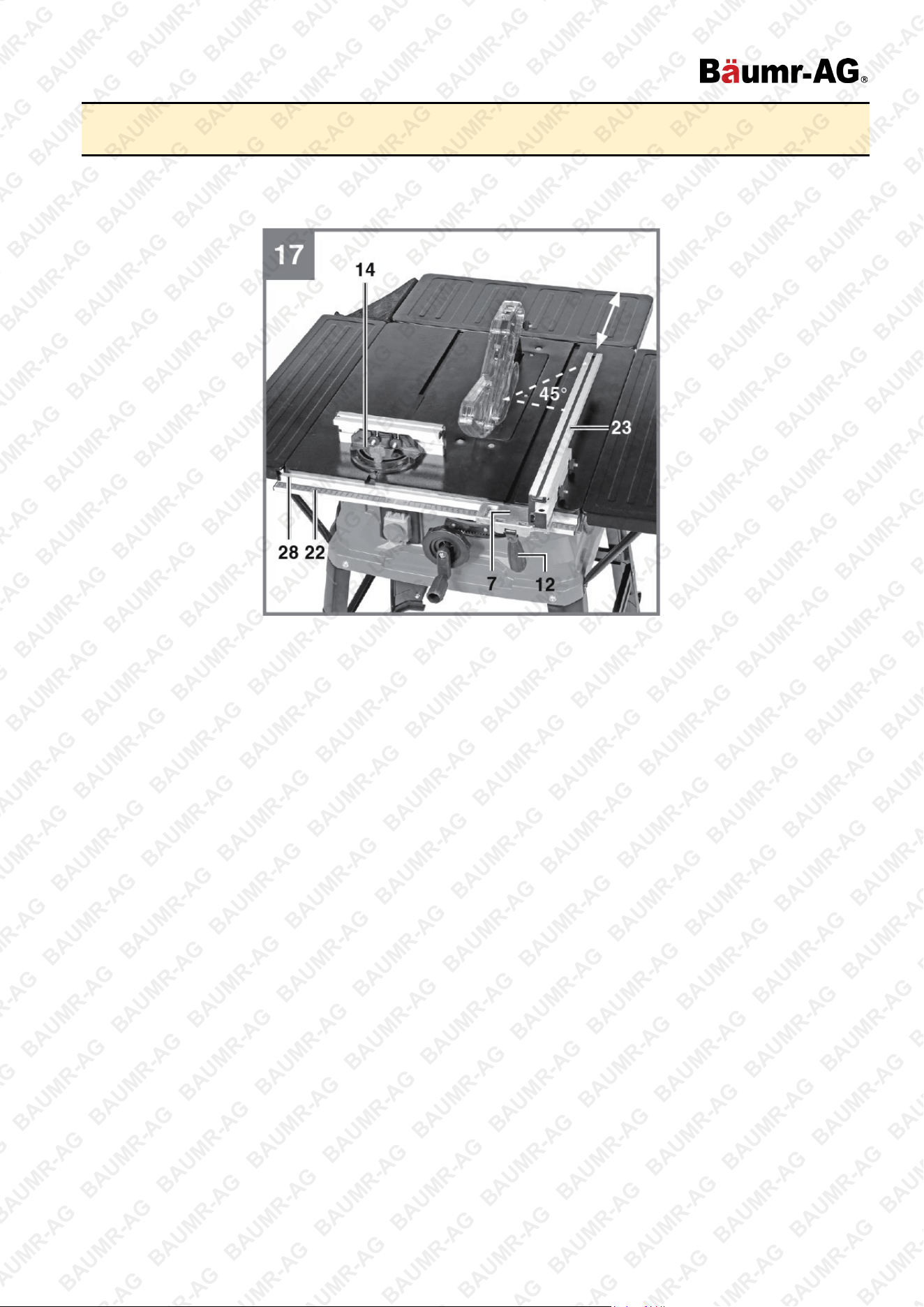

Parallel Stop ............................................................................................................................................................. 24

Stop Height......................................................................................................................................................... 25

Cutting Width ...................................................................................................................................................... 26

Setting the Stop Length ...................................................................................................................................... 27

Cross Stop ................................................................................................................................................................ 28

Setting the Angle of the Saw Blade .......................................................................................................................... 29

Operation ................................................................................................................................................. 30

Making Longitudinal Cuts ......................................................................................................................................... 30

Cutting Narrow Workpieces ............................................................................................................................... 31

Cutting Extremely Narrow Workpieces ..................................................................................................................... 31

Making Bevel Cuts .................................................................................................................................................... 32

Making Cross Cuts ................................................................................................................................................... 32

Cleaning and Maintenance...................................................................................................................... 34

Replacing the Power Cable ...................................................................................................................................... 34

Cleaning .................................................................................................................................................................... 34

Carbon Brushes ........................................................................................................................................................ 34

Additional Maintenance ............................................................................................................................................ 34

Transport .................................................................................................................................................................. 34

Disposal and recycling ............................................................................................................................ 35

Storage ..................................................................................................................................................... 35

Specifications .......................................................................................................................................... 36

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

E&OE © Baumr-AG 8

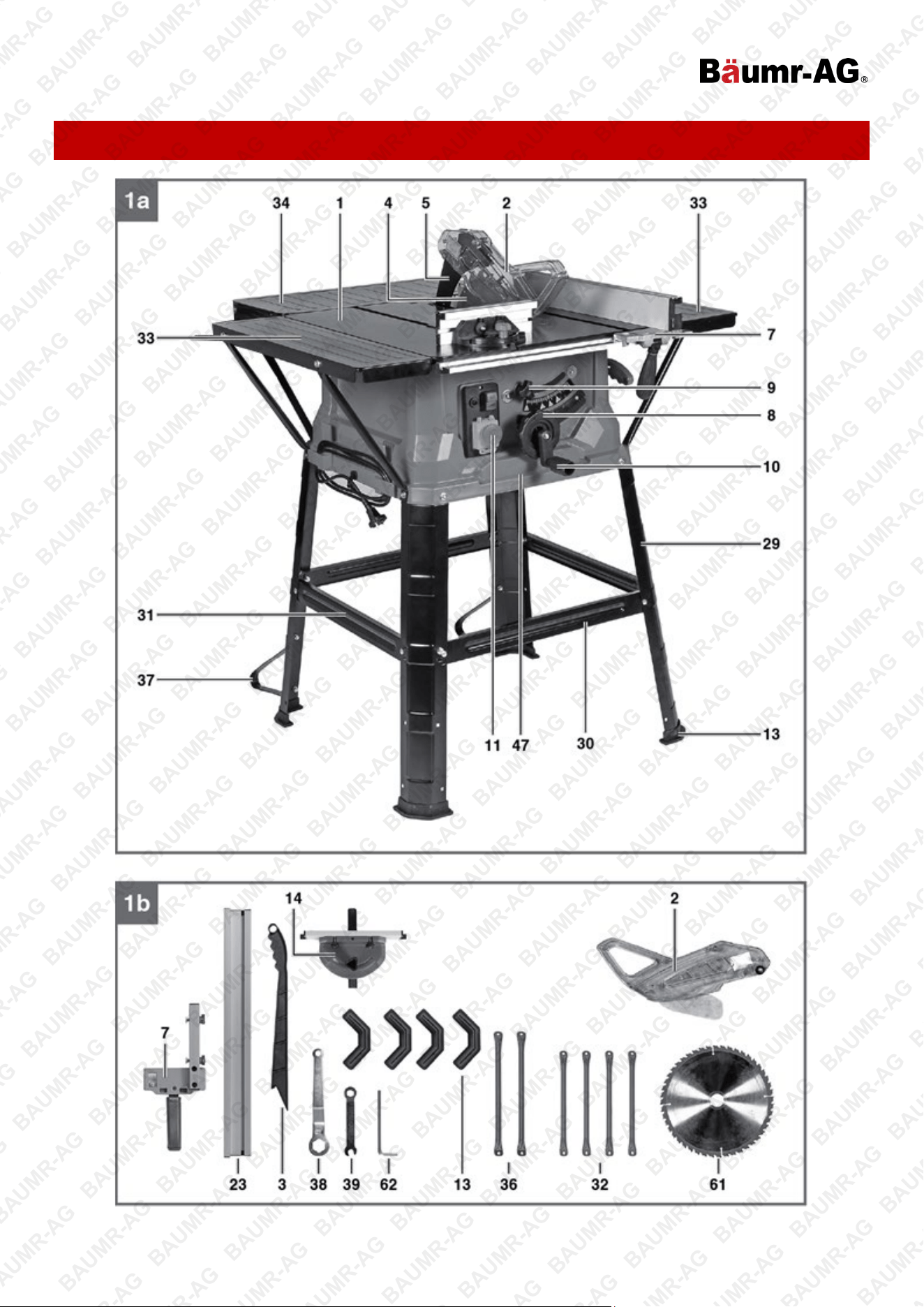

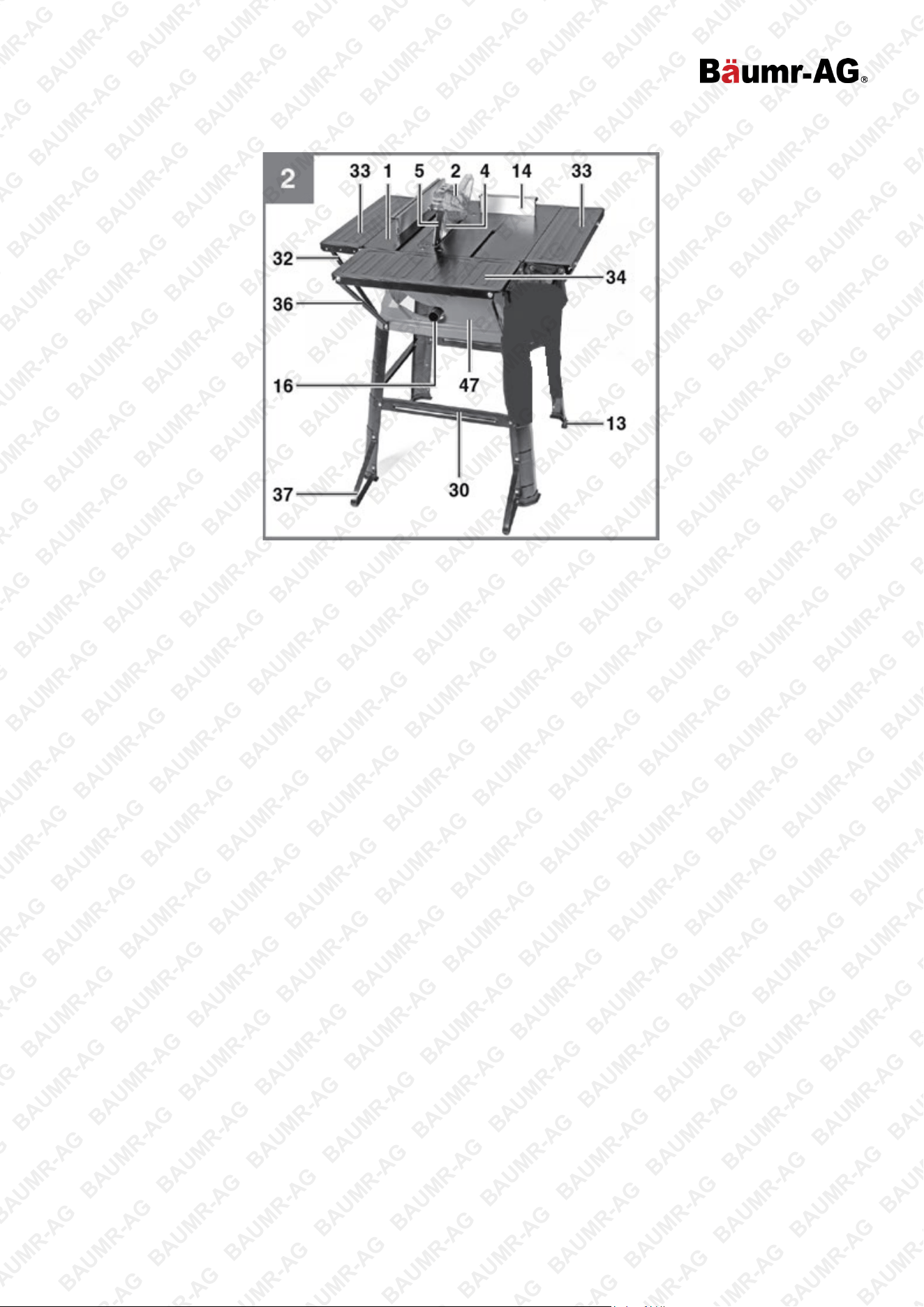

Parts Identification

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

E&OE © Baumr-AG 9

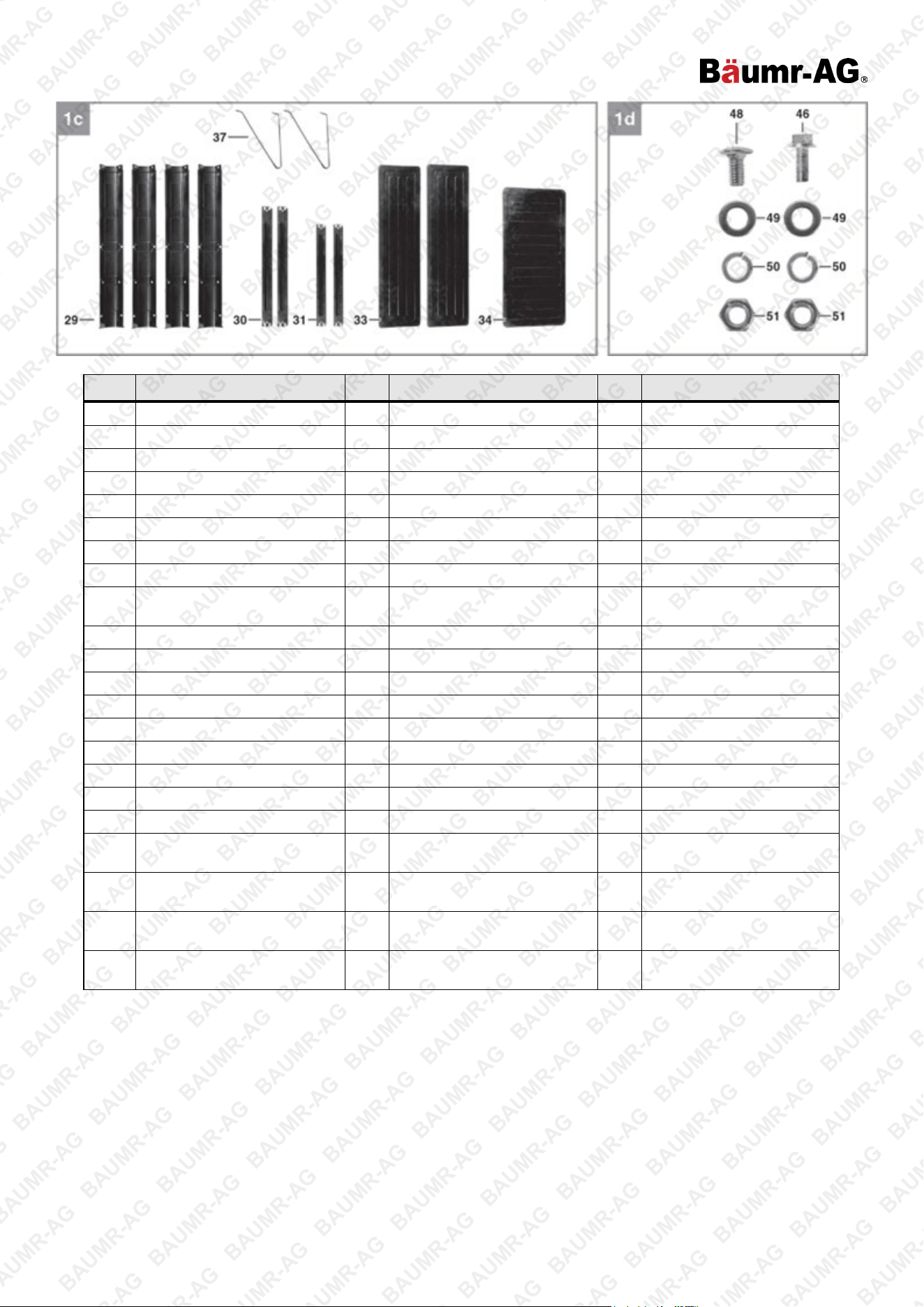

No. Name No. Name No. Name

1

Saw table

23

Stop rail for parallel stop

45

Adjustment screw (45°)

2

Saw blade guard

24

Stop rail for cross stop

46

Hexagon screw

3

Push stick

25

Speed button

47

Base frame

4 Blade 26 Knurled screw for parallel stop 48 Lock bolt

5

Splitter

27

Slot in stop rail, upright

49

Washer

6 Table insert 28 Guide rail system 50 Spring washer

7 Parallel stop 29 Leg 51 Nut

8

Hand wheel

30

Cross-strut, front/back

52

-

9

Locking grip for saw blade

angle

31 Cross-strut, side 53 -

10

Crank arm

32

Strut for table width extension

54

-

11

On/Off switch

33

Table width extension

55

-

12

Eccentric lever

34

Table length extension

56

-

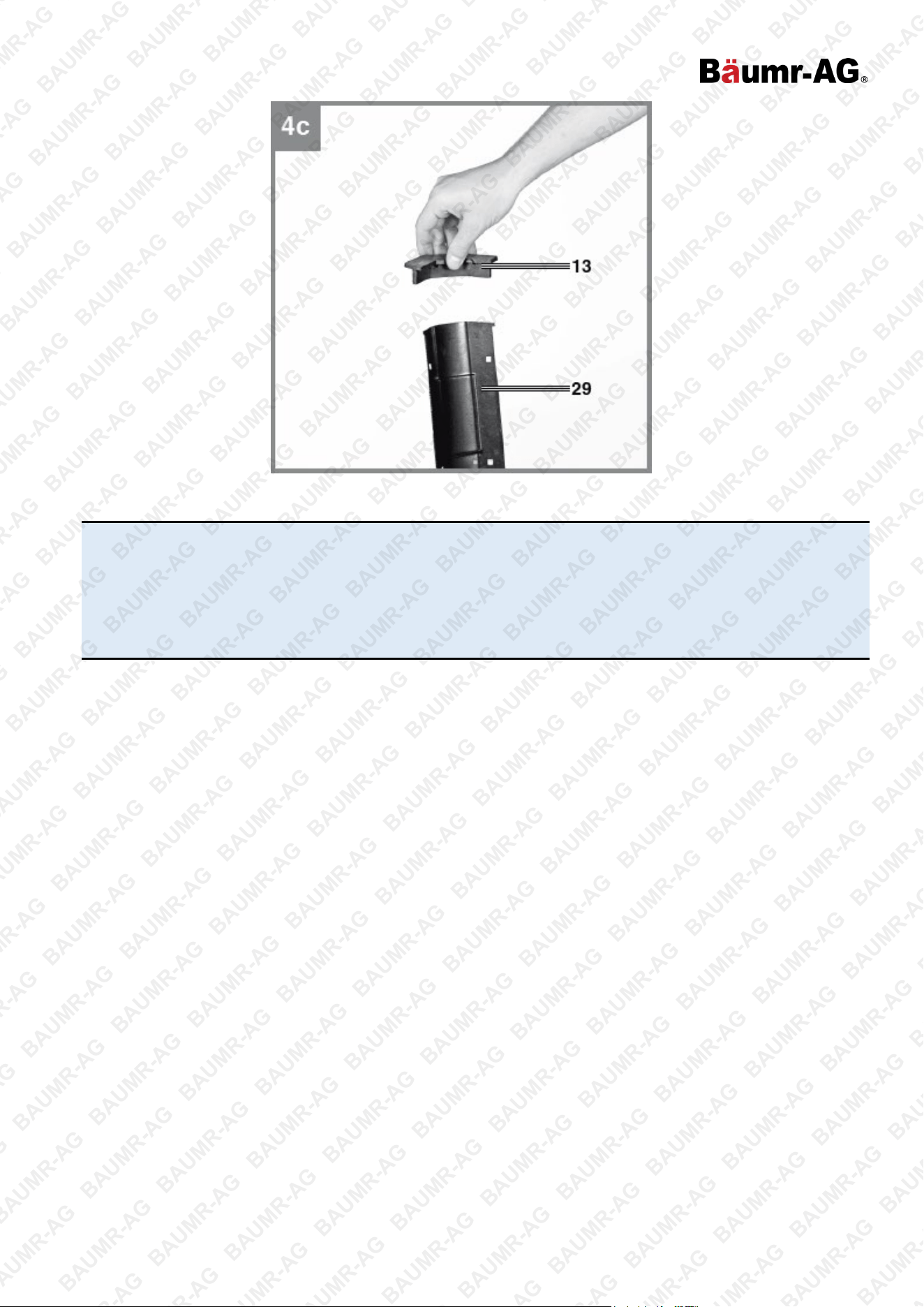

13 Rubber foot 35 Slot in stop rail, flat 57 -

14

Cross stop

36

Strut for table length extension

58

-

15 Screw for saw blade 37 Additional leg 59 -

16 Extractor adapter on housing 38 Wrench, size 10/22 mm 60 Overload switch

17

Countersunk head screw

39

Wrench, size 8/10 mm

61

Additional saw blade

18

Screw for parallel stop

40

Fastening plate

62

Hex key (6 mm)

19 Fastening screw for splitter 41 Pointer (angular setting) 63

L-shaped recess in the

splitter

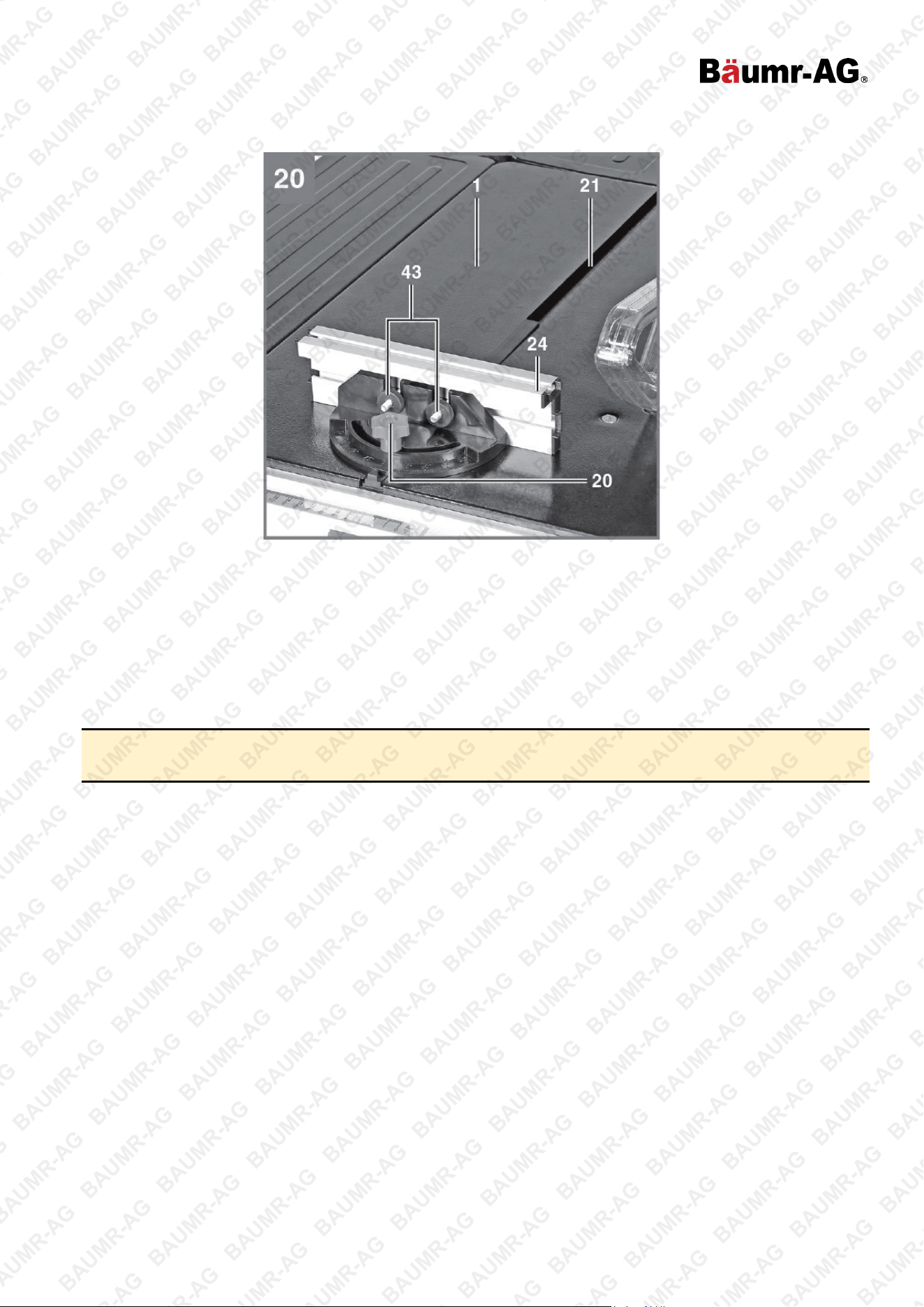

20 Locking screw for cross stop 42 Scale (angular setting) 64

Rotary knob on saw blade

guard

21 Slot in saw table 43 Knurled screw for cross stop 65

Self-locking nut on saw

blade guard

22 Scale (cutting width) 44 Adjustment screw (0°) 66

Lock bolt on saw blade

guard

Note: Some listed parts will be shown in the other images throughout this manual.

Items Supplied:

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please

contact the manufacturer.

•

Open the packaging and take out the equipment with care.

•

Remove the packaging material and any packaging and/or transportation braces (if available).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

E&OE © Baumr-AG 10

•

Check to see if all items are supplied.

•

Inspect the equipment and accessories for transport damage.

•

If possible, please keep the packaging until the end of the guarantee period.

DANGER! THE EQUIPMENT AND PACKAGING MATERIAL ARE NOT TOYS. DO NOT LET

CHILDREN PLAY WITH PLASTIC BAGS, FOILS OR SMALL PARTS. THERE IS A DANGER OF

SWALLOWING OR SUFFOCATING!

•

Saw blade guard

•

Push stick

•

Parallel stop

•

Rubber foot (4x)

•

Cross stop

•

Leg (4x)

•

Cross-strut, front/back (2x)

•

Cross-strut, side (2x)

•

Strut for table width extension (4x)

•

Table width extension (2x)

•

Table length extension

•

Strut for table length extension (2x)

•

Additional leg (2x)

•

Wrench, size 10/22 mm

•

Wrench, size 8/10 mm

•

Hex screw (20x)

•

Lock bolt (12x)

•

Washer (24x)

•

Spring washer (24x)

•

Nut (24x)

•

Size M5 screw for container (4x)

•

Size M5 nut for container (8x)

•

Additional saw blade

•

Hex key (6 mm)

•

Original operating instructions

•

Safety information

Spare parts available

for purchase, scan QR

code below:

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

E&OE © Baumr-AG 11

Before Starting the Equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are

identical to the mains data.

WARNING!

•

Always pull the power plug before making adjustments to the equipment.

•

Unpack the bench-type circular saw and check it for damage which may have occurred in transit.

•

The machine must be set up where it can stand firmly, e.g., on a work bench, or it must be bolted to a strong

base.

•

All covers and safety devices have to be properly fitted before the machine is switched on.

•

It must be possible for the saw blade to run freely.

•

When working with wood that has been processed before, watch out for foreign bodies such as nails or

screws etc.

•

Before you actuate the ON/OFF switch, make sure that the saw blade is correctly fitted and that the

machine’s moving parts run smoothly.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

E&OE © Baumr-AG 12

Assembly

DANGER! PULL OUT THE POWER PLUG BEFORE CARRYING OUT ANY MAINTENANCE,

RESETTING OR ASSEMBLY WORK ON THE CIRCULAR SAW!

Assembling the Base Frame

DANGER! MAKE ALLOWANCE FOR THE WEIGHT OF THE MACHINE AND ARRANGE ANOTHER

PERSON TO HELP YOU IF NECESSARY!

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

E&OE © Baumr-AG 13

1. Turn the bench-type circular over and set the saw down on the floor or on some other work surface.

IMPORTANT! Place suitable material (e.g., packaging material) between the table surface and the surface

on which it is stood to prevent any damage to the table surface.

IMPORTANT! Only fasten all the screw connections between the base frame and machine loosely at first.

Wait until you have returned the bench-type circular saw to its working position before tightening the screw

connections securely. This is so that you can be sure the base frame is aligned level with the surface on

which it is stood.

2. Use the hexagon screws (46) to fasten the four legs (29) loosely to the bench-type circular saw.

3. Then use the lock bolt (48), washer (49), spring washer (50) and nuts (51) to screw the cross-struts (30/31)

loosely to the legs (29). Make sure that the tongue-and-groove connection between the cross-strut (30/31)

and leg (29) engages properly.

4. Plug the rubber feet (13) onto the legs (29).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

E&OE © Baumr-AG 14

Assembling the Table Width Extension/Length Extension

1. Use the hexagon screw (46), washer (49), spring washer (50) and nut (51) to fasten the table width

extensions (33) loosely to the saw table (1).

2. Remove the hexagon screw (46) from the base frame (47) on the left and right-hand side to enable the struts

(32) and the base frame (47) to be fitted.

3. Fasten the struts (32) loosely to the base frame (47) with hexagon screws (46), but do not tighten.

4. Use the hexagon screw (46), washer (49), spring washer (50) and nut (51) to screw the struts (32) loosely to

the table width extensions (33).

5. Use the hexagon screw (46), washer (49), spring washer (50) and nut (51) to fasten the table length

extension (34) loosely to the saw table (1).

6. Remove the hexagon screws (46) on the back of the base frame (47).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

E&OE © Baumr-AG 15

7. Fasten the struts (36) loosely to the base frame (47) with hexagon screws (46), but do not tighten.

8. Use the hexagon screw (46), washer (49), spring washer (50) and nut (51) to screw the struts (36) loosely to

the table length extension (34).

9. Align the table width extensions (33) and the table length extension (34) level with the saw table (1).

10. Then tighten the screw connections referred above. Use both the wrenches (38) and (39) to do this.

Standing the Bench-Type Circular Saw Upright

(2, 7-9)

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

E&OE © Baumr-AG 16

1. Turn the machine over so that it stands on its legs (29).

2. The bench-type circular saw must be stood on a flat surface.

3. Then tighten all loose screw connections. Use both the wrenches (38) and (39) to do this.

4. Screw the additional legs (37) to the rear legs (29) so that they point towards the rear of the machine. Use

the lock bolts (48), washers (49), spring washers (50) and nuts (51) to fasten them.

WARNING! Do not fit the additional legs (37) too far away from the surface on which the machine

stands; they are intended to provide protection against tipping over.

Changing the Table Insert

To prevent increased likelihood of injury, the table insert should be changed whenever it is worn or damaged.

1. Remove the saw blade guard (2).

2. Remove the countersunk head screws (17).

3. Lift out the table insert (6) at the back of the saw table (1). Then pull the table insert (6) towards the back

until you can take out the table insert (6) with the pin on the side through the recess on the saw table (1).

4. Fit the replacement table insert in reverse order.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

E&OE © Baumr-AG 17

Fitting/Replacing the Splitter

Important! In the as-delivered state the splitter (5) is in the transport position. Always fasten the splitter in the top

position, as described below.

1. Using the crank (10), set the blade (4) to max. cutting depth, move to 0° position and lock in place.

2. Remove the saw blade guard (2).

3. Take out the table insert (6) (see Changing the Table Insert

).

4. Unscrew the fastening screw (19) and remove the fastening plate (40).

5. Fit the splitter (5) and fasten it loosely with the fastening plate (40) and fastening screw (19).

IMPORTANT! The splitter (5) must be fastened in the top position to enable the maximum cutting capacity to

be realized.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

E&OE © Baumr-AG 18

6. Push the splitter (5) right up to the top and tighten the fastening screw (19) securely. Make sure that the

splitter (5) has been fitted straight and not wobbly.

7. The splitter (5) must be positioned in the centre along an imaginary line extending behind the saw blade (4),

so that it is not possible for the material to get jammed.

8. The gap between the blade (4) and the splitter (5) should be 3mm to 8mm. (Fig. 11c).

9. Refit the table insert (6) and saw blade guard (2).

Fitting/Changing the Saw Blade Guard

1. Using the crank (10), set the saw blade (4) to the maximum cutting depth.

2. Unscrew the rotary knob (64) as far as possible until the rotary knob (64) touches the self-locking nut (65).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

E&OE © Baumr-AG 19

CAUTION! DO NOT MOVE THE SELF-LOCKING NUT (65).

3. Push the lock bolt (66) as far as possible through the saw blade guard (2), so that the square profile of the

lock bolt (66) projects out of the saw blade guard (2).

4. Holding the lock bolt (66) pressed, guide the saw blade guard (2) into the L-shaped recess (63) in the splitter

by the lock bolt (66), guiding it down at first and then towards the back.

5. Then push the lock bolt (66) with the square profile back into the recess in the saw blade guard (2) with a

tight fit.

6. Screw the rotary knob (64) back tightly as far as it will go.

IMPORTANT! The screw connection between the lock bolt (66) and the rotary knob (64) is designed to allow

the saw blade guard (2) to be able to move freely at all times.

WARNING! THE SAW BLADE GUARD (2) MUST ALWAYS LOWER TO THE WORKPIECE

AUTOMATICALLY UNDER ITS OWN WEIGHT.

7. To dismantle, proceed in reverse order.

Fitting/Changing the Saw Blade

IMPORTANT! Before changing the saw blade: Pull out the power plug! Wear work gloves to prevent injury when

changing the saw blade.

1. Using the crank (10) set the saw blade (4) to the maximum cutting depth.

2. Remove the saw blade guard, table insert and splitter.

3. Undo the screw (15) by placing the hex key (62) on the screw (15) and a second wrench (38) on the motor

shaft to apply counterpressure.

CAUTION! TURN THE SCREW (15) IN THE DIRECTION OF ROTATION OF THE SAW BLADE.

4. Take off the outer flange and pull the old saw blade (4) off the inner flange.

5. Clean the blade flange thoroughly before fitting the new blade.

6. Fit and fasten the new saw blade (4) in reverse order.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

E&OE © Baumr-AG 20

IMPORTANT! Note the running direction. The cutting angle of the teeth must point in running direction, i.e.

forwards (see the arrow on the blade guard).

7. Refit and adjust the splitter, table insert, and saw blade guard.

8. Check to make sure that all safety devices are properly mounted and in good working condition before you

begin working with the saw again.

WARNING! EVERY TIME THAT YOU CHANGE THE SAW BLADE, CHECK THAT THE SAW BLADE

GUARD (2) OPENS AND CLOSES AGAIN IN ACCORDANCE WITH REQUIREMENTS. ALSO CHECK

THAT THE SAW BLADE (4) SPINS FREELY IN THE SAW BLADE GUARD (2).

WARNING! EVERY TIME THAT YOU CHANGE THE SAW BLADE (4), CHECK TO SEE THAT IT SPINS

FREELY IN THE TABLE INSERT (6) IN BOTH PERPENDICULAR AND 45° ANGLE SETTINGS.

WARNING! YOU SHOULD REPLACE THE TABLE INSERT (6) IMMEDIATELY WHENEVER IT IS WORN

OR DAMAGED.

WARNING! THE WORK TO CHANGE AND ALIGN THE SAW BLADE (4) MUST BE CARRIED OUT

CORRECTLY.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

E&OE © Baumr-AG 21

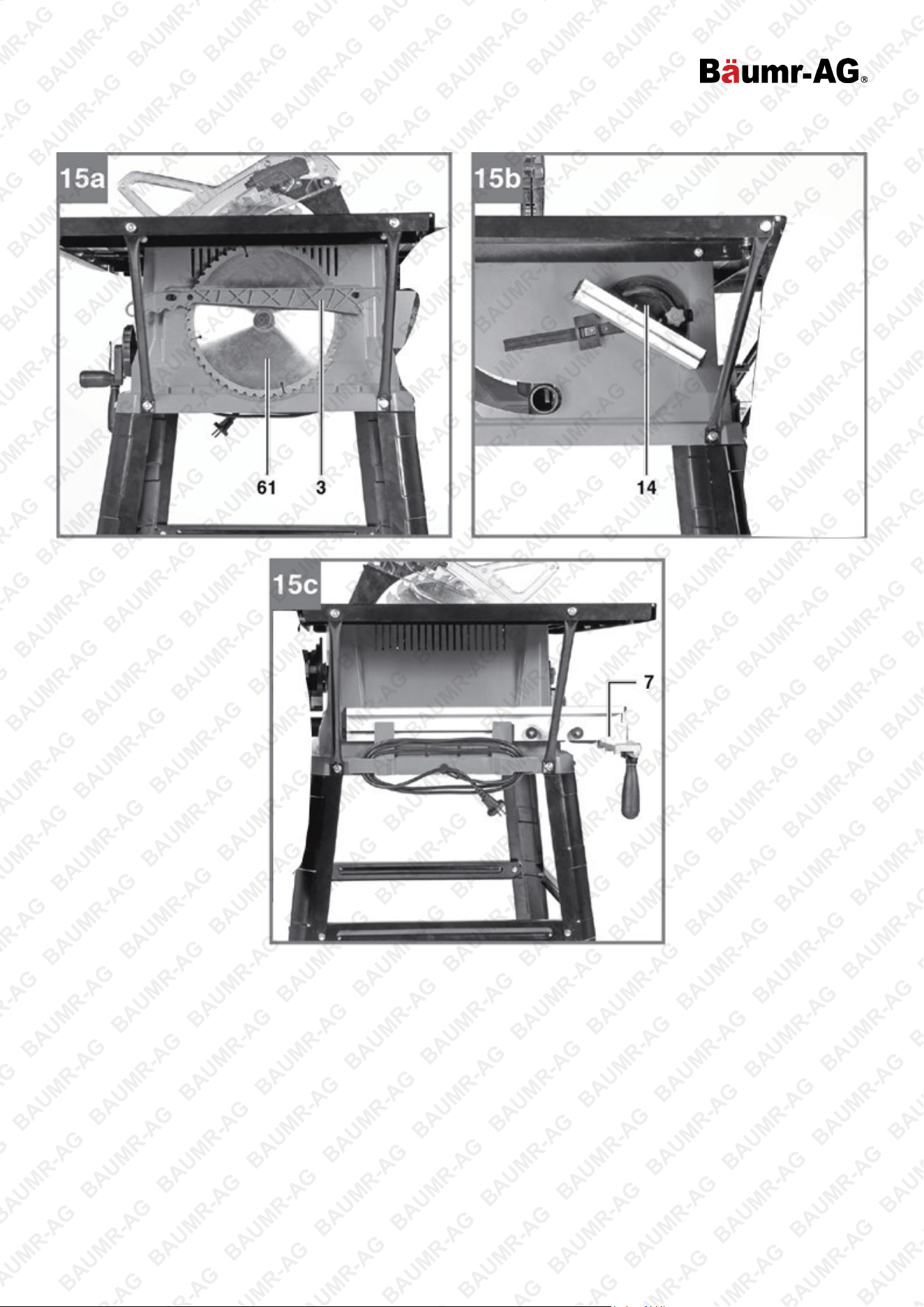

Putting Away Loose Parts

1. When not in use, the push stick (3) and the additional saw blade (61) can be secured as shown in Fig. 15a.

2. The cross stop (14) can be secured as shown in Fig. 15b.

3. The parallel stop (7) can be secured as shown in Fig. 15c.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

E&OE © Baumr-AG 22

Connection for Vacuum Cleaner

A connection for a vacuum cleaner is provided on the extractor adapter on the housing (16). Connect an

extraction system (not included in delivery) to the extractor adapter (16).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

E&OE © Baumr-AG 23

Using the Saw

ON/OFF Switch

The On/Off switch (11) is covered by an additional cap. This must be opened to switch ON the saw.

1. To turn the saw ON, press the green button ‘I’. Wait for the blade to reach its maximum speed of rotation

before commencing with the cut.

2. To turn the equipment OFF again, press the red button ‘0’.

The motor of this equipment is protected against overload by an overload switch (60). If the rated current is

exceeded, the overload switch (60) will shut down the equipment.

1. Let the equipment cool down for several minutes.

2. Press the overload switch (60).

3. Press the green button ‘I’ to switch ON the equipment.

The bench-type circular saw can be operated with two different speeds. You can set the required speed with the

speed button (25). IMPORTANT! You can preselect the required speed at a standstill and adjust it while the

motor is running.

•

To operate the saw with a low speed, press the “3200RPM” button.

•

To operate the saw with a high speed, press the “5000RPM” button.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

Cutting Depth

Turn the crank (10) to set the blade (4) to the required cutting depth.

•

Turn anti-clockwise: smaller cutting depth

•

Turn clockwise: larger cutting depth

Parallel Stop

The parallel stop (7) has to be used when making longitudinal cuts in wooden workpieces. When fitting or

adjusting the parallel stop, make sure that the parallel stop (7) is aligned parallel to the saw blade (4).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

Stop Height

The parallel stop (7) supplied with the bench-type circular saw has two different guide faces. For thin material,

you must use the stop rail (23) as shown in Fig. 19a. For thick material, you must use the stop rail as shown in

Fig. 19b. To change over the stop rail (23) to the lower guide face you have to slacken the two knurled screws

(26).

1. Remove the two screws (18) from the parallel stop through the one slot (27) in the stop rail (23).

2. Thread the two screws (18) into the other slot (35) in the stop rail (23) and slide the stop rail (23) back onto

the parallel stop.

3. Retighten the two knurled screws (26) in order to fix the stop rail (23).

4. The procedure for changing over to the high guide face is the same.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

WARNING! WHEN IN USE, THE STOP RAIL (23) MUST ALWAYS BE SCREWED TO THE SIDE OF THE

PARALLEL STOP (7) WHICH FACES THE SAW BLADE.

Cutting Width

•

The parallel stop (7) can be mounted on either side of the saw table (1)

•

The parallel stop (7) has to be mounted in the guide rail (28) of the saw table (1).

•

The parallel stop (7) can be set to the required dimension with the help of the scale (22) on the guide rail

(28).

•

You can clamp the parallel stop in the required position by pressing the eccentric lever (12).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

Setting the Stop Length

The stop rail (23) can be moved in a longitudinal direction in order to prevent the workpiece from becoming

jammed.

Rule of thumb: The rear end of the stop comes up against an imaginary line that begins roughly at the center of

the blade and runs at an angle of 45° to the rear.

Set the required cutting width:

1. Slacken the knurled screws (26) and push the stop rail (23) forward until it touches the imaginary 45° line.

2. Retighten the knurled screws (26).

WARNING! THE GAP BETWEEN THE SAW TABLE (1) AND THE UNDERSIDE OF THE STOP RAIL (23)

MUST NOT BE TOO LARGE IN ORDER TO PREVENT THE MATERIAL GETTING JAMMED. TO ADJUST

THE DISTANCE, THE PARALLEL STOP (7) MUST BE FASTENED FIRST USING THE ECCENTRIC LEVER

(12). THEN SLACKEN THE KNURLED SCREWS (26), LOWER THE STOP RAIL (23) DOWN TO THE SAW

TABLE (1) AND SECURE THE KNURLED SCREWS (26) AGAIN AFTERWARDS.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

Cross Stop

The cross stop (14) has to be used when making cross cuts in wooden workpieces.

1. Slide the cross stop (14) into the slot (21) of the saw table.

2. Undo the locking screw (20).

3. Turn the stop rail (24) until the arrow points to the angle required.

4. Re-tighten the fastening screw (20).

5. Check the gap between the stop rail (24) and the saw blade (4).

WARNING! DO NOT PUSH THE STOP RAIL (24) TOO FAR TOWARD THE BLADE. THE DISTANCE

BETWEEN THE STOP RAIL (24) AND THE BLADE (4) SHOULD BE APPROX. 2CM.

6. If necessary, slacken the two knurled screws (43) and adjust the stop rail (24).

7. Retighten the knurled screws (43).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

Setting the Angle of the Saw Blade

1. Undo the locking grip (9).

2. To adjust the angle of the saw blade, press the hand wheel (8) towards the machine and turn it at the same

time until the pointer (41) is aligned with the desired angular setting on the scale (42).

3. Secure the locking grip (9) again.

4. If needed, the end stop for adjusting the angle of the saw blade can be readjusted for 0° and 45°. To do this,

adjust the two adjustment screws (44) and (45).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

Operation

WARNING! • AFTER EVERY NEW ADJUSTMENT, WE RECOMMEND YOU MAKE A TRIAL CUT IN ORDER

TO CHECK THE NEW SETTINGS. • AFTER SWITCHING ON THE SAW, WAIT FOR THE BLADE TO REACH

ITS MAXIMUM SPEED OF ROTATION BEFORE COMMENCING WITH THE CUT. • TAKE EXTRA CARE

WHEN STARTING THE CUT! • NEVER USE THE EQUIPMENT WITHOUT THE SUCTION FUNCTION. •

REGULARLY CHECK AND CLEAN THE SUCTION CHANNELS.

Making Longitudinal Cuts

Longitudinal cutting (also known as slitting) is when you use the saw to cut along the grain of the wood. Press

one edge of the workpiece against the parallel stop (7) while the flat side lies on the saw table (1). The guard

hood (2) must always be lowered over the workpiece.

When you make a longitudinal cut, never adopt a working position that is in line with the cutting direction.

1. Set the parallel stop (7) in accordance with the workpiece height and the desired width.

2. Switch ON the saw.

3. Place your hands (with fingers closed) flat on the workpiece and push the workpiece along the parallel stop

(7) and into the blade (4).

4. Guide at the side with your left or right hand (depending on the position of the parallel stop) only as far as the

front edge of the guard hood.

5. Always push the workpiece through to the end of the splitter (5).

6. The offcut piece remains on the saw table (1) until the blade (4) is back in its position of rest.

7. Secure long workpieces against falling off at the end of the cut (e.g., with a roller stand etc.).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

Cutting Narrow Workpieces

Be sure to use a push stick (3) when making longitudinal cuts in workpieces smaller than 150mm in width. A

push block is supplied with the saw! Replace a worn or damaged push stick immediately.

Cutting Extremely Narrow Workpieces

1. Be sure to use a push block when making longitudinal cuts in very narrow workpieces with a width of 50mm

and less.

2. The low guide face of the parallel stop is best used in this case.

3. There is no push block supplied with the saw! (Available from your specialist dealer). Replace the push block

without delay when it becomes worn.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

Making Bevel Cuts

Bevel cuts must always be used using the parallel stop (7).

If you tilt the saw blade (4) to the left when making angular cuts, position the parallel stop (7) on the right-hand

side of the saw blade (4). Guide the workpiece between the saw blade (4) and the parallel stop (7).

1. Set the blade (4) to the desired angle.

2. Set the parallel stop (7) in accordance with the workpiece width and height.

3. Carry out the cut in accordance with the workpiece width.

Making Cross Cuts

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

1. Slide the cross stop (21) into one of the grooves (21) in the table and adjust to the required angle. If you also

want to tilt the blade (4), use the groove (21) which prevents your hand and the cross stop from making

contact with the blade guard.

2. Press the workpiece firmly against the cross stop (14).

3. Switch ON the saw.

4. Push the cross stop (14) and the workpiece toward the blade in order to make the cut.

WARNING! ALWAYS HOLD THE GUIDED PART OF THE WORKPIECE. NEVER HOLD THE PART

WHICH IS TO BE CUT OFF.

5. Push the cross stop (14) forward until the workpiece is cut all the way through.

6. Switch OFF the saw again. Do not remove the offcut until the blade has stopped rotating.

CAUTION! WITH SOME ANGLE SETTINGS IN COMBINATION WITH OTHER SETTINGS (E.G. CUTTING

HEIGHT) YOU WILL NOT BE ABLE TO CUT ALL THE WAY THROUGH THE WORKPIECE.

REMEDY: With the machine switched off, check whether the imaginary line of the stop rail (24) can be moved to

at least as far as the middle of the saw blade (4) in your setting. If this is not possible, you can, for example,

insert the cross stop in the opposite groove (21) of the saw blade (4).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

Cleaning and Maintenance

Replacing the Power Cable

DANGER! IF THE POWER CABLE FOR THIS EQUIPMENT IS DAMAGED, IT MUST BE REPLACED BY THE

MANUFACTURER OR ITS AFTER-SALES SERVICE OR SIMILARLY TRAINED PERSONNEL TO AVOID

DANGER.

Cleaning

DANGER! ALWAYS PULL OUT THE MAINS POWER PLUG BEFORE STARTING ANY CLEANING WORK.

•

Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the

equipment with a clean cloth or blow it with compressed air at low pressure.

•

We recommend that you clean the device immediately each time you have finished using it.

•

Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or

solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the

device. The ingress of water into an electric tool increases the risk of an electric shock.

Carbon Brushes

In case of excessive sparking, have the carbon brushes checked only by a qualified electrician.

DANGER! THE CARBON BRUSHES SHOULD NOT BE REPLACED BY ANYONE BUT A QUALIFIED

ELECTRICIAN.

Additional Maintenance

There are no parts inside the equipment which require additional maintenance.

Transport

Only ever transport the machine by lifting it by the saw table. Never use the safety devices such as the saw

blade guard and stop rails for handling or transporting purposes.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this

packaging can be reused or recycled. The equipment and its accessories are made of various types of material,

such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be

taken to a suitable collection centre for proper disposal. If you do not know the whereabouts of such a collection

point, you should ask in your local council offices.

Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage

temperature is between 5 and 30°C. Store the electric tool in its original packaging.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTB55 10” Electric Table Saw

Specifications

Motor 2000W

Blade 254mm

Plug Australian Standard 10A

Mitre +/- 45°

Bevel + 45°

Power Cord 2m

Note: Assembly Required

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety



Consult all documentation, packaging,

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.



Before each use, check the product for

loose/broken/damaged/missing parts,

wear, or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear, or leaks.



Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.



Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.



The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.



This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business,

or employee, or financially affect the user, business, or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement, or service by a

technician may cause financial loss, loss of employee

time or an inconvenience requiring compensation.



If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.
