Operating Instructions
Model: GCT500
Multi Season Heating & Cooling
Ceramic Tower Fan Heater
CAUTION: In order to avoid a hazard due to inadvertent resetting of the
thermal cut-out, this appliance must not be supplied through an external
switching device, such as a timer, or connected to a circuit that is regularly
switched on and off by the utility.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge, unless they are supervised or have been given instruction
concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the
appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
WARNING: You must not cover this appliance. Covering this appliance
presents fire risk and will activate the safety fuse; permanently disabling the
unit.
WARNING: Do not use this appliance in small rooms when they are
occupied by persons not capable of leaving the room on their own, unless
constant supervision is provided.
WARNING: To reduce the risk of fire, keep textiles, curtains, or any
flammable material a minimum distance of 1 metre from the air outlet.
General Care and Safety Guide

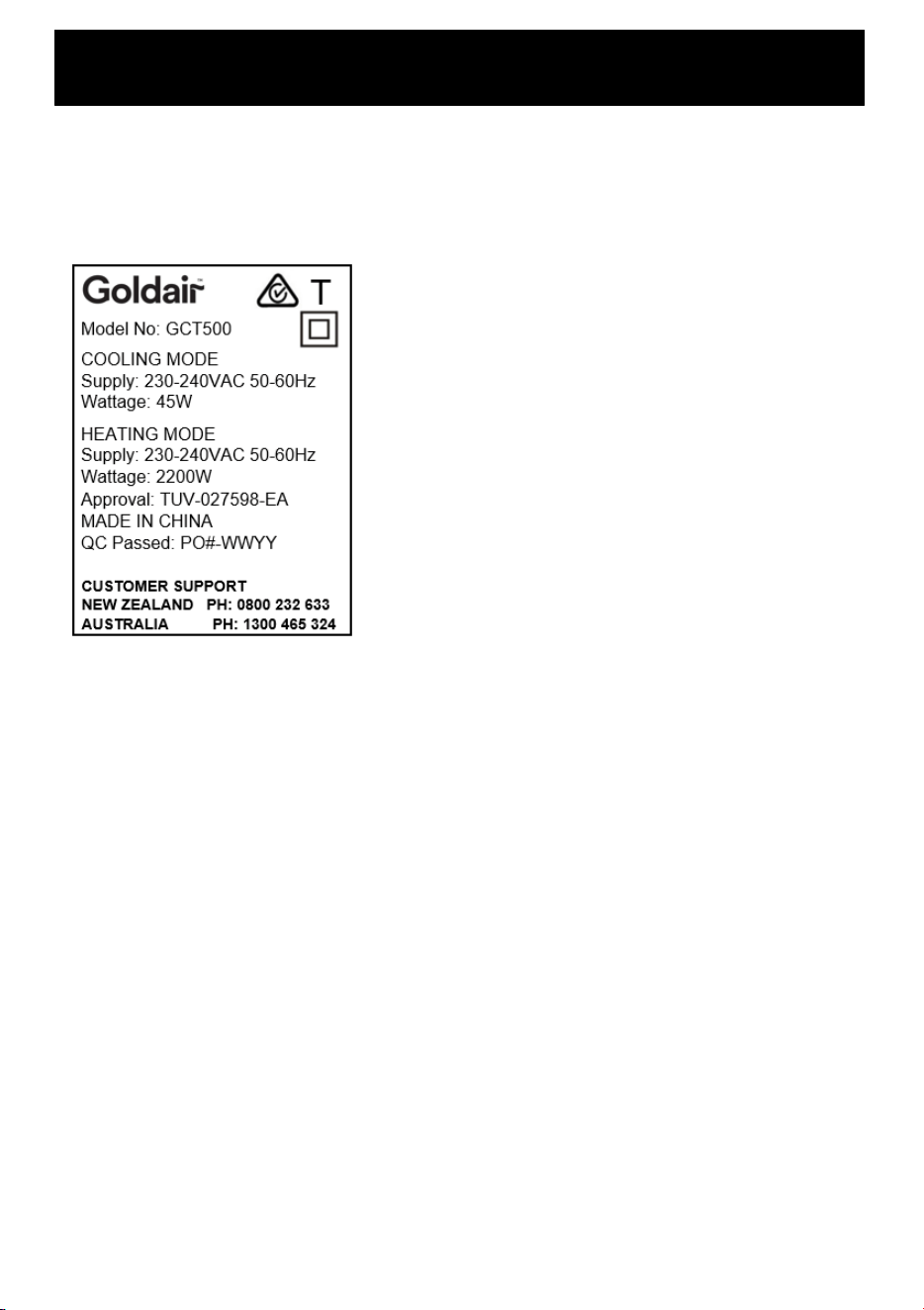

• Use only the voltage specified on the rating label of the appliance.
• Keep all objects at least 1 metre from the front, sides and rear of the appliance.
• This appliance is intended for household use only and not for commercial or
industrial use.
• Heater must not be located immediately below a socket outlet.
• Indoor use only.
• Use this appliance only as described in this manual. Any other use is not
recommended by the manufacturer and may cause fire, electric shock or injury.
• Do not use the appliance if it has been dropped or damaged.
• The common cause of overheating is deposits of dust or fluff in the appliance.
Ensure these deposits are removed regularly by unplugging the appliance and
vacuum cleaning the air vents and grills.
• Never use the appliance to dry clothes.
• Always unplug appliance when not in use.
YOUR SAFETY IS IMPORTANT TO US. PLEASE ENSURE YOU TAKE NOTE OF THE
INSTRUCTIONS AND WARNINGS OUTLINED IN THIS MANUAL.
• When the appliance has been unpacked, check it for transport damage and ensure
all parts have been delivered. If parts are missing or the appliance has been
damaged, contact the Customer Services Team.
• Do not use if there are visible signs of damage to the appliance.
• Do not connect the appliance to mains supply until completely assembled and
adjusted.
• Ensure hands are dry before handling the plug or main unit.
• Ensure appliance is on a flat, stable, heat-resistant surface.
• Do not operate with cord set coiled up as a heat build up is likely, which could be
sufficient to become a hazard.
• Carry out regular checks of the supply cord to ensure no damage is evident
• Do not operate this appliance with a damaged cord, plug or after the appliance
malfunctions or has been dropped or damaged in any manner. Take to a qualified
electrical person for examination, electrical service or repair.
• Do not twist, kink or wrap the cord around the appliance, as this may cause the
insulation to weaken and split. Always ensure that all cord has been removed from
any cord storage area and is unrolled before use.
• It is recommended that this appliance is plugged directly into the wall socket.
Power boards are not rated to supply power to high wattage appliances.
• A correctly specified, undamaged extension cord may be used with this appliance
provided it is used in a safe manner.
• The heater must not be located immediately below a power socket.
• Do not remove plug from power socket until the appliance has been switched off.
• Do not remove plug from power socket by pulling cord; always grip plug.
• Do not place cord under carpet or cover with rugs or furniture. Arrange the cord so
it cannot be tripped over.
• Don’t place appliance on bedding or on thick & long carpet where the openings may
get blocked.
• Switch off and use handle provided when moving
• Do not place appliance close to radiant heat source.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as
this may cause an electric shock, fire or damage to the appliance.
• Do not sit on the appliance.
• Do not use abrasive cleaning products on this appliance. Clean with a damp cloth
(not wet) rinsed in hot soapy water only. Always remove plug from the mains supply
before cleaning.
• Do not operate in areas where petrol, paint or other flammable liquids are used or
stored.
• Do not use this appliance in the immediate surrounds of a bath, a shower, or a
swimming pool or other liquids.
• The appliance must not be immersed in any liquids.
• There are no user serviceable parts installed in the unit.
• Do not place the unit in wardrobes or other enclosed spaces as this may cause fire
hazards.
General Care and Safety Guide
• This unit is not supposed to be used in or around locations where foodstuffs, works
of art or delicate articles of science, etc. are stored.
• If your appliance does not work, or is not working properly, contact the place of
purchase or the Customer Services Team.
General Care and Safety Guide
Assembly
1. Carefully remove the unit from the carton and connect the 2 x base pieces together
(Image 1).
2. Stand the appliance upside down, on a scratch proof surface. Thread the power cord
through the centre hole on the base and put the base onto the appliance (Image 2).
3. Fix the base to the appliance by using the 4 x screws provided. After fixing the
screws, clip the power cord into the slot on the base (Image 3).
4. Lock the power cord into place on the base by using the 2 x screws and tension disc
provided (Image 4). Once assembled, stand the appliance upright on a flat, stable
surface.
WARNING: In order to avoid overheating or fire, do not cover the
appliance.
WARNING: Keep all objects at least 1 metre from the front, sides and
rear of the appliance.
WARNING: Do not use this appliance with a programmer, separate timer,
remote-control system or any other device that switches the appliance on
automatically, since a fire risk exists if it is covered or positioned incorrectly.
WARNING: Never leave this appliance unattended when in use.
Ensure appliance is on a flat, stable, heat-resistant surface.
Once the appliance is in a safe operating position and all switches are in the off
position, insert the power plug into the mains outlet and switch on.
CAUTION: Ensure the power cord is not tight because if pulled it may
partially pull the plug from the socket. A partially inserted plug will overheat
the plug and socket and could result in fire.
Note: When the appliance is turned on for the first time, it may release a slight odour
or smoke. This odour or smoke is a normal occurrence caused by the initial heating of
the heating elements and should not occur again.
Operating your Appliance
Always choose a safe location for the appliance, keeping in mind the safety precautions
outlined. Ensure all packaging has been removed from the unit before use. This appliance
requires no installation, it should be used solely as a portable appliance.
HEATING MODE
Turn the appliance ON by pressing the button.
Upon turning the Heater on, the unit will display the
ambient room temperature.
Press the button on the control panel or the button
on the remote control.
The heater will begin to operate in low heat mode and 4
lights will be displayed, along with the small sun icon (Fig 1).
Press again to change to high heat mode and 6 lights will be
displayed, along with the large sun icon (Fig 2).
Operating your Appliance
When the unit is initially plugged in, there will be a “beep” and the power light will
come on indicating that there is power to the unit.
The power light will remain lit until the unit is unplugged from the electrical outlet.
Fig 1
Fig 2
SET TEMPERATURE MODE
Press the button to set the temperature range between
18-45°C.
The appliance will adjust the relevant mode based on the
selected temperature. If the set temperature is at or below the
ambient temperature, the heater will not operate. If the set
temperature is 1-2°C above the ambient temperature, the
heater will operate on low. If the set temperature is 3°C or
more above the ambient temperature, the heater will operate
on high.
When the set temperature has been reached, the heater will
stop heating. At this point, the fan will continue to run for 30
secs and then stop.
The set the temperature via the remote control, first press the
button, then press the “+” or “-” buttons to adjust the
temperature.
Fig 3
Fig 4
Operating your Appliance
COOLING MODE
Press the button to put the appliance into cooling mode. There are 3 wind speeds:
Natural Wind, Sleeping Wind and Normal Wind. Once the fan has started, press the
button to select the desired wind mode.
SWING
Press the button to turn the oscillation function on or off.
TIMER
Press the button to set the countdown timer. The timer can be set between 1 –
12 hours.
REMOTE CONTROL
The same operation methods can be set on the control panel or the remote control
(except for Set Temperature Mode).
If there is no operation for more than 10 minutes, the LED display will turn off. Pressing
any key on the control panel or remote controls will reactivate the LED display.
Goldair – New Zealand
Monday – Friday 8am-5pm
Phone +64 (0)9 917 4000
Phone 0800 232 633
Goldair – Australia
Monday – Friday 8am-5pm
Phone +61 (0)3 9365 5100
Phone 1300 465 324
info@cdbgoldair.com.au
SUPPORT AND TECHNICAL ADVICE
PROOF OF PURCHASE
To receive warranty retain receipt as proof of purchase. (Refer to back of booklet).
SAFETY DEVICES
This appliance has three protection devices:
• Tilt switch - this will automatically turn the appliance off if the appliance is not in
the correct operating position.
• Resettable thermal link - this will automatically disconnect the power to the
appliance at a pre-set overheat temperature. To Reset Unit -
• Unplug the unit and wait 10 minutes for the unit to cool down.
• After the unit has cooled down, plug the unit into the electrical outlet and
follow the operation instructions described in this manual.
If this occurs again, investigate what is causing the appliance to overheat.
• Thermal fuse - this disconnects the appliance permanently in case of overheating.
(It is non resettable).
CAUTION: The appliance generates heat during use. Precautions must be
taken to prevent the risk of burns, scalds, fires or other damage to persons.
CARE AND CLEANING
The appliance requires regular cleaning to ensure trouble free operation:
• Unplug the appliance from the mains supply before cleaning.
• Ensure that the appliance has been allowed to cool down completely before
cleaning.
• The common cause of overheating is deposits of dust or fluff in the appliance.
Ensure these deposits are removed regularly by unplugging the appliance and
vacuum cleaning the air vents and grills.
• Use a damp cloth (not wet) to wipe the exterior of the heater to remove dust and
dirt.
• Never use solutions such as petrol, thinners or polishing agents.
• Ensure the appliance is dry before plugging back into the mains supply.
• Do not attempt to dismantle the appliance.
• There are no user serviceable parts. For service or repair, contact an authorised
electrical service technician.
Operating your Appliance
Thank you for purchasing this Goldair product. Your product is warranted against faults and manufacture when used in normal
domestic use for a period of two years. In non-domestic use Goldair limits the voluntary warranty to three months.
Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the
warranty period.
This warranty excludes damage caused by misuse, neglect, shipping accident, incorrect installation, or work carried out by anyone
other than a qualified electrical service technician.
PLEASE KEEP YOUR RECEIPT AS THIS WILL HELP VERIFY YOUR WARRANTY.
The benefits given to you by this warranty are in addition to other rights and remedies available to you under law in relation to the
goods or services to which this warranty relates.
In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a
major failure.
In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).
Two Year Warranty
Goldair Two Year Warranty (IMPORTANT: Please complete and retain this warranty card)
Name
Address
Place Of Purchase Date Of Purchase
Name Of Product Model Number
Attach a copy of the purchase receipt to this warranty card
Due to continual design improvements, the product illustrated in this User Manual may differ slightly from the actual product.
Goldair – New Zealand
CDB Goldair
PO Box 100-707
N.S.M.C
Auckland
Phone +64 (0)9 917 4000
Phone 0800 232 633
www.goldair.co.nz
Goldair – Australia
CDB Goldair Australia Pty
PO Box 574
South Morang
Victoria, 3752
Phone +61 (0)3 9365 5100
Phone 1300 GOLDAIR (1300 465 324)
www.goldair.com.au
New Zealand
PO Box 100707,
North Shore Mail Centre,
Auckland, 0745
www.goldair.co.nz
Australia
PO Box 574,
South Morang,
Victoria, 3752
www.goldair.com.au
