with Sealed Design (Black)
PSUB8A
8'' Active Down-Firing Subwoofer
www.PyleUSA.com
2
To ensure you will be completely satised with this product, read and
understand this manual carefully before use. Keep the manual in a safe place.
The Operating Manual must be passed on to all subsequent users.
IMPORTANT SAFETY PRECAUTIONS

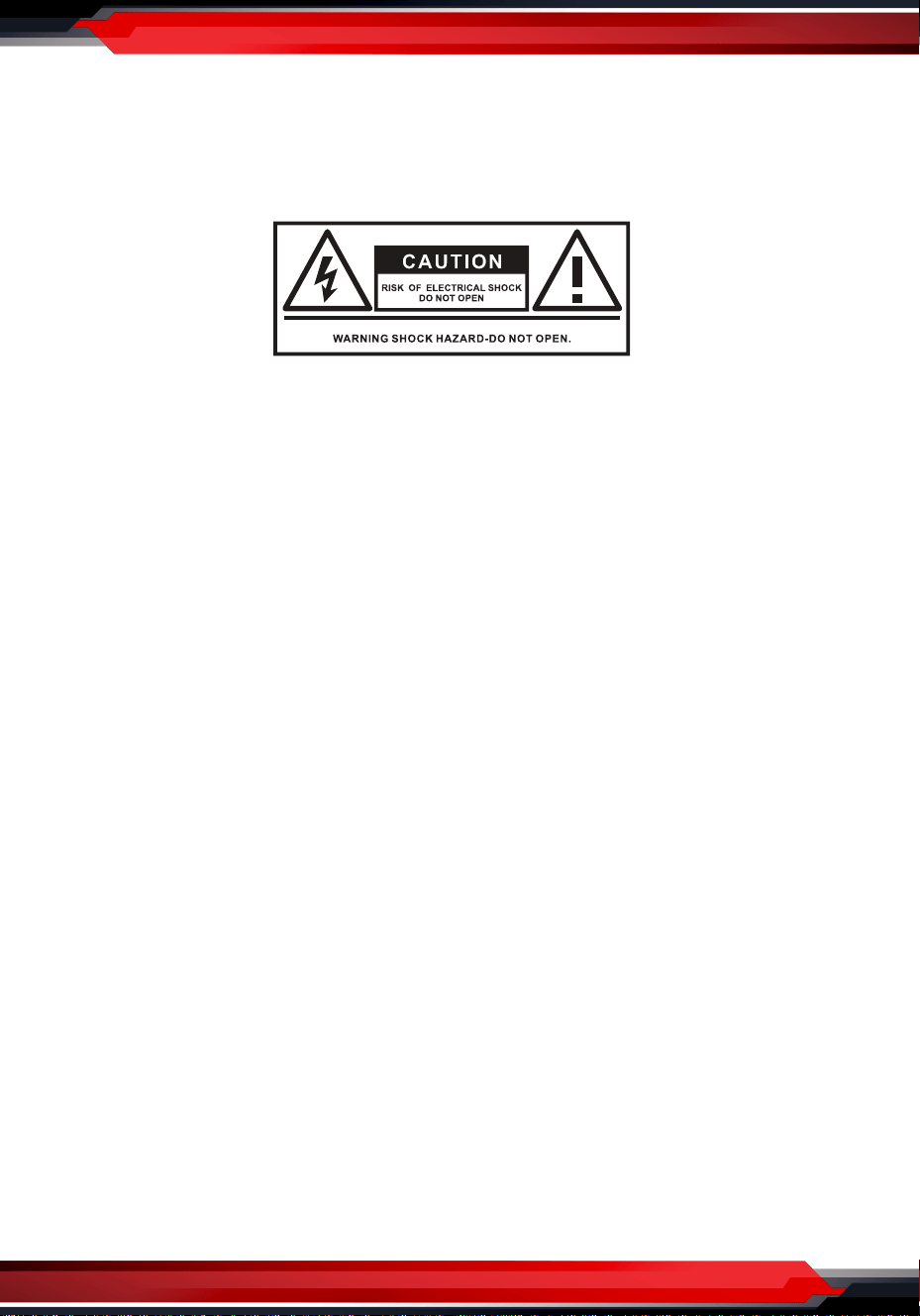

The lightning ash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated dangerous voltage
within the product's enclosure that may be sucient magnitude to constitute a
risk: of electric shock to humans.
The exclamation point within an equilateraltriangle is intended to alert the user
to the presence of important operating instructions and maintenance in the
literature accompanying the product.
This product should be operated only from the type of power source indicated
at the back. DO NOT locate the product where the power cord will be abused by
constant stepping on it. DO NOT allow anything to rest on the power cord.
The AC power plug shall remain readily operable. Unplug the power cord during
lightning storms or when not in used for a long period of time. DO NOT overload
wall outlets and extension cords as this can result re or electric shock.
No objects lled with liquids, such as vase shall be placed on it. DO NOT install
the product near bathtub, washbowl, kitchen sink, laundry tub or any wet area.
DO NOT expose the product to dripping or splashing.
DO NOT install this product in a poorly ventilated or conned space.
When cleaning, unplug the power cord from the wall outlet.
DO NOT use strong solvents or liquid cleaners. Use a soft damp cloth for cleaning.
For stubborn dirt, use a cloth moistened with mild detergent then wipe the dirt
o. Use a soft dry cloth to wipe it dry.
DO NOT attempt to x the product yourself.
Opening or removing the cover may expose you to dangerous voltage or other
hazards. Refer servicing to a qualied service personnel.
NOTES:
Read instructions carefully and completely. Keep this user's manual for future
reference. Heed all warnings and follow all instructions.
www.PyleUSA.com
3
It is the perfect addition to ang home theater system. The down-ring sub
delivers bass more evenIg through out the room while the sealed enclosure
(also known as acoustic suspension) oers tight, accurate bass.
This sub delivers realistic, room-shaking home theater bass eects.

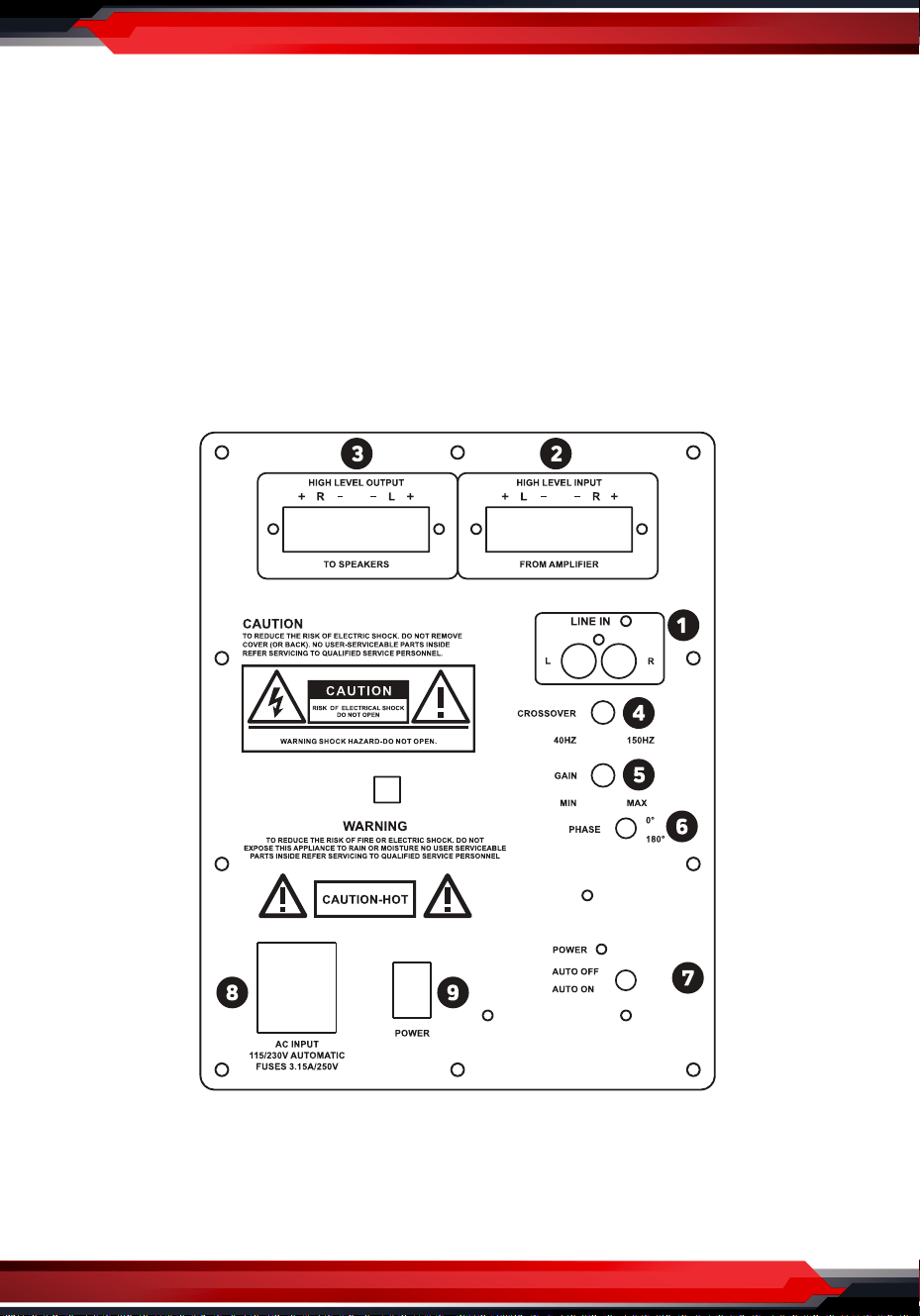

HOOK UP
1. Line Level Inputs
The line level inputs are used to connect pre-out or preamplifer outputs directly
to the subwoofer amplifer's internal crossover. These inputs are summed to
mono. This is the preferred way to connect the subwoofer amplifer. If you have
a mono line level signal from a "Pro Logic" or "Dolby Digital" receiver use the
right "red" input.
Note: If a LFE mono output is connected, set the crossover point to maximum.
2. High Level Inputs
If preamplifer outputs are not available, use the high-level (speaker) inputs.
The speaker level inputs can be connected directly to the amplier by inserting
the speaker wire.
3. High Level Outputs
There are also high level outputs which can be used to connect to main
speakers or to another powered subwoofer with high level inputs.
Note: High level outputs are paralleled to the high level inputs with no high
pass lter.
4. Crossover Frequency Control
Continuously variable from 40Hz to 150Hz. Set the frequency control to where
the audio does not sound "muddy", normally between 60-80Hz.
Note: If a LFE mono output is connected set the crossover point to maximum.
5. Gain Control
Adjusts the output level of the subwoofer. Set the level to where the bass
frequencies blend with the other speakers.
Note: Most people have a tendency to set the level too high, which makes
the audio sound "boomy".
6. Phase Switch
Selectable between 0° and 180°. This assists subwoofer placement.
The correct position will be the one that provides the most apparent bass
output.
www.PyleUSA.com
4
7. Power Switch (Auto On/Auto O)
When the power is in the auto ON position, the amplier will automatically
turn ON when a signal is present.
Note: In auto OFF mode, the power on LED is aIways green;
In auto ON mode, when there is no signal, the power LED is red and it will
turn green when the unit is activated. It will turn red ashing light if there is
no signal again after 15 minutes.
8. AC Input: Auto 115/230V, frequency from 50/60 HZ.
9. Power Supply
Turn on the amp bg pressing the bUtton "I", turn o the amp by pressing the
button "0".
The Subwoofer System will produce more bass eect when placed in a corner.
Choose a front corner that is available and near to your components for best
performance in home theater applications.
www.PyleUSA.com
5
Technical Specs:
• Construction Material: Non-Resonant MDF
• MAX Power: 150W
• RMS Power: 60W
• SW Driver: 8'' Polypropylene Cone Woofer
• Frequency Response: 40Hz-150Hz
• Impedance: 8 Ohms
• Audio Signal Input: Stereo Line In, High-Level Input
• Speakers Output: High-Level Output
• Input Connectors: 2 x RCA, Spring-Loaded Terminal
• Power Output: AC 115V/230V, Auto Switch
• Product Dimensions (L x W x H): 13.5'' x 10.8'' x 10.4'' -inches
Note: Input sensitivity is adjusted to the maximum for music quality for varying
strength between the sources (sound console, CD/DVD, mobile phone, etc).
If gou hear a sound distortion, please turn down the volume.
The SUB uses 3 surfaces to amplify the output
