GIGA 10 (EA/SA/INTA)
Instructions for Use
background
2
Table of contents
Your GIGA 10
1 Control elements ����������������������������������������������������������������������������������������������������4
2 For your safety �������������������������������������������������������������������������������������������������������6
Comply with the instructions for use ���������������������������������������������������������������������������6
Proper use �������������������������������������������������������������������������������������������������������������6
User limitations ������������������������������������������������������������������������������������������������������6
Use by children ������������������������������������������������������������������������������������������������������� 7
What to do in the event of damage ����������������������������������������������������������������������������� 7
Preventing damage ������������������������������������������������������������������������������������������������� 7
Danger of electric shock ��������������������������������������������������������������������������������������������9
Danger of burns, scalding and injury ���������������������������������������������������������������������������9
3 Preparing and using for the first time ����������������������������������������������������������������������� 10
Setting up the machine ������������������������������������������������������������������������������������������� 10
Filling the bean container �����������������������������������������������������������������������������������������10
Determining the water hardness ��������������������������������������������������������������������������������10
First-time use ���������������������������������������������������������������������������������������������������������11
Managing your GIGA – the JURA Cockpit �������������������������������������������������������������������� 13
Connecting milk ����������������������������������������������������������������������������������������������������� 13
4 Preparation ���������������������������������������������������������������������������������������������������������� 14
Preparation with preselection (Aroma Selection) ����������������������������������������������������������� 15
Cold Brew ������������������������������������������������������������������������������������������������������������� 15
Espresso and coffee ������������������������������������������������������������������������������������������������16
Latte macchiato, cappuccino and other speciality coffees with milk ����������������������������������� 16
Milk and milk foam �������������������������������������������������������������������������������������������������16
Espresso doppio ����������������������������������������������������������������������������������������������������� 17
Americano and lungo ��������������������������������������������������������������������������������������������� 17
Pot of coffee ���������������������������������������������������������������������������������������������������������� 17
Ground coffee �������������������������������������������������������������������������������������������������������� 17
Hot water �������������������������������������������������������������������������������������������������������������18
Set profile ������������������������������������������������������������������������������������������������������������� 18
Adjusting the product settings ����������������������������������������������������������������������������������18
5 Daily operation �����������������������������������������������������������������������������������������������������19
Switching the machine on and off ������������������������������������������������������������������������������19
Filling the water tank �����������������������������������������������������������������������������������������������19
Maintenance actions ���������������������������������������������������������������������������������������������� 20
background
3
Table of contents
6 Machine settings ��������������������������������������������������������������������������������������������������� 21
7 Maintenance �������������������������������������������������������������������������������������������������������� 22
Rinsing the machine ���������������������������������������������������������������������������������������������� 22
Automatic milk system rinsing ��������������������������������������������������������������������������������� 22
Cleaning the milk system ���������������������������������������������������������������������������������������� 22
Dismantling and rinsing the dual spout ���������������������������������������������������������������������� 23
Inserting/changing the filter ������������������������������������������������������������������������������������� 25
Cleaning the machine �������������������������������������������������������������������������������������������� 25
Descaling the machine ������������������������������������������������������������������������������������������ 26
Performing a self-diagnosis ������������������������������������������������������������������������������������� 28
Descaling the water tank ����������������������������������������������������������������������������������������� 28
Cleaning the bean container ������������������������������������������������������������������������������������ 28
8 Display messages ������������������������������������������������������������������������������������������������� 30
9 Troubleshooting ���������������������������������������������������������������������������������������������������� 31
10 Transport and environmentally friendly disposal ������������������������������������������������������� 32
Transport/ Emptying the system ������������������������������������������������������������������������������ 32
Disposal �������������������������������������������������������������������������������������������������������������� 32
11 Technical data ������������������������������������������������������������������������������������������������������ 33
12 Index ������������������������������������������������������������������������������������������������������������������ 34
13 JURA contact details/ Legal information ������������������������������������������������������������������� 36
background

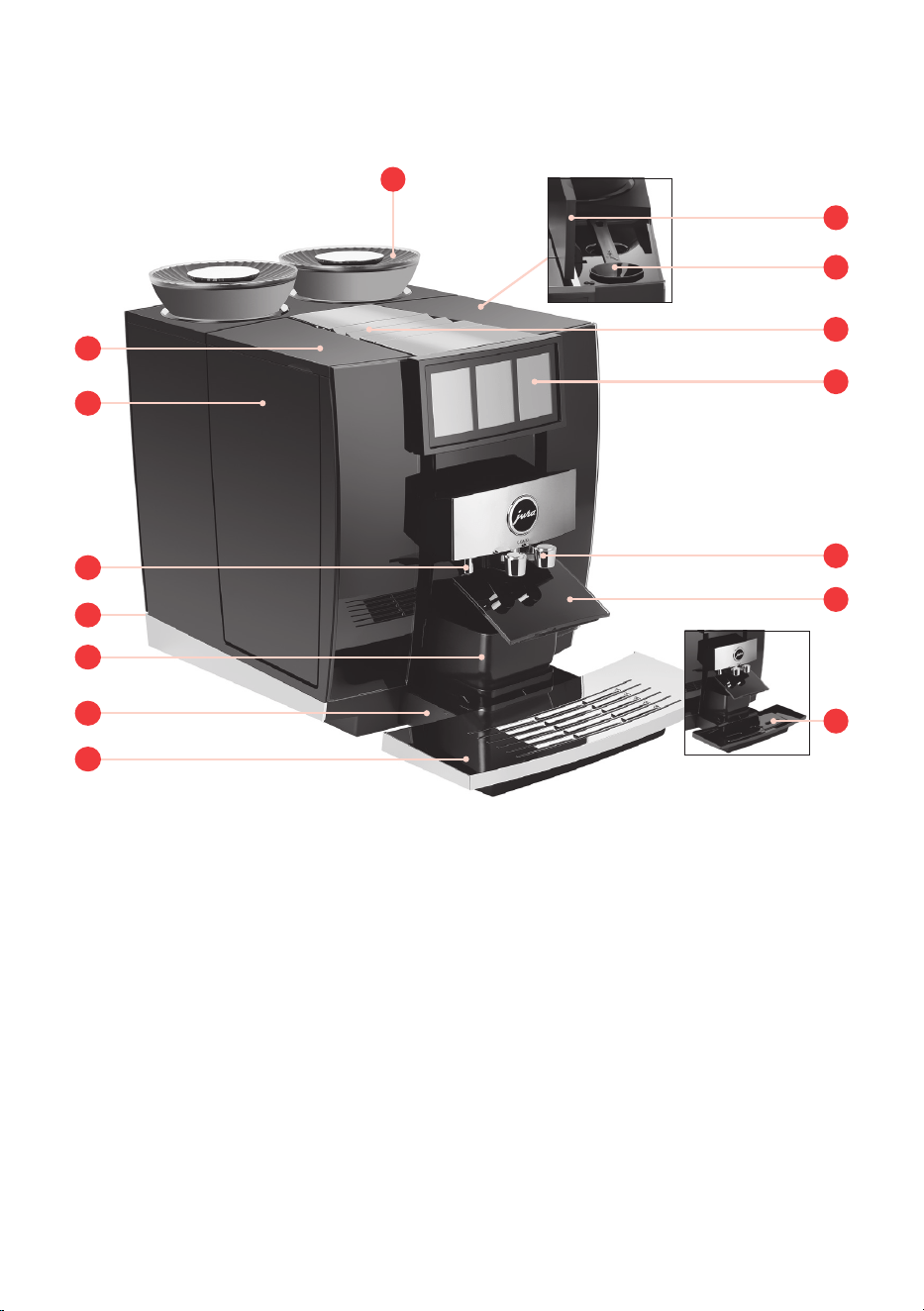

1 Control elements
4
1 Control elements
q
Bean container with aroma preservation cover
w
Storage compartment cover
e
Measuring spoon for ground coffee
r
Ventilation slats
t
Touch display
z
Height- and width-adjustable dual spout
u
Coffee grounds container cover (pivoting)
i
Insert for drip tray
o
Cup grille
p
Drip tray
a
Coffee grounds container
s
Hot-water spout
d
Power switch and plug-in mains cable (back of the machine)
f
Water tank
g
Water tank cover
1
4
2
3
5
6
7
8
9
10
11
13
12
14
15
background
1 Control elements
5

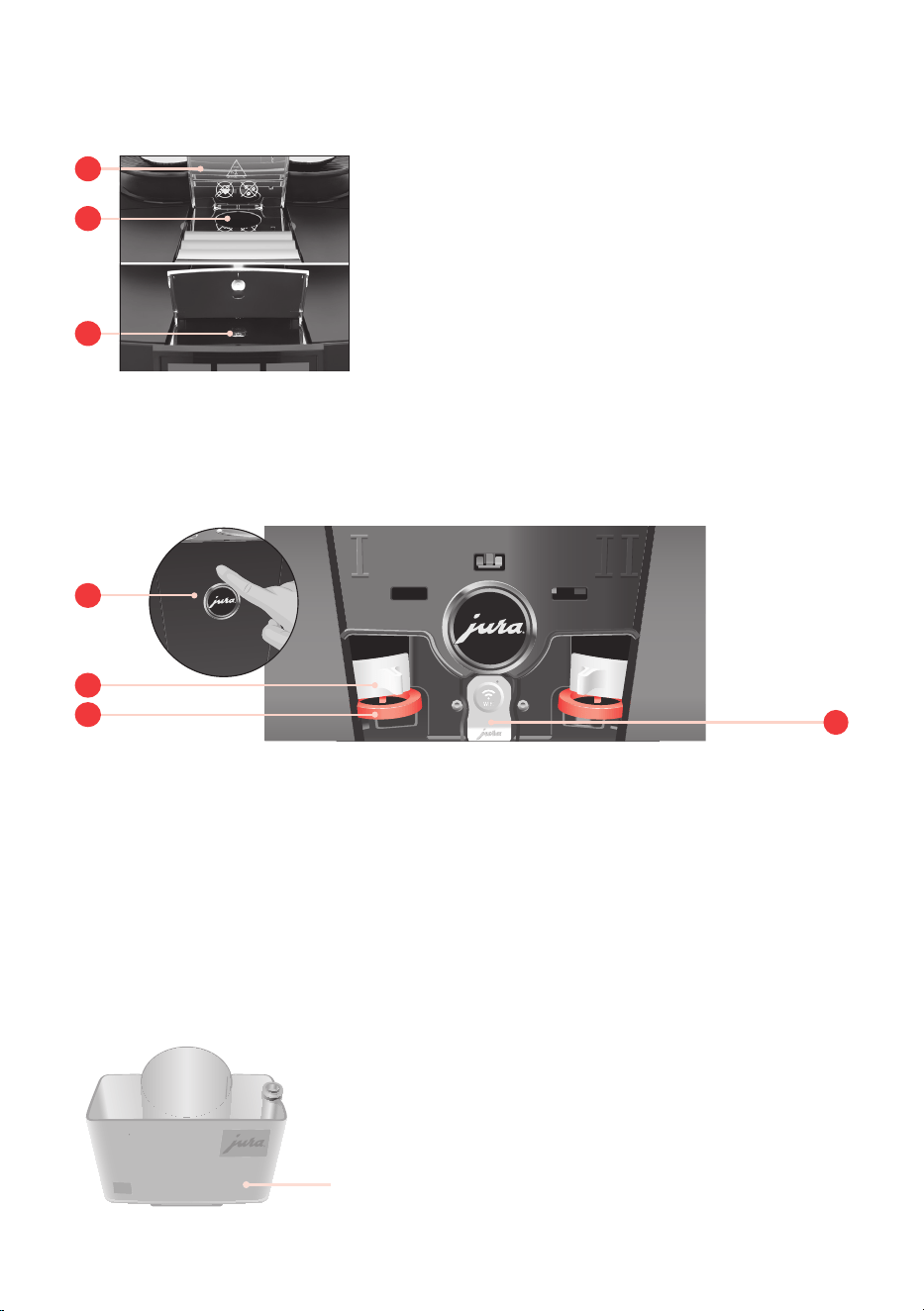

q
Filler funnel cover
w
Filler funnel for ground coffee
e
On/Off button Q (under cover)
q
Service cover(open by pressing with your finger)
w
Locking device
e
Sliding catch
r
Service socket with JURA WiFi Connect
3
2
1
4
6
Container for milk system cleaning
2
1
3
background
2 For your safety
6
2 For your safety
Before using the machine, read these instructions
for use thoroughly and completely and comply
with the instructions they contain� Keep these
instructions for use close to the machine and pass
them on to the next user
Failure to observe the instructions for use may
result in serious injuries or damage to property
Safety information is therefore indicated as fol-
lows:
J
WARNING
Indicates circumstances that may
result in serious injuries or death�
J
CAUTION
Indicates circumstances that may
result in minor injuries�
CAUTION Indicates circumstances that may
result in damage to property
The machine is intended for private domestic use
It should only be used for coffee preparation and to
heat milk and water� Use for any other purpose will
be deemed improper
People, including children, who
U
do not have the physical, sensory or mental
capabilities to use the machine safely or
U
are inexperienced or lack knowledge
must be supervised by a responsible person when
using it, or must be instructed in how to use it cor-
rectly
When using the CLARIS Smart filter cartridge or a
JURA WiFi Connect, wireless connections are estab-
lished� Specific details on the frequency band used
Comply with the
instructions for use
Proper use
User limitations
background
2 For your safety
7
and the maximum transmission power can be
found in the ‘Technical data’ section�
Children must be able to recognise and under-
stand the potential dangers arising from incor-
rect use:
U
Keep children under the age of 8 away from
the machine, or supervise them constantly
U
Children aged 8 and over may only operate
the machine without supervision if they have
been instructed in how to use it safely
U
Children may not clean or service the machine
unless supervised by a responsible person�
U
Do not allow children to play with the machine
Never use a damaged machine or mains cable.
This could result in fatal electric shock.
U
In the event of signs of damage, disconnect the
machine from the mains� To do this, first switch
the GIGA off with the On/Off button
Q
and at
the power switch� Only then should you
remove the mains plug from the power socket�
U
Replace a damaged plug-in mains cable with
an original JURA mains cable� Unsuitable mains
cables may result in consequential damage�
To avoid damage to the machine and the mains
cable:
U
The GIGA must not be placed in a cabinet when
in use
U
Do not use the GIGA and the mains cable near
hot surfaces�
U
Do not allow the mains cable to rub against
sharp edges and ensure that it does not
become trapped�
Use by children
What to do in the
event of damage
Preventing damage
background
2 For your safety
8
U
Never allow the mains cable to loosely hang
down� The mains cable could pose a tripping
hazard or become damaged�
U
Protect the GIGA from weather and direct
sunlight�
U
Only connect the GIGA to a mains voltage
corresponding to that stated on the rating
plate� The rating plate is located on the under-
side
U
Connect the GIGA directly to a domestic power
socket� Using multi-socket adapters or exten-
sion cords may cause overheating�
U
The surface of the heating element and outer
enclosure remains hot after use and the out-
side of the appliance may retain heat�
U
Do not use alkaline or alcohol-based cleaning
agents; only use mild cleaning agents and a
soft cloth�
U
Do not use any coffee beans treated with
additives or caramelised coffee beans�
U
Only fill the water tank with fresh, cold,
non-carbonated water
U
If you are going to be absent for a longer
period of time, switch the machine off with the
On/Off button
Q
and at the power switch and
remove the mains plug from the power socket�
U
Only use original JURA maintenance products
Use of products that are not explicitly recom-
mended by JURA could damage your GIGA
background
2 For your safety
9
Water conducts electricity. Do not bring water
and electricity into contact with one another:
U
Never touch the mains plug with wet hands�
U
Do not immerse the GIGA and/or mains cable
in water
U
Do not put the GIGA or any individual parts in
the dishwasher
U
Before cleaning, switch the GIGA off with the
On/Off button Q� Always wipe the GIGA with a
damp cloth rather than a wet one, and protect
it from prolonged exposure to water splash�
The GIGA must not be cleaned with a jet of
water�
U
The GIGA is not suitable for installation on a
surface where a jet of water can be used�
U
Do not touch the spouts during operation� Use
the handles provided�
U
Optionally, your GIGA can be remotely oper-
ated using mobile devices� When preparing a
product or initiating a maintenance pro-
gramme, make sure that other people are not
put at risk – for example, through contact with
the spouts�
U
Be careful to ensure that the dual spout is
correctly installed and clean� Otherwise parts
may come loose� There is a danger of parts
being swallowed�
Danger of electric
shock
Danger of burns,
scalding and injury
background
3 Preparing and using for the first time
10
3 Preparing and using for the first time
When setting up your GIGA, please note the following:
U
Place the GIGA on a horizontal surface that is not sensitive to
water�
U
Choose a spot for your GIGA which protects the machine
against overheating� Ensure that the ventilation slats are not
covered�
The bean containers have an aroma preservation cover� This will
ensure that your coffee beans retain their aroma for longer
Coffee beans which have been treated with additives (e�g� sugar),
ground coffee or freeze-dried coffee will damage the grinders�
T
Only use roasted, untreated coffee beans to fill the bean
container
T
Remove the aroma preservation cover
T
Remove any dirt or foreign objects from inside the bean
container
T
Fill the bean container with coffee beans and close the aroma
preservation cover
When you use the machine for the first time, you must set the water
hardness� If you do not know the hardness of your water, you can

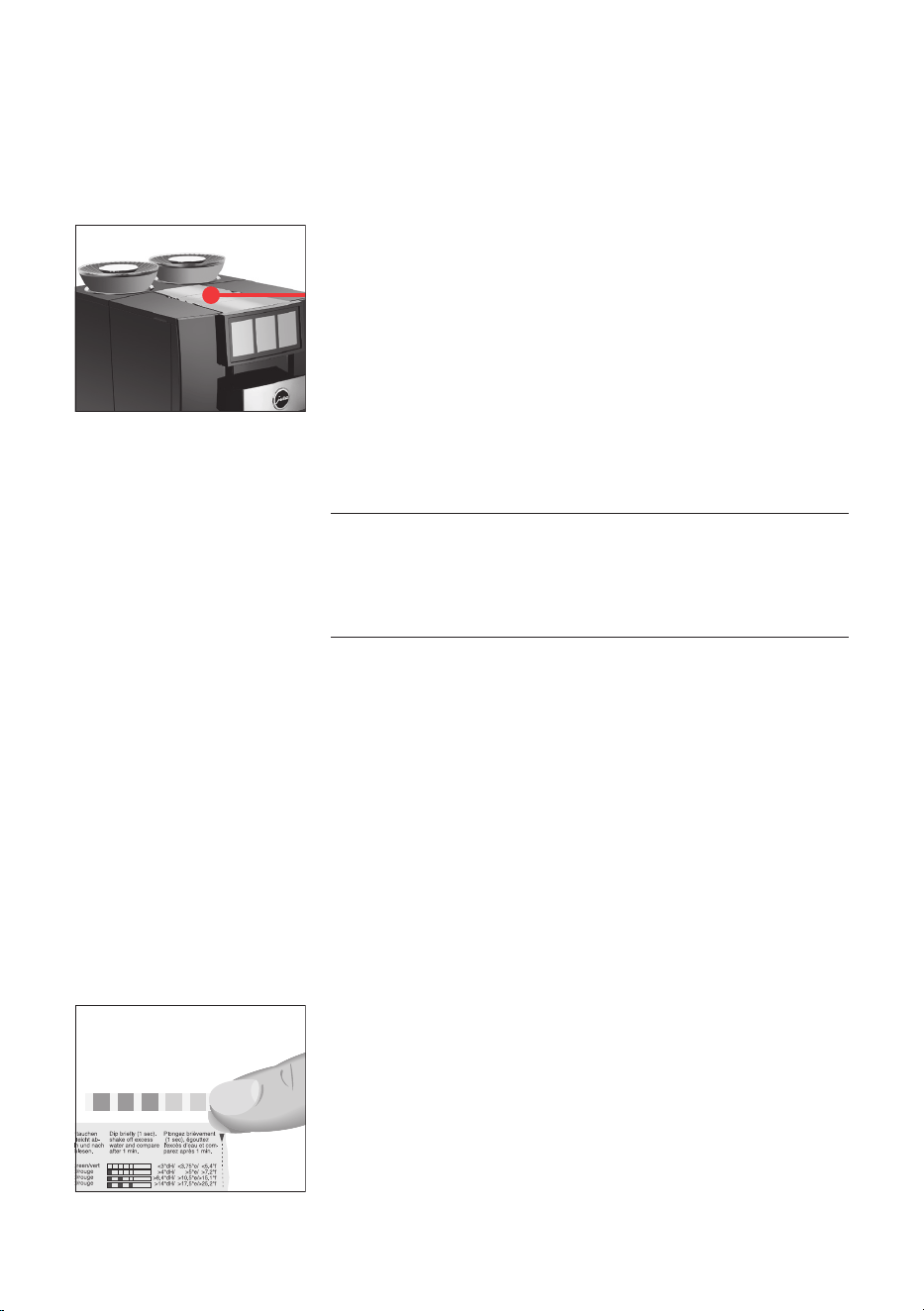

find this out first� Use the Aquadur® test strips supplied with the
machine
T
Hold the test strip under flowing water for one second� Shake
off the water
T
Wait for about 1minute
T
You will then be able to read the degree of water hardness from
the discolouration of the Aquadur® test strip and the descrip-
tion on the packaging�
Setting up the machine
Filling the bean container
CAUTION
Determining the water
hardness
background
3 Preparing and using for the first time
11

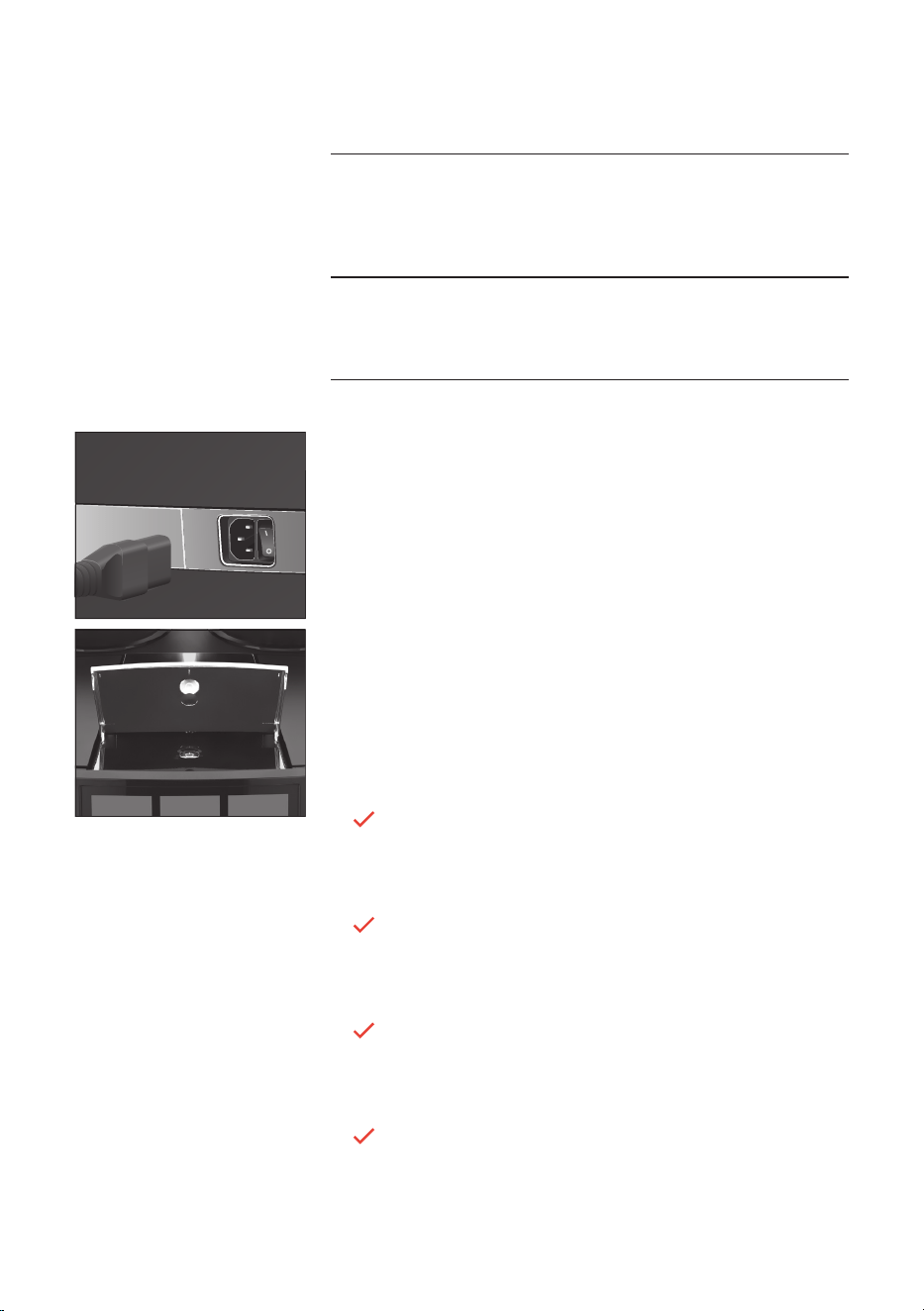

If the machine is operated with a defective mains cable, there is a
danger of potentially fatal electric shock�
T
Never use a machine which is damaged or has a defective mains
cable
Milk, sparkling mineral water or other liquids can damage the
water tank or the machine�
T
Only fill the water tank with fresh, cold water
Precondition:The bean containers have been filled�
T
Connect the mains cable to the machine�
T
Insert the mains plug into a power socket�
T
Switch the GIGA on at the power switch�
T
Open the cover of the On/Off button�
T
Press the On/Off button
Q
to switch the GIGA on�
‘Sprachauswahl’
E To display more languages, touch 9 or 0 until the desired
language comes into focus (e�g� ‘English’)�
T
 Touch ‘Save’
appears briefly on the display
‘Time format’
T
Select the time format (‘24 hrs�’ or AM / PM’)�
T
 Touch ‘Save’
appears briefly on the display
‘Date’
T
Enter the current date (format YYYY/MM/DD)�
T
 Touch ‘Save’
appears briefly on the display
‘Time’
T
Enter the current time�
T
 Touch ‘Save’
appears briefly on the display
Adjust water hardness’
E If you do not know the hardness of your water, you must
find this out first (see previous section)�
First-time use
J
WARNING
CAUTION
background
3 Preparing and using for the first time
12
T
 Touch 9 or 0 to change the water hardness setting�
T
 Touch ‘Save’
appears briefly on the display
‘Insert filter
T
Place a receptacle under the dual spout and the hot-water
spout�
T
Remove the water tank and rinse it with cold water
T
Open the filter holder
T
Fit the filter cartridge extension supplied on top of the CLARIS
Smart filter cartridge�
T
Insert the filter cartridge with its extension into the water tank�
T
Close the filter holder� It will click into place audibly
T
Fill the water tank with fresh, cold water and reinsert the tank�
E The machine automatically detects that you have just
inserted the filter cartridge�
‘Filter operation
‘Filter is being rinsed’, water flows directly into the drip tray
‘System is filling’, water flows out of the hot-water spout�
‘Empty drip tray’ / ‘Empty coffee grounds container’
T
Empty the drip tray and put it back into the machine�
‘Connections’ / ‘Connect accessory
E You can establish a wireless connection between the GIGA
and the optionally available Cool Control milk cooler� To do
this, touch ‘Connect’ and follow the instructions on the
display
T
 Touch ‘Next’
‘Connections’ / ‘Wi-Fi connection’
E The GIGA is fitted with JURA WiFi Connect� If you want to use
the GIGA in conjunction with the JURA app J�O�E�
®
, scan the
QR code to download J�O�E�
®
� Then touch ‘Connect’ and
follow the instructions on the display
T
 Touch ‘Next’
T
Place a receptacle under the dual spout�
T
 Touch ‘Next’
‘Machine is rinsing’ / ‘Milk system is being rinsed’� The start
screen is displayed� Your GIGA is ready for use
background
3 Preparing and using for the first time
13
The JURA Cockpit allows you to manage your GIGA� Touch the time
area at the top to open the JURA Cockpit�
Symbol Meaning
f
‘Machine settings’ area (green)
c
‘Maintenance’ area (blue)
4 (white)
Your GIGA is connected to the network and/or
Cool Control via JURA WiFi Connect
4 (red)
No connection to the WiFi network
$
Filter mode
Run a self-diagnosis to check the maintenance
status of your GIGA
Your GIGA creates fine, creamy, feather-light milk foam with a per-
fect consistency� The most important requirement for frothing milk
is a milk temperature of 4–8°C� We would therefore recommend
using a milk cooler or a milk container
T

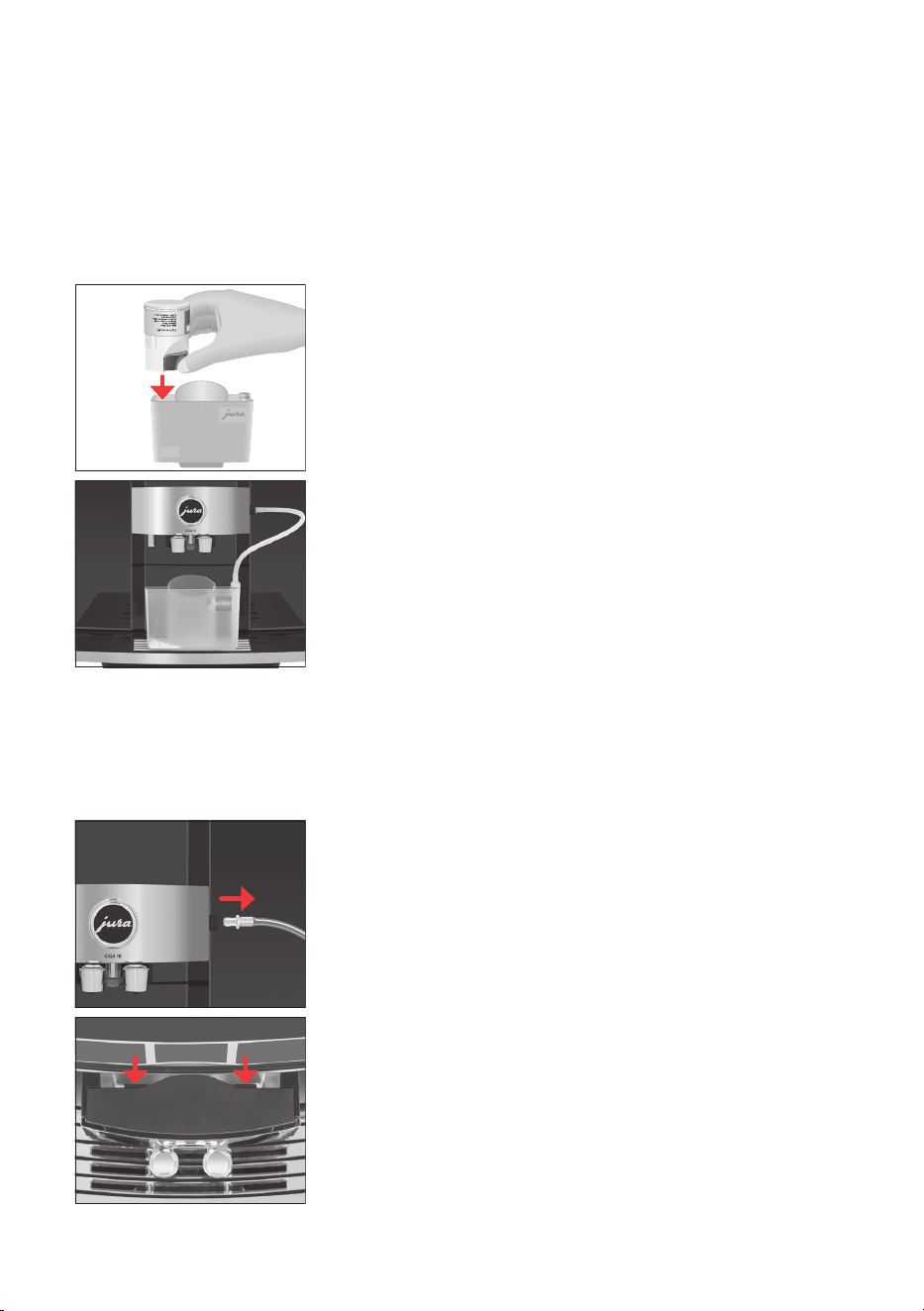

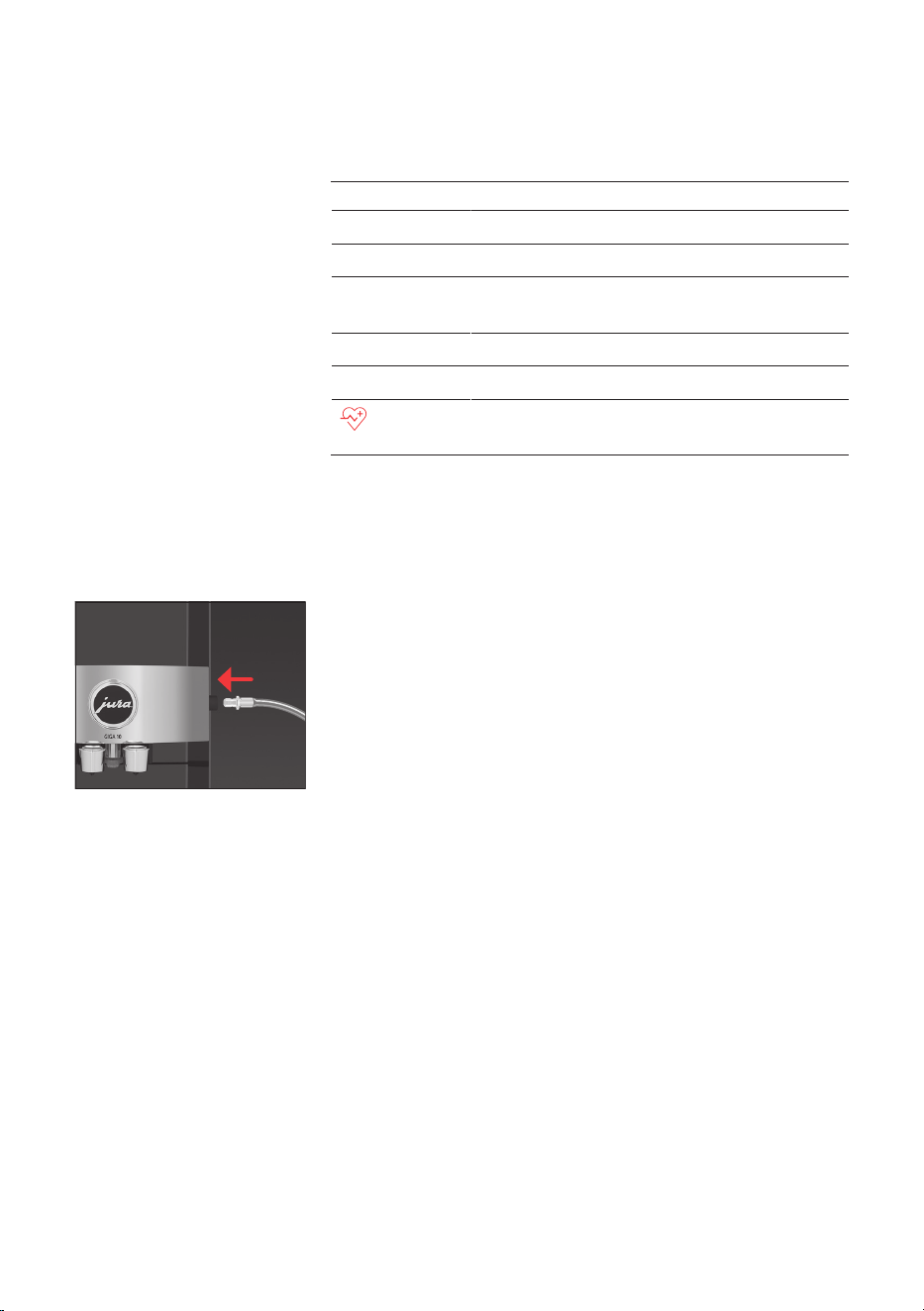

Connect the milk pipe to the dual spout�
E Your GIGA is equipped with the HP3 milk system�
T
Connect the other end of the milk pipe to a milk container or a
milk cooler
Managing your GIGA – the
JURA Cockpit
Connecting milk
background
4 Preparation
14
4 Preparation
Products shown on the start screen:
Start screen page 1
Espresso
Americano
Lungo
Hot water
Coffee
Macchiato
Cortado
Cappuccino
Flat white
Start screen page 2
Café au lait
Portion of milk foam
Espresso doppio
Pot of coffee
Latte macchiato
2x coffee
Flat white Extra Shot
Cold brew espresso
Cold brew café au lait
Basic information about preparing drinks:
Aim What to do
Change bean container and the coffee
strength of a single product
See next section, ‘Preparation with preselection
(Aroma Selection)’
Change the amount for a single product After selecting a product, choose a size:
XS/S/M/L/XL/XXL
Display more products
On the start screen, touch 9 or 0
Stop preparation Touch ‘Cancel’
Permanently change the consistency of
grind, coffee strength, quantities and other
settings for any given product
Tap and hold a product for around 2 seconds and
configure the settings under ‘Product settings’
Place a product on the start screen as a
favourite
Tap and hold a product for around 2 seconds and
place another product under ‘Replace product’
E If the screensaver is active, touch the display to return to the
start screen�
E Coffee tastes best served hot� A cold porcelain cup cools the
beverage – and impairs the taste� We therefore recommend
prewarming the cups� You can purchase a JURA cup warmer
from your specialised dealer
background
4 Preparation
15
With the Aroma Selection function on your GIGA, you can change
the coffee strength of any given product before preparing it� You
can also choose which bean container is used to prepare a coffee
and select additional settings:
U
‘Cold Brew’ d (the product is cold-brewed)
U
‘Extra Shot’ s (the product is prepared with two brewing
operations, each with half the amount of water – for a
speciality coffee with a particularly intense taste)
U
‘Double Product’ (the selected product is prepared as a double
product)
E Not all settings are available for all products

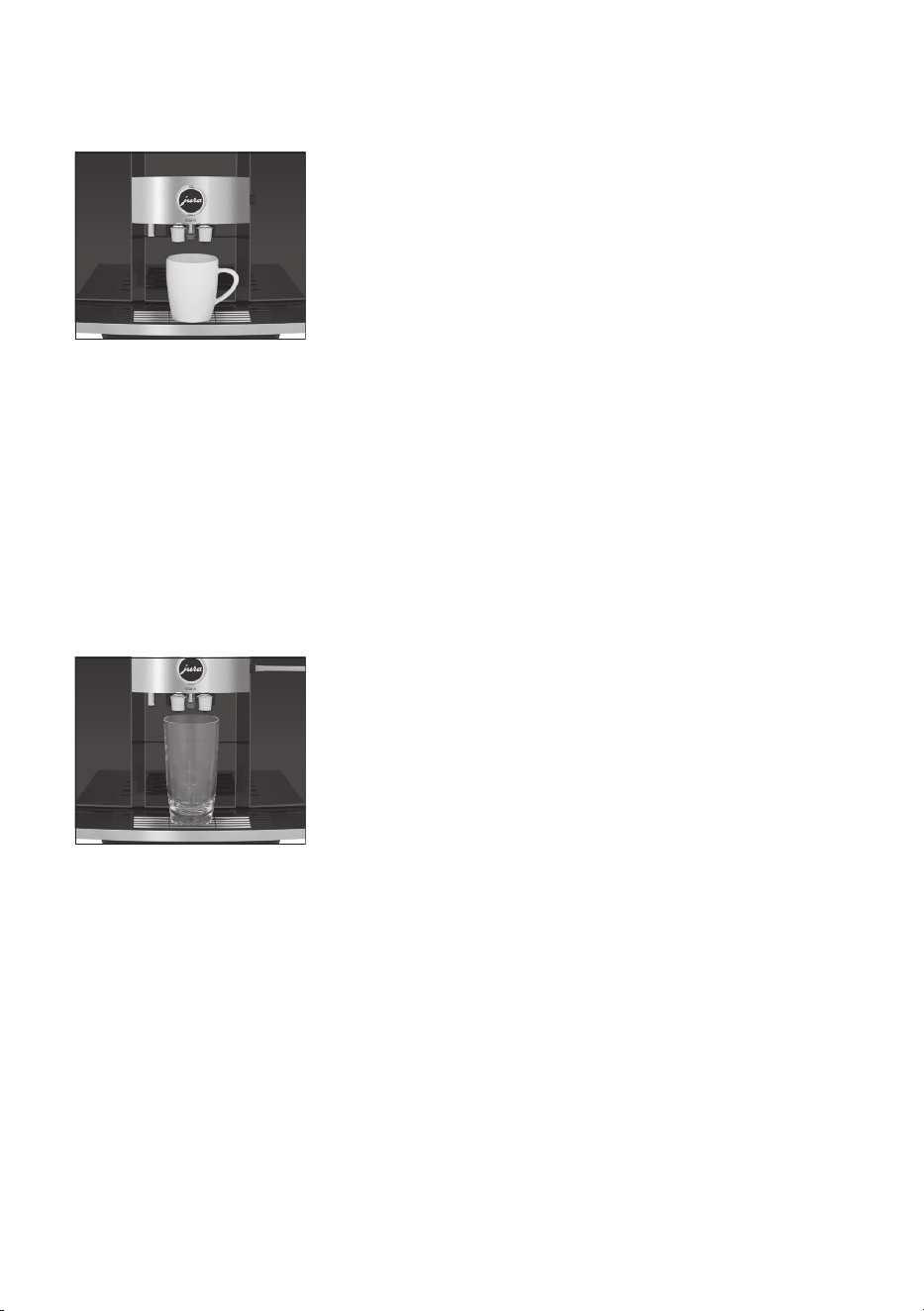

Example:Espresso with higher coffee strength
T

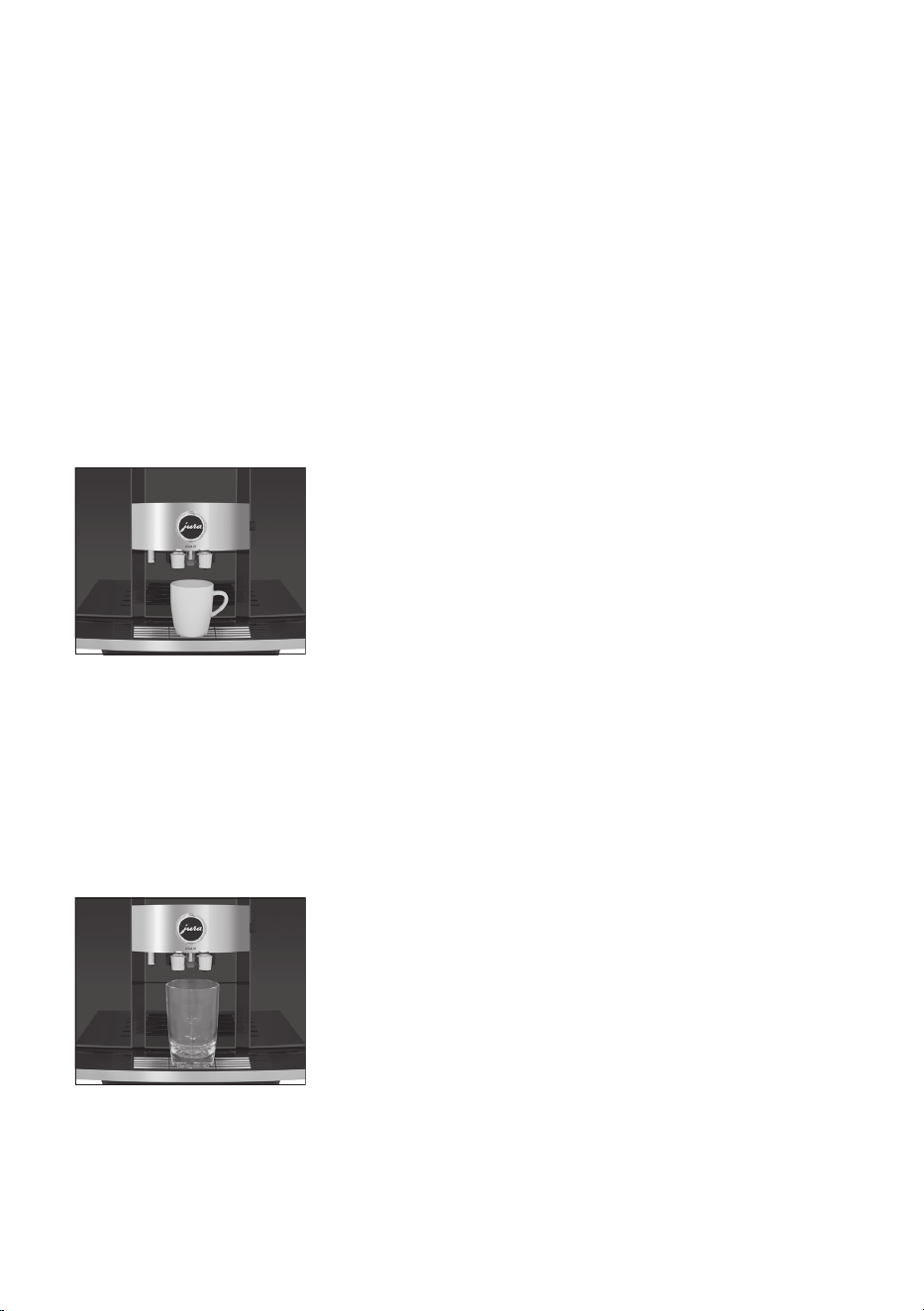

Place a cup under the dual spout�
T
Touch the ‘Aroma Selection’ symbol (bottom centre)�
T
 Touch ‘Espresso’
T
Touch the setting control for the appropriate grinder (circle) to
increase the coffee strength
T
 Touch the image of the espresso to start preparation�
The preset amount of water for espresso flows into the cup�
The ‘Cold Brew’ preselection is used to prepare a cold speciality cof-
fee�
Example:Coffee with ‘Cold Brew’ preselection
T

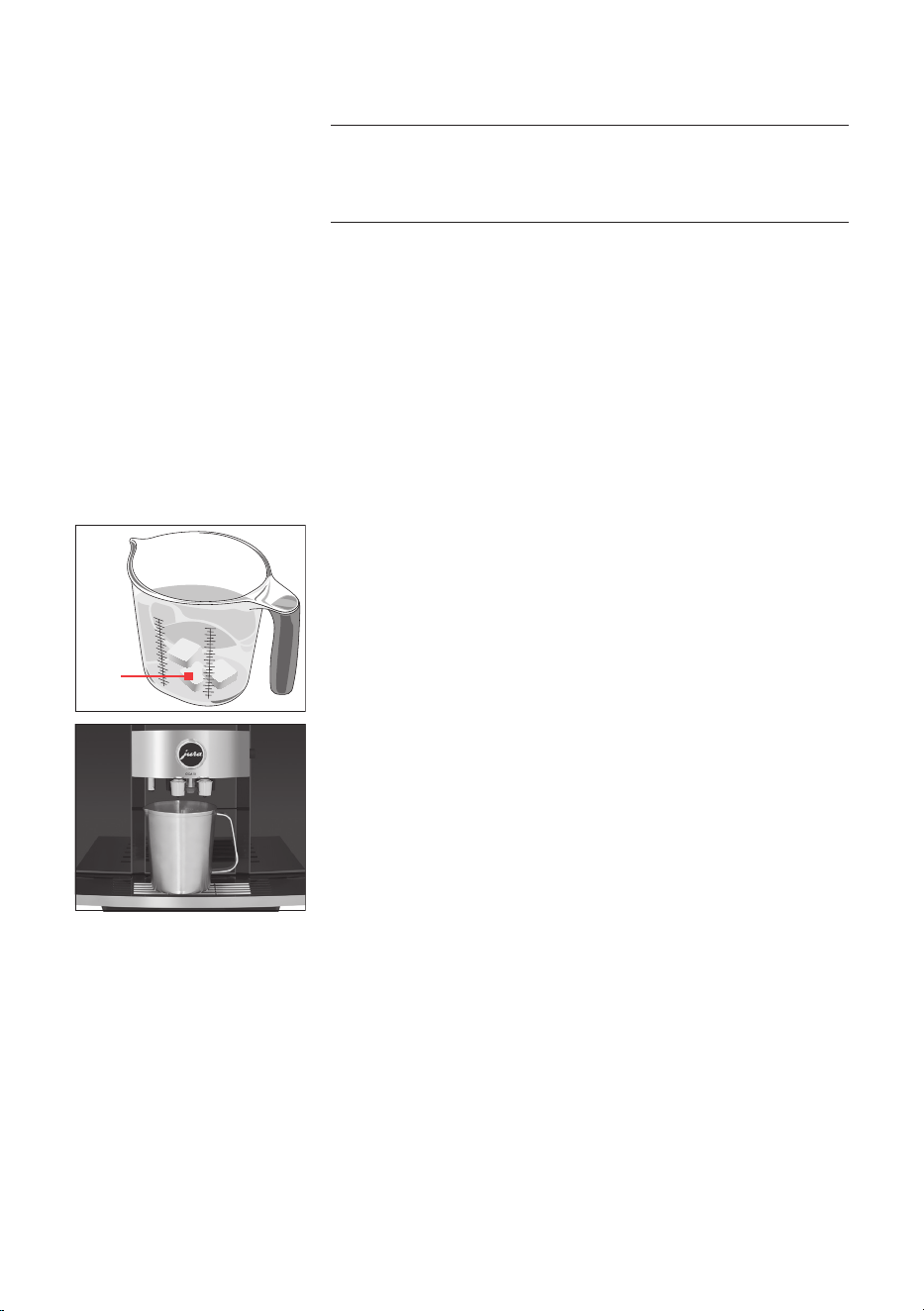

Fill the water tank with cold water
E You can influence the brewing result: The colder the water in
the water tank, the colder the brewed beverage will be
T
Place a glass under the dual spout�
T
Add ice cubes to the glass according to your own preferences�
T
Touch the ‘Aroma Selection’ symbol (bottom centre)�
T
 Touch ‘Coffee’
T
 Touch d to activate the ‘Cold Brew’ preselection�
T
 Touch the picture of the coffee to start preparation�
The preset amount of water for the coffee flows into the glass�
Preparation with
preselection (Aroma
Selection)
Cold Brew
background
4 Preparation
16
Example:Coffee
T
Place a cup under the dual spout�
T
 Touch ‘Coffee’
The preset amount of water for coffee flows into the cup�
Your GIGA prepares the following speciality coffees with milk at the
touch of a button:
U
Macchiato
U
Cortado
U
Cappuccino
U
Flat white
U
Latte macchiato
U
Café au lait
Example:Latte macchiato
Precondition:Milk is connected to the dual spout�
T
Place a glass under the dual spout�
T
 Touch ‘Latte macchiato
The preset amounts of milk and milk foam flow into the glass�
E There is a short interval while the hot milk separates from
the milk foam� This allows the typical layers of a latte
macchiato to form�
The preset amount of water for espresso flows into the glass
E 8 minutes after milk preparation, the milk system is
automatically rinsed� Therefore always place a receptacle
under the dual spout after preparing milk�
To ensure that the milk system in the dual spout always works prop-
erly, you must clean it daily (see chapter 7 ‘Maintenance – Cleaning
the milk system’)�
Your GIGA prepares hot milk and milk foam�
E 8 minutes after milk preparation, the milk system is
automatically rinsed� Therefore always place a receptacle
under the dual spout after preparing milk�
Espresso and coffee
Latte macchiato, cappuccino
and other speciality coffees
with milk
Milk and milk foam
background
4 Preparation
17
‘Doppio’ is Italian for ‘double’� When you select Espresso doppio,
two espressi are prepared one after the other� The result is an extra
full-bodied and aromatic speciality coffee�
For the americano and lungo, the GIGA blends the coffee with hot
water using a special preparation method� This results in a full-bod-
ied speciality coffee which is particularly easy to digest� You can
change the amount of this additional water (see chapter 4 ‘Prepara-
tion – Adjusting the product settings’)�
Relive the good old days – a ‘pot of coffee’, traditionally made from
porcelain, is perfect when you want to slow things down and catch
up with friends or family� The ‘pot of coffee’ function provides a large
portion of black coffee which is generally served at breakfast or to
accompany a piece of cake� Select between 1–5 strokes of black cof-
fee�
You can choose to use a second coffee variety, for example decaf-
feinated coffee, with the filter funnel for ground coffee�
U
Never add more than two level measuring spoons of ground
coffee
U
Use ground coffee which is not ground too finely� Very fine
coffee can block up the system so that the coffee only comes
out in drips�
U
If you did not fill the machine with a sufficient amount of
ground coffee, ‘Not enough ground coffee’ is displayed and the
GIGA stops the operation�
U
The desired speciality coffee must be prepared within approxi-
mately one minute after filling with the ground coffee
Otherwise the GIGA stops the operation and is once more
ready for use

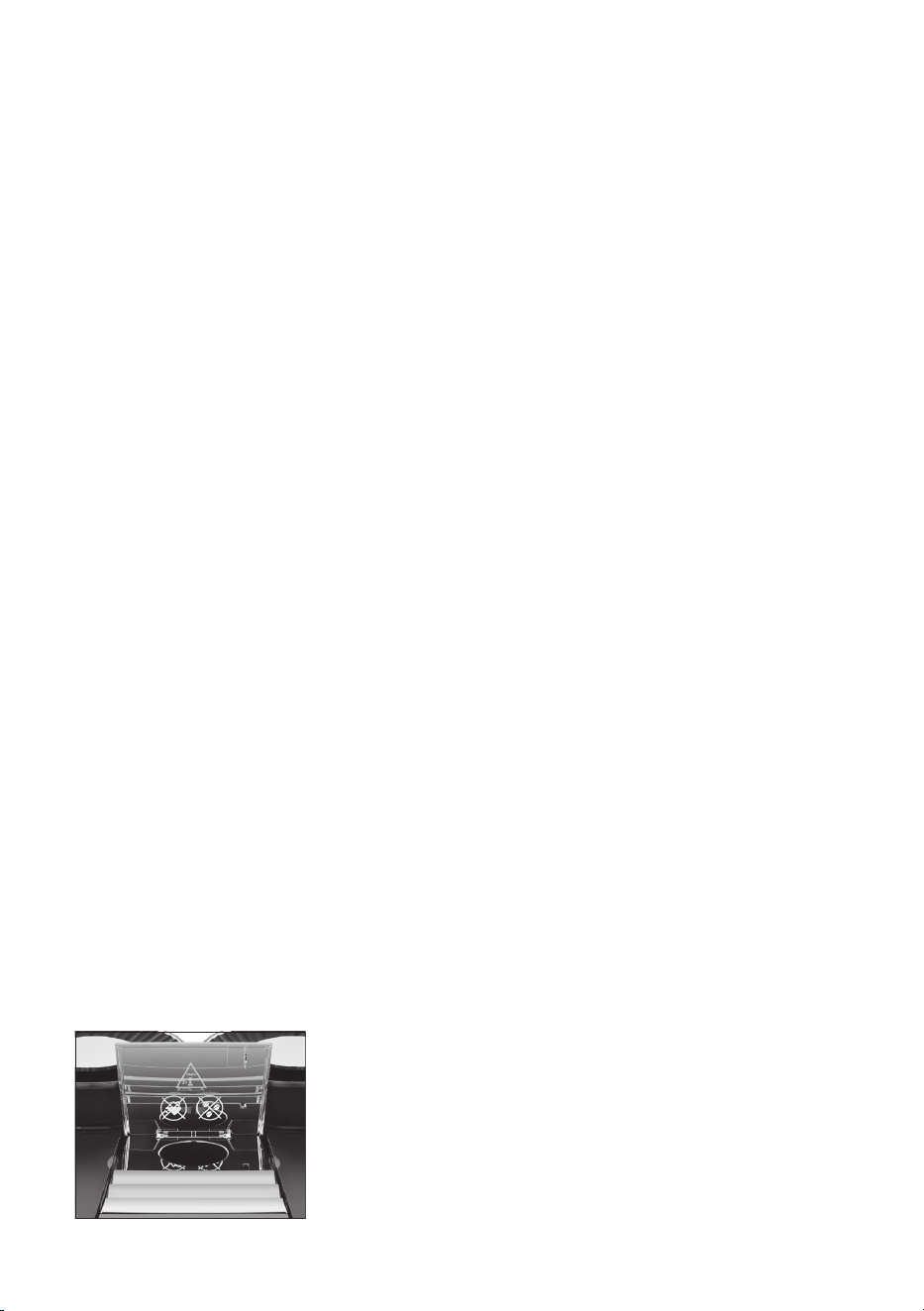

Example:Proceed as follows to prepare an espresso using ground
coffee
T

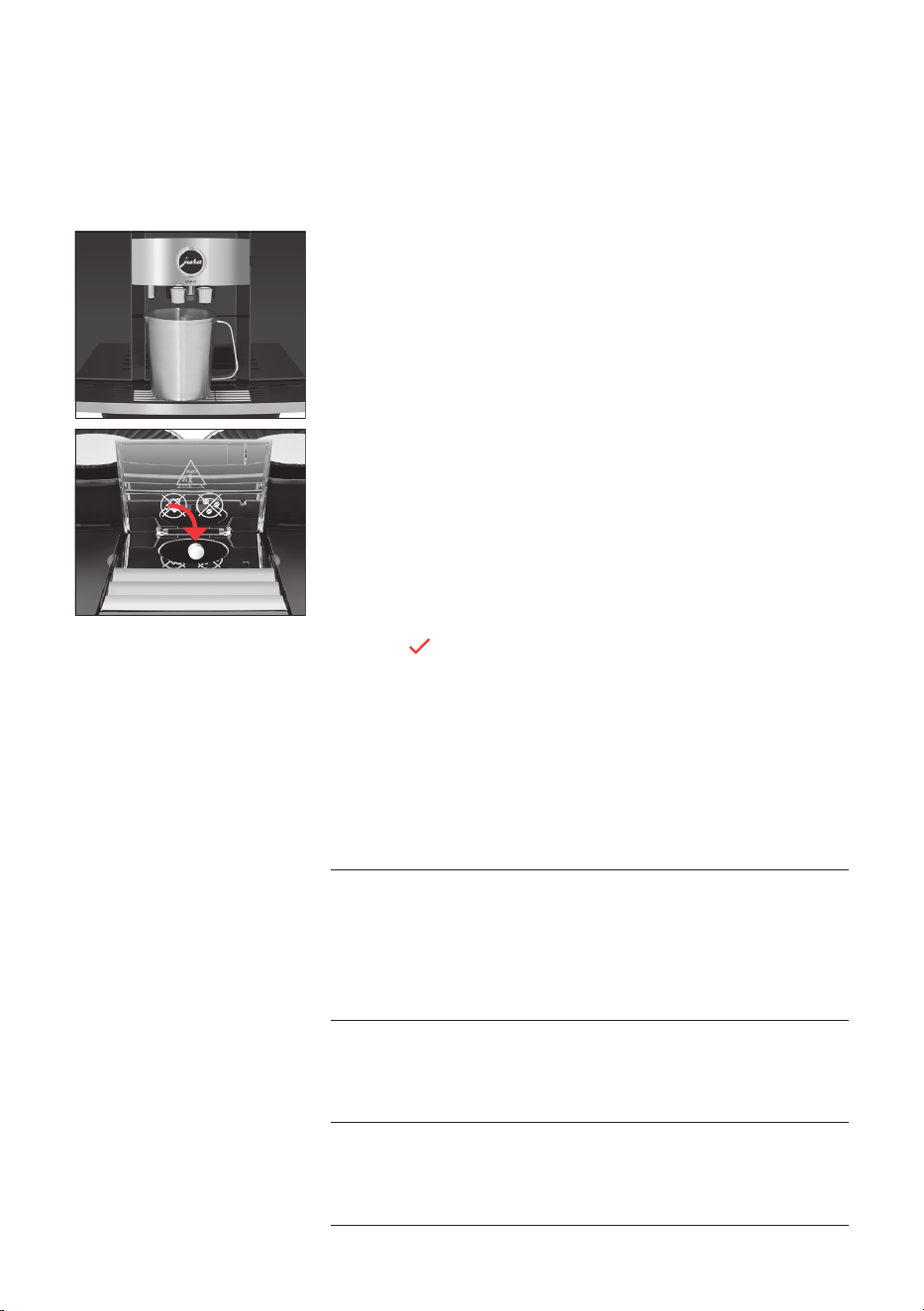

Place an espresso cup under the dual spout�
T
Open the cover of the filler funnel for ground coffee
T
Place one level measuring spoon of ground coffee into the filler
funnel�
T
Close the cover of the filler funnel�
T
 Touch ‘Espresso’
The preset amount of water for espresso flows into the cup�
Espresso doppio
Americano and lungo
Pot of coffee
Ground coffee
background
4 Preparation
18
The GIGA allows you to prepare different variants of hot water:
U
‘Hot water’
U
‘Hot water for green tea’ (Product must be added to the start
screen� To do this, tap and hold any product for 2 seconds,
then use the ‘Replace product’ function to select hot water for
green tea�)
There is a danger of scalding from hot water splashes
T
Avoid direct contact with the skin�
Example:Hot water
T

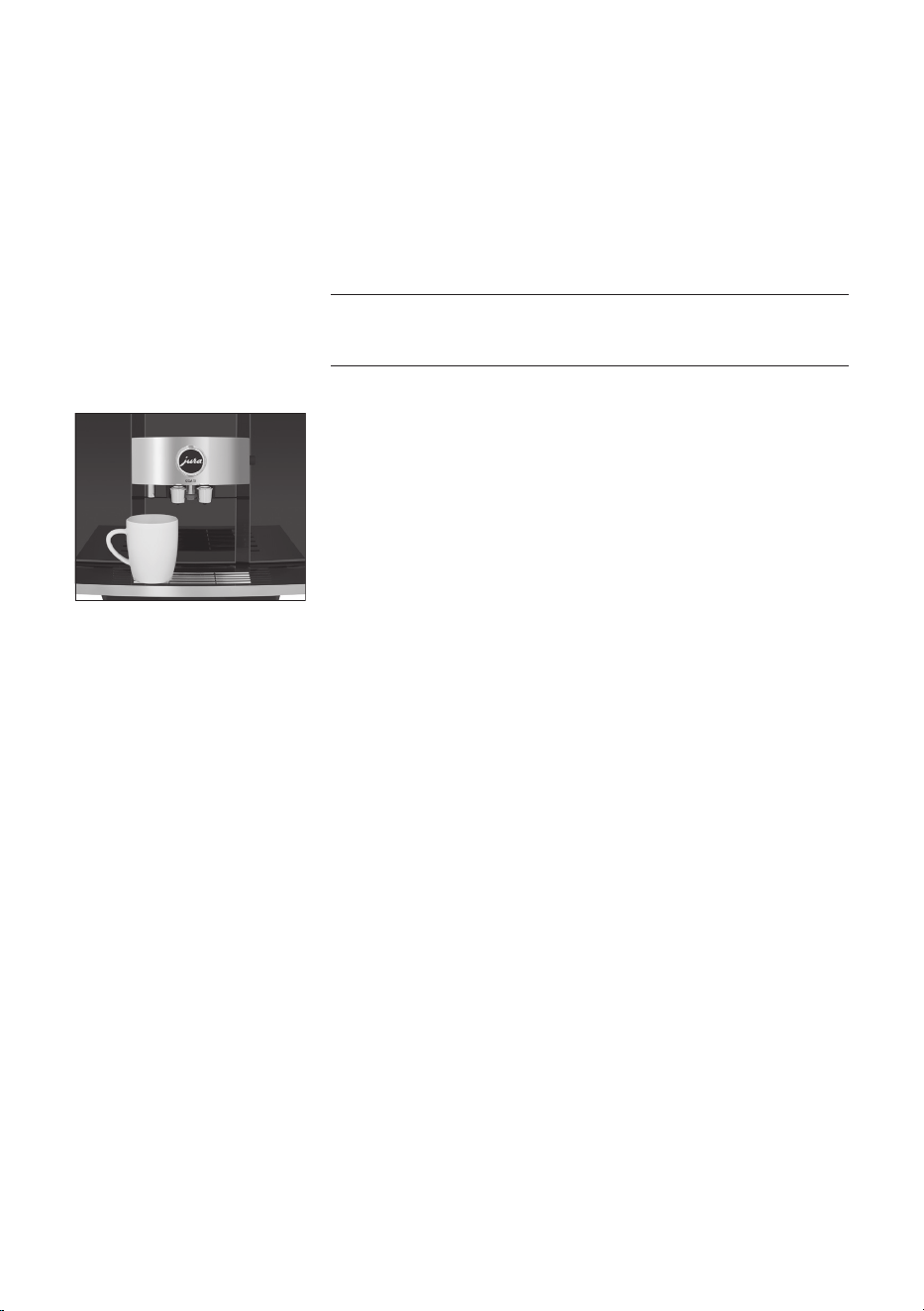

Place a cup under the hot-water spout�
T
 Touch ‘Hot water’
The preset amount of water flows into the cup�
The GIGA allows you to create up to 4 profiles� This means that you
can store 3 favourite speciality coffees for each member of the fam-
ily, for example� In the Cockpit, go to the ‘Machine settings’ area f
In the ‘Display’ / ‘Set profile’ menu, select the desired number of
profiles�
You can now edit the profiles in the Cockpit� To do this, tap on the
profile and add the desired products� To rename the profile, tap and
hold the profile for 2 seconds�
Touch a product for approximately 2 seconds to access the settings:
U
‘Product settings’: Make permanent individual settings such as
coffee strength and cup size, edit the product name or define a
preselected option – ‘Cold Brew’, ‘Extra Shot’ or ‘Double
Product’�
U
‘Replace product’: Replace the products on the start screen
with your favourites�
The settings always follow the same model�
Example:Proceed as follows to change the cup size for one coffee
T
 Touch ‘Coffee’ for approximately 2 seconds.
T
 Touch ‘Product settings’
E Depending on the selected product, there will be different
settings available which are represented by symbols on your
display
T
Touch the cup size symbol�
T
Select a cup size: XS/S/M/L/XL/XXL
T
 Touch ‘X’ and confirm the setting by selecting Yes
Hot water
J
CAUTION
Set profile
Adjusting the product
settings
background
5 Daily operation
19
5 Daily operation
T
Place a receptacle under the dual spout�
T
Open the cover of the On/Off button�
T
Press the On/Off button Q
‘Machine is rinsing’
Your GIGA is switched on or off�
E When the machine is switched off, the system is only rinsed
if a speciality coffee has been prepared�
E If milk has been prepared before switching off, you will be
prompted to carry out milk system cleaning (‘Clean the milk
system’)� After 30 seconds the switch-off process continues
automatically
Daily maintenance of the machine and hygiene when handling milk,
coffee and water are key to a perfect coffee result in the cup every
time� You should therefore change the water daily.
Milk, sparkling mineral water or other liquids can damage the
water tank or the machine�
T
Only fill the water tank with fresh, cold water
T
Open the water tank cover
T
Remove the water tank and rinse it with cold water
T
Fill the water tank with fresh, cold water and reinsert the tank�
T
Close the water tank cover
Switching the machine on
and off
Filling the water tank
CAUTION
background
5 Daily operation
20
Optimal coffee quality depends on many factors� One important
prerequisite is regular maintenance of your GIGA� Carry out the fol-
lowing steps:
Maintenance action Daily If necessary Note
Empty the drip tray and coffee
grounds container and rinse with
warm water
(The insert for the drip tray,
including the drip tray itself, and
the coffee grounds container are
dishwasher-safe)
Z
Always empty the coffee grounds
container when the machine is
switched on� This is the only way of
resetting the coffee grounds
counter
Clean the milk system (if heavily
soiled, also dismantle it)
Z
See chapter 7 ‘Maintenance –
Dismantling and rinsing the
dual spout’
Rinse the milk pipe
Z
Rinse the water tank
Z
Wipe the surface of the machine
with a clean, soft, damp cloth (e�g�
microfibre cloth)
Z
Changing milk pipe with connec-
tor HP3
approx� every
3 months
Change the interchangeable milk
spout CX3
approx� every
3 months
Clean the inside of the water tank
with a brush
Z
Clean the top and bottom of the
cup grille
Z
Thoroughly clean the drip tray and
coffee grounds container
Z
In the ‘Maintenance’ area c of the
Cockpit, the message ‘Maintenance
information’ appears�
E Perform a self-diagnosis on a regular basis to check the
maintenance status of your GIGA� To do this, touch in
the Cockpit�
E You will find more information about the maintenance of
your GIGA in the ‘Maintenance’ c area in the programme
item ‘Maintenance information’
Maintenance actions
background
6 Machine settings
21
6 Machine settings
Touch the time area on the start screen to open the Cockpit� In the ‘Machine settingsf area, you
can make the following settings:
Programme item Sub-item Explanation
‘Choose language Set language
‘Set consistency
of grind’
‘Left grinder
‘Right grinder’
Adjust the consistency of grind to the beans for each
grinder separately
‘Water hardness’ Set the hardness of the water used (1°dH to 30°dH)
to prevent limescale building up in your machine
‘Connections’
(only displayed if
JURA WiFi
Connect is being
used)
‘Wi-Fi connection’ Establish a wireless connection between your GIGA
and the JURA app J�O�E�
®
or disconnect it again
‘Connect accessory’ Establish a wireless connection between your GIGA
and the Cool Control milk cooler or disconnect it again
‘Display’ ‘Set profile’ Create (0–4) profiles in the Cockpit and personalise
3 favourite speciality coffees for each
‘Product name’ Display product images with/without product names
on the start screen
‘Grinder name’ Change the names of the grinders, e�g� to specify the
beans that are used in each
‘Brightness Change display brightness (in 10% increments)
‘Counter’ ‘Product counter’ View product counter
‘Maintenance
counter’
View the maintenance counter
‘General ‘Information’ View software version
‘Empty system Empty the system to protect the GIGA from frost
during transport
‘Factory setting’ Reset your GIGA to factory settings (the machine then
switches off)
‘Save energy’ Activate or deactivate energy-saving mode
‘Time / date ’ ‘Time’ Set time
‘Date’ Set date (format YYYY/MM/DD)
‘Time format’ Set time format (24-hour / AM/PM)
‘Timer’ ‘Switch machine on’
‘Switch machine off
Set switch-on and switch-off time for each day of the
week
‘Switch off after’ Set the automatic switch-off time to save energy
(switch-off after 15minutes, 30minutes or 1 – 9 hours
after the last action on the machine)
background
7 Maintenance
22
7 Maintenance
Basic information about maintenance:
U
You can manage the maintenance of your GIGA in the
‘Maintenance’ c area of the Cockpit�
U
If a maintenance programme needs to be initiated, the time
area on the start screen appears with a red background� Touch
the time area to open the JURA Cockpit� Here, maintenance
programmes that need to be carried out are shown in the form
of messages with red backgrounds� Touch a message to go
straight to the corresponding maintenance programme
U
Carry out each maintenance programme when you are
prompted to do so�

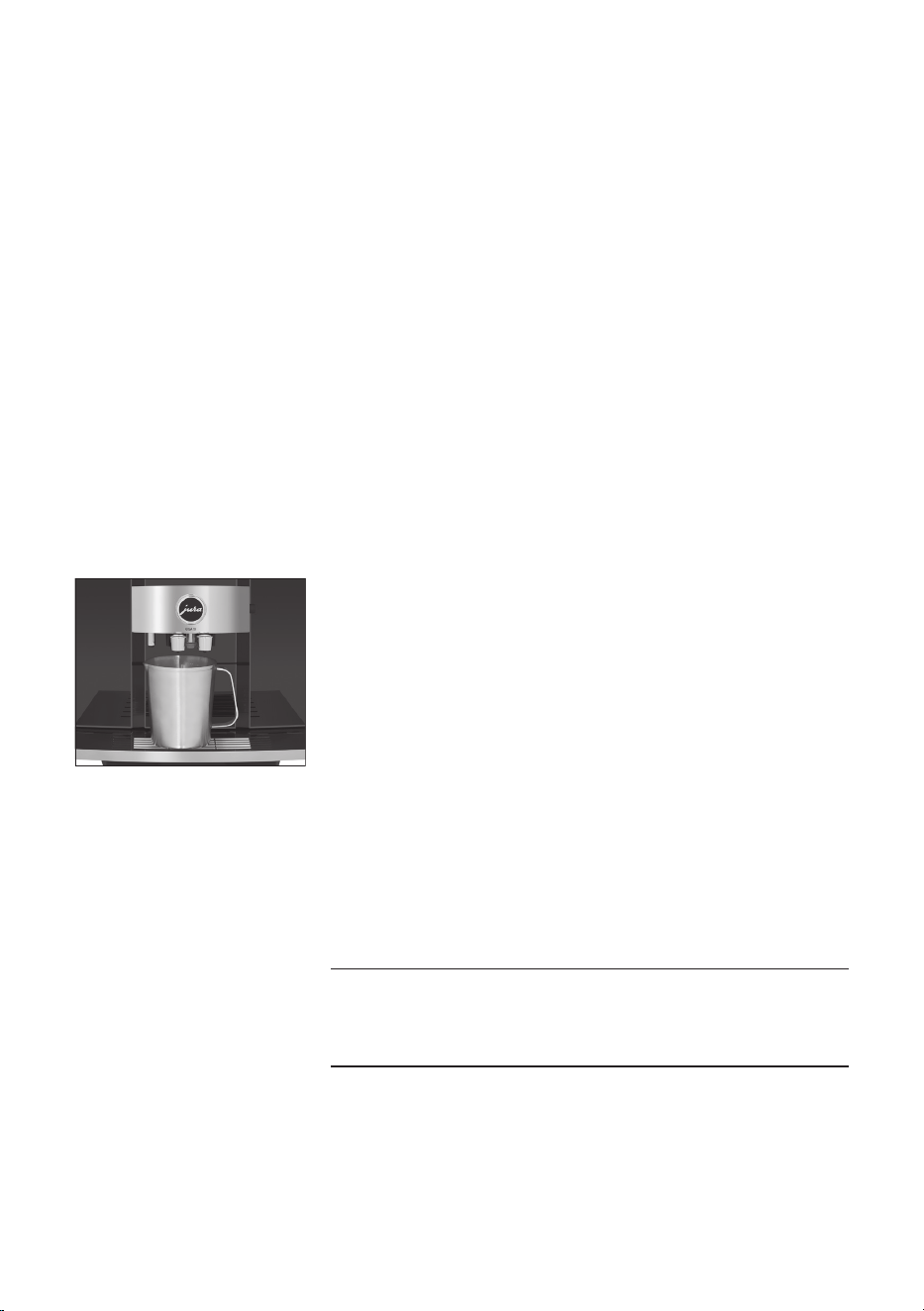

You can start the rinsing process manually at any time�
Precondition:The start screen is displayed�
T
Place a receptacle under the dual spout�
T
Touch the time area to open the Cockpit�
T
 Touch c
T
 Touch ‘Rinse’ to start the rinse operation�
The operation stops automatically�
8 minutes after milk preparation, the milk system is automatically
rinsed� Therefore always place a receptacle under the dual spout
after preparing milk�
To ensure that the milk system in the dual spout always works prop-
erly, you must clean it daily when you have been preparing milk�
If the wrong cleaning agent is used, the machine could be
damaged and/or traces could be left behind in the water
T
Use only original JURA maintenance products�
E JURA milk system cleaner is available from specialised
dealers�
E Use the container supplied for milk system cleaning�
Rinsing the machine
Automatic milk system
rinsing
Cleaning the milk system
CAUTION
background
7 Maintenance
23
Precondition:The start screen is displayed�
T
Touch the time area to open the Cockpit�
T
 Touch ‘Clean the milk system
T
 Touch ‘Next’

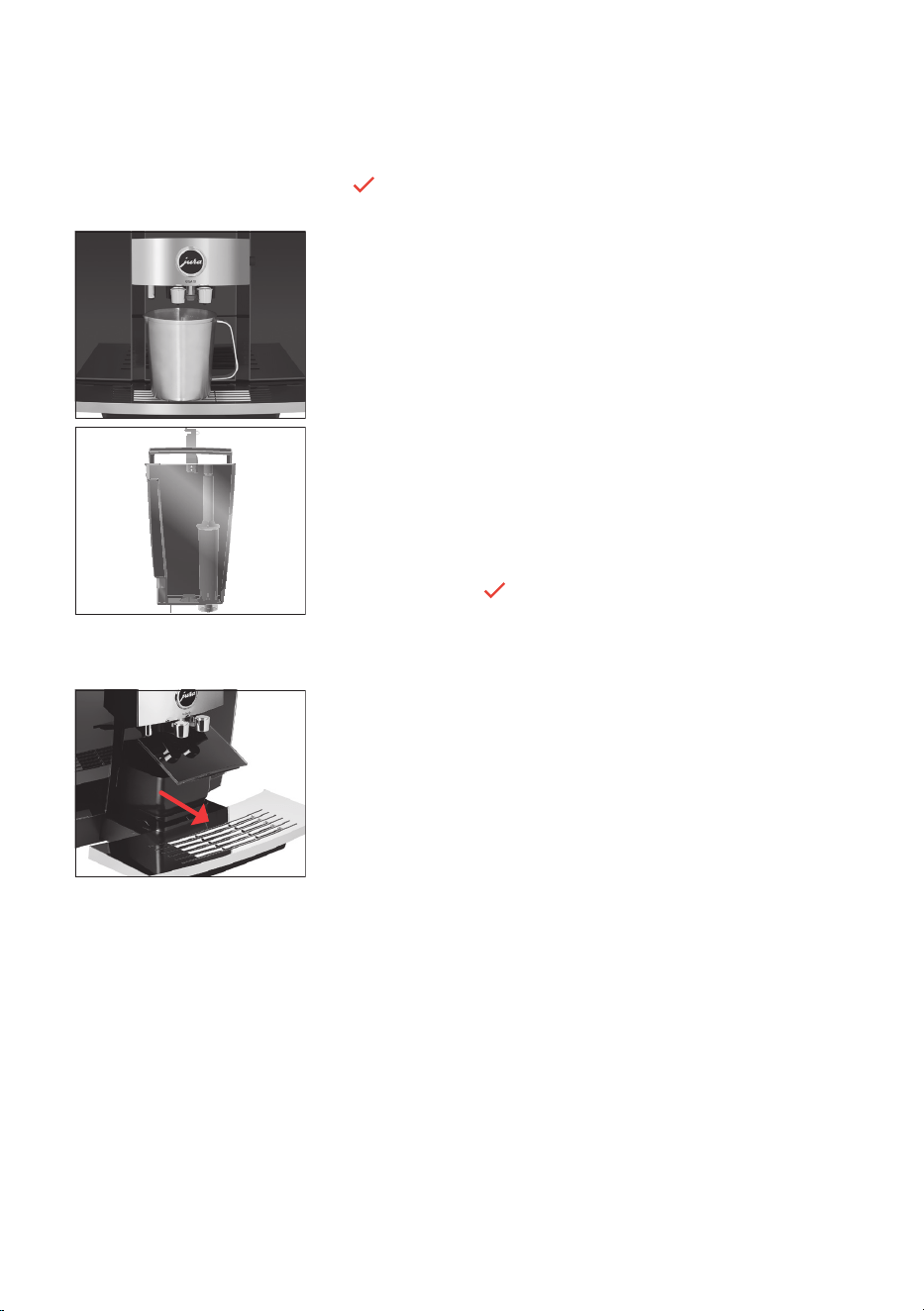

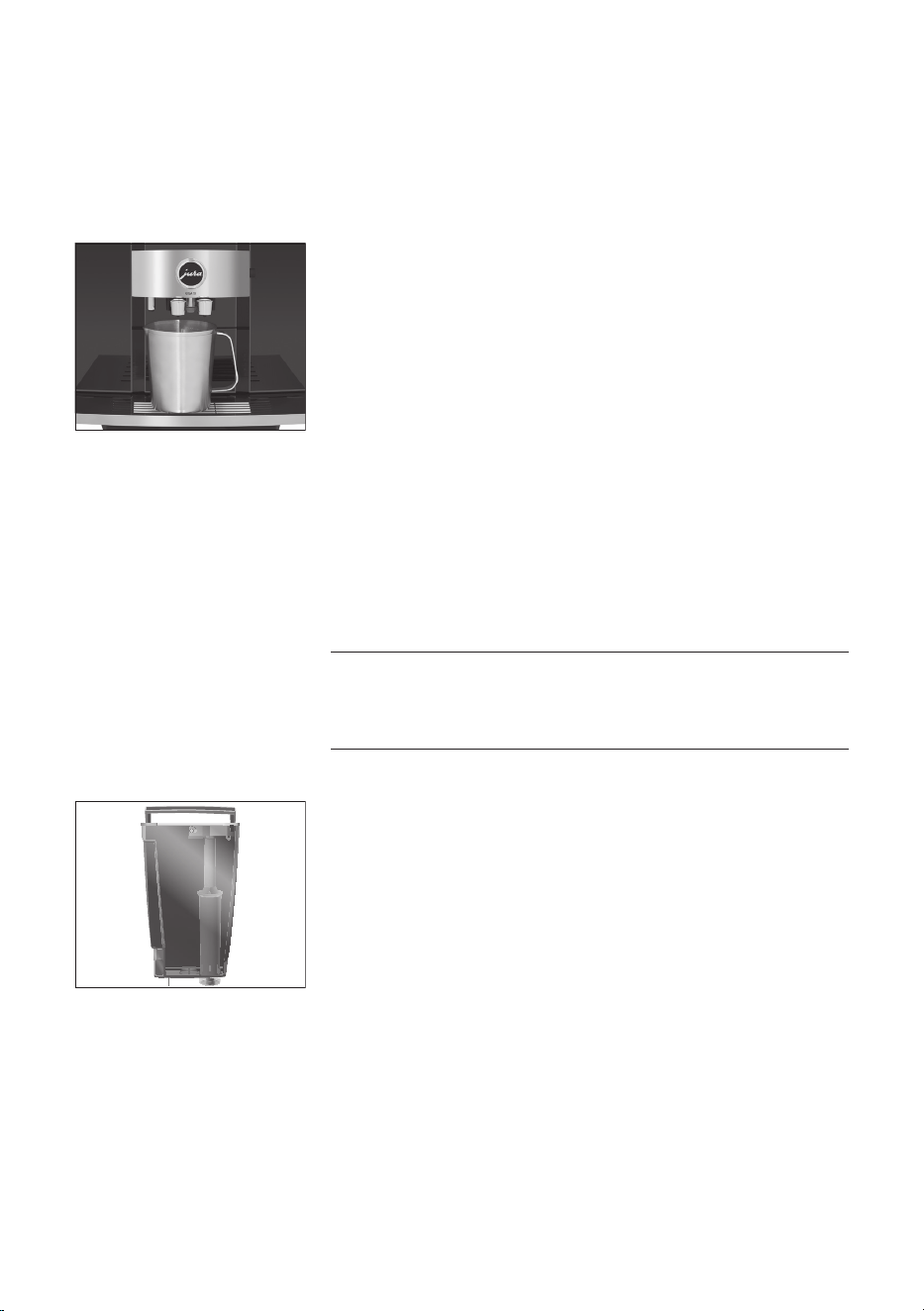

‘Cleaning agent for milk system’ / ‘Connect the milk tube’
T
Remove the milk pipe from the milk container or milk cooler
T
Pour one dosing unit of milk system cleaner into the container
for milk system cleaning�
T
Place the container under the dual spout and connect the milk
pipe with the container
E To connect the milk pipe to the container correctly, the pipe
must be fitted with a connector
T
Slide the dual spout down to fix the container in place�
T
 Touch ‘Start’
The dual spout and the milk pipe are cleaned�
The operation stops automatically�
If insufficient foam is produced when the milk is frothed or milk
sprays out of the dual spout, the spout may be dirty� If this happens,
dismantle and rinse the dual spout�
T
Remove the milk pipe and rinse it thoroughly under running
water�
T
Press the releasing devices and pull the cover of the dual spout
up and off�
6
Dismantling and rinsing the
dual spout
background
7 Maintenance
24

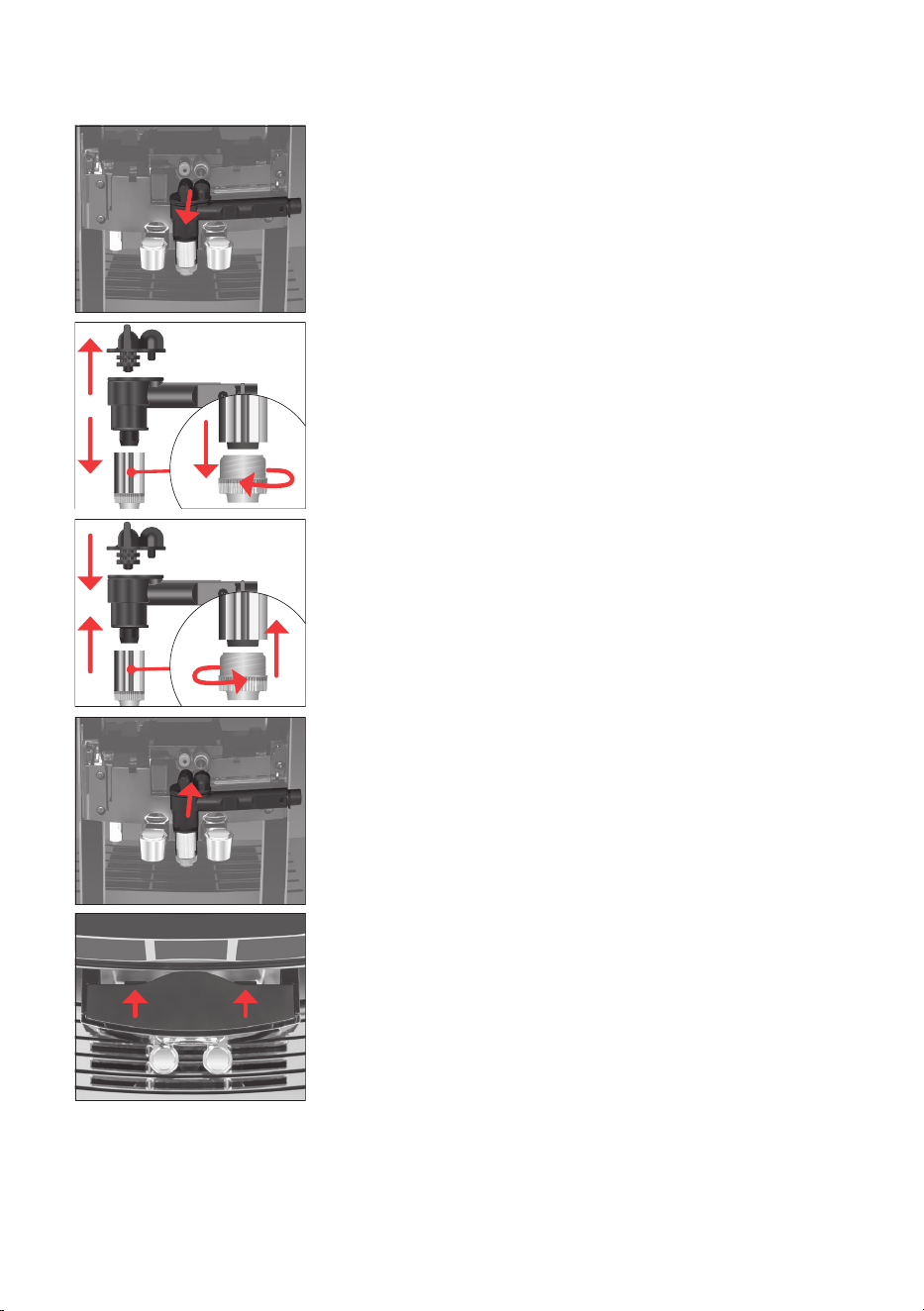

T
Remove the milk system from the dual spout
E Do not lever the milk system back and forth to disconnect it
from the milk pipe connection� Remove the milk system
firmly to prevent it from tilting�
T
Dismantle the milk system into its individual parts�
T
Rinse all the parts under running water� If there are severely
dried-on milk residues, firstly immerse the individual parts in a
solution of 250ml water and one dosing unit of JURA milk
system cleaner� Then rinse the individual parts thoroughly�
T
Reassemble the milk system�
T
Fit the assembled individual parts back in the dual spout and
press it firmly
T
Fit the cover of the dual spout� Make sure the cover of the dual
spout is correctly engaged�
background
7 Maintenance
25
Once the filter cartridge stops working (depending on the water
hardness setting), the GIGA will prompt you to change the filter
E Your GIGA no longer has to be descaled if you are using the
CLARIS Smart filter cartridge�
E CLARIS Smart filter cartridges are available from specialised
dealers�
Precondition:The start screen is displayed� (Or ‘Change the filter’
is displayed in the Cockpit if the filter's capacity has been
exhausted�)
T
Remove and empty the water tank�
T
Open the filter holder and remove the old CLARIS Smart filter
cartridge along with the extension�
T
Fit the filter cartridge extension on top of a new CLARIS Smart
filter cartridge�
T
Insert the filter cartridge with its extension into the water tank�
T
Close the filter holder� It will click into place audibly
T
Fill the water tank with fresh, cold water and reinsert the tank�
The machine automatically detects that you have just inserted/
changed the filter cartridge�
‘Filter is being rinsed’, Water flows directly into the drip tray
‘Empty drip tray’ / ‘Empty coffee grounds container’
T
Empty the drip tray and coffee grounds container and put them
back into the machine
‘Filter operation
The start screen is displayed�
After 180preparations or 80switch-on rinses, the GIGA will prompt
you to clean it�
If the wrong cleaning agent is used, the machine could be
damaged and/or traces could be left behind in the water
T
Use only original JURA maintenance products�
E The cleaning programme lasts approximately 20 minutes�
E Do not interrupt the cleaning programme� The quality of
cleaning will be impaired if you do so�
E JURA cleaning tablets are available from specialised dealers�
Precondition:‘Clean’ is displayed in the Cockpit�
T
T
Fill the water tank
T
 Touch ‘Clean’
Inserting/changing the filter
Cleaning the machine
CAUTION
background
7 Maintenance
26
T
 Touch ‘Start’
‘Empty coffee grounds container’ / ‘Empty drip tray
T
Empty the drip tray and coffee grounds container and put them
back into the machine
T
Place a receptacle under the dual spout�
T
 Touch ‘Next’
‘Machine is being cleaned’, water flows out of the dual spout�
The operation is interrupted, Add cleaning tablet’
T
Open the cover of the filler funnel for ground coffee
T
Insert a JURA cleaning tablet into the filler funnel�
T
Close the cover of the filler funnel�
T
 Touch ‘Next’
‘Machine is being cleaned’, water flows out of the dual spout
repeatedly
‘Empty coffee grounds container’ / ‘Empty drip tray
T
Empty the drip tray and coffee grounds container and put them
back into the machine
‘Clean’
The start screen is displayed�
The GIGA builds up deposits of limescale over time and automati-
cally prompts you to descale it when necessary� The degree of calci-
fication depends on the hardness of your water
E If you are using a CLARIS Smart filter cartridge, you will not
be prompted to descale
If the descaling agent comes into contact with the skin or eyes,
this can cause irritation�
T
Avoid contact with the skin or eyes�
T
Rinse off the descaling agent with clean water� Should you get
any descaling agent in your eye, see a doctor
If the wrong descaling agent is used, the machine could be
damaged and/or traces could be left behind in the water
T
Use only original JURA maintenance products�
If the descaling operation is interrupted, there may be damage to
the machine
T
Allow the descaling programme to run to the end�
Descaling the machine
J
CAUTION
CAUTION
CAUTION
background
7 Maintenance
27
If the descaling agent comes into contact with sensitive surfaces
(e�g� marble), damage cannot be ruled out�
T
Clean up any splashes immediately
E The descaling programme lasts approximately 45minutes�
E JURA descaling tablets are available from specialised dealers�
Precondition:‘Descale’ is displayed in the Cockpit�
T
 Touch ‘Descale’
T
 Touch ‘Start’
‘Empty drip tray’ / ‘Empty coffee grounds container’
T
Empty the drip tray and coffee grounds container and put them
back into the machine
‘Pour descaling agent into water tank’
T
Remove and empty the water tank�
T
Completely dissolve 3JURA descaling tablets in a receptacle
holding 600ml of water� This may take several minutes�
T
Pour the solution into the empty water tank and insert it into
the machine
T
Place a receptacle under the dual spout and the hot-water
spout�
T
 Touch ‘Next’
‘Machine is being descaled’, water flows repeatedly out of the
hot-water spout and the dual spout straight into the drip tray
‘Empty drip tray’ / ‘Empty coffee grounds container’
T
Empty the drip tray and coffee grounds container and put them
back into the machine
‘Rinse the water tank’ / ‘Fill water tank’
T
Empty the receptacle and place it under the dual spout and
hot-water spout again�
T
Remove the water tank and rinse it thoroughly�
T
Fill the water tank with fresh, cold water and reinsert the tank�
T
 Touch ‘Next’
Water flows repeatedly out of the hot-water spout and the dual
spout straight into the drip tray
‘Empty drip tray’ / ‘Empty coffee grounds container’
CAUTION
3x
background
7 Maintenance
28
T
Empty the drip tray and coffee grounds container and put them
back into the machine
‘Descale’
The start screen is displayed�
E If the descaling operation stops unexpectedly, rinse the
water tank thoroughly
Perform a self-diagnosis of your GIGA on a regular basis to check its
maintenance status�
T
Touch the time area to open the Cockpit�
T
 Touch
The GIGA will now perform a self-diagnosis and list any actions
that need to be taken�
T
Carry out the recommended maintenance actions�
Limescale deposits may form in the water tank� To ensure correct
function of the machine, descale the water tank from time to time�
T
Remove the water tank�
T
If you use a CLARIS Smart filter cartridge, remove this
T
 Completely fill the water tank and dissolve 3 JURA descaling tab-
lets in it�
T
Leave the water tank with the descaling solution for several
hours (e�g� overnight)�
T
Empty the water tank and rinse it thoroughly
T
If you use a CLARIS Smart filter cartridge, insert this again�
T
Fill the water tank with fresh, cold water and reinsert the tank�
Coffee beans may be covered with a slight oil film which remains on
the walls of the bean containers� These traces may negatively affect
the coffee result� For this reason clean the bean containers from time
to time
T
Press the On/Off button
Q
to switch the GIGA off
T
Switch the machine off at the power switch�
T

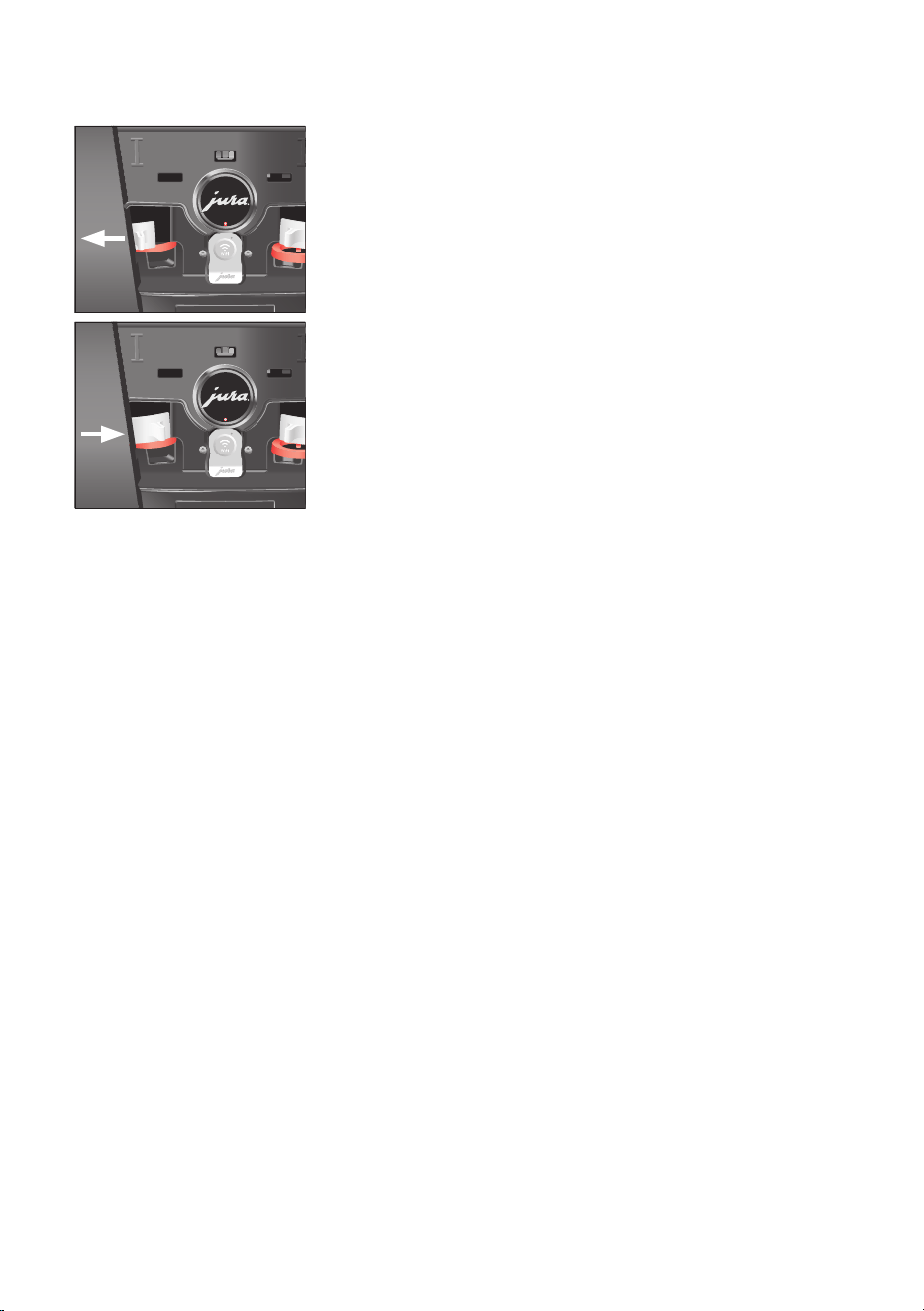

Open the service cover on the back of the machine by pressing
above the JURA logo
T
Push the red sliding catch completely to the rear to close the
bean container
Performing a self-diagnosis
Descaling the water tank
Cleaning the bean container
background
7 Maintenance
29
T
Turn the blue locking device outwards�
T
Remove the bean container
T
Remove the aroma preservation cover
T
Empty the bean container
T
Clean the bean container with a soft, dry cloth�
T
Fit the bean container
T
Turn the blue locking device inwards
T
Pull the red sliding catch completely forwards�
T
Refit the service cover and fix it by pressing above the JURA
logo� It will click into place audibly
T
Fill the bean container with coffee beans and close the aroma
preservation cover
background
8 Display messages
30
8 Display messages
Messages on the start screen
Message Cause/Result Action
‘Fill water tank’ The water tank is empty� You cannot
prepare any products�
T
Fill the water tank (see chapter 5
‘Daily operation – Filling the water
tank’)�
‘Empty coffee
grounds container’ /
‘Empty drip tray’
The coffee grounds container is full� /
The drip tray is full� You cannot
prepare any products�
T
Empty the coffee grounds
container and the drip tray (see
chapter 5 ‘Daily operation – Main-
tenance actions’)�
‘Drip tray not fitted’ The drip tray is not inserted correctly
or is not inserted at all� You cannot
prepare any products�
T
Fit the drip tray�
‘Fill left bean
container’ /
‘Fill right bean
container’
One of the bean containers is empty
You cannot prepare any speciality
coffees for which coffee beans are
required from this bean container
You can prepare hot water or milk�
T
Fill the bean container (see
chapter 3 ‘Preparing and using for
the first time – Filling the bean
container’)�
‘Close front cover’ The coffee grounds container cover is
open� No products can be prepared�
T
Close the cover
‘Service cover is not
fitted’
The service cover on the back of the
machine is not fitted� You cannot
prepare any products�
T
Fit the service cover
‘Spout is not fitted’ The cover of the dual spout has not
been fitted�
T
Correctly fit the cover of the dual
spout�
Messages in the Cockpit
Message Cause/Result Action
The filter symbol $
lights up red�
‘Change the filter’
The filter cartridge no
longer works�
T
Replace the CLARIS Smart filter cartridge (see
chapter 7 ‘Maintenance – Inserting/changing the
filter’)�
‘Clean’ The GIGA is prompting
you to clean it�
T
Perform cleaning (see chapter 7 ‘Maintenance –
Cleaning the machine’)�
‘Descale’ The GIGA is prompting
you to descale it�
T
Perform descaling (see chapter 7 ‘Maintenance –
Descaling the machine ’)�
‘Clean the milk
system’
The GIGA prompts you
to clean the milk system�
T
Perform milk system cleaning (see chapter 7
‘Maintenance – Cleaning the milk system’)�
background
9 Troubleshooting
31
9 Troubleshooting
Problem Cause/Result Action
Insufficient foam is
produced when the milk
is frothed or milk sprays
from the dual spout�
The dual spout is dirty�
T
Make sure the cover of the dual spout is
correctly fitted�
T
Clean the milk system in the dual spout
(see chapter 7 ‘Maintenance – Cleaning
the milk system’)�
T
Dismantle and rinse the dual spout (see
chapter 7 ‘Maintenance – Dismantling
and rinsing the dual spout’)�
The milk and milk foam
temperature is set too
high�
T
Set a lower milk and milk foam
temperature for the product�
With speciality coffees
with a finer grinder
setting, the coffee only
flows in drips�
The coffee has been
ground too finely and is
blocking the system�
T
If possible, set the consistency of grind
for the speciality coffee 1–2 levels coarser
(see chapter 4 ‘Preparation – Adjusting
the product settings’)�
Coffee only comes out
in drips when it is being
prepared
The coffee has been
ground too finely and is
blocking the system�
T
Use more coarsely ground coffee (see
chapter 4 ‘Preparation – Ground coffee’)�
The water hardness may
not have been correctly
set�
T
Perform descaling (see chapter 7
‘Maintenance – Descaling the machine ’)�
There is dry ground
coffee behind the coffee
grounds container
The beans used are
resulting in an above-
average volume of
ground coffee
T
Reduce the coffee strength or choose a
finer grinder setting�
‘Fill water tank’ is not
displayed although the
water tank is empty
The water tank float is
trapped�
T
Descale the water tank (see chapter 7
‘Maintenance – Descaling the water
tank’)�
Grinder is making a very
loud noise�
There are foreign objects
in the grinder
T
Contact customer support in your
country (see chapter 13 ‘JURA contact
details/ Legal information’)�
‘Error2’ or ‘Error5’ is
displayed�
If the machine has been
exposed to the cold for a
long period of time,
heating may be disabled
for safety reasons�
T
Warm the machine at room tempera-
ture�
background
9 Troubleshooting
32
Problem Cause/Result Action
Other ‘Error’ messages
are displayed�
T
Switch the GIGA off with the On/Off
button Q and at the power switch�
Contact customer support in your
country (see chapter 13 ‘JURA contact
details/ Legal information’)�
E If you were unable to solve the problem, contact customer
support in your country (see chapter 13 ‘JURA contact
details/ Legal information’)�
10 Transport and environmentally friendly disposal
Keep the packaging for your GIGA� It should be used to protect the
machine during transport�
In order to protect the GIGA from frost during transport, the system
must be emptied�
Precondition:The start screen is displayed�
T
Remove the milk pipe from the dual spout�
T
Place a receptacle under the dual spout and the hot-water
spout�
T
Touch the time area to open the Cockpit�
T
Touch the ‘Machine setting’ f symbol�
T
 Touch 9 or 0 (on the left-hand screen) until the ‘General’
programme point is displayed�
T
 Touch ‘Empty system’
T
 Touch ‘Next’
‘Remove the water tank’
T
Remove and empty the water tank�
T
 Touch ‘Start’
Steam will continue to be discharged from the dual spout and
the hot-water spout until the system is empty
Your GIGA is switched off
Please dispose of old machines in an environmentally neutral way�
H
Old machines contain valuable, recyclable materials which should
be recycled� Please therefore dispose of old machines via suitable
collection systems�
Transport/ Emptying the
system
Disposal
background
11 Technical data
33
11 Technical data
Voltage 230V~, 50Hz
Power 2300W
Conformity mark
A
Pump pressure static, max� 15bar
Holding capacity of water tank 2�6l
Holding capacity of bean container 2 × 280g
Holding capacity of coffee grounds container max� 20 portions
Cable length approx� 1�2m
Weight 16�7 kg
Dimensions (W×H×D) 32 × 41�5 × 49�6cm
Milk system with connector HP3
Interchangeable milk spout CX3
CLARIS filter cartridge Smart (RFID technology) Frequency band 13�56 MHz
Max� transmission power < 1 mW
JURA WiFi Connect Frequency band 2�4 GHz
Max� transmission power < 100 mW
JURA type 768
Information for testers (repeat test in accordance with DIN VDE
0701-0702): The central grounding point (CGP) is located under the
cover of the storage compartment�
background
12 Index
34
12 Index
A
Addresses 36
Adjusting the product settings 18
Americano 17
Aroma preservation cover
Bean container with aroma preservation
cover 4
Aroma Selection
Extra Shot 15
B
Bean container
Bean container with aroma preservation
cover 4
Cleaning 28
Filling 10
Bus bar
Technical data 33
Button
On/Off button 5
C
Caffè latte 16
Cappuccino 16
Central grounding point 33
Children 7
CLARIS Smart filter cartridge
Changing 25
Inserting 25
Cleaning
Bean container 28
Machine 25
Cockpit 13, 21, 22
Coffee 16
Coffee grounds container 4
Cold Brew 15
Contact details 36
Cover
Filler funnel for ground coffee 5
Service cover 5
Storage compartment 4
Water tank 4
Cup grille 4
Customer support 36
D
Damage
Preventing damage 7
What to do in the event of damage 7
Declaration of Conformity 36
Descaling
Machine 26
Water tank 28
Diagnosis 28
Display
Cockpit 13
Touch display 4
Display messages 30
Disposal 32
Drip tray 4
Insert 4
Dual spout
Dismantling and cleaning 23
Height- and width-adjustable dual
spout 4
E
Emptying the system 32
Errors
Troubleshooting 31
Espresso 16
Espresso doppio 17
EU Declaration of Conformity 36
F
Favourites
Set profile 18
Filler funnel
Filler funnel for ground coffee 5
Filling
Bean container 10
Water tank 19
Filter
Changing 25
Inserting 25
First-time use 11
Flat white 16
G
Ground coffee 17
Measuring spoon for ground coffee 4
Grounding point 33
H
Hotline 36
Hot water 18
Hot-water spout 4
I
Insert for drip tray 4
Instant coffee
Ground coffee 17
Interchangeable milk spout 33
background
12 Index
35
J
JURA
Contact details 36
L
Latte macchiato 16
Locking device 5
Lungo 17
M
Macchiato 16
Machine
Cleaning 25
Descaling 26
Rinsing 22
Setting up 10
Machine settings 21
Mains cable 4
Maintenance 22
Maintenance actions 20
Measuring spoon for ground coffee 4
Messages, display 30
Milk 16
Connecting milk 13
Milk foam 16
Milk system 33
Clean 22
Milk system rinsing 22
P
Pot of coffee 17
Power switch 4
Preparation 14, 16
Americano 17
Caffè latte 16
Cappuccino 16
Coffee 16
Cold Brew 15
Espresso 16
Espresso doppio 17
Flat white 16
Ground coffee 17
Hot water 18
Latte macchiato 16
Lungo 17
Macchiato 16
Milk 16
Milk foam 16
Pot of coffee 17
Speciality Selection 15
Problems
Troubleshooting 31
Product settings
Adjusting 18
Proper use 6
R
RFID 33
Rinsing
Machine 22
S
Safety information 6
Self-diagnosis 28
Service cover 5
Service socket 5
Set profile 18
Setting up
Setting up the machine 10
Sliding catch 5
Spout
Height- and width-adjustable dual spout
4
Hot-water spout 4
Switching off 19
Switching on 19
Symbol description 6
T
Technical data 33
Interchangeable milk spout 33
Milk system 33
Tel 36
Touch display 4
Transport 32
Troubleshooting 31
U
Use, First-time 11
Users 6
V
Ventilation slats 4
W
Water hardness
Determining the water hardness 10
Water tank 4
Descaling 28
Filling 19
WiFi 33
WiFi Connect 5
Wireless connection 25, 33
background
13 JURA contact details/ Legal information
36
13 JURA contact details/ Legal information
JURA Elektroapparate AG
Kaffeeweltstrasse 10
CH-4626 Niederbuchsiten
Tel� +41 (0)62 38 98 233
E You can find additional contact details for your country at
jura.com.
E If you need assistance with using your machine, you can find
this at jura.com/service.
E Your opinion is important to us! Use the contact details at
jura.com.
The machine complies with the following directives:
U
2014/35/EU– Low Voltage Directive
U
2014/30/EU– Electromagnetic Compatibility
U
2009/125/EC– Ecodesign Directive
U
2011/65/EU– RoHS Directive
U
2014/53/EU – Wireless Voltage Directive
A detailed EU Declaration of Conformity for your GIGA can be found
at jura.com/conformity.
We reserve the right to make technical changes� The diagrams used
in these instructions for use are for illustration purposes only and do
not represent the original colours of the machine� Some details of
your GIGA may vary�
Directives
Technical changes
J75111/GIGA 10
(EA/SA/INTA)
/en/202208

Specifications

Jura 15558 Questions and Answers

See other models: 15557 15555C 15518 15519 15392
