INSTRUCTIONS FOR USE
Induction hob
We thank you for your trust and the purchase of our appliance.
This detailed instruction manual is supplied to make the use of this product easier. The
instructions should allow you to learn about your new appliance as quickly as possible.
Make sure you have received an undamaged appliance. If you do find transport damage,
please contact the seller from which you purchased the appliance, or the regional
warehouse from which it was supplied. The telephone number can be found on the
invoice or on the delivery note.
INFORMATION!
Information, advice, tip, or recommendation
WARNING!
Warning – general danger
Contents
4Safety precautions ..................................................................................................................
7Other important safety warnings ...........................................................................................
7Before connecting the appliance ..............................................................................................
8Appliance description .............................................................................................................
8Technical data ...........................................................................................................................
8Before first use ..........................................................................................................................
9Hob ...........................................................................................................................................
12Operating the cooking hob ....................................................................................................
12Control unit ...............................................................................................................................
13Switching on the hob ................................................................................................................
13Switching on the cooking zones ...............................................................................................
13Changing the cooking zone settings ........................................................................................
13Automatic rapid heating ............................................................................................................
14Bridged cooking zone ...............................................................................................................
15Pan position recognition with automatic bridging of cooking zones ........................................
16Power Boost .............................................................................................................................
16Overheat protection ..................................................................................................................
17Child lock / lock ........................................................................................................................
17Defrosting/reheating .................................................................................................................
18Time functions ..........................................................................................................................
19Pausing the cooking process – Stop&Go (pause) ....................................................................
19Memory function .......................................................................................................................
19Automatic switch off .................................................................................................................
20Switching off the cooking zone .................................................................................................
20Residual heat indicator .............................................................................................................
20Maximum cooking time ............................................................................................................
20Switching off the entire cooking hob ........................................................................................
21User settings ...........................................................................................................................
23Cleaning and maintenance ....................................................................................................
24Troubleshooting table ............................................................................................................
25Noises during induction cooking ..............................................................................................
26Installing a built-in hob ...........................................................................................................
26Installation procedure ...............................................................................................................
26Air vents in the lower kitchen cabinet .......................................................................................
27Flush-mount installation into the worktop ................................................................................
30Fitting the foam gasket .............................................................................................................
31Connecting the cooking hob to the power mains ...............................................................
31Connection diagram .................................................................................................................
35Disposal ...................................................................................................................................
3
Safety precautions
IMPORTANT SAFETY PRECAUTIONS – CAREFULLY READ
THE INSTRUCTIONS AND SAVE THEM FOR FUTURE
REFERENCE.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
WARNING: The appliance and its accessible parts become hot
during use. Care should be taken to avoid touching heating
elements.
Children less than 8 years of age shall be kept away unless
continuously supervised.
Do not use steam cleaners or high-pressure cleaners to clean
the appliance, as this may result in an electric shock.
The appliance is not intended to be controlled by external timers
or separate remote controll system.
Means for disconnection must be incorporated in the fixed
wiring in accordance with the wiring rules.
4
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or. similarly qualified persons
in order to avoid a hazard (only for appliances supplied with
connection cord).
WARNING: If the surface is cracked, switch off the appliance
to avoid the possibility of electric shock. Switch off all cooking
zones using their respective controls and remove the fuse or
trip the main circuit breaker so that the appliance is fully isolated
from the power mains.
WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in fire. NEVER try to extinguish a fire
with water, but switch off the appliance and then cover flame
e.g. with a lid or a fire proof blanket.
WARNING: Danger of fire: do not store items on the cooking
surfaces.
CAUTION: The cooking process has to be supervised. A short
term cooking process has to be supervised continuously.
CAUTION: This appliance is for cooking purposes only. It must
not be used for other purposes, for example room heating.
WARNING: Use only hob guards designed by the manufacturer
of the cooking appliance or indicated by the manufacturer of
the appliance in the instructions for use as suitable or hob
guards incorporated in the appliance. The use of inappropriate
guards can cause accidents.
Metalic objects such as knives, forks, spoons and lids should
not be placed on the hob surface since they can get hot.
5
After use, switch off the hob element by its control and do not
rely on the pan detector.
Appliance must be connected to fixed wiring which has
incorporated means of disconnection. Fixed wiring must be
made in accordance with the wiring rules.
6
Other important safety warnings
The appliance is intended for household use. Do not use it for any other purpose, such as room heating,
drying of pets or other animals, paper, fabrics, herbs etc. As this may lead to injury or fire hazard.
Appliance must be connected to fixed wiring which has incorporated means of disconnection. Fixed
wiring must be made in accordance with the wiring rules.
If another electrical appliance is connected to an AC power socket near the appliance, make sure the
power cord does not come in to contact with hot cooking zones.
If the power cord is damaged, it should be replaced by the manufacturer or an authorised service
technician, in order to avoid hazard.
Using the glass ceramic hob as a storage area may result in scratches or other damage to it. Never
heat food in aluminium foil or in plastic containers on the cooking hob. Such foil or containers may
melt which can result in a fire or damage to the cooking hob.
Do not store temperature-sensitive items underneath the appliance, such as cleaners or detergents,
spray cans etc.
Eventual mismatches in colour shades between different appliances or components within a single
design line may occur due to various factors, such as different angles under which the appliances are
observed, different coloured backgrounds, materials, and room illumination.
Before connecting the appliance
WARNING!
Carefully read the instructions for use before connecting the appliance. Repair or any
warranty claim resulting from incorrect connection or use of the appliance shall not be
covered by the warranty.
7
Appliance description
INFORMATION!
Appliance functions and equipment depend on the model.

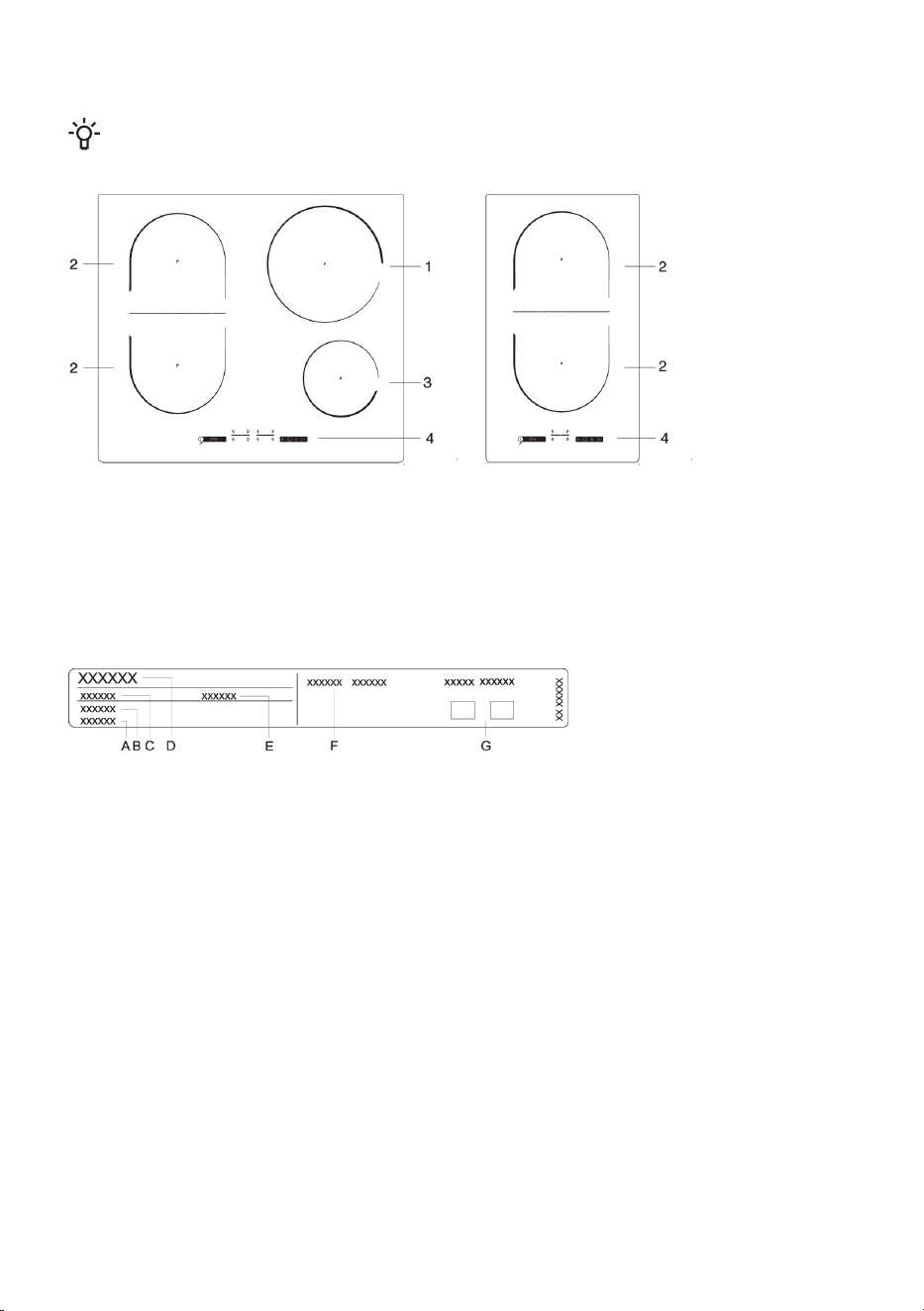

1. Induction cooking zone ø 210 mm
2. Induction cooking zone ø 180 mm
3. Induction cooking zone ø 145 mm
4. Cooking hob control module
Technical data
(depending on the model)
A. Serial number
B. Code
C. Type
D. Trademark
E. Model
F. Technical data
G. Compliance indications / symbols
The rating plate with basic information on the appliance is located on the bottom side of the
cooking hob. Information on appliance type and model can be found on the warranty sheet.
Before first use
If your hob has a glass ceramic surface, clean it with a damp cloth and some washing-up liquid. Do
not use aggressive cleaners, such as abrasive cleaners that could cause scratches, abrasive
dishwashing sponges, or stain removers.
During initial use, characteristic "new appliance smell" may appear; it will gradually disappear.
8
Hob
Glass ceramic cooking surface
• The hob is resistant to temperature changes.
• Do not use the glass ceramic hob if it is cracked or broken. If a sharp object falls on the hob, the
hob may break. The consequences of such occurrence may be visible immediately or only after
a while.
• If any visible crack appears in the hob, immediately cut off the power supply to the appliance.
• Make sure the cooking zone and the cookware bottom is clean and dry. This will allow better
conduction of heat and prevent any damage to the heating surface.
• Do not place empty cookware on the cooking zone. The cooking zone may be damaged if you
place an empty pan onto it. Before placing a pan onto the cooking zone, wipe the pan bottom dry
to allow conduction of heat.
Cooking power levels
Cooking zone heating power can be set to 10 different levels (depending on the model). The table
lists some examples of use for each level.
PurposeCooking power
level
switched off , using the residual heat0
keeping the food warm, slow cooking of smaller amounts (lowest setting)1 - 2
slow cooking (follow-up cooking after the initial power boost)3
slow cooking (follow-up cooking) of large amounts, pan-roasting of larger chunks4 - 5
searing and browning6
searing7 - 8
cooking of large amounts, searing9
Power Boost setting for start of the cooking process; also suitable for very large
amounts of food
P
Energy saving tips
• When purchasing cookware, note that the diameter indicated on the pan usually pertains to the
upper edge or the lid, which is normally larger than the diameter of the pan bottom.
• If a dish takes a long time to cook, use a pressure cooker. Make sure there is always sufficient
liquid in the pressure cooker. If an empty cooker is placed on the cooking hob, it may overheat
which in turn may lead to damage to both the pot and the cooking zone.
• Whenever possible, close the pot or pan with a suitably sized lid. Use cookware that fits the amount
of food you are cooking. Cooking in a large partly full pot will consume much more energy.
Induction cooking zone operating principle
• The cooking hob is fitted with highly efficient induction cooking zones.
The heat is generated directly in the bottom of the pan where it is
needed the most. This avoids any losses through the glass ceramic
surface. Power consumption is considerably lower than in
conventional cooking zones with radiation heaters.
• The glass ceramic cooking zone is not heated directly, but only
indirectly with the heat radiated back by the pan. After the cooking
zone is switched off, this residual heat is indicated by "H".
9
• In induction cooking zones, heating is made possible by the induction
coil installed under the glass ceramic surface. The coil induces a
magnetic field which generates eddy currents in the bottom of a
ferromagnetic pan, which in turn heats the pan.
WARNING!
If sugar or food with high sugar content is spilled over a hot class ceramic hob, immediately wipe
the hob or remove the sugar with a scraper, even if the cooking zone is still hot. This will prevent
any damage to the class ceramic surface.
Do not use detergents and other cleaners to clean a hot glass ceramic hob as this could damage
the surface.
Pan recognition
• Even if there is no pot or pan on the cooking zone or if the pan used
has a diameter that is smaller than the diameter of the cooking zone,
there will be no losses of energy.
• If the pan is much smaller than the cooking zone, there is a possibility
that it will not be recognized by the cooking zone. When the cooking
zone is activated, the sign and the selected power level will flash
alternately on the cooking power display.
• If a smaller pan or pot is placed on the cooking zone and it is
recognized, the hob will only use as much power as necessary given
the pan size.

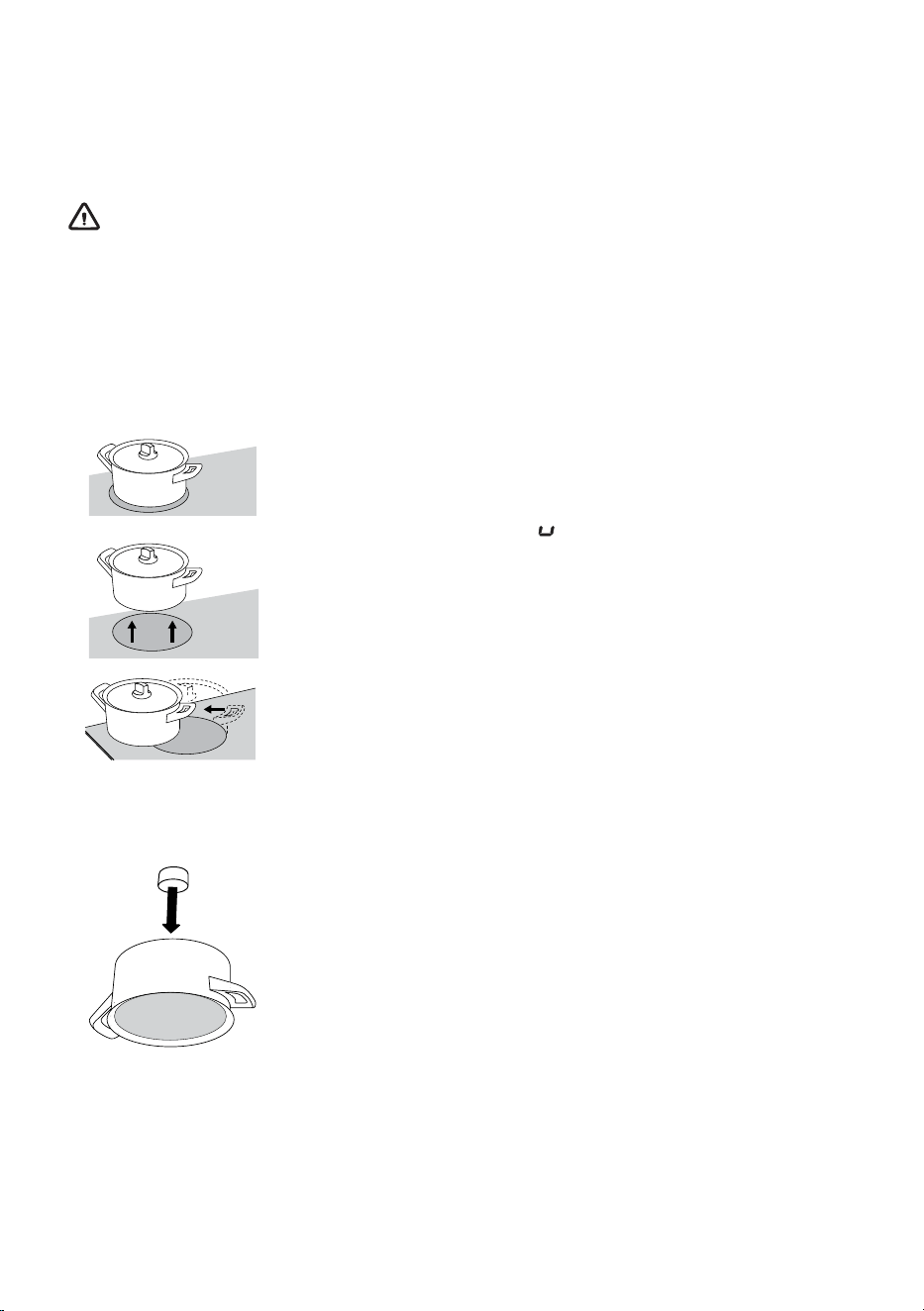

Induction cookware
• The induction will work correctly if you use suitable cookware.
• Make sure the pot or pan is in the middle of the cooking zone
• Suitable cookware: cookware made of steel, enamel-coated steel
pans, or cast iron pans.
• Unsuitable cookware: alloy steel cookware with copper or aluminium
bottom, and glass cookware.
• The magnet test: Use a small magnet to check whether the pan or
pot bottom is ferromagnetic. If the magnet sticks to the bottom of
the pan, then it is suitable for an induction cooker.
• When using a pressure cooker, keep an eye on it until the right pressure is reached. First, set the
cooking zone to maximum power; then, following the pressure cooker manufacturer's instructions,
decrease the cooking power when appropriate.
10
• Make sure there is enough liquid in the pressure cooker, or any other pot or pan. Due to overheating,
using an empty pot on the cooking zone may result in damage to both the pot and the cooking
zone.
• Some cookware does not have a fully ferromagnetic bottom. In such case, only the magnetic part
will heat up, while the rest of the bottom will remain cool.
• When using special cookware, observe the manufacturer's instructions.
• For best cooking results, the ferromagnetic area on the cookware bottom should match the size
of the cooking zone. If the cooking zone does not recognize the pan, try placing it on a different
cooking zone with a smaller diameter.
Minimum pan bottom diameterCooking zone
Ø 90 mmØ 145 mm
Ø 145 mmØ 180 mm
Ø 130 mmØ 210 mm
Pan bottom has to be flat.
11
Operating the cooking hob
Control unit
(depending on the model)
A Hob on/off key
A1 On/off/child lock indicator light
B Lock/child lock
C Defrosting/reheating key
C1 Defrosting indicator light
C2 Reheating indicator light
C3 Pan position recognition with automatic bridging of cooking zones
D Cooking zone controls
E Timer functions
F Stop/go/memory function
F1 Stop/go and memory function indicator light
H Power decrease key
I Power increase key
J Power level displays
J1 Decimal point indicating half-step power level for the cooking zone
K Program timer on/off
L Program timer setting key (–)
L1 Indicator light for active program timer on respective cooking zones
M Program timer setting key (+)
N Time display
Display units also work as keys for adjusting the settings.
12
Switching on the hob
• Place the cookware onto the cooking hob.
• Touch the on/off key (A) to switch on the hob.
• "0" will appear on all cooking zone displays.
• A short beep will be emitted.
INFORMATION!
If no cooking zone is switched on in 10 seconds, the cooking hob will power off.
Switching on the cooking zones
• Touch the display unit for the desired cooking zone. The selected
display unit will flash.
• Use the (H) and (I) key to set the operating power of the selected
cooking zone.
• The cooking zone remains activated.
•
If the hob does not recognize any pan on the selected cooking zone, the symbol .appears. If
you do not place a pan on the selected cooking zone within 2 minutes, the cooking zone will
automatically switch off.
INFORMATION!
Display units also work as keys for adjusting the settings.
Changing the cooking zone settings
Power level for the selected cooking zone can he adjusted using the (H) or (I) key.
To increase or decrease the power level faster, touch and hold the (H) or (I) key.
Automatic rapid heating
All cooking zones are fitted with a special mechanism that sets the cooking power to maximum at the
start of the cooking process, regardless of the actual power setting. After a while, the cooking zone
power switches back to the initially set level. Automatic rapid heating can be activated on every cooking
zone for any cooking power level except for level "9" and "P".
The auto rapid heating function is suitable for dishes that have to be heated up and then cooked
for a longer period of time without the need for constant supervision.
The auto rapid heating function is suitable for dishes that have to be heated up and then cooked
for a longer period of time without the need for constant supervision.
13
• The hob is switched on and a suitable pan is placed on one of the
cooking zones.
• Select the desired cooking zone that should be switched off ("0"
appears on the display unit).
• Press the relevant (H) or (I) key and hold it for approximately 3
seconds until you hear a short beep. and will flash alternately
on the display.
•
and selected power level will alternate on the power level display. When the automatic rapid
heating time expires, the cooking zone automatically switches to the selected level which will then
be continuously displayed.
Automatic rapid heating table
87654321Power level
1951204302601801207040Automatic rapid heating time (sec)
Switching off the automatic rapid heating
If cooking power is decreased while the automatic rapid heating is activated, the automatic rapid
heating will be switched off for this cooking zone.
The auto function can be deactivated by selecting the relevant cooking zone and decreasing the power
level to "0". Then, set the new power level.
Bridged cooking zone
(depending on the model)
• Some models allow combining two cooking zones on the left-hand side into a single large
connected cooking zone. Thus, a large oval pan or a griddle can be placed on the combined
cooking field. The pan has to be large enough to cover the centres of the upper and lower cooking
zone.
• Maximum pan size: 40 x 25 cm. For even heat distribution, we recommend using a heavy-bottom
baking dish or pan. During cooking, the dish or pan will heat up. Be careful to prevent burns.
• When placing the baking dish on the hob, make sure it does not cover the control module.
INFORMATION!
The pan should always cover the centre of the cooking zone!
Activating the bridged cooking zone
• Switch on the cooking hob by pressing the on/off sensor (A).
• Simultaneously touch the two sensors and hold them for 3 seconds
(H). The sign will appear on the display unit for the rear field to
indicate that the two cooking zones are bridged.
• Set the desired cooking power for the bridged cooking zone.
• To change the bridged zone's cooking power later on, use the (H) or (I) key for the lower cooking
zone.
14
INFORMATION!
The bridged cooking zone does not allow operation with a power boost; only power levels up to
9 are available.
Deactivating the bridged cooking zone
•
Set the power level of the combined cooking zone to "0". The sign will disappear and heating
will be switched off.
• Both cooking zones will operate independently.
Pan position recognition with automatic bridging of cooking
zones
(only with some models)
Pan position recognition is activated automatically 10 seconds after the appliance is switched on. If
there is a pan on the hob, the pan recognition function will recognize its position and automatically
bridge the cooking zones depending on the size of the pan. Two adjacent cooking zones can be
merged into a single large cooking zone.
The sign will appear on the display unit for the rear field to indicate
that the two cooking zones are bridged.
• Set the desired cooking power for the bridged cooking zone.
• To change the bridged zone's cooking power later on, use the (H)
or (I) key for the lower cooking zone.
INFORMATION!
The bridged zone does not allow the power boost setting P. Maximum available power level is
9.
Automatic pan position recognition can be activated at any time for 10 seconds by pressing the pan
recognition key (C3). Automatic pan recognition and automatic cooking zone bridging are only effective
on the cooking zones that are not yet activated. Bridging of cooking zones can be deactivated by
setting the power level to "0".
If there is no cookware on the cooking zone:
• Switch on the hob. All cooking zones are set to "0".
• Place the pan on any cooking zone. "0" starts to flash on the cooking zone with the pan. Cooking
zone power can be adjusted by pressing the (H) or (I) keys for the respective cooking zone. The
function automatically bridges the cooking zones on the left-hand side of the cooking hob,
depending on the pan size.
• You may continue with the next pan, using the same procedure.
If the cookware is already on the cooking hob:
• Switch on the cooking hob.
• "'0" will flash on the display unit of the cooking zone with the cookware on it. Cooking zone power
can be adjusted by pressing the (H) or (I) keys for the respective cooking zone.
• If there are several pans on the cooking zone, the hob will automatically detect all pans and "0"
will flash on display units of all zones on which a pan has been placed.
15
Cooking zone power can be adjusted by pressing the (H) or (I) keys for the respective cooking zone;
then continue with the next cooking zone.
During the first 10 seconds, automatic pan recognition can also be deactivated in user settings using
the "Au" parameter. See chapter User Settings.
The function can be used if the pan is already on the cooking hob or if the cooking hob is empty.
Power Boost
(depending on the model)
For rapid cooking, power boost can be activated on the cooking zones. This will allow you to rapidly
heat large amounts of food using extra power. The power boost is active for no more than 10 minutes;
then, the power level is automatically decreased to 9. If the cooking hob is not too hot, the power
boost can be reactivated for 10 minutes after it is switched off. To avoid overheating, the electronic
control function may automatically switch off the Power Boost earlier and decrease the power level
to 9.
Activating the Power Boost
The hob is switched on and a suitable pan is placed on one of the cooking
zones.
• Select the cooking zone.
• Set the power level to 9, then press the (I) key.
• Symbol "P" will appear on the display. The function is activated.
Deactivating the Power Boost
• Press the (H) key. Power boost will be deactivated and operating power will return to level 9.
• Power can be decreased to desired level by pressing the (H) key.
Overheat protection
• The hob is fitted with a cooling fan which cools the electronic components during cooking. The
fan may operate for a while even after the end of the cooking process.
• Induction cooking hob is also fitted with an overheating protector which protects the electronic
components from damage. The protector operates at several levels. When the cooking zone
temperature gets very high, the cooking power is automatically reduced. If this does not suffice,
the cooking zone power continues to decrease, or the safety mechanisms switches off the cooking
zone completely. In such case, the display unit will read “”F2””. When the cooking hob is cooled
down, its total power will be available again.
16
Child lock / lock
The cooking hob can be locked against unintended activation.
INFORMATION!
The cooking hob has to be switched off or in the standby mode.
Locking the cooking hob controls
Touch the on/off key and hold it for 3 seconds. "L" will appear on the
cooking zone power displays. The cooking hob is now locked. After 5
seconds, the cooking hob will automatically switch off to standby mode.
Unlocking the cooking hob controls
To unlock the cooking hob, proceed in the same way as for locking it. The hob must be switched off.
Touch the on/off key and hold it for 3 seconds. "L" on the cooking zone power indicators will turn to
"0". The cooking hob is now unlocked and ready for use.
INFORMATION!
Note: If the child lock/lock function (B) is activated in the user settings mode (see chapter User
Settings Mode, Parameter "Loc"), then the hob will be automatically locked every time it is
switched off.
INFORMATION!
Activate the lock function before cleaning to prevent the hob from being inadvertently switched
on.
Defrosting/reheating
Press the (C) key to activate the defrosting/reheating function. In case of defrosting, food temperature
is maintained at around 42 °C; in case of reheating, it is maintained at around 70 °C. Actual temperature
may depend on the type of cookware and amount of food.
Activating the defrosting function
Press the (A) key to switch on the cooking hob. Place the suitable pan
on the selected cooking zone. Touch the (C) key once; the indicator light
(C1) will light up. Touch the (H) or (I) key for the selected cooking zone.
The symbol "u" will appear on the display.
17
Activating the reheating function
Press the (A) key to switch on the cooking hob. Place the suitable pan
on the selected cooking zone. Touch the (C) key twice; the indicator light
(C2) will light up. Touch the (H) or (I) key for the selected cooking zone.
The symbol "U" will appear on the display.
Deactivating the defrosting/reheating function
• Touch the (H) or (I) key for the selected cooking zone.
• The cooking zone will switch off and "0" will appear on the display unit.
Time functions
This function allows two operating modes:
1. Setting the minute minder (countdown timer) function applies to
the entire cooking hob. With this function, the hob only beeps when
the set time expires.
2. Program timer setting applies to the selected cooking zone. A
separate timer can be set for each cooking zone. When the set time
expires, the cooking zone is automatically switched off.
1 Countdown timer
The minute minder operates independently and it is not related to the operation of any cooking zone.
When the countdown timer is set, it will continue to count down the time even if you switch off the
cooking hob. The minute minder can only be switched off when the cooking hob is on.
• Touch the (K) key to activate the timer. "00" will appear on the timer display (O). Touch the (L) and
(M) keys to set the time in the range from 1 to 99 minutes.
• After the set time expires, alarm will be activated; however, the cooking zone will not be switched
off.
• Switch off the alarm by touching any key; alternatively, it will switch off automatically after a certain
period of time.
• The minute minder function will remain activated even when the cooking hob is switched off using
the (A) key.
• During the last minute of countdown, remaining time will be displayed in seconds.
2 Program timer
The program timer makes the cooking process easier by allowing you to see and set the cooking time
for the selected cooking zone. When the time set on the timer expires, the cooking zone will
automatically switch off and emit an acoustic signal. Switch of the acoustic signal by touching any
key; alternatively, it will switch off automatically after a while. The switch-off program timer can be set
independently for all cooking zones. The program timer may only be set for an active cooking zone.
• Touch the (K) key to activate the timer. "00" will appear on the timer display (O). Touch the (K)
sensor key again. The point (L1) for the relevant cooking zone will start to flash.
• Touch the (L) and (M) keys to set the time in the range from 1 to 99 minutes.
18
• When the desired value is set, the countdown begins. The point (L1) indicating which cooking
zone the timer function is set for will continue to flash.
• After the set time has expired, acoustic signal will be activated and the cooking zone will be
switched off. "00" will flash on the clock display.
• Switch off the alarm by touching any key; alternatively, it will switch off automatically after a certain
period of time.
Changing the set cooking time
Remaining cooking time can be changed at any time during cooking. Touch the power-off timer key
(K) to select the timer display for the desired cooking zone. The relevant indicator light (L1) will flash.
Touch the (L) or (M) key to set a new desired cooking time.
Displaying the remaining cooking time
If several timer settings are activated, remaining cooking time can be displayed by touching the (K)
key.
Timer reset
Select the desired timer display by pressing the (K) key (see section Changing the set cooking time).
The set timer will be displayed and the indicator light for the relevant cooking zone will light up. Touch
the (M) key to set the value to "00", or press the (L) and (M) keys simultaneously to immediately reset
the value to "00".
Pausing the cooking process – Stop&Go (pause)
The Stop&Go function can be used to pause the operation of the entire cooking hob for up to 10
minutes. All cooking zones will temporarily switch off automatically. This is convenient when, for
example, the contents of one of the pans has boiled over and you wish to clean the cooking hob.
Activating the Stop&Go function
At least one cooking zone must be active. Touch the Stop&Go function key (F). A short beep will be
emitted. All settings on display units start to flash; the pause key will be lit and it will also flash. All
program timer or minute minder settings are paused. All keys are inactive, except for the pause
(stop/go) key and the on/off key. If you do not press any key within 10 minutes, all active cooking
zones will switch off automatically.
Deactivating the Stop&Go function
Press the pause key again within 10 minutes. The cooking hob continues to operate with the same
settings as before the pause.
Memory function
This function allows you to retrieve all cooking zone settings if the cooking hob was accidentally
switched off. However, this can only be done within five seconds after the hob has been switched off.
Use the on/off key to switch the cooking hob back on within 5 seconds after it has been switched off.
The key (F) will flash on the display unit for 5 seconds. Within that time, touch this key and all settings
that were active just before the hob was switched off will be restored.
Automatic switch off
If the keys are activated for too long during cooking (e.g. due to spilt liquid or an object placed over
the sensor keys), all cooking zones will be switched off after 10 seconds. The symbol will flash on
the display. The object should be removed, or the spilt liquid should be cleaned, from the sensor keys
within 2 minutes; otherwise, the cooking hob will switch off automatically. The most recent settings
can be restored with the memory function using the Stop&Go key
19
Switching off the cooking zone
To switch off a cooking zone, use the relevant (H) key to set the value to "0". To quickly switch off the
cooking zone, touch the relevant (H) and (I) keys simultaneously. You will hear a short beep, and "0"
will be displayed on the display unit.
INFORMATION!
If the power of all cooking zones is set to "0", the cooking zone will switch off automatically after
10 seconds.
Residual heat indicator
The glass ceramic hob is also fitted with a residual heat display, "H". The glass ceramic cooking zone
is not heated directly, but only indirectly by the heat radiated back by the pan. As long as the symbol
"H" is lit up after the hob has been switched off, there is residual heat in the cooking zone, which can
be used to keep the food warm or for defrosting. When the "H" sign disappears, the cooking zone
may still be hot. Be careful as there is danger of burns!
Maximum cooking time
For safety, the cooking time for each cooking zone is restricted to a maximum duration.
Maximum cooking time depends on the most recently set power level. If the power level is not changed,
the cooking zone will be switched off automatically after the maximum cooking duration is reached.
P*987654321uUCooking power level
1,51,51,5244668882Maximum operating
time (hours)
* After 10 minutes, the power level automatically decreases to 9; after 1.5 hours, the cooking zone is
switched off.
Switching off the entire cooking hob
The cooking hob can be switched off at any time by touching the on/off key.
20
User settings
Setting the acoustic signal, automatic features, and lock parameters
You can adjust the volume of the acoustic signal, duration of acoustic alarm, total maximum appliance
power, and automatic lock settings. To activate the parameter settings menu, press the pause key
(F) when the appliance is switched off, and hold it for 3 seconds.
The first parameter "Uo" will appear on the timer display, indicating the volume (loudness) of acoustic
signals. Use the timer key (K) to select the type of parameter. Press the timer setting keys (L) and (M)
to adjust the setting.
Uo: Acoustic signal and alarm volume (loudness)
So: Acoustic alarm duration
Lo: Automatic lock
Au: Automatic pan recognition
Po: Total maximum power
The currently set parameter value will appear on the right-hand side
cooking zone power level displays. The value can be adjusted by pressing
the (H) or (I) keys for the cooking zone. All parameters can be confirmed
and stored by pressing the pause key (F) and holding it for 2 seconds.
Then, a short beep will be sounded. If you do not wish to store the new
parameter settings, close the user settings mode by pressing the on/off
key.
Acoustic signal and alarm volume (loudness) "Uo"
The following values can be set:
00 on the display = off (does not apply to alarm and error acoustic signal)
01 on the display = minimum volume
02 on the display = medium volume
03 on the display = maximum volume (default)
A short acoustic signal will be sounded upon every change, with the newly set volume.
Acoustic alarm duration "So"
The following values can be set:
05 on the display = 5 seconds
1.0 on the display = 1 minute
2.0 on the display = 2 minutes (default)
Child safety lock "Lo"
If the automatic lock function is activated in the user settings mode, the cooking hob will be
automatically locked every time it is switched off.
00 on the display = off (default)
01 on the display = on
21
Pan position recognition with automatic cooking zone bridging "Au"
If the function of pan position recognition with automatic cooking zone bridging is deactivated in the
user settings mode, then the appliance will always be operated manually (there will be no 10-second
automatic pan recognition every time the appliance is switched on).
0 on the display = off
1 on the display = on (default)
Total maximum power "Po"
If the electric installation in your home has different current limits, maximum power consumption of
the cooking hob can be reduced:
6.0 on the display = 6.0 kW = 2 × 16 A
7.2 on the display = 7.2 kW = 2 × 16 A (default)
INFORMATION!
If the power level is limited, the settings and the resulting cooking power can be limited as well.
The appliance is fitted with a power management system that makes sure the effect of power
limiting is minimal.
22
Cleaning and maintenance
After each use, wait for the glass ceramic surface to cool down and clean it. Otherwise, all remaining
impurities will burn onto the hot surface the next time you use the hob.
For regular maintenance of the glass ceramic hob, use special care products that create a protective
film on the surface to prevent the dirt from sticking onto it.
Before each use of the glass ceramic surface, wipe off the dust or any other impurities that could
scratch the surface, from both the hob and the pan bottom.
INFORMATION!
Steel wool, coarse cleaning sponges, and abrasive powders may scratch the surface. The surface
may also be damaged by aggressive spray cleaners and unsuitable liquid cleaners.
Signage may be worn when using aggressive or abrasive cleaners or cookware with coarse or damaged
bottom.
Use a damp soft cloth to remove minor impurities. Then, wipe the surface dry.
Remove water stains with a mild solution of vinegar. However, do not use this solution to wipe the
frame (only with some models) as it may lose its sheen. Do not use aggressive spray cleaners or
descaling agents.
Use special glass ceramic cleaners for stubborn dirt. Observe the manufacturer's instructions. Be
sure to thoroughly remove any cleaner residues after the cleaning process as they may damage the
glass ceramic surface when the cooking zones heat up.
Remove stubborn and burnt residues with a scraper. Be careful when handling the scraper to prevent
injury.
INFORMATION!
The scraper is not included in appliance equipment.
INFORMATION!
Only use the scraper when dirt cannot be removed with a wet cloth
or special cleaners for glass ceramic surfaces.
Hold the scraper at the correct angle (45° to 60°). Gently press the
scraper against the glass and slide it over the signage to remove
the dirt. Make sure the plastic handle of the scraper (in some
models) does not come into contact with a hot cooking zone.
INFORMATION!
Do not press the scraper perpendicularly against the glass and do not scratch the hob
surface with its tip or blade.
Immediately remove any sugar or sugar-laden food from the glass ceramic hob using a scraper, even
if the hob is still hot, as sugar may permanently damage the glass ceramic surface.
23
Troubleshooting table
During the warranty period, only a service center authorized by the manufacturer may carry out
any repairs.
Before making any repairs, make sure the appliance is disconnected from the power mains either by
removing the fuse or by disconnecting the power plug from the wall outlet.
Any unauthorized repairs of the appliance may result in electric shock and short circuit hazard; therefore,
do not perform them. Leave such work to an expert or a service technician.
In case of minor problems with appliance operation, check this manual to see if you can fix the problem
yourself.
If the appliance is not operating properly or at all due to inappropriate operation or handling, a visit
from a service technician shall not be free of charge, even during the warranty period.
Save the instructions for future reference and pass them on to any subsequent owners or users of the
appliance.
Following is some advice on rectifying some common problems.
CauseProblem/error
Call a service technician.The main fuse in your home trips
often.
Water spilt over the sensor surface, or an object placed
over the sensors.
Continuous beep and display
Wipe the sensor surface.
Cooking zone has overheated. Wait for the cooking zone
to cool down.
F2 on the display
This indicates that there has been an error during
operation.
F on the display
If the problems persist despite observing the above advice, call an authorized service technician.
Repair or any warranty claim resulting from incorrect connection or use of the appliance shall not be
covered by the warranty. In this case, the user will cover the cost of repair.
WARNING!
Before the repair, disconnect the appliance from the power mains (by removing the fuse or by
removing the plug from the wall outlet).
24
Noises during induction cooking
SolutionCauseNoises and sounds
This is normal and it is not a
result of any malfunction.
Induction technology is based on the
properties of some metals under
electromagnetic effect. It results in so-called
eddy currents that force the molecules to
oscillate. These oscillations (vibrations) are
transformed into heat. Depending on the
type of metal, this could result in quiet
noises.
Inductiongenerated
operating noise
This noise will disappear or
weaken when you reduce
the power level.
Occurs when cooking at a high power level.
The reason for this is the amount of energy
transferred from the cooking hob to the pot
or pan.
Transformer-like buzz
It results from vibrations
along the adjacent surfaces
of different material layers.
This noise depends on the
cookware. It can vary
depending on the amount
and type of food being
cooked.
This noise appears in cookware (pots or
pans) made of different materials.
Vibration and
crackling of the
cookware
The fan may operate even
after the cooking hob has
been switched off, if the
temperature remains too
high.
Correct operation of induction electronic
components requires temperature control.
Therefore, the cooking hob is fitted with a
fan that cools the electronics depending on
the sensed temperature.
Fan noise
25
Installing a built-in hob
Installation procedure
• The worktop has to be completely level.
• Suitably protect the edges of the cut aperture.
• Connect the cooking hob to the mains power supply (see instructions for the connection of the
cooking hob to mains power supply).
• Insert the hob into the cut aperture.
• Installation of the appliance into a kitchen
worktop and its connection to the power
mains may only be performed by an
adequately qualifi ed technician.
• Veneer or other fi nish of the piece of
kitchen furniture into which the hob is to be
built in should be treated with heat resistant
glue (100°C); otherwise, the worktop fi nish
may be discolored or deformed.
• Use of solid wood corner trims on worktops
behind the cooking hob is only allowed if
the clearance between the trim and the
cooking hob is no smaller than indicated
on the installation plans.
• Cooking hob is dimensioned to be built into
the worktop over a piece of kitchen
furniture, with a width of 600 mm or more.
• Hanging, or wall-mounted kitchen elements should be installed high enough not to interfere with
the work process.
• The distance between the cooking hob and the kitchen hood should be no less than indicated in
the instructions for kitchen hood installation. The minimum distance is 500 mm.
• The distance between the appliance edge and the adjacent tall kitchen furniture element should
amount to no less than 40 mm.
• Use of solid wood corner trims on worktops behind the cooking hob is only allowed if the clearance
between the trim and the cooking hob is no smaller than indicated on the installation plans.
• Minimum distance between the built-in cooking hob and the rear wall is indicated on the installation
drawing.

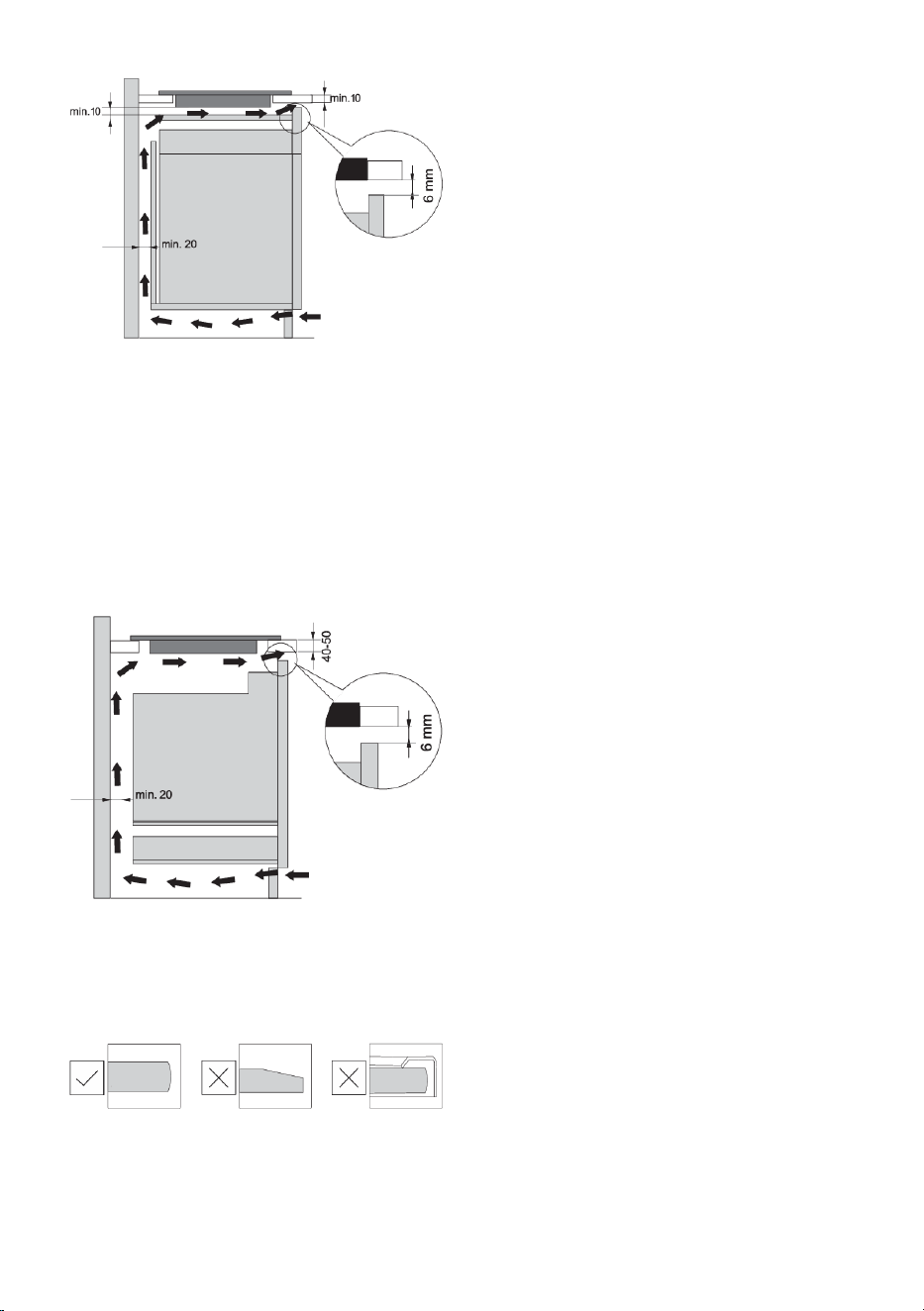

Air vents in the lower kitchen cabinet
INFORMATION!
Normal operation of the induction cooking hob electronic components requires sufficient air
circulation.
26
Lower cabinet with a drawer
• There must be an opening with a height of
no less than 140 mm along the entire width
of the cabinet in the cabinet rear wall. In
addition, there should be an opening of at
least 6 mm in the front side, along the entire
width of the cupboard.
• A horizontal partition panel should be
installed underneath the cooking hob along
its entire length. There should be at least
10 mm of clearance between the lower end
of the appliance and the partition panel.
Adequate ventilation should be allowed
from the rear side.
• The hob is fitted with a fan located in its lower part. If there is a drawer below the kitchen cabinet,
do not use it to store small objects or paper as these could, if sucked into the fan, damage the
fan and the cooling system. Moreover, do not use the drawer to store aluminium foil or flammable
substances or liquids (such as sprays). Keep such substances away from the cooking hob. Danger
of explosion!
• There should be at least 20 mm of clearance between the contents of the drawer and the fan inlet
vents.
Lower cabinet with an oven
• Installing an oven under the induction hob
is possible for oven types with a cooling
fan.
• Before installing the oven, the kitchen
cabinet rear wall has to be removed in the
area of the opening for installation.
• In addition, there should be an opening of
at least 6 mm on the front side, along the
entire width of the cabinet.
• If other appliances are installed under the
induction cooking hob we cannot guarantee
their correct operation.
Flush-mount installation into the worktop
Appliances without faceted edges or decorative frames, are suitable for flush mounting.
27
Installing the appliance
The appliance may only be installed into a temperature- and water-resistant countertop, such as a
countertop made of (natural) stone (marble, granite), or solid wood (the edges along the cut-out have
to be sealed). When installing into a countertop made of ceramics, wood, or glass, a wooden sub-frame
should be used. The frame is not supplied with the appliance. The appliance may only be installed
into a countertop made of other materials after you have consulted the countertop manufacturer and
obtained his express approval. Internal dimension of the basic unit should be at least equal to the
internal cutout for the appliance. This will allow simple removal of the appliance from the countertop.
Attach sealing tape along the perimeter of the bottom of the glass panel.
First, feed the power cord through the cutout. Place the appliance over the centre of the cutout.
Connect the appliance to the power mains (see instructions for connecting the appliance). Before
sealing the appliance, test its operation. Seal the slot between the appliance and the countertop using
a silicone sealant. The silicone sealant used to seal the appliance has to be temperature-resistant (to
at least 160 °C). Smooth out the silicone sealant using a suitable tool. Observe the instructions for
use of the selected silicone sealant. Do not switch on the appliance until the silicone sealant has dried
completely.
1. Silicone sealant
2. Sealing tape
WARNING!
Pay particular attention to built-in dimensions with (natural) stone countertops. When choosing
the silicone sealant, observe the countertop material and consult the countertop manufacturer.
Use of inappropriate silicone sealants can result in permanent discolouration of some parts.
Removing the built-in appliance
Disconnect the appliance from the powermains. Use a suitable tool to remove the silicone gasket from
the perimeter. Remove the appliance by pushing it upwards from the bottom side.
WARNING!
Do not attempt to remove the appliance from the upper side of countertop.
WARNING!
The service department shall only be responsible for repair and servicing of the cooking hob.
Consult your specialized kitchen equipment dealer regarding the re-installation (of the flush-mount)
cooking hob.
28

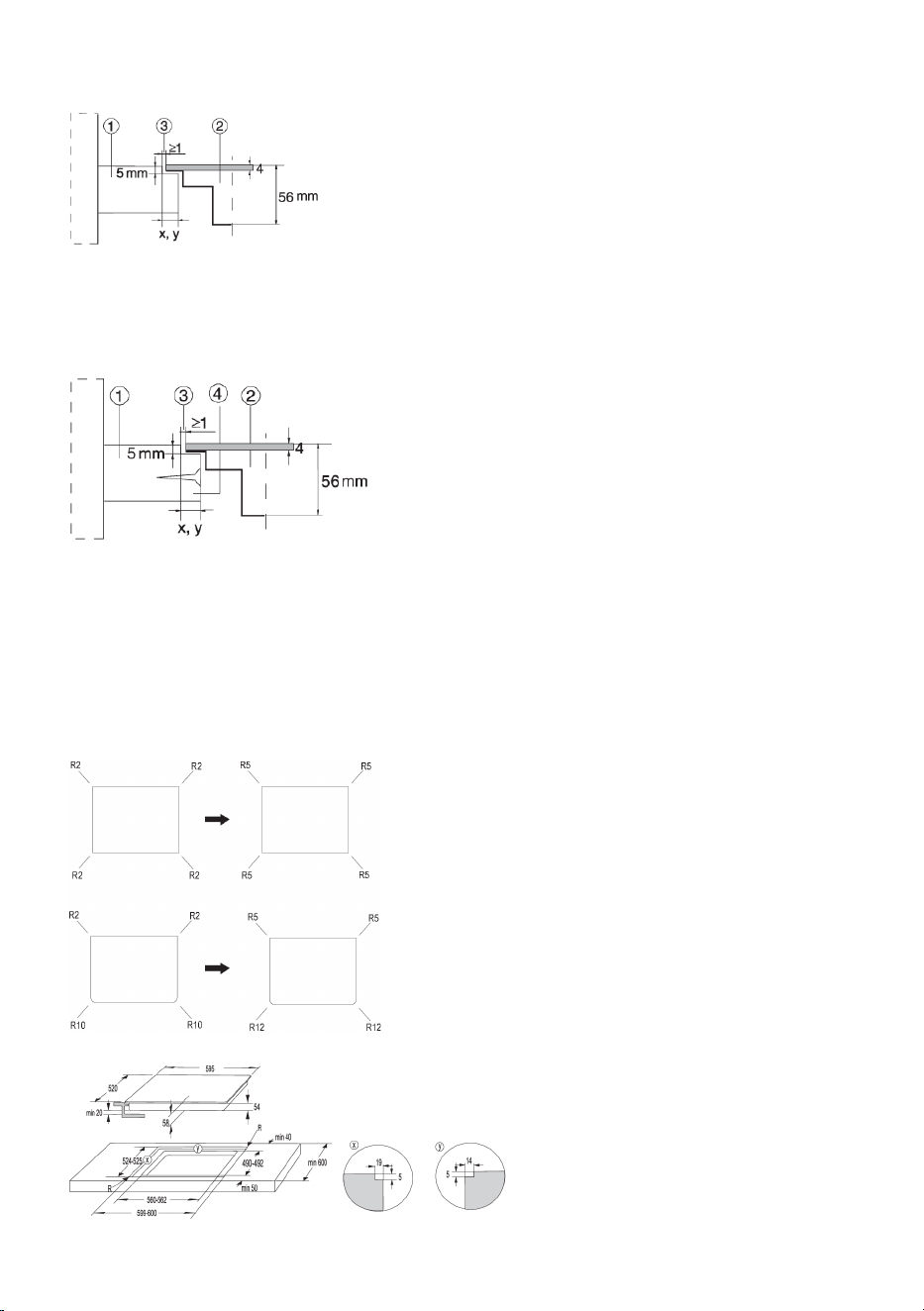

Stone countertop
1. Countertop
2. Appliance
3. Slot
Given the margin of error (tolerance) for the glass ceramic plate of the appliance, and the cutout in
the countertop, the slot is adjustable (min.2 mm).
Ceramic, wooden, or glass countertop
1. Countertop
2. Appliance
3. Slot
4. Wooden frame, thickness 16 mm
Given the margin of error (tolerance) for the glass ceramic plate of the appliance, and the cut-out in
the countertop, the slot is adjustable (min. 2mm). Install the wooden frame 5.5mm below the upper
edge of the countertop (see figure).
Observe the radii of glass edges (R10, R2) when making the cut-out.
CUT-OUTGLASS
29
60 cm
WARNING!
If the oven is installed under a flush-mounted cooking hob, then the worktop thickness should
be at least 45 mm.

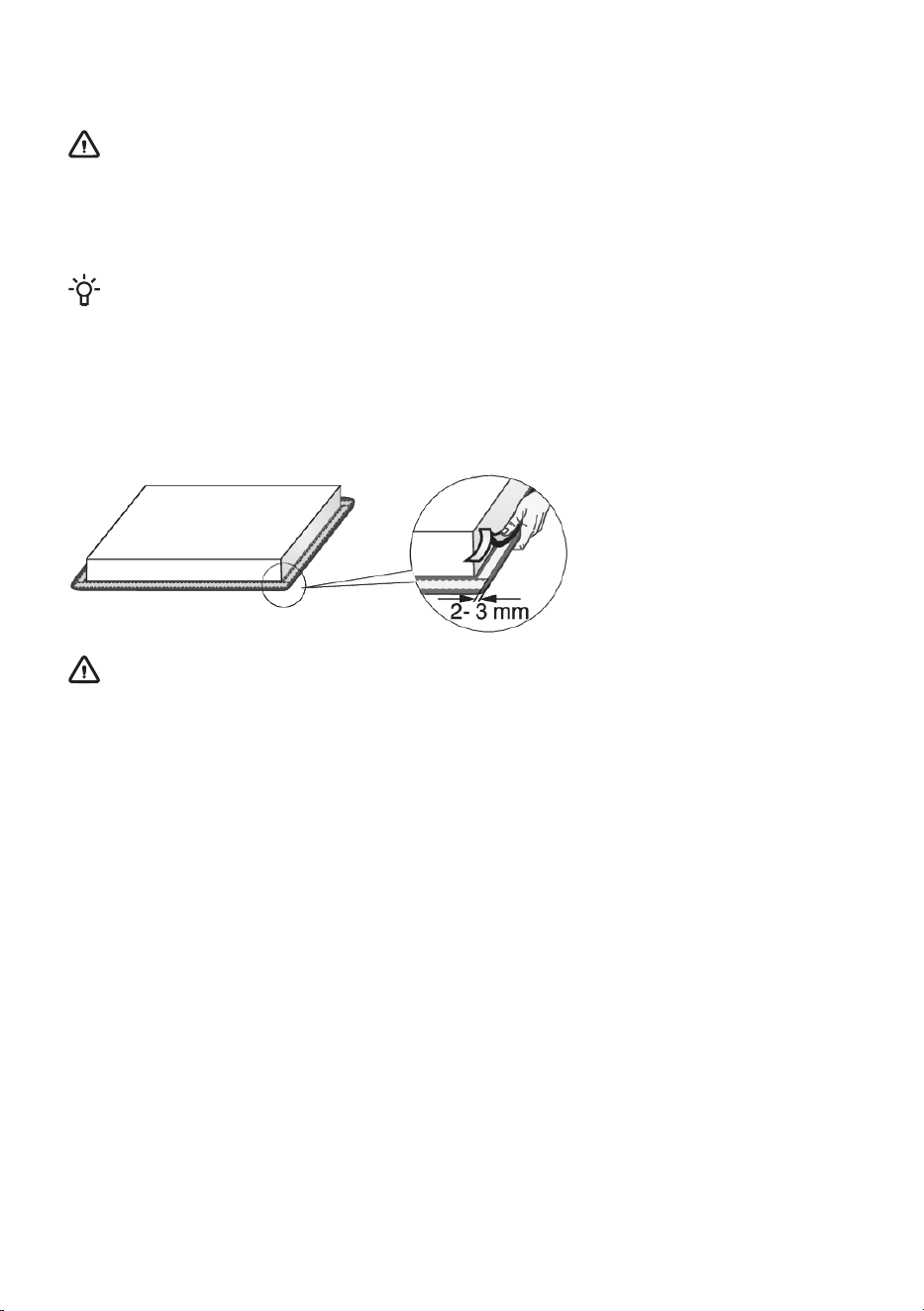

Fitting the foam gasket
INFORMATION!
Some appliances come with the gasket already fitted!
Before installing the appliance into a kitchen worktop, attach the foam gasket supplied with the
appliance to the bottom side of the glass ceramic hob. Remove the protective film from the gasket.
Attach the gasket to the bottom side of the glass (2–3 mm away from the edge). The gasket has to
be applied along the entire edge of the glass. The gasket may not overlap in the corners. When fitting
the gasket, make sure it is not damaged by or in contact with any sharp objects.
WARNING!
Do not install the appliance without the gasket!
30
Connecting the cooking hob to the power mains
• Power mains protection must conform to the relevant regulations.
• Before connecting the appliance, make sure the voltage specified on the rating plate conforms to
the voltage of the power mains.
• There should be a switching device in the electrical installation that can disconnect all poles of
the appliance from the power mains, with a minimum clearance of 3 mm between the contacts
when open. Suitable devices include fuses, protective switches etc.
• The connection should be adjusted to the current and fuses.
• After installation, the parts carrying electrical current and insulated parts shall be protected against
contact.
WARNING!
The appliance may only be connected by an authorised expert. False connection can destroy
parts of the appliance. In such case, there is no right to warranty! Disconnect the appliance from
the power mains before any repair or maintenance operation.

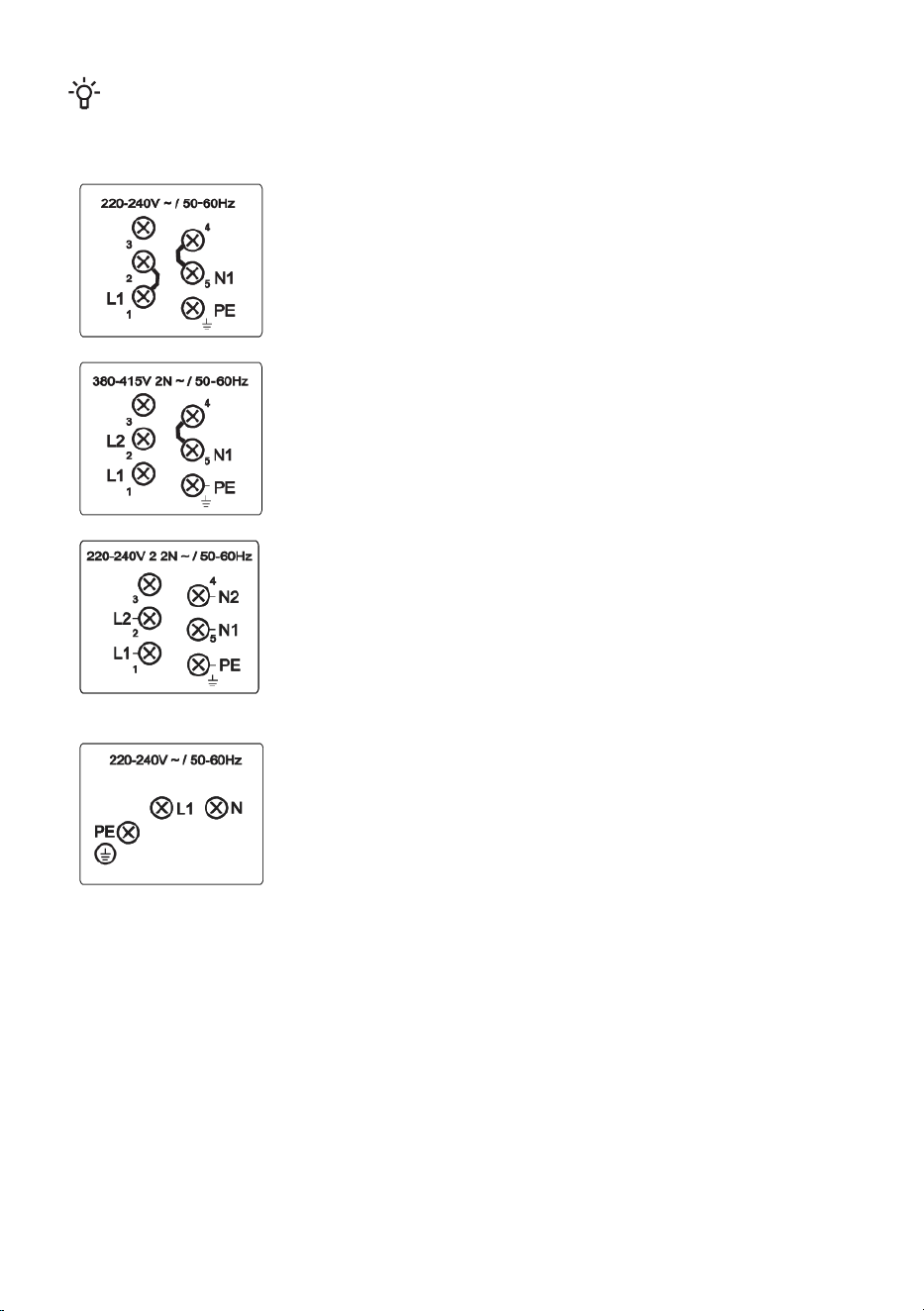

Connection diagram
Connecting the appliance 60 cm
1. Check the voltage. Before connecting the
appliance, make sure the voltage specified
on the rating plate conforms to the voltage
of your power mains. The voltage of your
power mains (220–240 V between L and N)
should be checked by an expert using an
appropriate measuring device.

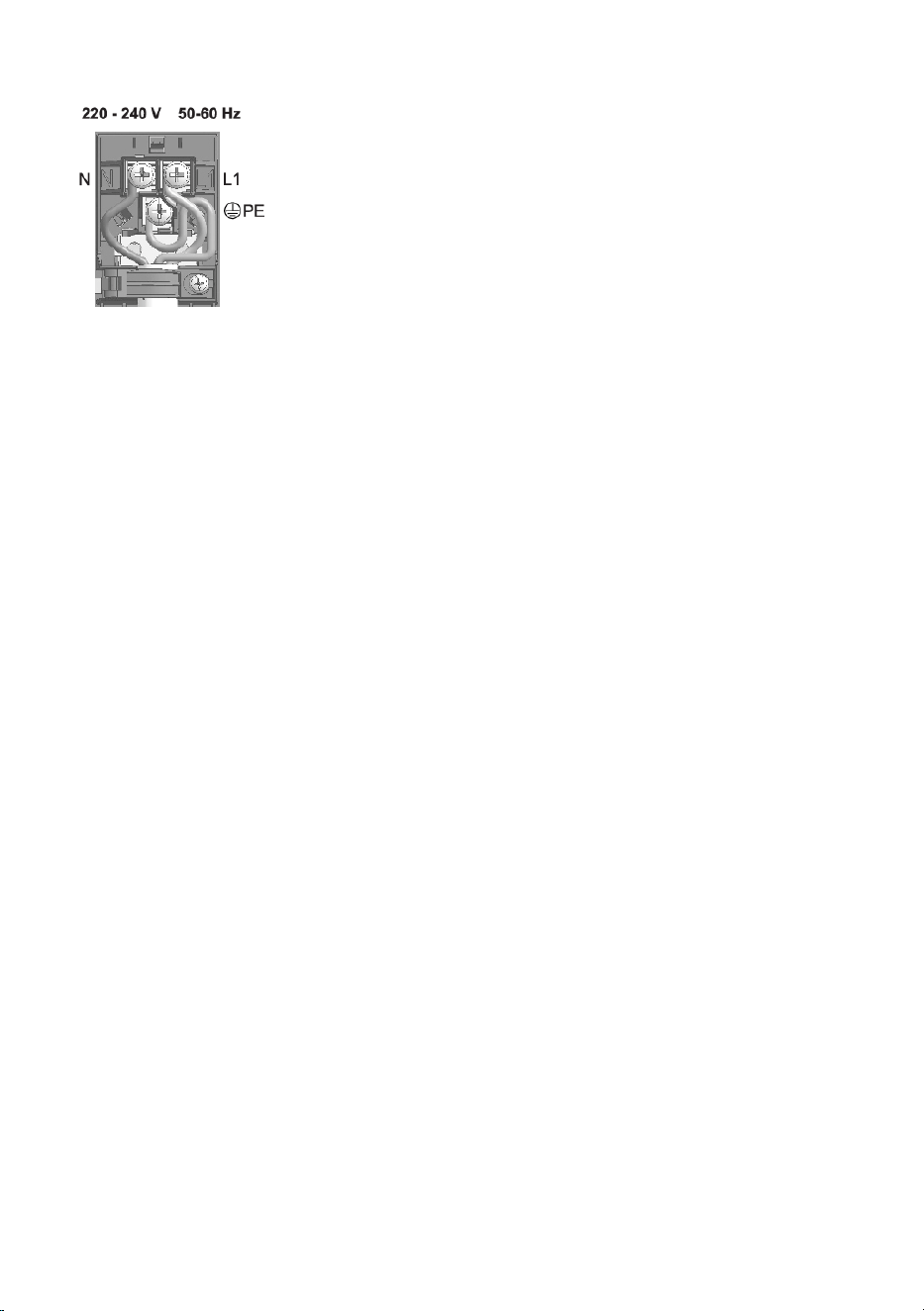

2. Open the cover of the connection terminal
box.
3. Connect the wires according to your type
of appliance.
4. The jumpers are provided on the
connection terminal.

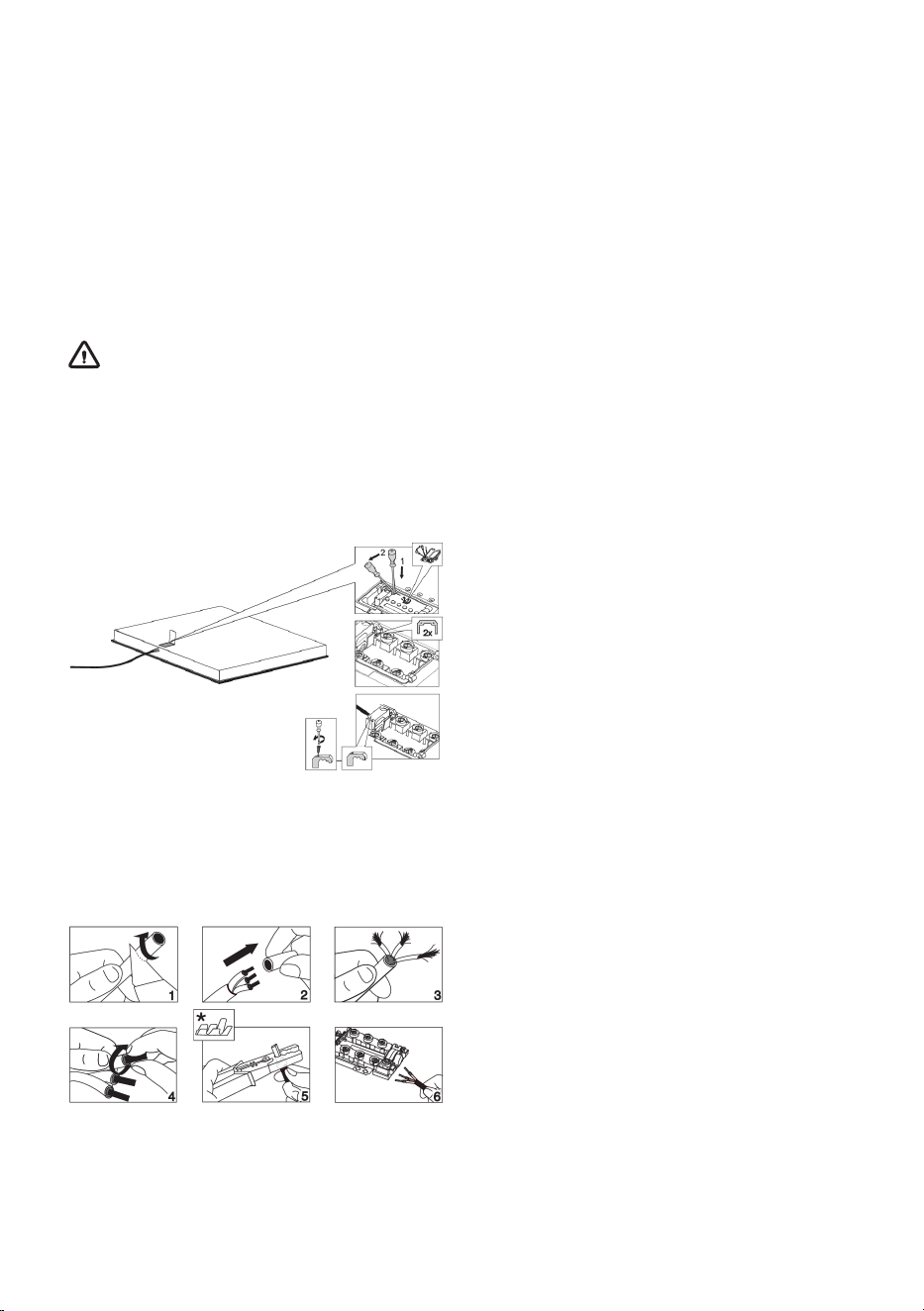

Power cord
(appliance without a power cord)
• The following may be used for connection:
• PVC insulated connection cables type H05
VV-F or H05V2V2-F with yellow-and-green
protective conductor, or other equivalent
or superior cables.
• Exterior cable diameter should be at least
8.00 mm.
• Run the power cord through a cord strain
relief (clamp) which
* Ferrules are not supplied.
31
INFORMATION!
We recommend using electric wire ferrules (end terminals).
Connection diagram
Single phase connection (32 A)
• Single-phase connection (1 1N, 220–240 V~ /50–60 Hz):
Voltage between line and neutral conductor is 220–240 V~. Install
a jumper between terminals 1 and 2, and between terminals 4
and 5.
-
- The circuit should be fitted with a fuse of at least 32 A. Power
cord core cross-sectional area should be at least 4 mm².
2-phase connection (16A)
• 2 phases, 1 neutral conductor (2 1N, 380–415 V~ /50–60 Hz):
- Voltage between the line and neutral conductor is 220–240 V~.;
voltage between lines is 380–415 V~. Install a jumper between
the terminals 4 and 5. The circuit should be fitted with at least
two fuses of at least 16 A each. Power cord core cross-sectional
area should be at least 1.5 mm².
• 2 phases, 2 neutral conductors (2 2N, 220–240 V 2 2N ~ /50–60Hz):
- Voltage between phases and neutral conductor is 220-240 V~.
- The circuit should be fitted with at least two fuses of at least 16 A
each. Power cord core cross-sectional area should be at least
1.5 mm².
Appliances with a width of 30 centimetres (two cooking zones) only allow
single-phase connection. The diameter of the power cord should be at
least 1.5 mm²!
Connecting the power cord
(appliance with a power cord)
• The appliance has to be hard-wired directly to the power mains.
• Devices for disconnecting from the power mains have to comply with the relevant regulations.
• Do not extend the power cord and do not lead it over sharp edges.
• If the appliance is installed above an oven, make sure the power cord is never in contact with the
oven's hot parts.

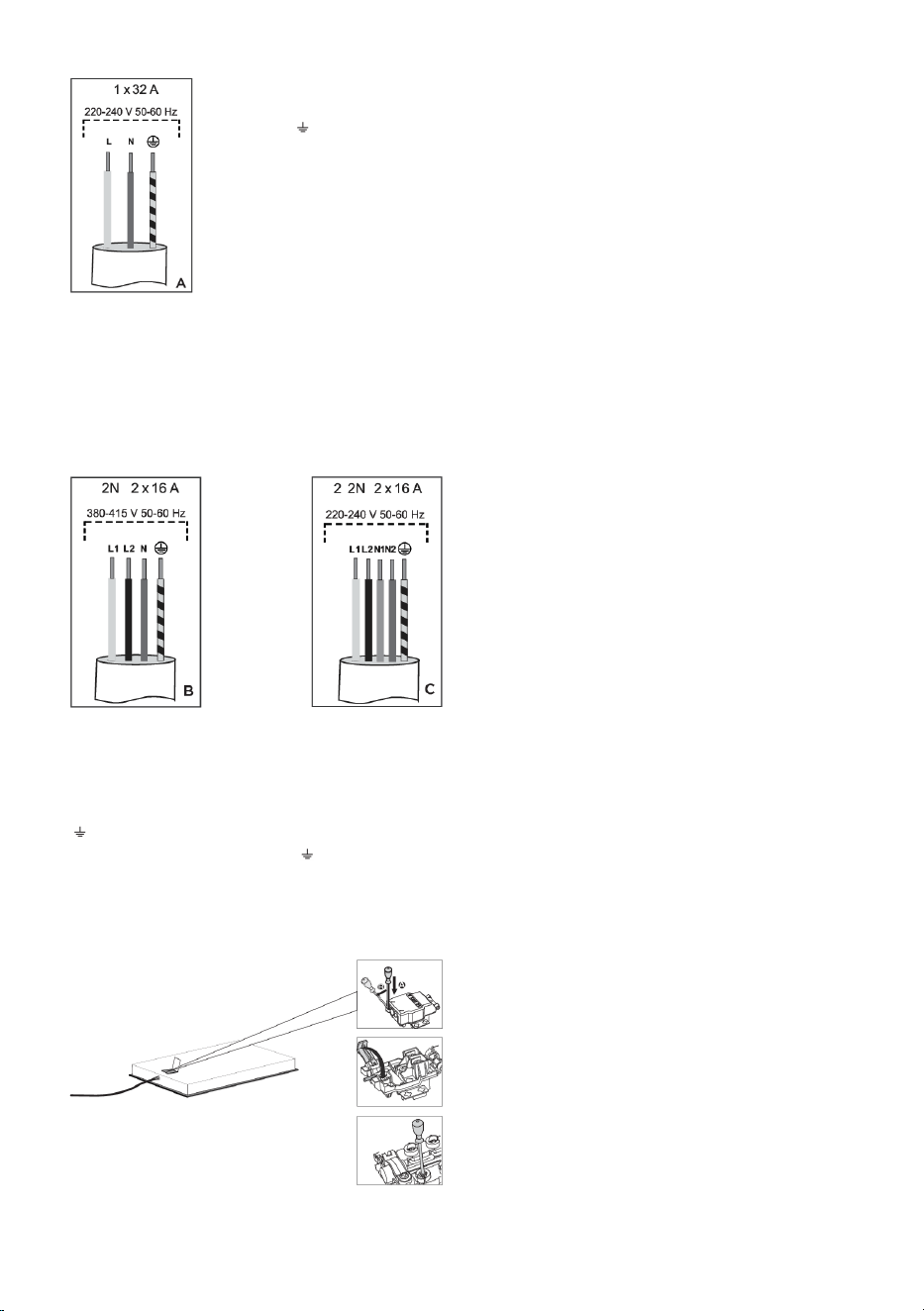

Single-phase connection
Connect the appliance as shown in Diagram A. If your power mains do not allow a 32 A fuse, the
appliance power should be decreased or limited accordingly.
See chapter User Settings.
32
L = brown
N = blue
= yellow/green
Two-phase connection
• If your electric mains have 2 line conductors and 1 neutral conductor, connect the appliance as
shown in Diagram B.
• If your electric mains have 2 line conductors and 2 neutral conductors, connect the appliance as
shown in Diagram C.
L1 = brown
L2 = black
N1 = blue
N2 = grey
= yellow/green
L1 = brown
L2 = black
N = blue
= yellow/green
only for NL!
Connecting the appliance 30 cm
1. Check the voltage. Before connecting the
appliance, make sure the voltage specified
on the rating plate conforms to the voltage
of your power mains. The voltage of your
power mains (220–240 V between L and N)
should be checked by an expert using an
appropriate measuring device.
2. Open the cover of the connection terminal
box.
3. Connect the wires according to your type
of appliance.
33
Connection diagram
The circuit should be fitted with a fuse of at least 16 A.
Appliances with a width of 30 centimetres (two cooking zones) only allow
single-phase connection. The cross-sectional area of the power cord
core should be at least 1.5 mm²!
34
Disposal
Our product packaging is made of environmentally friendly materials that
can be recycled, disposed of, or destroyed without any hazard to the
environment. To this end, packaging materials are labelled appropriately.
The symbol on the product or its packaging indicates that the product
should not be treated as normal household waste. Take the product to
an authorized collection centre for waste electric and electronic
equipment processing.
Correct disposal of the product will help prevent any negative effects
on the environment and health of people, which could occur in case of
incorrect product removal. For detailed information on removal and
processing of the product, please contact the relevant municipal body
in charge of waste management, your waste disposal service, or the
store where you bought the product.
We reserve the right to any changes and errors in the instructions for use.
35
875782-a11
