VLS-LSM-C4
QUICK START GUIDE
Hi-POE 4 PORT ETHERNET EXTENDER
LED FUNCTION
RJ45 Yellow On = link
Blink = activity
RJ45 Green On = POE enabled
Blink = POE error
Off = POE device not
detected. Ethernet only
RJ45 Connectors
10/100Base-TX, auto speed, crossover, full duplex.
IEEE 802.3af/at/bt compliant.
CONNECTIONS & LEDS
LED FUNCTION
TOTAL POE
POWER BUDGET
FOR CAMERAS
BLUE
On = available
5W blink = <5W
PURPLE
Approaching
power limit
RED
Power limit exceeded
/error code
Optional Local Power
For maximum power output connect to a Veracity
54V-57V power supply only - in polarity shown.
Power Budget LEDS are as follows :-
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated
in a commercial environment.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to
correct the interference at his own expense.
© Veracity UK Ltd 2020 QSGWV1.2 UK
LONGSPAN MAX QUAD is a trademark of Veracity UK Ltd
FCC
LONGSPAN
MAX QUAD
LED FUNCTION
RJ45 Yellow On = link
Blink = activity
RJ45 Green On = 100Mbps
Flash = 10Mbps
Off = no link
LONGSPAN Network and Optional Hi-Power
POE Input
POE Power Budget LEDs
The POE power budget is the measured total
available power for POE devices powered by the
Quad unit. Power is limited either by the power
delivered over the LONGSPAN link, or by the
optional local power supply.

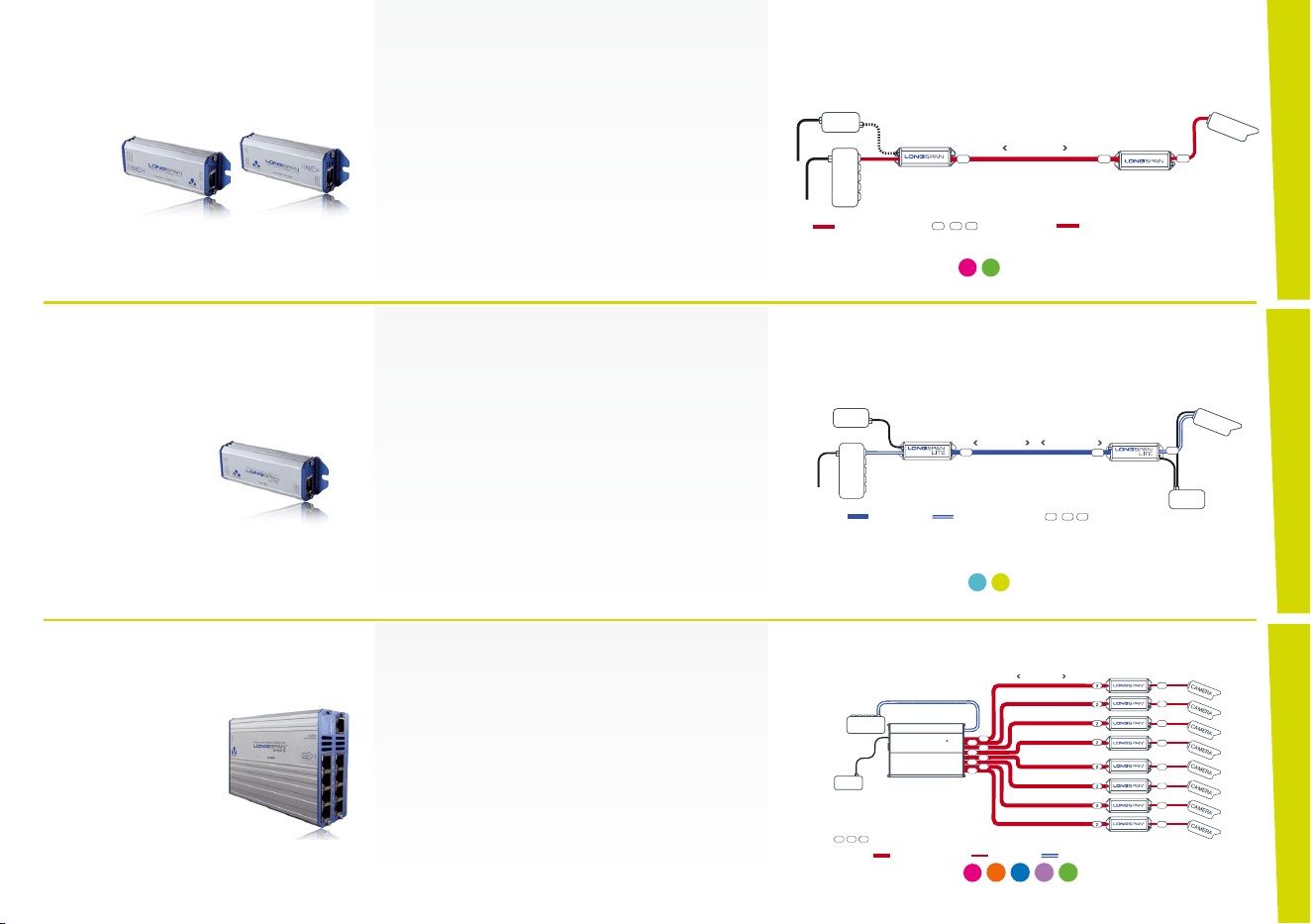

COMPATIBILITY
LONGSPAN Max models are compatible with all standard
LONGSPAN Base 8, LONGSPAN Base, Camera and Lite
models. For full details of distances, available POE and the
recommended power supplies, please see the tables in
the LONGSPAN Application Notes and Datasheets.

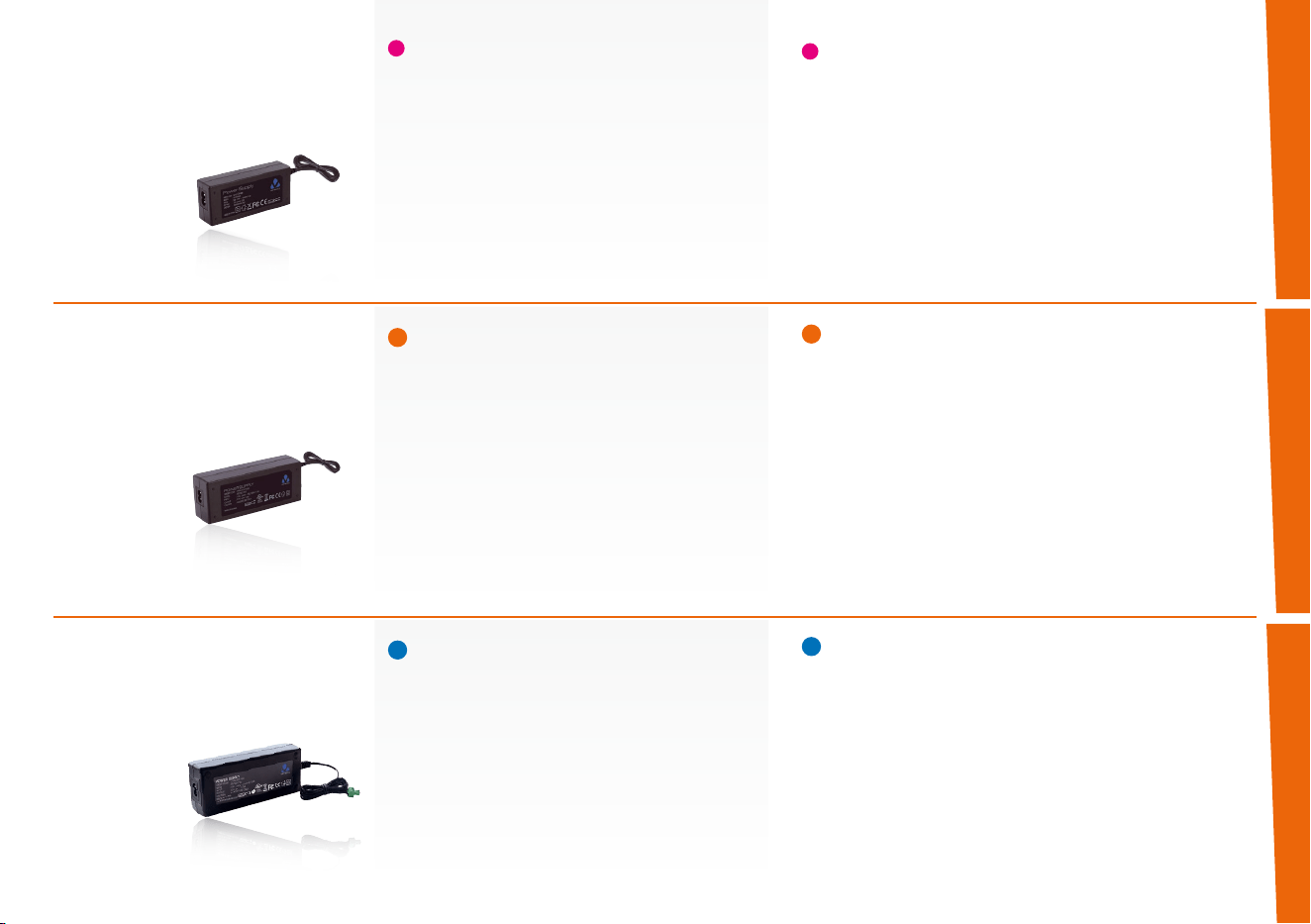

POWER SUPPLIES
PRODUCT CODE DESCRIPTION POWER
VPSU-12V-U Universal 12V DC PSU -
VPSU-POE-100 54-57V DC PSU 100W
VPSU-POE-240 54-57V DC PSU 240W
SURGE PROTECTION
Any LONGSPAN network design for outdoor applications
must incorporate the appropriate level of surge protection
to avoid invalidation of warranty due to electrical storm
damage. It is the responsibility of the system installer to
ensure the correct level of protection.

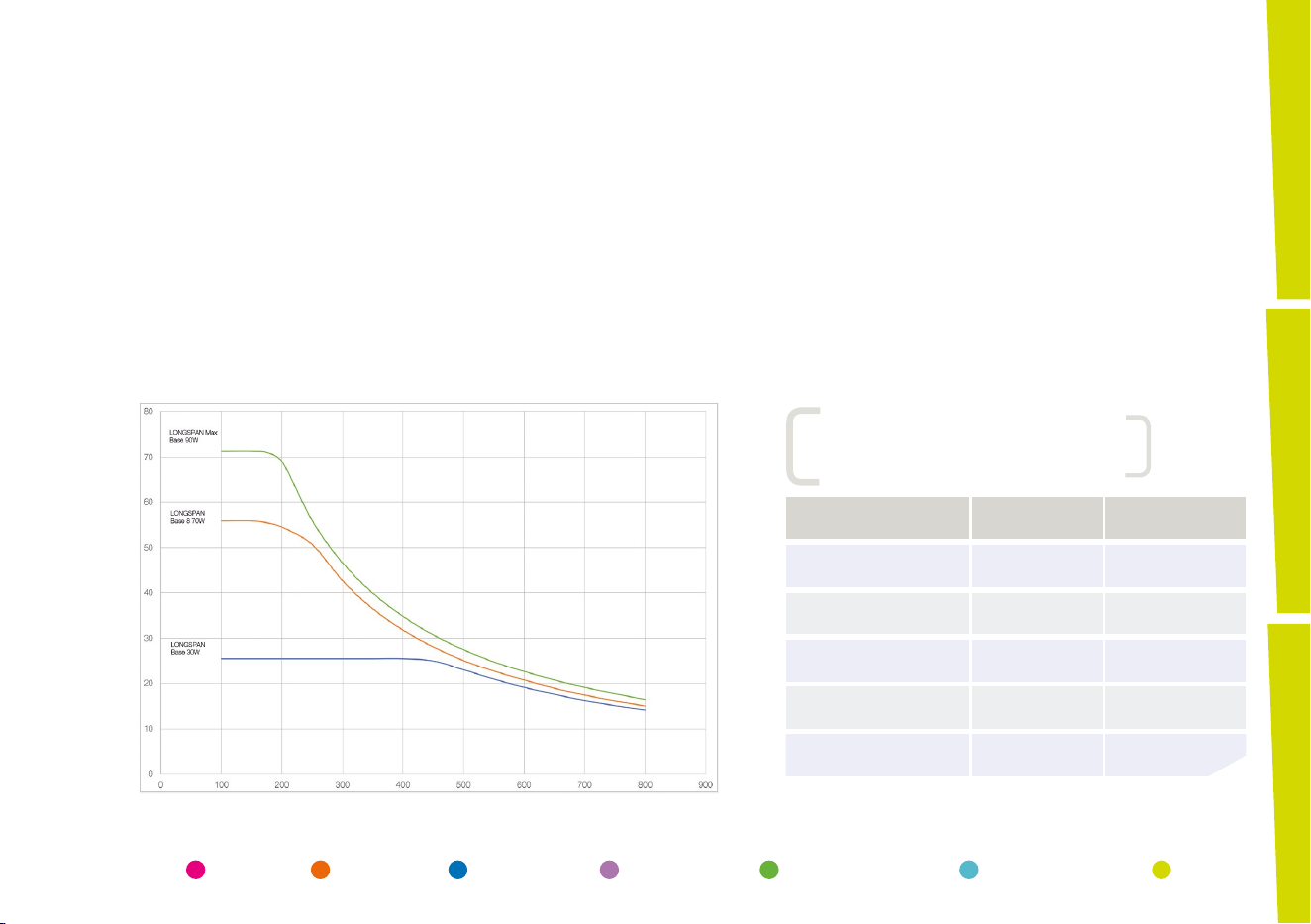

POWER BUDGETS
