PCAM-FM180-N
Sensor Type HD CCD Sensor
LEDs 10
Illumination 0.1 LUX
Viewing Angle 180 degrees
Parking Lines No
Mirror Image Yes
Normal View No
Water/Debris-Proof IP67
Audio No
Power Supply 12V(DC)
Current <100mA
Working Temperature -30ºC ~ +70ºC
Dimensions (mm/in) W (30.7/1.2) * D (36/1.4) * H (28/1.1)
System PAL NTSC
TV Lines 480
Resolution 720 x 576 720 x 480
u Camera
u Ø28mm Hole Saw
u Power Adapter Harness (30 cm/1 ft)
u User Manual
Box Contents
Dimensions (mm/in)

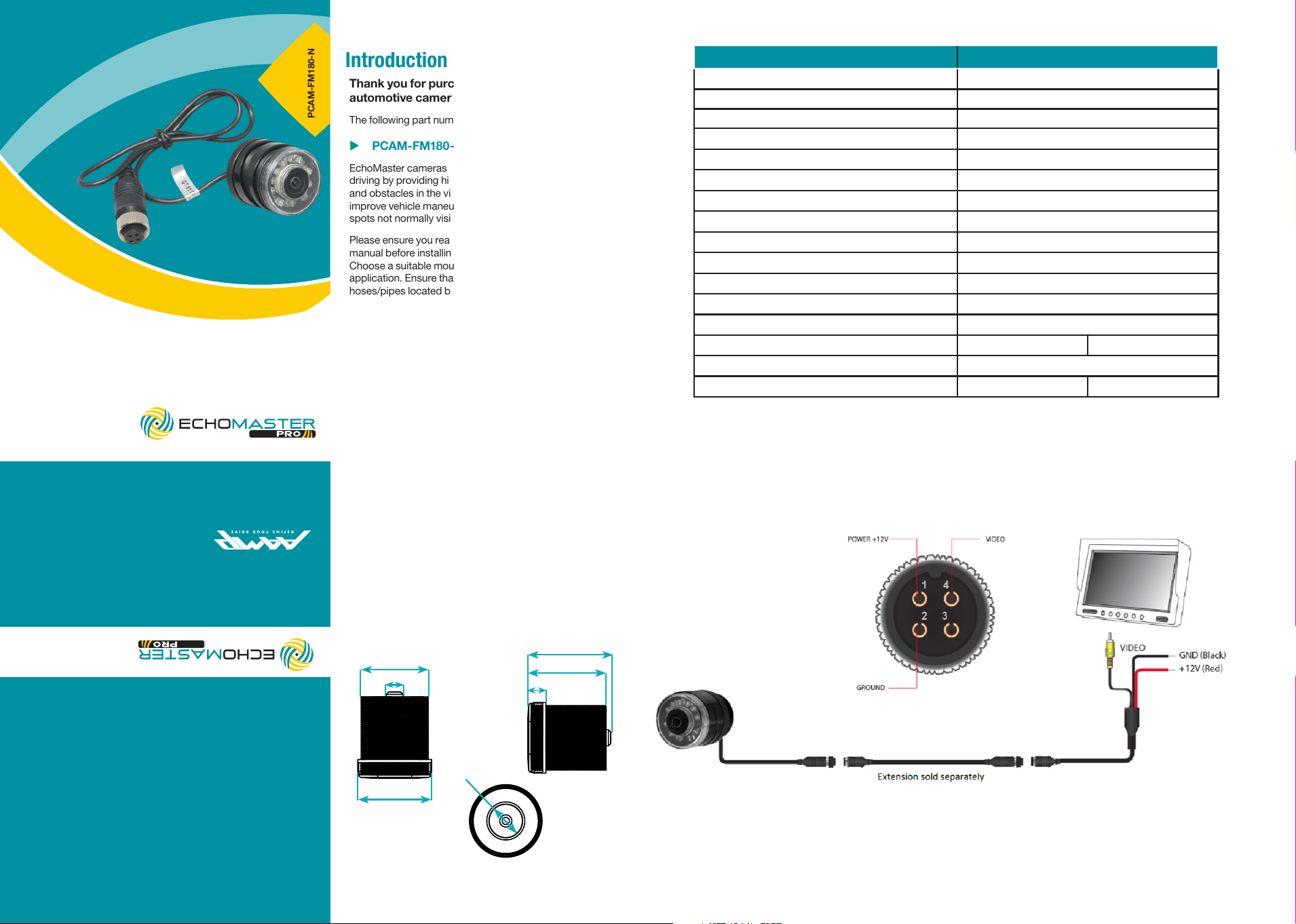

Wiring Diagram
User Manual
Flush Mount, 180 Degree Viewing
Angle Camera with Night Vision
Introduction
PCAM-FM180-N
u HD CCD Sensor
u Operates at 0.1 LUX
u 10 IR LEDs
u Water/debris-proof rating: IP67
u 180 Degree Viewing Angle
u FMVSS 111 Compliant
u 3 Year Warranty
Key Features
Thank you for purchasing your EchoMaster
automotive camera.
The following part numbers are supported:
u PCAM-FM180-N
EchoMaster cameras are designed to improve safety when
driving by providing high quality images of surrounding areas
and obstacles in the vicinity of the vehicle. They will also
improve vehicle maneuvering capability by displaying blind
spots not normally visible to the driver.
Please ensure you read and understand all aspects of this
manual before installing or using your EchoMaster camera.
Choose a suitable mounting place dependent on the
application. Ensure that there are no wiring harnesses or
hoses/pipes located behind the panel before drilling.
15500 Lightwave Drive, Suite 202
Clearwater, Florida 33760
email - [email protected]
phone - 1 (800) 477-2267
EchoMaster is a Power Brand of AAMP Global
EchoMaster.com
REV 180906
495 mm/9.5 in
Ø28/1.1
Ø7/0.3
Ø30.7/1.2
Ø14.1/0.6
36/1.4
33.97/1.3
7.86/0.3
NOTE: Red arrow sticker denotes the top of the camera
30 cm/1 ft
