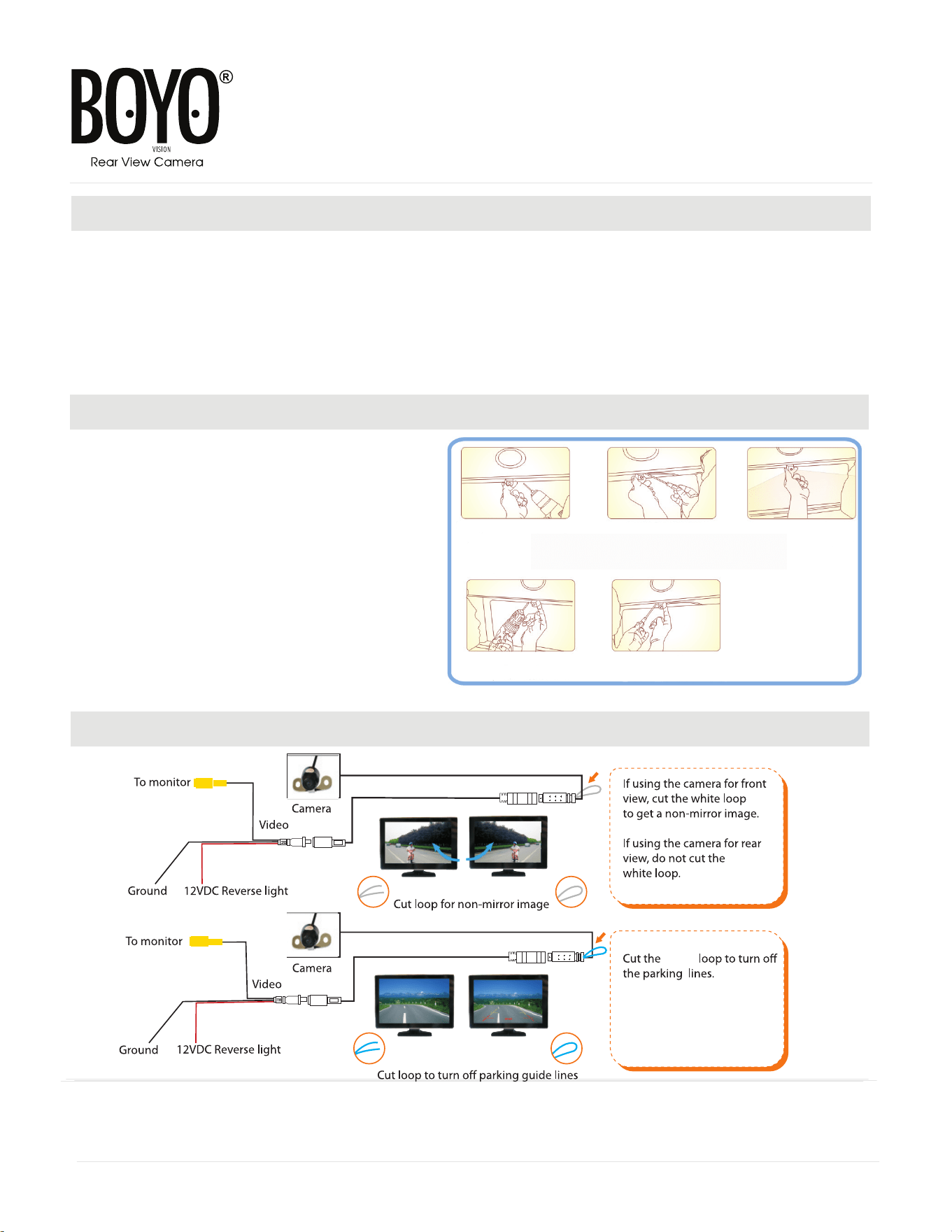

USER’S MANUAL
Model: VTB16B
Mini Bracket Type/ Keyhole Mount Dual Solution Camera
1. BILL OF MATERIAL
2. SPECIFICATION
• CMOS 7070 Sensor
• 420 TVL Horizontal Resolution
• 640(H) x 480(V) Pixels
• Waterproof (IP68)
• Minimum Illumination: 0.1Lux, 0.0 with IR on
• Reverse/ Non-Reverse image selectable
• Built-in parking guide line selectable
• Includes bracket mount and keyhole mount
accessories for dual mount solution.
4. WIRING
For technical support contact 888-941-3060 or email info@visiontechamerica.com
WWW.VISIONTECHAMERICA.COM
3. Installation Tip
1. Align the camera to
the desired location. Make
sure it is a safe area to drill
into.
2. Tighten the rst screw
into the body with
screw driver
4. Align and drill the second
screw to the body.
5. Make detailed adjustments
and the installation is nished.
3. Adjust the camera’s
position according to the
actual display on the
monitor
• Camera x1
• 20ft camera video extension cable (RCA Male to Male) x1
• 4ft power cable x1
• Waterproof o-ring use for ush mounting x1
• Hole saw x1
• Snap ring for use with ush mounting x1
• Tightening ring for use with ush mounting x1
• Heavy duty double sided tape for bracket mount x1
• Hex nut x2
• Screws x2
White
Green
Green
