INSTRUCTIONS FOR:
MOBILE BIN STORAGE SYSTEM WITH 118 BINS
MODEL No:
TPS118
1. SAFETY
1.1. GENERAL SAFETY
WARNING! Ensure Health & Safety, local authority, and general
workshop practice regulations are adhered to when using this
storage system.
Locate the storage system in a suitable work area.
Keep the work area clean, uncluttered and ensure that there is
adequate lighting.
WARNING! Use the storage system on level and solid ground,
preferably concrete.
Keep the unit clean and tidy in accordance with good workshop
practice.
DO NOT use for any purpose other than that for which it is
designed.
Keep children and unauthorised persons away from the work area.
2. SPECIFICATION

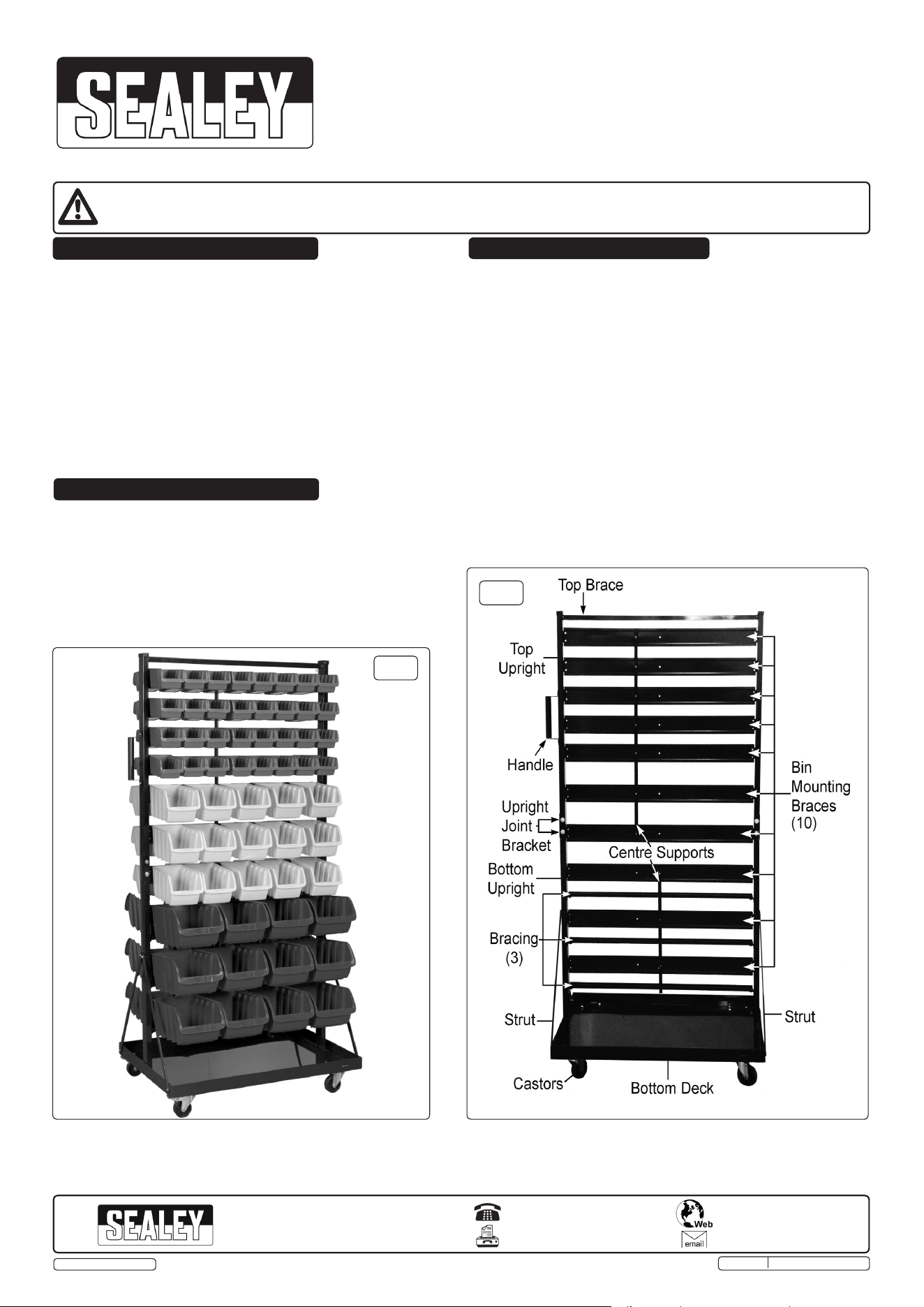

3. ASSEMBLY
3.1. Attach the 4 castors to the underside of the bottom deck (2 of
which are lockable).
NOTE: the bottom deck is positioned with the outside lip facing
upwards.
3.2. Attach bottom uprights to bottom deck.
3.3. Connect 4 struts between bottom uprights and bottom deck.
3.4. Attach upright joint brackets to top of bottom uprights and
then attach top uprights to these brackets.
3.5. Attach top brace to top uprights.
3.6. Attach the 10 bin mounting cross braces to the brackets on the
bottom and top uprights.
3.7. Attach the 3 extra cross bracings below each of the bottom 3
bin mounting cross braces.
NOTE! Ensure all centre support holes on the cross braces are in
alignment with each other.
3.8. Attach the 2 centre supports in position as shown.
3.9. Attaching handle to top upright.
3.10. Ensure everything is square and that all fixings are secure.
3.11. Hook bins onto frame into position as shown in fig.1.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE
AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly
maintained, give you years of trouble free performance.
Sole UK Distributor, Sealey Group,
Kempson Way, Suffolk Business
Park, Bury St. Edmunds, Suffolk,
IP32 7AR
Original Language Version
Powder coated steel racking with composite storage bins positioned
evenly on both sides. Mounted on heavy-duty castors (two lockable)
for mobility.
Bin dimensions (WxDxH):
Small bins (x64):................ 110 x 160 x 75mm
Large bins (x30): .............. 150 x 235 x 125mm
Extra large bins (x24): .......... 200 x 320 x 155mm
Overall dimensions (WxDxH): ... 950 x 675 x 1815mm
Weight: .................................. 41kg
TPS118 Issue:2 (L) - 27/04/15
