SQ DRIVE TORQUE WRENCH MICROMETER
STYLE - CALIBRATED SERIES
MODEL NO: STW900SET
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
9 Ensure all workshop safety rules, regulations, and conditions are complied with when using torque wrench.
9 Maintain the wrench in good condition and replace any damaged or worn parts. Use genuine parts only. Non-authorised parts may be
dangerous and will invalidate the warranty.
9 The wrench is a precision tool, DO NOT abuse it.
9 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9 Keep children and unauthorised persons away from the working area.
WARNING! DO NOT use the wrench if damaged or thought to be faulty. (Contact Service Agent).
8 DO NOT drop or throw the wrench.
8 DO NOT use wrench unless you have been instructed in its use by a qualified person.
8 DO NOT use any cleaner which might affect the high pressure grease with which the wrench is packed.
9 After use adjust to lowest torque setting (but not below),clean and store in a safe, dry, childproof location.
2. INTRODUCTION
Flip reverse Chrome Vanadium steel ratchet head with smooth action mechanism. Scales graduated in both Nm and lb.ft. Calibration
tolerance in accordance with BS EN ISO 6789-1:2017. Wrenches are individually tested to standards with ±4% accuracy and each
wrench is issued with an individually numbered test certicate. Aluminium knurled handles for comfort and control. Supplied in an EVA
tray.
3. SPECIFICATION
Model STW901 STW903 STW904
Drive 1/4” 3/8” 1/2”
Length 245mm 420mm 520mm
Range 5-25Nm 20-120Nm 40-220Nm
4. OPERATION
4.1. PREPARING TO SET TORQUE (g.1)

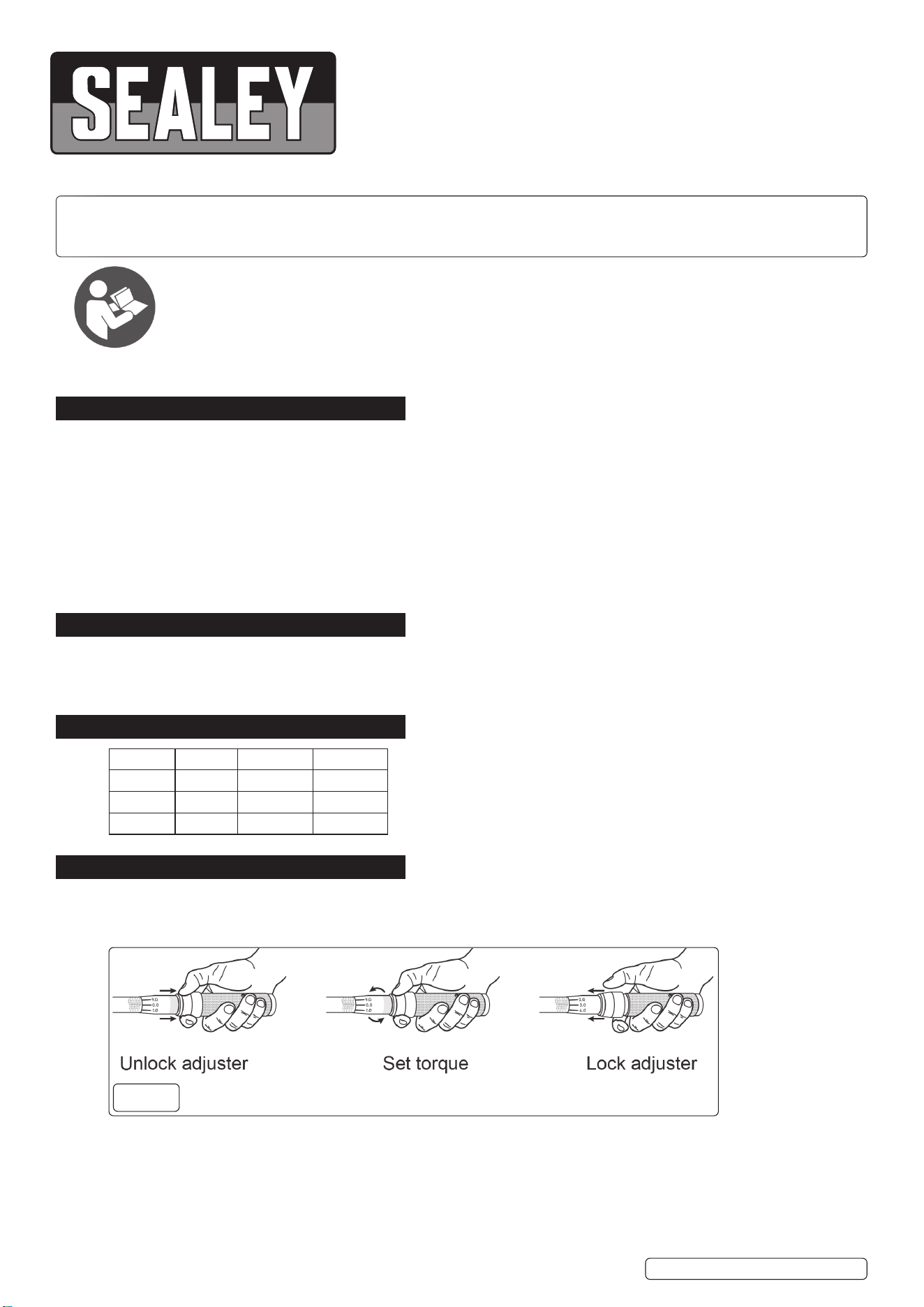

4.1.1. Release torque adjuster by sliding the collar backwards. Set torque (see 4.2) and then lock in place by sliding the collar forwards.
g.1
Refer to
instructions
Original Language Version
© Jack Sealey Limited
STW900SET Issue 2 (F) 24/10/23
4.2. SETTING TORQUE VALUE (g.1, g.2)
g.2

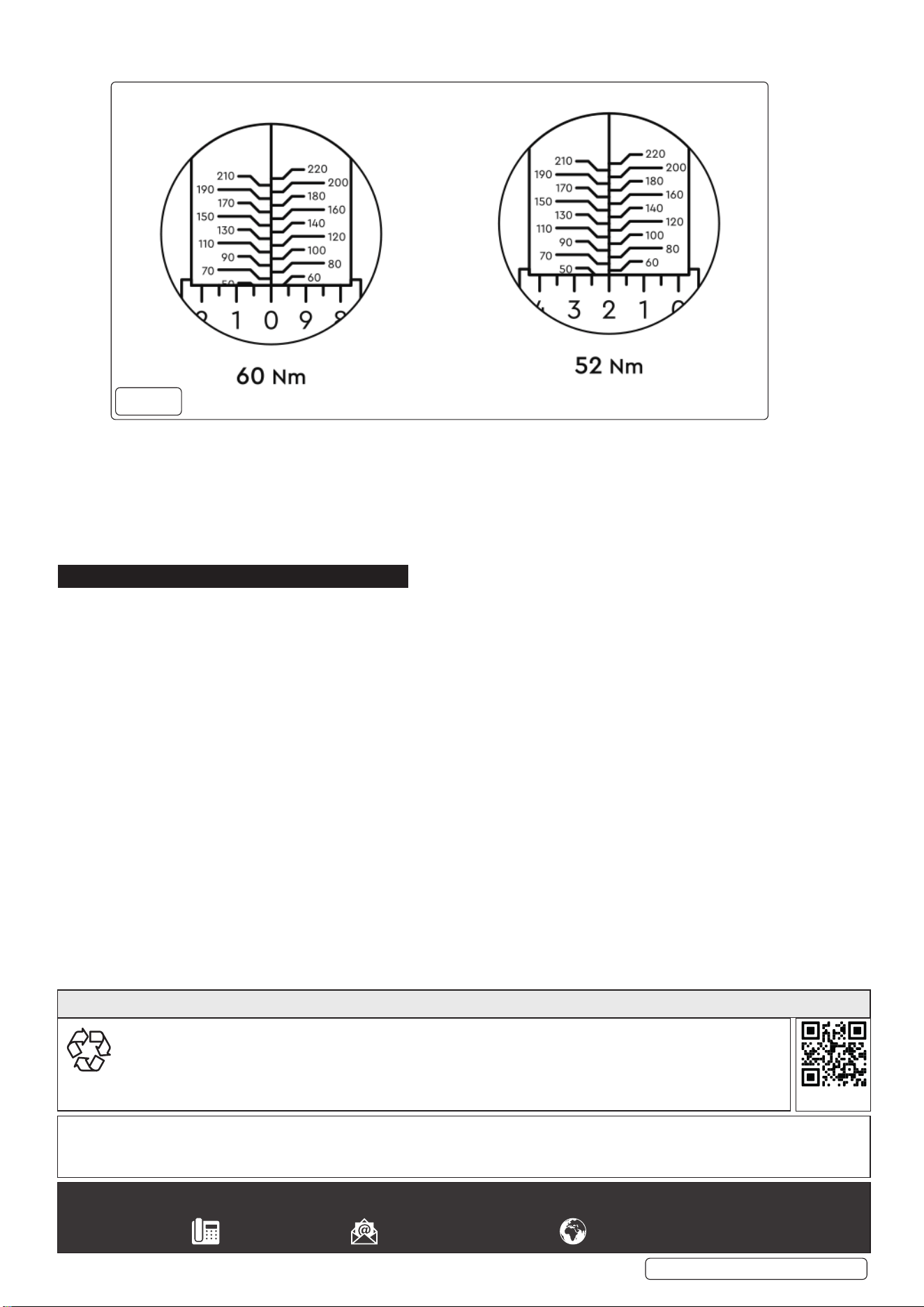

4.2.1. With the adjuster unlocked (g.1), rotate the handle to reach the main scale value i.e. 60 Nm (g.2) aligned with collar value 0.
4.2.2. To set the torque to more discrete values i.e. 52 Nm (g.2) align main scale to 50 and then rotate collar value to 2 (g.2).
4.2.3. Once the torque value is set, slide the locking ring forward to lock adjuster in position.
4.2.4. When tightening the nut/bolt you will feel and hear the wrench mechanism click when the set torque is reached. Immediately stop
applying force to wrench to avoid overtightening nut/bolt. Wrench will reset ready for next application.
NOTE: If the wrench has not been used for some time, operate it a few times, at a low setting, to ensure all internal parts are coated in
grease.
5. RE-CERTIFICATION
5.1. Unless otherwise stipulated, and to ensure continued accuracy of the torque tool, a period of 12 months, or 5,000 cycles (whichever occurs
first), may be taken as default values for the interval between calibration checks. This calibration check should also be carried out if the torque
tool has been subjected to an impact, has been misused, or the readings are suspect. Jack Sealey Ltd have up-to-date calibration checking
equipment, certified to international standards, to carry out this service.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Lifetime guarantee. Proof of which is required for any claim.
Parts support is available for this product. Please email sales@sealey.co.uk or telephone 01284 757500
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. When
the product becomes completely unserviceable and requires disposal, drain any uids (if applicable) into approved
containers and dispose of the product and uids according to local regulations.
REGISTER YOUR
PURCHASE HERE
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
Original Language Version
© Jack Sealey Limited
STW900SET Issue 2 (F) 24/10/23
