Operating instructions
Fridge-freezer
It is essential to read these operating and installation instructions
before installing and using the appliance. This prevents both personal
injury and damage to the appliance.
en - AU, NZ M.-Nr. 12 124 650
Contents
2
Warning and Safety instructions ............................................................................... 4
Caring for the environment......................................................................................... 14
Installation...................................................................................................................... 15
Installation location........................................................................................................
15
Ventilation requirements...............................................................................................
16
Installing multiple refrigeration appliances.................................................................
16
Side-by-side installation.......................................................................................... 17
Changing the door hinging ............................................................................................
17
Fitting the supplied wall spacers..................................................................................
17
Fitting the insect protection grille supplied................................................................
18
Installation.......................................................................................................................
18
Aligning the appliance.............................................................................................. 19
Integrating the refrigeration appliance in a run of kitchen units ..............................
19
Appliance dimensions....................................................................................................
21
Electrical connection .....................................................................................................
24
Saving energy................................................................................................................. 25
Guide to the appliance................................................................................................. 26
Appliance overview ........................................................................................................
26
Control panel with start display ...................................................................................
28
Settings mode ...................................................................................................... 28
Selecting the desired function in Settings mode ........................................... 30
Adjusting the interior fittings ........................................................................................
31
Tilting the top drawer ............................................................................................... 31
XXLbox freezer drawer............................................................................................ 31
Flexible configuration of the freezer....................................................................... 31
Accessories supplied.....................................................................................................
31
Optional accessories .....................................................................................................
31
Switching on and off..................................................................................................... 32
Before using for the first time.......................................................................................
32
Connecting the appliance........................................................................................ 32
Switching on the appliance...........................................................................................
32
Switching off the appliance ..........................................................................................
32
Switching off for longer periods of time ................................................................ 32
The correct temperature.............................................................................................. 33
Temperature display.......................................................................................................
33
Setting the temperature ................................................................................................
33
Possible temperature settings................................................................................ 33
Using SuperFreeze........................................................................................................ 34
Switching SuperFreeze on and off..................................................................... 34
Contents
3
Selecting further settings............................................................................................ 35
Explanation of the different settings............................................................................
35
Party mode ............................................................................................................ 35
Switching the lock function/ on.................................................................... 35
Sabbath mode....................................................................................................... 36
Changing the time before the door alarm is triggered .................................... 36
Miele@home............................................................................................................. 37
Changing the volume of the alarms and buzzers/ ................................... 39
Adjusting the display brightness ....................................................................... 39
Switching off Demo mode ................................................................................... 40
Resetting the settings to their factory default settings ................................ 40
Information............................................................................................................. 40
Temperature and door alarm ...................................................................................... 41
Freezing and storing food............................................................................................ 43
Freezing fresh food.........................................................................................................
43
Storing frozen food.........................................................................................................
43
Home freezing.................................................................................................................
43
Storage time for frozen food .........................................................................................
45
Using accessories ..........................................................................................................
45
Making ice cubes...................................................................................................... 45
Defrosting ....................................................................................................................... 46
Cleaning and care ......................................................................................................... 47
Cleaning agents ..............................................................................................................
47
Preparing the refrigeration appliance for cleaning.....................................................
47
Cleaning the interior of the machine ...........................................................................
47
Cleaning accessories by hand or in the dishwasher .................................................
48
Removing and dismantling accessories for cleaning ................................................
48
Removing and cleaning the insect protection grille............................................. 49
Cleaning the front of the appliance and the side panels ..........................................
49
Cleaning the door seal...................................................................................................
49
Cleaning the ventilation gaps .......................................................................................
49
After cleaning ..................................................................................................................
50
Problem solving guide.................................................................................................. 51
Noises.............................................................................................................................. 59
Service............................................................................................................................. 60
Contact in case of fault..................................................................................................
60
Warranty ..........................................................................................................................
60
Warning and Safety instructions
4
This refrigeration appliance complies with current local and
national safety requirements. However, inappropriate use can lead
to personal injury and damage to property.
Please read the operating and installation instructions carefully
before using the refrigeration appliance for the first time. They
contain important information on safety, installation, use and
maintenance of the appliance. This is to protect yourself from injury
and from damaging your refrigeration appliance.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow all information provided
concerning the installation of the refrigeration appliance, as well as
safety notes and warnings.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Warning and Safety instructions
5
Correct application
This appliance is designed for domestic use and for use in similar
environments by guests in hotel or motel rooms, bed & breakfasts
and other typical living quarters. This does not include common/
shared facilities or commercial facilities within hotels, motels or bed
& breakfasts.
This appliance is not suitable for outdoor use.
This appliance is intended to store deep frozen food, freeze fresh
food, and to make ice.
Any other usage is not supported by the manufacturer and could be
dangerous.
This appliance is not suitable for storing and keeping cool
medicines, blood plasma, laboratory preparations or similar
substances or products. Incorrect use of the appliance for such
purposes may cause deterioration of the items stored.
The appliance is also not suitable for use in areas where there is a risk
of explosion.
Miele cannot be held liable for damage resulting from incorrect or
improper use or operation of the appliance.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities or lack
of experience and knowledge, unless they have been given
supervision and instruction concerning its use by a person
responsible for their safety.
They may only use the appliance unsupervised if its operation has
been clearly explained to them and they are able to use it safely and
are able to understand and recognise the possible dangers caused by
incorrect operation.
Safety with children
Young children must not be allowed to use this appliance.
Older children may only use the appliance when its operation has
been clearly explained to them and they are able to use it safely,
recognising the dangers of misuse.
Cleaning work may only be carried out by older children under the
supervision of an adult.
Please supervise children in the vicinity of the appliance and do
not let them play with it.
Warning and Safety instructions
6
Danger of suffocation! Children may be able to wrap themselves in
packing material (e.g. foil) or pull it over their head with the risk of
suffocation. Keep packaging material away from children.
Technical safety
The refrigerant circuit has been checked for leaks. The refrigeration
appliance complies with all current local and national safety
requirements.
Warning: Risk of fire / Flammable materials.
The refrigerant inside the appliance (details on the data plate) is
environmentally friendly but flammable.
The use of this refrigerant does, however, sometimes lead to a slight
increase in the noise level of the appliance. In addition to the noise of
the compressor, you might be able to hear the refrigerant flowing
around the system. Unfortunately, these effects cannot be avoided,
but they do not not affect the performance of the refrigeration
appliance.
When transporting and installing the refrigeration appliance, ensure
that no parts of the cooling circuit are damaged. Splashes of
refrigerant can damage the eyes and leaking refrigerant can ignite.
In the event of any damage:
- Avoid naked flames or anything which creates a spark.
- Disconnect the refrigeration appliance from the mains electricity
supply.
- Ventilate the room in which the appliance is located for several
minutes.
- Call Miele.
The more refrigerant there is in a refrigeration appliance, the larger
the room should be in which it is installed. In the event of a leakage, if
the appliance is in a small room, there is the danger of a combustible
gas/air mixture building up. For every 8g of refrigerant, at least 1m
3
of room space is required. The amount of refrigerant in the
refrigeration appliance is stated on the data plate inside the
appliance.
Warning and Safety instructions
7
To avoid the risk of damage to the appliance, make sure that the
connection data (fuse rating, frequency and voltage) on the data plate
corresponds to the household supply. Check that this is the case
before connecting the appliance.
Consult a qualified electrician if in any doubt.
The electrical safety of this appliance can only be guaranteed when
correctly earthed. It is essential that this standard safety requirement
is met. If in any doubt please have the electrical installation tested by
a qualified electrician.
Temporary or permanent operation with a self-sufficient or non-
mains synchronous energy supply system (e.g. isolated networks,
back-up systems) is possible. A requirement for the operation is that
the energy supply system complies with all current local and national
requirements that apply to stand-alone, solar and/or battery systems.
The protective measures provided in the installation and in this Miele
product must also be assured in their function and operation in
isolated operation or in non-mains synchronous operation, or
replaced with equivalent measures in the installation.
If the electrical connection cable supplied is damaged, it must only
be replaced by an original spare part to prevent a hazard for the user.
Miele can only guarantee the safety of the appliance when original
Miele parts are used. For safety reasons, replacement may only be
carried out by a suitably qualified specialist or Miele Customer
Service.
Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. These do not guarantee the
required safety of the appliance (e.g. danger of overheating).
If moisture gets into electrical components or into the mains
connection cable, it could cause a short circuit. Therefore, do not
operate this refrigeration appliance in areas which are exposed to
moisture (e.g in a garage or laundry).
This appliance must not be installed and operated in mobile
installations (e.g. on a ship).
Do not use a damaged appliance. It could be dangerous. Check the
appliance for visible signs of damage.
This refrigeration appliance is not intended for use as a built-in
appliance.
Warning and Safety instructions
8
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply. It is only
completely isolated from the electricity supply when:
- the mains circuit breaker has been switched off, or
- the screw-out fuse is removed (in countries where this is
applicable), or
- it is switched off at the wall socket and the plug is withdrawn from
the socket. Do not pull the mains connection cable but the mains
plug to disconnect your appliance from the mains electricity
supply.
Repairs and other work by unqualified persons could be
dangerous. Maintenance work and repairs to electrical appliances
must only be carried out by a Miele authorised technician.
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele authorised technician.
Faulty components must only be replaced with genuine Miele
original spare parts. Miele can only guarantee the safety standards of
the appliance when Miele spare parts are used.
In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the appliance and its
surroundings clean at all times. Any damage caused by cockroaches
or other vermin will not be covered by the warranty.
Correct installation
When installing the refrigeration appliance, it is a mandatory
requirement to follow the operating instructions supplied with it.
Change the door hinging (if necessary) as described in the
installation instructions supplied with the appliance.
Refrigeration appliances with an “S” in the model identifier can be
installed next to each other as a side-by-side combination:
- Carry out installation as described in the installation instructions
supplied with the appliance.
- Do not change the door hinging as the arrangement of the
refrigeration appliances is predefined.
Always wear protective gloves when transporting and installing the
refrigeration appliance.
Two people are required to install the refrigeration appliance.
Warning and Safety instructions
9
Correct use
This refrigeration appliance is designed for use within specific
ambient temperatures (climate range). Do not use it in ambient
temperatures for which it is not designed. The climate class is stated
on the data plate inside the refrigeration appliance. A lower ambient
temperature will cause the compressor to switch off for longer
periods, meaning that the refrigeration appliance is unable to
maintain the required temperature.
To ensure proper air flow in and out of the appliance, the
ventilation gaps in the appliance and built-in structure must not be
covered or blocked in any way. This would also increase the energy
consumption and could cause damage to the appliance.
If storing food which contains a lot of fat or oil in the appliance or
the appliance door, make sure that it does not come into contact with
plastic components as this could cause stress cracks or break the
plastic. Make sure that no fat or oil leaks onto the plastic parts of the
appliance.
Risk of fire and explosion! Do not store any explosive materials or
products containing flammable propellants (e.g. spray cans) in the
refrigeration appliance. Electrical components can cause flammable
mixes of gases to ignite.
Danger of explosion! Do not operate any electrical equipment (e.g.
an electric ice cream maker) inside the appliance. Danger of sparking
and explosion.
Risk of injury and damage! Do not store cans or bottles containing
carbonated drinks or liquids which could freeze in the freezer section.
Otherwise they could burst, causing injury or damage.
Risk of injury and damage! When chilling drinks in the freezer
section, make sure that bottles are not left in for more than one hour.
Otherwise they could burst, causing injury or damage.
Danger of injury! Never handle frozen food or the metal parts of
the appliance with wet hands. Your hands may freeze to the frozen
food or to the metal.
Danger of injury! Do not take ice cubes out with your bare hands
and never place ice cubes or ice lollies in your mouth straight from
the freezer zone. The very low temperature of the frozen goods can
cause frost burn to the lips and tongue.
Warning and Safety instructions
10
Do not refreeze thawed or partially thawed food. Defrosted food
should be used up as quickly as possible, as food soon loses its
nutritional value and goes off. Defrosted food may only be refrozen
after it has been cooked.
Food stored for too long may present a risk of food poisoning.
Storage times will depend on several factors, including the freshness
and quality of the food, as well as the temperature at which it is
stored. Follow the instructions given on the food manufacturer's
packaging regarding storage conditions and use-by dates.
Stainless steel appliances
The coated stainless steel surface can be damaged by adhesives
and will lose its dirt-repelling properties. Do not adhere sticky notes,
transparent tape, masking tape or other adhesives onto the stainless
steel surface.
The surface is susceptible to scratching. Even magnets can cause
scratches.
Accessories and spare parts
Only use original Miele accessories. Using spare parts or
accessories from other manufacturers will invalidate the warranty,
and Miele cannot accept liability.
Miele will guarantee to supply functional spare parts for a
minimum of 10years and up to 15years following the discontinuation
of your refrigeration appliance.
Warning and Safety instructions
11
Cleaning and care
Do not use any oils or grease on the door seals, as these will cause
the seals to deteriorate and become porous with time.
Do not use a steam cleaning appliance to clean this appliance.
Steam could reach the electrical components and cause a short
circuit.
Warning: Do not use any mechanical tools or other types of aid
which are not recommended by the manufacturer to accelerate the
defrosting process.
Sharp edged or pointed objects will damage the evaporator,
causing irreversible damage to the appliance. Do not use sharp edged
or pointed objects to
- remove frost and ice, or accelerate the defrosting process,
- separate frozen foods and remove ice trays.
Never place electric heaters or candles in the appliance to defrost
it. These can damage the plastic parts.
Do not use defrosting sprays or de-icers, as they might contain
substances which could damage the plastic parts or which could
cause a build-up of gases and pose a danger to health.
Transport
To avoid damage to the appliance, always transport it upright and
in its packaging.
Risk of injury and damage! The refrigeration appliance is very heavy
and must be transported by two people.
Warning and Safety instructions
12
Disposal of your old appliance
Children playing could become trapped in the refrigeration
appliance and could suffocate.
- Remove the appliance door(s).
- Remove the drawers.
- Leave the adjustable shelves in the refrigeration appliance so
children cannot climb inside.
- If your old refrigeration appliance has a door lock, destroy it. This
way you will prevent the risk of playing children accidentally
locking themselves in and endangering their lives.
Risk of electric shock!
- Cut the electrical plug off the power supply cord.
- Cut the power supply cord off the old appliance.
Dispose of the electrical plug and power supply cord separately from
the old appliance.
During and after disposal, make sure that the refrigeration
appliance is not placed near petrol or other flammable gases and
liquids.
Risk of fire due to escaping oil or refrigerant!
The refrigerant and oil inside the appliance are flammable. In high
enough concentrations, escaping refrigerant or oil may ignite if they
come into contact with an external heat source.
During disposal, make sure that the cooling circuit is not damaged in
order to prevent refrigerant and oil escaping in an uncontrolled
manner (see the data plate for details of the refrigerant).
Splashes of coolant can damage the eyes. Be careful not to
damage any part of the pipework whilst awaiting disposal, e.g. by
- puncturing the refrigerant channels in the condenser,
- bending any pipework, or
- scratching the surface coating.
Warning and Safety instructions
13
Symbol on the compressor (depending on model)
This information is only relevant for recycling. There is no risk during normal
operation.
The oil in the compressor can be fatal if swallowed or if it
penetrates the airways.
Caring for the environment
14
Disposal of the packing material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal,
and can normally be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also reduces
the amount of waste in landfill sites.
Ensure that any plastic wrappings, bags
etc. are disposed of safely and kept out
of the reach of babies and young
children. Danger of suffocation!
Disposing of your old appliance
Electrical and electronic appliances
contain many valuable materials. They
also contain certain materials,
compounds, and components which
were essential for their correct
functioning and safety. These could be
hazardous to human health and to the
environment if disposed of with general
waste or if handled incorrectly. Please
do not, therefore, dispose of your old
appliance with your household waste.
Take care not to damage your
refrigeration appliance before or during
disposal in an authorised,
environmentally friendly manner.
This is to ensure that refrigerant in the
cooling circuit and oil in the compressor
is contained, and will not leak into the
environment.
Please dispose of it at your local
community waste collection/recycling
centre for electrical and electronic
appliances, or contact Miele. You are
also responsible for deleting any
personal data that may be stored on the
appliance prior to disposal. You should
remove any old batteries which are not
securely enclosed by the appliance and
remove any lamps without destroying
them, where this is possible. These
must be taken to a suitable collection
point where they can be handed in free
of charge. Please ensure that your old
appliance presents no danger to
children while being stored awaiting
disposal.
Installation
*INSTALLATION*
15
Installation location
Risk of damage due to high
humidity.
In environments with high humidity,
condensation can build up on
external refrigeration appliance
panels.
This condensate can cause corrosion
on external appliance panels.
Install the refrigeration appliance in a
dry and/or air-conditioned room with
sufficient ventilation.
After installation, please make sure
that the appliance door(s) closes/
close properly and that the specified
ventilation gaps are adhered to.
Fire hazard and risk of damage
from appliances that give off heat.
Appliances that give off heat can
catch fire and set fire to the
refrigeration appliance.
Do not place appliances which give
off heat, such as mini-ovens, double
burner cooktops or toasters on the
refrigeration appliance.
Fire risk and danger of damage
from open flames!
Open flames can set fire to the
refrigeration appliance.
Keep open flames (e.g. a candle)
away from the refrigeration
appliance.
This appliance should be installed in a
dry, well-ventilated room.
When deciding on the installation site,
please bear in mind that your
refrigeration appliance will use more
energy if installed near to a heater, a
cooker or other appliance that gives off
heat.
Avoid direct sunlight.
The higher the ambient temperature,
the longer the compressor runs and
the higher the energy consumption is.
When installing the refrigeration
appliance, please note the following:
- The mains socket must not be located
directly behind the appliance and
should be easily accessible.
- The mains plug and mains connection
cable must not touch the rear of the
refrigeration appliance as they could
be damaged by vibrations from the
appliance.
- Do not plug in other appliances into
sockets behind this appliance.
- During installation of the refrigeration
appliance, make sure that the mains
connection cable does not get
trapped or damaged.
- Do not position or operate multi-
socket adapters, distributor strips or
other electronic devices (such as
halogen transformers) at the rear of
the appliance.
- The floor at the installation site must
be horizontal and level and must be as
high as the surrounding floor.
Installation
*INSTALLATION*
16
Climate range
This refrigeration appliance is designed
for use within specific ambient
temperatures (climate range). Do not
use in ambient temperatures for which
it is not designed.
A lower ambient temperature leads to
the compressor switching off for longer
periods. This can cause the internal
temperature in the appliance to rise
with the risk of food deteriorating and
going off.
The climate class is stated on the data
plate inside the refrigeration appliance.
Climate range Ambient
temperature
SN 10to32°C
N 16to32°C
ST 16to38°C
T 16to43°C
SN-ST 10to38°C
SN-T 10to43°C
A freezer from the SN climate range
can operate without any difficulties in
rooms with a cooler ambient
temperature (down to -15°C).
Ventilation requirements
Risk of fire and damage due to
insufficient ventilation!
If the appliance is not ventilated
sufficiently, the compressor will run
more frequently and for longer
periods. This will result in increased
energy consumption and a higher
operating temperature of the
compressor. This, in turn, can result
in damage to the compressor.
Please ensure that there is adequate
ventilation around the appliance.
It is essential to observe the required
ventilation gaps.
The ventilation gaps must not be
covered or blocked in any way.
They must also be cleaned on a
regular basis to remove dust.
Air at the back of the refrigeration
appliance gets warm. Sufficient space
for proper ventilation must therefore be
ensured (see “Installation - Appliance
dimensions”).
Installing multiple refrigeration
appliances
Risk of damage due to
condensation on the external
appliance panels.
In environments with high humidity,
condensation can build up between
the external refrigeration appliance
panels, which can cause corrosion.
Do not place different refrigeration
appliances directly next to one
another.
A distance of at least 70mm must be
maintained between the refrigeration
appliances.
Installation
*INSTALLATION*
17
Side-by-side installation
Your freezer can be installed to the left
of another refrigerator as it is equipped
with an integrated heater in the right-
hand side panel (see “Appliance
dimensions”).
The refrigerator must also be equipped
with an integrated heater in the left-
hand side panel.
Depending on the model, the side-by-
side installation kit will be provided with
the freezer. The accompanying
installation instructions describe how to
install the refrigeration appliances next
to each other.
Useful tip: Please contact Miele for
information on which combinations are
suitable for your appliance.
Changing the door hinging
Please note that the hinging must not
be changed if this appliance is going
to be installed side by side with
another refrigeration appliance.
Danger of injury and damage to
the appliance due to heavy door.
There is an increased danger of injury
and damage if the door hinging is
installed by a single person.
Always change the door hinging with
the help of a second person.
The appliance is supplied with left-hand
hinging. If right-hand hinging is required,
the hinges must be changed (see
accompanying installation instructions).
Fitting the supplied wall
spacers
The wall spacers supplied must be
used in order to achieve declared
energy consumption values and to
prevent the build-up of condensation
at high ambient temperatures. The
refrigeration appliance depth is
increased by approx.15mm for
appliances with wall spacers fitted.
If the wall spacers are not used, the
functionality of the refrigeration
appliance is not affected. However,
energy consumption is slightly
increased with less distance between
the appliance and the wall.
Fit the wall spacers onto the back of
the refrigeration appliance on the
bottom left and right.
Installation
*INSTALLATION*
18
Fitting the insect protection
grille supplied
The insect protection grille protects the
refrigeration appliance from the ingress
of small insects and ensures the correct
functioning of the appliance.
Slide the insect protection grille in
under the refrigeration appliance.
Using two hands, press the grille
upwards starting on the left, then
right and then in the middle until it
clicks into place.
Installation
Risk of injury and damage due to
the refrigeration appliance tipping
over.
There is an increased risk of injury
and damage if the refrigeration
appliance is installed by a single
person.
Two people are required for installing
the refrigeration appliance.
Risk of damage to the appliance
door caused by impact.
The appliance door could hit the wall
of the room resulting in damage to
the door.
Fit the door opening angle limiter
supplied before the refrigeration
appliance is installed.
Protect the appliance door by fitting a
felt stopper, for example, to the wall
of the room.
Risk of damaging the floor.
Moving the refrigeration appliance
can cause damage to the floor.
Move the appliance carefully on
floors that are sensitive to scratching.
For easier installation, there are
transport handles on the back at the
top and transport wheels underneath
the refrigeration appliance.
Useful tip: The appliance must be
empty when it is installed.
Prepare the appliance for installation
as close as possible to its intended
installation location.
Connect the appliance to the
electricity supply as described in
"Electrical connection".
Move the appliance carefully to its
intended installation location.
Position the refrigeration appliance
with the wall spacers (if fitted) or the
back of the appliance close to the
wall.
Installation
*INSTALLATION*
19
Aligning the appliance
Risk of damage and danger of
injury due to the appliance door
swinging open or the refrigeration
appliance tipping over.
If the additional adjustable foot on
the hinge plate at the bottom is not
resting firmly on the floor, the
appliance door may swing open or
the refrigeration appliance can tip
over.
Use the open spanner supplied with
the appliance to unscrew the
adjustable foot until it is resting on
the floor.
Then unscrew it by a further quarter
turn.
Use a spirit level and the open
spanner supplied to align the
refrigeration appliance and support
the appliance door.
1. Adjust the front adjustable feet.
2. Unscrew the additional adjustable
foot until it is touching the floor. Then
unscrew it by a further quarter turn.
Integrating the refrigeration
appliance in a run of kitchen
units
The refrigeration appliance can be
surrounded by kitchen units.
K(S)/FN(S)/KFN4xxxX edst/cs, bst
Top box
Refrigeration appliance, door depth =
75mm
Kitchen unit
Wall
A = 25mm (with recessed grip)/60mm
(with handle)
* The appliance depth is increased by
approx. 15mm for appliances with wall
spacers fitted.
Installation
*INSTALLATION*
20
Risk of fire and damage due to
insufficient ventilation!
If the appliance is not ventilated
sufficiently, the compressor will run
more frequently and for longer
periods. This will result in increased
energy consumption and a higher
operating temperature of the
compressor. This, in turn, can result
in damage to the compressor.
Please ensure that there is adequate
ventilation around the appliance.
It is essential to observe the required
ventilation gaps.
The ventilation gaps must not be
covered or blocked in any way.
They must also be cleaned on a
regular basis to remove dust.
The larger the ventilation gap, the
more economically the compressor
will work.
Install the refrigeration appliance next
to the kitchen unit.
- The appliance front must protrude in
front of furniture fronts by at least the
door depth. This enables the door to
be opened and shut without being
obstructed.
- When installed next to a wall, a
distance (A) must be maintained on
the hinge side between the wall
and the refrigeration appliance.
- To match the height of the rest of the
kitchen units, the refrigeration
appliance can be fitted with a suitable
top box.
A ventilation duct of at least 50mm
depth must be provided across the
whole width of the top box.
The ventilation gap under the ceiling
must be at least 300cm
2
to ensure
that the warm air can escape
unhindered.
Installation
*INSTALLATION*
21
Appliance dimensions
Installation dimensions/View from above
FNS 4782 ... edt/cs, FNS 4782 ... bst
All dimensions are given in mm.
The refrigeration appliance will function correctly if the specified ventilation cross-
sections are kept clear.
* Dimensions without wall spacers fitted. Appliance depth is increased by 15mm with the
wall spacers supplied fitted.
Installation
*INSTALLATION*
22
Connections
FNS 4782 ... edt/cs, FNS 4782 ... bst
All dimensions are given in mm.
a
Front view
b
Mains connection cable, length = 2,100 mm
A longer mains connection cable is available from Miele.
Installation
*INSTALLATION*
23
Installation dimensions/View from above
FNS 4782 ... edt/cs + KS 4783 ... edt/cs, FNS 4782 ... bst + KS 4783 ... bst
For more information, see “Installing multiple refrigeration appliances – Side-by-
side installation” and the installation instructions supplied with the side-by-side
installation kit.
All dimensions are given in mm.
The refrigeration appliances will function correctly if the specified ventilation
cross-sections are kept clear.
* Dimensions without wall spacers fitted. Appliance depth is increased by 15mm with the
wall spacers supplied fitted.
Installation
*INSTALLATION*
24
Electrical connection
The refrigeration appliance must only be
connected to an earthed socket using
the connection cable supplied.
The socket should be easily accessible
after the refrigeration appliance has
been installed. If the socket is not easily
accessible, ensure that a suitable
means of disconnection is provided on
the installation side for each pole.
Risk of fire from overheating.
Connecting the appliance to a multi-
socket plug adapter or to an
extension lead can overload the
cable.
For safety reasons, do not use an
extension cable or multi-socket
adapter.
All electrical work must be carried out
by a suitably qualified and competent
person in strict accordance with
national and local safety regulations.
For safety reasons, we recommend
using a suitable residual current device
(RCD) in the relevant electrical
installation for connecting the
refrigeration appliance.
If the mains connection cable is
damaged, it must only be replaced with
a specific mains connection cable of the
same type (available from Miele).
The data plate indicates the nominal
power consumption and the connection
data. Compare this information with the
data of the on-site electrical connection.
If in any doubt, consult a qualified
electrician.
Temporary or permanent operation with
a self-sufficient or non-mains
synchronous energy supply system (e.g.
isolated networks, back-up systems) is
possible. A requirement for the
operation is that the energy supply
system complies with all current local
and national requirements that apply to
stand-alone, solar and/or battery
systems.
The protective measures provided in the
domestic installation and in this Miele
product must also be assured in their
function and operation in isolated
operation or in non-mains synchronous
operation, or replaced with equivalent
measures in the installation.
Connecting the appliance
Back of the refrigeration appliance
Appliance plug connector
Mains plug
Plug the appliance plug connector
into the appliance socket.
Make sure that the plug connector has
locked into position correctly.
Insert the mains plug of the appliance
into the socket and switch it on.
The appliance is now connected to the
electricity supply.
Saving energy
25
How to save energy:
Installation
location
The refrigeration appliance has to cool more often at higher
ambient temperatures and consumes more energy in the
process. Therefore, you should:
- Install the refrigeration appliance in a well-ventilated room.
- Do not install the refrigeration appliance near to a heat source
(heater element, cooker).
- Protect the refrigeration appliance from direct sunlight.
- Ensure an ideal ambient temperature of 20°C.
- Clean the ventilation gaps on a regular basis to remove any
dust.
Temperature
setting
The colder the temperature, the higher the energy consumption.
The following settings are recommended:
- -18°C in the freezer section.
Use Energy consumption is increased by heat input and impeded air
circulation. Therefore, you should:
- Only open the appliance door(s) when necessary and for as
short a time as possible. Arrange the food in such a way that
makes it easy to find in the appliance.
- Always close the appliance door(s) properly after opening
them.
- Allow hot food and drinks to cool down before placing them in
the refrigeration appliance.
- Store food well packaged or covered.
- Do not overfill the compartments to allow air to circulate.
- Keep drawers and shelves arranged as they were when the
appliance was delivered.
- When placing food in the appliance, make sure that the
ventilation gaps are not blocked.
- Use the wall spacers. The wall spacers on the back of your
refrigeration appliance are designed to ensure that the
declared energy consumption is achieved.
Guide to the appliance
26

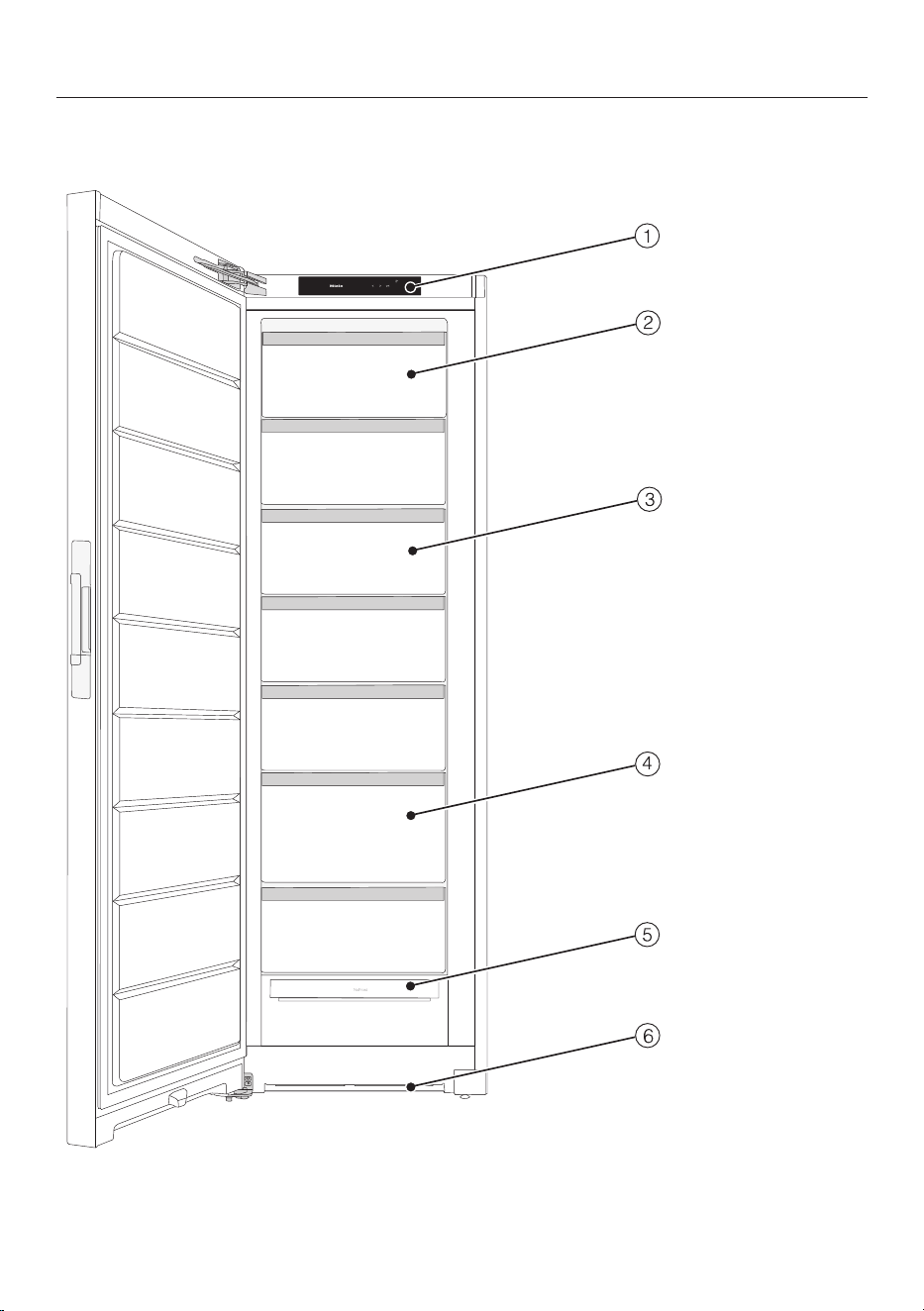

Appliance overview
Picture shows an example of an appliance model.
Guide to the appliance
27
a
Display
b
Tiltable freezer drawer
c
Freezer drawers
d
Freezer drawer XXLBox
e
NoFrost module
f
Ventilation gap
Guide to the appliance
28
Control panel with start display
-18
°C
OK
<
>
1
2
3
4
a
Temperature display for the freezer section
b
Sensors for selecting a setting
c
OKsensor for confirming a selection
and accessing Settings mode
d
Display for Miele@home connection status
(only visible when the Miele@home function has been set up)
Settings mode
In Settings mode, you can select the following appliance functions and alter their
settings to some extent:
Symbol Function Factory
default
setting
Switching the Party mode function on or off
(see “Selecting further settings”)
Off
/ Switching the lock function on or off
(see “Selecting further settings”)
(Off)
Switching off the refrigeration appliance ––
Switching the Sabbath mode function on or off
(see “Selecting further settings”)
Off
Calling up information on the Sabbath mode function ––
Changing the time before the door alarm is triggered
(see “Selecting further settings”)
1:00
Guide to the appliance
29
Setting up the Miele@home function for the first time,
activating and deactivating Wi-Fi,
or resetting the network configuration
(see “Selecting further settings”)
APP
/
Switching the keypad tone on or off On
/ Changing the volume of the alarms and buzzers or
switching them off entirely
(see “Selecting further settings”)
On
/Level5
Changing the display brightness
(see “Selecting further settings”)
Level4
°C/°F Changing the temperature unit
(°Celsius or °Fahrenheit)
°C
Switching the Demo mode function off
(only visible when switched on)
(see “Selecting further settings”)
Off
Resetting to default settings
(see “Selecting further settings”)
––
Call up information (model identifier and serial number)
about your refrigeration appliance
(see “Selecting further settings”)
––
Guide to the appliance
30
Selecting the desired function in Settings mode
Touch the OKsensor on the control panel.
appears in the display.
Use the or sensor to scroll to the symbol.
Touch OK.
Select the function you want using the or sensor.
Touch OK to select the function you want.
When the function is switched on, a dot appears in the upper corner of the
display
.
Touch OK to deselect a selected function.
When the function is switched off, the dot in the upper corner of the display goes
out.
Exiting Settings mode
Use the or sensor to scroll to the symbol.
Touch OK.
Use the or sensor to scroll to the symbol and touch OK.
Alternatively:
Wait approx. 15seconds after the last press of a sensor.
Settings mode is then exited automatically.
Guide to the appliance
31
Adjusting the interior fittings
Tilting the top drawer
The drawer can be tilted to make it
easier to remove frozen food.
Pull the drawer out.
The drawer is secured with pull-out
stops and cannot fall out.
XXLbox freezer drawer
The extra high freezer drawer offers
more volume and space for storing bulky
and tall items of frozen food.
Flexible configuration of the freezer
If you wish to freeze large items such as
turkey or game, the upper freezer
drawers and the glass cold plates
between the drawers can be removed.
This creates more volume and space for
storing bulky and tall items of frozen
food.
Accessories supplied
Ice cube tray
Door opening angle limiter
The door hinges are set at the factory to
enable the door to be opened up to
115°. If the appliance door hits an
adjacent wall when opened, for
example, the opening angle can be
limited toapprox. 90°.
Carry out installation as described in the
installation instructions supplied with
the appliance.
Side-by-side installation kit
Depending on the model
For installing two appliances next to
each other.
Insect protection grille (depending on
model)
Optional accessories
A range of useful Miele accessories and
care products is available for your
appliance.
Miele all purpose microfibre cloth
Light soiling and fingerprints on
stainless steel fronts, control panels and
furniture can be easily removed with
this microfibre cloth.
Optional accessories can be ordered
from the Miele webshop. They can
also be ordered directly from Miele
(see end of this booklet for contact
details).
Switching on and off
32
Before using for the first time
Remove all packaging material and
protective film.
Clean the inside of the appliance and
the accessories (see “Cleaning and
care”).
Connecting the appliance
Connect the appliance to the
electricity supply as described in
"Electrical connection".
Mielewill then appear in the appliance
display, followed by.
Switching on the appliance
Open the appliance door.
Touch the OKsensor on the control
panel.
The appliance will start to cool.
When the set freezer temperature is
reached, the
symbol disappears, the
temperature display of the freezer lights
up constantly and the alarm stops.
If the alarm annoys you, tap OK.
The alarm will stop.
The refrigeration appliance will gradually
reach the preset temperatures.
Do not place food in the freezer
section until it has reached the
preset temperature (min. -18°C).
Switching off the appliance
Touch the OKsensor on the control
panel.
appears in the display.
Touch OK.
Use the sensor to scroll to the
symbol.
Touch OK.
appears in the display.
The cooling system is switched off.
Please note: the refrigeration
appliance is not disconnected from
the power supply when it is switched
off.
Switching off for longer periods of
time
If, during a long absence, the
refrigeration appliance is switched off
but not cleaned and the door is left
shut, there is a danger of mould
building up inside the appliance.
It is essential to clean the
refrigeration appliance if it is not
going to be used for a long time.
If the appliance is not going to be used
for a longer period of time, observe the
following:
Switch the appliance off.
Switch off at the wall and withdraw
the plug from the socket, or switch off
the mains circuit breaker.
Clean the refrigeration appliance and
leave the door ajar to air the appliance
and avoid odours building up inside.
The correct temperature
33
It is very important to set the correct
temperature to ensure the shelf life of
food. Reducing the temperature reduces
the growth rate of microorganisms.
Food does not spoil as quickly.
To freeze fresh food, a temperature of
-18°C is required. This will prolong the
storage life of your food and retain its
quality.
As soon as the temperature rises above
-10°C, the bacteria become active in
the food again so it cannot be kept as
long. For this reason, partially defrosted
or defrosted food must not be refrozen.
Food may be refrozen once it has been
cooked, as the high temperatures
achieved during cooking destroy most
bacteria.
The temperature in the appliance will
rise:
- the more often the door is opened and
the longer it is kept open.
- the more food is stored in it.
- the warmer the food is which is being
put into it.
- the higher the ambient temperature
surrounding the refrigeration
appliance. This refrigeration appliance
is designed for use within specific
ambient temperatures (climate range).
Do not use it in ambient temperatures
for which it is not designed.
Temperature display
In normal operation, the temperature
display shows the current maximum
freezer section temperature in the
refrigeration appliance.
Depending on the ambient temperature
and the temperature setting, it can take
the appliance a few hours to reach the
temperature required and for this
temperature to then be shown as a
constant temperature in the display.
Setting the temperature
Touch the OKsensor on the control
panel.
appears in the display.
Touch OK.
Use the andsensors to change
the temperature.
Touch OK.
The temperature display will then
change back to the current temperature
in the refrigeration appliance.
Possible temperature settings
- Freezer section: -15to-28°C
If you change the temperature setting:
Check the temperature display after a
few hours. It will take this long for an
accurate reading to be given.
- Wait for approx.6hours if the
refrigeration appliance is not very full.
- Wait for approx.24hours if the
refrigeration appliance is full.
If, after this time, the temperature is still
too high or too low:
Adjust the temperature again.
Using SuperFreeze
34
SuperFreeze
When switched on, the SuperFreeze
function can be used to rapidly
reduce the temperature in the freezer
section to its lowest setting
(depending on the ambient
temperature). The refrigeration
appliance will work at full power and
lower the temperature. Select this
function before freezing fresh food.
This helps food to freeze quickly and
retain its nutrients, vitamins, flavours
and appearance.
When the SuperFreeze function is
switched on, the appliance may make
more noise than usual.
SuperFreeze should be switched on
approx. 6hours before placing food in
the freezer section.
When freezing the maximum amount
of food, the SuperFreeze function
should be switched on 24hours
beforehand.
The SuperFreeze function will
switch itself off automatically after a
maximum of 72hours. The appliance
will then run at normal power again.
The quantity of fresh food placed in
the freezer will determine the duration
before it switches off.
Useful tip: To save energy, you can
manually switch the SuperFreeze
function off once food and drinks are
sufficiently chilled.
You do not need to switch on the
SuperFreeze function:
- when placing food in the freezer
that is already frozen.
- when freezing only up to 2kg fresh
food daily.
Switching SuperFreeze on and off
Touch the OKsensor on the control
panel.
appears in the display.
Touch OK.
Use the sensor to scroll to the
symbol.
Touch OK.
When the SuperFreeze function is
switched on, a dot appears in the upper
corner of the display
.
Selecting further settings
35
Explanation of the different
settings
Only the settings that require further
explanation are described below.
The door alarm and other warnings are
automatically suppressed when you
are in Settings mode.
Party mode
The Party mode function is
recommended if you wish to chill or
freeze large amounts of fresh food or
drink quickly.
Useful tip: Switch on the Party mode
function approx. 4hours before
placing food in the appliance.
When Party mode is switched on, the
SuperFreeze function is switched on
automatically.
The Party mode function will switch
itself off automatically after approx.
24hours. However, you can switch the
Party mode function off early at any
time.
If there is a power outage, the Party
mode function is switched off.
Switching the lock function/ on
When the lock function is switched on,
it protects the refrigeration appliance
from being switched off unintentionally
and being adjusted unintentionally by
unauthorised persons, e.g. children.
In Settings mode, use the or
sensor to scroll to the symbol.
Touch OK.
When the safety lock function is
switched on, a dot appears in the upper
corner of the display
.
Close the appliance door. The safety
lock function will now be activated.
Deactivating the lock function/
temporarily
If you want to adjust the temperature,
for example, you can deactivate the
safety lock function temporarily:
Touch OK.
will appear in the display.
Touch the OKsensor for approx.
6seconds.
will appear in the display.
Touch OK.
Now select the required settings.
Touch OK.
Closing the appliance door will
reactivate the safety lock function.
Switching the lock function/ off
completely
Touch OK.
will appear in the display.
Touch the OKsensor for approx.
6seconds.
will appear in the display.
Selecting further settings
36
Use the or sensor to scroll to the
symbol.
Touch OK.
Use the or sensor to scroll to the
symbol.
Touch OK.
When the safety lock function is
switched off, appears in the display.
Sabbath mode
The appliance offers a Sabbath mode
for the purpose of religious observance.
If Sabbath mode is switched on, this
will be indicated in the start display.
The display switches off after
3seconds.
When Sabbath mode is switched on,
you cannot adjust any settings on your
refrigeration appliance.
Ensure that the door is properly
closed, as visual and audible alarms
are switched off.
The Sabbath mode function will
switch off automatically after approx.
120hours.
When Sabbath mode is switched on,
the following are deactivated:
- All audible and visual signals.
- The temperature display.
- An active Wi-Fi connection.
All other functions switched on
previously remain activated.
Health risk due to consumption
of spoiled food.
As power failures are not indicated
while Sabbath mode is active, food
may be exposed to increased
temperatures for a certain period of
time. This shortens the shelf life of
the food.
If there is a power failure during
Sabbath mode, check the quality of
the food.
Switching Sabbath mode on
In Settings mode, use the or
sensor to scroll to the symbol.
Touch OK.
When the Sabbath mode function is
switched on, a dot appears in the upper
corner of the display
.
The display switches off after
3seconds.
Close the appliance door.
Switching Sabbath mode off
Touch the OKsensor.
will appear in the display.
Touch OK.
When the Sabbath mode function is
switched on, a dot appears in the upper
corner of the display
.
Touch OK.
When the Sabbath mode function is
switched off, the dot in the upper corner
of the display goes out.
Changing the time before the door
alarm
is triggered
You can set how quickly the door alarm
should sound after an appliance door
has been opened.
Selecting further settings
37
In Settings mode, use the or
sensor to scroll to the
symbol.
Touch OK.
Use the andsensors to set the
time you want between 30seconds
and 3minutes: 30seconds.
Touch OK.
Miele@home
Your refrigeration appliance is
equipped with an integrated Wi-Fi
module.
Networking is deactivated at the
factory.
To use this feature, you will need:
- a Wi-Fi network
- the Miele App
- a Miele user account. You can create a
user account via the Miele App.
The Miele App will guide you as you
connect your refrigeration appliance to
your home Wi-Fi network.
Once the refrigeration appliance is
connected to your Wi-Fi network, you
can use the App to carry out the
following activities, for example:
- Call up information on the operating
status of your refrigeration appliance
- Change the settings on your
refrigeration appliance
Connecting your refrigeration appliance
unit to your Wi-Fi network will increase
energy consumption, even when the
appliance is switched off.
Make sure that the signal of your Wi-
Fi network is sufficiently strong in the
area where you want to set up your
refrigeration appliance.
Selecting further settings
38
Availability of the Wi-Fi connection
The Wi-Fi connection shares a
frequency range with other appliances
(including microwave ovens and remote
control toys). This may result in sporadic
or even complete connection failures.
Therefore, a constant availability of
featured functions cannot be
guaranteed.
Miele@home availability
The ability to use the Miele App
depends on the availability of the
Miele@home service in your country.
The Miele@home service is not
available in every country.
For information about availability, please
visit www.miele.com.
Miele App
You can download the Miele App from
the Apple App Store
®
or the Google Play
Store™ free of charge (only functional in
selected countries).
Setting up Miele@home for the first
time
In Settings mode, use the or
sensor to scroll to the symbol.
Touch OK.
Use the and sensors to select
the connection method you wish to
use (App or WPS).
Touch OK.
After you have successfully logged in,
will appear in the start display.
If a connection could not be created,
will appear.
Start the process again.
Deactivating or activating the Wi-Fi
connection
In Settings mode, use the or
sensor to scroll to the symbol.
Touch OK.
If the Wi-Fi is deactivated, the
symbol will appear in the display.
To reactivate the Wi-Fi connection,
touch OK.
If the Wi-Fi is activated, the symbol
and a dot appear in the upper corner of
the display
.
When the Wi-Fi connection is active,
the symbol appears in the start
display.
Selecting further settings
39
Resetting the network configuration
In Settings mode, use the or
sensor to scroll to the symbol.
Touch OK.
Use the sensor to scroll to the
symbol.
Touch OK.
Use the sensor to scroll to the
symbol.
Touch OK.
All entered settings and values for
Miele@home are reset to the default
settings.
The Wi-Fi connection has been
deactivated. will go out in the start
display.
Reset the network configuration if
you are disposing of or selling your
refrigeration appliance, or if you are
putting a used refrigeration appliance
into operation. All personal data is
removed from the refrigeration
appliance. This will also ensure that a
previous owner is no longer able to
access the appliance.
Changing the volume of the alarms
and buzzers/
You can change the volume of the
alarms and buzzers (e.g. in the event of
a door alarm or a fault message).
Alternatively, you can switch the alarms
and buzzers off if you find them
annoying.
In Settings mode, use the or
sensor to scroll to the symbol.
Touch OK.
Use the and sensors to select
the volume you want for alarms and
buzzers.
Touch OK.
When the alarms and buzzers are
switched off, will appear.
Adjusting the display brightness
You can adjust the display brightness to
the lighting conditions in the room.
In Settings mode, use the or
sensor to scroll to the symbol.
Touch OK.
Use the and sensors to select
the display brightness you want.
Touch OK.
Selecting further settings
40
Switching off Demo mode
Demo mode allows the refrigeration
appliance to be presented in the
showroom without the cooling system
being switched on. Do not activate this
setting for domestic use.
If Demo mode has been switched on
as a default setting, will appear in the
display when the refrigeration
appliance is switched on.
Touch the OKsensor on the control
panel.
Miele will appear initially in the display,
followed by the start screen.
Touch OK.
In Settings mode, use the or
sensor to scroll to the symbol.
Touch OK.
After Demo mode has been switched
off, the refrigeration appliance shuts
down and must be switched on again.
Resetting the settings to their factory
default settings
All settings made on the refrigeration
appliance will be reset to the factory
default settings (for settings, see
“Guide to the appliance”).
In Settings mode, use the or
sensor to scroll to the symbol.
Touch OK.
Use the sensor to scroll to the
symbol.
Touch OK.
The refrigeration appliance shuts down
and must be switched on again.
Information
Appliance data (model number and
serial number) is shown in the display.
Keep this appliance data to hand:
- For integrating the refrigeration
appliance into your Wi-Fi network
(see “Selecting further settings –
Miele@home”) (depending on
model).
- When reporting an appliance fault to
Miele (see “Service”).
Temperature and door alarm
41
Health risk due to consumption
of spoiled food.
If the temperature in the freezer
remains above -18°C for a long time,
the frozen food may start to defrost.
This shortens the shelf life of the
food.
Check whether the frozen food has
started to defrost. If it has, check that
the food is safe to use and if it is, use
it as soon as possible or cook it
before freezing it again.
Temperature alarm
The refrigeration appliance is equipped
with a temperature alarm so that the
temperature in the freezer section
cannot rise unnoticed.
If the temperature in the freezer section
becomes too warm,
will light up red
in the temperature display.
An alarm will also sound until the cause
of the alarm is rectified or the alarm is
switched off.
The temperature the appliance is set at
determines the temperature the
appliance recognises as being too
warm.
A temperature alarm is displayed
before an existing door alarm.
The audible and visual signals may be
activated in the following situations:
- The appliance is switched on and
the temperature in the appliance
differs greatly from the set
temperature.
- A lot of warm room air enters the
freezer as you are rearranging or
taking out frozen goods.
- You are freezing large amounts of
food at once.
- You are freezing warm food.
- There was a power outage.
- The refrigeration appliance has a
fault.
Before you switch the temperature
alarm off, you must determine the
cause and rectify it.
You can switch the alarm off early if you
wish.
Touch OK.
The alarm message is confirmed:
goes out and the alarm stops.
The start screen appears in the display:
The warmest temperature recorded in
the appliance will flash in the display for
about 1minute. Then the temperature
display will change to the current
temperature.
The alarm will stop. The
symbol will
go out when the temperature reaches
the correct level again.
Temperature and door alarm
42
Door alarm
The refrigeration appliance is equipped
with a warning system to avoid
increased energy consumption and
food becoming warm if the appliance
door is left open.
If the appliance door is left open for a
longer period of time,
will appear in
the temperature display. An alarm tone
also sounds.
You can change the time before the
door alarm is triggered. However, the
door alarm can also be switched off (see
“Selecting further settings”).
The alarm will stop and
will go out in
the display as soon as the door is
closed.
Switching the door alarm off early
You can switch the alarm off early if you
wish.
Touch OK.
The alarm will stop and the
symbol
will go out.
If the appliance door is not closed, the
alarm will sound again after 3minutes.
Freezing and storing food
43
Freezing fresh food
Health risk due to consumption
of spoiled food.
If the temperature in the freezer
remains above -18°C for a long time,
the frozen food may start to defrost.
This shortens the shelf life of the
food.
Check whether the frozen food has
started to defrost. If it has, check that
the food is safe to use and if it is, use
it as soon as possible or cook it
before freezing it again.
Fresh food should be frozen as quickly
as possible so that the nutritional value
of the food, its vitamin content,
appearance and flavour are maintained.
If food is frozen quickly, the cells have
less time to lose moisture, so they
shrink significantly less. As there is not
so much moisture loss, it is easier for
the food to reabsorb it during the
defrosting process, and very little water
collects around the defrosted food.
Storing frozen food
When buying frozen food to store in
your freezer, make sure to check:
- that the packaging is not damaged.
- the use-by date.
- that the temperature at which the
frozen food is being stored in the shop
is -18°C or colder.
Where possible, transport frozen food
in an insulated bag and then store it
quickly in the refrigeration appliance.
Home freezing
Before placing food in the appliance
When freezing more than 2kg of fresh
food, switch on the SuperFreeze
function 6hours before placing the
food in the freezer.
When freezing even larger amounts of
food, switch on the SuperFreeze
function 24hours before placing
the food in the freezer.
This helps food which is already stored
in the freezer to stay frozen.
Only freeze food which is fresh and in
good condition.
Please note that some food is not
suitable for freezing. These include, for
example, vegetables that are usually
eaten raw, such as lettuce or radishes.
Useful tip: To retain colour, taste,
aroma, and vitamin C, vegetables should
be blanched before they are frozen. To
blanch, immerse the trimmed and
washed vegetables in boiling water for
2-3 minutes. Remove and plunge into
ice-cold water to cool quickly. Drain and
pack ready for freezing.
Packaging food for freezing
Freeze food in portions.
Useful tip: Use suitable packaging to
avoid freezer burn (such as freezer
containers).
Expel as much air as possible from
the packaging and close it tightly.
Label the packaging with the contents
and the date of freezing.
Freezing and storing food
44
Placing food in the freezer
Risk of damage due to heavy
loads.
Loading food which is too heavy can
cause damage to the freezer drawers.
Do not exceed the relevant maximum
load size:
Bottom freezer drawer = 11kg
All other freezer drawers = 19kg
Unfrozen food should not touch
frozen food as this will cause the
frozen food to begin to thaw.
To prevent food sticking together
when frozen, make sure that the
packaging and containers are dry.
To ensure that food freezes through to
the core quickly, do not exceed the
following packaging and container
sizes:
- Fruit and vegetables: max. 1kg
- Meat: max. 2.5kg
- Freezing small amounts of food
Freeze food in the top freezer drawer.
Place the food so that it is touching
the back of the drawer to help it
freeze through to the core as quickly
as possible.
–VarioRoom: freezing the maximum
amount of food
If there is insufficient air circulation in
the freezer section, the cooling
performance will decrease and
energy consumption will increase.
Do not remove the lowest freezer
drawer from the refrigeration
appliance.
When placing food in the freezer,
make sure that the ventilation gaps
are not blocked.
Useful tip: If you wish to freeze large
items of food such as a turkey or game,
you can remove the individual freezer
drawers to increase the space above a
drawer.
Distribute the food in all freezer drawers
apart from the lowest freezer drawer.
Place the food so that it is touching
the back of the drawer to help it
freeze through to the core as quickly
as possible.
After the initial freezing process:
Switch the SuperFreeze function
off.
Place the frozen food in the freezer
drawers and push them back in.
Freezing and storing food
45
Storage time for frozen food
Food group Storage time
(months)
Ice cream 2 to 6
Bread, baked goods 2 to 6
Cheese 2 to 4
Fish, oily 1 to 2
Fish, lean 1 to 5
Sausage, ham 1 to 3
Game, pork 1 to 12
Poultry, beef 2 to 10
Vegetables, fruit 6 to 18
Herbs 6 to 10
The storage times given are guidelines only.
Where the storage time given on the
packaging differs, follow the advice on
the packaging.
By keeping the freezer at a constant
temperature of -18°C and taking
appropriate hygiene measures, you can
maximize the storage life of your food
and avoid food waste.
Cooling drinks quickly
When cooling drinks quickly in the
freezer, make sure bottles are not left in
for more than one hour, otherwise they
could burst, causing injury and damage.
Using accessories
Making ice cubes
Fill the ice cube tray 3/4 full with
water and place it on the bottom of
one of the freezer drawers.
Once frozen, use a blunt instrument
such as a spoon handle to remove the
ice cube tray from the freezer if it is
stuck.
Useful tip: Ice cubes can be easily
removed from the tray by briefly holding
it under running water.
Defrosting
46
The appliance is equipped with a
"NoFrost" system. The freezer defrosts
automatically.
The moisture generated in the appliance
collects on the evaporator and is
automatically defrosted and dissipated
from time to time.
This automatic defrosting system
enables the refrigeration appliance to
remain permanently ice-free. Food
stored in the freezer will not defrost
with this system.
Cleaning and care
47
The data plate located inside the
refrigeration appliance must not be
removed. It contains information
which is required in the event of a
fault.
Do not let water get into the
electronic unit.
Risk of damage due to moisture
ingress.
The steam from a steam cleaning
appliance can damage plastic parts
and electrical components.
Do not use a steam cleaning
appliance to clean the refrigeration
appliance.
Cleaning agents
Cleaning and conditioning agents
used in the interior of the
refrigeration appliance must be food
safe.
To avoid damaging the surfaces of your
appliance, do not use:
- cleaning agents containing soda,
ammonia, acid or chloride
- cleaning agents containing descaling
agents
- abrasive cleaning agents, e.g. powder
cleaners and cream cleaners
- solvent-based cleaning agents
- stainless steel cleaning agents
- dishwasher cleaners
- oven sprays
- glass-cleaning agents
- hard, abrasive sponges and brushes,
e.g. pot scourers
- dirt eraser sponges
- sharp metal scrapers
We recommend using lukewarm water
with a little washing-up liquid to clean
the appliance.
Preparing the refrigeration
appliance for cleaning
Switch the appliance off.
appears in the display and the cooling
system is switched off.
Take any food out of the refrigeration
appliance and store it in a cool place.
Take out any removable accessories
for cleaning (see “Removing and
dismantling accessories for
cleaning”).
Cleaning the interior of the
machine
Clean the appliance regularly, or at
least once a month.
If soiling is left on for any length of
time, it may become impossible to
remove under certain circumstances.
Surfaces may suffer discolouration or
damage.
Remove any soiling immediately.
Clean the interior with a clean
sponge, lukewarm water and a little
washing-up liquid.
After cleaning, wipe with a damp
cloth and dry with a soft cloth.
Leave the door open to air the
refrigeration appliance sufficiently for
a short while and to prevent odour
build-up.
Cleaning and care
48
Cleaning accessories by hand
or in the dishwasher
The following components must be
cleaned by hand only:
- All drawers
The following components are
dishwasher-safe:
Risk of damage due to high
dishwasher temperatures.
Parts of the refrigeration appliance
may become unusable, e.g. deform, if
they are washed in the dishwasher at
more than 55°C.
For dishwasher-safe components,
always select dishwasher programs
with a maximum temperature of
55°C.
Contact with natural dyes from
carrots, tomatoes, and ketchup, etc.
may discolour the plastic parts in the
dishwasher. This discolouration does
not affect the stability of the parts.
- the ice cube tray
Removing and dismantling
accessories for cleaning
Removing the drawers
Pull the drawer out as far as it will go.
Lift the drawer at the front and pull it
out.
Replacing the drawers
Insert the drawers into the
refrigeration appliance from an angle.
Push in and lower the drawer while
doing so.
Cleaning and care
49
Removing and cleaning the insect
protection grille
A build-up of dust will increase the
energy consumption of the appliance.
The area in front of the insect
protection grille should be cleaned on
a regular basis with a brush or vacuum
cleaner (e.g. use the dusting brush for
Miele vacuum cleaners).
Pull down the insect protection grille
until it unclips.
Pull out the insect protection grille
towards you.
Remove any stubborn soiling with a
damp cloth.
Refit the insect protection grille (see
“Installation - Fitting the insect
protection grille”).
Cleaning the front of the
appliance and the side panels
If soiling is left on for any length of
time, it may become impossible to
remove. Surfaces may suffer
discolouration or damage.
Therefore it is best to remove soiling
from the appliance doors and side
panels immediately.
All surfaces are susceptible to
scratching. Contact with unsuitable
cleaning agents can alter or discolour
the surfaces.
See the information on “Cleaning
agents” at the beginning of this
section.
Clean the surfaces with a clean
sponge and a solution of warm water
and washing-up liquid. A clean, damp
microfibre cloth without cleaning
agent can also be used.
After cleaning, wipe with clean water
and dry with a soft cloth.
CleanSteel (edt/cs) – appliance front
Risk of damage due to incorrect
cleaning.
The surface coating will be damaged.
Do not use a stainless steel
cleaning agent on this surface.
The appliance front has a high quality,
special finish. It is resistant to soiling
and easy to clean.
Cleaning the door seal
Risk of damage due to incorrect
cleaning.
If you treat the door seal with oils or
grease, it can become porous.
Do not use any oils or grease on the
door seals.
The door seal should be cleaned
regularly with clean water, and then
wiped dry with a soft cloth.
Cleaning the ventilation gaps
A build-up of dust will increase the
energy consumption of the appliance.
Cleaning and care
50
The ventilation gaps should be
cleaned on a regular basis with a
brush or vacuum cleaner (you could
use a Miele Vacuum Cleaner dusting
brush, for example).
After cleaning
Refit all removable parts and
accessories in the appliance.
Switch the refrigeration appliance
back on, if necessary.
The refrigeration appliance will start
cooling again.
Switch the SuperFreeze function
on for a while so that the freezer can
cool down quickly.
Once the freezer has reached the
required temperature, place the
frozen food back in the freezer
drawers in the freezer.
Switch the SuperFreeze function
off as soon as the temperature in the
freezer is a constant -18°C or colder.
Close the appliance door.
Problem solving guide
51
Many malfunctions and minor faults that can occur in daily operation can be
corrected without contacting Miele. This will save you time and money because
you will not need a service call.
You can find information on how to remedy faults yourself at
www.miele.com.au/service or www.miele.co.nz/service and on the Miele website.
Please note, however, that a call-out charge will be applied to unnecessary service
visits where the problem could have been rectified as described in these operating
instructions.
To prevent cold from escaping, avoid opening the appliance door until the fault
has been corrected.
Problem Possible cause and remedy
The appliance is not
cooling.
The refrigeration appliance is not switched on and the
symbol is lit up in the display.
Switch the appliance on.
The plug is not properly inserted into the socket or the
socket is not switched on.
Insert the plug into the socket correctly and switch
on. If the refrigeration appliance is switched off,
will appear in the display.
The mains circuit breaker has tripped. There could be
a fault with the refrigeration appliance, the household
electrical wiring or another electrical appliance.
Contact a qualified electrician or Miele.
The compressor runs
continuously.
This is not a fault. To save energy, the compressor
runs at a lower speed when less cooling is required.
This increases the running time of the compressor.
The compressor is
switching on more
frequently and for longer
periods of time. The
temperature in the
appliance is too low.
The ventilation gaps are covered or have become too
dusty.
Do not block the ventilation gaps.
Clean the dust from the ventilation gaps on a regular
basis.
The appliance door has been opened too frequently, or
a large amount of fresh food has been placed inside or
frozen at the same time.
Only open the door when necessary and for as short
a time as possible.
Problem solving guide
52
Problem Possible cause and remedy
After a while, the temperature will return to normal by
itself.
The door is not properly closed. A thick layer of ice
may have formed in the freezer section.
Close the appliance door.
After a while, the temperature will return to normal by
itself.
If a thick layer of ice has already formed, this will
affect cooling and increase energy consumption.
Defrost the refrigeration appliance and clean it.
The ambient temperature is too high. The higher the
ambient temperature, the longer the compressor runs.
See the information in "Installation - Installation
location".
The appliance was not properly installed in the niche.
Install the refrigeration appliance in the niche as
described in the installation instructions supplied
with it.
The temperature setting is too low.
Correct the temperature setting.
A large amount of food has been placed in the freezer
at once.
See "Freezing and storing food".
The SuperFreeze function is still switched on.
Switch off the SuperFreeze function earlier to
save energy.
Problem solving guide
53
Problem Possible cause and remedy
The compressor comes
on less and less often
and for shorter periods
of time. The temperature
in the appliance rises.
This is not a fault. The temperature setting is too high.
Correct the temperature setting.
Check the temperature again after 24hours.
The frozen food begins to defrost.
The ambient temperature is too low for this
refrigeration appliance.
If the ambient temperature is too low, the compressor
will run less frequently. This may cause the freezer to
become too warm.
See the information in "Installation - Installation
location".
Increase the ambient temperature.
Ice or condensation has
built up inside the
refrigeration appliance.
The appliance door may
not close correctly.
The door seal has come out of its groove.
Check that the door seal is correctly seated in the
groove.
The door seal is damaged.
Check if the door seal is damaged.
The door seal is
damaged and needs to
be replaced.
No tools are required to change the door seal.
Change the door seal. A replacement is available
from Miele.
Problem solving guide
54
Other problems
Problem Possible cause and remedy
Food has frozen
together.
The food packaging was not dry when loaded in the
freezer.
Use a blunt instrument, e.g. a spoon handle or
plastic scraper, to prise it apart carefully.
There is no audible alarm
even though the door
has been open for a long
time.
This is not a fault. The alarm has been switched off in
Settings mode. If you want to switch the audible alarm
back on again:
In Settings mode, use the or sensor to scroll
to the symbol.
Touch OK.
Use the and sensors to select the volume you
want for alarms and buzzers.
Touch OK.
When the alarms and buzzers are switched on, will
appear.
Messages in the display
Message Possible cause and remedy
lights up in the display.
The refrigeration
appliance does not get
cold, although the
appliance controls are
working.
Demo mode has been activated.
Touch OK.
Miele will appear initially in the display, followed by the
start screen.
Touch OK.
In Settings mode, use the or sensor to scroll
to the symbol.
Touch OK.
After Demo mode has been switched off, the
refrigeration appliance shuts down and must be
switched on again.
Problem solving guide
55
Message Possible cause and remedy
Nothing is visible in the
display. The display is
dark.
Sabbath mode is switched on.
Touch OK.
will appear in the display.
Touch OK.
When the Sabbath mode function is switched on, a
dot appears in the upper corner of the display
.
Touch OK.
When the Sabbath mode function is switched off,
the dot in the upper corner of the display goes out.
is lit up in the display
and the refrigeration
appliance cannot be
used.
The lock function has been activated.
Unlock the refrigeration appliance temporarily or
switch the lock function off completely (see
“Selecting further settings – Deactivating the lock
function/ temporarily/switching off
completely”).
lights up in the
display and an alarm
also sounds.
The door alarm has been activated.
Touch OK.
The alarm will stop and the
symbol will go out.
Close the appliance door.
Problem solving guide
56
Message Possible cause and remedy
is lit up in the
temperature display and
an alarm is also
sounding.
The temperature alarm has been activated; the
temperature in the freezer section has risen higher or
fallen lower than the temperature set.
Possible reasons for this include:
– The appliance door has been opened too
frequently.
– A large quantity of fresh food has been placed in
the freezer without switching on the
SuperFreeze function.
– A prolonged power cut (mains outage) has
occurred.
– The appliance has a fault.
Touch OK.
The alarm message is confirmed:
goes out and the
alarm stops.
The warmest temperature recorded in the refrigeration
appliance will flash for about 1minute in the display.
Then the temperature display will change to the
current temperature.
You can exit the flashing temperature display early:
Touch OK.
The warmest temperature displayed will disappear.
The display will revert to showing the current
temperature in the freezer.
Rectify the cause of the alarm.
Depending on the temperature displayed, you
should check whether food in the freezer has started
to thaw or has defrosted. Defrosted food may only
be refrozen after it has been cooked.
Problem solving guide
57
Message Possible cause and remedy
lights up red in the
display and an alarm
also sounds.
There is a power cut: The temperature in the appliance
over the last few days or hours has risen too high
because of a power cut or an interruption to the power
supply.
Tap
.
The fault message is confirmed:
goes out and the alarm will stop.
The warmest temperature recorded in the refrigeration
appliance will flash for about 1minute in the display.
Then the temperature display will change to the
current temperature.
You can exit the flashing temperature display early:
Touch the temperature display.
The warmest temperature display will disappear. The
display will revert to showing the current temperature.
The appliance will operate at the last temperature
setting when the power is restored.
Rectify the cause of the alarm.
Depending on the temperature displayed, you
should check whether food in the freezer has started
to thaw or has defrosted. Defrosted food may only
be refrozen after it has been cooked.
Problem solving guide
58
Message Possible cause and remedy
lights up red in the
display and a fault code
F with numbers may
appear. An alarm tone
also sounds.
There is a fault.
Tap on the display to switch the alarm off.
Call Miele.
To report the fault, you need the fault code and also
the model identifier and serial number of your
refrigeration appliance. You can access this
information in the display.
To do this touch in the display.
The appliance data required will be shown in the
display.
Confirm with OK to exit the information display and
the fault code will be shown again in the display.
The appliance can be switched off directly from the
fault code display.
There is an appliance fault: this display always has
priority over any settings which have just been
selected.
An appliance fault has priority over any current door
and/or temperature alarms in the display.
Noises
59
The refrigeration appliance is producing various noises during operation.
If the cooling demand is low, the refrigeration appliance will conserve energy but
operate for longer. The volume will be lower.
Food will be chilled faster if the cooling demand is high.
The volume will be higher.
Normal
noises
What causes them
Brrrrr ... A humming noise is made by the compressor. This noise can get
louder for brief periods when the compressor switches on.
Blubb, blubb ... A gurgling noise can be heard when coolant is circulating through
the pipes.
Click ... Clicking sounds occur whenever the thermostat switches the
compressor on or off.
Sssrrrrr ... You can sometimes just hear the sound of the fan inside the
appliance.
Crack ... A cracking sound can be heard when materials expand inside the
appliance.
Please bear in mind that the noise of the compressor and the coolant circulating
in the system is unavoidable.
Noises Possible cause and remedy
Rattling,
vibrating,
clinking
The refrigeration appliance is uneven. Realign the appliance using
a spirit level. Do so by raising or lowering the adjustable feet
underneath the refrigeration appliance.
For niches of 140cm and more: place the stabilising rods
supplied underneath the appliance base.
Drawers, baskets or shelves are jiggling or are stuck. Check all
removable items and refit them correctly.
Bottles or containers are touching. Separate them.
Service
60
You can find information on how to
remedy faults yourself and about Miele
spare parts at www.miele.com.au/
service or www.miele.co.nz/service.
Contact in case of fault
In the event of a fault which you cannot
remedy yourself, please contact Miele.
You can book a Miele customer service
call-out online at www.miele.com.au/
service or www.miele.co.nz/service.
Contact information for Miele can be
found at the end of this booklet.
Please quote the model and serial
number of your appliance when
contacting Miele. Both of these can be
found on the data plate inside the
refrigeration appliance or, depending on
the model, in the settings mode under
information.
Warranty
The manufacturer's warranty for this
appliance is 2years.
For more information about country-
specific warranty terms and conditions,
please contact Miele.
Thailand
Miele Appliances Ltd.
BHIRAJ TOWER at EmQuartier
43rd Floor Unit 4301-4303
689 Sukhumvit Road
North Klongton Sub-District
Vadhana District
Bangkok 10110, Thailand
Miele Global Headquarters Germany
Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Federal Republic of Germany
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana Petroleum
Solaris Dutamas No. 1, Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
Singapore
Miele Pte. Ltd.
29 Media Circle
#11-04 ALICE@Mediapolis
Singapore 138565
Tel: +65 6735 1191
Fax: +65 6735 1161
E-mail: [email protected]
Internet: www.miele.sg
Miele (Pty) Ltd
63 Peter Place, Bryanston 2194
P.O. Box 69434, Bryanston 2021
Tel.: (011) 875 9000
Fax: (011) 875 9035
E-mail: [email protected]
Internet: www.miele.co.za
South Africa
India
Miele India Pvt. Ltd.
1st Floor, Copia Corporate Suites,
Commercial Plot 9,
Mathura Road, Jasola,
New Delhi - 110025
E-mail: [email protected]
Website: www.miele.in
Miele Australia Pty. Ltd.
ACN 005 635 398, ABN 96 005 635 398
Miele Head Office Melbourne:
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
Miele New Zealand Ltd.
IRD 98 463 631
Head Office:
8 College Hill
Freemans Bay, Auckland 1011
1300 464 353 (1300 4 MIELE)
www.miele.com.au
0800 464 353 (0800 4 MIELE)
www.miele.co.nz
Miele (Hong Kong) Ltd.
41/F - 4101, Manhattan Place
23 Wang Tai Road, Kowloon Bay
Hong Kong
Tel.: (852) 2610 1025
Fax: (852) 3579 1404
E-mail: [email protected]
Website: www.miele.hk
Hong Kong, China
M.-Nr. 12 124 650 / 02en - AU, NZ
FNS 4782 ...
