GLACIER DUO Ice Bath
Due to our continued product improvement, product illustrated on this
instruction manual may vary slightly from the actual product.
PRODUCT
INTRODUCTION

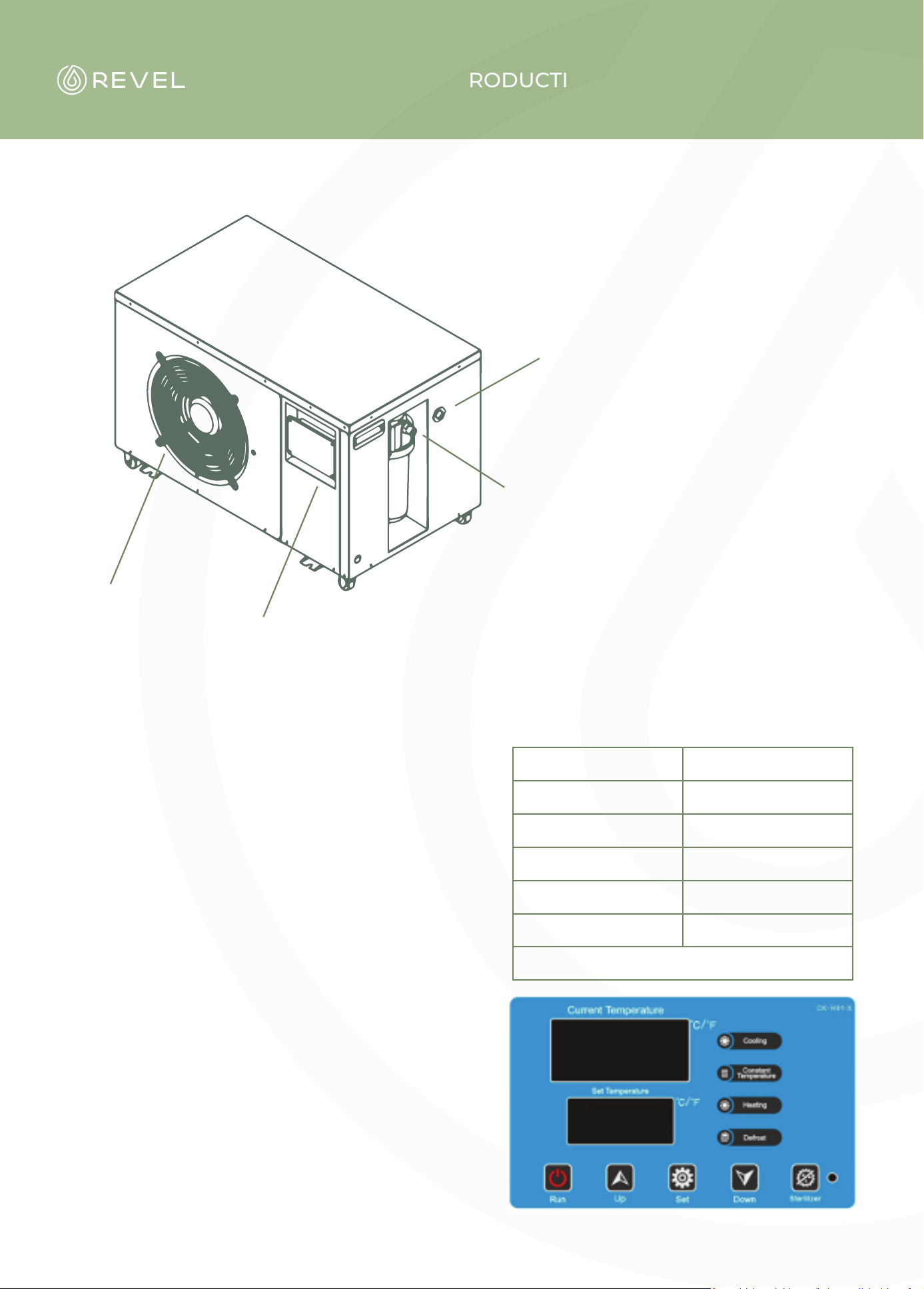

PRODUCT INTRODUCTION
Water outlet
Water inlet
Temperature controller
Axial fan
MODEL (water chiller)
Setting temperature range
Filtration
0-zone/UV
Inflow/Outflow size
Water pump type
9000BTU
0-40
O
C (Factory default 25
O
C)
Optional
Optional (30-50mg/hr)
DN15 Inner Thread
Non-self printing
Note: The specific temperature that can be reached on the
usage environment. depends on
PRODUCT INTRODUCTION
O3
Uv
ICON
NAME DESCRIPTION
press once to stop cooling/ heating, and then press
again to turn on cooling / heating
Press once to enter the target temperature setting,
press and hold for 6 seconds to enter the menu, and
enter the correct menu password to enter the menu
Used to adjust parameters upward
Used to adjust parameters downward
Used to turn on/off the O3 / UV output
Run key
Set key
Up key
Down key
Sterilizer
ICON
NAME
HENGLIANG REPRESENTATIVE EXTINGUISH REPRESENTS
FLASHING REPRESENTATIVE
Refrigeration
lamp
Constant
temperature
Heating lamp
Defrost lamp
Networking
lamp
Cooling
Target temperature reached
Heating in progress
Defrosting
Connected to internet
Stop refrigeration
Not at target temperature
Stop heating
Stop defrosting
Not connected to internet
Compressor is delaying
--
Compressor is delaying
Compressor is delaying
In distribution network
Sterilizer
1. Must be turned off when taking a cold plunge.
2. Turns off automatically after 60 mins of working. Can be turned back on manually.
3. Service life is around 20000 hours.
4. Due to the corrosiveness of ozone, please take note to replace any rubber hoses.
PRODUCT INTRODUCTION

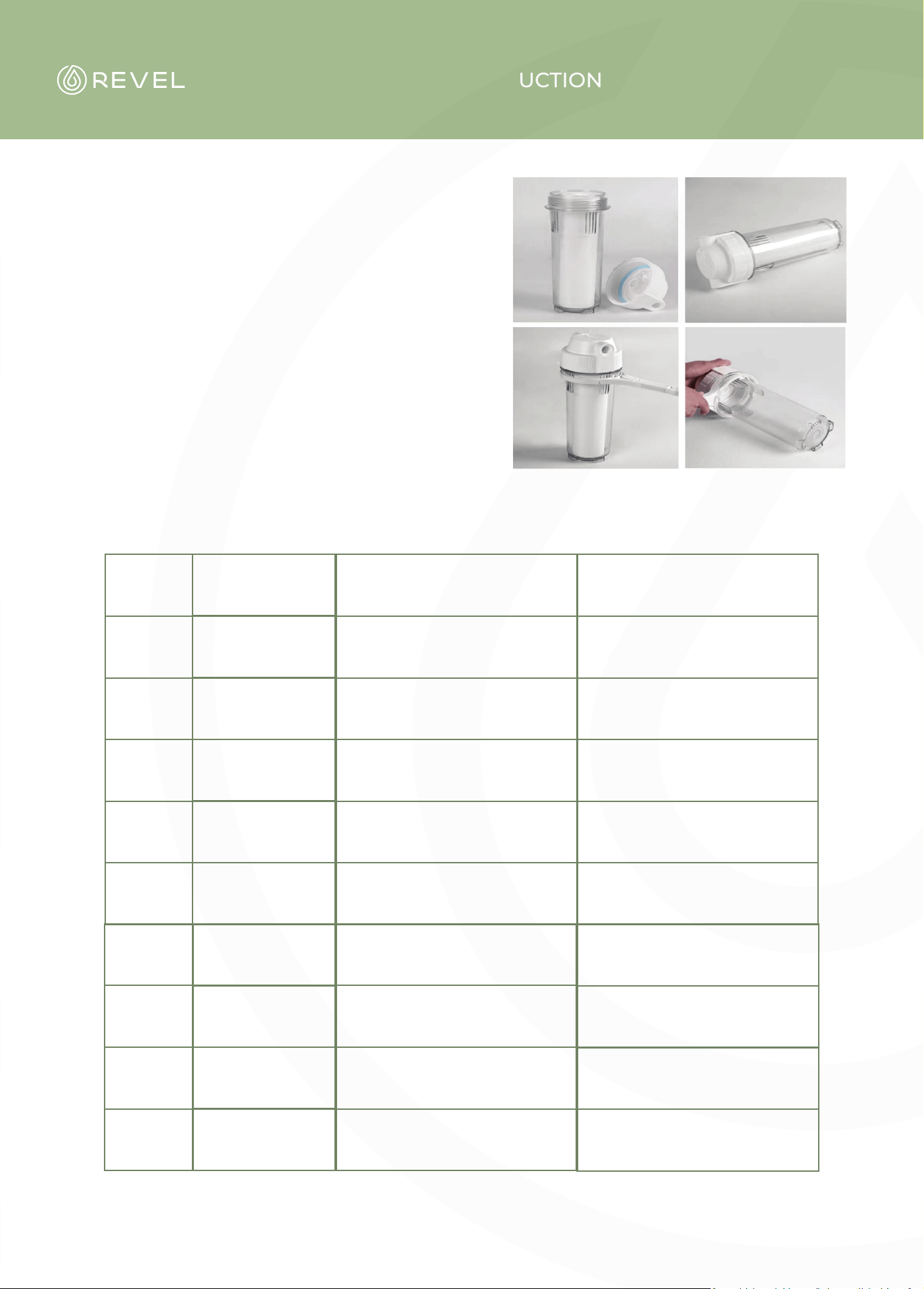

Filteration
Suggested to replace the filter every 3 months.
1. Use a wrench to unscrew the filter bottle and remove the old
element.
2. Unpack the new filter element and butt it with the bottom of
the bottle.
3. Cap the bottle and fasten with a wrench.
4. Check for water leakage before the replacement is complete.
CODE
FAULT
DESCRIPTION
CAUSE OF FAILURE RESTRICT WORK OBJECTS
Water
temperature
probe failure
Water flow fault
Low voltage
fault
High voltage
fault
Current over-
load
The water temperature probe
is damaged and the probe is
not properly installed
Water shortage leads to no short circuit
between the water flow detection port
of the main board and the public
The compressor pressure is too low,
resulting in no short circuit between the
low pressure detection port of the main
board and the public
The compressor pressure is too high,
resulting in no short circuit between the
high-pressure detection port of the
main board and the public
When the compressor is
working, the current value
exceeds the set value of F13
Compressor, fan,
four- way valve
Water pump, compressor, fan,
four- way valve
E1
E3
E4
E5
E6
EH
EL
EE
CCC
Compressor, fan,
four- way valve
Compressor, fan,
four- way valve
Compressor, fan,
four- way valve
Ultra high
temperature
The temperature measured by
the water temperature probe
exceeds the set value of F11
Compressor, fan,
four- way valve
Ultra low tem-
perature fault
The temperature measured by
the water temperature probe
exceeds the set value of F12
Compressor, fan,
four- way valve
Communication
failure
Poor contact of communication
interface and communication line to
connector, or burning of
communication chip
The system works normally
The equipment
needs
maintenance
The equipment has reached
the set service life, please
contact the engineer
Stop all work
SAUNA
INSTALLATION
USAGE
PRECAUTIONS
INSTALLATION AND USAGE PRECAUTIONS
Installation and usage precautions
1. When connecting the water pipe between the bucket body and the chiller, please ensure that the connection is secure and check
if the sealing gasket is intact (a new sealing gasket needs to be replaced after removal)
2. The elliptical model has a maximum capacity of 600L, and it is recommended to drain water to a distance of 5-10cm from the top
of the bucket. The minimum discharge amount is above the inlet and outlet pipes inside the bucket.
3. Water injection (using household water)
4. Drain water (please check if the drainage pipe is properly installed before waterproofing)
5. Storage (please clean the bucket and cover it with a protective cover when not in use for a long time)
6. The Flat noodles on the external surface of the barrel has natural color difference, so please feel free to use it without any
treatment; Wipe off surface stains with a wet towel that has been wrung dry; Do not use sharp and hard objects to
scratch the surface.
7. When touching electrical components and power plugs, be sure to wipe your hands dry first
8. The refrigerant of the chiller needs to be replenished after normal use for 1-3
years, depending on the frequency of use.
9. The compressor has the same noise output of a standard house freeze, which is a normal phenomenon
when the chiller is working.
10. The filter element of the chiller needs to be replaced regularly, and it is recommended to replace it every 3 months.
INSTALLATION PRECAUTIONS
WARNING
• There is a built in non-self-priming water pump at the water inlet of the chiller. Ensure that the water level of outflow water from
the water tank is higher than the water flow into the chiller before starting each time!
Note: lt is recommended to install a leakage protector on the power supply.
Please refer to the unit for the exact position of INLET & OUTLET .
The chiller should be turned on only when there is water flowing into the inlet. If the chiller is running with no water, it will cause dry
burning of the water pump and internal frost of the chiller, serious damage to the entire refrigeration system。
• Due to transportation safety regulations, the machine you received may not contain freon. Machine needs to be filled with freon
before use. Running without freon can seriously damage the machine!
• Freon re-filling and future maintenance must be performed by professional and technical personnel who comply with local
installation and maintenance codes and rules and have rich installation and maintenance experience.
• Please refer to the machine nameplate for the amount of freon re-filling. Sharp edges and coil surfaces are harmful and should be
avoided
• If unit is not powered on for a long time, in the environment of ≤0°C, the water in the heat
exchanger and water tank may freeze which resulting in cracking. If not in use, please drain water.
• Power switch should be set in 1.4 meters or above where children can not reach.
WARNING:
• Do Not Inhale Ozone. Remove Immediately to Fresh Air if exposed. Keep Out of Reach of Children.
• Hazards to Humans and Domestic Animals—Do Not Expose Children, People, Pets, Plants or Valuables to Ozone.
• Ozone Health Information-If exposed to ozone, get to fresh air immediately. Seek doctor's advice if exposed to ozone. Ozone half-life
is 30 minutes. Areas where ozone generator is installed must be well-ventilated in case of accidental leakage. This unit does not
contain ozone. This unit produces ozone while running by creating oxygen in the air or an oxvaen source to ozone. Use a deagasifier
and ozone destructor with the ozone generator.
• Short term inhalation of high concentrations of ozone and long term inhalation of low concentrations of ozone can cause serious
harmful physiological effects.
• Do not inhale ozone gas produced by this device.
• Disconnect all power to pool equipment prior to installation, maintenance, or removal of the Hydroxzone ozone Generator.
• To avoid risk of electric shock, fire, or injury, service should only be performed by a qualified pool service professional.
• Installation must be performed in accordance with the National Electric Code and any applicable local or state installation codes.
NOTE: The instructions in this document provide general installation guides. Consult your dealer for specific installation
instructions. Check system for any visible shipping damage. If damage has occurred, contact the delivery company and your
dealer immediately. Before beginning installation, please verify that all listed parts are on hand.
