Chapter 1 Appearance
Main Unit
Figure 1-1 Main Unit Appearance
Table 1-1 Appearance Descripon
No. Descripon
1 Microphone
2 Low Illuminaon IR Supplement Light
3 Built-in Camera
4 Loudspeaker
5 Call Buon
6 Nametag
7 TAMPER
8 Network Interface
9 Module-Connecng Interface (output)
10 Terminals
Note
●
Nametag area supports insert customized name card. The suggested card size is: 58 (L) x 11.7(W)
mm.
●
The module connecng interface is used to connect other funcon module, such as nametag
module, keypad module, card reader module, etc. All these modules are known as sub module.
DS-KD8003 Series Module Door Staon User Manual
1
Two-Wire Main Unit
Figure 1-2 Two-Wire Main Unit
Table 1-2 Appearance Descripon
No. Descripon
1 Microphone
2 Low Illuminaon IR Supplement Light
3 Built-in Camera
4 Loudspeaker
5 Call Buon
6 Nametag
7 TAMPER
8 Two-Wire Interface (24 VDC Power Input)
9 Module-Connecng Interface (output)
10 Terminals
Note
●
Nametag area supports insert customized name card. The suggested card size is: 58 (L) x 11.7(W)
mm.
●
The module connecng interface is used to connect other funcon module, such as nametag
module, keypad module, card reader module, etc. All these modules are known as sub module.
DS-KD8003 Series Module Door Staon User Manual
2
Chapter 2 Congure Sub Module Address
You need to set the sub module address via DIP switch before installaon.
Steps
1.
Remove the rubber cover on the rear panel of the sub module to expose the DIP switch.
Figure 2-1 DIP Switch
2.
Set the sub module address according to the DIP rules, and install the rubber cover back.
Note
●
DIP 1, 2, 3, 4 are used to coding the sub module address. DIP 5, 6, 7, 8 are reserved.
●
Valid sub module address is from 1 to 8. The address should be unique for connecng to the
main unit.
The sub module address and its corresponding switch status are displayed as below.
Sub
Module
Address
DIP 1 DIP 2 DIP 3 DIP 4 DIP 5 DIP 6 DIP 7 DIP 8
Module 1 ON OFF OFF OFF OFF OFF OFF OFF
Module 2 OFF ON OFF OFF OFF OFF OFF OFF
Module 3 ON ON OFF OFF OFF OFF OFF OFF
Module 4 OFF OFF ON OFF OFF OFF OFF OFF
Module 5 ON OFF ON OFF OFF OFF OFF OFF
DS-KD8003 Series Module Door Staon User Manual
3
Sub
Module
Address
DIP 1 DIP 2 DIP 3 DIP 4 DIP 5 DIP 6 DIP 7 DIP 8
Module 6 OFF ON ON OFF OFF OFF OFF OFF
Module 7 ON ON ON OFF OFF OFF OFF OFF
Module 8 OFF OFF OFF ON OFF OFF OFF OFF
DS-KD8003 Series Module Door Staon User Manual
4
Chapter 3 Terminal and Wiring
3.1 Terminal Descripon
The power source should be qualied and meet limited power source or PS2 requirements
according to IEC 60950-1 or IEC 62368-1 standard.
Main Unit Terminals
Figure 3-1 Main Unit Terminals
Table 3-1 Descripons of Terminals and Interfaces
No. Interface Descripon
A1 NC1 Door Lock Relay Output (NC)
A2 NO1 Door Lock Relay Output (NO)
A3 COM Common Interface
A4 NC2 Door Lock Relay Output (NC)
A5 NO2 Door Lock Relay Output (NO)
A6 GND Grounding
A7 12 V IN/OUT1
●
The power output is 12 V, 500mA.
●
When the device is powered by PoE, the 12V
IN/OUT interface can supply power to the lock.
A8 GND Grounding
B1 AIN2 For the access of Door Magnec 2
DS-KD8003 Series Module Door Staon User Manual
5
No. Interface Descripon
B2 AIN1 For the access of Door Magnec 1
B3 AIN3 For the access of Exit Buon 1
B4 AIN4 For the access of Exit Buon 2
B5 485- Module-connecng Interface
B6 485+
B7 12 V OUT2
B8 GND
C LAN PoE Network Interface(Supports IEEE 802.3af)
Table 3-2 Power Supply
Power Supply Door Staon Power Output
PoE (802.3af) DC 12V OUT1/DC 12V OUT2
6 W MAX in total
DC 12 V DC 12V OUT2
18 W MAX
Two-Wire Main Unit Terminal
Figure 3-2 Two-Wire Main Unit Terminal
DS-KD8003 Series Module Door Staon User Manual
6
Table 3-3 Descripons of Terminals and Interfaces
No. Interface Descripon
A1 NC1 Door Lock Relay Output (NC)
A2 NO1 Door Lock Relay Output (NO)
A3 COM Common Interface
A4 NC2 Door Lock Relay Output (NC)
A5 NO2 Door Lock Relay Output (NO)
A6 GND Grounding
A7 12 V IN/OUT1 The power output is 12 V, 500mA.
A8 GND Grounding
B1 AIN2 For the access of Door Magnec 2
B2 AIN1 For the access of Door Magnec 1
B3 AIN3 For the access of Exit Buon 1
B4 AIN4 For the access of Exit Buon 2
B5 485- Module-connecng Interface
B6 485+
B7 12 V OUT2
B8 GND
C Two-Wire Interface Two-Wire Interface
Table 3-4 Power Supply
Power Supply Distributor Model Distributor Power
Output
Door Staon Power
Output
DC 24 V DS-KAD704Y DC 24 V OUT
8 W MAX
DC 12V OUT1/DC 12V
OUT2
3 W MAX in total
DS-KAD706Y DC 24 V OUT
16 W MAX
DC 12V OUT1/DC 12V
OUT2
10 W MAX in total
DS-KAD706Y-P(C) DC 24 V OUT
16 W MAX
DC 12V OUT1/DC 12V
OUT2
DS-KD8003 Series Module Door Staon User Manual
7
Power Supply Distributor Model Distributor Power
Output
Door Staon Power
Output
10 W MAX in total
DC 12 V / / DC 12V OUT2
18 W MAX
Sub Module Terminal (Except Touch-Display Module)
Figure 3-3 Sub Module Terminal (Except Touch-Display Module)
Table 3-5 Descripon
No. Interface Descripon
A1 485- Module-Connecng Interface (Input)
A2 485+
A3 12V IN
A4 GND
B1 485- Module-Connecng Interface (Output)
B2 485+
B3 12V OUT
B4 GND
DS-KD8003 Series Module Door Staon User Manual
8
Touch-Display Module
Figure 3-4 Touch-Display Module
Table 3-6 Descripon
No. Interface Descripon
A1 485- Module-Connecng Interface (Input)
A2 485+
A3 12V IN
A4 GND
B1 485- Module-Connecng Interface (Output)
B2 485+
B3 12V OUT
B4 GND
C1 GND Grounding Interface
C2 CVSB IN Composite Video Broadcast Signal Input (Reserved)
C3 LINEOUT- Audio Output (Reserved)
C4 LINEOUT+
DS-KD8003 Series Module Door Staon User Manual
9
3.2 Module Door Staon Wiring
3.2.1 Door Lock Wiring

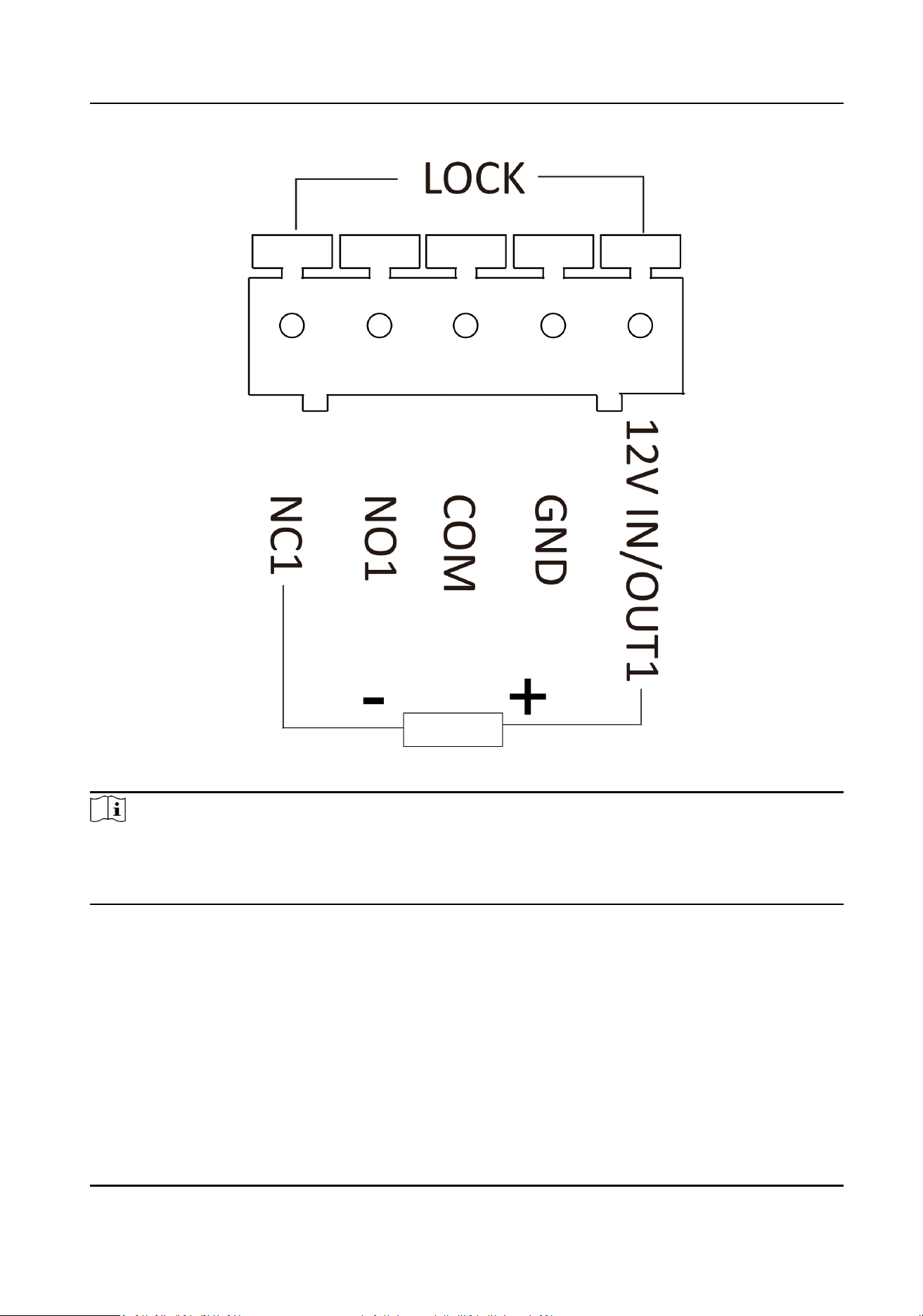

Figure 3-5 Door Lock Wiring
DS-KD8003 Series Module Door Staon User Manual
10
Figure 3-6 Lock Wiring when powered by PoE
Note
●
When the device is powered by PoE, the 12V IN/OUT interface can supply power to the lock.
●
Terminal NC1/COM is set as default for accessing magnec lock/electric bolt; terminal NO2/COM
is set as default for accessing electric strike.
DS-KD8003 Series Module Door Staon User Manual
11
3.2.2 Door Contact Wiring

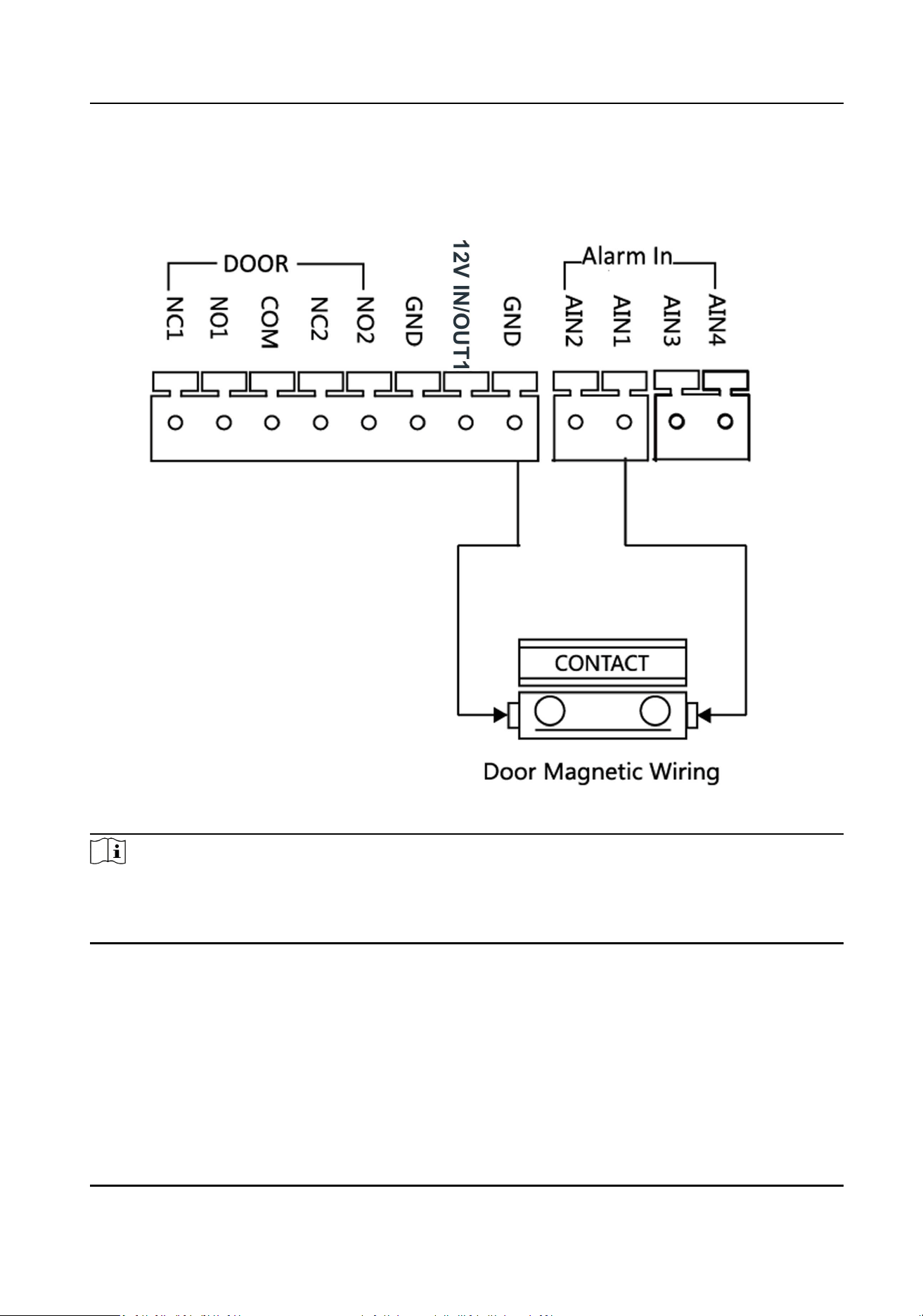

Figure 3-7 Door Contact Wiring
Note
AIN1 and AIN2 are defaulted to connect door contact. Door contact connected to AIN1 detects
status of the lock that connected to NC1/NO1; Door contact connected to AIN2 detects the status
of the lock connected to NC2/NO2.
DS-KD8003 Series Module Door Staon User Manual
12
3.2.3 Exit Buon Wiring

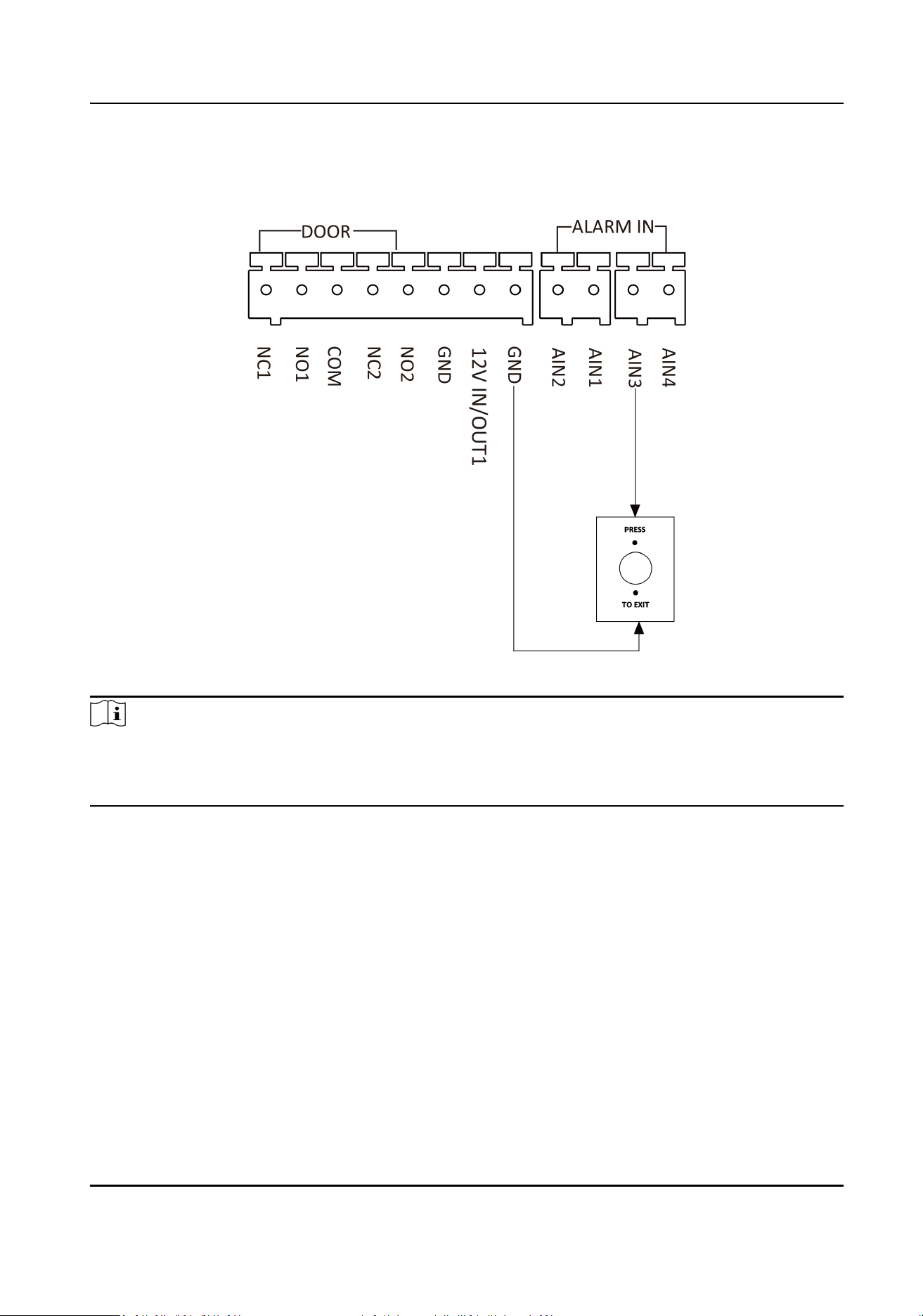

Figure 3-8 Exit Buon Wiring
Note
AIN3 and AIN4 are set as default for connecng exit buon. Exit buon connected to AIN3 opens
the lock connected to NC1/NO1; Exit buon connected to AIN4 controls the lock that connected to
NC2/NO2.
DS-KD8003 Series Module Door Staon User Manual
13
Chapter 4 Installaon
Note
●
Sub module must work along with the main unit.
●
Sub modules share the same approach of the installaon. The sub modules in installaon images
are for reference only.
●
Make sure the device in the package is in good condion and all the assembly parts are included.
●
Set the sub module address before start the installaon steps.
●
Make sure the place for surface mounng is at.
●
Make sure all the related equipment is power-o during the installaon.
●
Tools that you need to prepare for installaon:
Drill (ø6), cross screwdriver (PH1*150 mm), and gradienter.
4.1 One-Module Installaon
4.1.1 One-Module Surface Mounng
Before You Start

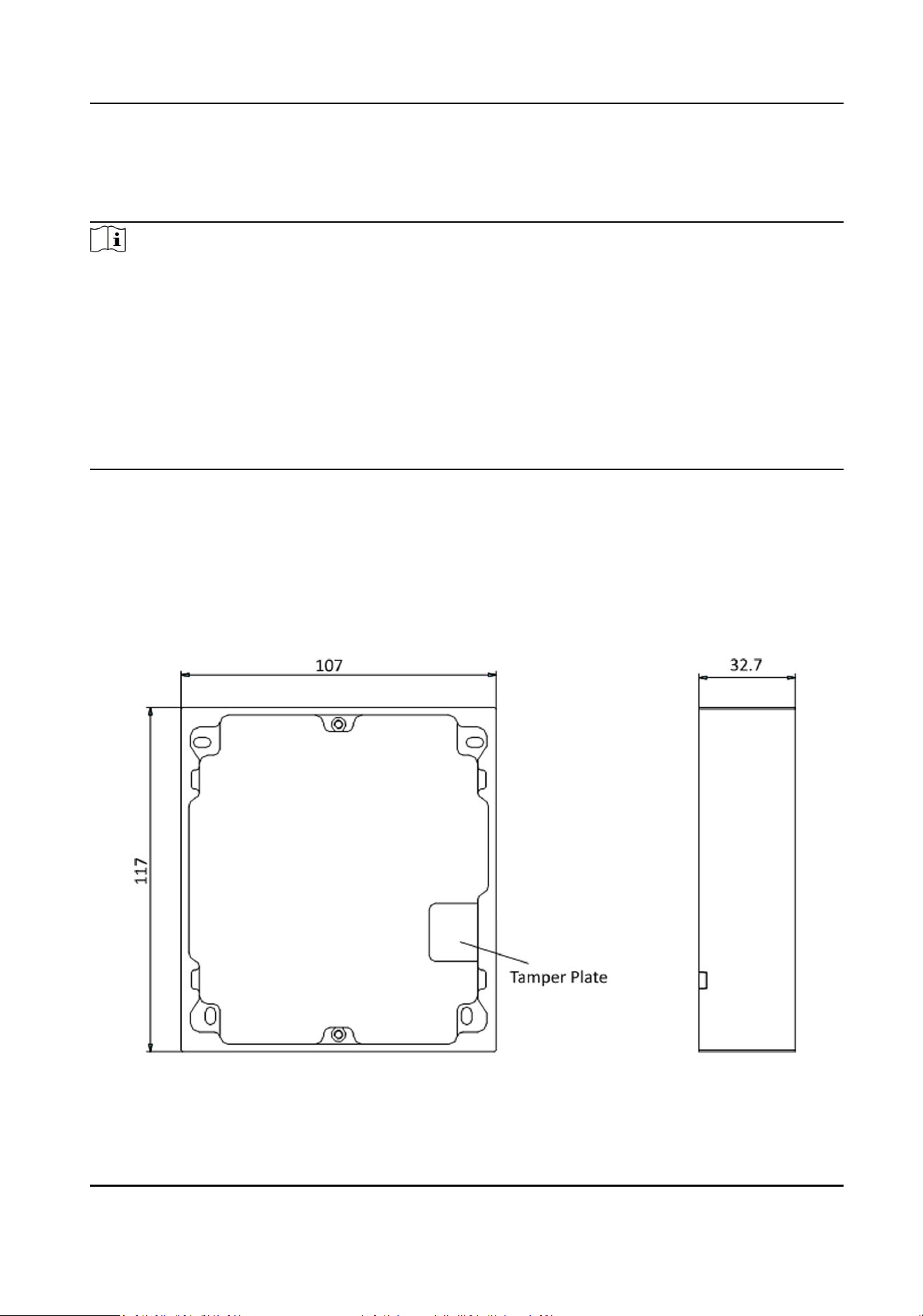

Figure 4-1 Mounng Frame
DS-KD8003 Series Module Door Staon User Manual
14
Note
●
The dimension of one module mounng frame (W × H × D) is: 117 mm × 107 mm × 32.7 mm.
●
The dimensions above are for reference only. The actual size can be slightly dierent from the
theorecal dimension.
Steps
1.

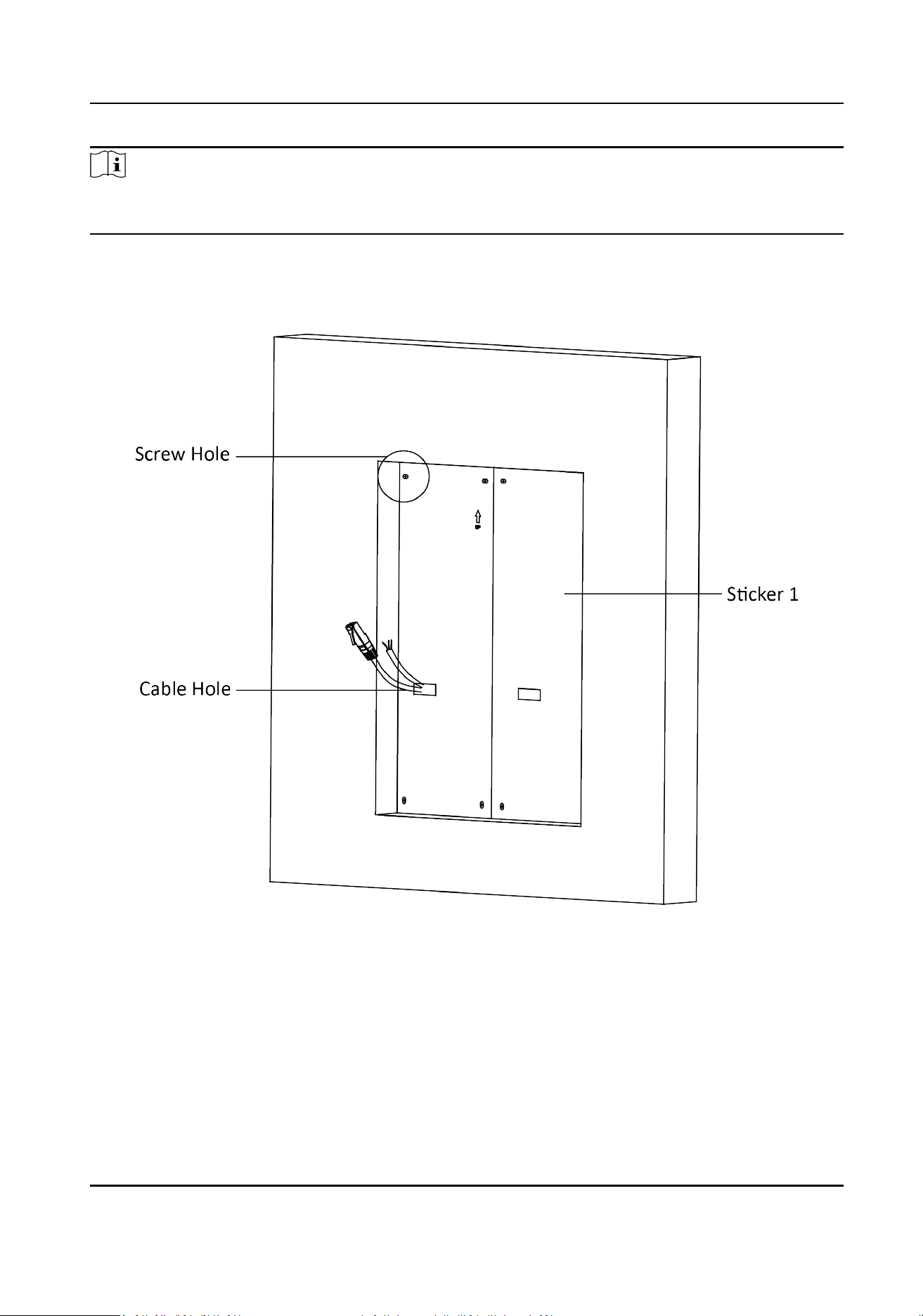

Paste the installaon Scker 1 onto the wall. Make sure the scker is placed horizontally via
measuring with the gradienter.
2.
Drill 4 holes according to the screw holes on the scker.
Note
●
The suggested size of hole is 6 (diameter) × 25 (depth) mm.
●
The suggested length of cables le outside is 100 mm.
DS-KD8003 Series Module Door Staon User Manual
15

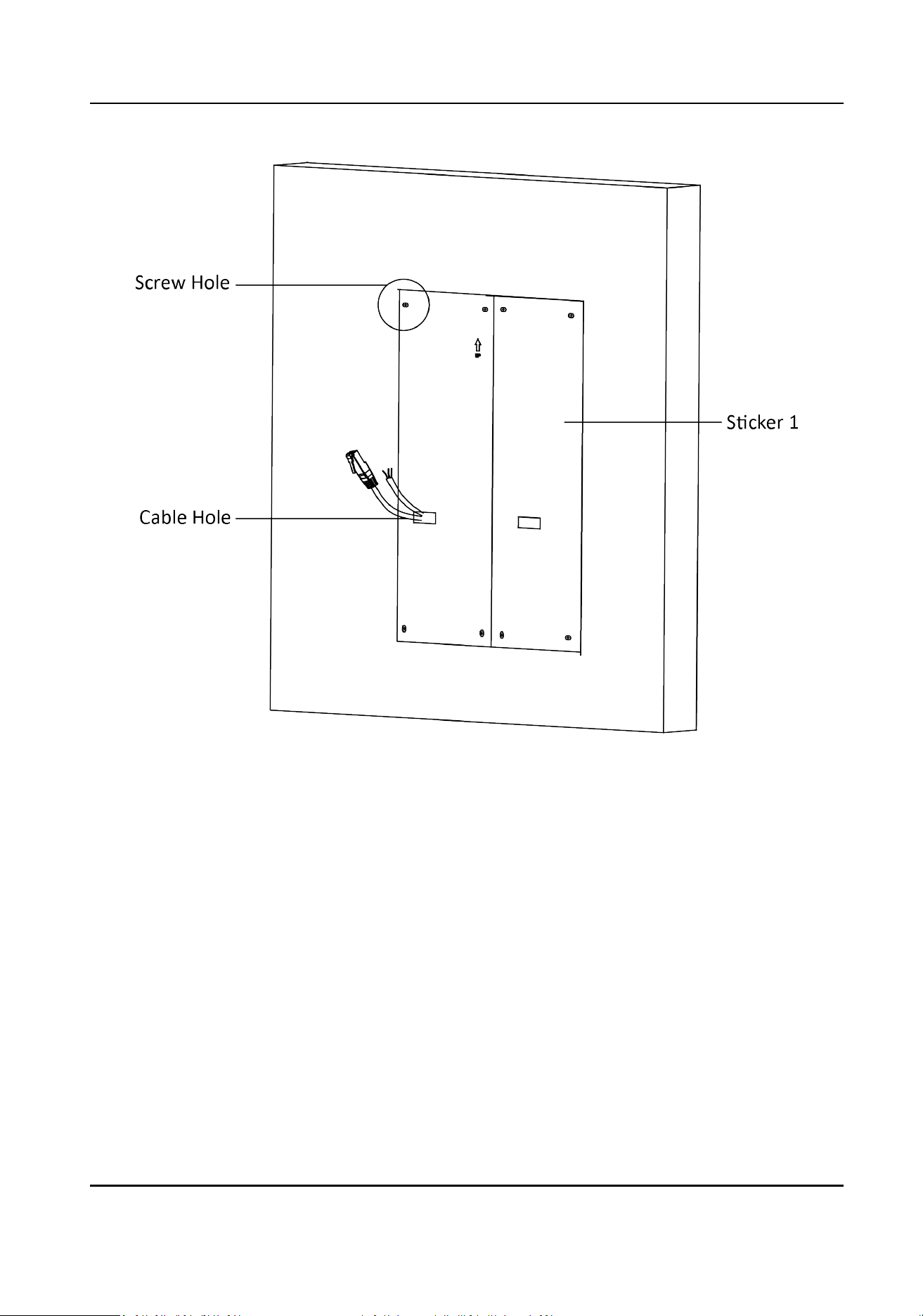

Figure 4-2 Drill Screw Holes
3.
Remove the stricker and insert the expansion sleeves into the screw holes.
4.

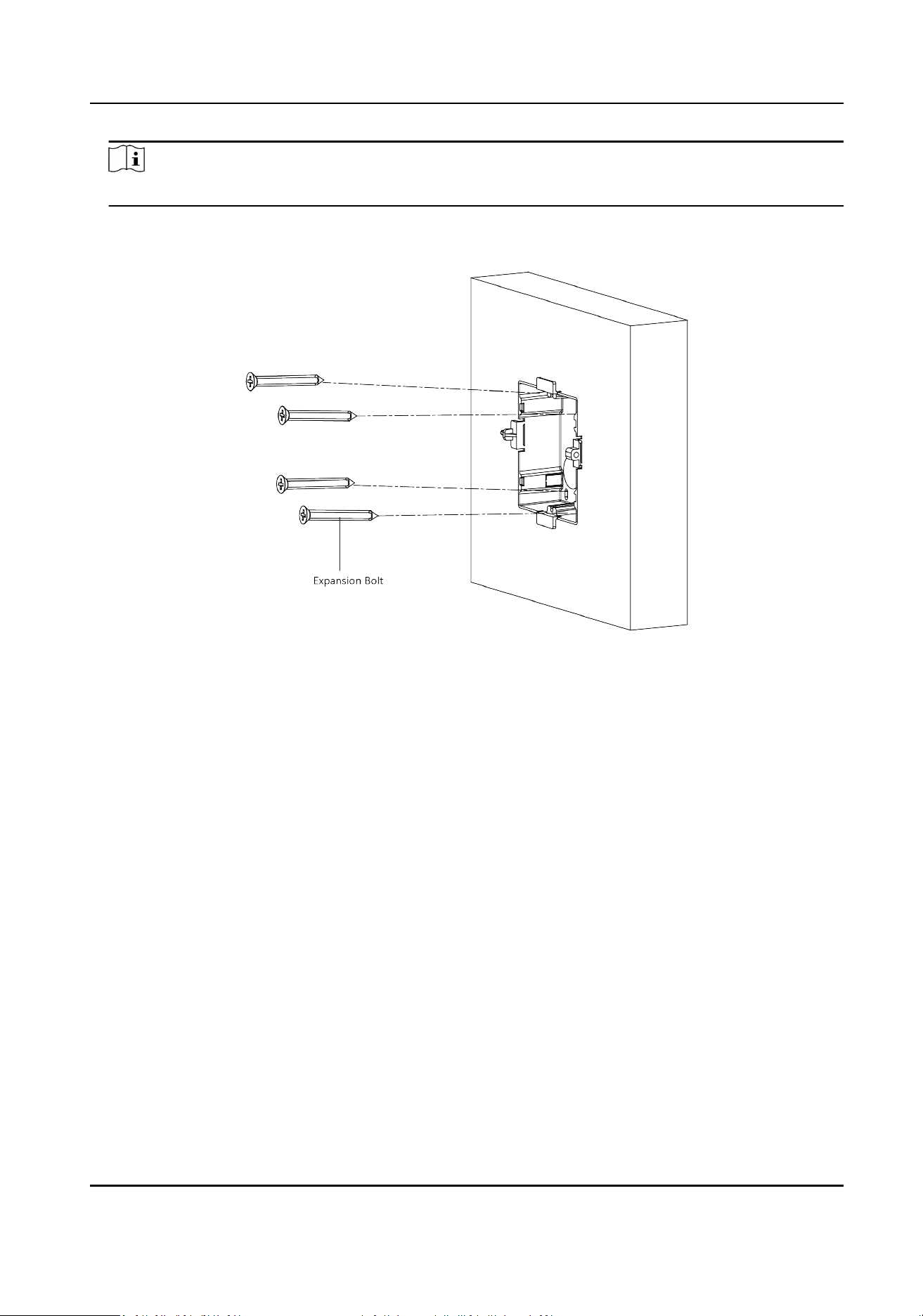

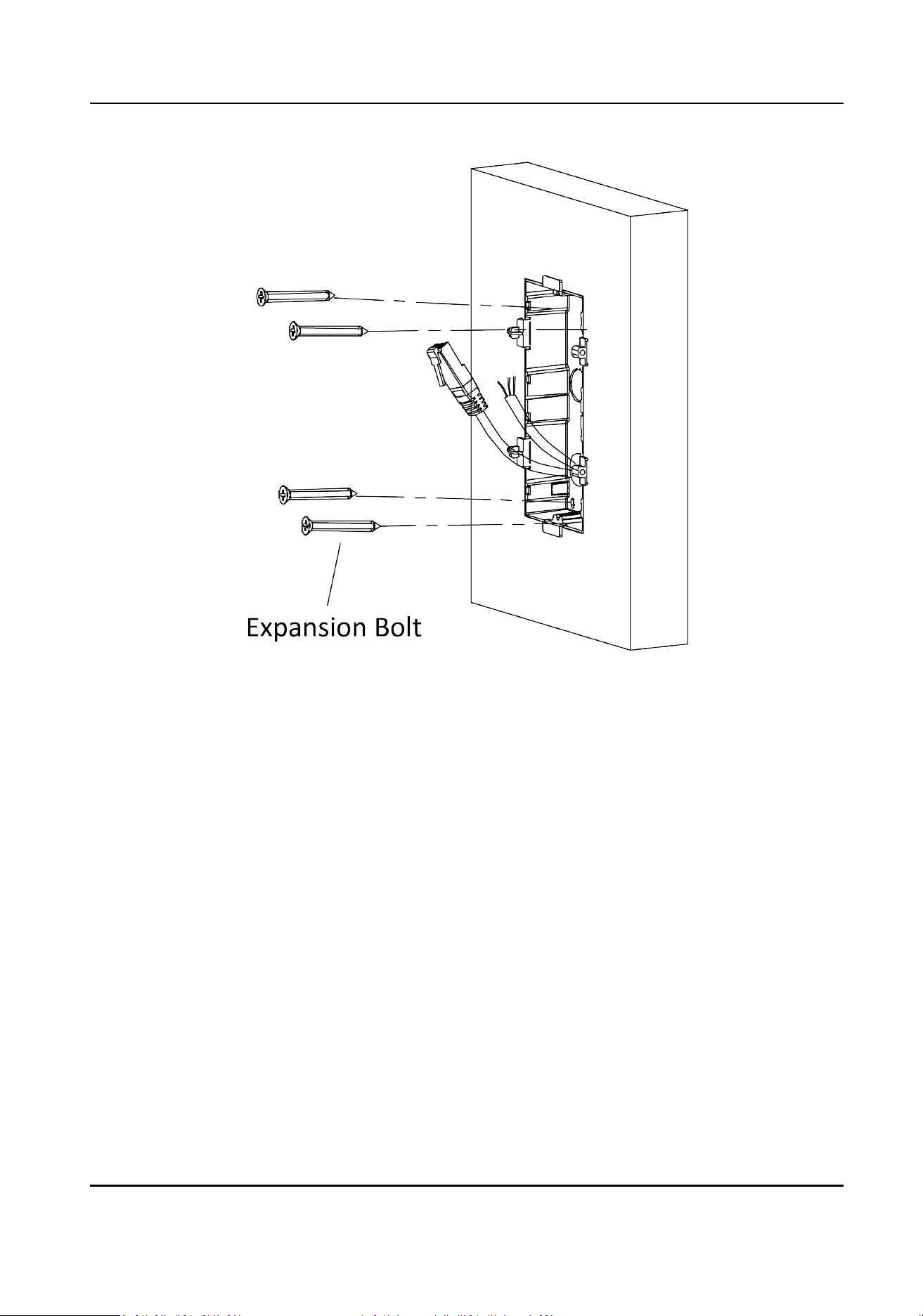

Fix the mounng frame onto the wall with 4 expansion bolts.
DS-KD8003 Series Module Door Staon User Manual
16

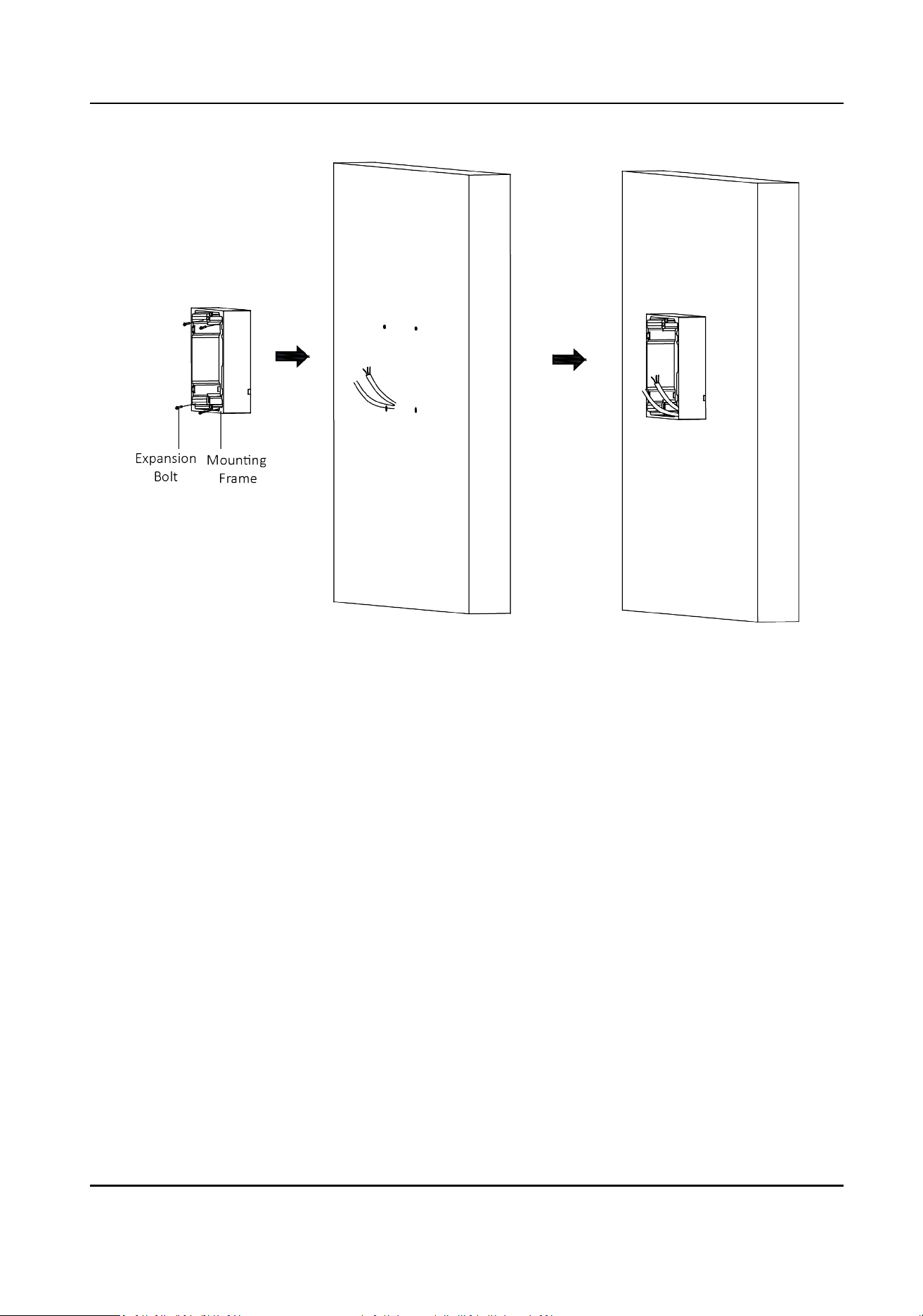

Figure 4-3 Fix the Mounng Frame
5.
Connect the cables to the corresponding interfaces of the main unit and insert the main unit
into the frame.
DS-KD8003 Series Module Door Staon User Manual
17
Figure 4-4 Insert the Main Unit
6.
Fix the cover onto the frame.
DS-KD8003 Series Module Door Staon User Manual
18

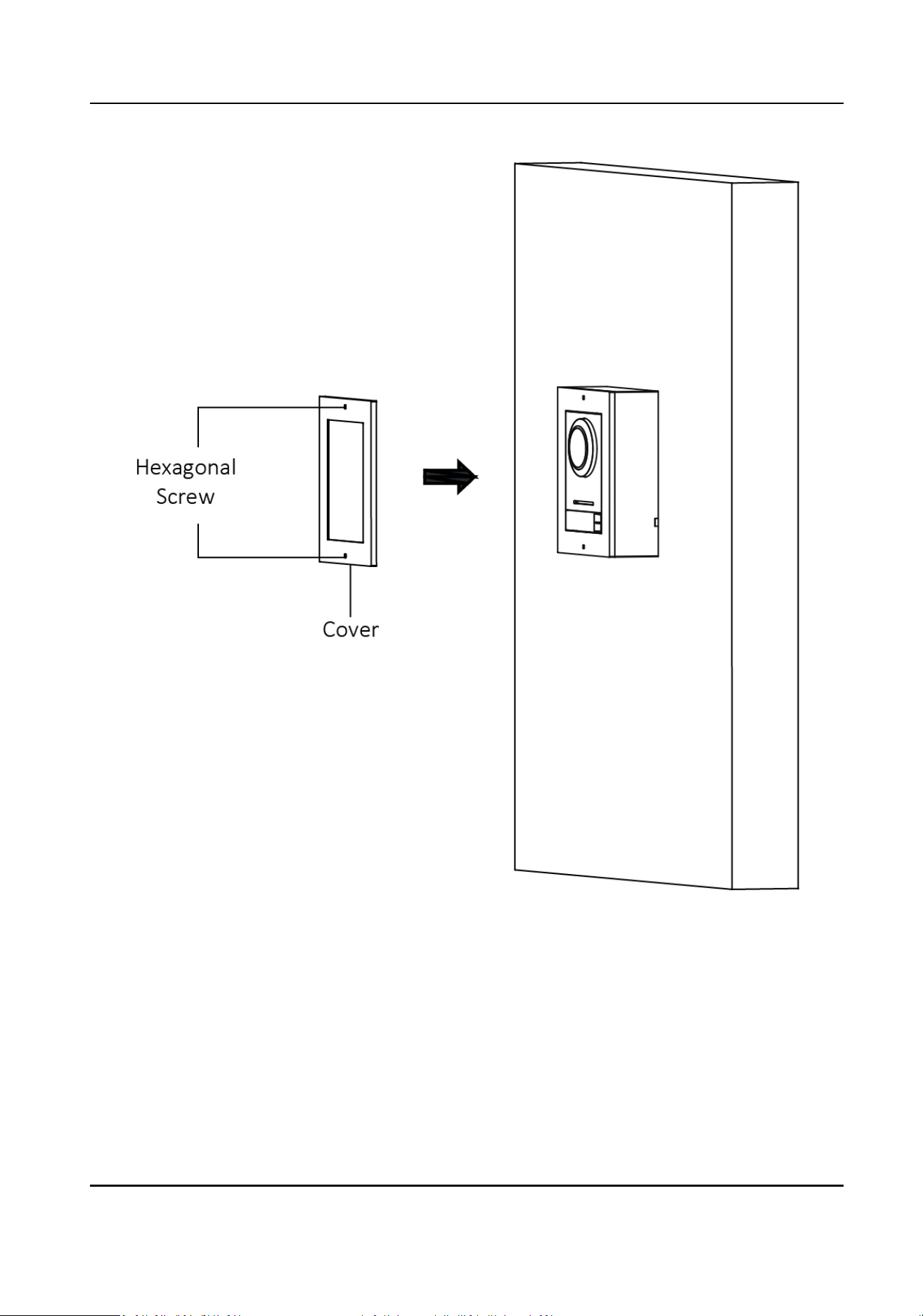

Figure 4-5 Fix the Cover
DS-KD8003 Series Module Door Staon User Manual
19
4.1.2 One-Module Flush Mounng
Before You Start

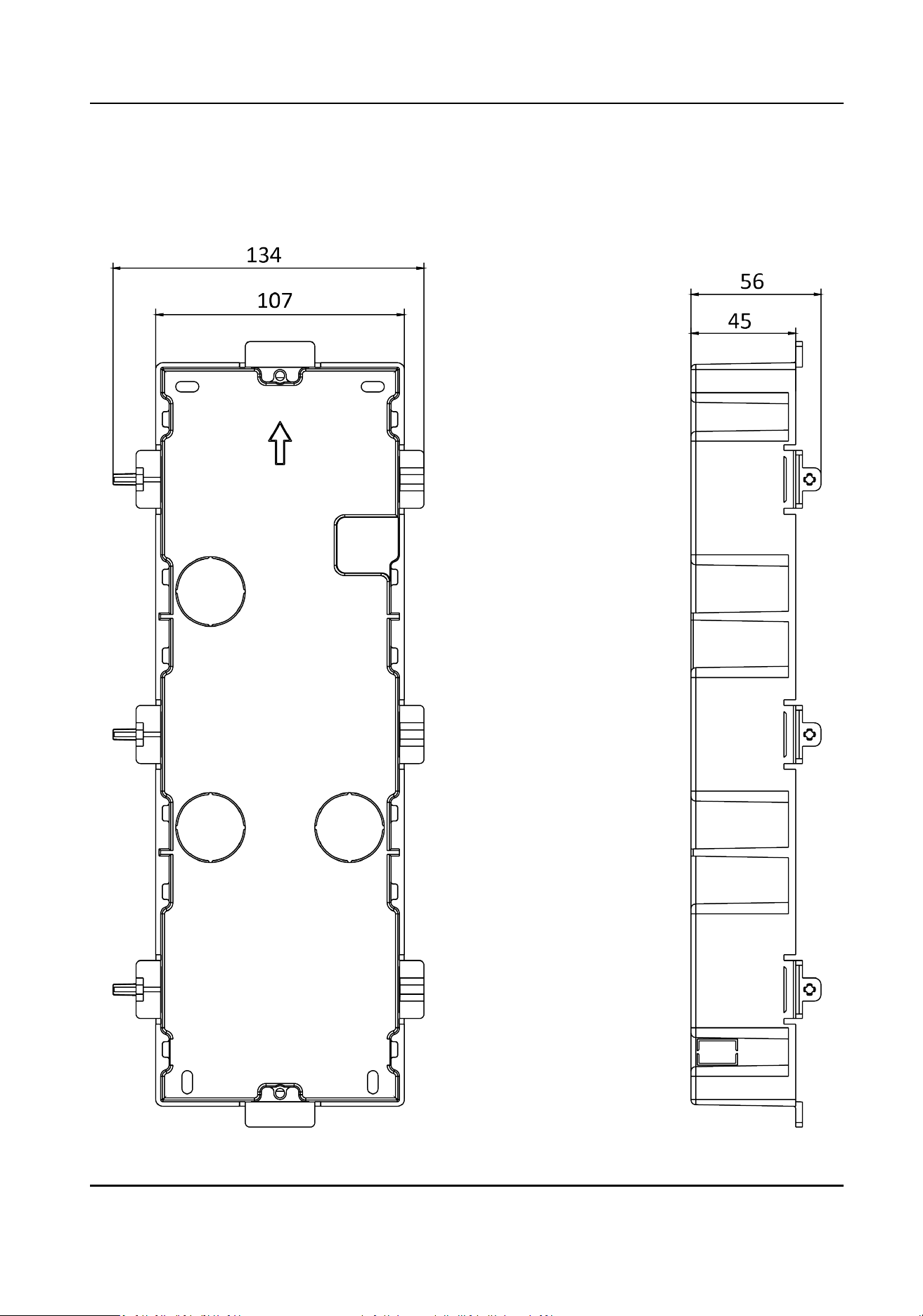

Figure 4-6 Front and Side View of the Gang Box
DS-KD8003 Series Module Door Staon User Manual
20

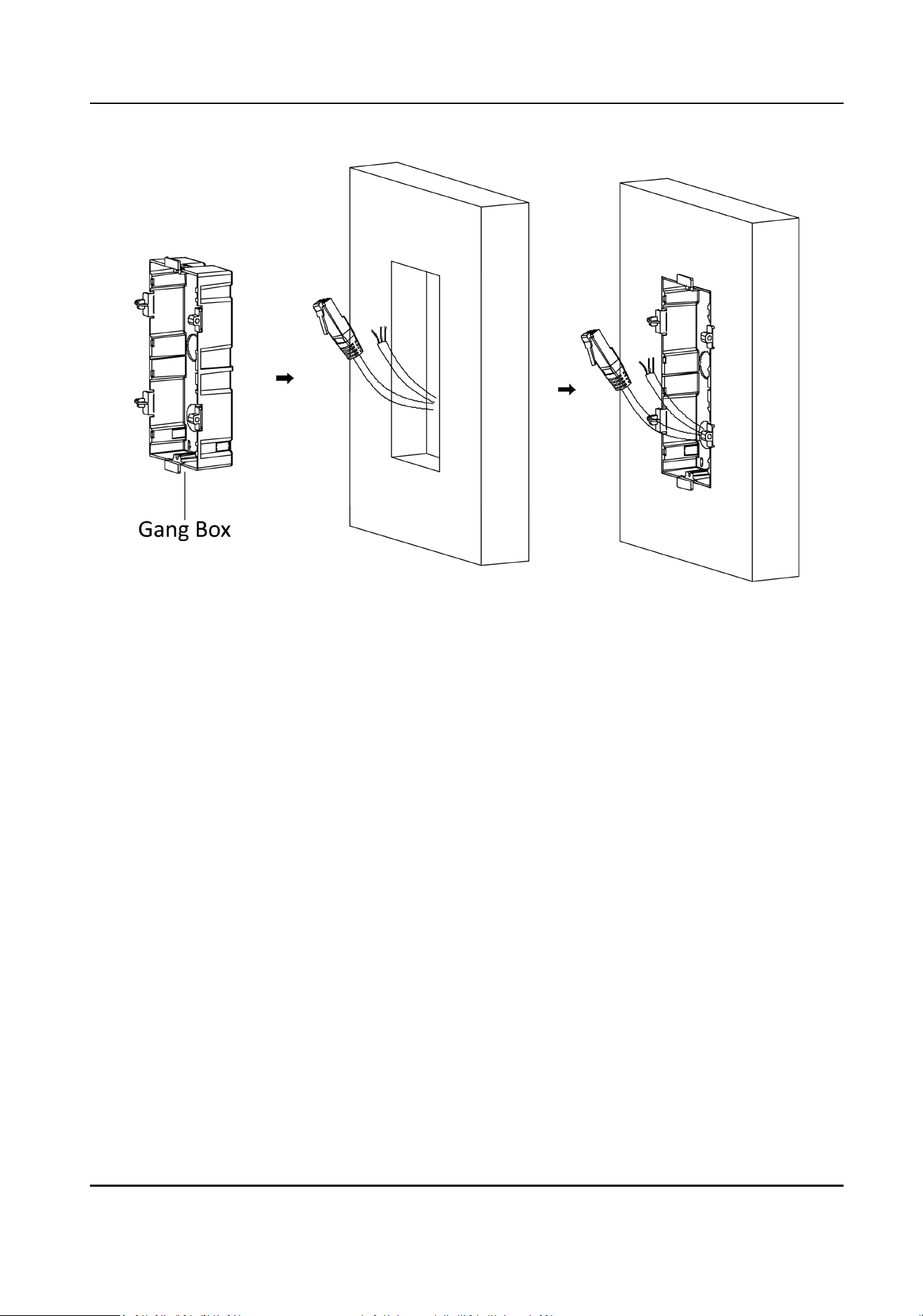

Figure 4-7 Gang Box
Note

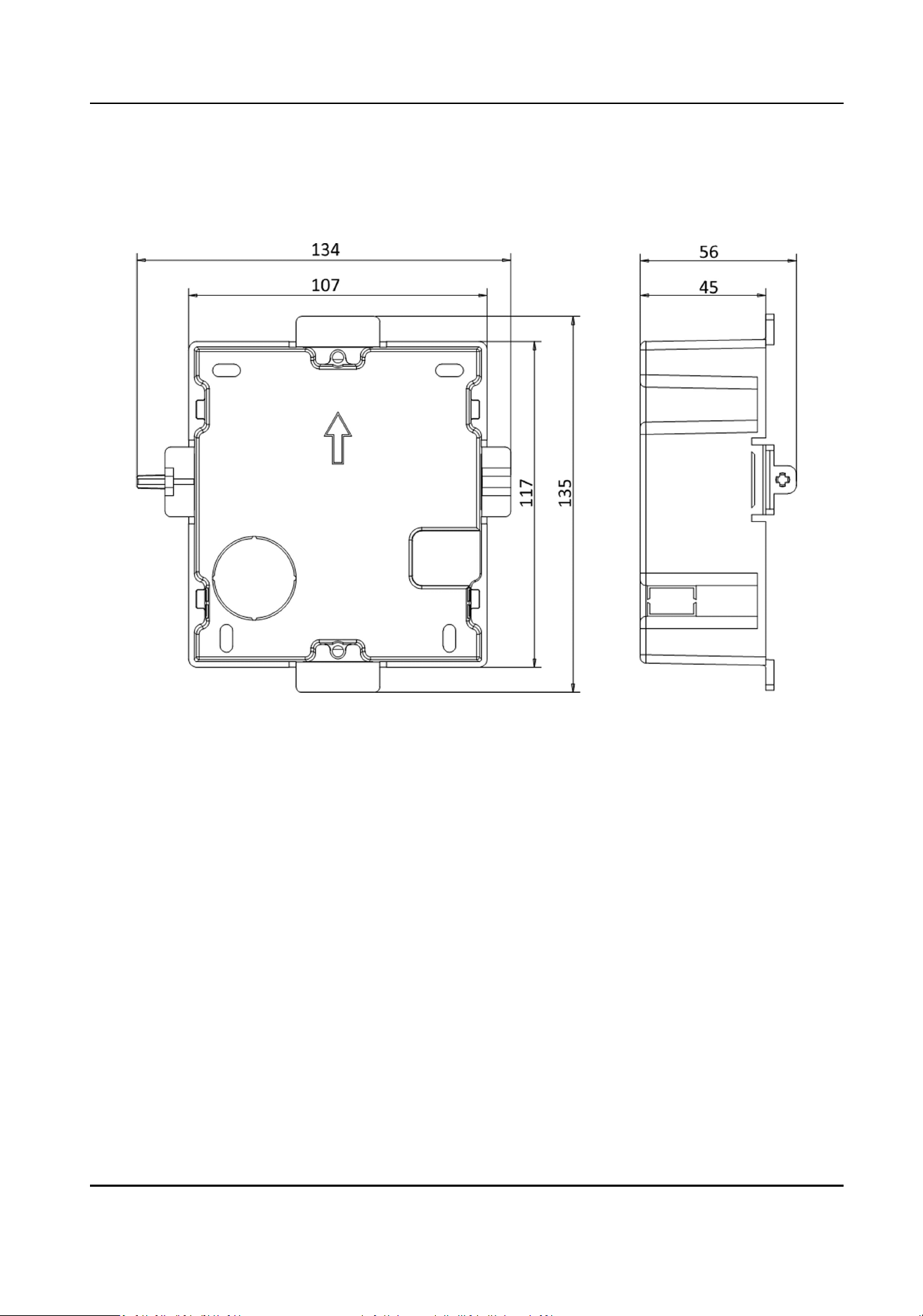

The dimension of one-module gang box is: 115 (W) × 134 (H) × 56 (D) mm. The dimension is for
reference only.
Steps
1.
Drill an installaon hole, and pull the cables out.
Note
●
The suggested dimension of installaon hole is 118 (W) × 108 (H) × 45.5 (D) mm.
●
The suggested length of cables le outside is 100 mm.
DS-KD8003 Series Module Door Staon User Manual
21
Figure 4-8 Drill Installaon Hole
2.

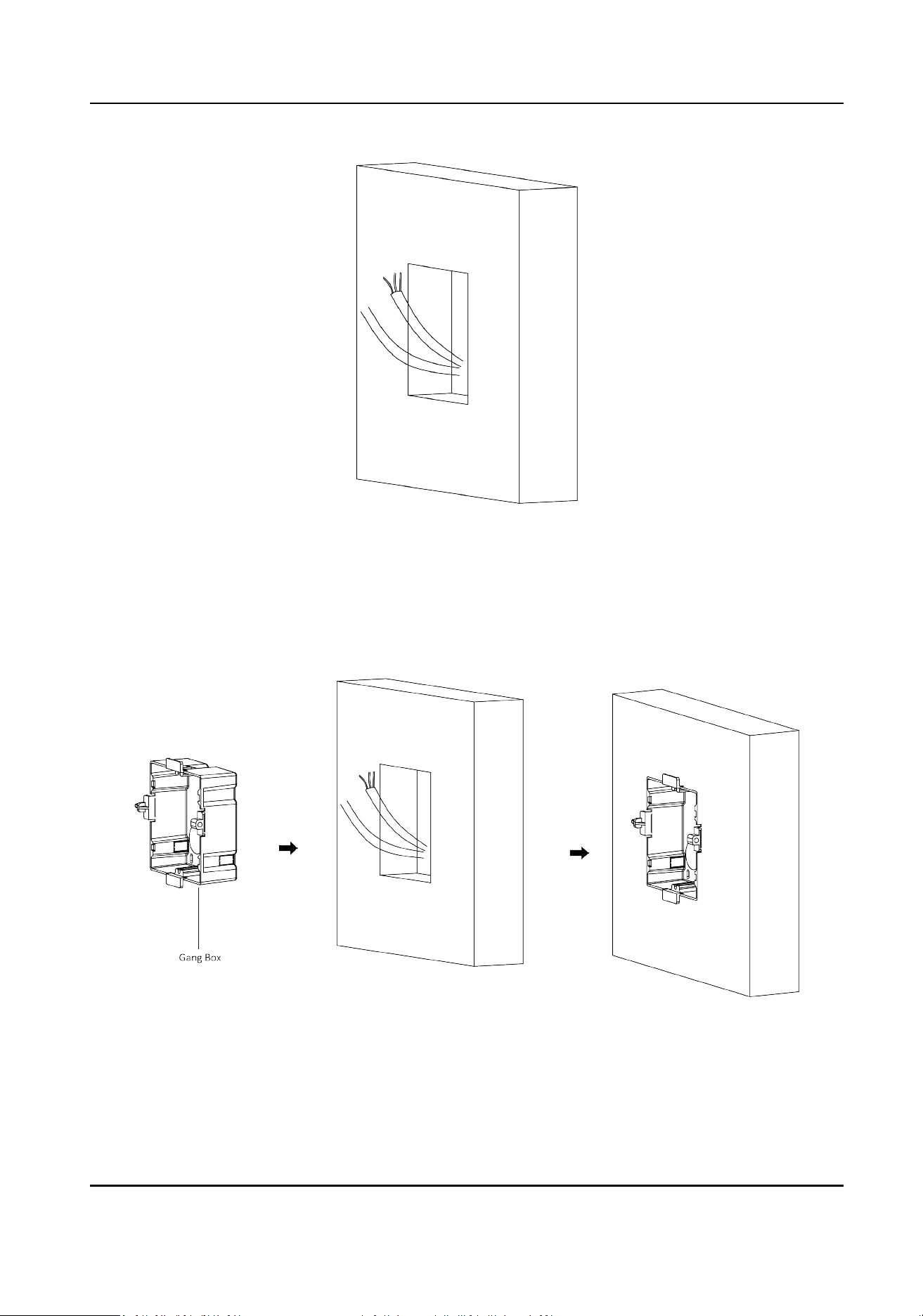

Remove the plasc sheet of the cable entry.
3.
Mark the gang box screw holes on the wall.
1) Route the cables through the gang box hole.
2) Insert the gang box into the installaon hole.
3) Mark the gang box screw holes' posion with a marker, and take out the gang box.
Figure 4-9 Mark the Screw Holes
4.
Drill 4 holes according to marks on the wall, and insert the expansion sleeves into the screw
holes.
DS-KD8003 Series Module Door Staon User Manual
22
Note
The suggested size of the hole is 6 (diameter) × 45 (depth) mm.
5.
Route the cables through the gang box hole. Insert the gang box into the installaon hole. Fix
the gang box with 4 expansion bolts.

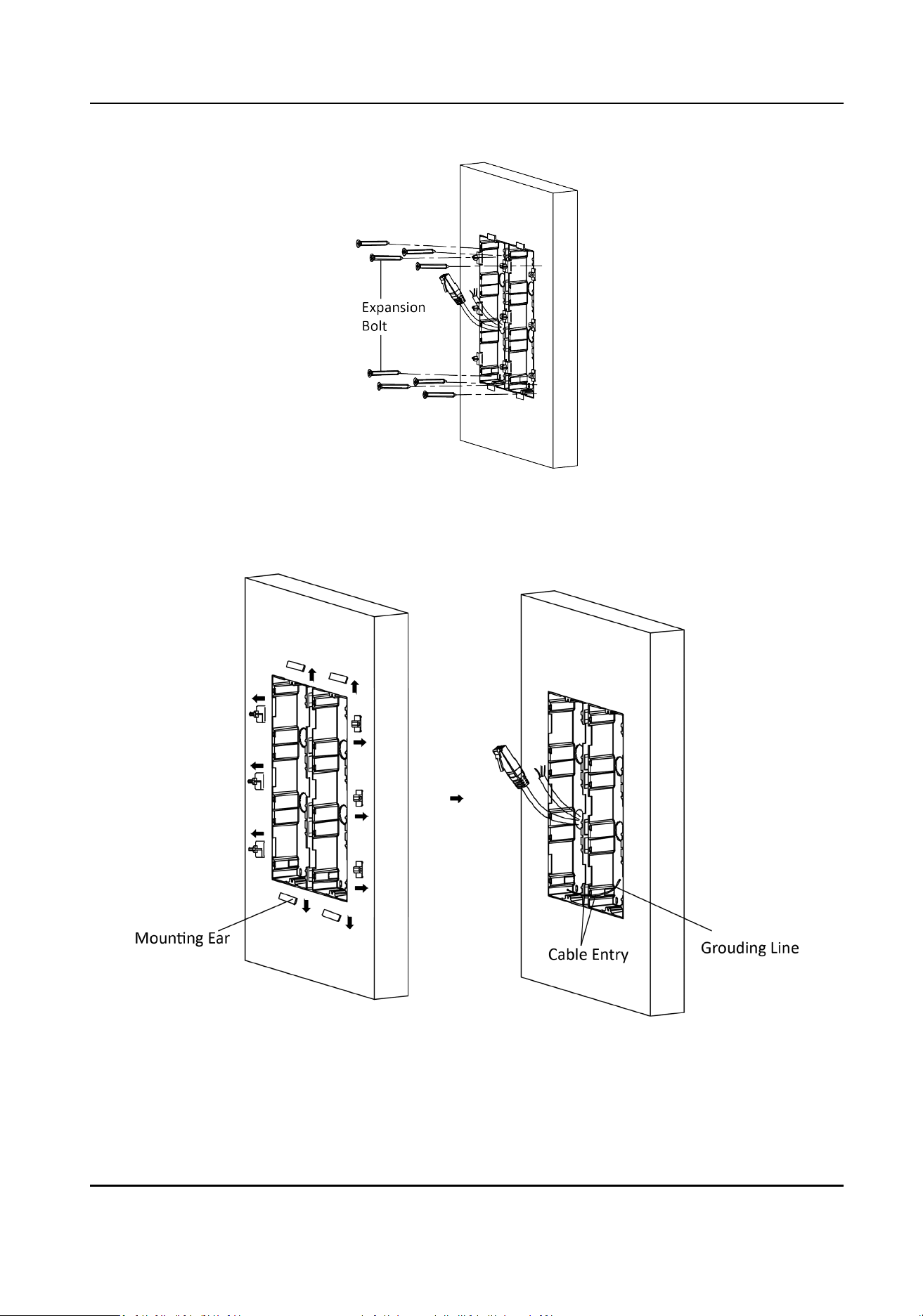

Figure 4-10 Fix the Gang Box
6.
Fill the gap between the gang box and the wall with concrete. Remove the 4 mounng ears with
tool aer concrete is dry.
DS-KD8003 Series Module Door Staon User Manual
23

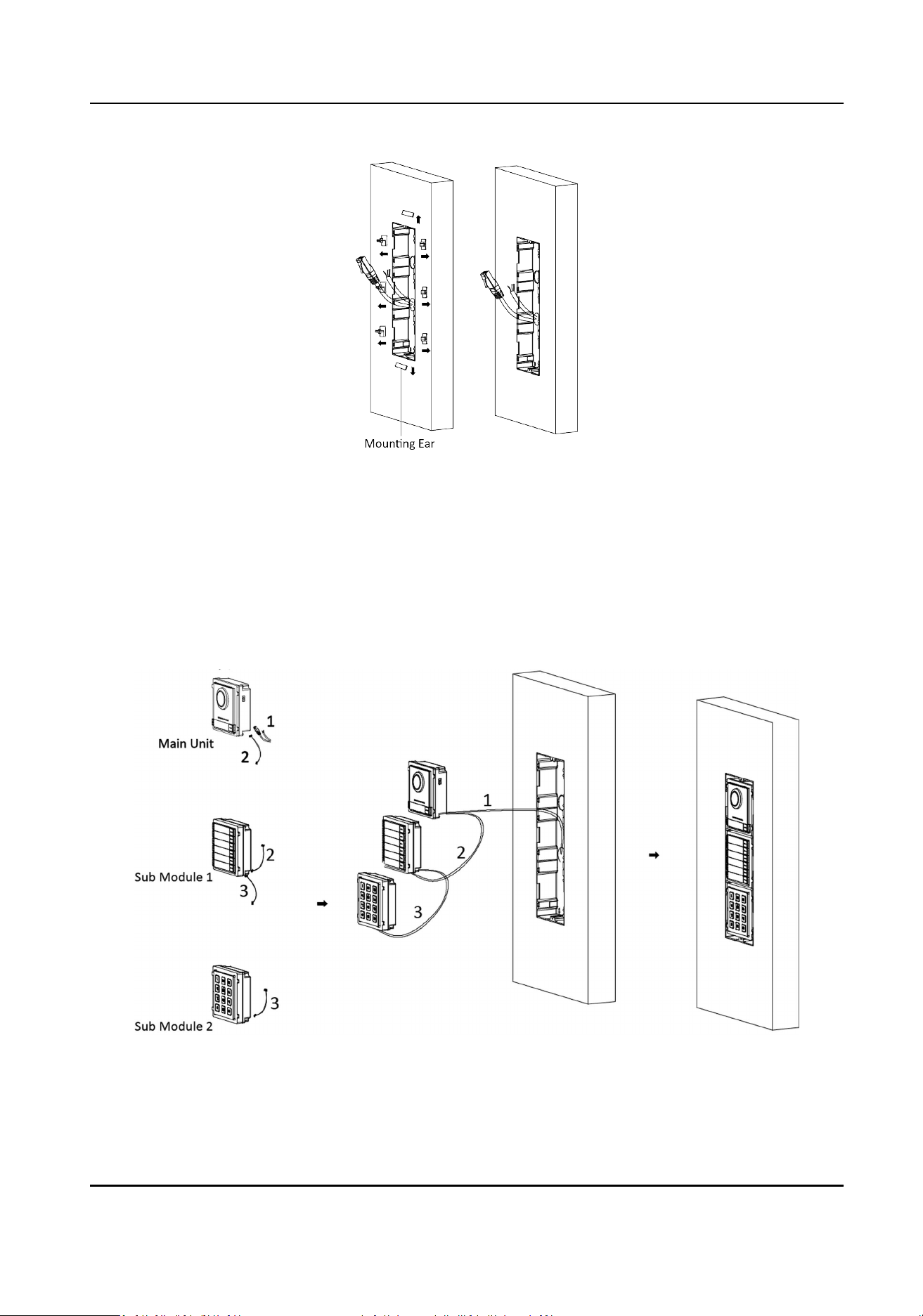

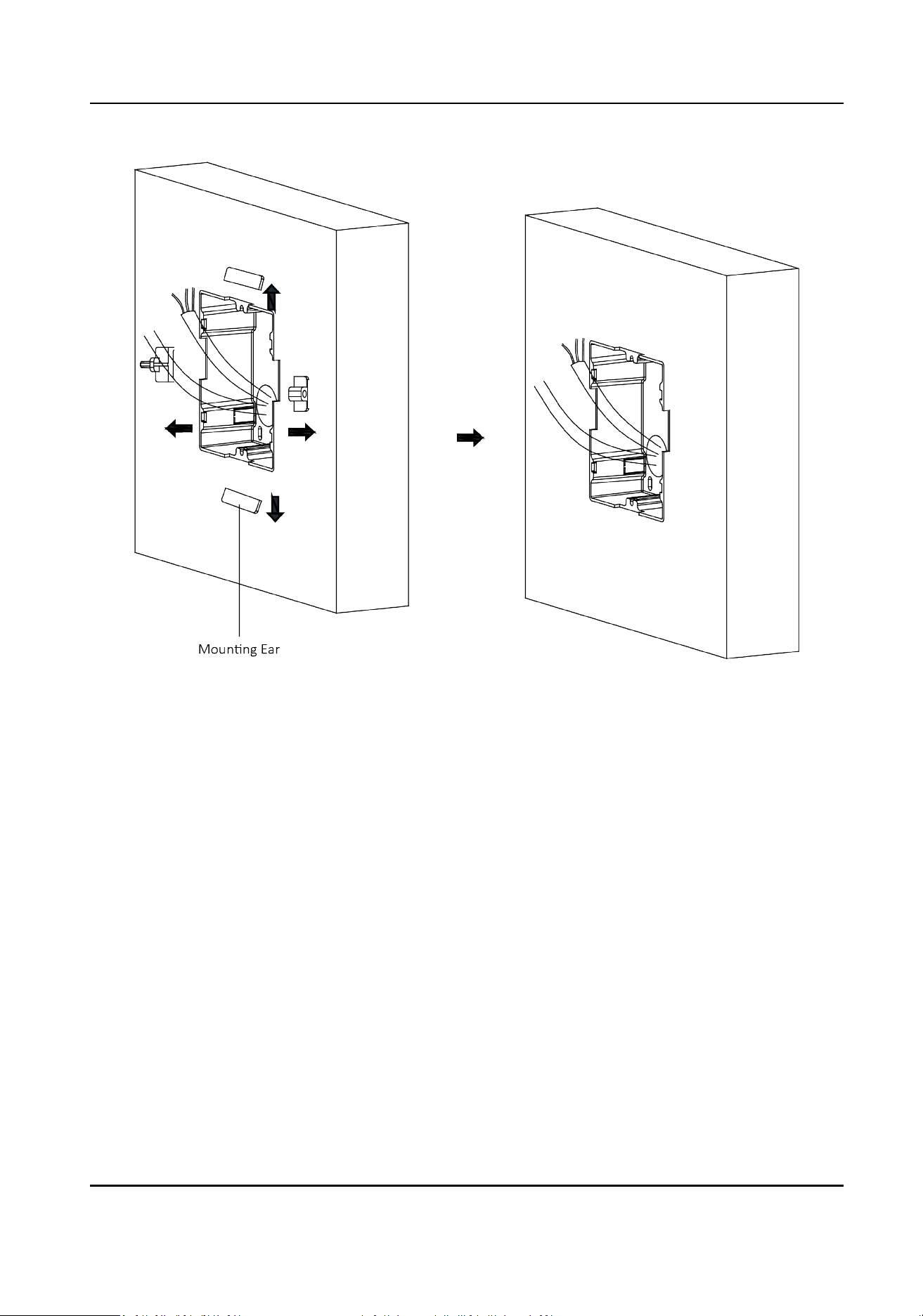

Figure 4-11 Remove the Mounng Ears
7.
Connect the cables to the corresponding interfaces of the main unit and insert the unit into the
gang box.
DS-KD8003 Series Module Door Staon User Manual
24

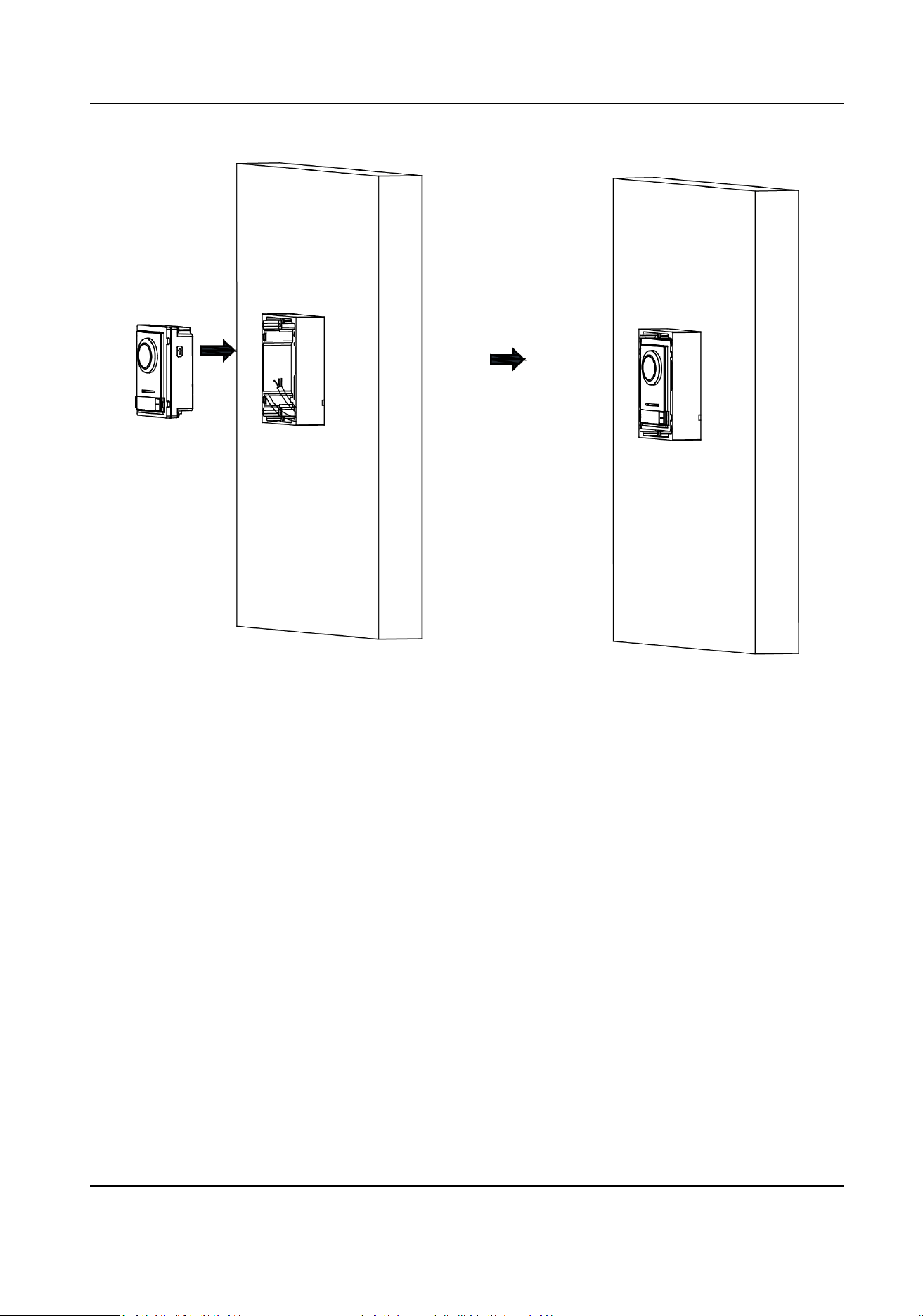

Figure 4-12 Insert the Main Unit
8.
Fix the cover and the main unit with 2 socket head cap screws by using a hexagon wrench
(supplied).

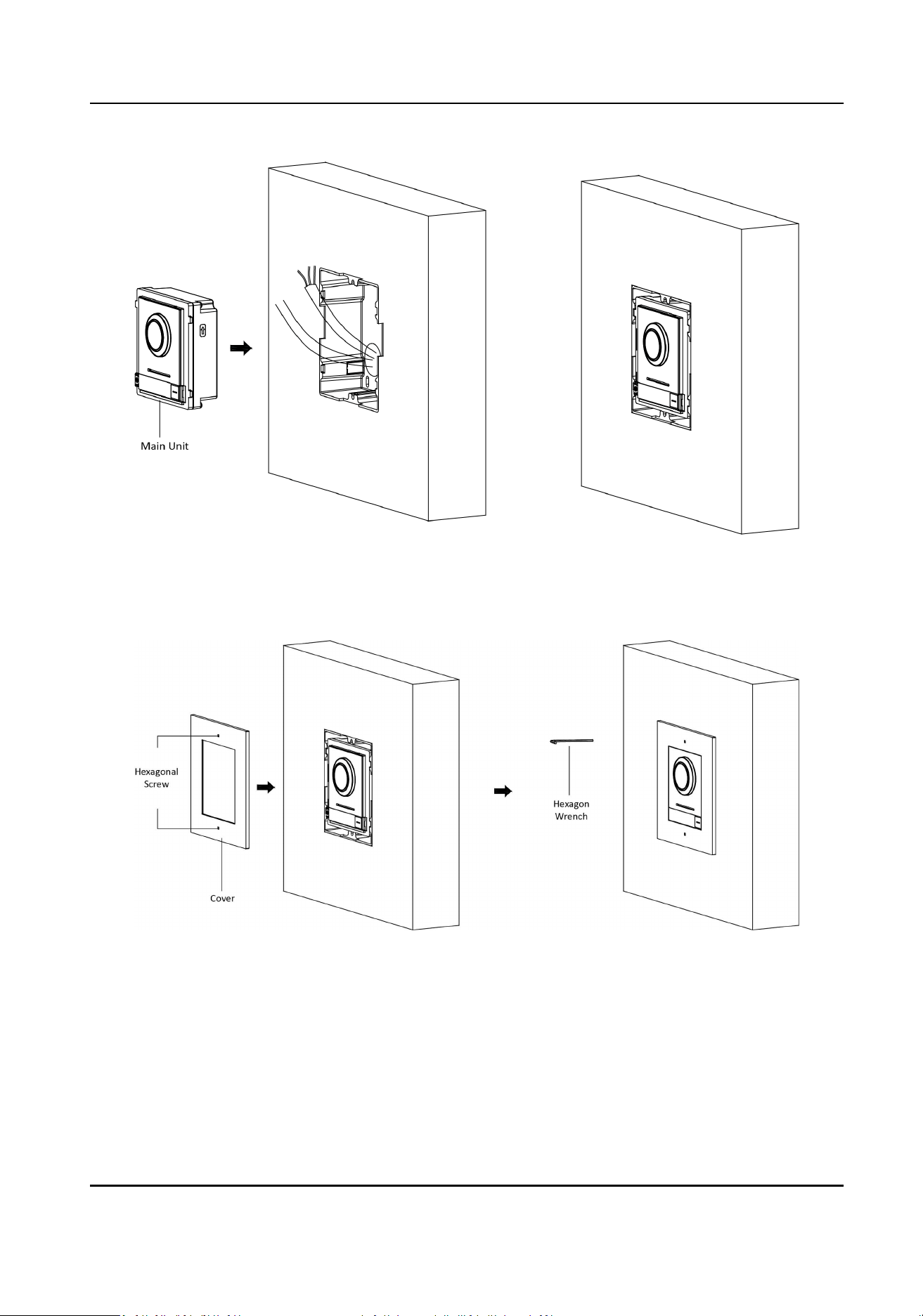

Figure 4-13 Fix the Cover
DS-KD8003 Series Module Door Staon User Manual
25
4.2 Two-Module Installaon
4.2.1 Two-Module Surface Mounng
Before You Start
Figure 4-14 Mounng Frame
Note
●
The dimension of two-module mounng frame (W × H × D) is: 219 mm × 107 mm × 32.7 mm.
●
The dimensions above are for reference only. The actual size can be slightly dierent from the
theorecal dimension.
DS-KD8003 Series Module Door Staon User Manual
26
Steps
1.
Paste the installaon Scker 1 onto the wall. Make sure the scker is placed horizontally via
measuring with the gradienter.
2.
Drill 4 holes according to the screw holes on the scker. The suggested size of hole is 6
(diameter) × 25 (depth) mm. The suggested length of cables le outside is 270 mm.
Figure 4-15 Drill Screw Holes
3.
Remove the scker and insert the expansion sleeves into the screw holes.
4.
Fix the mounng frame onto the wall with 4 expansion bolts.

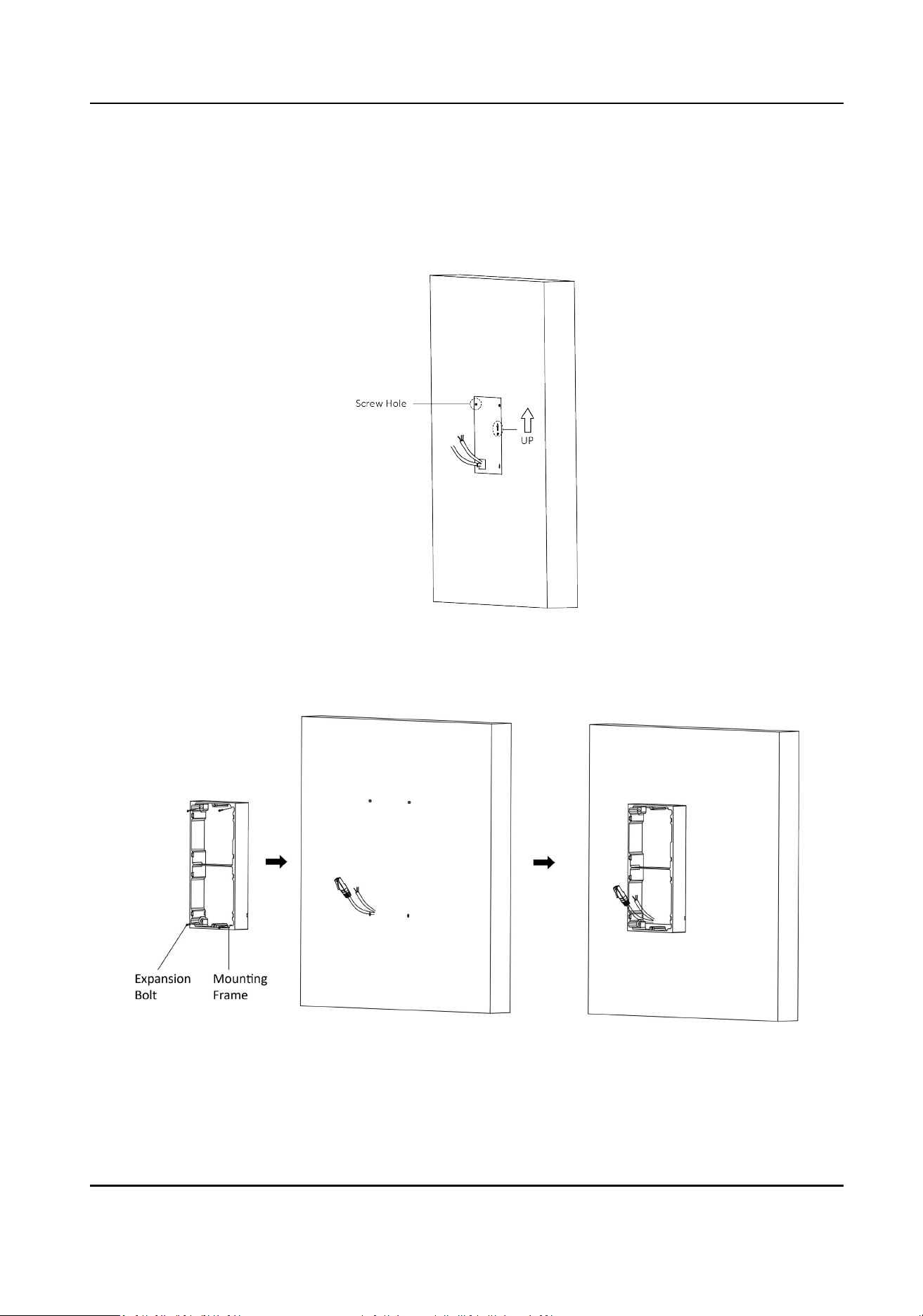

Figure 4-16 Fix the Mounng Frame
5.

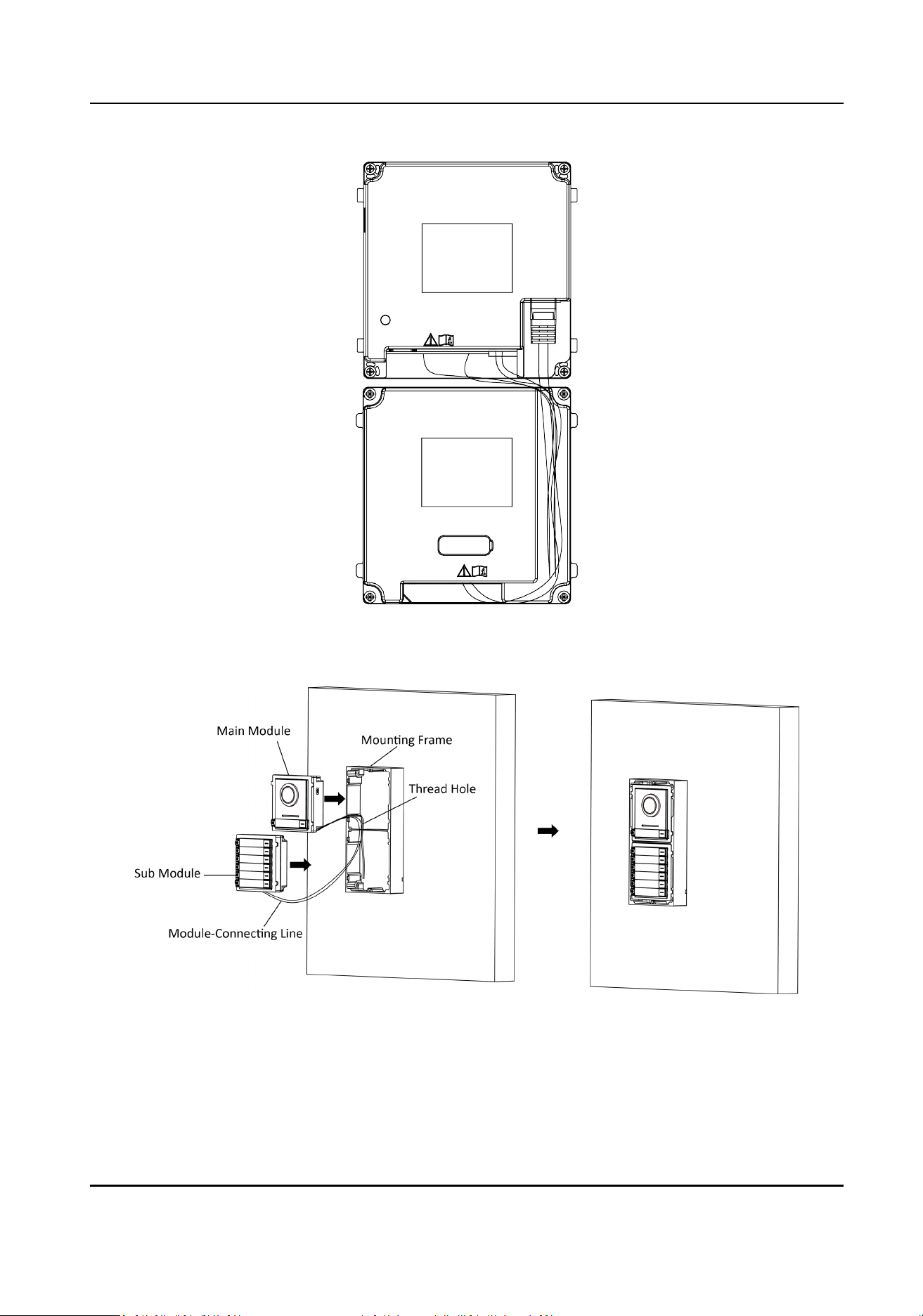

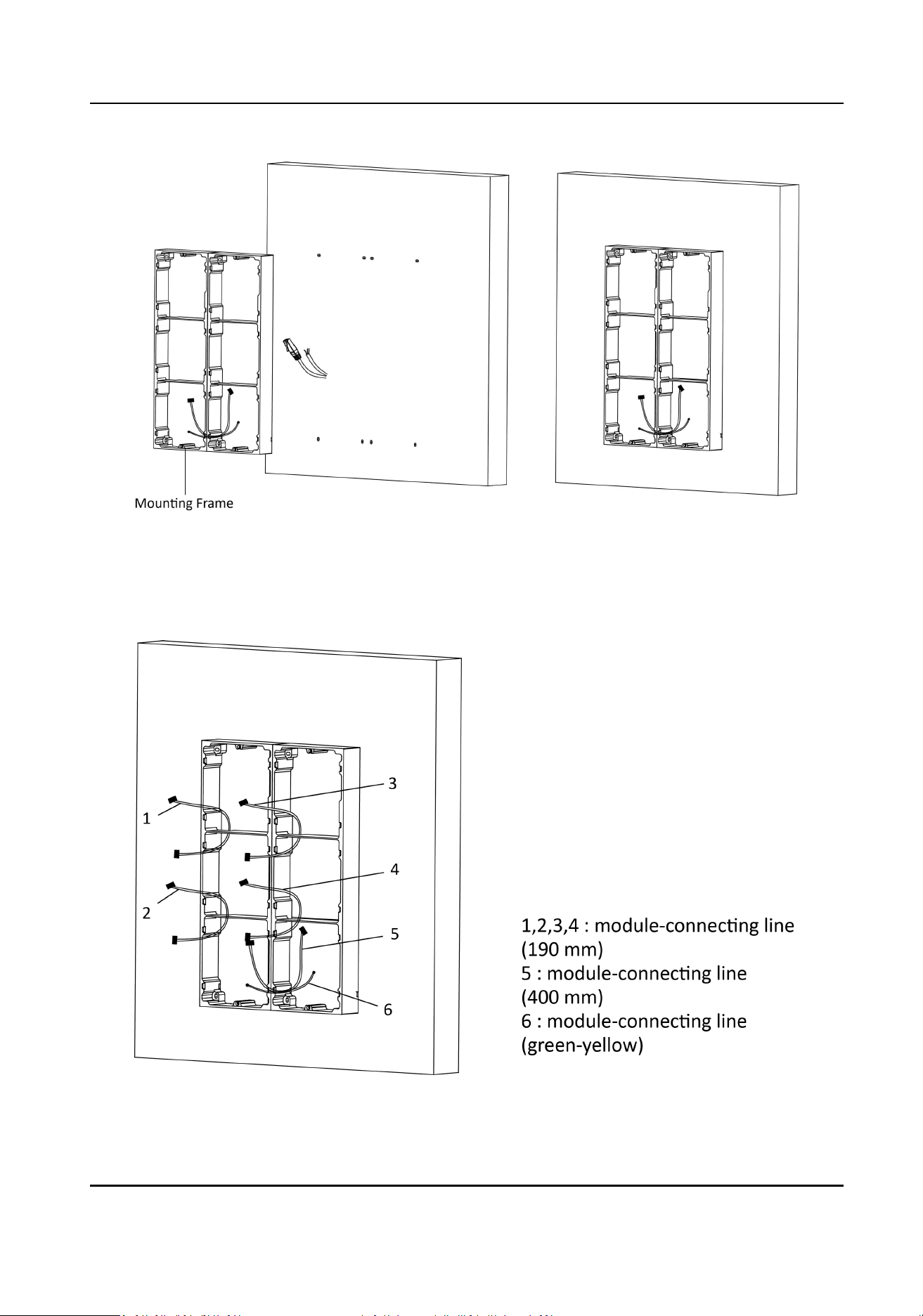

Thread the module-connecng line across the thread hole of the frame. Pass the main unit
connecng lines across the thread hole to the upper grid.
DS-KD8003 Series Module Door Staon User Manual
27

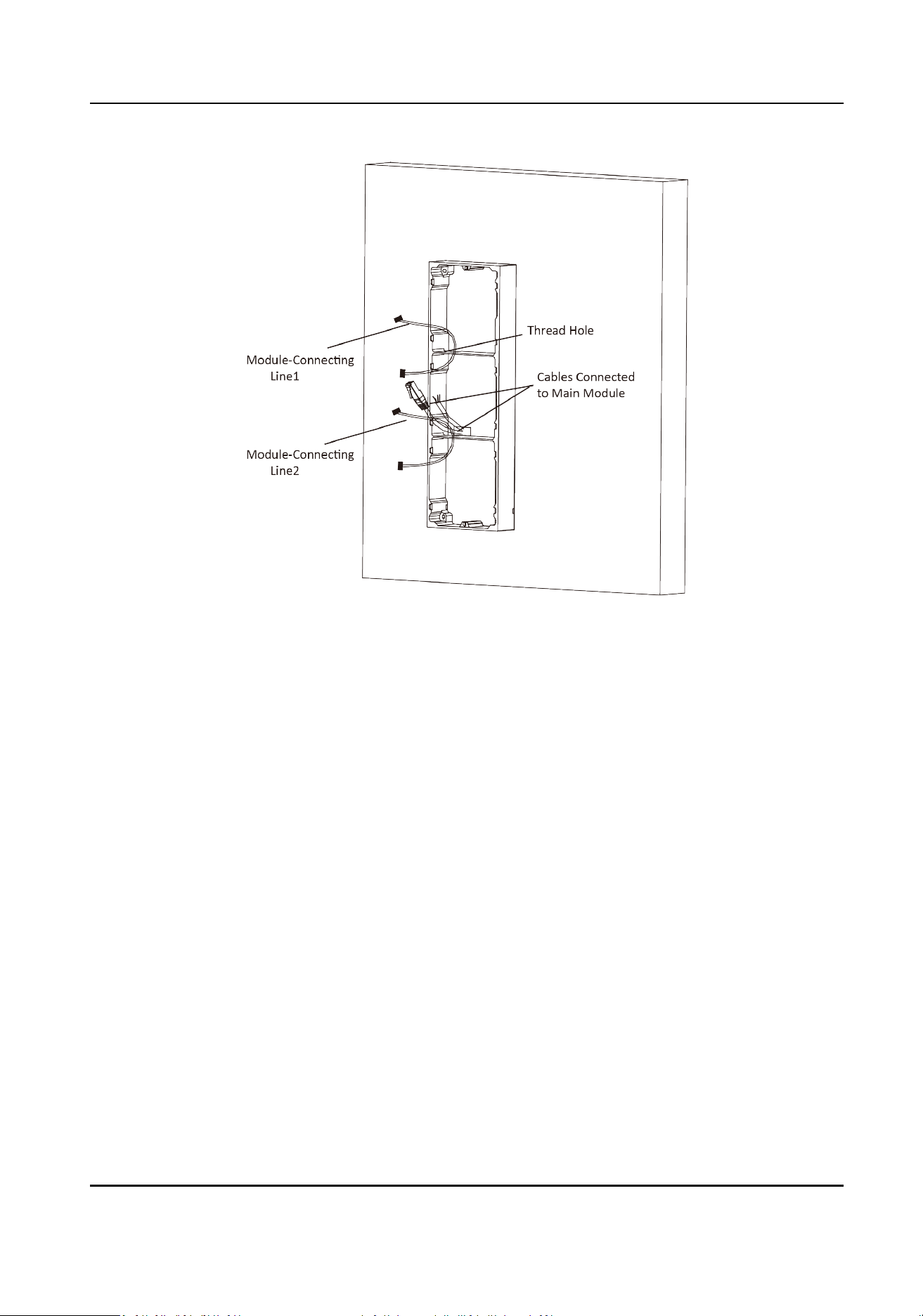

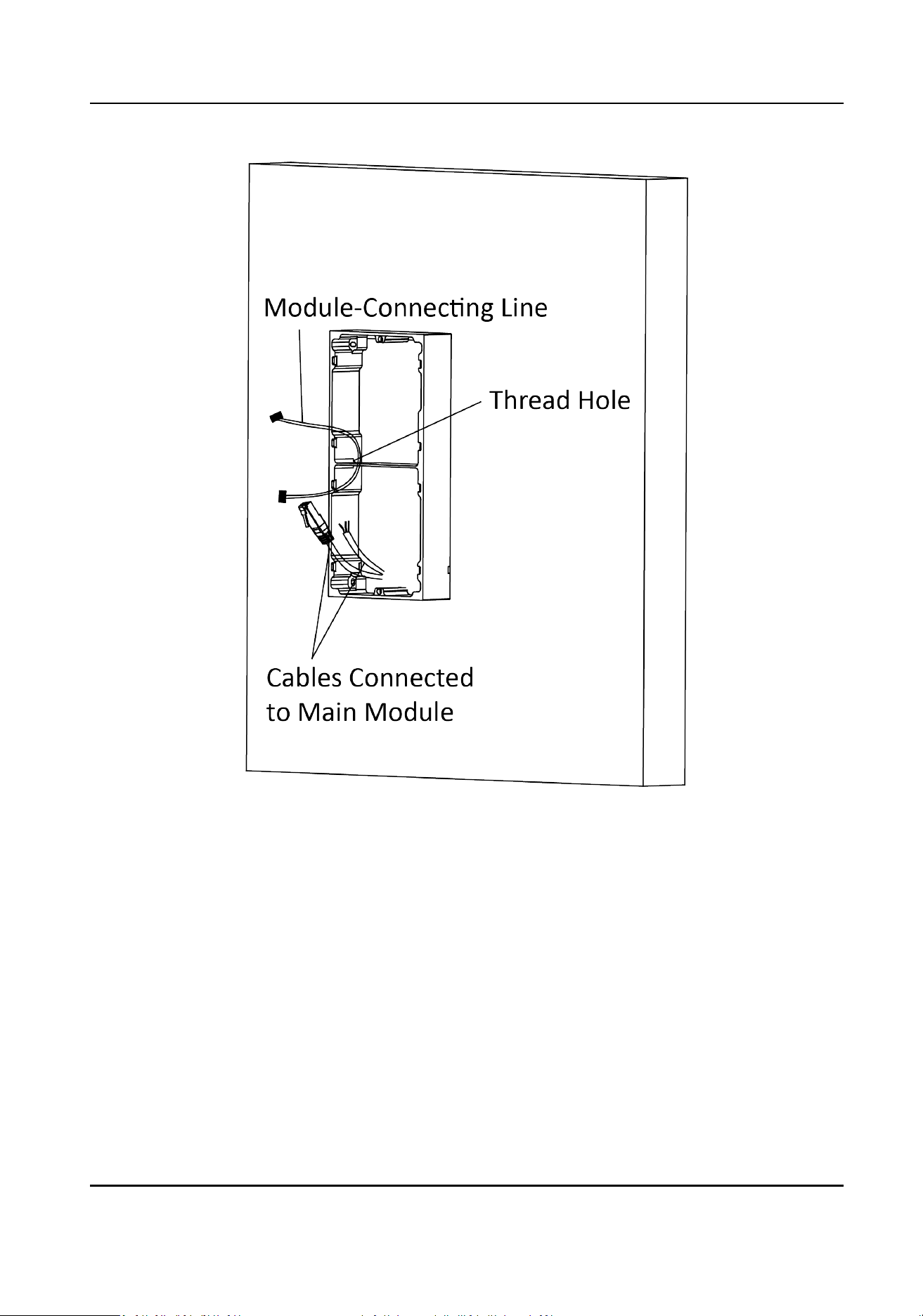

Figure 4-17 Placement of Lines
6.
Connect the cables.
1) Connect the lines and module-connecng line to the corresponding interfaces of the main
unit, then place the main unit into the upper grid.
2) Connect the other end of the module-connecng line to the input interface of the sub
module.
3) Organize the cable with cable e in the package. The suggested cable connecon picture as
shown below.
DS-KD8003 Series Module Door Staon User Manual
28
Figure 4-18 Line Connecon Eect Picture
7.
Insert the modules into the frame aer wiring. The main unit must be placed in the top grid.

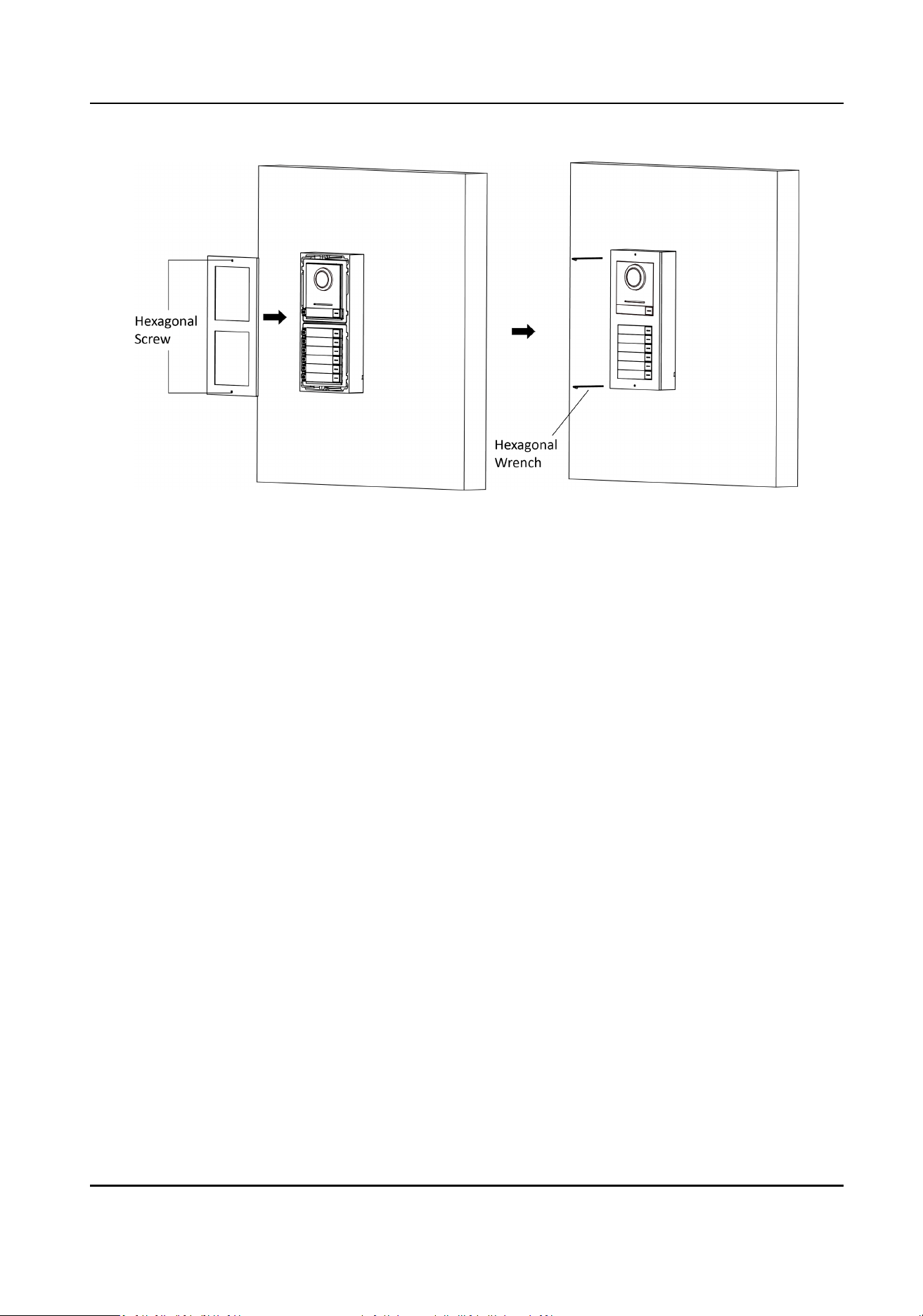

Figure 4-19 Insert the Modules
8.
Use the hexagon wrench in the package to x the cover onto the frame.

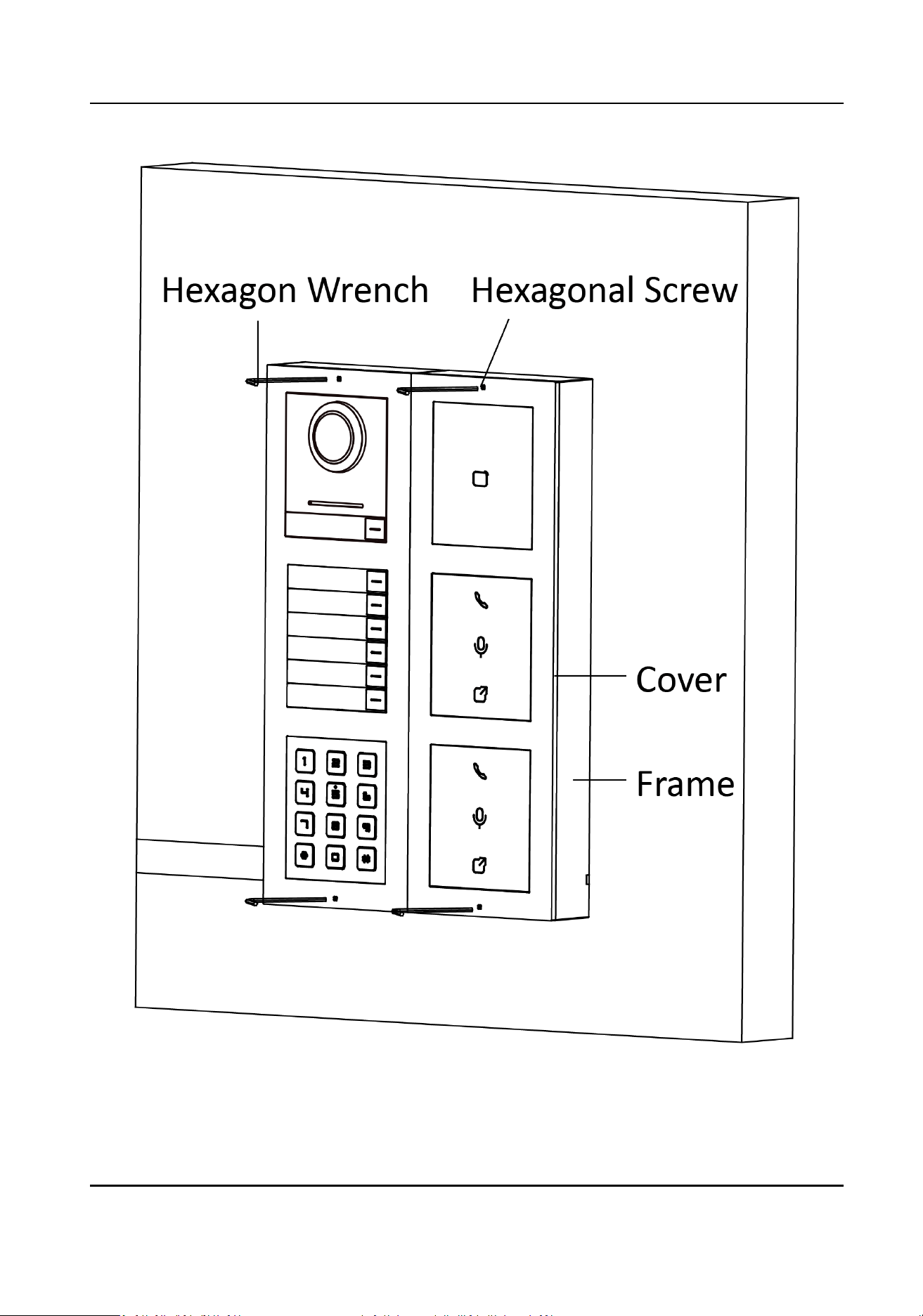

DS-KD8003 Series Module Door Staon User Manual
29

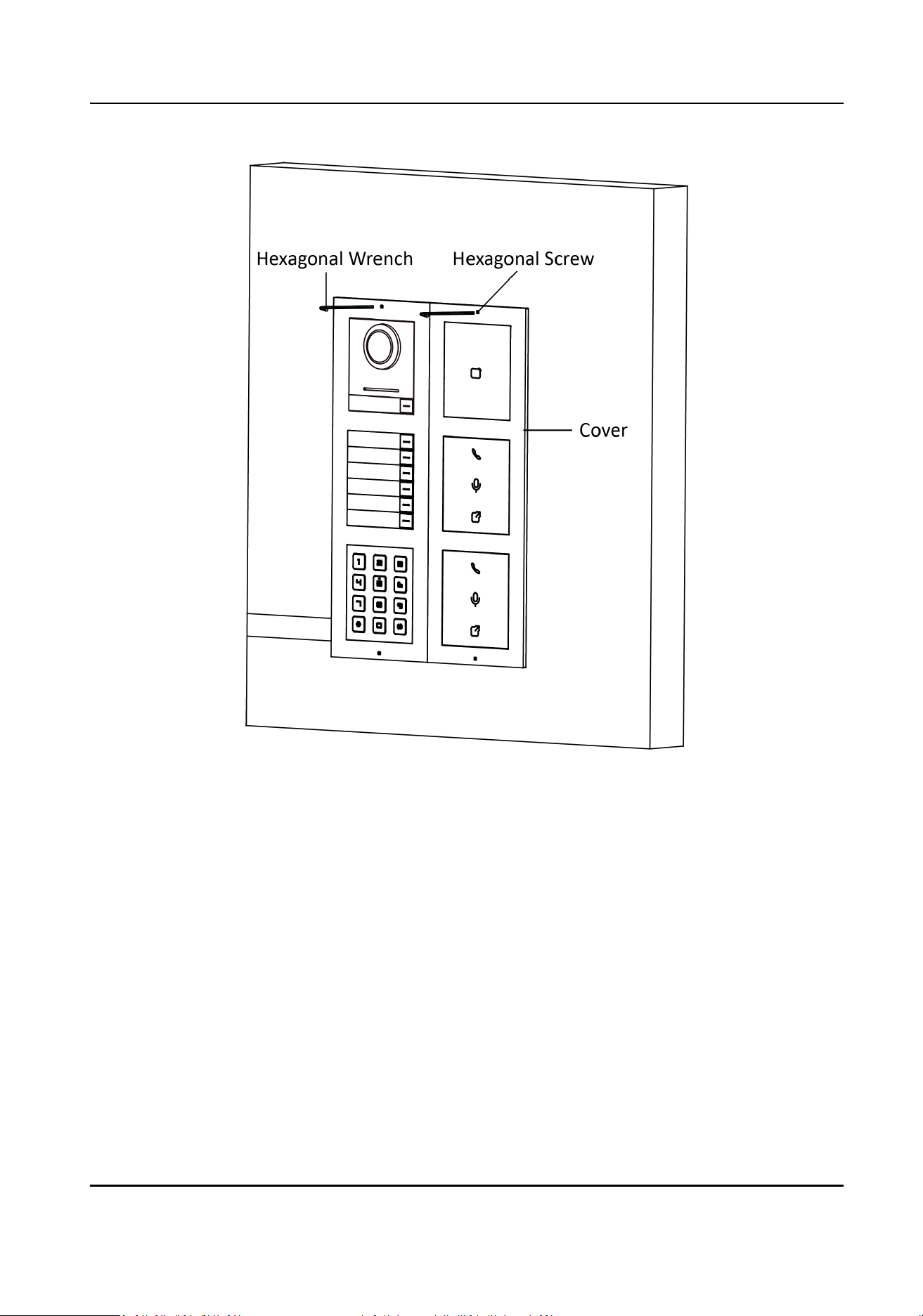

Figure 4-20 Fix the Cover
DS-KD8003 Series Module Door Staon User Manual
30
4.2.2 Two-Module Flush Mounng
Before You Start

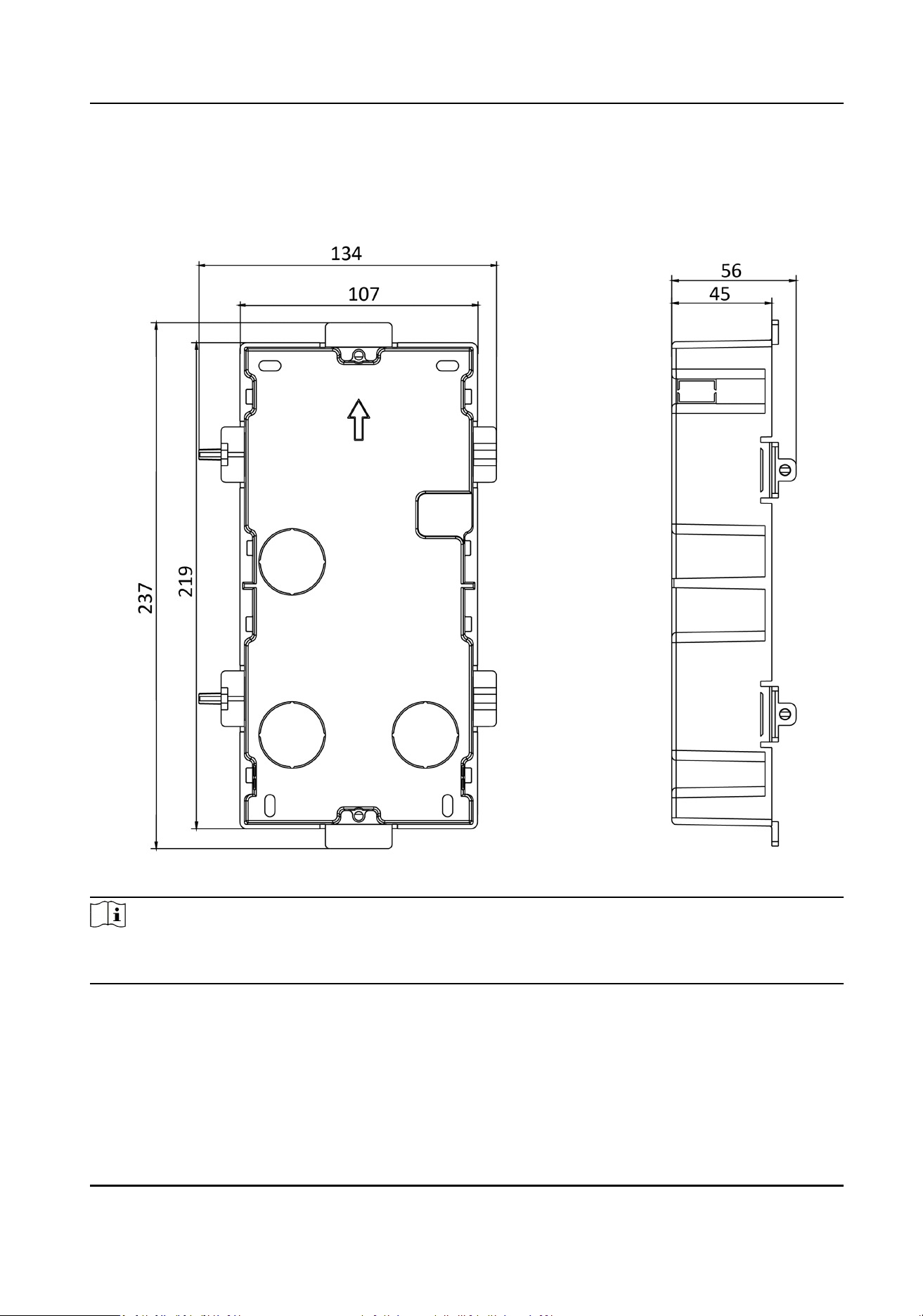

Figure 4-21 Gang Box
Note
The dimension of two-module gang box is: 237 (W) × 134 (H) × 56 (D) mm. The dimension is for
reference only.
Steps
1.
Drill the installaon hole, and pull the cable out.
DS-KD8003 Series Module Door Staon User Manual
31
Note
●
The suggested dimension of installaon hole is 220 (W) × 108 (H) × 45.5 (D) mm.
●
The suggested length of cables le outside is 270 mm.
Figure 4-22 Drill the Installaon Hole
2.
Select a cable entry and remove the plasc sheet.
3.
Mark the gang box screw holes on the hole.
1) Routs the cables through the gang box hole.
2) Insert the gang box into the installaon hole.
3) Mark the gang box screw holes' posion with a marker, and take out the gang box.
DS-KD8003 Series Module Door Staon User Manual
32
Figure 4-23 Mark the Screw Holes
4.
Drill 4 holes according to the marks on the wall, and insert the expansion sleeves into the screw
holes. The suggested size of hole is 6 (diameter) × 45 (depth) mm.
5.
Fix the gang box with 4 expansion bolts.
DS-KD8003 Series Module Door Staon User Manual
33
Figure 4-24 Fix the Gang Box
6.
Fill the gap between the gang box and the wall with concrete. Remove the mounng ears with
tool aer concrete is dry.
DS-KD8003 Series Module Door Staon User Manual
34

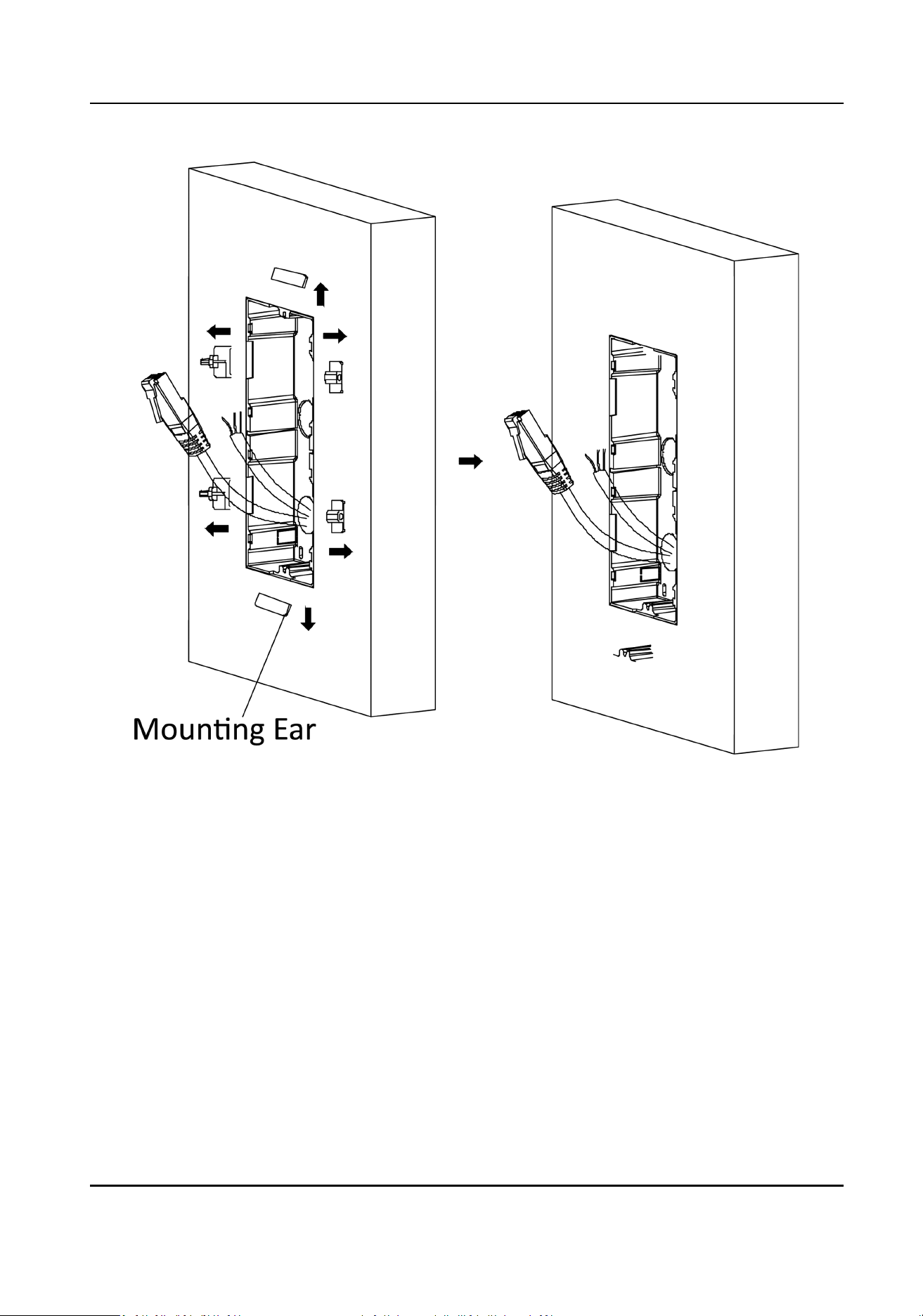

Figure 4-25 Remove the Mounng Ears
7.
Connect cables and insert the modules.
1) Connect Cable 1 and one end of Cable 2 to the corresponding interfaces of the main unit,
then insert the main unit into the upper grid.
2) Connect the other end of Cable 2 to the input interface of the sub module. Insert it into the
lower grid.
DS-KD8003 Series Module Door Staon User Manual
35
Figure 4-26 Connect Cables and Insert the Modules
Note
Cable 1 refers to the cables pulled out from the wall that connected to the main unit. Cable 2
refers to the module-connecng line in the accessory package.
8.
Fix the cover with 2 socket head cap screws by using a hexagon wrench (supplied).
Figure 4-27 Fix the Cover
DS-KD8003 Series Module Door Staon User Manual
36
4.3 Three-Module Installaon
4.3.1 Three-Module Surface Installaon
Before You Start
Figure 4-28 Mounng Frame
Note
●
The dimension of two-module mounng frame (W × H × D) is: 320.8 mm × 107 mm × 32.7 mm.
●
The dimensions above are for reference only. The actual size can be slightly dierent from the
theorecal dimension.
Steps
1.
Paste the installaon scker 1 onto the wall. Make sure the scker is placed horizontally via
measuring with the gradienter.
2.
Drill 4 holes according to the screw holes on the scker.The suggested size of hole is 6 (diameter)
× 25 (depth) mm. The suggested length of cables le outside is 270 mm.
DS-KD8003 Series Module Door Staon User Manual
37
Figure 4-29 Drill Screw Holes
3.
Remove the scker and insert the expansion sleeves into the screw holes.
4.
Fix the mounng frame onto the wall with 4 expansion bolts.

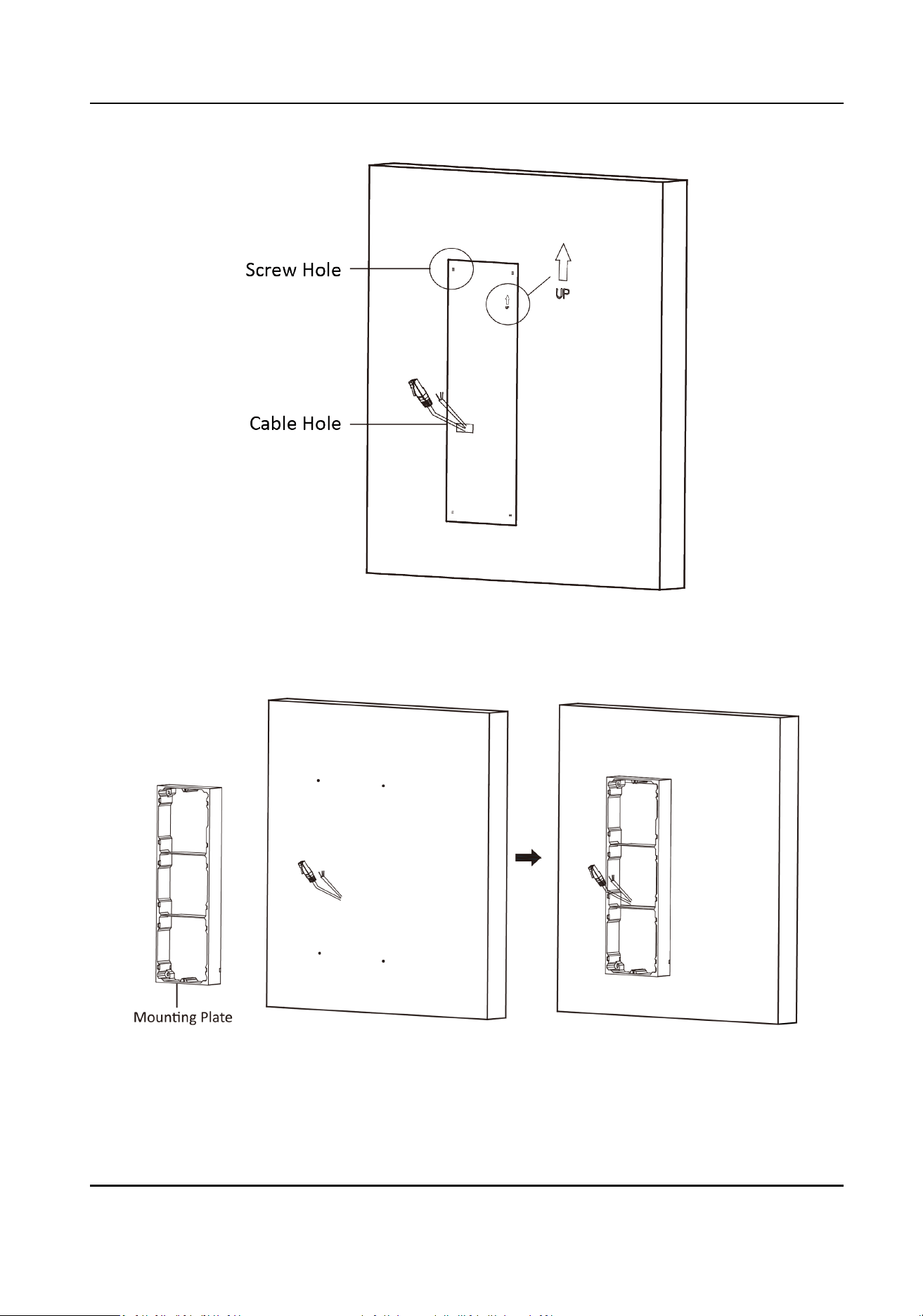

Figure 4-30 Fix the Mounng Frame
DS-KD8003 Series Module Door Staon User Manual
38
Note
The mounng frame should be placed exactly as shown below for this step. The tamper plate
should be at the low right of the rst grid.
Figure 4-31 Mounng Frame
5.
Thread the module-connecng line across the thread holes of the frame. Pass the main unit
connecng line across the thread hole to the top grid.
DS-KD8003 Series Module Door Staon User Manual
39
Figure 4-32 Placement of Lines
6.
Connect the cables.
1) Connect the lines and module-connecng line 1 to the corresponding interfaces of the main
unit, then place the main unit into the upper grid.
2) Connect the other end of the module-connecng line 1 to the input interface of the sub
module. Connect two sub modules via module-connecng line 2.
3) Organize the cables with cable e in the package. The suggested cable connecon picture as
shown below.
DS-KD8003 Series Module Door Staon User Manual
40
Figure 4-33 Line Connecon Eect Picture
7.
Insert the modules into the frame aer wiring. The main unit must be placed in the top grid.
DS-KD8003 Series Module Door Staon User Manual
41
Figure 4-34 Insert the Modules into the Frame

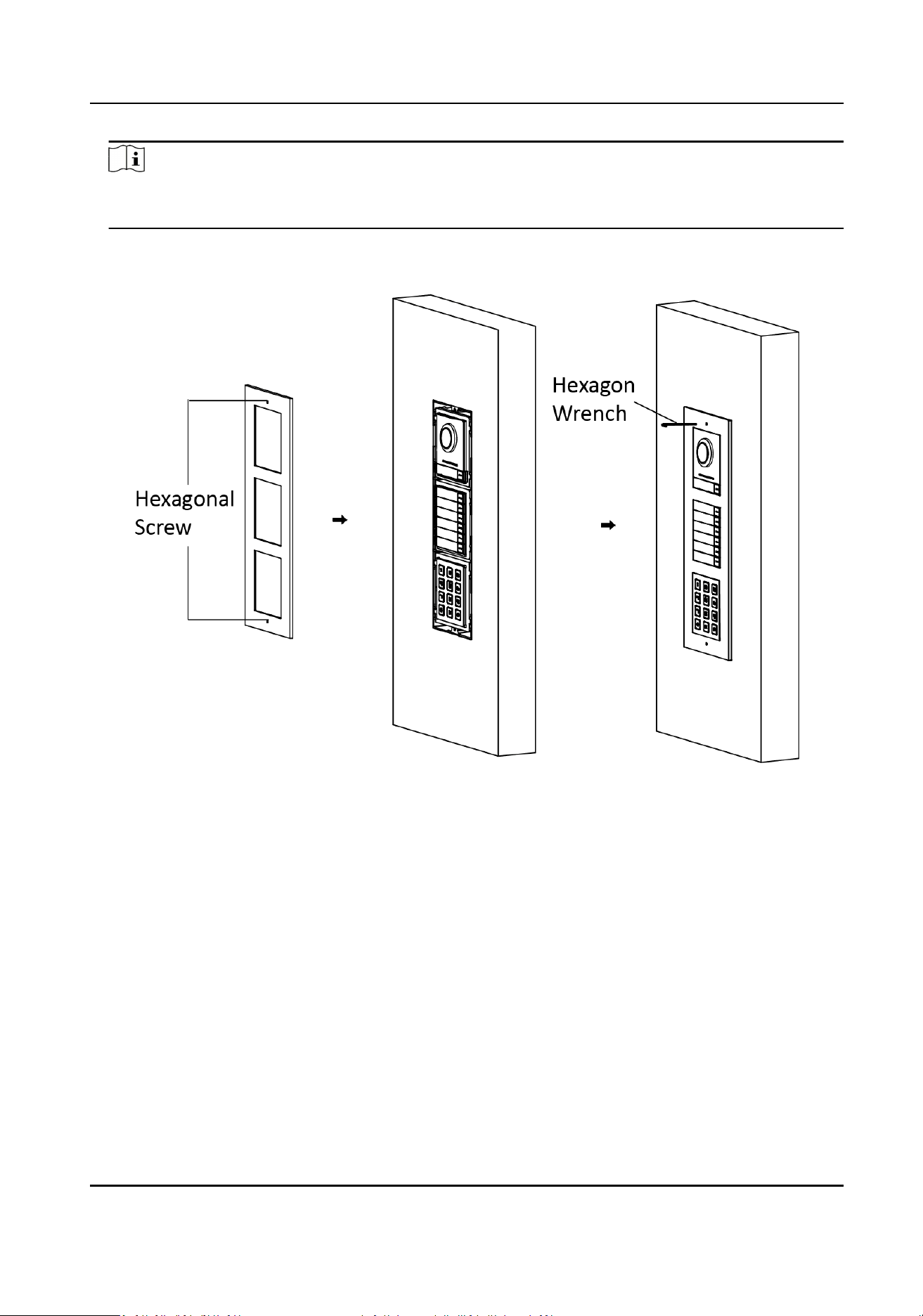

8.
Use the hexagon wrench in the package to x the cover onto the frame.
DS-KD8003 Series Module Door Staon User Manual
42
Figure 4-35 Fix the Cover
DS-KD8003 Series Module Door Staon User Manual
43
4.3.2 Three-Module Flush Mounng
Before You Start
Figure 4-36 Gang Box
DS-KD8003 Series Module Door Staon User Manual
44
Note
●
The dimension of one-module gang box is: 338.8(W)×134(H)×56(D) mm.
●
The dimensions above are for reference only. The actual size can be slightly dierent from the
theorecal dimension.
Steps
1.
Cave the installaon hole, and pull the cable out.The suggested dimension of installaon hole is
321.8(W)×108(H)×45.5(D) mm. The suggested length of cables le outside is 270 mm.
Figure 4-37 Cave the Installaon Hole
2.
Select a cable entry and remove the plasc sheet.
3.
Mark the gang box screw holes on the wall.
1) Route the cables through the gang box hole.
2) Insert the gang box into the installaon hole.
3) Mark the gang box screw holes' posion with a marker, and take out the gang box.
DS-KD8003 Series Module Door Staon User Manual
45
Figure 4-38 Mark the Screw Holes
4.
Drill 4 holes according to marks on the wall, and insert the expansion sleeves into the screw
holes. The suggested size of hole is 6 (diameter) × 45 (depth) mm.
5.
Fix the gang box with 4 expansion bolts.

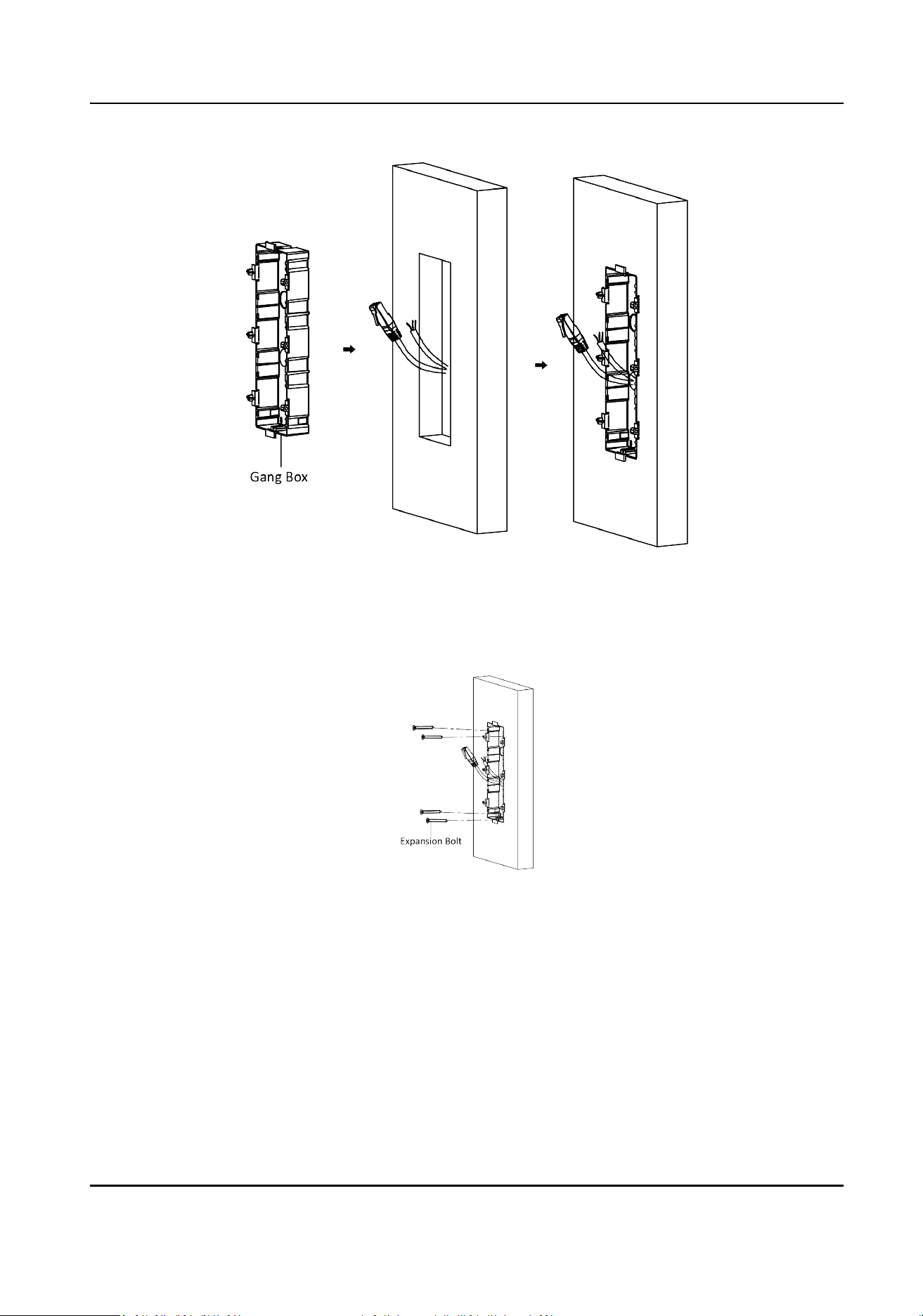

Figure 4-39 Fix the Gang Box
6.
Fill the gap between the gang box and wall with concrete. Remove the mounng ears with tool
aer concrete is dry.
DS-KD8003 Series Module Door Staon User Manual
46
Figure 4-40 Remove the Mounng Ears
7.
Connect cables and insert the modules.
1) Connect Cable 1 and one end of Cable 2 to the corresponding interfaces of the main unit,
then insert the main unit into the upper grid.
2) Connect the other end of Cable 2 to the input interface of Sub Module 1. Connect one end of
Cable 3 to the output interface of Sub Module 1 and insert it into the middle grid.
3) Connect the other end of Cable 3 to the input interface of Sub Module 2. Insert it into the
boom grid.

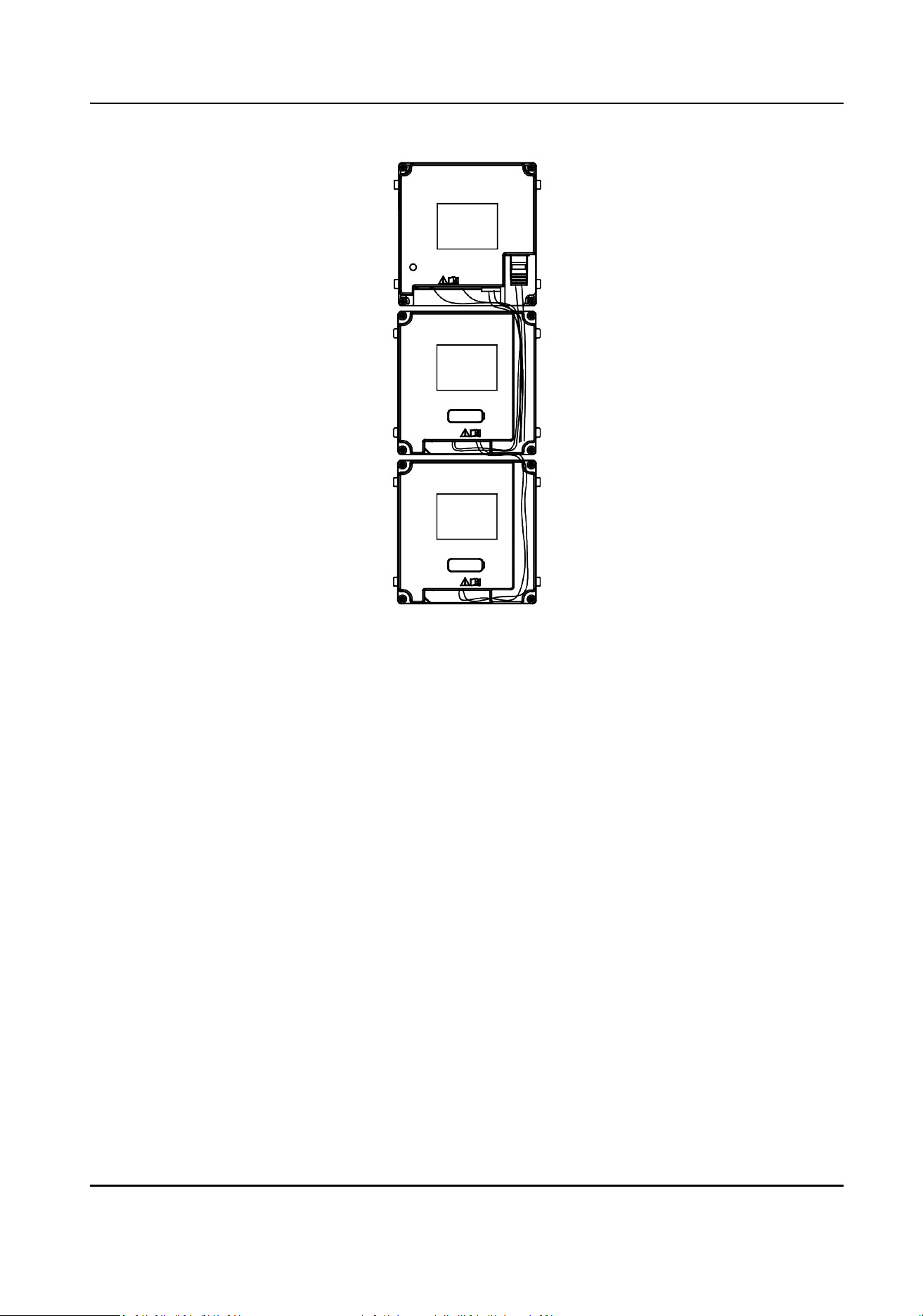

Figure 4-41 Connect Cables and Insert Modules
DS-KD8003 Series Module Door Staon User Manual
47
Note
Cable 1 refers to the cables pulled out from the wall that connected to the main unit. Cable 2
and Cable 3 refer to the module-connecng line in the accessory package.
8.
Fix the cover and the main unit with 2 socket head cap screws by using a hexagon wrench
(supplied).
Figure 4-42 Fix the Cover
DS-KD8003 Series Module Door Staon User Manual
48
4.4 More-Than-Three Module Installaon
4.4.1 More-than-Three Module Surface Mounng
Before You Start
Figure 4-43 Mounng Frame
Note
●
It takes two three-module mounng frames. The dimension of three-module mounng frame
(W × H × D) is: 320.8 mm × 107 mm × 32.7 mm.
●
The dimensions above are for reference only. The actual size can be slightly dierent from the
theorecal dimension.
Steps
1.
Paste two Scker 1 onto the wall. Make sure the sckers are placed horizontally via measuring
with the gradienter.
2.
Drill 8 holes according to the screw holes on the scker.
Note
●
The suggested size of hole is 6 (diameter) × 25 (depth) mm.
●
The suggested length of cables le outside is 270 mm.
3.
Pull out the cable through the cable hole of the le scker.
DS-KD8003 Series Module Door Staon User Manual
49
Figure 4-44 Drill Screw Holes
4.
Remove the sckers and insert the expansion sleeves into the screw holes.
5.
Thread the module-connecng line (400 mm) and grounding line across the thread hole of both
frames.
DS-KD8003 Series Module Door Staon User Manual
50
Figure 4-45 Place the Grounding Line and Module-Connecng Line
Note
●
There are 6 module-connecng lines in the package: 190 mm × 4 and 400 mm × 2.
●
Take the 400 mm module-connecng line for this step.
●
The green-yellow line in the package is for grounding.
6.
Fix the mounng frame onto the wall with 8 expansion bolts.
DS-KD8003 Series Module Door Staon User Manual
51
Figure 4-46 Fix the Mounng Frame
7.
Pass the main unit connecng line across the thread hole to the top grid of the le frame.
Thread the module-connecng line (190 mm) across the thread hole of the frame. The lines
should be placed as shown below.
Figure 4-47 Placement of Lines
DS-KD8003 Series Module Door Staon User Manual
52
8.
Connect the cables.
1) Connect the cables from the wall and module-connecng line 1 to the corresponding
interfaces of the main unit, then place the main unit into the upper grid.
2) Connect the other end of the module-connecng line 1 to the input interface of the sub
module. Connect all sub modules via module-connecng lines.
3) Organize the cable with cable e in the package. The suggested cable connecon picture as
shown below.
DS-KD8003 Series Module Door Staon User Manual
53
Figure 4-48 Line Connecon Eect Picture
DS-KD8003 Series Module Door Staon User Manual
54
9.
Insert the modules into the frame aer wiring. The main unit must be placed in the top grid on
the le.
Figure 4-49 Insert the Modules
10.
Pull the grounding line out and xed its two end to the screw on the cover.
DS-KD8003 Series Module Door Staon User Manual
55
Figure 4-50 Connect the Grounding Line to the Cover
11.

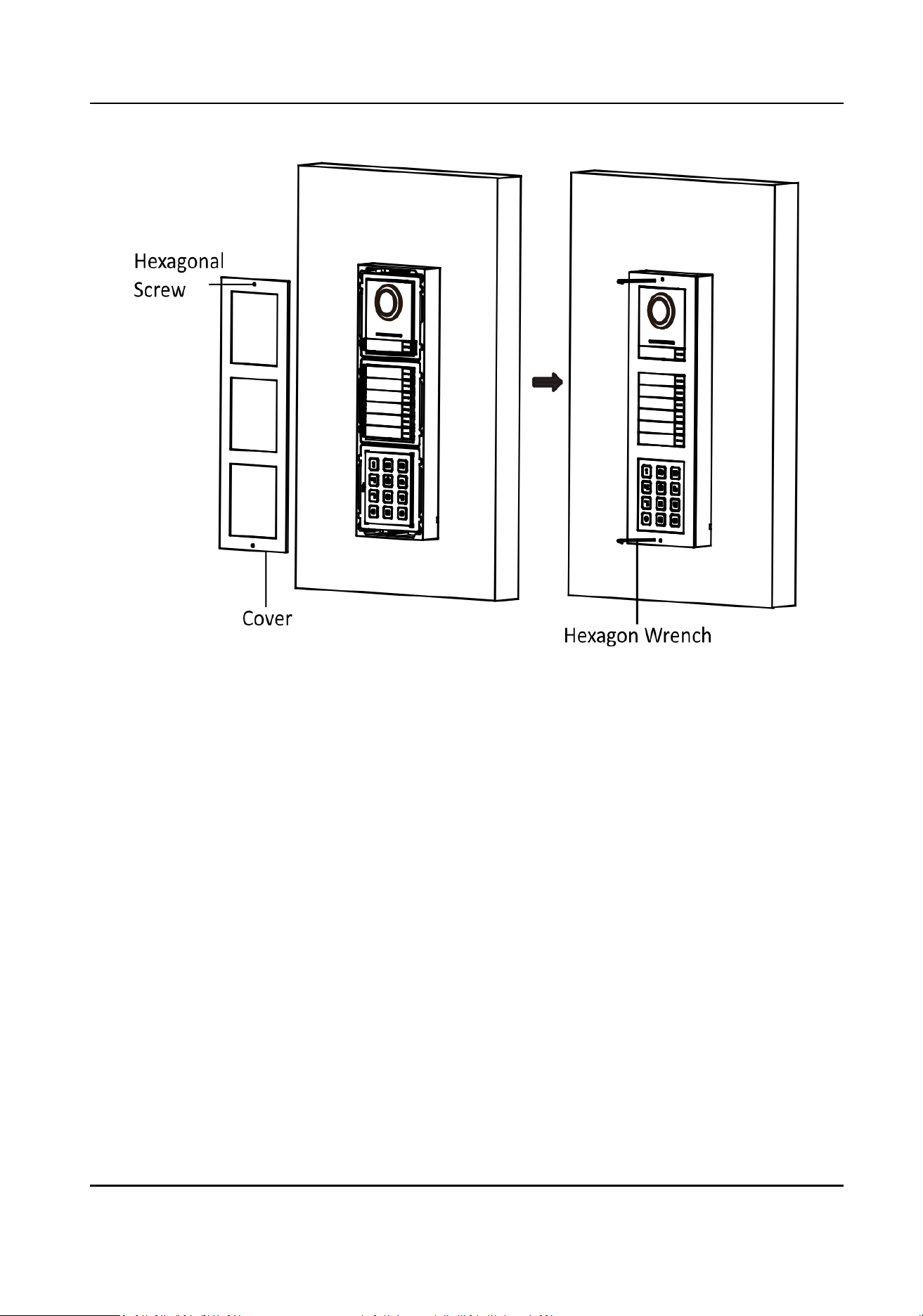

Use the hexagon wrench in the package to x the cover onto the frame.
DS-KD8003 Series Module Door Staon User Manual
56
Figure 4-51 Fix the Cover
DS-KD8003 Series Module Door Staon User Manual
57
4.4.2 More-Than-Three Module Flush Mounng
Before You Start
Figure 4-52 Gang Box
DS-KD8003 Series Module Door Staon User Manual
58
Note
It takes two three-module gang boxes. The dimension of the gang box is: 338.8 (W) × 134 (H) × 56
(D) mm. The dimension is for reference only.
Steps
1.
Drill the installaon hole, and pull the cable out.The suggested dimension of installaon hole is
321.8 (W) × 315 (H) × 45.5 (D) mm. The suggested length of cables le outside is 270 mm.
Figure 4-53 Cave the Installaon Hole
2.

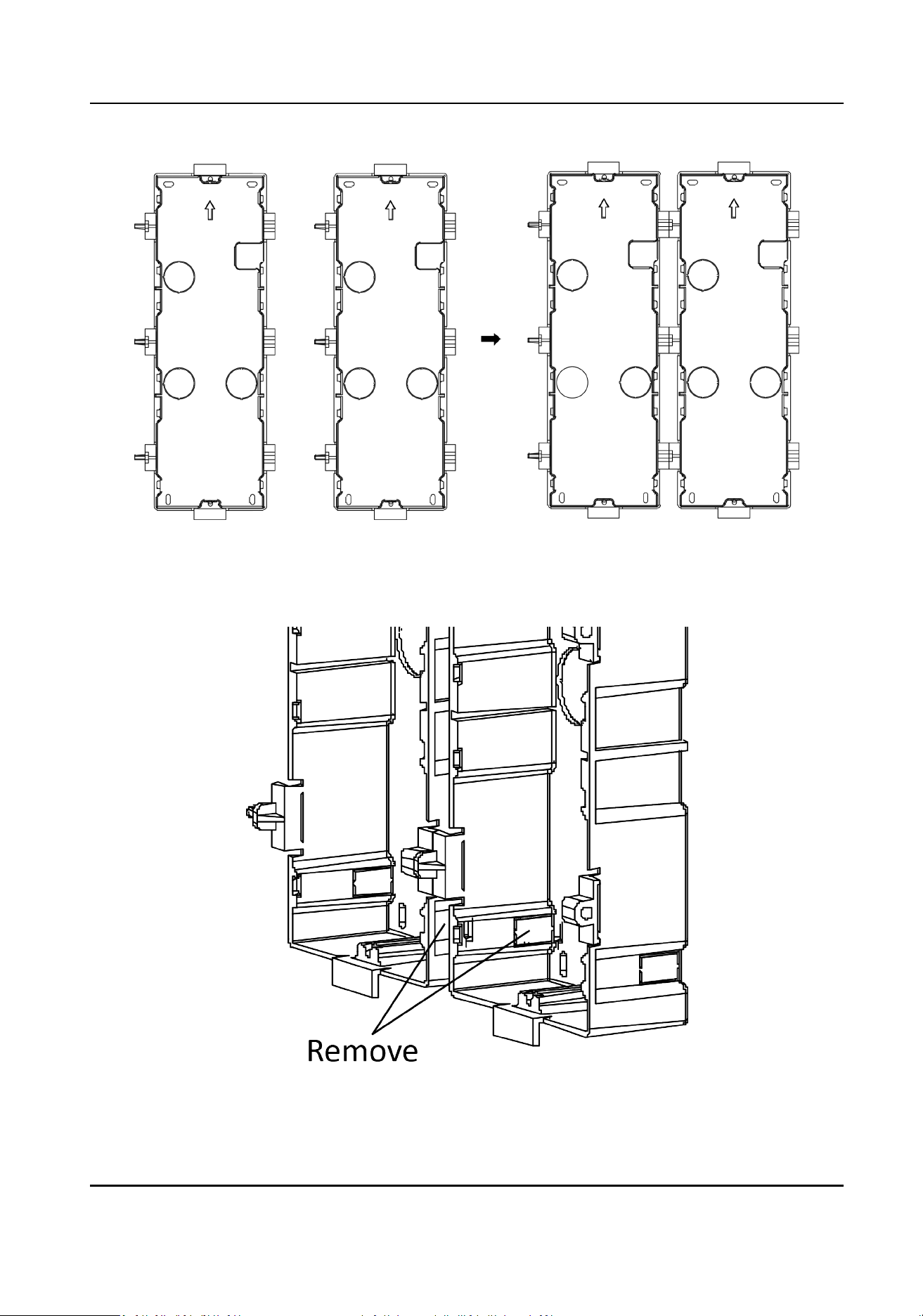

Connect two gang boxes as below.
DS-KD8003 Series Module Door Staon User Manual
59
Figure 4-54 Connect Two Gang Boxes
3.
Select a cable entry and remove the plasc sheet.
4.
Remove the plasc sheets on the side of the gang boxes (shown as 1 and 2) below:
Figure 4-55 Remove the Plasc Sheets
DS-KD8003 Series Module Door Staon User Manual
60
5.
Mark the gang box screw holes on the wall.
1) Route the cables through the gang box hole.
2) Insert the gang box into the installaon hole.
3) Mark the gang box screw holes' posion with a marker, and take out the gang box.
Figure 4-56 Mark the Screw Holes
6.
Drill 8 holes according to the marks on the wall, and insert the expansion sleeves into the screw
holes. The suggested size of hole is 6 (diameter) × 45 (depth) mm.
7.
Fix the gang boxes with 8 expansion bolts.
DS-KD8003 Series Module Door Staon User Manual
61
Figure 4-57 Fix the Gang Boxes
8.
Fill the gap between the gang box and wall with concrete. Remove the mounng ears with tool
aer concrete is dry. Route the grounding line through the cable entries.
Figure 4-58 Remove the Mounng Ears
DS-KD8003 Series Module Door Staon User Manual
62
Note
The green-yellow line in the package is for grounding.
9.
Connect cables and insert the modules.
1) Connect Cable 1 and one end of Cable 2 to the corresponding interfaces of the Main Unit,
then place the Main Unit into the upper grid of the le gang box.
2) Connect the other end of Cable 2 to the input interface of Sub Module 1. Connect one end of
Cable 3 to the output interface of Sub Module 1 and insert it into the middle grid of the le
gang box.
3) Finish the wiring and inserng according to the cable number and the posion shown as
below.

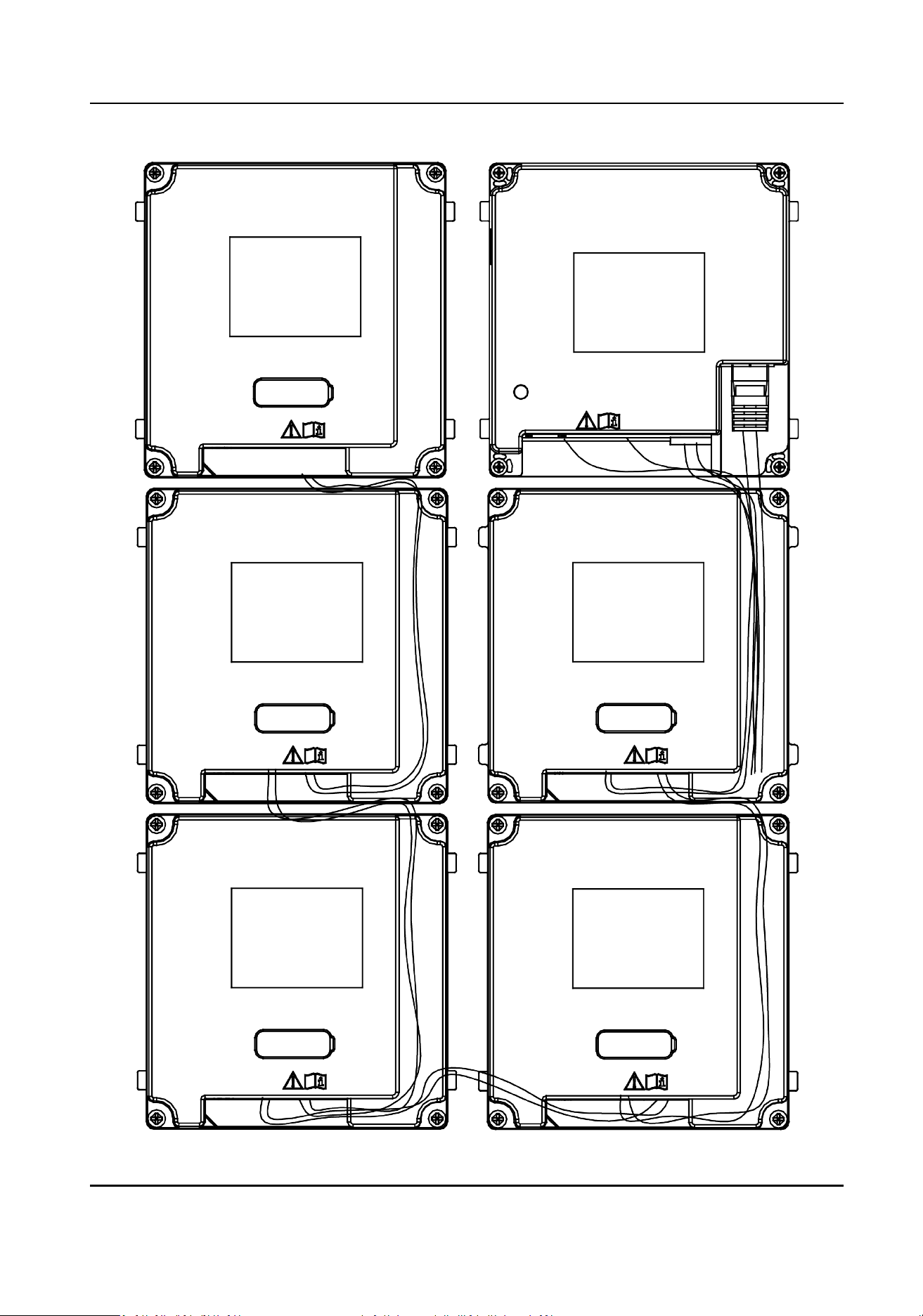

Figure 4-59 Install Mounng Frame
The cables connect to each module shown as below.
DS-KD8003 Series Module Door Staon User Manual
63
Figure 4-60 Cables Connecon
Note
●
Cable 2,3,5 and 6 are the module-connecng lines (190 mm) in the package.
●
Cable 4 is the module-connecng line (400 mm) in the package.
●
Main unit must be put in the top grid.
10.

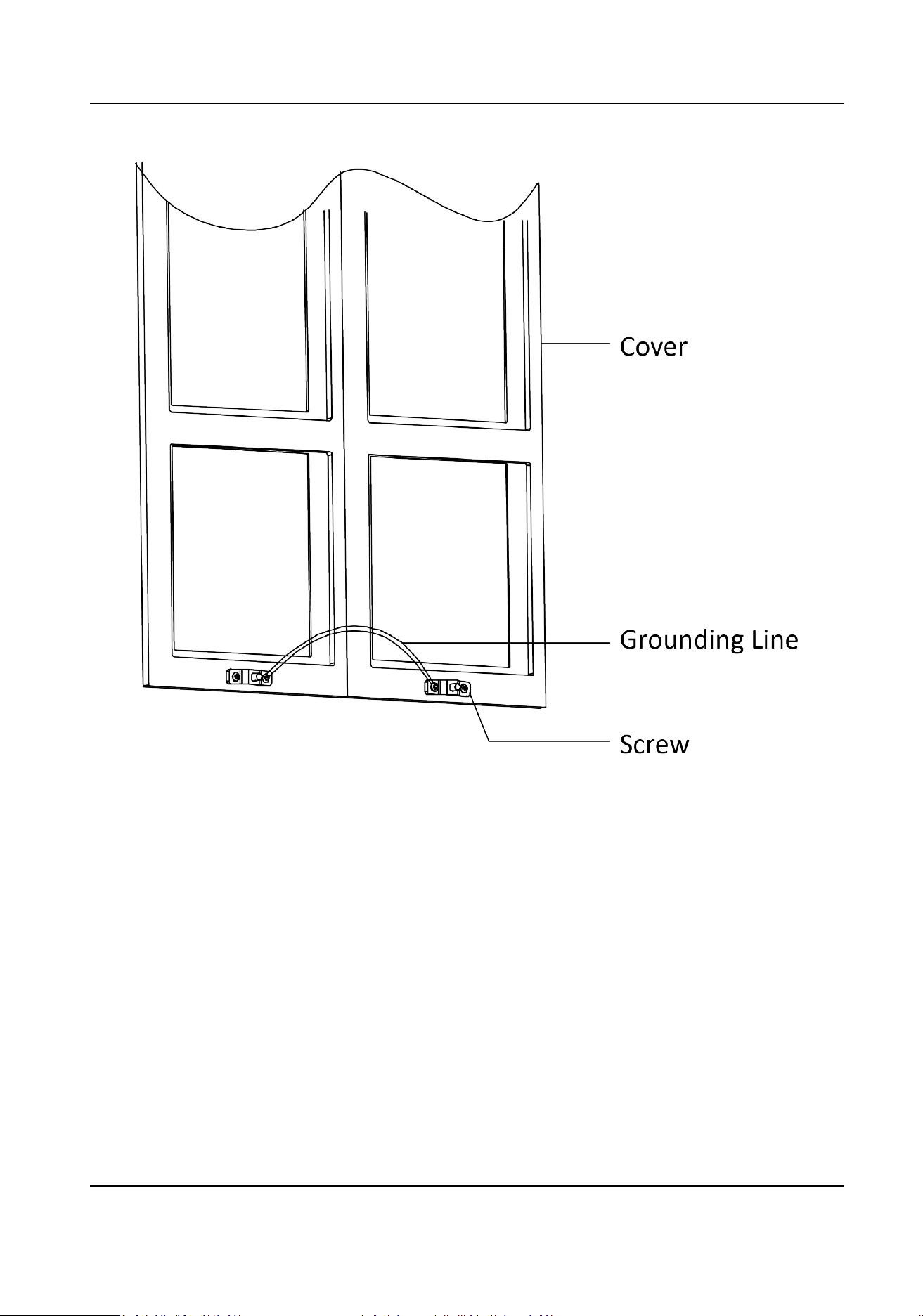

Pull the grounding line out and xed its two end to the screw on the cover.
DS-KD8003 Series Module Door Staon User Manual
64
Figure 4-61 Connect the Grounding Line to the Cover
11.
Fix the cover with 2 socket head cap screws by using a hexagon wrench (supplied).
DS-KD8003 Series Module Door Staon User Manual
65
Figure 4-62 Fix the Cover
DS-KD8003 Series Module Door Staon User Manual
66
Chapter 5 Acvaon
5.1 Acvate via Web Browser
You can acvate the device via the web browser.
Steps
1.
Enter the device default IP address (192.0.0.65) in the address bar of the web browser, and press
Enter.
Note
Make sure the device IP address and the computer's should be in the same IP segment.
2.
Create a new password (admin password) and conrm the password.
Cauon
●
The password should be 8 to 16 characters.
●
The password should contain at least 2 of the following types: digits, lowercase leers,
uppercase leers and special characters.
●
Do not contain following characters in the password: the user name, 123, admin (case-
insensive), 4 or more connuously increasing or decreasing digits, or 4 or more consecuvely
repeated characters.
●
The password strength of the device can be automacally checked. In order to increase the
security of your product, we highly recommend you change the password of your own
choosing. And we recommend you change your password regularly, especially in the high
security system, changing the password monthly or weekly can beer protect your product.
Proper conguraon of all passwords and other security sengs is the responsibility of the
service provider and/or end-user.
●
(If the device supports AP mode, aer the admin password is changed, the password of AP
hotspot will be changed simultaneously.)
3.
Click Acvate.
4.
Edit the device IP address. You can edit the IP address via the SADP tool, the device, and the
client soware.
DS-KD8003 Series Module Door Staon User Manual
67
Chapter 6 Conguraon via Web Client
6.1 Login Web Browser
You can log into the Web browser for device conguraon.
Before You Start
The sub module needs to be connected with the main unit before you can set the sub module via
the web client of the main unit. For more details, please refer to
Steps
1.
Enter the device IP address in the address bar of the web browser and press Enter to enter the
login page.
2.
Enter the device user name and the password. Click Login to login to the page.
6.2 Live View
You can view the live video of the device.
Aer logging in, you will enter the live view page. You can perform the live view, capture, video
recording, and other operaons.
Figure 6-1 Live View
Funcon Descripons:
Select the image size when starng live view.
DS-KD8003 Series Module Door Staon User Manual
68
Set the volume when starng live view.
Note
If you adjust the volume when starng two-way audio, you may hear a repeated sounds.
You can capture image when starng live view.
Reserved funcon. You can zoom in the live view image.
Start or stop live view.
Start or stop video recording.
Select the streaming type when starng live view. You can select from the main stream and the
sub stream.
Full screen view.
6.3 Person Management
Click and add the person's informaon, including the basic informaon, authencaon mode and
credenals. And you can also edit user informaon, view user picture and search user informaon
in the user list.
Add Basic Informaon
Click User → Add to enter the Add Person page.
Add the person's basic informaon, including the employee ID, the person's name, the and the
user role.
Click OK to save the sengs.
Set Permission Time
Set Start Time and End Time and the person can only has the permission within the congured
me period. If you enable Always Valid, then the user can have the permanent permission and you
do not need to set Start Time and End Time.
Click OK to save the sengs.
Set Access Control
Click User → Add to enter the Add Person page.
DS-KD8003 Series Module Door Staon User Manual
69
Aer check Administrator in Access Control, the added person can log in the device by
authencaon.
Click OK to save the sengs.
Set Room No.
Click Add to add the Floor No. and Room No..
Click to delete it.
Click OK to save the sengs.
Add Card
Click Add Card, enter the Card No. and select the Property, and click OK to add the card.
Click OK to save the sengs.
Add Fingerprint
Note
The device needs to connect a ngerprint module.
Click Add Fingerprint, and press your nger on the ngerprint module of the device to add your
ngerprint.
Click Complete to save the sengs.
6.4 Device Management
You can manage the linked device on the page.
Click Device Management to enter the sengs page.
Figure 6-2 Device Management
Add Device
●
Click Add to add the indoor staon, sub door staon or decoder staon. Enter the parameters
and click OK to add.
●
Click Import. Enter the informaon of the device in the template to import devices in batch.
Export
Click Export to export the informaon to the PC.
Delete
Select the device and click Delete to remove the selected device from the list.
DS-KD8003 Series Module Door Staon User Manual
70
Synchronize
Click Synchronize and enable Synchronize for device synchronizaon.
Note
When enabling the funcon, the acvated devices will synchronize parameters. Inacvated devices
synchronize parameters whether the funcon is enabled or not.
Refresh
Click Refresh to get the device informaon.
Oponal: Set device informaon.
●
Click to edit device informaon.
●
Click to delete device informaon from the list.
●
Select Status and Device Type to search devices.
6.5 Remote Conguraon
Click to set the parameters of the device.
Note
Run the browser, click → Internet Opons → Security to disable the Protected Mode.
6.5.1 Local Parameters Sengs
You can congure the parameters of the live view, record les and captured pictures. The record
les and captured pictures are the ones you record and capture by using the web browser. You can
also set and view the saving paths of the captured pictures and recorded videos on the PC that
running the web browser.
DS-KD8003 Series Module Door Staon User Manual
71

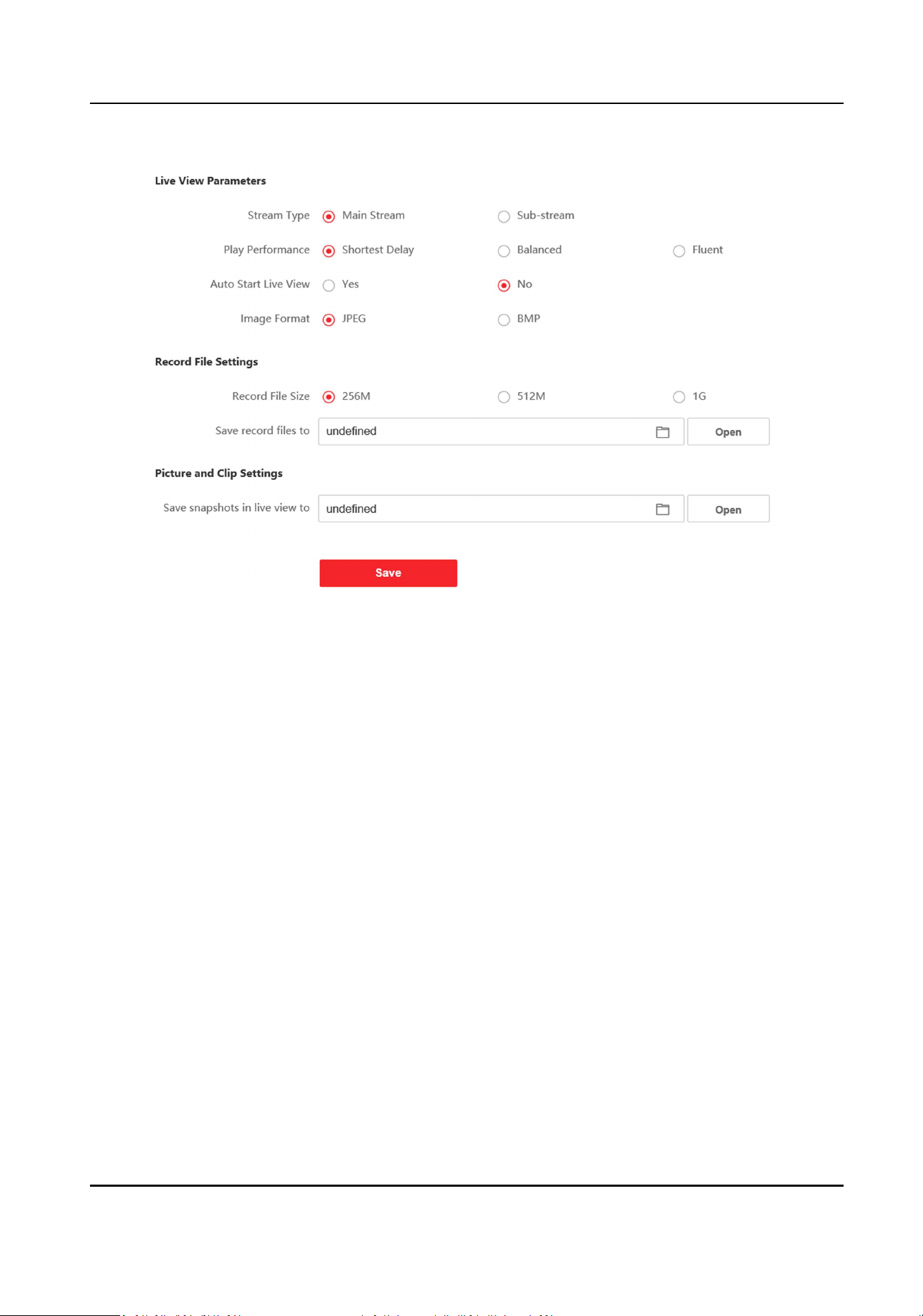

Figure 6-3 Local Parameters
Live View Parameters
Stream Type
Set the stream type as Main Stream or Sub-stream.
Play Performance
Set the live view performance to Shortest Delay, Balanced or Fluent.
Auto Start Live View
Check Yes to enable the funcon.
Image Format
Select the image format for picture capture.
Click Save to enable the sengs.
Record File Parameters
Record File Size
Select the packed size of the manually recorded and downloaded video les to 256M, 512M or
1G. Aer the selecon, the maximum record le size is the value you selected.
Save record les to
Set the saving path for the manually recorded video les.
DS-KD8003 Series Module Door Staon User Manual
72
Click Save to enable the sengs.
Picture and Clip Sengs
Save snapshots in live view to
Set the saving path of the manually captured pictures in live view mode.
Note
You can click Browse to change the directory for saving the clips and pictures, and click Open to
open the set folder of clips and picture saving.
Click Save to enable the sengs.
6.5.2 View Device Informaon
View the device name, device No., language, model, serial No., version, number of channels, IO
input, IO output, lock, alarm input, alarm output, and device capacity, etc.
Click Conguraon → System → System Sengs → Basic Informaon to enter the conguraon
page.
You can view the device name, device No., language, model, serial No., version, number of
channels, IO input, IO output, lock, alarm input, alarm output, and device capacity, etc.
6.5.3 Set Time
Set the device's me zone, synchronizaon mode, and the device me.
Click Conguraon → System → System Sengs → Time Sengs .
Click Save to save the sengs aer the conguraon.
Time Zone
Select the device located me zone from the drop-down list.
Time Sync.
NTP
You should set the alarm receiver type, NTP server's IP address, port No., and interval.
Manual
By default, the device me should be synchronized manually. You can set the device me
manually or check Sync. with Computer Time to synchronize the device me with the
computer's me.
DS-KD8003 Series Module Door Staon User Manual
73
6.5.4 Set DST
Steps
1.
Click Conguraon → System → System Sengs → Time Sengs .
2.
Enable DST.
3.
Set the DST start me, end me and bias me.
4.
Click Save to save the sengs.
6.5.5 View Open Source Soware License
Click Conguraon → System → System Sengs → About .
Click View Licenses to view the open source code license.
6.5.6 Upgrade and Maintenance
Reboot device, restore device parameters, and upgrade device version.
Reboot Device
Click Conguraon → System → Maintenance → Upgrade & Maintenance .
Click Reboot to start reboot the device.
Restore Parameters
Click Conguraon → System → Maintenance → Upgrade & Maintenance .
Default
The device will restore to the default sengs, except for the device IP address and the user
informaon.
Restore All
All parameters will be restored to the factory sengs. You should acvate the device before
usage.
Import and Export Parameters
Click Conguraon → System → Maintenance → Upgrade & Maintenance .
Export
Click Export to export the logs or device parameters.
Note
You can import the exported device parameters to another device.
Import
DS-KD8003 Series Module Door Staon User Manual
74
Click and select the le to import. Click Import to start import conguraon le.
Upgrade
Click Conguraon → System → Maintenance → Upgrade & Maintenance .
Select an upgrade type from the drop-down list. Click and select the upgrade le from your
local PC. Click Upgrade to start upgrading.
Note
The upgrading process will be 1 to 10 minutes. Do not power o during the upgrading.
6.5.7 Security Service
Set the security service for logging in the client soware.
On the Device for Management page, click Conguraon → System → Security → Security
Service .
Enable SSH
To raise network security, disable SSH service. The conguraon is only used to debug the
device for the professionals.
6.5.8 Change Administrator's Password
Steps
1.
Click Conguraon → System → User Management .
2.
Click .
3.
Enter the old password and create a new password.
4.
Conrm the new password.
5.
Click Save.
Cauon
●
The password should be 8 to 16 characters.
●
The password should contain at least 2 of the following types: digits, lowercase leers,
uppercase leers and special characters.
●
Do not contain following characters in the password: the user name, 123, admin (case-
insensive), 4 or more connuously increasing or decreasing digits, or 4 or more consecuvely
repeated characters.
●
The password strength of the device can be automacally checked. In order to increase the
security of your product, we highly recommend you change the password of your own
choosing. And we recommend you change your password regularly, especially in the high
security system, changing the password monthly or weekly can beer protect your product.
DS-KD8003 Series Module Door Staon User Manual
75
Proper conguraon of all passwords and other security sengs is the responsibility of the
service provider and/or end-user.
●
(If the device supports AP mode, aer the admin password is changed, the password of AP
hotspot will be changed simultaneously.)
6.5.9 Account Security Sengs
You can change the security quesons and answers, or the email address for the device. Aer
change the sengs, once you forgot the device password, you should answer the new quesons or
use the new email address to reset the device password.
Steps
1.
Click Conguraon → System → User Management → Account Security Sengs .
2.
Change the security quesons or email address according your actual needs.
3.
Enter the device password and click OK to conrm changing.
6.5.10 View Device Arming/Disarming Informaon
View device arming type and arming IP address.
Go to Conguraon → User Management → Arming/Disarming Informaon .
You can view the device arming/disarming informaon. Click Refresh to refresh the page.
6.5.11 Network Sengs
TCP/IP Sengs
TCP/IP sengs must be properly congured before you operate the device over network. The
device supports IPv4.
Steps
1.
Click Network → Basic Sengs → TCP/IP to enter the sengs page.
2.
Congure the network parameters.
-
Check DHCP, the device will get the parameters automacally.
-
Set the IPv4 Address, IPv4 Subnet Mask and IPv4 Default Gateway manually.
3.
Select Network Card.
4.
Congure the DNS server.
5.
Click Save to enable the sengs.
DS-KD8003 Series Module Door Staon User Manual
76
Port Sengs
Steps
1.
Click Network → Basic Sengs → Port to enter the sengs page.
Figure 6-4 Port Sengs
2.
Set the ports of the device.
HTTP Port
The default port number is 80, and it can be changed to any port No. which is not occupied.
RTSP Port
The default port number is 554.
HTTPS Port
The default port number is 443, and it can be changed to any port No. which is not occupied.
Server Port
The default server port number is 8000, and it can be changed to any port No. ranges from
2000 to 65535.
3.
Click Save to enable the sengs.
SIP Seng
Steps
1.
Click Network → Basic Sengs → SIP to enter the sengs page.
DS-KD8003 Series Module Door Staon User Manual
77
Figure 6-5 SIP Sengs
2.
Check Enable VOIP Gateway.
3.
Congure the SIP parameters.
4.
Click Save to enable the sengs.
FTP Sengs
Steps
1.
Click Network → Advanced → FTP to enter the sengs page.
DS-KD8003 Series Module Door Staon User Manual
78
Figure 6-6 FTP Sengs
DS-KD8003 Series Module Door Staon User Manual
79
2.
Check Enable FTP.
3.
Select Server Type.
4.
Input the Server IP Address and Port.
5.
Congure the FTP Sengs, and the user name and password are required for the server login.
6.
Set the Directory Structure, Parent Directory and Child Directory.
7.
Set the picture naming rules.
8.
Click Save to enable the sengs.
6.5.12 Video & Audio Sengs
Video Parameters
Steps
1.
Click Video/Audio → Video to enter the sengs page.
Figure 6-7 Video Parameters
2.
Select the Stream Type.
3.
Congure the video parameters.
DS-KD8003 Series Module Door Staon User Manual
80
Stream Type
Select the stream type to main stream or sub stream.
Video Type
Select the stream type to video stream, or video & audio composite stream. The audio signal
will be recorded only when the Video Type is Video & Audio.
The video type is video & audio read only by default.
Resoluon
Select the resoluon of the video output.
Bitrate Type
Select the bitrate type as constant or variable.
Video Quality
When bitrate type is selected as Variable, 6 levels of video quality are selectable.
Frame Rate
Set the frame rate. The frame rate is to describe the frequency at which the video stream is
updated and it is measured by frames per second (fps). A higher frame rate is advantageous
when there is movement in the video stream, as it maintains image quality throughout.
Max. Bitrate
Set the max. bitrate from 32 to 16384 Kbps. The higher value corresponds to the higher video
quality, but the beer bandwidth is required.
Video Encoding
The device supports H.264.
I Frame Interval
Set I Frame Interval from 1 to 400.
4.
Click Save to save the sengs.
Audio Parameters
Steps
1.
Click Video/Audio → Audio to enter the sengs page.
DS-KD8003 Series Module Door Staon User Manual
81
Figure 6-8 Audio Sengs
2.
Congure the stream type and the audio encoding type.
Audio Channel
Select the audio channel to adjust the audio parameters.
Stream Type
Select the stream type to main stream or sub stream.
Audio Encoding
The device support G.711ulaw and G.711 alaw.
3.
Adjust the Input Volume, Output Volume and Speak Volume.
Note
Available range of volume: 0 to 10.
4.
Click Save to save the sengs.
DS-KD8003 Series Module Door Staon User Manual
82
6.5.13 Image Sengs
Display Sengs
Congure the image adjustment, backlight sengs and other parameters in display sengs.
Steps
1.
Click Image → Display Sengs to enter the display sengs page.
Figure 6-9 Display Sengs
2.
Select the Video Standard.
3.
Select to enable or disable WDR.
Note
Wide Dynamic Range can be used when there is a high contrast of the bright area and the dark
area of the scene.
4.
Set the basic parameters.
Brightness
Brightness describes bright of the image, which ranges from 1 to 100.
Contrast
Contrast describes the contrast of the image, which ranges from 1 to 100.
Saturaon
Saturaon describes the colorfulness of the image color, which ranges from 1 to 100.
DS-KD8003 Series Module Door Staon User Manual
83
Sharpness
Sharpness describes the edge contrast of the image, which ranges from 1 to 100.
5.
Set the Day/Night Switch.
Figure 6-10 Day/Night Switch
-
Set Dayme or Night.
-
Set the mode as Auto and edit the sensivity according to your needs.
-
Set the mode as Scheduled-Switch. Set the start me and end me.
6.
Set the backlight parameters.
Figure 6-11 Backlight
1) Check to enable BLC.
2) Select BLC Area.
DS-KD8003 Series Module Door Staon User Manual
84
OSD Sengs
You can customize the camera name, me/date format on the live view.
Steps
1.
Click Image → OSD to enter the sengs page.
Figure 6-12 OSD
2.
Check to enable Display Name, Display Date or Display Week at your actual needs.
3.
Edit the Camera Name.
Note
You can edit the camera name only when Display Name is enabled.
4.
Select from the drop-down list to set the Time Format and Date Format.
5.
Click Save to enable the sengs.
Target Cropping
Steps
1.
Click Image → Crop to enter the page.
2.
Check Enable Target Cropping to enable the funcon.
3.
Click to capture photo.
4.
Click to start recording.
5.
Select Cropping Resoluon.
6.
Click Save.
DS-KD8003 Series Module Door Staon User Manual
85
Note
●
You can select Cropping Resoluon as 704*576, 1280*720, or 1920*1080.
●
You can zoom in or zoom out the image by selecng Cropping Resoluon aer clicking Save.
6.5.14 Event Sengs
Moon Detecon
Moon detecon detects the moving objects in the congured security area, and a series of
acons can be taken when the alarm is triggered.
Steps
1.
Click Event → Basic Event → Moon to enter the sengs page.
DS-KD8003 Series Module Door Staon User Manual
86
Figure 6-13 Moon Detecon
2.
Click to Enable Moon Detecon.
3.
Click Draw Area. Click and drag to draw a moon detecon area.
Clear Area Click Clear All to clear all of the areas.
Adjust Sensivity Move the slider to set the sensivity of the detecon.
4.
Click Arming Schedule to edit the arming schedule.
5.
Click on the me bar and drag to select the me period. Click Save to save the sengs.
DS-KD8003 Series Module Door Staon User Manual
87
Delete Schedule Click Delete to delete the current arming schedule.
6.
Click Linkage Method to enable the linkages.
Nofy Security Center
Send an excepon or alarm signal to the remote management soware when an event
occurs.
7.
Click Save to enable the sengs.
Event Linkage
Steps
1.
Click Event → Basic Event → Event Linkage to enter the sengs page.
DS-KD8003 Series Module Door Staon User Manual
88
Figure 6-14 Event Linkage
DS-KD8003 Series Module Door Staon User Manual
89
2.
Select the Major Type as Device Event or Door Event.
3.
Select the type of the Normal Linkage for the event.
4.
Click Save to enable the sengs.
6.5.15 Schedule Sengs
You can create call schedule, or else the device will call indoor staon all day by default.
Steps
1.
Click Schedule → Video Intercom → Call Schedule .
2.
Click the next row below Enable Indoor Staon All Day by Default.
3.
Enter Schedule Name.
4.
Select Call Type.
5.
Set Weekly Schedule.
1) Click Weekly Schedule.
Figure 6-15 Weekly Schedule
2) Drag mouse to set the schedule according to the actual needs.
3) Oponal: Click the copy icon to copy the schedule to other days according to the actual
needs.
4) Click Save.
6.
Set Holiday Schedule.
1) Click Holiday Schedule.
DS-KD8003 Series Module Door Staon User Manual
90
Figure 6-16 Holiday Schedule
2) Click Add.
3) Set Start Time and End Time.
4) Select Call Type.
5) Drag mouse to set the schedule according to the actual needs.
6) Click OK.
7) You can edit or delete the schedule according to the actual needs.
8) Click Save.
Note
The holiday schedule have higher priority than weekly schedule when you set the two
schedule at the same me.
6.5.16 Set Card Security
Click Conguraon → General → Card Security to enter the sengs page.
You can check to enable DESFire card and click to enable DESFire Card Read Content. Click Save to
save the sengs.
Enable DESFire Card
The device can read the data from DESFire card when enabling the DESFire card funcon.
DESFire Card Read Content
DS-KD8003 Series Module Door Staon User Manual
91
Aer enable the DESFire card content reading funcon, the device can read the DESFire card
No.
6.5.17 Intercom Sengs
Device No. Conguraon
Set the No. of the device, and linked devices can build a communicaon.
Steps
1.
Click Intercom → Device No. to enter the sengs page.
Figure 6-17 Device No. Sengs
2.
Select the device type from the drop-down list, and set the corresponding informaon.
3.
Click Save to enable the device number conguraon.
Note
●
For main door staon (D series or V series), the serial No. is 0.
●
For sub door staon (D series or V series), the serial No. cannot be 0. Serial No. ranges from 1
to 99.
●
For each villa or building, at least one main door staon (D series or V series) should be
congured, and one sub door staons (D series or V series) can be customized.
●
For one main door staon (D series or V series), up to 16 sub door staons can be congured.
DS-KD8003 Series Module Door Staon User Manual
92
Linked Network Sengs
Steps
1.
Click Intercom → Session Sengs to enter the sengs page.
Figure 6-18 Session Sengs
2.
Set Registraon Password.
3.
Set Main Staon IP and Video Intercom Server IP.
4.
Click to enable Protocol 1.0.
5.
Click Save to enable the sengs.
Password Sengs
Set public password.
Click Intercom → Password Sengs to enter the page.
Click Add to add password.
Figure 6-19 Add Password
DS-KD8003 Series Module Door Staon User Manual
93
Set password and remarks and click to enable electric lock.
Click Save to save the sengs.
Call Sengs
Go to Intercom → Call Sengs to enter the page.
Congure Max. Call Duraon, Max. Message Duraon and Max. Ring Duraon, and click Save.
Note
●
Max. call duraon between the module indoor staon and client ranges from 90 s to 120 s. The
call will end automacally when the actual calling duraon is longer than the congured one.
●
Max. message duraon ranges from 30 s to 60 s. The message will end automacally when the
actual message duraon is longer than the congured one.
●
Max. ring duraon ranges from 65 s to 255 s.
Ring-Back Tone Sengs
Click Intercom → Ringbacktone Sengs to enter the sengs page.
Click Add to select the ring tone from PC.
Note
Available Audio Format: WAV、AAC, Size: Less than 600 KB, Sample Rate: 8000Hz, Mono.
Press Buon to Call
Steps
1.
Click Intercom → Press Buon to Call to enter the page.
2.
Select Sub Module from the drop-down list.
Note
You can set No. of the sub module via the DIP switch.
3.
Fill in the room No. of the indoor staon in the blank of the Buon Seng column.
4.
Select me schedule plan from the drop-down list. For more informaon about the me
schedule, please refer to Schedule Sengs .
5.
You can also view buon image and set backlight.
6.
Click Save to enable the sengs.
Aer conguraon, you can press the buon on the module to call relave indoor staon.
DS-KD8003 Series Module Door Staon User Manual
94
Set I/O Parameters
You can set I/O Parameters on PC Web.
Steps
1.
Click Conguraon → Video Intercom → I/O Sengs .
2.
Select Input 2 as Disable or Door Status. Select Input 3 and Input 4 as Disable or Exit Buon.
Note
The Input 1 is Door Status by default.
3.
Select Output 2 as Disable, Mechanical Doorbell or Electric Lock.
Note
The Output 1 is Electric Lock by default.
Sub Module Conguraon
Steps
1.
Click Intercom → Sub Module Conguraon , and you can view the sub module informaon,
including No., module type, status, and version.
2.
Click to edit the sub module.
Display Module
●
Slide to adjust Screen Backlight Brightness.
●
Slide Enable Buzzer to enable the funcon.
Touch Screen Module
●
Adjust Screen Backlight Brightness.
●
Slide Enable Buzzer to enable the funcon.
●
Select Default Home Page which will be displayed on the screen of the module.
PMR Module
Click to enable power consumpon selecon.
You can select 8 W, 6 W or 4 W for the PMR Module.
Note
If the system power goes o, an external power supply of 12 V, 2 A for the main unit is
necessary.
DS-KD8003 Series Module Door Staon User Manual
95
Note
●
The module address is used to dierenate the sub modules.
●
K12 module, KK module and alarm in module belong to nametag modules.
●
The room No. for the main unit's call buon is 1 by default; and the room No. for other call
buons will start with 2. The number will increase connuously. For example, the room No. of
the rst nametag module range from 2~7, the room No. of next nametag module will range
from 8~13.
Number Sengs
Link the room No. and SIP numbers.
Click Number Sengs to enter the page.
Figure 6-20 Number Sengs
Click Add, set the Room No. and SIP numbers in the pop-up dialog box.
6.5.18 Access Control Sengs
Door Parameters
Set the parameters of the door which is linked to the device.
Steps
1.
Click Access Control → Door Parameters to enter the sengs page.
DS-KD8003 Series Module Door Staon User Manual
96
Figure 6-21 Door Parameters
2.
Select Door No., and edit the Name.
3.
Set Open Duraon. When the me to open over the open duraon you set, the door will be
locked again.
4.
Select Relay Reverse as ON or Disable.
5.
Click Save to enable the sengs.
Elevator Control
Before You Start
Make sure that the door staon is in the mode of main door staon. Only the main door staon
supports elevator control funcon.
Steps
1.
Click Access Control → Elevator Control Parameter to enter the sengs page.
DS-KD8003 Series Module Door Staon User Manual
97
Figure 6-22 Elevator Control
2.
Check to enable elevator control funcon.
3.
Select an Elevator No., and select an elevator controller.
4.
Select Interface Type.
5.
Enter Negave Floor Capacity, and select Alarm Receiver Type.
6.
Enter the elevator controller's Server IP Address, Port No., User Name, and Password.
7.
Click Save to enable the sengs.
DS-KD8003 Series Module Door Staon User Manual
98
Note
●
Up to 4 elevator controllers can be connected to one door staon.
●
Up to 10 negave oors can be added.
●
Make sure the interface types of elevator controllers, which are connected to the same door
staon are consistent.
DS-KD8003 Series Module Door Staon User Manual
99
UD29094B-C
