HVLP PRESSURE POT SYSTEM WITH SPRAY
GUN & HOSES 1.7MM SET-UP
MODEL NO: HVLP-79/P.V3
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
9 Familiarise yourself with the application, limitations and potential hazards peculiar to the spray gun.
WARNING! Disconnect the spray gun from the air supply before changing accessories, servicing or performing any maintenance.
9 Maintain the spray gun in good condition (use an authorised service agent).
9 Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9 Keep the spray gun clean for best and safest performance.
9 Ensure that the compressed air system can supply the spray gun air consumption (6-10cfm).
9 Wear approved safety respiratory protection and safety eye goggles.
9 If spraying isocyanate based finisher, wear approved respirator/clean air breathing apparatus and protect skin with latex gloves and an
impervious hooded coverall.
9 Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery and tie back long hair.
9 Locate the spray gun in a suitable work area. Keep area clean and tidy and free from unrelated materials and ensure that there is
adequate ventilation and lighting.
9 Keep children and unauthorised persons away from the work area.
9 When not in use, ensure that the air supply is turned off.
9 Avoid unintentional operation of spray gun.
8 DO NOT point spray gun at yourself, other persons or animals.
8 DO NOT direct air from the air hose at yourself, other persons or animals.
8 DO NOT carry the spray gun by the hose, or yank the hose from the air supply.
8 DO NOT exceed the maximum air pressure of 43psi.
8 DO NOT use the spray gun for any purpose other than that for which it is designed.
8 DO NOT allow untrained persons to operate the spray gun.
8 DO NOT get the spray gun wet or use in damp or wet locations or in areas where there is condensation.
8 DO NOT operate the spray gun if any parts are missing or damaged as this may cause failure and/or personal injury.
9 When not in use, disconnect the spray gun from the air supply, clean thoroughly and store safely.
2. INTRODUCTION
HVLPtechnologydeliversconsistentandunrivalledresults.Bulkfeedsystemholdsuptotwolitresofpaintperll.Thisunitisperfectly
suitedtothecommercialrenishingshop.Componentsofthissetarealsoavailableseparately.Suppliedwith1.7mmset-up.
3. SPECIFICATION
Model No: ................................................ HVLP-79/P.V3
AirConsumption: ...............................................6-10cfm
AvailableSet-Up(s): ............ 1.2, 1.4, 1.5, 1.8, 2, 2.5mm
Contents:..............HVLP-79/P1,HVLP-79/P2,SSG1P/3
PotCapacity: ..............................................................2L
Recommended Air Pressure: ................................ 43psi
StandardSet-Up: ................................................1.7mm
4. AIR SUPPLY

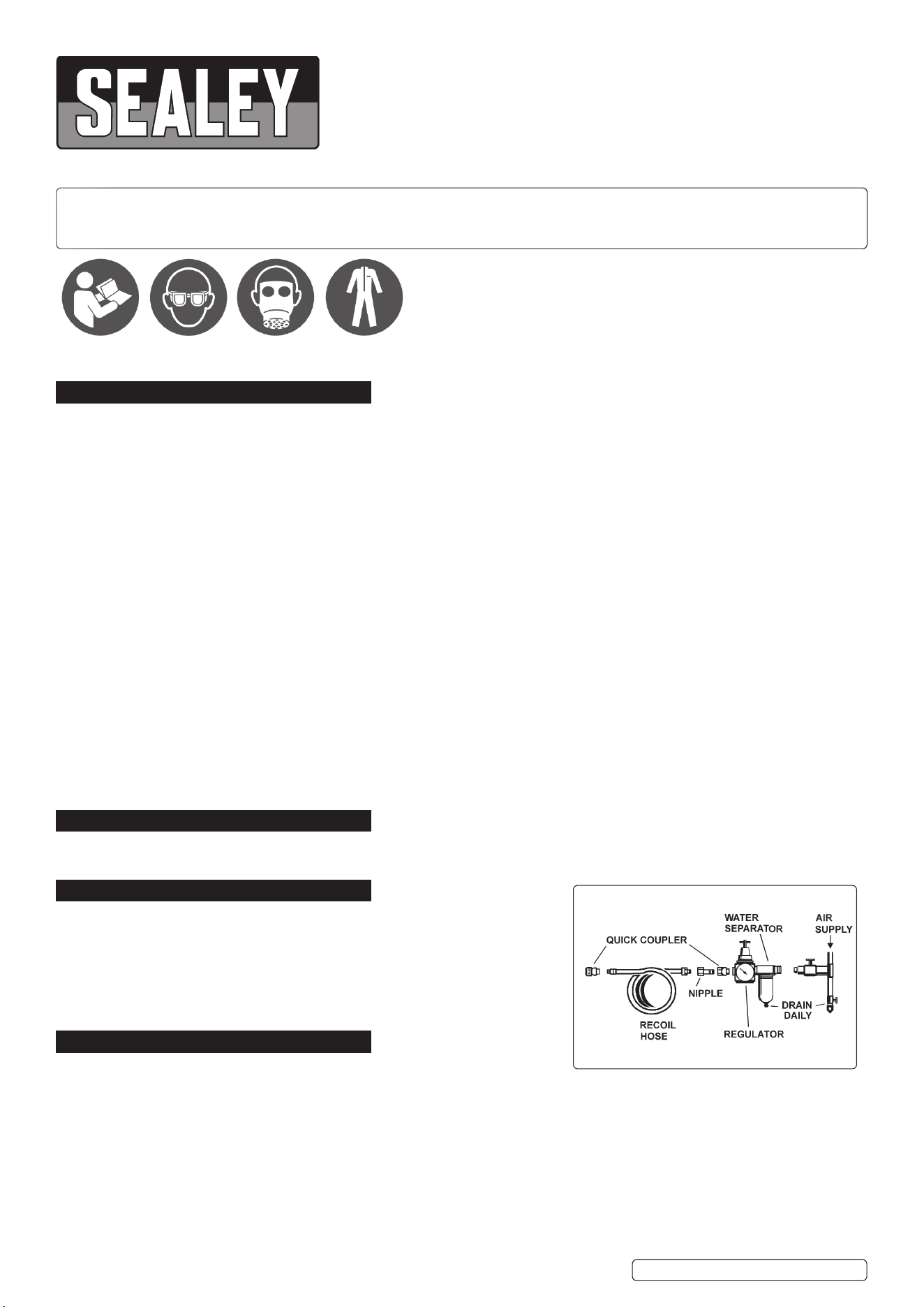

4.1. Recommended supply system is shown alongside.
4.2. Ensure that the spray gun trigger is in the “off” position before connecting to the air supply.
4.3. You will require an air pressure between 43psi, and an air flow according to the specification.
WARNING! Ensure that the air supply is clean and does not exceed 43psi while operating the spray gun. Too high an air pressure and/or
unclean air will shorten the product life, due to excessive wear, and may cause damage and/or personal injury.
4.4. Drain the air tank daily. Water in the air line will damage the spray gun and invalidate your warranty.
4.5. Cleancompressorairinletfilterweekly.
4.6. Line pressure should be increased to compensate for unusually long air hoses (over 8 metres). The minimum hose diameter should be
1/4” I.D. and fittings must have the same inside dimensions.
4.7. Keephoseawayfromheat,oilandsharpedges.Checkhosesforwear,andmakecertainthatallconnectionsaresecure.
Refer to
instruction
manual
Wear eye
protection
Wear
respiratory
protection
Wear protective
clothing
HVLP-79/P.V3Issue:320/10/23
Original Language Version
©JackSealeyLimited
5. OPERATION

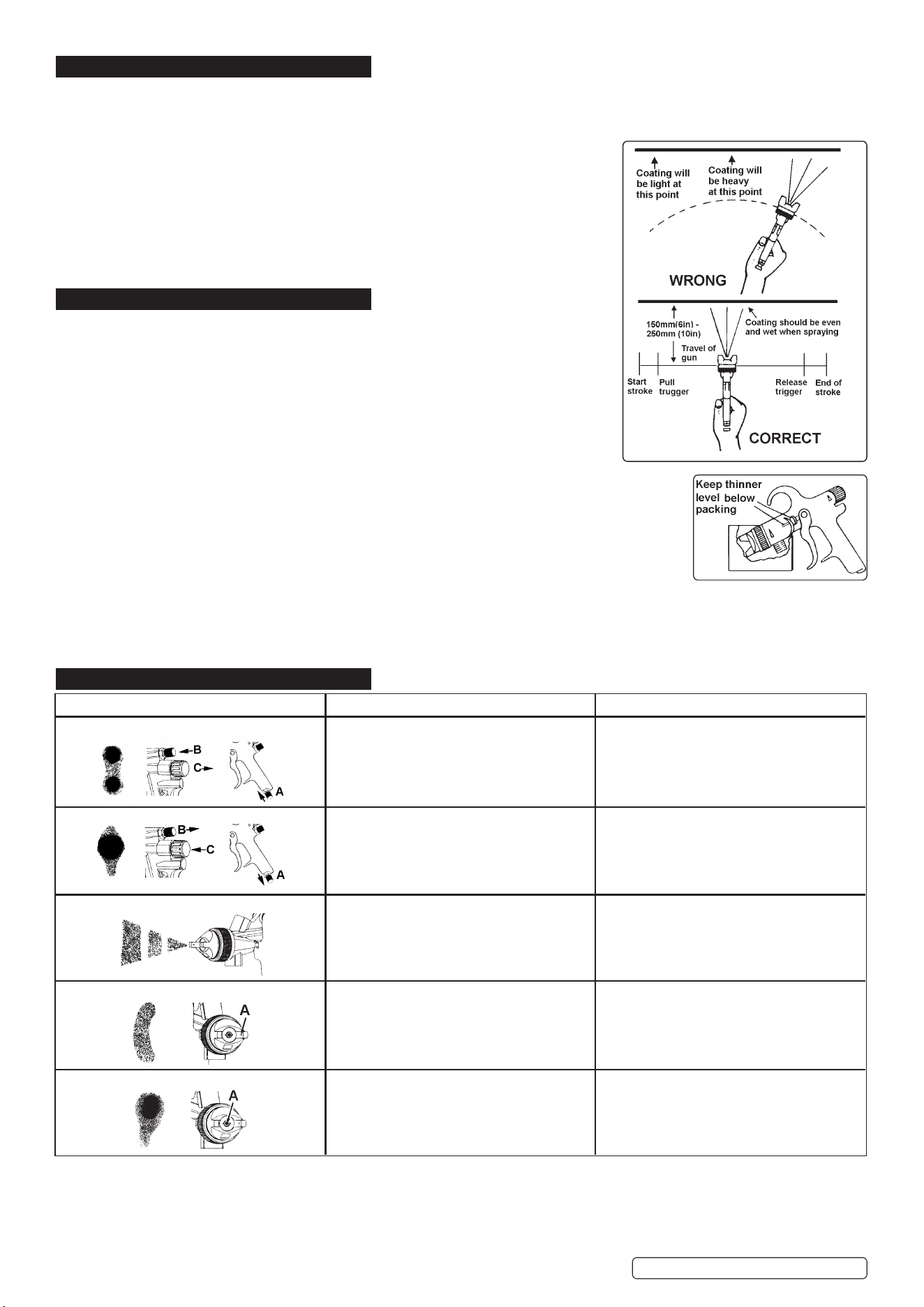

5.1. Forbestresults,handletheguncorrectly.Itshouldbeheldperpendiculartothesurfacebeingsprayedandmovedparalleltoit.Startthe
stroke before squeezing the trigger and release the trigger before finishing the stroke. This will give more accurate control of the gun and
the material (see right).
5.2. Sprayfromadistanceof6(150mm)to10inches(250mm),dependingonthematerial
and the atomizing pressure. The material deposited should always be even and wet. Each
stroke must overlap the preceding stroke to obtain a uniform finish. To reduce overspray
and obtain maximum efficiency, spray with the lowest possible atomizing air pressure.
5.3. Controllingthefluidandthefanspray:
a) As the width of the spray is altered so the fluid flow must be adjusted to maintain the
samecoverage.Usethefluidcontrolscrew(‘C’inSection7).
b) The direction of the fan spray, either horizontal or vertical, is adjusted by turning the air
cap to the desired position and then tightening the retaining ring.
6. m MAINTENANCE/CLEANINGintenance
6.1. Disconnect from the air supply before attempting any maintenance
or cleaning. When reassembling after maintenance, be sure to
take care when screwing parts together. At first screw parts hand tight
to avoid cross-threading. If a part cannot easily be turned by hand, check that you have
the correct part, or unscrew, realign and try again. DO NOT use excessive force when
reassembling.
6.2. SPRAY GUN
6.2.1. Immerse the front end of the gun only in solvent until the solvent just covers
the fluid connection.
6.2.2. Use a bristle brush and solvent to wash off accumulated paint.
6.2.3. Do not immerse the entire gun in solvent. This will cause lubricants to dissolve and packing to dry out.
6.2.4. Dirty solvent may also clog the narrow passages in the gun.
6.2.5. Wipe the outside of the gun with a dampened solvent rag.
6.2.6. Lubricate the gun daily with a light machine oil. Be sure to lubricate the fluid needle packing, air valve
packing, side port control packing and trigger pivot point. Do not use lubricants containing silicone.
6.2.7. When finished spraying, flush the gun through with clean thinners.
6.3. AIR NOZZLE, FLUID NOZZLE & NEEDLE ASSEMBLY
6.3.1. To clean the nozzles, soak them in solvent to dissolve any dried material then blow them clean with air. Handle all nozzles carefully and
do not make any alterations in the gun.
6.3.2. If you need to probe the holes in the nozzles, be sure to use a tool that is softer than brass; do not use metal instruments.
6.3.3. Adjust the fluid needle valve so that when the gun is triggered, air flow occurs before fluid flow.
7. tm TROUBLESHOOTING
Original Language Version
©JackSealeyLimited
HVLP-79/P.V3Issue:320/10/23
THE PROBLEM THE CAUSE THE SOLUTION
Heavy atomization, poor centre pattern Fluid flow is too high for
the air pressure and flow
1. Increase air pressure by adjusting
regulator (A) and increase flow
adjusting regulator (B).
2. Reducepaintflowwithregulator(C).
3. Paint may be too thick. If so, dilute it.
Poor atomization/heavy centre pattern Air pressure and flow too high for fluid flow 1. Reduce air pressure by adjusting
regulator (A).
2. Reduce air flow by adjusting regulator
(B) and increase fluid flow with
regulator(C).
Intermittent spray pattern Air entering the fluid supply 1. Tighten the connection between the
gun and the pot.
2. Tighten fluid nozzle with gun spanner.
3. Checkifpotventholeisblocked.
4. Checkifpotisempty.
Heavy right or left side pattern Horn hole (A) blocked. In order to check, turn
theaircap(C),ifthefaultypatternisnow
upside down the hole must be cleaned.
1. Place the air cap in solvent.
2. Cleanholewithcompressed air or
with a wooden toothpick.
DO NOT use a metal probe which
will damage the hole.
Top heavy or bottom heavy pattern Possible paint build-up between fluid nozzle
and air cap (A).
1. Cleantheaircapandthefluid
nozzle, check that they match.
2. Checkneedlefordamage.
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email or call our
technicalteamontechnical@sealey.co.ukor01284757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty:Guaranteeis12monthsfrompurchasedate,proofofwhichisrequiredforanyclaim.
.
