HW69931
5Pcs Furniture Set with Table
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Before You Start
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled near to the
area in which they will be placed in use, to avoid moving the product
unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product away from
babies and children as they potentially pose a serious choking hazard.
02
D
G
E
F
B
C
A
I
H
x4
03
1. 50% Tighten before fixing all screws, Allen wrench is
recommended instead of an electric drill.
2. Place the item on a flat ground to adjust and make sure it remains
stable.
3. Tighten up all screws with tools gradually.
4. If the screws are not aligned with holes during assembly, please
loosen all the other screws to 50% and continue the assembly
process.
5. If the item is not stable, please loosen all the screws, adjust it on a
flat ground and tighten up all screws again.
6. Note: If one or some screws are fully tightened during assembly,
chances are the others will not be aligned with holes. In addition,
all the holes are designed to be relatively larger to provide more
space for the adjustment of the screws.
Notice
Front frame of
armless chair
Side frame of
armless chair
Seat frame of
armless chair
Back frame of
armless chair
Long frame
of Table
Short frame
of Table
Wooden
Table Top
Long pillow
x4
H
x1
G
x2
F
x2
E
x4
D
x4
C
x8
B
x4
A
04
Seat cushion
Bolt
M6 X 30 mm
Ø6x14x1mm
Washers
Block foot
Foot cap
M6x35mm
Screw
M6x15mm
Allen key
M4
x2
6
x6
5
x20
4
x20
3
x52
2
x80
1
x4
I
05
1
2

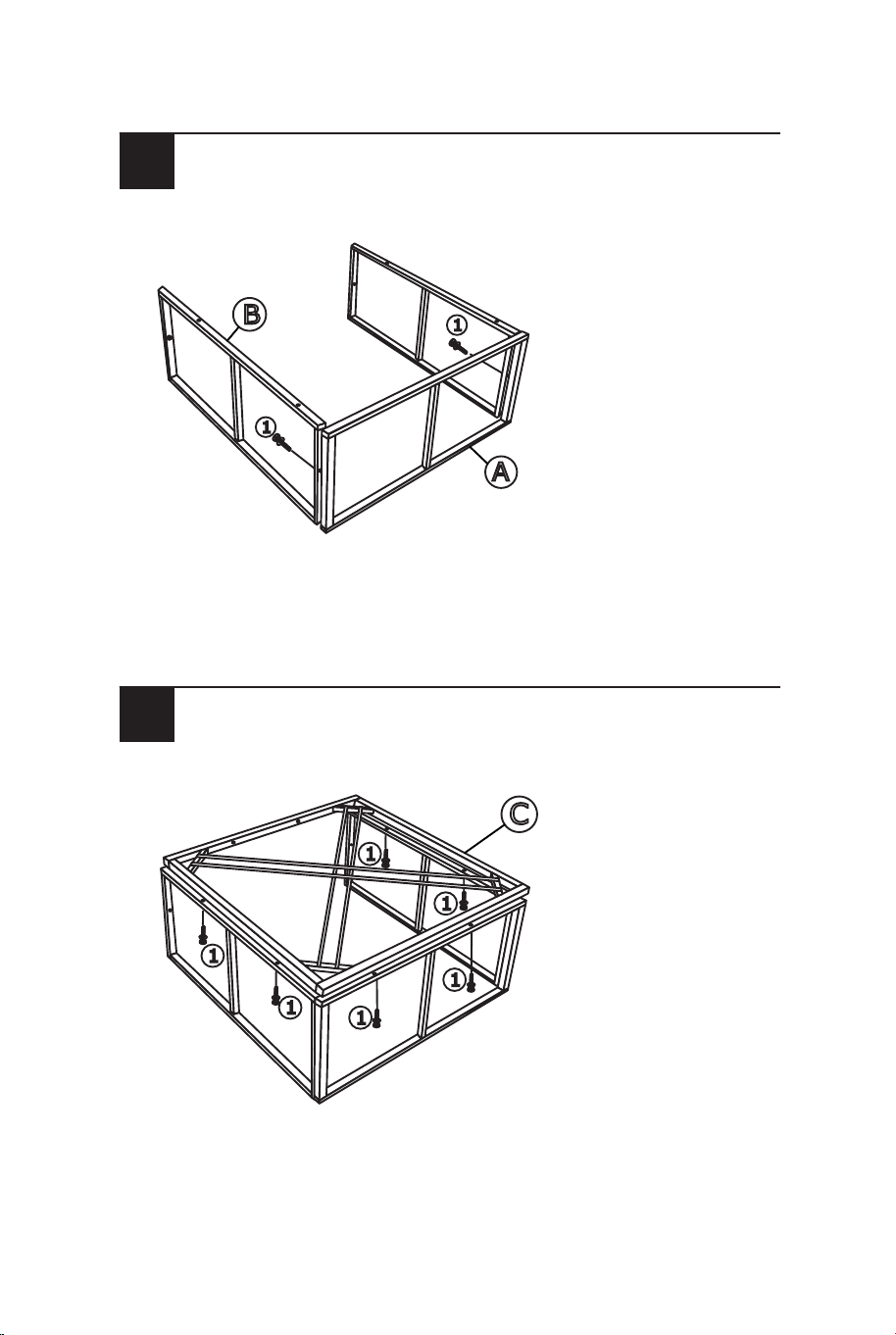

Connect Side frame (B)
& Front frame (A) with
Bolt (1) & Washer (2)
Armless assembly
Connect part from Step1
& Seat frame (C) with
Bolt (1) & Washers (2)
x4
x4
1
1
B
A
1
1
1
1
1
1
C
06
3
4
Connect part from
Step2 & Back frame
(D) with Bolt (1) &
Washers (2)
Connect part from Step 3
& Block foot (3) with Bolt
(1) & Foot cap(4)
x4
1
1
1
1
D
3
1
3
1
3
1
1
4
1
1
3
4
4
4
07
Table assembly
5
6
Complete single chair
Connect Long frame (E) &
Short frame (F) with Bolt
(1),& Washers (2)
x4
H
I
1
1
1
1
E
F
08
7
8
Connect part from Step
5 & Wooden Table Top
(G) with Screw (5)
Connect part from Step 6
(D) & Block foot (3) with
Bolt (1), Foot cap(4)
5
5
5
5
5
5
G
1
1
1
4
4
4
3
3
3
09
9

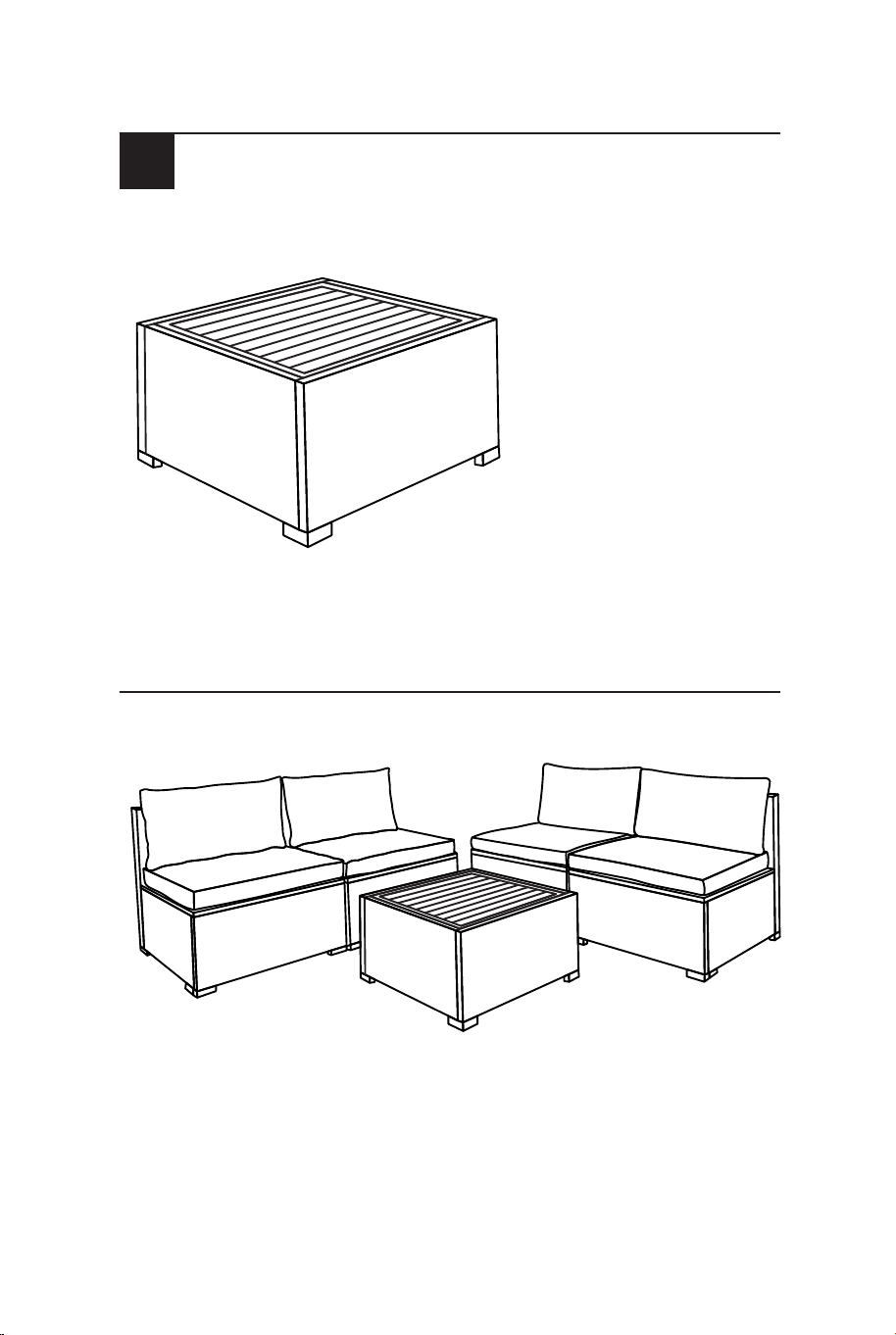

Complete the table
FINISHED
10
In case a return is required, the item must be returned in original
box. Without this your return will not be accepted.
DO NOT discard the box / original packaging.
Take a photo of the box markings.
Take a photo of the damaged part (if applicable).
Send us an email with the images requested.
A photo of the markings (text) on the side of the box is required in
case a part is needed for replacement. This helps our staff identify
your product number to ensure you receive the correct parts.
A photo of the damage is always required to file a claim and get
your replacement or refund processed quickly. Please make sure
you have the box even if it is damaged.
Email us directly from marketplace where your item was purchased
with the attached images and a description of your claim.
