700PCK Pressure Module
Calibration Kit
Instruction Sheet
Introduction
Use this Windows software program and interface unit to
verify and calibrate Fluke 700 Series Pressure Modules for
zero and span errors at ambient temperature. You will need a
pressure calibrator or dead weight tester that is at least 4X
more accurate than the pressure module under test.
You do not use a 74x or 75x during this procedure. The PC
communicates directly with the pressure module through the
interface unit.
Safety Specifications
Designed to IEC-1010-1 Overvoltage Category II, ANSI/ISA-
S82.01-1994.
Box Contents
Box contains an interface unit with serial interface cable,
serial to USB adapter, software CD, power supply, line cord,
soft case, and instruction sheet.
Loading the Software
With Microsoft Windows running, click on the CD/DVD drive
where the CD is installed. Double click on the file 7pck.exe.
Follow the instructions to load the program onto your PC.
Connecting 700PCK to the Module

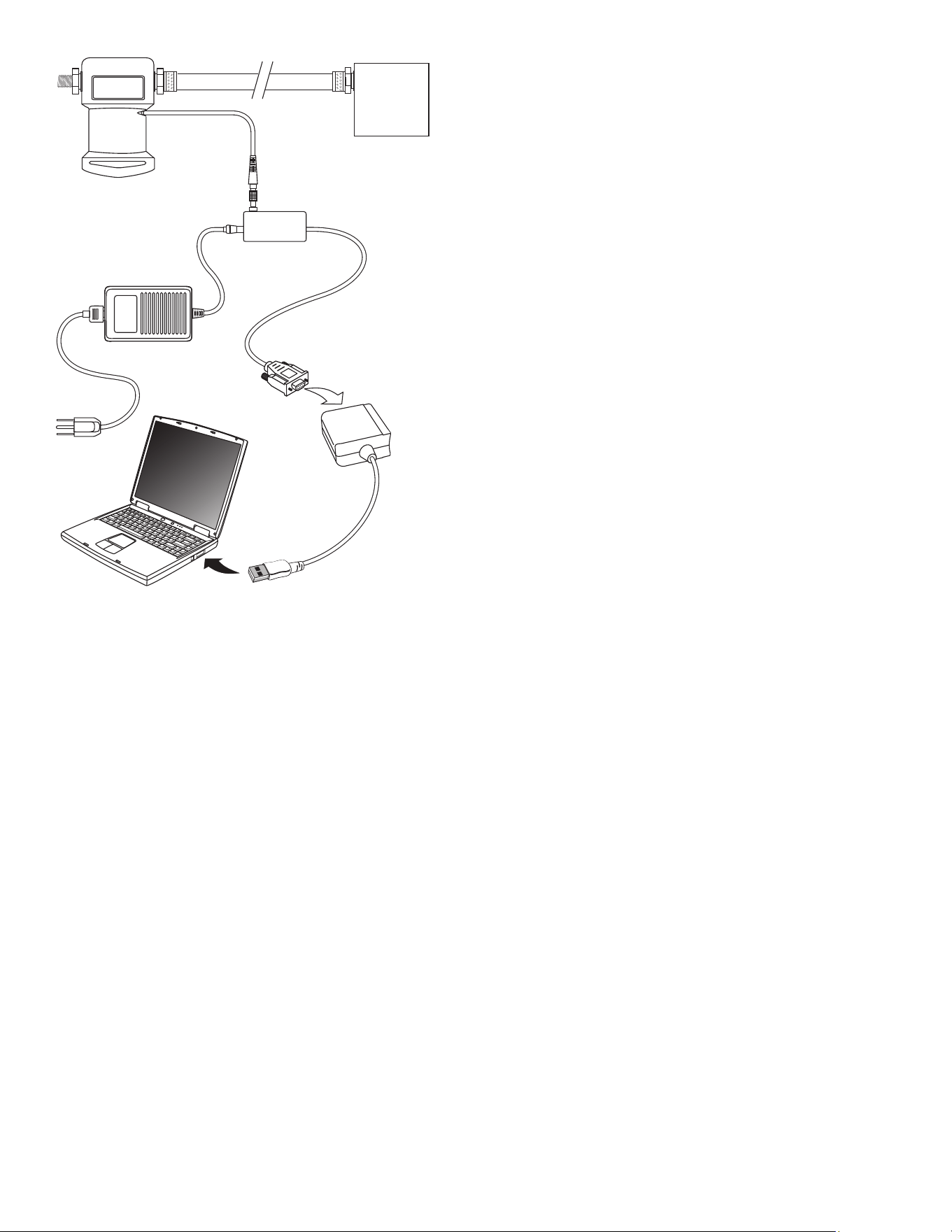

Plug the pressure module into the interface unit, connect the
interface unit power supply to line power (90 to 270V ac), and
connect the USB cable to an available USB port on your PC
as shown on the next page. Connect the pressure module to
the pressure calibrator or dead weight tester.
In the 700PCK directory, double click on 700pck.exe to start
the program. Select the desired communications port under
Com Port. Click on Connect. If the connection is not
successful, try another Com Port.
