Menu to Control Brightness, CONTRAST, SATURATION,
MIRROR Setting, +/- to control the function of “shift up” and
“shift down”.
Operation method:
1.Put the antennas on both TX box and Monitor.
2.Press and hold the “Pair button” on the TX box until it shows
green and twinkling, at the same time keep pressing the
“V1/V2” button on the monitor until the screen shows 50 second
count down timer, it will start connecting. Once connected, it will
show Green color LED.
Switch
V1/V2 - MENU +
Code button, press the button
for 3 seconds to activate the
code function
V. Operating method
ACC Red
camera
Pair Button
LED
TX Box
GND Black
Resolution
Screen Brightness
Screen contrast
Lens Angle
Graphic proportion
TV system
Operating frequency
Decode method
Receive sensitivity
Transmission distance
Transmission power
Spread Spectrum
FM rate
Delay time
Power supply
Operating temperature
Storage temperature
Dimension
800(H)×3RGB×480(V）
400 cd/m²
500:1
U:50°，D:70°，L/R:70°
4:3/16:9
PAL(25FPS)/NTSC(30FPS)
2400 - 2493.5MHz
MPEG4
-80dBm@54MHz
DISMAX = 200ft
12Mbps
Frequency hopping
1200Hops/S
200ms
DC12V-32V
-4F～+158F，RH 90％
-22F ～ +176F，RH 90％
193.6(L)×147.5(W)×24.38(H)mm
External transmitter
5DB Antenna
Built-in wireless 7” digital monitor
Monitor bracket
33ft 4Pin screw waterproof cable
Instruction manual
Heavy Duty Camera
Windshield Suction Cup
Cigar Lighter Plug
II. Technical parameter of Built-in wireless 7” monitor
I. Bill of Material
1pcs
2pcs
1pcs
1pcs
1pcs
1pcs
1pcs
1pcs
1pcs
IV. Technical parameter of Heavy Duty Bracket Camera
IV. Dimensions
7"
193.6 mm
1
4
7.
5m
m
24.38mm
III.
Technical parameter of external transmitter box
Operating frequency
Modulation method
Receiving range
Operating temperature
Power
Waterproof rating
Power supply
Video input
Dimension
Net weight
2400MHZ-2438MHZ
FSK
150-200ft
-22F ~ +176F
＜2.5W
IP 69
11-32VDC
CVBS 1.0VP-P75Ω
131mm×100mm×25.6mm
0.266KG
Front view Side view
12V DC
53mA
0.6W
582V x 500H(P)
291000
492V x 510H(N)
250920
Auto
0.03Lux
65dB
Power supply
Current Consumption
Power
EffectivepixelArray
Electionic shutter
Minimun illumination
S/N Ratio
Resolution(TVlines)
TV System
LensAngleg(Deg)
Video Output
IPrating
AWB
AGC
BLC
Storage temperature
420 TV Line
PAL/NTSC
150°
1Vp-p 75Ω
IP69
Auto
Auto
Auto
-4℃~ +158F

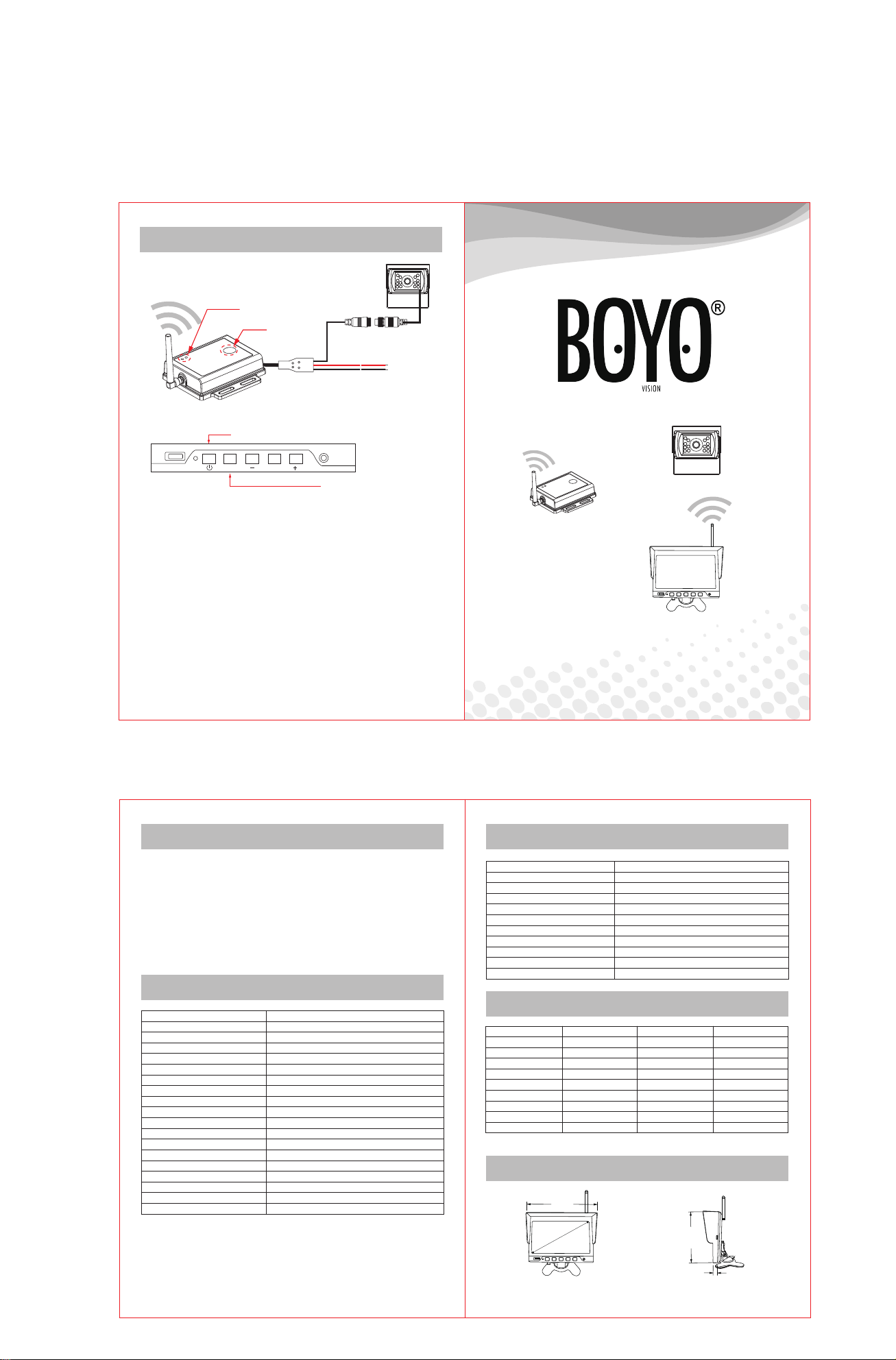

User’s Manual
Built-In Wireless 7’’ Digital Monitor + External
Transmitter + Heavy Duty Bracket Camera
VTC700X1
Key Features:
-7 inches digital wireless monitor +External TX Box+ Waterproof Heavy Duty Camera
-Noise Free
-200ft range on a line of sight
-800x480 pixels
-Waterproof cable included
-Wide Viewing Angle：150°
-Windshield Suction cup included
