Portable Room Air Conditioner
Operation & Installation Manual
REFRIGERANT
R290
MODEL
RPC35PDRWF
Page 2
For continued safety of this appliance it must
be installed and maintained in accordance with
the manufacturer’s instructions.
Before proceeding with the operation of your
new Portable Room Air Conditioner, please
read this manual thoroughly and gain a full
understanding of the requirements, features
and operation of your new appliance.
REFRIGERANT
R290
Page 3
Table of Contents
Safety Precautions
Important Information ............................................................................................................................04
Safety Precautions ................................................................................................................................05
Introduction
Introduction ............................................................................................................................................13
Warnings and Important Information .....................................................................................................14
Specications
Specications ........................................................................................................................................14
Mandatory Inspection Prior to Installation .............................................................................................14
Installation Instructions
Preparation ............................................................................................................................................15
Design Notice ........................................................................................................................................15
Ambient Temperature Range For Unit Operating ..................................................................................15
Exhaust Hose Installation ......................................................................................................................15
Choosing The Right Location ................................................................................................................16
Recommended Installation ....................................................................................................................16
Tools Needed .........................................................................................................................................17
Accessories ...........................................................................................................................................17
Window Installation Kit ..........................................................................................................................18
Installation .............................................................................................................................................20
Operating Instructions
Control Panel Features ......................................................................................................................... 22
Operation Instructions ...........................................................................................................................23
Other Features ......................................................................................................................................24
Remote Control Operation
Remote Control Specications .............................................................................................................26
Remote Control Functions .....................................................................................................................27
Handling the Remote Control ................................................................................................................28
Remote Control LED Screen Indicators ................................................................................................29
Basic Functions .....................................................................................................................................30
Timer Function ....................................................................................................................................... 33
Advanced Functions ..............................................................................................................................37
Wi-Fi Operation
Wi-Fi Operation .....................................................................................................................................38
Maintenance
Safety Precautions ................................................................................................................................39
Air Filter Cleaning .................................................................................................................................39
Unit Cleaning .........................................................................................................................................39
Store the unit when not in use ..............................................................................................................40
Troubleshooting Tips
Troubleshooting Tips .............................................................................................................................41
Warranty
Terms of Warranty .................................................................................................................................42
Page 4
Important Information
Safety
Precautions
Important Issues Regarding the Proper
Use of this Air Conditioner
Please contact your supplier
for advice before returning unit
Use this air conditioner only as described in this instruction manual.
y This appliance is tted with a special safety device. When the compressor switches o or when the appliance is
rst turned on, this device prevents the compressor from switching on again for at least three minutes.
y This air conditioner has been designed and manufactured to operate in a domestic situation only and should
not be used for other purposes.
y The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Children should be supervised to
ensure they don’t play with the appliance.
y Never use the air conditioner in damp rooms (eg bathrooms and laundries).
y If the power cord is damaged, it must be replaced with a new cord installed by a suitably qualied person.
y This air conditioner is designed to be connected to a standard 10 amp power supply outlet.
y Do not pull on or place strain on the power cord when using the appliance.
y Do not operate or stop the appliance by inserting or pulling out the power plug. Use the on/o switch on the air
conditioner control panel or the remote control.
y Do not connect to multiple power outlets on extension leads.
y Do not rest hot or heavy objects on the appliance.
y Always unplug the unit from the power outlet before cleaning or maintenance operations, for example lter
cleaning.
y Do not place the air conditioner or plastic window slider in direct sunlight.
y For maximum cooling eciency keep the exhaust hose as short and as free of bends as possible.
y Clean the lters at least once every two weeks.
y Do not splash the unit with water.
y Do not move the unit by pulling the exhaust hose attached to the back of the unit.
y Do not move air conditioner when it is operating.
y Do not use the unit with the air intake and outlet grills closed, covered or obstructed.
y Before transporting, drain the water tray. After transportation, wait at least one hour before switching the unit on.
y The unit should be transported in a vertical position. If this is not possible, secure the unit at an angle, do not
lay it horizontally. After transporting, wait at least one hour before switching the unit on.
y Do not operate the air conditioner outdoors or in areas open to the outdoors.
y If the air conditioner is correctly set and runs without cool air coming out of the front air outlet after 10 minutes
of correct operation, switch o the unit and contact your supplier immediately.
y When cool air is coming out of the top air outlet, hot air should always be expelled from the bottom rear outlet.
If it is not, switch o and contact your supplier immediately.
THIS PRODUCT IS FOR HOUSEHOLD USE ONLY
RETAIN THIS MANUAL FOR FUTURE REFERENCE
Page 5
Safety
Precautions
Safety
Read Safety Precautions Before Operation and Installation
To prevent death or injury to the user or other people and property damage, the
following instructions must be followed. Incorrect operation due to ignoring of
instructions may cause death, harm or damage.
WARNING
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Safety Precautions
WARNING
This symbol indicates the possibility
of personal injury or loss of life.
CAUTION
This symbol indicates the possibility of
property damage or serious consequences.
Installation must be performed according to the installation instructions. Improper installation
can cause water leakage, electrical shock, or fire.
Use only the included accessories and parts, and specified tools for the installation. Using non-
standard parts can cause water leakage, electrical shock, fire, and injury or property damage.
Make sure that the outlet you are using is grounded and has the appropriate voltage.
The power cord is equipped with a three-prong grounding plug to protect against shock.
Voltage information can be found on the nameplate of the unit.
Ensure your unit is connected to a properly earthed electrical socket. Verify that the chosen
socket is both adequately earthed and equipped with a fuse or circuit breaker for protection.
Refer to the data plate on the unit to determine the maximum required current. If the current
socket lacks proper earthing or the necessary protection, it is critical to have a qualified
electrician install the correct earthed outlet.
Install the unit on a flat, sturdy surface. Failure to do so could result in damage or excessive
noise and vibration.
The unit must be kept free from obstruction to ensure proper function and to mitigate safety
hazards.
Do not modify the length of the power cord or use an extension cord to power the unit.
Do not share a single outlet with other electrical appliances. Improper power supply can cause
fire or electrical shock.
Do not install your air conditioner in a wet room such as a bathroom or laundry room. Too
much exposure to water can cause electrical components to short circuit.
Do not install the unit in a location that may be exposed to combustible gas, as this could
cause fire.
The unit has wheels to facilitate moving. Make sure not to use the wheels on thick carpet or to
roll over objects, as these could cause tipping.
Do not operate a unit that it has been dropped or damaged.
The appliance with electric heater shall have at least 1 meter space to the combustible
materials.
Do not touch the unit with wet or damp hands or when barefoot.
If the air conditioner is knocked over during use, turn off the unit and unplug it from the main
power supply immediately. Visually inspect the unit to ensure there is no damage. If you
suspect the unit has been damaged, contact a technician or customer service for assistance.
Safety Precautions
Read Safety Precautions before Operation and Installation.
To prevent death or injury to the user or other people and property damage, the following instructions MUST be
followed. Incorrect operation due to ignoring instructions may cause death harm or damage.
Page 6
Safety
Precautions
•
•
•
•
•
In a thunderstorm, the power must be cut off to avoid damage to the machine due to lightning.
Your air conditioner should be used in such a way that it is protected from moisture.
e.g. condensation, splashed water, etc. Do not place or store your air conditioner where it can
fall or be pulled into water or any other liquid. Unplug immediately if it occurs.
All wiring must be performed strictly in accordance with the wiring diagram located inside of
the unit.
The unit's circuit board (PCB) is designed with a fuse to provide overcurrent protection. The
specifications of the fuse are printed on the circuit board, such as: T 3.15A/250V, etc.
When the water drainage function is not in use, keep the upper and the lower drain plug firmly
to the unit to get rid of choking. When the drain plug is not in use, keep it carefully to prevent
children from choking.
•
•
•
•
•
•
•
•
•
•
•
•
•
CAUTION
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the appliance.
Children must be supervised around the unit at all times.
If the supply cord is damaged, it must be replaced by the manufacturer,its service agent or
similarly qualified persons in order to avoid a hazard.
Prior to cleaning or other maintenance, the appliance must be disconnected from the supply
mains.
Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it
has been dropped or damaged.
Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic
area and where it will not be tripped over.
Do not operate unit with a damaged cord, plug, power fuse or circuit breaker. Discard unit or
return to an authorized service facility for examination and/or repair.
To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed
control device.
The appliance shall be installed in accordance with national wiring regulations.
Contact the authorised service technician for repair or maintenance of this unit.
Contact the authorised installer for installation of this unit.
Do not cover or obstruct the inlet or outlet grilles.
Do not use this product for functions other than those described in this instruction manual.
Before cleaning, turn off the power and unplug the unit.
•
1.
2.
3.
•
•
•
•
•
•
•
•
•
cord
Page 7
Safety
Precautions
1.
2.
3.
•
•
•
•
•
•
•
•
•
Disconnect the power if strange sounds, smell, or smoke comes from it.
Do not press the buttons on the control panel with anything other than your fingers.
Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has
been dropped or damaged.
Do not operate or stop the unit by inserting or pulling out the power cord plug.
Do not use hazardous chemicals to clean or come into contact with the unit. Do not use the unit
in the presence of inflammable substances or vapour such as alcohol, insecticides, petrol,etc.
Always transport your air conditioner in a vertical position and stand on a stable, level surface
during use.
Always contact a qualified person to carry out repairs. If the damaged power supply cord must
be replaced with a new power supply cord obtained from the product manufacturer and not
repaired.
Hold the cord by the head of the power plug when taking it out.
Turn off the product when not in use.
DISPOSAL GUIDELINES
This appliance contains refrigerant and other potentially hazardous materials.
When disposing of this appliance, the law requires special collection and
treatment. DO NOT dispose of this product as household waste or unsorted
municipal waste.
IMPORTANT
Special notice – Disposing of this appliance in the forest or other
natural surroundings endangers your health and is bad for the
environment. Hazardous substances may leak into the ground water
and enter the food chain.

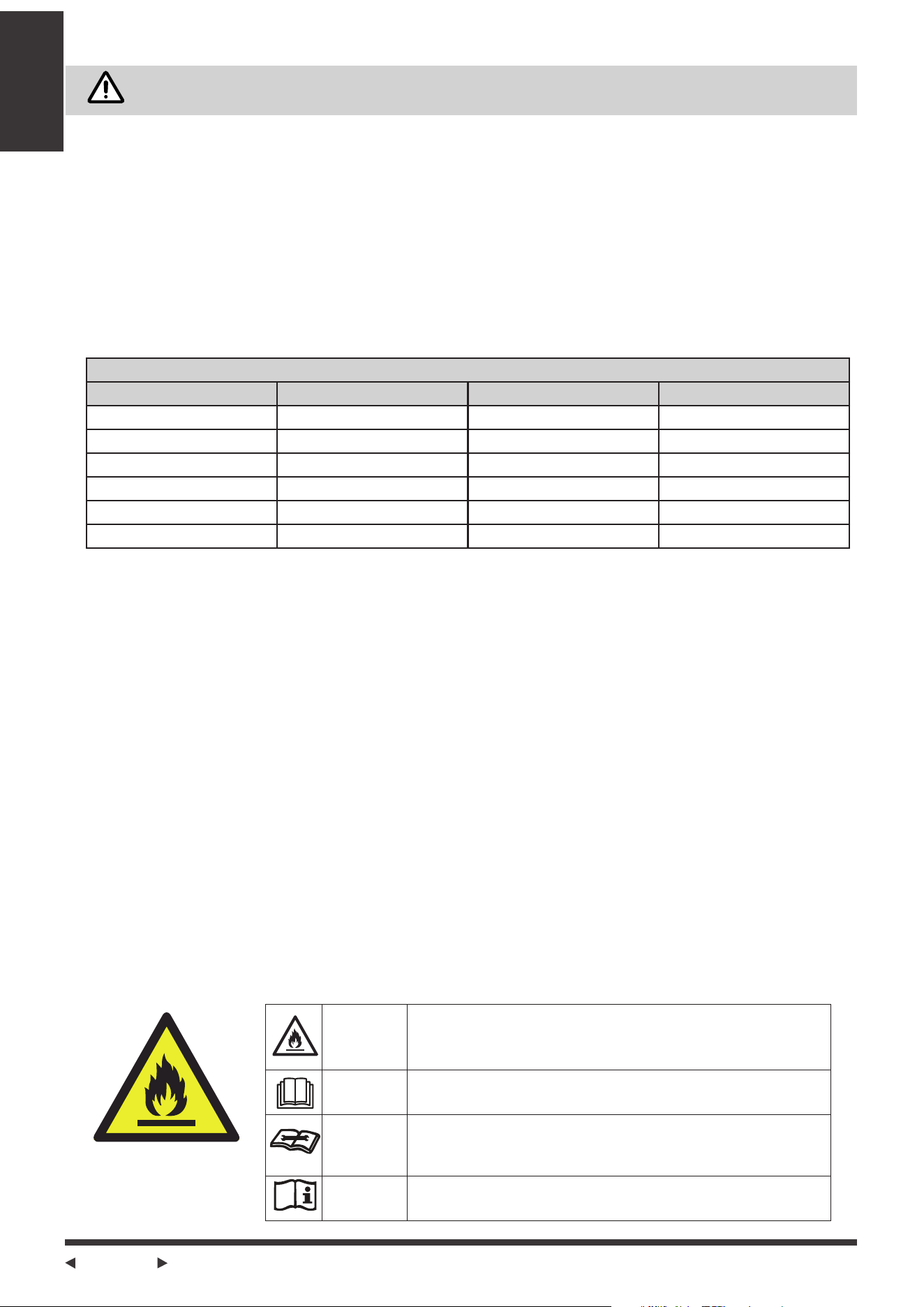

Page 8
Safety
Precautions
y Do not use means to accelerate the defrosting process or to clean, other than those recommended by the
manufacturer.
y The appliance shall be stored in a room without continuously operating ignition sources (for example: open
ames, an operating gas appliance or an operating electric heater).
y Do not pierce or burn.
y Be aware that the refrigerants may not contain an odour.
y Appliance should be installed, operated and stored in a room with a oor area according to the amount of
refrigerant to be charged. For specic information on the type of gas and the amount, please refer to the
relevant label on the unit itself. When there are dierences between the label and the manual on the Min
room area description, the description on the label shall prevail.
Minimum room area for R290
Amount of refrigerant (kg) Min. room area (m²) Amount of refrigerant (kg) Min. room area (m²)
≤0.0836 4 >0.1881 and ≤ 0.2090 10
>0.0836 and ≤ 0.1045 5 >0.2090 and ≤ 0.2299 11
>0.1045 and ≤ 0.1254 6 >0.2299 and ≤ 0.2508 12
>0.1254 and ≤ 0.1463 7 >0.2508 and ≤ 0.2717 13
>0.1463 and ≤ 0.1672 8 >0.2717 and ≤ 0.2926 14
>0.1672 and ≤ 0.1881 9 >0.2926 and ≤ 0.3040 15
y Compliance with local gas regulations and standards shall be observed.
y Keep ventilation openings clear of obstruction.
y The appliance shall be stored so as to prevent mechanical damage from occurring.
y A warning that the appliance shall be stored in a well-ventilated area where the room size corresponds to the
room area as specied for operation.
y Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid
certicate from an industry-accredited assessment authority, which authorises their competence to handle
refrigerants safely in accordance with an industry recognised assessment specication.
y Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair
requiring the assistance of other skilled personnel shall be carried out under the supervision of the person
competent in the use of ammable refrigerants.
y Please follow the instructions carefully to handle, install, service or clear the air conditioner to avoid any
damage or hazard. When maintaining or disposing the air conditioner, the refrigerant (R290) shall be
disposed of properly. It MUST not de discharged directly into the air.
y No any open re or device like switch which may generate spark/arcing shall be around air conditioner to
avoid causing ignition of the ammable refrigerant used. Please follow the instruction carefully to store or
maintain the air conditioner to prevent mechanical damage from occurring.
y The appliance MUST NOT be stored in a room with continuous operating open ames (for example an
operating gas appliance) and ignition sources (for example an operating electric heater).
WARNING
Using R290 Refrigerant
Caution: Risk of fire/
flammable materials
WARNING
CAUTION
CAUTION
CAUTION
This symbol shows that the operation manual
should be read carefully.
This symbol shows that this appliance uses a flammable
refrigerant. If the refrigerant is leaked and exposed
to an external ignition source, there is a risk of fire.
This symbol shows that a service personnel should be
handling this equipment with reference to the
installation manual.
This symbol shows that information is available such
as the operating manual or installation manual.
Explanation of symbols displayed on the unit (For units using R290 Refrigerant only):
Page 9
Safety
Precautions
6.Information on servicing
1.Transport of equipment containing flammable refrigerants
See transport regulations
2.Marking of equipment using signs
See local regulations
3.Disposal of equipment using flammable refrigerants
See national regulations.
4.Storage of equipment/appliances
The storage of equipment should be in accordance with the manufacturer's instructions.
5.Storage of packed (unsold) equipment
Storage package protection should be constructed such that mechanical damage to the equipment
inside the package will not cause a leak of the refrigerant charge. The maximum number of pieces of
equipment permitted to be stored together will be determined by local regulations.
1)Checks to the area
Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary
to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following
precautions shall be complied with prior to conducting work on the system.
2)Work procedure
Work shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas
or vapour being present while the work is being performed.
3)General work area
All maintenance staff and others working in the local area shall be instructed on the nature of work
being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be
sectioned off. Ensure that the conditions within the area have been made safe by control of
flammable material.
4)Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerant detector prior to and during work, to
ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak detection
equipment being used is suitable for use with flammable refrigerants, i.e. non-sparking, adequately
sealed or intrinsically safe.
5)Presence of fire extinguisher
If any hot work is to be conducted on the refrigeration equipment or any associated parts,
appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO
2
fire
extinguisher adjacent to the charging area.
6)No ignition sources
No person carrying out work in relation to a refrigeration system which involves exposing any pipe
work that contains or has contained flammable refrigerant shall use any sources of ignition in such a
manner that it may lead to the risk of fire or explosion. All possible ignition sources, including
cigarette smoking, should be kept sufficiently far away from the site of installation, repairing,
removing and disposal, during which flammable refrigerant can possibly be released to the
surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to
make sure that there are no flammable hazards or ignition risks. No Smoking signs shall be displayed.
7)Ventilated area
Ensure that the area is in the open or that it is adequately ventilated before breaking into the system
or conducting any hot work. A degree of ventilation shall continue during the period that the work is
carried out. The ventilation should safely disperse any released refrigerant and preferably expel it
externally into the atmosphere.
Page 10
Safety
Precautions
Repair and maintenance to electrical components shall include initial safety checks and component
inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be
connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately
but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be
reported to the owner of the equipment so all parties are advised.
Initial safety checks shall include:
That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;
That there no live electrical components and wiring are exposed while charging, recovering or purging
the system; That there is continuity of earth bonding.
8)Checks to the refrigeration equipment
Where electrical components are being changed, they shall be fit for the purpose and to the correct
specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in
doubt consult the manufacturer's technical department for assistance. The following checks shall be
applied to installations using flammable refrigerants:
The charge size is in accordance with the room size within which the refrigerant containing parts are
installed;
The ventilation machinery and outlets are operating adequately and are not obstructed;
If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence
of refrigerant; Marking to the equipment continues to be visible and legible. Markings and signs that
are illegible shall be corrected;
Refrigeration pipe or components are installed in a position where they are unlikely to be exposed
9)Checks to electrical devices
7.Repairs to sealed components
1)During repairs to sealed components, all electrical supplies shall be disconnected from the
equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary
to have an electrical supply to equipment during servicing, then a permanently operating form of leak
detection shall be located at the most critical point to warn of a potentially hazardous situation.
2)Particular attention shall be paid to the following to ensure that by working on electrical
components, the casing is not altered in such a way that the level of protection is affected. This shall
include damage to cables, excessive number of connections, terminals not made to original
specification, damage to seals, incorrect fitting of glands, etc. Ensure that apparatus is mounted
securely. Ensure that seals or sealing materials have not degraded such that they no longer serve the
purpose of preventing the ingress of flammable atmospheres. Replacement parts shall be in
accordance with the manufacturer's specifications.
NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak detection
equipment. Intrinsically safe components do not have to be isolated prior to working on them.
8.Repair to intrinsically safe components
Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this
will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically
safe components are the only types that can be worked on while live in the presence of a flammable
atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts
specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere
from a leak.
to any substance which may corrode refrigerant containing components, unless the components are
constructed of materials which are inherently resistant to being corroded or are suitably protected
against being so corroded.
Page 11
Safety
Precautions
and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25 %
maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants but the use of
detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and
corrode the copper pipe-work. If a leak is suspected, all naked flames shall be removed/ extinguished.
If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from
the system, or isolated (by means of shut off valves) in a part of the system remote from the leak.
Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the
brazing process.
When breaking into the refrigerant circuit to make repairs or for any other purpose conventional
procedures shall be used. However, it is important that best practice is followed since flammability is a
consideration. The following procedure shall be adhered to:
Remove refrigerant; Purge the circuit with inert gas; Evacuate; Purge again with inert gas; Open the
circuit by cutting or brazing.
The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be flushed
with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or
oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system
with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and
finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system.
When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable
work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take
place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is
ventilation available.
10.Detection of flammable refrigerants
The following leak detection methods are deemed acceptable for systems containing flammable
refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity
may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a
refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for
the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant
11.Leak detection methods
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or
any other adverse environmental effects. The check shall also take into account the effects of aging or
continual vibration from sources such as compressors or fans.
9.Cabling
12.Removal and evacuation
13.Charging procedures
In addition to conventional charging procedures, the following requirements shall be followed. Ensure
that contamination of different refrigerants does not occur when using charging equipment. Hoses or
lines shall be as short as possible to minimise the amount of refrigerant contained in them.
Cylinders shall be kept upright.
Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
Label the system when charging is complete (if not already).
Extreme care shall be taken not to overfill the refrigeration system. Prior to recharging the system it
shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior
to commissioning. A follow up leak test shall be carried out prior to leaving the site.
Under no circumstances shall potential sources of ignition be used in the searching for or detection
of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.
Safety
Precautions
Page 12
Safety
Precautions
cylinders. (No more than 80 % volume liquid charge). i) Do not exceed the maximum working
pressure of thecylinder, even temporarily. j) When the cylinders have been filled correctly and the
process completed, make sure that the cylinders and the equipment are removed from site promptly
and all isolation valves on the equipment are closed off. k) Recovered refrigerant shall not be charged
into another refrigeration system unless it has been cleaned and checked.
15.Labelling
Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The
label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment
contains flammable refrigerant.
16.Recovery
When removing refrigerant from a system, either for servicing or decommissioning, it is recommended
good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders,
ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct
number of cylinders for holding the total system charge is available. All cylinders to be used are
designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the
recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off
valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before
recovery occurs. The recovery equipment shall be in good working order with a set of instructions
concerning the equipment that is at hand and shall be suitable for the recovery of flammable
refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working
order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before
using the recovery machine, check that it is in satisfactory working order, has been properly
maintained and that any associated electrical components are sealed to prevent ignition in the event
of a refrigerant release. Consult manufacturer if in doubt. The recovered refrigerant shall be returned
to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note
arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or
compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to
make certain that flammable refrigerant does not remain within the lubricant. The evacuation process
shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the
compressor body shall be employed to accelerate this process. When oil is drained from a system, it
shall be carried out safely.
Before carrying out this procedure, it is essential that the technician is completely familiar with the
equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely.
Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is
required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before
the task is commenced.
14.Decommissioning
a) Become familiar with the equipment and its operation. b) Isolate system electrically. c) Before
attempting the procedure ensure that: Mechanical handling equipment is available, if required, for
handling refrigerant cylinders;All personal protective equipment is available and being used correctly;
The recovery process is supervised at all times by a competent person; Recovery equipment and
cylinders conform to the appropriate standards. d) Pump down refrigerant system, if possible. e) If a
vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the
system. f) Make sure that cylinder is situated on the scales before recovery takes place. g) Start the
recovery machine and operate in accordance with manufacturer's instructions. h) Do not overfill
Page 13
Introduction
Introduction
This portable air conditioner can alter the room temperature and humidity. It has multiple functions of cooling,
heating, dehumidifying (drying) and fan ventilation, and can be moved from room to room and transported from
building to building easily. In addition, the desired humidity level can be set between 35-85%.
The air conditioner can maintain set room indoor air temperatures between 17°C and 30°C. The set room
temperature is displayed on the remote control and in the control panel on the unit. This does not mean that the
air conditioner will necessarily reduce the actual room temperature to the set room temperature. This appliance
operates at half the noise levels of most other portable air conditioners and is ideal for bedrooms.
This Rinnai portable refrigerated air conditioner model RPC35PDRWF has a maximum cooling capacity of 3.50 kW
and a maximum heating capacity of 3.0kW.
This is sucient to cool or heat rooms with a oor area of between 12 and 18 square metres.
y Do not place the air conditioner or plastic window slider in direct sunlight. Close all curtains in the room being
cooled.
y For maximum cooling (COOLING MODE), set the temperature at 18°C and the fan at HIGH. After
approximately 3 minutes, the compressor will turn on and cooled air will come out of the front air outlet. Warm
air will also come out of the rear outlet and into the exhaust hose.
y For maximum heating (HEATING MODE), set the temperature at 30°C and the fan at HIGH. After approximately
3 minutes, the compressor will turn on and heated air will come out of the front air outlet. Cool air will also come
out of the rear outlet and into the exhaust hose.
y In COOLING MODE the air conditioner will not cool unless the set temperature is below the existing room
temperature.
y In COOLING MODE once the existing room temperature reaches the set temperature, the fan continues
operating and the compressor switches on and o to maintain the set temperature within the room.
y In HEATING MODE the air conditioner will not heat unless the set temperature is above the existing room
temperature.
y In HEATING MODE once the existing room temperature reaches the set temperature, the fan continues
operating and the compressor switches on and o to maintain the set temperature within the room.
y For maximum output keep the exhaust hose as short and as straight as possible. Minimise bends which can
reduce the maximum cooling capacity of the air conditioner. Elevate the air conditioner if necessary.
y Make sure the air intake and outlet grills are unobstructed.
y Clean the lters at least once every two weeks.
Warnings and Important Information
Warning information regarding appliances with R290 refrigerant gas.
Thoroughly read all of the warnings.
y This appliance contains 220g of R290 refrigerant gas.
y The appliance must be installed, used and stored in a ventilated area that is greater than 11m
2
.
y When cleaning the appliance, do not use any tools other than those recommended by the
manufacturing company.
y The appliance must be placed in an area without any continuous sources of ignition (for example: open ames,
gas or electrical appliances in operation).
y Do not puncture and do not burn.
y Refrigerant gases can be odourless.
y If the appliance is installed, operated or stored in a non-ventilated area, the room must be designed to prevent
the accumulation of refrigerant leaks resulting in a risk of re or explosion due to ignition of the refrigerant
caused by electric heaters, stoves, or other sources of ignition.
y The appliance must be stored in such a way as to prevent mechanical failure.
y Repairs must be performed based on the recommendations from the manufacturing company. Maintenance and
repairs that require the assistance of other qualied personnel must be performed under the supervision of an
individual specied in the use of ammable refrigerants.
R290
Page 14
Specications
Introduction
MODEL RPC35PDRWF
Power Supply 220-240V / 50Hz
Dimensions - Net (H x W x D) 765mm x 467mm x 397mm
Weight 33.2kg
Nominal Cooling Capacity 3.5kW
Rated Input Current 5.9A
Rated Input Power 1.35kW
Nominal Heating Capacity 3.0kW
Rated Heating Input Current 5.0A
Rated Heating Input Power 1.045kW
Max. Input Current 8.0A
Max. Input Power 1.45kW
Refrigerant Type R290
Refrigerant Volume 220g
Sound Pressure Level (SPL) @1m 62.7dB(A)
Mandatory Inspection Prior to Installation
Immediately report any damage or discrepancies to the Supplier of the appliance. This appliance was inspected
and tested at the time of manufacture and packaging, and released for transportation without known damage. Upon
receipt, inspect the exterior for evidence of rough handling in shipment. Ensure that the appliance is labelled correctly
for the gas and electrical supply, and/or other services it is intended to be connected to.
For safety and warranty purposes, appliances that may be damaged or incorrect MUST NOT be installed or operated
under any circumstances. Installation of damaged or incorrect appliances may contravene local government
regulations. Rinnai disclaims any liability or responsibility whatsoever in relation to the installation or operation of
damaged or incorrect appliances.
Page 15
Installation
Instructions
Installation Instructions
Preparation
NOTE:
All the illustrations in the manual are for explanation purpose only. Your machine may be slightly different.
The actual shape shall prevail. The unit can be controlled by the unit control panel alone or with the remote
controller. This manual does not include Remote Controller Operations, see the <<Remote Controller
Instruction>> packed with the unit for details.
Design Notice
In order to ensure the optimal performance of our products, the design specifications of the unit
and remote control are subject to change without prior notice.

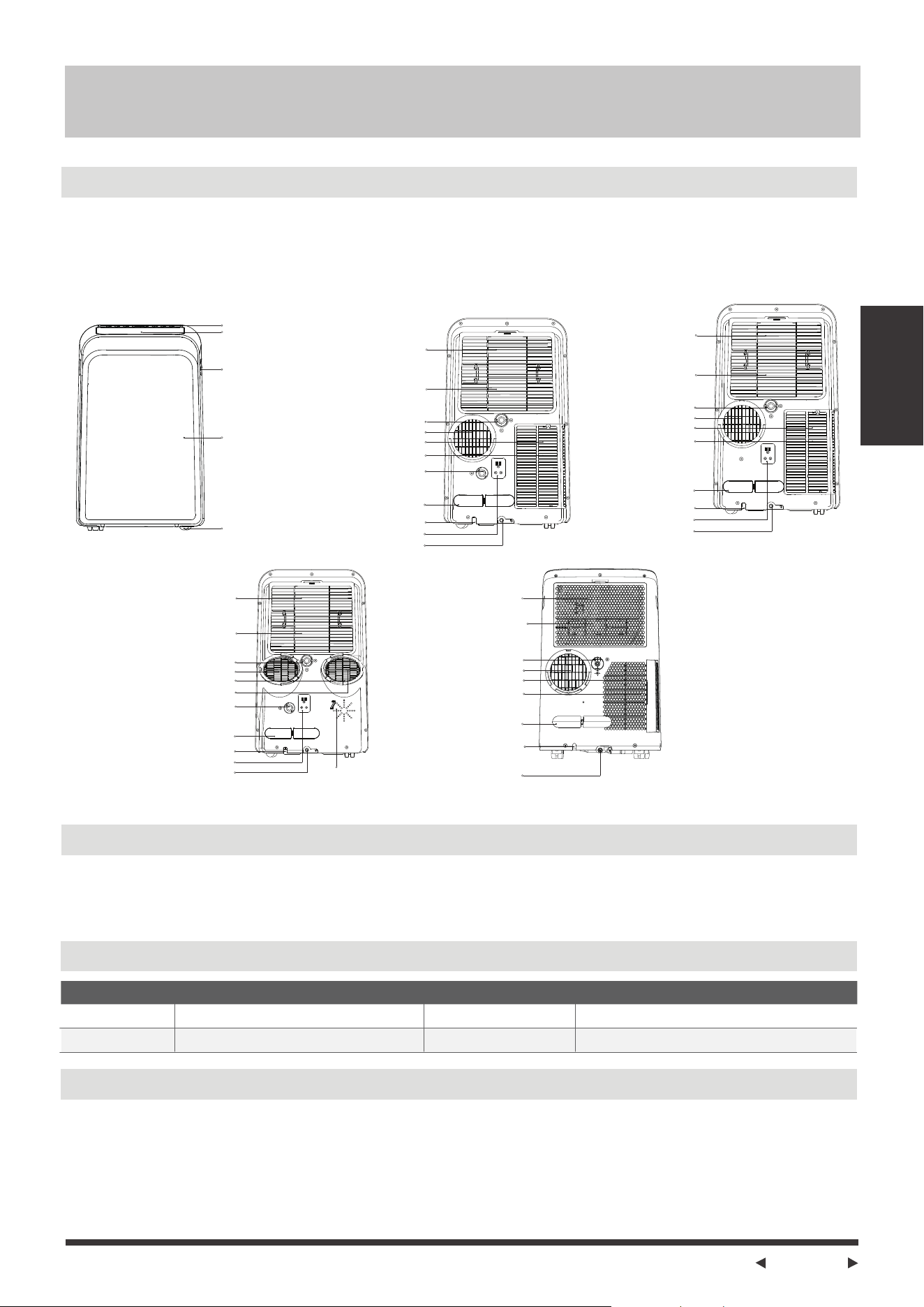

front
control panel
handle
(both sides)
horizontal louver blade
(swing automatically)
Caster
Panel
rear
MODEL A
power plug socket
power cord buckle
bottom tray
drain outlet
power cord outlet
drain outlet
(only for pump
heating mode)
upper air filter
(behind the grille)
upper air intake
air outlet
lower air filter
lower air intake
air outlet
lower air filter
lower air intake
drain outlet
drain outlet
rear
MODEL A1
power plug socket
power cord buckle
bottom tray
drain outlet
power cord outlet
upper air filter
(behind the grille)
upper air intake
air outlet
lower air filter
lower air intake
drain outlet
power cord buckle
bottom tray
drain outlet
power cord outlet
MODEL B
rear
MODEL C
rear
power plug socket
power cord buckle
vent control
bottom tray
drain outlet
power cord outlet
drain outlet
(only for pump
heating mode)
upper air filter
(behind the grille)
upper air filter
upper air intake
upper air intake
air outlet
lower air filter
lower air intake
drain outlet
MODE Temperature Range MODE Temperature Range
Ambient Temperature Range For Unit Operating
Cool 17-35°C (62-95°F)
Dry
Heat(pump heat mode)
- 13-35°C (55-95°F)
5-30°C (41-86°F)
E

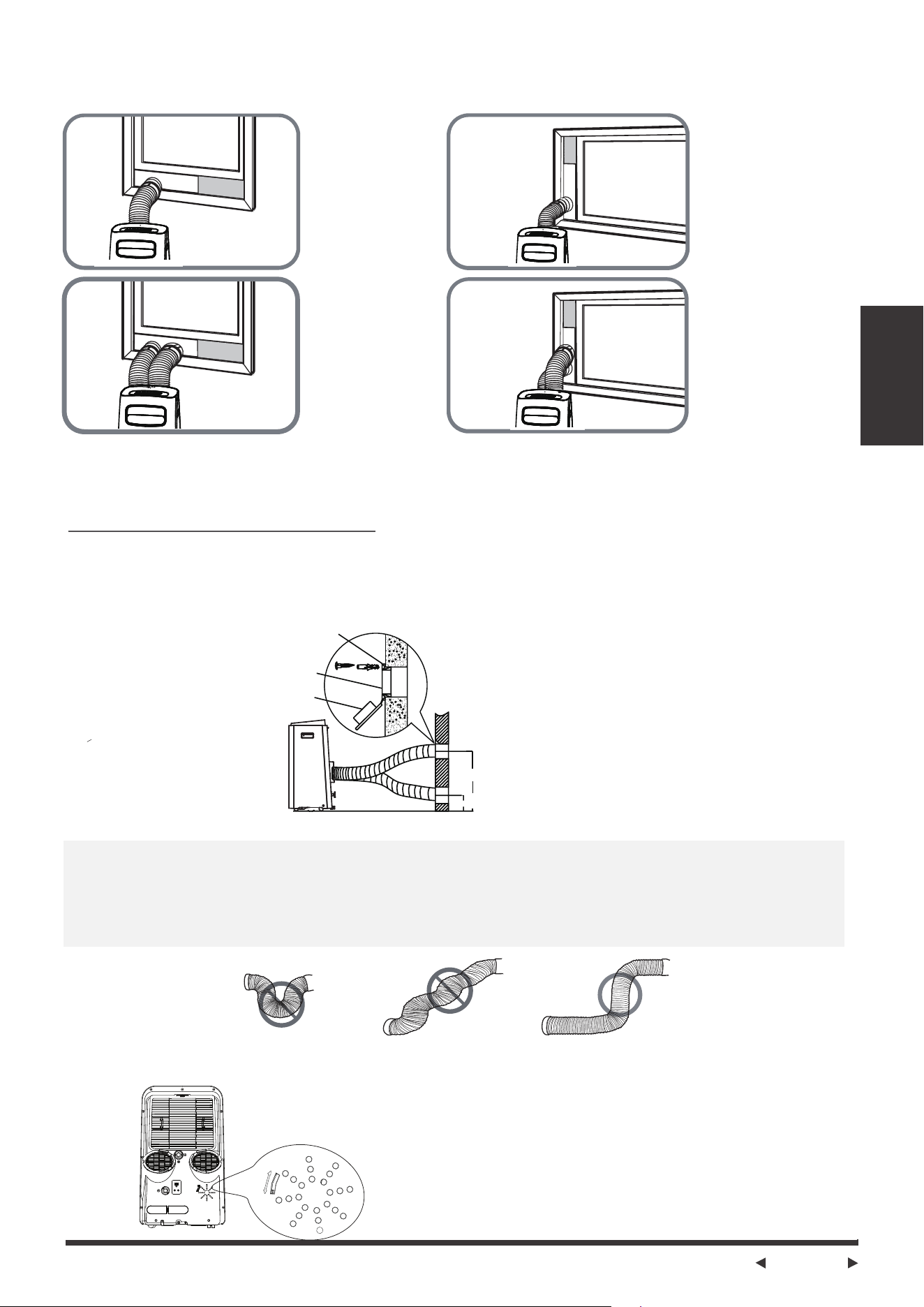

xhaust Hose Installation
The exhaust hose and adaptor must be installed or removed in accordance with the usage mode. For
COOL,HEAT (heat pump type) or AUTO mode, exhaust hose must be installed.
-
Page 16
Installation
Instructions

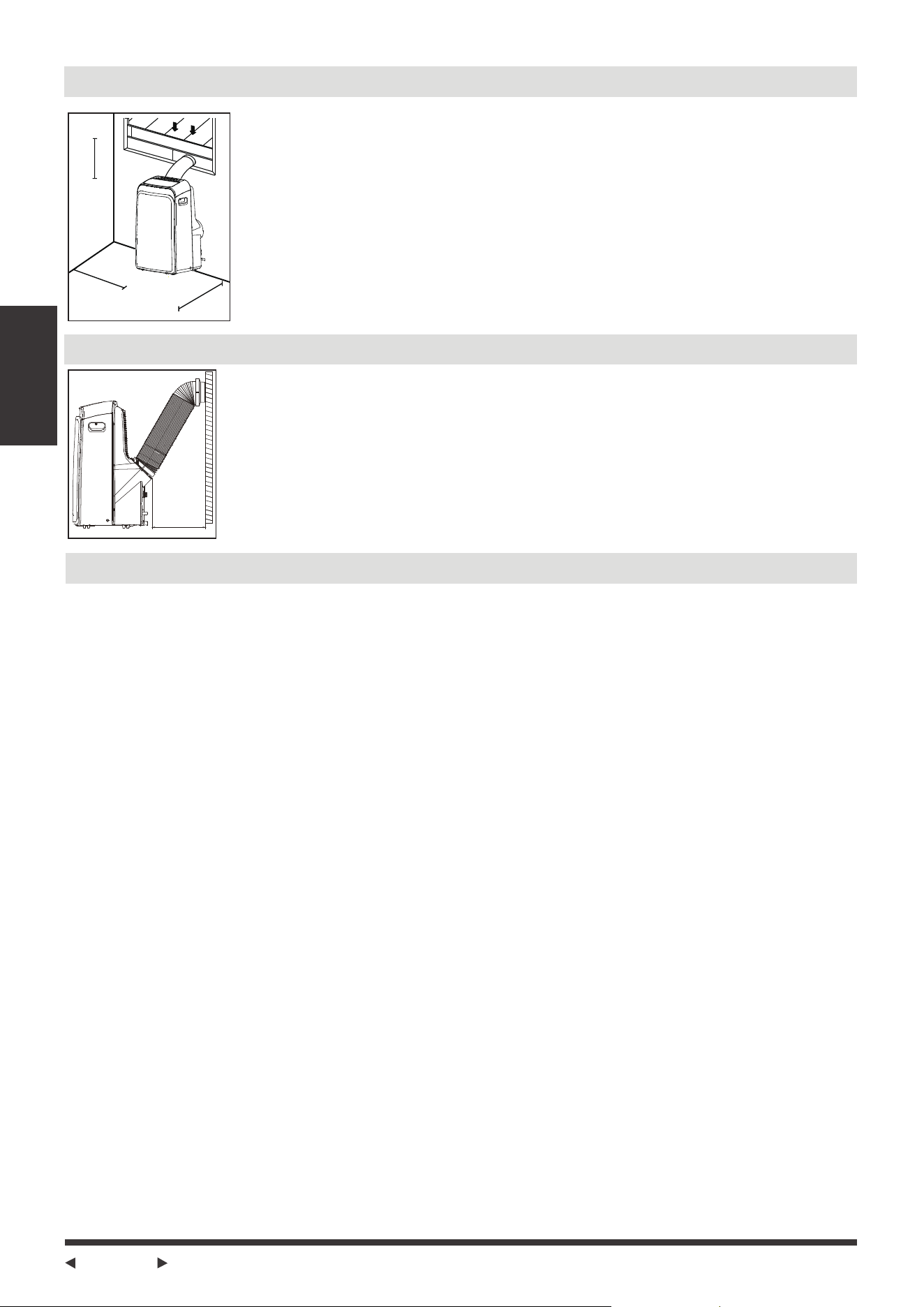

Choosing The Right Location
Recommended Installation
50cm
Energy Rating Information
The energy rating and noise information for this unit is based on the standard installation using an un-extended
exhaust duct (Diameter:150mm, Length:1.5m) without window slider adaptor or wall exhaust adaptor A.
The unit with 3 meters extended exhaust duct is running by using 2 exhaust ducts (Diameter:150mm, Length:1.5m
+ Diameter: 130mm, Length: 1.5m). The Energy rating and noise information for unit with 3 meters extended
exhaust duct is not assessed. (For some models)
NOTE：
We recommend that operating the unit at room temperature below 35
°C
. Since there is a risk that the unit with 3
metres extended exhaust duct would not work at room temperature above 35
°C
under some extreme conditions,
such as the lower air intake be blocked for 50%.
30cm
30cm
Your installation location should meet the following requirements:
50cm
≥
-
Make sure that you install your unit on an even surface to minimise noise and
vibration.
-
The unit must be installed near a grounded plug, and the Collection Tray Drain
(found on the back of the unit) must be accessible.
-
The unit should be located at least 30cm from the nearest wall to ensure
proper air conditioning. The horizontal louver blade should be at least 50cm
away from obstacles.
-
DO NOT cover the Intakes, Outlets or Remote Signal Receptor of the unit, as this
could cause damage to the unit.
Page 17
Installation
Instructions
Tools Needed
-Medium Philips screwdriver; -Tape measure or ruler; -Knife or scissors;
-Saw (On some models, to shorten window adaptor for narrow windows)

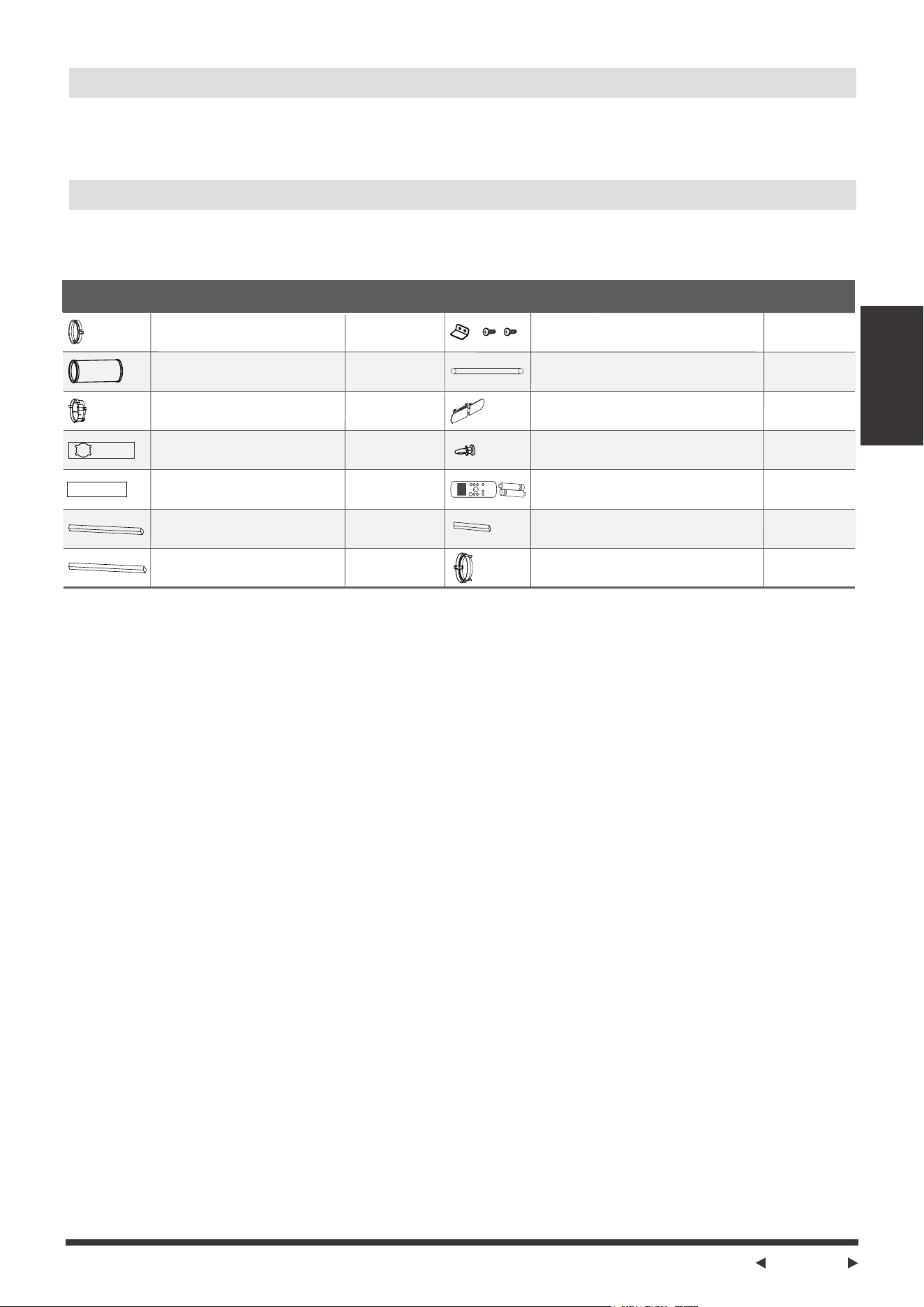

Accessories
NOTE: Items with (*) are on some models. Slight variations in design may occur.
What should I look for rst when purchasing a portable air conditioner?
Name of Accessory
Qty.
Item
Name of Accessory
Qty.
Item
1 pc(*)Window Slider A Bolt
1 pc 1 set(*)Unit Adaptor Security Bracket and 2 Screws
1 pc 1 pcExhaust Hose Drain Hose
1 pc(*) 1 pcWindow Slider Adaptor Power Cord Buckle
ON/OFF
TEMP
SHORT
CUT
TIMER
ON
TIMER
OFF
MODE
FAN
SLEEP
SWING
LED
1 set(*)1 pc(*)Window Slider B
Remote Controller and Battery
(only for remote control models)
2 pc(*)Foam Seal A (Adhesive)
2 pc(*)Foam Seal B (Adhesive)
1 pc(*)Foam Seal C (Non-adhesive)
1 pc(*)
1 pc(*)
Exhuast Hose Adaptor
Page 18
Installation
Instructions

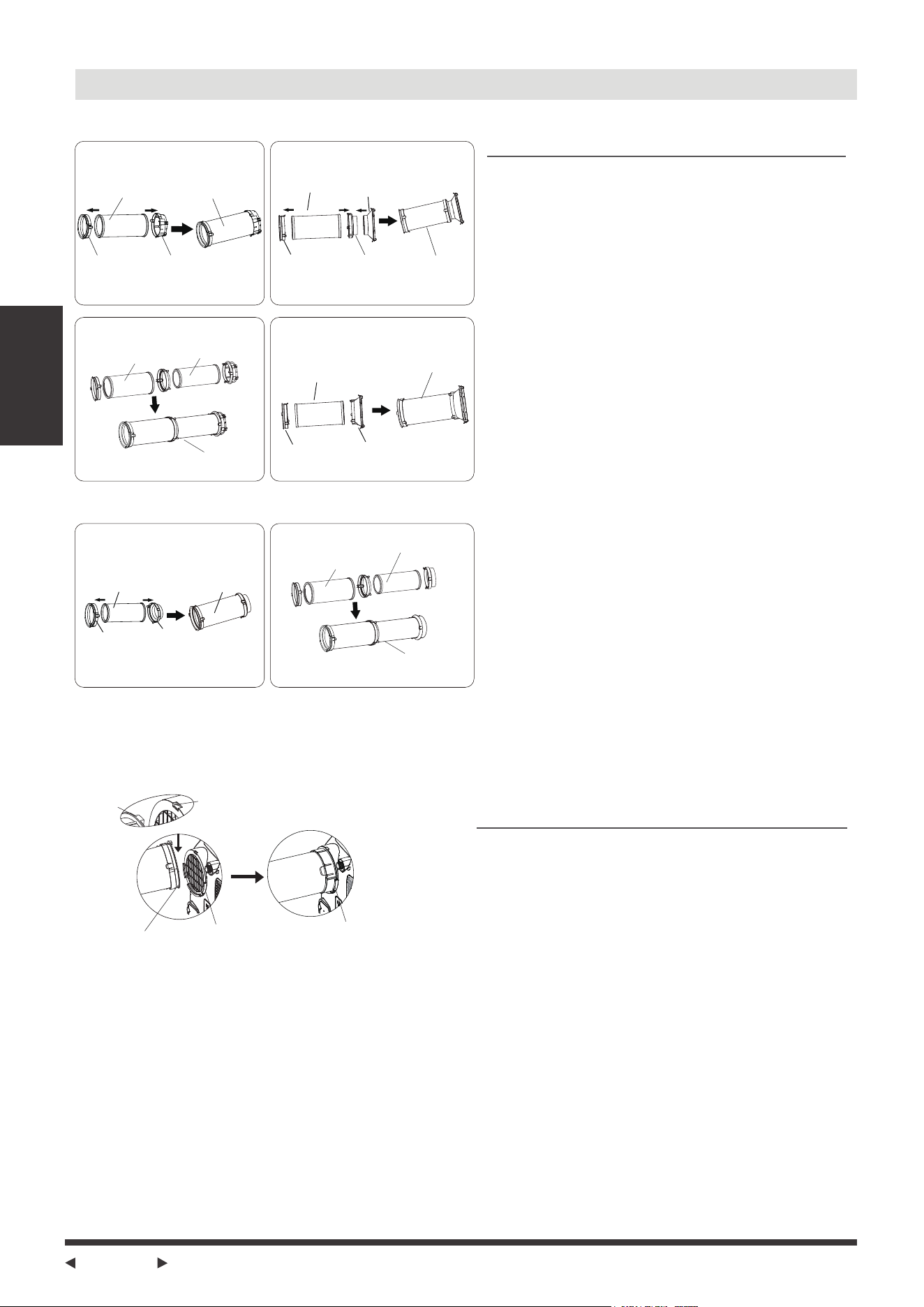

Window slider
adaptor
Exhaust hose
assembly
Exhaust hose
Air exhaust
passage
Unit adaptor
Exhaust hose
assembly
Exhaust hose
Unit adaptor
Air exhaust
passage
Window Installation Kit
Unit adaptor
Exhaust hose
Exhaust hose
assembly
Window slider
adaptor
Model D
Exhaust hose
Extended
Exhaust hose
Exhaust hose
assembly
Model C
Exhaust hose assembly
Wall exhaust adaptor A
Exhaust hose
Unit adaptor
Exhaust hose
Extended Exhaust
hose
Exhaust hose
assembly
Model A Model B
Model A Model B
Window installation
Wall installation
Step One: Preparing the Exhaust Hose assembly
Press the exhaust hose (or extended exhaust hose)
into the window slider adaptor(or wall exhaust
adaptor) and unit adaptor, clamp automatically by
elastic buckles of the adaptors.
Hook
Hole Seat
Lower groove
adaptor
Make sure the adaptor
is inserted into the lower
groove of the air outlet.
：
：
：
：
：
：
Step Two: Install the Exhaust hose assembly
to the unit
Insert unit adaptor of the Exhaust hose assembly
into the lower groove of the air outlet of the unit
while the hook of the adaptor is aligned with the
hole seat of the air outlet and slide down the
Exhaust hose assembly along the arrow direction
for installation.
Page 19

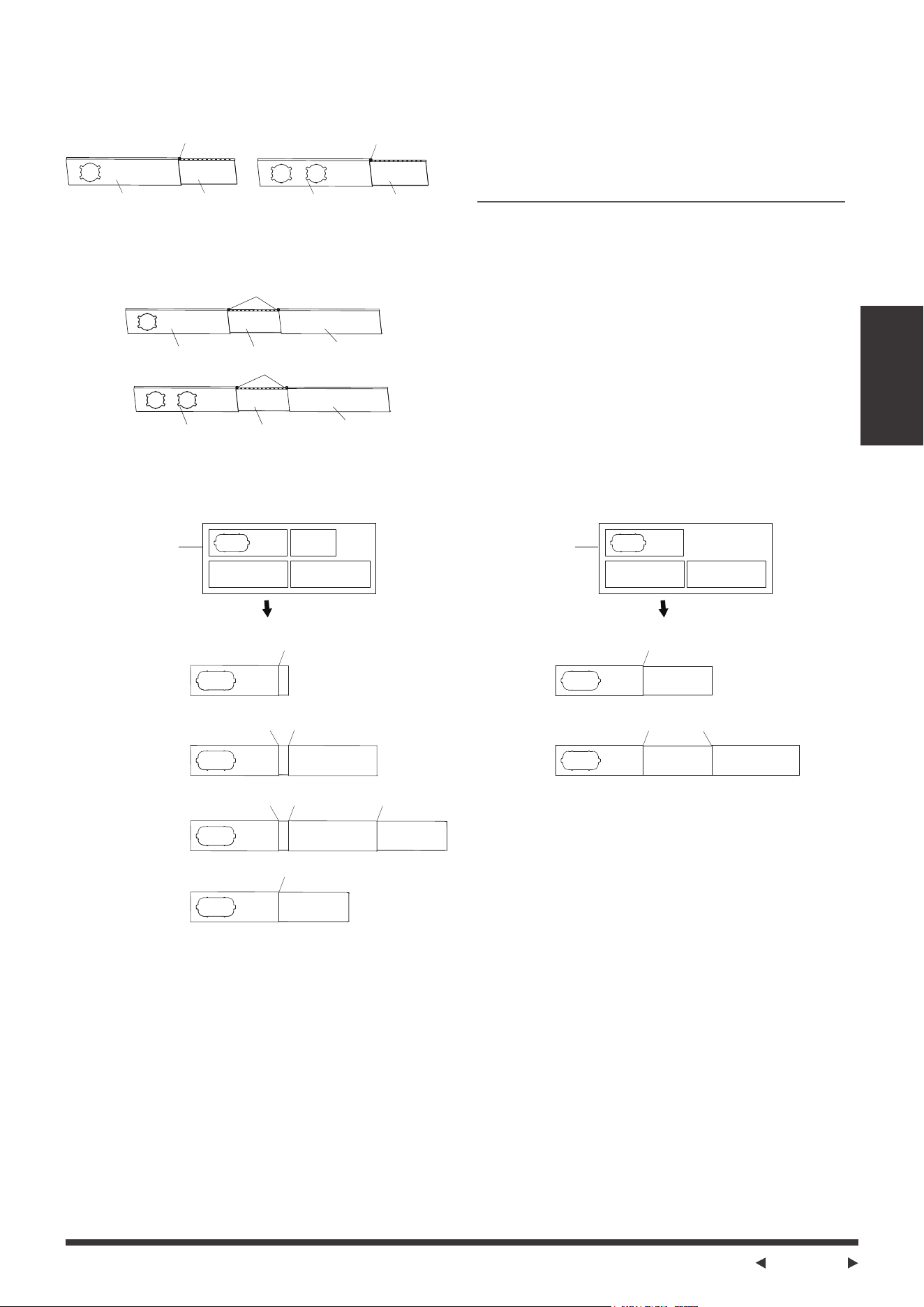

Installation
Instructions
or
or
Window slider A
MODEL A MODEL B
Window slider B
Bolt
Window slider A Window slider B
Bolt
MODEL A
MODEL B
MODEL C MODEL D
1+2：
Window slider A Window slider B
Window slider C
Bolts
Window slider A Window slider B
Window slider C
Bolts
Bolt Bolt
Bolt
1+2+3：
1+2：
1+2+3：
Bolt
Bolt
Bolt
1+2+3+4：
Bolt
BoltBolt
1+4：
Bolt
Window Sliders
After assembly
Before assembly
Window Sliders
After assembly
Before assembly
Step Three: Preparing the Adjustable Window
Slider
1. Choose the window sliders according the size of
your window. Sometimes, it needs to be cut short
to meet the window size, please take extra care to
cut it properly.
2. Use bolts to fasten the window sliders once they
are adjusted to the Proper length.
Page 20
Or
Or
Window slider A
Window slider B
(if required)
Foam seal C
(Non-adhesive type)
NOTE: Once the Exhaust Hose assembly and Adjustable Window Slider are prepared, choose from one of
the following two installation methods.

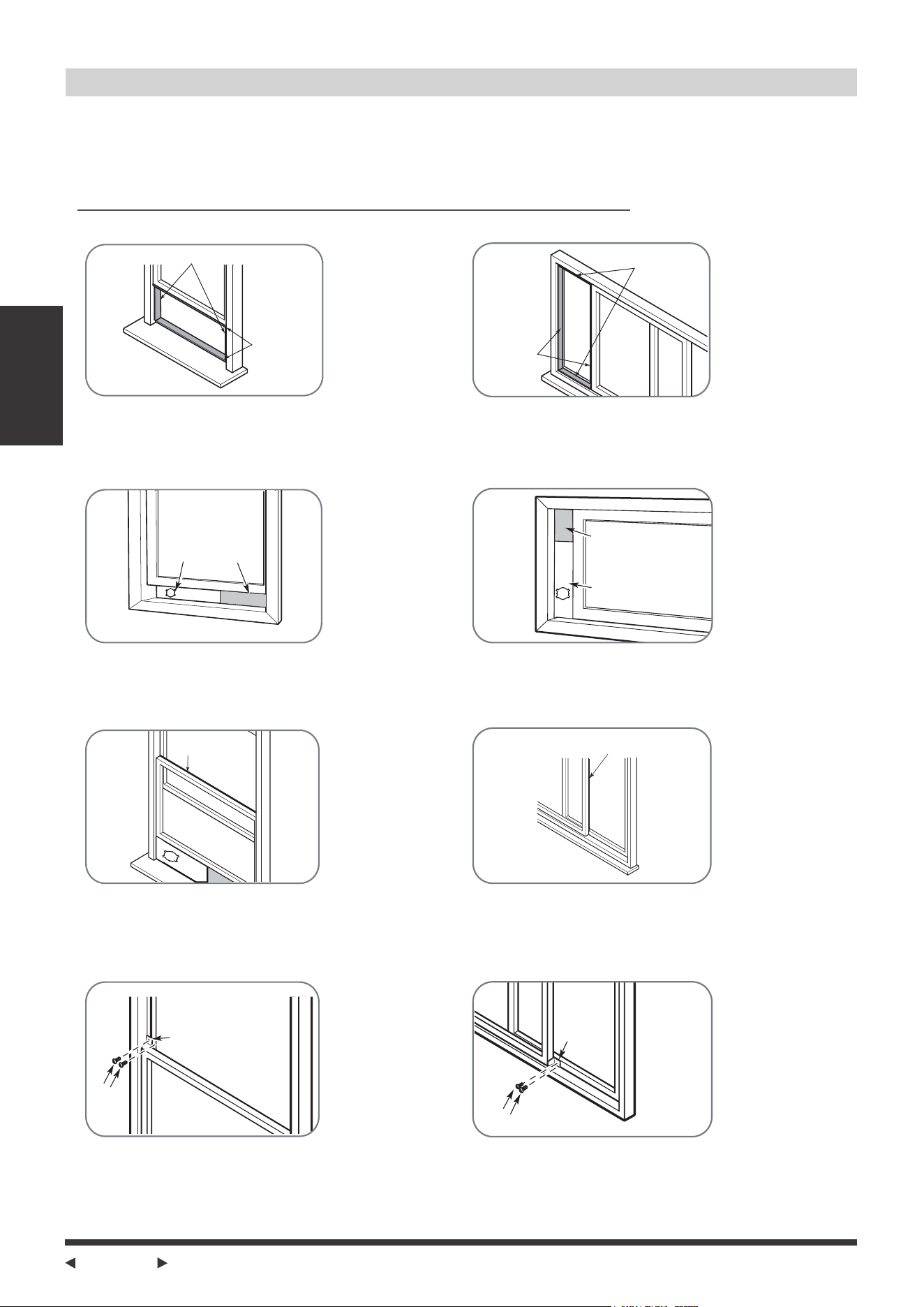

Type 1: Hung Window or Sliding Window Installation(For some models)
1. Cut the adhesive foam seal A and B strips to the proper lengths, and attach them to the window sash
and frame as shown.
2. Insert the window slider assembly into the window opening.
Or
Foam seal B
(Adhesive type-shorter)
Foam seal A
(Adhesive type)
Foam seal B
(Adhesive type-shorter)
Foam seal A
(Adhesive type)
Window slider A
Window slider B
(if required)
Foam seal C
(Non-adhesive type)
Or
2 Screws
Security Bracket
3. Cut the non-adhesive foam seal C strip to match the width(or height) of the window. Insert the seal
between the glass and the window frame to prevent air and insects from getting into the room.
4. If desired, install the security bracket with 2 screws as shown.
2 Screws
Security
Bracket
Installation
Instructions
Installation
Page 21
Or
Or
MODEL A
MODEL B
5. Insert the window slider adaptor into the hole of the window slider.
Type 2: Wall Installation(For some models)
NOTE: To ensure proper function, DO NOT overextend or bend the hose. Make sure that there is no
obstacle around the air outlet of the exhaust hose (in the range of 500mm) in order to the exhaust
system works properly. All the illustrations in this manual are for explanation purpose only. Your air
conditioner may be slightly different. The actual shape shall prevail.
1. Cut a 125mm (4.9inch) hole into the wall for the Wall Exhaust Adaptor B.
2. Secure the Wall Exhaust Adaptor B to the wall using the four Anchors and Screws provided in the kit.
3. Connect the Exhaust Hose Assembly(with Wall Exhaust Adaptor A) to the Wall Exhaust Adaptor B.
NOTE: Cover the hole using the
adaptor cap when not in use.
max 120cm or 47 inch
min 30cm or 12 inch
Expansion anchor
position
Adaptor cap
Wall Exhaust
Adaptor B
VENT CONTROL feature(for MODEL B)
The Vent Control is located at the back of the air
conditioner. The OPEN position removes stale air from
the room and exhausts it to the outside. Fresh air is
drawn in through normal passages in the home. When
not need to circulate the room air, set Vent Control to
CLOSE position. This function is only applicable for
MODEL B.
CL
OS
E
OP
EN
Installation
Instructions
Page 22
Operating
Instructions
Operating Instructions

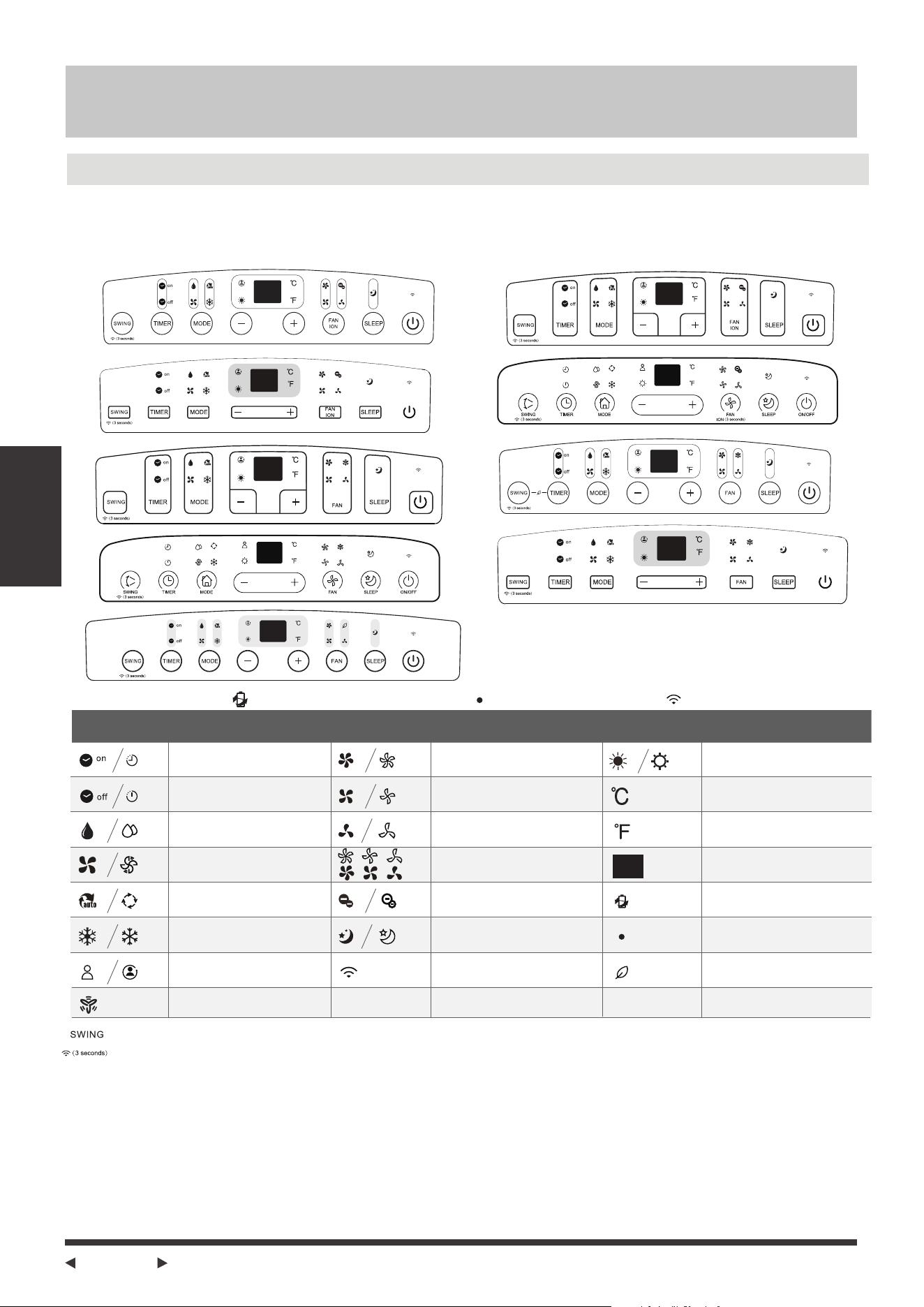

Control Panel Features
NOTE: The following control panels
are for explanation purpose only. The control panel of the unit you
purchased may be slightly different according to the models. Your machine may not contain some indicators
or buttons. The actual shape shall prevail.
Swing/Wireless(On some models) button
Used to initiate the Wireless function. For the
first time to use Wireless function, press and
hold the swing button for 3 seconds to initiate the
Wireless connection mode. The LED DISPLAY
shows 'AP' to indicate you can set Wireless
connection. If connection(router) is successful
within 8 minutes, the unit will exit Wireless
connection mode automatically and the Wireless
indicator illuminates. If connection is failure
within 8 minutes, the unit exits Wireless
connection mode automatically. After Wireless
connection is successful, you can press and
hold SWING and DOWN (-) buttons at the same
time for 3 seconds to turn off Wireless function
Used to initiate the Auto swing feature. When the
operation is ON, press the SWING button can stop
the louver at the desired angle.

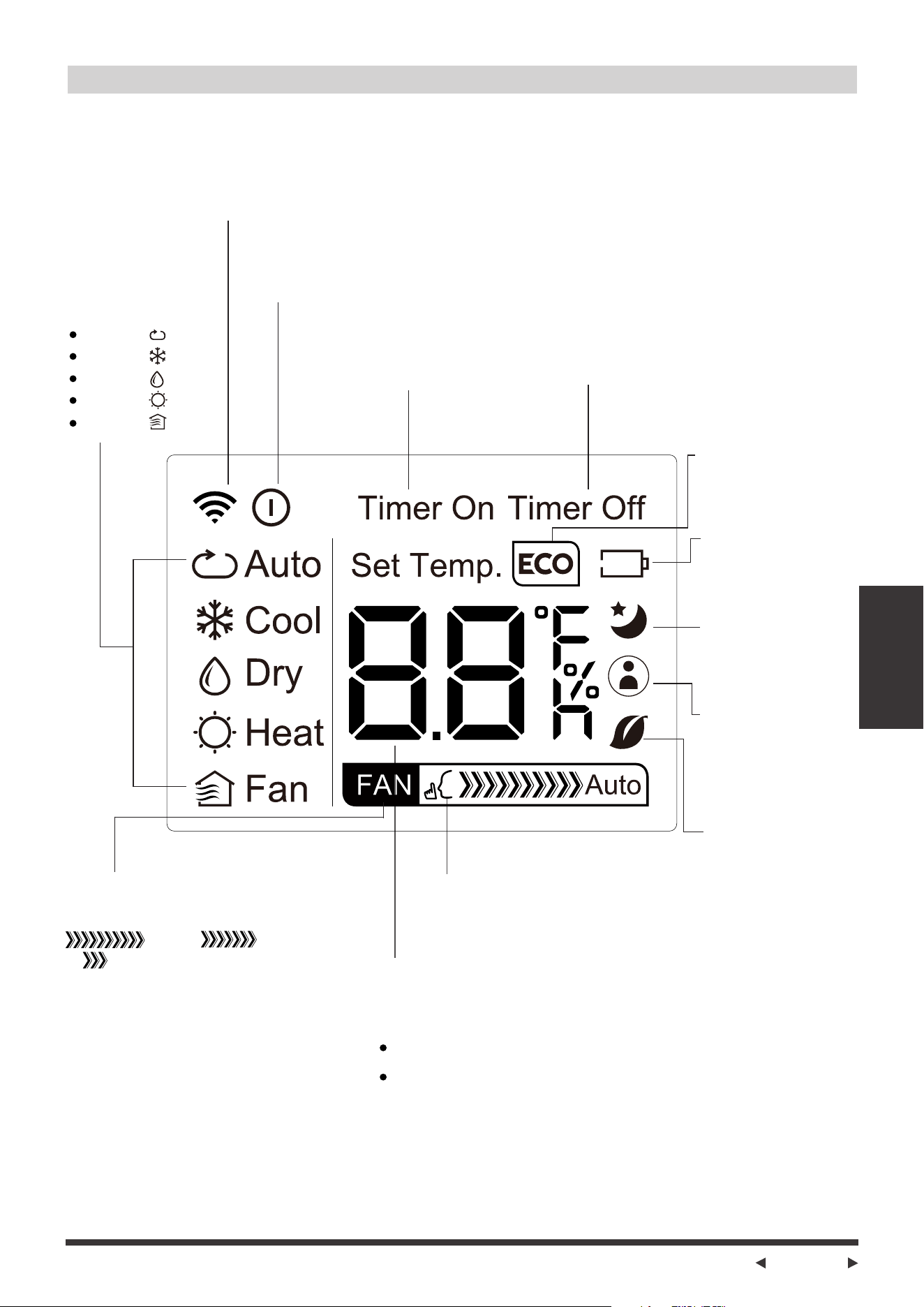

Constant Fan light
Indicator Function Indicator Function
HIGH fan speed light
AUTO fan speed light
(all illuminate/all dark)
MED fan speed light
LOW fan speed light
ION light
SLEEP light
Degrees Celsius
LED display
FOLLOW ME light
COOL mode light
FAN mode light
DRY mode light
AUTO mode light
Degrees Fahrenheit
Wireless light
Timer on light;
Timer off light;
Heat mode light;
Power management light
Power light
FRESH(Press 3s)
NOTE: On some models is instead of °F. On some models (power light) is instead of (WIRELESS light).
Indicator Function
Fresh light
CONSTANT FAN(Press 3s)
CONSTANT FAN(Press 3s)
CONSTANT FAN(Press 3s)
CONSTANT FAN(Press 3s)
Press 3s
Page 23
Operating
Instructions
Operation Instructions
and the LED DISPLAY shows 'OF' for 3 seconds,
press SWING and UP(+) buttons at the same
time to turn on Wireless function and the LED
DISPLAY shows 'On' for 3 seconds.
NOTE: When you restart the Wireless function,
it may take a period of time to connect to the
network automatically.
Timer button
Used to initiate the AUTO ON start time and
AUTO OFF stop time program, in conjuction
with the + & - buttons. The timer on/off
indicator light illuminates under the timer on/
off settings.
Mode button
Selects the appropriate operating mode. Each
time you press the button, a mode is selected
in a sequence that goes from AUTO), COOL,
DRY, FAN and HEAT (cooling only models
without). The mode indicator light illuminates
under the different mode settings.
Up (+) and Down (-) buttons
Used to adjust (increasing/decreasing)
temperature settings in 1°C/1°F (or 2 °F) increments
in a range of 17°C/62°F to 30°C/86°F (or 88°F) or the
TIMER setting in a range of 0~24hrs.
NOTE: The control is capable of displaying
temperature in degrees Fahrenheit or degrees
Celsius. To convert from one to the other, press
and hold the Up and Down buttons at the same
time for 3 seconds.
Fan/Constant fan(On some models) button
Control the fan speed. Press to select the fan
speed in four steps-LOW, MED, HIGH and AUTO.
The fan speed indicator light illuminates under
different fan settings. When select AUTO fan
speed, all the fan indicator lights turn dark. On
some models, when select AUTO fan speed, all
the fan indicator lights illumiante.
Sleep(Eco) button
Used to initiate the SLEEP/ECO operation.
Power button
Power switch on/off.
LED display
Shows the set temperature in °C or °F("°F" no
display for some models) and the Auto-timer
settings. While on DRY and FAN modes, it
shows the room temperature.
Shows Error codes and protection code:
E1-Room temperature sensor error.
E2-Evaporator temperature sensor error.
E3-Condenser temperature sensor error
(On some models).
E4-Display panel communication error.
EC-Refrigerant leakage detection malfunction
(On some models).
P1-Bottom tray is full--Connect the drain hose
and drain the collected water away.If protection
repeats,call for service.
Note: When one of the above malfunctions
occurs, turn off the unit, and check for any
obstructions. Restart the unit, if the malfunction
is still present, turn off the unit and unplug the
power cord. Contact the manufacturer or its
service agents or a similar qualified person for
service.
COOL operation
· Press the "MODE" button until the "COOL" indicator
light comes on.
· Press the ADJUST buttons "+" or "-" to select your
desired room temperature. The temperature can be
set within a range of 17°C~30°C/62°F~86°F(or 88°F).
· Press the "FAN SPEED" button to choose the fan
speed.
HEAT operation:
· Press the “MODE” button until the "HEAT" indicator
light comes on.
· Press the ADJUST buttons "+" or " - " to select your
desired room temperature. The temperature can be
set within a range of 17°C~30°C/62°F~86°F(or 88°F).
· Press the “FAN SPEED” button to choose the fan
speed.
CONSTAN T FAN(Press 3s)
ION/Fresh feature(on some models)
Press FAN button for 3 seconds to initiate ION/FRESH
feature and
the ION/FRESH light illumiantes(if applicable),
the LED DISPLAY shows 'O
n
' for 3 seconds for some
units
. The ion generatoris energized and will help to
purify the air inside. Press it for 3 seconds again to
stop the ION/FRESH
feature and the ION/FRESH light
turn dark(if applicable), the LED DISPLAY shows 'OF'
for 3 seconds for some units.
Page 24
Operating
Instructions
Other features
Note: For some models, the fan speed can not be
adjusted under HEAT mode.
AUTO operation
· When you set the air conditioner in AUTO mode, it
will automatically select cooling, heating (cooling only
models without), or fan only operation depending on
what temperature you have selected and the room
temperature.
· The air conditioner will control room temperature
automatically round the temperature point set by
you.
· Under AUTO mode, you can not select the fan
speed. NOTE: Under AUTO mode, both the AUTO
mode and the actual operation mode indicator lights
illuminate for some models.
FAN operation
· Press the "MODE" button until the"FAN " indicator
light comes on.
· Press the "FAN SPEED" button to choose the fan
speed. The temperature can not be adjusted.
· Do not put the duct to window.
DRY operation
· Press the "MODE" button until the "DRY" indicator
light comes on.
· Under this mode, you cannot select a fan speed or
adjust the temperature. The fan motor operates at
LOW speed.
· Keep windows and doors closed for the best
dehumidifying effect.
· Do not put the duct to window.
TIMER operation
· When the unit is on, press the Timer button will
FOLLOW ME/TEMP SENSING feature(On some models)
NOTE:This feature can be activated from the remote
control ONLY. The remote control serves as a remote
thermostat allowing for the precise temperature
control at its location.
To activate the Follow Me/Temp Sensing feature, point
the remote control towards the unit and press the
Follow Me/Temp Sensing button. The remote control
will send this signal to the air conditioner until press
the Follow Me/Temp Sensing button again. If the unit
does not receive the Follow Me/Temp Sensing
signal during any 7 minutes interval, the unit will
exit the Follow Me/Temp Sensing mode.
NOTE: This feature is unavailabe under FAN or DRY
mode.
AUTO-RESTART
If the unit breaks off unexpectedly due to the
power cut, it will restart with the previous function
setting automatically when the power resumes.
initiate the Auto-off stop program, the TIMER OFF
indicator light illuminates. Press the UP or down
button to select the desired time. Press the TIMER
button again within 5 seconds, the Auto-on start
program is initiated. And the TIMER ON indicator
light illuminates. Press the up or down button to
select the desired Auto-on start time.
SLEEP(ECO) operation
·
When the unit is off, press the Timer button to
initiate the Auto-on start program, press it again
within 5 seconds will initiate the Auto-off stop
program.
· Press or hold the UP or DOWN button to change
the Auto time by 0.5 hour increments, up to
10 hours, then at 1 hour increments up to
24 hours. The control will count down the time
remaining until start.
· The system will automatically revert back to
display the previous temperature setting if
there is no operation in a 5 seconds period.
· Turning the unit ON or OFF at any time or
adjusting the timer setting to 0.0 will cancel
the Auto Start/Stop timer program.
· Press this button, the selected temperature will
increase (cooling) or decrease (heating) by 1°C
every 30 minutes. The temperature will then
increase (cooling) or decrease (heating) by
another 1°C after an additional 30 minutes. This
new temperature will be maintained for 7 hours
before it returns to the originally selected
temperature. This ends the Sleep/Eco mode
and the unit will continue to operate as
originally programmed.
NOTE: This feature is unavailabe under FAN
or DRY mode.
Page 25

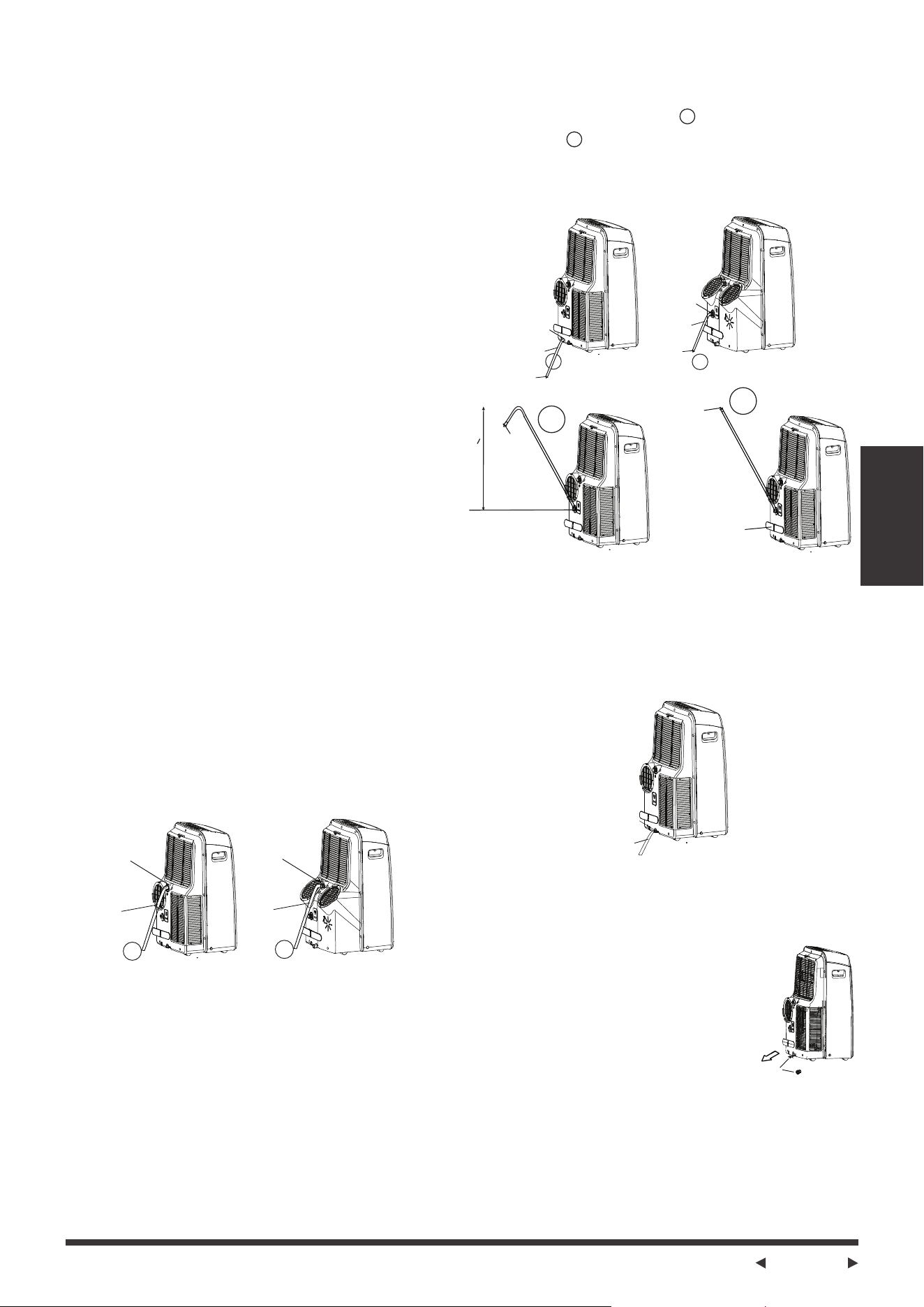

AIR FLOW DIRECTION AD
J
USTMENT
The louver can be adjusted automatically. Adjust the
air flow direction automatically:
Place the end of the hose into the drain and make
sure the end of the hose is down to let the water
flow smoothly.(See Figs with . Do never let it up.
√
X
(See Figs with ). When the continuous drain hose is
not used, ensure that the corresponding drain plug
and knob are installed firmly to prevent leakage.
Remove the
Remove the
WAIT 3 MINUTES BEFORE RESUMING OPERATION
After the unit has stopped, it can not be restarted
operation in the first 3 minutes. This is to protect the
unit. Operation will automatically start after 3 minutes.
POWER MANAGEMENT feature(On some models)
Under cooling operation, when the ambient
temperature is lower than the setting temperature for
a period of time, the unit will be automatically operate
power management feature. The compressor and fan
motor stop. When the ambient temperature is higher
than the setting temperature, the unit will be
automatically quit the power management feature.
The compressor and (or) fan motor run.
Water drainage
lower drain plug
lower drain plug
Continuous
Continuous
drain hose
drain hose
drain hose
drain hose
adaptor
adaptor
√
√
MODEL A MODEL B
drain hose
X
√
adaptor
drain hose
adaptor
Press the power
cord buckle into
the rear cover.
Remove the
lower drain plug
Continuous
drain hose
Remove the
Remove the
MODEL A1
upper drain plug
upper drain plug
Note: Make sure the drain hose is lower than the
bottom tray drain outlet.
Continuous
Continuous
drain hose
drain hose
√
√
MODEL A
MODEL B
NOTE: Make sure the hose is secure so there are no
leaks. Direct the hose toward the drain, making sure
that there are no kinks that will stop the water flowing.
· When the Power is ON, the louver opens fully.
· Press the SWING button on the panel or remote
controller to initiate the Auto swing feature. The
louver willl swing up and down automatically.
· Please do not adjust the louver manually.
·
During dehumidifying modes, remove the upper
drain plug from the back of the unit, install the
drain connector (5/8" universal female mender) with
3/4" hose (locally purchased). For the models
without drain connector, just attach the drain hose
to the hole. Place the open end of the hose directly
over the drain area in your basement floor.
· When the water level of the bottom tray reaches a
predetermined level, the unit beeps 8 times, the
digital display area shows "P1" .
At this time the air conditioning
/dehumidification process will
immediately stop. However, the
fan motor will continue to operate
(this is normal). Carefully move the
or
unit to a drain location, remove the bottom drain
plug and let the water drain away. Reinstall the
bottom drain plug and restart the machine until the
"P1" symbol disappears. If the error repeats, call for
service. NOTE: Be sure to reinstall the bottom drain
plug firmly to prevent leakage before using the unit.
·
During heating pump mode, remove the lower drain
plug from the back of the unit, install the drain
connector (5/8" universal female mender) with 3/4"
hose (locally purchased). For the models without
drain connector, just attach the drain hose to the
hole. Place the open end of the Hose adaptor directly
over the drain area in your basement floor.
delivery lift <1.8m
· (For model A1)During heating pump mode,
remove the lower drain plug from the back of
the unit, install the drain connector (5/8” universal
female mender) with 3/4" hose (locally purchased).
Carefully move the unit to a drain location, and
let the water drain away.
Operating
Instructions
Page 26
Remote Control
Remote Control Operation
Remote Control Specications
Model RG57H(B)/BG(C)E
Rated Voltage 3.0V (AAA×2)
Signal Receiving Range 8m
Range -5°C~60°C
NOTE
y Buttons design is based on typical model and might be slightly dierent from the actual one you
purchased, the actual shape shall prevail.
y All the functions described are accomplished by the unit, if the unit has no this feature, there is no
corresponding operation happened when press the relative button on the remote controller.
y When there are wide dierences between Remote controller Illustration and USERS MANUAL on function
description, the description on USERS MANUAL shall prevail.
y The device could comply with the local national regulations. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
y This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help. Changes or modications
not approved by the party responsible for compliance could void suers authority to operate the
equipment.
ON/OFF
SHORT
CUT
MODE
TIMER
ON
TEMP
FAN
TIMER
OFF
ION
A
SLEEP
SWING
LED
Page 27

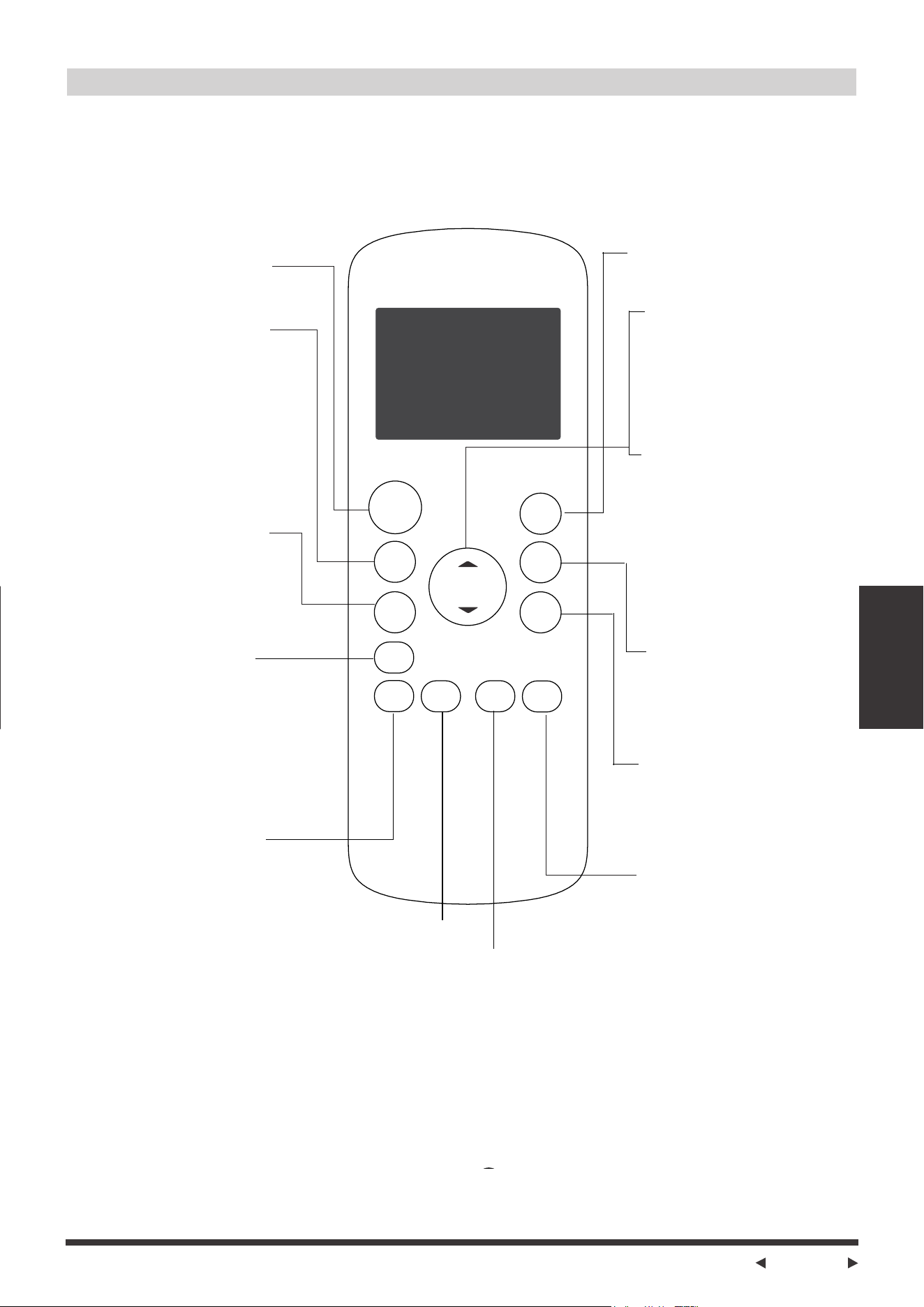

Remote Control
Remote Control Functions
33
44
NOT SURE WHAT A FUNCTION DOES?
Refer to the How to Use Basic Functions and
How to Use Advanced Functions sections
of this manual for a detailed description of
how to use your air conditioner.
SPECIAL NOTE
Button designs on your unit may differ
slightly from the example shown.
If the unit does not have a particular
function, pressing that function s button
on the remote control will have no effect.
When there are wide differences between
Remote control Illustration and
USER'S MANUAL on function description,
the description of USER'S MANUAL
shall prevail.
TIPS FOR USING REMOTE CONTROL
The remote control must be used within 8
meters of the unit.
The unit will beep when remote signal is
received.
Curtains, other materials and direct sunlight
can interfere with the infrared signal receiver.
Remove batteries if the remote will not be
used more than 2 months.
Inserting and Replacing Batteries
Your air conditioning unit comes with two AAA
batteries. Put the batteries in the remote control
before use.
1.Slide the back cover from the remote
Control downward, exposing the battery
compartment.
2.Insert the batteries, paying attention to match
up the (+) and (-) ends of the batteries with
the symbols inside the battery compartment.
3.Slide the battery cover back into place.
BATTERY NOTES
For optimum product performance:
Do not mix old and new batteries, or
batteries of different types.
Do not leave batteries in the remote control
if you don t plan on using the device for
more than 2 months.
BATTERY DISPOSAL
Do not dispose of batteries as unsorted
municipal waste. Refer to local laws for
proper disposal of batteries.
,
,
,
,
,
,
,
,
,
,
,
,
,
,
p
Before you begin using your new air conditioner, make sure to familiarize yourself with its remote
control. The following is a brief introduction to the remote control itself. For instructions on how to
operate your air conditioner, refer to the How to Use Basic Functions section of this manual.
ON/OFF
Turns the unit on or off.
SHORT CUT
Sets and activates your
favorite pre-settings.
MODE
Scrolls through operation
TEMP
Increases temperate in
1
O
C increments.
Max. temperature is
30
O
C .
TEMP
Decreases temperate in
1
O
C increments.
Min. temperature is
17
O
C.
NOTE: Press and hold
and
buttons together for
3 seconds will alternate the
temperature display
between the
O
C &
O
F scale.
modes as follows:
AUTO COOL DRY
HEAT FAN
NOTE：Please do not select
HEAT mode if the machine you
purchased is cooling only type.
Heat mode is not supported by
the cooling only appliance.
RG57J2(B)/BGCE(U1) has only cool and fan modes.
ON/OFF
SHORT
FAN SPEED
Selects fan speeds in
CUT
MODE
TIMER
the following order:
AUTO LOW
MED HIGH
NOTE: MED is optional.
ON
TEMP
FAN
TIMER
OFF
ION
Press this button, the
Ionizer is energised and
will help to remove pollen
and impurities from the
air.
ION
TIMER ON
Sets timer to turn unit
on (see How to Use
Basic Functions for
instructions)
TIMER OFF
Sets timer to turn unit
off (see How to Use
Basic Functions for
instructions)
LED
Turns indoor unit
,
s LED
display on and off.
If you are sensitive to
light when you go to
sleep, you can press the
LED button to turn off
the LED display on the
unit. Press the button
again to turn it back on.
SLEEP
SWING
A
LED
SLEEP
Saves energy during
sleeping hours.
SWING
Starts and stops louver
movement.
A
A: FOLLOW ME
Temperature sensing
and room temperature
display button.
A: ECO
Used to enter the
energy efficient mode.
This feature is availabe
under cool mode only.
NOTE:
Swing, Ion, Follow me, ECO and Med fan
speed features are optional.
Page 28

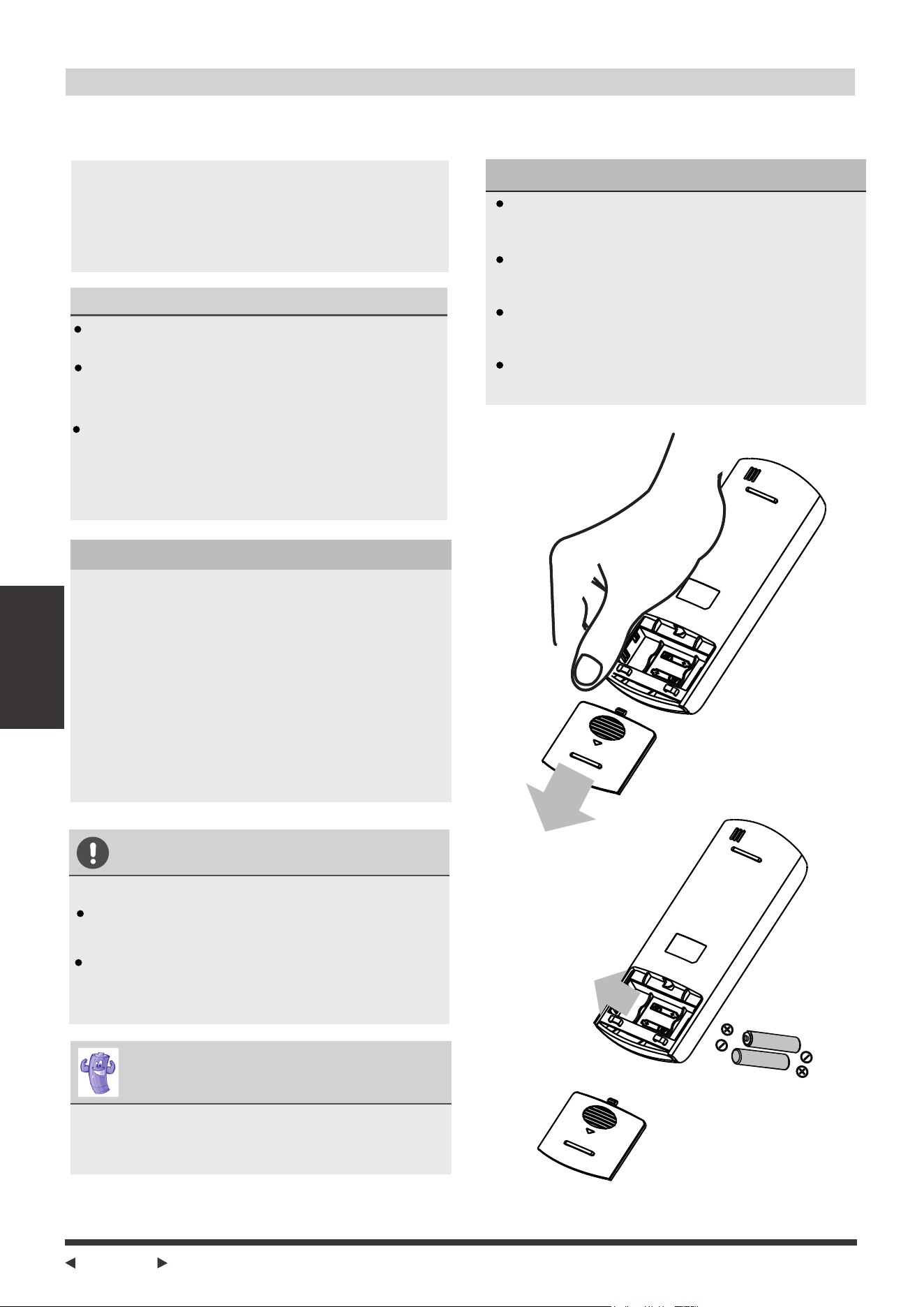

Handling the Remote Control
33
44
NOT SURE WHAT A FUNCTION DOES?
Refer to the How to Use Basic Functions and
How to Use Advanced Functions sections
of this manual for a detailed description of
how to use your air conditioner.
SPECIAL NOTE
Button designs on your unit may differ
slightly from the example shown.
If the unit does not have a particular
function, pressing that function s button
on the remote control will have no effect.
When there are wide differences between
Remote control Illustration and
USER'S MANUAL on function description,
the description of USER'S MANUAL
shall prevail.
TIPS FOR USING REMOTE CONTROL
The remote control must be used within 8
meters of the unit.
The unit will beep when remote signal is
received.
Curtains, other materials and direct sunlight
can interfere with the infrared signal receiver.
Remove batteries if the remote will not be
used more than 2 months.
Inserting and Replacing Batteries
Your air conditioning unit comes with two AAA
batteries. Put the batteries in the remote control
before use.
1.Slide the back cover from the remote
Control downward, exposing the battery
compartment.
2.Insert the batteries, paying attention to match
up the (+) and (-) ends of the batteries with
the symbols inside the battery compartment.
3.Slide the battery cover back into place.
BATTERY NOTES
For optimum product performance:
Do not mix old and new batteries, or
batteries of different types.
Do not leave batteries in the remote control
if you don t plan on using the device for
more than 2 months.
BATTERY DISPOSAL
Do not dispose of batteries as unsorted
municipal waste. Refer to local laws for
proper disposal of batteries.
,
,
,
,
,
,
,
,
,
,
,
,
,
,
p
：
Remote Control
Page 29
Remote Control
55
66
MODE display
Displays the current
mode, including:
AUTO
COOL
DRY
HEAT
FAN
Transmission Indicator
Lights up when remote sends
signal to unit
ON/OFF display
Appears when the unit is turned on,
and disappears when it is turned off
TIMER ON display
Displays when TIMER
ON is set
TIMER OFF display
Displays when TIMER
OFF is set
SLEEP display
Battery display
SILENT display
ECO display
Displays when
SLEEP function
is activated
FOLLOW ME
display
Indicates that
the FOLLOW ME
function is on
FAN SPEED display
Displays selected FAN SPEED:
HIGH, MED,
or LOW
This display is blank when
set to AUTO speed.
Temperature/Timer display
Displays the set temperature by default, or timer setting
when using TIMER ON/OFF functions
Temperature range: 17-30
o
C
Timer setting range: 0-24 hours
This display is blank when operating in FAN mode.
1.Press the MODE button to select
COOL mode.
2.Set your desired temperature using
the Temp or Temp button.
3.Press the FAN button to select the
fan speed: AUTO, LOW, MED,or
HIGH.
4.Press the ON/OFF button to start the
unit.
In AUTO mode, the unit will automatically
select the COOL, FAN, HEAT or DRY mode
based on the set temperature.
1.Press the MODE button to select Auto mode.
2.Set your desired temperature using the
Temp or Temp button.
3.Press the ON/OFF button to start the unit.
,
NOTE: FAN SPEED can t be set in Auto mode.
SETTING TEMPERATURE
AUTO operation
The operating temperature range for units is
17-30
O
C.
You can increase or decrease the set
temperature in 1
O
C increments.
COOL operation
1
3
2
1
3
2
4
Not available for this unit
Not available for
this unit
Low battery
detection
Remote LED Screen Indicators
How To Use The Basic Functions
ON/OFF
ON/OFF
TEMP
TEMP
SHORT
CUT
SHORT
CUT
TIMER
ON
TIMER
ON
TIMER
OFF
TIMER
OFF
MODE
MODE
FAN
FAN
SLEEP
SLEEP
LED
LED
FOLLOW
ION
SWING
ME
FOLLOW
ION
SWING
ME
NOTE: MED is optional.
Not available for
this unit
Remote LED Screen Indicators
Page 30

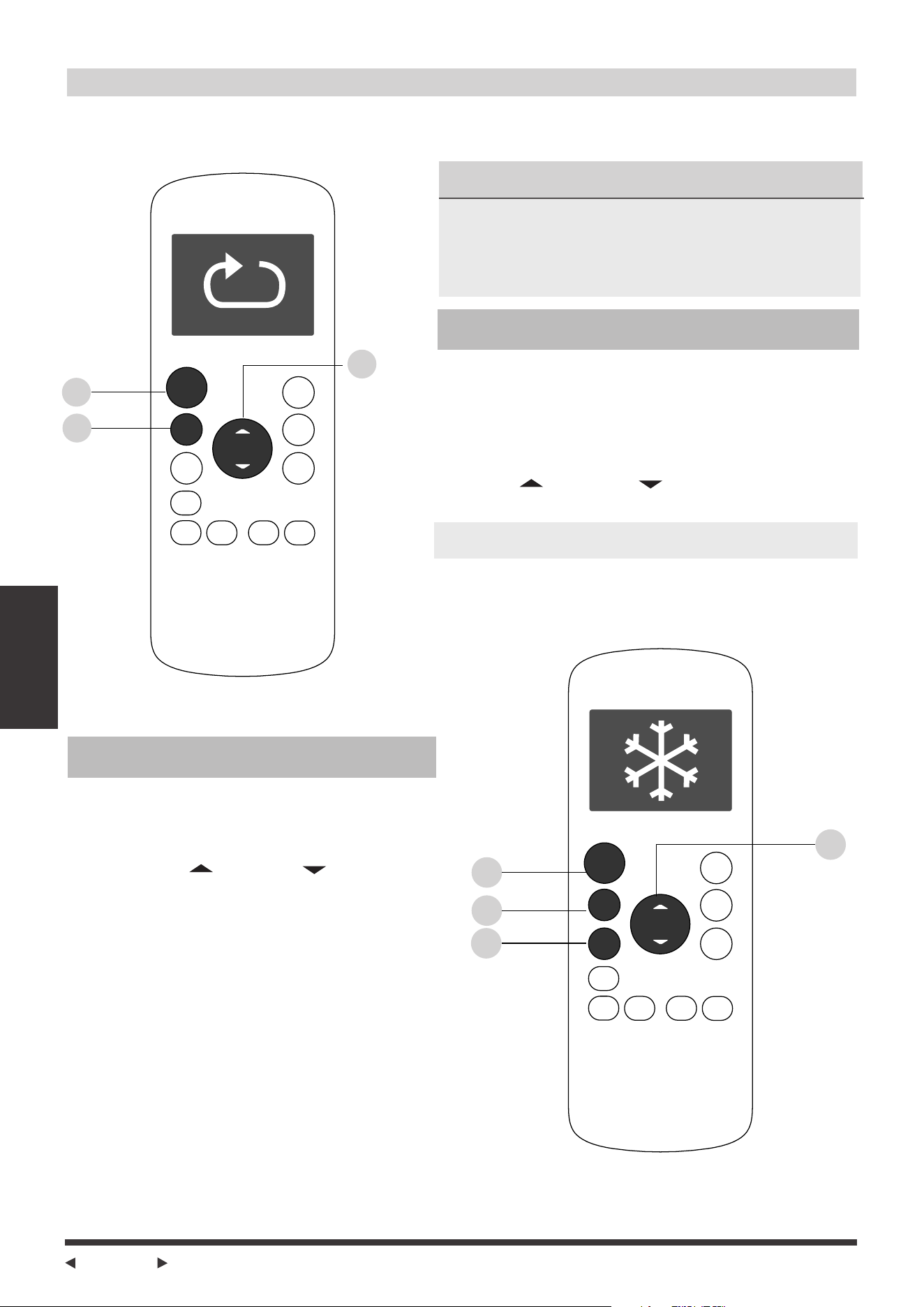

Basic Functions
Remote Control
55
66
MODE display
Displays the current
mode, including:
AUTO
COOL
DRY
HEAT
FAN
Transmission Indicator
Lights up when remote sends
signal to unit
ON/OFF display
Appears when the unit is turned on,
and disappears when it is turned off
TIMER ON display
Displays when TIMER
ON is set
TIMER OFF display
Displays when TIMER
OFF is set
SLEEP display
Battery display
SILENT display
ECO display
Displays when
SLEEP function
is activated
FOLLOW ME
display
Indicates that
the FOLLOW ME
function is on
FAN SPEED display
Displays selected FAN SPEED:
HIGH, MED,
or LOW
This display is blank when
set to AUTO speed.
Temperature/Timer display
Displays the set temperature by default, or timer setting
when using TIMER ON/OFF functions
Temperature range: 17-30
o
C
Timer setting range: 0-24 hours
This display is blank when operating in FAN mode.
1.Press the MODE button to select
COOL mode.
2.Set your desired temperature using
the Temp or Temp button.
3.Press the FAN button to select the
fan speed: AUTO, LOW, MED,or
HIGH.
4.Press the ON/OFF button to start the
unit.
In AUTO mode, the unit will automatically
select the COOL, FAN, HEAT or DRY mode
based on the set temperature.
1.Press the MODE button to select Auto mode.
2.Set your desired temperature using the
Temp or Temp button.
3.Press the ON/OFF button to start the unit.
,
NOTE: FAN SPEED can t be set in Auto mode.
SETTING TEMPERATURE
AUTO operation
The operating temperature range for units is
17-30
O
C.
You can increase or decrease the set
temperature in 1
O
C increments.
COOL operation
1
3
2
1
3
2
4
Not available for this unit
Not available for
this unit
Low battery
detection
Remote LED Screen Indicators
How To Use The Basic Functions
ON/OFF
ON/OFF
TEMP
TEMP
SHORT
CUT
SHORT
CUT
TIMER
ON
TIMER
ON
TIMER
OFF
TIMER
OFF
MODE
MODE
FAN
FAN
SLEEP
SLEEP
LED
LED
FOLLOW
ION
SWING
ME
FOLLOW
ION
SWING
ME
NOTE: MED is optional.
Not available for
this unit
Page 31
77
88

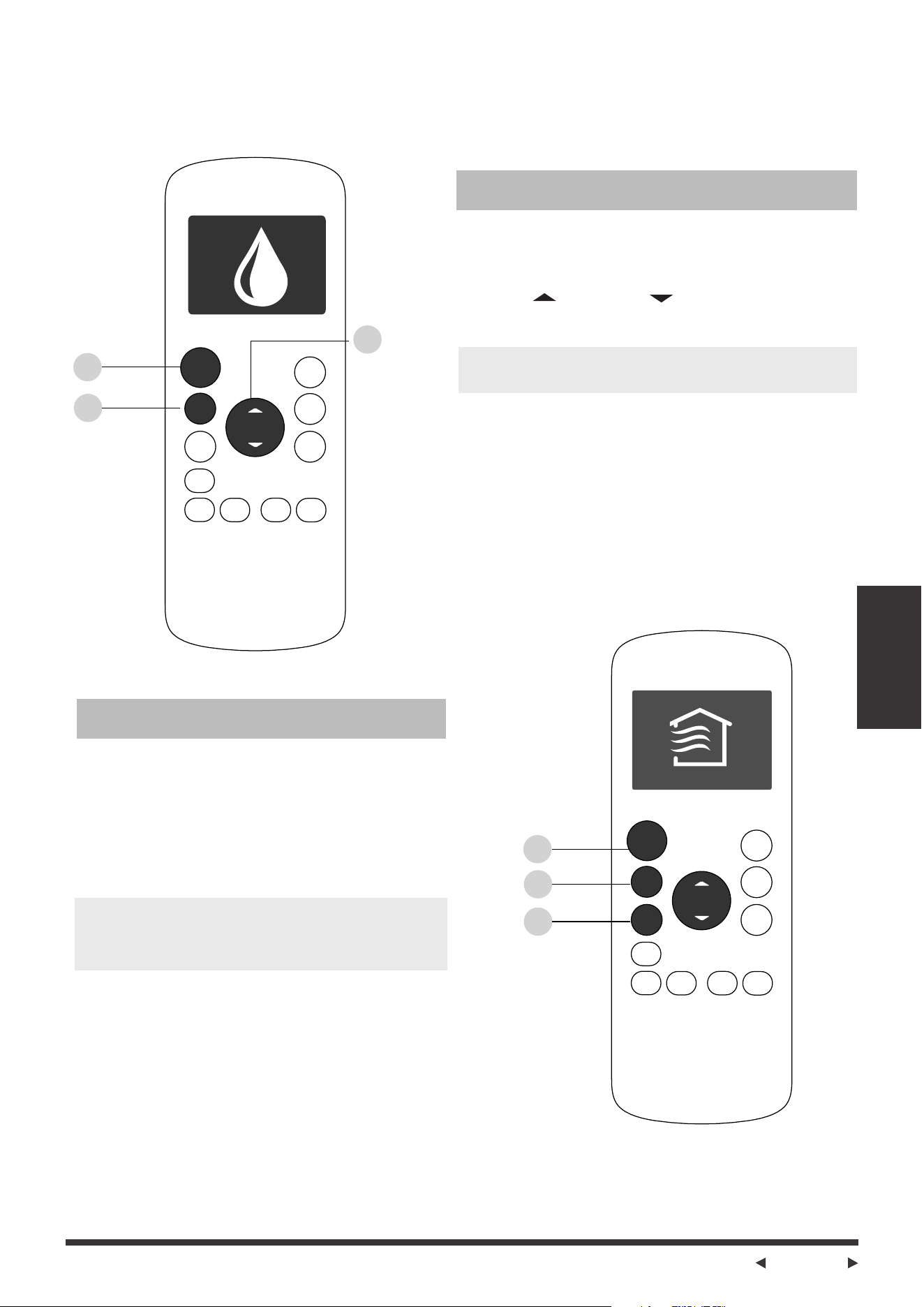

1.Press the MODE button to select DRY
mode.
2.Set your desired temperature using the
Temp or Temp button.
3.Press the ON/OFFbutton to start the unit.
,
NOTE: FAN SPEED can t be changed in
DRY mode.
1.Press the MODE button to select FAN
mode.
2.Press FAN button to select the fan
speed: AUTO, LOW, MED or HIGH.
3.Press the ON/OFFbutton to start the
unit.
,
NOTE: You cant set temperature in FAN
mode. As a result, your remote control s
LCD screen will not display temperature.
DRY operation(dehumidifying)
FAN operation
,
1.Press the MODE button to select
HEAT mode.
2.Set your desired temperature using
the Temp or Temp button.
3.Press the FAN button to select the
fan speed: AUTO, LOW, MED,or HIGH.
4.Press the ON/OFF button to start the
unit.
HEAT operation
NOTE: As outdoor temperature drops,the
performance of your unit s HEAT function
may be affected. In such instances, we
recommend using this air conditioner in
conjunction with other heating appliance.
,
1
1
2
3
3
2
1
3
2
4
How To Use The Basic Functions
How To Use The Basic Functions
ON/OFF
TEMP
SHORT
CUT
TIMER
ON
TIMER
OFF
MODE
FAN
LED
ON/OFF
TEMP
SHORT
CUT
TIMER
ON
TIMER
OFF
MODE
FAN
SLEEP
LED
ON/OFF
TEMP
SHORT
CUT
TIMER
ON
TIMER
OFF
MODE
FAN
SLEEP
LED
ION
SLEEP
FOLLOW
SWING
ME
ION
FOLLOW
SWING
ME
FOLLOW
ION
SWING
ME
Remote Control
Page 32
77
88
1.Press the MODE button to select DRY
mode.
2.Set your desired temperature using the
Temp or Temp button.
3.Press the ON/OFFbutton to start the unit.
,
NOTE: FAN SPEED can t be changed in
DRY mode.
1.Press the MODE button to select FAN
mode.
2.Press FAN button to select the fan
speed: AUTO, LOW, MED or HIGH.
3.Press the ON/OFFbutton to start the
unit.
,
NOTE: You cant set temperature in FAN
mode. As a result, your remote control s
LCD screen will not display temperature.
DRY operation(dehumidifying)
FAN operation
,

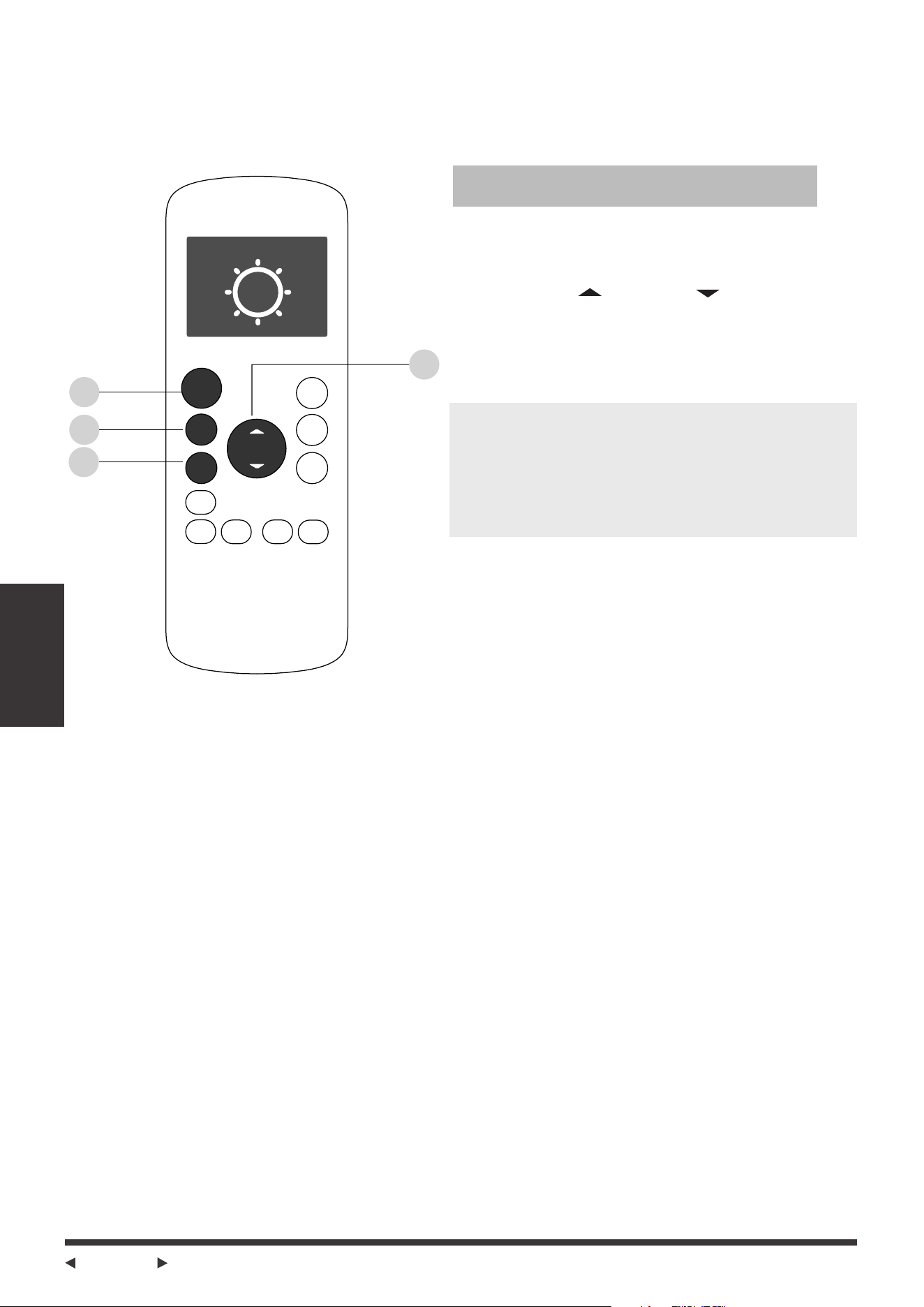

1.Press the MODE button to select
HEAT mode.
2.Set your desired temperature using
the Temp or Temp button.
3.Press the FAN button to select the
fan speed: AUTO, LOW, MED,or HIGH.
4.Press the ON/OFF button to start the
unit.
HEAT operation
NOTE: As outdoor temperature drops,the
performance of your unit s HEAT function
may be affected. In such instances, we
recommend using this air conditioner in
conjunction with other heating appliance.
,
1
1
2
3
3
2
1
3
2
4
How To Use The Basic Functions
How To Use The Basic Functions
ON/OFF
TEMP
SHORT
CUT
TIMER
ON
TIMER
OFF
MODE
FAN
LED
ON/OFF
TEMP
SHORT
CUT
TIMER
ON
TIMER
OFF
MODE
FAN
SLEEP
LED
ON/OFF
TEMP
SHORT
CUT
TIMER
ON
TIMER
OFF
MODE
FAN
SLEEP
LED
ION
SLEEP
FOLLOW
SWING
ME
ION
FOLLOW
SWING
ME
FOLLOW
ION
SWING
ME
Remote Control
Page 33
99
1100
NOTE:
" 0.0h "
When setting the TIMER ON or
TIMER OFF functions, up to 10 hours,
the time will increase in 30 minute
increments with each press. After 10
hours and up to 24, it will increase in 1
hour increments. The timer will revert to
zero after 24 hours.
You can turn off either function by
setting its timer to .
2.Press the TIMER ON button repeatedly
to set the time when you want the unit to
turn on.
3.Wait 2 seconds, then the TIMER ON
function will be activated. The digital
display on your remote control will then
return to the temperature display.
2.Press the TIMER OFF button repeatedly
to set the time when you want the unit to
turn off.
3.Wait 2 seconds, then the TIMER OFF
function will be activated. The digital
display on your remote control will then
return to the temperature display.

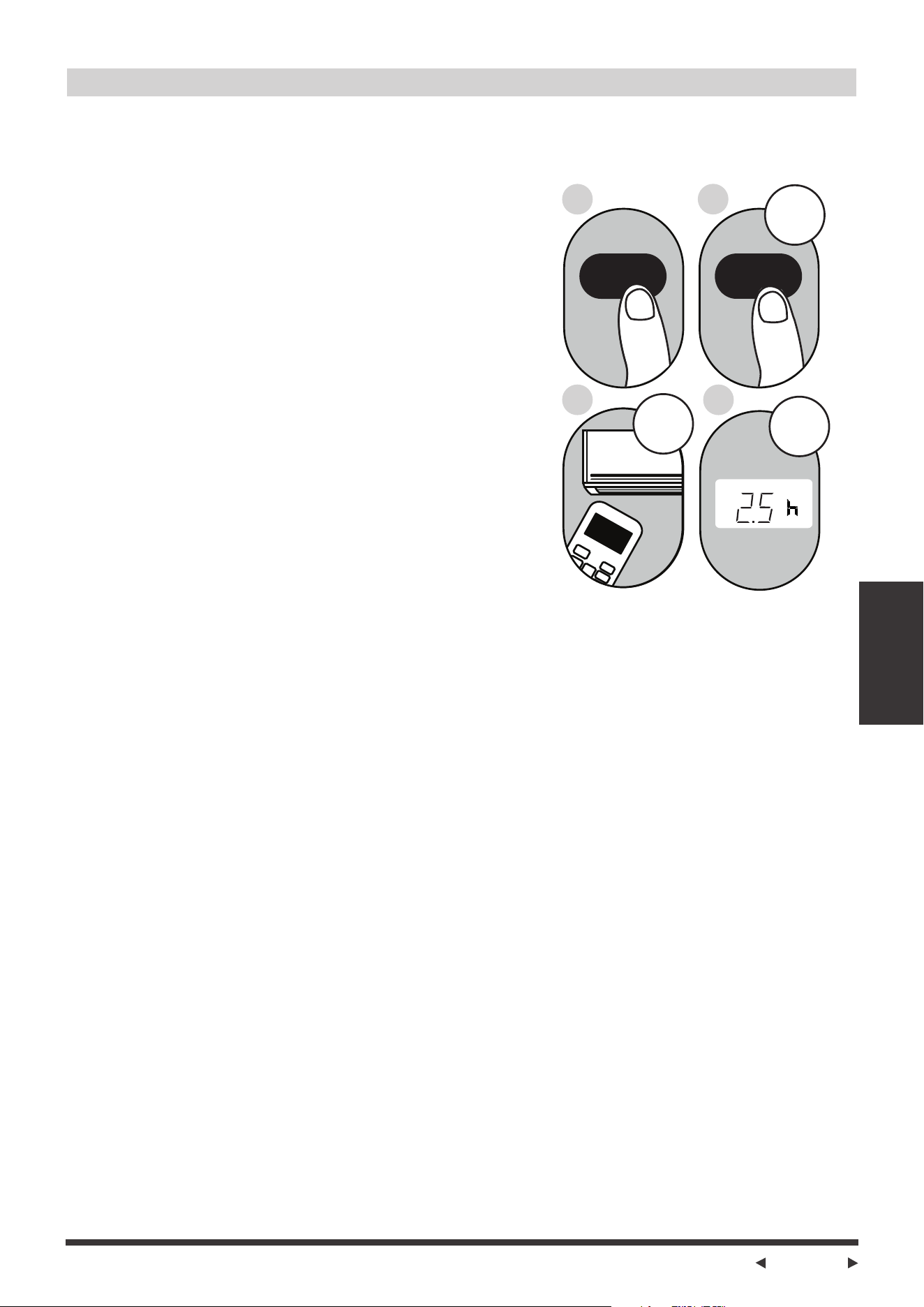

Example
hours.
:
Setting unit to turn on after 2.5

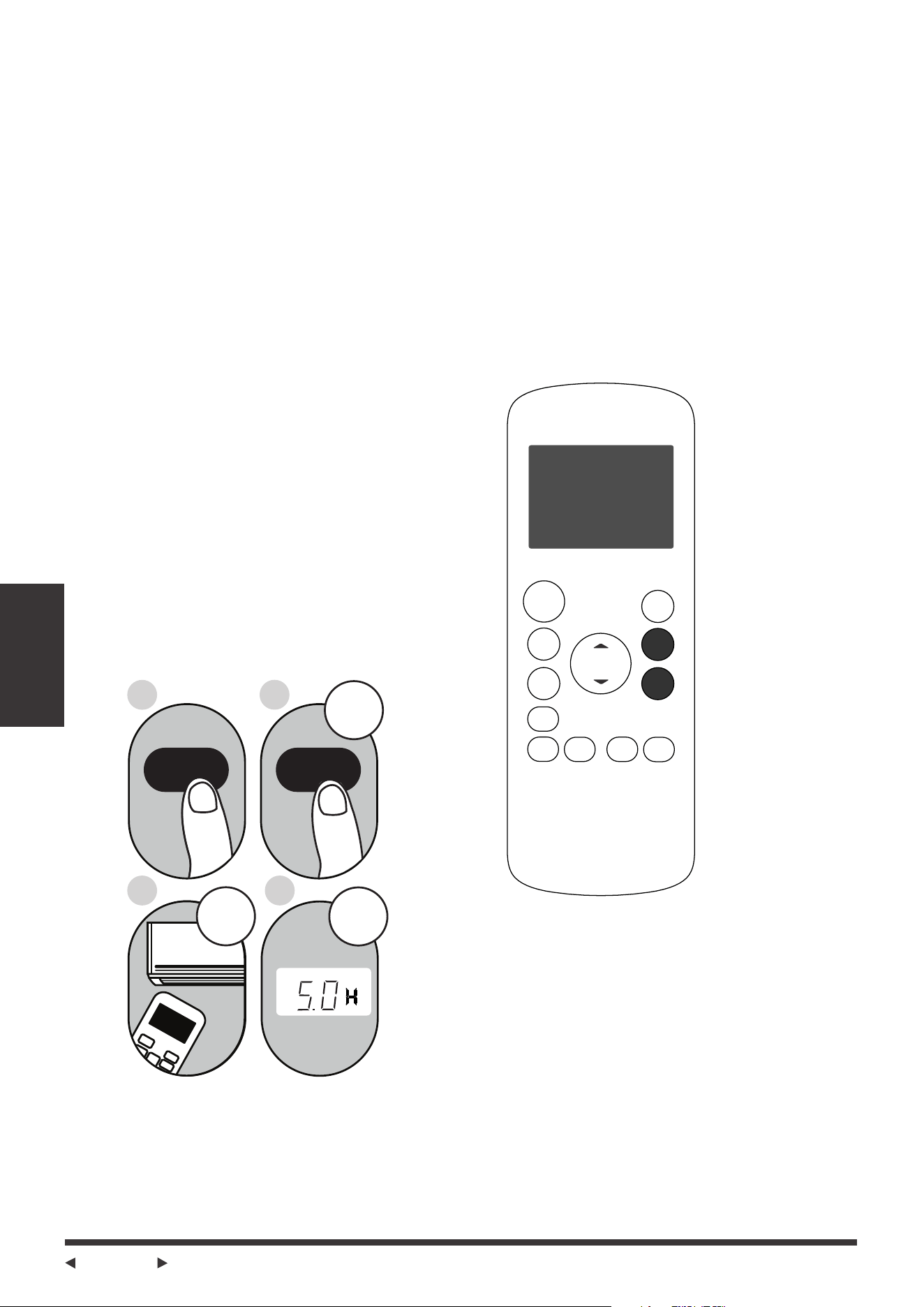

Example
hours.
: Setting unit to turn off after 5
2sec
ON/OFF
MODE
FAN
SHORT
CUT
TIMER ON
TIMER OF
F
TEMP
S
L
E
EP
1sec
x5
1
3
2
4
TIMER OFF function
The TIMER OFF function allows you to
set a period of time after which the unit
will automatically turn off, such as when
you wake up.
1.
This number indicates the
amount of time after the current time
that you want the unit to turn on.
For example, if you set TIMER ON for
2 hours, will appear on the
screen, and the unit will turn on after
2 hours.
Press the TIMER ON button. By
default, the last time period that you
set and an "h" (indicating hours)will
appear on the display.
Note:
" 2.0h "
1.
This number indicates the
amount of time after the current time
that you want the unit to turn off.
For example, if you set TIMER OFF for
2 hours, will appear on the
screen, and the unit will turn off after
2 hours.
Press the TIMER OFF button. By
default, the last time period that you
set and an "h" (indicating hours)will
appear on the display.
Note:
" 2.0h "
2sec
x10
ON/OFF
MODE
FAN
SHORT
CUT
TIMER ON
TIMER OF
F
TEMP
SL
EEP
1sec
1
3
2
4
TIMER ON function
The TIMER ON function allows you to set
a period of time after which the unit will
automatically turn on, such as when you
come home from work.
Your air conditioning unit has two
timer-related functions:
TIMER ON- sets the amount of timer after
which the unit will automatically turn on.
TIMER OFF- sets the amount of time after
which the unit will automatically turn off.
TIMER ONTIMER ON
TIMER OFF
TIMER OFF
Continue to
press TIMER
ON
or
TIMER
OFF until
desired time is
reached.
ON/OFF
TEMP
SHORT
CUT
TIMER
ON
TIMER
OFF
MODE
FAN
SLEEP
LED
Timer on
FOLLOW
SWING
ION
ME
Timer Function
Remote Control
Page 34
99
1100
NOTE:
" 0.0h "
When setting the TIMER ON or
TIMER OFF functions, up to 10 hours,
the time will increase in 30 minute
increments with each press. After 10
hours and up to 24, it will increase in 1
hour increments. The timer will revert to
zero after 24 hours.
You can turn off either function by
setting its timer to .
2.Press the TIMER ON button repeatedly
to set the time when you want the unit to
turn on.
3.Wait 2 seconds, then the TIMER ON
function will be activated. The digital
display on your remote control will then
return to the temperature display.
2.Press the TIMER OFF button repeatedly
to set the time when you want the unit to
turn off.
3.Wait 2 seconds, then the TIMER OFF
function will be activated. The digital
display on your remote control will then
return to the temperature display.
Example
hours.
: Setting unit to turn on after 2.5
Example
hours.
: Setting unit to turn off after 5
2sec
ON/OFF
MODE
FAN
SHORT
CUT
TIMER ON
TIMER OF
F
TEMP
S
L
E
EP
1sec
x5
1
3
2
4
TIMER OFF function
The TIMER OFF function allows you to
set a period of time after which the unit
will automatically turn off, such as when
you wake up.
1.
This number indicates the
amount of time after the current time
that you want the unit to turn on.
For example, if you set TIMER ON for
2 hours, will appear on the
screen, and the unit will turn on after
2 hours.
Press the TIMER ON button. By
default, the last time period that you
set and an "h" (indicating hours)will
appear on the display.
Note:
" 2.0h "
1.
This number indicates the
amount of time after the current time
that you want the unit to turn off.
For example, if you set TIMER OFF for
2 hours, will appear on the
screen, and the unit will turn off after
2 hours.
Press the TIMER OFF button. By
default, the last time period that you
set and an "h" (indicating hours)will
appear on the display.
Note:
" 2.0h "
2sec
x10
ON/OFF
MODE
FAN
SHORT
CUT
TIMER ON
TIMER OF
F
TEMP
SL
EEP
1sec
1
3
2
4
TIMER ON function
The TIMER ON function allows you to set
a period of time after which the unit will
automatically turn on, such as when you
come home from work.
Your air conditioning unit has two
timer-related functions:
TIMER ON- sets the amount of timer after
which the unit will automatically turn on.
TIMER OFF- sets the amount of time after
which the unit will automatically turn off.
TIMER ONTIMER ON
TIMER OFF
TIMER OFF
Continue to
press TIMER
ON
or
TIMER
OFF until
desired time is
reached.
ON/OFF
TEMP
SHORT
CUT
TIMER
ON
TIMER
OFF
MODE
FAN
SLEEP
LED
Timer on
FOLLOW
SWING
ION
ME
Remote Control
Page 35
1111

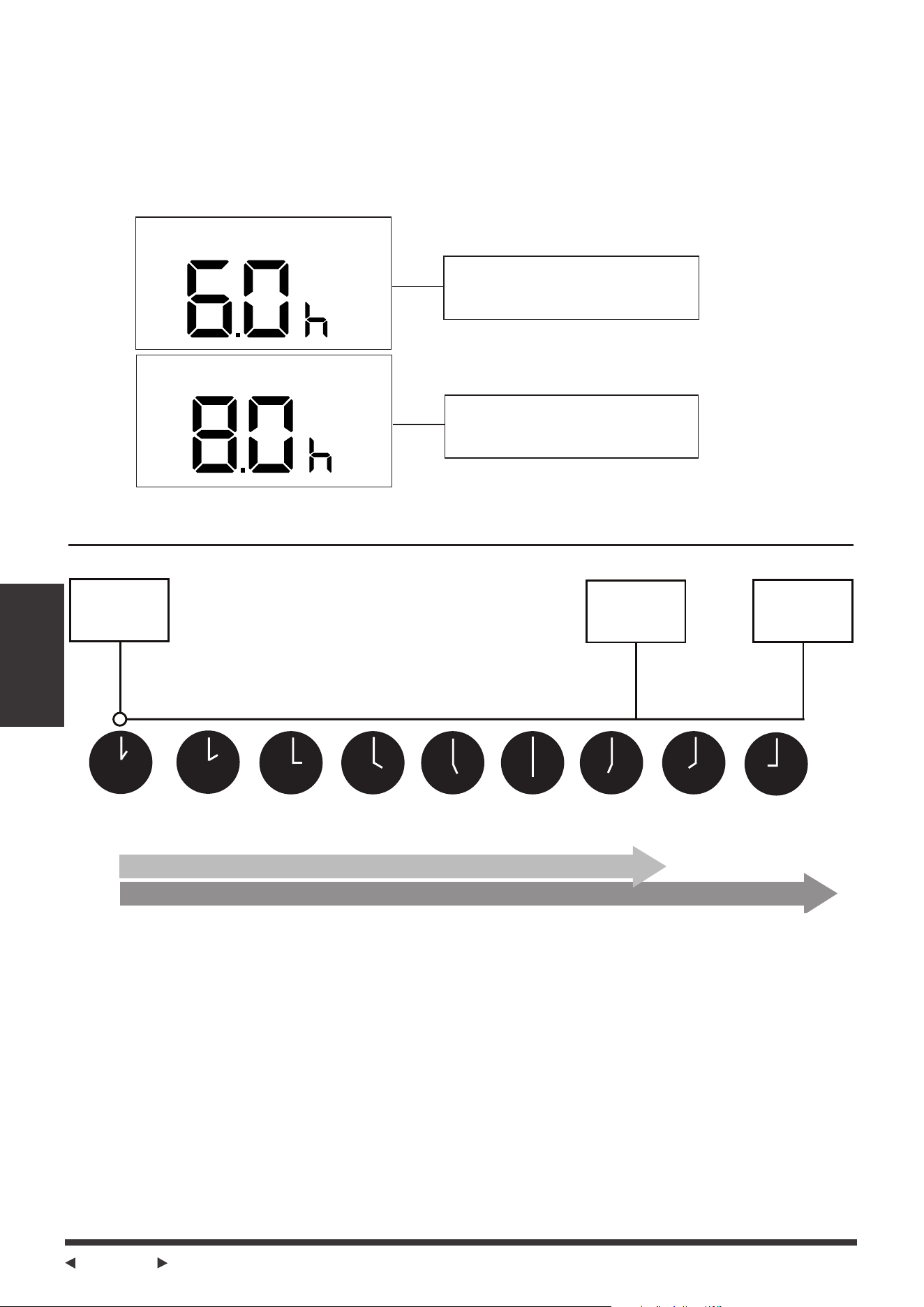

Example: Setting the unit to turn on after 6 hours, operate for 2 hours, then turn off
(see the figure below)
Your remote display
Timer is set To turn ON
6 hours from current time
Timer is set to turn OFF
8 hours from current time
Current
time 1PM
2PM3PM
4PM5PM
6PM7PM8PM9PM
Timer starts
Unit turnsUnit turns
ON
OFF
6 hours later
8 hours later
Timer on
Timer off
1122
Setting both TIMER ON and TIMER OFF at the same time
Keep in mind that the time periods you set for both functions refer to hours after the
current time. For example, say that the current time is 1:00 PM, and you want the unit
to turn on automatically at 7:00 PM. You want it to operate for 2 hours, then automa-
tically turn off at 9:00 PM.

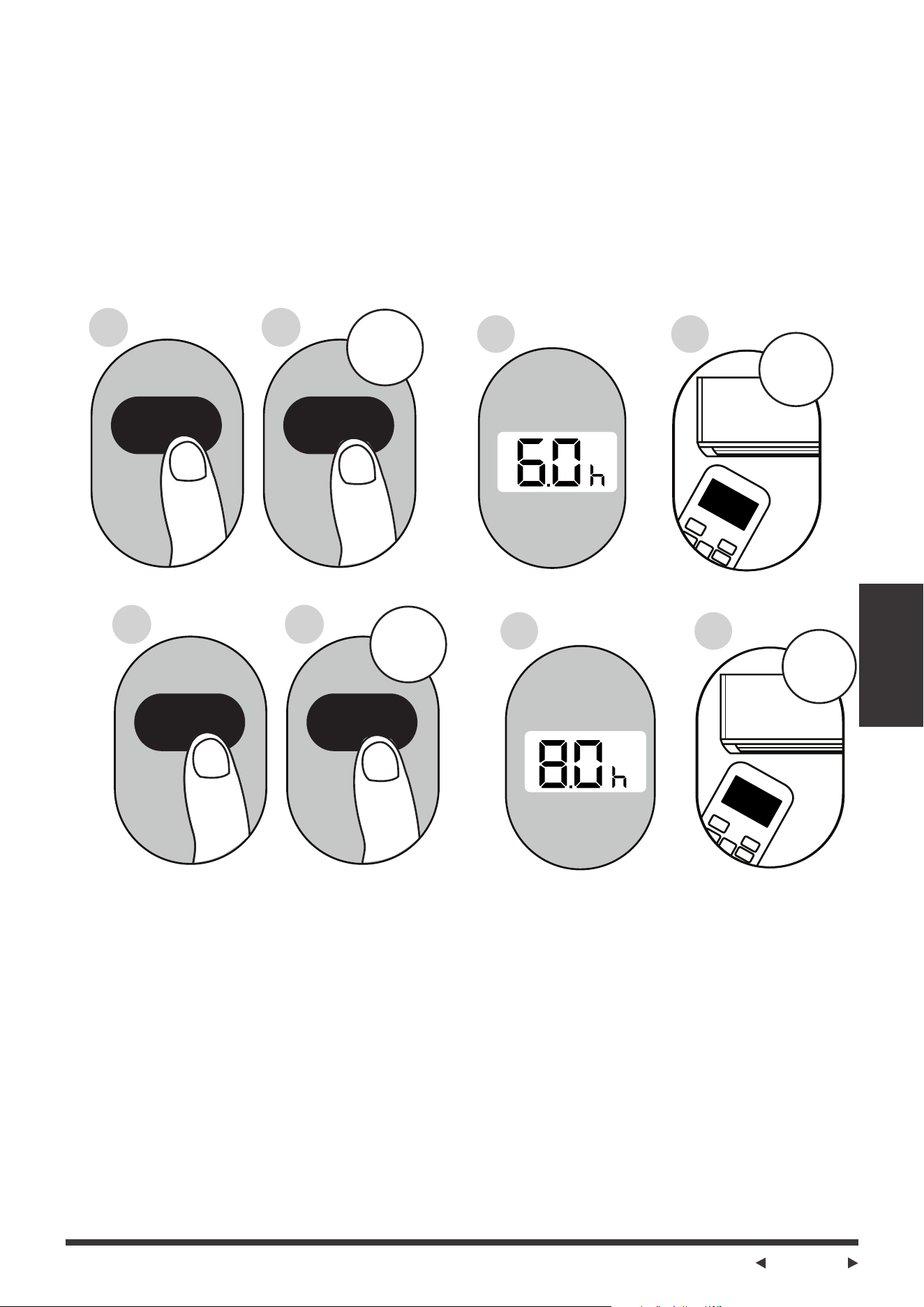

Do the following:
ON/OFF
ON/OFF
MODE
MODE
SHORT
SHORT
CUT
CUT
TIMER ON
TIMER ON
TEMP
TEMP
3
3
sec
sec
4
8
3
7
X12
X16
2
6
1
5
TIMER ON
TIMER ON
TIMER OFF
TIMER OFF
Remote Control
Page 36
1111
Example: Setting the unit to turn on after 6 hours, operate for 2 hours, then turn off
(see the figure below)
Your remote display
Timer is set To turn ON
6 hours from current time
Timer is set to turn OFF
8 hours from current time
Current
time 1PM
2PM3PM
4PM5PM
6PM7PM8PM9PM
Timer starts
Unit turnsUnit turns
ON
OFF
6 hours later
8 hours later
Timer on
Timer off
1122
Setting both TIMER ON and TIMER OFF at the same time
Keep in mind that the time periods you set for both functions refer to hours after the
current time. For example, say that the current time is 1:00 PM, and you want the unit
to turn on automatically at 7:00 PM. You want it to operate for 2 hours, then automa-
tically turn off at 9:00 PM.
Do the following:
ON/OFF
ON/OFF
MODE
MODE
SHORT
SHORT
CUT
CUT
TIMER ON
TIMER ON
TEMP
TEMP
3
3
sec
sec
4
8
3
7
X12
X16
2
6
1
5
TIMER ON
TIMER ON
TIMER OFF
TIMER OFF
Remote Control
Page 37

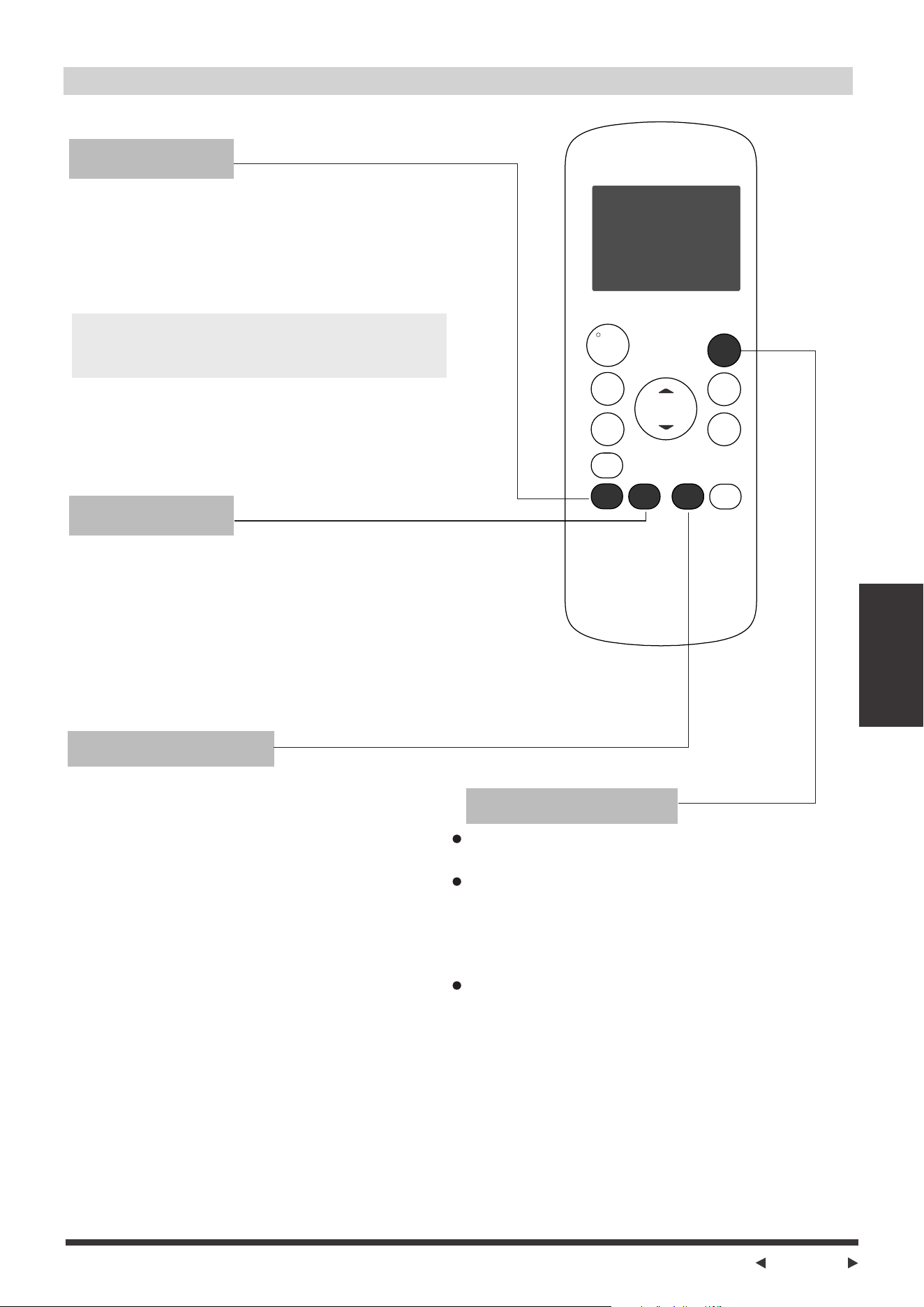

1133
The FOLLOW ME function enables the
remote control to measure the temper-
ature at its current location. When using
AUTO, COOL, or HEAT functions,
measuring ambient temperature from
the remote control (instead of from the
indoor unit itself) will enable the air
conditioner to optimize the temperature
around you and ensure maximum comfort.
1. Press FOLLOW ME button to activate
function. The remote control will send
temperature signal to the unit every
three minutes.
2. Press FOLLOW ME button again to
turn off this function.
FOLLOW ME function
SHORTCUT function
SWING Function
The SLEEP function is used to decrease
energy use while you sleep (and don t need
the same temperature settings to stay
comfortable).
Note: The SLEEP function is not available
in FAN or DRY mode.
,
Used to restore the current settings or resume
previous settings.
Push this button when remote controller is on,
the system will automatically revert back to
the previous settings including operating mode,
setting temperature, fan speed level and sleep
feature (if activated).
If pushing more than 2 seconds, the system
will automatically restore the current operation
settings including operating mode, setting
temperature, fan speed level and sleep
feature(if activated ).
Used to stop or start louver movement and set
the desired up/down air flow direction. The louver
changes 6 degrees in angle for each press(some
models without). If keep pushing more than 2
seconds, the louver auto swing feature is activated.
ON/OFF
TEMP
SHORT
CUT
TIMER
ON
TIMER
OFF
MODE
FAN
LED
1144
ION
SLEEP
FOLLOW
SWING
ME
SLEEP Function
NOTE:
-Buttons design is based on typical model and might be slightly different
from the actual one you purchased, the actual shape shall prevail.
-All the functions described are accomplished by the unit, if the unit has
no this feature, there is no corresponding operation happened when
press the relative button on the remote controller.
-When there are wide differences between Remote controller Illustration
and USERS MANUAL on function description, the description on USERS
MANUAL shall prevail.
-The device could comply with the local national regulations. In Canada,
it should comply with CAN ICES-3(B)/NMB-3(B). In USA, this device
complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interfe-
rence, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
-This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not approved by the party responsible for
compliance could void suers authority to operate the equipment.
Advanced Functions
Remote Control
Page 38
Wireless Smart Kit
Wi-Fi Operation
Refer to the Wireless Operation Manual for App connectivity and operation.
A copy of the manual may be downloaded from the Rinnai Website:
https://www.rinnai.com.au/air-conditioning/portable-air-conditioners/ or by scanning this QR code:
Page 39

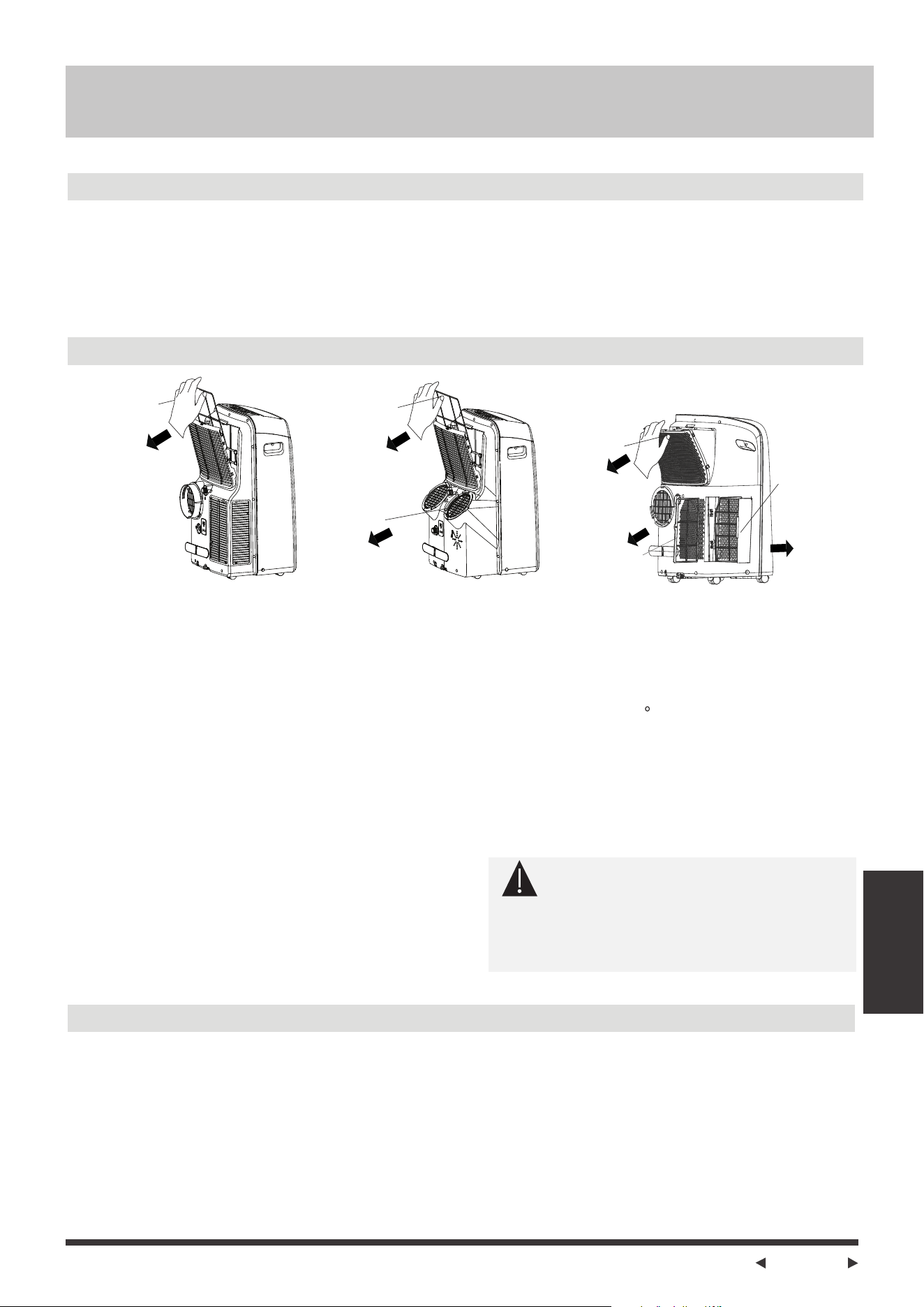

Maintenance
Maintenance
lower filter A
Safety Precautions
Air Filter Cleaning
· Always unplug the unit before cleaning or servicing.
· DO NOT use flammable liquids or chemicals to clean the unit.
· DO NOT wash the unit under running water. Doing so causes electrical danger.
· DO NOT operate the machine if the power supply was damaged during cleaning. A damaged
power cord must be replaced with a new cord from the manufacturer.
Upper filter
(take out)
MODEL A
MODEL B MODEL C
Upper air filter
(take out)
Lower filter
(take out)
Upper air filter
(take out)
lower filter B
(take out)
(Press the grill
down slightly
and pull the
lower filter A out
at the same time)
CAUTION
DO NOT operate the unit without filter
because dirt and lint will clog it and
reduce performance.
Maintenance Tips
· Be sure to clean the air filter every 2 weeks for
optimal performance.
· The water collection tray should be drained
immediately after P1 error occurs, and before
storage to prevent mold.
· In households with animals, you will have to
periodically wipe down the grill to prevent
blocked airflow due to animal hair.
Unit Cleaning
Clean the unit using a damp, lint-free cloth and mild detergent. Dry the unit with a
dry, lint-free cloth.
Removal
· Take the filter out along the arrow direction.
Cleaning
· Wash the air filter by immersing it gently in warm water (about 40 C) with a neutral
detergent. Rinse the filter and dry it in a shady place.
Mounting
· Install the air filter after cleaning .
Page 40
Store the unit when not in use
· Drain the unit’s water collection tray according to the instructions in the following section.
· Run the appliance on FAN mode for 12 hours in a warm room to dry it and prevent mold.
· Turn off the appliance and unplug it.
· Clean the air filter according to the instructions in the previous section. Reinstall the clean,
dry filter before storing.
· Remove the batteries from the remote control.
Note: Be sure to store the unit in a cool, dark place. Exposure to direct sunshine or extreme
heat can shorten the lifespan of the unit.
Note: The cabinet and front may be dusted with an oil-free cloth or washed with a cloth dam-
pened in a solution of warm water and mildliquid dishwashing detergent. Rinse thoroughly
and wipe dry. Never use harsh cleansers, wax or polish on the cabinet front. Be sure to wring
excess water from the cloth before wiping around the controls. Excess water in or around the
controls may cause damage to the unit.
Maintenance
WARNING
DO NOT REMOVE OR INSTALL THE LOWER FILTER BY YOURSELF. It MUST be
performed by an authorised dealer or a licensed service Provider.
Page 41
Troubleshooting
Tips
Troubleshooting Tips
Problem Possible Causes Solution
Unit does not turn
on when pressing
ON/OFF button
P1 Protection Code
In COOL mode: room
temperature is lower than
the set temperature
Reset the temperature
The Water Collection Tray is full. Turn off the
unit, drain the water from the Water Collection
Tray and restart the unit.
The air filter is blocked with
dust or animal hair
The unit is low on
refrigerant
Temperature setting is too
high
The windows and doors in
the room are open
The room area is too large
Unit does not cool
well
Exhaust hose is not
connected or is blocked
There are heat sources
inside the room
Turn off the unit and clean the filter according
to instructions
Call a service technician to inspect
the unit and top off refrigerant
Decrease the set temperature
Make sure all windows and doors are closed
Double-check the cooling area
Turn off the unit, disconnect the hose, check for
blockage and reconnect the hose
Remove the heat sources if
possible
The unit is noisy
and vibrates too
much
The unit makes a
gurgling sound
The ground is not level Place the unit on a flat, level surface
The air filter is blocked with
dust or animal hair
Turn off the unit and clean the filter according
to instructions
This sound is caused by the
flow of refrigerant inside
the unit
This is normal
Page 42
Terms of Warranty - Australia
Rinnai Australia Pty. Ltd. ABN 74 005 138 769, 100 Atlantic Drive, Keysborough VIC 3173.
1 DEFINITIONS
The terms listed below shall have the following meanings:
1 “Authorised Service Representative” means an independent service contractor authorised by Rinnai or
Rinnai service personnel.
2 “Rinnai” means Rinnai Australia Pty Ltd (ABN 74 005 138 769) and any related company.
3 “Certicate(s) of Compliance” means certicate(s) issued by licensed personnel (including plumbers,
refrigeration mechanics, electricians or other relevant tradespeople) to certify that any prescribed works comply
with applicable regulatory requirements.
4 “Certicate(s) of Occupancy” means certicate(s) issued by the local government authority (or similar
organisation) which certies that a home can be occupied.
5 “Installation Site” means the site at which the Product is originally installed.
6 “Normal Business Hours” means 8:30am to 5:00pm Monday to Friday, excluding public holidays.
7 “Operating/Installation Instructions” means the user manual or other documentation which provides
detailed instructions on the proper operation and maintenance of the Product.
8 “Other Applications” means any Product used for purposes other than Residential & Light Commercial
Applications. Other Applications may include but are not limited to factory, IT/Server room, telephone exchange,
processing area (e.g. bakery, kitchen, warehouse, swimming pool, agricultural facilities such as a nursery).
Any Product which has been installed, for whatever purpose, as a retrot component to an existing system, will
also be classed as being part of an “Other Application” regardless of the purpose of use of the existing system
into which such product has been installed.
9 “Purchaser” means the end user of the Product, the person named as owner in the Warranty certicate, the
holder of the Proof of Purchase or the holder of a property transfer document where the Product is included
as part of the chattels.
10 “Product” means the equipment purchased by the Purchaser and described in Section 2 of this document.
11 “Proof of Purchase” means a Tax Invoice or Receipt in respect of the Product. In the case of new constructions,
a Certicate of Occupancy or a Certicate of Compliance that details the date of installation or commissioning
will suce.
12 “Qualied Installer” means the qualied installation contractor who is responsible for performing the
installation work in the manner prescribed by local and statutory regulations, including compliance with any
relevant and to Rinnai specications, including Australian Standards.
13 “Residential & Light Commercial Applications” means any Product for use in residential or light commercial
applications where
a) the Product is solely used for the purpose of human comfort; and
b) the ambient temperature of the space the Product is intended to heat or cool is inuenced solely or
primarily by natural exterior weather conditions rather than by man-made or mechanical heat sources.
Examples of Residential & Light Commercial Applications include, homes, oces, hotels, apartments,
nursing homes, hospitals, health care premises, shopping centres, and retail stores.
Warranty
Page 43
2 TERMS OF WARRANTY
2.1 Subject to the Terms of Warranty set out in this document, eective from the date of purchase by the Purchaser,
the Product is warranted to be free from defects in materials & factory workmanship for the period set out in
table below:
PRODUCT GROUPS PARTS LABOUR
Residential and Light Commercial
Evaporative Coolers & Ducted Gas Heaters (excluding
Compact Classic Series)
5 Years
*Extended 4
Years Option
5 Years
*Extended 4
Years Option
Ducted Gas Heaters - Compact Classic Series 3 Years 3 Years
Refrigerated Air conditioning Products 5 Years 5 Years
Ducted Gas Heaters - Heat Exchangers and Burners
Evaporative Coolers - Structural components only
10 Years N/A
Portable Air conditioning / Dehumidier / Air Purier 2 Years N/A
Electric Panel Heaters
(1)
7 Years N/A
Electric Fire Heater 5 Years 5 Years
Wi-Fi Devices 1 Year 1 Year
Other Applications All Product Groups 2 Years 1 Year
After Market Spare Parts 1 Year N/A
*Extended Warranty Option
Up to 4 year extended warranty (in addition to the standard warranty period listed above) applies
on selected products when you opt in to the Rinnai Service Advantage program. This program
has terms and conditions, including the requirement for scheduled servicing of the product by
Rinnai.
To participate in the program you must register your product online at: www.rinnai.com.au/
support-resources/ warranty-registration/ within the rst 12 months of the product being installed.
(1)
To make a claim under this warranty, please contact your place of purchase within the warranty period.
2.2 Rinnai will determine in its sole discretion, which classication the Product ts into and the corresponding
Warranty that shall apply.
2.3 An Authorised Service Representative will repair or replace, at its option, the Product or any part of the
Product that its examination shows to be defective. The repair or replacement shall be performed during
Normal Business Hours by an Authorised Service Representative. Repair by persons other than an Authorised
Service Representatives may void the Warranty.
2.4 Alternatively to clause 2.3 above, Rinnai can at its discretion elect to pay you an amount equivalent to the cost
of repairing or replacing the Product.
2.5 If Rinnai provides you with either the replacement costs or replacement product, ownership of the original
Product shall immediately transfer to Rinnai.
2.6 Rinnai is responsible for reasonable costs associated with legitimate warranty claims, including call-out of an
Authorised Service Representative to inspect the Product. Rinnai is not responsible for:
a) costs for tradespeople engaged by you that are not Rinnai Authorised Service Representatives.
b) any costs, including call out costs for a Rinnai Authorised Service Representatives, associated with a
Product which is determined upon inspection not to be covered by this warranty.
2.7 Rinnai will reimburse any reasonable costs associated with making a legitimate warranty claim against Rinnai
which are not otherwise specied above.
2.8 The Warranty of the Product requires that, in addition to all other conditions, the Purchaser conducts regular
and/or preventative maintenance as may be specied by the Operating/Installation Instructions or otherwise
directed by Rinnai and required by the level of usage and the usage environment, including the use of
correct and uncontaminated refrigerants and lubricants. Refrigeration, plumbing and electrical works must be
undertaken by licensed personnel.
2.9 Where a Product or failed component is replaced under warranty, the time remaining on the original Product
warranty period will continue to apply and the replacement product or part will be subject to the original
warranty period only.
Warranty
Page 44
3 CONDITIONS OF WARRANTY
3.1 The Purchaser may only obtain the benet of the Warranty if the Purchaser:
a) maintains and has the Product serviced in accordance with the instructions set out in the service section
of the relevant Service or Owner’s Manual;
b) complies with clause 7 “Purchaser’s Responsibilities” on page 45;
c) noties Rinnai within 30 days of a defect occurring or, in the case of a latent defect, becoming apparent,
that a claim is being made under this Warranty; and
d) provides, in support of the claim made under this Warranty, a Proof of Purchase.
3.2 This document (and any statutory consumer guarantees) represents the only Warranty given by Rinnai in
respect of the Product. No other person or organisation is authorised to oer any alternative warranty on
behalf of Rinnai.
3.3 If the date of purchase cannot be established to Rinnai’s satisfaction, the date shall be deemed to be 2
months after the date of manufacture or the date of sale by Rinnai, whichever is the latter.
3.4 This warranty applies to Products which are manufactured on or after the date of publication of this warranty
but before the next date of publication of this warranty.
4 EXCLUSIONS
4.1 This Warranty does NOT cover:
a) damage, problems or failure resulting from improper operation and/or inadequate maintenance by the
Purchaser (refer Purchaser’s Responsibilities section below);
b) damage, problems or failure resulting from improper or faulty installation. The Product must be installed
by a Qualied Installer in accordance with applicable regulations. Where applicable, Certicate(s)
of Compliance must be obtained by the purchaser from the Qualied Installer and presented to the
Authorised Service Representative;
c) damage, problems or failure caused by factors external to the Product including, but not limited to, faulty
or poor external electrical wiring, incorrect or faulty power supply, voltage uctuations, over voltage
transients or electromagnetic interference, inadequate or faulty gas, drainage services, or water services,
including water pressure, and non-potable water;
d) damage, problems or failure caused by acts of God, re, wind, lightning, ood, storm, hail storm fallout,
vandalism, earthquake, war, civil insurrection, misuse, abuse, negligence, accident, pests, animals, pets,
vermin, insects, spiders/bugs or entry of foreign objects or matter into the Product such as dirt, debris,
soot or moisture;
e) damage, problems or failure caused by environmental conditions including, but not limited to, excessive
moisture, salt or other corrosive substances or atmospheric conditions;
f) Product which has been installed in a portable or mobile building, structure or application including, but
not limited to, a caravan, boat or trailer;
g) Product which has been re-installed at a location other than the original site;
h) any consumable item supplied with the Product including, but not limited to, an air lter, battery, fan belt,
igniter or cooler pad;
i) installation of third-party components that may be attached to the Product. These include, but are
not limited to, control wiring, ducting, return air lter(s) grille, register, diuser, zone motors, controls/
thermostats, pipe work and fabricated or added components. These items remain solely the responsibility
of the Qualied Installer;
j) installations where electrics/electronics may be subjected to moisture/chemicals (e.g. swimming pools
or nurseries);
k) any repair, which is needed as a result of an accident, misuse, abuse or negligence;
l) Product that is utilised in an environment (indoor and outdoor) outside its specied operating range; and
m) fair wear and tear to the Product.
n) On-site labour warranty on portable (non-xed installation) Products – In respect of such Products the
Purchaser must return the Product to the supplier for repair or replacement).
Warranty
Page 45
5 LIMITATIONS
5.1 Third parties are often involved in providing advice to consumers about the climate control solutions best
suited to the consumer’s needs. Any advice or recommendations given by such parties, including advice
about Product tness for purpose and overall system design, sizing and application are not the responsibility
of Rinnai. This includes but is not limited to the heat load calculations, airow and system balancing.
5.2 This Warranty does not apply to any Product installed at an Installation Site which is outside Australia.
5.3 Except where inconsistent with the purchaser’s statutory rights and the rights given by this Warranty, all
liabilities of Rinnai for any direct, special, indirect or consequential loss or damage, any damage or expense
for personal injury or any loss or destruction of property, arising directly or indirectly from the use or inability
to use the Product or any of its parts and/or servicing the Product, are expressly excluded.
6 TRAVEL, TRANSPORT & ACCESS COSTS
6.1 The Purchaser must pay freight charges, in-transit insurance expenses and travelling costs for repairs/
replacements under this Warranty, that are required to be performed 50km from the nearest Rinnai branch or
Authorised Service Representative.
6.2 Subject to clause 6.3, Rinnai will pay freight charges, in-transit insurance expenses and travelling costs for
repairs/replacements that are required to be performed less than 50km from the nearest Rinnai branch or
Authorised Service Representative, subject to the following:
a) Rinnai will arrange for such repairs/replacements and make any payment directly to the third party to
provide the freight, in-transit insurance or travel services; or
b) if Rinnai considers appropriate, it will authorise the Purchaser in writing to pay for the relevant freight
charges, in-transit insurance expenses or travelling costs and then, upon provision by the Purchaser to
Rinnai of a tax invoice showing those costs have been incurred, reimburse the Purchaser for such costs
which are within the terms of the authorisation. If the Purchaser pays for the relevant freight charges,
in-transit insurance expenses or travelling costs without written authorisation from Rinnai, Rinnai will not
reimburse the Purchaser for such costs.
6.3 The Purchaser must pay all costs and expenses in respect of:
a) any service call out fee if the Product is not accessible for service
b) making the Product accessible for service, for example, restricted access or working at heights, or the
labour cost for an additional person due to OHS requirements.
c) providing a safe working environment for installation, service, maintenance or repair of the Product;
d) any surcharge applicable in respect of supplying replacement parts outside Normal Business Hours; and
e) any other costs and expenses in relation to claiming the Warranty that is not covered by clause 6.2.
7 PURCHASER’S RESPONSIBILITIES
7.1 The Purchaser must operate and maintain the Product in accordance with the Operating Instructions and
service maintenance schedule, including conducting an appropriate number of services to the unit during the
Warranty period, based on usage and the usage environment including but not limited to;
a) regularly cleaning the air lter(s) and replacing them where necessary;
b) replacing expired batteries or other consumables as required;
c) ensuring that the condensate drain is kept clean and clear of obstructions.
HOW TO MAKE A WARRANTY CLAIM:
If you wish to make a warranty claim in respect of any Portable Product, please return it to the place of purchase,
or if that is not possible, contact Rinnai to enquire about alternative arrangements.
If you wish to make a warranty claim in respect of any xed Product, please contact Rinnai on the details set out
below to make arrangements for an Authorised Service Representative to inspect the product.
As per clause 2.6 of the Terms and Conditions of Warranty, purchasers are responsible for the costs of any repair
and/or call out fee where, on inspection, the alleged defect is found by Rinnai’s Authorised Service Representative
not to be covered by this warranty or any statutory consumer guarantee applicable to the Product.
The Terms and Conditions of Warranty contain important information about your rights and obligations under this
warranty. Please read them fully and carefully before making a claim.
Warranty
Page 46
Warranty
NOTICE TO CONSUMERS UNDER AUSTRALIAN CONSUMER LAW
Our goods and services come with guarantees that cannot be excluded under the Australian Consumer Law.
For a major failure with a good, you are entitled to a replacement or refund and compensation for any other
reasonable foreseeable loss or damage. If the failure does not amount to a major failure and if the goods fail to
be of acceptable quality, you are also entitled to have the goods repaired or replaced.
For a major failure with the service, you are entitled to cancel your service contract with us and obtain a refund
for the unused portion, or to compensation for its reduced value. You are also entitled to be compensated for any
other reasonably foreseeable loss or damage. If the failure does not amount to a major failure you are entitled to
have problems with the service rectied in a reasonable time and, if this is not done, to cancel your contract and
obtain a refund for the unused portion of the contract.
The benets provided by this Warranty are in addition to any other rights and remedies available to a consumer
under the Australian Consumer Law and any other law which may apply to the goods and or services.
Page 47
NOTES
Page 48
Rinnai Australia Pty Ltd
ABN 74 005 138 769 | AU45204
100 Atlantic Drive, Keysborough, Victoria 3173
P.O. Box 460, Braeside, Victoria 3195
Tel: (03) 9271 6625
National Help Line
Tel: 1300 555 545*
Monday to Friday, 8.00 am to 5.00 pm EST.
*Cost of a local call may be higher from a mobile phone.
(National calls from public phones in Australia are free.)
For further information visit www.rinnai.com.au
or email [email protected]
Rinnai has a Service and Spare Parts network with
personnel who are fully trained and equipped to give
the best service on your Rinnai appliance. If your
appliance requires service, please call our National
Help Line. Rinnai recommends that this appliance be
serviced every 2 years.
With our policy of continuous improvement, we
reserve the right to change, or discontinue at any time,
specifications or designs without notice.
Rinnai Portable Room AC RPC35PDRWF OIM Issue 1 - May 2024
