Axis Q6032-C EOL Q6032-C PTZ Dome Network Camera 0457-001 User Manual

USERMANUAL

AXISQ6032-CPTZDomeNetworkCamera

AboutThisDocument

ThismanualisintendedforadministratorsandusersofAXISQ6032-C

PTZDomeNetworkCamera,andisapplicabletormware5.41and

later.Itincludesinstructionsforusingandmanagingtheproducton

yournetwork.Previousexperienceofnetworkingwillbeofusewhen

usingthisproduct.SomeknowledgeofUNIXorLinux-basedsystems

mayalsobebenecial,fordevelopingshellscriptsandapplications.

LaterversionsofthisdocumentwillbepostedtotheAxiswebsite,

asrequired.Seealsotheproduct’sonlinehelp,availableviathe

web-basedinterface.

LegalConsiderations

Videosurveillancecanberegulatedbylawsthatvaryfromcountryto

country.Checkthelawsinyourlocalregionbeforeusingthisproduct

forsurveillancepurposes.

Thisproductincludesone(1)H.264decoderlicense.Topurchase

furtherlicenses,contactyourreseller.

Liability

Everycarehasbeentakeninthepreparationofthismanual.Please

informyourlocalAxisofceofanyinaccuraciesoromissions.Axis

CommunicationsABcannotbeheldresponsibleforanytechnicalor

typographicalerrorsandreservestherighttomakechangestothe

productandmanualswithoutpriornotice.AxisCommunicationsAB

makesnowarrantyofanykindwithregardtothematerialcontained

withinthisdocument,including,butnotlimitedto,theimplied

warrantiesofmerchantabilityandtnessforaparticularpurpose.Axis

CommunicationsABshallnotbeliablenorresponsibleforincidentalor

consequentialdamagesinconnectionwiththefurnishing,performance

oruseofthismaterial.Thisproductisonlytobeusedforitsintended

purpose.

IntellectualPropertyRights

AxisABhasintellectualpropertyrightsrelatingtotechnologyembodied

intheproductdescribedinthisdocument.Inparticular,andwithout

limitation,theseintellectualpropertyrightsmayincludeoneormore

ofthepatentslistedathttp://www.axis.com/patent.htmandoneor

moreadditionalpatentsorpendingpatentapplicationsintheUSand

othercountries.

Thisproductcontainslicensedthird-partysoftware.Seethemenuitem

“About”intheproduct’suserinterfaceformoreinformation.

ThisproductcontainssourcecodecopyrightAppleComputer,

Inc.,underthetermsofApplePublicSourceLicense2.0(see

http://www.opensource.apple.com/apsl).Thesourcecodeisavailable

fromhttp://developer.apple.com/darwin/projects/bonjour/

EquipmentModications

Thisequipmentmustbeinstalledandusedinstrictaccordancewiththe

instructionsgivenintheuserdocumentation.Thisequipmentcontains

nouser-serviceablecomponents.Unauthorizedequipmentchangesor

modicationswillinvalidateallapplicableregulatorycertications

andapprovals.

TrademarkAcknowledgments

Apple,Boa,Bonjour,Ethernet,InternetExplorer,Linux,Microsoft,

Mozilla,Real,SMPTE,QuickTime,UNIX,Windows,WindowsVistaand

WWWareregisteredtrademarksoftherespectiveholders.Javaand

allJava-basedtrademarksandlogosaretrademarksorregistered

trademarksofOracleand/oritsafliates.UPnP

isacertication

markoftheUPnP

ImplementersCorporation.

ElectromagneticCompatibility(EMC)

Thisequipmenthasbeendesignedandtestedtofulllapplicable

standardsfor:

•Radiofrequencyemissionwheninstalledaccordingtothe

instructionsandusedinitsintendedenvironment.

•Immunitytoelectricalandelectromagneticphenomenawhen

installedaccordingtotheinstructionsandusedinitsintended

environment.

USA

Thisequipmenthasbeentestedusingashieldednetworkcable(STP)

andfoundtocomplywiththelimitsforaClassAdigitaldevice,

pursuanttopart15oftheFCCRules.Theselimitsaredesignedto

providereasonableprotectionagainstharmfulinterferencewhenthe

equipmentisoperatedinacommercialenvironment.Thisequipment

generates,uses,andcanradiateradiofrequencyenergyand,ifnot

installedandusedinaccordancewiththeinstructionmanual,may

causeharmfulinterferencetoradiocommunications.Operationofthis

equipmentinaresidentialareaislikelytocauseharmfulinterference

inwhichcasetheuserwillberequiredtocorrecttheinterferenceat

hisownexpense.

Canada

ThisClassAdigitalapparatuscomplieswithCanadianICES-003.

Europe

ThisdigitalequipmentfulllstherequirementsforRFemission

accordingtotheClassAlimitofEN55022.Notice!ThisisaClass

Aproduct.InadomesticenvironmentthisproductmaycauseRF

interference,inwhichcasetheusermayberequiredtotakeadequate

measures.

Thisproductfulllstherequirementsforemissionsandimmunity

accordingtoEN50121-4andIEC62236-4railwayapplications.

Thisproductfulllstherequirementsforimmunityaccording

toEN61000-6-1residential,commercialandlight-industrial

environments.

Thisproductfulllstherequirementsforimmunityaccordingto

EN61000-6-2industrialenvironments.

Thisproductfulllstherequirementsforimmunityaccordingto

EN55024ofceandcommercialenvironments.

Australia/NewZealand

ThisdigitalequipmentfulllstherequirementsforRFemission

accordingtotheClassAlimitofAS/NZSCISPR22.Notice!Thisisa

classAproduct.InadomesticenvironmentthisproductmaycauseRF

interference,inwhichcasetheusermayberequiredtotakeadequate

measures.

Korea

이기기는업무용(A급)전자파적합기기로서판매자또는사

용자는이점을주의하시기바라며,가정외의지역에서사용

하는것을목적으로합니다.

Japan

この装置は、クラスA情報技術装置です。この装置を家庭環

境で使用すると電波妨害を引き起こすことがあります。こ

の場合には使用者が適切な対策を講ずるよう要求されるこ

とがあります。

Safety

ThisproductcomplieswithIEC/EN60950-1andIEC/EN60950-22,

SafetyofInformationTechnologyEquipment.

Thepowersupplyusedwiththisproductshallfullltherequirements

forSafetyExtraLowVoltage(SELV)accordingtoIEC/EN/UL60950-1.

Support

Shouldyourequireanytechnicalassistance,pleasecontactyourAxis

reseller.Ifyourquestionscannotbeansweredimmediately,your

resellerwillforwardyourqueriesthroughtheappropriatechannelsto

ensurearapidresponse.IfyouareconnectedtotheInternet,youcan:

•downloaduserdocumentationandsoftwareupdates

•ndanswerstoresolvedproblemsintheFAQdatabase.Search

byproduct,category,orphrase

•reportproblemstoAxissupportstaffbyloggingintoyourprivate

supportarea

•chatwithAxissupportstaff(selectedcountriesonly)

•visitAxisSupportatwww.axis.com/techsup/

LearnMore!

VisitAxislearningcenterwww.axis.com/academyforusefultrainings,

webinars,tutorialsandguides.

AXISQ6032-CPTZDomeNetworkCamera

TableofContents

HardwareOverview..........................................5

Connectors....................................................5

LEDIndicators..................................................6

MediaConverterSwitchConnectors................................7

NetworkConnectorDipSwitches...................................8

MediaConverterSwitchLEDIndicators..............................9

AccessingtheProduct.......................................10

AccessfromaBrowser...........................................10

AccessfromtheInternet..........................................11

SettheRootPassword...........................................11

TheLiveViewPage..............................................12

MediaStreams.............................................15

HowtoStreamH.264............................................15

MJPEG........................................................15

AXISMediaControl(AMC)........................................15

AlternativeMethodsofAccessingtheVideoStream....................16

SettingUptheProduct......................................18

BasicSetup....................................................18

Video.....................................................19

VideoStream...................................................19

StreamProles.................................................20

CameraSettings................................................21

Overlay........................................................22

PrivacyMask...................................................23

LiveViewCong............................................24

PTZ(PanTiltZoom).........................................27

PresetPositions.................................................27

Autotracking...................................................28

Gatekeeper....................................................29

GuardTour.....................................................29

OSDIZones....................................................30

Advanced......................................................30

ControlQueue..................................................31

Detectors..................................................32

MotionDetection...............................................32

Applications...............................................34

Events....................................................35

SettingUpanActionRule........................................36

Recipients.....................................................36

Schedules......................................................37

Recurrences....................................................37

Recordings.................................................38

RecordingList..................................................38

ContinuousRecording............................................38

SystemOptions.............................................40

Security.......................................................40

Date&Time....................................................41

Network.......................................................42

Storage.......................................................47

Ports&Devices.................................................48

Maintenance...................................................48

Support.......................................................49

Advanced......................................................49

ResettoFactoryDefaultSettings...................................50

Troubleshooting............................................51

CheckingtheFirmware...........................................51

UpgradingtheFirmware..........................................51

Symptoms,PossibleCausesandRemedialActions.....................52

TechnicalSpecications......................................55

MediaConverterSwitchConnectors................................57

Multi-ConnectorCable...........................................58

AXISQ6032-CPTZDomeNetworkCamera

TableofContents

PerformanceConsiderations.......................................59

AXISQ6032-CPTZDomeNetworkCamera

HardwareOverview

Networkconnector(HighPoE)

Partnumber(P/N)&Serialnumber(S/N)

Coolingsystem

Fan

SDcardslot(SDHC)

Powerbutton

StatusLEDindicator

Controlbutton

Important

Dustandparticlebuildupcouldaffecttheperformanceofthecoolingsystem.Tomaintaintheperformancelevel,theouter

heatsinkinthecamera’scoolingsystemmayneedoccasionalorregularcleaning.Seetheproduct’sInstallationGuidefor

informationonhowtoaccessandcleantheouterheatsink.

Connectors

Fortechnicalspecications,seepage55.

SDcardslot-Astandardorhigh-capacitySDcard(notincluded)canbeusedforlocalrecordingwithremovablestorage.

AXISQ6032-CPTZDomeNetworkCamera

HardwareOverview

NOTICE NOTICE

NOTICE

Topreventcorruptionofrecordings,theSDcardshouldbeunmountedbeforeremoval.Tounmount,gotoSetup>System

Options>Storage>SDCardandclickUnmount.

Controlbutton-Thecontrolbuttonisusedfor:

•ConnectingtoanAXISVideoHostingSystemservice.Seepage43.Toconnect,pressandholdthebuttonfor

about1seconduntiltheStatusLEDashesgreen.

•ConnectingtoAXISInternetDynamicDNSService.Seepage43.Toconnect,pressandholdthebuttonfor

about3seconds.

•Resettingtheproducttofactorydefaultsettings.Seepage50.

Powerbutton-Pressthepowerbuttontotemporarilypowertheproductwhenthedomecoverisremoved.Thepowerbuttonisalso

usedwiththecontrolbuttontoresetthecameratofactorydefaultsettings.Seepage50.

Multi-connector-Terminalconnectorforconnectingthesuppliedmediaconverterswitch,whichprovidesthefollowingsignals:

•DCPower

•Network(Ethernet10/100Base-T)

•Input/Output(I/O)

Thesuppliedmulti-connectorcableisrequiredinordertomaintaintheproduct’sIPrating,seeMulti-ConnectorCable,onpage58.

LEDIndicators

Color

Indication

Unlit

Connectionandnormaloperation

Amber

Steadyduringstartup.Flashesduringrmwareupgrade.

Amber/redFlashesamber/redifnetworkconnectionisunavailableorlost.

RedFlashesredforrmwareupgradefailure.

GreenShowssteadygreenfor10secondsfornormaloperationafterrestart.

AXISQ6032-CPTZDomeNetworkCamera

HardwareOverview

Powerconnector(DCinput)

Powerconnector(DCoutput)

Networkconnector(internal)

NetworkconnectorSFP(external)(2x)

NetworkconnectorRJ-45(external)(2x)

CameraLEDindicator

NetworkLEDindicator(4x)

PowerLEDindicator

I/Oconnector(internal)

I/Oconnector(external)

Multi-connectorcable

MediaConverterSwitchConnectors

Fortechnicalspecications,seepage55.

NOTICE NOTICE

NOTICE

Theproductshallbeconnectedusingashieldednetworkcable(STP).Allcablesconnectingtheproducttotheswitchshallbe

shielded(STP)andintendedfortheirspecicuse.Makesurethattheswitchisproperlygrounded.SeeElectromagnetic

Compatibility(EMC)forregulatoryrequirements.

Important

Themediaconverterswitchdoesnotsupporthotswapping.Disconnectpowerfromtheswitchbeforeswappingcameras.An

attempttohotswapcouldcausetheswitchtofreeze,inwhichcaseitmustberestarted.

Powerconnector(DCinput)-2-pinterminalblockforpowerinput.

Powerconnector(DCoutput)-Two2-pinterminalblockforpoweroutput(pin4isnotused).

NetworkconnectorRJ-45(external)-TwoRJ-45connectors(10/100Base-T)fornetworkconnectivity.

NetworkconnectorSFP(external)-TwoSFPconnectors(100Base-FX/1000Base-X)fornetworkconnectivity.

AXISQ6032-CPTZDomeNetworkCamera

HardwareOverview

EachRJ-45andSFPnetworkconnectorporthasitsowndipswitch.Thedipswitchescontrolhowtheportforwardsdata.See

NetworkConnectorDipSwitches.

Networkconnector(internal)-Two2-pinEthernetterminalblocks.

I/Oconnector(external)-6-pincongurableI/Oterminalblock,whichisconnectedtothecamerathroughthemulti-connector

cable.Usewithexternaldevicesincombinationwith,forexample,tamperingalarms,motiondetection,eventtriggering,timelapse

recordingandalarmnotications.Inadditiontogroundandpower(DCoutput),theI/Oterminalconnectorprovidestheinterfaceto:

•Digitaloutput–ForconnectingexternaldevicessuchasrelaysandLEDs.Connecteddevicescanbeactivated

bytheVAPIX®ApplicationProgrammingInterface,outputbuttonsontheLiveViewpageorbyanActionRule.

Theoutputwillshowasactive(shownunderSystemOptions>Port&Devices>PortStatus)ifthealarm

deviceisactivated.

•Digitalinput–Analarminputforconnectingdevicesthatcantogglebetweenanopenandclosedcircuit,for

example:PIRs,door/windowcontacts,glassbreakdetectors,etc.Whenasignalisreceivedthestatechangesand

theinputbecomesactive(shownunderSystemOptions>Port&Devices>PortStatus).

I/Oconnector(internal)-2–pinI/Oterminalblock.

NetworkConnectorDipSwitches

Important

Alwaysusethedefaultdipswitchsetting(positionB)iftherelationshipbetweendevicesinthesystemisnotdened.

ThecameraattachesaparticularVLANtagtoallitsforwardedmulticastpackages.Themediaconverterswitchmanageshowthese

multicastpackagesareforwardedbetweencameras,mediaconverterswitchesandothernetworkdevices.Thisespeciallyusefulwhen

connectingthecameraandmediaconverterswitchtothenetworkinadaisychain.

Bychangingthepositionofthedipswitches,eachnetworkconnectorportinthemediaconverterswitchcanbecongured

tomanagemulticastsinthreedifferentways.

DipswitchpositionDescription

Default(middle)

BRemoveVLANtagsfromforwardedmulticastpackages.Usethissettingwhenconnectingtothe

network,directlyorthrougharouterornetworkswitch.

LeftABlockmulticastpackagesthathaveaVLANtag.Usethissettingwhenconnectingtoadevicethatis

notintendedformulticastviewing.

Right

ForwardmulticastpackageswithaVLANtag.Usethissettingwhenconnectingtoanothermedia

converterswitch.

VLANtagsareusedtocreateindependentlogicalnetworks,virtuallocalareanetworks(VLANs),withinaphysicalnetwork.Multiple

mediaconverterswitchesthatareconnectedtoeachotherinadaisychainaremembersofthesameVLAN.Themediaconverter

AXISQ6032-CPTZDomeNetworkCamera

HardwareOverview

switchestagthemulticastpackagesmovingbetweenthemsothatthenextmediaconverterswitchinlineknowsthedestinationof

thepackages.Inotherwords,theVLANtagservesasaVLANidentier.VLANtaggingshouldonlybeusedwhenusingmultiple

camerasandmediaconverterswitchesbecauseforwardingmulticastpackageswithaVLANtagonlyservesapurposewhentheport

isconnectedtoanothermediaconverterswitch,whichmightbeconnectedtopotentialviewers.

Note

Whenconnectinganoutgoingmediaconverterswitchnetworkconnectortoanothertypeofnetworkdevice,setthedip

switchtopositionAtoprotectthedevicefrommulticasttrafc.

MediaConverterSwitchLEDIndicators

LED

Color

Indication

Unlit

DCpowerunconnectedorcurrentprotectionengaged(poweroverload)

Power

GreenDCpowerconnected.

Amber10Mbitconnection.Flashesduringactivity.

Network(4x)

Green

100/1000Mbitconnection.Flashesduringactivity.

CameraGreen

100Mbitconnection.Flashesduringactivity.

AXISQ6032-CPTZDomeNetworkCamera

AccessingtheProduct

ToinstalltheAxisproduct,refertotheInstallationGuidesuppliedwiththeproduct.

Theproductcanbeusedwithmostoperatingsystemsandbrowsers.TherecommendedbrowsersareInternetExplorerwithWindows,

SafariwithMacintoshandFirefoxwithotheroperatingsystems.SeeTechnicalSpecications,onpage55.Toviewstreamingvideoin

InternetExplorer,allowinstallationofAXISMediaControl(AMC)whenprompted.

TheAxisproductincludesone(1)H.264decoderlicenseforviewingvideostreams.ThelicenseisautomaticallyinstalledwithAMC.

Theadministratorcandisabletheinstallationofthedecoders,topreventinstallationofunlicensedcopies.

Note

•QuickTime

isalsosupportedforviewingH.264streams.

•Ifyourcomputerrestrictstheuseofadditionalsoftwarecomponents,theproductcanbeconguredtouseaJavaapplet

forviewingMotionJPEG.

AccessfromaBrowser

1.Startabrowser(InternetExplorer,Firefox,Safari).

2.EntertheIPaddressorhostnameoftheAxisproductinthebrowser’sLocation/Addresseld.Toaccesstheproductfroma

Macintoshcomputer(MacOSX),clickontheBonjourtabandselecttheproductfromthedrop-downlist.

IfyoudonotknowtheIPaddress,useAXISIPUtilitytolocatetheproductonthenetwork.Forinformationabouthowto

discoverandassignanIPaddress,seetheInstallationandManagementSoftwareCDorthedocumentAssignanIPAddress

andAccesstheVideoStreamonAxisSupportwebatwww.axis.com/techsup

3.Enteryourusernameandpassword.Ifthisisthersttimetheproductisaccessed,therootpasswordmustrstbe

congured.Forinstructions,seeSettheRootPassword,onpage11.

4.Theproduct’sLiveViewpageappearsinyourbrowser.

Note

ThecontrolsandlayoutoftheLiveViewpagemayhavebeencustomizedtomeetspecicinstallationrequirementsand

userpreferences.Consequently,someoftheexamplesandfunctionsfeaturedheremaydifferfromthosedisplayedin

yourownLiveViewpage.

AXISQ6032-CPTZDomeNetworkCamera

AccessingtheProduct

AccessfromtheInternet

Onceconnected,theAxisproductisaccessibleonyourlocalnetwork(LAN).ToaccesstheproductfromtheInternetyoumust

congureyournetworkroutertoallowincomingdatatrafctotheproduct.Todothis,enabletheNAT-traversalfeature,which

willattempttoautomaticallyconguretheroutertoallowaccesstotheproduct.ThisisenabledfromSetup>SystemOptions>

Network>TCP/IPAdvanced.

Formoreinformation,pleaseseeNATtraversal(portmapping)forIPv4,onpage45.SeealsoAXISInternetDynamicDNSServiceat

www.axiscam.netForTechnicalnotesonthisandothertopics,visittheAxisSupportwebatwww.axis.com/techsup

SettheRootPassword

TogainaccesstotheAxisproduct,youmustsetthepasswordforthedefaultadministratoruserroot.ThisisdoneintheCongure

RootPassworddialog,whichappearswhentheproductisaccessedforthersttime.

Topreventnetworkeavesdropping,therootpasswordcanbesetviaanencryptedHTTPSconnection,whichrequiresanHTTPS

certicate.HTTPS(HypertextTransferProtocoloverSSL)isaprotocolusedtoencrypttrafcbetweenwebbrowsersandservers.The

HTTPScerticateensuresencryptedexchangeofinformation.SeeHTTPS,onpage44.

Thedefaultadministratorusernamerootispermanentandcannotbedeleted.Ifthepasswordforrootislost,theproductmustbe

resettothefactorydefaultsettings.SeeResettoFactoryDefaultSettings,onpage50.

TosetthepasswordviaastandardHTTPconnection,enteritdirectlyintherstdialog.

TosetthepasswordviaanencryptedHTTPSconnection,followthesesteps:

1.ClickCreateself-signedcerticate.

2.ProvidetherequestedinformationandclickOK.Thecerticateiscreatedandthepasswordcannowbesetsecurely.All

trafctoandfromtheproductisencryptedfromthispointon.

AXISQ6032-CPTZDomeNetworkCamera

AccessingtheProduct

3.Enterapasswordandthenre-entertoconrmthespelling.ClickOK.Thepasswordhasnowbeencongured.

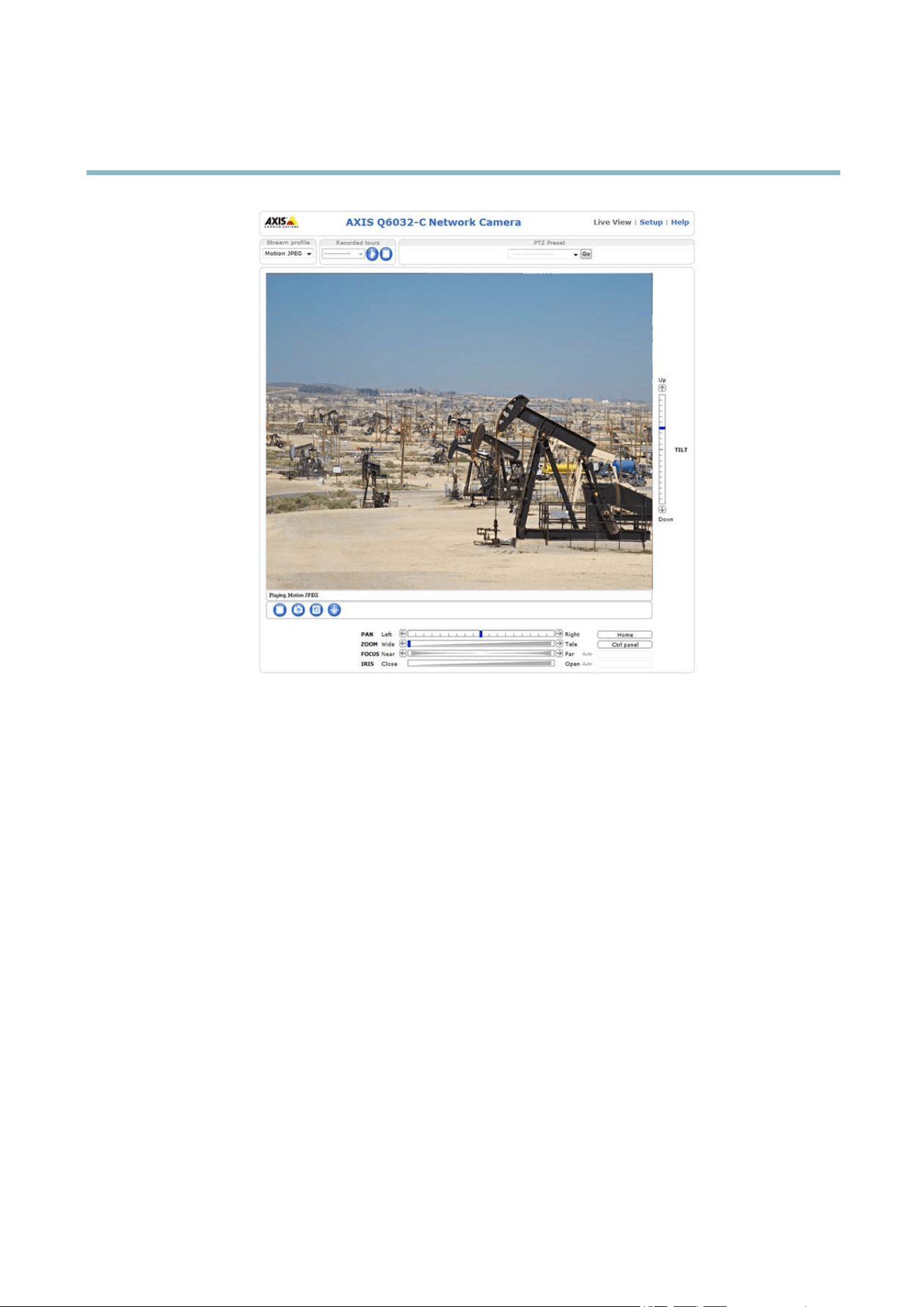

TheLiveViewPage

ThecontrolsandlayoutoftheLiveViewpagemayhavebeencustomizedtomeetspecicinstallationrequirementsanduser

preferences.Consequently,someoftheexamplesandfunctionsfeaturedheremaydifferfromthosedisplayedinyourownLiveView

page.Thefollowingprovidesanoverviewofeachavailablecontrol.

ControlsontheLiveViewPage

TheStreamProledrop-downlistallowsyoutoselectacustomizedorpre-programmedstreamprole.Stream

prolesareconguredunderVideo>StreamProles.SeeStreamProles,onpage20.

TheManualTriggerbuttonisusedtotriggeranactionrulefromtheLiveViewpage;seepage12.Enablethis

buttonfromLiveViewCong>ActionButtons.

ClickSnapshottosaveasnapshotofthevideoimage.Right-clickthevideoimagetosaveitinJPEGformatonyour

computer.ThisbuttonisprimarilyintendedforusewhentheAXISMediaControlviewertoolbarisnotavailable.

EnablethisbuttonfromLiveViewCong>ActionButtons.

EnableordisabletheGatekeeperbyselectingOnorOfffromthedrop-downlist.Seepage29formoreinformation

aboutGatekeeper.

ManualTrigger

TheManualTriggerisusedtotriggeranactionrulefromtheLiveViewpage.Themanualtriggercanforexamplebeusedto

validateactionsduringproductinstallationandconguration.

Tocongurethemanualtrigger:

1.GotoSetup>Events.

2.ClickAddtoaddanewactionrule.

AXISQ6032-CPTZDomeNetworkCamera

AccessingtheProduct

3.FromtheTriggerdrop-downlist,selectInputSignal.

4.Fromtheseconddrop-downlist,selectManualTrigger.

5.Selectthedesiredactionandconguretheothersettingsasrequired.

Formoreinformationaboutactionrules,seeEvents,onpage35.

ToshowthemanualtriggerbuttonsintheLiveViewpage:

1.GotoSetup>LiveViewLayout.

2.UnderActionButtons,selectShowmanualtriggerbutton.

AXISMediaControlviewertoolbar

TheAXISMediaControlviewertoolbarisavailableinInternetExploreronly.SeeAXISMediaControl(AMC),onpage15formore

information.Thetoolbardisplaysthefollowingbuttons:

ThePlaybuttonconnectstotheAxisproductandstartsplayingamediastream.

TheStopbuttonstopsthemediastream.

TheSnapshotbuttontakesasnapshotofthevideoimage.Thelocationwheretheimageissavedcanbespecied

intheAMCControlPanel.

ClicktheViewFullScreenbuttonandthevideoimagewilllltheentirescreen.PressESC(Escape)onthecomputer

keyboardtocancelfullscreenview.

TheRecordbuttonisusedtorecordthecurrentvideostream.Thelocationwheretherecordingissavedcanbespeciedin

theAMCControlPanel.EnablethisbuttonfromLiveViewCong>ViewerSettings.

PTZControls

TheLiveViewpagealsodisplaysPan/Tilt/Zoom(PTZ)controls.Theadministratorcanenable/disablecontrolsforspeciedusersunder

SystemOptions>Security>Users.

WiththePTZControlQueueenabledthetimeeachuserisincontrolofthePTZsettingsislimited.Clickthebuttonstorequestor

releasecontrolofthePTZcontrols.ThePTZControlQueueissetupunderPTZ>ControlQueue.

ClicktheEmulatejoystickmodebuttonandclickintheimagetomovethecameraviewinthedirectionofthe

mousepointer.

ClicktheCentermodebuttonandclickintheimagetocenterthecameraviewonthatposition.Thecentermode

buttoncouldalsobeusedtozoominonaspecicarea.Clickintheimageanddragtodrawarectanglesurrounding

theareatobemagnied.Tozoomout,rotatethemousewheel.

ClicktheCtrlpanelbuttontoopenthePTZcontrolpanelwhichprovidesadditionalPTZcontrols.

User-denedbuttonscanalsoappearintheControlpanel.SeeControls,onpage31.

Selectarecordedtourandclick toplayapreviouslyrecordedtourandclick tostop.See

TourRecording,onpage30.

SelectaPTZpresetpositiontosteerthecameraviewtothesavedposition.SeePresetPositions,

onpage27.

ClicktheStartAutoTrackbuttontostartautotrackingdirectlyfromtheLiveViewpage.See

Autotracking,onpage28.

AXISQ6032-CPTZDomeNetworkCamera

AccessingtheProduct

PanandTiltbars–Usethearrowstopanandtiltthecameraview,orclickonapositiononthebartosteerthe

cameraviewtothatposition.

Zoombar–Usethearrowstozoominandout,orclickonapositiononthebartozoomtothatposition.

Focusbar–Usethearrowstofocusthecamera,orclickonapositiononthebartosetthefocusposition.Usingthe

focusbarwilldisabletheproduct’sautofocus.Tore-enable,usethePTZcontrolpanelwhichisopenedbyclicking

theCtrlpanelbutton(seeabove).

Irisbar–Clickonapositionontheirisbartochangethedegreetowhichtheirisisopened.Thiswilldisablethe

product’sautoiris.Tore-enable,usethePTZcontrolpanelwhichisopenedbyclickingtheCtrlpanelbutton(seeabove).

ThePTZcontrolscanbedisabledunderPTZ>Advanced>Controls,seeControls,onpage31.

AXISQ6032-CPTZDomeNetworkCamera

MediaStreams

TheAxisproductprovidesseveralvideostreamformats.Yourrequirementsandthepropertiesofyournetworkwilldeterminethe

typeyouuse.

TheLiveViewpageintheproductprovidesaccesstoH.264andMotionJPEGvideostreams,andtothelistofavailablestreamproles.

Otherapplicationsandclientscanaccessvideostreamsdirectly,withoutgoingviatheLiveViewpage.

HowtoStreamH.264

ThevideocompressionstandardH.264makesgooduseofbandwidth,andcanprovidehighqualityvideostreamsatlessthan1Mbit/s.

Decidingwhichcombinationofprotocolsandmethodstousedependsonyourviewingrequirements,andonthepropertiesof

yournetwork.TheavailableoptionsinAXISMediaControlare:

UnicastRTP

Thisunicastmethod(RTPoverUDP)isused

forliveunicastvideo,especiallywhenitis

importanttoalwayshaveanup-to-datevideo

stream,evenifsomeimagesaredropped.

RTPoverRTSP

Thisunicastmethod(RTPtunneledoverRTSP)

isusefulasitisrelativelysimpletocongure

rewallstoallowRTSPtrafc.

RTPoverRTSPoverHTTP

Thisunicastmethodcanbeusedtotraverse

rewalls.Firewallsarecommonlyconguredto

allowtheHTTPprotocol,thusallowingRTPto

betunneled.

Unicastingisusedforvideo-on-demand

transmissionsothatthereisnovideotrafc

onthenetworkuntilaclientconnectsand

requeststhestream.

Notethatthereareamaximumof20

simultaneousunicastconnections.

MulticastRTP

Thismethod(RTPoverUDP)shouldbeusedforlivemulticastvideo.Thevideostreamisalways

up-to-date,evenifsomeimagesaredropped.

Multicastingprovidesthemostefcientusageofbandwidthwhentherearelargenumbersof

clientsviewingsimultaneously.Amulticastcannothowever,passanetworkrouterunlessthe

routerisconguredtoallowthis.ItisnotpossibletomulticastovertheInternet,forexample.

Notealsothatallmulticastviewerscountasoneunicastviewerinthemaximumtotalof20

simultaneousconnections.

AXISMediaControlnegotiateswiththeAxisproducttodeterminethetransportprotocoltouse.Theorderofpriority,listedinthe

AMCControlPanel,canbechangedandtheoptionsdisabled,tosuitspecicrequirements.

Note

H.264islicensedtechnology.TheAxisproductincludesoneH.264viewingclientlicense.Installingadditionalunlicensed

copiesoftheclientisprohibited.Topurchaseadditionallicenses,contactyourAxisreseller.

MJPEG

ThisformatusesstandardJPEGstillimagesforthevideostream.Theseimagesarethendisplayedandupdatedataratesufcient

tocreateastreamthatshowsconstantlyupdatedmotion.

TheMotionJPEGstreamusesconsiderableamountsofbandwidth,butprovidesexcellentimagequalityandaccesstoeveryimage

containedinthestream.TherecommendedmethodofaccessingMotionJPEGlivevideofromtheAxisproductistousetheAXIS

MediaControlinInternetExplorerinWindows.

AXISMediaControl(AMC)

AXISMediaControl(AMC)inInternetExplorerinWindowsistherecommendedmethodofaccessinglivevideofromtheAxisproduct.

AXISQ6032-CPTZDomeNetworkCamera

MediaStreams

TheAMCControlPanelcanbeusedtocongurevariousvideosettings.PleaseseetheAXISMediaControlUser’sManualformore

information.

TheAMCControlPanelisautomaticallyinstalledonrstuse,afterwhichitcanbecongured.OpentheAMCControlPanelfrom:

•WindowsControlPanel(fromtheStartmenu)

•Alternatively,right-clickthevideoimageinInternetExplorerandclickSettings.

AlternativeMethodsofAccessingtheVideoStream

YoucanalsoaccessvideoandimagesfromtheAxisproductinthefollowingways:

•MotionJPEGserverpush(ifsupportedbytheclient,Firefox,forexample).ThisoptionmaintainsanopenHTTPconnection

tothebrowserandsendsdataasandwhenrequired,foraslongasrequired.

•StillJPEGimagesinabrowser.Enterthepathhttp://<ip>/axis-cgi/jpg/image.cgi

•WindowsMediaPlayer.ThisrequiresAXISMediaControlandtheH.264decodertobeinstalled.Thefollowingpaths

canbeused:

-UnicastviaRTP:axrtpu://<ip>/axis-media/media.amp

-UnicastviaRTSP:axrtsp://<ip>/axis-media/media.amp

-UnicastviaRTSP,tunneledviaHTTP:axrtsphttp://<ip>/axis-media/media.amp

-Multicast:axrtpm://<ip>/axis-media/media.amp

•QuickTime

.Thefollowingpathscanbeused:

-rtsp://<ip>/axis-media/media.amp

-rtsp://<ip>/axis-media/media.3gp

AXISQ6032-CPTZDomeNetworkCamera

MediaStreams

Note

•<ip>=IPaddess

•TheAxisproductsupportsQuickTime6.5.1andlater.

•QuickTimeaddslatencytothevideostream.

•ItmaybepossibletouseotherplayerstoviewtheH.264streamusingthepathsabove,althoughAxisdoesnotguarantee

this.

AXISQ6032-CPTZDomeNetworkCamera

SettingUptheProduct

TheAxisproductcanbeconguredbyuserswithadministratororoperatorrights.Toopentheproduct’sSetuppages,clickSetupin

thetopright-handcorneroftheLiveViewpage.

•Administratorshaveunrestrictedaccesstoallsettings.

•OperatorshaveaccesstoallsettingsexceptSystemOptions

Seealsotheonlinehelp

BasicSetup

BasicSetupprovidesshortcutstothesettingsthatshouldbemadebeforeusingtheAxisproduct:

1.Users.Seepage40.

2.TCP/IP.Seepage42.

3.Date&Time.Seepage41.

4.VideoStream.Seepage19.

TheBasicSetupmenucanbedisabledfromSystemOptions>Security>Users.

AXISQ6032-CPTZDomeNetworkCamera

Video

ItispossibletocongurethefollowingvideofeaturesinyourAxisproduct:

•Videostream.Seepage19.

•Streamproles.Seepage20.

•Camerasettings.Seepage21.

•Overlayimage.Seepage22.

•Privacymask.Seepage23.

VideoStream

YoucandenethefollowingvideostreamsettingsfromVideo>VideoStream:

•Image.Seepage19.

•H.264.Seepage20.

•MJPEG.Seepage20.

PixelCounter

Thepixelcountershowsthenumberofpixelsinanareaoftheimage.Thepixelcounterisusefulinsituationswherethereisa

requirementthattheimageisacertainsize,forexampleinfacerecognition.

Thepixelcountercanbeaccessedfrom:

•Video>VideoStream.UnderPreview,clickOpenandselecttheShowpixelcounteroptiontoenabletherectangle

intheimage.Usethemousetomoveandresizetherectangle,orenterthenumberofpixelsintheWidthandHeight

eldsandclickApply.


ThedefaultimagesettingscanbeconguredunderVideo>VideoStream.SelecttheImagetab.

AXISQ6032-CPTZDomeNetworkCamera

Video

Thefollowingsettingsareavailable:

•Resolution.Selectthedefaultresolution.

•Compression.Thecompressionlevelaffectstheimagequality,bandwidthandlesizeofsavedimages;thelowerthe

compression,thehighertheimagequalitywithhigherbandwidthrequirementsandlargerlesizes.

•Rotateimage.Ifrequired,theimagecanberotated.

•Maximumframerate.Toavoidbandwidthproblems,theframerateallowedtoeachviewercanbelimited.

•Overlaysettings.SeeOverlay,onpage22.

ClickSavetoapplythenewsettings.

H.264

H.264,alsoknownasMPEG-4Part10/AVC,isavideocompressionstandardthatprovideshighqualityvideostreamsatlowbitrates.

AnH.264videostreamconsistsofdifferenttypesofframessuchasI-framesandP-frames.AnI-frameisacompleteimagewhereas

P-framesonlycontainthedifferencesfrompreviousframes.

TheGOVlengthisthenumberofframesbetweentwoconsecutiveI-frames.IncreasingtheGOVlengthmaysaveconsiderablyon

bandwidthrequirementsinsomecases,butmayalsohaveanadverseaffectonimagequality.

ThebitratecanbesetasVariableBitRate(VBR)orConstantBitRate(CBR).VBRadjuststhebitrateaccordingtotheimage

complexity,usingupmorebandwidthforincreasedactivityintheimage,andlessforlowerimageactivity.CBRallowsyoutoseta

xedTargetbitratethatconsumesapredictableamountofbandwidth.Asthebitratewouldusuallyneedtoincreaseforincreased

imageactivity,butinthiscasecannot,framerateandimagequalityareaffectednegatively.Topartlycompensateforthis,itis

possibletoprioritizeeitherframerateorimagequality.Notsettingaprioritymeansthatframerateandimagequalityareequally

affected.Youmustsaveyoursettingsbeforetheycantakeeffect.

Thecurrentbitratecanbesettoappearastextoverlay.Todothis,selecttheIncludetextcheckboxoptionunderOverlay

Settingsandenterthemodier#bintheeld.

MJPEG

Sometimestheimagesizeislargeduetolowlightorcomplexscenery.Adjustingthemaximumframesizehelpstocontrolthe

bandwidthandstorageusedbytheMotionJPEGvideostreaminthesesituations.SettingtheframesizetotheDefaultsetting

providesconsistentlygoodimagequalityattheexpenseofincreasedbandwidthandstorageusageinlowlight.Limitingtheframe

sizeoptimizesbandwidthandstorageusage,butmaygivepoorimagequality.Topreventincreasedbandwidthandstorageusage,

themaximumframesizeshouldbesettoanoptimalvalue.

StreamProles

Astreamproleisasetofpredenedstreamsettingsincludingresolution,compression,framerateandoverlaysettings.Stream

prolescanbeused:

•Whensettinguprecordingusingactionrules.SeeEvents,onpage35.

•Whensettingupcontinuousrecording.SeeContinuousRecording,onpage38.

•IntheLiveViewpage–selectthestreamprolefromtheStreamproledrop-downlist.

Forquicksetup,useoneofthepredenedstreamproles.Eachpredenedprolehasadescriptivename,indicatingitspurpose.If

required,thepredenedstreamprolescanbemodiedandnewcustomizedstreamprolescanbecreated.

Tocreateanewproleormodifyanexistingprole,gotoSetup>Video>StreamProles.

ToselectadefaultstreamprolefortheLiveViewpage,gotoSetup>LiveViewCong.

AXISQ6032-CPTZDomeNetworkCamera

Video

CameraSettings

TheVideo>CameraSettingspageprovidesaccesstoadvancedimagesettingsfortheAxisproduct.

ImageAppearance

IncreasingtheColorlevelincreasesthecolorsaturation.Thevalue100givesmaximumcolorsaturation.Thevalue0givesa

blackandwhiteimage.

TheimageBrightnesscanbeadjustedintherange0–100,whereahighervalueproducesabrighterimage.

IncreasingtheSharpnesscanincreasebandwidthusage.Asharperimagemightincreaseimagenoiseespeciallyinlowlight

conditions.Alowersettingreducesimagenoise,butthewholeimagewillappearlesssharp.

WhiteBalance

Whitebalanceisusedtomakecolorsintheimageappearthesameregardlessofthecolortemperatureofthelightsource.TheAxis

productcanbesettoautomaticallyidentifythelightsourceandcompensateforitscolor.Alternatively,selectthetypeoflight

sourcefromthedrop-downlist.Foradescriptionofeachavailablesetting,seetheonlinehelp

WideDynamicRange

Widedynamicrangecanimprovetheexposurewhenthereisaconsiderablecontrastbetweenlightanddarkareasintheimage.

EnableWDRinintensebacklightconditions.ThedifferentWDRsettingsadjustforvariousamountsofcontrastintheimage.Usea

higherWDRnumberforahighercontrast.DisableWDRinlowlightconditionsforoptimalexposure.

ExposureSettings

Conguretheexposuresettingstosuittheimagequalityrequirementsinrelationtolighting,framerateandbandwidth

considerations.

Exposurecontrol-Thesesettingsisusedtoadapttotheamountoflightused.Automaticisthedefaultsettingscanbeusedinmost

situations.Theshutterspeedisautomaticallysettoproduceoptimumimagequality.

Maxexposuretime-Selectthemaximumexposuretimefromthedrop-downlist.Increasingtheexposuretimewillimprove

imagequality,butdecreasetheframerate.Theremayalsobeanincreaseinmotionblur.CheckingAllowslowshutterdecreases

theshutterspeedinlowlighttoimproveimagebrightness.

EnableBacklightcompensation-Enablethisoptionifabrightspotoflight,forexamplealightbulb,causesotherareasin

theimagetoappeartoodark.

Exposurezones-Thissettingsdetermineswhichpartoftheimageisusedtocalculatetheexposure.Formostsituations,theAuto

settingcanbeused.Forparticularrequirement,selectapredenedarea.

Maxgain-Measuredindecibels(dB),gaindescribestheamountofamplicationappliedtoasignal,inthiscasethevisual

informationintheimage.Ahighlevelofamplicationmayprovideabetterimageinverylowlightsituations.Ahighgainwillalso

increasetheamountofimagenoise.

Day/Night

TheIRcutlterpreventsinfrared(IR)lightfromreachingtheimagesensor.Inpoorlightingconditions,forexampleatnight,or

whenusinganIRlamp,settheIRcutltertoOff.Thisincreaseslightsensitivityandallowstheproductto“see”infraredlight.The

imageisshowninblackandwhitewhentheIRcutlterisoff.

IfusingautomaticExposurecontrol,settheIRcutltertoAutotoautomaticallyswitchbetweenOnandOffaccordingtothe

lightingconditions.

AXISQ6032-CPTZDomeNetworkCamera

Video

ImageSettings

Autofocusenabled-Automaticfocusingisenabledbydefault.Ifthefocuspositionischangedmanuallyusingthefocusbar,

autofocuswillbedisabledevenifenabledhere.Inthiscase,usethePTZcontrolpaneltoenableautofocus,seePTZControls,onpage

13.Ifrequired,thefocuscontrolcanbedisabledunderPTZ>Advanced>Controls.

Noisereduction-SettoOntoenablenoisereduction.Noisereductionmayincreasetheamountofmotionblur.

ImagefreezeonPTZ-SelectAllmovementstofreezetheimagewhilethecameraismovingduringapan,tiltorzoomoperation.

Oncethecamerareachesitsnewposition,theviewfromthatpositionisshown.Presetsfreezestheimageonlywhenthecamera

movesbetweenpresetpositions.

Overlay

Overlaysareusedtoprovideextrainformation,forexampleforforensicvideoanalysisorduringproductinstallationand

conguration.Overlaysaresuperimposedoverthevideostream.

Anoverlaytextcandisplaythecurrentdateandtime,oratextstring.Whenusingatextstring,modierscanbeusedtodisplay

informationsuchasthecurrentbitrateorthecurrentframerate.Forinformationaboutavailablemodiers,seeFileNaming&

Date/TimeFormatsintheonlinehelp

Toenableoverlays:

1.GotoVideo>VideoStreamandselecttheImagetab.

2.Toincludeanoverlayimage,selectIncludeoverlayimageatthecoordinates.Theoverlayimagemustrstbeuploadedto

theAxisproduct,seeOverlayImage.

3.Toincludedateandtime,selectIncludedateandIncludetime.

4.Toincludeatextstring,selectIncludetextandenterthetextintheeld.Modierscanbeused,seeFileNaming&

Date/TimeFormatsintheonlinehelp

5.Selectthetextcolor,thetextbackgroundcolorandthepositionoftheoverlay.

6.ClickSave.

Tomodifythedateandtimeformat,gotoSystemOptions>Date&Time.SeeDate&Time,onpage41.

OverlayImage

Anoverlayimageisastaticimagesuperimposedoverthevideostream.Theimage,forexamplecompanylogo,isusedtoprovide

extrainformationortomaskapartoftheimage.

Sinceitisstatic,thepositionandsizeofanoverlayimagewillremainthesameregardlessofresolutionandPan/Tilt/Zoom

movements.Tosetupadynamicmask,whichwillalwaysmaskthespeciedpartofmonitoredarea,seePrivacyMask.

Touseanoverlayimage,theimagemustrstbeuploadedtotheAxisproduct:

1.GotoVideo>OverlayImage.

2.ClickBrowseandbrowsetothele.

3.ClickUpload.

4.SelecttheimagetousefromtheUseoverlayimagelist.

5.ClickSave.

Todisplaytheoverlayimage:

1.GotoVideo>VideoStreamandselecttheImagetab.

AXISQ6032-CPTZDomeNetworkCamera

Video

2.UnderOverlaySettings,selectIncludeoverlayimageatthecoordinatesandentertheXandYcoordinates.

3.ClickSave.

Forinformationaboutsupportedimageformats,seetheonlinehelp .

PrivacyMask

Aprivacymaskisanareaofsolidcolorthatprohibitsusersfromviewingpartsofthemonitoredarea.Privacymaskscannotbe

bypassedviatheVAPIX®ApplicationProgrammingInterface(API).

ThePrivacyMaskList,Video>PrivacyMask,showsallthemasksthatarecurrentlyconguredintheAxisproductandindicates

iftheyareenabled.

SincethePan/Tilt/Zoomcoordinatesdeneitssizeandposition,aprivacymaskisdynamicinrelationtothemonitoredarea.This

meansthatregardlessoftheangleandzoomofthelens,thesameplaceorobjectwillbehidden.Todeneatwhatmagnicationthe

maskshouldbedisplayed,zoomtothedesiredlevelandclickSetlevel.

Youcanaddanewmask,re-sizethemaskwiththemouse,chooseacolorforthemask,andgivethemaskaname.

Formoreinformation,seetheonlinehelp

Important

Addingmanyprivacymasksmayaffecttheproduct’sperformance.

AXISQ6032-CPTZDomeNetworkCamera

LiveViewCong

YoucancustomizetheLiveViewpageandalterittosuityourrequirements.Itispossibletodenethefollowingfeaturesof

theLiveViewpage.

•StreamProle.Seepage20.

•DefaultViewerforBrowser.Seepage24.

•ViewerSettings.Seepage25.

•ActionButtons.ThesearethebuttonsdescribedinControlsontheLiveViewPage,onpage12.

•UserDenedLinks.Seepage25.

DefaultViewerforBrowsers

FromLiveViewCong>DefaultViewerselectthedefaultmethodforviewingvideoimagesinyourbrowser.Theproductattempts

toshowthevideoimagesintheselectedvideoformatandviewer.Ifthisisnotpossible,theproductoverridesthesettingsand

selectsthebestavailablecombination.

AXISQ6032-CPTZDomeNetworkCamera

LiveViewCong

BrowserViewerDescription

AMC

RecommendedviewerinInternetExplorer(H.264/MotionJPEG).

QuickTime

H.264.

Javaapplet

AslowerimagingalternativetoAMC(MotionJPEG).Requiresoneofthe

followinginstalledontheclient:

•JVM(J2SE)1.4.2orhigher.

•JRE(J2SE)5.0orhigher.

WindowsInternetExplorer

StillimageDisplaysstillimagesonly.ClicktheRefreshbuttoninyourbrowsertoviewa

newimage.

ServerPush

Recommendedviewerforotherbrowsers(MotionJPEG).

QuickTime

H.264.

Javaapplet

AslowerimagingalternativetoServerPush(MotionJPEGonly).

Otherbrowsers

StillimageDisplaysstillimagesonly.ClicktheRefreshbuttoninyourbrowsertoviewa

newimage.

Formoreinformation,pleaseseetheonlinehelp .

ViewerSettings

Tocongureoptionsfortheviewer,gotoLiveViewCong>ViewerSettings.

•SelectShowviewertoolbartodisplaytheAXISMediaControl(AMC)ortheQuickTimeviewertoolbarunderthevideo

imageinyourbrowser.

•H.264decoderinstallation.TheadministratorcandisableinstallationoftheH.264decoderincludedwithAXISMedia

Control.Thisisusedtopreventinstallationofunlicensedcopies.Furtherdecoderlicensescanbepurchasedfromyour

Axisreseller.

•SelectShowcrosshairinPTZjoystickmodetoenableacrossthatwillindicatethecenteroftheimageinPTZjoystick

mode.

•SelectUsePTZjoystickmodeasdefaulttoenablejoystickmode.Themodecanbechangedtemporarilyfromthe

PTZcontrolpanel.

•SelectEnablerecordingbuttontoenablerecordingfromtheLiveViewpage.Thisbuttonisavailablewhenusingthe

AMCviewer.TherecordingsaresavedtothelocationspeciedintheAMCControlPanel.SeeAXISMediaControl

(AMC),onpage15.

UserDenedLinks

Todisplayuser-denedlinksintheLiveViewpage,selecttheShowcustomlinkoption,givethelinkanameandthenentertheURL

tolinkto.Whendeningaweblinkdonotremovethe'http://'fromtheURLaddress.Customlinkscanbeusedtorunscriptsor

activateexternaldevicesconnectedtotheproduct,ortheycanlinktoawebpage.Customlinksdenedascgilinkswillrunthe

scriptinthebackground,inahiddenframe.Deningthelinkasaweblinkwillopenthelinkinanewwindow.

OutputButtons

ExternalI/OdevicesconnectedtotheAxisproduct’soutputportscanbecontrolleddirectlyfromtheLiveViewpage.

TodisplayoutputbuttonsintheLiveViewpage:

1.GotoSetup>LiveViewCong.

2.UnderOutputButtons,selectthetypeofcontroltouse:

AXISQ6032-CPTZDomeNetworkCamera

LiveViewCong

-Pulseactivatestheoutputforadenedperiodoftime.Thepulsetimecanbesetfrom1/100secondto60

seconds.

-Active/Inactivedisplaystwobuttons,oneoreachaction.

Toconguretheactiveandinactivestates,gotoSystemOptions>Ports&Devices>I/OPortsandsettheport’sNormalstate.

FormoreinformationaboutI/Oports,seeI/OPorts,onpage48.

AXISQ6032-CPTZDomeNetworkCamera

PTZ(PanTiltZoom)

PresetPositions

Apresetpositionisapredenedviewthatcanbeusedtoquicklysteerthecameratoaspeciclocation.Presetpositionscan

beaccessedinseveralways:

•ByselectingthepresetfromthePresetpositionsdrop-downlistintheLiveViewPage.

•Whensettingupactionrules.Seepage35.

•WhensettingupGuardTour.Seepage29.

•WhensettinguptheGatekeeper.Seepage29

Toaddapresetposition:

1.GotoPTZ>PresetPositions.

2.Usethepan,tiltandzoomcontrolstosteerthecameraviewtothedesiredposition.

3.EnteradescriptivenameintheCurrentpositioneld.

4.Ifrequired,selectUsecurrentpositionasHome.

5.ClickAdd.Thecamera’sposition,irisandfocussettingsaresavedasapresetposition.

TheHomepositionisreadilyaccessiblebyclickingtheHomebuttonontheLiveViewpageandinthePresetPositionssetupwindow.

Tosetacustomizedhomeposition,selectUsecurrentpositionasHomewhenaddingapresetposition.Theuser-denedhome

positionwillhave(H)added,forexample,Entrance(H).ThedefaultHomeposition,called“Home”,willstillbeavailable.

TheproductcanbeconguredtoreturntotheHomepositionwhenthePTZfunctionalityhasbeeninactiveforaspeciedlength

oftime.EnterthelengthoftimeintheReturntohomewheninactiveeldandclickSave.Setthetimetozerotopreventthe

productfromautomaticallyreturningtotheHomeposition.

Toincludethepresetpositionnameintheoverlaytext,gotoVideo,selectIncludeoverlaytextandenterthemodier#Pintheeld.

Formoreinformationaboutmodiers,seeFileNaming&Date/TimeFormatsintheonlinehelp

AXISQ6032-CPTZDomeNetworkCamera

PTZ(PanTiltZoom)

Autotracking

TheAxisproductcandetectmovementintheeldofview,forexampleamovingvehicleorperson.Ifautotrackingisenabled,the

Axisproductwillautomaticallypanandtilttofollowthemovingobject.Incasethereismuchsimultaneousmovement,theareawith

themostmovementwillbefollowed.Autotrackingcontinuesuntilthemovingobjectstopsordisappearsfromthemonitoredarea.

Movementinareasblockedbyprivacymasksandinexcludeareasdoesnottriggerautotracking.

ItisstronglyrecommendedtoenablethePTZControlQueueifautotrackingandguardtourareenabledsimultaneously.InthePTZ

ControlQueue,guardtourhaslowerprioritythanautotracking,soautotrackingwillnotbeabandonedtostartaguardtour.

Conguration

Start/StopAutotracking-ClickStarttoenableautotracking.Todisableautotracking,clickStop.

Settings-TheMovementtriggersensitivitylevelcanbesettoLow,MediumorHigh.Mediumisusuallyagoodchoice,dependingon

thesizeofthemovingobjectsandtheimagecontrast,aloworhighsensitivitymightbemoresuitable.

ExcludeAreas

Excludeareasareareaswheremovementistobeignored.

Note

Movementinanareablockedbyaprivacymaskisalwaysignored.

1.ClickAddareatocreateanexcludearea

2.Resizeandmovethearea(thebluerectangle)tothedesiredposition.

3.EnteradescriptivenameandclickSave.

Toremoveanarea,clickthenameoftheareaandclickRemove.Toenableordisableanarea,clickthenameoftheareaand

clickEnable/Disable.

MaxLimits

Thepanandtiltlimitsrestricttheareawhereautotrackingisallowed.Theareabeyondthesetlimitswillbeignored.Thismayprove

useful,forexample,toavoidtrackingbirdsinthesky.Betweenthepanstartandendlimits,autotrackingisallowedgoingclockwise.

Theillustrationsshowthedifferencebetweensettingarangefrom135°to45°(1)andarangefrom45°to135°(2).

1.SelectEnabletiltlimitandEnablepanlimitrespectivelytoenablethetiltandpanlimits.

2.EntertheTiltangleandPanlimitvalues,orclickthelinksandmovethebluehorizontalandverticalbarsinthepreview

windowuntilsatised.

3.ClickSave.

AXISQ6032-CPTZDomeNetworkCamera

PTZ(PanTiltZoom)

90°-90°

-180°/180°

0°

90°-90°

-180°/180°

0°

Topview

APanlimitstart

BPanlimitend

Gatekeeper

TheGatekeepermonitorsanareasuchasanentrancegate.Itcanpan,tiltandzoomin,andtakeasnapshotof,forexample,a

face,triggeredbymovementinthearea.Thecamerawillthenautomaticallyreturntothehomepositionandcontinuetooverview

themonitoredarea.

ToconguretheGatekeeper,followtheonlineinstructionsunderPTZ>Gatekeeper.

GuardTour

Aguardtourdisplaysthevideostreamfromdifferentpresetpositions,one-by-one,inapredeterminedorderoratrandomandfor

congurabletimeperiods.Theenabledguardtourwillkeeprunningaftertheuserhasloggedofforclosedthebrowser.

TheguardtourcapabilityinthisAxisproductalsoincludestourrecording.TourrecordingisdescribedinTourRecording,onpage30.

Toaddaguardtour:

1.GotoPTZ>GuardTourandclickAdd.

2.SelectCreateapresettourandclickOK.

3.Enteradescriptivename.

4.Specifythepauselengthbetweenruns.

5.SelectanavailablepresetpositionandclickApply.

6.SpecifytheMoveSpeed.

7.SpecifytheViewTimeinsecondsorminutes.

8.SpecifytheViewOrderorselecttheRandomvieworderoption.

9.ClickSave.

Tomodifyorremoveguardtours,gotoPTZ>GuardTour,selecttheguardtourintheGuardTourListandclickModify/Remove.

AXISQ6032-CPTZDomeNetworkCamera

PTZ(PanTiltZoom)

Formoreinformationseetheonlinehelp .

TourRecording

Theguardtourfunctioninthisproductincludestourrecording,whichallowsrecordingofacustomtourusinganinputdevicesuch

asajoystick,mouse,keyboardorthroughtheVAPIX®ApplicationProgrammingInterface(API).Arecordedtourdisplaysthevideo

streamoftherecordedsequenceofPan/Tilt/Zoommovements,includingtheirvariablespeedsandlengths.

Toaddarecordedtour:

1.GotoPTZ>GuardTourandclickAdd.

2.SelectCreatearecordtourandclickOK.

3.Enteradescriptivename.

4.Specifythepauselengthbetweenruns.

5.Click

tostartrecordingthePan/Tilt/Zoommovements.

6.Whensatised,click

7.ClickOK.

Note

Onlythenameoftherecordedtourandpausebetweenrunscanbemodied.Startinganewrecordingwilloverwritethe

existingguardtour.

TherecordedtourcanbeactivatedfromtheLiveViewandGuardTourpagesorthroughevents.Formoreinformationsee

theonlinehelp

OSDIZones

On-ScreenDirectionIndicator(OSDI)zonescanbeincludedintheoverlaytext(seeOverlay,onpage22)toaidtheusertonavigate

theAxisproduct.EachOSDIzoneissetupwithcoordinatesandadescriptivename.

OSDIzonesaresetupunderPTZ>OSDIZones.TheAxisproductusesthecoordinatesofthecenteroftheviewtosetthelower

leftandupperrightzoneareas.FirstnavigatetowhereyouwouldlikethelowermostleftpointoftheOSDIzonetobelocated.

ClickGettosetthecoordinates.ProceedtowheretheupperrightpointofzoneshouldbelocatedandclickGet.Givethezonea

descriptivenameandclickOK.

ToincludethenameoftheOSDIzoneintheoverlaytext,gotoVideo<VideoStream<OverlaySettings.ChecktheInclude

textboxandenterthemodier#Lintheeld.Formoreinformationaboutmodiers,seeFileNaming&Date/TimeFormatsin

theonlinehelp

Advanced

Limits

Denethepan,tilt,zoomandfocuslimitsfortheAxisproduct.Movementstotheleftandright,upanddown,canberestrictedto

narrowtheareaundersurveillance.

Congurethenearfocuslimittoavoidfocusingonobjectstooclosetothecameralens.

WhenEnableE-ipisselected,asittiltsdownandcontinuestopanbackwards,theAxisproductwillautomaticallycorrecttheview

andipit180degrees.Theleftlimitmustbesetto–180degreesandtherightlimitto180degreesfore-iptowork.

Movespeedsetsthespeedofthecamera’spanandtiltmovements.Thedefaultsettingismaximumspeed.

AXISQ6032-CPTZDomeNetworkCamera

PTZ(PanTiltZoom)

Whenusingajoystick(oremulatingonewiththemouse)theEnableproportionalspeedsettingcanbeusedtoreducethemaximum

pan/tiltmovementspeed,i.e.thespeedthecameraviewmovesatwhenthejoystickispushedallthewayoutinanydirection.Thisis

usefulthentheviewiszoomedinonanobject.

Seetheonlinehelp

formoreinformation.

Controls

PanelShortcutCommandButtonscanbeconguredtoprovidedirectaccesstocommandsissuedviatheVAPIX®Application

ProgrammingInterface.ThebuttonswillbedisplayedinthePTZcontrolpanel,whichisavailableintheLiveViewpagethrough

theCtrlpanelbutton,seepage13.

DeselecttheoptionsunderEnable/Disablecontrolstodisablethepan,tilt,zoom,focusandiriscontrols.

Note

DisablingPTZcontrolswillnotaffectpresetpositions.Forexample,ifthetiltcontrolisdisabled,theproductcanstillmoveto

presetpositionsthatrequireatiltmovement.

ControlQueue

TheadministratorcansetupaqueueforPTZcontrollersfromPTZ>ControlQueue.Oncesetup,thePTZControlQueuebuttons

appearintheLiveViewpageofferingoneviewerexclusivecontrolforalimitedperiodoftime.Otheruserswillbeplacedinqueue.

Auserwhobelongstoagroup(seeUsers,onpage40)withahigherPTZprioritycangobeforeotherusersinthequeueand

takecontroloftheproduct.Theorderofpriorityisasfollows:

1.Administrator—AnadministratortakesoverPTZcontrolregardlessofwhoisrstinqueue.Theadministratorwillbe

removedfromthequeue60secondsafterthelastPTZcontrolcommand.

2.Event—TheAxisproductcanbeconguredtogotoapresetpositionwhentriggeredbyanalarm(seeEvents,onpage35).

Theeventwillimmediatelybeplacedrstinthequeueexceptwhenanadministratorisincontrol.

3.Operator—Sameasadministratorbutwithlowerpriority

4.GuardTour—Aguardtour(seepage29)hasPTZcontrolforanindeniteperiodoftime.Itmaybeoverriddenbyan

operator,eventoradministrator.Theguardtourwillresumewhenhigherprioritygroupsleavethequeue.

5.Viewer—Multipleviewersmustwaitfortheirturn.Theviewerhas60secondsPTZcontrolbeforecontrolispassed

ontothenextviewerinqueue.

Note

•TheadministratorcanenableanddisablePTZcontrolsforselectedusers.

•Toidentifydifferentusersintheviewergroup,cookiesmustbeenabledontheclient.

AXISQ6032-CPTZDomeNetworkCamera

Detectors

MotionDetection

Motiondetectionisusedtogenerateanalarmwhenevermovementstartsorstopsinthecameraview.

Motiondetectionisconguredbydeningupto10IncludeandExcludewindows:

•Includewindows—deneareaswheremotionshouldbedetected

•Excludewindows—deneareaswithinanIncludewindowthatshouldbeignored(areasoutsideIncludewindows

areautomaticallyignored).

Forinstructions,seeSetUpMotionDetectionWindows,onpage32.

Tocontrolthenumberofmotiondetectionalarms,theparametersObjectSize,HistoryandSensitivitycanbeadjusted.See

MotionDetectionParameters,onpage33.

Oncemotiondetectionwindowsarecongured,theAxisproductcanbeconguredtoperformactionswhenmotionisdetected.

Possibleactionsincludeuploadingimagesandstartrecording.Formoreinformation,seeSettingUpanActionRule,onpage36.

Note

Usingthemotiondetectionfeaturemaydecreasetheproduct’soverallperformance.

SetUpMotionDetectionWindows

TosetupamotiondetectionIncludeWindow,followtheseinstructions:

1.GotoDetectors>MotionDetection.

2.SelecttheCongureIncludedWindowsoptionandclickNew.Selectthenewwindowinthelistofwindowsand

enteradescriptivename.

3.Adjustthesize(dragthebottomright-handcorner)andtheposition(clickonthetextatthetopanddragtothedesired

position)ofthewindow.

4.AdjusttheObjectSize,HistoryandSensitivityprolesliders(seeMotionDetectionParametersfordetails).Anydetected

motionwithinanactivewindowisindicatedbyredpeaksintheActivitywindow.

5.ClickSave.

Toexcludepartsoftheincludewindow,selecttheCongureExcludedWindowsandpositiontheexcludewindowwithinthe

includewindow.

AXISQ6032-CPTZDomeNetworkCamera

Detectors

Todeleteanincludeorexcludewindow,selectthewindowinthelistofwindowsandclickDel.

MotionDetectionParameters

Theparameterscontrollingmotiondetectionaredescribedinthetablebelow:

Parameter

ObjectSize

History

Sensitivity

Description

Objectsizerelativetowindow

size.

Objectmemorylength.

Differenceinluminance

betweenbackgroundand

object.

Highlevel(100%)

Onlyverylargeobjectstrigger

motiondetection.

Anobjectthatappearsin

thewindowtriggersmotion

detectionforalongtime

beforeitisconsideredas

non-moving.

Ordinarycoloredobjectson

ordinarybackgroundstrigger

motiondetection.

Mediumlevel(50%)

Alargedifferenceinluminance

isrequiredtotriggermotion

detection.

Lowlevel(0%)

Evenverysmallobjectstrigger

motiondetection.

Anobjectthatappearsin

thewindowtriggersmotion

detectiononlyforaveryshort

timebeforeitisconsideredas

non-moving.

Onlyverybrightobjectson

adarkbackgroundtrigger

motiondetection.

Recommendedvalues

5–15%60–90%75–95%

Defaultvalues

15%90%90%

Note

•Totriggeronsmallobjectsormovements,useseveralsmallmotiondetectionwindowsratherthanonelargewindow

andselectalowobjectsize.

•Toavoidtriggeringonsmallobjects,selectahighobjectsize.

•IfnoobjectsshouldappearintheIncludeWindow,selectahighhistorylevel.Thiswillcausemotiondetectiontotriggeras

longastheobjectispresentinthewindow.

•Toonlydetectashinglight,selectalowsensitivity.Inothercaseshighsensitivityisrecommended.

AXISQ6032-CPTZDomeNetworkCamera

Applications

ThirdpartyapplicationscanbeuploadedtoandinstalledontheAxisproduct.Forinformationaboutavailableapplications,

downloads,trialsandlicenses,gotowww.axis.com/applications

Touploadanapplication,gotoApplications>Overview,clickBrowsetolocatetheleandthenclickUploadPackage.Clickonthe

uploadedapplication’snametoopenthemenuoptionsSettings,LicenseandAbout.Forcongurationinstructions,pleasereferto

thedocumentationprovidedwiththeapplication.

Mostapplicationsneedalicensetorun.Toinstallthelicense,selecttheLicensemenuoption.Iftheproductisconnected

totheInternet,AutomaticInstallationappearsinthewebpage.IftheproductisnotconnectedtotheInternet,goto

www.axis.com/applicationstoacquireaLicensekey.Youwillneedalicensecodeandtheproduct’sserialnumber(foundonthelabel

andunderSystemOptions>Support>SystemOverview)toreceivealicensekey.

InstalledApplicationslistsinstalledapplicationswithinformationabouttheversionandthevendor,thestatusoftheapplication

(runningornotrunning),andinformationaboutthelicense.

UsetheStartandStopbuttonstostartandstoptheapplication.

Togeneratealoglefortheapplication,selecttheapplicationandclickLog.

Note

Itisrecommendedtorunoneapplicationatatime.Avoidrunningapplicationswhenmotiondetectionisactive.

AXISQ6032-CPTZDomeNetworkCamera

Events

TheAxisproductcanbeconguredtoperformactionswhendifferenteventsoccur,forexample,startarecordingwhenmotionis

detected.ThesetofconditionsthatdeneshowandwhentheactionistriggerediscalledanActionRule.

AvailableActionRuletriggersandconditionsinclude:

•Applications—useinstalledapplicationstotriggertherule,seeApplications,onpage34.

•Detectors

-MotionDetection—triggertherulewhenmotionisdetected,seeMotionDetection,onpage32.

•Hardware

-OpenCasingDetection—triggertheruleifthecasingofaconnectedexternaldevice,suchasajunction

boxorcabinet(notincluded),isremovedoropened.Thiscanforexamplebeusedtosendnoticationsof

maintenanceorunauthorizedtampering.

-Network—triggertheruleifnetworkconnectionislostorrestored.Thiscanforexamplebeusedtostart

recordingtotheSDcard.

•InputSignal

-ManualTrigger—triggertheruleusingtheManualTriggerbuttonintheLiveViewpage,seeControlson

theLiveViewPage,onpage12.Thiscanforexamplebeusedtovalidateactionsduringproductinstallation

andconguration.

•PTZ

-Autotracking—triggertherulewhenautotrackingstartsorstops,seeAutotracking,onpage28.

•Storage

-Available—triggertherulewhenthestoragedeviceisunmountedorremoved.Thiscanforexamplebe

usedtosendmaintenancenotications.

-Full—triggertherulewhenthestoragedeviceisfull.Undernormaloperation,theoldestrecordingswillbe

overwrittentopreventthestoragedevicefrombecomingfull.

-Locked—triggertheruleifthestoragedeviceislocked(writeprotected).

•System

-SystemInitializing—triggertherulewhentheproductisbeingstarted.Thiscanforexamplebeusedtosenda

noticationwhentheproductrestarts.

•Time

-Recurrence—triggertheruleperiodically,seeRecurrences,onpage37.Thiscanforexamplebeusedtoupload

animageevery5minutes.

-UseSchedule—triggertheruleaccordingtotheselectedschedule,seeSchedules,onpage37.

Availableactionsinclude:

•PTZControl

-Autotracking—startautotracking,seeAutotracking,onpage28.

-PresetPosition—gotoapresetposition.

-GuardTour—startaguardtour,seeGuardTour,onpage29.

AXISQ6032-CPTZDomeNetworkCamera

Events

•RecordVideo—recordvideotoaselectedstorage.

•SendImages—sendimagestoarecipient.

•SendNotications—sendanoticationmessagetoarecipient.

SettingUpanActionRule

Anactionruledenestheconditionsthatmustbemetfortheproducttoperformanaction,forexamplerecordvideoorsendemail

notications.Ifmultipleconditionsaredened,allmustbemettotriggertheaction.

Thefollowingexampledescribeshowtosetupanactionruletorecordvideotoanetworkshareifthereismovementinthe

camera’seldofview.

Setupmotiondetectionandaddanetworkshare:

1.GotoDetectors>MotionDetectionandcongureamotiondetectionwindow,seepage32

2.GotoSystemOptions>Storageandsetupthenetworkshare,seepage48.

Setuptheactionrule:

1.GotoEvents>ActionRulesandclickAdd.

2.SelectEnableruleandenteradescriptivenamefortherule.

3.SelectDetectorsfromtheTriggerdrop-downlist.

4.SelectMotionDetectionfromthedrop-downlist.Selectthemotiondetectionwindowtouse.

5.Optionally,selectaScheduleandAdditionalconditions,seebelow.

6.UnderActions,selectRecordVideofromtheTypedrop-downlist.

7.SelectaStreamproleandconguretheDurationsettingsasdescribedbelow.

8.SelectNetworkSharefromtheStoragedrop-downlist.

Toaddadditionalcriteria,selecttheAdditionalconditionsoptionandaddadditionaltriggers.Topreventanactionfrombeing

triggeredrepeatedly,aWaitatleasttimecanbeset.Enterthetimeinhours,minutesandseconds,duringwhichthetrigger

shouldbeignoredbeforetheactionrulecanbeactivatedagain.

TherecordingDurationofsomeactionscanbesettoincludetimeimmediatelybeforeandaftertheevent.SelectPre-triggertime

and/orPost-triggertimeandenterthenumberofseconds.WhenWhiletheruleisactiveisenabledandtheactionistriggered

againduringthepost-triggertime,therecordingtimewillbeextendedwithanotherpost-triggertimeperiod.

Formoreinformation,seetheonlinehelp

Recipients

Recipientsreceivemedialesandnoticationmessages.Thefollowingrecipientsareavailable:

RecipientUsewithaction

SendImages

SendNotication

FTP

SendImages

HTTP

SendImages

SendNotication

AXISQ6032-CPTZDomeNetworkCamera

Events

NetworkShareSendImages

TCPSendNotication

Note

Anetworksharecanalsobeusedasastoragedeviceforrecordedvideo.GotoSystemOptions>Storagetocongurea

networksharebeforesettingupacontinuousrecordingoranactionruletorecordvideo.SeeStorage,onpage47formore

informationaboutstoragedevices.

Toaddarecipient:

1.GotoEvents>RecipientsandclickAdd.

2.Enteradescriptivename.

3.SelectarecipientType.

4.Entertheinformationneededfortherecipienttype.

5.ClickTesttotesttheconnectiontotherecipient.

6.ClickOK.

Schedules

Schedulescanbeusedasactionruletriggersorasadditionalconditions,forexampletorecordvideoifmotionisdetectedoutside

ofcehours.Useoneofthepredenedschedulesorcreateanewscheduleasdescribedbelow.

Tocreateanewschedule:

1.GotoEvents>SchedulesandclickAdd.

2.Enteradescriptivenameandtheinformationneededforadaily,weekly,monthlyoryearlyschedule.

3.ClickOK.

TousethescheduleinanActionRule,selecttheschedulefromtheScheduledrop-downlistintheActionRuleSetuppage.

Recurrences

RecurrencesareusedtotriggerActionRulesrepeatedly,forexampleevery5minutesoreveryhour.

Tosetuparecurrence:

1.GotoEvents>RecurrencesandclickAdd.

2.Enteradescriptivenameandrecurrencepattern.

3.ClickOK.

TousetherecurrenceinanActionRule,rstselectTimefromtheTriggerdrop-downlistintheActionRuleSetuppageand

thenselecttherecurrencefromtheseconddrop-downlist.

Tomodifyorremoverecurrences,selecttherecurrenceintheRecurrencesListandclickModifyorRemove.

AXISQ6032-CPTZDomeNetworkCamera

Recordings

TheAxisproductcanbeconguredtorecordvideocontinuouslyoraccordingtoanactionrule:

•Tostartacontinuousrecording,seepage38.

•Tosetupactionrules,seepage36.

•Toaccessrecordings,seeRecordingList,onpage38.

•Tocongurecameracontrolledstorage,seeStorage,onpage47.

RecordingList

RecordedvideosarelistedontheRecordings>Listpage.Thelistshowseachrecording’sstartdateandtime,durationandthe

eventthattriggeredtherecording.

Toplayordownloadarecording,followthesesteps:

1.GotoRecordings>List.

2.Usetheltertonarrowthelistofrecordings.EnterthedesiredltercriteriaandclickFilter.Someltersmaytake

alongtimetocomplete.

3.Selecttherecording.

4.ClickPlaytoplaytherecording,orclickDownloadtodownloadtherecording.

Multiplerecordingscanbedownloadedatthesametime.SelecttherecordingsandclickDownload.Thedownloadedleisaziple

containingaminimumofthreeles,ofwhichtheMatroska(mkv)lesaretheactualrecordings.Therecordingsaretime-stamped

withthedateandtimetheyweredownloaded(thatis,notthedatetherecordingsweremade).

Note

ToplayrecordingsinWindowsMediaPlayer,AXISMatroskaFileSplittermustbeinstalled.AXISMatroskaFileSplitter

canbedownloadedfromwww.axis.com/techsup/software

Fordetailedrecordingandvideoinformation,selectarecordingandclickProperties.

Toremovearecording,selecttherecordingandclickRemove.

ContinuousRecording

TheAxisproductcanbeconguredtocontinuouslysavevideotoastoragedevice.SeeStorage,onpage47formoreinformation

aboutstoragedevices.Topreventthediskfrombecomingfull,itisrecommendedtocongurethedisktoautomaticallyremove

oldrecordings.

Tostartacontinuousrecording,followthesesteps:

1.GotoRecordings>Continuous.

2.SelectEnabled.

3.SelecttypeofstoragedevicefromtheDisklist.

4.SelectaStreamproletouseforcontinuousrecordings.

5.ClickSavetosaveandstarttherecording.

AXISQ6032-CPTZDomeNetworkCamera

Recordings

Note

Ifanewstreamproleisselectedwhilearecordingisongoing,therecordingwillbestoppedandsavedintherecordinglist

andanewrecordingwiththenewstreamprolewillstart.Allpreviouscontinuousrecordingswillremainintherecording

listuntiltheyareremovedmanuallyorthroughautomaticremovalofoldrecordings.

AXISQ6032-CPTZDomeNetworkCamera

SystemOptions

Security

Users

UseraccesscontrolisenabledbydefaultandcanbeconguredunderSystemOptions>Security>Users.Anadministratorcan

setupotherusersbygivingthemusernamesandpasswords.Itisalsopossibletoallowanonymousviewerlogin,whichmeans

thatanybodymayaccesstheLiveViewpage.

Theuserlistdisplaysauthorizedusersandusergroups(accesslevels):

Viewer-AccesstotheLiveViewpage

Operator-AccesstotheLiveViewpageandtoallsettingsexceptSystemOptions

Administrator-Unrestrictedaccesstoallsettings;canadd,modifyandremoveotherusers.

UnderHTTP/RTSPPasswordSettings,selectthetypeofpasswordtoallow.Youmayneedtoallowunencryptedpasswordsifthere

areviewingclientsthatdonotsupportencryption,orifyouupgradedthermwareandexistingclientssupportencryptionbutneed

tologinagainandbeconguredtousethisfunctionality.

UnderUserSettings,selecttheEnableanonymousviewerloginoptiontoallowanonymoususersaccesstotheLiveViewpage.

SelecttheEnableanonymousPTZcontrollogintoallowanonymoususersaccesstothePTZcontrols.

DeselecttheEnableBasicSetupoptiontohidetheBasicSetupmenu.BasicSetupprovidesquickaccesstosettingsthatshouldbe

madebeforeusingtheAxisproduct.

ONVIF

ONVIF(OpenNetworkVideoInterfaceForum)isaglobalinterfacestandardthatmakesiteasierforendusers,integrators,consultants,

andmanufacturerstotakeadvantageofthepossibilitiesofferedbynetworkvideotechnology.ONVIFenablesinteroperablitybetween

differentvendorproducts,increasedexibility,reducedcostandfuture-proofsystems.

BycreatingauseryouautomaticallyenableONVIFcommunication.UsetheusernameandpasswordwithallONVIFcommunication

withtheproduct.Formoreinformationseewww.onvif.org

IPAddressFilter

IPaddresslteringisenabledontheSystemOptions>Security>IPAddressFilterpage.Onceenabled,thelistedIPaddressare

allowedordeniedaccesstotheAxisproduct.SelectAlloworDenyfromthelistandclickApplytoenableIPaddressltering.

Theadministratorcanaddupto256IPaddressentriestothelist(asingleentrycancontainmultipleIPaddresses).

HTTPS

TheAxisproductsupportsencryptedbrowsingusingHTTPS.ThisisconguredontheSystemOptions>Security>HTTPSpage.

Aself-signedcerticatecanbeuseduntilaCerticateAuthority-issuedcerticatehasbeenobtained.ClickCreateself-signed

certicatetoinstallaself-signedcerticate.Althoughself-signedcerticatesarefreeandoffersomeprotection,truesecurityisonly

implementedaftertheinstallationofasignedcerticateissuedbyaCerticateAuthority.

ToobtainasignedcerticatefromanissuingCerticateAuthority,clickCreateCerticateRequest.Whenthesignedcerticate

isreturned,clickInstallsignedcerticatetoimportthecerticate.Thepropertiesofanycerticaterequestcurrentlyresidentin

theproductorinstalledcanbeviewedbyclickingProperties.

ToenableHTTPSintheAxisproduct,theHTTPSConnectionPolicymustbesetforeachusergroup.

Formoreinformation,seetheonlinehelp

AXISQ6032-CPTZDomeNetworkCamera

SystemOptions

IEEE802.1X

IEEE802.1Xisastandardforport-basedNetworkAdmissionControlprovidingsecureauthenticationofwiredandwirelessnetwork

devices.IEEE802.1XisbasedonEAP(ExtensibleAuthenticationProtocol).

ToaccessanetworkprotectedbyIEEE802.1X,devicesmustauthenticatethemselves.Theauthenticationisperformedbya

third-partyentitycalledanauthenticationserver,typicallyaRADIUSserver,examplesofwhichareFreeRADIUSandMicrosoft

InternetAuthenticationService.

InAxis'implementation,thenetworkdeviceandtheauthenticationserverauthenticatethemselveswiththehelpofdigital

certicatesusingEAP-TLS(ExtensibleAuthenticationProtocol-TransportLayerSecurity).Thecerticatesareprovidedbyan

CerticationAuthority(CA).Youneed:

•aCAcerticatetovalidatetheidentityoftheauthenticationserver

•aCA-signedclientcerticateandaprivatekeytoauthenticatethenetworkdevice.

ToallowthenetworkdevicetoaccessanetworkprotectedbyIEEE802.1X:

1.ObtainaCAcerticate,aclientcerticateandaclientprivatekey(contactyournetworkadministrator).

2.GotoSetup>SystemOptions>Security>IEEE802.1XanduploadtheCAcerticate,theclientcerticateandthe

clientprivatekey.

3.UnderSettings,selecttheEAPOLversion,provideyourEAPidentityandprivatekeypassword.

4.ChecktheboxtoenableIEEE802.1XandclickSave.

Certicates

CACerticateTheCAcerticateisusedtovalidatetheidentityoftheauthenticationserver.Enterthepathto

thecerticatedirectly,orlocatetheleusingtheBrowsebutton.ThenclickUpload.Toremove

acerticate,clickRemove.

Clientcerticate

Clientprivatekey

Theclientcerticateandprivatekeyareusedtoauthenticatethenetworkdevice.Theycanbe

uploadedasseparatelesorinonecombinedle(e.g.aPFXleoraPEMle).UsetheClient

privatekeyeldifuploadingonecombinedle.Foreachle,enterthepathtothele,orlocatethe

leusingtheBrowsebutton.ThenclickUpload.Toremoveale,clickRemove.

Settings

EAPOLversion

SelecttheEAPOLversion(1or2)asusedinyournetworkswitch.

EAPidentity

Entertheuseridentity(maximum16characters)associatedwithyourcerticate.

Privatekeypassword

Enterthepassword(maximum16characters)fortheprivatekey.

EnableIEEE802.1X

ChecktheboxtoenabletheIEEE802.1Xprotocol.

Date&Time

TheAxisproduct’sdateandtimesettingsareconguredunderSystemOptions>Date&Time.

CurrentServerTimedisplaysthecurrentdateandtime(24hclock).Thetimecanbedisplayedin12hclockinthetextoverlay(see

below).

Tochangethedateandtimesettings,selectthepreferredTimemodeunderNewServerTime:

•Synchronizewithcomputertimesetsdateandtimeaccordingtothecomputer’sclock.Withthisoption,dateand

timearesetonceandwillnotbeupdatedautomatically.

•SynchronizewithNTPServerobtainsdateandtimefromanNTPserver.Withthisoption,dateandtimesettingsare

updatedcontinuously.ForinformationonNTPsettings,seeNTPConguration,onpage44.

AXISQ6032-CPTZDomeNetworkCamera

SystemOptions

IfusingahostnamefortheNTPserver,aDNSservermustbecongured.SeeDNSConguration,onpage44.

•Setmanuallyallowsyoutomanuallysetdateandtime.

IfusinganNTPserver,selectyourTimezonefromthedrop-downlist.Ifrequired,checkAutomaticallyadjustfordaylightsaving

timechanges.

TheDate&TimeFormatUsedinImagesisthedateandtimeformatdisplayedasatextoverlayinthevideostream.Usethe

predenedformatsorseeFileNaming&Date/TimeFormatsintheonlinehelp

forinformationonhowtocreatecustomdateand

timeformats.Toincludedateandtimeintheoverlaytext,gotoVideoandselectIncludedateandIncludetime.

Network

BasicTCP/IPSettings

TheAxisproductsupportsIPversion4andIPversion6.Bothversionscanbeenabledsimultaneously,andatleastoneversion

mustalwaysbeenabled.

IPv4AddressConguration

Bydefault,theAxisproductissettouseIPv4(IPversion4)andtoobtaintheIPaddressautomaticallyviaDHCP.TheIPv4settingsare

conguredunderSystemOptions>Network>TCP/IP>Basic.

DHCP(DynamicHostCongurationProtocol)allowsnetworkadministratorstocentrallymanageandautomatetheassignmentof

IPaddresses.DHCPshouldonlybeenabledifusingdynamicIPaddressnotication,oriftheDHCPcanupdateaDNSserver.Itis

thenpossibletoaccesstheAxisproductbyname(hostname).

IfDHCPisenabledandtheproductcannotbeaccessed,runAXISIPUtilitytosearchthenetworkforconnectedAxisproducts,orreset

theproducttothefactorydefaultsettings(seepage50)andthenperformtheinstallationagain.

TouseastaticIPaddress,checkUsethefollowingIPaddressandspecifytheIPaddress,subnetmaskanddefaultrouter.

IPv6AddressConguration

IfIPv6(IPversion6)isenabled,theAxisproductwillreceiveanIPaddressaccordingtothecongurationinthenetworkrouter.

ToenableIPv6,gotoSystemOptions>Network>TCP/IP>Basic.OthersettingsforIPv6shouldbeconguredinthenetworkrouter.

ARP/Ping

Theproduct’sIPaddresscanbeassignedusingARPandPing.Forinstructions,seeAssignIPAddressusingARP/Ping,onpage42.

TheARP/Pingserviceisenabledbydefaultbutisautomaticallydisabledtwominutesaftertheproductisstarted,orassoonasanIP

addressisassigned.Tore-assignIPaddressusingARP/Ping,theproductmustberestartedtoenableARP/Pingforanadditional

twominutes.

Todisabletheservice,gotoSystemOptions>Network>TCP/IP>BasicandcleartheoptionEnableARP/PingsettingofIPaddress.

Pingingtheproductisstillpossiblewhentheserviceisdisabled.

AssignIPAddressusingARP/Ping

Theproduct'sIPaddresscanbeassignedusingARP/Ping.Thecommandmustbeissuedwithin2minutesofconnectingpower.

1.AcquireafreestaticIPaddressonthesamenetworksegmentasthecomputer.

2.Locatetheserialnumber(S/N)ontheproductlabel.

3.Openacommandpromptandenterthefollowingcommands:

AXISQ6032-CPTZDomeNetworkCamera

SystemOptions

Linux/Unixsyntax

arp-s<IPaddress><serialnumber>temp

ping-s408<IPaddress>

Linux/Unixexample

arp-s192.168.0.12500:40:8c:18:10:00temp

ping-s408408192.168.0.125

Windowssyntax(thismayrequirethatyourunthecommandpromptasanadministrator)

arp-s<IPaddress><serialnumber>

ping-l408-t<IPaddress>

Windowsexample(thismayrequirethatyourunthecommandpromptasanadministrator)

arp-s192.168.0.12500-40-8c-18-10-00

ping-l408-t192.168.0.125

4.CheckthatthenetworkcableisconnectedtotheAxisproductandthenrestarttheproductbydisconnectingand

reconnectingpower.

5.ClosethecommandpromptwhentheproductrespondswithReplyfrom192.168.0.125:...orsimilar.

6.Openabrowserandtypehttp://<IPaddress>intheLocation/Addresseld.

ForothermethodsofassigningtheIPaddress,seetheInstallationandManagementSoftwareCDorthedocumentAssignanIP

AddressandAccesstheVideoStreamonAxisSupportwebatwww.axis.com/techsup

Note

•ToopenacommandpromptinWindows,opentheStartmenuandtypecmdintheRun/Searcheld.

•TousetheARPcommandinWindows7/WindowsVista,right-clickthecommandprompticonandselectRunas

administrator.

•ToopenacommandpromptinMacOSX,opentheTerminalutilityfromApplication>Utilities.

AXISVideoHostingSystem(AVHS)

AVHSusedinconjunctionwithanAVHSservice,provideseasyandsecureInternetaccesstoliveandrecordedvideoaccessiblefrom

anylocation.FormoreinformationandhelptondalocalAVHSServiceProvidergotowww.axis.com/hosting

AVHSisenabledbydefault.ThesettingsareconguredunderSystemOptions>Network>TCPIP>Basic.

One-clickenabled-Presstheproduct’scontrolbutton(seeHardwareOverview,onpage5)toconnecttoanAVHSserviceoverthe

Internet.Onceregistered,AlwayswillbeenabledandtheAxisproductstaysconnectedtotheAVHSservice.Iftheproductisnot

registeredwithin24hoursfromwhenthebuttonispressed,theproductwilldisconnectfromtheAVHSservice.

Always-TheAxisproductwillconstantlyattempttoconnecttotheAVHSserviceovertheInternet.Onceregisteredtheproductwill

stayconnectedtotheservice.Thisoptioncanbeusedwhentheproductisalreadyinstalledanditisnotconvenienttousethe

one-clickinstallation.

AXISInternetDynamicDNSService

AXISInternetDynamicDNSServiceassignsahostnameforeasyaccesstotheproduct.Formoreinformation,seewww.axiscam.net

ToregistertheAxisproductwithAXISInternetDynamicDNSService,gotoSystemOptions>Network>TCP/IP>Basic.Under

Services,clicktheAXISInternetDynamicDNSServiceSettingsbutton(requiresaccesstotheInternet).Thedomainnamecurrently

registeredatAXISInternetDynamicDNSservicefortheproductcanatanytimeberemoved.

AXISQ6032-CPTZDomeNetworkCamera

SystemOptions

AdvancedTCP/IPSettings

DNSConguration

DNS(DomainNameService)providesthetranslationofhostnamestoIPaddresses.TheDNSsettingsareconguredunderSystem

Options>Network>TCP/IP>Advanced.

SelectObtainDNSserveraddressviaDHCPtousetheDNSsettingsprovidedbytheDHCPserver.

Tomakemanualsettings,selectUsethefollowingDNSserveraddressandspecifythefollowing:

Domainname-Enterthedomain(s)tosearchforthehostnameusedbytheAxisproduct.Multipledomainscanbeseparatedby

semicolons.Thehostnameisalwaystherstpartofafullyqualieddomainname,forexample,myserveristhehostnameinthe

fullyqualieddomainnamemyserver.mycompany.comwheremycompany.comisthedomainname.

Primary/SecondaryDNSserver-EntertheIPaddressesoftheprimaryandsecondaryDNSservers.ThesecondaryDNSserveris

optionalandwillbeusediftheprimaryisunavailable.

NTPConguration

NTP(NetworkTimeProtocol)isusedtosynchronizetheclocktimesofdevicesinanetwork.TheNTPsettingsareconguredunder

SystemOptions>Network>TCP/IP>Advanced.

SelectObtainNTPserveraddressviaDHCPtousetheNTPsettingsprovidedbytheDHCPserver.

Tomakemanualsettings,selectUsethefollowingNTPserveraddressandenterthehostnameorIPaddressoftheNTPserver.

HostNameConguration

TheAxisproductcanbeaccessedusingahostnameinsteadofanIPaddress.ThehostnameisusuallythesameastheassignedDNS

name.ThehostnameisconguredunderSystemOptions>Network>TCP/IP>Advanced.

SelectObtainhostnameviaIPv4DHCPtousehostnameprovidedbytheDHCPserverrunningonIPv4.

SelectUsethehostnametosetthehostnamemanually.

SelectEnabledynamicDNSupdatestodynamicallyupdatelocalDNSserverswhenevertheAxisproduct’sIPaddresschanges.

Formoreinformation,seetheonlinehelp

Link-LocalIPv4Address

Link-LocalAddressisenabledbydefaultandassignstheAxisproductanadditionalIPaddresswhichcanbeusedtoaccess

theproductfromotherhostsonthesamesegmentonthelocalnetwork.TheproductcanhaveaLink-LocalIPandastatic

orDHCP-suppliedIPaddressatthesametime.

ThisfunctioncanbedisabledunderSystemOptions>Network>TCP/IP>Advanced.

HTTP

TheHTTPportusedbytheAxisproductcanbechangedunderSystemOptions>Network>TCP/IP>Advanced.Inadditiontothe

defaultsetting,whichis80,anyportintherange1024–65535canbeused.

HTTPS

TheHTTPSportusedbytheAxisproductcanbechangedunderSystemOptions>Network>TCP/IP>Advanced.Inadditionto

thedefaultsetting,whichis443,anyportintherange1024–65535canbeused.

ToenableHTTPS,gotoSystemOptions>Security>HTTPS.Formoreinformation,seepage40.

AXISQ6032-CPTZDomeNetworkCamera

SystemOptions

NATtraversal(portmapping)forIPv4

Anetworkrouterallowsdevicesonaprivatenetwork(LAN)toshareasingleconnectiontotheInternet.Thisisdonebyforwarding

networktrafcfromtheprivatenetworktothe“outside”,thatis,theInternet.Securityontheprivatenetwork(LAN)isincreased

sincemostroutersarepre-conguredtostopattemptstoaccesstheprivatenetwork(LAN)fromthepublicnetwork(Internet).

UseNATtraversalwhentheAxisproductislocatedonanintranet(LAN)andyouwishtomakeitavailablefromtheother

(WAN)sideofaNATrouter.WithNATtraversalproperlycongured,allHTTPtrafctoanexternalHTTPportintheNATrouter

isforwardedtotheproduct.

NATtraversalisconguredunderSystemOptions>Network>TCP/IP>Advanced.

Note

•ForNATtraversaltowork,thismustbesupportedbytherouter.TheroutermustalsosupportUPnP

•Therouterhasmanydifferentnames:“NATrouter”,“Networkrouter”,“InternetGateway”,”Broadbandrouter”,“Broadband

sharingdevice”or“Homerewall”buttheessentialpurposeofthedeviceisthesame.

Enable/Disable-Whenenabled,theAxisproductattemptstocongureportmappinginaNATrouteronyournetwork,usingUPnP

NotethatUPnP

mustbeenabledintheproduct(seeSystemOptions>Network>UPnP).

UsemanuallyselectedNATrouter-SelectthisoptiontomanuallyselectaNATrouterandentertheIPaddressfortherouterin

theeld.Ifnorouterisspecied,theproductautomaticallysearchesforNATroutersonyournetwork.Ifmorethanonerouteris

found,thedefaultrouterisselected.

AlternativeHTTPport-SelectthisoptiontomanuallydeneanexternalHTTPport.Entertheportnumberintheeld.Ifnoportis

enteredhere,aportnumberisautomaticallyselectedwhenNATtraversalisenabled.

Note

•AnalternativeHTTPportcanbeusedorbeactiveevenifNATtraversalisdisabled.ThisisusefulifyourNATrouterdoesnot

supportUPnPandyouneedtomanuallycongureportforwardingintheNATrouter.

•Ifyouattempttomanuallyenteraportthatisalreadyinuse,anotheravailableportisautomaticallyselected.

•Whentheportisselectedautomaticallyitisdisplayedinthiseld.Tochangethis,enteranewportnumberandclickSave.

FTP

TheFTPserverrunningintheAxisproductenablesuploadofnewrmware,userapplications,etc.TheFTPservercanbedisabled

underSystemOptions>Network>TCP/IP>Advanced.

Note

ThisFTPserverhasnothingtodowiththeproduct’sabilitytotransferimagesviaFTPtootherlocationsandservers.

RTSP

TheRTSPserverrunningintheAxisproductallowsaconnectingclienttostartanH.264stream.TheRTSPportnumbercanbe

changedunderSystemOptions>Network>TCP/IP>Advanced.Thedefaultportis554.

Note

H.264videostreamswillnotbeavailableiftheRTSPserverisdisabled.

SOCKS

SOCKSisanetworkingproxyprotocol.TheAxisproductcanbeconguredtouseaSOCKSservertoreachnetworksontheother

sideofarewallorproxyserver.ThisfunctionalityisusefuliftheAxisproductislocatedonalocalnetworkbehindarewall,and

notications,uploads,alarms,etcneedtobesenttoadestinationoutsidethelocalnetwork(forexampletheInternet).

SOCKSisconguredunderSystemOptions>Network>SOCKS.Formoreinformation,seetheonlinehelp

AXISQ6032-CPTZDomeNetworkCamera

SystemOptions

QoS(QualityofService)

QoS(QualityofService)guaranteesacertainlevelofaspeciedresourcetoselectedtrafconanetwork.AQoS-awarenetwork

prioritizesnetworktrafcandprovidesagreaternetworkreliabilitybycontrollingtheamountofbandwidthanapplicationmayuse.

TheQoSsettingsareconguredunderSystemOptions>Network>QoS.UsingDSCP(DifferentiatedServicesCodepoint)values,the

Axisproductcanmarkthefollowingtypesoftrafc:livevideo,event/alarmtrafcandmanagementtrafc.

SMTP(email)

TosendemailmessagesfromtheAxisproductviaSMTP(SimpleMailTransferProtocol),anSMTPmailservermustbesetup.This

isdoneunderSystemOptions>Network>SMTP(email).

EnterthehostnamesorIPaddressesandportnumbersfortheprimaryandsecondarymailserversintheeldsprovided.AFrom

emailaddressisalsorequired.Ifthemailserverrequiresauthentication,checkUseauthenticationtologintothisserverandenter

thenecessaryinformation.

SNMP

TheSimpleNetworkManagementProtocol(SNMP)allowsremotemanagementofnetworkdevices.AnSNMPcommunityisthe

groupofdevicesandmanagementstationrunningSNMP.Communitynamesareusedtoidentifygroups.

TheAxisproductcanbeconguredtosupportSNMPontheSystemOptions>Network>SNMPpage.

Dependingonthelevelofsecurityrequired,selecttheversiononSNMPtouse.

SNMPv1/v2providesthelowestlevelofsecurity.Thecommunitynamecanbespeciedasapasswordforreadorread/write

accesstoallsupportedSNMPdevices.ThedefaultpasswordfortheReadcommunityispublicandthedefaultpasswordforthe

Writecommunityiswrite.

Note

IfHTTPSisenabled,SNMPv1andSNMPv2cshouldbedisabled.

TrapsforSNMPv1/v2areusedbytheAxisproducttosendmessagestoamanagementsystemonimportanteventsandstatus

changes.CheckEnabletrapsandentertheIPaddresswherethetrapmessageshouldbesentandtheTrapcommunitythat

shouldreceivethemessage.

Thefollowingtrapsareavailable:

•Coldstart

•Warmstart

•Linkup

•Authenticationfailed

SNMPv3providesencryptionandsecurepasswords.TousetrapswithSNMPv3,anSNMPv3managementapplicationisrequired.

TouseSNMPv3,HTTPSmustbeenabled,seeHTTPS,onpage40.ToenableSNMPv3,checktheboxandprovidetheinitialuser

password.

Note

Theinitialpasswordcanonlybesetonce.Ifthepasswordislost,theAxisproductmustberesettofactorydefault,see

ResettoFactoryDefaultSettings,onpage50.

UPnP

TheAxisproductincludessupportforUPnP

.UPnP

isenabledbydefaultandtheproductisautomaticallydetectedbyoperating

systemsandclientsthatsupportthisprotocol.

UPnP

canbedisabledunderSystemOptions>Network>UPnP

AXISQ6032-CPTZDomeNetworkCamera

SystemOptions

RTP/H.264

TheRTPportrangeandmulticastsettingsareconguredunderSystemOptions>Network>RTP.

TheRTPportrangedenestherangeofportsfromwhichthevideoportsareautomaticallyselected.Formulticaststreams,only

certainIPaddressesandportnumbersshouldbeused.

SelectAlwaysMulticastVideotostartmulticaststreamingwithoutopeninganRTSPsession.

Bonjour

TheAxisproductincludessupportforBonjour.Bonjourisenabledbydefaultandtheproductisautomaticallydetectedbyoperating

systemsandclientsthatsupportthisprotocol.

BonjourcanbedisabledunderSystemOptions>Network>Bonjour.

Storage

SDCard

NOTICE NOTICE

NOTICE

Topreventcorruptionofrecordings,theSDcardshouldalwaysbeunmountedbeforeitisejected.

TheAxisproductsupportsSDcardswiththefollowinglesystems:

•ext4—recommendedduetoitsresilienceagainstdatalossifthecardisejectedorifthereisabruptpowerloss.Toaccess

datastoredonthecardfromtheWindowsoperatingsystem,athird-partyext4driverorapplicationisrequired.

•vFAT—mostSDcardsarepre-formattedwithvFATwhenpurchased.

Ifrequired,theSDcardcanbere-formattedtothedesiredlesystem.ToformattheSDcard:

1.InserttheSDcardintheSDcardslot.

2.GotoSystemOptions>StorageandclickSDCard.

3.ClickFormatandselectthedesiredlesystem.

Note

Duringformattinganypreviousdatastoredonthediskwillbelost.

Mountingisdoneautomaticallywhenthecardisinsertedorwhentheproductisstarted.Amanualmountisonlyrequiredifthe

cardhasbeenunmountedandnotejectedandre-inserted.

TounmounttheSDcard:

1.GotoSystemOptions>StorageandclickSDCard.

2.ClickUnmount.

3.Thecardcannowberemoved.

TheSDcardismanagedontheSystemOptions>Storagepage.ClickSDCardtoopenStorageManagement.

Ifthecard’sstatusshowsasfailed,clickCheckdisktoseeiftheproblemcanbefoundandthentryRepair.Thisoptionisonly

availableforSDcardswithext4.ForSDcardswithvFAT,useacardreaderorcomputertotroubleshootthecard.

Toavoidllingthecard,itisrecommendedtoremoverecordingscontinuously.UnderRecordingSettings,selectRemoverecordings

olderthanandselectthenumberofdaysorweeks.

Tostopwritingtothecardandprotectrecordingsfrombeingremoved,selectLockunderRecordingSettings.

AXISQ6032-CPTZDomeNetworkCamera

SystemOptions

NetworkShare

NetworkshareallowsyoutoaddnetworkstoragesuchasaNAS(NetworkAttachedStorage)oranyserverthatusesCIFS(Common

InternetFileSystem)andusethemforstorageofrecordings.

Toaddanetworkshare:

1.GotoSystemOptions>Storage.

2.ClickNetworkShare.

3.EntertheIPaddress,DNSorBonjournametothehostserverintheHosteld.

4.EnterthenameoftheshareintheShareeld.

5.Ifrequired,selectThesharerequiresloginandentertheusernameandpassword.

6.ClickConnect.

ToclearallrecordingsanddatafromtheAxisproduct’sfolderonthedesignatedshare,clickClearunderStorageTools.

Toavoidllingtheshare,itisrecommendedtoremoverecordingscontinuously.UnderRecordingSettings,selectRemoverecordings

olderthanandselectthenumberofdaysorweeks.

Tostopwritingtotheshareandprotectrecordingsfrombeingremoved,selectLockunderRecordingSettings.

Ports&Devices

I/OPorts

Themediaconverterswitchprovidestwocongurableinputandoutputportsforconnectionofexternaldevices.Oneportis

dedicatedfortheI/Osignalsbetweenthemediaconverterswitch,thesuppliedmulti-connectorcableandthecamera.Formore

informationonthemulti-connectorcable,seepage58.

TheI/OportsareconguredunderSystemOptions>Ports&Devices>I/OPorts.Selecttheportdirection(InputorOutput).The

portscanbegivendescriptivenamesandtheirNormalstatescanbeconguredasOpencircuitorGroundedcircuit.

PortStatus

ThelistontheSystemOptions>Ports&Devices>PortStatuspageshowsthestatusoftheproduct’sinputandoutputports.

Maintenance

TheAxisproductprovidesseveralmaintenancefunctions.TheseareavailableunderSystemOptions>Maintenance.

ClickRestarttoperformacorrectrestartiftheAxisproductisnotbehavingasexpected.Thiswillnotaffectanyofthecurrent

settings.

ClickRestoretoresetmostsettingstothefactorydefaultvalues.Thefollowingsettingsarenotaffected:

•thebootprotocol(DHCPorstatic)

•thestaticIPaddress

•thedefaultrouter

•thesubnetmask

•thesystemtime

•theIEEE802.1Xsettings

AXISQ6032-CPTZDomeNetworkCamera

SystemOptions

ClickDefaulttoresetallsettings,includingtheIPaddress,tothefactorydefaultvalues.Thisbuttonshouldbeusedwithcaution.The

Axisproductcanalsoberesettofactorydefaultusingthecontrolbutton,seeResettoFactoryDefaultSettings,onpage50.

Totesttheproduct’sPTZmechanics,clickTestunderPTZStatus.

Forinformationaboutrmwareupgrade,seeUpgradingtheFirmware,onpage51.

Support

SupportOverview

TheSystemOptions>Support>SupportOverviewpageprovidesinformationontroubleshootingandcontactinformation,

shouldyourequiretechnicalassistance.

SeealsoTroubleshooting,onpage51.

SystemOverview

TogetanoverviewoftheAxisproduct’sstatusandsettings,gotoSystemOptions>Support>SystemOverview.Informationthat

canbefoundhereincludesrmwareversion,IPaddress,networkandsecuritysettings,eventsettings,imagesettingsandrecentlog

items.ManyofthecaptionsarelinkstotheproperSetuppage.

Logs&Reports

TheSystemOptions>Support>Logs&Reportspagegenerateslogsandreportsusefulforsystemanalysisandtroubleshooting.If

contactingAxisSupport,pleaseprovideavalidServerReportwithyourquery.

SystemLog-Providesinformationaboutsystemevents.

AccessLog-Listsallfailedattemptstoaccesstheproduct.TheAccessLogcanalsobeconguredtolistallconnectionstothe

product(seebelow).

ServerReport-Providesinformationabouttheproductstatusinapop-upwindow.TheAccessLogisautomaticallyincluded

intheServerReport.

ParameterList-Showstheproduct'sparametersandtheircurrentsettings.Thismayproveusefulwhentroubleshootingor

whencontactingAxisSupport.

ConnectionList-Listsallclientsthatarecurrentlyaccessingmediastreams.

CrashReport-Generatesanarchivewithdebugginginformation.Thereporttakesseveralminutestogenerate.

TheloglevelsfortheSystemLogandtheAccessLogaresetunderSystemOptions>Support>Logs&Reports>Conguration.

TheAccessLogcanbeconguredtolistallconnectionstotheproduct(selectCritical,Warnings&Info).Ifrequired,adifferentlog

levelcanbeusedwhensendingemails.

Advanced

Scripting

Scriptingallowsexperienceduserstocustomizeandusetheirownscripts.

NOTICE NOTICE

NOTICE

ImproperusemaycauseunexpectedbehaviorandlossofcontactwiththeAxisproduct.

Axisstronglyrecommendsthatyoudonotusethisfunctionunlessyouunderstandtheconsequences.AxisSupportdoesnotprovide

assistanceforproblemswithcustomizedscripts.

AXISQ6032-CPTZDomeNetworkCamera

SystemOptions

ToopentheScriptEditor,gotoSystemOptions>Advanced>Scripting.Itisrecommendedtocreateabackuplebefore

customizingthescripts.Ifascriptcausesproblems,resettheproducttoitsfactorydefaultsettings,seepage50.

Formoreinformation,seewww.axis.com/developer

FileUpload

Files,forexamplewebpagesandimages,canbeuploadedtotheAxisproductandusedascustomsettings.Touploadale,go

toSystemOptions>Advanced>FileUpload.

Uploadedlesareaccessedthroughhttp://<ipaddress>/local/<user>/<filename>where<user>isthe

selectedusergroup(viewer,operatororadministrator)fortheuploadedle.

PlainCong

PlainCongisforadvanceduserswithexperienceofAxisproductconguration.Mostparameterscanbesetandmodiedfromthis

page.Helpisavailablefromthestandardhelppages.

ToopenPlainCong,gotoSystemOptions>Advanced>PlainCong.

ResettoFactoryDefaultSettings

Thiswillresetallparameters,includingtheIPaddress,tothefactorydefaultsettings:

1.PressandholdtheControlbuttonandthePowerbuttonforabout15secondsuntiltheStatusindicatorashesamber(see

HardwareOverview,onpage5).

2.ReleasetheControlbuttonbutcontinuetoholddownthePowerbuttonforabout1minuteuntiltheStatusindicator

turnsgreen.

3.ReleasethePowerbuttonandre-assembletheproduct.

4.Theprocessisnowcomplete,theproducthasbeenresettothefactorydefaultsettings.ThedefaultIPaddressis

192.168.0.90

5.Re-assigntheIPaddress.

Itisalsopossibletoresetparameterstofactorydefaultviathewebinterface.GotoSetup>SystemOptions>Maintenance.

AXISQ6032-CPTZDomeNetworkCamera

Troubleshooting

CheckingtheFirmware

Firmwareissoftwarethatdeterminesthefunctionalityofnetworkdevices.Oneofyourrstactionswhentroubleshootingaproblem

shouldbetocheckthecurrentrmwareversion.Thelatestversionmaycontainacorrectionthatxesyourparticularproblem.The

currentrmwareversionintheAxisproductisdisplayedinthepageSetup>BasicSetupandinSetup>About.

UpgradingtheFirmware

WhenyouupgradetheproductwiththelatestrmwarefromAxiswebsite,theproductreceivesthelatestfunctionalityavailable.

Alwaysreadtheupgradeinstructionsandreleasenotesavailablewitheachnewrelease,beforeupgradingthermware.

Toupgrade,followtheseinstructions:

1.Savethermwareletoyourcomputer.ThelatestversionofthermwareisavailablefreeofchargefromAxiswebsite

atwww.axis.com/techsup

2.GotoSetup>SystemOptions>Maintenanceintheproductswebpages.

3.UnderUpgradeServer,clickBrowseandlocatetheleonyourcomputer.ClickUpgrade.

Afterstartingtheupgradeprocess,alwayswaitatleast5–10minutesbeforerestartingtheproduct,evenifyoususpectthe

upgradehasfailed.

AXISCameraManagementcanbeusedformultipleupgrades.Seewww.axis.comformoreinformation.

Note

•Yourdealerreservestherighttochargeforanyrepairattributabletofaultyupgradebytheuser.

•Preconguredandcustomizedsettingsaresavedwhenthermwareisupgraded(providingthefeaturesareavailableinthe

newrmware)althoughthisisnotguaranteedbyAxisCommunicationsAB.

AXISQ6032-CPTZDomeNetworkCamera

Troubleshooting

Symptoms,PossibleCausesandRemedialActions

ProblemssettingtheIPaddress

WhenusingARP/Ping

Trytheinstallationagain.TheIPaddressmustbesetwithintwominutesafterpowerhasbeen

appliedtotheproduct.EnsurethePinglengthissetto408.Forinstructions,seeAssignIPAddress

usingARP/Ping,onpage42.

Theproductislocatedona

differentsubnet

IftheIPaddressintendedfortheproductandtheIPaddressofthecomputerusedtoaccessthe

productarelocatedondifferentsubnets,youwillnotbeabletosettheIPaddress.Contactyour

networkadministratortoobtainanIPaddress.

TheIPaddressisbeingused

byanotherdevice

DisconnecttheAxisproductfromthenetwork.RunthePingcommand(inaCommand/DOS

window,typepingandtheIPaddressoftheproduct:

•Ifyoureceive:Replyfrom<IPaddress>:bytes=32;time=10...

thismeansthattheIPaddressmayalreadybeinusebyanotherdeviceonthenetwork.

ObtainanewIPaddressfromthenetworkadministratorandreinstalltheproduct.

•Ifyoureceive:Requesttimedout,thismeansthattheIPaddressisavailable

forusewiththeAxisproduct.Checkallcablingandreinstalltheproduct.

PossibleIPaddressconict

withanotherdeviceonthe

samesubnet.

ThestaticIPaddressintheAxisproductisusedbeforetheDHCPserversetsadynamicaddress.

ThismeansthatifthesamedefaultstaticIPaddressisalsousedbyanotherdevice,theremay

beproblemsaccessingtheproduct.

Theproductcannotbeaccessedfromabrowser

Cannotlogin

WhenHTTPSisenabled,ensurethatthecorrectprotocol(HTTPorHTTPS)isusedwhenattempting

tologin.Youmayneedtomanuallytypehttporhttpsinthebrowser’saddresseld.

Ifthepasswordforrootislost,theproductmustberesettothefactorydefaultsettings.See

ResettoFactoryDefaultSettings,onpage50.

TheIPaddresshasbeen

changedbyDHCP

IPaddressesobtainedfromaDHCPserveraredynamicandmaychange.IftheIPaddresshasbeen

changed,useAXISIPUtilityorAXISCameraManagementtolocatedtheproductonthenetwork.

Identifytheproductusingitsmodelorserialnumber.

Ifrequired,astaticIPaddresscanbeassignedmanually.Forinstructions,seetheInstallationand

ManagementSoftwareCDorthedocumentAssignanIPAddressandAccesstheVideoStreamon

AxisSupportwebatwww.axis.com/techsup

Certicateerrorwhenusing

IEEE802.1X

Forauthenticationtoworkproperly,thedateandtimesettingsintheAxisproductshouldbe

synchronizedwithanNTPserver.SeeDate&Time,onpage41.

Theproductisaccessiblelocallybutnotexternally

RoutercongurationTocongureyourroutertoallowincomingdatatrafctotheAxisproduct,enabletheNAT-traversal

featurewhichwillattempttoautomaticallyconguretheroutertoallowaccesstotheAxis

product,seeNATtraversal(portmapping)forIPv4,onpage45.TheroutermustsupportUPnP

Firewallprotection

ChecktheInternetrewallwithyournetworkadministrator.

Defaultroutersrequired

Checkifyouneedtoconguretheroutersettings.

ProblemswiththeH.264format

NoH.264displayedinthe

client

CheckthattherelevantH.264connectionmethodsandcorrectinterfaceareenabledintheAMC

ControlPanel(streamingtab).SeeAXISMediaControl(AMC),onpage15.

IntheAMCControlPanel,selecttheH.264tabandclickSettodefaultH.264decoder.

CheckthatRTSPisenabledunderSystemOptions>Network>TCP/IP>Advanced.

AXISQ6032-CPTZDomeNetworkCamera

Troubleshooting

NomulticastH.264

displayedintheclient

CheckwithyournetworkadministratorthatthemulticastaddressesusedbytheAxisproduct

arevalidforyournetwork.

Checkwithyournetworkadministratortoseeifthereisarewallpreventingviewing.

MulticastH.264only

accessiblebylocalclients

Checkifyourroutersupportsmulticasting,oriftheroutersettingsbetweentheclientandthe

productneedtobecongured.TheTTL(TimeToLive)valuemayneedtobeincreased.

PoorrenderingofH.264

images

Colordepthsetincorrectlyonclients.Setto16–bitor32–bitcolor.

Iftextoverlaysareblurred,orifthereareotherrenderingproblems,youmayneedtoenable

AdvancedVideoRenderingfromtheVideotabintheAMCControlPanel.

Ensurethatyourgraphicscardisusingthelatestdriver.Thelatestdriverscanusuallybe

downloadedfromthemanufacturer’swebsite.

Colorsaturationisdifferent

inH.264andMotionJPEG

Modifythesettingsforyourgraphicsadapter.Refertotheadapter’sdocumentationformore

information.

Lowerframeratethan

expected

Reducethenumberofapplicationsrunningontheclientcomputer.

Limitthenumberofsimultaneousviewers.

Checkwiththenetworkadministratorthatthereisenoughbandwidthavailable.

CheckintheAMCControlPanel(H.264tag)thatvideoprocessingisNOTsettoDecodeonly

keyframes.

Lowertheimageresolution.

WhydoInotgetmaximum

framespersecond?

SeePerformanceConsiderations,onpage59.

Themaximumframespersecondisdependentontheutilityfrequency(60/50Hz)oftheAxis

product.SeeTechnicalSpecications,onpage55.

Imagedegeneration

DecreasetheGOVlength.GotoVideo>VideoStreamandselecttheH.264tabtomodifythe

GOVlength.

Noimagesdisplayedonwebpage

ProblemswithAXISMedia

Control(InternetExplorer

only)

ToenabletheupdatingofvideoimagesinInternetExplorer,setthebrowsertoallowActiveX

controls.Also,makesurethatAXISMediaControlisinstalledonyourcomputer.

Installationofadditional

ActiveXcomponent

restrictedorprohibited

ConguretheAxisproducttouseaJavaappletforupdatingvideoimagesinInternetExplorer.Go

toSetup>LiveViewCongandselectJavaappletunderDefaultviewer.

Videoandimageproblems,general

Imagetoodarkortoolight

CheckthevideostreamandcamerasettingsunderSetup>Video>VideoStreamandSetup>

Video>CameraSettings.

MissingimagesinuploadsThiscanoccurwhentryingtousealargerimagebufferthanisactuallyavailable.Trylowering

theframerateortheuploadperiod.

SlowimageupdateConguringpre-buffers,motiondetection,high-resolutionimagesorhighframerateswillaffect

theperformanceoftheAxisproduct.

PoorperformancePoorperformancemaybecausedbyheavynetworktrafc,multipleusersaccessingtheproduct,

lowperformanceclients,useoffeaturessuchasmotiondetection,eventhandlingoruploaded

applications.

AXISQ6032-CPTZDomeNetworkCamera

Troubleshooting

Poorqualitysnapshotimages

Screenincorrectly

conguredonyourcomputer

Congureyourscreentoshowatleast65000colors,thatis,atleast16bits.Usingonly16or256

colorswillproduceditheringartifactsintheimage.

Overlayimageisnotdisplayed

Incorrectsizeorlocationof

overlayimage

Theoverlayimagemayhavebeenpositionedincorrectlyormaybetoolarge.SeeOverlayImage

Settingsintheonlinehelpformoreinformation.

Privacymaskisnotdisplayed

Incorrectsizeorlocationof

privacymask

Theprivacymaskmayhavebeenpositionedincorrectlyormaybetoolarge.

Browserfreezes

Firefoxcansometimes

freezeonaslowcomputer

Lowertheimageresolution

Problemsuploadingles

LimitedspaceThereisonlylimitedspaceavailablefortheuploadofyourownles.Deleteexistinglestofree

upspace.

MotionDetectiontriggersunexpectedly

Changesinluminance

Motiondetectionisbasedonchangesinluminanceintheimage.Thismeansthatifthereare

suddenchangesinthelighting,motiondetectionmaytriggermistakenly.Lowerthesensitivity

settingtoavoidproblemswithluminance.

Storageanddiskmanagementproblems

Videocannotberecorded

CheckthattheSDcardisnotwriteprotected(thatis,readonly).

SDcardcannotbemountedReformattheSDcardandthenclickMount.

Focus,zoom,andfan

Remotefocusandzoomdo

notwork

Insubzerotemperatures,functioninthesehardwarepartsissuspendeduntilthecameraisheated

toapproximately0°C(32°F)

FancannotbeactivatedInsubzerotemperatures,functioninthishardwarepartissuspendeduntilthecameraisheatedto

approximately0°C(32°F)

Mediaconverterswitch

freezesafterhotswapping

Themediaconverterswitchdoesnotsupporthotswapping.Disconnectpowerfromtheswitch

beforeswappingcameras.Restarttheswitchafterafailedattempttohotswap.

AXISQ6032-CPTZDomeNetworkCamera

TechnicalSpecications

Function/group

Item

Specications

Models

AXISQ6032-C60Hz

AXISQ6032-C50Hz

Imagesensor

1/4”ExViewHADProgressivescanCCD

Lensf3.3–119mm

F1.4–4.2

Autofocus

Automaticday/night

Horizontalangleofview:57.2°–1.7°

Minimum

illumination

Color:0.5luxat30IRE

B/W:0.008luxat30IRE

Shuttertime

1/30000sto0.5s(60Hz)

1/30000sto1.5s(50Hz)

Pan/Tilt/Zoom

E-ip

100presetpositions

Pan360°endless,0.05°–450°/s

Tilt:220°,0.05°–450°/s

36xopticalzoomand12xdigitalzoom,total432xzoom

Camera

Pan/Tilt/Zoom

functionalities

Tourrecording,guardtour,controlqueue

On-screendirectionalindicator

Video

compression

H.264(MPEG-4Part10/AVC)

MotionJPEG

Resolutions

ExtendedD1752x480to176x120(60Hz)

ExtendedD1736x576to176x144(50Hz)

FramerateH.264

Upto30/25fps(60/50Hz)inallresolutions

Framerate

MotionJPEG

Upto30/25fps(60/50Hz)inallresolutions

Videostreaming

Multiple,individuallycongurablestreamsinH.264andMotionJPEG

Controllableframerateandbandwidth

VBR/CBRH.264

Video

Imagesettings

WideDynamicRange(WDR),ElectronicImageStabilization(EIS),manualshuttertime,

compression,color,brightness,sharpness,whitebalance,exposurecontrol,exposure

zones,backlightcompensation,netuningofbehavioratlowlight

Rotation:0°,180°

Textandimageoverlay

32individual3Dprivacymasks

ImagefreezeonPTZ

SecurityPasswordprotection,IPaddressltering,HTTPSencryption*,IEEE802.1Xnetworkaccess

control*,digestauthentication,useraccesslog

*ThisproductincludessoftwaredevelopedbytheOpenSSLProjectforuseintheOpen

SSLToolkit(www.openssl.org)

Network

Supported

protocols

IPv4/v6,HTTP,HTTPS*,SSL/TLS*,QoSLayer3DiffServ,FTP,CIFS/SMB,SMTP,Bonjour,

UPnP

,SNMPv1/v2c/v3(MIB-II),DNS,DynDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,RTCP,

ICMP,DHCP,ARP,SOCKS,etc

*ThisproductincludessoftwaredevelopedbytheOpenSSLProjectforuseintheOpen

SSLToolkit(www.openssl.org)

AXISQ6032-CPTZDomeNetworkCamera

TechnicalSpecications

Function/group

Item

Specications

Application

Programming

Interface

OpenAPIforsoftwareintegration,includingVAPIX®andAXISCameraApplication

PlatformfromAxisCommunications;specicationsavailableatwww.axis.com

ONVIF,specicationsavailableatwww.onvif.org

AXISVideoHostingSystem(AVHS)withOne-ClickCameraConnection

Intelligentvideo

Videomotiondetection,autotracking,ActiveGatekeeper

SupportforAXISCameraApplicationPlatformenablinginstallationofadditional

applications

EventtriggersIntelligentvideo,externalinput,manualtrigger,PTZpreset,PTZmoving,networklost,

temperature,fanmalfunction,storagestatus,systeminitializing,time

EventactionsFileupload:FTP,HTTP,networkshareandemail

Notication:email,HTTPandTCP

Externaloutput,PTZpreset,guardtour,videorecordingtoedgestorage,autotracking,

day/nightmode

Pre-andpost-alarmvideobuffering

InstallationaidPixelcounter

Videoaccessfrom

webbrowser

Cameraliveview

Videorecordingtole(ASF)

CustomizableHTMLpages

Windows7,WindowsVista,WindowsXP,WindowsServer2008,WindowsServer2003

DirectX9corhigher

Forotheroperatingsystemsandbrowsers,seewww.axis.com/techsup

System

Integration

Managementand

maintenance

AXISCameraManagementtoolonCDandweb-basedconguration

Congurationofbackupandrestore

FirmwareupgradesoverHTTPorFTP,rmwareavailableonwww.axis.com

Casing

IP66-ratedandNEMA4x-ratedmetalcasing(aluminum),polycarbonate(PC)cleardome,

sunshield(PC/ASA)

Memory256MBRAM,128MBFlash

Batterybacked-upreal-timeclock

Power

12.0–13.2VDC,min75W (power in from power supply)

Connectors

IP-66ratedmulti-connectorforDCpower,Ethernet10/100Base-T,inputandoutput,

including5m(16ft.)cable

MediaConverterSwitch:2xRJ-4510/100Base-T,2xSFP100Base-FX/1000Base-X,

terminalblockswithpowerinput,poweroutputand2xcongurableinput/output

Edgestorage

SD/SDHCmemorycardslot(cardnotincluded)

Supportforrecordingtonetworkshare(NetworkAttachedStorageorleserver)

Operating

conditions

-20°Cto75°C(-4°Fto167°F)withactivecooling

Humidity10–90%RH(non-condensing)

Storage

conditions

-20°Cto75°C(-4°Fto167°F)

Approvals

EN55022ClassA,EN61000-3-2,EN61000-3-3,EN61000-6-1,EN61000-6-2,

EN55024

EN50121-4,IEC62236-4

FCCPart15SubpartBClassA

ICES-003ClassA

VCCIClassA

C-tickAS/NZSCISPR22ClassA

KCCClassA

IEC/EN60950–1,IEC/EN60950-22

IEC60529IP66,NEMA250Type4X

IEC60068-2-1,IEC60068-2-2,IEC60068-2-6,IEC60068-2-14,IEC60068-2-27

MIL-STD810G500.5,501.5,502.5,503.5,505.5,506.5,507.5,509.5,510.5*,514.6

General

AXISQ6032-CPTZDomeNetworkCamera

TechnicalSpecications

Function/group

Item

Specications

*Protectedagainstentryofsandanddust.Clear/smokeddomecovermayneedtobe

replacedifexposedtosandblasts.

Dimensions

(HxWxD)

304x252x302mm(12x10”x12”)

Weight

Camera:4.5kg(9.9lb.)

Included

accessories

AXIST8605MediaConverterSwitch,IP66–ratedmulti-connectorcable,sunshield,

InstallationGuide,InstallationandManagementSoftwareCD,Windowsdecoder1-user

license

Video

management

software

AXISCameraCompanion(softwareincludedonCD)—Basicsurveillanceforsmall

businesses,wherevideoisrecordedtoedgestorage

AXISCameraStation(soldseparately)—Fullyfeaturedsurveillanceformedium-sized

installations,wherevideoisrecordedonasystemserverFormoreinformationand

softwareapplicationsfrompartners,seewww.axis.com/products/video/software/

Optional

accessories

PowerSupply

SFPmodules

MountingAccessories

Smokeddomecover

VideoSurveillanceControlBoard

NetworkI/OAudioModule

Illuminators

InstallationDisplay

Multi-userdecoderlicensepack

Spareparts

Clear/smokeddomecover

MediaConverterSwitchConnectors

Powerconnector(DCinput)

2-pinterminalblockforpowerinput.

- +

FunctionPinNotes

Specications

GND

Ground DCinput

12VDC

Powerinfrompowersupply(soldseparately)

Maxload=7A

12.0–13.2VDC,min75W

Powerconnector(DCoutput)

Two2-pinterminalblocksforpoweroutput(pin4isnotused).

+ +

21 43

AXISQ6032-CPTZDomeNetworkCamera

TechnicalSpecications

FunctionPinNotes

Specications

12VDC

1,2

PowerouttocameraMaxload=6.5A

12.0–13.2VDC,min70W

GND

Ground

DCinputandDC

output

N/a

Networkconnector

Two2-pinEthernetterminalblocks.

I/Oterminalconnector

6-pinterminalblocksfor:

•DigitalInput/Output

•Power(DCoutput)

•Ground(GND)

21 43 65

FunctionPinNotes

Specications

GND

1,4,6

Ground

DCoutput

Powerout

12VDC,50mA

Digitalinput

0to+30VDC

Congurable

(InputorOutput)

3,5

Digitaloutput(transistor—opencollector)

Maxload=100mA

Maxvoltage=+30VDC

I/Oterminalconnector

2-pinterminalblock.

Multi-ConnectorCable

Thesuppliedmulti-connectorcableisrequiredinordertomaintainthecamera’sIPrating.

Connectthemulti-connectorcabletothecamera’smulti-connectorandtotheconnectorsinthesuppliedmediaconverterswitch,

seepage5.

Note

Seepage55fortechnicalspecications.

Thecableprovidesthefollowingsignals:

•DCpower

•Network(Ethernet10/100Base-T)

•I/O

1 8

2 7

3 6

4 5

AXISQ6032-CPTZDomeNetworkCamera

TechnicalSpecications

FunctionPinWireNotes

Specications

Blue

Digitalinput–ConnecttoGNDtoactivate,orleave

oating(unconnected)todeactivate.

0to+30VDC

Congurable

(InputorOutput)

YellowDigitaloutput–Internalconnectiontoground

whenactivated,oating(unconnected)when

deactivated.Ifusedwithanexternalrelay,adiode

mustbeconnectedinparallelwiththeload,for

protectionagainstvoltagetransients.

Maxload=100mA

Maxvoltage=+30VDC

RX+

Green/white

Ethernet–receiving

RX-

Green

Ethernet–receiving

TX+

Orange/white

Ethernet–transmitting

TX-

Orange

Ethernet–transmitting

GND

Black

Ground

12Vpower

1,9

RedUsedtopowercamera

12-13.2VDC

Maxload=6A

PerformanceConsiderations

Whensettingsupyoursystem,itisimportanttoconsiderhowvarioussettingsandsituationswillaffectperformance.Somefactors

affecttheamountofbandwidth(thebitrate)required,otherscanaffecttheframerate,andsomeaffectboth.Iftheloadonthe

CPUreachesitsmaximum,thiswillalsoaffecttheframerate.

Thefollowingfactorsareamongthemostimportanttoconsider:

•Highimageresolutionand/orlowercompressionlevelsresultinimagescontainingmoredata.Bandwidthaffected.

•AccessbylargenumbersofMotionJPEGand/orunicastH.264clients.Bandwidthaffected.

•Simultaneousviewingofdifferentstreams(resolution,compression)bydifferentclients.Effectonframerateand

bandwidth.

•AccessingMotionJPEGandH.264videostreamssimultaneously.Framerateandbandwidthaffected.

•Heavyusageofeventsettingsaffecttheproduct’sCPUload.Framerateaffected.

•Heavynetworkutilizationduetopoorinfrastructure.Bandwidthaffected.

•Viewingonpoorlyperformingclientcomputerslowersperceivedperformance.Framerateaffected.

UserManualVer.M2.8

AXISQ6032-CPTZDomeNetworkCameraDate:October2012

PartNo.48710

Axis Q6032-C EOL Q6032-C PTZ Dome Network Camera 0457-001

Product's Documents

Axis Q6032-C User Manual

Specifications

Axis Q6032-C EOL Questions and Answers
