7 Pieces Patio Sofa Set
HW69539
USER’S MANUAL
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
US:cs.us@costway.com
UK:cs.uk@costway.com
US office: Fontana UK office: Ipswich AU office: Truganina
Before You Start
Read each step carefully before starting. It is very important
to ensure each step followed in correct order, otherwise
assembly difficulties may occur.
Most of board parts are labeled or stamped on the raw
edges. Have a check to make sure all parts are included.
Work in a spacious area, preferably on a carpet close to
where the unit will be used.
Keep the handtools close at hand. Do not use power tools to
assemble your furniture. They may scratch or damage the
parts.
A
A
N
M
L
B
B
H
C
D
I
E
F
G
G
H
K
x2
x2
x2
J
02 03
Before You Start
Read each step carefully before starting. It is very important
to ensure each step followed in correct order, otherwise
assembly difficulties may occur.
Most of board parts are labeled or stamped on the raw
edges. Have a check to make sure all parts are included.
Work in a spacious area, preferably on a carpet close to
where the unit will be used.
Keep the handtools close at hand. Do not use power tools to
assemble your furniture. They may scratch or damage the
parts.
A
A
N
M
L
B
B
H
C
D
I
E
F
G
G
H
K
x2
x2
x2
J
02 03
Notice:
1. 50% Tighten before fixing all screws, Allen wrench is
recommended instead of an electric drill.
2. Place the item on a flat ground to adjust and make sure it
remains stable.
3. Tighten up all screws with tools gradually.
4. If the screws are not aligned with holes during assembly,
please loosen all the other screws to 50% and continue the
assembly process.
5. If the item is not stable, please loosen all the screws,
adjust it on a flat ground and tighten up all screws again.
6. Note: If one or some screws are fully tightened during
assembly, chances are the others will not be aligned with
holes. In addition, all the holes are designed to be relatively
larger to provide more space for the adjustment of the
screws.

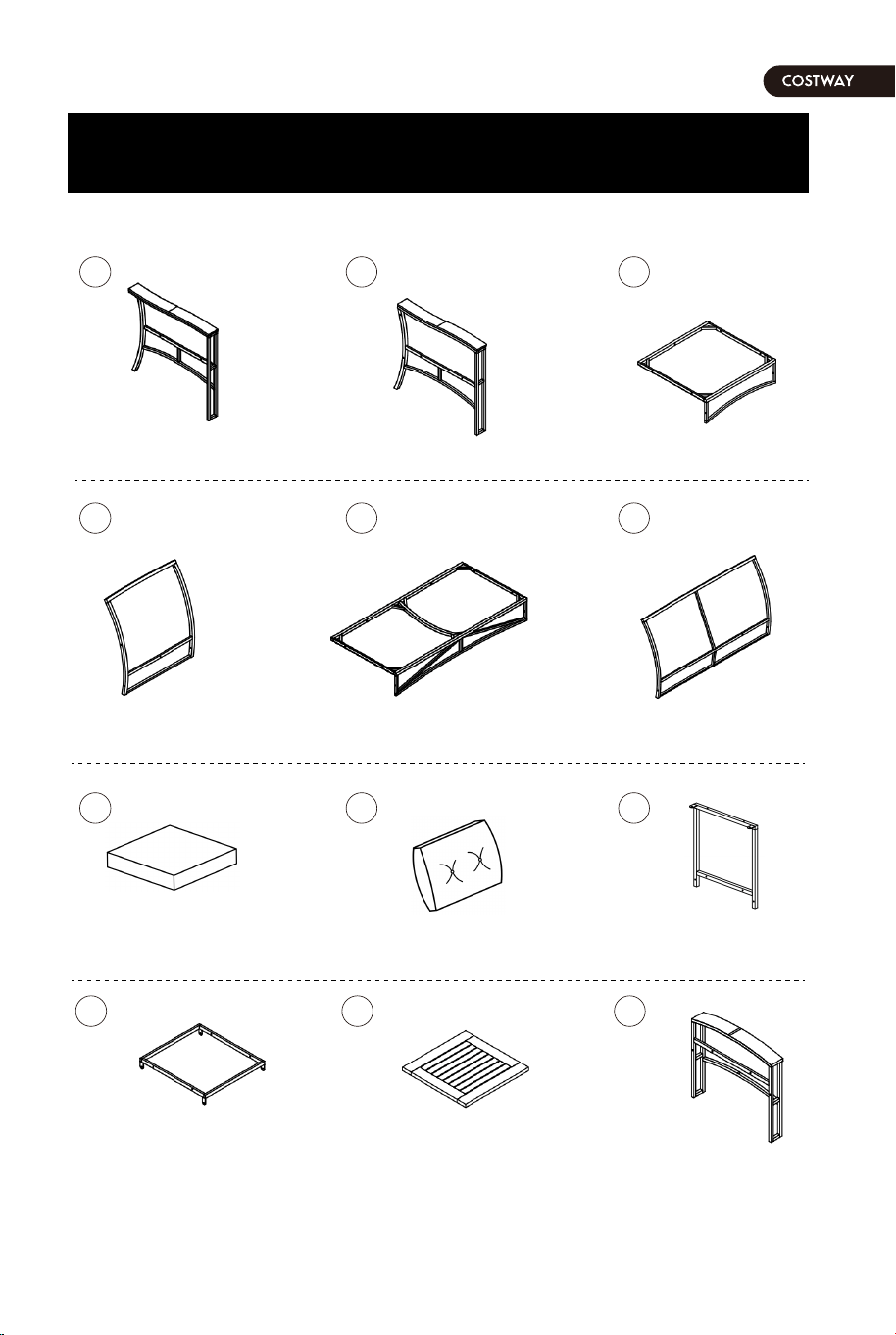

Part & Hardware List
Right frame (3 pcs) Left frame (3 pcs) Seat frame (2 pcs)
Back frame (2 pcs) Bench seat frame (1 pc) Bench back frame (1 pc)
Seat cushion (4 pcs) Back cushion(4 pcs) Table leg frame (4 pcs)
A
B
C
D
E
F
G
H I
Table bottom frame
(2 pcs)
Wooden table top
(2 pcs)
Leg frame (4pcs)
J
K L
04 05
Notice:
1. 50% Tighten before fixing all screws, Allen wrench is
recommended instead of an electric drill.
2. Place the item on a flat ground to adjust and make sure it
remains stable.
3. Tighten up all screws with tools gradually.
4. If the screws are not aligned with holes during assembly,
please loosen all the other screws to 50% and continue the
assembly process.
5. If the item is not stable, please loosen all the screws,
adjust it on a flat ground and tighten up all screws again.
6. Note: If one or some screws are fully tightened during
assembly, chances are the others will not be aligned with
holes. In addition, all the holes are designed to be relatively
larger to provide more space for the adjustment of the
screws.
Part & Hardware List
Right frame (3 pcs) Left frame (3 pcs) Seat frame (2 pcs)
Back frame (2 pcs) Bench seat frame (1 pc) Bench back frame (1 pc)
Seat cushion (4 pcs) Back cushion(4 pcs) Table leg frame (4 pcs)
A
B
C
D
E
F
G
H I
Table bottom frame
(2 pcs)
Wooden table top
(2 pcs)
Leg frame (4pcs)
J
K L
04 05

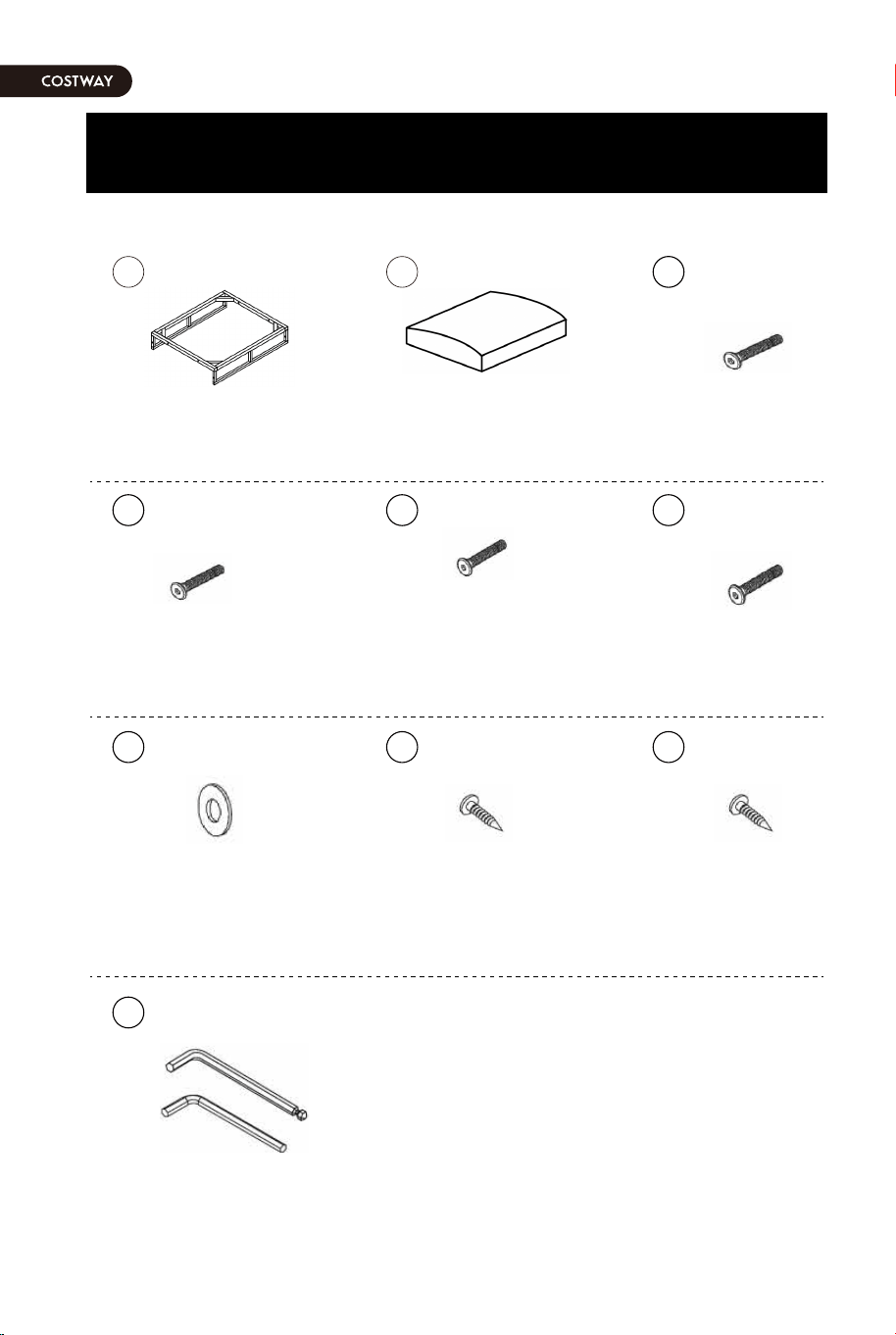

Seat frame (2pcs) Seat cushion (2pcs) Bolt M6x40 mm
( 16pcs)
Bolt M6x35 mm
(16 pcs)
Bolt M6x25 mm
( 28 pcs)
Bolt M6 x 15mm
( 8 pcs)
M6 Washers
(68 pcs)
Screw M6x25mm
(8 pcs)
Screw M6x15mm
(8 pcs)
Allen key M4
(2 pcs)
Part & Hardware List
M N
8
7
6
5
4
3
2
1

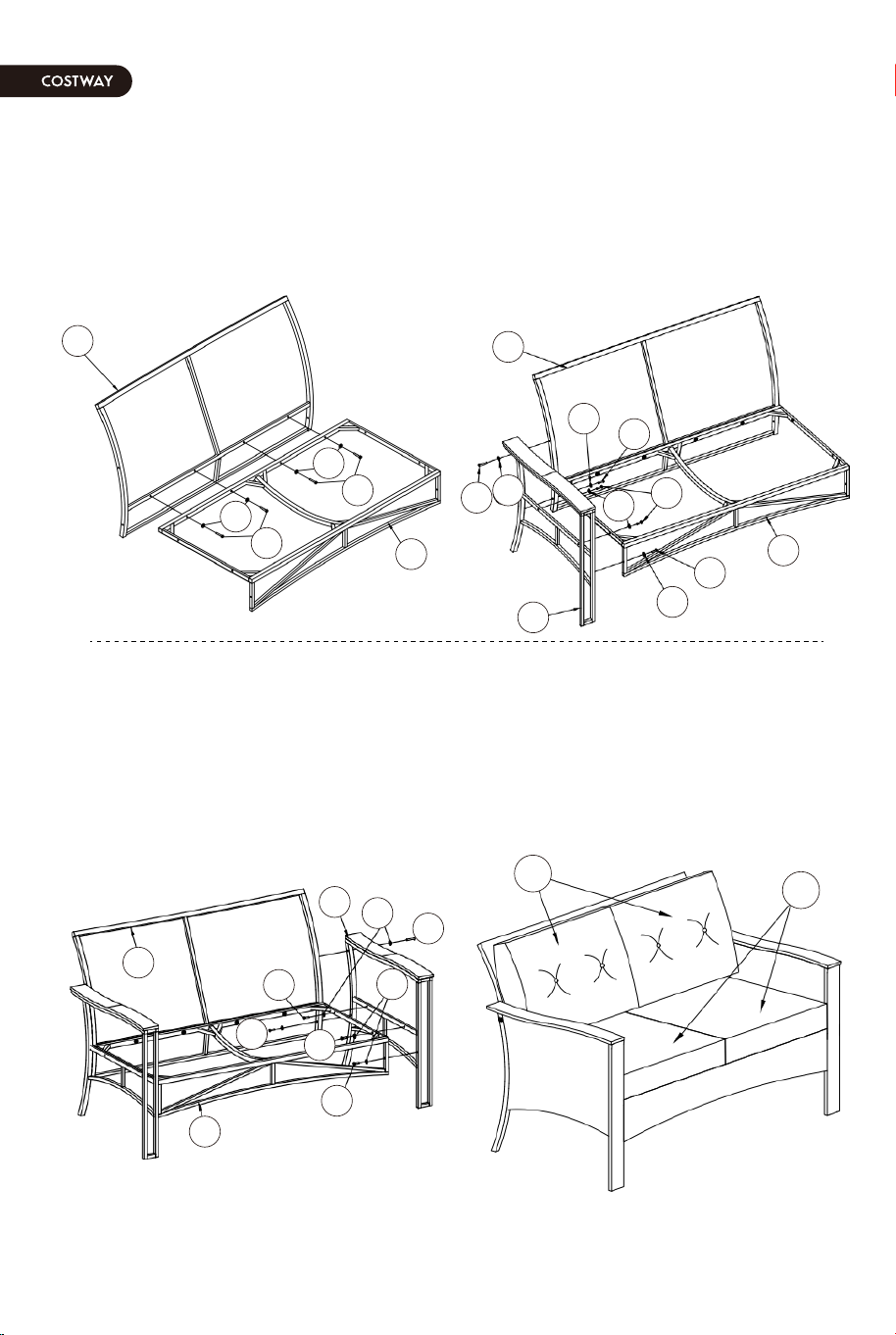

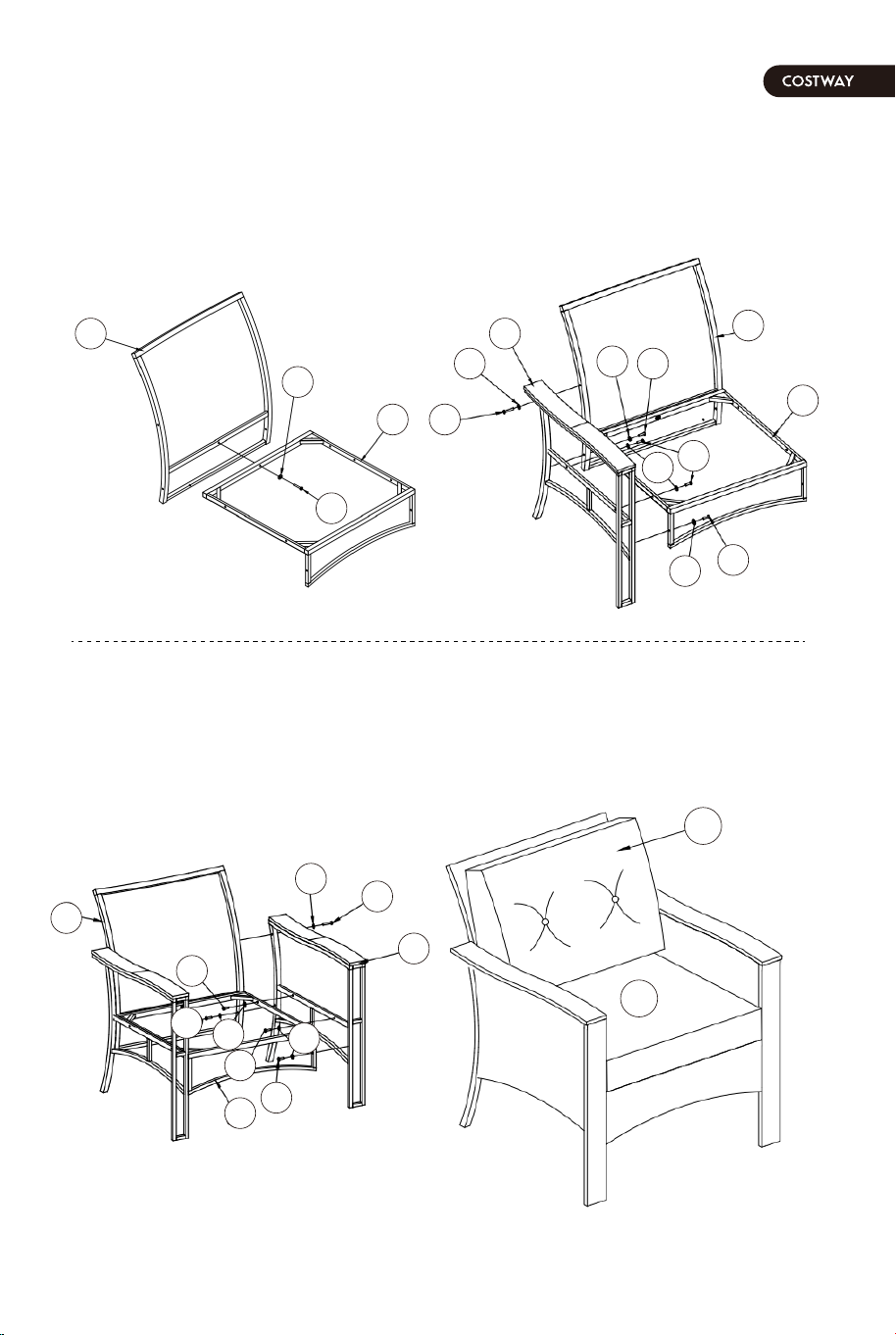

STEP 1
( 2x Chair assembly)
Connect Back frame (D) &
Seat frame (C)with Bolt (2)
& Washer (5)
STEP 2
Connect part from Step 1 &
Right arm (A) with Bolt(1), Bolt
(2), Bolt (3) & Washers (5)
STEP 3
Connect part from Step2 &
Left arm (B) with Bolt(1),
Bolt (2), Bolt (3) & Washers
(5)
STEP4
Put on Seat cushion (G) and
Back cushion (H) to complete
single chair
A
C
5
5
5
5
5
C
1
5
5
D
D
D
B
H
G
C
5
3
3
3
2
2
2
1
1
1
06 07
Seat frame (2pcs) Seat cushion (2pcs) Bolt M6x40 mm
( 16pcs)
Bolt M6x35 mm
(16 pcs)
Bolt M6x25 mm
( 28 pcs)
Bolt M6 x 15mm
( 8 pcs)
M6 Washers
(68 pcs)
Screw M6x25mm
(8 pcs)
Screw M6x15mm
(8 pcs)
Allen key M4
(2 pcs)
Part & Hardware List
M N
8
7
6
5
4
3
2
1
STEP 1
( 2x Chair assembly)
Connect Back frame (D) &
Seat frame (C)with Bolt (2)
& Washer (5)
STEP 2
Connect part from Step 1 &
Right arm (A) with Bolt(1), Bolt
(2), Bolt (3) & Washers (5)
STEP 3
Connect part from Step2 &
Left arm (B) with Bolt(1),
Bolt (2), Bolt (3) & Washers
(5)
STEP4
Put on Seat cushion (G) and
Back cushion (H) to complete
single chair
A
C
5
5
5
5
5
C
1
5
5
D
D
D
B
H
G
C
5
3
3
3
2
2
2
1
1
1
06 07

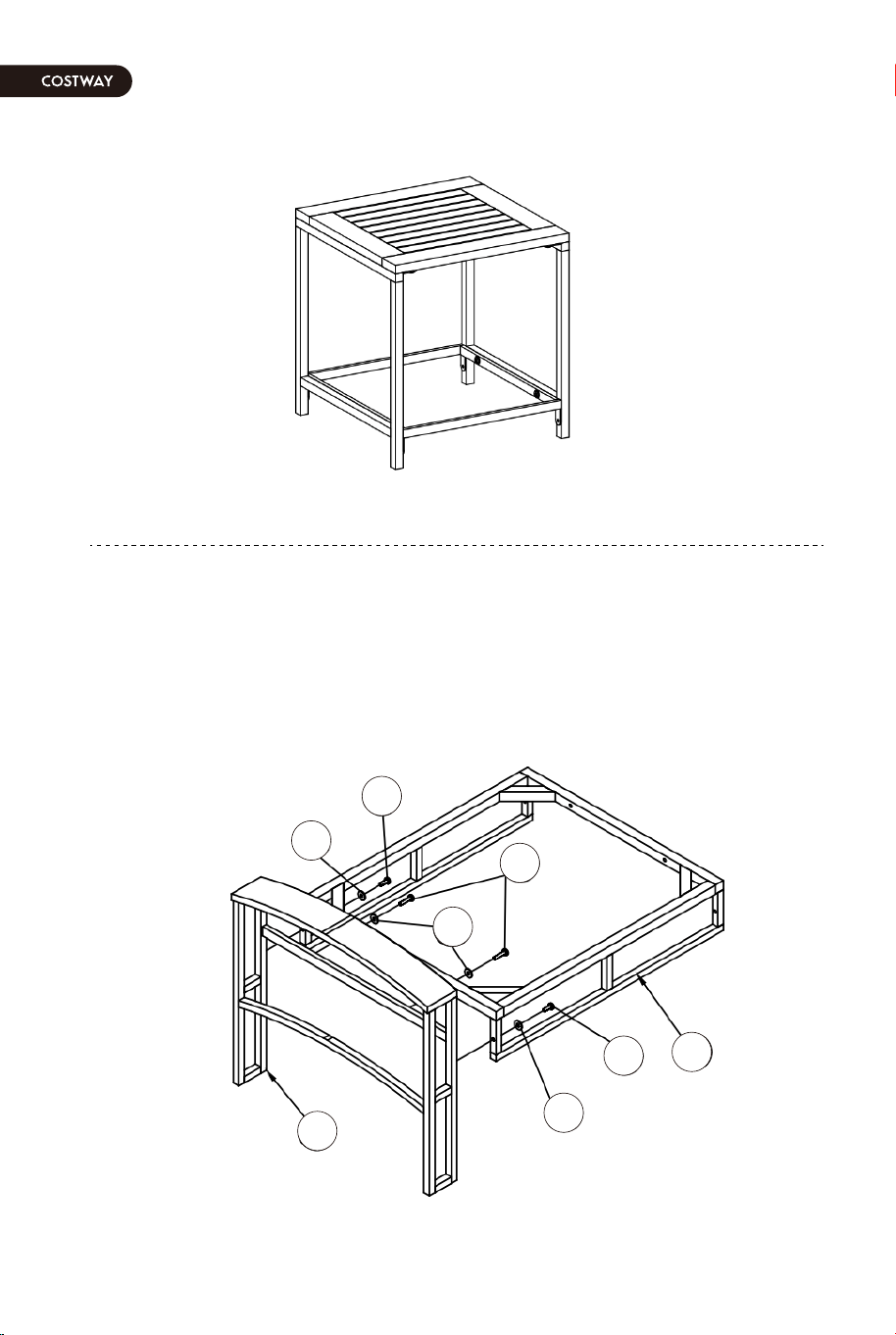

STEP 5 ( Bench assembly)
Connect Bench back frame
(F) & Bench seat frame (E)
with Bolt (1) & Washer (5)
STEP 6
Connect part from Step 5 & Right
arm (A) with Bolt(1), Bolt(2),
Bolt(3) & Washers (5)

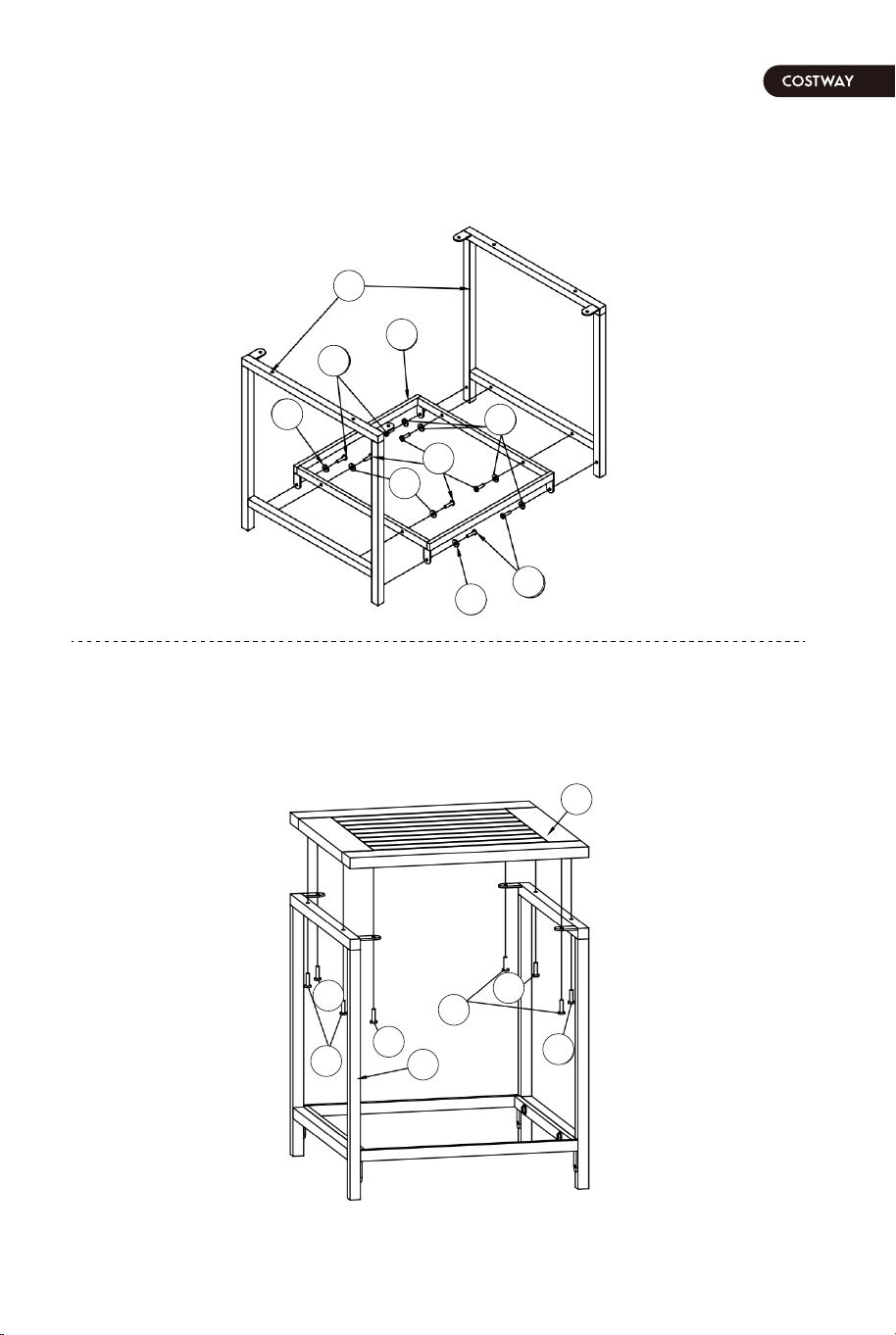

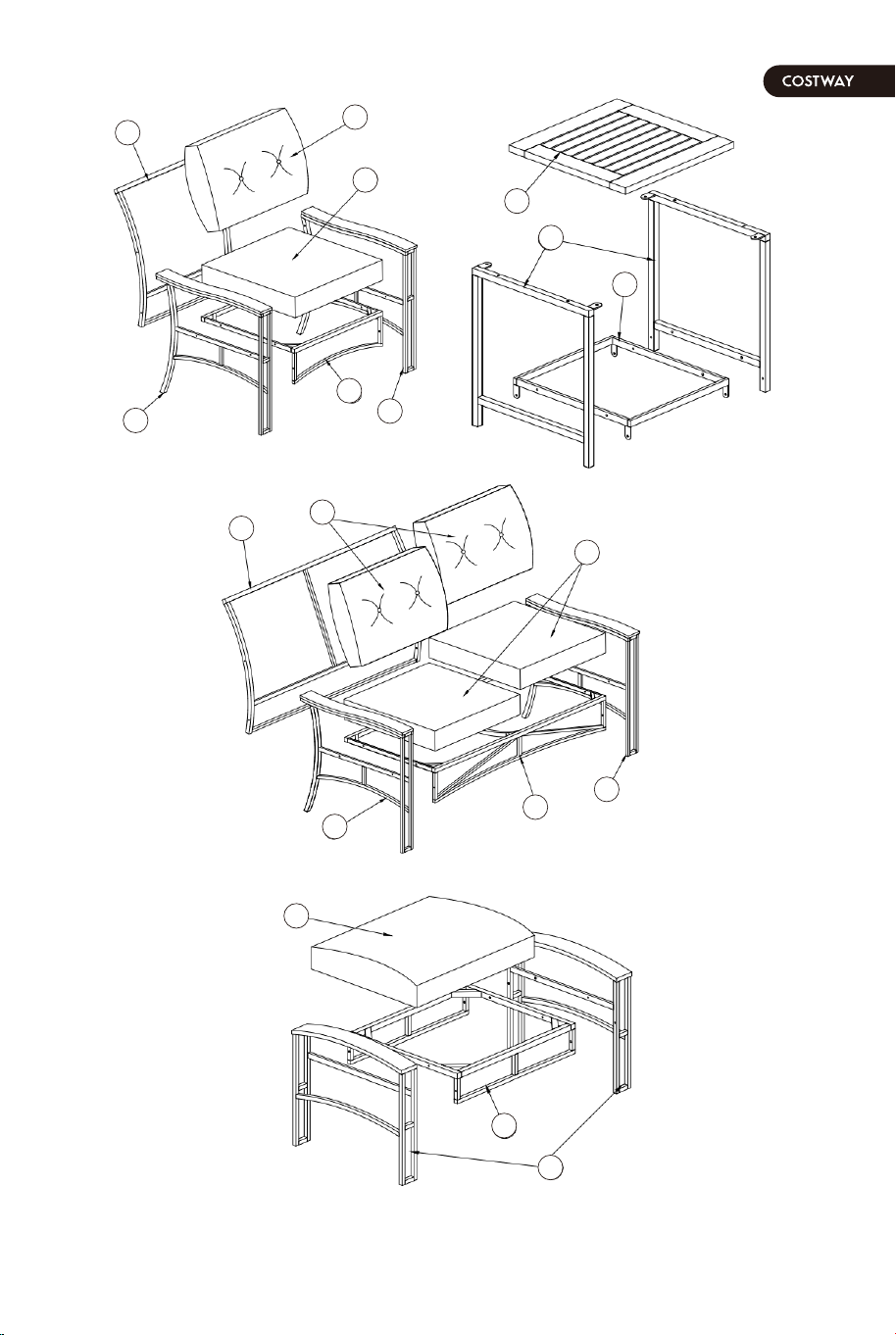

STEP 9 ( 2X Table assembly)
Connect table leg frame (I) & Table bottom frame (J) with Bolt
(3),Bolt (4) & Washers (5)
STEP 10
Connect part from step 9 & Wooden table top (K) with Screw ( 6),
Screw ( 7)

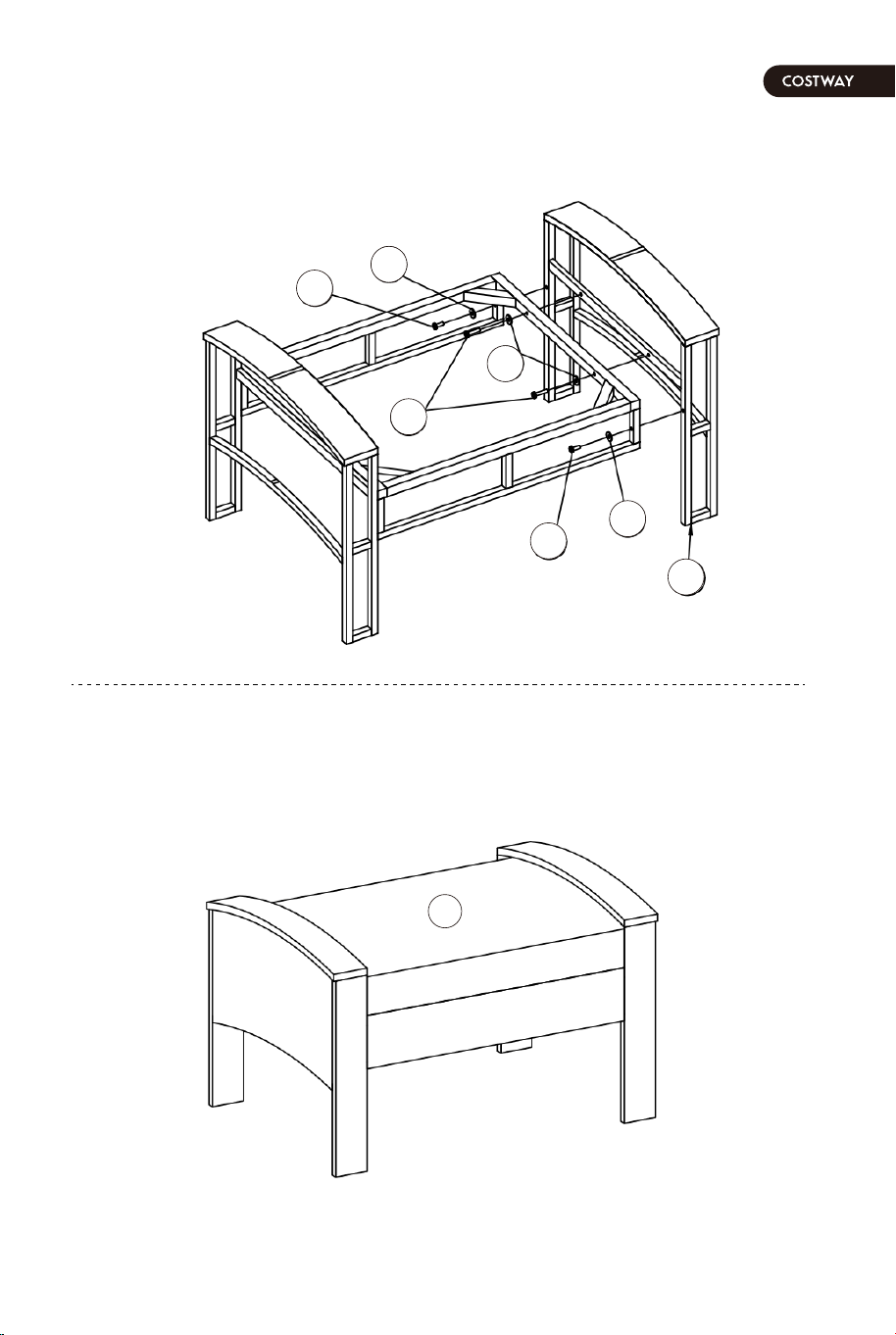

STEP 7
Connect part from Step 6 &
Left arm(B)with Bolt (1), Bolt
(2), Bolt (3)
& Washers (5)
STEP 8
Put on Seat cushion (G) and
Back cushion (H) to complete
Bench
A
5
5
5
5
5
5
5
5
5
5
4
J
3
4
K
7
7
7
6
6
6
I
5
5
B
F
F
F
E
E
E
H
G
3
3
3
2
2
1
1
1
1
1
1
I
08 09
STEP 5 ( Bench assembly)
Connect Bench back frame
(F) & Bench seat frame (E)
with Bolt (1) & Washer (5)
STEP 6
Connect part from Step 5 & Right
arm (A) with Bolt(1), Bolt(2),
Bolt(3) & Washers (5)
STEP 9 ( 2X Table assembly)
Connect table leg frame (I) & Table bottom frame (J) with Bolt
(3),Bolt (4) & Washers (5)
STEP 10
Connect part from step 9 & Wooden table top (K) with Screw ( 6),
Screw ( 7)
STEP 7
Connect part from Step 6 &
Left arm(B)with Bolt (1), Bolt
(2), Bolt (3)
& Washers (5)
STEP 8
Put on Seat cushion (G) and
Back cushion (H) to complete
Bench
A
5
5
5
5
5
5
5
5
5
5
4
J
3
4
K
7
7
7
6
6
6
I
5
5
B
F
F
F
E
E
E
H
G
3
3
3
2
2
1
1
1
1
1
1
I
08 09
STEP 13
Connect part from Step 12 & Leg frame (L) with Bolt (2), Bolt (3) & Washers
(5)
STEP 14
Put on Seat cushion(N) to complete Stool
STEP 12 ( 2X Stool assembly)
Connect leg frame (L) & Seat frame (M) with Bolt (2), Bolt (3) &
Washers (5)
STEP 11
Complete the Table
3
3
2
2
2
2
5
5
5
5
5
5
M
N
L
L
10 11
STEP 13
Connect part from Step 12 & Leg frame (L) with Bolt (2), Bolt (3) & Washers
(5)
STEP 14
Put on Seat cushion(N) to complete Stool
STEP 12 ( 2X Stool assembly)
Connect leg frame (L) & Seat frame (M) with Bolt (2), Bolt (3) &
Washers (5)
STEP 11
Complete the Table
3
3
2
2
2
2
5
5
5
5
5
5
M
N
L
L
10 11

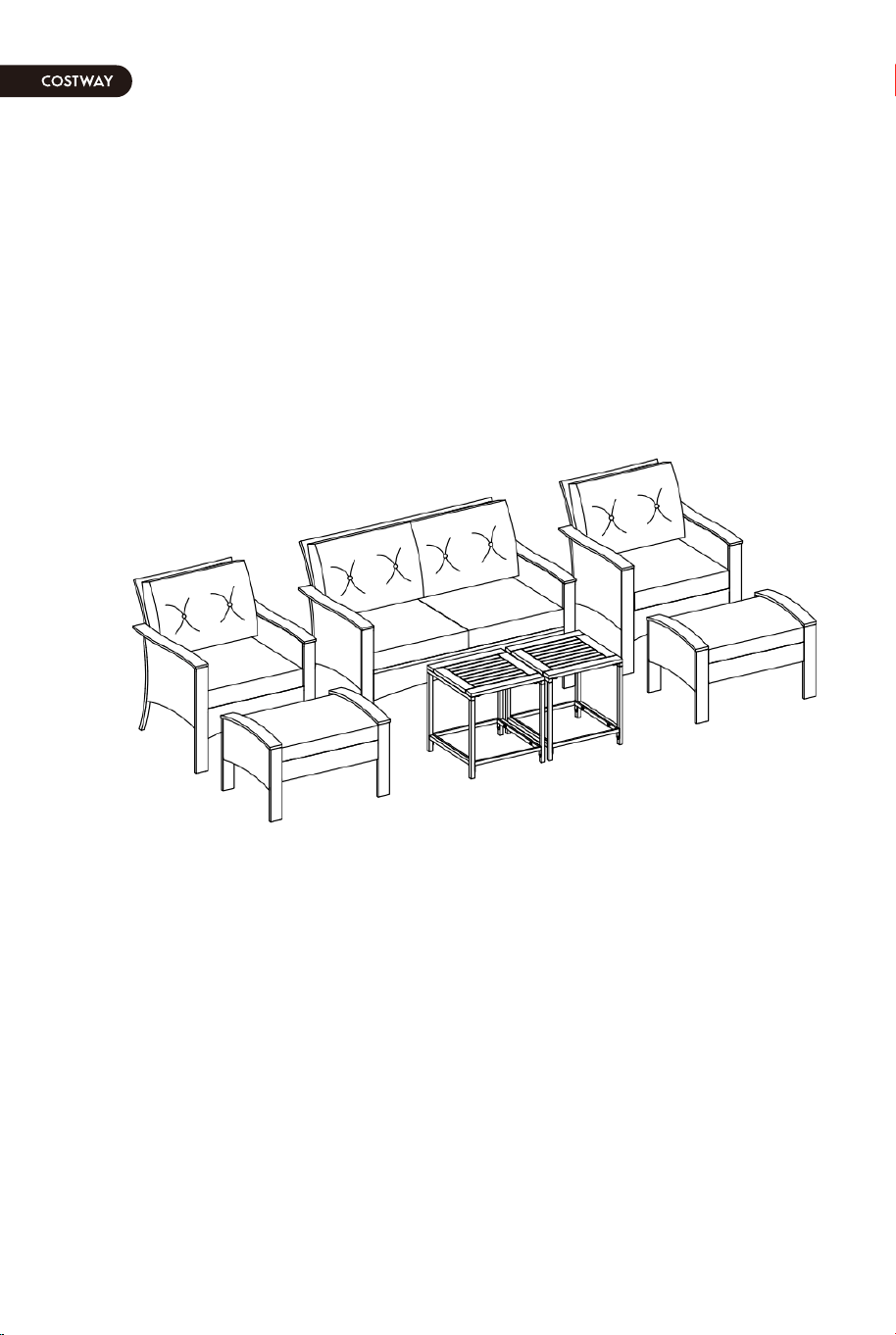

Finished
Care and Maintenance
Use a soft, clean cloth that will not scratch the surface when dusting.
Use of furniture polish is not necessary.
Should you choose to use polish, test first in an inconspicuous area.
Using solvents of any kind on your furniture may damage the finish.
Never use water to clean your furniture as it may cause damage to the
finish.
Liquid spills should be removed immediately. Using a soft clean cloth, blot
the spill gently. Avoid rubbing.
Check bolts/screws periodically and tighten them if necessary.
Please protect your outdoor furniture with a cover when not in use since
long-term sunlight exposure will result in the damage on the surface.
In addition to sunlight damage, wood and metal frame suffers when
exposed to extremes in temperature and humidity.
Proper care and cleaning at home will extend the life of your purchase.
Following these important and helpful tips will enhance your furniture
as it ages.
Further advice about wood
furniture care
12 13
