Description
The Sarix Enhanced III Series Box cameras are compatible with a choice of standard iCS (Intelligent CS-
mount) megapixel lenses for wide angle or long range surveillance needs.
The Sarix Enhanced III Series Box camera offers flexible mounting options, and uses a standard Web
browser for easy remote setup and administration. The Sarix Enhanced III Series Box camera easily connects
to Pelc
o IP and hybrid systems such as VideoXpert, VX Toolbox, Endura version 2.0 (or later), and Digital
Sentry version 7.3 (or later).
This document describes the installation and initial setup procedures to begin operating the camera. For
more information about operating your camera, refer to the operation manual specific to the product.
SYSTEM MODEL NUMBERS
RECOMMENDED MOUNTS
RECOMMENDED LENSES
*Compatible with IXE23 and IXE33 only.
RECOMMENDED ENCLOSURES
Resolution Model Number Description
2 MP IXE23 2 MP Sarix Enhanced Box IP Camera
3 MP IXE33 3 MP Sarix Enhanced Box IP Camera
5 MP IXE53 5 MP Sarix Enhanced Box IP Camera
8 MP IXE83 4 K Sarix Enhanced Box IP Camera
Mounts Description
C11-UM Gang box mount
CM1750 Pedestal mount
TB1751 T-rail mount
Lens Description
MI2.8-8.5P* MP iCS lens 2.8-8.5 mm
MI3.9-10P MP iC
S lens 3.9-10 mm
MI9-50P MP iCS lens 9-50 mm
Enclosure Description
EH20 Series Indoor and environmental enclosures
EHS8000 Series Indoor and environmental enclosures
C6659M (10/21) 9
BOX CAMERA MODELS
SUPPLIED PARTS LIST
USER-SUPPLIED PARTS LIST
In addition to the standard tools and cables required for a video security installation, you will need to provide
the
following items:
PRODUCT LABEL
The product label lists the model number, serial number, and Media Access Control (MAC) address. This
information might be required for setup. A product label is located on the b
ottom of the camera and on the
side of the product box.
GETTING STARTED
Before installing your device, thoroughly familiarize yourself with the information in the installation section
of this manual.
NOTES:
• Pelco recommends connecting the device to a network that uses a Dynamic Host Configuration Protocol
(DHCP) server to address devices.
• Do not use a network hub when configuring the network settings
for the device.
• To ensure secure access, place the device behind a firewall when it is connected to a network.
Qty Description
1 Camera
1 Installation manual
1 Important Safety Instructions document
1 China RoHS document
Qty Description
1 iCS megapixel lens
1 Up to 256 GB Micro SDHC or SDXC card capable of a minimum write speed of 10 MB/sec is
recommended for recording HD video (optional)
1 RJ-45 connector to term
inate cable
1 Cat5e (or higher) cable
1 Mounting hardware (refer to Optional Accessories section)
1 24-28 AWG 4, 8, or 10 multi conductor cable for alarms and/or audio and/or power (optional)
1 16-20 AWG 2 conductor cable for power (optional)
10 C6659M (10/21)
Product Overview

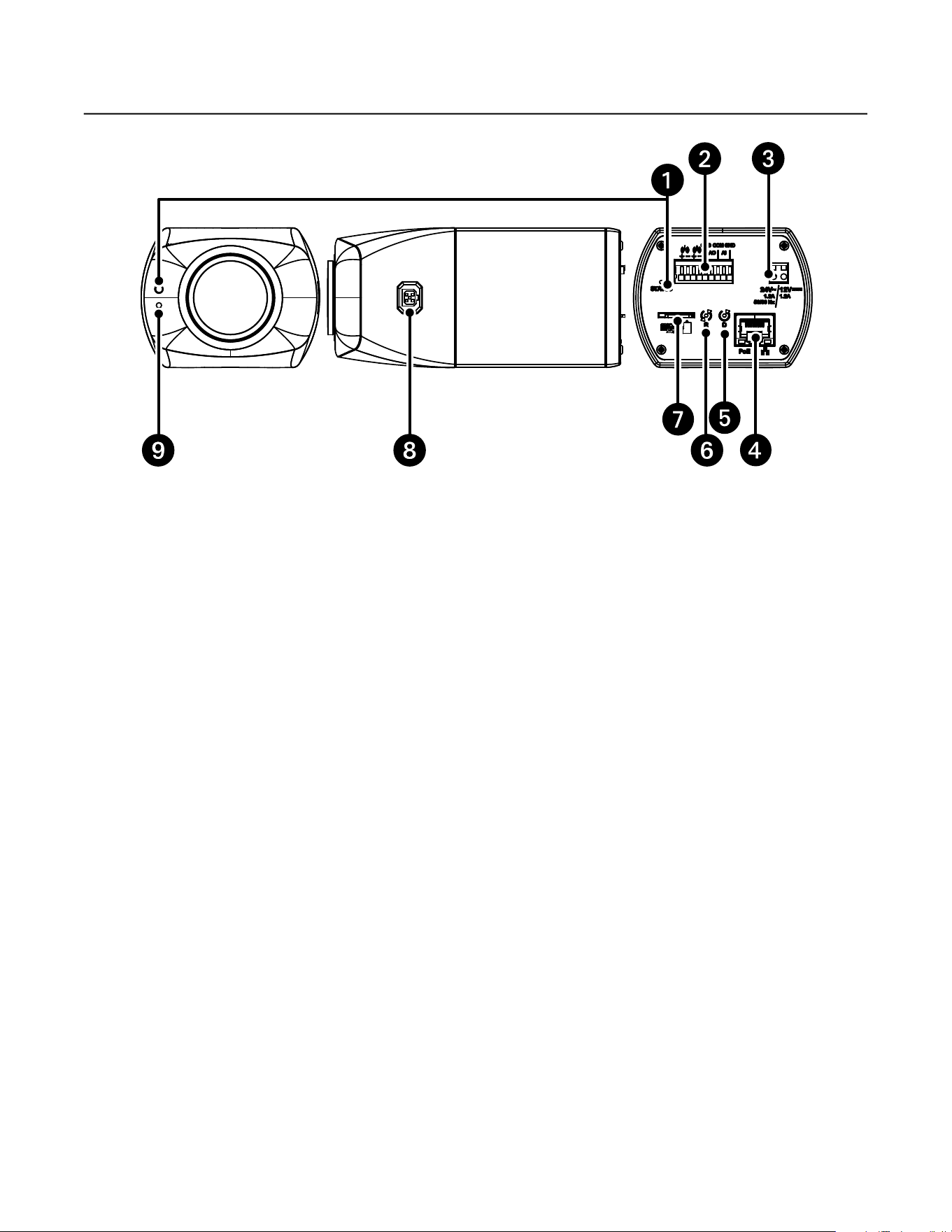

Figure 1. Sarix Enhanced III IXE Series Box
1. Status LED Indicators:
a. Solid red for more than 5 seconds indicates there is a booting error. Flashing green indicates booting is
normal.
b. Flashing orange indicates a firmware update is in progress.
c. LED will turn off after a successful boot up.
d. Solid amber indicates the camera is in a cold start state (warming up before fully booting).
2
. Alarm/Relay/Audio Port: Connects to alarms, relays, and audio in/out.
3. Power Connector: A two-pin connector for 12 VDC or 24 VAC.
4. RJ-45 Network Port: Connects the camera to the IP network. Also supplies power to the camera (POE), through
the same connector. (NOTE: To purchase a power supply, please contact Pelco for further information.)
a. Green LED: With solid green, the LED indicates a live con
nection is established.
b. Orange LED: With flashing orange, the LED indicates data is being transmitted/received between camera and
switch.
5. Defaults Button: Press and hold the button for 4 seconds to restore the camera to factory default settings.
6. Reset Button: Cycles power to the camera and initiates a reset. Press and release the reset button once to reboot
the camera.
7. Micro SD Slot: Install t
he SD card into the card slot to store videos and snapshots. Do not remove the micro SD
card when the camera is powered on.
8. iCS Lens Connector: Insert the 5-pin connector from the iCS lens into this connector.
9. Microphone: Microphone for capturing sound.
C6659M (10/21) 11
Installation
NOTE: Pelco megapixel (MP) iCS lenses have been designed and tested to deliver optimal image quality for
the IXE Series box camera. This camera only accepts iCS lenses. Using a non-iCS lens may damage the
camera. Please contact Pelco for more information.

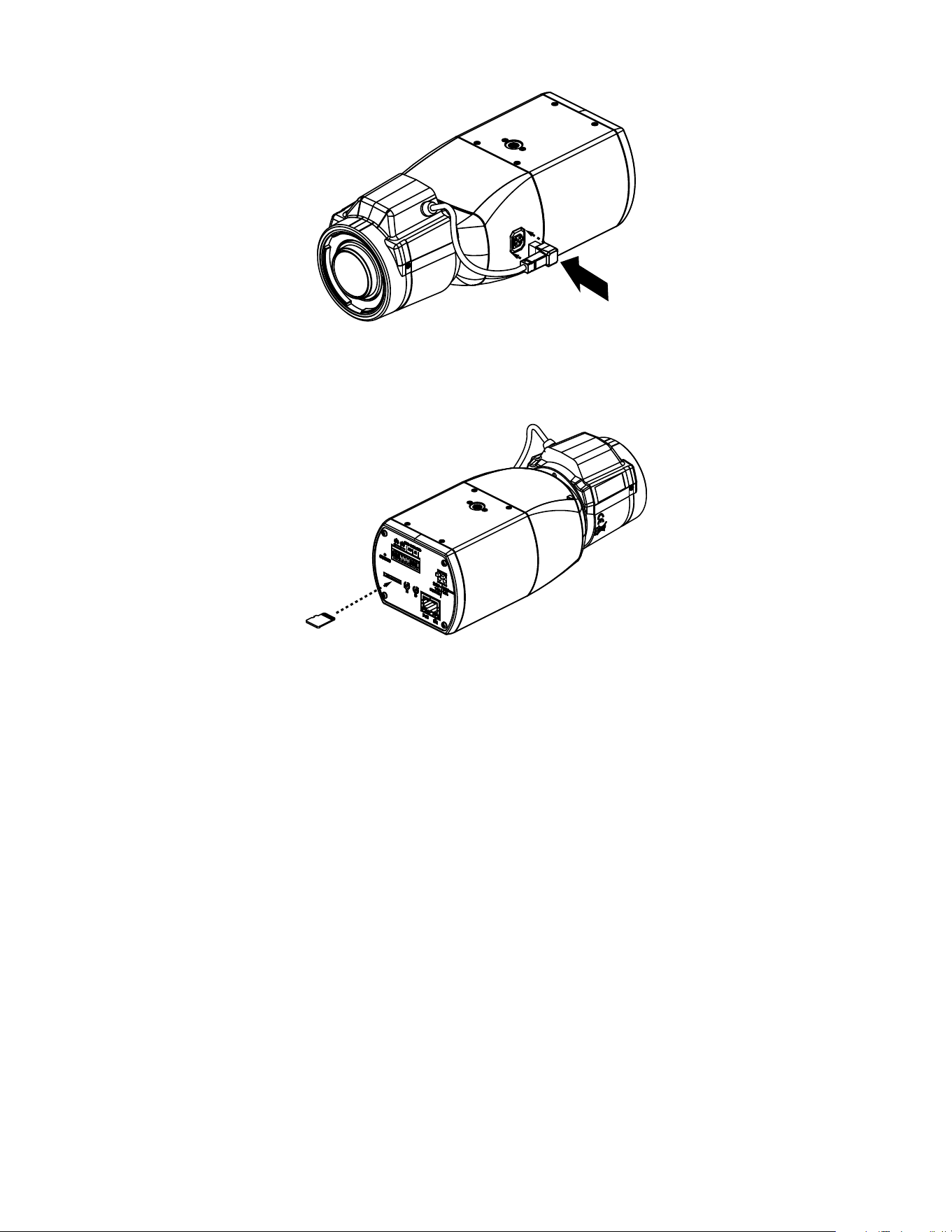

1. Install the iCS lens.
a. Remove the outer cover from the lens mount.
Figure 2. Remove the Cover from the Lens Mount
b. Tighten the iCS lens onto the lens mount. Be careful to prevent dust from entering the space
between the iCS lens and the imager. If necessary, use clean, compressed air to remove any foreign
matter (refer to the instructions shipped with the iCS lens). Make sure the lens does not touch the
camera imager when installed.
Figure 3. Tighten the iCS Lens Onto the Lens Mount
c. Connect the iCS lens cable to the 5-pin connector located on the side of the camera.
12 C6659M (10/21)
Figure 4. Connect the iCS Lens Cable to the Connector
d. (Optional) Insert a Micro SD Card into the slot. NOTE: Do not remove the microSD card when the
camera is powered on.
Figure 5. Insert a Micro SD Card
2. Install the camera on the mount in the desired location (refer to the installation/operations manual for
the recommended mount). The camera can be attached to the mount from either
the top or bottom
threaded 1/4-20 threaded mounting hole, depending on the type of camera mount used in your
installation.
3. Connect the cables to the camera. Refer to the Connecting the Cables section for wiring instructions and
the Product Overview for connector port locations.
4. Apply power to the camera. The camera will complete a configuration sequence. The Status LED
Indicators located on the front and back can be used to identify the stage the camera is at in it’s
configuration.
5. Refer to
Accessing the Camera section to view the camera image.
6. the camera field of view is set by adjusting zoom and focus via the Web UI. Refer to the operations
manual.
CONNECTING THE CABLES
The I/O interfaces appear on the back of the camera module (Refer to Figure 1). Make the appropriate
connections.
C6659M (10/21) 13
ETHERNET WIRING REQUIREMENT FOR POE
Connect a Cat5e cable or higher cable (not supplied) to the RJ-45 network connector. The 8-pin port includes
video over Ethernet, and PoE for the camera. PoE injects power over the same cabling that carries the
network data, eliminating the need for a separate power supply. This simplifies the installation and
operation of the camera without affec
ting network performance.

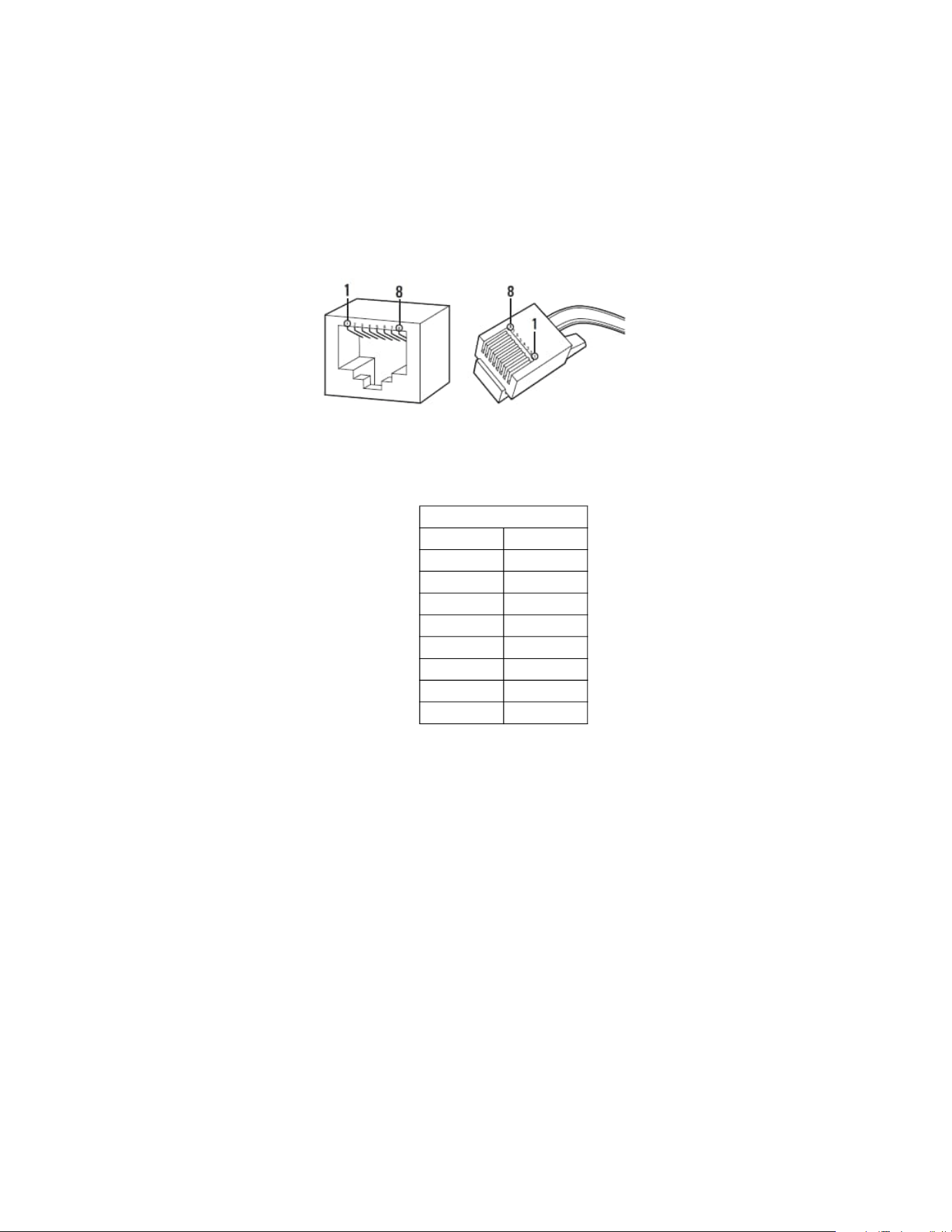

Figure 6. Pin Numbering
Figure 7. Pin Functions
POWER WIRING
To wire the connector, use a small slotted screw driver to depress the connector tabs and then insert cables
into the power connector. Attach the cables as shown in Figure 1 (e.g. Pin 1 is 12 VDC or 24 VAC 1; Pin 2 is
GND or 24 VAC 2).
NOTES:
• 12 VDC or 24 VAC may be used instead of PoE or in addition to PoE for power
failover in case PoE/
network is temporarily lost.
• Power failover is only supported when the camera is connected to a dedicated auxiliary power supply, 12
VDC/24 VAC. No other cameras can be connected to this auxiliary power supply. It is OK for the camera
to share PoE from a switch that has other cameras connected to it.
1000BASE-TX
Pin Function
1 BI_DA+
2 BI_DA-
3 BI_DB+
4 BI_DC+
5 BI_DC-
6 BI_DB-
7 BI_DD+
8 BI_DD
-
14 C6659M (10/21)
ALARM/RELAY/AUDIO PORT
Figure 8. Relay and Alarm Connections
Figure 9. Box Pinout Detail
ACCESSING THE CAMERA
Anyone who access the camera can view live video. If you want to prevent users from viewing video without
logging in, you must change the permissions for public users.
The recommended browsers for your camera are the latest version of Microsoft™ Edge™, Google Chrome™
browser, or Mozilla® Firefox®. for supported browser versions, refer to the specification sheet.
1. Open a web browser.
2. Type the camera’s IP address (192.168.0.20) or host name in your browser’s address bar, and the press
Enter.
NOTE: You can obtain your camera’s IP address or access the camera using the VxToolbox software. If DHCP
is enabled but a DHCP server is not on the network, the camera automatica
lly assigns itself both an IPv4 link
local address (169.254.x.x, where the lower two octets are random) and a 192.168.0.20 address. Additional
cameras will assign themselves different IPv4 link local addresses and the next available 192.168.0xIP
addresses in sequential order. For example, if three cameras are connected to a network without a DHCP
server, the first camera to connect assigns itself
the IP address 192.168.0.20, the second camera assigns
itself 192.168.0.21, and the third camera assigns itself 192.168.0.22.
3. Click Login.
4. If needed, type your user name and password.
NOTE: For security purposes, it is recommended that you create a user account when you login to the
camera for the first time.
Designation Function
Alarm Input
AI Alarm In +
GND Ground
Alarm Output
GND Ground
AO Alarm Out +
COM
Common
Audio In
Audio In +
Audio In -
Audio Out
Audio Out +
Audio Out -
C6659M (10/21) 15
• In its out-of-the-box configuration, the camera has no user name and password assigned. For security
purposes, it is recommended that you set an administrative user name and password after initial
configuration of the camera. Creation of an administrative user name changes the state of the camera to
its “operational mode,” where credentials must be provided in order to change its configuration.
• There is no provision for recovering a forgotten administrator user name or pass
word. The camera can
be restored to its out-of-the-box, no-password configuration by depressing the Defaults button with an
object such as a paper clip, and holding the button down for at least four seconds.
• If a user name and password exist, a Login link appears in the upper right area of your web browser.
5. Click Log In.
PELCO TROUBLESHOOTING CONTACT INFORMATION
If the instructions provided fail to solve your problem, contact Pelco Product Support at 1-800-289-9100 (USA
and Canada) or +1-559-292-1981 (international) for assistance. Be sure to have the serial number available
when calling.
Do not try to repair the unit yourself. Leave maintenance and repairs to qualified technical personnel only.
