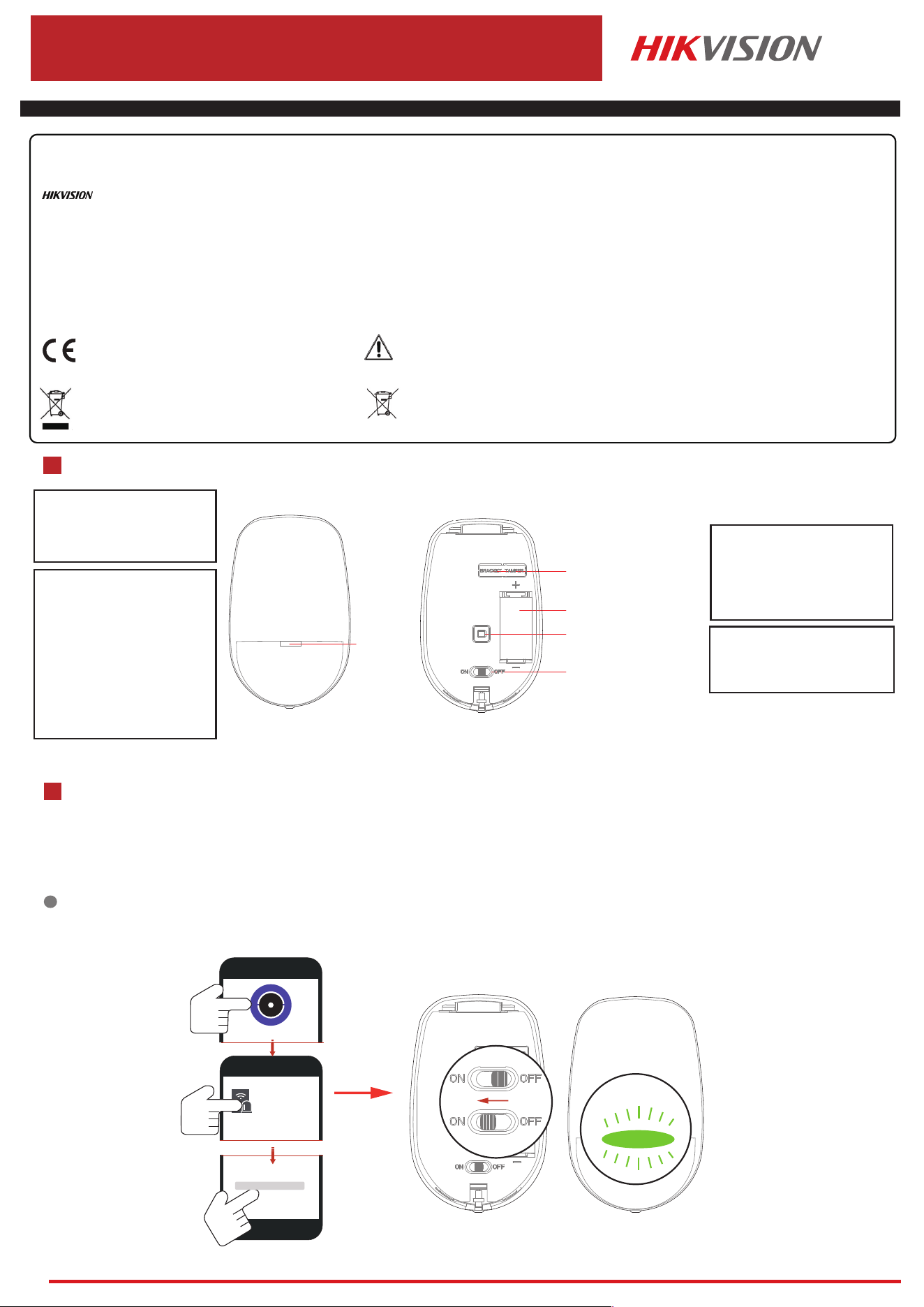

Appearance
2
Enrollment
Note: The enrollment progress will be completed in 3 to 10 seconds normally.
1
Enroll the Peripheral Locally
1. Log in to the APP Store, download and install the App.
2. Power on the security control panel.
3. Log in the APP and tap the icon "+" . Scan the QR code or input the control panel serial No. to add the control panel.
1. In the APP, tap the "Enrollment Mode" button on the control panel page to make the control panel enter the enrollment status.
2. Loosen the screw and remove rear panel.
3. Power on the peripheral, and it will be automatically enrolled to the control panel.
This product and - if applicable - the supplied accessories too are
marked with "CE" and comply therefore with the applicable harmonized
European standards listed under the EMC Directive 2014/30/EU, RE
Directive 2014/53/EU, the RoHS Directive 2011/65/EU.
replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium
battery types);
– disposal of a battery into re or a hot oven, or mechanically crushing or cutting of a battery, that can result in an
explosion;
– leaving a battery in an extremely high temperature surrounding environment that can
result in an explosion or the leakage of ammable liquid or gas; and
– a battery subjected to extremely low air pressure that may result in an explosion or the leakage of ammable liquid
or gas
2012/19/EU (WEEE directive): Products marked with this symbol
cannot be disposed of as unsorted municipal waste in the European
Union. For proper recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
designated collection points. For more information see:
www.recyclethis.info
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal
waste in the European Union. See the product documentation for specic battery information. The battery is marked
with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper
recycling, return the battery to your supplier or to a designated collection point. For more information see:www.recy-
clethis.info
CAUTION
RISK OF EXPLOSION IF BATTERY
IS REPLACED BY AN INCORRECT
TYPE.
REPLACEMENT OF A BATTERY
WITH AN INCORRECT TYPE THAT
CAN DEFEAT A SAFEGUARD.
CAUTION
CHEMICAL BURNING DANGER
DO NOT SWALLOW THE
BATTERY
KEEP NEW AND USED
BATTERIES AWAY FROM THE
CHILDREN.
IF YOU THINK BATTERIES MIGHT
HAVE BEEN SWALLOWED OR
PLACED INSIDE ANY PART OF
THE BODY, SEEK IMMEDIATE
MEDICAL ATTENTION.
CAUTION
DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUC-
TIONS AND LOCAL REGULATION.
xxxx
Enrollment Mode
CAUTION
IF THE BATTERY COMPARTMENT
DOES NOT CLOSE SECURELY,
STOP USING THE PRODUCT AND
KEEP IT AWAY FROM CHILDREN.
Indicator
Bracket Tamper Port
Battery
Tamper Switch
Power Switch
7 Times
Wireless Curtain Detector
DS-PDC15-EG2-WE(B) WB(B)
1
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
1. Check Signal Strength
Enter the signal checking mode by operating on the control panel. Trigger the detector.
Solid Green for 3 s - Strong Signal
Solid Orange for 3 s - Medium Signal
Solid Red for 3 s - Weak Signal
Red light ashes for 3S - Failure

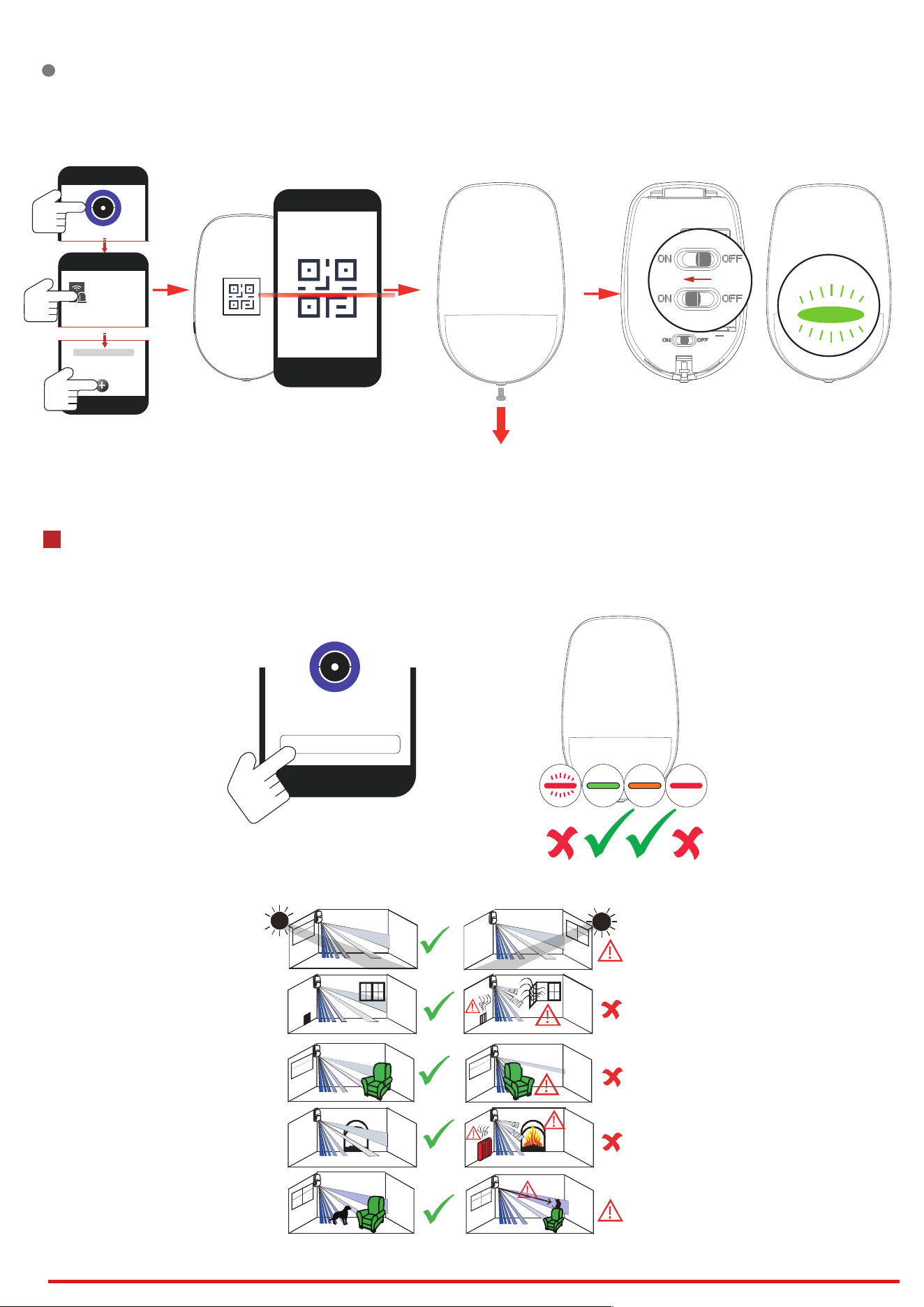

2. Check the installation environment
Note: Hold the tamper button, and make the device power o and then power on for re-enrollment.
3
Installation
2
Enroll the Peripheral with QR and serial No.
1. In the APP, tap the icon "+"and scan the QR code or serial No. on the peripheral.
2. Loosen the screw and remove rear panel.
3. Power on the peripheral, and it will be automatically enrolled to the control panel.
xxxx
Device
Signal Strength Test
7 Times
2
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
3. Install the Detector
Note: The additional force shall be equal to three times the weight of the equipment but not less than 50N. The equipment
and its associated mounting means shall remain secure during the installation. After the installation, the equipment,
including any associated mounting plate, shall not be damaged.
with Screws

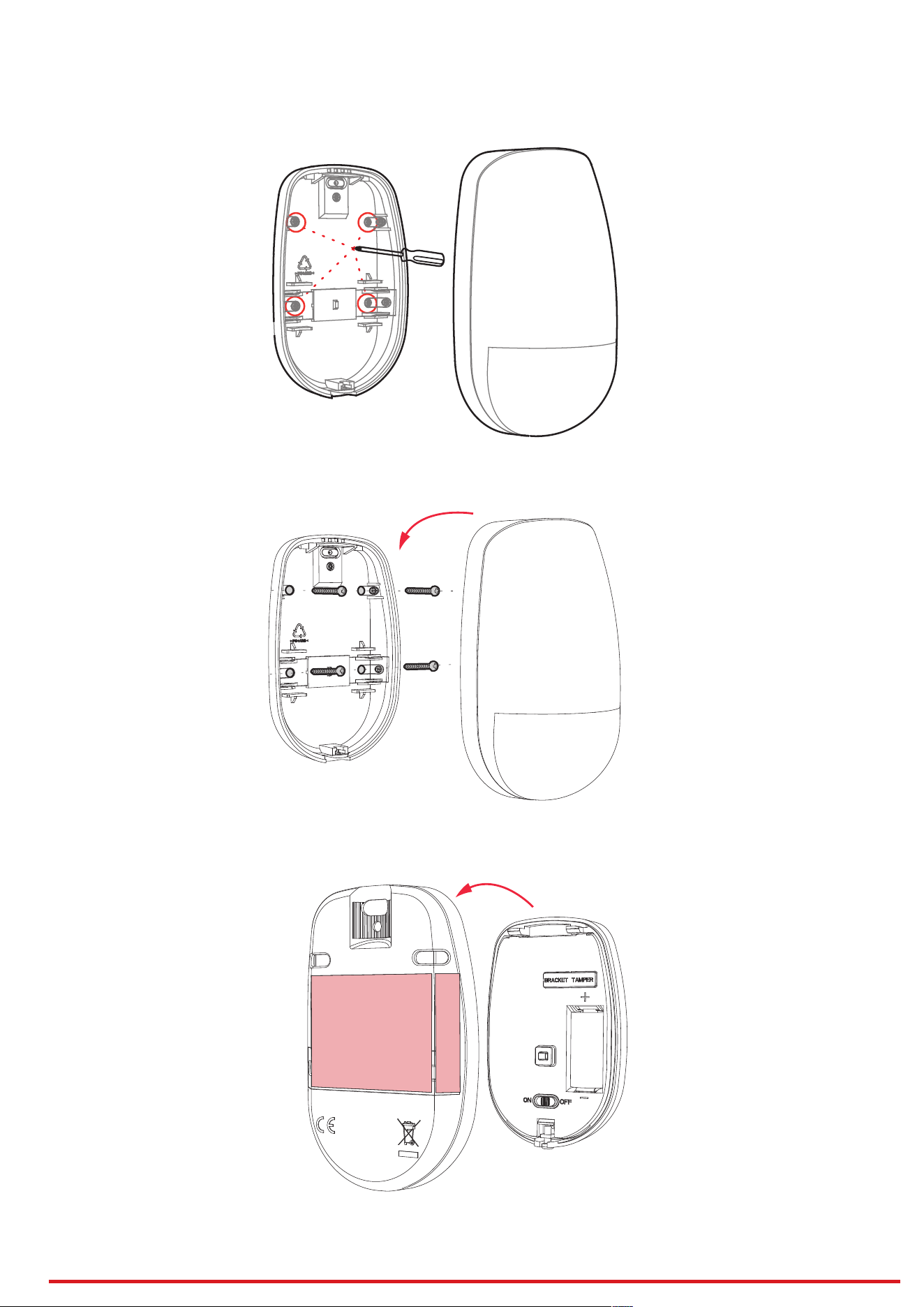

a. Knock out the screw holes on the rear panel.
with the Sponge Tape
Paste the device on the wall with sponge tape.
b. Secure the rear panel on the wall with four screws.
3
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
Note: Installing with sponge tape is non EN compliant.

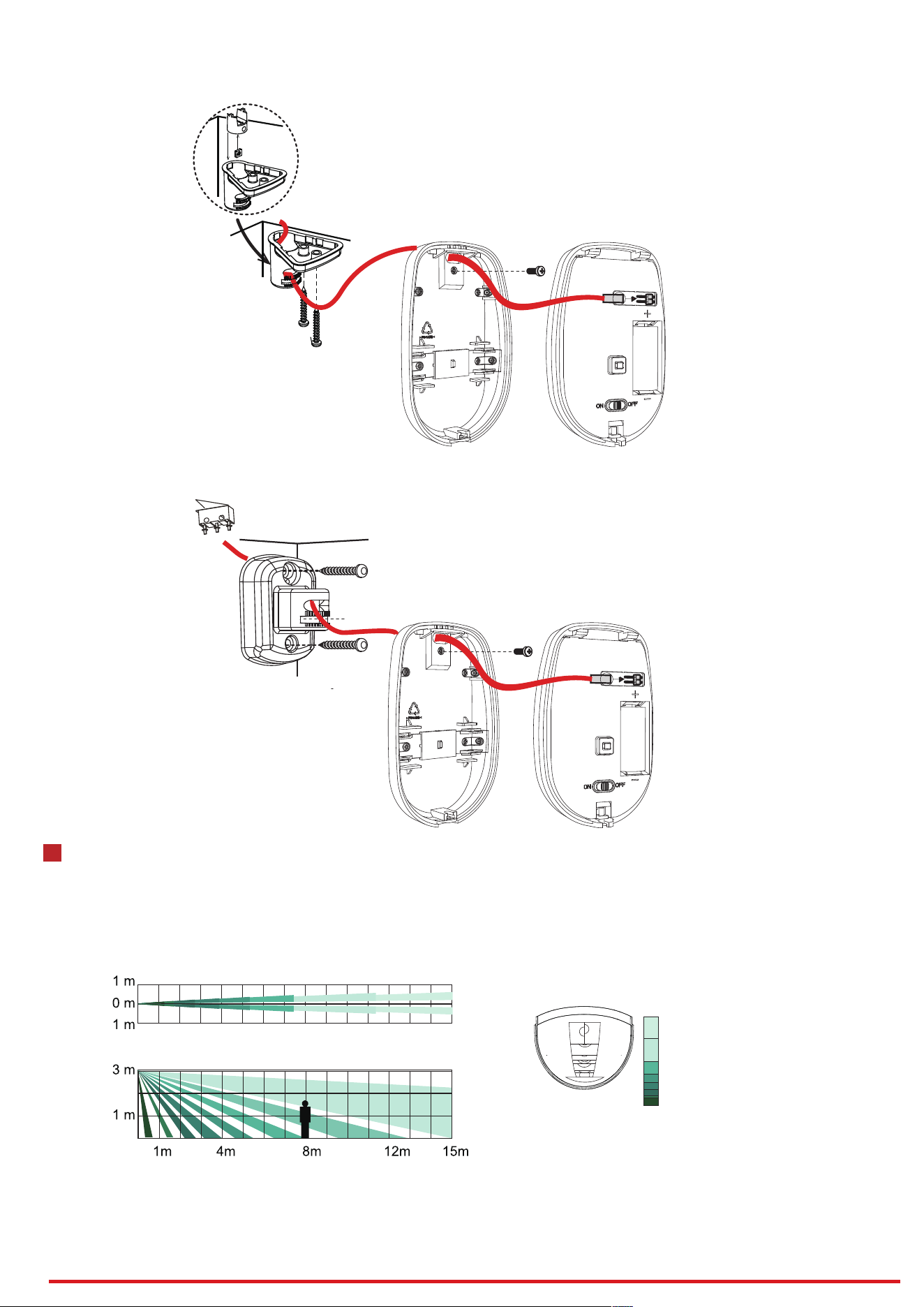

Bracket Installation
Ceiling Bracket Fitting (Non EN compliant)
Wall Bracket Fitting
4
Test
Detector zones and planes
The zones and plans of the detector are shown below.
Detection Range
6.3°
18 zones
8 planes
4
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
5
Formatting

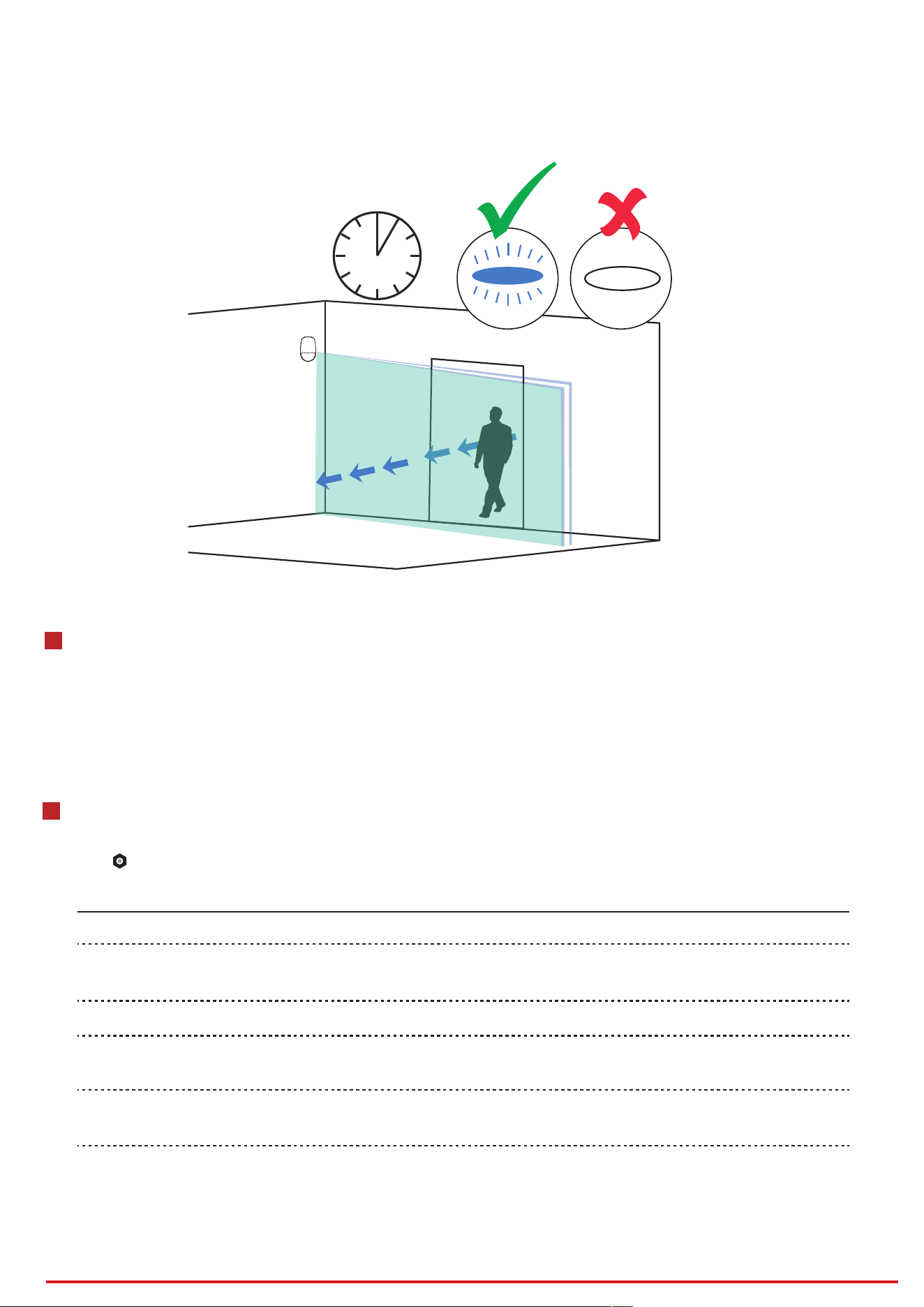

The detector will enter the walk test mode (3 minutes) after being enrolled.
Trigger the detector within the detection range.
If the LED indicator turns blue, the installation position is properly. If the LED indicator is still o, adjust the position of the detector.
Hold the tamper switch for 8 s and power the device on at the same time. The red LED ashes 3 times when the formatting
operation is completed.
3min
5
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
6
Set up with App
Function
Zone Type
Stay Arm Bypass
Chime
Enable Silent Zone
Slide to green to enable the chime.
Slide to green to make the zone keep
silent while alarm is triggered.
Select the zone type of the detector.
Description
You can view the device status including temperature, signal intensity, battery level, lid, arming/disarming, etc.,on the device page.
Tap the button to enter the settings page.
Double Knock
Slide to green to make the zone alarm
with double knock.
Cross Zone
Slide to green to bypass the zone from
stay arming.
If the alarm triggered in both of the linked
zones within the set time, two alarm
messages will be reported.
7
Operation Caution and Device Maintenance
- All the electronic operation should be strictly compliance with the electrical safety regulations, re prevention
regulations and other related regulations in your local region.
- Do not drop the device or subject it to physical shock, and do not expose it to high electromagnetism radiation.
Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment
damage).
- Please make sure that the power has been disconnected before you wire, install or dismantle the device.
- If smoke, odors or noise rise from the device, turn o the power at once and unplug the power cable, and then
please contact the service center.
- Do not drop the device or subject it to physical shock, and do not expose it to high electromagnetism radiation.
Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment
damage).
- Do not place the device in extremely hot (refer to the specication of the device for the detailed operation
temperature), cold, dusty or damp locations, and do not expose it to high electromagnetic radiation.
- The device for indoor use shall be kept from rain and moisture.
Exposing the equipment to direct sun light, low ventilation or heat source such as heater or radiator is forbidden
(ignorance can cause re danger).
- Do not aim the device at the sun or extra bright places. A blooming or smear may occur otherwise (which is not
a malfunction however), and aecting the endurance of sensor at the same time.
- Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or
equivalent type only. Dispose of used batteries according to the instructions provided by the battery manufactur-
er.
- Do not expose the device to the corrosive gas. Otherwise the equipment damage may occur.
- Do not expose the device to the explosive situation.
6
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
Function Description
Swinger limit activation
Set the limit times of swinger activition .
Trigger Interval, sec
Set the interval of trigger, and the alarm
message will not be repeated within the
time.
LED
Turn On/O the LED.
Polling Rate
Set the interval of heartbeat.
Signal Strength Test
Enter the test mode, and view the LED
indication.
Detection Zone Test
Enter the test mode, and start walk test.
Zone Bypass
By pass the zone.
7
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
8
Specication
Detection range
15m, 6.3°
Detection speed 0.3 to 2 m/s
Auto sensitivity Yes
Digital Temperature compensation Yes
Technology Digital microprocessor based
Sealed optics Yes
Direct light lter 6500 lux
Tamper protection Front & Back
LED indicator Blue (alarm)
Encapsulated plastic Yes
Operating temperature
-10 °C to 55 °C (14 °F to 131 °F)
-10 °C to 40 °C (14 °F to 104 °F) Certied
Storage temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operating humidity 10% to 90%
Installation height 1.8 to 3 m
Dimension (W × H × D) 65.5 mm × 103 mm × 48.5 mm
Weight 128 g
Bracket
Programming method Advanced wireless link
Optional wall & ceiling accessory
Wireless technology Tri-X wireless technology
Environment temperature indicator Yes
2-way wireless communication Yes
Transmission frequency 868/433 MHz
Frequency hopping Multichannel transmisstion
Transmission encryption
AES-128 encryption
Signal strength indicators Yes
RF range 1.6 Km (free space)
Enrolling methods Power up, remote ID, QR code
Battery CR123A x 1 (included)
Standard battery life 5 years
Low voltage value 2.45 V
Voltage tange Fully charged (new) to 2.45 VDC (battery)
Current
Max. current: 60mA
Quiescent current: 32uA (disarmed), 12uA (armed)
PS Type
LED indicator
Type C
On/off
UD33812B
