DS-K1T341C Series Face Recognion
Terminal
User Manual
Legal Informaon
About this Document
●
This Document includes instrucons for using and managing the Product. Pictures, charts,
images and all other informaon hereinaer are for descripon and explanaon only.
●
The informaon contained in the Document is subject to change, without noce, due to
rmware updates or other reasons. Please nd the latest version of the Document at the
Hikvision website ( hps://www.hikvision.com ). Unless otherwise agreed, Hangzhou Hikvision
Digital Technology Co., Ltd. or its aliates (hereinaer referred to as "Hikvision") makes no
warranes, express or implied.
●
Please use the Document with the guidance and assistance of professionals trained in
supporng the Product.
About this Product
●
This product can only enjoy the aer-sales service support in the country or region where the
purchase is made.
●
If the product you choose is a video product, please scan the following QR code to obtain the
"Iniaves on the Use of Video Products", and read it carefully.
Acknowledgment of Intellectual Property Rights
●
Hikvision owns the copyrights and/or patents related to the technology embodied in the
Products described in this Document, which may include licenses obtained from third pares.
●
Any part of the Document, including text, pictures, graphics, etc., belongs to Hikvision. No part
of this Document may be excerpted, copied, translated, or modied in whole or in part by any
means without wrien permission.
●
and other Hikvision's trademarks and logos are the properes of Hikvision in
various jurisdicons.
●
Other trademarks and logos menoned are the properes of their respecve owners.
LEGAL DISCLAIMER
●
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS DOCUMENT AND THE
PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS
IS" AND "WITH ALL FAULTS AND ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS OR
DS-K1T341C Series Face Recognion Terminal User Manual
i
IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR
FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK.
IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL,
INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF
BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR
LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING
NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE
PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR
LOSS.
●
YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY
RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK,
VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE
TIMELY TECHNICAL SUPPORT IF REQUIRED.
●
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE
SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW.
ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT
INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF
PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY
RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE
DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR
PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT
RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF
HUMAN RIGHTS ABUSES.
●
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS DOCUMENT AND THE APPLICABLE LAW, THE
LATTER PREVAILS.
Data Protecon
●
To protect data, the development of Hikvision Products incorporates privacy by design
principles. For example, for Products with facial recognion features, biometrics data is stored in
your Products with encrypon method; for ngerprint Products, only ngerprint template will be
saved, which is impossible to reconstruct a ngerprint image.
●
As a data controller/processor, you may process personal data, including collecon, storage, use,
processing, disclosure, deleon, etc. You are advised to pay aenon to and comply with
applicable laws and regulaons related to the protecon of personal data, including without
limitaon, conducng security controls to safeguard personal data, such as, implemenng
reasonable administrave and physical security controls, conduct periodic reviews and the
assessments of the eecveness of your security controls.
© Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
DS-K1T341C Series Face Recognion Terminal User Manual
ii
Symbol Convenons
The symbols that may be found in this document are dened as follows.
Symbol Descripon
Danger
Indicates a hazardous situaon which, if not avoided, will or could
result in death or serious injury.
Cauon
Indicates a potenally hazardous situaon which, if not avoided, could
result in equipment damage, data loss, performance degradaon, or
unexpected results.
Note
Provides addional informaon to emphasize or supplement
important points of the main text.
DS-K1T341C Series Face Recognion Terminal User Manual
iii
Regulatory Informaon
FCC Informaon
Please take aenon that changes or modicaon not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protecon against harmful interference in a residenal installaon. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instrucons, may cause harmful interference to radio communicaons. However, there is
no guarantee that interference will not occur in a parcular installaon. If this equipment does
cause harmful interference to radio or television recepon, which can be determined by turning
the equipment o and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separaon between the equipment and receiver.
—Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help
This equipment should be installed and operated with a minimum distance 20cm between the
radiator and your body.
FCC Condions
This device complies with part 15 of the FCC Rules. Operaon is subject to the following two
condions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operaon.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE"
and comply therefore with the applicable harmonized European standards listed
DS-K1T341C Series Face Recognion Terminal User Manual
iv
under the EMC Direcve 2014/30/EU, RE Direcve 2014/53/EU,the RoHS Direcve
2011/65/EU
2012/19/EU (WEEE direcve): Products marked with this symbol cannot be disposed
of as unsorted municipal waste in the European Union. For proper recycling, return
this product to your local supplier upon the purchase of equivalent new equipment,
or dispose of it at designated collecon points. For more informaon see:
www.recyclethis.info
2006/66/EC (baery direcve): This product contains a baery that cannot be
disposed of as unsorted municipal waste in the European Union. See the product
documentaon for specic baery informaon. The baery is marked with this
symbol, which may include leering to indicate cadmium (Cd), lead (Pb), or mercury
(Hg). For proper recycling, return the baery to your supplier or to a designated
collecon point. For more informaon see:www.recyclethis.info
DS-K1T341C Series Face Recognion Terminal User Manual
v
Safety Instrucon
These instrucons are intended to ensure that user can use the product correctly to avoid danger
or property loss.
The precauon measure is divided into Dangers and Cauons:
Dangers: Neglecng any of the warnings may cause serious injury or death.
Cauons: Neglecng any of the cauons may cause injury or equipment damage.
Dangers: Follow these safeguards to prevent
serious injury or death.
Cauons: Follow these precauons to prevent
potenal injury or material damage.
Danger:
●
All the electronic operaon should be strictly compliance with the electrical safety regulaons,
re prevenon regulaons and other related regulaons in your local region.
●
Please use the power adapter, which is provided by normal company. The power consumpon
cannot be less than the required value.
●
Do not connect several devices to one power adapter as adapter overload may cause over-heat
or re hazard.
●
Please make sure that the power has been disconnected before you wire, install or dismantle the
device.
●

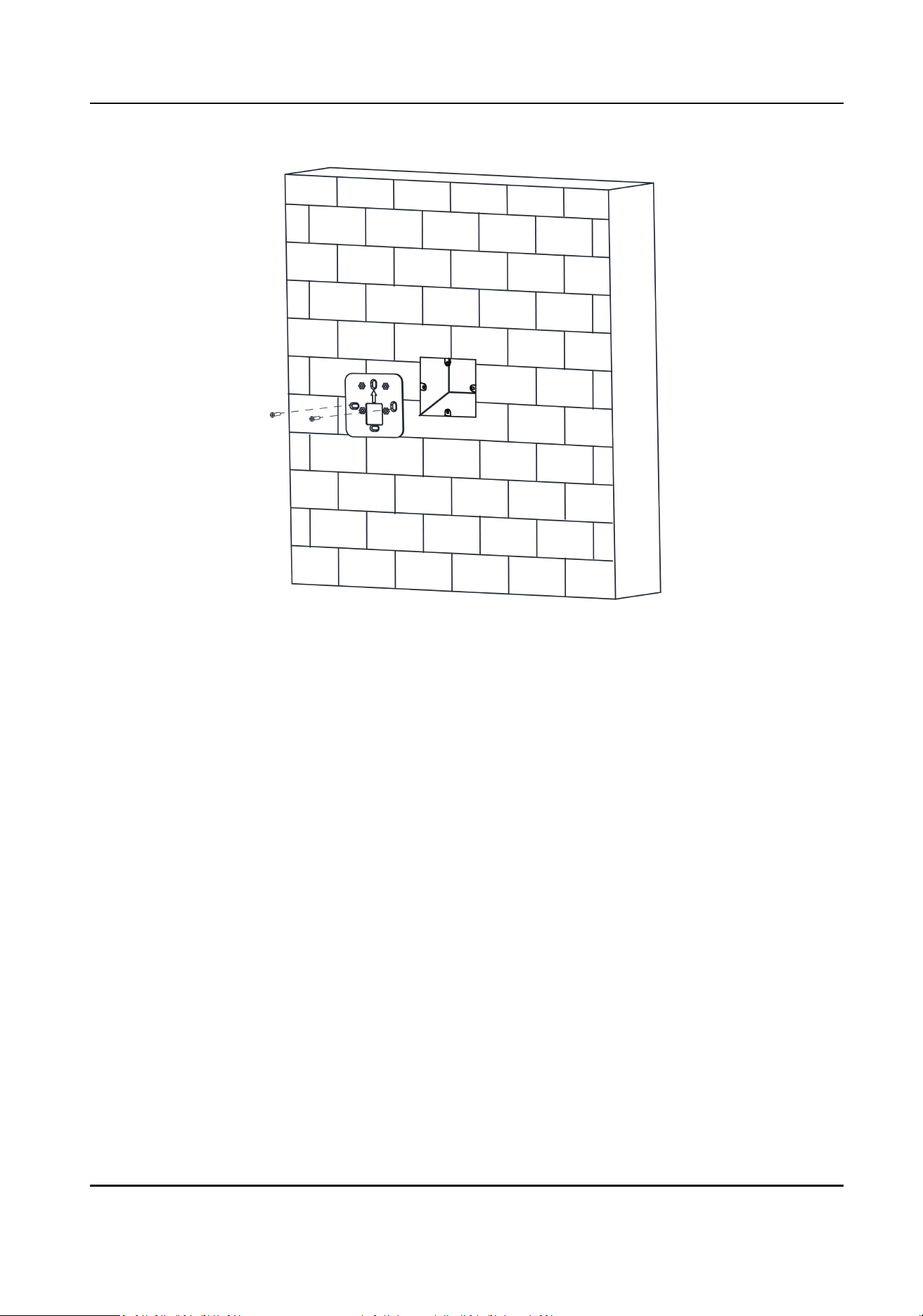

When the product is installed on wall or ceiling, the device shall be rmly xed.
●
If smoke, odors or noise rise from the device, turn o the power at once and unplug the power
cable, and then please contact the service center.
●
1. Risk of explosion if the baery is replaced by an incorrect type
2. Improper replacement of the baery with an incorrect type may defeat a safeguard (for
example, in the case of some lithium baery types).
3. This equipment is not suitable for use in locaons where children are likely to be present.
4. Do not dispose of the baery into re or a hot oven, or mechanically crush or cut the baery,
which may result in an explosion.
5. Do not leave the baery in an extremely high temperature surrounding environment, which
may result in an explosion or the leakage of ammable liquid or gas.
6. Do not subject the baery to extremely low air pressure, which may result in an explosion or
the leakage of ammable liquid or gas.
7. Dispose of used baeries according to the instrucons
●
If the product does not work properly, please contact your dealer or the nearest service center.
Never aempt to disassemble the device yourself. (We shall not assume any responsibility for
problems caused by unauthorized repair or maintenance.)
DS-K1T341C Series Face Recognion Terminal User Manual
vi
Cauons:
●
Do not drop the device or subject it to physical shock, and do not expose it to high
electromagnesm radiaon. Avoid the equipment installaon on vibraons surface or places
subject to shock (ignorance can cause equipment damage).
●
Do not place the device in extremely hot (refer to the specicaon of the device for the detailed
operang temperature), cold, dusty or damp locaons, and do not expose it to high
electromagnec radiaon.
●
The device cover for indoor use shall be kept from rain and moisture.
●
Exposing the equipment to direct sun light, low venlaon or heat source such as heater or
radiator is forbidden (ignorance can cause re danger).
●
Do not aim the device at the sun or extra bright places. A blooming or smear may occur
otherwise (which is not a malfuncon however), and aecng the endurance of sensor at the
same me.
●
Please use the provided glove when open up the device cover, avoid direct contact with the
device cover, because the acidic sweat of the ngers may erode the surface coang of the device
cover.
●
Please use a so and dry cloth when clean inside and outside surfaces of the device cover, do
not use alkaline detergents.
●
Please keep all wrappers aer unpack them for future use. In case of any failure occurred, you
need to return the device to the factory with the original wrapper. Transportaon without the
original wrapper may result in damage on the device and lead to addional costs.
●
Improper use or replacement of the baery may result in hazard of explosion. Replace with the
same or equivalent type only. Dispose of used baeries according to the instrucons provided by
the baery manufacturer.
●
Biometric recognion products are not completely applicable to an-spoong environments. If
you require a higher security level, use mulple authencaon modes.
●
Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power
Source with 100~240 VAC or 12 VDC according to the IEC60950-1 standard. Please refer to
technical specicaons for detailed informaon.
DS-K1T341C Series Face Recognion Terminal User Manual
vii
Available Models
Product Name Model Wireless
Face Recognion Terminal DS-K1T341CM 13.56 MHz Card Presenng
Frequency
DS-K1T341CMW 13.56 MHz Card Presenng
Frequency, Wi-Fi, 2.4G
DS-K1T341CMF 13.56 MHz Card Presenng
Frequency
DS-K1T341CMFW 13.56 MHz Card Presenng
Frequency, Wi-Fi, 2.4G
Use only power supplies listed in the user instrucons:
Model Manufacturer Standard
ADS-26FSG-12 12024EPG Shenzhen Honor Electronic
Co.,Ltd
PG
MSA-C2000IC12.0-24P-DE MOSO Technology Co.,Ltd PDE
ADS-26FSG-12 12024EPB Shenzhen Honor Electronic
Co.,Ltd
PB
ADS-26FSG-12 12024EPCU/EPC Shenzhen Honor Electronic
Co.,Ltd
PCU
ADS-26FSG-12 12024EPI-01 Shenzhen Honor Electronic
Co.,Ltd
PI
ADS-26FSG-12 12024EPBR Shenzhen Honor Electronic
Co.,Ltd
PBR
Note
Make sure the power supply is used indoors, and the working temperature is between -30°C and
60 °C.
DS-K1T341C Series Face Recognion Terminal User Manual
viii
Contents
Chapter 1 Overview .................................................................................................................... 1
1.1 Overview ................................................................................................................................ 1
1.2 Features ................................................................................................................................. 1
Chapter 2 Appearance ................................................................................................................ 2
Chapter 3 Installaon ................................................................................................................. 4
3.1 Installaon Environment ........................................................................................................ 4
3.2 Install with Gang Box ............................................................................................................. 4
3.3 Install without Gang Box ...................................................................................................... 10
Chapter 4 Wiring ...................................................................................................................... 16
4.1 Terminal Descripon ............................................................................................................ 16
4.2 Wire Normal Device ............................................................................................................. 17
4.3 Wire Secure Door Control Unit ............................................................................................ 18
4.4 Wire Fire Module ................................................................................................................. 18
4.4.1 Wiring Diagram of Door Open When Powering O .................................................... 18
4.4.2 Wiring Diagram of Door Locked When Powering O .................................................. 20
Chapter 5 Acvaon ................................................................................................................. 22
5.1 Acvate via Device ............................................................................................................... 22
5.2 Acvate via Web Browser .................................................................................................... 23
5.3 Acvate via SADP ................................................................................................................. 24
5.4 Acvate Device via Client Soware ...................................................................................... 25
Chapter 6 Quick Operaon ....................................................................................................... 27
6.1 Select Language ................................................................................................................... 27
6.2 Set Password Change Type ................................................................................................... 29
6.3 Set Network Parameters ...................................................................................................... 29
6.4 Access to Plaorm ............................................................................................................... 31
6.5 Privacy Sengs .................................................................................................................... 33
DS-K1T341C Series Face Recognion Terminal User Manual
ix
6.6 Set Administrator ................................................................................................................. 35
Chapter 7 Basic Operaon ........................................................................................................ 38
7.1 Login .................................................................................................................................... 38
7.1.1 Login by Administrator ................................................................................................ 38
7.1.2 Login by Acvaon Password ...................................................................................... 41
7.1.3 Forgot Password .......................................................................................................... 42
7.2 Communicaon Sengs ...................................................................................................... 44
7.2.1 Set Wired Network Parameters .................................................................................. 44
7.2.2 Set Wi-Fi Parameters ................................................................................................... 46
7.2.3 Set RS-485 Parameters ................................................................................................ 48
7.2.4 Set Wiegand Parameters ............................................................................................. 50
7.2.5 Set ISUP Parameters .................................................................................................... 52
7.2.6 Plaorm Access ........................................................................................................... 54
7.3 User Management ............................................................................................................... 55
7.3.1 Add Administrator ....................................................................................................... 55
7.3.2 Add Face Picture ......................................................................................................... 57
7.3.3 Add Fingerprint ........................................................................................................... 59
7.3.4 Add Card ..................................................................................................................... 60
7.3.5 Add PIN ....................................................................................................................... 61
7.3.6 Set Authencaon Mode ............................................................................................ 62
7.3.7 Search and Edit User ................................................................................................... 63
7.4 Data Management ............................................................................................................... 63
7.4.1 Delete Data ................................................................................................................. 63
7.4.2 Import Data ................................................................................................................. 63
7.4.3 Export Data ................................................................................................................. 64
7.5 Identy Authencaon ........................................................................................................ 64
7.5.1 Authencate via Single Credenal .............................................................................. 65
7.5.2 Authencate via Mulple Credenal .......................................................................... 65
DS-K1T341C Series Face Recognion Terminal User Manual
x
7.6 Plaorm Aendance ............................................................................................................ 66
7.6.1 Disable Aendance Mode via Device ......................................................................... 66
7.6.2 Set Manual Aendance via Device ............................................................................. 68
7.6.3 Set Auto Aendance via Device .................................................................................. 70
7.6.4 Set Manual and Auto Aendance via Device .............................................................. 72
7.7 Basic Sengs ....................................................................................................................... 74
7.8 Set Biometric Parameters .................................................................................................... 77
7.9 Preference Sengs .............................................................................................................. 80
7.10 Change Device Password ................................................................................................... 82
7.11 Authencaon Sengs ...................................................................................................... 83
7.12 System Maintenance .......................................................................................................... 86
Chapter 8 Quick Operaon via Web Browser ............................................................................ 89
8.1 Change Device Password ..................................................................................................... 89
8.2 Select Language ................................................................................................................... 89
8.3 Time Sengs ........................................................................................................................ 90
8.4 Privacy Sengs .................................................................................................................... 90
8.5 Administrator Sengs ......................................................................................................... 91
8.6 No. and System Network ..................................................................................................... 91
Chapter 9 Operaon via Web Browser ...................................................................................... 93
9.1 Login .................................................................................................................................... 93
9.2 Forget Password ................................................................................................................... 93
9.3 Live View .............................................................................................................................. 93
9.4 Person Management ............................................................................................................ 94
9.5 Search Event ........................................................................................................................ 96
9.6 Conguraon ....................................................................................................................... 96
9.6.1 Set Local Parameters ................................................................................................... 96
9.6.2 View Device Informaon ............................................................................................. 97
9.6.3 Set Time ...................................................................................................................... 97
DS-K1T341C Series Face Recognion Terminal User Manual
xi
9.6.4 Set DST ........................................................................................................................ 98
9.6.5 Change Administrator's Password ............................................................................... 98
9.6.6 Account Security Sengs ............................................................................................ 99
9.6.7 View Device Arming/Disarming Informaon .............................................................. 99
9.6.8 Network Sengs ......................................................................................................... 99
9.6.9 Set Video and Audio Parameters .............................................................................. 102
9.6.10 Access Control Sengs ........................................................................................... 103
9.6.11 Card Sengs ........................................................................................................... 108
9.6.12 Video Intercom Sengs .......................................................................................... 109
9.6.13 Time and Aendance Sengs ................................................................................ 111
9.6.14 Set Privacy Parameters ............................................................................................ 114
9.6.15 Set Password Mode ................................................................................................ 115
9.6.16 Set Biometric Parameters ....................................................................................... 115
9.6.17 Preference Sengs ................................................................................................. 118
9.6.18 Upgrade and Maintenance ..................................................................................... 120
9.6.19 Device Debugging ................................................................................................... 122
9.6.20 Log Query ................................................................................................................ 122
9.6.21 Security Mode Sengs ........................................................................................... 122
9.6.22 Cercate Management ......................................................................................... 123
Chapter 10 Other Plaorms to Congure ................................................................................ 125
Appendix A. Tips for Scanning Fingerprint ............................................................................... 126
Appendix B. Tips When Collecng/Comparing Face Picture .................................................... 128
Appendix C. Tips for Installaon Environment ........................................................................ 130
Appendix D. Dimension .......................................................................................................... 131
DS-K1T341C Series Face Recognion Terminal User Manual
xii
Chapter 1 Overview
1.1 Overview
Face recognion terminal is a kind of access control device for face recognion, which is mainly
applied in security access control systems, such as logisc centers, airports, university campuses,
alarm centrals, dwellings, etc.
1.2 Features
●
4.3-inch touch screen
●
2 MP wide-angle dual-lens
●
Face an-spoong
●
Face recognion distance: ＞ 2 m
●
Deep learning algorithm
●
3,000 face capacity, 3,000 card capacity, 3,000 ngerprint capacity (should be supported by
device model) and 150,000 event capacity
●
Face recognion duraon ＜ 0.2 s/User; face recognion accuracy rate ≥ 99%
●
Capture linkage and captured pictures storage
●
Transmits card and user data from or to the client soware via TCP/IP protocol and saves the
data on the client soware
●
Imports pictures from the USB ash drive to the device or export pictures, events, from the
device to the USB ash drive
●
Stand-alone operaon
●
Manage, search and set device data aer logging in the device locally
●
Connects to one external card reader via RS-485 protocol
●
Connects to secure door control unit via RS-485 protocol to avoid the door opening when the
terminal is destroyed
●
Connects to external access controller or Wiegand card reader via Wiegand protocol
●
Two-way audio with indoor staon and main staon
●
Supports 6 aendance status, including check in, check out, break in, break out, overme in,
overme out
●
Conguraon via the web client
●
Remotely opens door and starts live view via mobile client
●
Supports ISAPI and ISUP5.0 protocols
●
Support English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese,
Portuguese (Brazil)
Note
Biometric recognion products are not completely applicable to an-spoong environments. If you
require a higher security level, use mulple authencaon modes.
DS-K1T341C Series Face Recognion Terminal User Manual
1
Chapter 2 Appearance
Refer to the following contents for detailed informaon of the face recognion terminal:
Figure 2-1 Face Recognion Terminal Diagram
Table 2-1 Descripon of Face Recognion Terminal
No. Descripon
1 microUSB Interface
Note
USB to micro USB cable is included in the package.
2 Loudspeaker
3 Network Interface
4 Tamper
5 Wiring Terminals
6 Debugging Port
DS-K1T341C Series Face Recognion Terminal User Manual
2
No. Descripon
7 IR Light
8 Camera
9 Camera
10 White Light
11 IR Light
12 Display Screen
13 Fingerprint Module
Note
Supported by parts of the device modules.
14 Card Presenng Area
15 Mic
: This scker means "Hot parts! Burned ngers when handling the parts. Wait one-half hour
aer switching o before handling parts." It is to indicate that the marked item can be hot and
should not be touched without taking care. For device with this scker, this device is intended for
installaon in a restricted access locaon, access can only be gained by service persons or by users
who have been instructed about the reasons for the restricons applied to the locaon and about
any precauons that shall be taken.
DS-K1T341C Series Face Recognion Terminal User Manual
3
Chapter 3 Installaon
3.1 Installaon Environment
●
Avoid backlight, direct sunlight, and indirect sunlight.
●
For beer recognion, there should be light source in or near the installaon environment.
●
The minimum bearing weight of the wall or other places should be 3 mes heavier than the
device weight.
●
There shall be no strong reecve objects (such as glass doors/walls, stainless steel objects,
acrylic and other glossy plascs, lacquer, ceramic les, etc.) within 1 m of the eld of view of the
device.
●
Avoid device reecon.
●
Face recognion distance shall be greater than 30 cm.
●
Keep the camera clean.
Note
For details about installaon environment, see Tips for Installaon Environment.
3.2 Install with Gang Box
Steps
Note
The addional force shall be equal to three mes the weight of the equipment. The equipment ad
its associated mounng means shall remain secure during the installaon. Aer the installaon,
the equipment, including any associated mounng plate, shall not be damaged.
1.
Make sure the gang box is installed on the wall.
DS-K1T341C Series Face Recognion Terminal User Manual
4
Figure 3-1 Install Gang Box
2.
Use 2 supplied screws (SC-K1M4×6-SUS) to secure the base plate on the gang box.
DS-K1T341C Series Face Recognion Terminal User Manual
5
Figure 3-2 Secure Base Plate
3.
Use another 4 supplied screws (KA4×22-SUS) to secure the mounng plate on the base plate.
DS-K1T341C Series Face Recognion Terminal User Manual
6
Figure 3-3 Install Mounng Plate
4.
Route the cable through the cable hole of the mounng plate, and connect to corresponding
external devices' cables.
5.
Align the device with the mounng plate and hang the device on the mounng plate.
DS-K1T341C Series Face Recognion Terminal User Manual
7
Figure 3-4 Hang Device
6.
Use 1 supplied screw (SC-KM3X6-H2-SU) to secure the device and the mounng plate.
DS-K1T341C Series Face Recognion Terminal User Manual
8
Figure 3-5 Secure Device
7.
Apply Silicone sealant among the joints between the device rear panel and the wall (except the
lower side) to keep the raindrop from entering.
DS-K1T341C Series Face Recognion Terminal User Manual
9
Figure 3-6 Apply Silicone Sealant on the Side
8.
Aer installaon, for the proper use of the device (outdoor use), sck the protecon lm (parts
of models supplied) on the screen.
3.3 Install without Gang Box
Steps
Note
The addional force shall be equal to three mes the weight of the equipment. The equipment ad
its associated mounng means shall remain secure during the installaon. Aer the installaon,
the equipment, including any associated mounng plate, shall not be damaged.
1.
According to the datum line on the mounng template, sck the mounng template on the wall
or other surfaces, 1.4 meters higher than the ground.
DS-K1T341C Series Face Recognion Terminal User Manual
10
Figure 3-7 Mounng Template
DS-K1T341C Series Face Recognion Terminal User Manual
11
2.
Drill holes on the wall or other surface according to the instrucons on the mounng template.
3.
Route the cable through the cable hole of the mounng plate, and connect to corresponding
external devices' cables.
4.
Align the holes to the mounng plate and secure the mounng plate on the wall with the 4
supplied screws.
Figure 3-8 Install Mounng Plate
5.
Align the device with the mounng plate and hang the device on the mounng plate.
DS-K1T341C Series Face Recognion Terminal User Manual
12
Figure 3-9 Hang Device
6.
Use one supplied screw to secure the device and the mounng plate.
DS-K1T341C Series Face Recognion Terminal User Manual
13
Figure 3-10 Secure Device
7.
Apply Silicone sealant among the joints between the device rear panel and the wall (except the
lower side) to keep the raindrop from entering.
DS-K1T341C Series Face Recognion Terminal User Manual
14
Figure 3-11 Apply Silicone Sealant on the Side
8.
Aer installaon, for the proper use of the device (outdoor use), sck the protecon lm (parts
of models supplied) on the screen.
DS-K1T341C Series Face Recognion Terminal User Manual
15
Chapter 4 Wiring
You can connect the RS-485 terminal with the RS-485 card reader, connect the NC and COM
terminal with the door lock, connect the SENSOR terminal with the door contact, the BTN/GND
terminal with the exit buon, and connect the Wiegand terminal with the Wiegand card reader or
the access controller.
If connect the WIEGAND terminal with the access controller, the face recognion terminal can
transmit the authencaon informaon to the access controller and the access controller can
judge whether to open the door or not.
Note
If the cable size is 18 AWG, the distance between the power supply and the device should be no
more than 60 m when wiring a single device. And the door lock and the other peripherals should
connect to a 12 VDC external power supply. If connecng to a 12 VDC door lock, the distance
between the power supply and the device should be 30 m.
4.1 Terminal Descripon
The terminals contains power input, RS-485, Wiegand output, and door lock.
The descripons of the terminals are as follows:
Table 4-1 Terminal Descripons
Group No. Funcon Color Name Descripon
Group A A1 Power Input Red +12 V 12 VDC Power
Supply
A2 Black GND Ground
Group B B1 RS-485 Yellow 485+ RS-485 Wiring
B2 Blue 485-
B3 Red/Black GND Ground
Group C C1 Wiegand Green W0 Wiegand
Wiring 0
C2 White W1 Wiegand
Wiring 1
C3 White/Black GND Ground
Group D D1 Door Lock White/Purple NC Lock Wiring
(NC)
DS-K1T341C Series Face Recognion Terminal User Manual
16
Group No. Funcon Color Name Descripon
D2 White/Yellow COM Common
D3 White/Red NO Lock Wiring
(NO)
D4 Yellow/Green SENSOR Door Contact
D5 Black GND Ground
D6 Yellow/Gray BUTTON Exit Door
Wiring
D7 Yellow/Black GND Ground
4.2 Wire Normal Device
You can connect the terminal with normal peripherals.
Figure 4-1 Device Wiring
DS-K1T341C Series Face Recognion Terminal User Manual
17
Note
●
You should set the face recognion terminal's Wiegand direcon as Input to connect to a
Wiegand card reader. If connects to an access controller, you should set the Wiegand direcon as
Output to transmit authencaon informaon to the access controller.
●
For details about Wiegand direcon sengs, see Set Wiegand Parameters .
●
Do not wire the device to the electric supply directly.
4.3 Wire Secure Door Control Unit
You can connect the terminal with the secure door control unit.
The wiring diagram is as follows.
Figure 4-2 Secure Door Control Unit Wiring
Note
The secure door control unit should connect to an external power supply separately. The suggested
external power supply is 12V, 0.5A.
4.4 Wire Fire Module
4.4.1 Wiring Diagram of Door Open When Powering O
Lock Type: Anode Lock, Magnec Lock, and Electric Bolt (NO)
Security Type: Door Open When Powering O
Scenario: Installed in Fire Engine Access
DS-K1T341C Series Face Recognion Terminal User Manual
18
Type 1
Note
The re system controls the power supply of the access control system.
Figure 4-3 Wire Device
Figure 4-4 Wire Secure Door Control Unit
Type 2
Note
The re system (NO and COM, normally open when powering o) is connected with the lock and
the power supply in series. When an re alarm is triggered, the door remains open. In normal
mes, NO and COM are closed.
DS-K1T341C Series Face Recognion Terminal User Manual
19
Figure 4-5 Wiring Device
Figure 4-6 Wiring Secure Door Control Unit
4.4.2 Wiring Diagram of Door Locked When Powering O
Lock Type: Cathode Lock, Electric Lock, and Electric Bolt (NC)
Security Type: Door Locked When Powering O
Scenario: Installed in Entrance/Exit with Fire Linkage
DS-K1T341C Series Face Recognion Terminal User Manual
20
Note
●
The Uninterpretable Power Supply (UPS) is required.
●
The re system (NC and COM, normally closed when powering o) is connected with the lock
and the power supply in series. When an re alarm is triggered, the door remains open. In
normal mes, NC and COM are open.
Figure 4-7 Device Wiring
Figure 4-8 Wiring Diagram
DS-K1T341C Series Face Recognion Terminal User Manual
21
Chapter 5 Acvaon
You should acvate the device before the rst login. Aer powering on the device, the system will
switch to Device Acvaon page.
Acvaon via the device, SADP tool and the client soware are supported.
The default values of the device are as follows:
●
The default IP address: 192.0.0.64
●
The default port No.: 8000
●
The default user name: admin
5.1 Acvate via Device
If the device is not acvated, you can acvate the device aer it is powered on.
On the Acvate Device page, create a password and conrm the password. Tap Acvate and the
device will acvated.
Figure 5-1 Acvaon Page
DS-K1T341C Series Face Recognion Terminal User Manual
22
Cauon
The password strength of the device can be automacally checked. We highly recommend you
change the password of your own choosing (using a minimum of 8 characters, including at least
three kinds of following categories: upper case leers, lower case leers, numbers, and special
characters) in order to increase the security of your product. And we recommend you change your
password regularly, especially in the high security system, changing the password monthly or
weekly can beer protect your product.
Proper conguraon of all passwords and other security sengs is the responsibility of the
installer and/or end-user.
Note
Characters containing admin and nimda are not supported to be set as acvaon password.
●
Aer acvaon, you should select a language according to your actual needs.
●
Aer acvaon, you should select an applicaon mode. For details, see .
●
Aer acvaon, if you need to add the device to the client soware or other plaorms, you
should edit the device IP address. For details, see Set Network Parameters .
●
Aer acvaon, if you need to operate the device remotely via APP, you should scan the QR
code to link to the APP. For details, see .
●
Aer acvaon, if you need to add administrator to manage the device parameters, you should
set administrator. For details, see Add Administrator .
5.2 Acvate via Web Browser
You can acvate the device via the web browser.
Steps
1.
Enter the device default IP address (192.0.0.64) in the address bar of the web browser, and press
Enter.
Note
Make sure the device IP address and the computer's should be in the same IP segment.
2.
Create a new password (admin password) and conrm the password.
Cauon
STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of
your own choosing (using a minimum of 8 characters, including upper case leers, lower case
leers, numbers, and special characters) in order to increase the security of your product. And
we recommend you reset your password regularly, especially in the high security system,
reseng the password monthly or weekly can beer protect your product.
DS-K1T341C Series Face Recognion Terminal User Manual
23
Note
Characters containing admin and nimda are not supported to be set as acvaon password.
3.
Click Acvate.
4.
Edit the device IP address. You can edit the IP address via the SADP tool, the device, and the
client soware.
5.3 Acvate via SADP
SADP is a tool to detect, acvate and modify the IP address of the device over the LAN.
Before You Start
●
Get the SADP soware from the supplied disk or the ocial website hp://
www.hikvision.com/en/ , and install the SADP according to the prompts.
●
The device and the PC that runs the SADP tool should be within the same subnet.
The following steps show how to acvate a device and modify its IP address. For batch acvaon
and IP addresses modicaon, refer to User Manual of SADP for details.
Steps
1.
Run the SADP soware and search the online devices.
2.
Find and select your device in online device list.
3.
Input new password (admin password) and conrm the password.
Cauon
STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of
your own choosing (using a minimum of 8 characters, including upper case leers, lower case
leers, numbers, and special characters) in order to increase the security of your product. And
we recommend you reset your password regularly, especially in the high security system,
reseng the password monthly or weekly can beer protect your product.
Note
Characters containing admin and nimda are not supported to be set as acvaon password.
4.
Click Acvate to start acvaon.
DS-K1T341C Series Face Recognion Terminal User Manual
24
Status of the device becomes Acve aer successful acvaon.
5.
Modify IP address of the device.
1) Select the device.
2) Change the device IP address to the same subnet as your computer by either modifying the IP
address manually or checking Enable DHCP.
3) Input the admin password and click Modify to acvate your IP address modicaon.
5.4 Acvate Device via Client Soware
For some devices, you are required to create the password to acvate them before they can be
added to the soware and work properly.
Steps
Note
This funcon should be supported by the device.
1.
Enter the Device Management page.
2.
Click on the right of Device Management and select Device.
3.
Click Online Device to show the online device area.
The searched online devices are displayed in the list.
4.
Check the device status (shown on Security Level column) and select an inacve device.
5.
Click Acvate to open the Acvaon dialog.
6.
Create a password in the password eld, and conrm the password.
DS-K1T341C Series Face Recognion Terminal User Manual
25
Cauon
The password strength of the device can be automacally checked. We highly recommend you
change the password of your own choosing (using a minimum of 8 characters, including at least
three kinds of following categories: upper case leers, lower case leers, numbers, and special
characters) in order to increase the security of your product. And we recommend you change
your password regularly, especially in the high security system, changing the password monthly
or weekly can beer protect your product.
Proper conguraon of all passwords and other security sengs is the responsibility of the
installer and/or end-user.
Note
Characters containing admin and nimda are not supported to be set as acvaon password.
7.
Click OK to acvate the device.
DS-K1T341C Series Face Recognion Terminal User Manual
26
Chapter 6 Quick Operaon
6.1 Select Language
You can select a language for the device system.
Aer the device acvaon, you can select a language for the device system.
DS-K1T341C Series Face Recognion Terminal User Manual
27
Figure 6-1 Select System Language
By default, the system language is English.
Note
Aer you change the system language, the device will reboot automacally.
DS-K1T341C Series Face Recognion Terminal User Manual
28
6.2 Set Password Change Type
Aer acvang the device, you can set the password change type as reserved email address or
security quesons. Once you forgot the device password, you can change the password via the
selected change type.
Change Password via Email Address
If you need to change password via reserved email, you can enter an email address, and tap Next.
Change via Security Quesons
If you need to change password via security quesons, you can tap Change to Security Quesons
on the right corner. Select the security quesons and enter the answers. Click Next.
Note
You can only select one type to change password. If you need, you can enter the web page to set
both of the changing types.
6.3 Set Network Parameters
Aer acvaon and select applicaon mode, you can set the network for the device.
Steps
Note
Parts of the device models supports wi- funcon. Refers to the actual device for details.
1.
When you enter the Select Network page, tap Wired Network or Wi-Fi for your actual needs.
DS-K1T341C Series Face Recognion Terminal User Manual
29
Figure 6-2 Select Network
Note
Disconnect the wired network before connecng a Wi-Fi.
2.
Tap Next.
Wired Network
Note
Make sure the device has connected to a network.
DS-K1T341C Series Face Recognion Terminal User Manual
30
If enable DHCP, the system will assign the IP address and other parameters automacally.
If disable DHCP, you should set the IP address, the subnet mask, and the gateway.
Wi-Fi
Select a Wi-Fi and enter the Wi-Fi's password to get connected.
Or tap Add Wi-Fi and enter the Wi-Fi's name and the password to get connected.
3.
Oponal: Tap Skip to skip network sengs.
6.4 Access to Plaorm
Enable the funcon and the device can communicate via Hik-Connect. You can add the device to
Hik-Connect mobile client and so on.
Steps
Note
Parts of the device models supports funcon. Refers to the actual device for details.
1.
Enable Access to Hik-Connect, and set the server IP and vericaon code.
DS-K1T341C Series Face Recognion Terminal User Manual
31
Figure 6-3 Access to Hik-Connect
2.
Tap Next.
3.
Oponal: Tap Skip to skip the step.
4.
Oponal: Tap Previous to go to the previous page.
DS-K1T341C Series Face Recognion Terminal User Manual
32
Note
If you tap Previous to return to the Wi-Fi conguraon page, you need to tap the connected Wi-
Fi or connect another Wi-Fi to enter the plaorm page again.
6.5 Privacy Sengs
Aer acvaon, selecng applicaon mode, and selecng network, you should set the privacy
parameters, including the picture uploading and storage.
Select parameters according to your actual needs.
DS-K1T341C Series Face Recognion Terminal User Manual
33
Figure 6-4 Privacy
Upload Captured Pic. When Auth. (Upload Captured Picture When Authencang)
Upload the pictures captured when authencang to the plaorm automacally.
Save Captured Pic. When Auth. (Save Captured Picture When Authencang)
If you enable this funcon, you can save the picture when Authencang to the device.
DS-K1T341C Series Face Recognion Terminal User Manual
34
Save Registered Pic. (Save Registered Picture)
The registered face picture will be saved to the system if you enable the funcon.
Upload Pic. Aer Linked Capture (Upload Picture Aer Linked Capture)
Upload the pictures captured by linked camera to the plaorm automacally.
Save Pic. Aer Linked Capture (Save Pictures Aer Linked Capture)
If you enable this funcon, you can save the picture captured by linked camera to the device.
Tap Next to complete the sengs.
6.6 Set Administrator
Aer device acvaon, you can add an administrator to manage the device parameters.
Before You Start
Acvate the device and select an applicaon mode.
Steps
1.
Oponal: Tap Skip to skip adding administrator if required.
2.
Enter the administrator's name (oponal) and tap Next.
DS-K1T341C Series Face Recognion Terminal User Manual
35
Figure 6-5 Add Administrator Page
3.
Select a credenal to add.
Note
Up to one credenal should be added.
-
: Face forward at the camera. Make sure the face is in the face recognion area. Click to
capture and click to conrm.
-
: Press your nger according to the instrucons on the device screen. Click to conrm.
DS-K1T341C Series Face Recognion Terminal User Manual
36
-
: Enter the card No. or present card on the card presenng area. Click OK.
4.
Click OK.
You will enter the authencaon page.
Status Icon Descripon
/
Device is armed/not armed.
/
Hik-Connect is enabled/disabled.
/ /
The device wired network is connected/not connected/connecng failed.
/ /
The device' Wi-Fi is enabled and connected/not connected/enabled but not connected.
Shortcut Keys Descripon
Note
You can congure those shortcut keys displayed on the screen. For details, see Basic Sengs .
●
Enter the device room No. and tap OK to call.
●
Tap to call the center.
Note
The device should be added to the center, or the calling operaon will be failed.
Enter PIN code to authencate.
DS-K1T341C Series Face Recognion Terminal User Manual
37
Chapter 7 Basic Operaon
7.1 Login
Login the device to set the device basic parameters.
7.1.1 Login by Administrator
If you have added an administrator for the device, only the administrator can login the device for
device operaon.
Steps
1.
Long tap on the inial page for 3 s and slide to the le/right by following the gesture to enter
the admin login page.
DS-K1T341C Series Face Recognion Terminal User Manual
38
Figure 7-1 Admin Login
2.
Authencate the administrator's face, ngerprint or card to enter the home page.
DS-K1T341C Series Face Recognion Terminal User Manual
39
Figure 7-2 Home Page
Note
The device will be locked for 30 minutes aer 5 failed ngerprint or card aempts.
3.
Oponal: Tap and you can enter the device acvaon password for login.
4.
Oponal: Tap and you can exit the admin login page.
DS-K1T341C Series Face Recognion Terminal User Manual
40
7.1.2 Login by Acvaon Password
You should login the system before other device operaons. If you do not congure an
administrator, you should follow the instrucons below to login.
Steps
1.
Long tap on the inial page for 3 s and slide to the le/right by following the gesture to enter
password entering page.
2.
Enter the password.
-
If you have added an administrator for the device, tap
and enter the password.
-
If you haven't added an administrator for the device, enter the password.
3.
Tap OK to enter the home page.
Note
The device will be locked for 30 minutes aer 5 failed password aempts.
DS-K1T341C Series Face Recognion Terminal User Manual
41
Figure 7-3 Home Page
7.1.3 Forgot Password
If you forget the password during authencaon, you can change the password.
DS-K1T341C Series Face Recognion Terminal User Manual
42
Steps
1.
Hold the inial page for 3 s and slide to the le/right by following the gesture and log in the
page.
2.
Oponal: If you have set an administrator, tap in the pop-up admin authencaon page.
Figure 7-4 Password Authencaon Page
3.
Tap Forgot Password.
4.
Select a password change type from the list.
DS-K1T341C Series Face Recognion Terminal User Manual
43
Note
If you have only set 1 password change type, you will go to the corresponded password change
page for further sengs.
5.
Answer the security quesons or change the password according to email address.
-
Security Quesons: Answer the security quesons that congured when acvaon.
-
Email Address
Note
Make sure the device has added to the Hik-Connect account.
a. Download Hik-Connect app.
b. Go to More → Reset Device Password .
c. Scan the QR code on the device and a vericaon code will be popped up.
Note
Tap the QR code to get a larger picture.
d. Enter the vericaon code on the device page.
6.
Create a new password and conrm it.
7.
Tap OK.
7.2 Communicaon Sengs
You can set the network parameters, the Wi-Fi parameter, the RS-485 parameters, and the
Wiegand parameters on the communicaon sengs page.
7.2.1 Set Wired Network Parameters
You can set the device wired network parameters, including the IPv4/IPv6 IP address, the subnet
mask, the gateway, and DNS parameters.
Steps
1.
Tap System Sengs → Comm. (Communicaon Sengs) on the Home page to enter the
Communicaon Sengs page.
2.
On the Communicaon Sengs page, tap Wired Network.
DS-K1T341C Series Face Recognion Terminal User Manual
44
Figure 7-5 Wired Network Sengs
3.
Set IPv4/IPv6 IP Address, Subnet Mask, and Gateway.
-
Enable DHCP, and the system will assign IP address, subnet mask, and gateway automacally.
-
Disable DHCP, and you should set the IP address, subnet mask, and gateway manually.
Note
The device's IP address and the computer IP address should be in the same IP segment.
DS-K1T341C Series Face Recognion Terminal User Manual
45
4.
Set the DNS parameters. You can enable Auto Obtain DNS, set the preferred DNS server and the
alternate DNS server.
7.2.2 Set Wi-Fi Parameters
You can enable the Wi-Fi funcon and set the Wi-Fi related parameters.
Steps
Note
The funcon should be supported by the device.
1.
Tap System Sengs → Comm. (Communicaon Sengs) on the Home page to enter the
Communicaon Sengs page.
2.
On the Communicaon Sengs page, tap.
DS-K1T341C Series Face Recognion Terminal User Manual
46
Figure 7-6 Wi-Fi Sengs
3.
Enable the Wi-Fi funcon.
4.
Congure the Wi-Fi parameters.
-
Select a Wi-Fi from the list, and enter the Wi-Fi's password. Tap OK.
-
If the target Wi-Fi is not in the list,tap Add Wi-Fi. Enter the Wi-Fi's name and password. And
tap OK.
Note
Only digits, leers, and special characters are allowed in the password.
5.
Set the Wi-Fi's parameters.
-
By default, DHCP is enable. The system will allocate the IP address, the subnet mask, and the
gateway automacally.
-
If disable DHCP, you should enter the IP address, the subnet mask, and the gateway manually.
DS-K1T341C Series Face Recognion Terminal User Manual
47
6.
Tap OK to save the sengs and go back to the Wi-Fi tab.
7.
Tap to save the network parameters.
7.2.3 Set RS-485 Parameters
The face recognion terminal can connect external access controller, secure door control unit or
card reader via the RS-485 terminal.
Steps
1.
Tap System Sengs → Comm. (Communicaon Sengs) on the Home page to enter the
Communicaon Sengs page.
2.
On the Communicaon Sengs page, tap RS-485 to enter the RS-485 tab.
DS-K1T341C Series Face Recognion Terminal User Manual
48
Figure 7-7 Set RS-485 Parameters
3.
Select an peripheral type according to your actual needs.
DS-K1T341C Series Face Recognion Terminal User Manual
49
Note
If you select Access Controller: If connect the device to a terminal via the RS-485 interface, set
the RS-485 address as 2. If you connect the device to a controller, set the RS-485 address
according to the door No.
4.
Tap the back icon at the upper le corner and you should reboot the device if you change the
parameters.
7.2.4 Set Wiegand Parameters
You can set the Wiegand transmission direcon.
Steps
1.
Tap System Sengs → Comm. (Communicaon Sengs) on the Home page to enter the
Communicaon Sengs page.
2.
On the Communicaon Sengs page, tap Wiegand to enter the Wiegand tab.
DS-K1T341C Series Face Recognion Terminal User Manual
50
Figure 7-8 Wiegand Sengs
3.
Enable the Wiegand funcon.
4.
Select a Wiegand mode.
●
Output: A face recognion terminal can connect an external access controller. And the two
devices will transmit the card No. via Wiegand 26 or Wiegand 34.
5.
Tap to save the network parameters.
DS-K1T341C Series Face Recognion Terminal User Manual
51
Note
If you change the external device, and aer you save the device parameters, the device will
reboot automacally.
7.2.5 Set ISUP Parameters
Set ISUP parameters and the device can upload data via ISUP protocol.
Before You Start
Make sure your device has connect to a network.
Steps
1.
Tap System Sengs → Comm. → ISUP (Communicaon Sengs) on the Home page to enter
the sengs page.
DS-K1T341C Series Face Recognion Terminal User Manual
52
Figure 7-9 ISUP Sengs
2.
Enable the ISUP funcon and set the ISUP server parameters.
ISUP Version
Set the ISUP version according to your actual needs.
Central Group
Enable central group and the data will be uploaded to the center group.
DS-K1T341C Series Face Recognion Terminal User Manual
53
Main Channel
Support N1 or None.
ISUP
Enable ISUP funcon and the data will be uploaded via EHome protocol.
Address Type
Select an address type according to your actual needs.
IP Address
Set the ISUP server's IP address.
Port No.
Set the ISUP server's port No.
Note
Port No. Range: 0 to 65535.
Device ID
Set device serial no.
Password
If you choose V5.0, you should create an account and ISUP key. If you choose other version,
you should create an ISUP account only.
Note
●
Remember the ISUP account and ISUP key. You should enter the account name or the key
when the device should communicate with other plaorms via ISUP protocol.
●
ISUP key range: 8 to 32 characters.
7.2.6 Plaorm Access
You can change the device vericaon code and set the server address before you add the device
to the Hik-Connect mobile client.
Before You Start
Make sure your device has connected to a network.
Steps
1.
Tap System Sengs → Comm. (Communicaon Sengs) on the Home page to enter the
Communicaon Sengs page.
2.
On the Communicaon Sengs page, tap Access to Hik-Connect.
3.
Enable Access to Hik-Connect
4.
Enter Server IP.
5.
Create the Vericaon Code, and you need to enter the vericaon code when you manage the
devices via Hik-Connect.
DS-K1T341C Series Face Recognion Terminal User Manual
54
7.3 User Management
On the user management interface, you can add, edit, delete and search the user.
7.3.1 Add Administrator
The administrator can log in the device backend and congure the device parameters.
Steps
1.
Long tap on the inial page and log in the backend.
2.
Tap User → + to enter the Add User page.
DS-K1T341C Series Face Recognion Terminal User Manual
55
3.
Edit the employee ID.
Note
●
The employee ID should be less than 32 characters. And it can be a combinaon of lower
leers, upper leers, and numbers.
●
The employee ID should not be duplicated.
4.
Tap the Name eld and input the user name on the so keyboard.
DS-K1T341C Series Face Recognion Terminal User Manual
56
Note
●
Numbers, upper case leers, lower case leers, and special characters are allowed in the user
name.
●
Up to 32 characters are allowed in the user name.
5.
Oponal: Add a face picture, ngerprints, cards, or Pin for the administrator.
Note
●
For details about adding a face picture, see Add Face Picture .
●
Note
For details about adding a ngerprint, see Add Fingerprint .
●
For details about adding a card, see Add Card .
●
For details about adding a password, see Add PIN .
6.
Oponal: Set the administrator's authencaon type.
Note
For details about seng the authencaon type, see Set Authencaon Mode .
7.
Enable the Administrator Permission funcon.
Enable Administrator Permission
The user is the administrator. Except for the normal aendance funcon, the user can also
enter the Home page to operate aer authencang the permission.
8.
Tap to save the sengs.
7.3.2 Add Face Picture
Add user's face picture to the device. And the user can use the face picture to authencate.
Steps
Note
Up to 500 face pictures can be added.
1.
Long press OK and login the device.
2.
Select User → Add User to enter the Add User page.
3.
Edit the employee ID.
Note
●
The employee ID should be less than 32 characters. And it can be a combinaon of lower
leers, upper leers, and numbers.
●
The employee ID should not be duplicated.
4.
Select the Name eld and input the user name on the keyboard.
DS-K1T341C Series Face Recognion Terminal User Manual
57
Note
●
Numbers, upper case leers, lower case leers, and special characters are allowed in the user
name.
●
The suggested user name should be within 128 characters.
5.
Select the Face eld to enter the face picture adding page.
Figure 7-10 Add Face Picture
DS-K1T341C Series Face Recognion Terminal User Manual
58
6.
Look at the camera.
Note
●
Make sure your face picture is in the face picture outline when adding the face picture.
●
Make sure the captured face picture is in good quality and is accurate.
●
For details about the instrucons of adding face pictures, see Tips When Collecng/
Comparing Face Picture .
Aer completely adding the face picture, a captured face picture will be displayed at the center
of the page.
7.
Press OK to save the face picture.
8.
Oponal: Press ESC to select Retake and adjust your face posion to add the face picture again.
9.
Set the user role.
Administrator
The user is the administrator. Except for the normal aendance funcon, the user can also
enter the Home page to operate aer authencang the permission.
Normal User
The User is the normal user. The user can only authencate or take aendance on the inial
page.
10.
Press ESC and then press OK to save the sengs.
7.3.3 Add Fingerprint
Add a ngerprint for the user and the user can authencate via the added ngerprint.
Steps
Note
●
The funcon should be supported by the device.
●
Up to 1000 ngerprints can be added.
1.
Long press OK and login the device.
2.
Press User → Add User to enter the Add User page.
3.
Select the Employee ID eld and edit the employee ID.
Note
●
The employee ID should be less than 32 characters. And it can be a combinaon of lower
leers, upper leers, and numbers.
●
The employee ID should not start with 0 and should not be duplicated.
4.
Select the Name eld and input the user name on the keyboard.
DS-K1T341C Series Face Recognion Terminal User Manual
59
Note
●
Numbers, upper case leers, lower case leers, and special characters are allowed in the user
name.
●
The suggested user name should be within 128 characters.
5.
Select the Fingerprint eld to enter the Fingerprint page.
6.
Follow the instrucons to add a ngerprint.
Note
●
The same ngerprint cannot be repeatedly added.
●
Up to 10 ngerprints can be added for one user.
●
You can also use the client soware or the ngerprint recorder to record ngerprints.
For details about the instrucons of scanning ngerprints, see Tips for Scanning Fingerprint .
7.
Set the user role.
Administrator
The user is the administrator. Except for the normal aendance funcon, the user can also
enter the Home page to operate aer authencang the permission.
Normal User
The User is the normal user. The user can only authencate or take aendance on the inial
page.
8.
Press ESC and then press OK to save the sengs.
7.3.4 Add Card
Add a card for the user and the user can authencate via the added card.
Steps
1.
Long tap on the inial page for 3 s and slide to the le/right by following the gesture and log in
the backend.
2.
Tap User → + to enter the Add User page.
3.
Connect an external card reader according to the wiring diagram.
4.
Tap the Employee ID. eld and edit the employee ID.
Note
●
The employee ID should be less than 32 characters. And it can be a combinaon of lower
leers, upper leers, and numbers.
●
The employee ID should not be duplicated.
5.
Tap the Name eld and input the user name on the so keyboard.
DS-K1T341C Series Face Recognion Terminal User Manual
60
Note
●
Numbers, upper case leers, lower case leers, and special characters are allowed in the user
name.
●
The suggested user name should be within 32 characters.
6.
Tap the Card eld and tap +.
7.
Congure the card No.
-
Enter the card No. manually.
-
Present the card over the card presenng area to get the card No.
Note
●
The card No. cannot be empty.
●
Up to 20 characters are allowed in the card No.
●
The card No. cannot be duplicated.
8.
Congure the card type.
9.
Set the user role.
Administrator
The user is the administrator. Except for the normal aendance funcon, the user can also
enter the Home page to operate aer authencang the permission.
Normal User
The User is the normal user. The user can only authencate or take aendance on the inial
page.
10.
Tap
to save the sengs.
7.3.5 Add PIN
Add a PIN for the user and the user can authencate via the PIN.
Before You Start
Note
Make sure the password mode is Local Password or Plaorm Password. If you select Local
Password, you can add PIN on the device or Web. If you select Plaorm Password, you cannot add
PIN on the device or Web, instead, you should add PIN on the plaorm. For details about seng
the password mode, see Authencaon Sengs .
Steps
1.
Long tap on the inial page for 3 s and slide to the le/right by following the gesture and log in
the backend.
2.
Tap User → + to enter the Add User page.
3.
Tap the Employee ID. eld and edit the employee ID.
DS-K1T341C Series Face Recognion Terminal User Manual
61
Note
●
The employee ID should be less than 32 characters. And it can be a combinaon of lower
leers, upper leers, and numbers.
●
The employee ID should not be duplicated.
4.
Tap the Name eld and input the user name on the so keyboard and select department.
Note
●
Numbers, upper case leers, lower case leers, and special characters are allowed in the user
name.
●
The suggested user name should be within 32 characters.
5.
Tap the PIN code and create a PIN for the user.
Note
Make sure the password mode is Local Password, or the PIN area cannot be eded.
6.
Set the user role.
Administrator
The user is the administrator. Except for the normal aendance funcon, the user can also
enter the Home page to operate aer authencang the permission.
Normal User
The User is the normal user. The user can only authencate or take aendance on the inial
page.
7.
Tap to save the sengs.
7.3.6 Set Authencaon Mode
Aer adding the user's face picture, password, or other credenals, you should set the
authencaon mode and the user can authencate his/her identy via the congured
authencaon mode.
Steps
1.
Long tap on the inial page for 3 s and slide to the le/right by following the gesture and log in
the backend.
2.
Tap User → Add User/Edit User → Authencaon Mode .
3.
Select Device or Custom as the authencaon mode.
Device
If you want to select device mode, you should set the terminal authencaon mode in Access
Control Sengs page rst. For details see Seng Access Control Parameters.
Custom
You can combine dierent authencaon modes together according to your actual needs.
4.
Tap
to save the sengs.
DS-K1T341C Series Face Recognion Terminal User Manual
62
7.3.7 Search and Edit User
Aer adding the user, you can search the user and edit it.
Search User
On the User Management page, Tap the search area to enter the Search User page. Tap Card on
the le of the page and select a search type from the drop-down list. Enter the employee ID, card
No., or the user name for search. Tap to search.
Edit User
On the User Management page, select a user from the user list to enter the Edit User page. Follow
the steps in User Management to edit the user parameters. Tap to save the sengs.
Note
The employee ID cannot be edited.
7.4 Data Management
You can delete data, import data, and export data.
7.4.1 Delete Data
Delete user data.
On the Home page, tap Data → Delete Data → User Data . All user data added in the device will be
deleted.
7.4.2 Import Data
Steps
1.
Plug a USB ash drive in the device.
2.
On the Home page, tap Data → Import Data .
3.
Tap User Data, Face Data or Access Control Parameters .
Note
The imported access control parameters are conguraon les of the device.
4.
Enter the created password when you exported the data. If you do not create a password when
you exported the data, leave a blank in the input box and tap OK immediately.
DS-K1T341C Series Face Recognion Terminal User Manual
63
Note
●
If you want to transfer all user informaon from one device (Device A) to another (Device B),
you should export the informaon from Device A to the USB ash drive and then import from
the USB ash drive to Device B. In this case, you should import the user data before imporng
the prole photo.
●
The supported USB ash drive format is FAT32.
●
The imported pictures should be saved in the folder (named enroll_pic) of the root directory
and the picture's name should be follow the rule below:
Card No._Name_Department_Employee ID_Gender.jpg
●
If the folder enroll_pic cannot save all imported pictures, you can create another folders,
named enroll_pic1, enroll_pic2, enroll_pic3, enroll_pic4, under the root directory.
●
The employee ID should be less than 32 characters. It can be a combinaon of lower leers,
upper leers, and numbers. It should not be duplicated, and should not start with 0.
●
Requirements of face picture should follow the rules below: It should be taken in full-face
view, directly facing the camera. Do not wear a hat or head covering when taking the face
picture. The format should be JPEG or JPG. The resoluon should be 640 × 480 pixel or more
than of 640 × 480 pixel. The picture size should be between 60 KB and 200 KB.
7.4.3 Export Data
Steps
1.
Plug a USB ash drive in the device.
2.
On the Home page, tap Data → Export Data .
3.
Tap Face Data, Event Data, User Data, or Access Control Parameters.
Note
The exported access control parameters are conguraon les of the device.
4.
Oponal: Create a password for exporng. When you import those data to another device, you
should enter the password.
Note
●
The supported USB ash drive format is DB.
●
The system supports the USB ash drive with the storage of 1G to 32G. Make sure the free
space of the USB ash drive is more than 512M.
●
The exported user data is a DB le, which cannot be edited.
7.5 Identy Authencaon
Aer network conguraon, system parameters conguraon and user conguraon, you can go
back to the inial page for identy authencaon. The system will authencate person according
to the congured authencaon mode.
DS-K1T341C Series Face Recognion Terminal User Manual
64
You can authencate identy via 1:1 matching or 1:N matching.
1:N Matching
Compare the captured face picture with all face pictures stored in the device.
1: 1 Matching
Compare the captured face picture with all face pictures stored in the device.
7.5.1 Authencate via Single Credenal
Set the user authencaon type before authencaon. For details, see Set Authencaon Mode .
Authencate face, ngerprint, card or QR code.
Face
Face forward at the camera and start authencaon via face.
Fingerprint
Place the enrolled ngerprint on the ngerprint module and start authencaon via ngerprint.
Card
Present the card on the card presenng area and start authencaon via card.
Note
The card can be normal IC card, or encrypted card.
QR Code
Put the QR code in front of the device camera to authencate via QR code.
Note
Authencaon via QR code should be supported by the device.
Password
Enter the password to authencate via password.
If authencaon completed, a prompt "Authencated" will pop up.
7.5.2 Authencate via Mulple Credenal
Before You Start
Set the user authencaon type before authencaon. For details, see
Set Authencaon Mode .
Steps
1.
If the authencaon mode is Card and Face, Password and Face, Card and Password, Card and
Face and Fingerprint, authencate any credenal according to the instrucons on the live view
page.
DS-K1T341C Series Face Recognion Terminal User Manual
65
Note
●
The card can be normal IC card, or encrypted card.
●
If the QR Code Scanning funcon is enabled, you can put the QR code in front of the device
camera to authencate via QR code.
●
The dimension of the recognized QR code picture should be larger than 6 cm × 6 cm.
2.
Aer the previous credenal is authencated, connue authencate other credenals.
Note
●
For detailed informaon about scanning ngerprint, see Tips for Scanning Fingerprint.
●
For detailed informaon about authencang face, see Tips When Collecng/Comparing Face
Picture.
If authencaon succeeded, the prompt "Authencated" will pop up.
7.6 Plaorm Aendance
You can set the aendance mode as check in, check out, break out, break in, overme in, and
overme out according to your actual situaon.
Note
The funcon should be used cooperavely with me and aendance funcon on the client
soware.
7.6.1 Disable Aendance Mode via Device
Disable the aendance mode and the system will not display the aendance status on the inial
page.
Tap Plaorm Aendance to enter the T&A Status page.
DS-K1T341C Series Face Recognion Terminal User Manual
66
Figure 7-11 Disable Aendance Mode
Set the Aendance Mode as Disable.
You will not view or congure the aendance status on the inial page. And the system will follow
the aendance rule that congured on the plaorm.
DS-K1T341C Series Face Recognion Terminal User Manual
67
7.6.2 Set Manual Aendance via Device
Set the aendance mode as manual, and you should select a status manually when you take
aendance.
Before You Start
Add at least one user, and set the user's authencaon mode. For details, see User Management.
Steps
1.
Tap Plaorm Aendance to enter the T&A Status page.
2.
Set the Aendance Mode as Manual.
DS-K1T341C Series Face Recognion Terminal User Manual
68
Figure 7-12 Manual Aendance Mode
3.
Enable the Aendance Status Required.
4.
Enable a group of aendance status.
Note
The Aendance Property will not be changed.
5.
Oponal: Select an status and change its name if required.
The name will be displayed on the T & A Status page and the authencaon result page.
DS-K1T341C Series Face Recognion Terminal User Manual
69
Result
You should select an aendance status manually aer authencaon.
Note
If you do not select a status, the authencaon will be failed and it will not be marked as a valid
aendance.
7.6.3 Set Auto Aendance via Device
Set the aendance mode as auto, and you can set the aendance status and its available schedule.
The system will automacally change the aendance status according to the congured schedule.
Before You Start
Add at least one user, and set the user's authencaon mode. For details, see User Management.
Steps
1.
Tap Plaorm Aendance to enter the T&A Status page.
2.
Set the Aendance Mode as Auto.
DS-K1T341C Series Face Recognion Terminal User Manual
70
Figure 7-13 Auto Aendance Mode
3.
Enable the Aendance Status funcon.
4.
Enable a group of aendance status.
Note
The Aendance Property will not be changed.
5.
Oponal: Select an status and change its name if required.
The name will be displayed on the T & A Status page and the authencaon result page.
DS-K1T341C Series Face Recognion Terminal User Manual
71
6.
Set the status' schedule.
1) Tap Aendance Schedule.
2) Select Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, or Sunday.
3) Set the selected aendance status's start me of the day.
4) Tap Conrm.
5) Repeat step 1 to 4 according to your actual needs.
Note
The aendance status will be valid within the congured schedule.
Result
When you authencate on the inial page, the authencaon will be marked as the congured
aendance status according to the congured schedule.
Example
If set the Break Out as Monday 11:00, and Break In as Monday 12:00, the valid user's
authencaon from Monday 11:00 to 12:00 will be marked as break.
7.6.4 Set Manual and Auto Aendance via Device
Set the aendance mode as Manual and Auto, and the system will automacally change the
aendance status according to the congured schedule. At the same me you can manually
change the aendance status aer the authencaon.
Before You Start
Add at least one user, and set the user's authencaon mode. For details, see User Management.
Steps
1.
Tap Plaorm Aendance to enter the T&A Status page.
2.
Set the Aendance Mode as Manual and Auto.
DS-K1T341C Series Face Recognion Terminal User Manual
72
Figure 7-14 Manual and Auto Mode
3.
Enable the Aendance Status funcon.
4.
Enable a group of aendance status.
Note
The Aendance Property will not be changed.
5.
Oponal: Select an status and change its name if required.
The name will be displayed on the T & A Status page and the authencaon result page.
DS-K1T341C Series Face Recognion Terminal User Manual
73
6.
Set the status' schedule.
1) Tap Aendance Schedule.
2) Select Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, or Sunday.
3) Set the selected aendance status's start me of the day.
4) Tap OK.
5) Repeat step 1 to 4 according to your actual needs.
Note
The aendance status will be valid within the congured schedule.
Result
On the inial page and authencate. The authencaon will be marked as the congured
aendance status according to the schedule. If you tap the edit icon on the result tab, you can
select a status to take aendance manually, the authencaon will be marked as the edited
aendance status.
Example
If set the Break Out as Monday 11:00, and Break In as Monday 12:00, the valid user's
authencaon from Monday 11:00 to 12:00 will be marked as break.
7.7 Basic Sengs
You can set the sound, me, sleeping (s), language, community No., building No., Unit No., privacy
and video standard.
Long tap on the inial page for 3 s and slide to the le/right by following the gesture and login the
device home page. Tap System Sengs → Basic .
DS-K1T341C Series Face Recognion Terminal User Manual
74
Figure 7-15 Basic Sengs Page
Sound Sengs
You can enable/disable the voice prompt funcon and adjust the voice volume.
Note
You can set the voice volume between 0 and 10. 0 refers to silence.
DS-K1T341C Series Face Recognion Terminal User Manual
75
Time Sengs
Set the me zone, the device me and the DST.
Sleeping (s)
Set the device sleeping waing me (minute). When you are on the inial page and if you set
the sleeping me to 30 min, the device will sleep aer 30 min without any operaon.
Note
If you set the sleeping me to 0, the device will not enter sleeping mode.
Select Language
Select the language according to actual needs.
Community No.
Set the device installed community No.
Building No.
Set the device installed building No.
Unit No.
Set the device installed unit No.
Privacy
Name/Employ ID
You can choose to display/not display/desensize name and Employ ID when authencang.
Face Picture
You can choose to display/not display face picture when authencang.
Save Registered Picture
The registered face picture will be saved to the system if you enable the funcon.
Save Picture When Authencang
If you enable this funcon, you can save the picture when authencang to the device.
Upload Picture When Authencang
Upload the pictures captured when authencang to the plaorm automacally.
Video Standard
Set the video frame rate when performing live view remotely. Aer changing the standard, you
should reboot the device to take eect.
PAL(50HZ)
25 frames per second. Suitable for mainland China, Hong Kong (China), the Middle East
countries, Europe countries, etc.
NTSC(60HZ)
DS-K1T341C Series Face Recognion Terminal User Manual
76
30 frames per second. Suitable for the USA, Canada, Japan, Taiwan (China), Korea, the
Philippines, etc.
7.8 Set Biometric Parameters
You can customize the face parameters to improve the face recognion performance. The
congurable parameters includes face liveness level, recognion distance, face recognion interval,
face 1:N security level, face 1:1 security level, ECO mode sengs, mask detecon, and mulple
faces authencaon.
Long tap on the inial page for 3 s and login the home page. Tap System Sengs → Biometrics .
DS-K1T341C Series Face Recognion Terminal User Manual
77
Figure 7-16 Biometric Parameters Page
DS-K1T341C Series Face Recognion Terminal User Manual
78
Table 7-1 Face Picture Parameters
Parameter Descripon
Face Liveness Level Aer enabling face an-spoong funcon, you can set the matching
security level when performing live face authencaon.
Recognion Distance Set the valid distance between the user and the camera when
authencang.
Face Recognion
Interval(s)
The me interval between two connuous face recognions when
authencang.
Note
You can input the number from 1 to 10.
Face 1:N Security Level Set the matching threshold when authencang via 1:N matching mode.
The larger the value, the smaller the false accept rate and the larger the
false rejecon rate.
Face 1:1 Security Level Set the matching threshold when authencang via 1:1 matching mode.
The larger the value, the smaller the false accept rate and the larger the
false rejecon rate.
ECO Mode Sengs Aer enabling the ECO mode, the device will use the IR camera to
authencate faces in the low light or dark environment. And you can set
the ECO mode threshold, ECO mode (1:N), ECO mode (1:1).
ECO Mode Threshold
When enabling the ECO mode, you can set the ECO mode's threshold.
The larger the value, the easier the device entering the ECO mode.
ECO Mode (1:1)
Set the matching threshold when authencang via ECO mode 1:1
matching mode. The larger the value, the smaller the false accept rate
and the larger the false rejecon rate.
ECO Mode (1:N)
Set the matching threshold when authencang via ECO mode 1:N
matching mode. The larger the value, the smaller the false accept rate
and the larger the false rejecon rate
Mask Sengs Aer enabling the mask detecon funcon, the system will recognize the
captured face with mask picture. You can set Face with Mask & Face
(1:1), Face with Mask & Face (1:N), ECO (1:1) Threshold, ECO Mode
(1:N) Threshold, and Prompt Method.
Face with Mask & Face (1:1)
DS-K1T341C Series Face Recognion Terminal User Manual
79
Parameter Descripon
Set the matching value when authencang with face mask via 1:1
matching mode. The larger the value, the smaller the false accept rate
and the larger the false rejecon rate.
Face with Mask & Face (1:N)
Set the matching value when authencang with face mask via 1:N
matching mode. The larger the value, the smaller the false accept rate
and the larger the false rejecon rate.
ECO Mode (1:1) Threshold
Set the matching value when authencang with face mask via ECO
mode 1:1 matching mode. The larger the value, the smaller the false
accept rate and the larger the false rejecon rate.
ECO Mode (1:N) Threshold
Set the matching value when authencang with face mask via ECO
mode 1:N matching mode. The larger the value, the smaller the false
accept rate and the larger the false rejecon rate.
Prompt Method
Set the None, Reminder of Wearing and Must Wear strategy.
Reminder of Wearing
If the person do not wear a face mask when authencang, the
device prompts a nocaon and the door will open.
Must Wear
If the person do not wear a face mask when authencang, the
device prompts a nocaon and the door keeps closed.
None
If the person do not wear a face mask when authencang, the
device will not prompt a nocaon.
Mulple Faces
Authencaon
Aer mulple faces authencaon is enabled, mulple faces
authencaon is supported.
7.9 Preference Sengs
You can congure preference sengs parameters.
Steps
1.
Tap System Sengs → Preference to enter the preference sengs page.
DS-K1T341C Series Face Recognion Terminal User Manual
80
Figure 7-17 Preference Sengs
Shortcut Key
Choose the shortcut key that displayed on the authencaon page, including the password
entering funcon, QR code funcon, the call funcon, and call type.
DS-K1T341C Series Face Recognion Terminal User Manual
81
Note
You can select call type from Call Room, Call Center, Call Specied Room No. and Call APP.
Password
Enable this funcon amd you can enter the password to authencate via password.
QR Code
You can use the QR code scanning funcon on the authencaon interface. The device will
upload the informaon associated with the obtained QR code to the plaorm.
Call Room
When you tap the call buon on the authencaon page, you should dial a room No. to
call.
Call Center
When you tap the call buon on the authencaon page, you can call the center directly.
Call Specied Room No.
You should set a room No. When you tap the call buon on the authencaon page, you
can call the congured room directly without dialing.
Call APP
When you tap the call buon on the authencaon page, you will call the mobile client
where the device is added.
Theme
You can set the theme of the prompt window on the authencaon page. You can select
Theme as Authencaon/Simple.
Authencaon
The device authencaon page will display the live view page. And the person's name,
employee ID, face pictures will all be displayed aer authencaon.
Simple
Aer selecng this mode, the live view of the authencaon page will be disabled, and in
the meanwhile, the person's name, employee ID, face pictures will all be hidden.
7.10 Change Device Password
You can change the device password by entering the old password.
Steps
1.
Long tap on the inial page for 3 s and login the home page. Tap System → Password .
2.
Tap Change Device Password.
3.
Enter the device old password.
DS-K1T341C Series Face Recognion Terminal User Manual
82
Note
If you forget your password, you can tap Forgot Password and change the password. For details,
see Forgot Password .
4.
Enter new password and conrm the password.
Cauon
The password strength of the device can be automacally checked. We highly recommend you
change the password of your own choosing (using a minimum of 8 characters, including at least
three kinds of following categories: upper case leers, lower case leers, numbers, and special
characters) in order to increase the security of your product. And we recommend you change
your password regularly, especially in the high security system, changing the password monthly
or weekly can beer protect your product.
Proper conguraon of all passwords and other security sengs is the responsibility of the
installer and/or end-user.
5.
Tap OK.
7.11 Authencaon Sengs
You can set the access control permissions, including the funcons of authencaon mode, enable
NFC card, enable M1 card, door contact, open duraon (s), authencaon interval (s),
authencaon result display duraon (s), and password mode.
On the Home page, tap Authencaon Sengs to enter the Sengs page.
DS-K1T341C Series Face Recognion Terminal User Manual
83
Figure 7-18 Authencaon Sengs
The available parameters descripons are as follows:
DS-K1T341C Series Face Recognion Terminal User Manual
84
Table 7-2 Access Control Parameters Descripons
Parameter Descripon
Terminal Auth. Mode (Terminal
Authencaon Mode)
Select the face recognion terminal's authencaon mode. You
can also customize the authencaon mode.
Note
●
Only the device with the ngerprint module supports the
ngerprint related funcon.
●
Biometric recognion products are not completely applicable
to an-spoong environments. If you require a higher
security level, use mulple authencaon modes.
●
If you adopt mulple authencaon modes, you should
authencate other methods before authencang face.
Reader Auth. Mode (Card
Reader Authencaon Mode)
Select the card reader's authencaon mode.
Enable NFC Card Enable the funcon and you can present the NFC card to
authencate.
Enable M1 Card Enable the funcon and you can present the M1 card to
authencate.
M1 Card Encrypon Enabling the M1 card encrypon funcon can improve the card
security level. The card will not be copied easily.
Door Contact You can select "Open (Remain Open)" or "Close (Remian
Closed)" according to your actual needs. By default, it is Close
(Remian Closed).
Open Duraon Set the door unlocking duraon. If the door is not opened for
the set me, the door will be locked. Available door locked me
range: 1 to 255s.
Authencaon Interval Set the device authencang interval. Available authencaon
interval range: 0 to 65535.
Authencaon Result Display
Duraon (s)
Set the authencaon result displaying me duraon aer
authencaon.
Password Mode Plaorm-Applied Personal PIN
The PIN is managed and distributed by the plaorm. You
cannot set the PIN on the device of Web.
Device-Set Personal PIN
DS-K1T341C Series Face Recognion Terminal User Manual
85
Parameter Descripon
The PIN is set on the device or Web. You cannot set the PIN
on other plaorm.
7.12 System Maintenance
You can view the device system informaon and capacity. You can also upgrade device, view the
device user manual, restore the system to factory sengs, default sengs, and reboot the system.
Long tap on the inial page for 3 s and login the home page. Tap Maint.
Figure 7-19 Maintenance Page
System Informaon
You can view the device informaon including device model, serial No., rmware version, MAC
address, producon data, and license.
Note
The page may vary according to dierent device models. Refers to the actual page for details.
DS-K1T341C Series Face Recognion Terminal User Manual
86
Long tap , and enter admin password to view device version informaon.
Face Parameter
Custom An-Spoong Detecon
Face Liveness Level
Aer enabling face an-spoong funcon, you can set the matching security level
when performing live face authencaon.
An-Spoong Detecon Threshold
The larger the value, the smaller the false accept rate and the larger the false rejecon
rate. The smaller the value, the larger the false accept rate and the smaller the false
rejecon rate.
Lock Face for An-Spoong Protecon
Aer enabling this funcon, the device will lock automacally when an-spoong
detecon failed.
Lock Duraon
The lock duraon aer enabling Lock Face for An-Spoong Protecon when an-
spoong detecon failed.
Version Informaon
You can view the device informaon.
Capacity
You can view the number of person, face picture, card, ngerprint, and event.
Note
Parts of the device models support displaying the ngerprint capacity. Refers to the actual page
for details.
Device Upgrade
Online Update
If the device has been connected to Hik-Connect and network, when there is a new
installaon package in Hik-Connect, you can tap Device Upgrade → Online Update to
upgrade the device system.
Update via USB
Plug the USB ash drive in the device USB interface. Tap Device Upgrade → Update via USB ,
and the device will read the digicap.dav le in the USB ash drive to start upgrading.
User Manual
Scan the QR code to view the device user manual.
Restore to Factory Sengs
All parameters will be restored to the factory sengs. The system will reboot to take eect.
DS-K1T341C Series Face Recognion Terminal User Manual
87
Restore to Default Sengs
All parameters, except for the communicaon sengs, remotely imported user informaon, will
be restored to the default sengs. The system will reboot to take eect.
Reboot
The device will reboot aer the conrmaon.
DS-K1T341C Series Face Recognion Terminal User Manual
88
Chapter 8 Quick Operaon via Web Browser
8.1 Change Device Password
You can change the device password.
Before You Start
Make sure the device is acvated. For details, see Acvaon.
Steps
1.
On the Device for Management page, click → System → User to enter the User tab.
2.
Select a user and click Edit to enter the Edit page.
3.
Input the old password, create a new password, and conrm the new password.
Cauon
The password strength of the device can be automacally checked. We highly recommend you
change the password of your own choosing (using a minimum of 8 characters, including at least
three kinds of following categories: upper case leers, lower case leers, numbers, and special
characters) in order to increase the security of your product. And we recommend you change
your password regularly, especially in the high security system, changing the password monthly
or weekly can beer protect your product.
Proper conguraon of all passwords and other security sengs is the responsibility of the
installer and/or end-user.
4.
Click OK.
Result
The device password is changed. You should enter the new password on the Device for
Management page to reconnect the device.
8.2 Select Language
You can select a language for the device system.
Click in the top right of the web page to enter the Device Language Sengs page. You can
select a language for the device system from the drop-down list.
By default, the system language is English.
Note
Aer you change the system language, the device will reboot automacally.
DS-K1T341C Series Face Recognion Terminal User Manual
89
8.3 Time Sengs
Set Time and DST
Click → Time Sengs .
Time Zone
Select the device located me zone from the drop-down list.
Time Sync.
NTP
You should set the NTP server's IP address, port No., and interval.
Manual
By default, the device me should be synchronized manually. You can set the device me
manually or check Sync. with Computer Time to synchronize the device me with the
computer's me.
Server Address Type/Server Address/NTP Port/Interval
You can set the server address type, server address, NTP port, and interval.
DST Sengs
Enable DST.
Set the DST start me, end me and bias me.
Click Next to complete the sengs.
8.4 Privacy Sengs
Set the picture uploading and storage parameters.
Go to → Privacy Sengs .
Picture Uploading and Storage
Save Picture When Authencang
Save picture when authencang automacally.
Upload Picture When Authencang
Upload the pictures when authencang to the plaorm automacally.
Save Registered Picture
The registered face picture will be saved to the system if you enable the funcon.
Upload Picture Aer Linked Capture
Upload the pictures captured by linked camera to the plaorm automacally.
Save Pictures Aer Linked Capture
DS-K1T341C Series Face Recognion Terminal User Manual
90
If you enable this funcon, you can save the picture captured by linked camera to the device.
Click Next to complete the sengs.
8.5 Administrator Sengs
Steps
1.
Click → Administrator Sengs .
2.
Enter the employee ID and name of the administrator.
3.
Select a credenal to add.
Note
You should select at least one credenal.
1) Click Add Face to upload a face picture from local storage.
Note
The uploaded picture should be within 200 K, in JPG、JPEG、PNG format.
2) Click Add Card to enter the Card No. and select the property of the card.
Note
Up to 5 cards can be supported.
Click Next to complete the sengs.
8.6 No. and System Network
Steps
1.
Click in the top right of the web page to enter the wizard page. Aer previous sengs, you
can click Next to enter the No. and System Network sengs page.
2.
Set the device type.
If set the device type as Door Staon or Access Control Device, you can set the oor No., door
staon No., and click More to set Community No., Building No., and Unit No.
If set the device type as Outer Door Staon, you can set outer door staon No., and community
No.
3.
Click Complete to save the sengs aer the conguraon.
Device Type
The device can be used as a door staon or outer door staon. Select a device type from the
drop-down list.
Floor No.
Set the device installed oor No.
Door Staon No.
DS-K1T341C Series Face Recognion Terminal User Manual
91
Set the device installed oor No.
Note
The main door staon No. is 0, and the sub door staon No. ranges from 1 to 16.
Community No.
Set the device community No.
Building No.
Set the device building No.
Unit No.
Set the device unit No.
DS-K1T341C Series Face Recognion Terminal User Manual
92
Chapter 9 Operaon via Web Browser
9.1 Login
You can login via the web browser.
Note
Make sure the device is acvated. For detailed informaon about acvaon, see Acvaon .
Login via Web Browser
Enter the device IP address in the address bar of the web browser and press Enter to enter the
login page.
Enter the device user name and the password. Click Login.
9.2 Forget Password
If you forget the password when logging in, you can change the password by email address or
security quesons.
On the login page, click Forget Password.
Select Vericaon Mode.
Security Queson Vericaon
Answer the security quesons.
E-mail Vericaon
1. Export the QR code and send it to pw_rec[email protected] as aachment.
2. You will receive a vericaon code within 5 minutes in your reserved email.
3. Enter the vericaon code into the vericaon code eld to verify your idencaon.
Click Next, create a new password and conrm it.
9.3 Live View
You can view the live video of the device, real-me event, person informaon, network status,
basic informaon, and device capacity.
Funcon Descripons:
Door Status
Click
to view the device live view.
DS-K1T341C Series Face Recognion Terminal User Manual
93
Set the volume when starng live view.
Note
If you adjust the volume when starng two-way audio, you may hear a repeated sounds.
You can capture image when starng live view.
Select the streaming type when starng live view.
Full screen view.
/ / /
The door status is open/closed/remaining open/remaining closed.
Controlled Status
You can select open/closed/remaining open/remaining closed status according to your actual
needs.
Real-Time Event
You can view the event Employee ID, Name, Card No., Event Type, Time, and Operaon. You can
also click View More to enter the search condions, including the event type, employee ID, the
name, the card No., the start me, and the end me, and click Search. The results will be
displayed on the right panel.
Person Informaon
You can view the added and not added informaon of person face, card, and ngerprint.
Network Status
You can view the connected and registered status of wired network, wireless network, ISUP and
Hik-Connect.
Basic Informaon
You can view the model, serial No. and rmware version.
Device Capacity
You can view the person, face, card, ngerprint and event capacity.
9.4 Person Management
Click and add the person's informaon, including the basic informaon, authencaon mode, card,
and ngerprint. And you can also edit user informaon, view user picture and search user
informaon in the user list.
DS-K1T341C Series Face Recognion Terminal User Manual
94
Add Basic Informaon
Click User → Add to enter the Add Person page.
Add the person's basic informaon, including the employee ID, the person's name, the and the
user role.
If you select Visitor as the user role, you can set the visit mes.
Click OK to save the sengs.
Set Permission Time
Click User → Add to enter the Add Person page.
Set Start Time and End Time and the person can only has the permission within the congured
me period.
Click OK to save the sengs.
Set Access Control
Click User → Add to enter the Add Person page.
Aer check Administrator in Access Control, the added person can log in the device by
authencaon.
Click OK to save the sengs.
Set Room No.
Click User → Add to enter the Add Person page.
Click Add to add the Floor No. and Room No..
Click to delete it.
Click OK to save the sengs.
Add Authencaon Mode
Click User → Add to enter the Add Person page.
Set the authencaon type.
Click OK to save the sengs.
Add Card
Click User → Add to enter the Add Person page.
Click Add Card, enter the Card No. and select the Property, and click OK to add the card.
Click OK to save the sengs.
Add Fingerprint
Note
Only devices supporng the ngerprint funcon can add the ngerprint.
Click User → Add to enter the Add Person page.
Click Add Fingerprint, and press your nger on the ngerprint module of the device to add your
ngerprint.
DS-K1T341C Series Face Recognion Terminal User Manual
95
Click Complete to save the sengs.
Add Face Picture
Click User → Add to enter the Add Person page.
Click + on the right to upload a face picture from the local PC.
Note
The picture format should be JPG or JPEG or PNG, and the size should be less than 200 K.
Click OK to save the sengs.
9.5 Search Event
Click Event Search to enter the Search page.
Figure 9-1 Search Event
Enter the search condions, including the event type, the employee ID, the name, the card No., the
start me, and the end me, and click Search.
The results will be displayed on the right panel.
9.6 Conguraon
9.6.1 Set Local Parameters
Set the live view parameters, picture and clip sengs.
Set Live View Parameters
Click Conguraon → Local to enter the Local page. Congure the stream type, the play
performance, auto start Live View and click Save.
DS-K1T341C Series Face Recognion Terminal User Manual
96
Record File Sengs
Click Conguraon → Local to enter the Local page. Select a record le size and select a saving
path from your local computer and click Save.
You can also click Open to open the le folder to view details.
Picture and Clip Sengs
Click Conguraon → Local to enter the Local page. Select image format, saving path and click
Save.
You can also click Open to open the le folder to view details.
9.6.2 View Device Informaon
View the device name, language, model, serial No., version, number of channels, IO input, IO
output, lock, RS-485, alarm input, alarm output, and device capacity, etc.
Click Conguraon → System → System Sengs → Basic Informaon to enter the conguraon
page.
You can view the device name, language, model, serial No., version, number of channels, IO input,
IO output, lock, local RS-485, alarm input, alarm output, and device capacity, etc.
9.6.3 Set Time
Set the device's me, me zone, synchronizaon mode, server address, NTP port, and interval.
Click Conguraon → System → System Sengs → Time Sengs .
Click Save to save the sengs aer the conguraon.
Time Zone
Select the device located me zone from the drop-down list.
Time Sync.
NTP
You should set the NTP server's IP address, port No., and interval.
Manual
By default, the device me should be synchronized manually. You can set the device me
manually or check Sync. with Computer Time to synchronize the device me with the
computer's me.
Server Address Type/Server Address/NTP Port/Interval
You can set the server address type, server address, NTP port, and interval.
DS-K1T341C Series Face Recognion Terminal User Manual
97
9.6.4 Set DST
Steps
1.
Click Conguraon → System → System Sengs → Time Sengs .
Figure 9-2 DST Page
2.
Enable DST.
3.
Set the DST start me, end me and bias me.
4.
Click Save to save the sengs.
9.6.5 Change Administrator's Password
Steps
1.
Click Conguraon → System → User Management .
2.
Click .
3.
Enter the old password and create a new password.
4.
Conrm the new password.
5.
Click Save.
Cauon
The password strength of the device can be automacally checked. We highly recommend you
change the password of your own choosing (using a minimum of 8 characters, including at least
three kinds of following categories: upper case leers, lower case leers, numbers, and special
characters) in order to increase the security of your product. And we recommend you change
your password regularly, especially in the high security system, changing the password monthly
or weekly can beer protect your product.
Proper conguraon of all passwords and other security sengs is the responsibility of the
installer and/or end-user.
DS-K1T341C Series Face Recognion Terminal User Manual
98
9.6.6 Account Security Sengs
You can change the security quesons and answers, or the email address for the device. Aer
change the sengs, once you forgot the device password, you should answer the new quesons or
use the new email address to reset the device password.
Steps
1.
Click Conguraon → System → User Management → Account Security Sengs .
2.
Change the security quesons or email address according your actual needs.
3.
Enter the device password and click OK to conrm changing.
9.6.7 View Device Arming/Disarming Informaon
View device arming type and arming IP address.
Click Conguraon → System → User Management → Arming/Disarming Informaon .
You can view the device arming/disarming informaon. Click Refresh to refresh the page.
9.6.8 Network Sengs
Set TCP/IP, port, Wi-Fi parameters, ISUP, and plaorm access.
Note
Some device models do not support Wi-Fi or mobile data sengs. Refer to the actual products
when conguraon.
Set Basic Network Parameters
Click Conguraon → Network → Basic Sengs → TCP/IP .
Set the parameters and click Save to save the sengs.
Network Card
Select network card according to your actual needs.
DHCP
If uncheck the funcon, you should set the IPv4 address, IPv4 subnet mask, IPv4 default
gateway, IPv6 mode, IPv6 address, IPv6 subnet prex length, IPv6 default gateway, Mac address,
and MTU.
If you check the funcon, the system will allocate the IPv4 address, IPv4 subnet mask, the IPv4
default gateway, IPv6 mode, IPv6 address, IPv6 subnet prex length, and IPv6 default gateway
automacally.
NIC Type
DS-K1T341C Series Face Recognion Terminal User Manual
99
Select a NIC type from the drop-down list. By default, it is Auto.
DNS Server
Set the preferred DNS server and the Alternate DNS server according to your actual need.
Set Wi-Fi Parameters
Set the Wi-Fi parameters for device wireless connecon.
Steps
Note
The funcon should be supported by the device.
1.
Click Conguraon → Network → Network Sengs → Wi-Fi .
Figure 9-3 Wi-Fi Sengs Page
2.
Check Wi-Fi.
3.
Select a Wi-Fi
-
Click Connect of a Wi-Fi in the list and enter the Wi-Fi password.
-
Click Manual Add and enter a Wi-Fi's SSID, working mode, security mode, and password. Click
OK.
4.
Set the WLAN parameters.
1) Set the IP address, subnet mask, and default gateway. Or enable DHCP and the system will
allocate the IP address, subnet mask, and default gateway automacally.
5.
Set the DNS server. Set the preferred DNS server and alternate DNS server. Or enable DHCP and
the system will allocate the preferred DNS server and alternate DNS server automacally.
6.
Click Save.
DS-K1T341C Series Face Recognion Terminal User Manual
100
Set Port Parameters
Set the HTTP, HTTPS, HTTP Listening, RTSP and Server port parameters.
Click Conguraon → Network → Network Service → HTTP(S) .
HTTP
It refers to the port through which the browser accesses the device. For example, when the
HTTP Port is modied to 81, you need to enter hp://192.0.0.65:81 in the browser for login.
HTTPS
Set the HTTPS for accessing the browser. Cercate is required when accessing.
HTTP Listening
The device can send alarm informaon to the event alarm IP address or domain name via HTTP
protocol/HTTPS protocol. Edit the event alarm IP address or domain name, URL, port, and
protocol.
Note
The event alarm IP address or domain name should support the HTTP protocol/HTTPS protocol
to receive the alarm informaon.
Click Conguraon → Network → Network Service → RTSP .
RTSP
It refers to the port of real-me streaming protocol.
Click Conguraon → Network → Device Access → SDK Server .
SDK Server
It refers to the port through which the client adds the device.
Plaorm Access
Plaorm access provides you an opon to manage the devices via plaorm.
Steps
1.
Click Conguraon → Network → Device Access → Hik-Connect to enter the sengs page.
Note
Hik-Connect is an applicaon for mobile devices. With the App, you can view live image of the
device, receive alarm nocaon and so on.
2.
Check Enable to enable the funcon.
3.
Oponal: Check the checkbox of Custom, and you can set the server address by yourself.
4.
Enter the server IP address, and vericaon code.
DS-K1T341C Series Face Recognion Terminal User Manual
101
Note
6 to 12 leers (a to z, A to Z) or numbers (0 to 9), case sensive. You are recommended to use a
combinaon of no less than 8 leers or numbers.
5.
Enable Video Encrypon, and create the password and conrm it.
Note
Aer adding the device to APP, you need to enter the video encrypon password to live view the
device.
6.
Oponal: Click View to view the device QR code. Scan the QR code to account.
Note
Scan the QR code before it loses ecacy.
7.
Oponal: Click More to set the network connecon priority.
1) Enable WLAN or Wired Network according to your actual needs.
1) Hold and drag to adjust the access priority.
8.
Click Save to enable the sengs.
Set ISUP Parameters
Set the ISUP parameters for accessing device via ISUP protocol.
Steps
Note
The funcon should be supported by the device.
1.
Click Conguraon → Network → Device Access → ISUP .
2.
Check Enable.
3.
Set the ISUP version, server address, device ID, and the ISUP status.
Note
If you select 5.0 as the version, you should set the Encrypon Key.
4.
Set the Network Connecon Priority. You can enable Allow Access, and click the network and
drag it to adjust the network priority.
5.
Set the ISUP listening parameters, including ISUP alarm center IP address/domain name, ISUP
alarm center URL, and ISUP alarm center port.
6.
Click Save.
9.6.9 Set Video and Audio Parameters
Set the image quality and resoluon.
DS-K1T341C Series Face Recognion Terminal User Manual
102
Set Video Parameters
Click Conguraon → Video/Audio → Video .
Figure 9-4 Video Sengs Page
Set the camera name, stream type, video type, resoluon, bit rate type, Max. bit rate and I Frame
Interval.
Click Save to save the sengs aer the conguraon.
Note
The funcons vary according to dierent models. Refers to the actual device for details.
Set Audio Parameters
Click Conguraon → Video/Audio → Audio .
Set the audio stream type, input volume, and output volume.
Check Enable Voice Prompt according to your needs.
9.6.10 Access Control Sengs
Set Authencaon Parameters
Click Conguraon → Access Control → Authencaon Sengs .
Note
The funcons vary according to dierent models. Refers to the actual device for details.
DS-K1T341C Series Face Recognion Terminal User Manual
103
Click Save to save the sengs aer the conguraon.
If select Terminal Main:
Terminal/Terminal Type/Terminal Model
Select terminal and get the terminal descripon. They are read-only.
Enable Authencaon Device
Enable the authencaon funcon.
Authencaon
Select an authencaon mode according to your actual needs from the drop-down list.
Recognion Interval
You can set the interval between 2 connuous recognion of a same person during the
authencaon. In the congured interval, Person A can only recognized once. If another person
(Person B) has recognized during the interval, Person A can recognized again.
Authencaon Interval
You can set the authencaon interval of the same person when authencang. The same
person can only authencate once in the congured interval. A second authencaon will be
failed.
Alarm of Max. Failed Aempts
Enable to report alarm when the card reading aempts reach the set value.
Tampering Detecon
Enable the an-tamper detecon for the card reader.
Card No. Reversing
The read card No. will be in reverse sequence aer enabling the funcon.
If select Terminal Sub:
Terminal/Terminal Type/Terminal Model
Select terminal and get the terminal descripon. They are read-only.
Enable Authencaon Device
Enable the authencaon funcon.
Sub Card Reader Posion
You can select sub card reader posion as dierent or same side as the main card reader.
Authencaon
Select an authencaon mode according to your actual needs from the drop-down list.
Recognion Interval
You can set the interval between 2 connuous recognion of a same person during the
authencaon. In the congured interval, Person A can only recognized once. If another person
(Person B) has recognized during the interval, Person A can recognized again.
Alarm of Max. Failed Aempts
DS-K1T341C Series Face Recognion Terminal User Manual
104
Enable to report alarm when the card reading aempts reach the set value.
Communicaon with Controller Every
When the access control device cannot connect with the card reader for longer than the set
me, the card reader will turn oine automacally.
Max. Interval When Entering Password
When you entering the password on the card reader, if the interval between pressing two digits
is longer than the set value, the digits you pressed before will be cleared automacally.
OK LED Polarity/Error LED Polarity
Set OK LED Polarity/Error LED Polarity of the access control device according to the card reader
parameters. Generally, adopts the default sengs.
Tampering Detecon
Enable the an-tamper detecon for the card reader.
Set Door Parameters
Click Conguraon → Access Control → Door Parameters .
Figure 9-6 Door Parameters Sengs Page
Click Save to save the sengs aer the conguraon.
Door No.
Select the device corresponded door No.
Name
You can create a name for the door.
DS-K1T341C Series Face Recognion Terminal User Manual
105
Open Duraon
Set the door unlocking duraon. If the door is not opened for the set me, the door will be
locked.
Door Open Timeout Alarm
An alarm will be triggered if the door has not been closed within the congured me duraon.
Door Contact
You can set the door contact as Remain Open or Remain Closed according to your actual needs.
By default, it is Remain Closed.
Exit Buon Type
You can set the exit buon as Remain Open or Remain Closed according to your actual needs.
By default, it is Remain Open.
Door Lock Powering O Status
You can set the door lock status when the door lock is powering o. By default, it is Remain
Closed.
Extended Open Duraon
The door contact can be enabled with appropriate delay aer person with extended access
needs swipes her/his card.
Door Remain Open Duraon with First Person
Set the door open duraon when rst person is in. Aer the rst person is authorized, it allows
mulple persons access the door or other authencaon acons.
Duress Code
The door can open by inpung the duress code when there is duress. At the same me, the
client can report the duress event.
Super Password
The specic person can open the door by inpung the super password.
Note
The duress code and the super code should be dierent.
Elevator Control Parameters
Tap → Access Control → Elevator Control Parameters to enter the conguraon page.
Enable Elevator Control. Select main elevator controller model and interface type.
Tap Save.
DS-K1T341C Series Face Recognion Terminal User Manual
106
Set Terminal Parameters
You can set terminal parameters for accessing.
Click Conguraon → Access Control → Terminal Parameters .
You can set Working Mode as Access Control Mode. The access control mode is the device normal
mode. You should authencate your credenal for accessing.
Click Save to save the sengs aer the conguraon.
Set RS-485 Parameters
You can set the RS-485 parameters including the peripheral, address, baud rate, etc.
Click Conguraon → Access Control → RS-485 .
Check Enable, and set the parameters.
Peripheral Type
Select a peripheral from the drop-down list according the actual situaon. You can select from
Card Reader, Extension Module, or Access Controller.
Note
Aer the peripheral is changed and saved, the device will reboot automacally.
RS-485 Address
Set the RS-485 Address according to your actual needs.
Note
If you select Access Controller: If connect the device to a terminal via the RS-485 interface, set
the RS-485 address as 2. If you connect the device to a controller, set the RS-485 address
according to the door No.
Baud Rate
The baud rate when the devices are communicang via the RS-485 protocol.
Output Type
If you select Access Controller as the peripheral type, you should set the parameter. The device
will output the card No. or the employee ID to the access controller.
Click Save to save the sengs.
Set Wiegand Parameters
You can set the Wiegand transmission direcon.
DS-K1T341C Series Face Recognion Terminal User Manual
107
Steps
Note
Some device models do not support this funcon. Refer to the actual products when conguraon.
1.
Click Conguraon → Access Control → Wiegand Sengs .
2.
Check Wiegand to enable the Wiegand funcon.
3.
Set a transmission direcon.
Input
The device can connect a Wiegand card reader.
Output
The can connect an external access controller. And the two devices will transmit the card No.
via Wiegand 26 or 34.
4.
Drag the block to set the me interval and pulse width.
Note
●
The me interval ranges from 1 ms to 20 ms.
●
The pulse width ranges from 1 us to 100 us.
5.
Click Save to save the sengs.
Note
If you change the peripheral, and aer you save the device parameters, the device will reboot
automacally.
9.6.11 Card Sengs
Set Card Security
Click Conguraon → Card Sengs → Card Type to enter the sengs page.
Set the parameters and click Save.
Enable NFC Card
In order to prevent the mobile phone from geng the data of the access control, you can
enable NFC card to increase the security level of the data.
Enable M1 Card
Enable M1 card and authencang by presenng M1 card is available.
M1 Card Encrypon
Sector
M1 card encrypon can improve the security level of authencaon.
DS-K1T341C Series Face Recognion Terminal User Manual
108
Enable the funcon and set the encrypon sector. By default, Sector 13 is encrypted. It is
recommended to encrypt sector 13.
Enable EM Card
Enable EM card and authencang by presenng EM card is available.
DESFire Card Read Content
Aer enable the DESFire card content reading funcon, the device can read the DESFire card
content.
Enable FeliCa Card
The device can read the data from FeliCa card when enabling the FeliCa card funcon.
Set Card No. Authencaon Parameters
Set the card reading content when authencate via card on the device.
Go to Conguraon → Card Sengs → Card No. Authencaon Sengs .
Select a card authencaon mode and click Save.
Full Card No.
All card No. will be read.
Wiegand 26 (3 bytes)
The device will read card via Wiegand 26 protocol (read 3 bytes).
Wiegand 34 (4 bytes)
The device will read card via Wiegand 34 protocol (read 4 bytes).
9.6.12 Video Intercom Sengs
Set Video Intercom Parameters
The device can be used as a door staon, outer door staon, or access control device. You should
set the device No. before usage.
Click Conguraon → Intercom → Device No. .
If set the device type as Door Staon or Access Control Device, you can set the oor No. and No.,
and click More to set Community No., Building No., and Unit No.
Click Save to save the sengs aer the conguraon.
Device Type
The device can be used as a door staon or outer door staon. Select a device type from the
drop-down list.
DS-K1T341C Series Face Recognion Terminal User Manual
109
Note
If you change the device type, you should reboot the device.
Floor No.
Set the device installed oor No.
No.
Set the device No.
Note
●
If you change the No., you should reboot the device.
●
The main door staon No. is 0, and the sub door staon No. ranges from 1 to 16.
Community No.
Set the device community No.
Building No.
Set the device building No.
Unit No.
Set the device unit No.
Note
If you change the No., you should reboot the device.
If set the device type as Outer Door Staon, you can set the period No., outer door staon No.,
and community No.
Outer Door Staon No.
If you select outer door staon as the device type, you should enter a number between 1 and
99.
Note
If you change the No., you should reboot the device.
Community No.
Set the device community No.
Linked Network Sengs
Enable the communicaon between access control device, and video intercom server.
Steps
1.
Click Conguraon → Intercom → Linked Sengs to enter the sengs page.
2.
Set parameters.
DS-K1T341C Series Face Recognion Terminal User Manual
110
SIP Server IP Address
Set the IP address of the SIP server.
Main Staon IP
IP address of the main staon.
3.
Click Save.
Press Buon to Call
Steps
1.
Click Intercom → Press Buon to Call to enter the sengs page.
2.
Set the parameters.
-
Check Call Management Center，Specied Indoor Staon，Indoor Staon or APP to set the
buon.
Note
If you check Call Specied Indoor Staon, you should enter the specied indoor staon No.
9.6.13 Time and Aendance Sengs
If you want to track and monitor when the persons start/stop work and monitor their working
hours and late arrivals, early departures, me taken on breaks, and absenteeism, you can add the
person to the shi group and assign a shi schedule (a rule for the aendance dening how the
schedule repeats, the shi type, break sengs, and the card swiping rule.) to the shi group to
dene the aendance parameters for the persons in the shi group.
Disable Aendance Mode via Web
Disable the aendance mode and the system will not display the aendance status on the inial
page.
Steps
1.
Click Conguraon → Aendance to enter the sengs page.
2.
Set the Aendance Mode as Disable.
Result
You will not view or congure the aendance status on the inial page. And the system will follow
the aendance rule that congured on the plaorm.
DS-K1T341C Series Face Recognion Terminal User Manual
111
Time Sengs
Steps
1.
Click Conguraon → Time Sengs to enter the sengs page.
2.
Select Status Type.
3.
Oponal: Edit Schedule Name according to the actual needs.
4.
Drag mouse to set the schedule.
Note
Set the schedule from Monday to Sunday according to the actual needs.
5.
Oponal: Select a meline and click Delete. Or click Delete All to clear the sengs.
6.
Click Save.
Set Manual Aendance via Web
Set the aendance mode as manual, and you should select a status manually when you take
aendance.
Before You Start
Add at least one user, and set the user's authencaon mode. For details, see User Management.
Steps
1.
Click Conguraon → Aendance to enter the sengs page.
2.
Set the Aendance Mode as Manual.
3.
Enable the Aendance Status Required and set the aendace status lasts duraon.
4.
Enable a group of aendance status.
Note
The Aendance Property will not be changed.
5.
Oponal: Select an status and change its name if required.
Result
You should select an aendance status manually aer authencaon.
Note
If you do not select a status, the authencaon will be failed and it will not be marked as a valid
aendance.
Set Auto Aendance via Web
Set the aendance mode as auto, and you can set the aendance status and its available schedule.
The system will automacally change the aendance status according to the congured schedule.
DS-K1T341C Series Face Recognion Terminal User Manual
112
Before You Start
Add at least one user, and set the user's authencaon mode. For details, see User Management.
Steps
1.
Click Conguraon → Aendance to enter the sengs page.
2.
Set the Aendance Mode as Auto.
3.
Enable the Aendance Status funcon.
4.
Enable a group of aendance status.
Note
The Aendance Property will not be changed.
5.
Oponal: Select an status and change its name if required.
6.
Set the status' schedule. Refers to Time Sengs for details.
Set Manual and Auto Aendance via Web
Set the aendance mode as Manual and Auto, and the system will automacally change the
aendance status according to the congured schedule. At the same me you can manually
change the aendance status aer the authencaon.
Before You Start
Add at least one user, and set the user's authencaon mode. For details, see User Management.
Steps
1.
Click Conguraon → Aendance to enter the sengs page.
2.
Set the Aendance Mode as Manual and Auto.
3.
Enable the Aendance Status funcon.
4.
Enable a group of aendance status.
Note
The Aendance Property will not be changed.
5.
Oponal: Select an status and change its name if required.
6.
Set the status' schedule. Refers to Time Sengs for details.
Result
On the inial page and authencate. The authencaon will be marked as the congured
aendance status according to the schedule. If you tap the edit icon on the result tab, you can
select a status to take aendance manually, the authencaon will be marked as the edited
aendance status.
Example
If set the Break Out as Monday 11:00, and Break In as Monday 12:00, the valid user's
authencaon from Monday 11:00 to 12:00 will be marked as break.
DS-K1T341C Series Face Recognion Terminal User Manual
113
9.6.14 Set Privacy Parameters
Set the event storage type, picture upload and storage parameters, and the picture clearing
parameters.
Go to Conguraon → Security → Privacy Sengs
Event Storage Sengs
Select a method to delete the event. You can select from Delete Old Events Periodically, Delete
Old Events by Specied Time, or Overwring.
Delete Old Events Periodically
Drag the block or enter number to set the period for event deleng. All events will be deleted
according to the congured me duraon.
Delete Old Events by Specied Time
Set a me and all events will be deleted on the congured me.
Overwring
The earliest 5% events will be deleted when the system detects the stored events has been over
95% of the full space.
Authencaon Sengs
Display Authencaon Result
You can check Face Picture, Name, and Employee ID, to display the authencaon result.
Name De-idencaon
You can check Name De-idencaon, and the whole name will not be displayed.
Authencaon Result Display Duraon
You can set the authencaon result display duraon.
Picture Uploading and Storage
Save Picture When Authencang
Save picture when authencang automacally.
Save Registered Picture
The registered face picture will be saved to the system if you enable the funcon.
Save Pictures Aer Linked Capture
If you enable this funcon, you can save the picture captured by linked camera to the device.
DS-K1T341C Series Face Recognion Terminal User Manual
114
Clear All Pictures in Device
Note
All pictures cannot be restored once they are deleted.
Clear Registered Face Pictures
All registered pictures in the device will be deleted.
Clear Captured Pictures
All captured pictures in the device will be deleted.
9.6.15 Set Password Mode
Before conguring passwords, it is necessary to clarify whether the password is a device-set
personal PIN or a plaorm-applied personal PIN. If it is a device-set personal PIN, it can be created
or edited on the device or on the web, and cannot be set on other plaorms; If it is a plaorm-
applied personal PIN, it can be created or edited on the plaorm, and issued to the device before it
can be used. It cannot be set on the device or on the web.
Steps
1.
Click Conguraon → Security → Password Mode
Device-Set Personal PIN
It can be created or edited on the device or on the web, and cannot be set on other
plaorms.
Plaorm-Applied Personal PIN
It can be created or edited on the plaorm, and issued to the device before it can be used. It
cannot be set on the device or on the web.
2.
Click Save.
9.6.16 Set Biometric Parameters
Set Basic Parameters
Click Conguraon → Smart → Smart .
Note
The funcons vary according to dierent models. Refers to the actual device for details.
Click Save to save the sengs aer the conguraon.
Face An-spoong
DS-K1T341C Series Face Recognion Terminal User Manual
115
Enable or disable the live face detecon funcon. If enabling the funcon, the device can
recognize whether the person is a live one or not.
Note
Biometric recognion products are not completely applicable to an-spoong environments. If
you require a higher security level, use mulple authencaon modes.
An-spoong Detecon Level
Aer enabling the face an-spoong funcon, you can set the matching security level when
performing an-spoong detecon.
Recognion Distance
Select the distance between the authencang user and the device camera.
Pitch Angle
The maximum pitch angle when starng face authencaon.
Yaw Angle
The maximum yaw angle when starng face authencaon.
Face Picture Quality Grade for Applying
Set the face picture's grade.
1:1 Matching Threshold
Set the matching threshold when authencang via 1:1 matching mode. The larger the value,
the smaller the false accept rate and the larger the false rejecon rate.
1:N Matching Threshold
Set the matching threshold when authencang via 1:N matching mode. The larger the value,
the smaller the false accept rate and the larger the false rejecon rate.
Face Recognion Timeout Value
Set the meout value when face recognizing. If the face recognion me is longer than the
congured value, the system will pop up a prompt.
ECO Mode
Aer enabling the ECO mode, the device will use the IR camera to authencate faces in the low
light or dark environment. And you can set the ECO mode threshold, ECO mode (1:N), and ECO
mode (1:1).
ECO Mode Threshold
The larger the value, the device enter the ECO Mode easier.
ECO Mode (1:1) Threshold
Set the matching threshold when authencang via ECO mode 1:1 matching mode. The larger
the value, the smaller the false accept rate and the larger the false rejecon rate.
ECO Mode (1:N) Threshold
DS-K1T341C Series Face Recognion Terminal User Manual
116
Set the matching threshold when authencang via ECO mode 1:N matching mode. The larger
the value, the smaller the false accept rate and the larger the false rejecon rate
Face with Mask Detecon
Aer enabling the face without mask detecon, the system will recognize the captured face
with mask picture or not. You can set face with mask1:N matching threshold, it's ECO mode, and
the strategy.
None
The funcon is disabled. The device will not detect whether a person is wearing a face mask
or not.
Reminder of Wearing Face Mask
If the person do not wear the face mask when authencang, the device will pop up a
prompt and the door will open.
Must Wear Face Mask
If the person do not wear the face mask when authencang, the device will pop up a
prompt and the door will keep closed.
Face with Mask & Face (1:1)
Set the matching value when authencang with face mask via 1:1 matching mode. The larger
the value, the smaller the false accept rate and the larger the false rejecon rate.
Face with Mask 1:N Match Threshold
Set the matching threshold when authencang with face mask via 1:N matching mode. The
larger the value, the smaller the false accept rate and the larger the false rejecon rate.
Face with Mask & Face 1:1 Match Threshold (ECO)
Set the matching value when authencang with face mask via ECO mode 1:1 matching mode.
The larger the value, the smaller the false accept rate and the larger the false rejecon rate.
Face with Mask & Face 1:N Match Threshold (ECO)
Set the matching threshold when authencang with face mask via ECO mode 1:N matching
mode. The larger the value, the smaller the false accept rate and the larger the false rejecon
rate.
Enable Hard Hat Detecon
Aer enabling the hard hat detecon, you can set the strategy.
None
The funcon is disabled. The device will not detect whether a person is wearing a hard hat or
not.
Reminder of Wearing
If the person do not wear the hard hat when authencang, the device will pop up a prompt
and the door will open.
Must Wear
DS-K1T341C Series Face Recognion Terminal User Manual
117
If the person do not wear the hard hat when authencang, the device will pop up a prompt
and the door will keep closed.
Fingerprint Security Level
Select the ngerprint security level.
The higher is the security level, the lower is the false acceptance rate (FAR).
The higher is the security level, the higher is the false rejecon rate (FRR).
Set Recognion Area
Click Conguraon → Smart → Area Conguraon .
Drag the yellow frame in the live video to adjust the recognion area. Only the face within the area
can be recognized by the system.
Or drag the block of each parameter to set the area.
Click Save.
Click or , or to capture pictures, record videos, and view full screen live video.
9.6.17 Preference Sengs
Set the theme, noce publicaon, prompt schedule, custom prompt, and authencaon result
text.
Set Preference
You can set the display theme and the sleep me for the device.
Set Theme
Click Conguraon → Preference → Screen Display .
Sleep
Enable Sleep and the device will enter the sleep mode when no operaon within the congured
sleep me.
Display Mode
You can select display theme for device authencaon. You can select Display Mode as
Authencaon or Simple. When you select Simple, the informaon of name, ID, face picture
will be not displayed.
Noce Publicaon
You can set the noce publicaon for the device.
Click Conguraon → Preference → Noce Publicaon .
Theme Management
DS-K1T341C Series Face Recognion Terminal User Manual
118
Click Media Library Management → + to upload the picture from the local PC.
Note
Only the format of JPG is supported. Each picture should be smaller than 1 MB with resoluon
up to 1920*1280. Up to 8 pictures are supported.
You can click +, and set Name and Type to create a theme. Aer creang the theme, click + in
the Theme Management panel to select pictures in the media library. Click OK to add pictures
to the theme.
Drag the block or enter the number to set the slide show interval. The picture will be changed
according to the interval.
Note
The slide show interval ranges from 1 s to 10 s.
Click Edit Name to change the them name. Click Delete Program to delete the theme.
Schedule Management
Aer you have created a theme, you can select the theme and draw a schedule on the me line.
Select the drawn schedule, and you can edit the exact start and end me.
Select the drawn schedule and you can click Clear or Clear All to delete the schedule.
Customize Audio Content
Customize the output audio content when authencaon succeeded and failed.
Steps
1.
Click Conguraon → Preference → Prompt Schedule .
2.
Enable the funcon.
3.
Set the appellaon.
4.
Set the me period when authencaon succeeded.
1) Click Add Time Duraon.
2) Set the me duraon and the language.
Note
If authencaon is succeeded in the congured me duraon, the device will broadcast the
congured content.
3) Enter the audio content.
4) Oponal: Repeat substep 1 to 3.
5) Oponal: Click to delete the congured me duraon.
5.
Set the me duraon when authencaon failed.
1) Click Add Time Duraon.
2) Set the me duraon and the language.
DS-K1T341C Series Face Recognion Terminal User Manual
119
Note
If authencaon is failed in the congured me duraon, the device will broadcast the
congured content.
3) Enter the audio content.
4) Oponal: Repeat substep 1 to 3.
5) Oponal: Click to delete the congured me duraon.
6.
Click Save.
Customize Prompt Voice
You can customize prompt voices for the device.
Steps
1.
Click Conguraon → Preference → Custom Prompt .
2.
Click → and import audio le from local PC according to your actual needs.
Note
The uploaded audio le should be less than 512 kb, in WAV format.
Congure Authencaon Result Text
Steps
1.
Go to Conguraon → Preference → Authencaon Result Text .
2.
Enable Customize Authencaon Result Text.
3.
Enter custom texts.
4.
Click Save.
9.6.18 Upgrade and Maintenance
Reboot device, restore device parameters, and upgrade device version.
Reboot Device
Click Maintenance and Security → Maintenance → Restart .
Click Restart to reboot the device.
Upgrade
Click Maintenance and Security → Maintenance → Upgrade .
Select an upgrade type from the drop-down list. Click
and select the upgrade le from your
local PC. Click Upgrade to start upgrading.
If the device has been connected to Hik-Connect and network, when there is a new installaon
package in Hik-Connect, you can click Upgrade aer Online Update to upgrade the device system.
DS-K1T341C Series Face Recognion Terminal User Manual
120
Note
Do not power o during the upgrading.
Restore Parameters
Click Maintenance and Security → Maintenance → Backup and Reset .
Restore All
All parameters will be restored to the factory sengs. You should acvate the device before
usage.
Restore
The device will restore to the default sengs, except for the device IP address and the user
informaon.
Import and Export Parameters
Click Maintenance and Security → Maintenance → Backup and Reset .
Export
Click Export to export the device parameters.
Note
You can import the exported device parameters to another device.
Import
Click
and select the le to import. Click Import to start import conguraon le.
Click Advanced Sengs, and enter the admin password.
Face Parameter
Custom An-Spoong Detecon
Face Liveness Level
Aer enabling face an-spoong funcon, you can set the matching security level when
performing live face authencaon.
An-Spoong Detecon Threshold
The larger the value, the smaller the false accept rate and the larger the false rejecon
rate. The smaller the value, the larger the false accept rate and the smaller the false
rejecon rate.
Lock Face for An-Spoong Protecon
Aer enabling this funcon, the device will lock automacally when an-spoong detecon
failed.
Lock Duraon
DS-K1T341C Series Face Recognion Terminal User Manual
121
The lock duraon aer enabling Lock Face for An-Spoong Protecon when an-spoong
detecon failed.
Unlock
You can click Unlock according to your needs.
Version Informaon
You can view the device informaon.
9.6.19 Device Debugging
You can set device debugging parameters.
Steps
1.
Click Maintenance and Security → Maintenance → Device Debugging .
2.
You can set the following parameters.
Enable SSH
To raise network security, disable SSH service. The conguraon is only used to debug the
device for the professionals.
Print Log
You can click Export to export log.
Capture Network Packet
You can set the Capture Packet Duraon, Capture Packet Size, and click Start to capture.
9.6.20 Log Query
You can search and view the device logs.
Go to Conguraon → System → Maintenance → Log Query .
Set the major and minor type of the log type. Set the start me and end me for searching, and
click Search.
The results will be displayed below, which including the No., me, the major type the minor type,
the channel No., the local/remote user informaon, the remote host IP, etc.
9.6.21 Security Mode Sengs
Set the security mode for logging in the client soware.
On the Device for Management page, click Maintenance and Security → Security → Security
Service .
Select a security mode, and click Save.
Security Mode
DS-K1T341C Series Face Recognion Terminal User Manual
122
High security level for user informaon vericaon when logging in the client soware.
Compable Mode
The user informaon vericaon is compable with the old client soware version when
logging in.
9.6.22 Cercate Management
It helps to manage the server/client cercates and CA cercate.
Note
The funcon is only supported by certain device models.
Create and Install Self-signed Cercate
Steps
1.
Go to Conguraon → System → Security → Cercate Management .
2.
In the Cercate Files area, select a Cercate Type from the drop-down list.
3.
Click Create.
4.
Input cercate informaon.
5.
Click OK to save and install the cercate.
The created cercate is displayed in the Cercate Details area.
The cercate will be saved automacally.
6.
Download the cercate and save it to an asking le in the local computer.
7.
Send the asking le to a cercaon authority for signature.
8.
Import the signed cercate.
1) Select a cercate type in the Import Passwords area, and select a cercate from the local,
and click Install.
2) Select a cercate type in the Import Communicaon Cercate area, and select a cercate
from the local, and click Install.
Install Other Authorized Cercate
If you already has an authorized cercate (not created by the device), you can import it to the
device directly.
Steps
1.
Go to Conguraon → System → Security → Cercate Management .
2.
In the Import Passwords and Import Communicaon Cercate areas, select cercate type
and upload cercate.
3.
Click Install.
DS-K1T341C Series Face Recognion Terminal User Manual
123
Install CA Cercate
Before You Start
Prepare a CA cercate in advance.
Steps
1.
Go to Conguraon → System → Security → Cercate Management .
2.
Create an ID in the Inport CA Cercate area.
Note
The input cercate ID cannot be the same as the exisng ones.
3.
Upload a cercate le from the local.
4.
Click Install.
DS-K1T341C Series Face Recognion Terminal User Manual
124
Chapter 10 Other Plaorms to Congure
You can also congure the device via iVMS-4200 Client Soware or HikCentral Access Control. For
details, see the plaorms' user manual.
iVMS-4200 Client Soware
Click/tap the link to view the client soware's user manual.
hp://enpinfodata.hikvision.com/analysisQR/showQR/ca930247
HikCentral Access Control (HCAC)
Click/tap the link to view the HCAC's user manual.
hp://enpinfodata.hikvision.com/analysisQR/showQR/f2f6cf42
DS-K1T341C Series Face Recognion Terminal User Manual
125
Appendix A. Tips for Scanning Fingerprint
Recommended Finger
Forenger, middle nger or the third nger.
Correct Scanning
The gure displayed below is the correct way to scan your nger:
You should press your nger on the scanner horizontally. The center of your scanned nger should
align with the scanner center.
Incorrect Scanning
The gures of scanning ngerprint displayed below are incorrect:
DS-K1T341C Series Face Recognion Terminal User Manual
126
Environment
The scanner should avoid direct sun light, high temperature, humid condions and rain.
When it is dry, the scanner may not recognize your ngerprint successfully. You can blow your
nger and scan again.
Others
If your ngerprint is shallow, or it is hard to scan your ngerprint, we recommend you to use other
authencaon methods.
If you have injuries on the scanned nger, the scanner may not recognize. You can change another
nger and try again.
DS-K1T341C Series Face Recognion Terminal User Manual
127
Appendix B. Tips When Collecng/Comparing Face
The posion when collecng or comparing face picture is as below:
Posions (Recommended Distance: 0.5 m)
Expression
●
Keep your expression naturally when collecng or comparing face pictures, just like the
expression in the picture below.
●
Do not wear hat, sunglasses, or other accessories that can aect the facial recognion funcon.
●
Do not make your hair cover your eyes, ears, etc. and heavy makeup is not allowed.
Posture
In order to get a good quality and accurate face picture, posion your face looking at the camera
when collecng or comparing face pictures.
DS-K1T341C Series Face Recognion Terminal User Manual
128
Size
Make sure your face is in the middle of the collecng window.
DS-K1T341C Series Face Recognion Terminal User Manual
129
Appendix C. Tips for Installaon Environment
1. Light Source Illuminaon Reference Value
Candle: 10Lux
Bulb: 100~850Lux
Sunlight: More than 1200Lux
2. Install the device at least 2 meters away from the light, and at least 3 meters away from the
window or door.
3.Avoid backlight, direct and indirect sunlight
DS-K1T341C Series Face Recognion Terminal User Manual
130
Appendix D. Dimension
Figure D-1 Dimension
DS-K1T341C Series Face Recognion Terminal User Manual
131
UD27829B-B
