USER'S MANUAL
AXIS P5522–E PTZ Dome Network Camera
About this document
This manual is intended for administrators and users of the AXIS
P5522–E PTZ Dome Network Camera, and is applicable to firmware
5.25 and later. It includes instructions for using and managing the
product on your network. Previous experience of networking w ill b e of
use when using this product. Some knowledge of UNIX or Linux-based
systems may also be beneficial, for developing shell scripts and
applications. Later version of th is document will be pos ted to the Axis
website, as required. See also the product’s online help, available v ia
the web-based interface.
Liability
Every care has been taken in the preparation of this manual. Please
inform your local Axis office of any inaccuracies or omissions. Axis
Communications AB cannot be held responsible for any technical or
typographical e rrors and reserves the right to make changes to the
product and manuals without prior notice. Axis Communications AB
makes no warranty of any kind with regard to the material contained
within this document, including , but not limited to , the implied
warranties of merchantability an d fitness for a particu la r purpose. Axis
Communications AB shall not be liable n or responsible for incide ntal or
consequential damages in connection with the furnishing, performance
or use of this material.
Intellectual Property Rights
Axis AB has intellectua l property rights relating to technology embodied
in the product described in this document. In particular, and without
limitation, these intellectu al property rig hts may in clude one or more
of the patent s listed at http://www.axis.com/patent.htm an d one or
more additional patents or pending patent applications in the US and
other countries.
This product contains licensed third-party software. See t he menu item
“About” in the product’s user interface for more information.
This product contains source code copyright Apple Computer,
Inc.,underthetermsofApplePublicSourceLicense2.0(see
http://www.opensource.ap ple.com/apsl). The source c ode is available
from http://developer.apple.com/darwin/projects/bonjou r/
Equipment Modifications
This equipment must be installed and used in strict accordan ce with th e
instructions given in the user documentation. This equipment contains
no user-se r viceable components. Una uthorized equipm e nt changes or
modifications will invalidate a ll applicable regulatory certifications
and approvals.
Trademark Acknowledgments
Apple, Boa, Bonjour, Ethernet, Internet Explorer, Linux , Microsoft,
Mozilla, Netscape Navigator, OS/2, Real, SMPTE, QuickTime, UNIX,
Windows, WW W are registered trademarks of the respective holders.
Java and all Java-based trademarks and logos are trademarks or
registered trademarks of Sun Microsystems, Inc. in the United
States
and other countries. Axis Communications AB is independent of
Sun Microsyst em s Inc. UPnP
TM
is a certification mark of the UPnP
TM
Implementers Corporation.
Support
Should you require any technical assistance, please contact your Axis
reseller. If your questions cannot be ans
wered immediately, your
reseller will forward your que ries through the appropriate channels to
ensure a rapid response. If you are connected to the Internet, you can:
• download user documentation and software updates
• find answers to resolved problems in the FAQ database. Search
by product, category, or phrase
• report problems to Axis support staff by logging in to your private
support area
• chat with Axis support staff (selected countries only)
• visit Axis Support at www.axis.com/techsup/
AXIS P5522–E PTZ Dome Network Camera
Table of contents
Hardwareoverview .......................................... 4
Connectors .................................................... 4
LEDindicators .................................................. 5
Accessingtheproduct ....................................... 6
Accessfromabrowser ........................................... 6
AccessfromtheInternet .......................................... 6
Settherootpassword ............................................ 7
TheLiveViewpage .............................................. 7
Mediastreams .............................................. 10
HowtostreamH.264 ............................................ 10
MJPEG ........................................................ 10

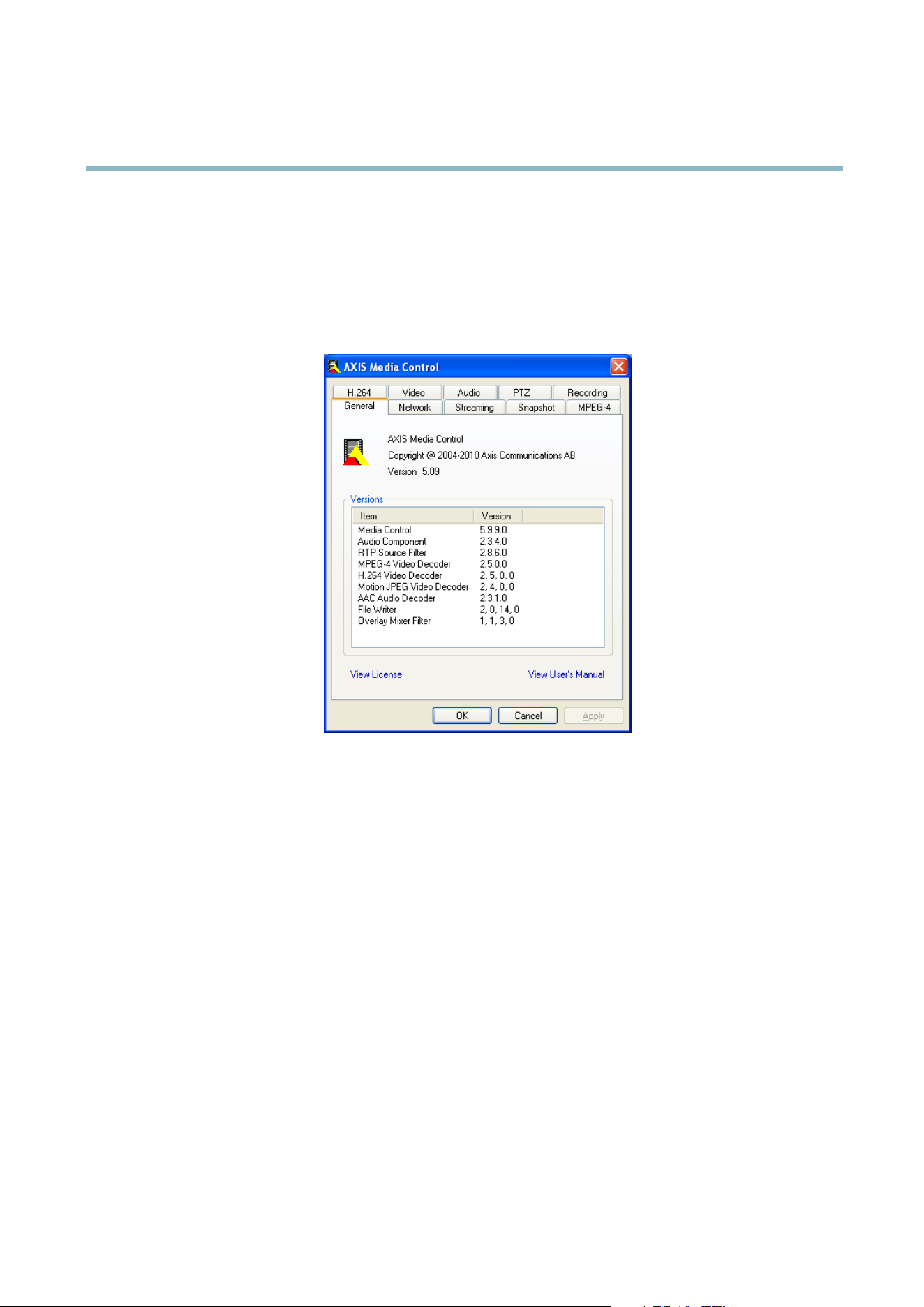

AXISMediaControl(AMC) ........................................ 10
Alternativemethodsofaccessingthevideostream .................... 11
Settinguptheproduct ....................................... 13
BasicSetup .................................................... 13
Video ..................................................... 14

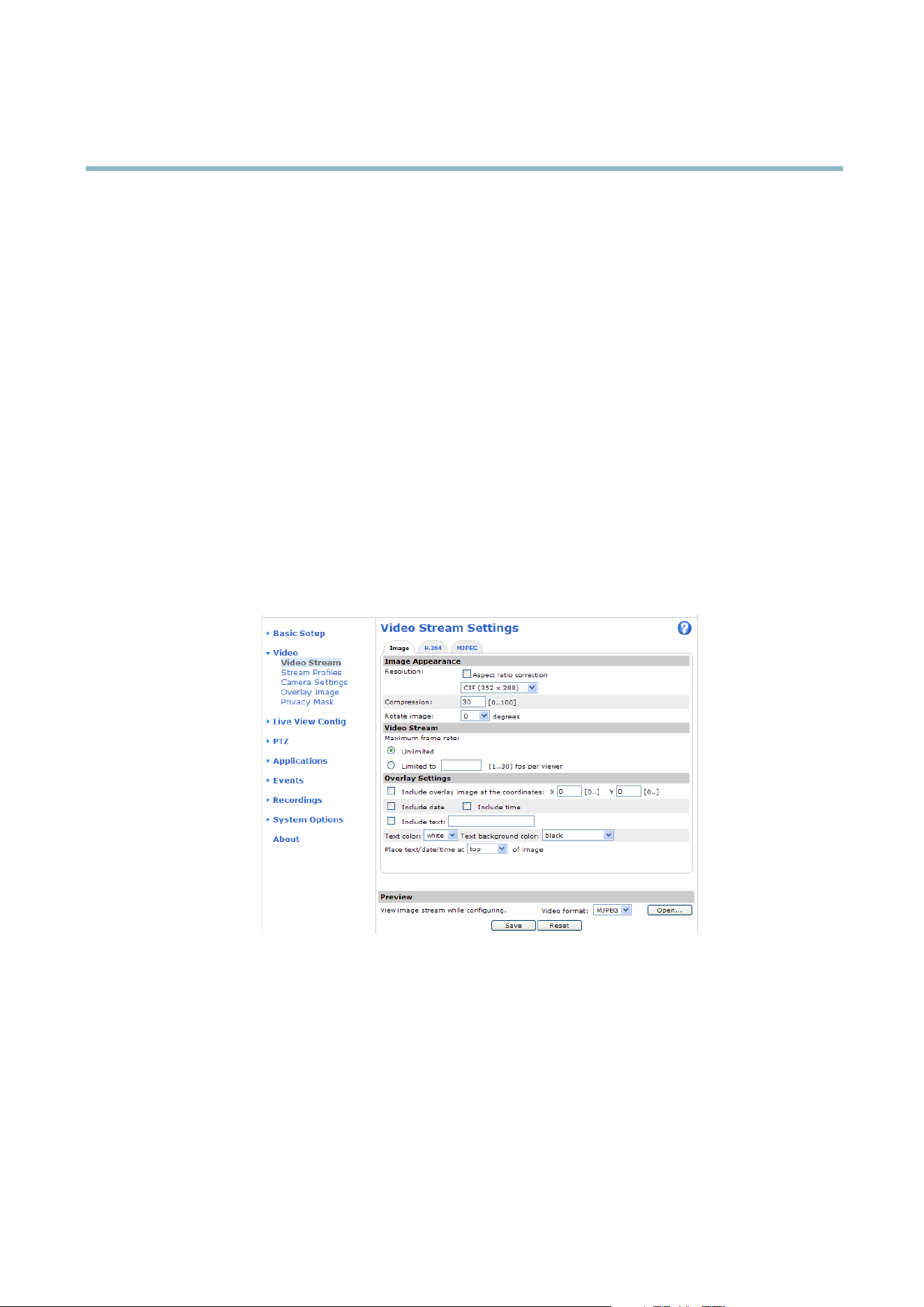

VideoStream ................................................... 14
Stream Profiles ................................................. 15
CameraSettings ................................................ 15
Overlay ........................................................ 17
PrivacyMask ................................................... 17

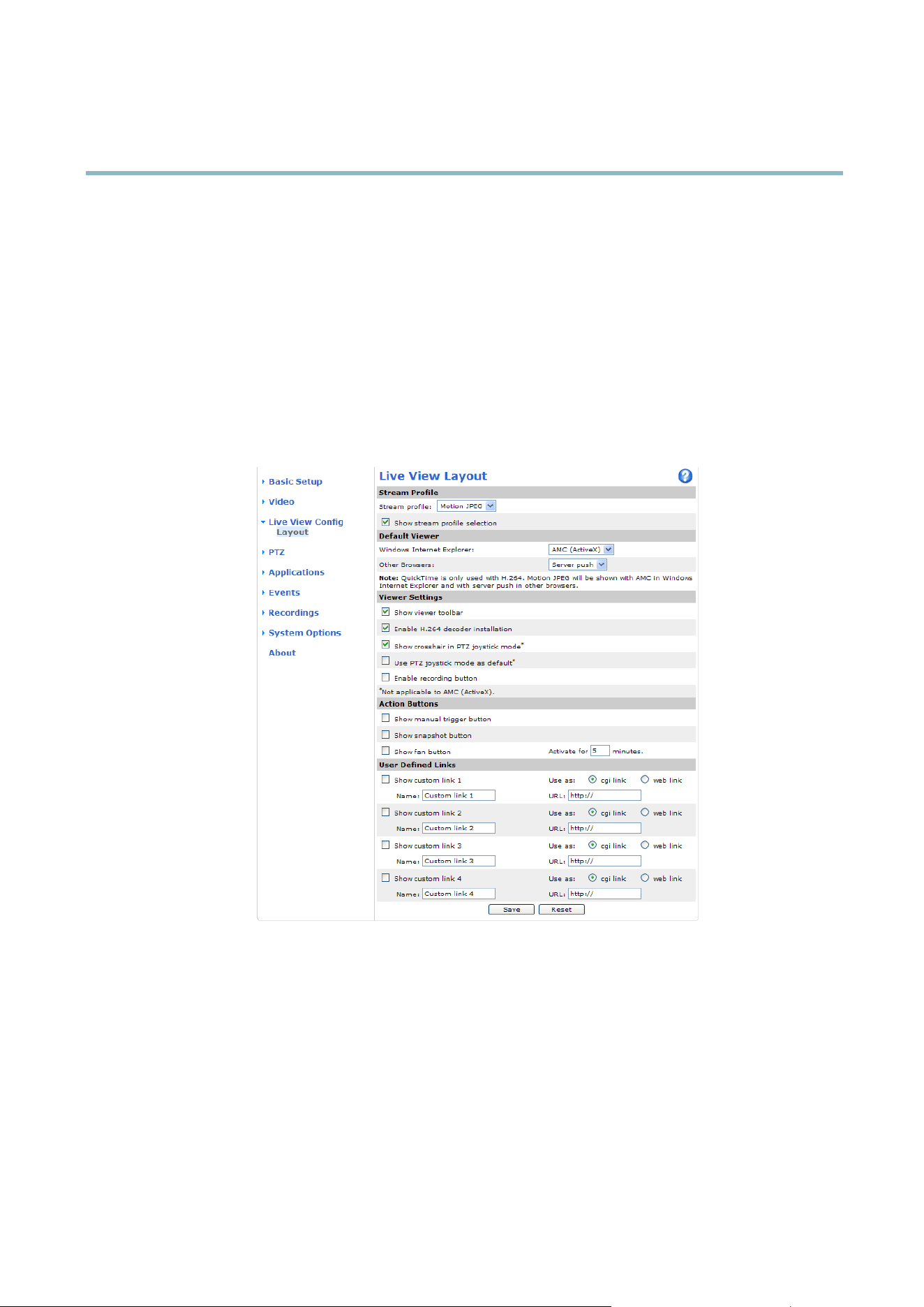

Live View Config ............................................ 18
PTZ (Pan Tilt Zoom) ......................................... 20
Presetpositions ................................................. 20
GuardTour ..................................................... 20
OSDIZones .................................................... 21
Advanced ...................................................... 21
ControlQueue .................................................. 21
Applications . .............................................. 23
Events .................................................... 24
EventServers ................................................... 24

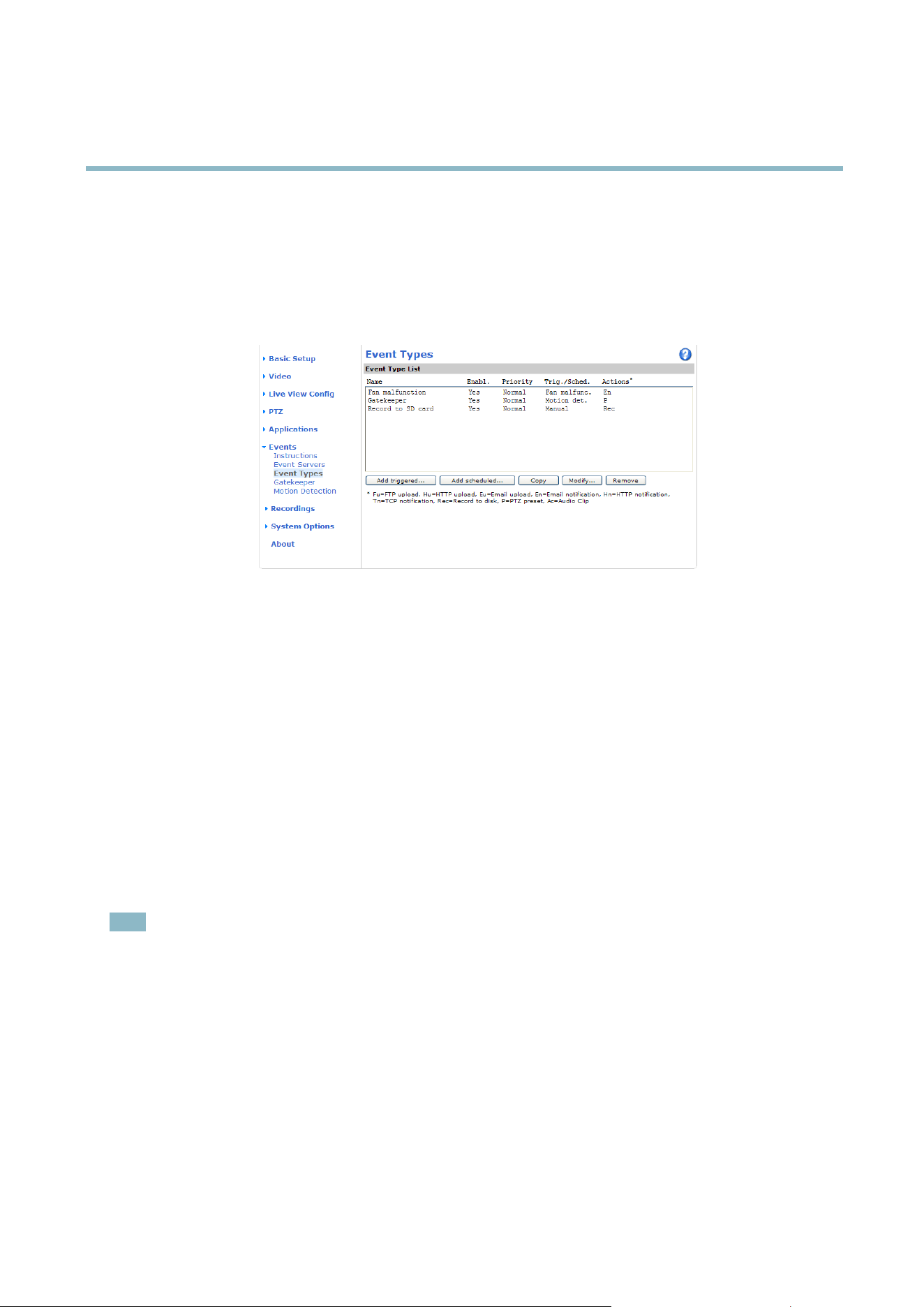

EventTypes .................................................... 25
Gatekeeper .................................................... 26

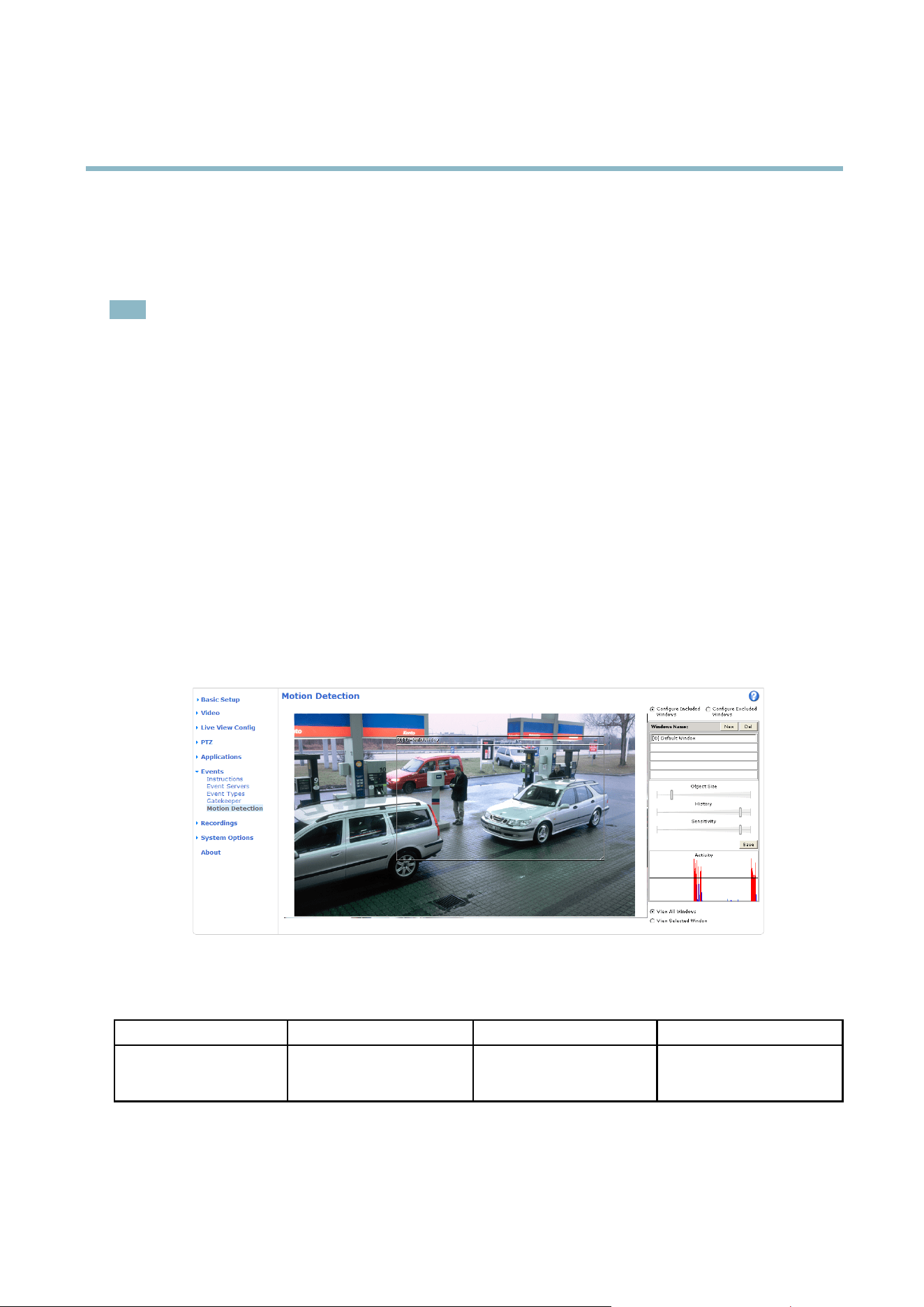

Motiondetection ............................................... 26
Recordings ................................................. 29

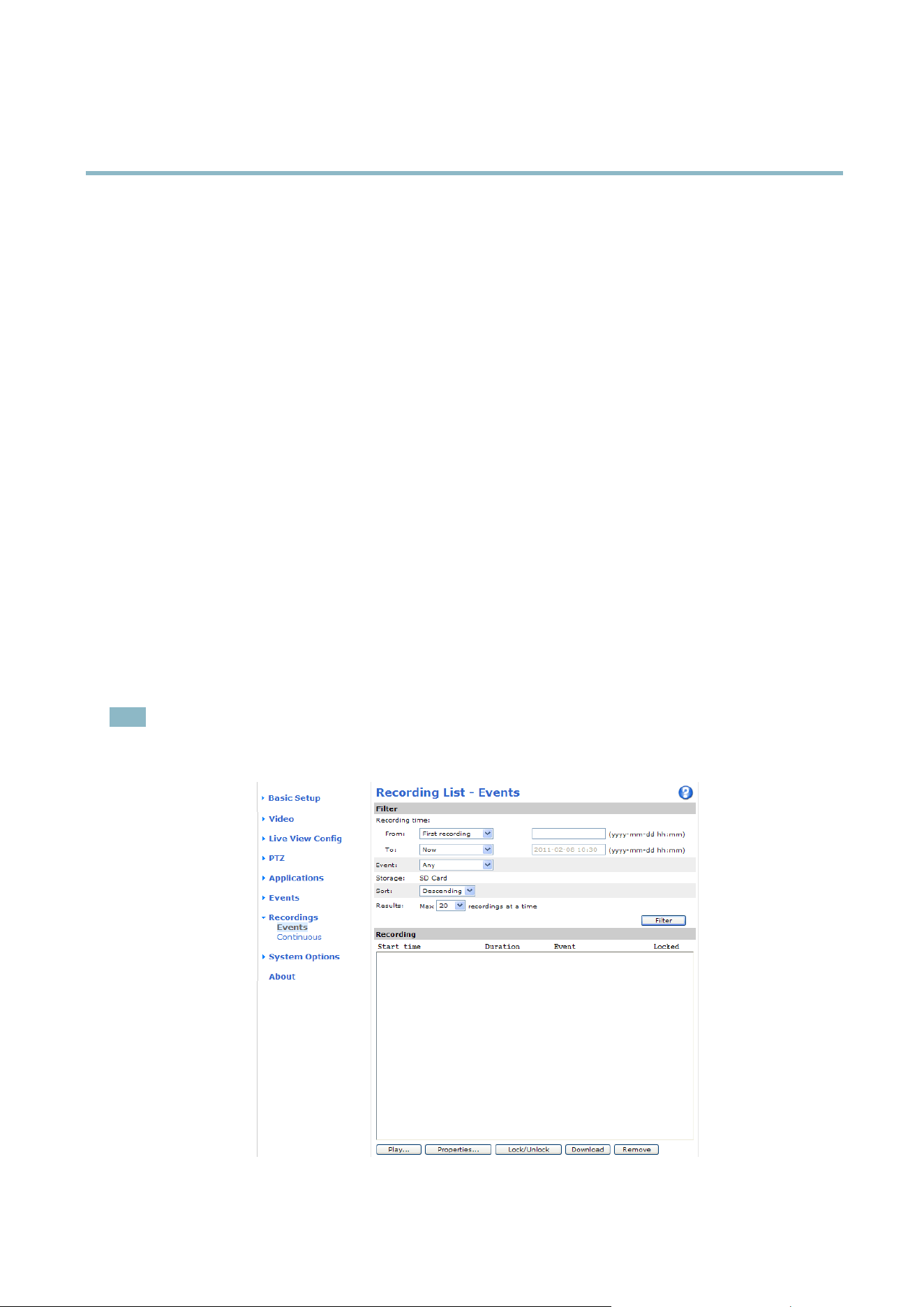

Eventrecordings ................................................ 29

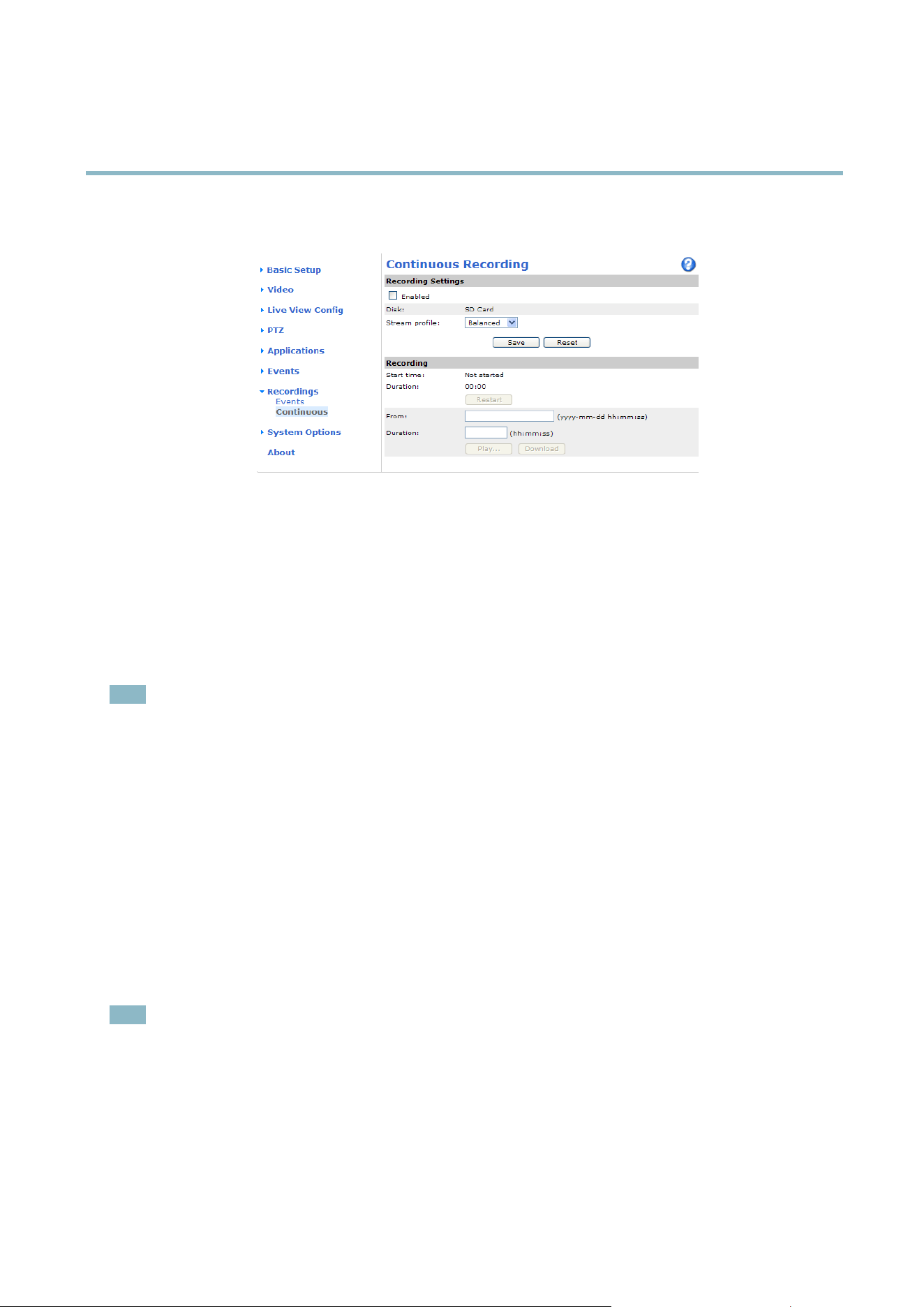

Continuousrecording ............................................ 30
SystemOptions ............................................. 31
Security ....................................................... 31
Date&Time .................................................... 32
Network ....................................................... 33
Storage ....................................................... 37

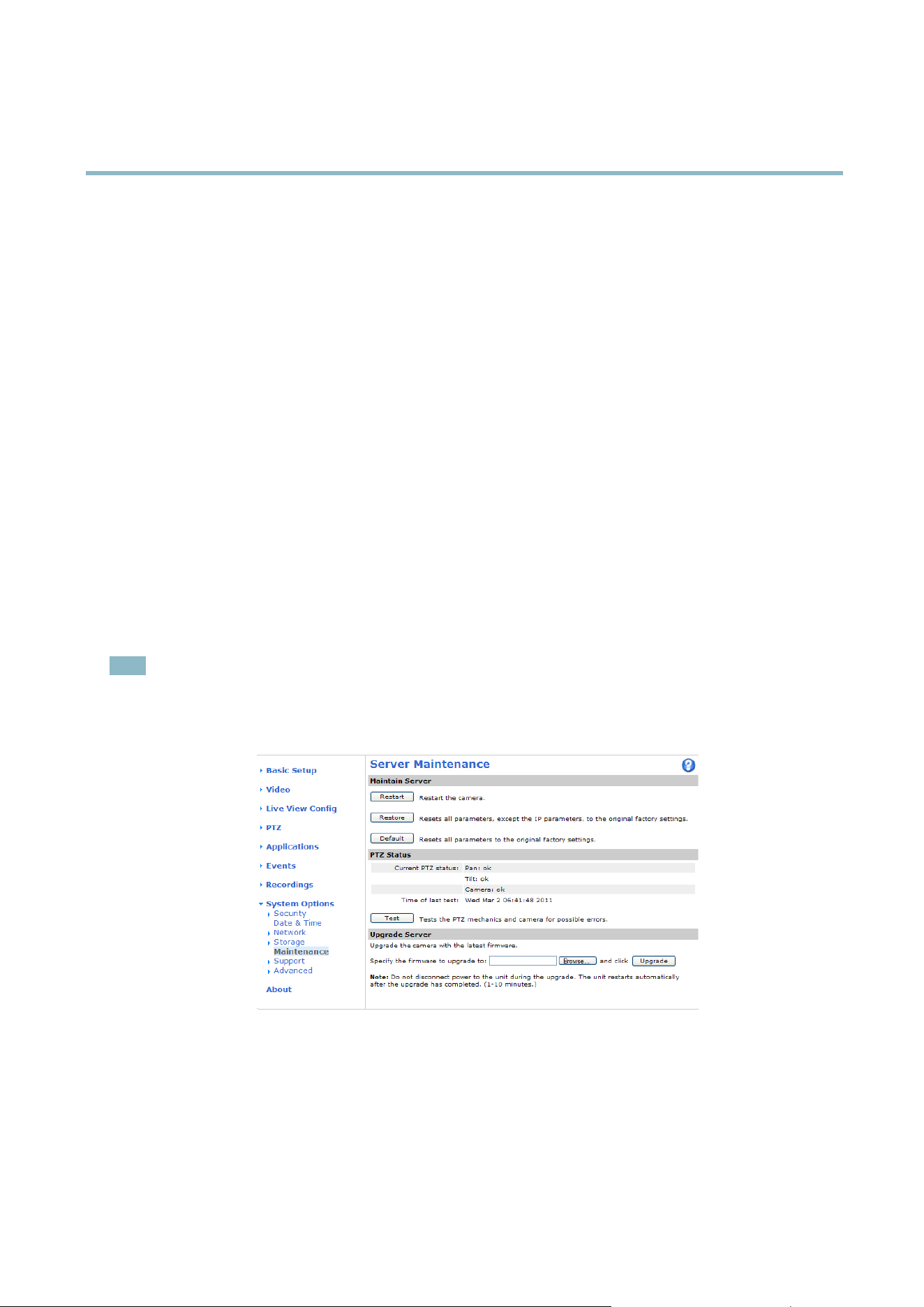

Maintenance ................................................... 37
Support ....................................................... 38
Advanced ...................................................... 39
Resettofactorydefaultsettings ................................... 39
Troubleshooting ............................................ 41
Checking the firmware ........................................... 41
Upgrading the firmware .......................................... 41
Emergencyrecoveryprocedure ..................................... 41
Symptoms,possiblecausesandremedialactions ...................... 42
Technical Specifications ...................................... 45
Performanceconsiderations ....................................... 47
3
AXIS P5522–E PTZ Dome Network Camera
Hardware overview
Hardware overview
4
2
6
5
3
1
1.
Network connector
2.
Part number (P/N) & Serial number (S/N). Serial number may be required during installation.
3.
Control button
4.
SDHC card slot
5.
Status indicator LED
6.
Restart button
Connectors
Network connector - RJ-45 Ethernet connector. Suppo
rts High Power over Ethernet (High PoE). Use the supplied midspan.
Caution
To protect the product against power surges, a shielded network cable (STP) must be used between the product and the
midspan. Ensure that the midspan is properly grounded.
Control button - The control button is used for:
• Connecting to an AXIS Video Hosting System service, see page 33. To c onnect, press and hold the button until the
Status LED flashes green.
• ConnectingtoAXISIn
ternet Dynamic DNS Service, see page 34. To connect, press the button once.
• Restoring the
product to factory default settings, see page 39.
Restart bu
tton - Press to restart the product.
SDHC Memory card slot - A standard or h igh-capacity SD memory card (not included) can be used for local recording with removable
storage. For instructions on how to insert and remove an SD card, please refer to the Installation Guide .
4
AXIS P5522–E PTZ Dome Network Camera
Hardware overview
Note
Before removal, the SD card should be unmounted to prevent corruption of recordings. To unmount the SD card, go to Setup
>SystemOptions>Storage>SDCardand click Unm ount.
LED indica tors
Color
Indication
Unlit
Connection and normal operation
Amber
Steady during system initialization and reset to factory default. Flashes during firmware upgrade.
Amber/red Flashes ambe r/red if n etwork connection is unavail able or lost.
Red Flashes red for firmware upgrade failure.
Green Shows steady green for 10 seconds for normal operation after restart.
5
AXIS P5522–E PTZ Dome Network Camera
Accessing the product
Accessing the product
To install the Axis product, refer to the Installation Guide supplied with the product.
The product can b e used with most operating systems and browsers. The recommended browsers are Internet Explorer with Windows,
Safari with Macintosh and Firefox with other operating systems. See Technical Specifications, on page 45.
Note
• To view streaming video in Internet Explorer, allow installation of AXIS Media Control (AMC) when prompted.
• QuickTime
TM
is also supported for viewing H.264 streams.
• If your computer restricts the use of additional software components, the product can be configured to use a Java
applet for v iewing Motion JPEG.
• The Axis product includes one (1) H.264 decoder license for viewing video streams. The license is automatically installed
with AMC. The administrator can disable the installation of the decoders, to prevent installation of unlicensed copies.
Access from a browser
1. Start a browser (Internet Explorer, Firefox, Safari).
2. Enter the IP address or host name of the Axis product in the browser’s Location/Address field. To access the product from a
Macintosh computer (Mac OS X), click on the Bonjour tab and select the product from the drop-down list.
If you do not know the IP address, use AXIS IP Utility to locate the product on the network. For more information on how to
discover and assign an IP address, refer to the Installation Guide.
3. Enter your user name and password. If this is the first time the product is accessed, the root password must first be
configured; for instructions see Set the root password, on page 7 .
4. The product’s Live View page appears in your browser.
Note
The layout of the Live View page ma yhavebeencustomizedtospecific requirements. Consequently, some of the examples
and functions fea tured here may differ from those displayed in your own Live V
iew page.
Access from the Internet
Once connected, the Axis product is accessible on your local network (LAN). To access the product from the Internet you must
configur
e your netwo rk router to allow incoming data traffic to the product. To do this, enable the NA T-trave rsal feature, which
will attempt to automat ically configure the router to allow access to the product. This is enabled from Setup > System Options >
Network > TCP/IP Advanced.
6
AXIS P5522–E PTZ Dome Network Camera
Accessing the product
For more information, please see NAT traversal (port mapping) for IPv4, on page 35.SeealsoAXISInternetDynamicDNSServiceat
www.axiscam.net For Technical n otes on this and other topics, visit the Axis Support web at www.axis.com\techsup

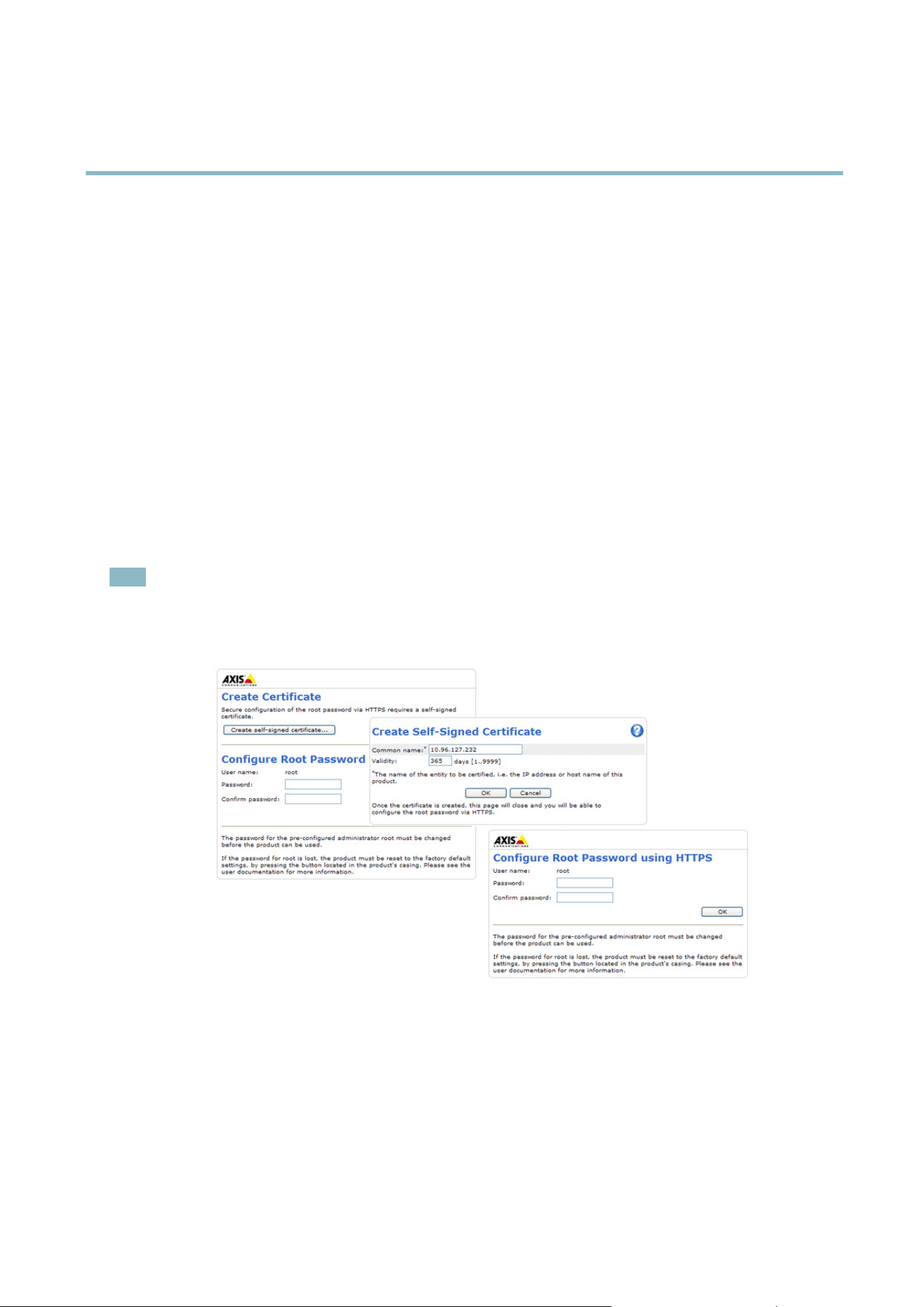

Set the root password
To gain access to the Axis product, you must set the password for the default administrator user root. This is done in the Configure
Root Password dialog, which appears when the product is accessed for the first time.
To prevent network eavesdropping, the root password can be set via an encrypted HTTPS connection, which requires an HTTPS
certificate. HTTPS (Hypertext Transfer Protocol over SSL) is a protocol used to encrypt traffic between web browsers and servers. The
HTTPS certificate ensures encrypted exchange of information.
To set the password via a standard HTTP connection, enter it directly in the first dialog.
To set the password via an encrypted HTTPS connection, follow these steps:
1. Click Create self-signed certificate.
2. Provide the requested information and click OK.Thecertificate is created and the password can now be set securely. All
traffic to and from the product is encrypted from this point on.
3. Enter a password and then re-enter to confirm the spelling. Click OK. The password has now been configured.
Note
• The default administrator user name root is permanent and cannot be deleted.
• If the password for root is lost, the product must be reset to the factory default settings. See Reset to factory default
settings, on page 39.
The Live View page
If the Axis product has been customized to meet specific requirements, not all the items described below will appear in the Live View
page. The following provides an overview of each available button.
7
AXIS P5522–E PTZ Dome Network Camera
Accessing the product
Controls on the Live View page
The Stream Profile drop-d own list allows you to select a customized or pre-programmed stream profile. Stream
profiles are configured under Video > Stream Profiles.SeeStream Profiles, on page 15.
The Manual Trigger button can trigger a n event directly from the Live View page. The button is configured under
Live View Config > Action Buttons.
Click Snapshot to save a snapshot of the video image. Right-click the video image to save it in JPEG format on your
computer. This button is prima rily intended for use when the AXIS Me dia Control viewer toolbar is not available.
Enable this button from Live View Config > Action Buttons.
Activate the pro duct’s fan with this butto n. Enable this button from Live View Config > Action Buttons.
Enable or disable the Gatekeeper by selecting On or Off from the drop-down list. The Gatekeeper is con fi gured
under Setup > Events > Gatekeeper,seepage 26.
AXIS Media Control v iewer toolbar
The AXIS Media Control viewer toolba r is available in Internet Explorer o n ly. See AXIS Media Control (AMC), on page 10 for more
information. The toolbar displays the following buttons:
The Play button connects to the Axis product and starts playing a media stream.
The Stop button stops the video stream.
The Snapshot button takes a snapshot of the video image. The location where th
e image is saved can be specified
in the AMC Control Panel.
Click the View Full Screen button and the video image will fill the entire screen. Press ESC (Escape) on the computer
keyboard to cancel full screen view.
The Record button is used to record the current video stream. The location where the recording is saved can be specified
in the AMC Control Panel.
PTZ Controls
The Live View page also displays Pan/Tilt/Zoom (PTZ) controls. The administrator can enable/disable controls for specified users under
System Options > Security > Users.
With the PTZ Control Queue enabled the t
ime each user is in control of the PTZ settings is limited. Click the buttons to request or
release control of the PTZ controls. The PTZ Control Queue is set up under PTZ > Control Queue.
Click the Emulate joystick mo
de button and click in the image to move the camera view in the direction of the
mouse pointer.
Click the Center mode but
ton and click in the image to center the camera view on that position.
8
AXIS P5522–E PTZ Dome Network Camera
Accessing the product

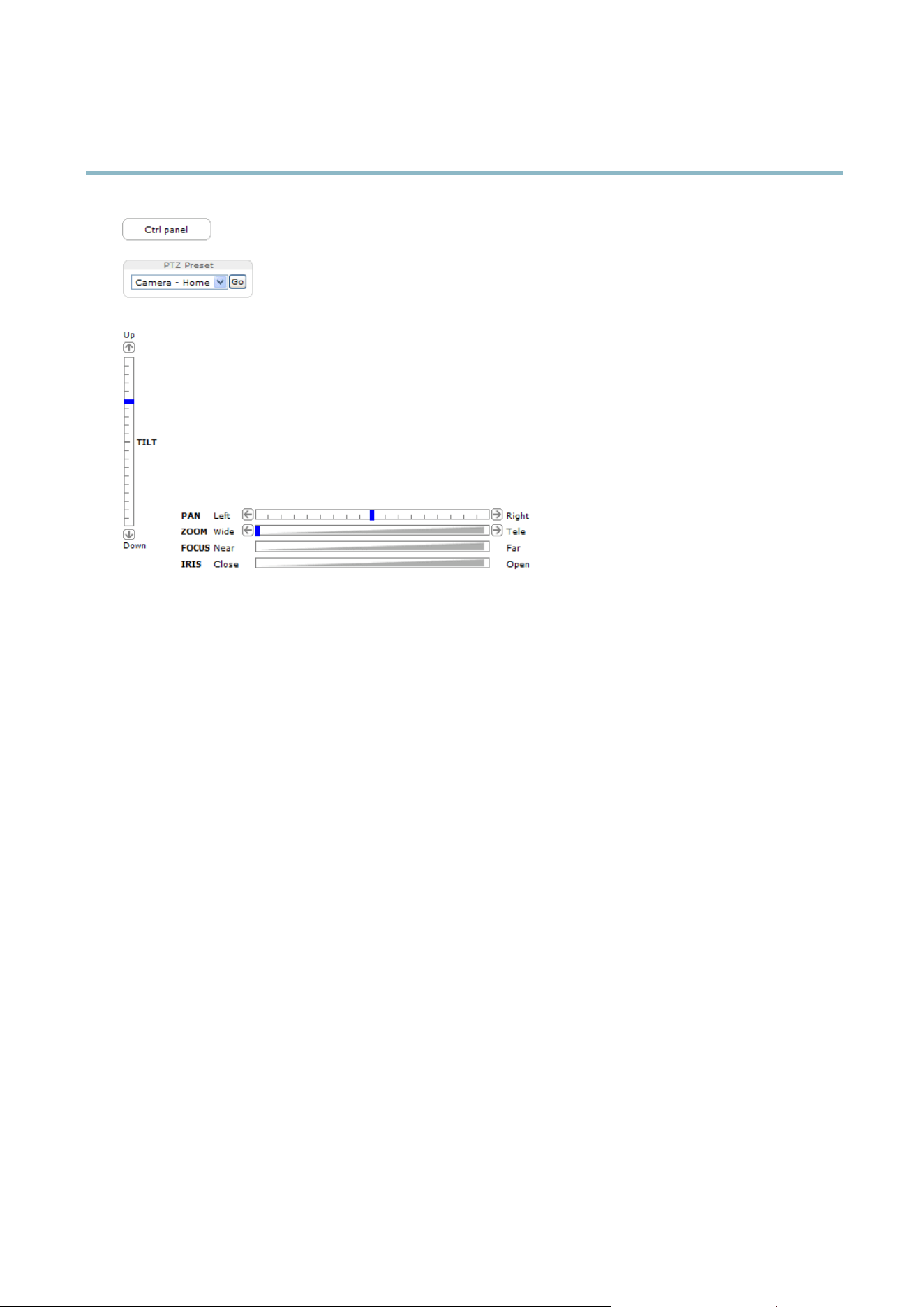

Click the Ctrl panel button to open the PTZ control panel which provides additional PTZ controls.
User-defined buttons can also appear in the Control panel. See Controls, on page 21.
Select a PTZ preset position to s teer the camera vie w to the saved position. See Preset positions,
on page 20.
Pan and Tilt b ars – Use the arrows to pan and tilt the camera view, or click on a position on the bar to steer the
camera view to that position.
Zoom bar – Use the arrows to zoom in and out, or click on a position on the bar to zoom to that position.
Focus bar – Click on a position on the focus bar to set the focus position. This will disable the product’s autofocus. To
re-enable, use the PTZ control panel which is opened by clicking the Ctrl panel button (see above).
Iris bar – Click on a position on the iris bar to change the degree to which the iris is opened. This will disable the
product’s auto iris. To re-enable, use the PTZ control panel which is opened by clicking the Ctrl panel button (see above).
The PTZ controls can be disabled under PTZ > Advanced > Controls,seeControls, on page 21.
9
AXIS P5522–E PTZ Dome Network Camera
Media s treams
Media streams
The Axis product provides several image and video stream form ats. Your requirements and the properties of your network will
determine the type you use.
The Live View page in the product p rovides access to H .264 and Motion JPEG video streams, and to the list of available stream profiles.
Other applications and clients can access video streams directly, without going via the Live View page.
How to stream H.264
The video compression standard H.264 makes good use of bandwidth, and can provide high quality video streams at less than 1 Mbit/s.
Deciding which combination of protocols and methods to use depend s on your viewing requirements, and on the properties of
your network. The available options in AXIS Media Control are:
Unicast RTP
This unicast method (RTP over UDP) is used
for live unicast video, esp ecia lly when it is
important to always have an up-to-date video
stream, even if some images are dropped.
RTP over RTSP
This unicast method (RTP tunneled over RTSP )
is useful as it is relatively simple to configure
firewallstoallowRTSPtraffic.
RTP over RTSP over HTTP
This unicast method can be used to traverse
firewalls. Firewalls are commonly configured to
allow the HTTP protocol, thus allowing RTP to
be tunneled.
Unicasting is used for video-on-demand
transmission so that there is no video traffic
on the network until a client c onnects and
requests the stream.
Note that there are a maximum of 20
simultaneous unicast connections.
Multicast RTP
This method (RTP over UDP) should be used for live m ulticast video. The video stream is al
ways
up-to-date, even if some images are dropped.
Multicasting provides the most efficient usage of bandwidth whe n there are large numbers of
clients viewing simultaneously. A multicast cannot however, pass a network ro
uter unless the
router is configured to allow this. It is not possible to multicast over the Internet, for example.
Note also that all multicast viewers count as one unicast viewer in the maximum total of 20
simultaneous connections.
AXIS Media Control negotiates with the Axis product to d etermine the transport protocol to use. The order of priority, listed in the
AMC Control Panel, can be changed and the op
tions disabled, to suit specific requirements.
Note
H.264 is licensed technology. The Axis product includes one H.264 viewing client license. Installing additional unlicensed
copies of the clients is prohibited. To purchase additional licenses, contact your Axis reseller.
MJPEG
This format uses
standard JPEG still images for the video stream. These images are then displayedandupdatedataratesufficient
to create a stream that shows constantly updated motion.
The Motion JPEG stream uses considerable amounts of bandwidth, but provides excellent image qualityandaccesstoeveryimage
contained in the stream. The recommended method of accessing Motion JPEG live video from the Axis product is to use the AXIS
Media
Control in Internet Explorer in Windows.
AXIS Media Control (AMC)
AXIS Media Control (A MC) in Internet Explorer in Windows is the recommended metho d of accessing live vide o from the Axis product.
10
AXIS P5522–E PTZ Dome Network Camera
Media s treams
TheAMCControlPanelcanbeusedtoconfigure various video settings. Please see the AXIS Media Control User’s Manual for more
information.
The AMC Control Panel is automatically instal led on first use, after which it can be configured. Open the AMC Control Panel from:
• Windows Co ntrol Panel (from the Start menu)
• Alternatively, right-click the video image in Interne t Explorer and click Settings.
Alternative methods of accessing the video stream
You can also access video and images from the Axis product in the fo llowing ways:
• Motion JPEG server push (if supported by the client, Firefox, for example). This option maintains an open HTTP connection
to the brow s er and send s data as a nd when requi red, for as long as r equired.
• Still JPEG images in a browser.Enterthepathhttp://<ip>/axis-cgi/jpg/image.cgi
• Windows Media Player. This requires AXIS Media Control and the H.264 decoder to be installed. The following paths
can be used:
-UnicastviaRTP:axrtpu://<ip>/axis-media/media.amp
- Unicast via RTSP: axrtsp://<ip>/axis-media/media.amp
- Unicast via RTSP, tunneled via HTTP: axrtsphttp://<ip>/axis-media/media.amp
-Multicast:axrtpm://<ip>/axis-media/media.amp
• QuickTime
TM
. The following paths can be used:
- rtsp://<ip>/axis-media/media.amp
- rtsp://<ip>/axis-media/media.3gp
11
AXIS P5522–E PTZ Dome Network Camera
Media s treams
Note
• <ip>= IP addess
• The Axis product supports QuickTime 6.5.1 and later.
• QuickTime adds latency to the video stream (up to 3 seconds).
• It may be possible to use other players to view the H.264 stream using the paths above, although Axis does not guarantee
this.
12
AXIS P5522–E PTZ Dome Network Camera
Setting up the product
Setting up the product
The Axis product can be configured by users with administrator or operator rights . Click Setup in the top right-hand corner of
theLiveViewpage.
• Administrators have unrestricted access to all settings.
• Operators have access to all settings except System Options
See also the online help
.
Basic Setup
Basic Setup provides shortcuts to the settings thatshouldbemadebeforeusingtheAxisproduct:
1. Users, see page 31.
2. TCP/IP, see page 33.
3. Date & Time, see page 32.
4. Video Stream, see page 14.
13
AXIS P5522–E PTZ Dome Network Camera
Video
Video
It is possible to configure the following video features in your Axis product:
• Video stream. See page 14.
•Streamprofiles. See page 15.
• Camera settings. See page 15.
• Overlay image. See page 17.
•Privacymask.Seepage 17.
Video Stream
You can define the following video stream settings fro m Video > Video Stream:
•Image.Seepage 14.
• H.264. See page 15.
•MJPEG.Seepage 15.
You can modify the image resolution and compression, and rotate the image from the Image tab (Video > Video Stream). Setting
the compression level affects the image quality and bandwidth; the l ower the compression, the higher the image quality with
higher bandwidth requirements.
To avoid bandwidth problems on the network, you can limit the frame rate allowe d to each viewe r. The maximum frame rate can be
set to Unlimited, or you can limit the frame rate to a value.
You can also have an image or text superimposed o v er the image as overlay. See Overlay, on page 17.
You must save your settings before they can take effect.
14
AXIS P5522–E PTZ Dome Network Camera
Video
H.264
The GOV structure describes the composition of the video stream and setting the GOV-length to a higher value saves considerably on
bandwidth but may have an adverse e ffect on image quality.
ThebitratecanbesetasVariable Bit Rate (VBR) or Constant Bit Rate (CBR). VBR adjusts the bit rate according to the image
complexity, using up more bandwidth for increased activity in the image, and less for lower activity in the monitored area. CBR
allows you to set a fixed Target bit rate that consumes a predictable amount of bandwidth. As the bit rate would usually need to
increase for increased image activity, but in this case cannot, the frame rate and image quality are af fected negatively. To partly
compensate for this, it is possible to prioritize either the frame rate or the image quality. Not setting a priority means the frame rate
and image quality are equally affected. You must save your settings before they can take effect.
The current bit rate can be set to appear as text overlay. To do this, select the Include text check box option under Overlay Settings
and enter the code #b in the field.
MJPEG
Sometimes the ima ge size is large due to low light or complex scenery. Adjusting the ma ximum frame size helps to control the
bandwidth and storage used by the Motio n JPEG video stream in these situations. Setting the frame size to the Default setting
provides consistently good image quality at the expense of increased bandwidth and storage usage in low light. Limiting the frame
size optimizes bandwidth and storage usage, but may give poor image quality. To prevent increased bandwidth and storage usage,
the maximum frame size should be set to an optimal value.
Stream Profiles
There are four pre-programmed stream profiles availab le for quick se t up . The settings for thes e c a n be ad jus ted. New customized
profiles can also be created. Each profile has a descriptive name, indicating its purpose.
•Thestreamprofiles can be accessed from the Stream profile drop-down list in the Live View page.
• To add, copy, modify, and remove stream profiles go to Video > Stream Profiles.
• To select the default stream profile go to Live View Config > Stream Profile and choose the profile from the drop-down list.
For more information see the online help
on this page.
Camera Settings
The Video > Camera Settings page provides access to advanced image settings for the Axis product.
Image Appearance
Brightness - The image brightness can be adjusted in the range 0–100, where a higher value produces a brighter image.
Sharpness - Controls the amount of sharpening applied to the image. A sharper imag e might increase image noise espe cially in low
light conditions. A lower setting reduces image no ise, but the whole image will appear less sharp. Increasing the sharpness can
increase bandwidth usage.
IR cut filter
The IR cut filter prevents infrared (IR) light fro m reaching the image sensor. In poor lighting conditions, for example at nig ht, or
when using an IR lamp, set the IR cut filter to Off. This increases light s ensitivity and allows the product to “see” infrared light. The
image is shown in black and white when the IR cut filter is off.
If using automatic Exposure control,settheIRcutfilter to Auto to automatically switch between On and Off accordingtothe
lighting conditions.
15
AXIS P5522–E PTZ Dome Network Camera
Video
White balance
White balance is used to make colors in the image appear the same regardless of the color temperature of the light source. The Axis
product can be set to automatically identify the light source and compensate for its color. Alternatively, select the type of light
source from the drop -dow n list. For a description of each available s etting, see the online help
.
Wide Dynamic Range
Wide dynamic range can improve the exposure when there is a considerable contrast between light and dark areas in the image.
Exposure Settings
Configure the exposure settings to suit the image quality requirements in relation to lighting, frame rate and bandwidth
considerations.
Select Enable Backlight compensation if a bright spot of light, for example a light bulb, causes other areas in the image to appear
too dark.
The Exposure control setting is used to adapt to the amount of light used. Select one of the following modes:
• Auto is the default settings and can be used in most situations. Shutter speed, Iris and Gain are auto m atically set to
produce optimum image appearance for different lighting situations.
• Manual Shutter allows you to manually adjust the shutter speed. Iris a nd Gain a re set automatically.
• Manual Iris allows you to m anually adjust the iris o pening in the lens. Shutter speed and Gain are set automatically.
• Manual allows you to m anually adjust Shutter speed, Iris and Gain.
Shutter speed - A slower speed in dark conditions will help to produce a brighter image, but will produce fewer frames per second,
which may cause blurry images during motion.
Iris - A larger F-value means less light sensitivity, but a larger de pth of field.
Gain - Measured in decibels (dB), gain describes the amount of amplification applied to a signal, in this case the visual information
in the image. A high level of amplification may p rovide a better image in very low light situations. A high gain will also increase
theamountofimagenoise.
Maxexposuretime-Increasingtheexposuretimewillimproveimagequality, but decrease the frame rate. There may also be
an increase in motion blur.
Max gain - Max gain limits the amount of gain that can be applied to the image in Exposure control modes with automatic
gain adjustment.
Exposure zones - This settings determines which part of the image is used to calculate the exposure. For most situations, the Auto
setting can be used. For particular requirem ent, select a predefined area.
Image settings
Autofocus enabled - Automatic f ocusing is enabled by default. If the focus position is changed manually using the focus bar,
autofocus will be disabled even if enabled here. In this case, use the PTZ control panel to enable autofocus, see PTZ Controls, on page
8 . If required, the focus control can be disabled under PTZ > Advanced > Controls.
Noise reduction - Set to On to enable noise r eduction. Noise reduction may increase the amount of motion blur.
ImagefreezeonPTZ-Select All movements to freeze the image while the cam era is moving during a pan, tilt or zoom operation.
Once the camera reaches its new position, the view from that position is shown. Presets freezes the image only when the camera
moves between preset positions.
16
AXIS P5522–E PTZ Dome Network Camera
Video
Overlay
An overlay can be text or an image superimposed over the video image. The overlay image can be used to provide extra information,
or to mask a part of the video image. See the online help
for supported imag e for mats and sizes.
To use your own image, such as a logo, first upload the image to the Axis product. G o to Video > Overlay Image,browseforand
upload the image file on the computer. The filecanthenbeselectedfromtheUse overlay image drop-down list.
To place an overlay image at spe cific coordinates, go to Video > Video Stream and select the Include overlay image a t coordinates
check bo x option and enter the X and Y coordinates.
AstextoverlayitispossibletoincludethenameoftheOSDIzone,seeOSDI Zones, on page 21; to vie w the current bit rate as overlay
text, go to Video > Video Stream > Overlay Settings,selecttheInclude text check box option, and enter the code #b in the field.
For m ore information see the online help
Privacy Mask
A privacy mask is an area of solid color that prohibits users f rom viewing parts of the monitored area. It is possible to use up to eight
privacy masks. Privacy masks cannot be bypassed via the VAPIX® Application Programming Interface (API).
The Privacy Mask List (Video > Privacy Mask) shows all the masks that are currently configured in the Axis product and indicates
if they are enable d.
You can add a new mask, re-siz e the mask with the mouse,chooseacolorforthemask,andgivethemaskaname.
For more information, see the online help
17
AXIS P5522–E PTZ Dome Network Camera
Live View Config
Live View Config
You can customize the Live View page and alter it to suit your requirements. It is possible to define the following features of
theLiveViewpage.
•StreamProfile. See page 15.
• Default Viewer for Browser. See page 18.
• Viewer Settings. See page 19.
• Action Buttons. These are the buttons described in Controls on the Live View page, on page 8 .
•UserDefined Links. See page 19.
Default viewer for browser
s
From Live View Config > De
fault Viewer select the default method for viewing video images in your browser. The p roduct attempts
to show the video images in the selected video format and viewer. If this is not possible, the product o verrides the settings and
selects the best available combination.
18
AXIS P5522–E PTZ Dome Network Camera
Live View Config
Browser Viewer Description
AMC
Recommended viewer in Internet Explorer (H.264/Motion JPEG)
QuickTime
H.264
Java applet
A slower imag ing alternative to AMC. Requires one of the following installed
on the client:
• JVM (J2SE) 1.4.2 or higher
• JRE (J2SE) 5.0 or higher
Windows Internet Explorer
Still image Displays still images only. Click the Refresh button in your browser to view a
new image
Server Push
Recommended vi ewer for other browsers (Motion JPEG).
QuickTime
H.264
Java applet
A slower imaging alternative to Server Push (Motion JPEG only ).
Other browsers
Still image Displays still images only. Click the Refresh button in your browser to view a
new image
For more information, ple ase see the online help .
Viewer Settings
Options for the viewer are configured under Live View Config > Viewer Settings.
•TheShow viewer toolbar option will display the AXIS Media Control (AMC) or the QuickTime viewer toolbar unde r the
video image in your browser.
• H.264 decoder installatio n. The administrator can d isable install
ation of the H.264 decoder included with AXIS Media
Control. This is used to prevent installation of unlicensed copies. Further decoder licenses can be purchased from your
Axis reseller.
•SelectShow crosshair in PTZ joystick mode to enable a cross that will indicate the center of the image in PTZ joystick mode.
•SelectUse PTZ joystick mode as default to enable joystick mode. The mode can be changed temporarily from the PTZ
control panel.
• You can enable recording fro
m the Live View page. The recordings are saved to the location specified in the AMC Control
Panel. See A XIS Media Control (AMC), on page 10.
User Defined Link s
To display user-defined links in the Live View page, select the Show custom link option, give the link a name and then enter the URL
to link to. Wh
en defining a web link do not rem ove the 'http://' from the URL address. Custom links can be used to run scripts or
activate external devices connected to the product, or they can link to a web page. Custom links defined as cgi links will run the
script in the background, in a hidden frame. D efining the link as a web link will open the link in a new window.
19
AXIS P5522–E PTZ Dome Network Camera
PTZ (Pan Tilt Zoom)
PTZ (Pan Tilt Zoom )
Preset positions
A preset position is a predefined view that can be used to quickly steer the camera to a specificlocation.
To add a preset position:
1. Go to PTZ > Preset Positions.
2. Use the pan, tilt and zoom contro ls to steer the camera view to the desired position.
3. Enter a descriptive name in the Current position field.
4. If required, select Use current position as Home.
5. Click Add.Thecamera’sposition,irisandfocussettingsaresavedasapresetposition.
The position can be a ssume d at any time by selecting the pre s et from the Preset positions drop-down list in the Live View page, and
when setting up Events, Guard Tours and the Gatekeeper. The Home position is readily accessible by clicking the Home button on
the Live View page and in the Preset Positions setup window .
To set a customized home position, select Use current position as Home when adding a preset position. The user-defined home
position will have (H) added, for example, Entrance (H). The default Home position, called “Home”, will still be a vailable.
The product can be configured to return to the Home position when it has been inactive for a specified length of time. Enter
thelengthoftimeintheReturn to home when inactive fiel d and click Save. Set the time to zero to prevent the product fro
m
automatically returning to the Hom e position.
To include the preset position name in the overlay text, go to Video,selectInclude overlay text and enter the modifier #P in the field.
For more information about modifiers, see File Naming & Date/Time Formats in the online help
.
Guard Tour
A guard tour displays the video stre am from different preset positions, one-by-one, in a predetermined order or at random and for
configurable time periods. The guard tour will keep running after the user has logged off or closed the browser.
To add, remove and modify guard tours, go to PTZ>GuardTour. For more information see the online help
.
Note
The pause between guard tour runs must be set to at least 10 minutes.
20
AXIS P5522–E PTZ Dome Network Camera
PTZ (Pan Tilt Zoom)
OSDI Zones
On-Screen Direction Indicator (OSDI) zones can be included in the overlay text (see Overlay, on page 17)toaidtheusertonavigate
the Axis product. Each OSDI zone is set up with coordinates and a descriptive name.
OSDI zones are set up under PTZ > OSDI Zones. The Axis product uses the coordinates of the center of the view to set the lower
left and uppe r right zone are as. First navigate to where you wou ld like the lowermost left point of the OSDI zone to be located.
Click Get to set the coordinates. Proceed to where the upper right point of zone should be located and click Get. Give the zone a
descriptive name and click OK.
To include the name of the OSDI zone in the overlay text, go to Video < Video Stream < Overlay Settings.ChecktheInclude
text box and e nter the modifier #L in the field. For more information about m odi fiers, see File Naming & Date/Time Formats in
theonlinehelp
.
Advanced
Limits
Define the pan, tilt, zo om and focus limits for the Axis product. Movements to the left and right, up and down, can be restricted to
narrow the area under surveillance. The near focus limit can be set to avoid focusing on objects too close to the cam e ra lens.
Move speed sets the speed of the camera’s pan and tilt movements. The default setting is maxim um speed.
When using a joystick (or emulating one with the mouse) the Enable proportional speed setting can be used to reduce the maximum
pan/tilt movement speed, i.e. the speed the camera view moves at when the joystick is pushed all the way out in any direction. This is
useful then the view is zoomed in on an object.
When Enable Auto-flip is selected, the Axis product will simulate continuous pan movement in the same direction, i.e. the camera
will pan the full 360 degrees, even though there is a mechanical stop at ±180 degrees.
When Enable movement prediction is selected, the Axis product will atte mpt to predict the new position in the pan movement, after
compensating for the slight delay while the camera changes direction a fte
ranauto-flip. This is useful for tracking moving objects or
persons when using the joystick or emulated joystick mode.
See the online help
for more information.
Controls
Panel Shortcut Command Buttons can be configured to provide direct access to commands issued via the VAPIX® Application
Programming Interface. The buttons will be displayed in the PTZ control panel, which is available in the Live View page though
the Ctrl panel button, see page 8 .
Deselect the options under Enable/Disable controls to disable the pan, tilt, zoom, focus and iris controls.
Note
Disabling PTZ cont
rols will affect preset positions. For example, if the tilt control is disabled, the product cannot move to
preset positions that require a tilt movement.
Control Queue
The administrator can set up a queue for PTZ controllers from PTZ > Control Queue. Once set up, the PTZ Control Queue buttons
appear in the Live View page offering one viewer exclusive control for a limited period of time. Other users will be placed in queue.
A user who belongs to a group (see Users, on page 31) with a higher PTZ priority can go before other use rs in the queue and
take control of the product. The order of priority is as follows:
1. Administrator — An administrator takes over PTZ control regardless of who is first in queue. The administrator will be
removed from the queue 60 seconds after the last PTZ control command.
21
AXIS P5522–E PTZ Dome Network Camera
PTZ (Pan Tilt Zoom)
2. Event — The Axis product can be configured to go to a preset position w hen triggered by an alarm (see Events, on page 24).
The event will immediately be pla ced first in the queue except when an adminis trator is in control.
3. Operator — Same as adm inistrator but with lower priority
4. Guard Tour — A guard tour (see page 20) has PTZ control for an indefinite period of time. It may be overridden by an
operator, event or administrator. The guard tour will resume when higher priority groups leave the queue.
5. Viewer — Multiple viewers must wait for their turn. The viewer has 60 seconds PTZ control before control is passed
on to the next viewer in queue.
Note
• The administrator can enable and disable PTZ controls for selected users.
• To identify different users in the viewer group, cookies must be enabled o n the client.
22
AXIS P5522–E PTZ Dome Network Camera
Applications
Applications
Third party applications can be upload ed to and installed on the Axis product. For more information, go to www.axis.com/a pplications
To upload an application, go to Applications > Packages, c lick Browse to locate the file and then click Upload Package. Click on the
uploaded application’s name to open the menu options Settings, License and About.Forconfiguration instructions, ple ase refer to
the documentation provided with the application.
Most applications need a license to run. To install the license, select the License menu option. If the product is connected
to the Internet, Automatic Installation appears in the web page. If the prod uct is not connected to the Internet, go to
www.axis.com/applications to acquire a License k e y . You will need a license code and the product’s serial number (found on the label
and under System Options > Support > System Overview) to receive a license key.
Installed Applications l ists instal led applications with information about the version a nd the ven dor , the s tatus of the a pplication
(running or not running), and information about the license.
Use the Start and Stop buttons to start and stop the application.
To generate a log file for the appli cation, select the application and click Log.
Note
It is recommended to run one application at a time. Avoid running applications when motion detection is active.
23
AXIS P5522–E PTZ Dome Network Camera
Events
Events
Predefined parameters, known as an Event or Ev en t T ype, can trigger actions in the Axis product. A common event type is an alarm
that causes the product to upload images to an Event Server.
Triggered events - are activated by a signal, for example motion detection.
Scheduled events - run at p reset times, in a repeating pattern on selected weekda ys.
Actions - refer to what h appens whe n an event occurs.
Triggered events can be activated by:
• Motion detection, see page 26
• A trigger from an uploaded application, see Applications, on page 23
• Pan Tilt Zoom — when the view stops at a preset position
• Full disk — w h en the SD card has less than 1 MB free memory le ft
• System events, for example on boot.
Event actions include:
• Uploading images to an event server or send images by email
• Savingthevideostreamtotheproduct’sSDcard
• Sending notification messages and e mails
• Pan Tilt Zoom — go to a preset or run a guard tour
Event Servers
Event servers receive uploaded image files and
/or notification messages. To set up event server connections in the Axis product, go
to Events > Event Servers and enter the r equired information for the server type.
Note
Email servers are configured under System Options > Network > SMTP (email) .
When the setup is complete, click Test to test the connection (the connection test takes approximately 10 seconds).
Server type
Purpose
Information
required
FTP Server
• Receives uploaded images • Descriptive name
• Network address and upload path
• User name and password
HTTP Server
•Receivesnotification messages
• Receives uploaded images
• Descriptive name
• URL (IP address or host name)
• User name and password
• Proxy settings
TCP Server
•Receivesnotification messages • Descriptive name
• Network address (IP address or host name)
• Port number
For de t ails on each settings, see the online help .
24
AXIS P5522–E PTZ Dome Network Camera
Events
Event Types
An Event Type d escribes how and when the Axis product performs certain actions.
Example
If somebody passes in front of the camera and an event has been confi gured to detect and respond to motion, the Axis product can
recordandsaveimagestoanFTPserverandsendanotification email. Images can be sent as email attachments.
Set up a triggered event
The following example describes how to configure the Axis product to upload images when motion is detected.
1. Go to Events > Motion Detection and set up a motion detection window. See Set up motion detection, on page 27.
2. Go to Events > Event Types and click Add triggered.
3. Enter a descriptive name for the event, for examp le Motion detected.
4. Set the Priority — high, normal or low.
5. Set the Respond to Trigger para mete rs to define when the event is active, for example, after office hours.
6. Select Motion detection from the Triggered By list. Select the desired motion detection window and indicate if the event
should be triggered when motion starts or stops (or both).
7. Set the When Triggered pa rameters, that is, define what the product should do when motion is detected. To upload images,
select Save stream and enter the required information. See Save stream.
8. Click OK to save the event.
Note
•Upto10eventtypescanb
econfigured, and up to 3 of these can be configured to upload images.
• File names can be formatted according to specific requirements. See File Naming & Date/Time Formats in the online help.
Set up a scheduled event
A scheduled event can be activated at preset times, in a repeating pattern on selected weekdays.
The following example describes how to con figure the Axis product to upload images from pre-programmed time periods.
1. Go to Events > Event Types and click Add scheduled.
2. Enter a descriptive name for the event, for example Scheduled e mail upload.
3. Set the Priority — high, normal or low.
25
AXIS P5522–E PTZ Dome Network Camera
Events
4. Set the Activation Time parameters (24h clock) for the event. For example, select Recurrence pattern and let the event
start on Sundays at 13.00 with a duration of 12 hours.
5. Set the When Activated parameters, that is, define what the product should do when motion is detected. To upload images,
select Save stream and enter the required information. See Save stream.
6. Click OK to save the event.
Save stream
To upload images to an FTP or HTTP server, save the video stream to the SD card or send images by email, check the Save stream box.
Pre-trigger and post-trigger buffers are useful when checking to see w hat happened immediately before and after a trigger . All
uploaded images are JPEG images.
Image frequency - Set the image frequency to a desired frame rate. The frame rate will be the best possible, but might not be a s
high as specified, especially if uploading via a slow connection.
Include pre-trigger buffer - Images stored internally in the p roduct from the time immediatel y preceding the trigger. Check the box
to enable the pre-trigger buffer a nd specify the buffer length in seconds, minutes or hours.
Include post-trigger buffer - Images stored internally in the product from the time immediately after the trigger. Check the box to
enable the post-trigger buffer and specify the buffer length in seconds, minutes or hours.
Note
• Pre-trigger and post-trigger buffers will be lost if the connection to the event server fails.
• The maximum length of the pre-/post-trigger buffer depends on the video image size and selected frame rate.
• If the pre- or post-buffer is too large for the product’s internal memory, the frame rate is reduced and individual images
may be missing. If this occurs, an entry is created in the product’s log file.
Continue image upload (unbuffered) - Upload video images f or a fixed length of time or for as long as the trigge r is active.
Select type - Upload images to an FTP or HTTP server, s end images by email or save the video stream to the SD card.
Create folder - Images uploaded to FTP and HTTP servers can be saved t o designated folders. Folders can, for example, be named
using the current date and time, see File Naming & Date/Time Formats intheonlinehelp.
Base file name - Used to name all upload ed images. Add a suffixoruseyourownfile format to give the images unique names, see
File Naming & Date/Time Formats in the online help.
Use stream profile - Select the stream profile to upload, send as email or save to the SD card. When saving to the SD card, the video
format mu st first be selected. For informatio n on stream profiles, see Stream Profiles, on page 15.
Gatekeeper
The Gatekeeper m onitors an area such as an entrance gate. It can pan, tilt and zoom in, and take a snapshot of, for example, a
face, triggered
by movement in the area. The camera will then automatically return to the home position and continue to overview
the monitored area.
To configure the Gatekeeper, follow the online instructions under Events > Gatekeeper.
M
otion detection
Motiondetectionisusedtogenerateanalarmwhenevermovementoccurs(orstops)intheview.Upto10IncludeandExclude
windows can be configured:
• Include windows — target specific areas within the whole video image
26
AXIS P5522–E PTZ Dome Network Camera
Events
• Exclude windows —define areas w ithin an Include window that should be ignored (areas outside Include windows
are automatically ignored)
Once configured, the motion detection windows appear in the list of available tri ggers for triggered events. See Set up a triggered
event, on page 25.
Note
Using the motion detection feature may decrease the prod uct’s overall performance.
Set up motion detection
To set up a motion detecti on Include Window , follow these instructions:
1. Go to Events > Motion Detection.
2. Select the Configure Included W indows option and click New. Select the new window in the list of windows and enter
adescriptivename.
3. Adjust the size (drag the bottom right-hand corner) and the position (click on the text at the top and drag to the desired
position) of the a ctive window (window with red frame).
4. Adjust the Object Size, History and Sensitivity profile sliders (se e Motion detection parameters for d etails). Any detected
motion within an active window is indicated by red peaks in the Activity window.
5. Click Save.
To exclude parts of the include window, select the Configure Excluded Windows and position the exclude window within the
include window.
To delete an include or exclude window, s elect the window in the list of windows and click Del.
Motion detection parameters
The parameters controlling motion detection are described in the table below:
Parameter
Object S
ize
History
Sensiti
vity
Description
Object size relative to window
size.
Object memory length.
Difference in luminance
between background and
object.
27
AXIS P5522–E PTZ Dome Network Camera
Events
High level (100%)
Only very large objects trigger
motion detection.
An object that appears in
the window triggers motion
detection for a long time
before it is considered as
non-moving.
Ordinary colored objects on
ordinary backgrounds trigger
motion detection.
Medium level (50%)
A large difference in luminance
is required to trigger motion
detection.
Low level (0%)
Even very small objects trigger
motion detection.
An object that appears in
the window triggers motion
detection only for a very short
time before it is considered as
non-moving.
Only very bright ob jects on
a dark background trigger
motion detection.
Recommended values
5–15% 60–90% 75–95%
Default values
15% 90% 90%
Tips:
• To trigger on small objects or movements, use several small m otion detection windows rather than one large window
and select a low object size.
• To avoid triggering on small objects, select a high object size.
• If no objects should appear in the Include Window, select a high history level. This will cause motion detection to trigger as
long as the object is present in the window.
• To only detect flashing light, select a low sensitivity. In other cases hi
gh sensitivity is recommended.
28
AXIS P5522–E PTZ Dome Network Camera
Recordings
Recordings
If using an SD c ard, the Axis product can be configured to record video continuously or as a result o f a triggered or scheduled event:
• To start a continuous recording, see page 30.
• To set up triggered and scheduled events, see Events, on page 24.
• To access event recordings, see page 29.
Event recordings
Event r ecordings made to the product’s SD card (not included) can be accessed from the Recordings > Events page. For instructions
how to set up triggered and scheduled events, see Events, on page 24.
From the Recordings > Events page, you can:
• Play recordings from the SD card
• View information on the recording, click Properties
• Lock recordings to prevent accidental removal
• Remove recordings
• Download recordings
Multiple recordings can be downloaded at the same time. Select the recordings and click Download. The downloaded
file is a zip file
containing a minimum of three files, of which the Matroska (mkv) files are the actual recordings. The recordings are time-stamped
with the date and time they were downloaded (that is, not the date the recordings were made).
Note
To play record ings in Windows Media Player, AXIS Matroska File Splitter must be installed. AXIS Matroska File Splitter
can be downloaded from www.axis.com/techsup/software
29
AXIS P5522–E PTZ Dome Network Camera
Recordings
Continuous recording
IfusinganSDcard,theAxisproductcanbeconfigured to continuously save video to the card. To p re vent the disk from becoming
full, it is recommended to enable automatic disk cleanup under System Options > Storage.
To start a continuous recording, follo w these steps:
1. Go to Recordings > Continuous.
2. Select Enabled.
3. Select a Stream profile to use for continuous recordings.
4. Click Save to save and start the recording.
Note
An ongoing recording will b e restarted and all previous continuous recordings will be r
emoved if a new stream profile is
selected.
To restart an ongoing recording, go to Recordings > Continuous and click Restart . This w ill remove all previous continuous recordings.
To play or downlo ad a continuous recording, follow these steps:
1. Go to Recordings > Continuous.
2. To play or d ownload the recording from a point in time, enter the year, month, date and the time in hours and minutes in
the From field.
3. Enter the amount of the recording (hours and minutes) to play or download in the Duration field.
4. Click Play to playback the recording, or click Download to download the recording.
Multiple recordings can be downloaded at the same time. Select the recordings and click Download. The downloaded file is a zip file
containing a minimum of three files, of which the Matroska (mkv) files are the actual recordings. The recordings are time-stamped
with the date and time they were downloaded (that is, not the date the recordings were made).
Note
To play record ings in Windows Media Player, AXIS Matroska File Splitter must be installed. AXIS Matroska File Splitter
can be downloaded from www.axis.com/techsup/software
30
AXIS P5522–E PTZ Dome Network Camera
System Options
System Options
Security
Users
User access control is enabled by default and can be configured under System Options > Security > Users. A n administrator can
set up other users by giving them user names and passwords. It is also possible to allow anonymous viewer login, which means
that anybody may access the Live V iew page.
The user list displays authorized users and user groups (acces s levels):
Viewer - Access to the Live View page
Operator - Access to the Live View page and to all settings except System Options
Administrator - Unrestricted access to all settings; can add, modify and remove other users.
Under HTTP/RTSPPasswordSettings, select the type of password to allow. You may need to allow unencrypted passwords if there
are viewing clients that do not support encryption, or if you upgraded the firmware and existing clients support encryption but need
to log in again and be configuredtousethisfunctionality.
Under User Settings,checktheboxtoenableanonymous viewer login to allow anonymous users access to the Live View page.
Check the box to enable anonymous PTZ control login to allow anonymous users access to the PTZ controls.
Uncheck the box Enable Basic Setup to hide the Basic Setup menu. Basic Setup provides quick access to settings that should be
made before using the Axis product.
IP Address Filter
IP address filtering is enabled on the System Options > Security > IP Address Filter page. Once enabled, the listed IP address are
allowed or denied access to the Axis product. Select Allow or Deny from the list and click Apply to enable IP address filtering.
The administrator can add up to 256 IP address entries to the list (a single entry can contain multiple IP addr esses). The users from
these IP addresses need to be specifi
ed in the user list with the appropriate access rights. See System Options > Security > U sers.
HTTPS
The Axis product supports encrypted browsing using HTTPS. This is configured on the System Options > Security > HTTPS page.
A self-signed certificate can be used until a Certificate Authority-issued certificate has been obtained. Click Create self-signed
certificate to install a self-signed certifi cate. Although self-signed certificates are free and offer some protection, true security is only
implemented a
fter the installation of a signed certificate issued by a Certificate Authority.
To obtain
asignedcertificate from an issuing Certificate Authority, click Create Certificate Request. W hen the signed certificate
is returned, click Install signed certificate to import the certificate. The properties of any certificate request currently resident in
the product or installed can be viewed by clicking Properties.
To enable HTTPS in the Axis product, the HTTPS Connection Policy must be set for each user group.
For more information, see the online help
.
IEEE 802.1X
IEEE 802.1X is a standard for port-based Network Admission Control p roviding secure authentication of wired and wireless network
devices. IEEE 802.1X is based on EAP (Extensible Authentication P rotocol).
31
AXIS P5522–E PTZ Dome Network Camera
System Options
To access a network protected by IEEE 802.1X, devices must authenticate themselves. The authentication is performed by a
third-party entity called an authentication s e rver, typically a RADIUS server, examples of which are FreeRADIUS and Microsoft
Internet Authentication Service.
In Axis' implem enta tion, the network device and the authentication server authenticate themselves with the help of digital
certificates using EAP-TLS (Extensible Authentication Protocol - Transport Layer Security). The certificates are provided by an
Certification Authority (CA). You need:
•aCAcertificate to validate the identity of the authentication server
• a CA-signed clie nt certificate and a private key to authenticate the network device.
To allow the network device to access a network protected by IEEE 802.1X:
1. Obtain a C A certificate, a client certificate and a client private key (contact your network administrator).
2. Go to Setup > System Options > Security > IEEE 802.1X and upload the CA certificate, the client certificate and the
client private key.
3. Under Settings, select the EAPOL version, provide your EAP identity and private key password.
4. Check the box to enable IEEE 802.1X and click Save.
Certificates
CA Certificate The CA certificate is used to validate the identity of the authentication server. Enter the path to
the certificate directly, or lo cate the file using the Browse button. Then click Upload.Toremove
acertificate , click Remove.
Client certificate
Client private key
The client certificate and private key are used to authenticate the network device. They can be
uploaded as separate files or in one combined file (e.g. a PFX file or a PEM file). Use the Client
private key field if uploading one combined file. For each file, enter the path to the file, or locate the
file using the Browse button. Then click Upload.Toremovea
file, click Remove.
Settings
EAPOL version
SelecttheEAPOLversion(1or2)asusedinyournetworkswitch.
EAP identity
Enter the user identity (maximum 16 characters) associated with your certificate.
Private key password
Enter the password (maximum 16 characters) for the private key.
Enable IEEE 802. 1X
Check the box to enable the IEEE 80
2.1X protocol.
Date & Time
The Axis product’
s date and time settings are configured under System Options > Date & Time.
Current Serv
er Time displays the current date and time (24h clock). The time can be displayed in 12h clock in the text overlay (see
below).
To change the date a nd time settings, select the preferred Time mode under New Server Tim e :
• Synchronize with computer time sets date and time according to the computer’s clock. With this option, date and
time are set once and will not be updated automatically.
• Synchronize with NTP Server obtains date and time from an NTP server. With this option, date and time settings are
updated every 60 minutes. For information on NTP settings, see NTP Configuration, on page 34.
If using a host name for the NTP server, a DNS server must be configured. See DNS Configuration, on page 34.
• Set manually allows you to manually set date and time.
32
AXIS P5522–E PTZ Dome Network Camera
System Options
If using an NTP server, select your Time zone from the drop-down list. If required, check Automatically adjust for daylight saving
time changes.
The Date & Time Format Used in Images is the date and time format displayed as a text overlay in the video stream. Use the
predefined formats or see File Naming & Date/Time Formats in the online help
for information on how to create custom date and
time formats. To include date and time in the overlay text, go to Video and select Include date and Include time.
Network
Basic TCP/IP Settings
The Axis product supports IP version 4 and IP version 6. Both vers ions can be enabled simultaneously, and at least one version
must always be enabled.
IPv4 Address Configuration
By default, the Axis product is set to use IPv4 (IP version 4) and to obtain the IP address automatically via DHCP. The IPv4 settings are
configured under System Options > Network > TCP/IP > Basic.
DHCP (Dynamic Host Configuration Protocol) allows network administrators to centrally manage and automate the assignment of IP
addresses. DHCP should only be enabled if using dynamic IP address notification,oriftheDCHPcanupdateaDNSserver,which
when allows you to access the Axis product by name (host name).
If DHCP is enabled and the product cannot be access e d, run AXIS IP Utility to search the ne twork for connecte d Axis products , or reset
the product to the factory default settings (see page 39) and then perform the installation again.
To use a static IP addr ess, check Use the following IP a ddress and specify the IP address, subnet mask and default router.
IPv6 Address Con figuration
If IPv6 (IP version 6) is enable d, the Axis product will receive an IP address according to the configuration in the network router.
To enable IPv6, go to System Options > Network > TCP/IP > Basic. Other settings for IPv6 should be config ured in the network router.
ARP/Ping
The IP address can be set using ARP and Ping. For instructions, see the product’s Installation Guide.
ARP/Ping is enabled by default. To d isa b le , uncheck the box under System Options > Network > TCP/IP > Basic.
The ARP/ P ing service is automatically disabled two minutes after the product is started, or as soon as an IP address is set. To reset the
IP address, the product must be restarted to activate ARP/Ping for an additional two minutes.
Pinging the product is still possible when this service is disabled.
AXIS Video Hosting System (AVHS)
AVHS used in conjunction with an AVHS service, provides easy and secure Internet access to live and recorded video accessible from
any location. For more information and help to find a local AVHS Service Provider go to www.axis.com/hosting
AVHS is enabled by default. The settings are configured under System Options > Network > TCP IP > Basic.
One-click enabled - Press the product’s contro l button (see Hardware overview, on page 4 ) to connect to an AVHS service over the
Internet. Once registered, Always will be enabled and the Axis product stays connected to the AVHS service. If the product is not
registered within 24 hours from w hen the button is pressed, the product will disconnect from the AVHS service.
Always - The Axis product will constantly attempt to connect to the AVHS service over the Internet. Once registered the product will
stay connected to the service. This option can b e used when the product is already installed and it is not convenient to use the
one-click installation.
33
AXIS P5522–E PTZ Dome Network Camera
System Options
AXIS Internet Dynamic DNS Service
AXIS Internet Dynamic DNS Service assigns a host name for easy acce ss to the product. For more information, see www.axiscam.net
To register the A xis product with A XIS Internet Dynamic DNS Service, go to System Options > Network > TCP/IP > Basic.Under
Services, click the AXIS Internet Dynam ic DNS Service Settings button (requires access to the Internet). The domain nam e currently
registered at AXIS Internet Dynamic DNS service for the product can at any time be removed.
Advanced TCP/IP Settings
DNS Configuration
DNS (Domain Name Service) provides the translation of host names to IP addresses. The DNS settings are configured under System
Options > Network > TCP/IP > Advanced.
Select Obtain DNS server address via DHCP to use the DNS settings provided by the DHCP server.
To make manual settings, select Use the following DNS server address and specify the following:
Domain name - Enter the domain(s) to search for the host name used by the Axis product. Multiple domains can be separ ate d by
semicolons. The host name is always the firstpartofafullyqualified domain name, for example, myserver is the host na me in the
fully qualified domain name myserver.mycompany.com where mycompany.com is the domain name.
Primary/Secondary DNS server - Enter the IP addresses of the primary and secondary DNS servers. The secondary DNS server is
optional a nd will be used if the primary is unavailable.
NTP Configuration
NTP (Network Time Protocol) is used to synchronize the clock times of devices in a network. The NTP settings are configured under
System Options > Network > TCP/IP > Advanced.
Select Obtain NTP server address via DHCP to use the NTP s ettings provided by the DHCP server.
To make manual settings, select Use the following NTP server address and enter the host name or IP address of the NTP server.
Host Name Configuration
The Axis product can be accessed using a host name instead of an IP address. The host n ame is usually the same as the assigned DNS
name. The host name is configured under System Options > Network > TCP/IP > Advanced.
Select Obtain host name via IPv4 DHCP to use host name provided by the DHCP server running on IPv4.
Select Use the host name to set the host name manually.
Select Enable dynamic DNS updates to dynamically update local DNS servers whenever the Axis product’s IP address changes.
For more information, s
eetheonlinehelp
.
Link-Local IPv4 Address
Link-Local Address is enabled by default and assigns the Axis product an additional IP address which can be used to access
the product fr
om o ther hosts on the same s egment on the local network. The product can have a Link-Local IP and a static
or DHCP-supplied IP address at the same time.
This function can be disabled under System Options > Network > TCP/IP > Advanced.
HTTP
T
he HTTP port used by the Axis product can be changed under System Options > Network > TCP/IP > Advanced. Any port in the
range 1024–65536 can be used. The default setting is 80.
34
AXIS P5522–E PTZ Dome Network Camera
System Options
HTTPS
The HTTPS port used by the Axis product can be changed under System Options > Network > TCP/IP > Advanced. Any port in the
range 1024–65536 can be used. The default setting is 443.
To enable HTTPS, g o to System Options > Security > HTTPS. For more information, see pa ge 31.
NAT traversal (port mapping) for IPv4
A network router allows devices on a private network (LAN) to share a single connection to the Internet. This is done by forwarding
network traffic from the private network to the “outside”, that is, the Internet. Security on the private network (LAN) is increased
since m ost routers are pre-configured to stop attempts to access the private network (LAN) from the public network (Internet).
Use NAT traversal w h e n the Axis product is located on an intranet (LAN) and you wish to make it a vailable from the other
(WAN) side of a NAT router. With NAT traversal properly configured, all HTTP traffic to an external HTTP port in the NAT router
isforwardedtotheproduct.
NAT traversal is configured under System Options > N etwork > TCP/IP > Advanced.
Note
• For NAT traversal to work, this mus t be sup ported by the router. The router must also support UPnP
TM
.
• The router has many different name s: “NAT router”, “Network router”, “Internet Gateway”, ”Broadband router”, “Broa dband
sharing device” or “Home firewall” but the essential purpose of the device is the same.
Enable/Disable - When enabled, the Axis product attempts to configure port mapping in a NAT router on your network, using UPnP
TM
.
Note that UPnP
TM
must be enabled in the product (see System Options > Network > UPnP).
Use manually selected NAT router - S elect this optio n to manually select a NAT router and enter the IP address for the router in
the field. If no router is specified, the product automatically searches for NAT routers on your network. If more than one router is
found, the default router is selected.
Alternative HTTP port - Select this option to manually define an external HTTP port. Enter the port number in the field. If no port is
entered here , a port number is automatically selected when NAT travers al is enabled.
Note
• An alternative HTTP port can be used or be active even if NAT traversal is disabled. This is useful if your NAT router does
not support UPnP and you need to manually configure port forwa rding in the NAT router.
• If you attempt to manually enter a port that is already in use, anothe r available port is automatically sele cted.
• When the port is sele cte d automatically it is displayed in t his field. To change this, e nter a new port number and click Save.
FTP
The FTP server running in the Axis product enables upload o f new firmware, user applications, etc. The FTP server can be disabled
under System Options > Network > TCP/IP > Advanced.
Note
This FTP serve r has nothing to do with the product’s ability to transfer images via FTP to other locations and servers.
RTSP
The RTSP server running in the Axis product allows a connecting client to start an H.264 stream. The RTSP port numb er can be
changed under System Options > Network > TCP/IP > Advanced. The default port is 554.
Note
H.264 video streams will not be available if the RTSP server is disa bled.
35
AXIS P5522–E PTZ Dome Network Camera
System Options
SOCKS
SOCKS is a networking proxy protocol. The Axis product can be configured to use a SOCKS server to reach networks on the other
side of a firewall or proxy server. This functionality is useful if the A xis product is located on a local network behind a firewall, and
notifications, uploads, alarms, e tc need to be send to a destination outsid e the local network (for example the Internet).
SOCKS is configured under System Options > Network > SOCKS. For more information, see the online help
.
QoS (Quality of Service)
QoS (Quality of Service) guarantees a certain level of a specified resource to selected traf fic on a network. A QoS-aware network
prioritizes network traffic and provides a greater ne twork reliability by controlling the amount of bandwidth an application may use.
TheQoSsettingsareconfigured under System Options > N etwork > QoS. Using DSCP (Differentiated Services Codepoint) values, the
Axis product can mark the following types of traffic: live video, event/alarm traffic and management traffic.
SMTP (email)
To send event and error email messages from the Axis product via SMTP (Simple Mail Transfe r Protocol), an SMTP mail server must be
set up. This is done under System Options > Network > SMTP (email).
Enter the host names or IP addresses and port numbers for the primary and secondary mail servers in the fields provided. A From
email address is also required. If the mail server requires a u thentication, check Use authentication to log in to this server and enter
the necessary infor m ation.
SNMP
The Simple Network Management Protocol (SNMP) allows remote management of network devices. An SNMP community is the
group of devices and management station running SNMP. Community names are used to identify groups.
The Axis product can be configured to s upport SNMP on the System Options > Network > SNMP page.
Depending on the level of security required, select the v ersion on SNMP to use.
SNMP v1/v2 provides the lo west level of security. The community name can be specified as a pas sword for read or read/write
access to all supported SNMP devices. The default password for the Read community is public and the default password for the
Write community is write.
Note
If HTTPS is enabled, SNMP v 1 and S NMP v2c should be disabled.
Traps for SNMP v1/v2 are used by the Axis product to send messages to a management system on important events and status
changes. Check Enable traps and enter the IP address where the trap message should be sent and the Trap community that
should receive the messa g e.
The following traps are available:
•Coldstart
•Warmstart
•Linkup
• Authentication failed
SNMP v3 provides encryption and secure passwords. To use traps with SNMP v3, an SNMP v3 management application is required.
To use SNMP v3, HTTPS must be enabled, see HTTPS, on page 31. To enable SNMP v3, check the box and provide the initial u ser
password.
36
AXIS P5522–E PTZ Dome Network Camera
System Options
Note
The initial password can only be set once. If the password is lost, the Axis product must be reset to factory default, see
Reset to factory default settings, on page 39.
UPnP
TM
The Axis product includes supp ort for UPnP
TM
.UPnP
TM
is enabled by default and the product is automatically detected by operating
systems and clients that support this protocol.
UPnP
TM
can be disabled under System Options > Network > UPnP
TM
.
RTP/H.264
The RTP port range and multicast settings are configured under System Options > Network > RTP.
The RTP port range defines t he range of ports from which the vide o ports are automati cally selected. For multicast streams, only
certain IP addresses and port numbers should be used.
Bonjour
The Axis product includes support for Bonjour. Bonjo ur is enabled by default and the prod uct is automatically detected by operating
systems and clients that support this protocol.
Bonjour can be disabled under System Options > Network > Bonjour.
Storage
SD Card
The SD/SDHC memory card (not included) is managed on the System Options > Storage > SD Card page.
The settings under Storage Device are used to identify and monitor the status of the SD card, and to unmount the SD card
before removal. M ounting is done automatically when a card is inserted. SD cards are normally preformatted when purchased,
but if needed, click Format to format the card.
Note
To prevent corruption of recordings, the SD c ard should always be unmounted before remo val.
If the card’s status shows as failed, click Check disk to see if the problem can be fo und and then try Repair.
The settings under Storage Device Settings are used to configure removal of recorded video. Automatic disk cleanup can be enabled
and set according to a schedule. The disk can be locked to prevent removal of recordings.
For more information, see
theonlinehelp
.
Maintenance
The Axis produ
ct provides several maintenance functions. These are available under System Options > Maintenance.
Click Re
start to perform a correct restart if the Axis product is not behaving as expected. This will not affect any of the current
settings.
Click Restore to reset most settings to the factory default values. The following settings are not affected:
• the boot pro tocol (DHCP or static)
• the static IP address
• the default router
37
AXIS P5522–E PTZ Dome Network Camera
System Options
• the subnet mask
•thesystemtime
• the IEEE 802.1X settings
Click Default to reset all settings, including the IP address, to the factory default values. This button should be used with caution. The
Axis product can also be reset to factory default using the control button, see Reset to factory default settings, on page 39.
To test the product’s PTZ mechanics, click Test under PTZ Status.
For information about firmware upgrade, see Upgrading the firmware, on p age 41.
Support
Support Overview
The System Options > Support > Support Overview page provides information on troubleshooting a nd contact information,
should you require technical assistance.
See also Troubleshooting, on page 41.
System Overview
To get an overview of the Axis product’s status a nd settings, go to System Options > Support > System Overview. Information that
can be found here includes firmware version, IP address, network and security settings, event settings, image settings and recent log
items. Many of the captions are links to the proper Setup page.
Logs & Reports
The System Options > Support > Logs & Reports page generates logs and reports useful for system analysis and troubleshooting. If
contacting Axis Support, please provide a valid Server Report with your query.
System Log - Provides information about system events.
Access Log - Lists all failed attempts to access the product. The Access Log can also be configured to list all connections to the
product (see below).
Server Report - Provides information
about the product status in a popup wind ow. The Access Log is automatically included
in the Server Report.
Parameter List - Shows the product's parameters and their current settings. This may prove useful when troubleshooting or
when contacting Axis Support.
Connection List - Lists a ll clients tha t are curre ntly accessing media streams.
Crash Report - Generates an archive with debugging information. The report takes several minutes to generate.
The log levels for the System Log and the Access Log are set under System Options > Support > Logs & Reports > Configuration.
The Access Log can be configured to list all connections to the product (select Critical, Warnings & Info). If required, a different log
level can be used when sending emails.
38
AXIS P5522–E PTZ Dome Network Camera
System Options
Advanced
Scripting
Scripting allows experienced users to customize and use their own scripts.
Caution
Improper use may cause unexp ected behavior and loss of contact with the Axis product.
Axis strongly recomm ends that you do not use this function unless you understand the consequences. Axis Support does not provide
assistance for problems with customized scripts.
To open the Script Editor, go to System Options > Advanced > Scripting. It is recommended to create a backup file before
customizing the scripts. If a script causes problems, reset the product to its factory default settings, see page 39.
For more information, see www.axis.com/developer
File Upload
Files, for example we b pages and images, can be uploaded to the Axis product and used as custom settings. To upload a file, go
to System Options > Advanced > File Upload.
Uploaded files are accessed through http://<ip address>/local/<user>/<file name> where <user> is the
selected user group (viewer, operator or administrator) for the uploaded file.
Plain Config
Plain Config is for advanced users with experience of Axis product configuration. All parame ters can be set and modified from this
page. Help is available from the standard help pages.
To open Plain C on fig, go to System Options > Advanced > Plain Config.
Reset to factory default settings
This will reset all parameters, including the IP addr ess, to the factory default settings:
1. Press and hold the Control button and the Restart button at the same time (see Hardware overview, on page 4 ).
39
AXIS P5522–E PTZ Dome Network Camera
System Options
2. Release the Restart button but continue to hold down the Control button for about 15 seconds until the Status indicator
flashes amber.
3. Release the Control button. The process is complete after about 1 minute (when the Status indicator turns green). The
product has been reset to the factory default settings. The d efault IP address is 192.168.0.90
4. Re-assign the IP address.
It is also possible to reset parameters to factory default via the web interface. Go to Setup > System Options > Maintenance.
40
AXIS P5522–E PTZ Dome Network Camera
Troubleshooting
Troubleshooting
Checking the firmware
Firmware is software that dete rmines the functionality of network devices. One of your first actions when troubleshooting a problem
should be to check the current firmware version. The latest version may contain a correction that fixes your particular problem. The
current firmware versio n in the Axis product is displayed in the page Setup > Basic Setup and in Setup > System Options > About.
Upgrading the firmware
When you upgrade the product with the latest firmware from Axis website, the product recei ves the latest functionality available.
Always read the upgrade instructions and release notes available with each new release, before upgrading the firmware.
To upgrade, follow these instructions:
1. Save the firmware file to your computer. The latest version of the firmware is available free of c harge from Axis we b site
at www.axis.com/techsup
2. Go to Setup > System Options > Maintenance in the products web pages.
3. Under Upgrade Server, click Browse and locate the file on your computer. C lick Upgrade.
After starting the upgrade process, always wait at least 5–10 minutes before restarting the product, even if you suspect the
upgrade has failed.
AXIS Camera Management can be used for multiple upgrades. See www.axis.com for more information.
Note
• Your dealer reserves the right to charge for any repair attributable to faulty upgrade by the user.
•Preconfigured and customized settings are saved when the firmware is up graded (providing the features are available in
the new firmware) although this is not guaranteed by Axis Communications AB.
Emergency recovery procedure
If powe
r or network connection is lost during the upgrade, the process fails and the product becomes unresponsive. Flashing red Status
indicator indica tes a failed upgrade. To r ecove r the product, follow the steps below. The serial number is found on the product’s label.
1. In UNIX/Linux, type the following from the command line:
arp -s <IP address> <serial number> temp
41
AXIS P5522–E PTZ Dome Network Camera
Troubleshooting
ping -s 408 <IP address>
In Windows, type the following from a command/DOS prompt:
arp -s <IP address> <serial number> temp
ping -l 408 -t <IP address>
2. If the p roduct does not reply within a few seconds, r estart it and wait for a reply. Press CTRL+C to stop Ping.
3. Open a browser and type in the product’s IP address. In the page that appears, use the Browse button to select the upgrade
file to use. Then click Load to restart the upgrade process.
4. After the upgrade is complete (1–10 minutes), the product automatically restarts and shows a steady green on the Status
indicator.
5. Reinstall the product, referring to the Installation Guide.
If the emergency recovery procedure does not get the product up and running again, contact Axis support at www.axis.com/techsup/
Symptoms, possible causes and remedial actions
Problems setting the IP address
When using AR P/Ping
Try the installation again. The IP address must be set within two minutes after power has been
applied to the product. Ensure the Ping length is set to 408. S ee the Installation Guide for
detailed instructions.
The product is located o n a
different s u bnet
If the IP address intended for the product and the IP address of the computer used to access the
product are located on different subnets, you will not be able to set the IP address. Contact your
network administrator to obtain an IP address.
The IP address is being us ed
by another device
Disconnect the Axis p roduct from the network. Run the Ping command (in a Command/DOS
window, type ping and the IP address of the product.
If you receive: Reply from <IP address>: bytes=32; time=10... this means
that the IP address may already be in use by another device on the network. Obtain a new IP
address from the network administrator and reinstall the product.
If you see Request timed out, this means that the IP address is available for use with the
Axis product. Check all cabling and reinstall the product.
Possible IP address c onflict
with another device on the
same subnet.
The static IP address in the Axis product is used before the DHCP server sets a dynamic address.
This means that if the same default static IP address is also used by another device, there may
be problems accessing the product.
The camera cannot be accessed from a browser
Cannot log in
When HTTPS is enabled, ensure that the correct protocol (HTTP or HTTPS) is used when attempting
to log in. You may need to manually type http or https i n the browser’s address field.
If the pr
oduct and the client are on the same network, run AXIS IP Utility to locate the product.
Identify the product using its model or serial number.
The IP address has been
changed by DHCP
Move the Axis product to an isolated network, or to one with no DHCP or BOOTP server. Set the IP
address again, using AXIS IP Utility or ARP/Ping (see the Installation Guide). Open the Setup pages
and disabled DHCP in the TC P/IP settings. Return the product to the main network. The product
now has a fixed IP address that will not change.
The product is accessible locally but not externally
Router configuration To configure your ro uter to allow incoming data traffic to the Axis product, enable the NAT-traversal
feature which will attempt to automatically configure the r outer to allow access to the Axis
product, see NAT traversal (port mapping) for IPv4, on page 35. The router must support UPnP
TM
.
Firewall protection
Check the Internet firewall with your netw ork administrator.
Default routers requried
Check if you need to configure the router settings.
42
AXIS P5522–E PTZ Dome Network Camera
Troubleshooting
Problems with the H.264 format
Check that the relevant H.264 connection methods and correct interface are enabled in the AMC
Control Panel (streaming tab). See AXIS Media Control (AMC), on page 10.
In the A MC Control Panel, select the H.264 tab and click Set to default H.264 decoder.
No H.264 displayed in the
client
Check that RTSP is enabled under System Options > Network > TCP/IP > Advanced.
Check with your network administrator t hat the multicast addresses used by the A xis product
are valid for your network.
No multicast H.264
displayed in the client
Check with your network administra tor to see if there is a firewa ll preventing viewing.
Multicast H.264 only
accessible by local clients
Check if your router supports multicasting, or if the router settings between the client and the
product need to be configured. The TTL (Time To Live) value may need to be increased.
Color depth set incorrectly on clients. Set to 16–bit or 32–bit color.
If text overlays are b lurred, or if there are other rendering problems, you may need to enable
Advanced Video Rendering from the Video stab in the AMC Control Panel.
Poor rendering of H.264
images
Ensure that your graphics card is using the la tes t driver. The latest drivers can usually be
downloaded from the manufacturer’s website.
Color saturation is different
in H.264 and Motion J PE G
Modify the settings for your graphics adapter. Refer to the adapter’s documentation for more
information.
Reduce the number of applications running on the client computer.
Limit the number of simultaneous viewers.
Check with the network adm inistrator that there is enough bandwidth available.
Check in the AMC Control Panel (H.264 tag) that video processing is NOT set to Decode only
key frames.
Lower frame rate than
expected
Lower the image resolution.
See Performance considerations, on page 47.
Why do I not get 30 frames
per second ?
The 50 Hz version of the product supports up to 25 frames per second.
Image degeneration
Decrease the GOV length.
Status indicator LED is flashing red and the camera is inaccessible
A firmware upgrade has been
interrupted or the firmware
has otherwis e been damaged
See Emergency recovery procedure, on page 41.
No images displayed on web page
Problems with AXIS M edia
Control (Internet Explorer
only)
To enabl e the updating of video images in Internet Explorer, set the browser to allow ActiveX
controls. Also, make sure that AXIS Media Control is installed on your workstation.
Installation of additional
ActiveX component
restricted or prohibited
Configure the A xis product to use a Java applet for updating video images in Internet Explorer. Go
to Setup > Live View Config and select Java applet under Default viewer.
Video and image problems, general
Image too dark or too light
Check the video image settings under Setup > Video > Video Stream and Setup > Video >
Camera Settings.
Missing images in uploads This can occur when trying to use a larger image buffer than is actually available. Try lowering
the frame rate or the upload period.
Slow image up date Configuring pre-buffers, motion detection, high-resolution images or high fram e rates will affect
the performance of the A xis product.
43
AXIS P5522–E PTZ Dome Network Camera
Troubleshooting
Poor performance Poor performance maybecausedbyheavynetworktraffic, multiple users accessing the product,
low performance clients, use of features such as motion detection, event handling and image
rotation other than 180 degrees.
Poor quality snapshot images
Screen incorrectly
configured on your computer
Configure your screen to show at least 65000 colors, that is, at least 16 bits. Using only 16 or 256
colors will produce dithering artifacts in the image.
Overlay or Privacy Mask is not displayed
Incorrect size or location of
overlay or privacy mask
The overlay or privacy mask may have been positioned incorrectly or may be too large. See Overlay
Image Settings in the online he lp for more information.
Browser freezes
Netcape 7.x and Mozilla 1.4
(or later) can sometimes
freeze on a slow computer
Lower the imag e resolution
Problems uploading files
Limited space There is only limited space available for the upload of your own files. Delete e xis ting files to free
up space.
Motion Detection triggers unexpectedly
Changes in luminance
Motion detection is based on changes in luminance in the image. This means that if there are
sudden changes in the lighting, motion detection may trigger mistakenly. Lower the sensitivity
setting to avoid problems with luminance.
Storage and disk management problems
Video cannot be recorded
Check that the SD card is not w rite protected (that is, read only).
SD card cannot be mounted Reformat the SD card and then click Mount.
44
AXIS P5522–E PTZ Dome Network Camera
Technical Specifications
Technical Specifications
Function/group
Item
Specifications
Models
AXIS P5522–E 50 Hz
AXIS P5522–E 60 Hz
Image sensor
1/4” ExView HAD progressive scan CCD
Lens Varifocal f=4.1 - 73.8 mm, F1.4 - 3.0
Autofocus, automatic day/night
Horizontal angle of view: 48.0° - 2.8°
Minimum
illumination
Color: 0.5 lux at 30 IRE F1.4
B/W: 0.01 lux at 30 IRE F1.4
Shutter time
1/10000 s to 1
Pan/Tilt/Zoom
E-flip, Auto-flip, 100 preset positions
Pan: 360° (with auto flip) 0.2 – 200°/s
Tilt: 180°, 0.2 – 200°/s
18x optical zoom and 12x digital zoom, total 216x zoom
Pan/Tilt/Zoom
functionalities
Limited guard tour
Control queue
On-screen directional indicator
Video
compression
H.264 (MPEG-4 Part 10/AVC, Baseline profile)
Motion JPEG
Resolutions
D1 720x480 to 176x120 (60Hz)
D1 720x576 to 176x144 (50Hz)
Frame rate H.264
Up to 30/25 fps in all resolutions
Frame rate
Motion JPEG
Up to 30/25 fps in all resolutions
Video streaming
Multiple, individually configurable streams in H.26
4andMotionJPEG
Controllable frame rate and bandwidth
VBR/CBR H.264
Image settings
Wide dynamic range (WDR), manual shutter time, compression, brightness, sharpness,
white balance, exposure control, exposure zones, backlight compensation, fine tuning
of behavior at low light, rotation, aspect ratio correction, text and image overlay, 3D
privacy mask, image freeze on PTZ
Security Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X* network access
control, digest authentication, user access log
Network
Supported
protocols
IPv4/v6, HTTP, HTTPS*, SSL/TLS*, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP,
SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP,
DHCP, ARP, SOCKS
45
AXIS P5522–E PTZ Dome Network Camera
Technical Specifications
Function/group
Item
Specifications
Application
Programming
Interface
Open API for software integration, including VAPIX® and Axis Camera Application
Platform from Axis C ommunications; specifications available at www.axis.com Includes
the ONVIF specification available at www .onvif.org
Support for AXIS Video Hosting System (AVHS) with One-Click Camera Connection
Intelligent video
Video motion detection, Advanced Gatekeeper
Alarm triggers
Video motion detection, AXIS Camera Application Platform, On boot, Fan malfunction,
external input, tempera t ure, memory card full
Alarm events
File upload via FTP, H TTP and email Notificati on via email, HTTP and TCP External output,
local storage, run guard tour, PTZ preset
Video buffer
98 MB pre- and post a larm
Video access from
web brows er
Camera live view
Video recording to file (ASF)
Customizable HTML pages
Windows 7, Windows Vista, Windows XP, Windows Server 2008, Windows Server 2003
DirectX 9c or higher
For other operating systems and browsers, see www.axis.com/techsup
System
Integration
Installation,
management and
maintenance
AXIS Camera Management tool on CD and web-based configuration
Configuration of backup and restore
Firmware upgrades over HTTP or FTP , firmware available on www.axis.com
Casing
IP66- and NEMA 4X-rated metal casing (aluminum), acrylic (PMMA) clear dome,
sunshield (PC/ASA)
Processor,
memory
ARTPEC-3, 256 MB RAM, 128 MB Flash
Power
High Power over Ethernet (High PoE) IEEE 802.3at, max. 30 W AXIS T8123 High PoE
Midspan 1-port: 100-240 VAC, max. 37 W
Connectors
RJ-45 10BASE-T/100BASE-TX PoE
IP66-rated RJ-45 connector kit included
Local storage
SD/SDHC memory card slot (card not included)
Operating
conditions
Temperature: -20 – 50 ºC (-4 – 122 ºF)
Humidity 20 - 80% RH (non-condensing)
Approvals
EN 55022 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000- 6-2, EN
55024, FCC Part 15 Subpart B Class A,
ICES-003 Class A, VCCI Class A, C-tick AS/NZS CISPR 22, EN 60950-1, KCC Class A IEC
60529 IP66, NEMA 250 Type 4X
IEC 60721-4-3 Class 4K1, 4C3, 4M3, EN/IEC 60068-2
Midspan: EN 60950-1, GS, UL, cUL, CSA CE, FCC, VCCI, CB, KCC, UL-AR
Weight
2.0 kg (4.4 lb.)
General
Included
accessories
AXIS T8123 High Po E Midspan 1-port, IP66-rated RJ-45 connector kit, clear and smoked
dome cover, Installation Guide, CD with User's Manual, recording software, installation
and management tools, Windows decoder 1-user license
Video
management
software (not
included)
AXISCameraStation—Videomanagementsoftwareforviewingandrecordingupto50
cameras
See www.axis.com/products/video/software/ for more software applications via partners
Optional
accessories
Video Surveillance Joystick
Multi-user decoder license pack
46
AXIS P5522–E PTZ Dome Network Camera
Technical Specifications
Performance considerations
When settings u p your system, it is important to consider how various settings and situations will affect performance. Some factors
affect the amount of bandwidth (the bit rate) required , others can affect the frame rate, and some affect both. If the load on the
CPU reache s its maximum, this will also affect the frame rate.
The following factors are among the most important to consider:
• High image resolution and/or lower compression leve ls result in larger images. Bandwidth affected.
• Access by large numbers of Motion JPEG and/or unicast H.264 clients. Bandwidth affected.
• Simultaneous viewing of different streams (resolution, compression) by different clients. Effect on frame rate and bandwidth.
• Accessing Motion JPEG and H.264 video streams simultaneously. Frame rate and bandwidth affected.
• Heavy usage of event settings affect the product’s CPU load. Frame rate affected.
• Heavy network utilization due to poor infra structure. Ba ndwidth affected.
• Viewing on poorly performing client computers lowers perceived performance. Frame rate affected.
47
User's Manual Ver. M1.9
AXIS P5522–
EPTZDomeNetworkCamera Date: March 2011
© Axis Communications AB, 2011
Part No. 42
017
