Installation and Operating Instructions
Issue 1
Issue
Description : Robinhood Compact Canopy
Model Number : RCA3AL6WH (60cm), RCA3AL6SS (60cm), RCA3AL9WH (90cm), RCA3AL9SS (90cm)

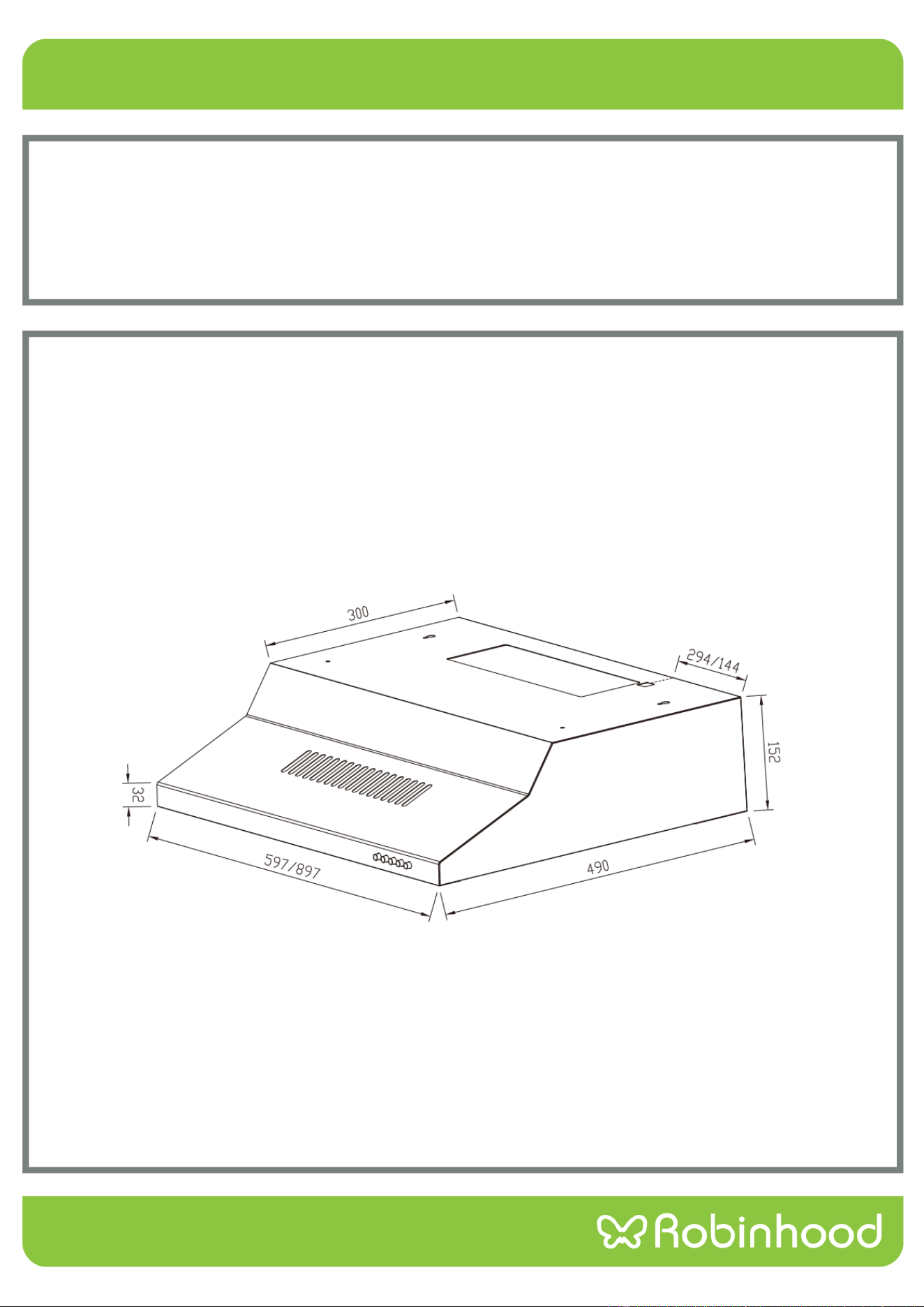

All dimensions are in mm.
*Actual unit may vary from above model pictured
Contents
Congratulations!
Thank you for choosing one of our appliances. Before you use the appliance, we strongly recommend that you read
through the whole user manual which provides important safety instructions and description of the product and the
proper use of its functions.
To avoid the ever‐present risks involved with using an electrical appliance it is vital that the oven is installed correctly
and that you read the safety instructions carefully to avoid misuse and hazards. It is important that you retain these
instructions and your proof of purchase along with any other important documents about this product for future
reference.
Due to continual product development, Shriro reserves the right to alter specifications or appearances without notice.
Important Safety Instructions ..............................................................................................................................1
Appliance Details ..................................................................................................................................................2
Installation Instructions ........................................................................................................................................3
Installation Instructions ........................................................................................................................................4
Installation Instructions ........................................................................................................................................5
Operation and Cleaning ........................................................................................................................................6
Warranty Certificate (New Zealand).....................................................................................................................7
Warranty Certificate (Australia) ...........................................................................................................................8
DISPOSAL INFORMATION
• Most of the packing materials are recyclable. Please dispose of these materials through your local recycling
depot or by placing them in appropriate collection containers.
• If you wish to discard this product, please contact your local authorities and ask for the correct method of
disposal.
1
Important Safety Instructions
IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing
the contents of this carton.
1. All electrical work must be done by a registered electrician in accordance with local and national electrical
codes as applicable. For your safety, this product must be earthed.
2. If the supply cord of this equipment is damaged, it must only be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
3. This rangehood is designed for indoor use only and must be in a dry location.
4. Disconnect the power supply before cleaning or maintenance.
5. This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
6. Young children should be supervised to ensure that they do not play with the appliance.
7. There shall be adequate ventilation of the room when the rangehood is used at the same time as
appliances burning gas or other fuels.
8. There is a fire risk if cleaning is not carried out in accordance with the instructions. You must read the
details concerning the method and frequency of cleaning.
9. Do not flambe under the rangehood.
10. Exhaust air must not be discharged into an existing flue which is used for exhausting fumes from
appliances burning gas or other fuels.
11. The minimum distance between the hob surface and the lowest part of the rangehood is 600mm.
12. Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust
air is fulfilled.
13. CAUTION: Accessible parts may become hot when used with cooking appliances.
14. Range hoods and other cooking fume extractors may adversely affect the safe operation of appliance
burning gas or other fuels (including those in other rooms) due to back flow of combustion gases. These
gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other
cooking fume extractor, the operation of open flued gas appliances should be tested by a competent
person to ensure that back of combustion gases does not occur.
15. The power plug must be accessible after installation.
16. WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in
electrical hazards.
2

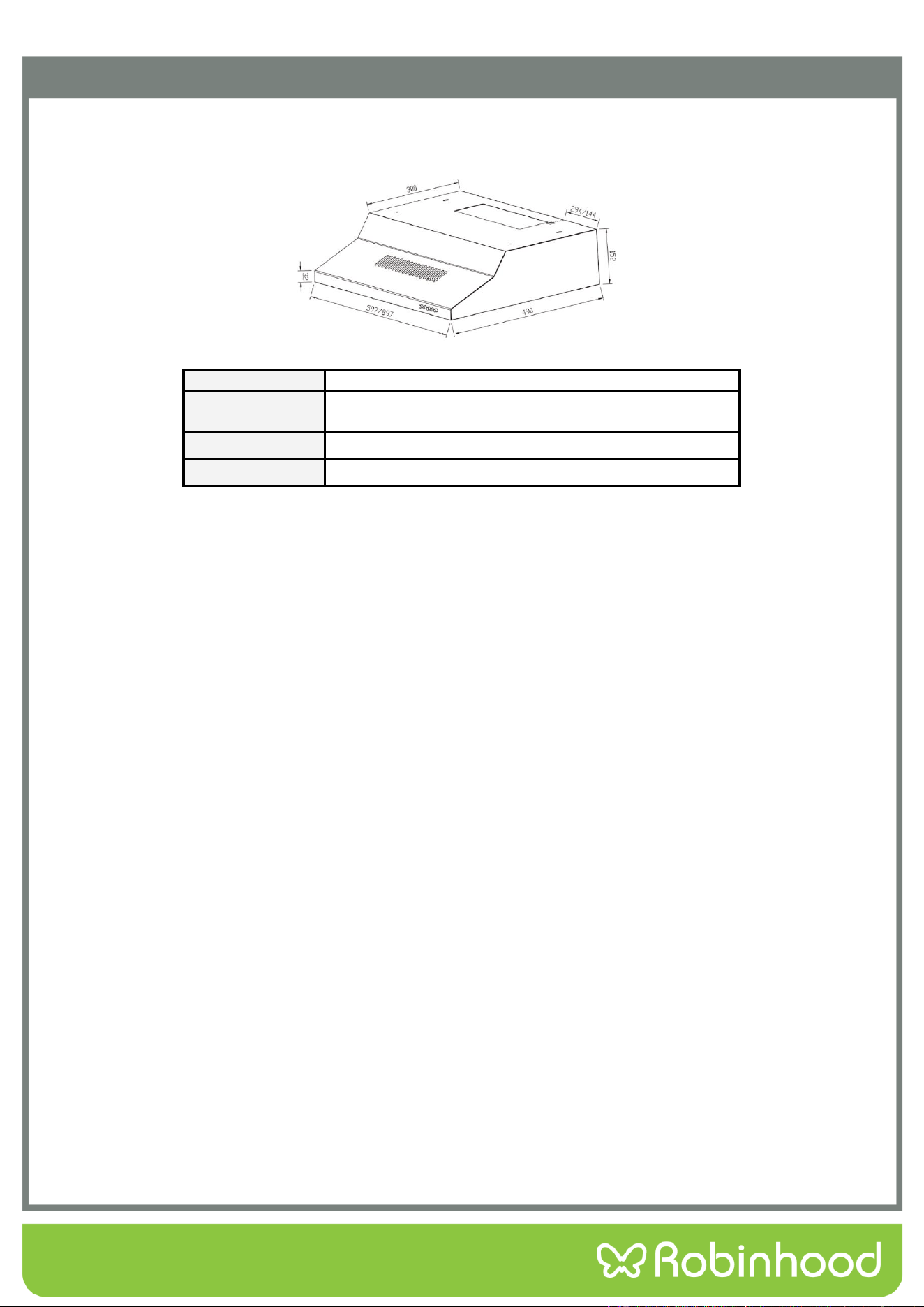

Appliance Details
RCA3AL6WH, RCA3AL6SS, RCA3AL9WH and RCA3AL9SS
Voltage &
Frequency:
230-240V 50Hz
Lamp Max:
1x1.5W LED light
Rated Input Power:
90W
General Information
Before installing and operating the rangehood, carefully read the following important information regarding installation
safety and maintenance. Keep this information booklet accessible for further consultations.
The appliance has been designed to exhaust cooking fumes externally. Before installation, please ensure that the
following have been supplied and that the tools listed below are readily available.
3
Installation Instructions

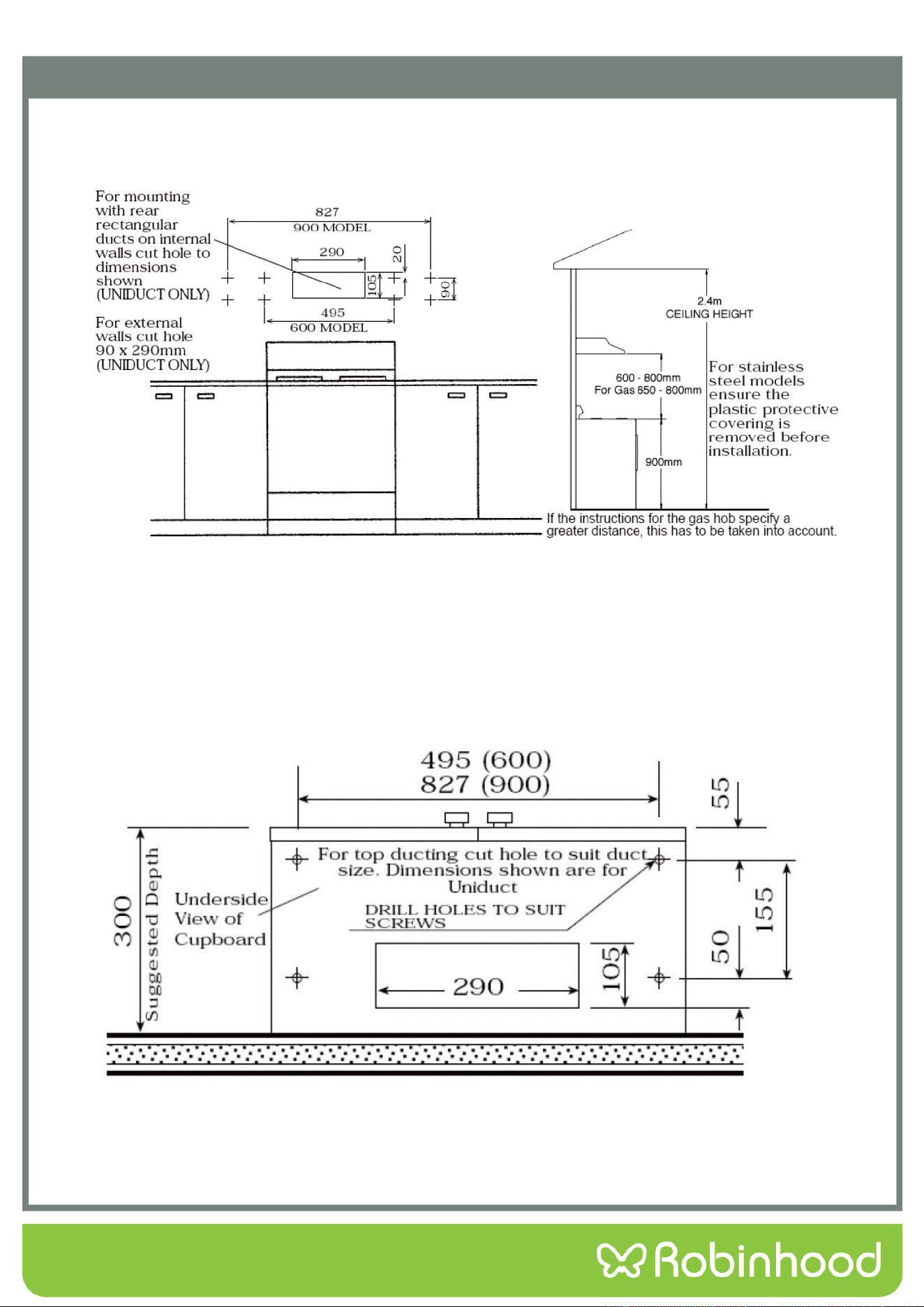

WALL MOUNTING
NOTE: The minimum distance between the hob surface and the lowest part of the rangehood should be 600mm. The
distance should be at least 650mm if the rangehood is installed over a gas hob. If the instructions for the gas hob
specify a greater distance, this has to be taken into account.
UNDER CUPBOARD MOUNTING
4
Installation Instructions
MOUNTING OPTIONS
Once mounting options has been decided, follow the instructions below.
NOTE: Mounting screws are not supplied. Use the appropriate mounting screws for each mounting options.
WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in
electrical hazards!

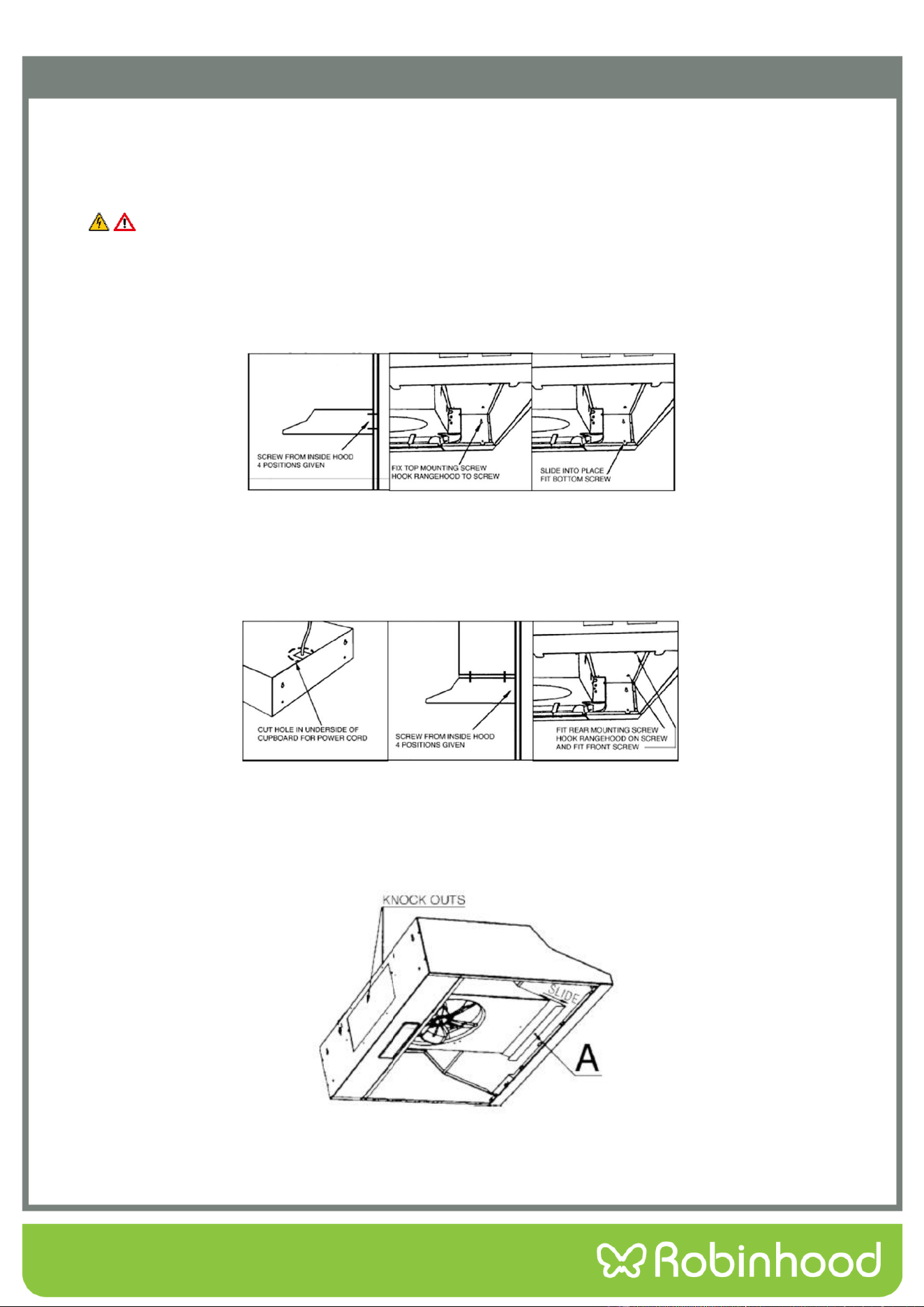

FOR MOUNTING TO REAR WALL
Mounting to stud is recommended. However, if fitted to gyprock board, a wall plug is required. Use the appropriate
wall plug for the appropriate type of wall.
FOR MOUNTING TO UNDER CUPBOARD
• Check the screw length with thickness of cabinet panels.
• The power plug must be accessible after installation of the product to allow the unit to be disconnected from
the power for cleaning and maintenance.
DUCTING
If the rangehood is installed in the recirculating mode, unscrew and slide out the vent cover “A”. If the rangehood is to
be installed as a ducted unit , remove the appropriate duct knock -out (top or rear) and ensure the vent cover is
fastened in place. Refer also to ducting options (Next page).
5
Installation Instructions

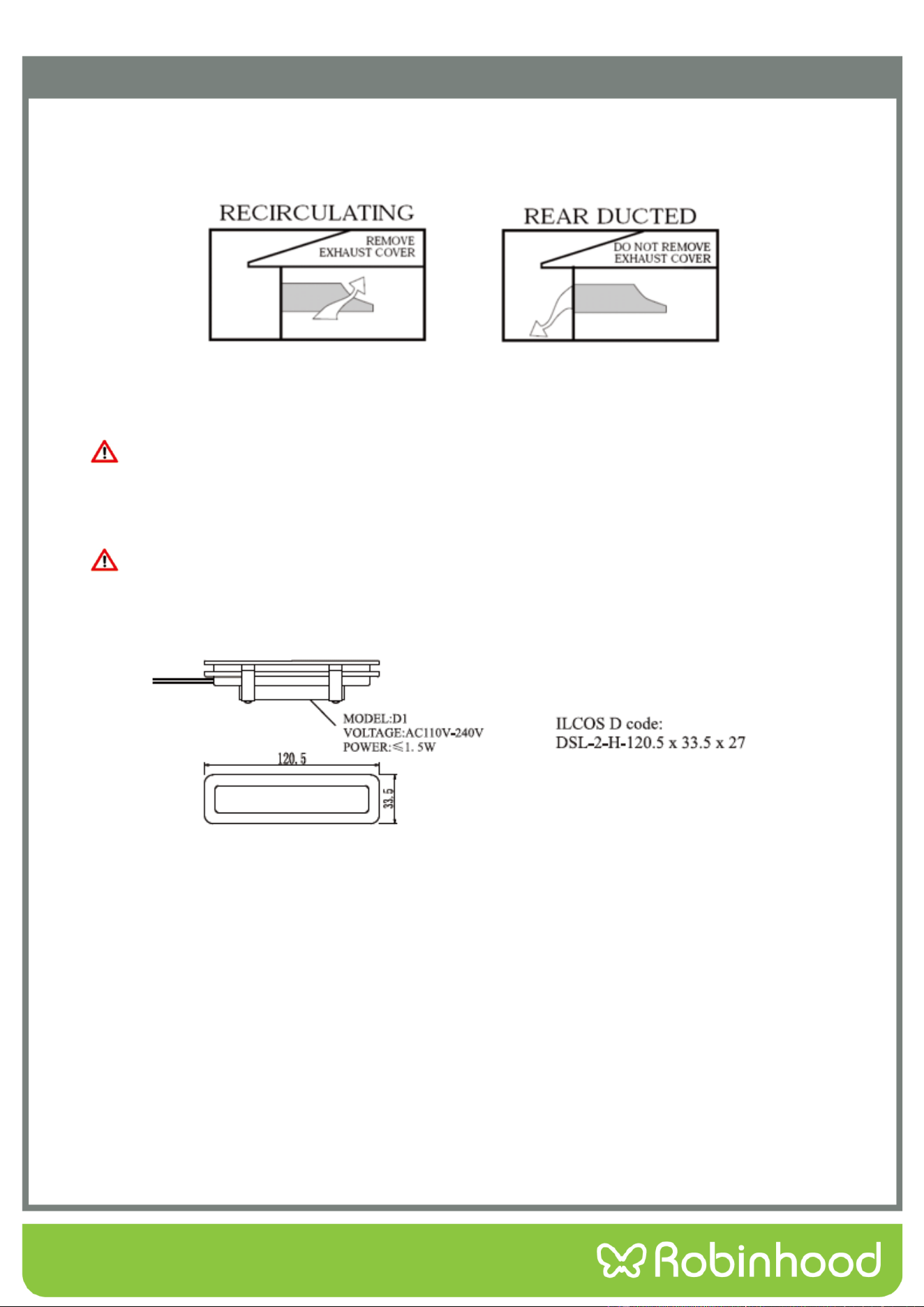

DUCTING OPTIONS
NOTE: When ducting, exhaust air must not be discharged into any chimney or flue which may carry
combustion products from other sources. In addition, exhaust air must be discharged into a wall cavity, unless
designed for the purpose.
LAMP REPLACEMENT
WARNING: The LED lamp must be replaced by a qualified electrician.
To replace a lamp, first disconnect the rangehood from the power supply and allow the lamp to cool down
before touching.
1. Gently pry out the LED lamp from around the gap.
2. Put on a new lamp, and ensure the installation is in place.
PARTS AND SERVICE
For Accessories, Parts or Services, please contact your local supplier or approved service agent.
Optional charcoal filter:
2534 (RCA600)
Rohinhood Rear ducting kit:
RHURCADUCTKIT
6
Operation and Cleaning
OPERATION

After your rangehood is installed:
1- Check that the light and diffuser are in place.
2- Plug into 230-240V outlet.
Keep power cord clear of stove elements or hot utensils.
Permanent wiring to house supply, or modifications to plug or wire must be carried out by a registered electrician.
CLEANING
Disconnect the Rangehood from power supply.
1- Wash aluminum filters every 2 or 3 months, depending on usage, with hot soapy water or in the dishwasher.
2- Charcoal filters should be replaced every three to six months depending on use.
3- Clean the external and internal surfaces including the fan blades, using a damp cloth and mild detergent.
Do not use any powder or abrasive cleaners.
7
