Page 1 of 4
Description: ROBINHOOD CANOPY RANGEHOOD
Model Number: RWC3CH6SS, RWC3CH9SS
Model pictured: RWC3CH6SS
Issue: D
Page 2 of 4

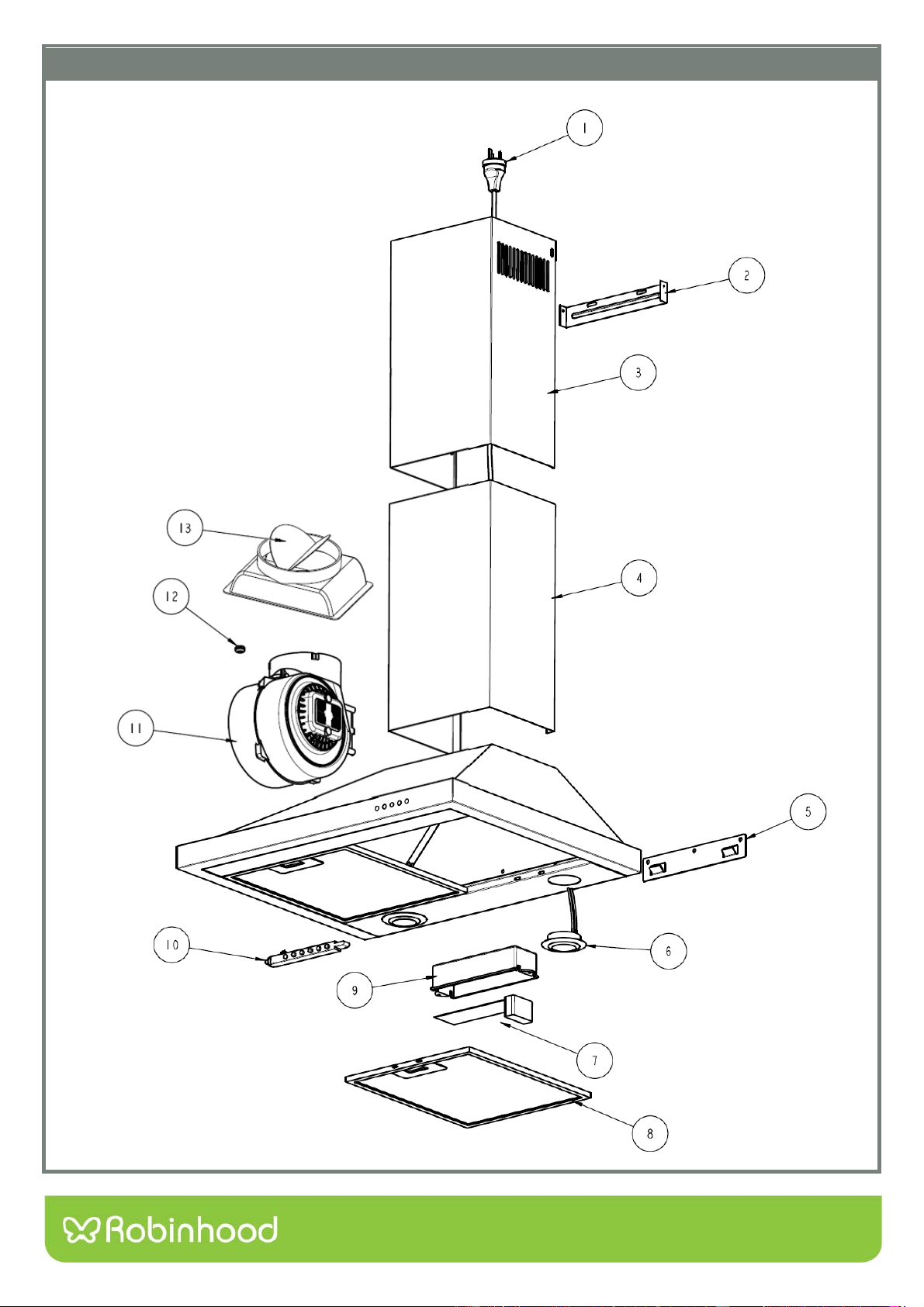

Exploded view
Page 3 of 4
Part number
Item Description
1 Power cord 115200
2 Chimney bracket 115201
3 Chimney top 115202
4 Chimney bottom 115203
4A Chimney extension 900-1350mm for 3048mm ceiling 2188
4B Chimney extension 900-1850mm for 3658mm ceiling 2189
5 Mounting bracket 115204
6 Halogen light assembly 115205
6A Halogen bulb (not shown) 104467
7 PCB board 115206
8
Filter Std Single 258 x 318 (600 model)
Filter Std Single 272 x 319 (900 model)
115207
115214
Filter Charcoal 258 x 318 (2 pack for 600 model)
Filter Charcoal 272 x 319 (3 pack for 900 model)
2536
2537
9 PCB cover 115208
10 Switch assembly 115209
11 Motor (see below for duct adaptor) 115210
12 Clamp for power cord 115211
13 Duct adaptor 115218
n/s Installation kit 115217
Page 4 of 4

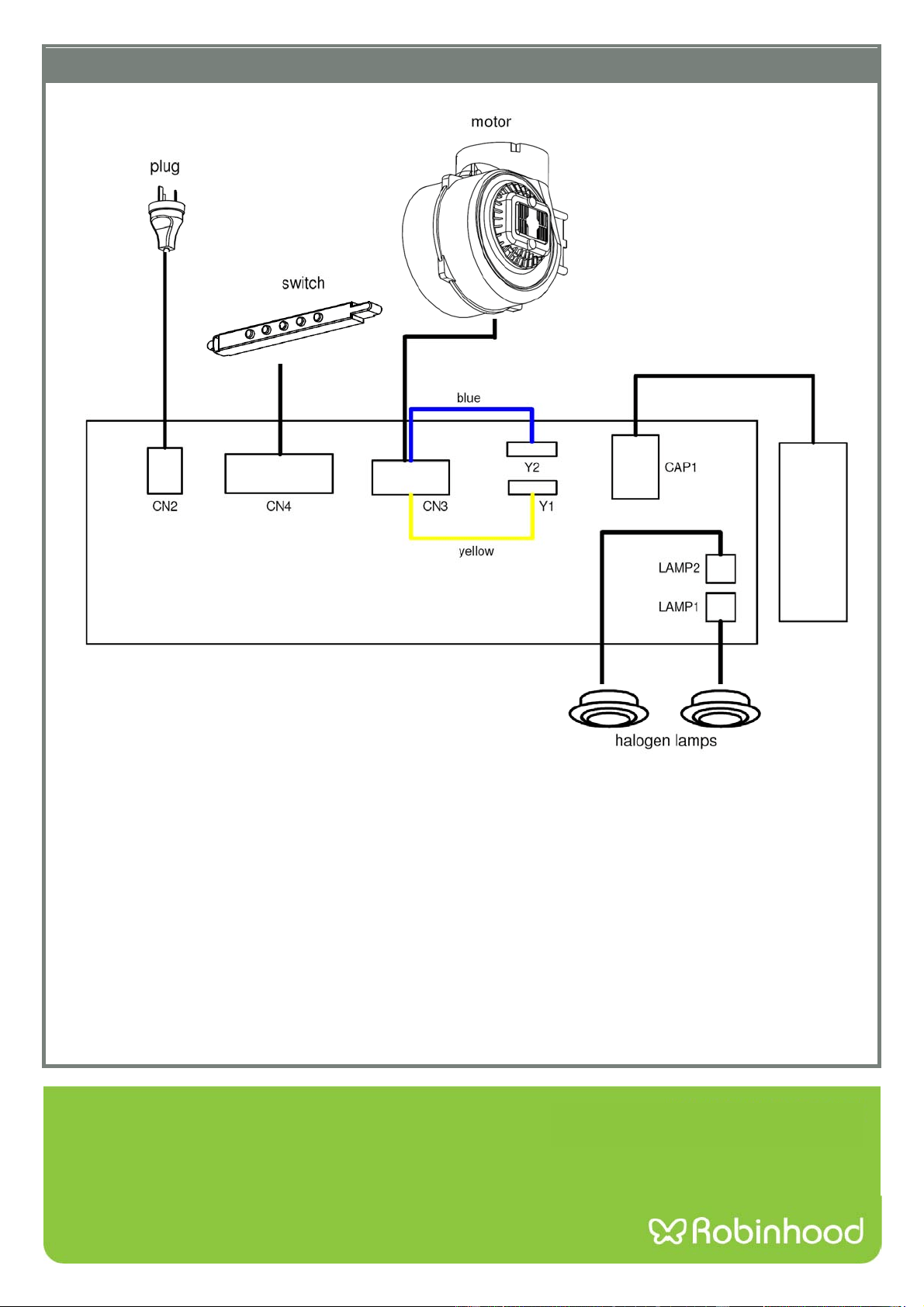

Wiring diagram
ECN: 07034
