Hikvision DS-K1T690MF-X Ultra Face Recognition Terminals

Product's Documents

Below are documents related to this product, you can read online or download:
Installation Instruction Specification
DS-K1T690MF-X photo

Quick Start Guide

This is the main product document for model DS-K1T690MF-X.

The file format is pdf, 178 pages, you can download this manual here .

background
DS-K1T690 Series Face Recognion Terminal
User Manual
background
Legal Informaon
©2021 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
About this Manual
The Manual includes instrucons for using and managing the Product. Pictures, charts, images and
all other informaon hereinaer are for descripon and explanaon only. The informaon
contained in the Manual is subject to change, without noce, due to rmware updates or other
reasons. Please nd the latest version of this Manual at the Hikvision website ( hps://
www.hikvision.com/ ).
Please use this Manual with the guidance and assistance of professionals trained in supporng the
Product.
Trademarks
and other Hikvision's trademarks and logos are the properes of
Hikvision in various jurisdicons.
Other trademarks and logos menoned are the properes of their respecve owners.
Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT
DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS IS" AND "WITH
ALL FAULTS AND ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR
PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION
BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,
INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS
INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION,
WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY,
OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY
RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS
INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE
SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW.
ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT
INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF
PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS.
YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE
DS-K1T690 Series Face Recognion Terminal User Manual
i
background
DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR
PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED
TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN
RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATTER
PREVAILS.
Data Protecon
During the use of device, personal data will be collected, stored and processed. To protect data,
the development of Hikvision devices incorporates privacy by design principles. For example, for
device with facial recognion features, biometrics data is stored in your device with encrypon
method; for ngerprint device, only ngerprint template will be saved, which is impossible to
reconstruct a ngerprint image.
As data controller, you are advised to collect, store, process and transfer data in accordance with
the applicable data protecon laws and regulaons, including without limitaon, conducng
security controls to safeguard personal data, such as, implemenng reasonable administrave and
physical security controls, conduct periodic reviews and assessments of the eecveness of your
security controls.
DS-K1T690 Series Face Recognion Terminal User Manual
ii
background
Symbol Convenons
The symbols that may be found in this document are dened as follows.
Symbol Descripon
Danger
Indicates a hazardous situaon which, if not avoided, will or could
result in death or serious injury.
Cauon
Indicates a potenally hazardous situaon which, if not avoided, could
result in equipment damage, data loss, performance degradaon, or
unexpected results.
Note
Provides addional informaon to emphasize or supplement
important points of the main text.
DS-K1T690 Series Face Recognion Terminal User Manual
iii
background
Regulatory Informaon
FCC Informaon
Please take aenon that changes or modicaon not expressly approved by the party responsible
for compliance could void the users authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protecon against harmful interference in a residenal installaon. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instrucons, may cause harmful interference to radio communicaons. However, there is
no guarantee that interference will not occur in a parcular installaon. If this equipment does
cause harmful interference to radio or television recepon, which can be determined by turning
the equipment o and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separaon between the equipment and receiver.
—Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help
This equipment should be installed and operated with a minimum distance 20cm between the
radiator and your body.
FCC Condions
This device complies with part 15 of the FCC Rules. Operaon is subject to the following two
condions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operaon.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE"
and comply therefore with the applicable harmonized European standards listed
DS-K1T690 Series Face Recognion Terminal User Manual
iv
background
under the EMC Direcve 2014/30/EU, RE Direcve 2014/53/EU,the RoHS Direcve
2011/65/EU
2012/19/EU (WEEE direcve): Products marked with this symbol cannot be disposed
of as unsorted municipal waste in the European Union. For proper recycling, return
this product to your local supplier upon the purchase of equivalent new equipment,
or dispose of it at designated collecon points. For more informaon see:
www.recyclethis.info
2006/66/EC (baery direcve): This product contains a baery that cannot be
disposed of as unsorted municipal waste in the European Union. See the product
documentaon for specic baery informaon. The baery is marked with this
symbol, which may include leering to indicate cadmium (Cd), lead (Pb), or mercury
(Hg). For proper recycling, return the baery to your supplier or to a designated
collecon point. For more informaon see:www.recyclethis.info
DS-K1T690 Series Face Recognion Terminal User Manual
v
background
Safety Instrucon
These instrucons are intended to ensure that user can use the product correctly to avoid danger
or property loss.
The precauon measure is divided into Dangers and Cauons:
Dangers: Neglecng any of the warnings may cause serious injury or death.
Cauons: Neglecng any of the cauons may cause injury or equipment damage.
Dangers: Follow these safeguards to prevent
serious injury or death.
Cauons: Follow these precauons to prevent
potenal injury or material damage.
Danger:
All the electronic operaon should be strictly compliance with the electrical safety regulaons,
re prevenon regulaons and other related regulaons in your local region.
Please use the power adapter, which is provided by normal company. This equipment is
intended to be supplied from the Class 2 surge protected power source rated DC 12V, 3A.
Do not connect several devices to one power adapter as adapter overload may cause over-heat
or re hazard.
Please make sure that the power has been disconnected before you wire, install or dismantle the
device.
When the product is installed on wall or ceiling, the device shall be rmly xed.
If smoke, odors or noise rise from the device, turn o the power at once and unplug the power
cable, and then please contact the service center.
Do not ingest baery, Chemical Burn Hazard.
This product contains a coin/buon cell baery. If the coin/buon cell baery is swallowed, it
can cause severe internal burns in just 2 hours and can lead to death.
Keep new and used baeries away from children. If the baery compartment does not close
securely, stop using the product and keep it away from children. If you think baeries might have
been swallowed or placed inside any part of the body, seek immediate medical aenon.
If the product does not work properly, please contact your dealer or the nearest service center.
Never aempt to disassemble the device yourself. (We shall not assume any responsibility for
problems caused by unauthorized repair or maintenance.)
DS-K1T690 Series Face Recognion Terminal User Manual
vi
background
Cauons:
Do not drop the device or subject it to physical shock, and do not expose it to high
electromagnesm radiaon. Avoid the equipment installaon on vibraons surface or places
subject to shock (ignorance can cause equipment damage).
Do not place the device in extremely hot (refer to the specicaon of the device for the detailed
operang temperature), cold, dusty or damp locaons, and do not expose it to high
electromagnec radiaon.
The device cover for indoor use shall be kept from rain and moisture.
Exposing the equipment to direct sun light, low venlaon or heat source such as heater or
radiator is forbidden (ignorance can cause re danger).
Do not aim the device at the sun or extra bright places. A blooming or smear may occur
otherwise (which is not a malfuncon however), and aecng the endurance of sensor at the
same me.
Please use the provided glove when open up the device cover, avoid direct contact with the
device cover, because the acidic sweat of the ngers may erode the surface coang of the device
cover.
Please use a so and dry cloth when clean inside and outside surfaces of the device cover, do
not use alkaline detergents.
Please keep all wrappers aer unpack them for future use. In case of any failure occurred, you
need to return the device to the factory with the original wrapper. Transportaon without the
original wrapper may result in damage on the device and lead to addional costs.
Improper use or replacement of the baery may result in hazard of explosion. Replace with the
same or equivalent type only. Dispose of used baeries according to the instrucons provided by
the baery manufacturer.
Biometric recognion products are not completely applicable to an-spoong environments. If
you require a higher security level, use mulple authencaon modes.
Working temperature: -30 °C to +60 °C
Indoor and outdoor use. If installing the device indoors, the device should be at least 2 meters
away from the light, and at least 3 meters away from the window or the door. If installing the

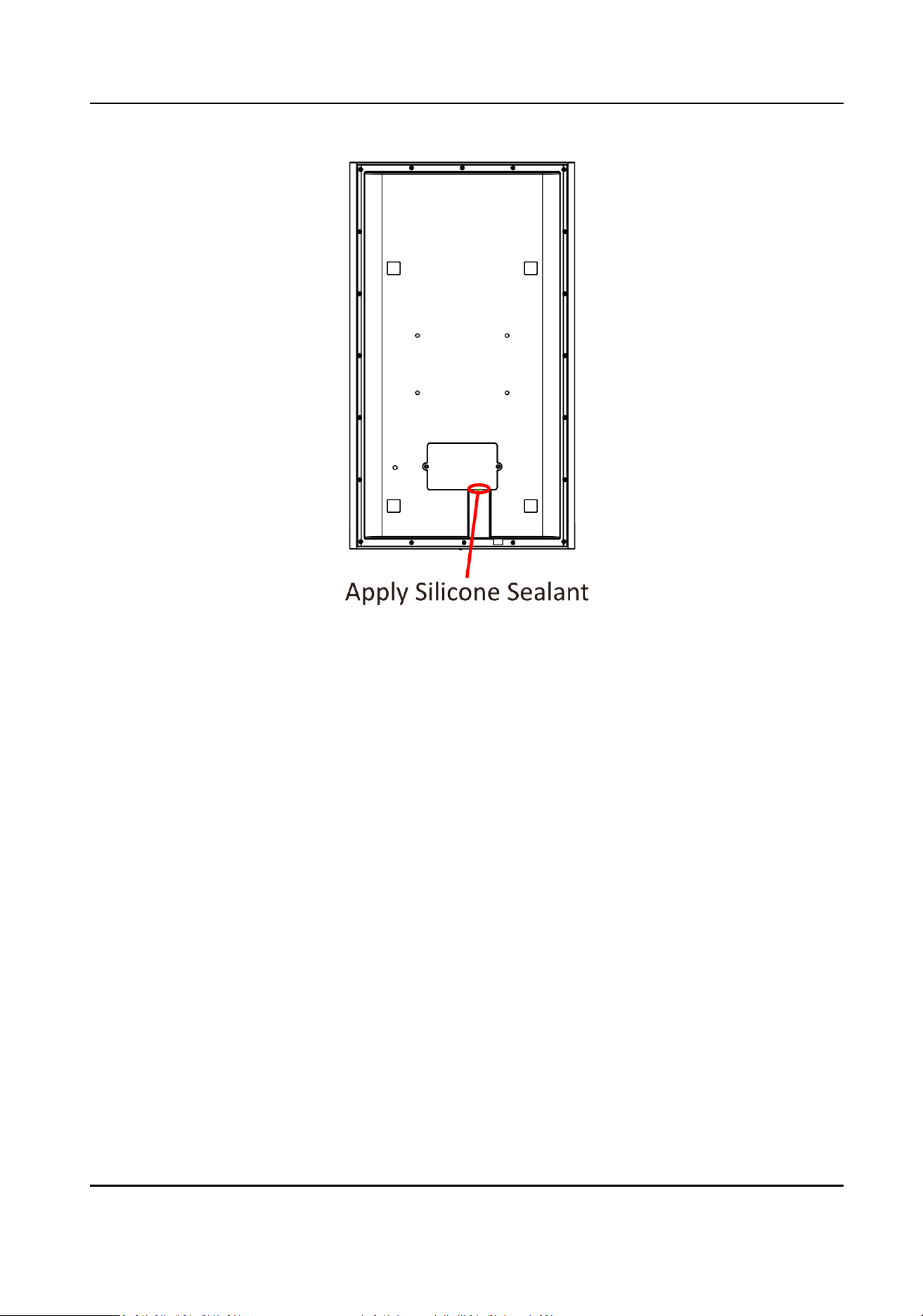

device outdoors, you should apply Sililcone sealant among the cable wiring area to keep the
raindrop from entering.
Protecon level: IP65
DS-K1T690 Series Face Recognion Terminal User Manual
vii
background
Available Models
Product Name Model Wireless Descripon
Face Recognion Terminal DS-K1T690MF 13.56MHz + Bluetooth
DS-K1T690MF-X 13.56MHz + Bluetooth
DS-K1T690M-T 13.56MHz + Bluetooth
DS-K1T690M-E1 13.56MHz + Bluetooth
DS-K1T690MW 13.56 MHz + 2.4 G Wi-Fi +
Bluetooth
Use only power supplies listed in the user instrucons:
Model Manufacturer Standard
C2000IC12.0-24P-DE MOSO Power Supply
Technology Co., Ltd.
CEE
C2000IC12.0-24P-GB MOSO Power Supply
Technology Co., Ltd.
BS
KPL-040F-VI Channel Well Technology Co
Ltd.
CEE
DS-K1T690 Series Face Recognion Terminal User Manual
viii
background
Contents
Chapter 1 Overview .................................................................................................................... 1
1.1 Overview ................................................................................................................................ 1
1.2 Features ................................................................................................................................. 1
Chapter 2 Appearance ................................................................................................................ 2
Chapter 3 Installaon ................................................................................................................. 5
3.1 Installaon Environment ........................................................................................................ 5
3.2 Flush Mounng with Gang Box (Type I) ................................................................................. 5
3.3 Flush Mounng (Type II) ........................................................................................................ 9
3.4 Surface Mounng ................................................................................................................ 13
3.5 Base Mounng ..................................................................................................................... 18
3.6 Bracket Mounng ................................................................................................................ 20
Chapter 4 Wiring ...................................................................................................................... 23
4.1 Terminal Descripon ............................................................................................................ 23
4.2 Wire Normal Device ............................................................................................................. 25
4.3 Wire Secure Door Control Unit ............................................................................................ 26
4.4 Wire Fire Module ................................................................................................................. 27
4.4.1 Wiring Diagram of Door Open When Powering O .................................................... 27
4.4.2 Wiring Diagram of Door Locked When Powering O .................................................. 29
Chapter 5 Acvaon ................................................................................................................. 32
5.1 Acvate via Device ............................................................................................................... 32
5.2 Acvate via Web Browser .................................................................................................... 34
5.3 Acvate via SADP ................................................................................................................. 34
5.4 Acvate Device via iVMS-4200 Client Soware ................................................................... 36
Chapter 6 Quick Operaon ....................................................................................................... 37
6.1 Set Applicaon Mode .......................................................................................................... 37
6.2 Privacy Sengs .................................................................................................................... 39
DS-K1T690 Series Face Recognion Terminal User Manual
ix
background
6.3 Set Administrator ................................................................................................................. 41
Chapter 7 Basic Operaon ........................................................................................................ 45
7.1 Login .................................................................................................................................... 45
7.1.1 Login by Administrator ................................................................................................ 45
7.1.2 Login by Acvaon Password ...................................................................................... 48
7.2 Communicaon Sengs ...................................................................................................... 49
7.2.1 Set Wired Network Parameters .................................................................................. 50
7.2.2 Set Wi-Fi Parameters ................................................................................................... 50
7.2.3 Set RS-485 Parameters ................................................................................................ 52
7.2.4 Set Wiegand Parameters ............................................................................................. 53
7.2.5 Plaorm Access ........................................................................................................... 53
7.3 User Management ............................................................................................................... 54
7.3.1 Add Administrator ....................................................................................................... 54
7.3.2 Add Face Picture ......................................................................................................... 55
7.3.3 Add Fingerprint ........................................................................................................... 57
7.3.4 Add Card ..................................................................................................................... 58
7.3.5 View PIN code ............................................................................................................. 59
7.3.6 Set Authencaon Mode ............................................................................................ 60
7.3.7 Search and Edit User ................................................................................................... 60
7.3.8 Delete User ................................................................................................................. 61
7.4 Data Management ............................................................................................................... 61
7.4.1 Delete Data ................................................................................................................. 62
7.4.2 Import Data ................................................................................................................. 62
7.4.3 Export Data ................................................................................................................. 62
7.5 Identy Authencaon ........................................................................................................ 63
7.5.1 Authencate via Single Credenal .............................................................................. 63
7.5.2 Authencate via Mulple Credenal .......................................................................... 64
7.6 Basic Sengs ....................................................................................................................... 64
DS-K1T690 Series Face Recognion Terminal User Manual
x
background
7.7 Set Biometric Parameters .................................................................................................... 65
7.8 Temperature Measurement Sengs ................................................................................... 67
7.9 Set Access Control Parameters ............................................................................................ 69
7.10 Preference Sengs ............................................................................................................ 70
7.11 System Maintenance .......................................................................................................... 72
7.12 Video Intercom .................................................................................................................. 73
7.12.1 Call Client Soware from Device ............................................................................... 73
7.12.2 Call Center from Device ............................................................................................ 74
7.12.3 Call Device from Client Soware ............................................................................... 75
7.12.4 Call Room from Device .............................................................................................. 75
7.12.5 Call Mobile Client from Device .................................................................................. 76
Chapter 8 Operaon via Web Browser ...................................................................................... 77
8.1 Login .................................................................................................................................... 77
8.2 Live View .............................................................................................................................. 77
8.3 Person Management ............................................................................................................ 78
8.4 Search Event ........................................................................................................................ 79
8.5 Device Management ............................................................................................................ 79
8.6 Conguraon ....................................................................................................................... 80
8.6.1 Set Local Parameters ................................................................................................... 80
8.6.2 View Device Informaon ............................................................................................. 81
8.6.3 Set Time ...................................................................................................................... 81
8.6.4 Set DST ........................................................................................................................ 82
8.6.5 View Open Source Soware License ........................................................................... 82
8.6.6 Upgrade and Maintenance ......................................................................................... 82
8.6.7 Log Query .................................................................................................................... 84
8.6.8 Security Mode Sengs ............................................................................................... 84
8.6.9 Cercate Management ............................................................................................. 85
8.6.10 Change Administrator's Password ............................................................................. 86
DS-K1T690 Series Face Recognion Terminal User Manual
xi
background
8.6.11 Online Users .............................................................................................................. 86
8.6.12 View Device Arming/Disarming Informaon ............................................................ 87
8.6.13 Network Sengs ....................................................................................................... 87
8.6.14 Set Video and Audio Parameters .............................................................................. 92
8.6.15 Customize Audio Content ......................................................................................... 94
8.6.16 Set Image Parameters ............................................................................................... 96
8.6.17 Set Supplement Light Brightness .............................................................................. 97
8.6.18 Set Beauty Parameters .............................................................................................. 97
8.6.19 Set Fusion Parameters .............................................................................................. 97
8.6.20 Time and Aendance Sengs .................................................................................. 98
8.6.21 General Sengs ...................................................................................................... 100
8.6.22 Video Intercom Sengs .......................................................................................... 105
8.6.23 Access Control Sengs ........................................................................................... 110
8.6.24 Temperature Measurement Sengs ...................................................................... 115
8.6.25 Set Biometric Parameters ....................................................................................... 117
8.6.26 Set Meeng Plans ................................................................................................... 121
8.6.27 Set Noce Publicaon ............................................................................................. 123
8.6.28 Set Open Plaorm ................................................................................................... 125
Chapter 9 Client Soware Conguraon ................................................................................. 127
9.1 Conguraon Flow of Client Soware ............................................................................... 127
9.2 Device Management .......................................................................................................... 127
9.2.1 Add Device ................................................................................................................ 128
9.2.2 Reset Device Password ............................................................................................. 130
9.2.3 Manage Added Devices ............................................................................................ 131
9.3 Group Management ........................................................................................................... 132
9.3.1 Add Group ................................................................................................................. 132
9.3.2 Import Resources to Group ....................................................................................... 132
9.4 Person Management .......................................................................................................... 133
DS-K1T690 Series Face Recognion Terminal User Manual
xii
background
9.4.1 Add Organizaon ...................................................................................................... 133
9.4.2 Import and Export Person Idenfy Informaon ........................................................ 133
9.4.3 Get Person Informaon from Access Control Device ................................................ 136
9.4.4 Issue Cards to Persons in Batch ................................................................................. 136
9.4.5 Report Card Loss ....................................................................................................... 137
9.4.6 Set Card Issuing Parameters ...................................................................................... 137
9.5 Congure Schedule and Template ..................................................................................... 138
9.5.1 Add Holiday ............................................................................................................... 139
9.5.2 Add Template ............................................................................................................ 139
9.6 Set Access Group to Assign Access Authorizaon to Persons ............................................ 141
9.7 Congure Advanced Funcons .......................................................................................... 143
9.7.1 Congure Device Parameters .................................................................................... 143
9.7.2 Congure Device Parameters .................................................................................... 150
9.8 Door/Elevator Control ........................................................................................................ 153
9.8.1 Control Door Status ................................................................................................... 153
9.8.2 Check Real-Time Access Records .............................................................................. 154
Appendix A. Tips for Scanning Fingerprint ............................................................................... 157
Appendix B. Tips When Collecng/Comparing Face Picture .................................................... 159
Appendix C. Tips for Installaon Environment ........................................................................ 161
Appendix D. Dimension .......................................................................................................... 162
Appendix E. Communicaon Matrix and Device Command ..................................................... 163
DS-K1T690 Series Face Recognion Terminal User Manual
xiii
background
Chapter 1 Overview
1.1 Overview
Face recognion terminal is a kind of access control device for face recognion, which is mainly
applied in security access control systems, such as logisc centers, airports, university campuses,
alarm centrals, dwellings, etc.
1.2 Features
15.6-inch LCD touch screen
2 MP wide-angle dual-lens
Face recognion distance: 0.3 m to 2 m
Face an-spoong
Support remote video live view
Support QR code recognion aer connecng peripheral module
Deep learning algorithm
Suggested height for face recognion: between 1.4 m and 1.9 m
100,000 face capacity in normal mode and 50,000 face capacity in deep mode, 150,000 card
capacity, 10,000 ngerprint capacity, 150,000 event capacity and 25,000 captured picture
capacity
Note
Only the device with ngerprint module supports ngerprint funcon.
Mulple authencaon modes
Face recognion duraon ≤ 0.2 s/User; face recognion accuracy rate ≥ 99%
Supports mask wearing detecon
Supports temper alarm, door opening alarm by external force, duress card and duress password
alarm, and blocklist alarm
Support mulple display modes, including adversement mode, simple mode, authencaon
mode and meeng mode
Audio prompt
Connects to secure door control unit via RS-485 protocol to avoid the door opening when the
terminal is destroyed
Connects to external access controller or Wiegand card reader via Wiegand protocol
Watchdog design and tamper funcon
Two-way audio with client soware, door staon, indoor staon, and main staon
DS-K1T690 Series Face Recognion Terminal User Manual
1
background
Chapter 2 Appearance
Refer to the following contents for detailed informaon of the face recognion terminal:
Figure 2-1 Face Recognion Terminal Diagram
Table 2-1 Descripon of Face Recognion Terminal
No. Name
1 HDMI Interface
2 Loudspeaker
3 Built-in microUSB Interface
4 Touch Screen
DS-K1T690 Series Face Recognion Terminal User Manual
2
background
No. Name
5 Camera
6 IR Light
7 TOF
8 QR Code Scanner
9 Card Presenng Area
10 MIC
11 Temperature Measurement Module
12 Fingerprint Recognion Area
13 IR Light
14 Tamper
15 WiringTerminal
16 SIM Slot
17 Debugging Port
18 USB Expended
Interface
19 Reserved
20 Network
Interface
21 SD Card Slot
22 Debugging
Port
23 Speaker Interface
24 Network
Interface
25 PoE Network
Interface
DS-K1T690 Series Face Recognion Terminal User Manual
3
background
Note
Interfaces of the device vary by model.The gures are for reference only.
The soundbox interface does not support external headphones.
Only devices that support the POE funcon have POE network ports.
Other devices feature network ports.
DS-K1T690 Series Face Recognion Terminal User Manual
4
background
Chapter 3 Installaon
3.1 Installaon Environment
Avoid backlight, direct sunlight, and indirect sunlight.
For beer recognion, there should be light source in or near the installaon environment.
The minimum bearing weight of the wall or other places should be 3 mes heavier than the
device weight.
There shall be no strong reecve objects (such as glass doors/walls, stainless steel objects,
acrylic and other glossy plascs, lacquer, ceramic les, etc.) within 1 m of the eld of view of the
device.
Avoid device reecon.
Face recognion distance shall be greater than 30 cm.
Keep the camera clean.
Note
For details about installaon environment, see Tips for Installaon Environment.
3.2 Flush Mounng with Gang Box (Type I)
Before You Start
Remove the back sheet of the device.
Steps
1.
Make sure the gang box is installed on the wall.
Note
Gang box is not supplied.
DS-K1T690 Series Face Recognion Terminal User Manual
5
background
Figure 3-1 Install Gang Box
2.
Aer aligning the mounng plate screw holes with the gang box holes, secure the mounng
plate on the wall with four supplied screws (SC-KA4×22).
DS-K1T690 Series Face Recognion Terminal User Manual
6
background
Figure 3-2 Install Mounng Plate
3.
Route the cable through the cable hole, wire the cables and insert the cables in the gang box.
Note
Apply silicone sealant among the cable wiring area to keep the raindrop from entering.
DS-K1T690 Series Face Recognion Terminal User Manual
7
background
Figure 3-3 Apply Silicone Sealant
4.
Align the device with the mounng plate, and secure the device on the mounng plate with 1
supplied screw (SC-M4×8-SUS-NL).
DS-K1T690 Series Face Recognion Terminal User Manual
8
background
Figure 3-4 Secure Device
5.
Aer installaon, for the proper use of the device (outdoor use), sck the protecon lm (parts
of models supplied) on the screen.
3.3 Flush Mounng (Type II)
Steps
1.
Cave an installaon hole on the wall. Pull the cable out from the wall.
Note
The suggested dimension of the installaon hole is 324 mm (W) × 337 mm (H) × 47.5 mm (D).
The mounng methods is oponal. You should pay for the gang box.
2.
Install the gang box on the wall, and remove the mounng ears of the gang box.
DS-K1T690 Series Face Recognion Terminal User Manual
9
background
Figure 3-5 Install Gang Box
3.
Install the mounng plate on the gang box with the four supplied screws (SC-K1M4×6).
DS-K1T690 Series Face Recognion Terminal User Manual
10
background
Figure 3-6 Install Mounng Plate
4.
Route the cable through the cable hole, wire the cables and insert the cables in the gang box.
Note
Apply silicone sealant among the cable wiring area to keep the raindrop from entering.
DS-K1T690 Series Face Recognion Terminal User Manual
11
background
Figure 3-7 Apply Silicone Sealant
5.
Align the device with the mounng plate, and secure the device on the mounng plate with 1
supplied screw (SC-M4×8-SUS-NL).
DS-K1T690 Series Face Recognion Terminal User Manual
12
background
Figure 3-8 Secure Device
6.
Aer installaon, for the proper use of the device (outdoor use), sck the protecon lm (parts
of models supplied) on the screen.
3.4 Surface Mounng
Steps
Note
The addional force shall be equal to three mes the weight of the equipment. The equipment ad
its associated mounng means shall remain secure during the installaon. Aer the installaon,
the equipment, including any associated mounng plate, shall not be damaged.
1.
According to the datum line on the mounng template, sck the mounng template on the wall
or other surfaces, 1.55 meters higher than the ground.
DS-K1T690 Series Face Recognion Terminal User Manual
13
background
Figure 3-9 Mounng Template
2.
Drill holes on the wall or other surface according to the Hole 1 on the mounng template.
3.
Remove the cable hole on the mounng plate with tools.
4.
Align the holes to the mounng plate and secure the mounng plate on the wall with the 4
supplied screws (K1A×24).
DS-K1T690 Series Face Recognion Terminal User Manual
14
background
Figure 3-10 Install Mounng Plate
5.
Route the cable through the cable hole of the mounng plate, and connect to corresponding
peripherals cables.
Note
If the device is installed outdoor, you should apply silicone sealant to the wiring exit to avoid
water from entering.
DS-K1T690 Series Face Recognion Terminal User Manual
15
background
Figure 3-11 Apply Silicone Sealant
6.
Align the device with the mounng plate and hang the device on the mounng plate.
DS-K1T690 Series Face Recognion Terminal User Manual
16
background
Figure 3-12 Hang Device
7.
Use 1 supplied screw (SC-M4×8-SUS-NL) to secure the device and the mounng plate.
DS-K1T690 Series Face Recognion Terminal User Manual
17
background
Figure 3-13 Secure Device
8.
Aer installaon, for the proper use of the device (outdoor use), sck the protecon lm (parts
of models supplied) on the screen.
3.5 Base Mounng
Steps
Note
You can refer to the following gure for base mounng bracket size.
DS-K1T690 Series Face Recognion Terminal User Manual
18
background
Figure 3-14 Base Mounng Bracket
1.
Remove the back cover plate, route the cables through the cable hole, and connect them to the
corresponding external devices' cables.
2.
Install the back cover plate back, and install the device on the bracket with 4 supplied screws
(SC-KM3×6-T10-SUS).
DS-K1T690 Series Face Recognion Terminal User Manual
19
background
Figure 3-15 Remove Back Cover Plate
Note
The base mounng bracket is oponal accessory. You should buy it for yourself.
3.
Put the mounted device on the desk or other surface.
4.
Aer installaon, for the proper use of the device (outdoor use), sck the protecon lm (parts
of models supplied) on the screen.
3.6 Bracket Mounng
Steps
1.
Install the mounng plate on the bracket with 4 supplied screws (SC-K1M4×6).
DS-K1T690 Series Face Recognion Terminal User Manual
20
background
Figure 3-16 Install Mounng Template
Note
The bracket is oponal accessory. You should buy it for yourself.
2.
Remove the back cover plate, route the cables through the cable hole, and connect them to the
corresponding external devices' cables.
3.
Install the back cover plate back, and install the device on the bracket with 1 supplied screw (SC-
M4×8_SUS-NL).
DS-K1T690 Series Face Recognion Terminal User Manual
21
background
Figure 3-17 Install Device
4.
Aer installaon, for the proper use of the device (outdoor use), sck the protecon lm (parts
of models supplied) on the screen.
DS-K1T690 Series Face Recognion Terminal User Manual
22
background
Chapter 4 Wiring
The device supports connecng to the RS-485 terminal, the door lock, the exit buon, the alarm
output/input devices, the Wiegand card reader, the access controller, and the power supply. You
can wire the peripherals according to the descripons below.
If connect the Wiegand card reader with the access controller, the face recognion terminal can
transmit the authencaon informaon to the access controller and the access controller can
judge whether to open the door or not.
Note
If the cable size is 18 AWG, you should use a 12 V switched-mode power supply. And the
distance between the power supply and the device should be no more than 20 m.
If the cable size is 15 AWG, you should use a 12 V switched-mode power supply. And the
distance between the power supply and the device should be no more than 30 m.
If the cable size is 12 AWG, you should use a 12 V switched-mode power supply. And the
distance between the power supply and the device should be no more than 40 m.
4.1 Terminal Descripon
The terminals contains power input, alarm input, alarm output, RS-485, Wiegand output, and door
lock.
The terminal's diagram is as follows:
DS-K1T690 Series Face Recognion Terminal User Manual
23
background
Figure 4-1 Terminal Diagram
The descripons of the terminals are as follows:
DS-K1T690 Series Face Recognion Terminal User Manual
24
background
Table 4-1 Terminal Descripons
Group No. Funcon Color Name Descripon
Group A A1 Power Input Red +12 V 12 VDC Power
Supply
A2 Black GND Ground
Group B B1 Alarm Input Yellow/Blue IN1 Alarm Input 1
B2 Black GND Ground
B3 Yellow/Orange IN2 Alarm Input 2
B4 Alarm Output Yellow/Purple NC Alarm Output
Wiring
B5 Yellow/Brown COM
B6 Yellow/Red NO
Group C C1 RS-485 Yellow 485+ RS-485 Wiring
C2 Blue 485-
C3 Black/White GND Ground
C4 Wiegand Green W0 Wiegand
Wiring 0
C5 White W1 Wiegand
Wiring 1
C6 Black/Red GND Ground
Group D D1 Door Lock White/Purple NC Lock Wiring
(NC)
D2 White/Yellow COM Common
D3 White/Red NO Lock Wiring
(NO)
D4 Yellow/Green SENSOR Door Contact
D5 Yellow/Grey BTN Exit Door
Wiring
D6 Yellow/Black GND Ground
4.2 Wire Normal Device
You can connect the terminal with normal peripherals.
DS-K1T690 Series Face Recognion Terminal User Manual
25
background
Figure 4-2 Device Wiring
Note
You should set the face recognion terminal's Wiegand direcon as Input to connect to a
Wiegand card reader. If connects to an access controller, you should set the Wiegand direcon as
Output to transmit authencaon informaon to the access controller.
For details about Wiegand direcon sengs, see Set Wiegand Parameters .
Do not wire the device to the electric supply directly.
4.3 Wire Secure Door Control Unit
You can connect the terminal with the secure door control unit.
The wiring diagram is as follows.
DS-K1T690 Series Face Recognion Terminal User Manual
26
background
Figure 4-3 Secure Door Control Unit Wiring
Note
The secure door control unit should connect to an external power supply separately. The suggested
external power supply is 12V, 0.5A.
4.4 Wire Fire Module
4.4.1 Wiring Diagram of Door Open When Powering O
Lock Type: Anode Lock, Magnec Lock, and Electric Bolt (NO)
Security Type: Door Open When Powering O
Scenario: Installed in Fire Engine Access
Type 1
Note
The re system controls the power supply of the access control system.
DS-K1T690 Series Face Recognion Terminal User Manual
27
background
Figure 4-4 Wire Device
Figure 4-5 Wire Secure Door Control Unit
Type 2
Note
The re system (NO and COM, normally open when powering o) is connected with the lock and
the power supply in series. When an re alarm is triggered, the door remains open. In normal
mes, NO and COM are closed.
DS-K1T690 Series Face Recognion Terminal User Manual
28
background
Figure 4-6 Wiring Device
Figure 4-7 Wiring Secure Door Control Unit
4.4.2 Wiring Diagram of Door Locked When Powering O
Lock Type: Cathode Lock, Electric Lock, and Electric Bolt (NC)
Security Type: Door Locked When Powering O
DS-K1T690 Series Face Recognion Terminal User Manual
29
background
Scenario: Installed in Entrance/Exit with Fire Linkage
Note
The Uninterpretable Power Supply (UPS) is required.
The re system (NC and COM, normally closed when powering o) is connected with the lock
and the power supply in series. When an re alarm is triggered, the door remains open. In
normal mes, NC and COM are open.
Figure 4-8 Device Wiring
DS-K1T690 Series Face Recognion Terminal User Manual
30
background
Figure 4-9 Wiring Diagram
DS-K1T690 Series Face Recognion Terminal User Manual
31
background
Chapter 5 Acvaon
You should acvate the device before the rst login. Aer powering on the device, the system will
switch to Device Acvaon page.
Acvaon via the device, SADP tool and the client soware are supported.
The default values of the device are as follows:
The default IP address: 192.0.0.64
The default port No.: 8000
The default user name: admin
5.1 Acvate via Device
If the device is not acvated, you can acvate the device aer it is powered on.
On the Acvate Device page, create a password and conrm the password. Tap Acvate and the
device will acvated.
DS-K1T690 Series Face Recognion Terminal User Manual
32
background
Figure 5-1 Acvaon Page
Cauon
The password strength of the device can be automacally checked. We highly recommend you
change the password of your own choosing (using a minimum of 8 characters, including at least
three kinds of following categories: upper case leers, lower case leers, numbers, and special
DS-K1T690 Series Face Recognion Terminal User Manual
33
background
characters) in order to increase the security of your product. And we recommend you change your
password regularly, especially in the high security system, changing the password monthly or
weekly can beer protect your product.
Proper conguraon of all passwords and other security sengs is the responsibility of the
installer and/or end-user.
Aer acvaon, you should select a language according to your actual needs.
Aer acvaon, you should select an applicaon mode. For details, see Set Applicaon Mode .
Aer acvaon, if you need to set privacy, you should check the item. For details, see Privacy
Sengs .
Aer acvaon, if you need to add administrator to manage the device parameters, you should
set administrator. For details, see Add Administrator .
5.2 Acvate via Web Browser
You can acvate the device via the web browser.
Steps
1.
Enter the device default IP address (192.0.0.64) in the address bar of the web browser, and press
Enter.
Note
Make sure the device IP address and the computer's should be in the same IP segment.
2.
Create a new password (admin password) and conrm the password.
Cauon
STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of
your own choosing (using a minimum of 8 characters, including upper case leers, lower case
leers, numbers, and special characters) in order to increase the security of your product. And
we recommend you reset your password regularly, especially in the high security system,
reseng the password monthly or weekly can beer protect your product.
3.
Click Acvate.
4.
Edit the device IP address. You can edit the IP address via the SADP tool, the device, and the
client soware.
5.3 Acvate via SADP
SADP is a tool to detect, acvate and modify the IP address of the device over the LAN.
Before You Start
Get the SADP soware from the supplied disk or the ocial website
hp://
www.hikvision.com/en/ , and install the SADP according to the prompts.
The device and the PC that runs the SADP tool should be within the same subnet.
DS-K1T690 Series Face Recognion Terminal User Manual
34
background
The following steps show how to acvate a device and modify its IP address. For batch acvaon
and IP addresses modicaon, refer to User Manual of SADP for details.
Steps
1.
Run the SADP soware and search the online devices.
2.
Find and select your device in online device list.
3.
Input new password (admin password) and conrm the password.
Cauon
STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of
your own choosing (using a minimum of 8 characters, including upper case leers, lower case
leers, numbers, and special characters) in order to increase the security of your product. And
we recommend you reset your password regularly, especially in the high security system,
reseng the password monthly or weekly can beer protect your product.
4.
Click Acvate to start acvaon.
Status of the device becomes Acve aer successful acvaon.
5.
Modify IP address of the device.
1) Select the device.
2) Change the device IP address to the same subnet as your computer by either modifying the IP
address manually or checking Enable DHCP.
3) Input the admin password and click Modify to acvate your IP address modicaon.
DS-K1T690 Series Face Recognion Terminal User Manual
35
background
5.4 Acvate Device via iVMS-4200 Client Soware
For some devices, you are required to create the password to acvate them before they can be
added to the iVMS-4200 soware and work properly.
Steps
Note
This funcon should be supported by the device.
1.
Enter the Device Management page.
2.
Click on the right of Device Management and select Device.
3.
Click Online Device to show the online device area.
The searched online devices are displayed in the list.
4.
Check the device status (shown on Security Level column) and select an inacve device.
5.
Click Acvate to open the Acvaon dialog.
6.
Create a password in the password eld, and conrm the password.
Cauon
The password strength of the device can be automacally checked. We highly recommend you
change the password of your own choosing (using a minimum of 8 characters, including at least
three kinds of following categories: upper case leers, lower case leers, numbers, and special
characters) in order to increase the security of your product. And we recommend you change
your password regularly, especially in the high security system, changing the password monthly
or weekly can beer protect your product.
Proper conguraon of all passwords and other security sengs is the responsibility of the
installer and/or end-user.
Note
Characters containing admin and nimda are not supported to be set as acvaon password.
7.
Click OK to acvate the device.
DS-K1T690 Series Face Recognion Terminal User Manual
36
background
Chapter 6 Quick Operaon
6.1 Set Applicaon Mode
Aer acvang the device, you should select an applicaon mode for beer device applicaon.
Steps
1.
On the Welcome page, select Indoor or Others from the drop-down list.
DS-K1T690 Series Face Recognion Terminal User Manual
37
background
Figure 6-1 Welcome Page
2.
Tap OK to save.
DS-K1T690 Series Face Recognion Terminal User Manual
38
background
Note
You can also change the sengs in System Sengs.
If you install the device indoors near the window or the face recognion funcon is not
working well, select Others.
If you do not congure the applicaon mode and tap Next, the system will select Indoor by
default.
If you acvate the device via other tools remotely, the system will select Indoor as the
applicaon mode by default.
6.2 Privacy Sengs
Aer acvaon, selecng applicaon mode, and selecng network, you should set the privacy
parameters, including the picture uploading and storage.
Select parameters according to your actual needs.
DS-K1T690 Series Face Recognion Terminal User Manual
39
background
Figure 6-2 Privacy
Upload Captured Pic. When Auth. (Upload Captured Picture When Authencang)
Upload the pictures captured when authencang to the plaorm automacally.
Save Captured Pic. When Auth. (Save Captured Picture When Authencang)
If you enable this funcon, you can save the picture when Authencang to the device.
DS-K1T690 Series Face Recognion Terminal User Manual
40
background
Save Registered Pic. (Save Registered Picture)
The registered face picture will be saved to the system if you enable the funcon.
Upload Pic. Aer Linked Capture (Upload Picture Aer Linked Capture)
Upload the pictures captured by linked camera to the plaorm automacally.
Save Pic. Aer Linked Capture (Save Pictures Aer Linked Capture)
If you enable this funcon, you can save the picture captured by linked camera to the device.
Tap Next to complete the sengs.
6.3 Set Administrator
Aer device acvaon, you can add an administrator to manage the device parameters.
Before You Start
Acvate the device and select an applicaon mode.
Steps
1.
Oponal: Tap Skip to skip adding administrator if required.
2.
Enter the administrator's name (oponal) and tap Next.
DS-K1T690 Series Face Recognion Terminal User Manual
41
background
Figure 6-3 Add Administrator Page
3.
Select a credenal to add.
Note
Up to one credenal should be added.
DS-K1T690 Series Face Recognion Terminal User Manual
42
background
-
: Face forward at the camera. Make sure the face is in the face recognion area. Click to
capture and click to conrm.
-
: Press your nger according to the instrucons on the device screen. Click to conrm.
-
: Enter the card No. or present card on the card presenng area. Click OK.
Note
Devices with ngerprint module support ngerprint funcon. Refers to the actual device.
Some models support WiFi funcon. Refers to the actual device.
4.
Click OK.
You will enter the authencaon page.
Status Icon Descripon
/
Device is armed/not armed.
/
Hik-Connect is enabled/disabled.
/ /
The device wired network is connected/not connected/connecng failed.
/ /
The device' Wi-Fi is enabled and connected/not connected/enabled but not connected.
3G/4G is enabled.
The device displays the number of authencated people in the right corner of the logo.
Shortcut Keys Descripon
Note
You can congure those shortcut keys displayed on the screen. For details, see Basic Sengs .
Scan QR code to authencate.
Note
The QR code can be obtained from the visitor terminal.
Enter the device room No. and tap OK to call.
Tap to call the center.
DS-K1T690 Series Face Recognion Terminal User Manual
43
background
Note
The device should be added to the center, or the calling operaon will be failed.
Enter password to authencate.
DS-K1T690 Series Face Recognion Terminal User Manual
44
background
Chapter 7 Basic Operaon
7.1 Login
Login the device to set the device basic parameters.
7.1.1 Login by Administrator
If you have added an administrator for the device, only the administrator can login the device for
device operaon.
Steps
1.
Long tap on the inial page for 3 s and slide to the le/right by following the gesture to enter
the admin login page.
DS-K1T690 Series Face Recognion Terminal User Manual
45
background
Figure 7-1 Admin Login
2.
Authencate the administrator's face, ngerprint or card to enter the home page.
DS-K1T690 Series Face Recognion Terminal User Manual
46
background
Figure 7-2 Home Page
Note
The device will be locked for 30 minutes aer 5 failed ngerprint or card aempts.
3.
Oponal: Tap and you can enter the device acvaon password for login.
4.
Oponal: Tap and you can exit the admin login page.
DS-K1T690 Series Face Recognion Terminal User Manual
47
background
7.1.2 Login by Acvaon Password
You should login the system before other device operaons. If you do not congure an
administrator, you should follow the instrucons below to login.
Steps
1.
Long tap on the inial page for 3 s and slide to the le/right by following the gesture to enter
password entering page.
2.
Enter the password.
-
If you have added an administrator for the device, tap
and enter the password.
-
If you haven't added an administrator for the device, enter the password.
3.
Tap OK to enter the home page.
Note
The device will be locked for 30 minutes aer 5 failed password aempts.
DS-K1T690 Series Face Recognion Terminal User Manual
48
background
Figure 7-3 Home Page
7.2 Communicaon Sengs
You can set the wired network, the Wi-Fi parameter, the RS-485 parameters, the Wiegand
parameters and access to Hik-Connect on the communicaon sengs page.
DS-K1T690 Series Face Recognion Terminal User Manual
49
background
7.2.1 Set Wired Network Parameters
You can set the device wired network parameters, including the IP address, the subnet mask, the
gateway, and DNS parameters.
Steps
1.
Tap Comm. (Communicaon Sengs) on the Home page to enter the Communicaon Sengs
page.
2.
On the Communicaon Sengs page, tap Wired Network.
Figure 7-4 Wired Network Sengs
3.
Set IP Address, Subnet Mask, and Gateway.
-
Enable DHCP, and the system will assign IP address, subnet mask, and gateway automacally.
-
Disable DHCP, and you should set the IP address, subnet mask, and gateway manually.
Note
The device's IP address and the computer IP address should be in the same IP segment.
Network Interface 1 and Network Interface 2 should not be in the same IP segment.
4.
Set the DNS parameters. You can enable Auto Obtain DNS, set the preferred DNS server and the
alternate DNS server.
7.2.2 Set Wi-Fi Parameters
You can enable the Wi-Fi funcon and set the Wi-Fi related parameters.
Steps
Note
The funcon should be supported by the device.
1.
Tap Comm. (Communicaon Sengs) on the Home page to enter the Communicaon Sengs
page.
2.
On the Communicaon Sengs page, tap.
DS-K1T690 Series Face Recognion Terminal User Manual
50
background
Figure 7-5 Wi-Fi Sengs
3.
Enable the Wi-Fi funcon.
4.
Congure the Wi-Fi parameters.
-
Select a Wi-Fi from the list, and enter the Wi-Fi's password. Tap OK.
-
If the target Wi-Fi is not in the list,tap Add Wi-Fi. Enter the Wi-Fi's name and password. And
tap OK.
DS-K1T690 Series Face Recognion Terminal User Manual
51
background
Note
Only digits, leers, and special characters are allowed in the password.
5.
Set the Wi-Fi's parameters.
-
By default, DHCP is enable. The system will allocate the IP address, the subnet mask, and the
gateway automacally.
-
If disable DHCP, you should enter the IP address, the subnet mask, and the gateway manually.
6.
Tap OK to save the sengs and go back to the Wi-Fi tab.
7.
Tap
to save the network parameters.
7.2.3 Set RS-485 Parameters
The face recognion terminal can connect external access controller, secure door control unit,card
reader, or elevator via the RS-485 terminal.
Steps
1.
Tap Comm. (Communicaon Sengs) on the Home page to enter the Communicaon Sengs
page.
2.
On the Communicaon Sengs page, tap RS-485 to enter the RS-485 tab.
Figure 7-6 Set RS-485 Parameters
3.
Select an peripheral type according to your actual needs.
Note
If you select Access Controller: If connect the device to a terminal via the RS-485 interface, set
the RS-485 address as 2. If you connect the device to a controller, set the RS-485 address
according to the door No.
4.
Tap the back icon at the upper le corner and you should reboot the device if you change the
parameters.
DS-K1T690 Series Face Recognion Terminal User Manual
52
background
7.2.4 Set Wiegand Parameters
You can set the Wiegand transmission direcon.
Steps
1.
Tap Comm. (Communicaon Sengs) on the Home page to enter the Communicaon Sengs
page.
2.
On the Communicaon Sengs page, tap Wiegand to enter the Wiegand tab.
Figure 7-7 Wiegand Sengs
3.
Enable the Wiegand funcon.
4.
Select a transmission direcon.
Output: A face recognion terminal can connect an external access controller. And the two
devices will transmit the card No. via Wiegand 26 or Wiegand 34.
Input: A face recognion terminal can connect a Wiegand card reader.
5.
Tap
to save the network parameters.
Note
If you change the external device, and aer you save the device parameters, the device will
reboot automacally.
7.2.5 Plaorm Access
You can change the device vericaon code and set the server address before you add the device
to the Hik-Connect mobile client.
Before You Start
Make sure your device has connected to a network.
Steps
1.
Tap Comm. (Communicaon Sengs) on the Home page to enter the Communicaon Sengs
page.
2.
On the Communicaon Sengs page, tap Access to Hik-Connect.
DS-K1T690 Series Face Recognion Terminal User Manual
53
background
3.
Enable Access to Hik-Connect
4.
Enter Server IP.
5.
Create the Vericaon Code, and you need to enter the vericaon code when you manage the
devices via Hik-Connect.
7.3 User Management
On the user management interface, you can add, edit, delete and search the user.
7.3.1 Add Administrator
The administrator can log in the device backend and congure the device parameters.
Steps
1.
Long tap on the inial page and log in the backend.
2.
Tap User → + to enter the Add User page.
3.
Edit the employee ID.
Note
The employee ID should be less than 32 characters. And it can be a combinaon of lower
leers, upper leers, and numbers.
The employee ID should not be duplicated.
4.
Tap the Name eld and input the user name on the so keyboard.
DS-K1T690 Series Face Recognion Terminal User Manual
54
background
Note
Numbers, upper case leers, lower case leers, and special characters are allowed in the user
name.
Up to 32 characters are allowed in the user name.
5.
Oponal: Add a face picture, ngerprints, cards, or Pin for the administrator.
Note
For details about adding a face picture, see Add Face Picture .
Note
For details about adding a ngerprint, see Add Fingerprint .
For details about adding a card, see Add Card .
For details about adding a password, see View PIN code .
6.
Oponal: Set the administrator's authencaon type.
Note
For details about seng the authencaon type, see Set Authencaon Mode .
7.
Enable the Administrator Permission funcon.
Enable Administrator Permission
The user is the administrator. Except for the normal aendance funcon, the user can also
enter the Home page to operate aer authencang the permission.
8.
Tap to save the sengs.
7.3.2 Add Face Picture
Add user's face picture to the device. And the user can use the face picture to authencate.
Steps
Note
Up to 10,000 face pictures can be added.
1.
Long tap on the inial page for 3 s and slide to the le/right by following the gesture and log in
the backend.
2.
Tap User → + to enter the Add User page.
3.
Edit the employee ID.
Note
The employee ID should be less than 32 characters. And it can be a combinaon of lower
leers, upper leers, and numbers.
The employee ID should not be duplicated.
4.
Tap the Name eld and input the user name on the so keyboard.
DS-K1T690 Series Face Recognion Terminal User Manual
55
background
Note
Numbers, upper case leers, lower case leers, and special characters are allowed in the user
name.
The suggested user name should be within 32 characters.
5.
Tap the Face Picture eld to enter the face picture adding page.
Figure 7-8 Add Face Picture
6.
Look at the camera.
DS-K1T690 Series Face Recognion Terminal User Manual
56
background
Note
Make sure your face picture is in the face picture outline when adding the face picture.
Make sure the captured face picture is in good quality and is accurate.
For details about the instrucons of adding face pictures, see Tips When Collecng/
Comparing Face Picture .
Aer completely adding the face picture, a captured face picture will be displayed at the upper
right corner of the page.
7.
Tap Save to save the face picture.
8.
Oponal: Tap Try Again and adjust your face posion to add the face picture again.
9.
Set the user role.
Administrator
The user is the administrator. Except for the normal aendance funcon, the user can also
enter the Home page to operate aer authencang the permission.
Normal User
The User is the normal user. The user can only authencate or take aendance on the inial
page.
10.
Tap to save the sengs.
7.3.3 Add Fingerprint
Add a ngerprint for the user and the user can authencate via the added ngerprint.
Steps
Note
The funcon should be supported by the device.
Up to 100,000 ngerprints can be added.
1.
Long tap on the inial page for 3 s and slide to the le/right by following the gesture and enter
the device backend.
2.
Tap User → + to enter the Add User page.
3.
Tap the Employee ID. eld and edit the employee ID.
Note
The employee ID should be less than 32 characters. And it can be a combinaon of lower
leers, upper leers, and numbers.
The employee ID should not start with 0 and should not be duplicated.
4.
Tap the Name eld and input the user name on the so keyboard.
DS-K1T690 Series Face Recognion Terminal User Manual
57
background
Note
Numbers, upper case leers, lower case leers, and special characters are allowed in the user
name.
The suggested user name should be within 32 characters.
5.
Tap the Fingerprint eld to enter the Add Fingerprint page.
6.
Follow the instrucons to add a ngerprint.
Note
The same ngerprint cannot be repeatedly added.
Up to 10 ngerprints can be added for one user.
You can also use the client soware or the ngerprint recorder to record ngerprints.
For details about the instrucons of scanning ngerprints, see Tips for Scanning Fingerprint .
7.
Set the user role.
Administrator
The user is the administrator. Except for the normal aendance funcon, the user can also
enter the Home page to operate aer authencang the permission.
Normal User
The User is the normal user. The user can only authencate or take aendance on the inial
page.
8.
Tap
to save the sengs.
7.3.4 Add Card
Add a card for the user and the user can authencate via the added card.
Steps
Note
Up to 150,000 cards can be added.
1.
Long tap on the inial page for 3 s and slide to the le/right by following the gesture and log in
the backend.
2.
Tap User → + to enter the Add User page.
3.
Connect an external card reader according to the wiring diagram.
4.
Tap the Employee ID. eld and edit the employee ID.
Note
The employee ID should be less than 32 characters. And it can be a combinaon of lower
leers, upper leers, and numbers.
The employee ID should not be duplicated.
5.
Tap the Name eld and input the user name on the so keyboard.
DS-K1T690 Series Face Recognion Terminal User Manual
58
background
Note
Numbers, upper case leers, lower case leers, and special characters are allowed in the user
name.
The suggested user name should be within 32 characters.
6.
Tap the Card eld and tap +.
7.
Congure the card No.
-
Enter the card No. manually.
-
Present the card over the card presenng area to get the card No.
Note
The card No. cannot be empty.
Up to 20 characters are allowed in the card No.
The card No. cannot be duplicated.
8.
Congure the card type.
9.
Set the user role.
Administrator
The user is the administrator. Except for the normal aendance funcon, the user can also
enter the Home page to operate aer authencang the permission.
Normal User
The User is the normal user. The user can only authencate or take aendance on the inial
page.
10.
Tap
to save the sengs.
7.3.5 View PIN code
Add a PIN code for the user and the user can authencate via the PIN code.
Steps
1.
Long tap on the inial page for 3 s and slide to the le/right by following the gesture and log in
the backend.
2.
Tap User → + to enter the Add User page.
3.
Tap the Employee ID. eld and edit the employee ID.
Note
The employee ID should be less than 32 characters. And it can be a combinaon of lower
leers, upper leers, and numbers.
The employee ID should not be duplicated.
4.
Tap the Name eld and input the user name on the so keyboard.
DS-K1T690 Series Face Recognion Terminal User Manual
59
background
Note
Numbers, upper case leers, lower case leers, and special characters are allowed in the user
name.
The suggested user name should be within 32 characters.
5.
Tap the PIN code to view the PIN code.
Note
The PIN code cannot be edited. It can only be applied by the plaorm.
6.
Set the user role.
Administrator
The user is the administrator. Except for the normal aendance funcon, the user can also
enter the Home page to operate aer authencang the permission.
Normal User
The User is the normal user. The user can only authencate or take aendance on the inial
page.
7.
Tap to save the sengs.
7.3.6 Set Authencaon Mode
Aer adding the user's face picture, password, or other credenals, you should set the
authencaon mode and the user can authencate his/her identy via the congured
authencaon mode.
Steps
1.
Long tap on the inial page for 3 s and slide to the le/right by following the gesture and log in
the backend.
2.
Tap User → Add User/Edit User Authencaon Mode .
3.
Select Device or Custom as the authencaon mode.
Device
If you want to select device mode, you should set the terminal authencaon mode in Access
Control Sengs page rst. For details see Seng Access Control Parameters.
Custom
You can combine dierent authencaon modes together according to your actual needs.
4.
Tap
to save the sengs.
7.3.7 Search and Edit User
Aer adding the user, you can search the user and edit it.
DS-K1T690 Series Face Recognion Terminal User Manual
60
background
Search User
On the User Management page, Tap the search area to enter the Search User page. Tap Card on
the le of the page and select a search type from the drop-down list. Enter the employee ID, card
No., or the user name for search. Tap to search.
Edit User
On the User Management page, select a user from the user list to enter the Edit User page. Follow
the steps in User Management to edit the user parameters. Tap to save the sengs.
Note
The employee ID cannot be edited.
7.3.8 Delete User
Tap User → + to enter the User Informaon page.
Figure 7-9 Delete User
Select the user you want to delete and tap Delete User to delete the user informaon.
7.4 Data Management
You can delete data, import data, and export data.
DS-K1T690 Series Face Recognion Terminal User Manual
61
background
7.4.1 Delete Data
Delete user data.
On the Home page, tap Data → Delete Data → User Data . All user data added in the device will be
deleted.
7.4.2 Import Data
Steps
1.
Plug a USB ash drive in the device.
2.
On the Home page, tap Data → Import Data .
3.
Tap User Data or Face Data.
4.
Enter the created password when you exported the data. If you do not create a password when
you exported the data, leave a blank in the input box and tap OK immediately.
Note
If you want to transfer all user informaon from one device (Device A) to another (Device B),
you should export the informaon from Device A to the USB ash drive and then import from
the USB ash drive to Device B. In this case, you should import the user data before imporng
the prole photo.
The supported USB ash drive format is FAT32.
The imported pictures should be saved in the folder (named enroll_pic) of the root directory
and the picture's name should be follow the rule below:
Card No._Name_Department_Employee ID_Gender.jpg
If the folder enroll_pic cannot save all imported pictures, you can create another folders,
named enroll_pic1, enroll_pic2, enroll_pic3, enroll_pic4, under the root directory.
The employee ID should be less than 32 characters. It can be a combinaon of lower leers,
upper leers, and numbers. It should not be duplicated, and should not start with 0.
Requirements of face picture should follow the rules below: It should be taken in full-face
view, directly facing the camera. Do not wear a hat or head covering when taking the face
picture. The format should be JPEG or JPG. The resoluon should be 640 × 480 pixel or more
than of 640 × 480 pixel. The picture size should be between 60 KB and 200 KB.
7.4.3 Export Data
Steps
1.
Plug a USB ash drive in the device.
2.
On the Home page, tap Data → Export Data .
3.
Tap Event Data, User Data, or Face Data.
4.
Oponal: Create a password for exporng. When you import those data to another device, you
should enter the password.
DS-K1T690 Series Face Recognion Terminal User Manual
62
background
Note
The supported USB ash drive format is DB.
The system supports the USB ash drive with the storage of 1G to 32G. Make sure the free
space of the USB ash drive is more than 512M.
The exported user data is a DB le, which cannot be edited.
7.5 Identy Authencaon
Aer network conguraon, system parameters conguraon and user conguraon, you can go
back to the inial page for identy authencaon. The system will authencate person according
to the congured authencaon mode.
7.5.1 Authencate via Single Credenal
Set the user authencaon type before authencaon. For details, see Set Authencaon Mode .
Authencate face, ngerprint, card or QR code.
Face
Face forward at the camera and start authencaon via face.
Fingerprint
Place the enrolled ngerprint on the ngerprint module and start authencaon via ngerprint.
Card
Present the card on the card presenng area and start authencaon via card.
Note
The card can be normal IC card, or encrypted card.
QR Code
Put the QR code in front of the device camera to authencate via QR code.
Note
Authencaon via QR code should be supported by the device.
Password
Enter the password to authencate via password.
If authencaon completed, a prompt "Authencated" will pop up.
Note
Aer enabling temperature detecon, the device displays the temperature informaon.
DS-K1T690 Series Face Recognion Terminal User Manual
63
background
7.5.2 Authencate via Mulple Credenal
Before You Start
Set the user authencaon type before authencaon. For details, see Set Authencaon Mode .
Steps
1.
If the authencaon mode is Card and Face, Password and Face, Card and Password, Card and
Face and Fingerprint, authencate any credenal according to the instrucons on the live view
page.
Note
The card can be normal IC card, or encrypted card.
If the QR Code Scanning funcon is enabled, you can put the QR code in front of the device
camera to authencate via QR code.
2.
Aer the previous credenal is authencated, connue authencate other credenals.
Note
For detailed informaon about scanning ngerprint, see Tips for Scanning Fingerprint.
For detailed informaon about authencang face, see Tips When Collecng/Comparing Face
Picture.
Aer enabling temperature detecon, the device displays the temperature informaon.
If authencaon succeeded, the prompt "Authencated" will pop up.
7.6 Basic Sengs
You can set the sound sengs, me sengs, beauty and sleeping (s).
Long tap on the inial page for 3 s and slide to the le/right by following the gesture and login the
device home page. Tap Basic.
Figure 7-10 Basic Sengs Page
DS-K1T690 Series Face Recognion Terminal User Manual
64
background
Sound Sengs
You can enable/disable the voice prompt funcon and adjust the voice volume.
Note
You can set the voice volume between 0 and 10.
Time Sengs
Set the me zone, the device me and the DST.
Beauty
You can enable the beauty funcon and set the smooth and the whiten parameter. Tap + or - to
control the eect strength.
Note
By default, the funcon is disabled.
Sleep
Set the device sleeping waing me (minute). When you are on the inial page and if you set
the sleeping me to 30 min, the device will sleep aer 30 min without any operaon.
Note
If you set the sleeping me to 0, the device will not enter sleeping mode.
7.7 Set Biometric Parameters
You can customize the face parameters to improve the face recognion performance. The
congurable parameters includes applicaon mode, face liveness level, face recognion distance,
face recognion interval, wide dynamic, face 1:N security level, face 1:1 security level, ECO
sengs, face with mask detecon and hard hat detecon.
Long tap on the inial page for 3 s and login the home page. Tap Biometric.
Table 7-1 Face Picture Parameters
Parameter Descripon
Applicaon Mode Select either others or indoor according to actual environment.
Face Liveness Level Aer enabling face an-spoong funcon, you can set the matching
security level when performing live face authencaon.
Face Recognion
Distance
Set the valid distance between the user and the camera when
authencang.
Face Recognion
Interval
The me interval between two connuous face recognions when
authencang.
DS-K1T690 Series Face Recognion Terminal User Manual
65
background
Parameter Descripon
Note
You can input the number from 1 to 10.
Wide Dynamic It is suggested to enable the WDR funcon if installing the device
outdoors.
When there are both very bright and very dark areas simultaneously in
the view, you can enable the WDR funcon to balance the brightness of
the whole image and provide clear images with details.
Face 1:N Security Level Set the matching threshold when authencang via 1:N matching mode.
The larger the value, the smaller the false accept rate and the larger the
false rejecon rate.
Face 1:1 Security Level Set the matching threshold when authencang via 1:1 matching mode.
The larger the value, the smaller the false accept rate and the larger the
false rejecon rate.
ECO Sengs Aer enabling the ECO mode, the device will use the IR camera to
authencate faces in the low light or dark environment. And you can set
the ECO mode threshold, ECO mode (1:N), and ECO mode (1:1).
ECO Mode Threshold
When enabling the ECO mode, you can set the ECO mode's threshold.
The larger the value, the easier the device entering the ECO mode.
ECO Mode (1:1)
Set the matching threshold when authencang via ECO mode 1:1
matching mode. The larger the value, the smaller the false accept rate
and the larger the false rejecon rate.
ECO Mode (1:N)
Set the matching threshold when authencang via ECO mode 1:N
matching mode. The larger the value, the smaller the false accept rate
and the larger the false rejecon rate
Face with Mask & Face(1:N ECO)
Set the matching value when authencang with face mask via ECO
mode 1:N matching mode. The larger the value, the smaller the false
accept rate and the larger the false rejecon rate.
Face with Mask
Detecon
Aer enabling the face with mask detecon, the system will recognize
the captured face with mask picture. You can set face with mask & face
1:N level and the strategy.
Reminder of Wearing
DS-K1T690 Series Face Recognion Terminal User Manual
66
background
Parameter Descripon
If the person do not wear a face mask when authencang, the
device prompts a nocaon and the door will open.
Must Wear
If the person do not wear a face mask when authencang, the
device prompts a nocaon and the door keeps closed.
None
If the person do not wear a face mask when authencang, the
device will not prompt a nocaon.
Hard Hat Detecon Aer enabling the hard hat detecon, you can set the strategy.
Reminder of Wearing
If the person do not wear the hard hat when authencang, the
device will pop up a prompt and the door will open.
Must Wear
If the person do not wear the hard hat when authencang, the
device will pop up a prompt and the door will keep closed.
None
If the person do not wear a face mask when authencang, the
device will not prompt a nocaon.
7.8 Temperature Measurement Sengs
You can set the temperature measurement parameters, including temp. detecon, normal temp.,
temperature compensaon, door not open (abnormal temperature), temperature measurement
only, measurement area and unit.
On the Home page, tap Temp (Temperature) to enter the Temperature Sengs page. Edit the
temperature measurement parameters on this page and tap to save the sengs.
DS-K1T690 Series Face Recognion Terminal User Manual
67
background
Figure 7-11 Temperature Measurement Parameters
The available parameters descripons are as follows:
Temp. Detecon
When enabling the funcon, the device will authencate the permissions and at the same me
take the temperature. When disabling the device, the device will authencate the permissions
only.
Normal Temp.
Edit the threshold according to actual situaon. If the detected temperature is higher or lower
than the congured parameters, an alarm will be triggered. By default, the minimum value is
1 °C and the maximum value is 45 °C.
Temperature Compensaon
If the measured temperature is higher/lower than the actual object's temperature, you can set
the compensaon temperature here. Available range: -99 to 99.
Note
You can select the unit as celsius degree or fahrenheit degree.
Door Not Open (Abnormal Temperature)
When enabling the funcon, the door will not open when the detected temperature is higher or
lower than the congured temperature threshold. By default, the funcon is enabled.
Temp. Measurement Only
When enabling the funcon, the device will not authencate the permissions, but only take the
temperature. When disabling the funcon, the device will authencate the permissions and at
the same me take the temperature.
DS-K1T690 Series Face Recognion Terminal User Manual
68
background
Measurement Area
Congure the temperature measurement area.
Unit
Select a temperature unit according to your preference.
7.9 Set Access Control Parameters
You can set the access control permissions, including the funcons of terminal auth. mode, reader
auth. mode, enable NFC card, auth. via QR Code, door contact, open duraon (s) and
authencaon interval (s).
On the Home page, tap Access Control to enter the Access Control Sengs page. Edit the access
control parameters on this page.
Figure 7-12 Access Control Parameters
The available parameters descripons are as follows:
Table 7-2 Access Control Parameters Descripons
Parameter Descripon
Terminal Auth. Mode (Terminal
Authencaon Mode)
Select the face recognion terminal's authencaon mode. You
can also customize the authencaon mode.
DS-K1T690 Series Face Recognion Terminal User Manual
69
background
Parameter Descripon
Note
Only the device with the ngerprint module supports the
ngerprint related funcon.
Biometric recognion products are not completely applicable
to an-spoong environments. If you require a higher
security level, use mulple authencaon modes.
If you adopt mulple authencaon modes, you should
authencate other methods before authencang face.
Reader Auth. Mode (Card
Reader Authencaon Mode)
Select the card reader's authencaon mode.
Enable NFC Card Enable the funcon and you can present the NFC card to
authencate.
Auth. via QR Code Aer enabling this funcon, you can put the QR code in front of
the device camera to authencate via QR code.
Door Contact You can select "Remain Open" or "Remain Closed" according to
your actual needs. By default, it is Remain Closed.
Open Duraon Set the door unlocking duraon. If the door is not opened for
the set me, the door will be locked. Available door locked me
range: 1 to 255s.
Authencaon Interval Set the device authencang interval. Available authencaon
interval range: 0 to 65535.
7.10 Preference Sengs
You can congure preference sengs parameters.
Steps
1.
Tap Basic Sengs → Preference Sengs to enter the preference sengs page.
DS-K1T690 Series Face Recognion Terminal User Manual
70
background
Figure 7-13 Preference Sengs
Theme
You can set the theme of the prompt window on the authencaon page. You can select
Theme as Iris Recognion Mode/Adversement/Meeng/Simple.
Adversement
Aer selecng this mode, the adversing area and idencaon authencaon area of
the device will be displayed on separate screens. Video and adversing informaon
playback, welcome speech display are supported.
Meeng
Aer selecng this mode, the device supports eding and displaying meeng room name,
displaying scheduled meeng informaon and the status of the meeng room, and signing
in on the device.
Simple
Aer selecng this mode, the live view of the authencaon page will be disabled, and in
the meanwhile, the person's name, employee ID, face pictures will all be hidden.
Shortcut Key
Choose the shortcut key that displayed on the authencaon page, including the QR code
funcon, the call funcon, call type, and the password entering funcon.
Note
You can select call type from Call Room, Call Center, Call Specied Room No. and Call APP.
Call Room
When you tap the call buon on the authencaon page, you should dial a room No. to
call.
Call Center
When you tap the call buon on the authencaon page, you can call the center directly.
Call Specied Room No.
DS-K1T690 Series Face Recognion Terminal User Manual
71
background
You should set a room No. When you tap the call buon on the authencaon page, you
can call the congured room directly without dialing.
Call APP
When you tap the call buon on the authencaon page, you will call the mobile client
where the device is added.
Password
Enable this funcon amd you can enter the password to authencate via password.
QR Code
You can use the QR code scanning funcon on the authencaon interface. The device will
upload the informaon associated with the obtained QR code to the plaorm.
7.11 System Maintenance
You can view the device system informaon and capacity. You can also restore the system to
factory sengs, default sengs, reboot, and exit the system.
Long tap on the inial page for 3 s and slide to the le/right by following the gesture and enter the
device backend. Tap Maint..
Figure 7-14 Maintenance Page
System Informaon
You can view the device informaon.
DS-K1T690 Series Face Recognion Terminal User Manual
72
background
Note
The page may vary according to dierent device models. Refers to the actual page for details.
Capacity
You can view the number of administrator, user, face picture, card, and event.
Note
Parts of the device models support displaying the ngerprint number. Refers to the actual
page for details.
The capacity varies according to the congured enrollment rules. For details about seng
enrollment rules, see .
Restore to Default
All parameters, except for the communicaon sengs, remotely imported user informaon, will
be restored to the default sengs. The system will reboot to take eect.
Restore to Factory
All parameters will be restored to the factory sengs. The system will reboot to take eect.
Upgrade
Plug the USB ash drive in the device USB interface. Tap Upgrade → OK , and the device will
read the digicap.dav le in the USB ash drive to start upgrading.
Reboot
The device will reboot aer the conrmaon.
Exit
Tap Exit to exit the applicaon.
Long tap , and enter admin password to view device version informaon.
7.12 Video Intercom
Aer adding the device to the client soware, you can call the device from the client soware, call
the main staon from the device, call the client soware from the device, call the indoor staon
from the device, or call the specic room from the device.
7.12.1 Call Client Soware from Device
Steps
1.
Get the client soware from the supplied disk or the ocial website, and install the soware
according to the prompts.
2.
Run the client soware and the control panel of the soware pops up.
DS-K1T690 Series Face Recognion Terminal User Manual
73
background
3.
Click Device Management to enter the Device Management interface.
4.
Add the device to the client soware.
Note
For details about adding device, see Add Device.
5.
Call the client soware.
1) Tap on the device inial page.
2) Enter 0 in the pop-up window.
3) Tap to call the client soware.
6.
Tap Answer on the pop-up page of the client soware and you can start two-way audio between
the device and the client soware.
Note
If the device is added to mulple client sowares and when the device is calling the client
soware, only the rst client soware added the device will pop up the call receiving window.
7.12.2 Call Center from Device
Steps
1.
Get the client soware from the supplied disk or the ocial website, and install the soware
according to the prompts.
2.
Run the client soware and the control panel of the soware pops up.
3.
Click Device Management to enter the Device Management interface.
4.
Add the main staon and the device to the client soware.
Note
For details about adding device, see Add Device.
5.
Set the main staon's IP address and SIP address in the remote conguraon page.
Note
For details about the operaon, see the user manual of the main staon.
6.
Call the center.
-
If you have congured to call center in the
Basic Sengs , you can tap to call the center.
-
If you have not congured to call center in the
Basic Sengs , you should tap to call
the center
7.
Answers the call via the main staon and starts two-way audio.
Note
The device will call the main staon in priority.
DS-K1T690 Series Face Recognion Terminal User Manual
74
background
7.12.3 Call Device from Client Soware
Steps
1.
Get the client soware from the supplied disk or the ocial website, and install the soware
according to the prompts.
2.
Run the client soware and the control panel of the soware pops up.
3.
Click Device Management to enter the Device Management page.
4.
Add the device to the client soware.
Note
For details about adding device, see Add Device.
5.
Enter the Live View page and double-click the added device to start live view.
Note
For details about operaons in the Live View page, see Live View in the user manual of the client
soware.
6.
Right click the live view image to open the right-click menu.
7.
Click Start Two-Way Audio to start two-way audio between the device and the client soware.
7.12.4 Call Room from Device
Steps
1.
Get the client soware from the supplied disk or the ocial website, and install the soware
according to the prompts.
2.
Run the client soware and the control panel of the soware pops up.
3.
Click Device Management to enter the Device Management interface.
4.
Add the indoor staon and the device to the client soware.
Note
For details about adding device, see Add Device.
5.
Link a user to an indoor staon and set a room No. for the indoor staon.
6.
Call the room.
-
If you have congured a specied room No. in the
Basic Sengs , you can tap to call the
room.
-
If you have not congured a specied room No. in the
Basic Sengs , you should tap on
the authencaon page of the device. Enter the room No. on the dial page and tap to call
the room.
7.
Aer the indoor staon answers the call, you can start two-way audio with the indoor staon.
DS-K1T690 Series Face Recognion Terminal User Manual
75
background
7.12.5 Call Mobile Client from Device
Steps
1.
Get the mobile mobile client from the supplied disk or the ocial website, and install the
soware according to the prompts.
2.
Run the mobile client and add the device to the mobile client.
Note
For details, see the user manual of the mobile client.
3.
Enter Basic Sengs → Shortcut Key and enable Call APP.
4.
Go back to the inial page and call the mobile client.
1) Tap on the device inial page.
2) Tap to call the mobile client.
DS-K1T690 Series Face Recognion Terminal User Manual
76
background
Chapter 8 Operaon via Web Browser
8.1 Login
You can login via the web browser or the remote conguraon of the client soware.
Note
Make sure the device is acvated. For detailed informaon about acvaon, see Acvaon .
Login via Web Browser
Enter the device IP address in the address bar of the web browser and press Enter to enter the
login page.
Enter the device user name and the password. Click Login.
Login via Remote Conguraon of Client Soware
Download and open the client soware. Aer adding the device, click to enter the Conguraon
page.
8.2 Live View
You can view the live video of the device.
Aer logging in, you will enter the live view page. You can perform the live view, capture, video
recording, and other operaons.
Figure 8-1 Live View Page
Funcon Descripons:
DS-K1T690 Series Face Recognion Terminal User Manual
77
background
Select the image size when starng live view.
Set the volume when starng live view.
Note
If you adjust the volume when starng two-way audio, you may hear a repeated sounds.
You can capture image when starng live view.
Reserved funcon. You can zoom in the live view image.
Start or stop live view.
Start or stop video recording.
Select the streaming type when starng live view. You can select from the main stream and the
sub stream.
Full screen view.
8.3 Person Management
Click and add the person's informaon, including the basic informaon, card, authencaon mode.
And you can also edit user informaon, view user picture and search user informaon in the user
list.
Click OK to save the person.
Add Basic Informaon
Click User → Add to enter the Add Person page.
Add the person's basic informaon, including the employee ID, the person's name, and the user
role.
Click Save to save the sengs.
Add Card
Click User → Add to enter the Add Person page.
Click Add Card, enter the Card No. and select the Property, and click OK to add the card.
Click Save to save the sengs.
DS-K1T690 Series Face Recognion Terminal User Manual
78
background
Add Face Picture
Click User → Add to enter the Add Person page.
Click + on the right to upload a face picture from the local PC.
Note
The picture format should be JPG or JPEG or PNG, and the size should be less than 200 K.
Click Save to save the sengs.
Add Authencaon Mode
Click User → Add to enter the Add Person page.
Set the authencaon mode.
Click Save to save the sengs.
8.4 Search Event
Click Search to enter the Search page.
Figure 8-2 Search Event
Enter the search condions, including the event type, the employee ID, the name, the card No., the
start me, and the end me, and click Search.
The results will be displayed on the right panel.
8.5 Device Management
You can manage the linked device on the page.
DS-K1T690 Series Face Recognion Terminal User Manual
79
background
Steps
1.
Click Device Management to enter the sengs page.
Figure 8-3 Device Management
2.
Click Add to add the indoor staon or sub door staon. Enter the parameters and click OK to
add.
3.
Click Import. Enter the informaon of the device in the template to import devices in batch.
4.
Click Export to export the informaon to the PC.
5.
Select the device and click Delete to remove the selected device from the list.
6.
Click Refresh to get the device informaon.
7.
Oponal: Set Device Informaon.
Edit Device Informaon Click
to edit device informaon.
Delete Device Informaon Click
to delete device informaon from the list.
Search Devices Select Status and Device Type to search devices.
8.6 Conguraon
8.6.1 Set Local Parameters
Set the live view parameters, record le saving path, and captured pictures saving path.
Set Live View Parameters
Click Conguraon → Local to enter the Local page. Congure the stream type, the play
performance, auto start live view, and the image format and click Save.
Set Record File Saving Path
Click Conguraon → Local to enter the Local page. Select a record le size and select a saving
path from your local computer and click Save.
DS-K1T690 Series Face Recognion Terminal User Manual
80
background
You can also click Open to open the le folder to view details.
Set Captured Pictures Saving Path
Click Conguraon → Local to enter the Local page. Select a saving path from your local computer
and click Save.
You can also click Open to open the le folder to view details.
8.6.2 View Device Informaon
View the device name, language, model, serial No., QR code, version, number of channels, alarm
input, alarm output, lock and RS-485, device capacity, etc.
Click Conguraon → System → System Sengs → Basic Informaon to enter the conguraon
page.
You can view the device name, language, model, serial No., QR code, version, number of channels,
alarm input, alarm output, lock and RS-485, device capacity, etc.
8.6.3 Set Time
Set the device's me zone, synchronizaon mode, and the device me.
Click Conguraon → System → System Sengs → Time Sengs .
Figure 8-4 Time Sengs
Click Save to save the sengs aer the conguraon.
Time Zone
Select the device located me zone from the drop-down list.
Time Sync.
NTP
DS-K1T690 Series Face Recognion Terminal User Manual
81
background
You should set the NTP server's IP address, port No., and interval.
Manual
By default, the device me should be synchronized manually. You can set the device me
manually or check Sync. with Computer Time to synchronize the device me with the
computer's me.
8.6.4 Set DST
Steps
1.
Click Conguraon → System → System Sengs → DST .
Figure 8-5 DST Page
2.
Check Enable DST.
3.
Set the DST start me, end me and bias me.
4.
Click Save to save the sengs.
8.6.5 View Open Source Soware License
Go to Conguraon → System → System Sengs → About , and click View Licenses to view the
device license.
8.6.6 Upgrade and Maintenance
Reboot device, restore device parameters, and upgrade device version.
Reboot Device
Click Conguraon → System → Maintenance → Upgrade & Maintenance .
DS-K1T690 Series Face Recognion Terminal User Manual
82
background
Figure 8-6 Upgrade and Maintenance Page
Click Reboot to start reboot the device.
Or you can check Reboot Automacally to set desired reboot mode by selecng Reboot by
Duraon or Reboot by Time and set the corresponding parameters.
Click Save.
Restore Parameters
Click Conguraon → System → Maintenance → Upgrade & Maintenance .
Restore All
All parameters will be restored to the factory sengs. You should acvate the device before
usage.
Default
The device will restore to the default sengs, except for the device IP address and the user
informaon.
Unlink APP Account
Unlink the Hik-Connect account from the plaorm.
Import and Export Parameters
Click Conguraon → System → Maintenance → Upgrade & Maintenance .
Export
Click Export to export the logs or device parameters.
Note
You can import the exported device parameters to another device.
DS-K1T690 Series Face Recognion Terminal User Manual
83
background
Import
Click and select the le to import. Click Import to start import conguraon le.
Upgrade
Click Conguraon → System → Maintenance → Upgrade & Maintenance .
Select an upgrade type from the drop-down list. Click and select the upgrade le from your
local PC. Click Upgrade to start upgrading.
Note
Do not power o during the upgrading.
8.6.7 Log Query
You can search and view the device logs.
Go to Conguraon → System → Maintenance → Log Query .
Set the major and minor type of the log type. Set the start me and end me for searching, and
click Search.
The results will be displayed below, which including the No., me, the major type the minor type,
the channel No., the local/remote user informaon, the remote host IP, etc.
8.6.8 Security Mode Sengs
Set the security mode for logging in the client soware.
On the Device for Management page, click Conguraon → System → Security → Security
Service .
Select a security mode from the drop-down list, and click Save.
Security Mode
High security level for user informaon vericaon when logging in the client soware.
Compable Mode
The user informaon vericaon is compable with the old client soware version when
logging in.
Enable SSH
To raise network security, disable SSH service. The conguraon is only used to debug the
device for the professionals.
Enable ADB Remote Control
Aer enabling ADB Remote Control funcon, you can debug, print and write commands.
Enable HTTP
DS-K1T690 Series Face Recognion Terminal User Manual
84
background
In order to increase the network security level when vising websites, you can enable HTTP to
acquire a more secure and encrypted network communicaon environment. The
communicaon should authencated by identy and encrypon password aer enabling HTTP,
which is save.
8.6.9 Cercate Management
It helps to manage the server/client cercates and CA cercate.
Note
The funcon is only supported by certain device models.
Create and Install Self-signed Cercate
Steps
1.
Go to Conguraon → System → Security Cercate Management .
2.
In the Cercate Files area, select a Cercate Type from the drop-down list.
3.
Click Create.
4.
Input cercate informaon.
5.
Click OK to save and install the cercate.
The created cercate is displayed in the Cercate Details area.
The cercate will be saved automacally.
6.
Download the cercate and save it to an asking le in the local computer.
7.
Send the asking le to a cercaon authority for signature.
8.
Import the signed cercate.
1) Select a cercate type in the Import Passwords area, and select a cercate from the local,
and click Install.
2) Select a cercate type in the Import Communicaon Cercate area, and select a cercate
from the local, and click Install.
Install Other Authorized Cercate
If you already has an authorized cercate (not created by the device), you can import it to the
device directly.
Steps
1.
Go to Conguraon → System → Security Cercate Management .
2.
In the Import Passwords and Import Communicaon Cercate areas, select cercate type
and upload cercate.
3.
Click Install.
DS-K1T690 Series Face Recognion Terminal User Manual
85
background
Install CA Cercate
Before You Start
Prepare a CA cercate in advance.
Steps
1.
Go to Conguraon → System → Security Cercate Management .
2.
Create an ID in the Inport CA Cercate area.
Note
The input cercate ID cannot be the same as the exisng ones.
3.
Upload a cercate le from the local.
4.
Click Install.
8.6.10 Change Administrator's Password
Steps
1.
Click Conguraon → User Management .
2.
Click .
3.
Enter the old password and create a new password.
4.
Conrm the new password.
5.
Click OK.
Cauon
The password strength of the device can be automacally checked. We highly recommend you
change the password of your own choosing (using a minimum of 8 characters, including at least
three kinds of following categories: upper case leers, lower case leers, numbers, and special
characters) in order to increase the security of your product. And we recommend you change
your password regularly, especially in the high security system, changing the password monthly
or weekly can beer protect your product.
Proper conguraon of all passwords and other security sengs is the responsibility of the
installer and/or end-user.
8.6.11 Online Users
The informaon of users logging into the device is shown.
Go to Conguraon → System → User Management → Online Users to view the list of online
users.
DS-K1T690 Series Face Recognion Terminal User Manual
86
background
8.6.12 View Device Arming/Disarming Informaon
View device arming type and arming IP address.
Go to Conguraon → User Management → Arming/Disarming Informaon .
You can view the device arming/disarming informaon. Click Refresh to refresh the page.
8.6.13 Network Sengs
Set TCP/IP, port, SIP, WiFi, report strategy, plaorm access and ISUP.
Note
Some device models do not support Wi-Fi sengs. Refer to the actual products when
conguraon.
Set Basic Network Parameters
Click Conguraon → Network → Basic Sengs → TCP/IP .
DS-K1T690 Series Face Recognion Terminal User Manual
87
background
Figure 8-7 TCP/IP Sengs Page
Set the parameters and click Save to save the sengs.
DHCP
If uncheck the funcon, you should set the IPv4 address, IPv4 subnet mask, IPv4 default
gateway, MTU, and the device port.
If you check the funcon, the system will allocate the IPv4 address, IPv4 subnet mask, and the
IPv4 default gateway automacally.
NIC Type
Select a NIC type from the drop-down list. By default, it is Auto.
DS-K1T690 Series Face Recognion Terminal User Manual
88
background
DNS Server
Set the preferred DNS server and the Alternate DNS server according to your actual need.
Set Port Parameters
Set the HTTP, RTSP and HTTPS port parmaeters.
Click Conguraon → Network → Basic Sengs → Port .
HTTP
It refers to the port through which the browser accesses the device. For example, when the
HTTP Port is modied to 81, you need to enter hp://192.0.0.65:81 in the browser for login.
RTSP
It refers to the port of real-me streaming protocol.
HTTPS
Set the HTTPS for accessing the browser. Cercate is required when accessing.
Set Wi-Fi Parameters
Set the Wi-Fi parameters for device wireless connecon.
Steps
Note
The funcon should be supported by the device.
1.
Click Conguraon → Network → Basic Sengs → Wi-Fi .
Figure 8-8 Wi-Fi Sengs Page
2.
Check Wi-Fi.
3.
Select a Wi-Fi
-
Click
of a Wi-Fi in the list and enter the Wi-Fi password.
DS-K1T690 Series Face Recognion Terminal User Manual
89
background
-
Click Add, and enter the SSID, working mode, and encrypon type. Click Connect. When the
Wi-Fi is connected, click OK.
4.
Oponal: Set the WLAN parameters.
1) Click Network Sengs.
2) Set the IP address, subnet mask, and default gateway. Or check Enable DHCP and the system
will allocate the IP address, subnet mask, and default gateway automacally.
5.
Click OK.
SIP Seng
Steps
1.
Click Network → Basic Sengs → SIP to enter the sengs page.
2.
Check Enable VOIP Gateway.
3.
Congure the SIP parameters.
4.
Click Save to enable the sengs.
Report Strategy Sengs
You can set the center group for uploading the log via the ISUP protocol.
Go to Conguraon → Network → Basic Sengs → Report Strategy .
You can set the center group and the system will transfer logs via ISUP protocol. Click Save to save
the sengs.
Center Group
Select a center group from the drop-down list.
Main Channel
The device will communicate with the center via the main channel.
Note
N1 refers to wired network.
Plaorm Access
Plaorm access provides you an opon to manage the devices via plaorm.
Steps
1.
Click Conguraon → Network → Advanced Plaorm Access to enter the sengs page.
2.
Select the Plaorm Access Mode.
DS-K1T690 Series Face Recognion Terminal User Manual
90
background
Note
Hik-Connect is an applicaon for mobile devices. With the App, you can view live image of the
device, receive alarm nocaon and so on.
3.
Check the checkbox of Enable to enable the funcon.
4.
Oponal: Check the checkbox of Custom, and you can set the server address by yourself.
5.
Create a Stream Encrypon/Encrypon Key for the device.
Note
6 to 12 leers (a to z, A to Z) or numbers (0 to 9), case sensive. You are recommended to use a
combinaon of no less than 8 leers or numbers.
6.
Click Save to enable the sengs.
Set ISUP Parameters
Set the ISUP parameters for accessing device via ISUP protocol.
Steps
Note
The funcon should be supported by the device.
1.
Click Conguraon → Network → Advanced Plaorm Access .
2.
Select ISUP from the plaorm access mode drop-down list.
3.
Check Enable.
4.
Set the protocol version, alarm receiver type, port, device ID, ISUP key, and the register status.
Note
Only 5.0 version is supported, you should set the ISUP key as well.
5.
Click Save.
Congure HTTP Listening
The device can send alarm informaon to the desnaon IP or host via HTTP protocol/HTTPS
protocol.
Before You Start
The desnaon IP or host name should support the HTTP protocol/HTTPS protocol to receive the
alarm informaon.
Note
The funcon should be supported by the device.
DS-K1T690 Series Face Recognion Terminal User Manual
91
background
Steps
1.
Click Conguraon → Network → Advanced → HTTP Listening .
2.
Edit the desnaon IP or host name, URL and port.
3.
Oponal: Click Test to test whether the entered IP address or host name are valid.
4.
Oponal: Click Default to reset the desnaon IP or host name.
5.
Click Save.
8.6.14 Set Video and Audio Parameters
Set the image quality, resoluon, and the device volume.
Set Video Parameters
Click Conguraon → Video/Audio → Video .
DS-K1T690 Series Face Recognion Terminal User Manual
92
background
Figure 8-9 Video Sengs Page
Set the video channel, the stream type, the video type, resoluon, the bitrate type, video quality,
the frame rate, the Max. bitrate, the video encoding, and I frame interval.
Click Save to save the sengs aer the conguraon.
Set Audio Parameters
Click Conguraon → Video/Audio → Audio .
DS-K1T690 Series Face Recognion Terminal User Manual
93
background
Figure 8-10 Set Audio Parameters
Drag the block to adjust the device input and output volume.
Click Save to save the sengs aer the conguraon.
You can also enable Voice Prompt.
Note
The funcons vary according to dierent models. Refers to the actual device for details.
8.6.15 Customize Audio Content
Customize the output audio content when authencaon succeeded and failed.
Steps
1.
Click Conguraon → Video/Audio → Prompt .
DS-K1T690 Series Face Recognion Terminal User Manual
94
background
Figure 8-11 Customize Audio Content
2.
Select Prompt as TTS(Text to Speech) to turn the text to audio content.
3.
Select me schedule.
4.
Enable the funcon.
5.
Set the appellaon.
6.
Set the me period when authencaon succeeded.
1) Click Add.
2) Set the me duraon and the language.
Note
If authencaon is succeeded in the congured me duraon, the device will broadcast the
congured content.
3) Enter the audio content.
4) Oponal: Repeat substep 1 to 3.
5) Oponal: Click to delete the congured me duraon.
7.
Set the me duraon when authencaon failed.
1) Click Add.
2) Set the me duraon and the language.
DS-K1T690 Series Face Recognion Terminal User Manual
95
background
Note
If authencaon is failed in the congured me duraon, the device will broadcast the
congured content.
3) Enter the audio content.
4) Oponal: Repeat substep 1 to 3.
5) Oponal: Click to delete the congured me duraon.
8.
Oponal: Add holiday schedule.
1) Click Add to add holiday schedule.
2) Repeat step 3 to 6.
9.
Click Save to save the sengs.
8.6.16 Set Image Parameters
Set the video standard, WDR, brightness, contrast, and saturaon.
Steps
1.
Click Conguraon → Image Adjustment .
2.
Congure the parameters to adjust the image.
Video Standard
Set the video frame rate when performing live view remotely. Aer changing the standard,
you should reboot the device to take eect.
PAL
25 frames per second. Suitable for mainland China, Hong Kong (China), the Middle East
countries, Europe countries, etc.
NTSC
30 frames per second. Suitable for the USA, Canada, Japan, Taiwan (China), Korea, the
Philippines, etc.
WDR
Enable or disable the WDR funcon.
When there are both very bright and very dark areas simultaneously in the view, WDR
balances the brightness level of the whole image and provide clear images with details.
Brightness/Contrast/Saturaon
Drag the block or enter the value to adjust the live video's brightness, contrast and
saturaon.
Start/end recording video.
Capture the image.
3.
Click Default to restore the parameters to the default sengs.
DS-K1T690 Series Face Recognion Terminal User Manual
96
background
8.6.17 Set Supplement Light Brightness
Set the device supplement light brightness.
Steps
1.
Click Conguraon → Image → Supplement Light Parameters .
Figure 8-12 Supplement Light Sengs Page
2.
Select a supplement light type and mode from the drop-down list. If you select the mode as ON,
you should set the brightness.
8.6.18 Set Beauty Parameters
You can enable beauty camera and set the parameters.
Steps
1.
Click Conguraon → Image → Beauty Parameters .
2.
Check Enable Beauty Photos, and adjust the Whiten Level and Smoothing Skin Level according
to your actual needs.
8.6.19 Set Fusion Parameters
You can enable the image fusion to improve the recognion eect of low-light environment.
Steps
1.
Click Conguraon → Image → Image Fusion to enter the page.
2.
Set the mode as Automac or Disable.
Auto
DS-K1T690 Series Face Recognion Terminal User Manual
97
background
Aer selecng Automac, the device will enter automacally enter the image fusion mode.
You need to set set the Sensivity. The larger the value, the higher the sensivity, and the
easier it is for the device to enter the image fusion mode.
Disable
The device will not enter the image fusion mode automacally.
8.6.20 Time and Aendance Sengs
If you want to track and monitor when the persons start/stop work and monitor their working
hours and late arrivals, early departures, me taken on breaks, and absenteeism, you can add the
person to the shi group and assign a shi schedule (a rule for the aendance dening how the
schedule repeats, the shi type, break sengs, and the card swiping rule.) to the shi group to
dene the aendance parameters for the persons in the shi group.
Disable Aendance Mode via Web
Disable the aendance mode and the system will not display the aendance status on the inial
page.
Steps
1.
Click Conguraon Aendance to enter the sengs page.
2.
Set the Aendance Mode as Disable.
Result
You will not view or congure the aendance status on the inial page. And the system will follow
the aendance rule that congured on the plaorm.
Time Sengs
Steps
1.
Click Conguraon → Time Sengs to enter the sengs page.
2.
Select Status Type.
3.
Oponal: Edit Schedule Name according to the actual needs.
4.
Drag mouse to set the schedule.
Note
Set the schedule from Monday to Sunday according to the actual needs.
5.
Oponal: Select a meline and click Delete. Or click Delete All to clear the sengs.
6.
Click Save.
DS-K1T690 Series Face Recognion Terminal User Manual
98
background
Set Manual Aendance via Web
Set the aendance mode as manual, and you should select a status manually when you take
aendance.
Before You Start
Add at least one user, and set the user's authencaon mode. For details, see User Management.
Steps
1.
Click Conguraon Aendance to enter the sengs page.
2.
Set the Aendance Mode as Manual.
3.
Enable the Aendance Status Required and set the aendace status lasts duraon.
4.
Enable a group of aendance status.
Note
The Aendance Property will not be changed.
5.
Oponal: Select an status and change its name if required.
Result
You should select an aendance status manually aer authencaon.
Note
If you do not select a status, the authencaon will be failed and it will not be marked as a valid
aendance.
Set Auto Aendance via Web
Set the aendance mode as auto, and you can set the aendance status and its available schedule.
The system will automacally change the aendance status according to the congured schedule.
Before You Start
Add at least one user, and set the user's authencaon mode. For details, see User Management.
Steps
1.
Click Conguraon Aendance to enter the sengs page.
2.
Set the Aendance Mode as Auto.
3.
Enable the Aendance Status funcon.
4.
Enable a group of aendance status.
Note
The Aendance Property will not be changed.
5.
Oponal: Select an status and change its name if required.
6.
Set the status' schedule. Refers to Time Sengs for details.
DS-K1T690 Series Face Recognion Terminal User Manual
99
background
Set Manual and Auto Aendance via Web
Set the aendance mode as Manual and Auto, and the system will automacally change the
aendance status according to the congured schedule. At the same me you can manually
change the aendance status aer the authencaon.
Before You Start
Add at least one user, and set the user's authencaon mode. For details, see User Management.
Steps
1.
Click Conguraon Aendance to enter the sengs page.
2.
Set the Aendance Mode as Manual and Auto.
3.
Enable the Aendance Status funcon.
4.
Enable a group of aendance status.
Note
The Aendance Property will not be changed.
5.
Oponal: Select an status and change its name if required.
6.
Set the status' schedule. Refers to Time Sengs for details.
Result
On the inial page and authencate. The authencaon will be marked as the congured
aendance status according to the schedule. If you tap the edit icon on the result tab, you can
select a status to take aendance manually, the authencaon will be marked as the edited
aendance status.
Example
If set the Break Out as Monday 11:00, and Break In as Monday 12:00, the valid user's
authencaon from Monday 11:00 to 12:00 will be marked as break.
8.6.21 General Sengs
Set Authencaon Parameters
Click Conguraon → General Authencaon Sengs .
Note
The funcons vary according to dierent models. Refers to the actual device for details.
Click Save to save the sengs aer the conguraon.
Card Reader
Select Main Card Reader or Sub Card Reader from the drop-down list.
DS-K1T690 Series Face Recognion Terminal User Manual
100
background
Main Card Reader
You can congure the device card reader's parameters.
Sub Card Reader
You can congure the connected peripheral card reader's parameters.
If select Main Card Reader:
Card Reader Type/Card Reader Descripon
Get card reader type and descripon. They are read-only.
Enable Card Reader
Enable the card reader's funcon.
Authencaon
Select an authencaon mode according to your actual needs from the drop-down list.
Mulple People Authencaon
Mulple people can be authencated at the same me.
Recognion Interval
You can set the interval between 2 connuous recognion of a same person during the
authencaon. In the congured interval, Person A can only recognized once. If another person
(Person B) has recognized during the interval, Person A can recognized again.
Authencaon Interval
You can set the authencaon interval of the same person when authencang. The same
person can only authencate once in the congured interval. A second authencaon will be
failed.
Alarm of Max. Failed Aempts
Enable to report alarm when the card reading aempts reach the set value.
Max. Authencaon Failed Aempts
Enable to report alarm when the card reading aempts reach the set value.
Enable Tampering Detecon
Enable the an-tamper detecon for the card reader.
Enable Card No. Reversing
The read card No. will be in reverse sequence aer enabling the funcon.
If select Sub Card Reader:
Card Reader Type/Card Reader Descripon
Get card reader type and descripon. They are read-only.
Enable Card Reader
Enable the card reader's funcon.
Authencaon
DS-K1T690 Series Face Recognion Terminal User Manual
101
background
Select an authencaon mode according to your actual needs from the drop-down list.
Mulple People Authencaon
Mulple people can be authencated at the same me.
Recognion Interval
If the interval between card presenng of the same card is less than the congured value, the
card presenng is invalid.
Authencaon Interval
You can set the authencaon interval of the same person when authencang. The same
person can only authencate once in the congured interval. A second authencaon will be
failed.
Alarm of Max. Failed Aempts
Enable to report alarm when the card reading aempts reach the set value.
Max. Authencaon Failed Aempts
Enable to report alarm when the card reading aempts reach the set value.
Communicaon with Controller Every
When the access control device cannot connect with the card reader for longer than the set
me, the card reader will turn oine automacally.
Max. Interval When Entering Password
When you entering the password on the card reader, if the interval between pressing two digits
is longer than the set value, the digits you pressed before will be cleared automacally.
OK LED Polarity/Error LED Polarity
Set OK LED Polarity/Error LED Polarity of the access control device according to the card reader
parameters. Generally, adopts the default sengs.
Enable Tampering Detecon
Enable the an-tamper detecon for the card reader.
Set Privacy Parameters
Set the event storage type, picture upload and storage parameters, and the picture clearing
parameters.
Go to Conguraon → Access Control → Privacy
Event Storage Sengs
Select a method to delete the event. You can select from Delete Old Events Periodically, Delete
Old Events by Specied Time, or Overwring.
Delete Old Events Periodically
DS-K1T690 Series Face Recognion Terminal User Manual
102
background
Drag the block or enter number to set the period for event deleng. All events will be deleted
according to the congured me duraon.
Delete Old Events by Specied Time
Set a me and all events will be deleted on the congured me.
Overwring
The earliest 5% events will be deleted when the system detects the stored events has been over
95% of the full space.
Authencaon Sengs
Display Authencaon Result
You can check Face Picture, Name, Employee ID and Temperature, to display the authencaon
result.
Name De-idencaon
You can check Name De-idencaon, and the whole name will not be displayed.
ID De-idencaon
You can check ID De-idencaon, and the ID will not be displayed.
Overwring
The earliest 5% events will be deleted when the system detects the stored events has been over
95% of the full space.
Picture Uploading and Storage
Upload Captured Picture When Authencang
Upload the pictures captured when authencang to the plaorm automacally.
Save Captured Picture When Authencang
If you enable this funcon, you can save the picture when authencang to the device.
Save Registered Picture
The registered face picture will be saved to the system if you enable the funcon.
Upload Picture Aer Linked Capture
Upload the pictures captured by linked camera to the plaorm automacally.
Save Pictures Aer Linked Capture
If you enable this funcon, you can save the picture captured by linked camera to the device.
Clear All Pictures in Device
Note
All pictures cannot be restored once they are deleted.
DS-K1T690 Series Face Recognion Terminal User Manual
103
background
Clear Registered Face Pictures
All registered pictures in the device will be deleted.
Clear Captured Pictures
All captured pictures in the device will be deleted.
Set Card Security
Click Conguraon → General → Card Security to enter the sengs page.
Set the parameters and click Save.
Enable NFC Card
In order to prevent the mobile phone from geng the data of the access control, you can
enable NFC card to increase the security level of the data.
Enable M1 Card
Enable M1 card and authencateingby presenng M1 card is available.
M1 Card Encrypon
Sector
M1 card encrypon can improve the security level of authencaon.
Enable the funcon and set the encrypon sector. By default, Sector 13 is encrypted. It is
recommended to encrypt sector 13.
Enable EM Card
Enable EM card and authencang by presenng EM card is available.
Note
If the peripheral card reader supports presenng EM card, the funcon is also supported to
enable/disable the EM card funcon.
Enable CPU Card
The device can read the data from CPU card when enabling the CPU card funcon.
CPU Card Read Content
Aer enable the CPU card content reading funcon, the device can read the CPU card content.
Enable ID Card
Enable ID card and authencang by presenng ID card is available.
Set Card Authencaon Parameters
Set the card reading content when authencate via card on the device.
Go to Conguraon → General → Card Authencaon Sengs .
Select a card authencaon mode and click Save.
DS-K1T690 Series Face Recognion Terminal User Manual
104
background
Full Card No.
All card No. will be read.
Wiegand 26 (3 bytes)
The device will read card via Wiegand 26 protocol (read 3 bytes).
Wiegand 34 (4 bytes)
The device will read card via Wiegand 34 protocol (read 4 bytes).
8.6.22 Video Intercom Sengs
Set Video Intercom Parameters
The device can be used as a door staon, outer door staon, or access control device. You should
set the device No. before usage.
Click Conguraon → Intercom → Device No. .
If set the device type as Door Staon or Access Control Device, you can set the oor No., door
staon No., and click Advanced Sengs to set Phase No., Building No., and Unit No.
Click Save to save the sengs aer the conguraon.
DS-K1T690 Series Face Recognion Terminal User Manual
105
background
Figure 8-13 Device No. Sengs
Device Type
The device can be used as a door staon or outer door staon. Select a device type from the
drop-down list.
Note
If you change the device type, you should reboot the device.
Floor No.
Set the device installed oor No.
Door Staon No.
Set the device installed oor No.
DS-K1T690 Series Face Recognion Terminal User Manual
106
background
Note
If you change the No., you should reboot the device.
The main door staon No. is 0, and the sub door staon No. ranges from 1 to 16.
Phase No.
Set the device phase No.
Building No.
Set the device building No.
Unit No.
Set the device unit No.
Note
If you change the No., you should reboot the device.
If set the device type as Outer Door Staon, you can set the period No., outer door staon No.,
and community No.
Outer Door Staon No.
If you select outer door staon as the device type, you should enter a number between 1 and
99.
Note
If you change the No., you should reboot the device.
Phase No.
Set the device phase No.
Session Sengs
Enable the communicaon between door staon, main staon, and video intercom server.
Steps
1.
Click Conguraon → Intercom → Session Sengs to enter the sengs page.
DS-K1T690 Series Face Recognion Terminal User Manual
107
background
Figure 8-14 Session Sengs
2.
Set registraon password, main staon IP, private server IP and enable Protocol 1.0.
Registraon Password
Acvaon password of the main staon.
Main Staon IP
IP address of the main staon.
Private Server IP
IP address of the private server.
Enable Protocol 1.0
Aer enabling, the device is registered to the main staon through the previous protocol. If
disabled, the device is registered to the main staon through the new protocol.
3.
Click Save.
Time Duraon Sengs
Set the Max. call duraon.
Go to Conguraon → Intercom → Time Parameters .
Drag the block to set the Max. call duraon. Click Save.
Note
The Max. call duraon range is 90 s to 120 s.
DS-K1T690 Series Face Recognion Terminal User Manual
108
background
Number Sengs
Link the room No. and SIP numbers.
Click Conguraon → Intercom → Device No. to enter the page.
Figure 8-15 Number Sengs
1. Set the Device Type.
2. Set the Floor No..
3. Set the Door Staon No..
4. You can also set the Phase No., Building No. and Unit No. in advanced sengs.
5. Click Save.
DS-K1T690 Series Face Recognion Terminal User Manual
109
background
8.6.23 Access Control Sengs
Set Door Parameters
Click Conguraon → Access Control → Door Parameters .
Figure 8-16 Door Parameters Sengs Page
Click Save to save the sengs aer the conguraon.
Door No.
Select the device corresponded door No.
Name
You can create a name for the door.
Open Duraon
Set the door unlocking duraon. If the door is not opened for the set me, the door will be
locked.
Door Open Timeout Alarm
An alarm will be triggered if the door has not been closed within the congured me duraon.
Door Contact
DS-K1T690 Series Face Recognion Terminal User Manual
110
background
You can set the door contact as Remain Open or Remain Closed according to your actual needs.
By default, it is Remain Closed.
Exit Buon Type
You can set the exit buon as Remain Open or Remain Closed according to your actual needs.
By default, it is Remain Open.
Door Lock Powering O Status
You can set the door lock status when the door lock is powering o. By default, it is Remain
Closed.
Extended Open Duraon
The door contact can be enabled with appropriate delay aer person with extended access
needs swipes her/his card.
Door Remain Open Duraon with First Person
Set the door open duraon when rst person is in. Aer the rst person is authorized, it allows
mulple persons access the door or other authencaon acons.
Duress Code
The door can open by inpung the duress code when there is duress. At the same me, the
client can report the duress event.
Super Password
The specic person can open the door by inpung the super password.
Note
The duress code and the super code should be dierent.
Set RS-485 Parameters
You can set the RS-485 parameters including the peripheral, address, baud rate, etc.
Click Conguraon → Access Control → RS-485 Sengs .
Check Enable RS-485, and set the parameters.
Click Save to save the sengs aer the conguraon.
No.
Set the RS-485 No.
Peripheral Type
Select a peripheral from the drop-down list according the actual situaon. You can select from
Card Reader, Extension Module, Access Controller, or Disable.
Note
Aer the peripheral is changed and saved, the device will reboot automacally.
DS-K1T690 Series Face Recognion Terminal User Manual
111
background
RS-485 Address
Set the RS-485 Address according to your actual needs.
Note
If you select Access Controller: If connect the device to a terminal via the RS-485 interface, set
the RS-485 address as 2. If you connect the device to a controller, set the RS-485 address
according to the door No.
Baud Rate
The baud rate when the devices are communicang via the RS-485 protocol.
Set Wiegand Parameters
You can set the Wiegand transmission direcon.
Steps
Note
Some device models do not support this funcon. Refer to the actual products when conguraon.
1.
Click Conguraon → Access Control → Wiegand Sengs .
Figure 8-17 Wiegand Page
2.
Check Wiegand to enable the Wiegand funcon.
3.
Set a transmission direcon.
DS-K1T690 Series Face Recognion Terminal User Manual
112
background
Input
The device can connect a Wiegand card reader.
Output
The can connect an external access controller. And the two devices will transmit the card No.
via Wiegand 26 or 34.
4.
Drag the block to set the me interval and pulse width.
Note
The me interval ranges from 1 ms to 20 ms.
The pulse width ranges from 1 us to 100 us.
5.
Click Save to save the sengs.
Note
If you change the peripheral, and aer you save the device parameters, the device will reboot
automacally.
Elevator Control
Steps
1.
Click Conguraon → Access Control → Elevator Control Parameters .
DS-K1T690 Series Face Recognion Terminal User Manual
113
background
Figure 8-18 Access Control and Elevator Control
2.
Check Enable Elevator Control.
3.
Set the elevator parameters.
Elevator No.
Select an elevator No. for conguraon from the drop-down list.
Elevator Controller Type
Select an elevator controller from the drop-down list.
Interface Type
Select a communicaon type from the drop-down list for elevator communicaon.
If you select RS-485, make sure you have connected the device to the elevator controller with
RS-485 wire.
If you select Network Interface, enter the elevator controller's IP address, port No., user
name, and password for communicaon.
Negave Floor Capacity
Set the negave oor number.
DS-K1T690 Series Face Recognion Terminal User Manual
114
background
Note
Up to 4 elevator controllers can be connected to 1 device.
Up to 10 negave oors can be added.
Make sure the interface types of elevator controllers, which are connected to the same
device, are consistent.
8.6.24 Temperature Measurement Sengs
Temperature Measurement Sengs
You can set the temperature measurement parameters, including temperature measurement only,
temperature unit, over-temperature threshold, temperature compensaon, door not open when
temperature is abnormal, etc.
Steps
1.
Click Conguraon → Temperature → Temperature Sengs .
Figure 8-19 Temperature Measurement Sengs
2.
Enable Temperature Measurement.
3.
Congure the temperature measurement parameters.
DS-K1T690 Series Face Recognion Terminal User Manual
115
background
Enable Temperature Detecon
When enabling the funcon, the device will authencate the permissions and at the same
me take the temperature. When disabling the device, the device will authencate the
permissions only.
Over-Temperature Alarm Threshold (Max./Min.)
Edit the threshold according to actual situaon. If the detected temperature is higher or
lower than the congured parameters, an alarm will be triggered. By default, the value is
37.3°.
Temperature Compensaon
If the measured temperature is higher/lower than the actual object's temperature, you can
set the compensaon temperature here. Available range: -99 °C to 99 °C.
Door Not Open When Temperature is Abnormal
When enabling the funcon, the door will not open when the detected temperature is higher
or lower than the congured temperature threshold. By default, the funcon is enabled.
Temperature Measurement Only
When enabling the funcon, the device will not authencate the permissions, but only take
the temperature. When disabling the funcon, the device will authencate the permissions
and at the same me take the temperature.
Capture White Light Picture
Aer enabling Temperature Measurement Only, you can enable Capture White Light
Picture. Aer enabling this funcon, the device will capture white light picture.
Measure Area Sengs
Congure the temperature measurement area.
Unit
Select a temperature unit according to your preference.
4.
Click Save.
Black Body Sengs
The black body can correct the measuring temperature. You should set the black body parameters
if the black body temperature measurement scene is required. If no black body is required, do not
set the black body parameters, or the temperature may not correct.
Steps
1.
Click Conguraon → Temperature → Black Body Sengs .
DS-K1T690 Series Face Recognion Terminal User Manual
116
background
Figure 8-20 Black Body Sengs
2.
Enable black body correcon funcon.
3.
Put a black body in front of the camera. Make sure there are no other objects between the
camera and the black body.
4.
Set the distance between the black body and the camera (straight line), the emissivity of the
black body, and the temperature unit.
Note
The black body's temperature is xed.
5.
Click Calibrate, and draw the black body's posion on the page. When + is displayed on the black
body on the screen, the black body is calibrated.
6.
Click Save.
Draw Temperature Measurement Area
Click Conguraon → Temperature → Temperature Measurement Area .
Drag the yellow frame in the live video to adjust the measurement area. Only the temperature
within the area can be measured by the system.
Click Save to save the sengs.
Click
or to record videos or capture pictures.
8.6.25 Set Biometric Parameters
DS-K1T690 Series Face Recognion Terminal User Manual
117
background
Set Basic Parameters
Click Conguraon → Smart → Smart .
Note
The funcons vary according to dierent models. Refers to the actual device for details.
Figure 8-21 Smart Sengs Page
Click Save to save the sengs aer the conguraon.
Face An-spoong
Enable or disable the live face detecon funcon. If enabling the funcon, the device can
recognize whether the person is a live one or not.
DS-K1T690 Series Face Recognion Terminal User Manual
118
background
Note
Biometric recognion products are not completely applicable to an-spoong environments. If
you require a higher security level, use mulple authencaon modes.
Live Face Detecon Security Level
Aer enabling the face an-spoong funcon, you can set the matching security level when
performing live face authencaon.
Recognion Distance
Select the distance between the authencang user and the device camera.
Applicaon Mode
Select either others or indoor according to actual environment.
Face Recognion Mode
Normal Mode
Recognize face via the camera normally.
Deep Mode
In the deep mode, you can add the face pictures only via the user adding funcon of the
device or the enrollment staon. It is not supported to add face pictures via pictures
imporng.
Note
The two modes cannot be compable with each other. Do not change the mode once it is
selected. If you change the mode, all face pictures of the previous mode will be cleared.
Connuous Face Recognion Interval
Set the me interval between two connuous face recognions when authencang.
Pitch Angle
The maximum pitch angle when starng face authencaon.
Yaw Angle
The maximum yaw angle when starng face authencaon.
Face Grading
Set the face grading according to your needs.
1:1 Matching Threshold
Set the matching threshold when authencang via 1:1 matching mode. The larger the value,
the smaller the false accept rate and the larger the false rejecon rate.
1:N Matching Threshold
Set the matching threshold when authencang via 1:N matching mode. The larger the value,
the smaller the false accept rate and the larger the false rejecon rate.
DS-K1T690 Series Face Recognion Terminal User Manual
119
background
Face Recognion Timeout Value
Set the meout value when face recognizing. If the face recognion me is longer than the
congured value, the system will pop up a prompt.
ECO Mode
Aer enabling the ECO mode, the device will use the IR camera to authencate faces in the low
light or dark environment. And you can set the ECO mode threshold, ECO mode (1:N), and ECO
mode (1:1).
ECO Mode (1:1)
Set the matching threshold when authencang via ECO mode 1:1 matching mode. The larger
the value, the smaller the false accept rate and the larger the false rejecon rate.
ECO Mode (1:N)
Set the matching threshold when authencang via ECO mode 1:N matching mode. The larger
the value, the smaller the false accept rate and the larger the false rejecon rate
Enable Hard Hat Detecon
Aer enabling the hard hat detecon, you can set the strategy.
Reminder of Wearing
If the person do not wear the hard hat when authencang, the device will pop up a prompt
and the door will open.
Must Wear
If the person do not wear the hard hat when authencang, the device will pop up a prompt
and the door will keep closed.
Face with Mask Detecon
Aer enabling the face with mask detecon, the system will recognize the captured face with
mask picture. You can set face with mask1:N matching threshold, it's ECO mode, and the
strategy.
None
The device will detect the face with mask without prompt.
Reminder of Wearing
If the person do not wear a face mask when authencang, the device prompts a
nocaon and the door will open.
Must Wear
If the person do not wear a face mask when authencang, the device prompts a
nocaon and the door keeps closed.
Face with Mask 1:N Matching Threshold
Set the matching threshold when authencang with face mask via 1:N matching mode. The
larger the value, the smaller the false accept rate and the larger the false rejecon rate.
Face with Mask 1:N Matching Threshold (ECO Mode)
DS-K1T690 Series Face Recognion Terminal User Manual
120
background
Set the matching threshold when authencang with face mask via ECO mode 1:N matching
mode. The larger the value, the smaller the false accept rate and the larger the false rejecon
rate.
Set Recognion Area
Click Conguraon → Smart → Area Conguraon .
Drag the yellow frame in the live video to adjust the recognion area. Only the face within the area
can be recognized by the system.
Click Save to save the sengs.
Click or to record videos or capture pictures.
8.6.26 Set Meeng Plans
You can set meeng plans for the device.
Steps
1.
Click Conguraon → Smart Meeng Plans .
DS-K1T690 Series Face Recognion Terminal User Manual
121
background
Figure 8-22 Meeng Plans
2.
Set Meeng Room Name, Meeng Theme, and Host.
3.
Set Start Time and End Time of the meeng.
4.
Add Parcipants.
Note
You can add by entering names or work numbers to inquire device workers.
5.
Drag the block to set the advanced check-in me and the latest check-in me.
Note
The advanced check-in me ranges from 1 min to 255 min.
The latest check-in me ranges from 1 min to 255 min.
6.
Select the check-in type.
DS-K1T690 Series Face Recognion Terminal User Manual
122
background
Single Parcipant
Only one of the parcipant aending the meeng checks in.
All Parcipants
All of the parcipant aending the meeng check in.
Disable
You can diable this funcon and parcipants aending the meeng don't have to check in.
7.
Click Save.
8.6.27 Set Noce Publicaon
You can set the screen saver and the sleep me for the device.
Click Conguraon Noce Publicaon .
Figure 8-23 Noce Page
Display Mode
You can select from Simple, Normal, Adversement Mode or Meeng Mode.
DS-K1T690 Series Face Recognion Terminal User Manual
123
background
Simple
Aer selecng this mode, the live view of the authencaon page will be disabled, and in the
meanwhile, the person's name, employee ID, face pictures will all be hidden.
Normal
Aer selecng this mode, the device displays the video preview screen and performs
authencaon.
Adversement
Aer selecng this mode, the adversing area and idencaon authencaon area of the
device will be displayed on separate screens. Video and adversing informaon playback,
welcome speech display are supported.
Note
Up to 8 images and 3 videos can be uploaded. And the images should be JPG format and the
videos should be MP4 format.
Meeng
Aer selecng this mode, the device supports eding and displaying meeng room name,
displaying scheduled meeng informaon and the status of the meeng room, and signing in
on the device.
Sleep
Enable Sleep and the device will enter the sleep mode when no operaon within the congured
sleep me.
Sleep aer
Set the device sleeping waing me (second).
Theme Management
You can click + in the frame and upload the screen saver pictures from the local PC.
Note
By now, there is only one theme can be added.
Play Schedule
Aer you have created a theme, you can select the theme and draw a schedule on the me line.
Select the drawn schedule and you can edit the exact start and end me.
Select the drawn schedule and you can click Delete or Delete All to delete the schedule.
Slide Show Interval
Drag the block or enter the number to set the slide show interval. The picture will be changed
according to the interval.
DS-K1T690 Series Face Recognion Terminal User Manual
124
background
8.6.28 Set Open Plaorm
If the device supports HEOP protocol, you can upload the third-party applicaon to the device from
this page.
Before You Start
Make sure the device contains the HEOP program.
Steps
1.
Click Conguraon → Open Plaorm .
2.
If it is the rst me to use the funcon, you should read the Disclaimer and make sure that the
applicaon you want to install t the following condions.
Each applicaon has its own exclusive name.
The FLASH memory space that the applicaon takes up is less than the available FLASH
memory space of the device.
The memory and compung power of the applicaon is less than that available memory and
compung power of the device.
3.
Click and select the imported applicaon package from your local computer.
4.
Click Import to complete the installaon.
Figure 8-24 Open Plaorm
The installed applicaons and their related informaon are displayed in Applicaon List, such as
applicaon name, operaon, version, memory used, ash used, company, status and license.
DS-K1T690 Series Face Recognion Terminal User Manual
125
background
5.
Import license.
-
If the applicaon package has a license, click the applicaon name on the navigaon on the
le. Click Browse and select the license le from your local computer. Click Import.
-
If the applicaon package has a license, click
→ Browse and select a license le from your
local computer. Click Import.
-
If the applicaon package does not have a license, enter hps://partner.hikvision.com/tpp in
the web browser to get a license.
6.
Oponal: Set other funcons.
Enable or disable the applicaon.
Export log.
Set permission.
Delete the applicaon.
View and upload license.
DS-K1T690 Series Face Recognion Terminal User Manual
126
background
Chapter 9 Client Soware Conguraon
9.1 Conguraon Flow of Client Soware
Follow the ow diagram below to congure on the client soware.
Figure 9-1 Flow Diagram of Conguraon on Client Soware
9.2 Device Management
The client supports managing access control devices and video intercom devices.
DS-K1T690 Series Face Recognion Terminal User Manual
127
background
Example
You can control entrance & exit and manage aendance aer adding access control devices to the
client; you can perform video intercom with the indoor staons and door staons.
9.2.1 Add Device
The client provides three device adding modes including by IP/domain, IP segment, and ISUP
protocol. The client also supports imporng mulple devices in a batch when there are large
amount of devices to be added.
Add Device by IP Address or Domain Name
If you know the IP address or domain name of the device to add, you can add devices to the client
by specifying the IP address (or domain name), user name, password, etc.
Steps
1.
Enter Device Management module.
2.
Click Device tab on the top of the right panel.
The added devices are displayed on the right panel.
3.
Click Add to open the Add window, and then select IP/Domain as the adding mode.
4.
Enter the required informaon.
Name
Create a descripve name for the device. For example, you can use a nickname that can show
the locaon or feature of the device.
Address
The IP address or domain name of the device.
Port
The devices to add share the same port number. The default value is 8000.
User Name
Enter the device user name. By default, the user name is admin.
Password
Enter the device password.
Cauon
The password strength of the device can be automacally checked. We highly recommend
you change the password of your own choosing (using a minimum of 8 characters, including
at least three kinds of following categories: upper case leers, lower case leers, numbers,
and special characters) in order to increase the security of your product. And we recommend
DS-K1T690 Series Face Recognion Terminal User Manual
128
background
you change your password regularly, especially in the high security system, changing the
password monthly or weekly can beer protect your product.
Proper conguraon of all passwords and other security sengs is the responsibility of the
installer and/or end-user.
5.
Oponal: Check Transmission Encrypon (TLS) to enable transmission encrypon using TLS
(Transport Layer Security) protocol for security purpose.
Note
This funcon should be supported by the device.
If you have enabled Cercate Vericaon, you should click Open Cercate Directory to
open the default folder, and copy the cercate le exported from the device to this default
directory to strengthen the security. See for details about enabling cercate vericaon.
You can log into the device to get the cercate le by web browser.
6.
Check Synchronize Time to synchronize the device me with the PC running the client aer
adding the device to the client.
7.
Oponal: Check Import to Group to create a group by the device name, and import all the
channels of the device to this group.
Example
For access control device, its access points, alarm inputs/outputs, and encoding channels (if
exist) will be imported to this group.
8.
Finish adding the device.
-
Click Add to add the device and back to the device list page.
-
Click Add and New to save the sengs and connue to add other device.
Import Devices in a Batch
You can add mulple devices to the client in a batch by entering the device parameters in a pre-
dened CSV le.
Steps
1.
Enter the Device Management module.
2.
Click Device tab on the top of the right panel.
3.
Click Add to open the Add window, and then select Batch Import as the adding mode.
4.
Click Export Template and then save the pre-dened template (CSV le) on your PC.
5.
Open the exported template le and enter the required informaon of the devices to be added
on the corresponding column.
Note
For detailed descripon of the required elds, refer to the introducons in the template.
Adding Mode
Enter 0 or 1 or 2.
DS-K1T690 Series Face Recognion Terminal User Manual
129
background
Address
Edit the address of the device.
Port
Enter the device port number. The default port number is 8000.
User Name
Enter the device user name. By default, the user name is admin.
Password
Enter the device password.
Cauon
The password strength of the device can be automacally checked. We highly recommend
you change the password of your own choosing (using a minimum of 8 characters, including
at least three kinds of following categories: upper case leers, lower case leers, numbers,
and special characters) in order to increase the security of your product. And we recommend
you change your password regularly, especially in the high security system, changing the
password monthly or weekly can beer protect your product.
Proper conguraon of all passwords and other security sengs is the responsibility of the
installer and/or end-user.
Import to Group
Enter 1 to create a group by the device name. All the channels of the device will be imported
to the corresponding group by default. Enter 0 to disable this funcon.
6.
Click and select the template le.
7.
Click Add to import the devices.
9.2.2 Reset Device Password
If you forgot the password of the detected online devices, you can reset the device password via
the client.
Steps
1.
Enter Device Management page.
2.
Click Online Device to show the online device area.
All the online devices sharing the same subnet will be displayed in the list.
3.
Select the device from the list and click on the Operaon column.
4.
Reset the device password.
-
Click Generate to pop up the QR Code window and click Download to save the QR code to
your PC. You can also take a photo of the QR code to save it to your phone. Send the picture
to our technical support.
DS-K1T690 Series Face Recognion Terminal User Manual
130
background
Note
For the following operaons for reseng the password, contact our technical support.
Cauon
The password strength of the device can be automacally checked. We highly recommend you
change the password of your own choosing (using a minimum of 8 characters, including at least
three kinds of following categories: upper case leers, lower case leers, numbers, and special
characters) in order to increase the security of your product. And we recommend you change
your password regularly, especially in the high security system, changing the password monthly
or weekly can beer protect your product.
Proper conguraon of all passwords and other security sengs is the responsibility of the
installer and/or end-user.
9.2.3 Manage Added Devices
Aer adding devices to device list, you can manage the added devices including eding device
parameters, remote conguraon, viewing device status, etc.
Table 9-1 Manage Added Devices
Edit Device Click to edit device informaon including device name, address, user
name, password, etc.
Delete Device Check one or more devices, and click Delete to delete the selected
devices.
Remote Conguraon Click to set remote conguraon of the corresponding device. For
details, refer to the user manual of device.
View Device Status Click to view device status, including door No., door status, etc.
Note
For dierent devices, you will view dierent informaon about device
status.
View Online User Click to view the details of online user who access the device,
including user name, user type, IP address and login me.
Refresh Device
Informaon
Click to refresh and get the latest device informaon.
DS-K1T690 Series Face Recognion Terminal User Manual
131
background
9.3 Group Management
The client provides groups to manage the added resources in dierent groups. You can group the
resources into dierent groups according to the resources' locaons.
Example
For example, on the 1st oor, there mounted 16 doors, 64 alarm inputs, and 16 alarm outputs. You
can organize these resources into one group (named 1st Floor) for convenient management. You
can control door status, and do some other operaons of the devices aer managing the resources
by groups.
9.3.1 Add Group
You can add group to organize the added device for convenient management.
Steps
1.
Enter the Device Management module.
2.
Click Device Management → Group to enter the group management page.
3.
Create a group.
-
Click Add Group and enter a group name as you want.
-
Click Create Group by Device Name and select an added device to create a new group by the
name of the selected device.
Note
The resources (such as alarm inputs/outputs, access points, etc.) of this device will be
imported to the group by default.
9.3.2 Import Resources to Group
You can import the device resources (such as alarm inputs/outputs, access points, etc.) to the
added group in a batch.
Before You Start
Add a group for managing devices. Refer to Add Group .
Steps
1.
Enter the Device Management module.
2.
Click Device Management → Group to enter the group management page.
3.
Select a group from the group list and select the resource type as Access Point, Alarm Input,
Alarm Output, etc.
4.
Click Import.
5.
Select the thumbnails/names of the resources in the thumbnail/list view.
DS-K1T690 Series Face Recognion Terminal User Manual
132
background
Note
You can click or to switch the resource display mode to thumbnail view or to list view.
6.
Click Import to import the selected resources to the group.
9.4 Person Management
You can add person informaon to the system for further operaons such as access control, video
intercom, me and aendance, etc. You can manage the added persons such as issuing cards to
them in a batch, imporng and exporng person informaon in a batch, etc.
9.4.1 Add Organizaon
You can add an organizaon and import person informaon to the organizaon for eecve
management of the persons. You can also add a surbodinate organizaon for the added one.
Steps
1.
Enter Person module.
2.
Select a parent organizaon in the le column and click Add in the upper-le corner to add an
organizaon.
3.
Create a name for the added organizaon.
Note
Up to 10 levels of organizaons can be added.
4.
Oponal: Perform the following operaon(s).
Edit Organizaon Hover the mouse on an added organizaon and click
to edit its name.
Delete
Organizaon
Hover the mouse on an added organizaon and click
to delete it.
Note
The lower-level organizaons will be deleted as well if you delete an
organizaon.
Make sure there is no person added under the organizaon, or the
organizaon cannot be deleted.
Show Persons in
Sub Organizaon
Check Show Persons in Sub Organizaon and select an organizaon to
show persons in its sub organizaons.
9.4.2 Import and Export Person Idenfy Informaon
You can import the informaon and pictures of mulple persons to the client soware in a batch.
Meanwhile, you can also export the person informaon and pictures and save them in your PC.
DS-K1T690 Series Face Recognion Terminal User Manual
133
background
Import Person Informaon
You can enter the informaon of mulple persons in a predened template (CSV/Excel le) to
import the informaon to the client in a batch.
Steps
1.
Enter the Person module.
2.
Select an added organizaon in the list, or click Add in the upper-le corner to add an
organizaon and then select it.
3.
Click Import to open the Import panel.
4.
Select Person Informaon as the imporng mode.
5.
Click Download Template for Imporng Person to download the template.
6.
Enter the person informaon in the downloaded template.
Note
If the person has mulple cards, separate the card No. with semicolon.
Items with asterisk are required.
By default, the Hire Date is the current date.
7.
Click to select the CSV/Excel le with person informaon from local PC.
8.
Click Import to start imporng.
Note
If a person No. already exists in the client's database, delete the exisng informaon before
imporng.
You can import informaon of no more than 2,000 persons.
Import Person Pictures
Aer imporng face pictures for the added persons to the client, the persons in the pictures can be
idened by an added face recognion terminal. You can either import person pictures one by
one, or import mulple pictures at a me according to your need.
Before You Start
Be sure to have imported person informaon to the client beforehand.
Steps
1.
Enter the Person module.
2.
Select an added organizaon in the list, or click Add in the upper-le corner to add an
organizaon and then select it.
3.
Click Import to open the Import panel and check Face.
4.
Oponal: Enable Verify by Device to check whether face recognion device managed in the
client can recognize the face in the photo.
5.
Click
to select a face picture le.
DS-K1T690 Series Face Recognion Terminal User Manual
134
background
Note
The (folder of) face pictures should be in ZIP format.
Each picture le should be in JPG format and should be no larger than 200 KB.
Each picture le should be named as "Person ID_Name". The Person ID should be the same
with that of the imported person informaon.
6.
Click Import to start imporng.
The imporng progress and result will be displayed.
Export Person Informaon
You can export the added persons' informaon to local PC as a CSV/Excel le.
Before You Start
Make sure you have added persons to an organizaon.
Steps
1.
Enter the Person module.
2.
Oponal: Select an organizaon in the list.
Note
All persons' informaon will be exported if you do not select any organizaon.
3.
Click Export to open the Export panel.
4.
Check Person Informaon as the content to export.
5.
Check desired items to export.
6.
Click Export to save the exported le in CSV/Excel le on your PC.
Export Person Pictures
You can export face picture le of the added persons and save in your PC.
Before You Start
Make sure you have added persons and their face pictures to an organizaon.
Steps
1.
Enter the Person module.
2.
Oponal: Select an organizaon in the list.
Note
All persons' face pictures will be exported if you do not select any organizaon.
3.
Click Export to open the Export panel and check Face as the content to export.
4.
Click Export to start exporng.
DS-K1T690 Series Face Recognion Terminal User Manual
135
background
Note
The exported le is in ZIP format.
The exported face picture is named as "Person ID_Name_0" ("0" is for a full-frontal face).
9.4.3 Get Person Informaon from Access Control Device
If the added access control device has been congured with person informaon (including person
details and issued card informaon), you can get the person informaon from the device and
import them to the client for further operaons.
Steps
Note
If the person name stored in the device is empty, the person name will be lled with the issued
card No. aer imporng to the client.
If the card number or person ID (employee ID) stored on the device already exists in the client
database, the person with this card number or person ID will not be imported to the client.
1.
Enter Person module.
2.
Select an organizaon to import the persons.
3.
Click Get from Device.
4.
Select an added access control device or the enrollment staon from the drop-down list.
Note
If you select the enrollment staon, you should click Login, and set IP address, port No., user
name and password of the device.
5.
Click Import to start imporng the person informaon to the client.
Note
Up to 2,000 persons and 5,000 cards can be imported.
The person informaon, including person details, and the linked cards (if congured), will be
imported to the selected organizaon.
9.4.4 Issue Cards to Persons in Batch
The client provides a convenient way to issue cards to mulple persons in a batch.
Steps
1.
Enter Person module.
2.
Click Batch Issue Cards.
All the added persons with no card issued will be displayed in the right panel.
DS-K1T690 Series Face Recognion Terminal User Manual
136
background
3.
Oponal: Enter key words (name or person ID) in the input box to lter the person(s) that need
issuing cards.
4.
Oponal: Click Sengs to set the card issuing parameters. For details, refer to Issue a Card by
Local Mode.
5.
Click Inialize to inialize the card enrollment staon or card reader to make it ready for issuing
cards.
6.
Click the Card No. column and enter the card number.
-
Place the card on the card enrollment staon.
-
Swipe the card on the card reader.
-
Manually enter the card number and press the Enter key.
The person(s) in the list will be issued with card(s).
9.4.5 Report Card Loss
If the person lost his/her card, you can report the card loss so that the card's related access
authorizaon will be inacve.
Steps
1.
Enter Person module.
2.
Select the person you want to report card loss for and click Edit to open the Edit Person window.
3.
In the Credenal → Card panel, click
on the added card to set this card as lost card.
Aer reporng card loss, the access authorizaon of this card will be invalid and inacve. Other
person who gets this card cannot access the doors by swiping this lost card.
4.
Oponal: If the lost card is found, you can click to cancel the loss.
Aer cancelling card loss, the access authorizaon of the person will be valid and acve.
5.
If the lost card is added in one access group and the access group is applied to the device
already, aer reporng card loss or cancelling card loss, a window will pop up to nofy you to
apply the changes to the device. Aer applying to device, these changes can take eect on the
device.
9.4.6 Set Card Issuing Parameters
The client provides two modes for reading a card's number: via card enrollment staon or via the
card reader of the access control device. If a card enrollment staon is available, connect it to the
PC running the client by USB interface or COM, and place the card on the card enrollment to read
the card number. If not, you can also swipe the card on the card reader of the added access control
device to get the card number. As a result, before issuing a card to one person, you need to set the
card issuing parameters including the issuing mode and related parameters.
When adding a card to one person, click Sengs to open the Card Issuing Sengs window.
DS-K1T690 Series Face Recognion Terminal User Manual
137
background
Local Mode: Issue Card by Card Enrollment Staon
Connect a card enrollment staon to the PC running the client. You can place the card on the card
enrollment staon to get the card number.
Card Enrollment Staon
Select the model of the connected card enrollment staon
Note
Currently, the supported card enrollment staon models include DS-K1F100-D8, DS-K1F100-M,
DS-K1F100-D8E, and DS-K1F180-D8E.
Card Type
This eld is only available when the model is DS-K1F100-D8E or DS-K1F180-D8E.
Select the card type as EM card or IC card according to the actual card type.
Serial Port
It is only available when the model is DS-K1F100-M.
Select the COM the card enrollment staon connects to.
Buzzing
Enable or disable the buzzing when the card number is read successfully.
Card No. Type
Select the type of the card number according to actual needs.
M1 Card Encrypon
This eld is only available when the model is DS-K1F100-D8, DS-K1F100-D8E, or DS-K1F180-D8E.
If the card is M1 card, and if you need to enable the M1 Card Encrypon funcon, you should
enable this funcon and select the sector of the card to encrypt.
Remote Mode: Issue Card by Card Reader
Select an access control device added in the client and swipe the card on its card reader to read
the card number.
9.5 Congure Schedule and Template
You can congure the template including holiday and week schedule. Aer seng the template,
you can adopt the congured template to access groups when seng the access groups, so that
the access group will take eect in the me duraons of the template.
Note
For access group sengs, refer to Set Access Group to Assign Access Authorizaon to Persons .
DS-K1T690 Series Face Recognion Terminal User Manual
138
background
9.5.1 Add Holiday
You can create holidays and set the days in the holidays, including start date, end date, and holiday
duraon in one day.
Steps
Note
You can add up to 64 holidays in the soware system.
1.
Click Access Control → Schedule → Holiday to enter the Holiday page.
2.
Click Add on the le panel.
3.
Create a name for the holiday.
4.
Oponal: Enter the descripons or some nocaons of this holiday in the Remark box.
5.
Add a holiday period to the holiday list and congure the holiday duraon.
Note
Up to 16 holiday periods can be added to one holiday.
1) Click Add in the Holiday List eld.
2) Drag the cursor to draw the me duraon, which means in that duraon of me, the
congured access group is acvated.
Note
Up to 8 me duraons can be set to one holiday period.
3) Oponal: Perform the following operaons to edit the me duraons.
Move the cursor to the me duraon and drag the me duraon on the meline bar to the
desired posion when the cursor turns to .
Click the me duraon and directly edit the start/end me in the appeared dialog.
Move the cursor to the start or the end of me duraon and drag to lengthen or shorten
the me duraon when the cursor turns to .
4) Oponal: Select the me duraon(s) that need to be deleted, and then click
in the
Operaon column to delete the selected me duraon(s).
5) Oponal: Click
in the Operaon column to clear all the me duraon(s) in the me bar.
6) Oponal: Click in the Operaon column to delete this added holiday period from the
holiday list.
6.
Click Save.
9.5.2 Add Template
Template includes week schedule and holiday. You can set week schedule and assign the me
duraon of access authorizaon for dierent person or group. You can also select the added
holiday(s) for the template.
DS-K1T690 Series Face Recognion Terminal User Manual
139
background
Steps
Note
You can add up to 255 templates in the soware system.
1.
Click Access Control → Schedule → Template to enter the Template page.
Note
There are two default templates: All-Day Authorized and All-Day Denied, and they cannot be
edited or deleted.
All-Day Authorized
The access authorizaon is valid in each day of the week and it has no holiday.
All-Day Denied
The access authorizaon is invalid in each day of the week and it has no holiday.
2.
Click Add on the le panel to create a new template.
3.
Create a name for the template.
4.
Enter the descripons or some nocaon of this template in the Remark box.
5.
Edit the week schedule to apply it to the template.
1) Click Week Schedule tab on the lower panel.
2) Select a day of the week and draw me duraon(s) on the meline bar.
Note
Up to 8 me duraon(s) can be set for each day in the week schedule.
3) Oponal: Perform the following operaons to edit the me duraons.
Move the cursor to the me duraon and drag the me duraon on the meline bar to the
desired posion when the cursor turns to .
Click the me duraon and directly edit the start/end me in the appeared dialog.
Move the cursor to the start or the end of me duraon and drag to lengthen or shorten
the me duraon when the cursor turns to .
4) Repeat the two steps above to draw more me duraons on the other days of the week.
6.
Add a holiday to apply it to the template.
Note
Up to 4 holidays can be added to one template.
1) Click Holiday tab.
2) Select a holiday in the le list and it will be added to the selected list on the right panel.
3) Oponal: Click Add to add a new holiday.
Note
For details about adding a holiday, refer to Add Holiday .
DS-K1T690 Series Face Recognion Terminal User Manual
140
background
4) Oponal: Select a selected holiday in the right list and click to remove the selected one, or
click Clear to clear all the selected holiday(s) in the right list.
7.
Click Save to save the sengs and nish adding the template.
9.6 Set Access Group to Assign Access Authorizaon to Persons
Aer adding the person and conguring the person's credenals, you can create the access groups
to dene which person(s) can get access to which door(s) and then apply the access group to the
access control device to take eect.
Steps
When the access group sengs are changed, you need to apply the access groups to the devices
again to take eect. The access group changes include changes of template, access group sengs,
person's access group sengs, and related person details (including card number, face picture,
linkage between card number and linkage between card number and card password, card eecve
period, etc).
1.
Click Access Control Authorizaon → Access Group to enter the Access Group interface.
2.
Click Add to open the Add window.
3.
In the Name text eld, create a name for the access group as you want.
4.
Select a template for the access group.
Note
You should congure the template before access group sengs. Refer to Congure Schedule
and Template for details.
5.
In the le list of the Select Person eld, select person(s) to assign access authority.
6.
In the le list of the Select Access Point eld, select door(s), door staon(s) or oor(s) for the
selected persons to access.
7.
Click Save.
You can view the selected person(s) and the selected access point(s) on the right side of the
interface.
DS-K1T690 Series Face Recognion Terminal User Manual
141
background
Figure 9-2 Display the Selected Person(s) and Access Point(s)
8.
Aer adding the access groups, you need to apply them to the access control device to take
eect.
1) Select the access group(s) to apply to the access control device.
2) Click Apply All to Devices start applying all the selected access group(s) to the access control
device or door staon.
3) Click Apply All to Devices or Apply Changes to Devices.
Apply All to Devices
This operaon will clear all the existed access groups of the selected devices and then
apply the new access group to the device.
Apply Changes to Devices
This operaon will not clear the existed access groups of the selected devices and only
apply the changed part of the selected access group(s) to the device(s).
4) View the applying status in the Status column or click Applying Status to view all the applied
access group(s).
Note
You can check Display Failure Only to lter the applying results.
The selected persons in the applied access groups will have the authorizaon to enter/exit the
selected doors/door staons with their linked card(s).
9.
Oponal: Click to edit the access group if necessary.
DS-K1T690 Series Face Recognion Terminal User Manual
142
background
Note
If you change the persons' access informaon or other related informaon, you will view the
promptAccess Group to Be Applied on the right corner of the client.
You can click the prompt to apply the changed data to the device. You can select either Apply
Now or Apply Later.
Figure 9-4 Data Synchronizaon
9.7 Congure Advanced Funcons
You can congure the advanced funcons of access control to meet some special requirements in
dierent scene.
Note
For the card related funcons(the type of access control card), only the card(s) with access group
applied will be listed when adding cards.
The advanced funcons should be supported by the device.
Hover the cursor on the Advanced Funcon, and then Click to customize the advanced
funcon(s) to be displayed.
9.7.1 Congure Device Parameters
Aer adding the access control device, you can congure the parameters of access control device,
access control points.
DS-K1T690 Series Face Recognion Terminal User Manual
143
background
Congure Parameters for Access Control Device
Aer adding the access control device, you can congure its parameters, including overlaying user
informaon on picture, uploading pictures aer capturing, saving captured pictures, etc.
Before You Start
Add access control device to the client.
Steps
1.
Click Access Control → Advanced Funcon → Device Parameter .
Note
If you can not nd Device Parameter in the Advanced Funcon list, hover the cursor on the
Advanced Funcon, and then Click to select the Device Parameter to be displayed.
2.
Select an access device to show its parameters on the right page.
3.
Turn the switch to ON to enable the corresponding funcons.
Note
The displayed parameters may vary for dierent access control devices.
Some of the following parameters are not listed in the Basic Informaon page, click More to
edit the parameters.
RS-485 Comm. Redundancy
You should enable this funcon if you wire the RS-485 card reader to the access control
device redundantly.
Display Detected Face
Display face picture when authencang.
Display Card Number
Display the card informaon when authencang.
Display Person Informaon
Display the person informaon when authencang.
Overlay Person Info. on Picture
Display the person informaon on the captured picture.
Voice Prompt
If you enable this funcon, the voice prompt is enabled in the device. You can hear the voice
prompt when operang in the device.
Upload Pic. Aer Linked Capture
Upload the pictures captured by linked camera to the system automacally.
Save Pic. Aer Linked Capture
If you enable this funcon, you can save the picture captured by linked camera to the device.
DS-K1T690 Series Face Recognion Terminal User Manual
144
background
Press Key to Enter Card Number
If you enable this funcon, you can input the card No. by pressing the key.
Wi-Fi Probe
If you enable this funcon, the device can probe the surrounding communicaon devices'
MAC address and upload the MAC address to the system. If the MAC address match the
specied MAC address, the system can trigger some linkage acons.
3G/4G
If you enable this funcon, the device can communicate in 3G/4G network.
NFC An-Cloning
If you enable this funcon, you cannot use the cloned card for authencaon and further
enhance security.
4.
Click OK.
5.
Oponal: Click Copy to, and then select the access control device(s) to copy the parameters in
the page to the selected device(s).
Congure Parameters for Door/Elevator
Aer adding the access control device, you can congure its access point (door or oor)
parameters.
Before You Start
Add access control device to the client.
Steps
1.
Click Access Control → Advanced Funcon → Device Parameter .
2.
Select an access control device on the le panel, and then click
to show the doors or oors of
the selected device.
3.
Select a door or oor to show its parameters on the right page.
4.
Edit the door or oor parameters.
Note
The displayed parameters may vary for dierent access control devices.
Some of the following parameters are not listed in the Basic Informaon page, click More to
edit the parameters.
Name
Edit the card reader name as desired.
Door Contact
You can set the door sensor as remaining closed or remaining open. Usually, it is remaining
closed.
Exit Buon Type
DS-K1T690 Series Face Recognion Terminal User Manual
145
background
You can set the exit buon as remaining closed or remaining open. Usually, it is remaining
open.
Door Locked Time
Aer swiping the normal card and relay acon, the mer for locking the door starts working.
Extended Open Duraon
The door contact can be enabled with appropriate delay aer person with extended accesss
needs swipes her/his card.
Door Le Open Timeout Alarm
The alarm can be triggered if the door has not been closed in a congured me period. If it is
set as 0, no alarm will be triggered.
Lock Door when Door Closed
The door can be locked once it is closed even if the Door Locked Time is not reached.
Duress Code
The door can open by inpung the duress code when there is duress. At the same me, the
client can report the duress event.
Super Password
The specic person can open the door by inpung the super password.
Dismiss Code
Create a dismiss code which can be used to stop the buzzer of the card reader (by entering
the dismiss code on the keypad).
Note
The duress code, super code, and dismiss code should be dierent.
The duress code, super password, and the dismiss code should be dierent from the
authencaon password.
The length of duress code, super password, and the dismiss code is according the device,
usually it should contains 4 to 8 digits.
5.
Click OK.
6.
Oponal: Click Copy to , and then select the door/oor(s) to copy the parameters in the page to
the selected doors/oor(s).
Note
The door or oor's status duraon sengs will be copied to the selected door/oor(s) as well.
Congure Parameters for Card Reader
Aer adding the access control device, you can congure its card reader parameters.
Before You Start
Add access control device to the client.
DS-K1T690 Series Face Recognion Terminal User Manual
146
background
Steps
1.
Click Access Control → Advanced Funcon → Device Parameter .
2.
In the device list on the le, click to expand the door, select a card reader and you can edit the
card reader's parameters on the right.
3.
Edit the card reader basic parameters in the Basic Informaon page.
Note
The displayed parameters may vary for dierent access control devices. There are part of
parameters listed as follows. Refer to the user manual of the device for more details.
Some of the following parameters are not listed in the Basic Informaon page, click More to
edit the parameters.
Name
Edit the card reader name as desired.
OK LED Polarity/Error LED Polarity/Buzzer Polarity
Set OK LED Polarity/Error LED Polarity/Buzzer LED Polarity of main board according to the
card reader parameters. Generally, adopts the default sengs.
Minimum Card Swiping Interval
If the interval between card swiping of the same card is less than the set value, the card
swiping is invalid. You can set it as 0 to 255.
Max. Interval When Entering PWD
When you inpung the password on the card reader, if the interval between pressing two
digits is larger than the set value, the digits you pressed before will be cleared automacally.
Alarm of Max. Failed Aempts
Enable to report alarm when the card reading aempts reach the set value.
Max. Times of Card Failure
Set the max. failure aempts of reading card.
Tampering Detecon
Enable the an-tamper detecon for the card reader.
Communicate with Controller Every
When the access control device cannot connect with the card reader for longer than the set
me, the card reader will turn oine automacally.
Buzzing Time
Set the card reader buzzing me. The available me ranges from 0 to 5,999s. 0 represents
connuous buzzing.
Card Reader Type/Card Reader Descripon
Get card reader type and descripon. They are read-only.
Fingerprint Recognion Level
DS-K1T690 Series Face Recognion Terminal User Manual
147
background
Select the ngerprint recognion level in the drop-down list.
Default Card Reader Authencaon Mode
View the default card reader authencaon mode.
Fingerprint Capacity
View the maximum number of available ngerprints.
Exisng Fingerprint Number
View the number of existed ngerprints in the device.
Score
The device will score the captured picture according to the yaw angle, pitch angle, and
pupillary distance. If the score is less than the congured value, face recognion will be failed.
Face Recognion Timeout Value
If the recognion me is more than the congured me, the device will remind you.
Face Recognion Interval
The me interval between two connuous face recognions when authencang. By default,
it is 2s.
Face 1:1 Matching Threshold
Set the matching threshold when authencang via 1:1 matching mode. The larger the value,
the smaller the false accept rate and the larger the false rejecon rate when authencaon.
1:N Security Level
Set the matching security level when authencang via 1:N matching mode. The larger the
value, the smaller the false accept rate and the larger the false rejecon rate when
authencaon.
Live Face Detecon
Enable or disable the live face detecon funcon. If enabling the funcon, the device can
recognize whether the person is a live one or not.
Live Face Detecon Security Level
Aer enabling Live Face Detecon funcon, you can set the matching security level when
performing live face authencaon.
Max. Failed Aempts for Face Auth.
Set the maximum live face detecon failed aempts. The system will lock the user's face for 5
minutes if the live face detecon is failed for more than the congured aempts. The same
user cannot authencate via the fake face within 5 minutes. Within the 5 minutes, the user
can authencate via the real face twice connuously to unlock.
Lock Authencaon Failed Face
Aer enabling the Live Face Detecon funcon, the system will lock the user's face for 5
minutes if the live face detecon is failed for more than the congured aempts. The same
DS-K1T690 Series Face Recognion Terminal User Manual
148
background
user cannot authencate via the fake face within 5 minutes. Within the 5 minutes, the user
can authencate via the real face twice connuously to unlock.
Applicaon Mode
You can select indoor or others applicaon modes according to actual environment.
4.
Click OK.
5.
Oponal: Click Copy to, and then select the card reader(s) to copy the parameters in the page to
the selected card reader(s).
Congure Parameters for Alarm Output
Aer adding the access control device, if the device links to alarm outputs, you can congure the
parameters.
Before You Start
Add access control device to the client, and make sure the device supports alarm output.
Steps
1.
Click Access Control → Advanced Funcon → Device Parameter to enter access control
parameter conguraon page.
2.
In the device list on the le, click to expand the door, select an alarm input and you can edit
the alarm input's parameters on the right.
3.
Set the alarm output parameters.
Name
Edit the card reader name as desired.
Alarm Output Acve Time
How long the alarm output will last aer triggered.
4.
Click OK.
5.
Oponal: Set the switch on the upper right corner to ON to trigger the alarm output.
Congure Parameters for Lane Controller
Aer adding the lane controller to the client, you can congure its parameters for passing through
the lane.
Before You Start
Add access control device to the client.
Steps
1.
Click Access Control → Advanced Funcon → Device Parameter to enter Parameter Sengs
page.
2.
In the device list on the le, select a lane controller and you can edit the lane controller's
parameters on the right.
3.
Edit the parameters.
DS-K1T690 Series Face Recognion Terminal User Manual
149
background
Passing Mode
Select the controller which will control the barrier status of the device.
If you select According to Lane Controller's DIP Sengs, the device will follow the lane
controller's DIP sengs to control the barrier. The sengs on the soware will be invalid.
If you select According to Main Controller's Sengs, the device will follow the sengs of
the soware to control the barrier. The DIP sengs of the lane controller will be invalid.
Free Passing Authencaon
If you enable this funcon, when both entrance and exit's barrier mode is Remain Open, the
pedestrians should authencate each me passing through the lane. Or an alarm will be
triggered.
Opening/Closing Barrier Speed
Set the barrier's opening and closing speed. You can select from 1 to 10. The greater the
value, the faster the speed.
Note
The recommended value is 6.
Audible Prompt Duraon
Set how long the audio will last, which is played when an alarm is triggered .
Note
0 refers to the alarm audio will be played unl the alarm is ended.
Temperature Unit
Select the temperature unit that displayed in the device status.
4.
Click OK.
9.7.2 Congure Device Parameters
Aer adding the access control device, you can set its parameters such as network parameters.
Set Parameters for Face Recognion Terminal
For face recognion terminal, you can set its parameters including face picture database, QR code
authencaon, etc.
Steps
Note
This funcon should be supported by the device.
1.
Enter the Access Control module.
DS-K1T690 Series Face Recognion Terminal User Manual
150
background
2.
On the navigaon bar on the le, enter Advanced Funcon → More Parameters .
3.
Select an access control device in the device list and click Face Recognion Terminal.
4.
Set the parameters.
Note
These parameters displayed vary according to dierent device models.
COM
Select a COM port for conguraon. COM1 refers to the RS-485 interface and COM2 refers to
the RS-232 interface.
Face Picture Database
select Deep Learning as the face picture database.
Authencate by QR Code
If enabled, the device camera can scan the QR code to authencate. By default, the funcon
is disabled.
Blocklist Authencaon
If enabled, the device will compare the person who want to access with the persons in the
blocklist.
If matched (the person is in the blocklist), the access will be denied and the device will upload
an alarm to the client.
If mismatched (the person is not in the blocklist), the access will be granted.
Save Authencang Face Picture
If enabled, the captured face picture when authencang will be saved on the device.
MCU Version
View the device MCU version.
5.
Click Save.
Set RS-485 Parameters
You can set the access control device's RS-485 parameters including the baud rate, data bit, the
stop bit, parity type, ow control type, communicaon mode, work mode, and connecon mode.
Before You Start
Add access control device to the client, and make sure the device supports RS-485 interface.
Steps
1.
Enter the Access Control module.
2.
On the navigaon bar on the le, enter Advanced Funcon → More Parameters .
3.
Select an access control device in the device list and click RS-485 to enter the RS-485 Sengs
page.
4.
Select the serial port number from the drop-down list to set the RS-485 parameters.
DS-K1T690 Series Face Recognion Terminal User Manual
151
background
5.
Set the baud rate, data bit, the stop bit, parity type, communicaon mode, working mode, and
connecon mode in the drop-down list.
Note
When the connecon mode is Connect Access Control Device, you can select Card No. or
Person ID as the output type.
6.
Click Save.
The congured parameters will be applied to the device automacally.
When you change the working mode or connecon mode, the device will reboot
automacally.
Set Wiegand Parameters
You can set the access control device's Wiegand channel and the communicaon mode. Aer
seng the Wiegand parameters, the device can connect to Wiegand card reader via Wiegand
communicaon.
Before You Start
Add access control device to the client, and make sure the device supports Wiegand.
Steps
1.
Enter the Access Control module.
2.
On the navigaon bar on the le, enter Advanced Funcon → More Parameters .
3.
Select an access control device in the device list and click Wiegand to enter the Wiegand
Sengs page.
4.
Set the switch to on to enable the Wiegand funcon for the device.
5.
Select the Wiegand channel No. and the communicaon mode from the drop-down list.
Note
If you set Communicaon Direcon as Sending, you are required to set the Wiegand Mode as
Wiegand 26 or Wiegand 34.
6.
Click Save.
The congured parameters will be applied to the device automacally.
Aer changing the communicaon direcon, the device will reboot automacally.
Enable M1 Card Encrypon
M1 card encrypon can improve the security level of authencaon.
Steps
Note
The funcon should be supported by the access control device and the card reader.
DS-K1T690 Series Face Recognion Terminal User Manual
152
background
1.
Enter the Access Control module.
2.
On the navigaon bar on the le, enter Advanced Funcon → More Parameters .
3.
Select an access control device in the device list and click M1 Card Encrypon to enter the M1
Card Encrypon page.
4.
Set the switch to on to enable the M1 card encrypon funcon.
5.
Set the sector ID.
The sector ID ranges from 1 to 100.
6.
Click Save to save the sengs.
9.8 Door/Elevator Control
In Monitoring module, you can view the real-me status of the doors or elevators managed by the
added access control device. You can also control the doors and elevators such as open/close the
door, or remain the door open/closed via the client remotely. The real-me access event are
displayed in this module. You can view the access details and person details.
Note
For the user with door/elevator control permission, the user can enter the Monitoring module and
control the door/elevator. Or the icons used for control will not show. For seng the user
permission, refer to .
9.8.1 Control Door Status
You can control the status for the door(s), including unlock door, locking door, remaining the door
unlock, remaining the door locked, remain all unlocked, etc.
Before You Start
Add person and assign access authorizaon to designed person, and person will have the access
authorizaon to the access points (doors). For details, refer to Person Management and Set
Access Group to Assign Access Authorizaon to Persons .
Make sure the operaon user has the permission of the access points (doors). For details, refer
to .
Steps
1.
Click Monitoring to enter the status monitoring page.
2.
Select an access point group on the upper-right corner.
Note
For managing the access point group, refer to Group Management .
The doors in the selected access control group will display.
3.
Click a door icon to select a door, or press Ctrl and select mulple doors.
DS-K1T690 Series Face Recognion Terminal User Manual
153
background
Note
For Remain All Unlocked and Remain All Locked, ignore this step.
4.
Click the following buons to control the door.
Unlock
When the door is locked, unlock it and it will be open for once. Aer the open duraon, the
door will be closed and locked again automacally.
Lock
When the door is unlocked, lock it and it will be closed. The person who has the access
authorizaon can access the door with credenals.
Remain Unlocked
The door will be unlocked (no maer closed or open). All the persons can access the door
with no credenals required.
Remain Locked
The door will be closed and locked. No person can access the door even if he/she has the
authorized credenals, except the super users.
Remain All Unlocked
All doors in the group will be unlocked (no maer closed or open). All the persons can access
the doors with no credenals required.
Remain All Locked
All doors in the group will be closed and locked. No person can access the doors even if
he/she has the authorized credenals, except the super users.
Capture
Capture a picture manually.
Note
The Capture buon is available when the device supports capture funcon. The picture is
saved in the PC running the client. For seng the saving path, refer to .
Result
The icon of the doors will change in real-me according to the operaon if the operaon is
succeeded.
9.8.2 Check Real-Time Access Records
The real-me access records can be displayed in the client, including card swiping records, face
recognion records, skin-surface temperature informaon, etc. Also, you can view the person
informaon and view the picture captured during access.
DS-K1T690 Series Face Recognion Terminal User Manual
154
background
Before You Start
You have added person(s) and access control device(s) to the client. For details, refer to Person
Management and Add Device .
Steps
1.
Click Monitoring to enter monitoring module.
Real-me access records are displayed on the boom of the page. You can view record details,
including card No., person name, event me, door locaon, temperature, authencaon type
etc.
Figure 9-5 Real-me Access Records
Note
You can right click the column name of access event table to show or hide the column according
to actual needs.
2.
Oponal: Select an access point group from the drop-down list in the upper-right corner to
show the real me access records of the selected group.
3.
Oponal: Check the event type and event status.
The detected events of checked type and status will be displayed in the list below.
4.
Oponal: Check Show Latest Event to view the latest access record.
The record list will be listed reverse chronologically.
5.
Oponal: Check Enable Abnormal Temperature Prompt to enable abnormal skin-surface
temperature prompt.
Note
When enabled, if there is abnormal temperature informaon, an Abnormal Temperature
window pops up when you enter Monitoring module, displaying person's picture, skin-surface
temperature, card No., person name, etc.
6.
Oponal: Click an event to view person pictures (including captured picture and prole).
Note
In Linked Capture Picture eld, you can double click the captured picture to view an enlarged
picture.
DS-K1T690 Series Face Recognion Terminal User Manual
155
background
7.
Oponal: Click to view details (including person's detailed informaon and the captured
picture).
Note
In the pop-up window, you can click to view details in full screen.
DS-K1T690 Series Face Recognion Terminal User Manual
156
background
Appendix A. Tips for Scanning Fingerprint
Recommended Finger
Forenger, middle nger or the third nger.
Correct Scanning
The gure displayed below is the correct way to scan your nger:
You should press your nger on the scanner horizontally. The center of your scanned nger should
align with the scanner center.
Incorrect Scanning
The gures of scanning ngerprint displayed below are incorrect:
DS-K1T690 Series Face Recognion Terminal User Manual
157
background
Environment
The scanner should avoid direct sun light, high temperature, humid condions and rain.
When it is dry, the scanner may not recognize your ngerprint successfully. You can blow your
nger and scan again.
Others
If your ngerprint is shallow, or it is hard to scan your ngerprint, we recommend you to use other
authencaon methods.
If you have injuries on the scanned nger, the scanner may not recognize. You can change another
nger and try again.
DS-K1T690 Series Face Recognion Terminal User Manual
158
background
Appendix B. Tips When Collecng/Comparing Face
The posion when collecng or comparing face picture is as below:
Posions (Recommended Distance: 0.5 m)
Expression
Keep your expression naturally when collecng or comparing face pictures, just like the
expression in the picture below.
Do not wear hat, sunglasses, or other accessories that can aect the facial recognion funcon.
Do not make your hair cover your eyes, ears, etc. and heavy makeup is not allowed.
Posture
In order to get a good quality and accurate face picture, posion your face looking at the camera
when collecng or comparing face pictures.
DS-K1T690 Series Face Recognion Terminal User Manual
159
background
Size
Make sure your face is in the middle of the collecng window.
DS-K1T690 Series Face Recognion Terminal User Manual
160
background
Appendix C. Tips for Installaon Environment
1. Light Source Illuminaon Reference Value
Candle: 10Lux
Bulb: 100~850Lux
Sunlight: More than 1200Lux
2. Avoid backlight, direct and indirect sunlight
DS-K1T690 Series Face Recognion Terminal User Manual
161
background
Appendix D. Dimension
DS-K1T690 Series Face Recognion Terminal User Manual
162
background
Appendix E. Communicaon Matrix and Device
Command
Communicaon Matrix
Scan the following QR code to get the device communicaon matrix.
Note that the matrix contains all communicaon ports of Hikvision access control and video
intercom devices.
Figure E-1 QR Code of Communicaon Matrix
Device Command
Scan the following QR code to get the device common serial port commands.
Note that the command list contains all commonly used serial ports commands for all Hikvision
access control and video intercom devices.
Figure E-2 Device Command
DS-K1T690 Series Face Recognion Terminal User Manual
163
background
UD24752B

Specifications

Indexed Terms: Face Recognition

Hikvision DS-K1T690MF-X Questions and Answers
