Hikvision DS-K1T690M-E1 User Manual
Hikvision DS-K1T690M-E1 Ultra Face Recognition Terminals
Quick Start Guide
For DS-K1T690M-E1.
PDF File Manual
,
178 pages
,
Read Online
|
Download pdf file
Legal Information
Symbol Conventions
Regulatory Information
Safety Instruction
Available Models
Chapter 1 Overview
1.1 Overview
1.2 Features

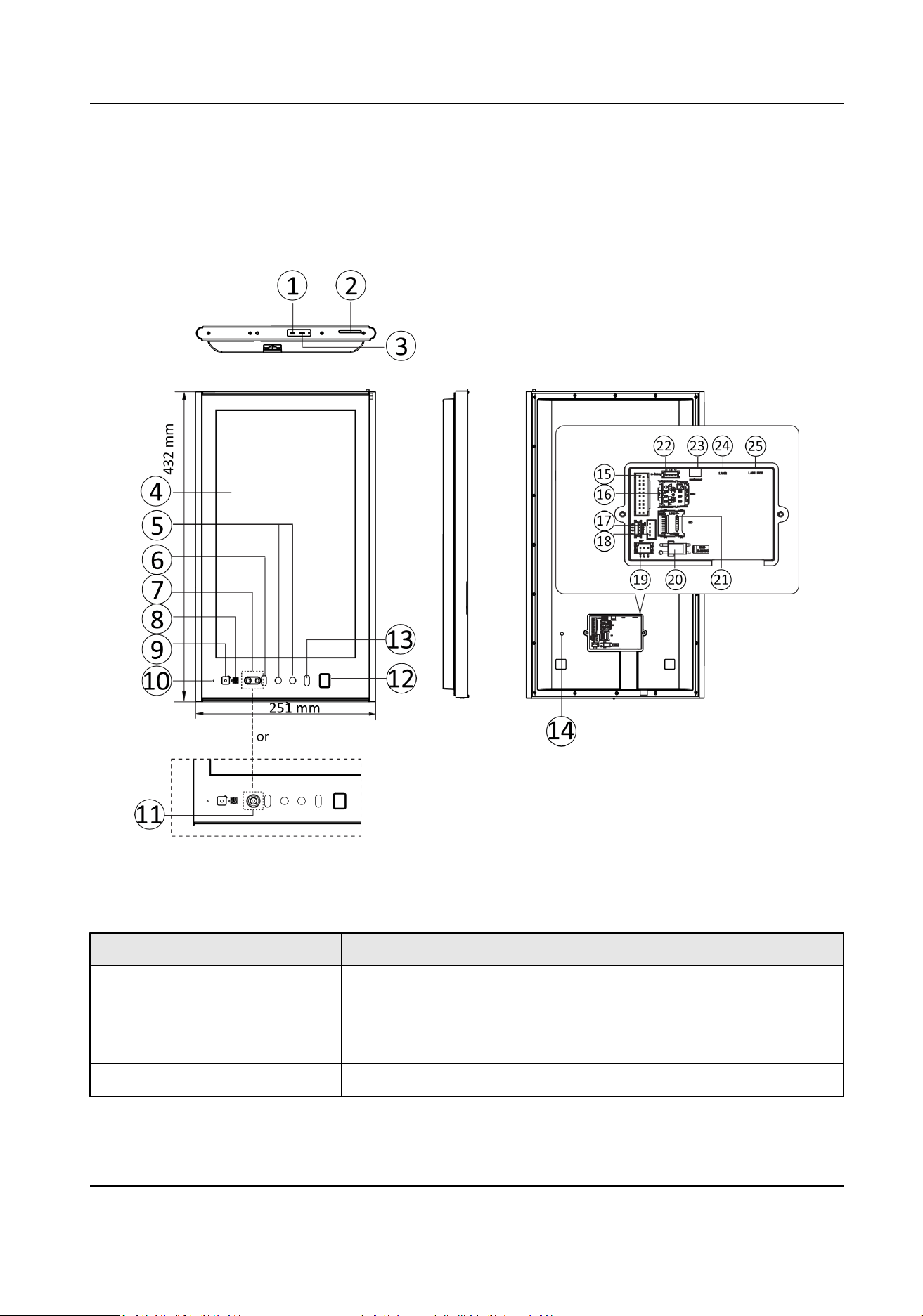

Chapter 2 Appearance
Chapter 3 Installation
3.1 Installation Environment

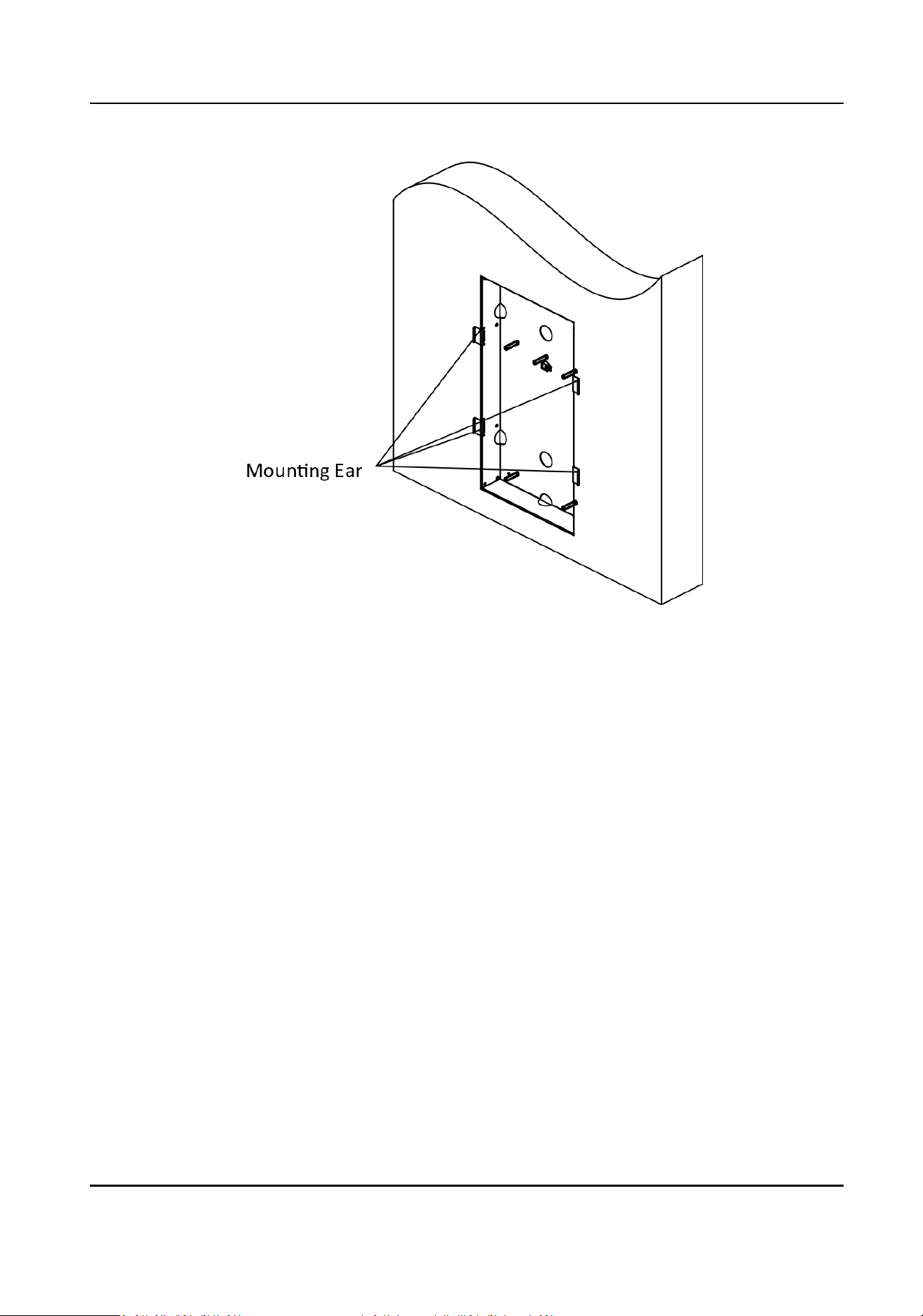

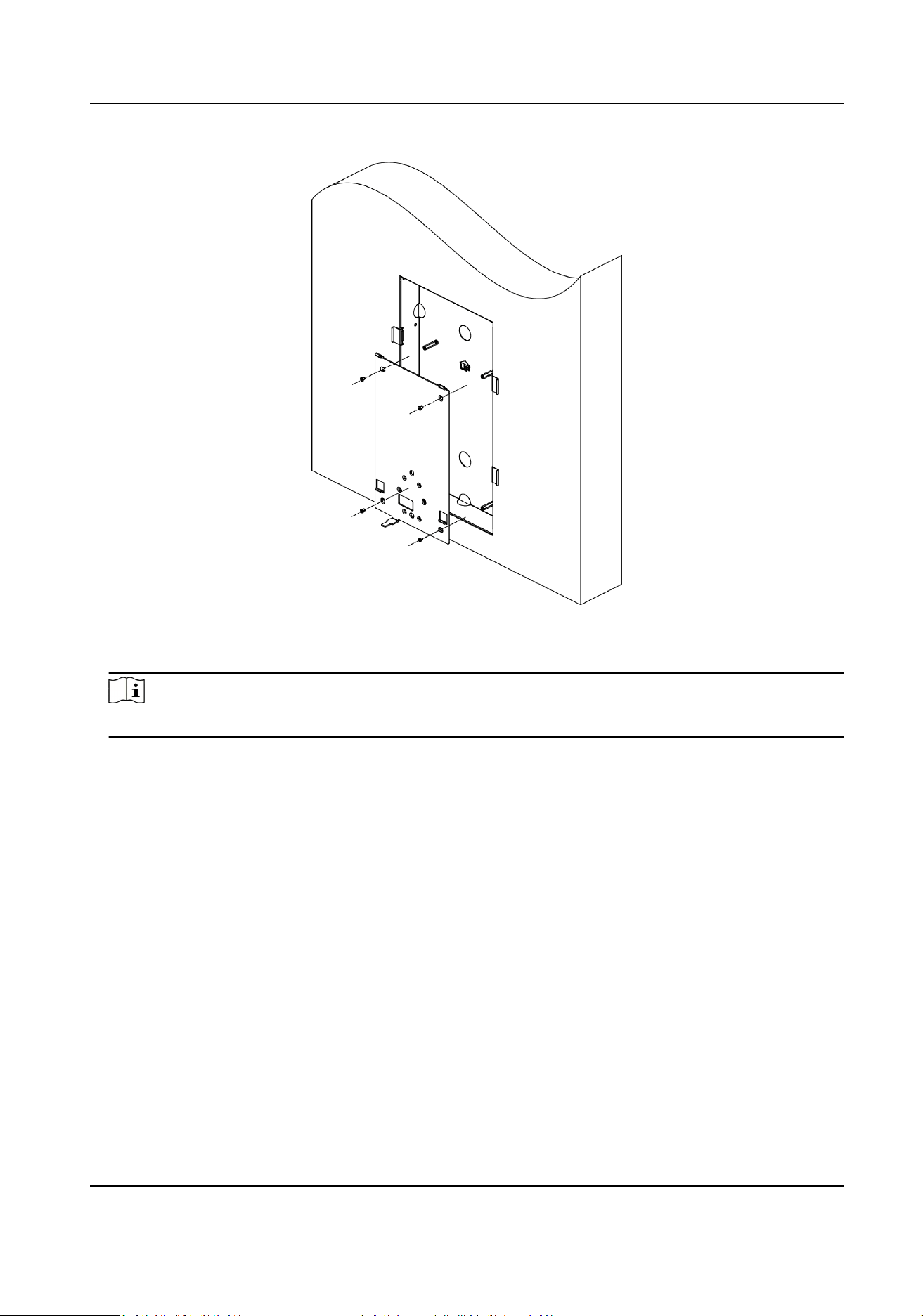

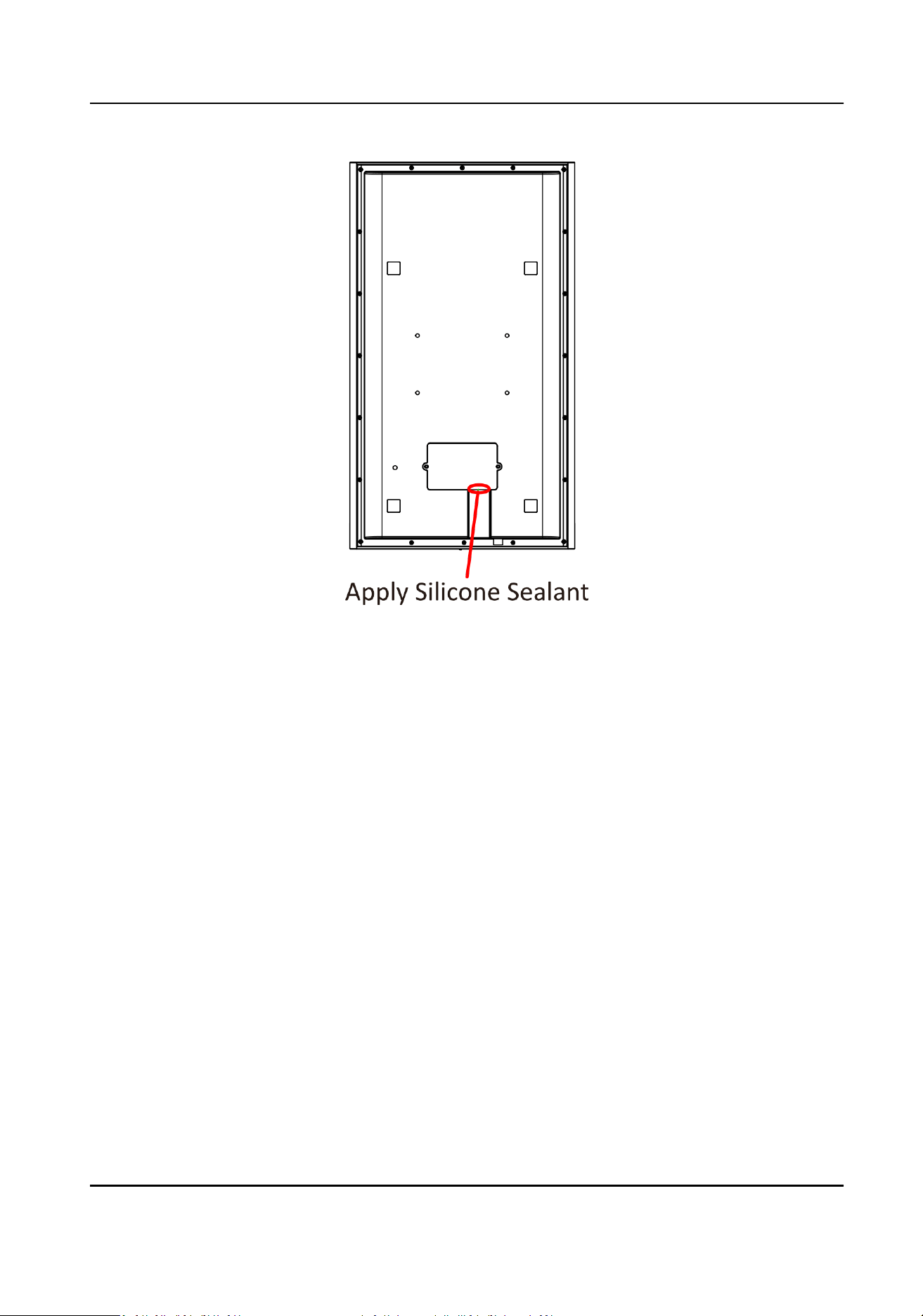

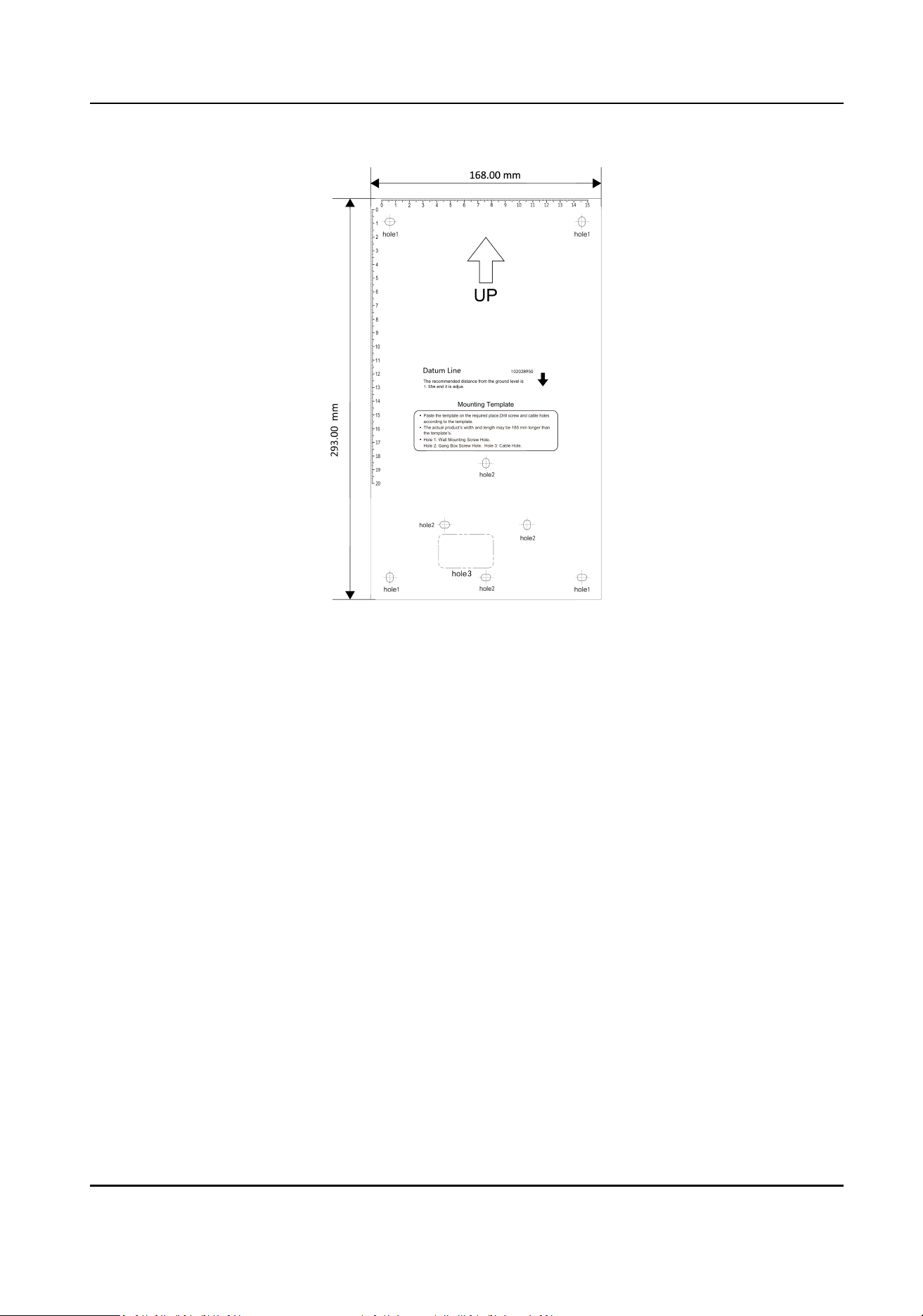

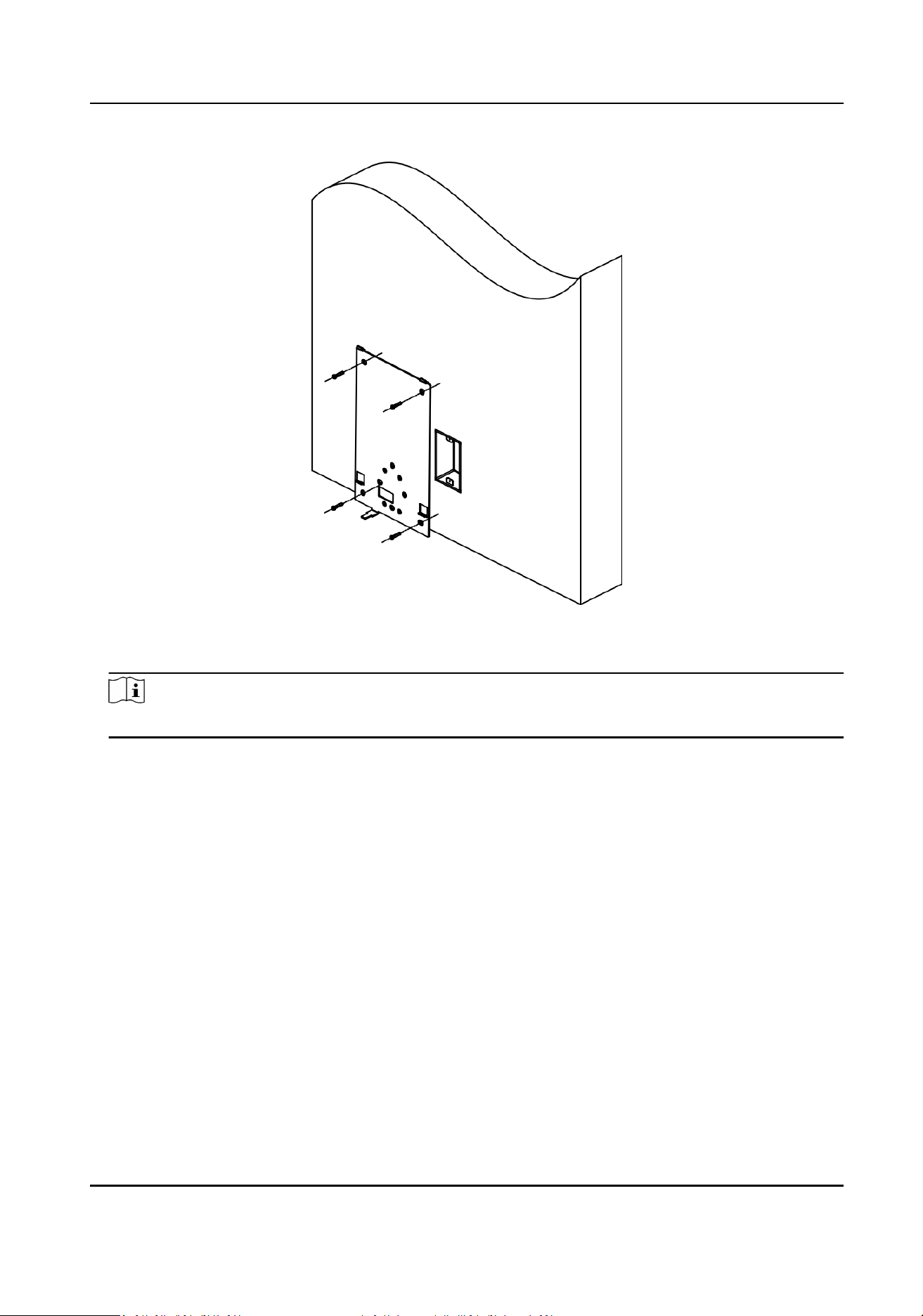

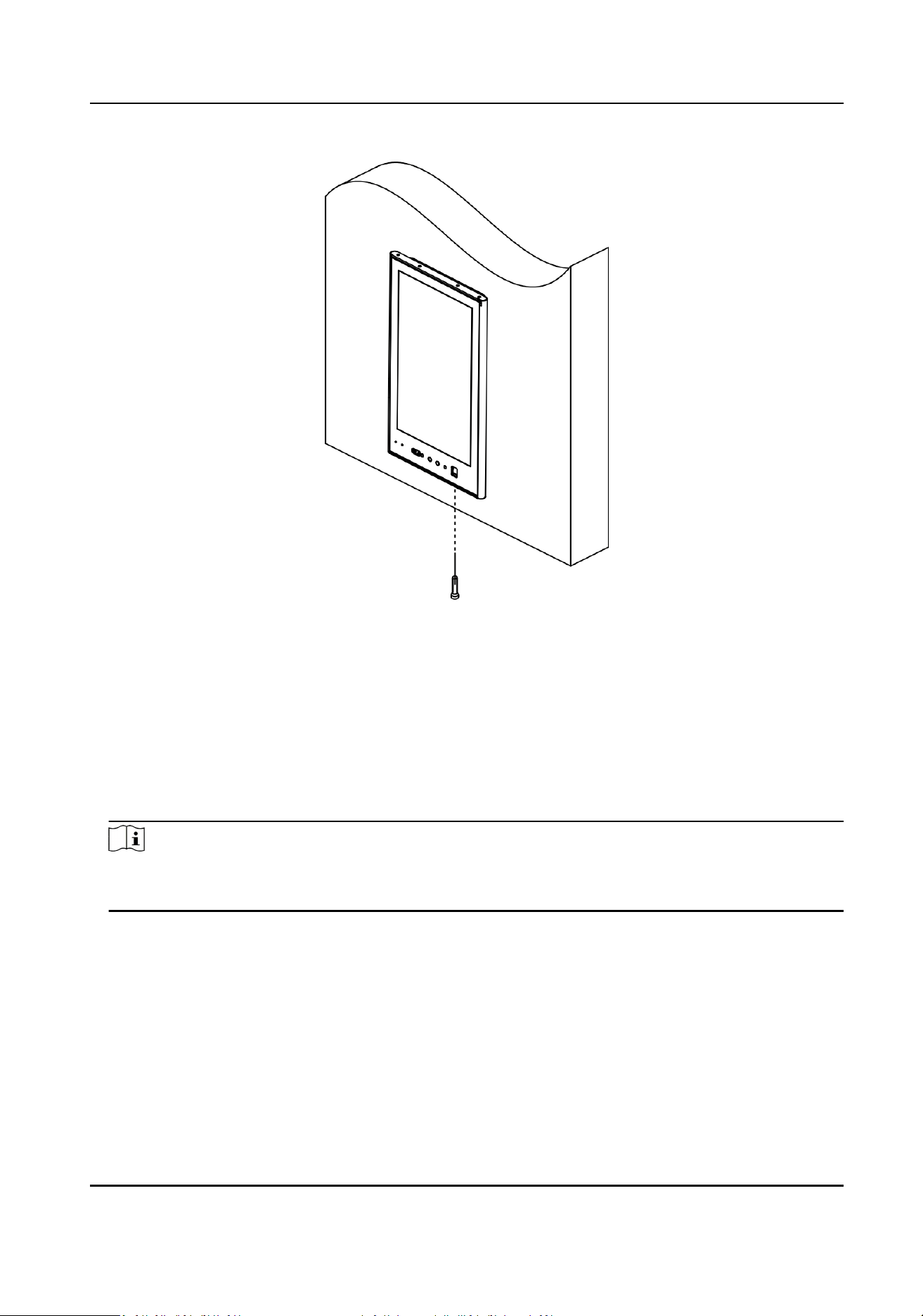

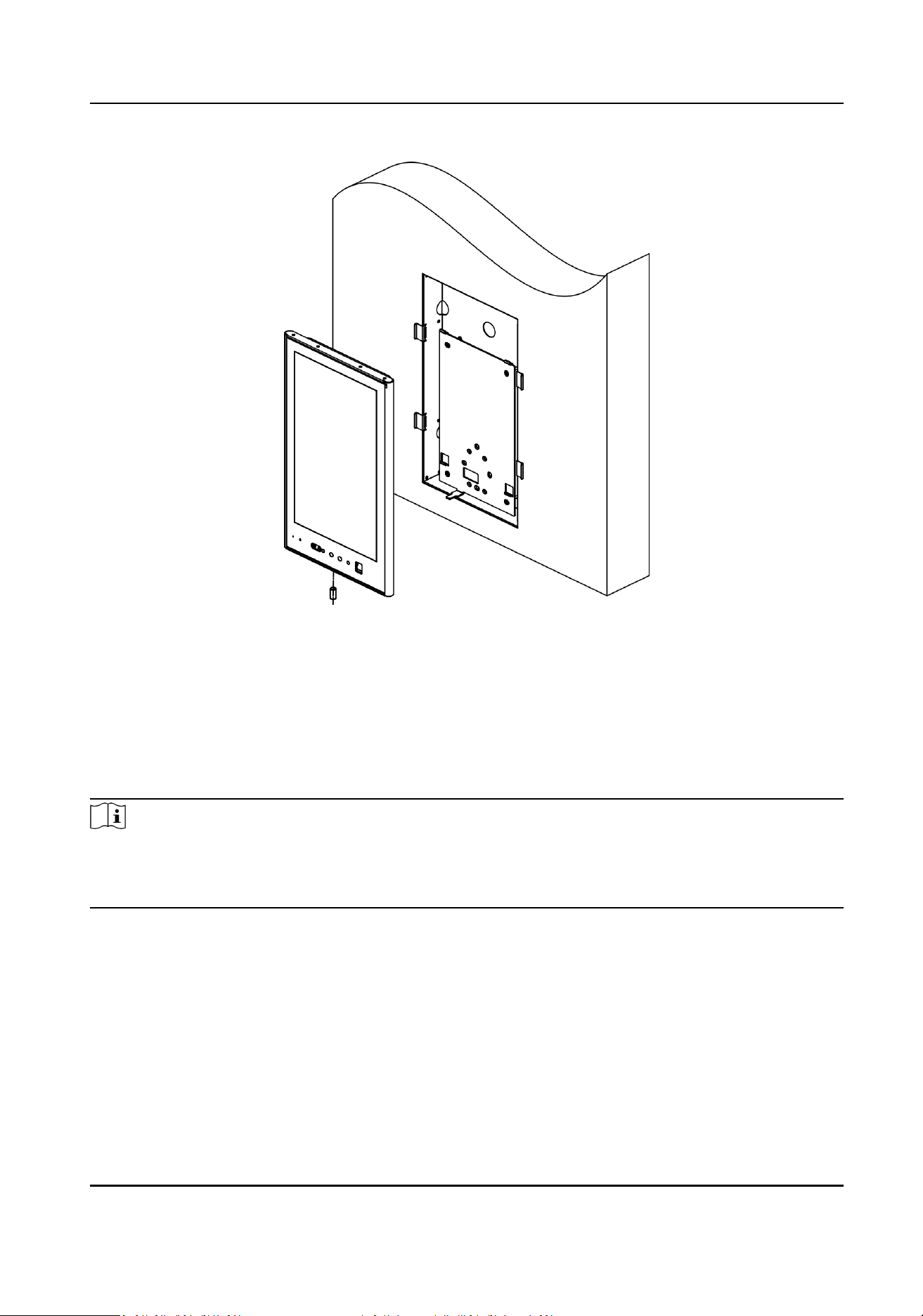

3.2 Flush Mounting with Gang Box (Type I)
3.3 Flush Mounting (Type II)

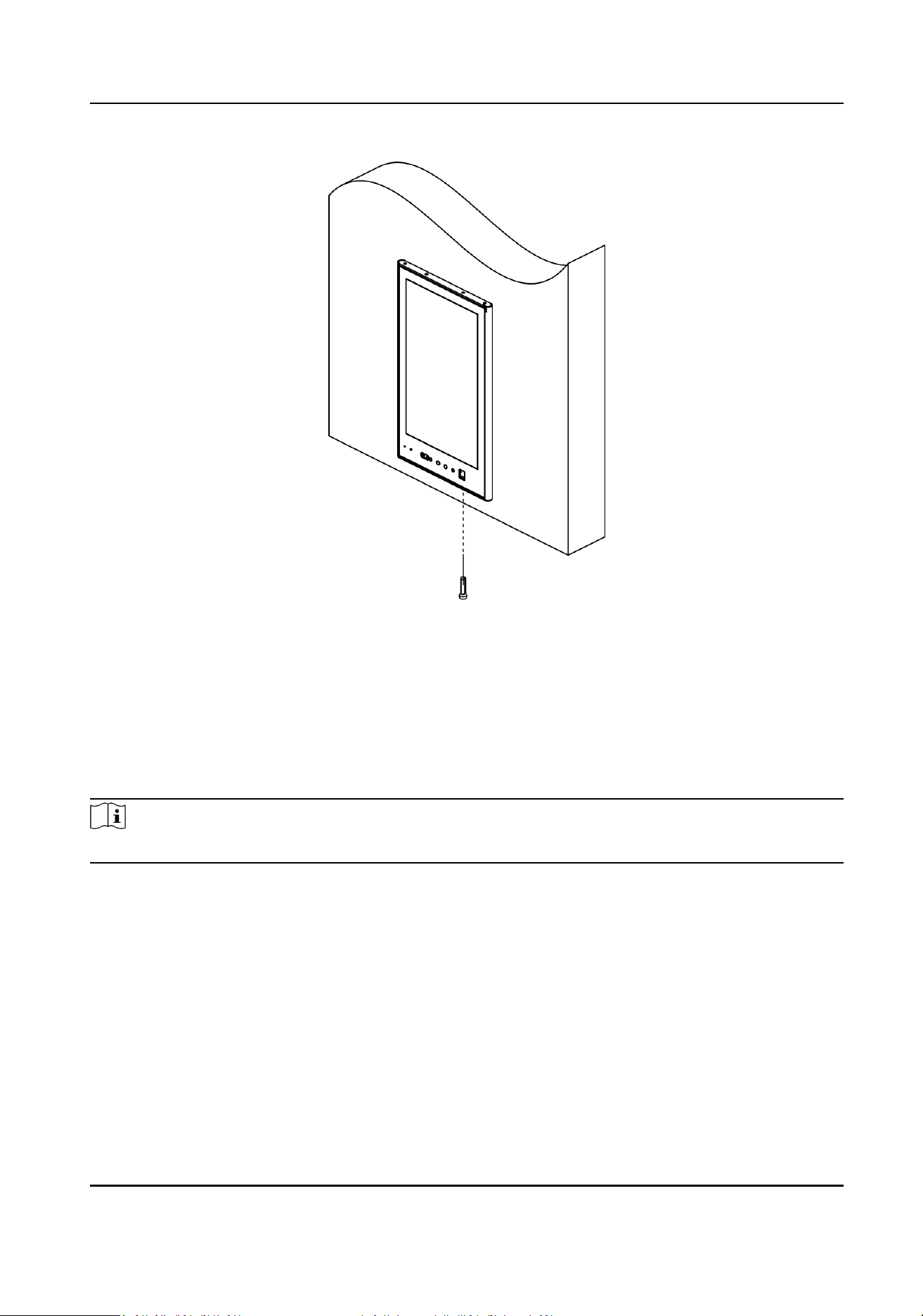

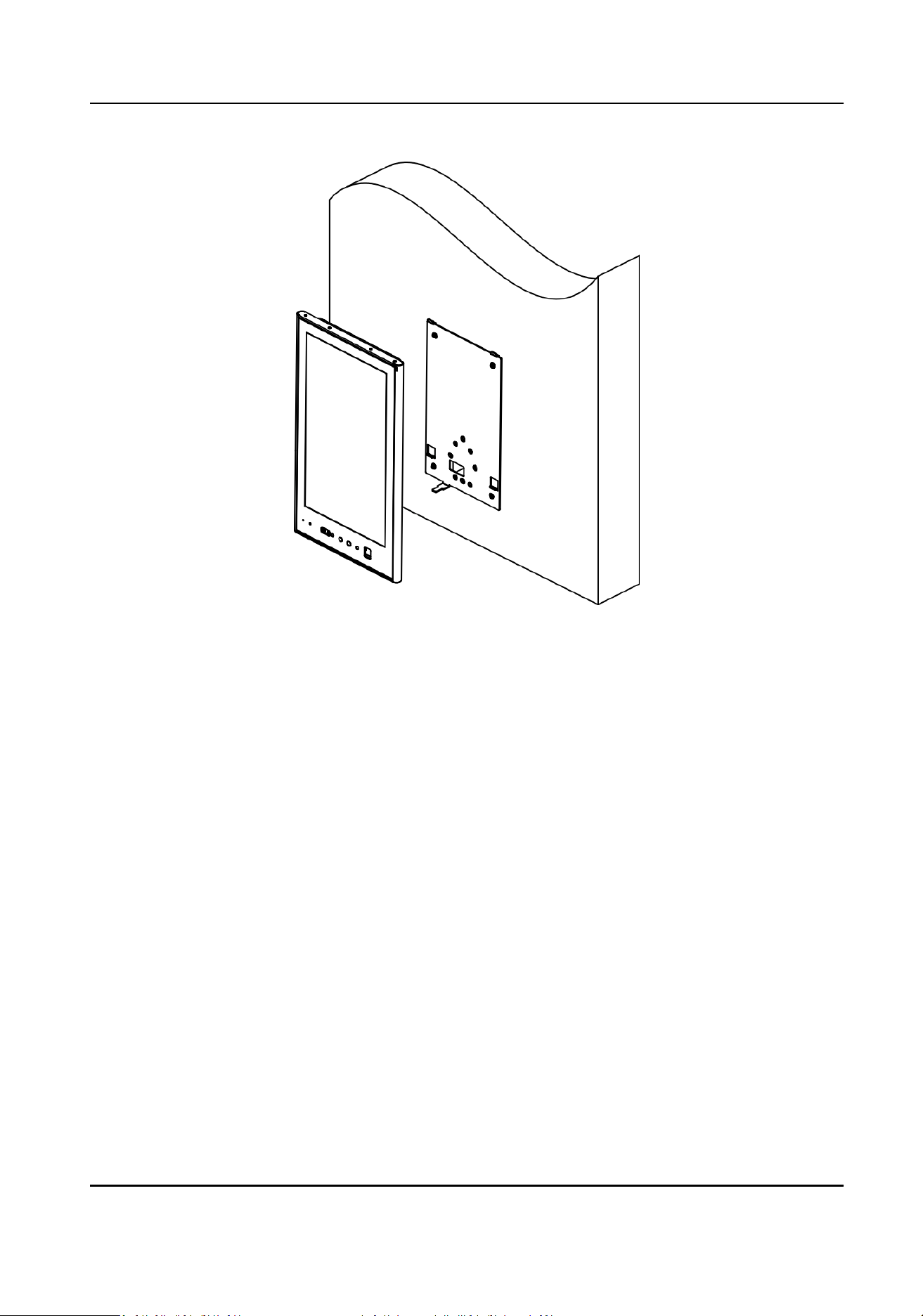

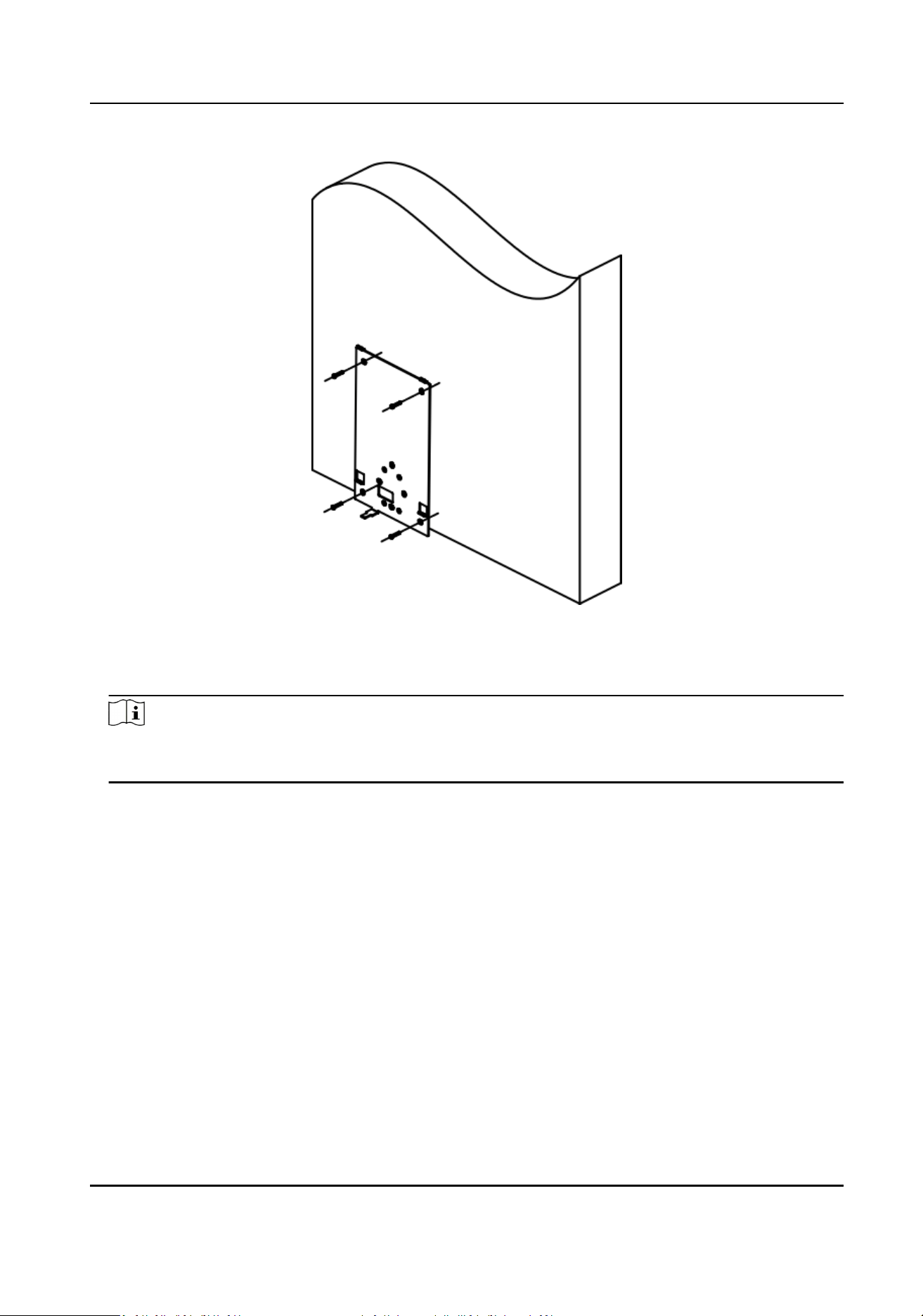

3.4 Surface Mounting

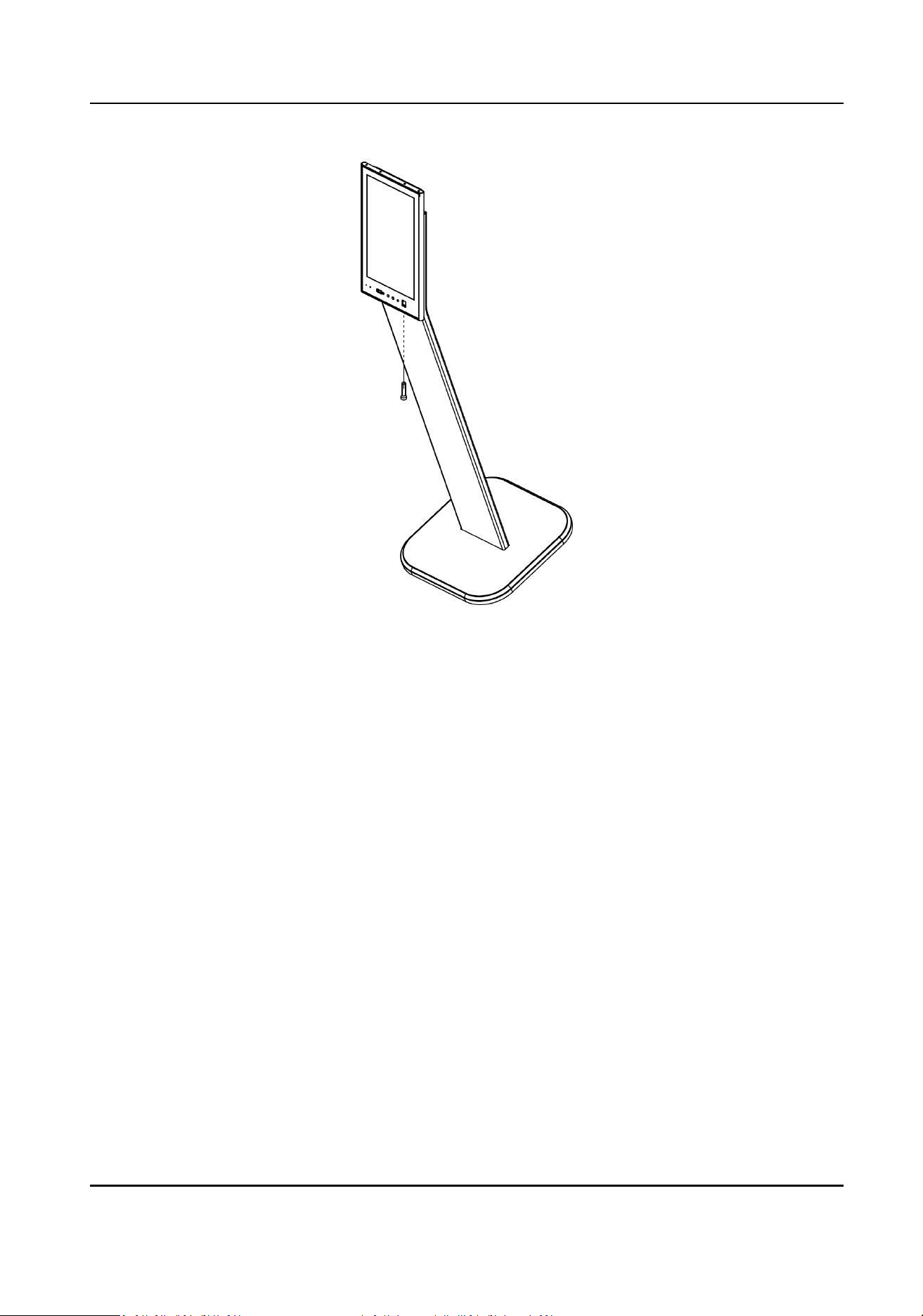

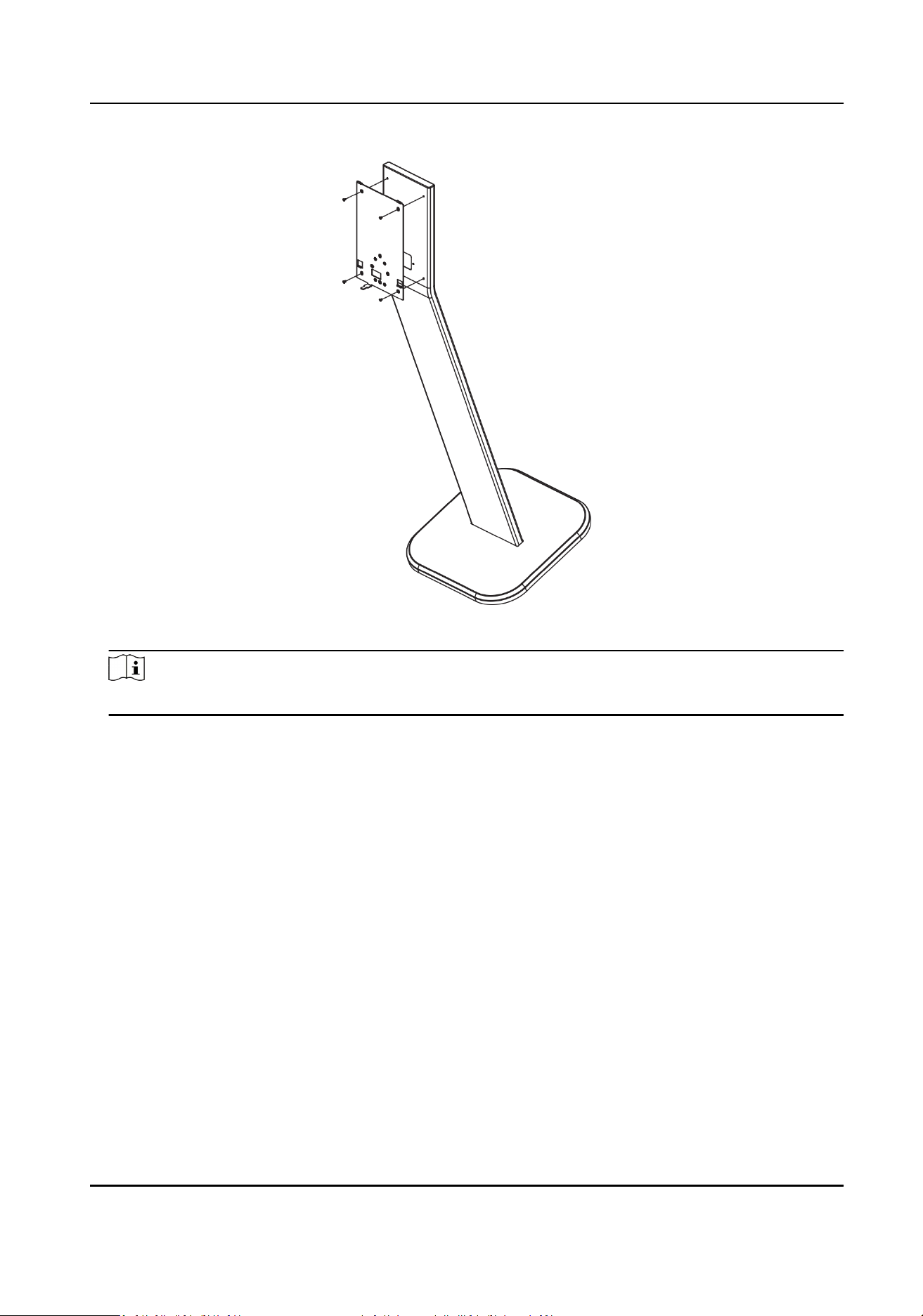

3.5 Base Mounting

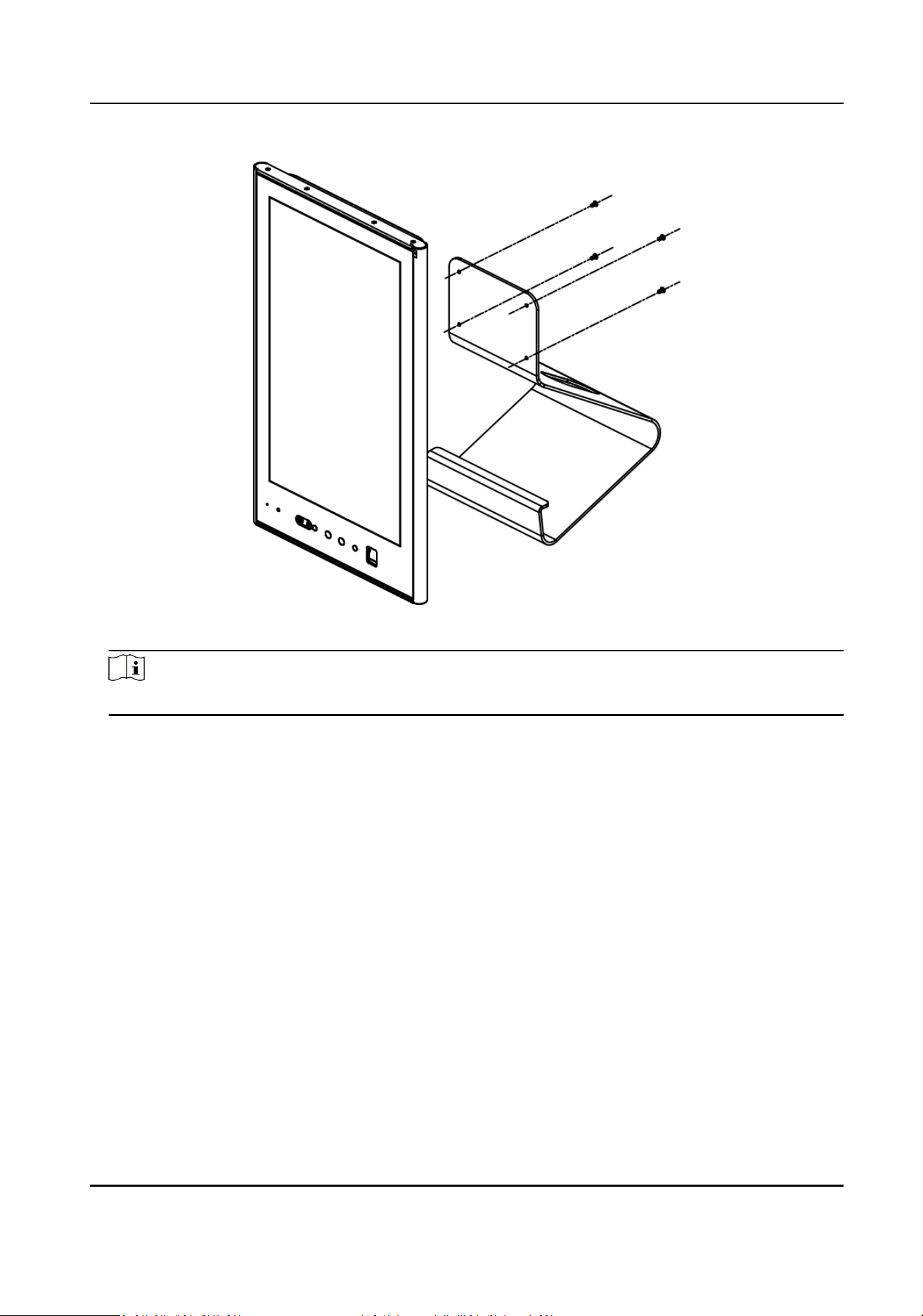

3.6 Bracket Mounting
Chapter 4 Wiring

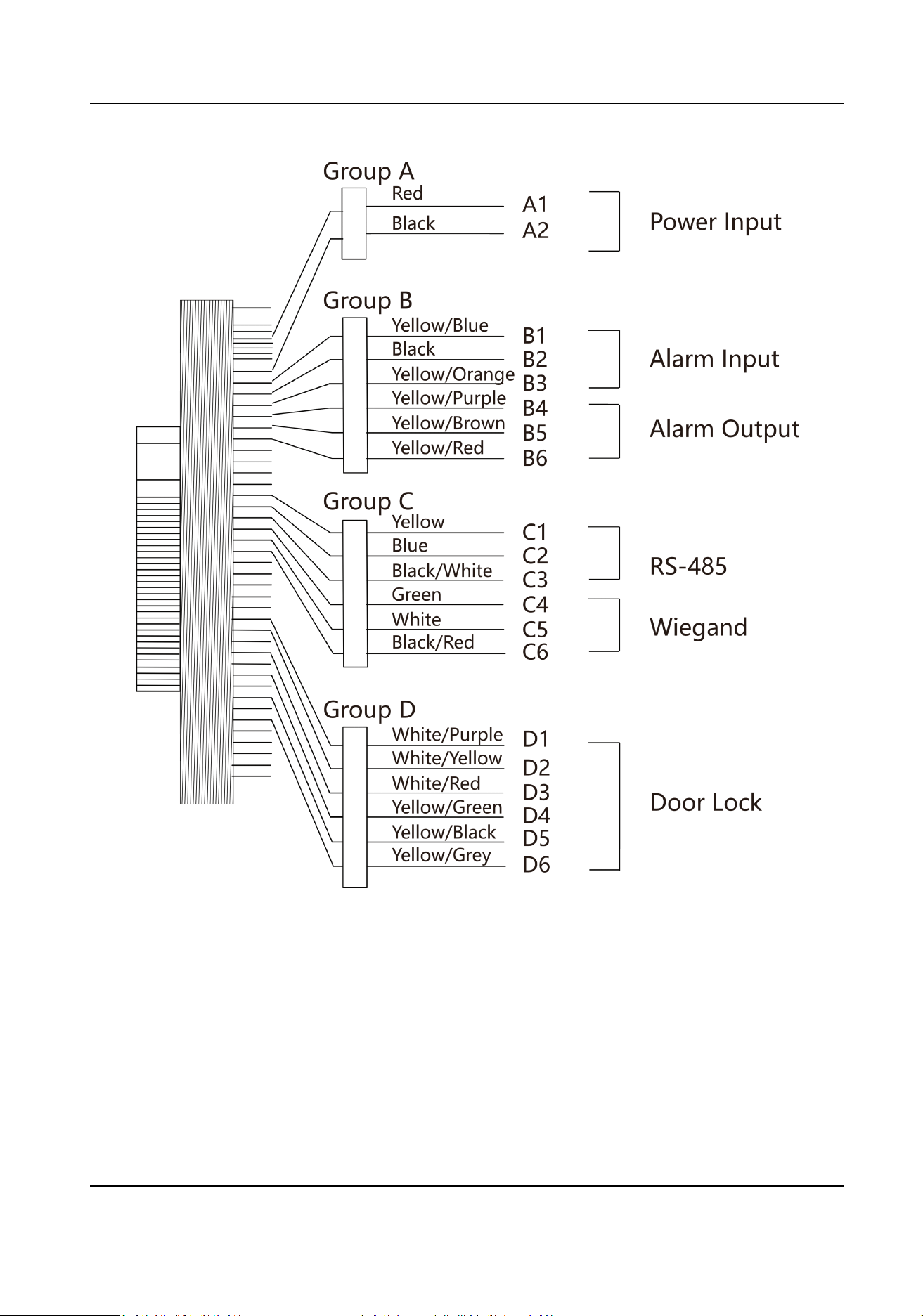

4.1 Terminal Description

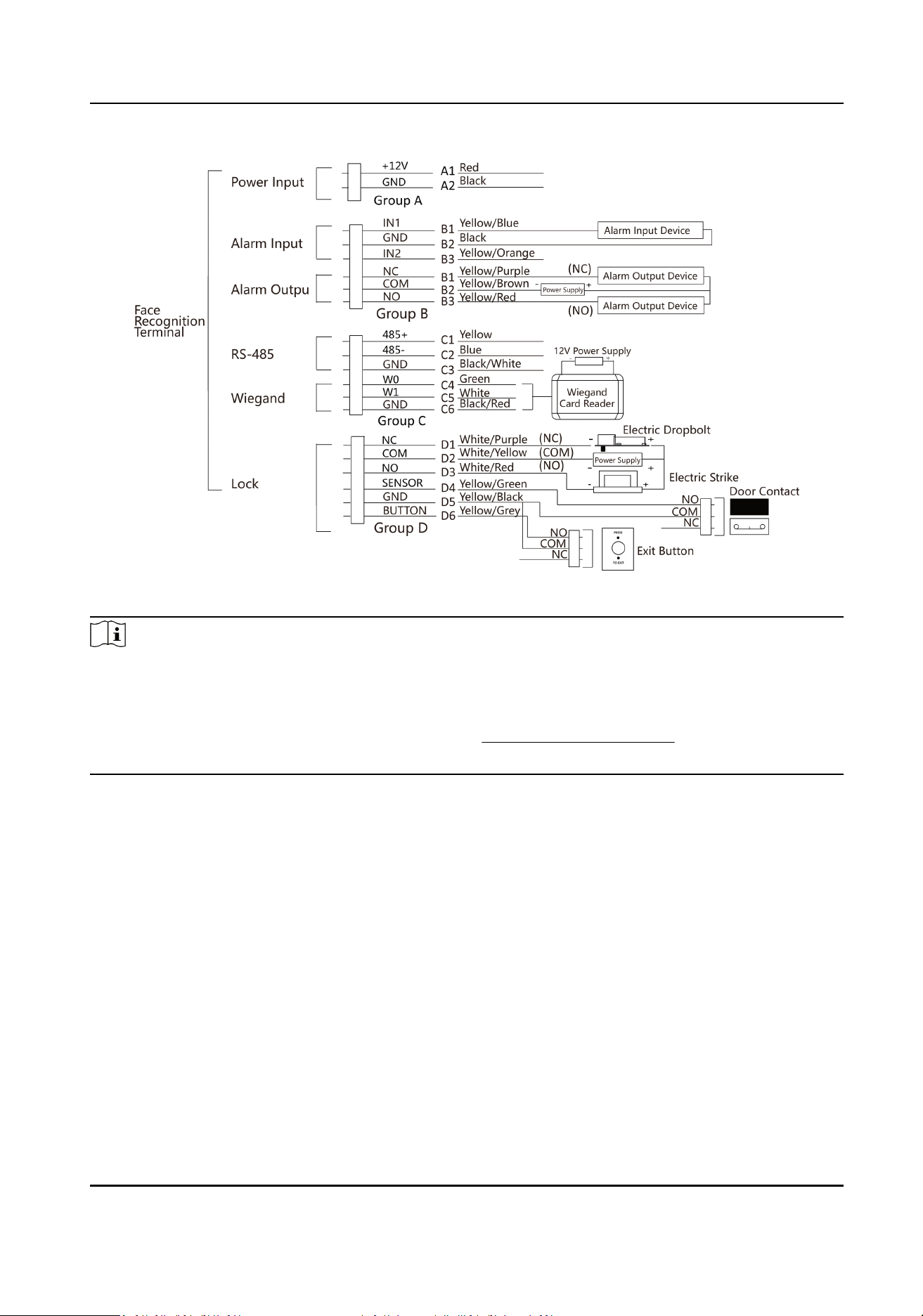

4.2 Wire Normal Device

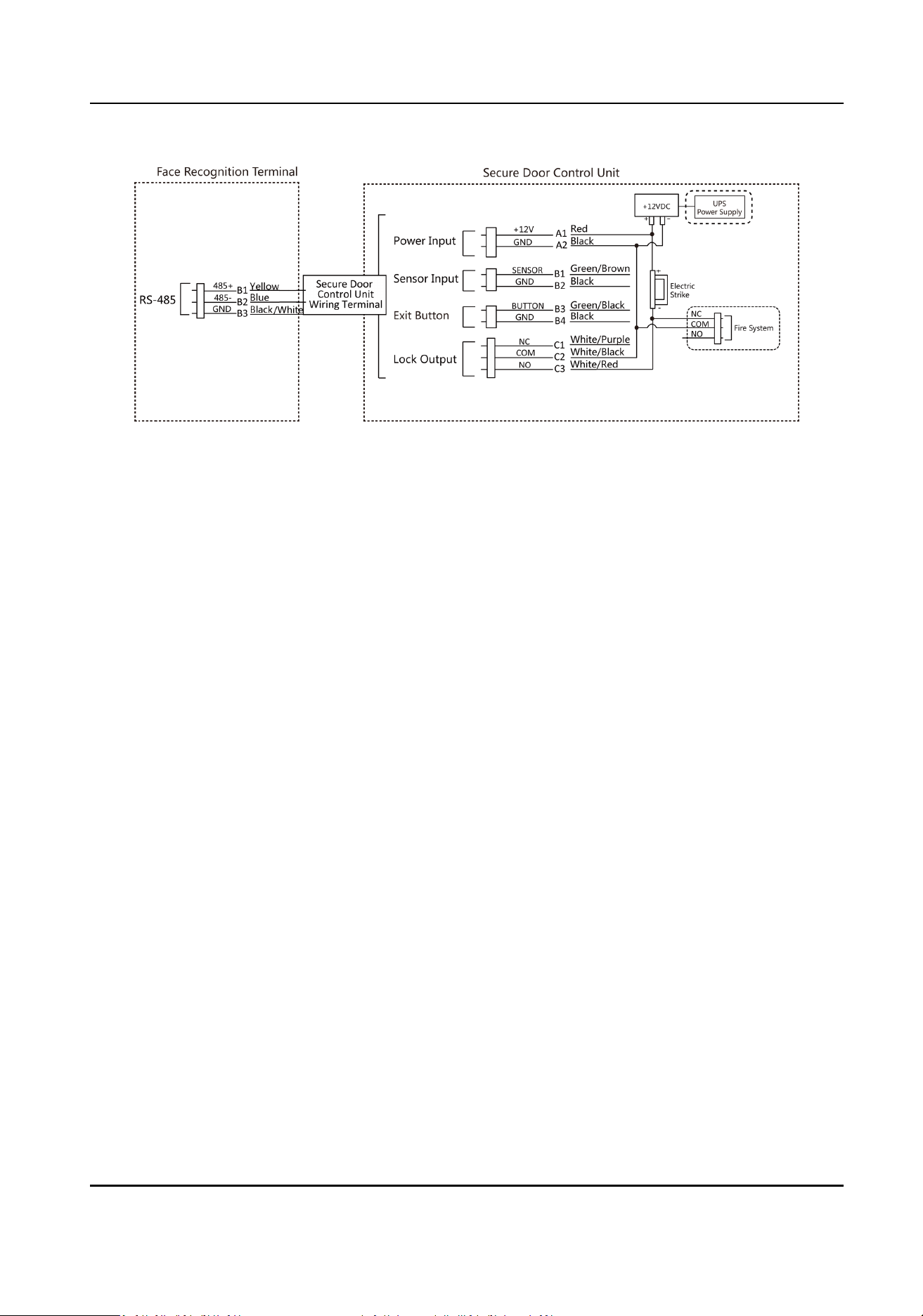

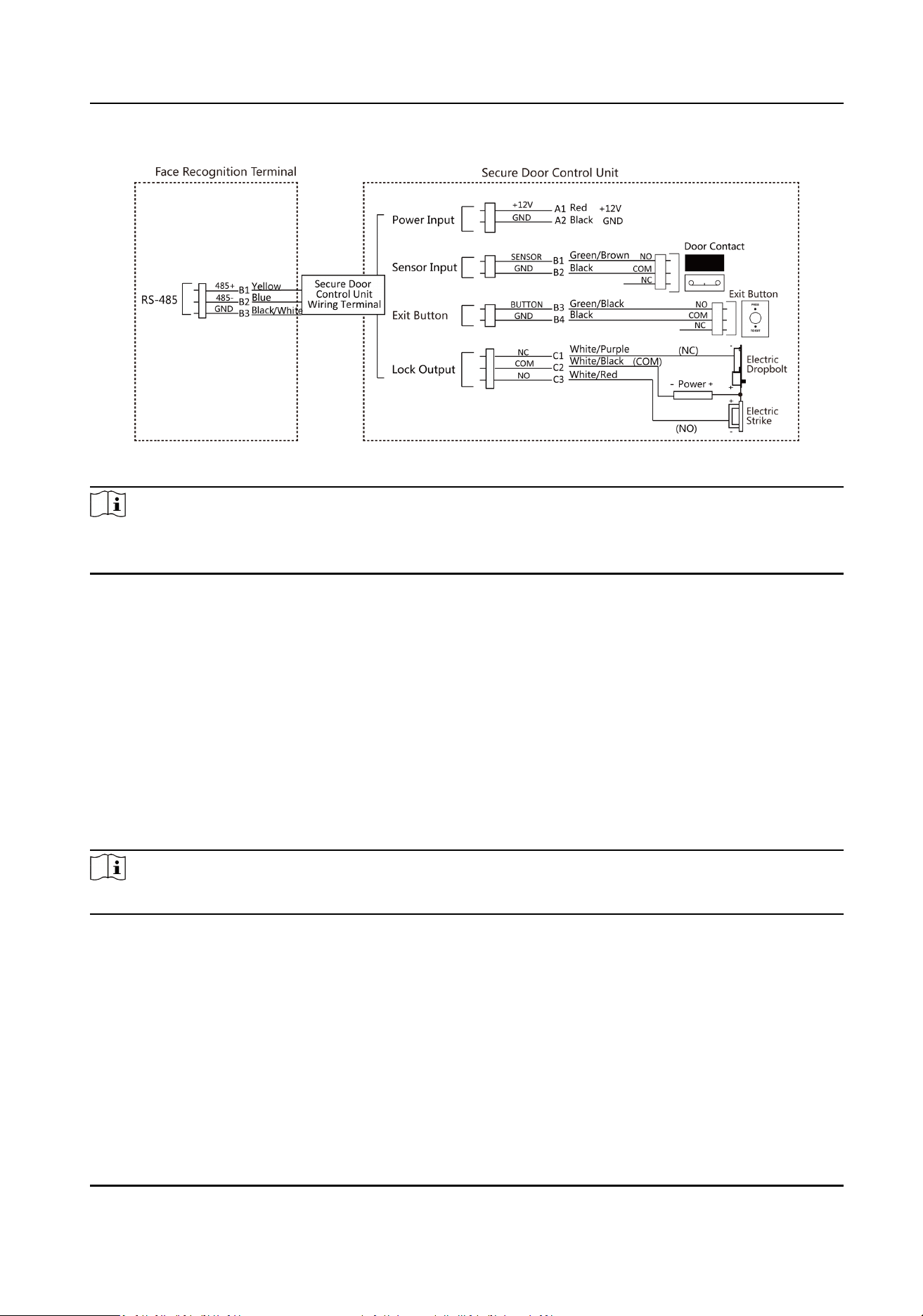

4.3 Wire Secure Door Control Unit

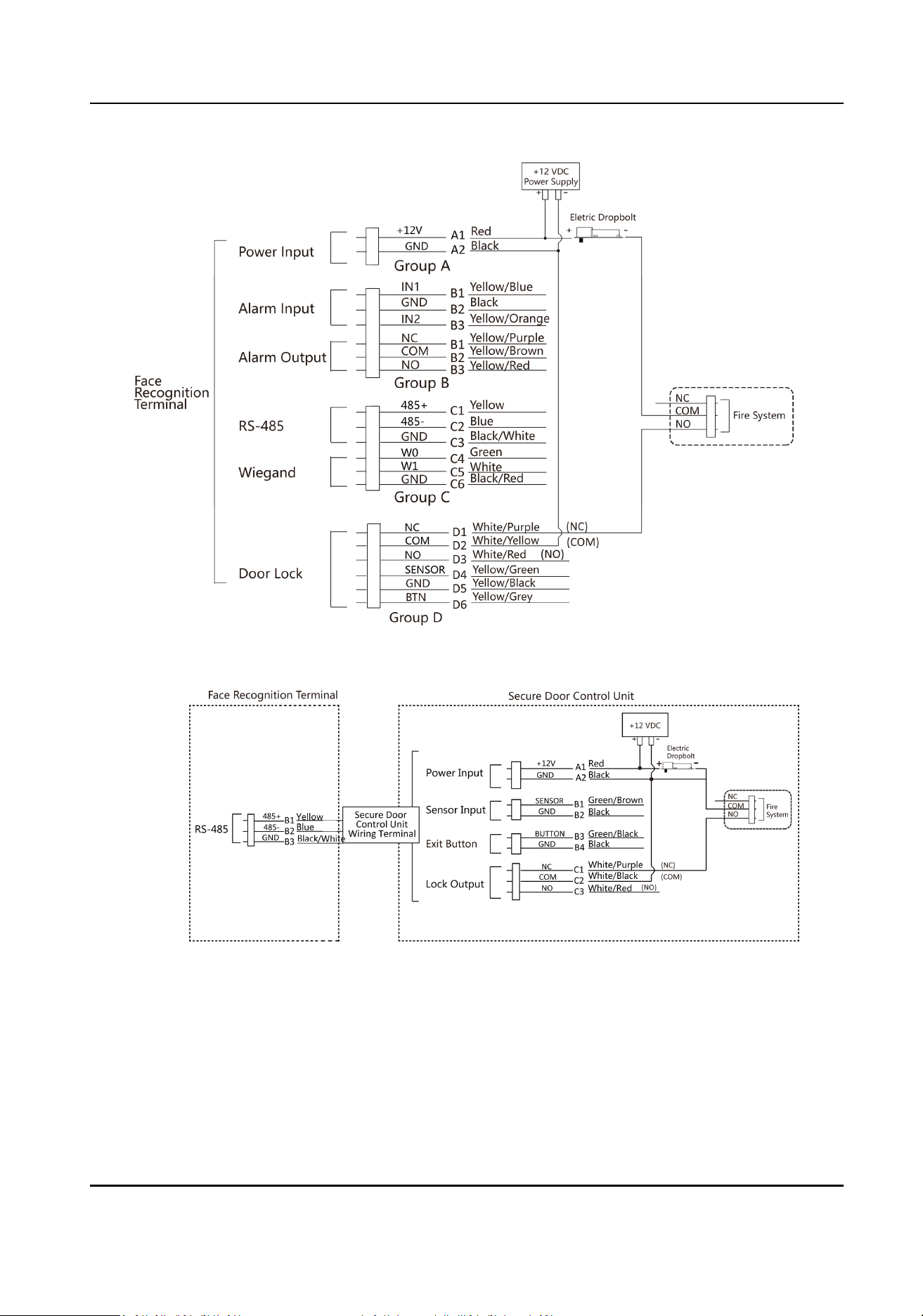

4.4 Wire Fire Module

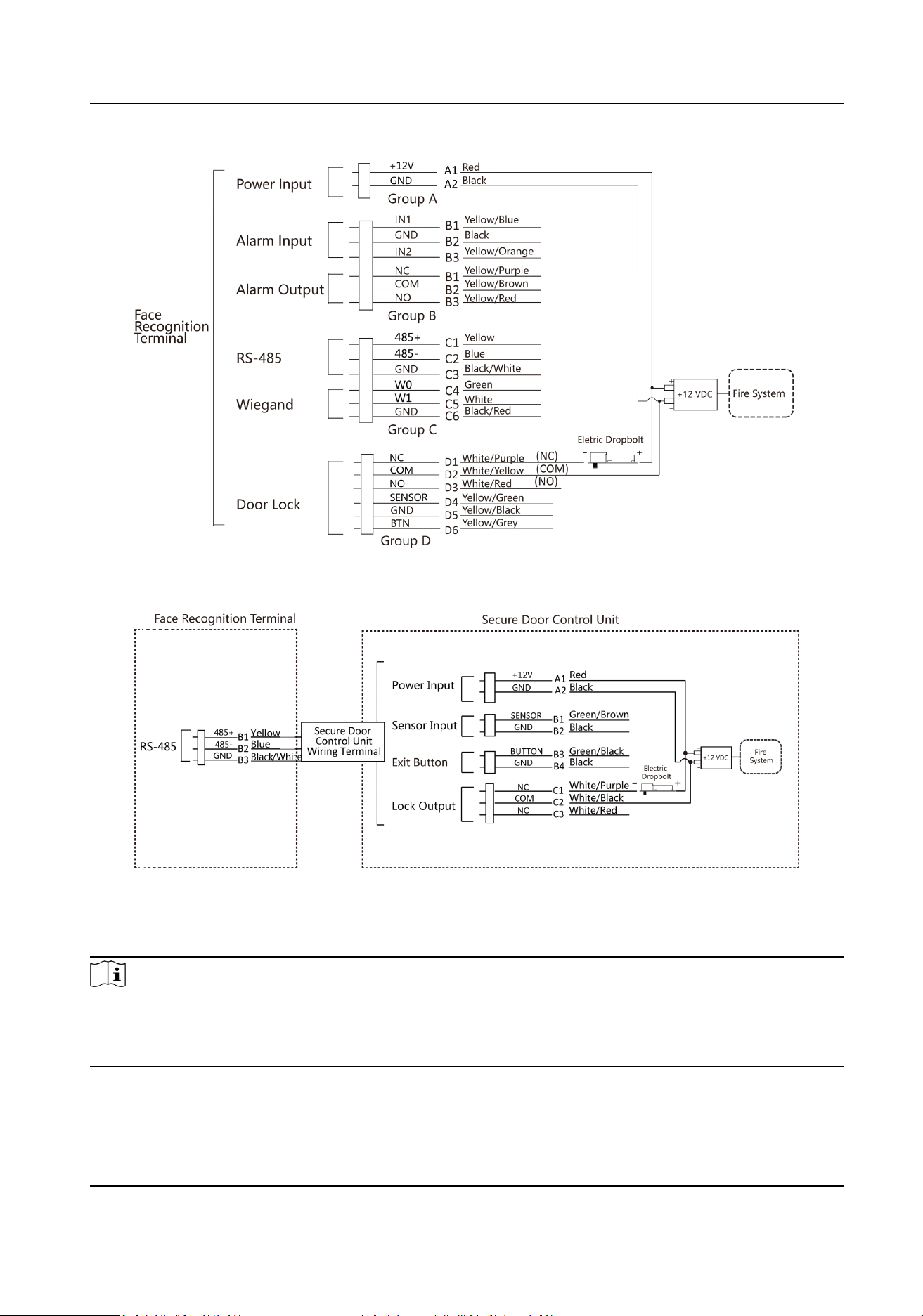

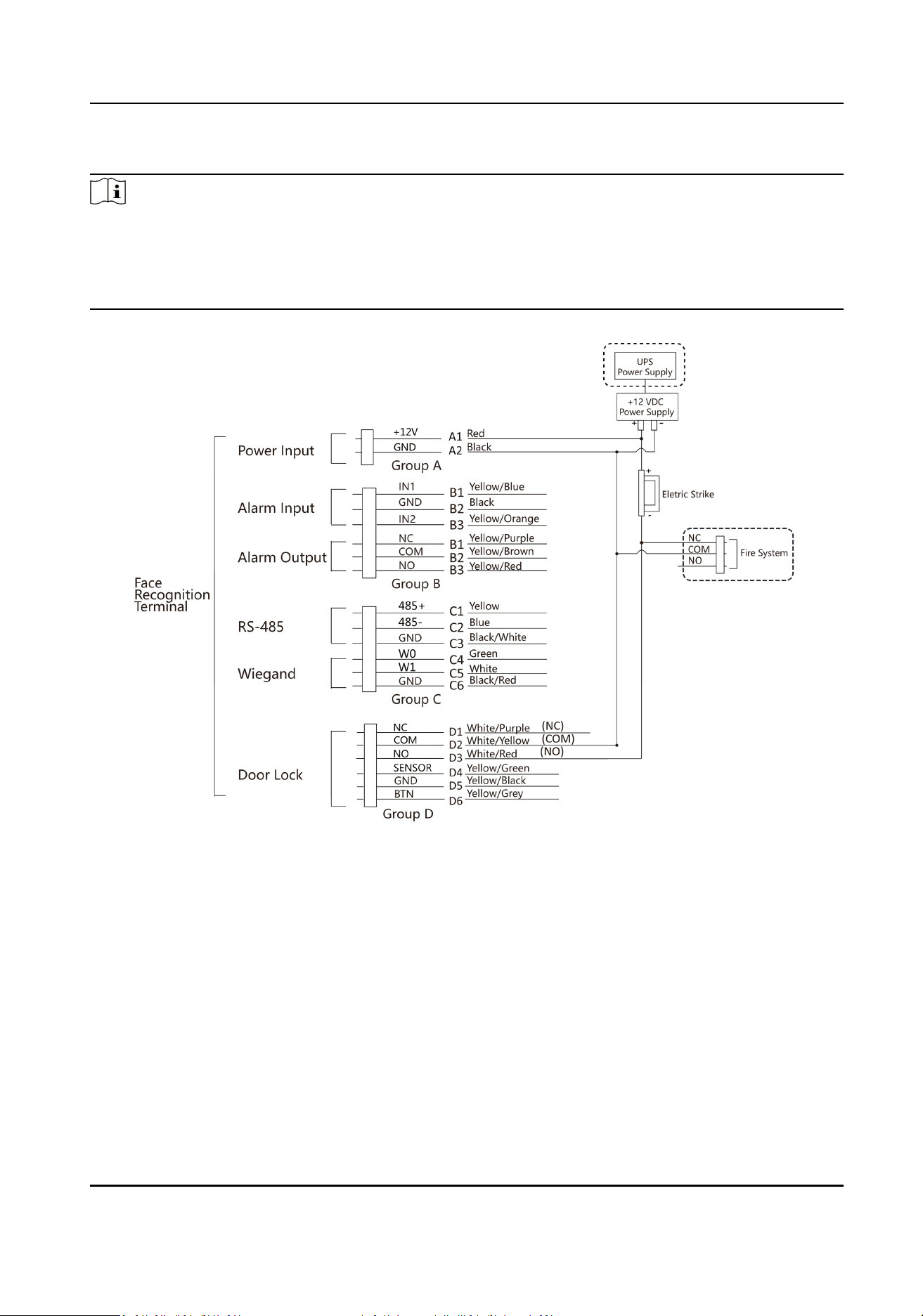

4.4.1 Wiring Diagram of Door Open When Powering Off
4.4.2 Wiring Diagram of Door Locked When Powering Off
Chapter 5 Activation

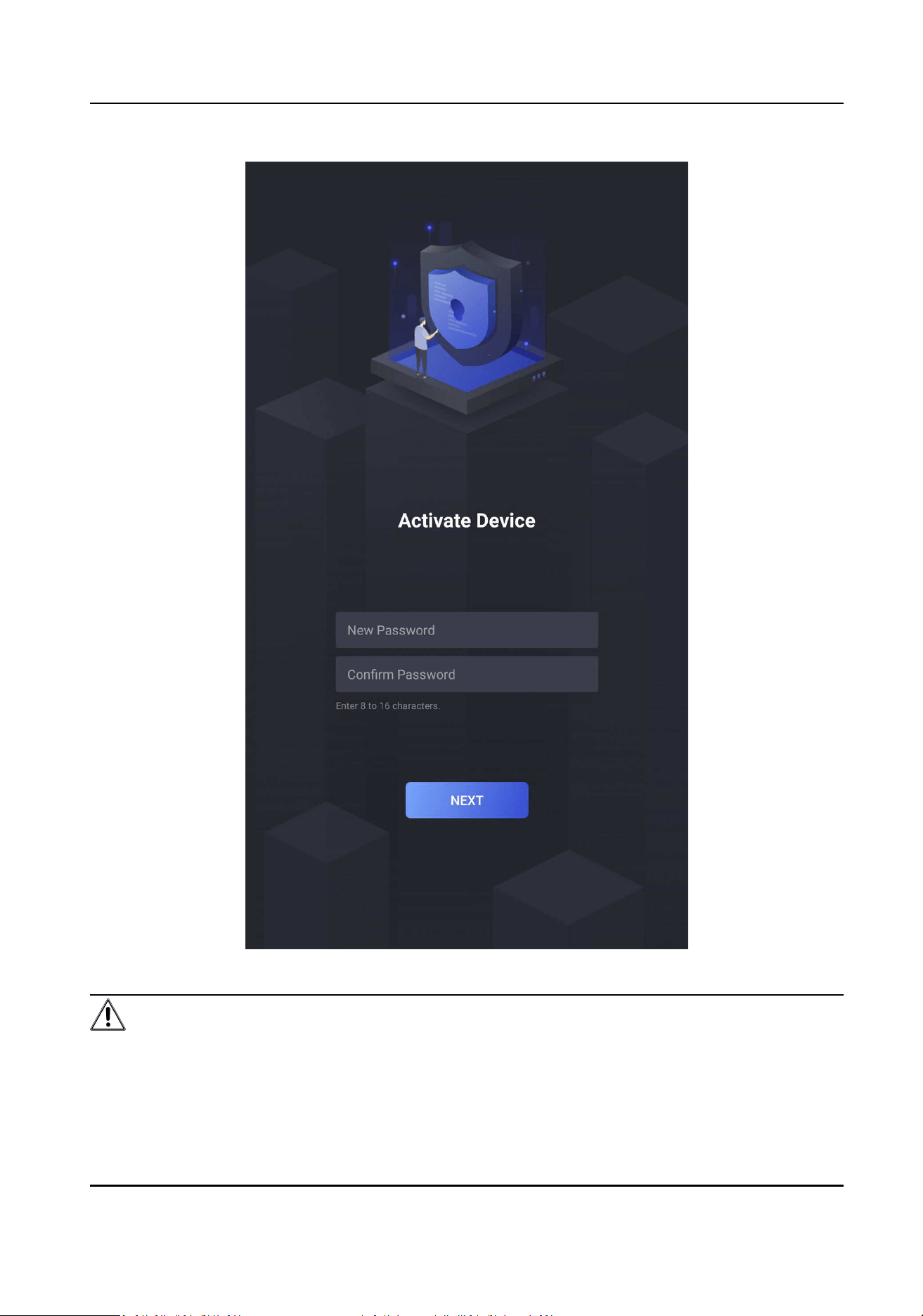

5.1 Activate via Device
5.2 Activate via Web Browser

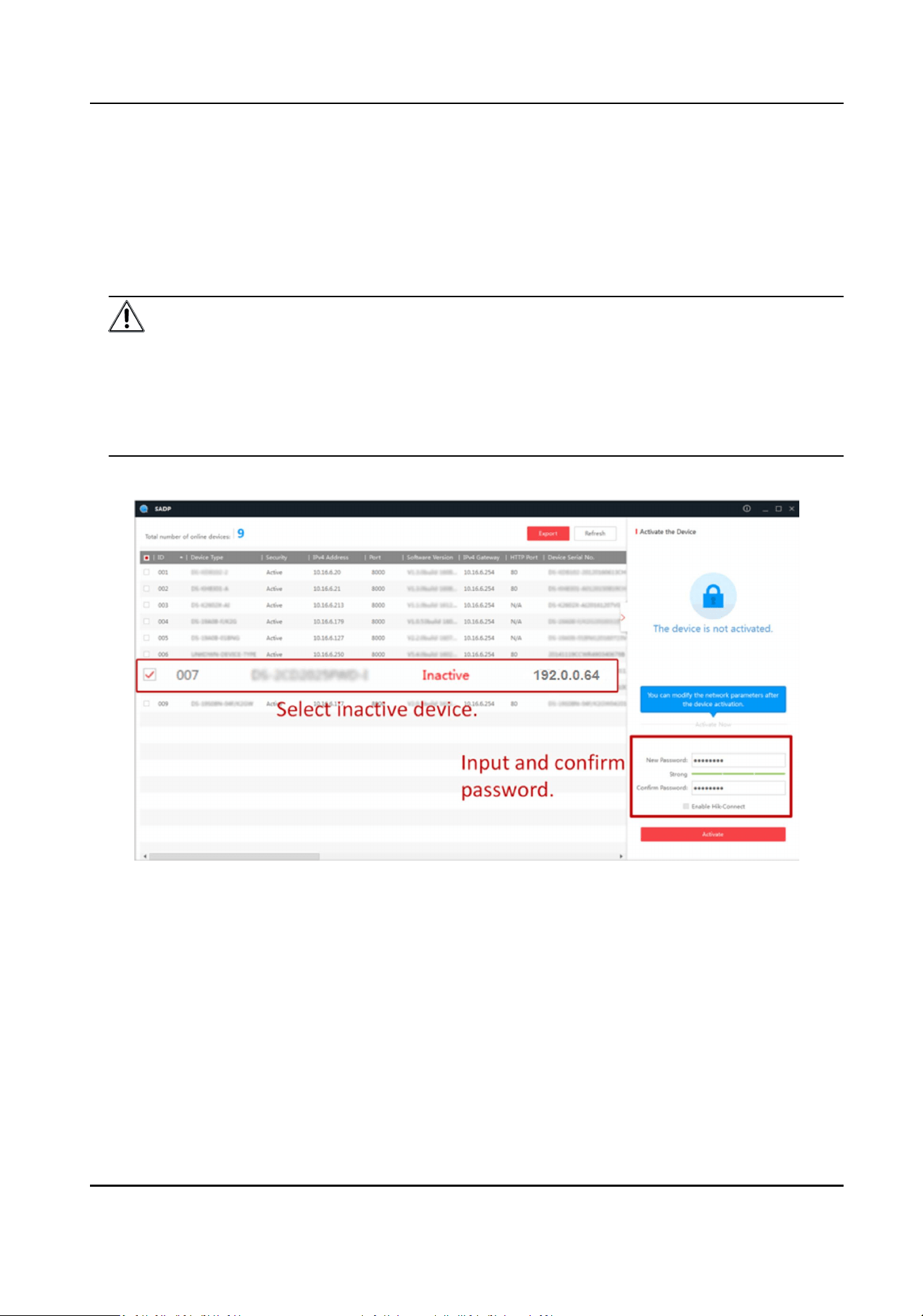

5.3 Activate via SADP
5.4 Activate Device via iVMS-4200 Client Software
Chapter 6 Quick Operation

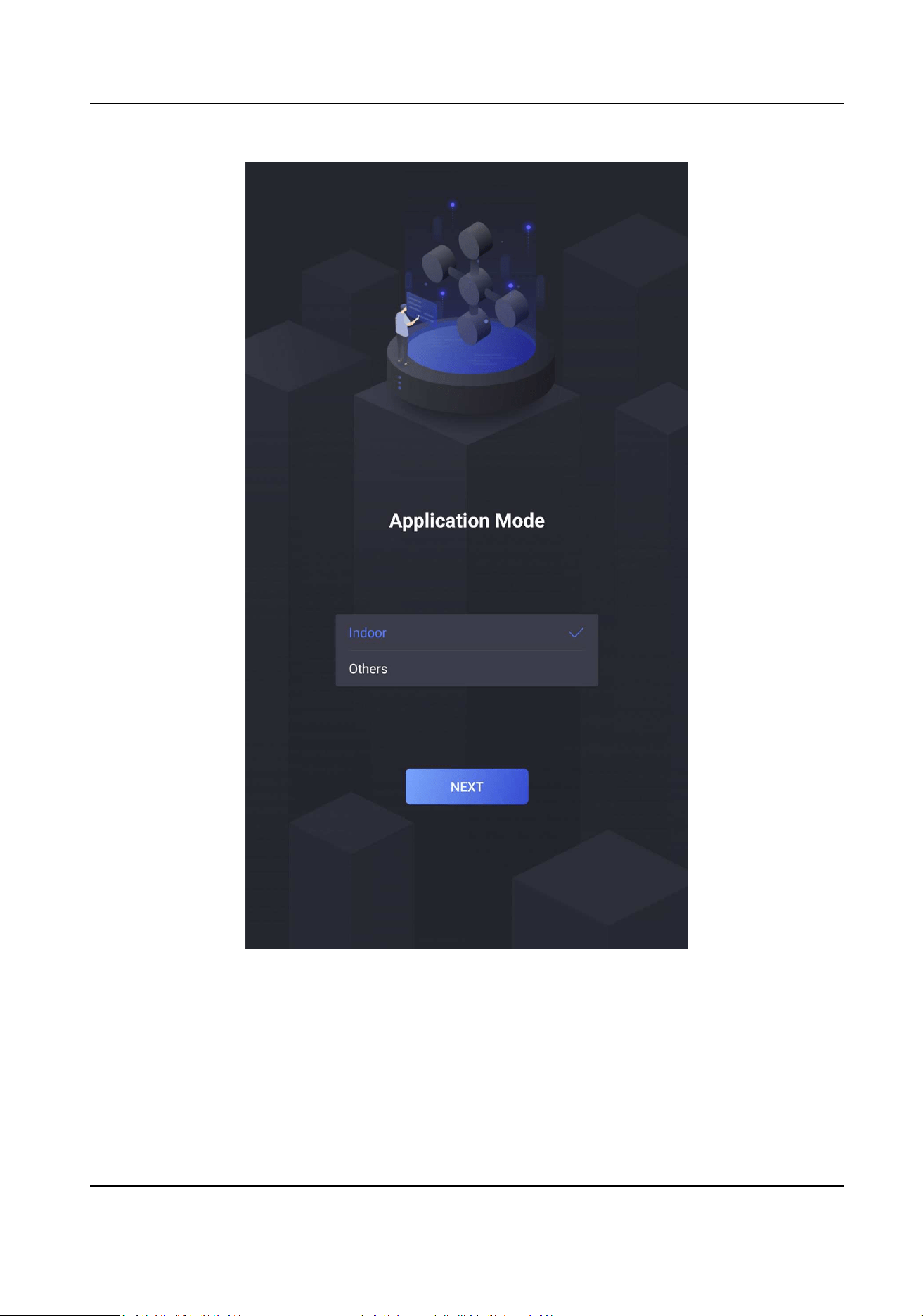

6.1 Set Application Mode

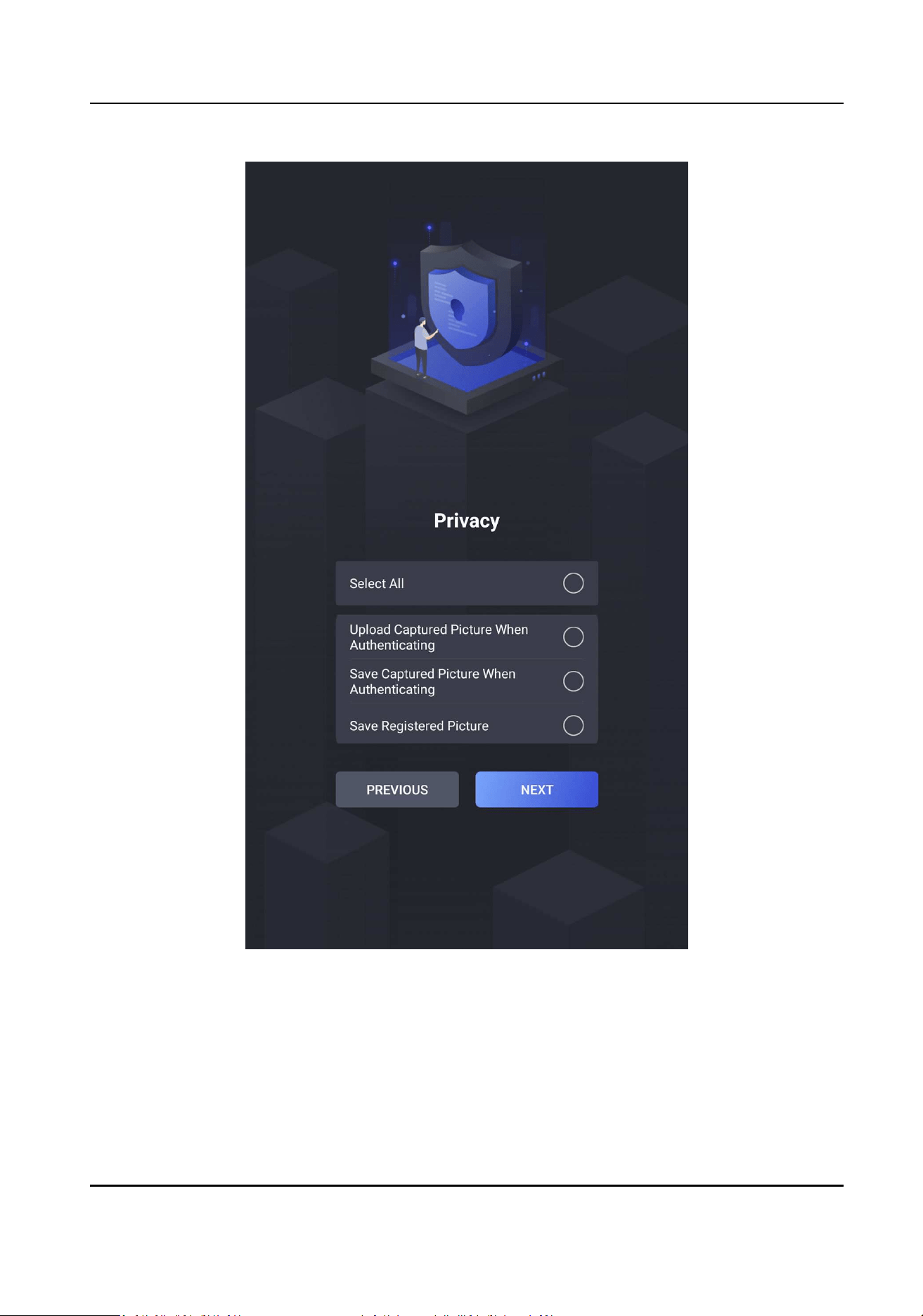

6.2 Privacy Settings

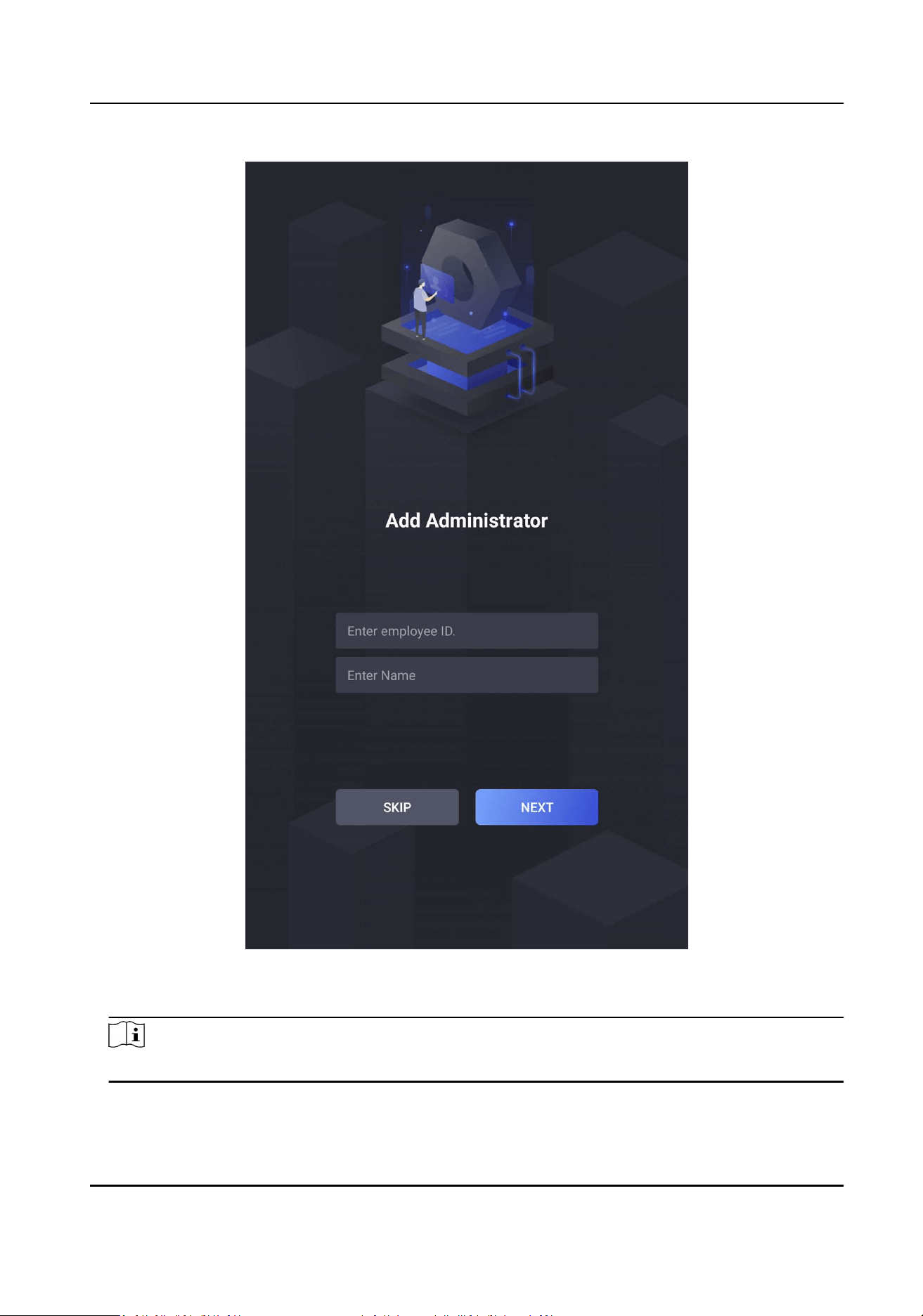

6.3 Set Administrator
Chapter 7 Basic Operation

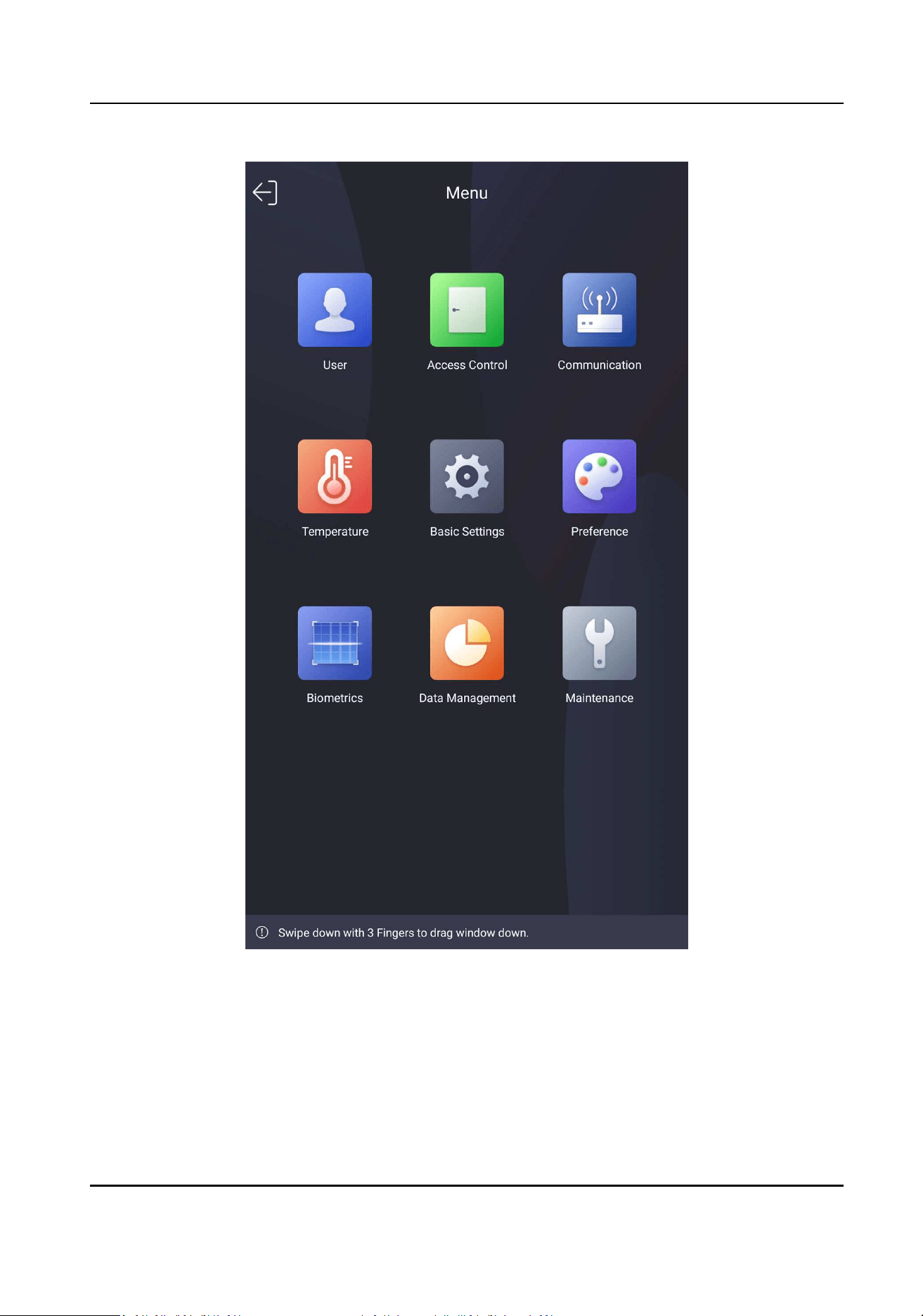

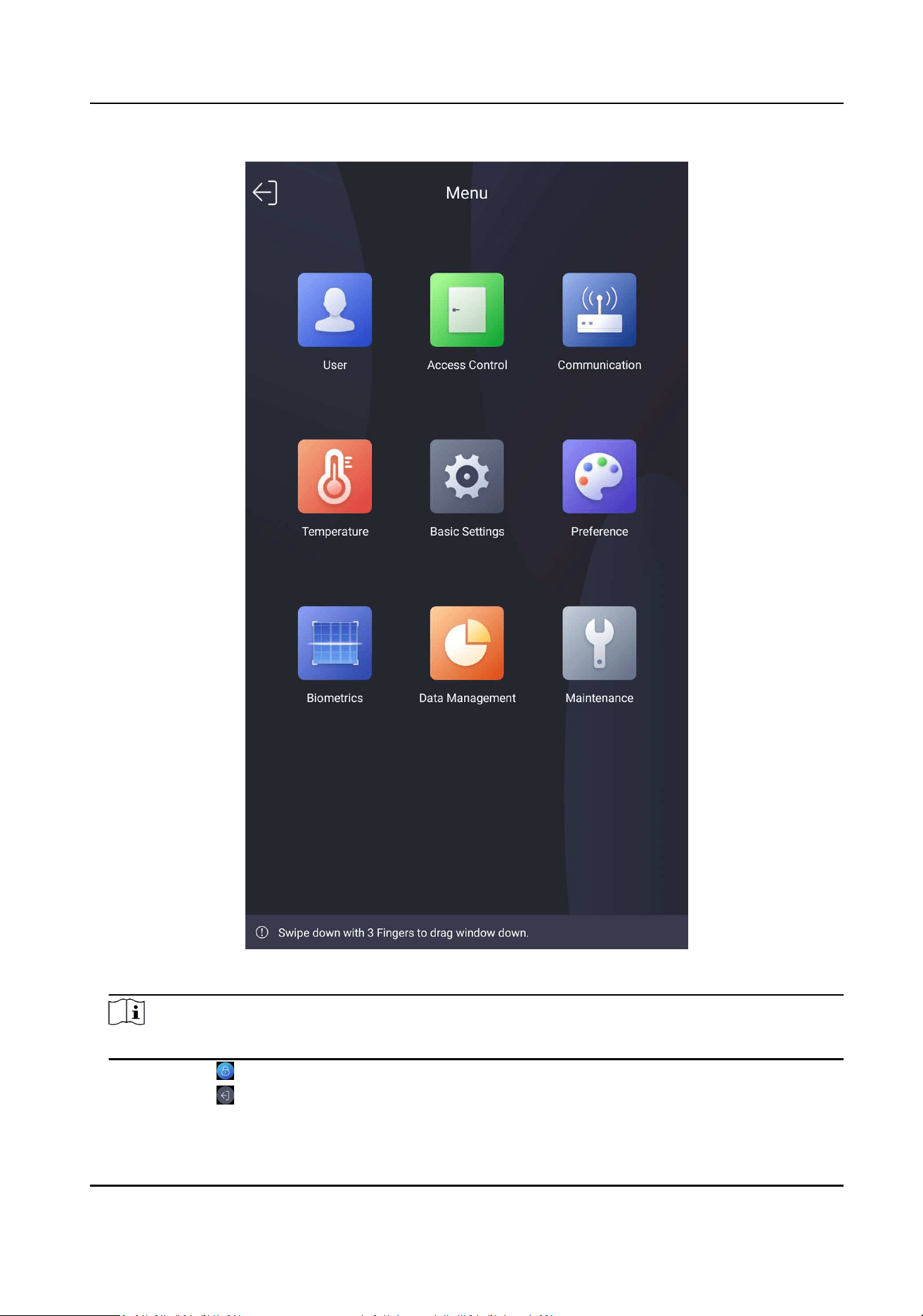

7.1 Login

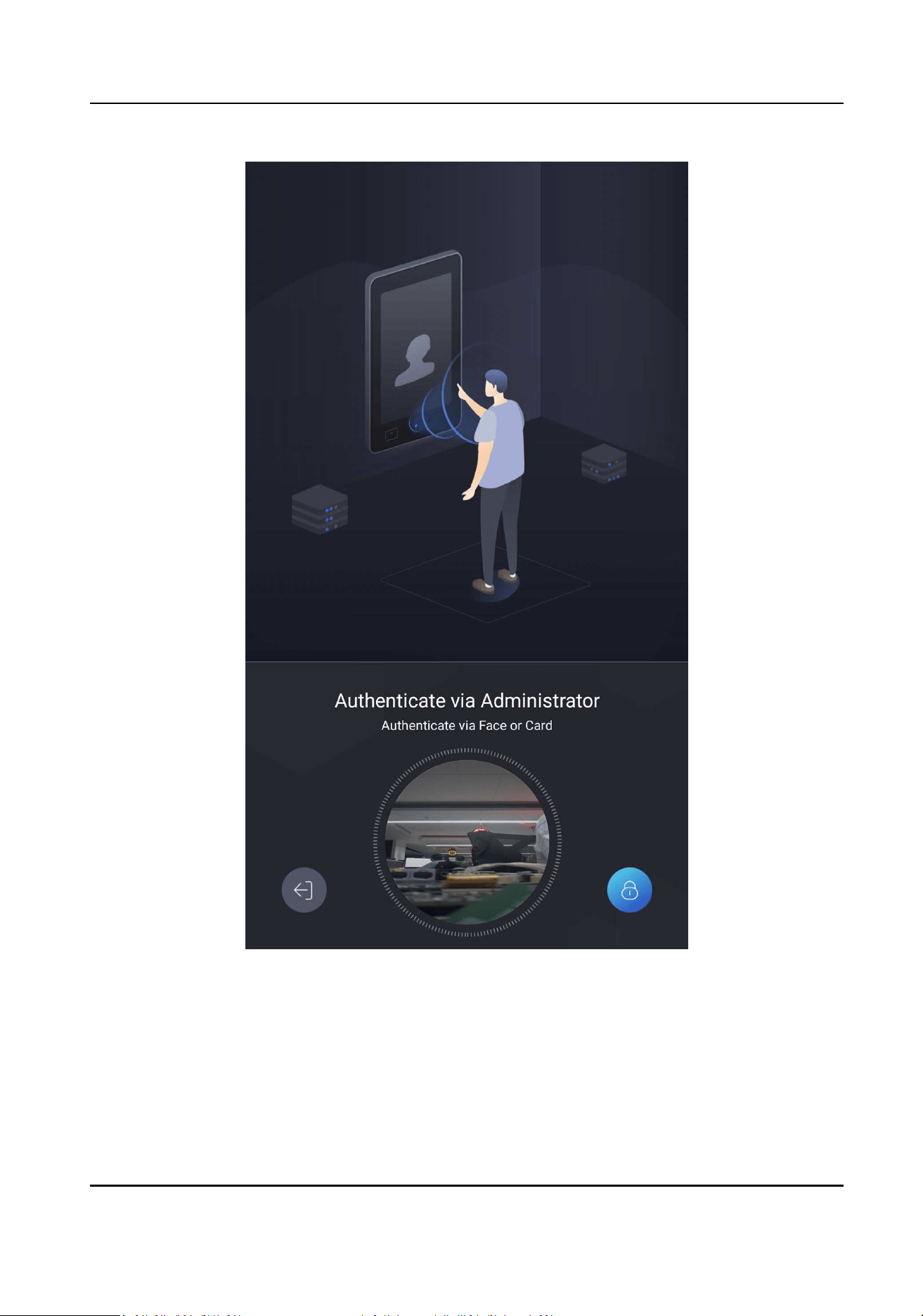

7.1.1 Login by Administrator
7.1.2 Login by Activation Password
7.2 Communication Settings

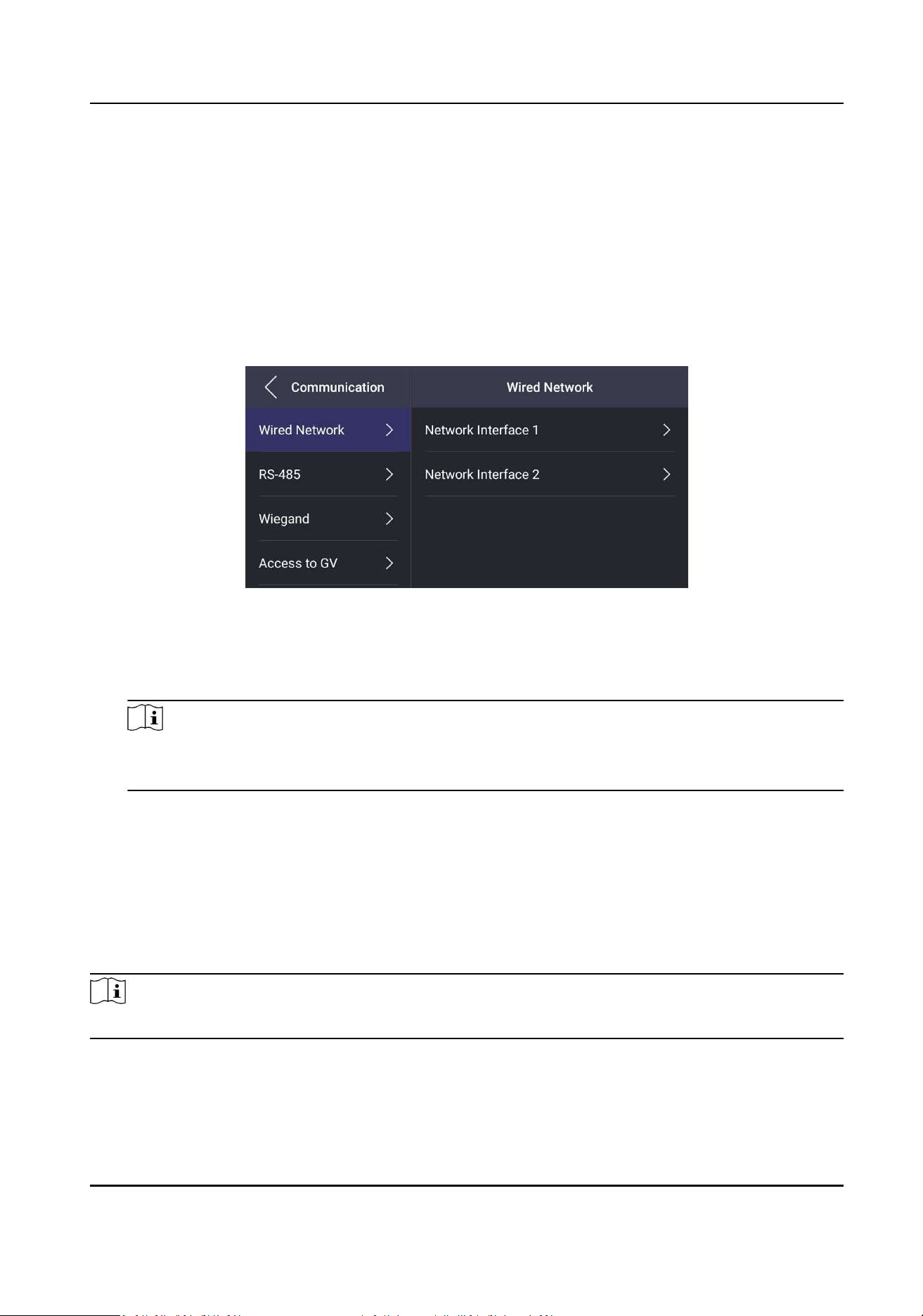

7.2.1 Set Wired Network Parameters

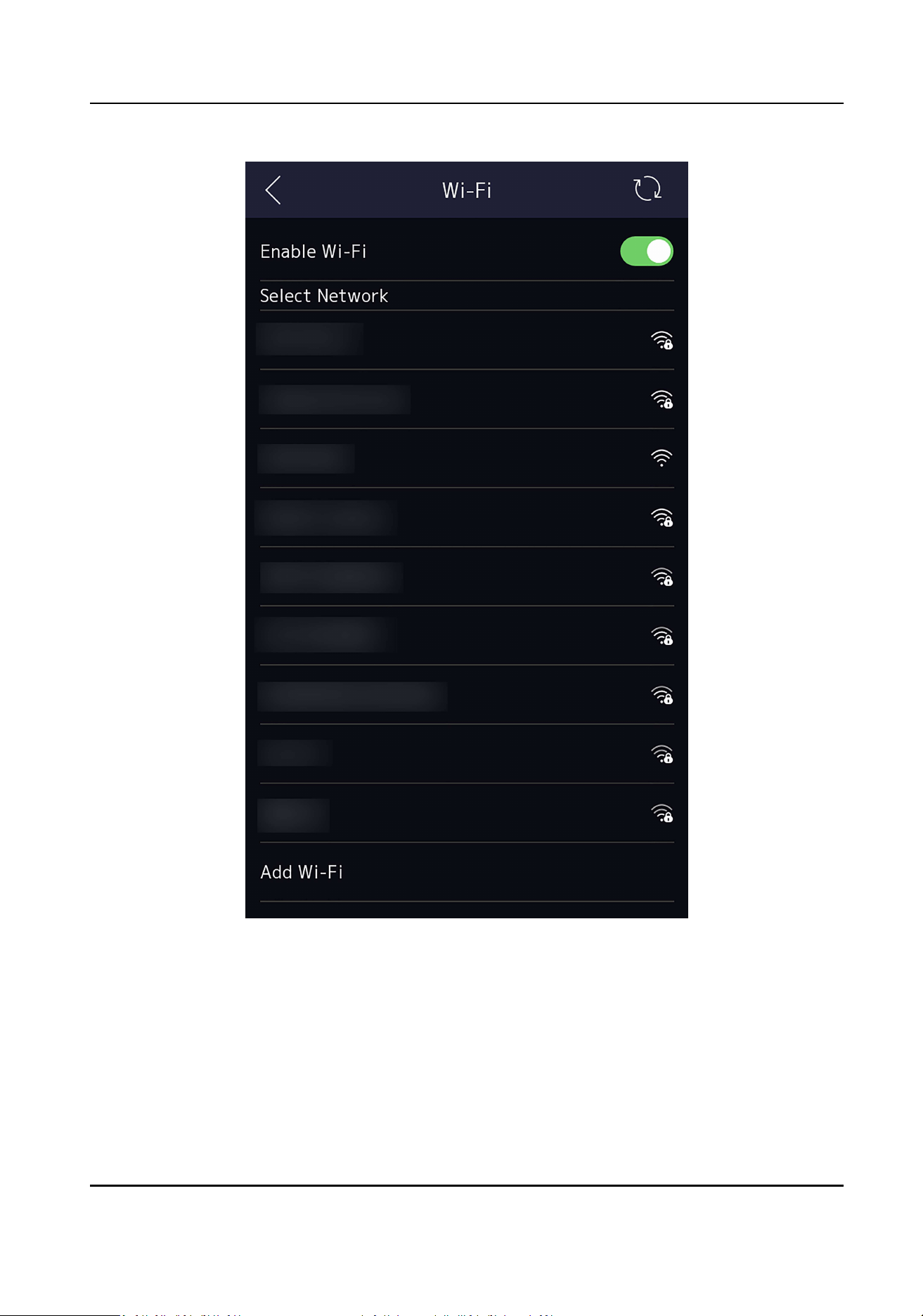

7.2.2 Set Wi-Fi Parameters

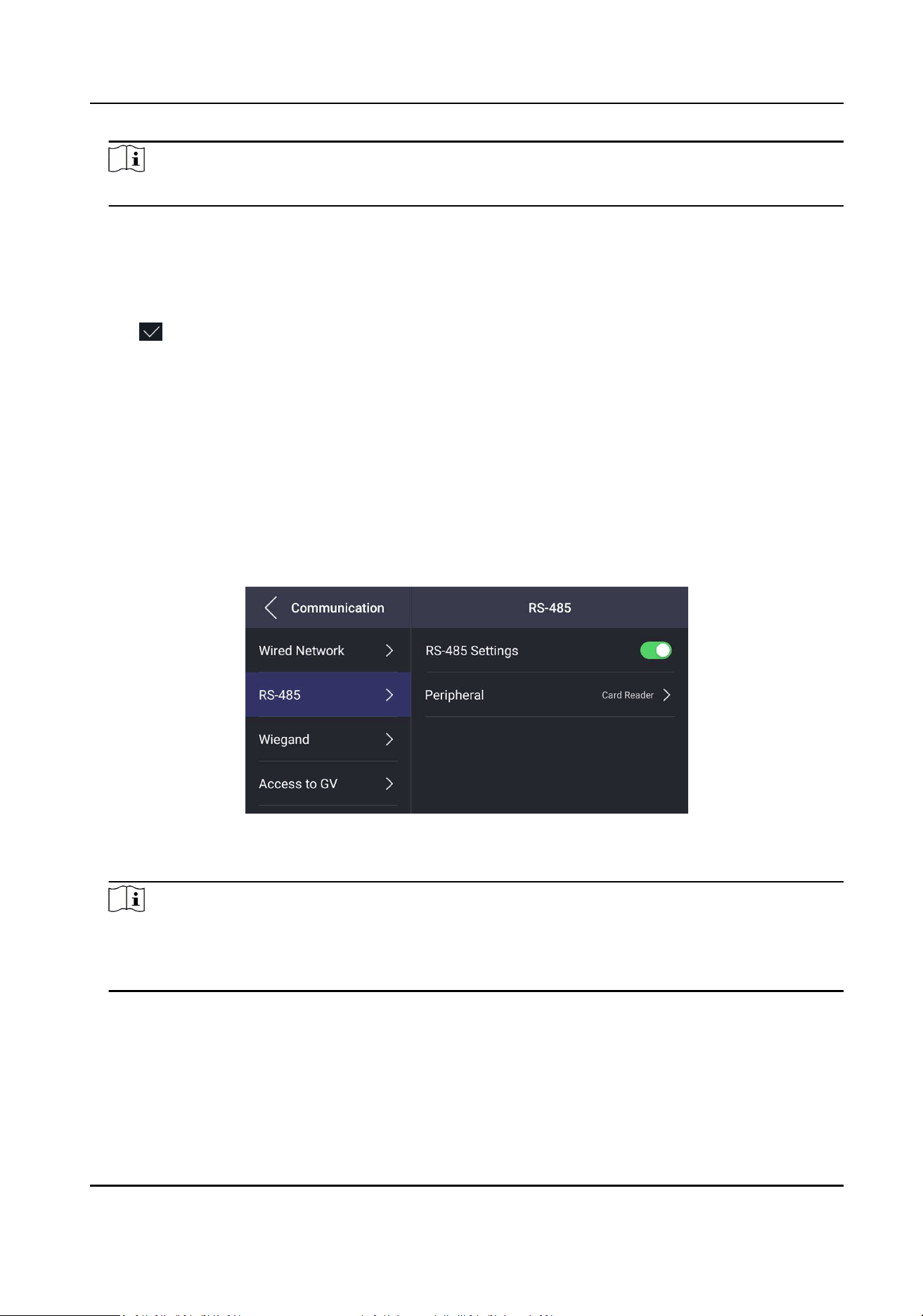

7.2.3 Set RS-485 Parameters

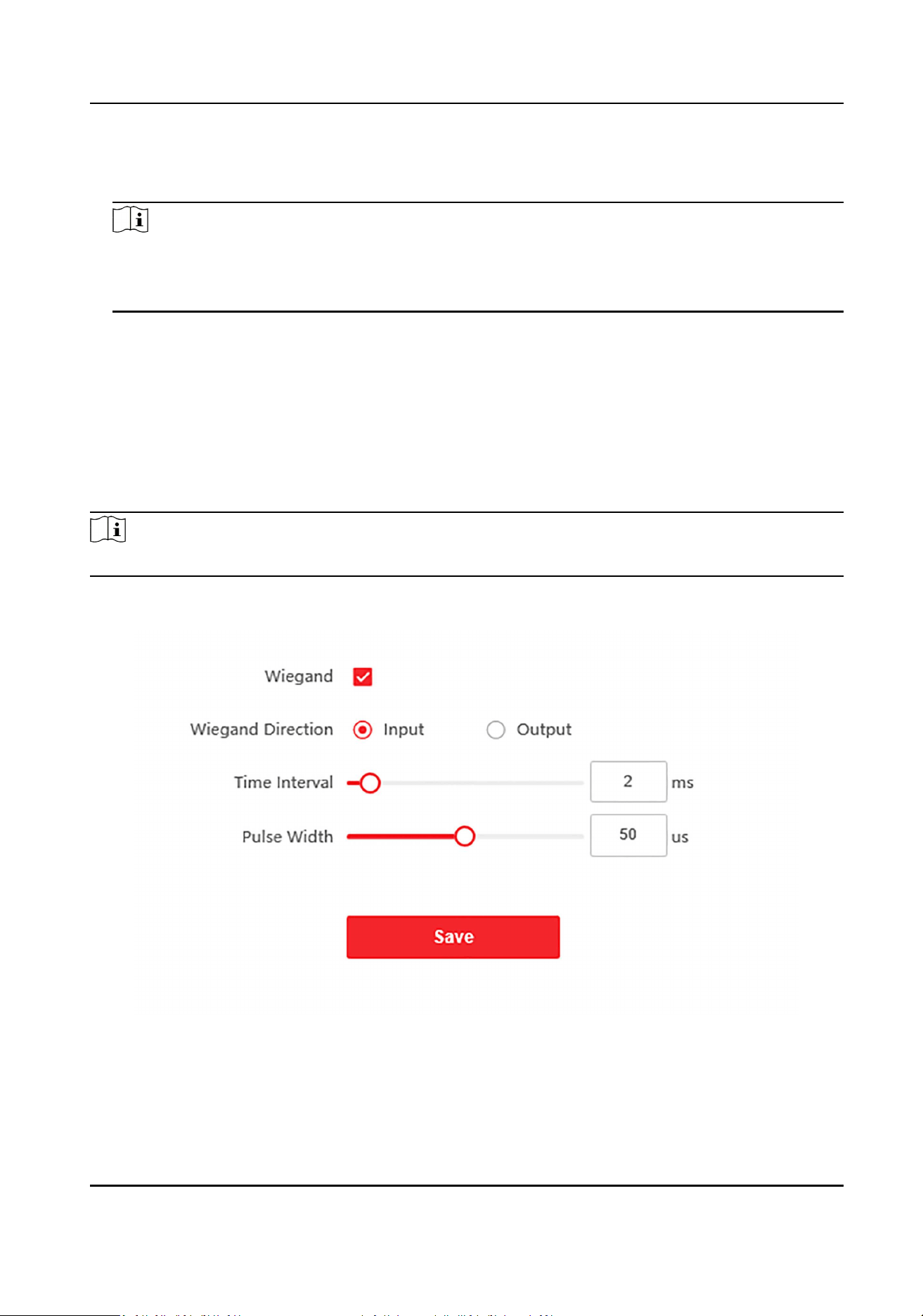

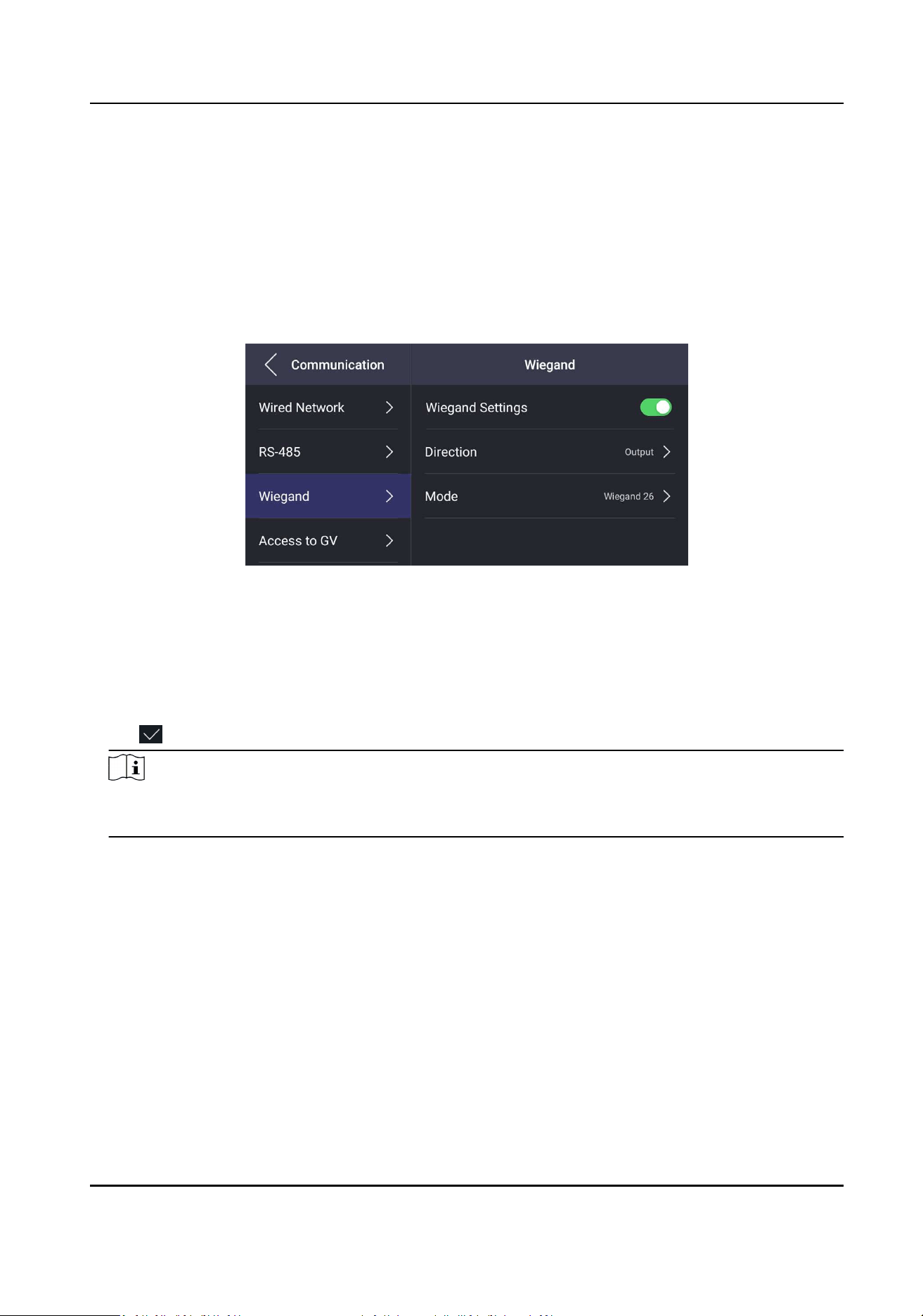

7.2.4 Set Wiegand Parameters
7.2.5 Platform Access
7.3 User Management

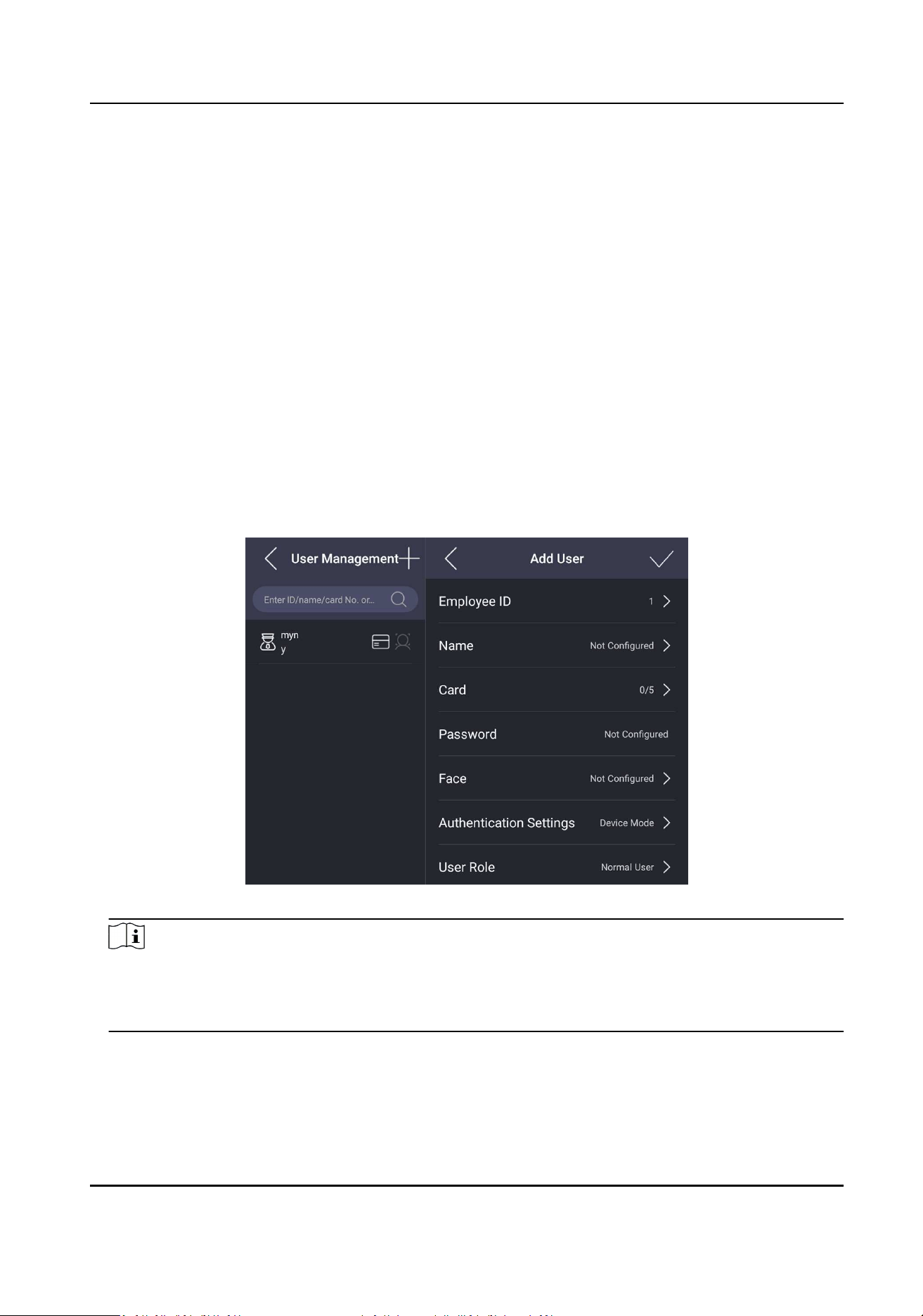

7.3.1 Add Administrator

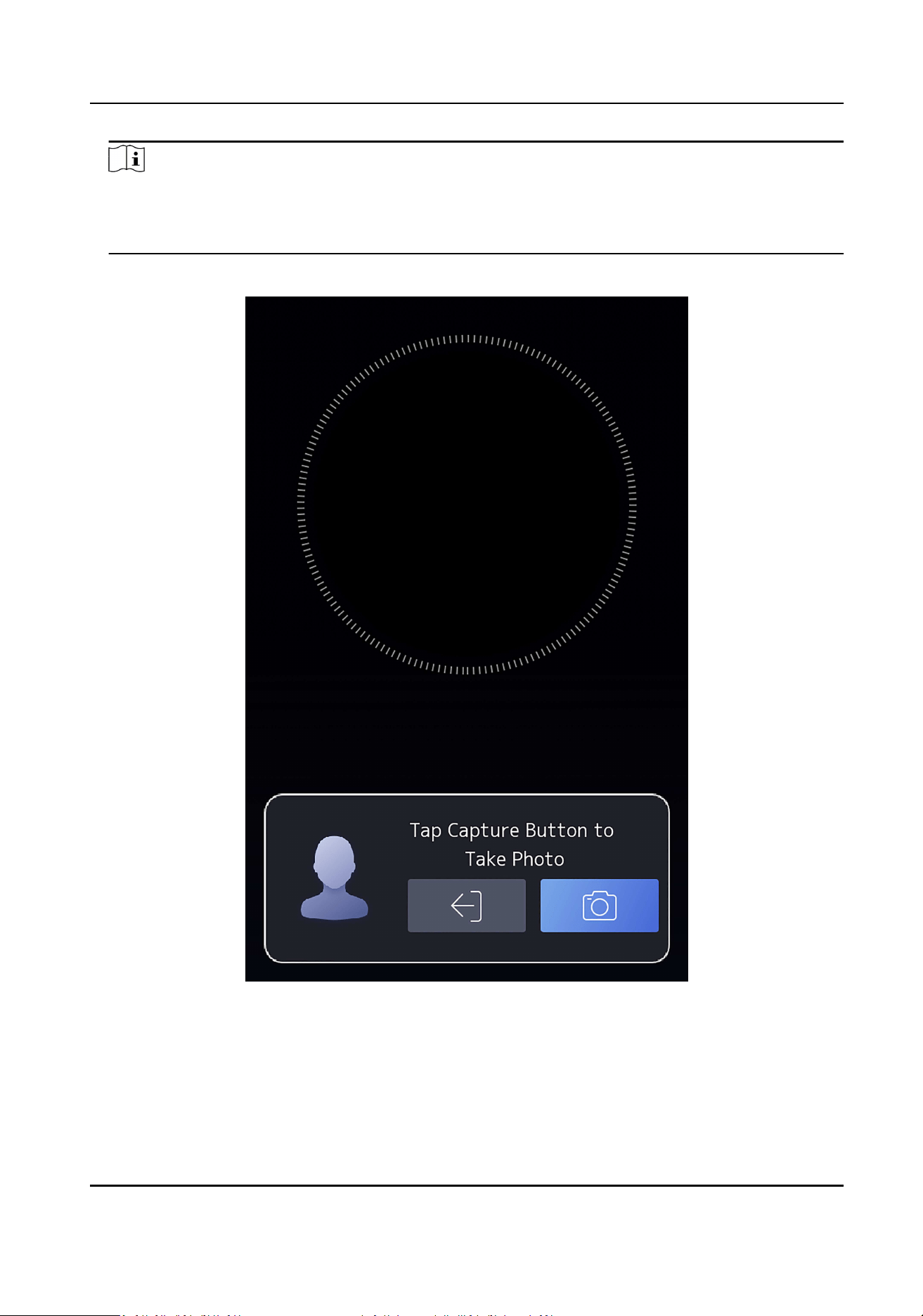

7.3.2 Add Face Picture
7.3.3 Add Fingerprint
7.3.4 Add Card
7.3.5 View PIN code
7.3.6 Set Authentication Mode

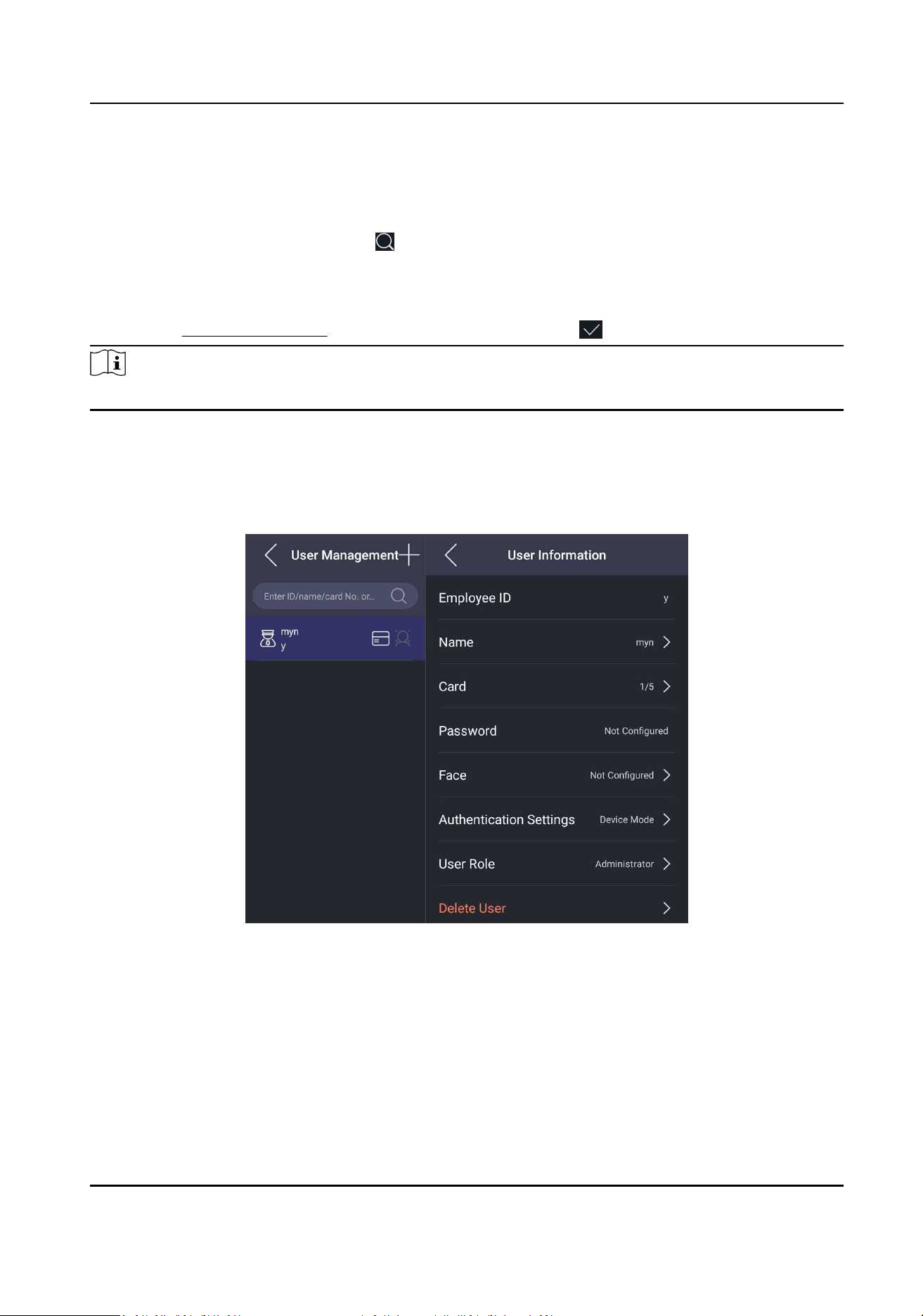

7.3.7 Search and Edit User
7.3.8 Delete User
7.4 Data Management
7.4.1 Delete Data
7.4.2 Import Data
7.4.3 Export Data
7.5 Identity Authentication
7.5.1 Authenticate via Single Credential
7.5.2 Authenticate via Multiple Credential

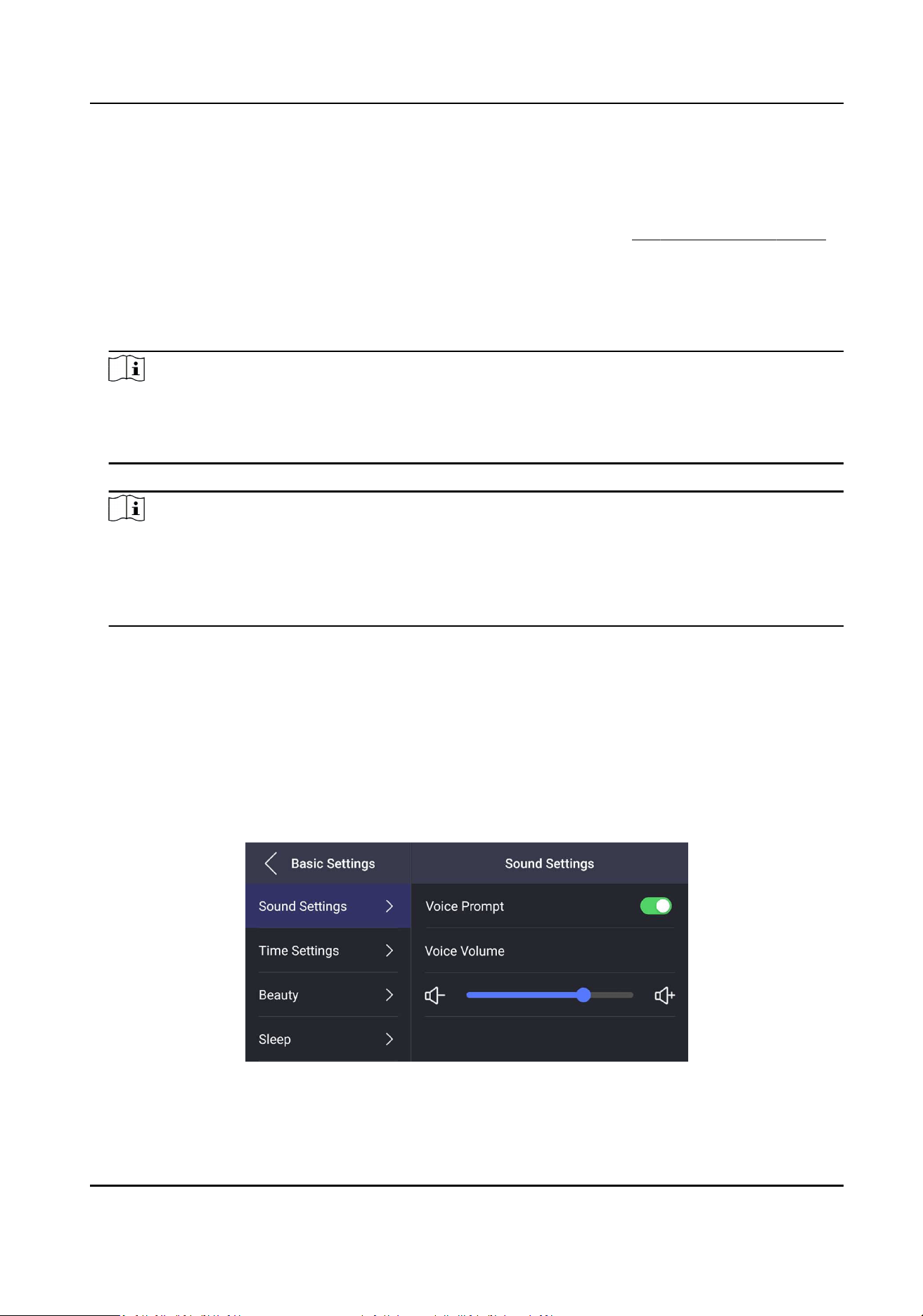

7.6 Basic Settings
7.7 Set Biometric Parameters

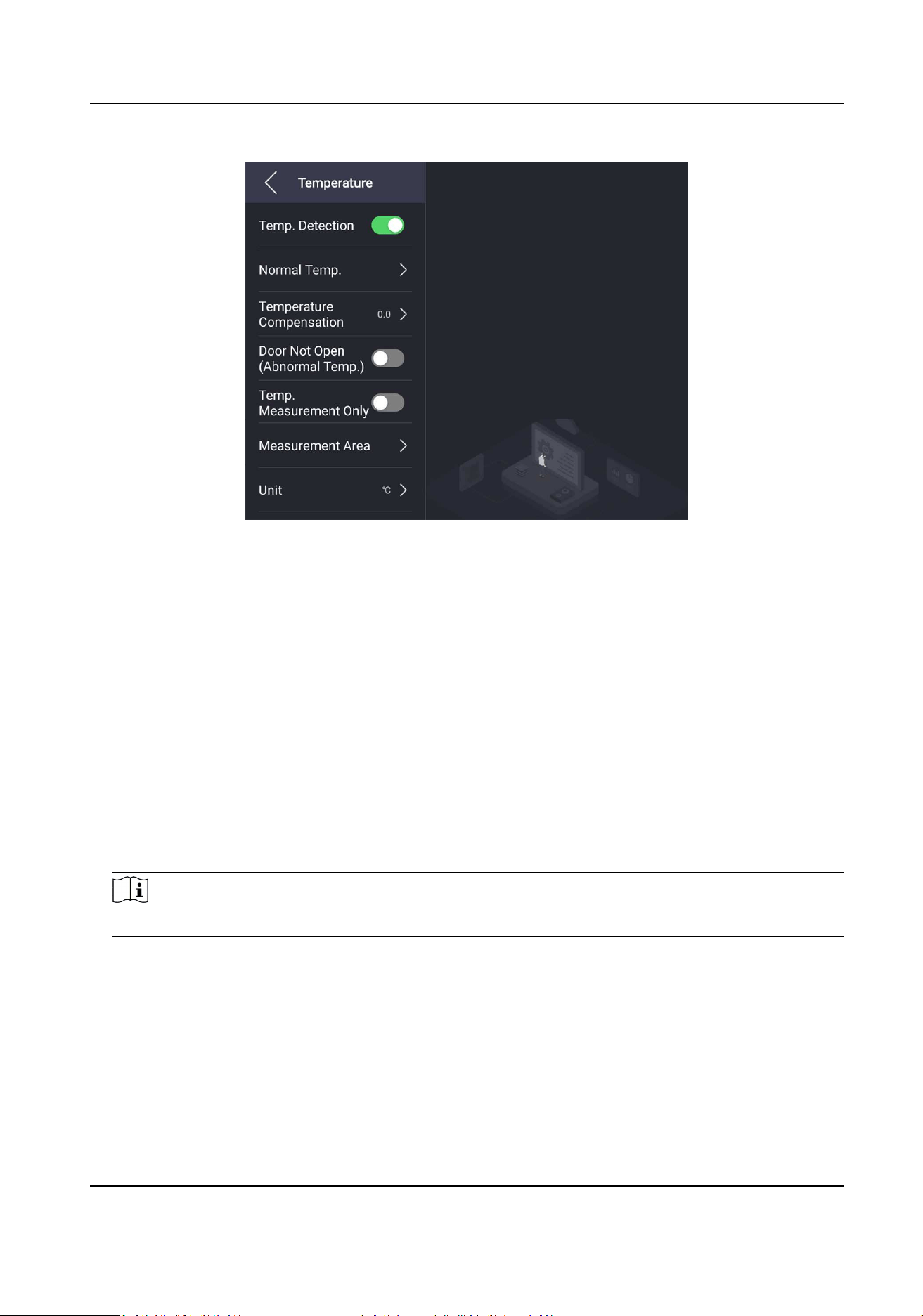

7.8 Temperature Measurement Settings

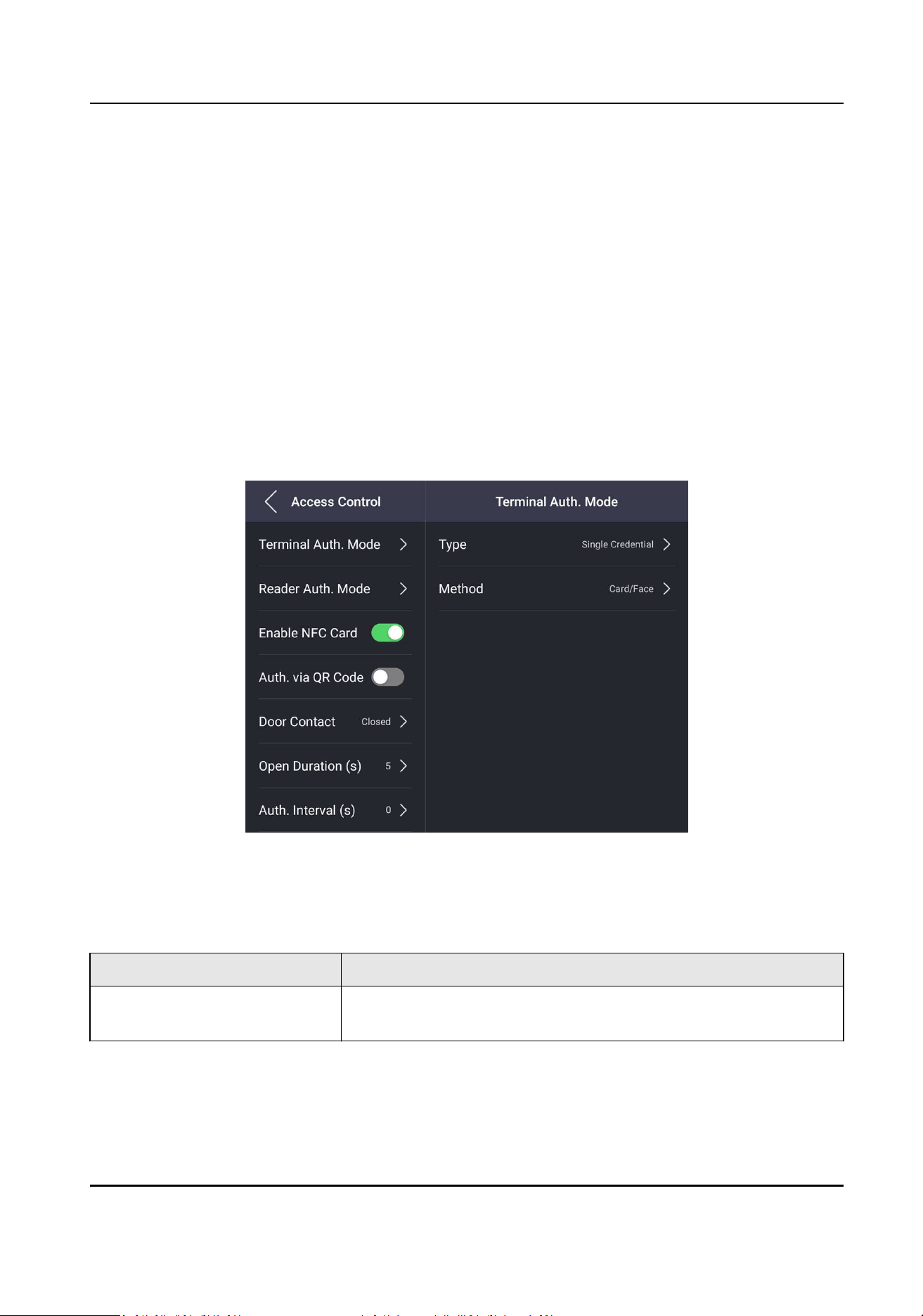

7.9 Set Access Control Parameters

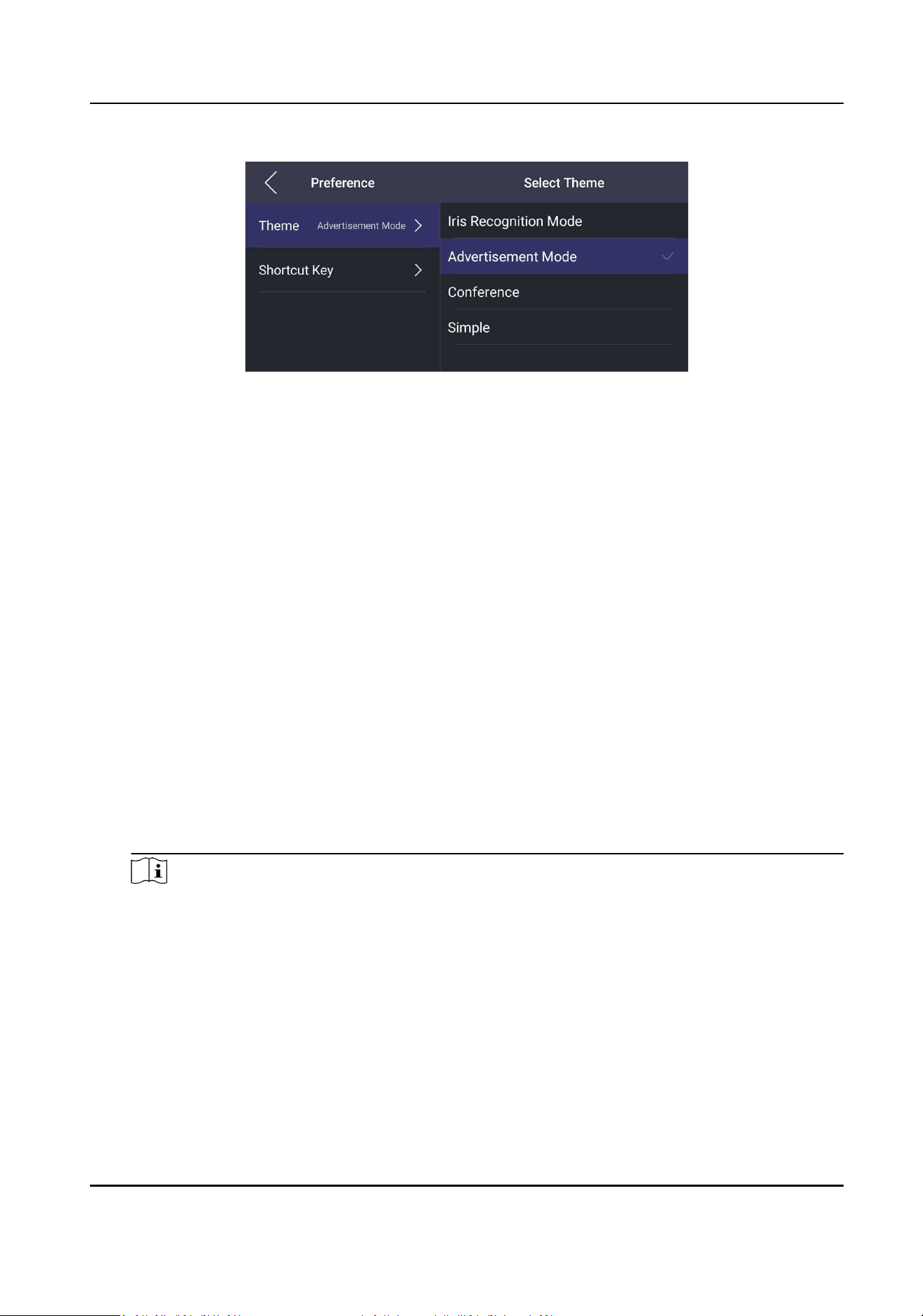

7.10 Preference Settings

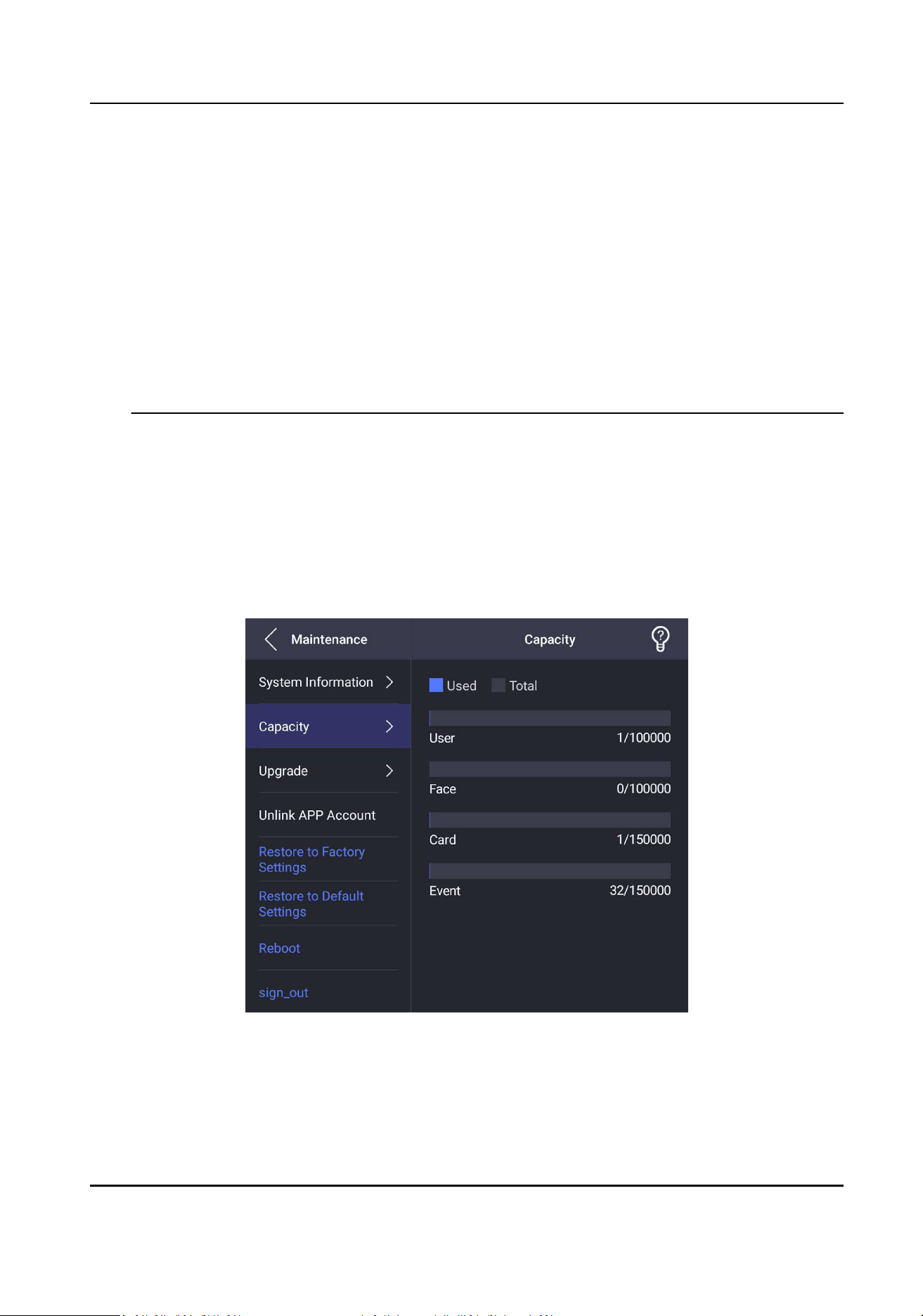

7.11 System Maintenance
7.12 Video Intercom
7.12.1 Call Client Software from Device
7.12.2 Call Center from Device
7.12.3 Call Device from Client Software
7.12.4 Call Room from Device
7.12.5 Call Mobile Client from Device
Chapter 8 Operation via Web Browser
8.1 Login
8.2 Live View
8.3 Person Management

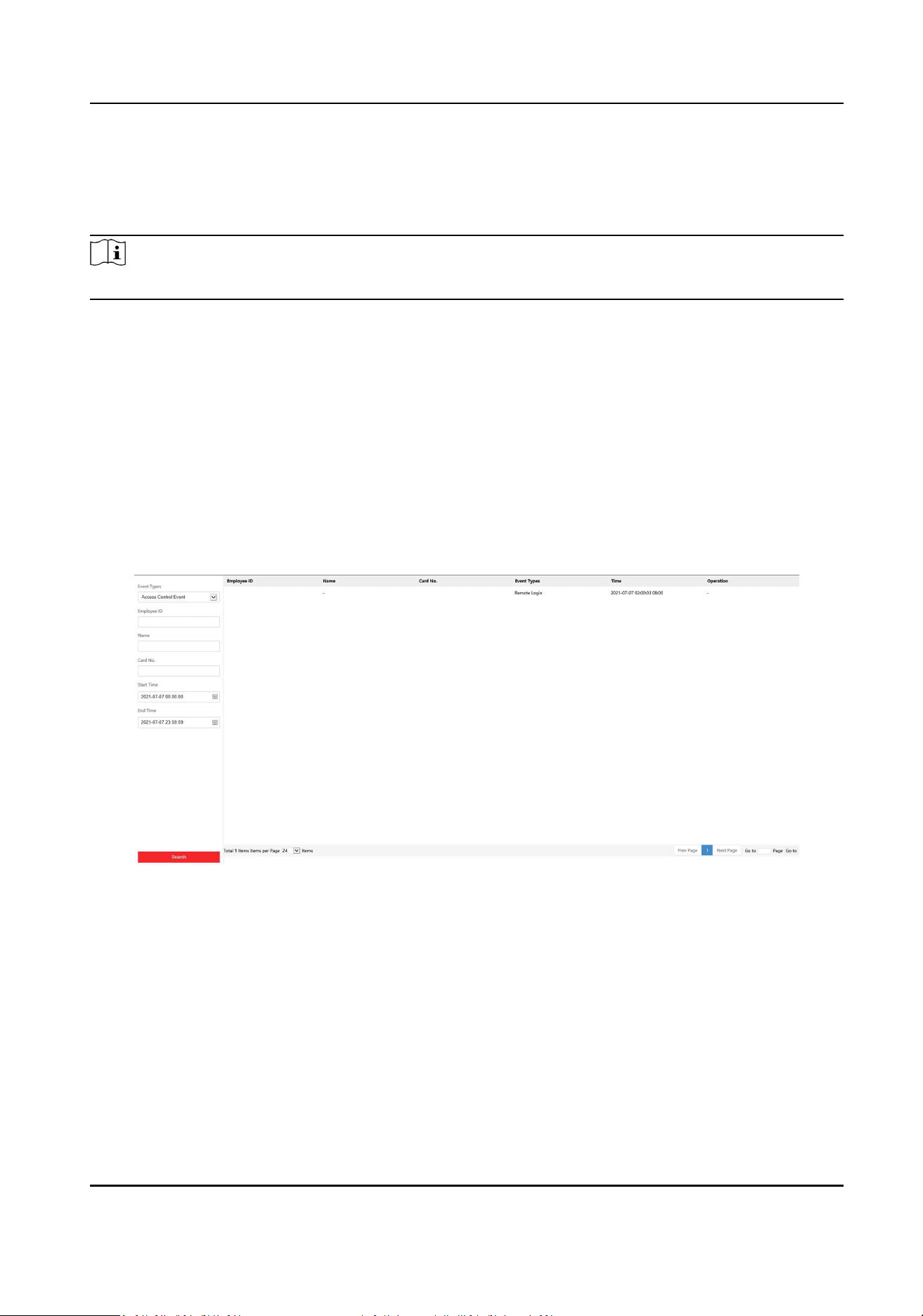

8.4 Search Event
8.5 Device Management
8.6 Configuration
8.6.1 Set Local Parameters
8.6.2 View Device Information

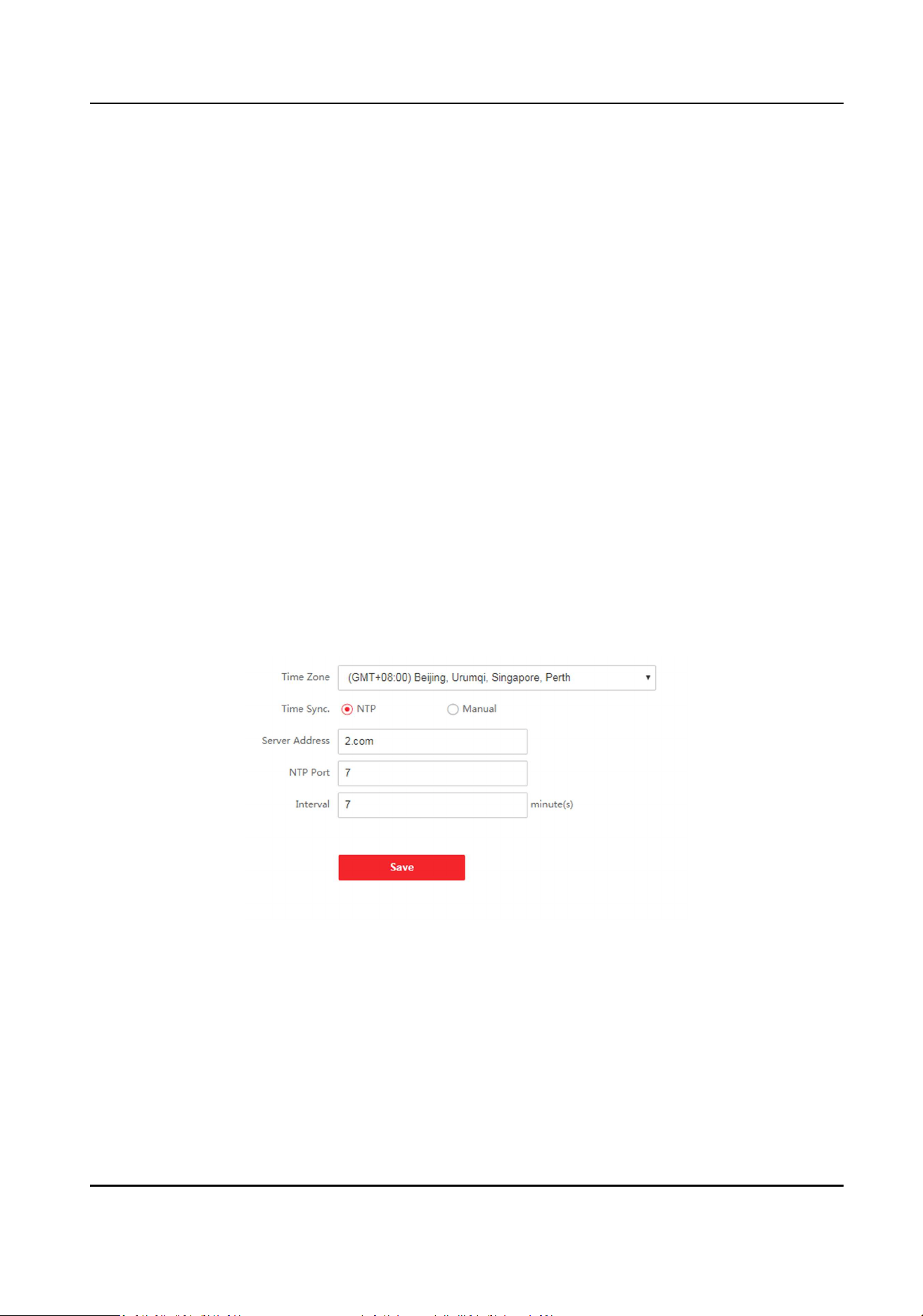

8.6.3 Set Time

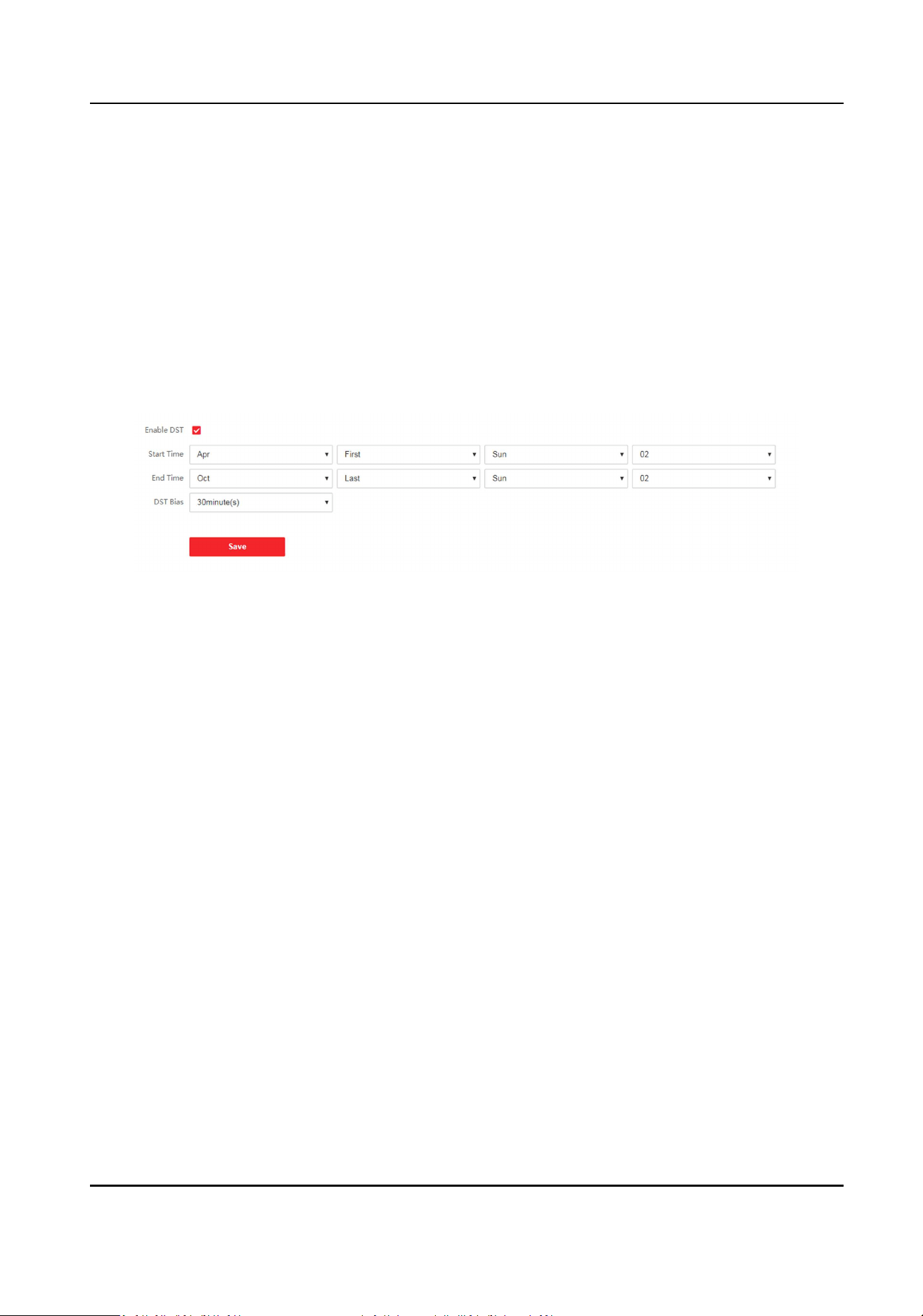

8.6.4 Set DST
8.6.5 View Open Source Software License

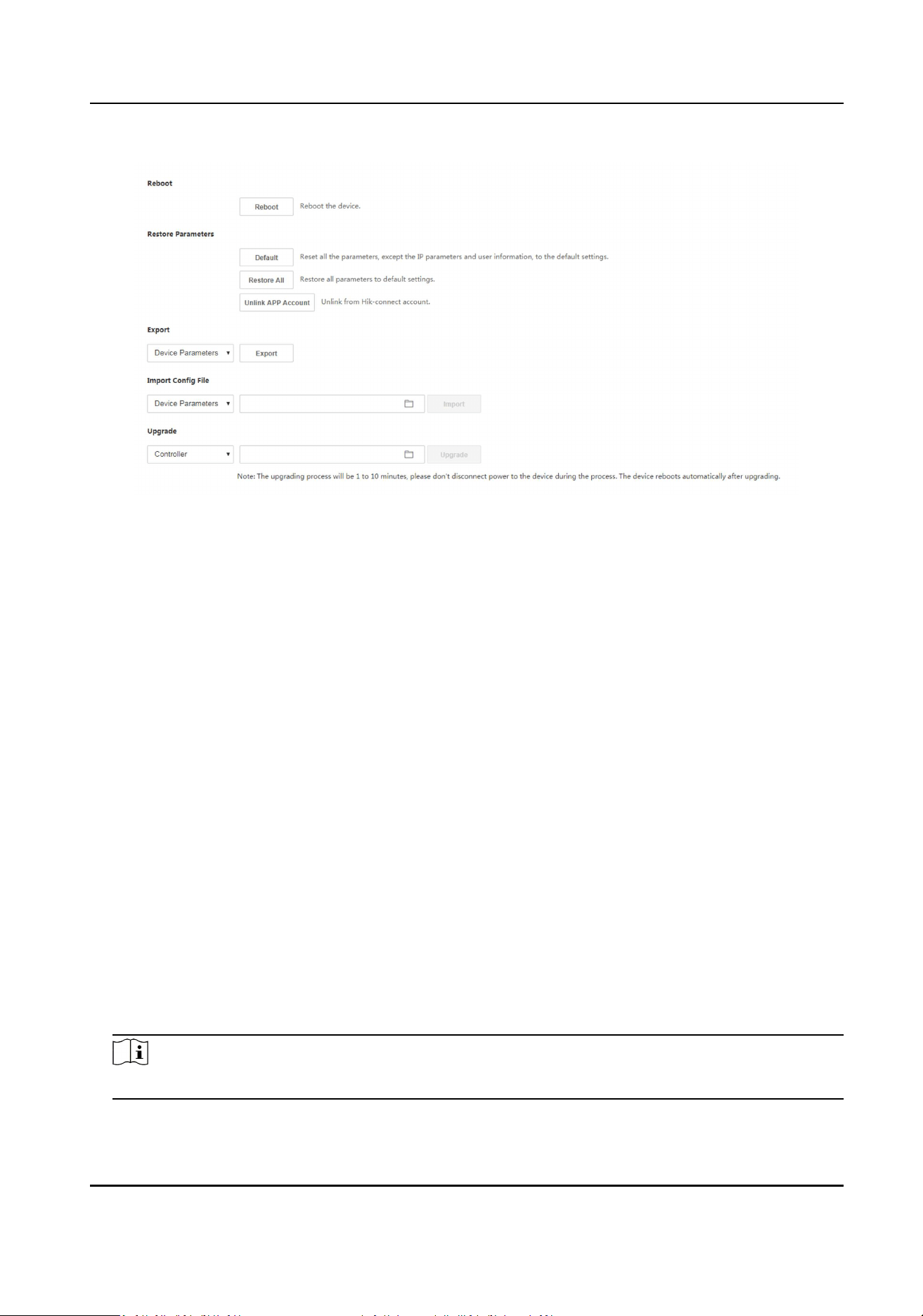

8.6.6 Upgrade and Maintenance
8.6.7 Log Query
8.6.8 Security Mode Settings
8.6.9 Certificate Management
Create and Install Self-signed Certificate
Install Other Authorized Certificate
Install CA Certificate
8.6.10 Change Administrator's Password
8.6.11 Online Users
8.6.12 View Device Arming/Disarming Information
8.6.13 Network Settings

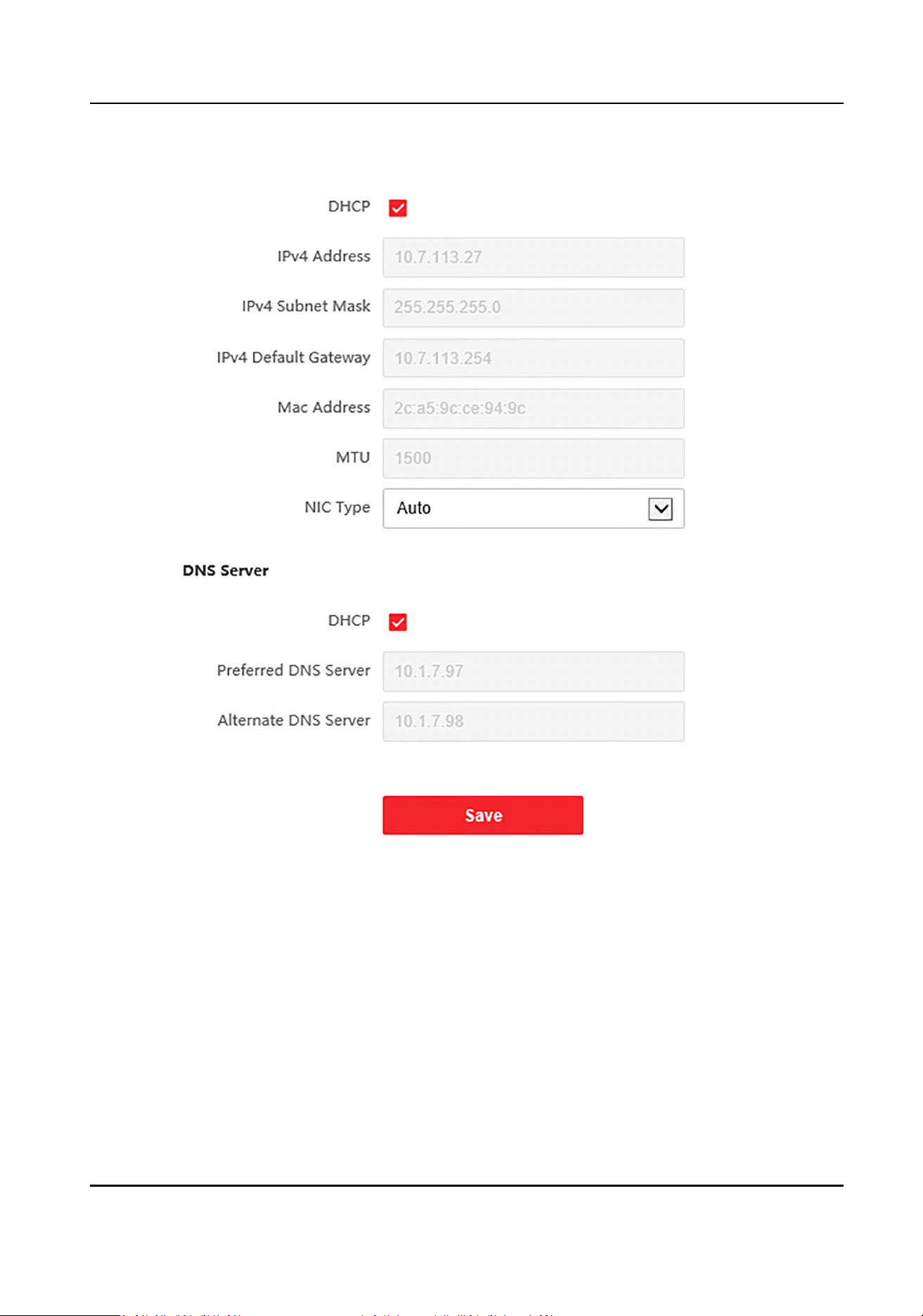

Set Basic Network Parameters
Set Port Parameters

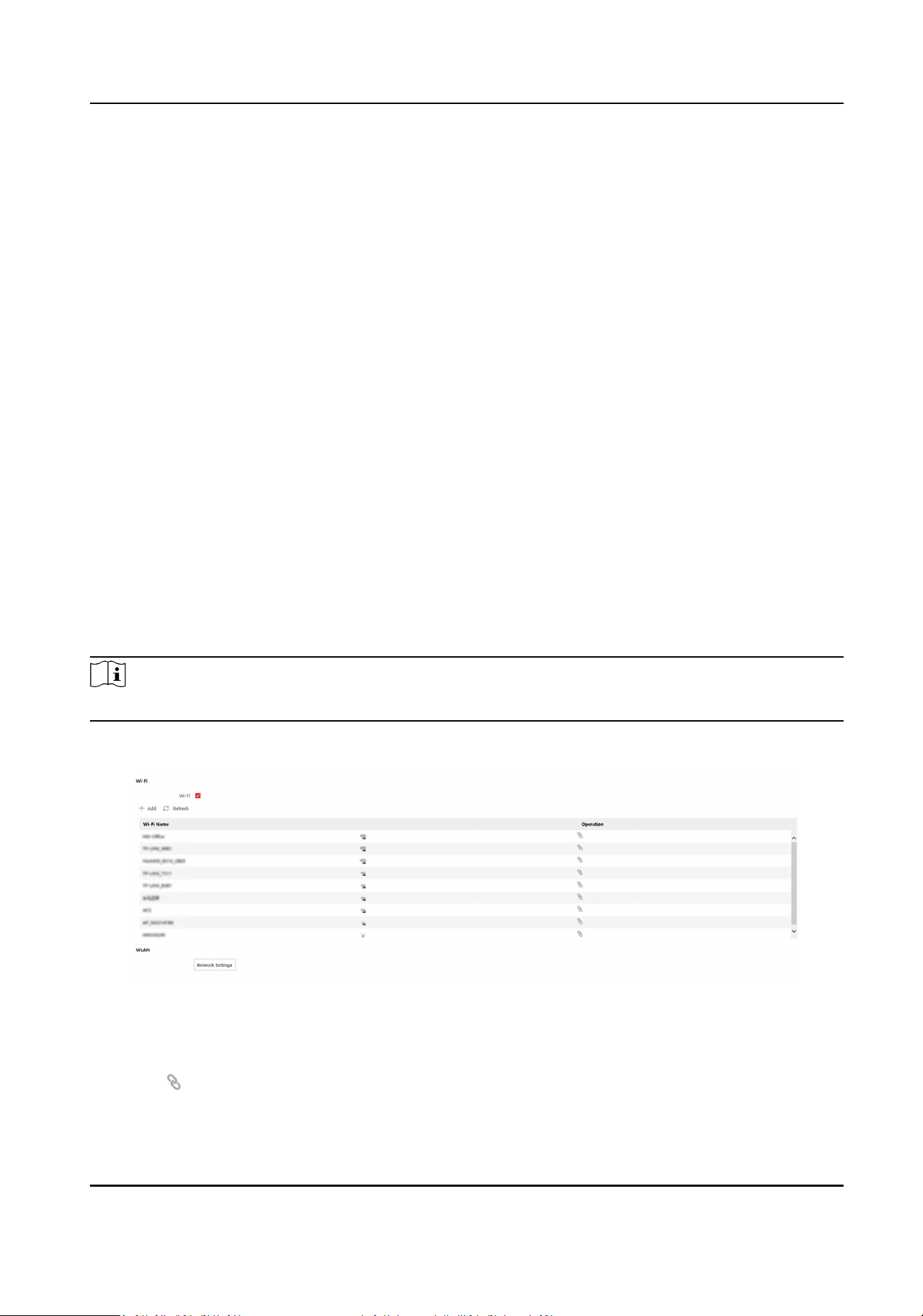

Set Wi-Fi Parameters
SIP Setting
Report Strategy Settings

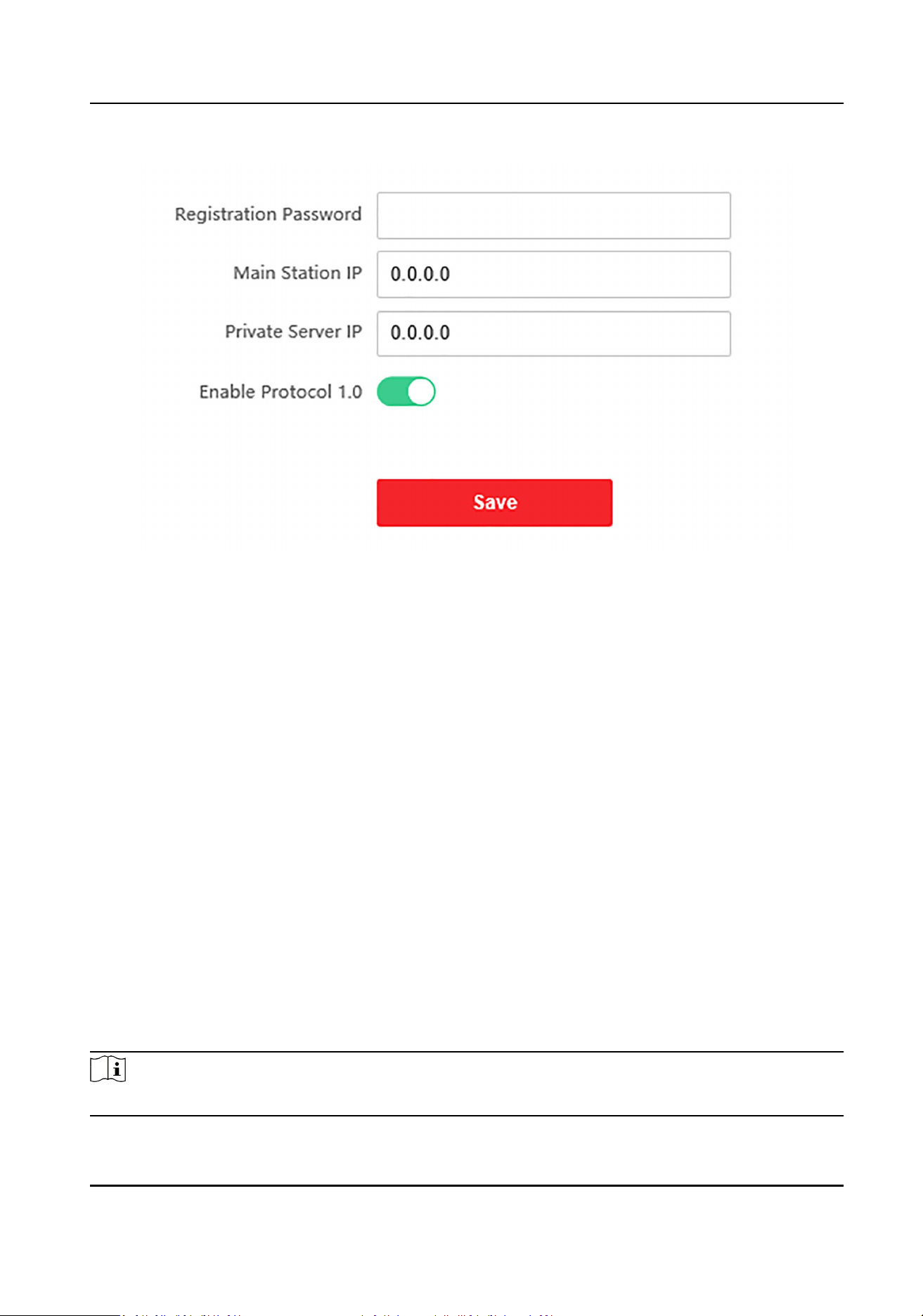

Platform Access
Set ISUP Parameters
Configure HTTP Listening

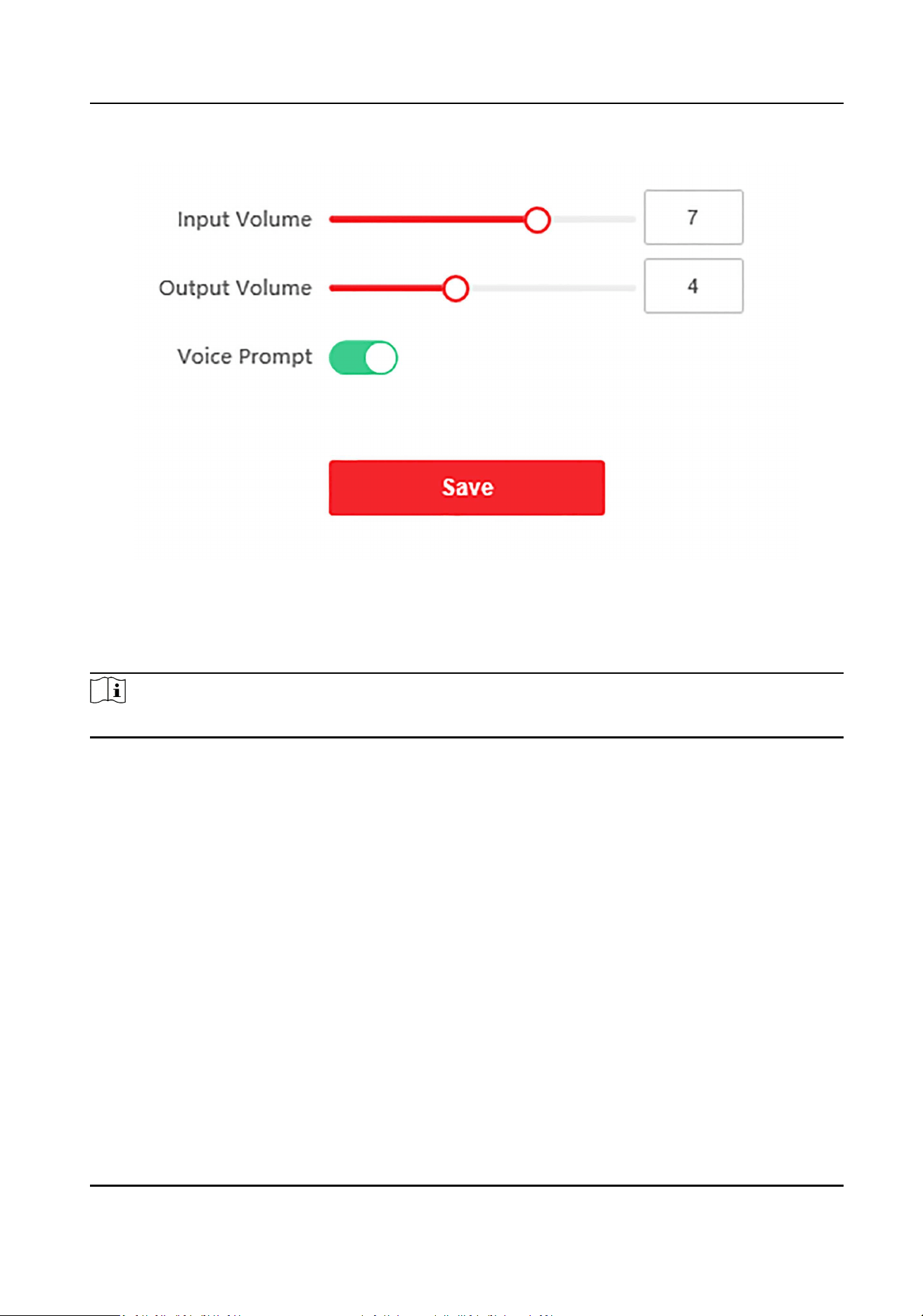

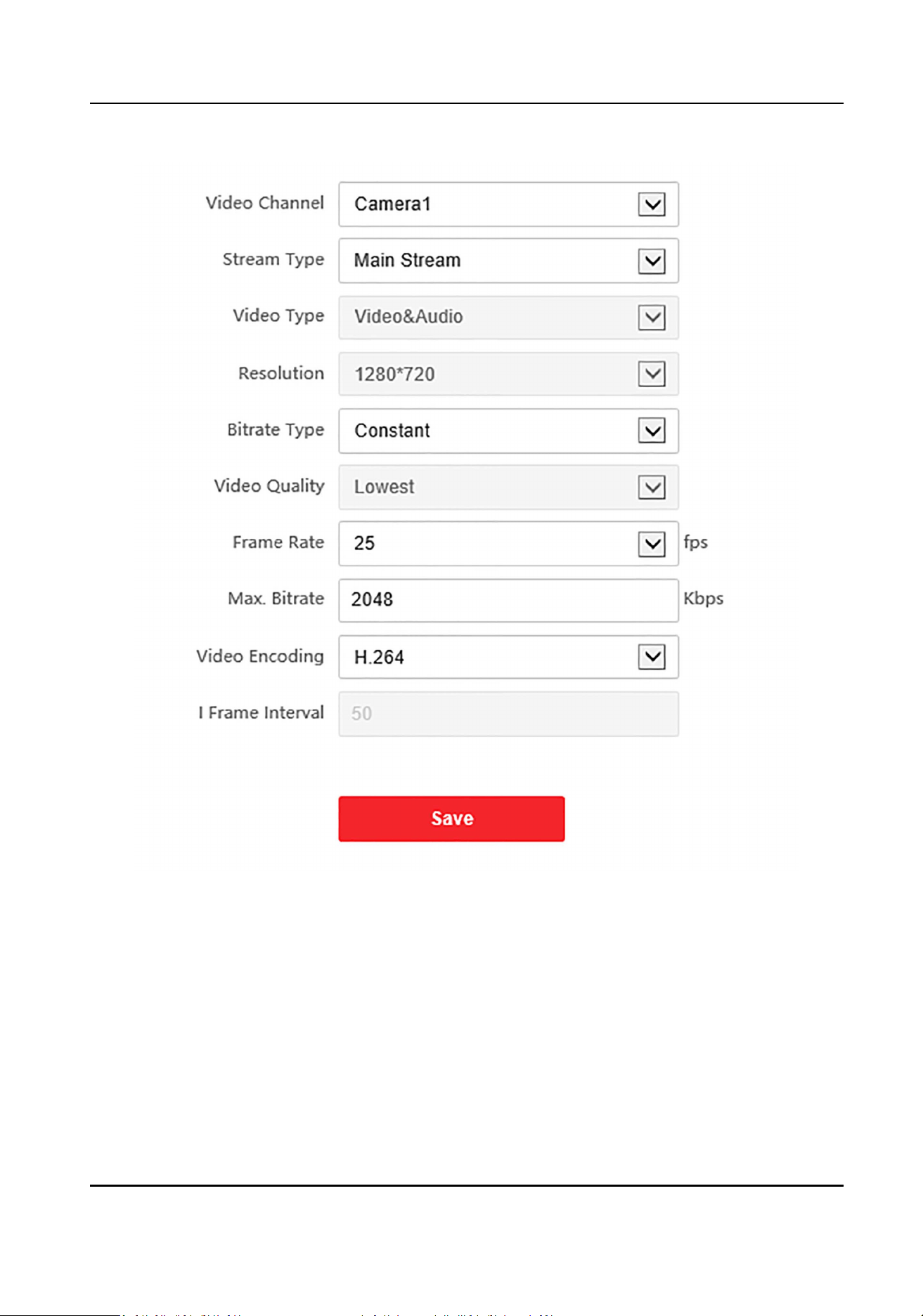

8.6.14 Set Video and Audio Parameters

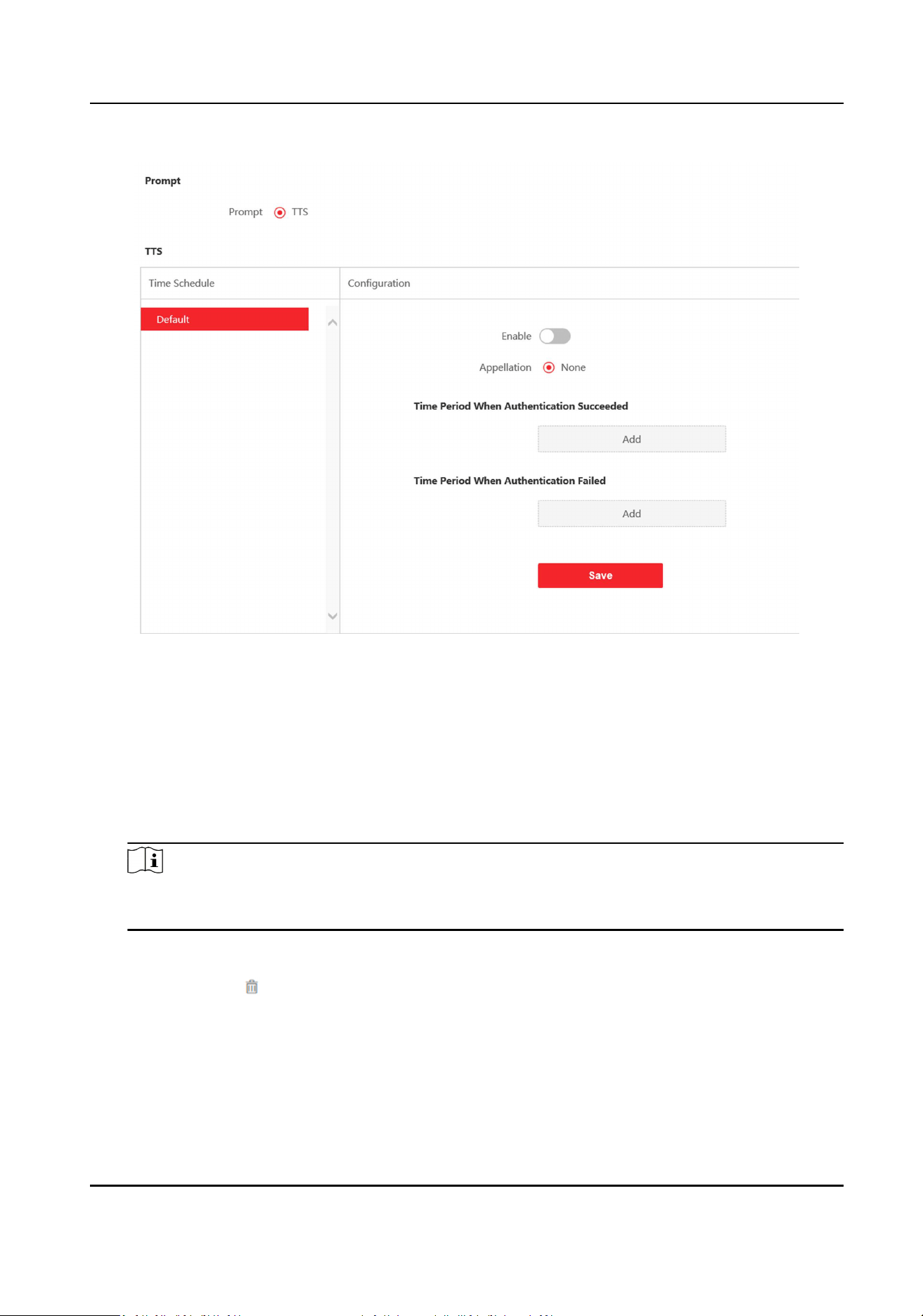

8.6.15 Customize Audio Content
8.6.16 Set Image Parameters

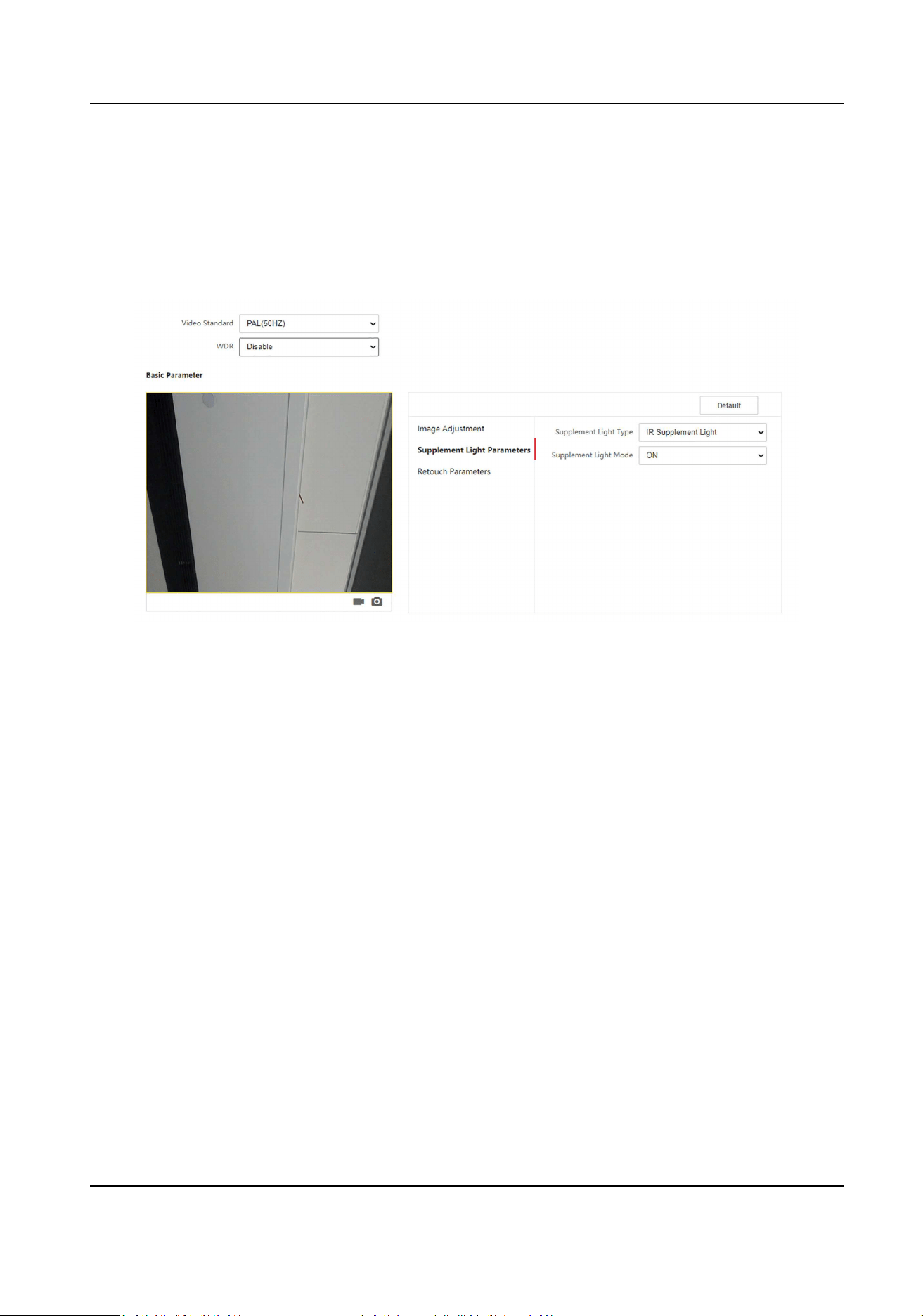

8.6.17 Set Supplement Light Brightness
8.6.18 Set Beauty Parameters
8.6.19 Set Fusion Parameters
8.6.20 Time and Attendance Settings
Disable Attendance Mode via Web
Time Settings
Set Manual Attendance via Web
Set Auto Attendance via Web
Set Manual and Auto Attendance via Web
8.6.21 General Settings
Set Authentication Parameters
Set Privacy Parameters
Set Card Security
Set Card Authentication Parameters
8.6.22 Video Intercom Settings

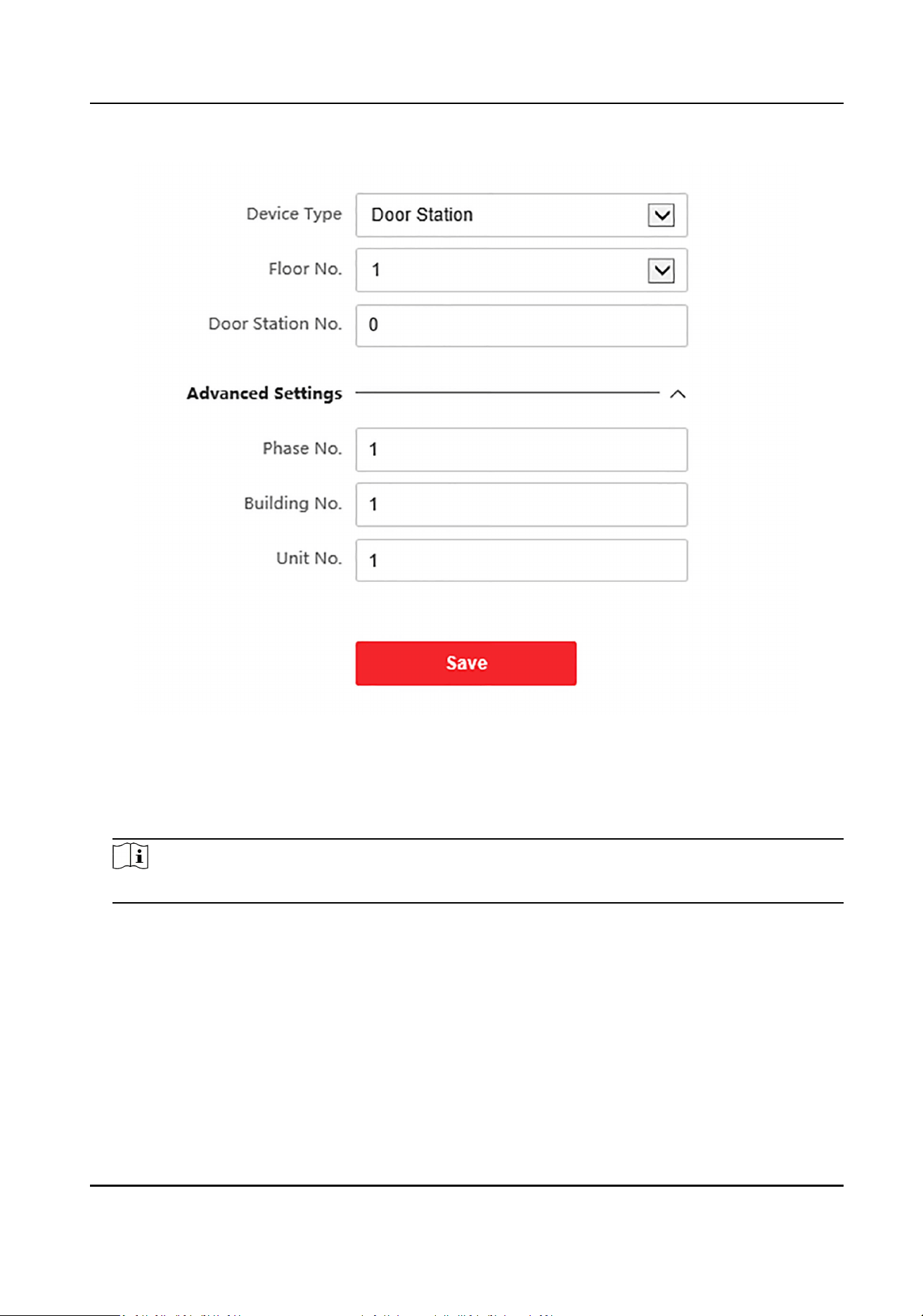

Set Video Intercom Parameters
Session Settings
Time Duration Settings

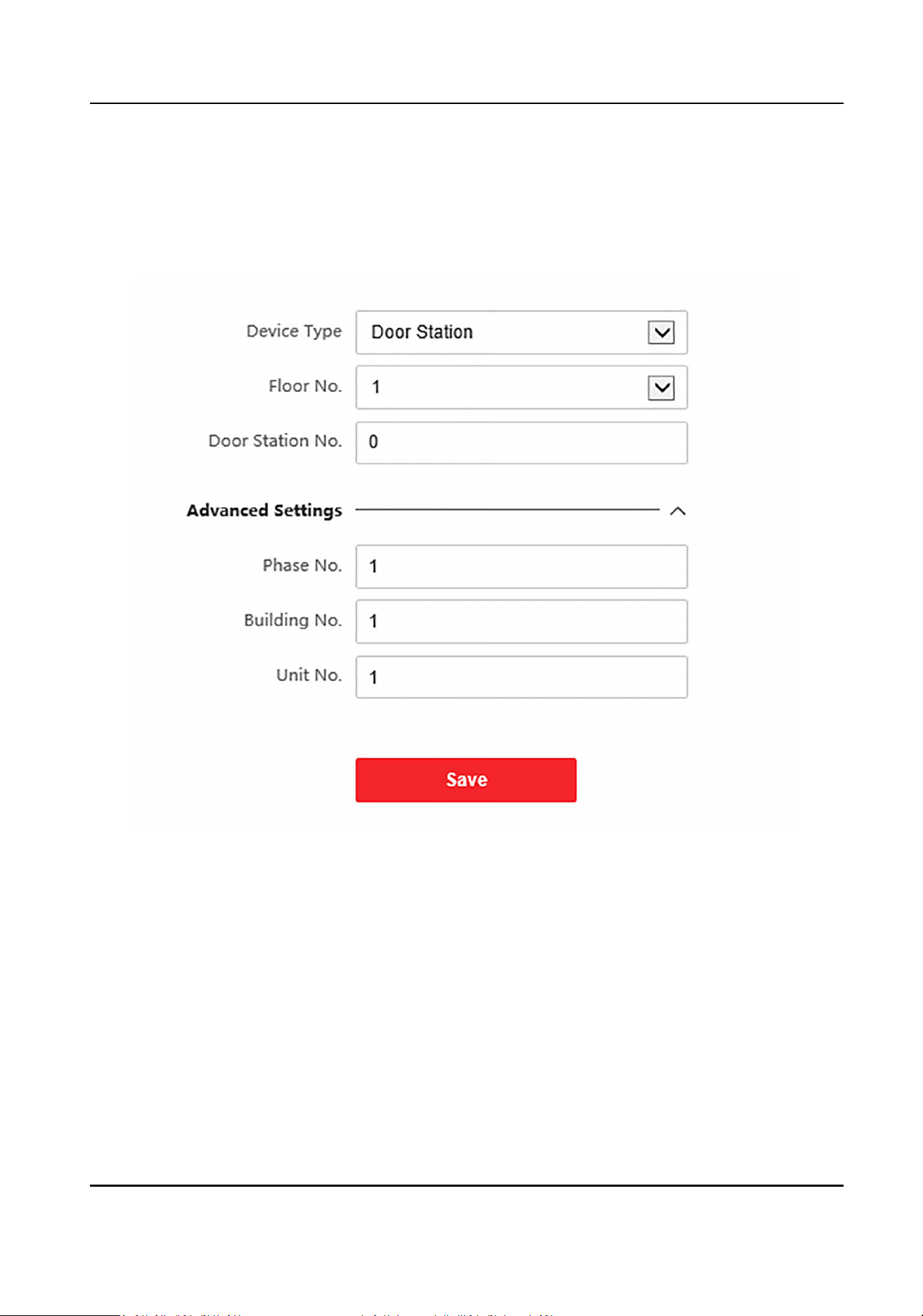

Number Settings
8.6.23 Access Control Settings

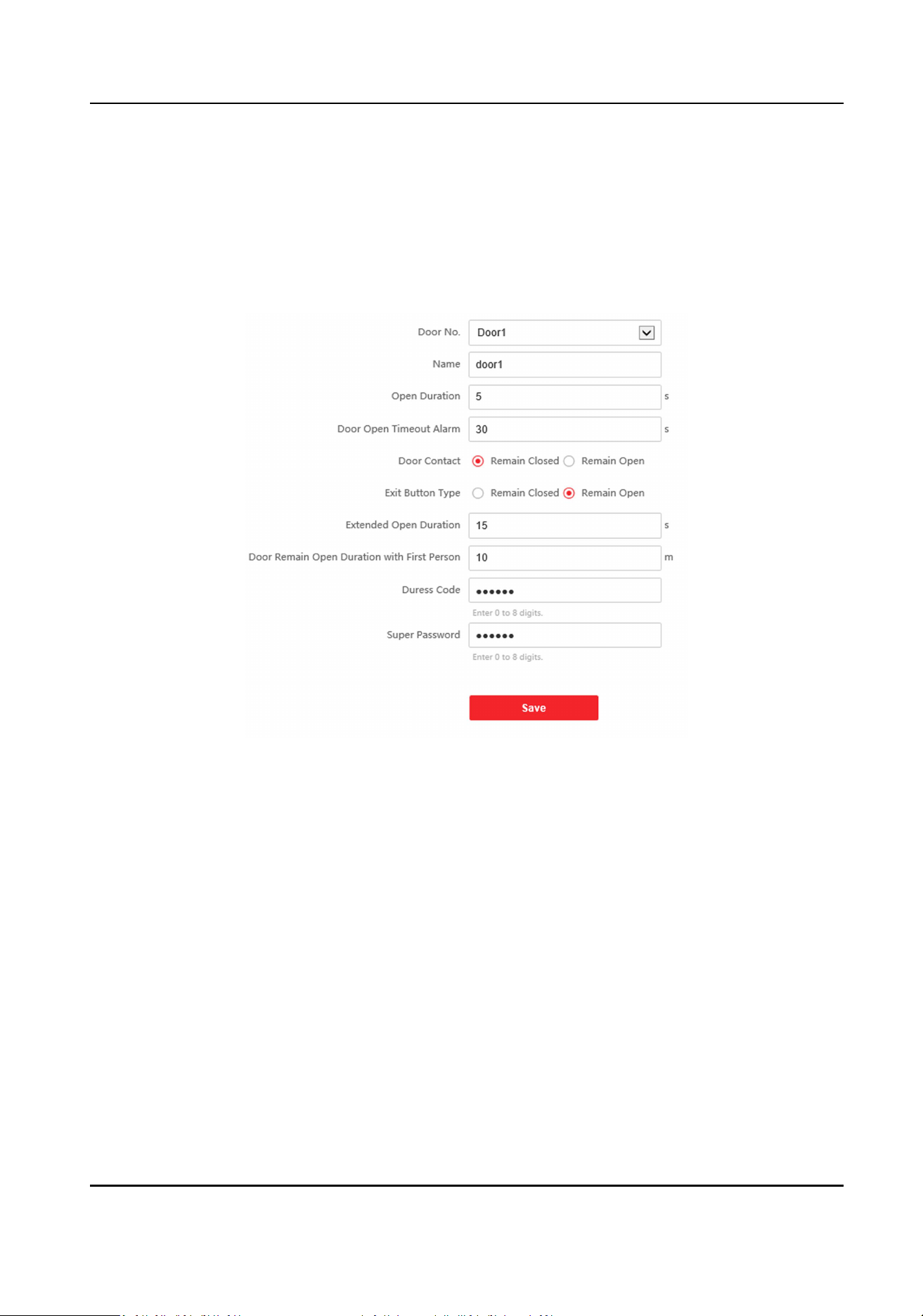

Set Door Parameters
Set RS-485 Parameters
Set Wiegand Parameters

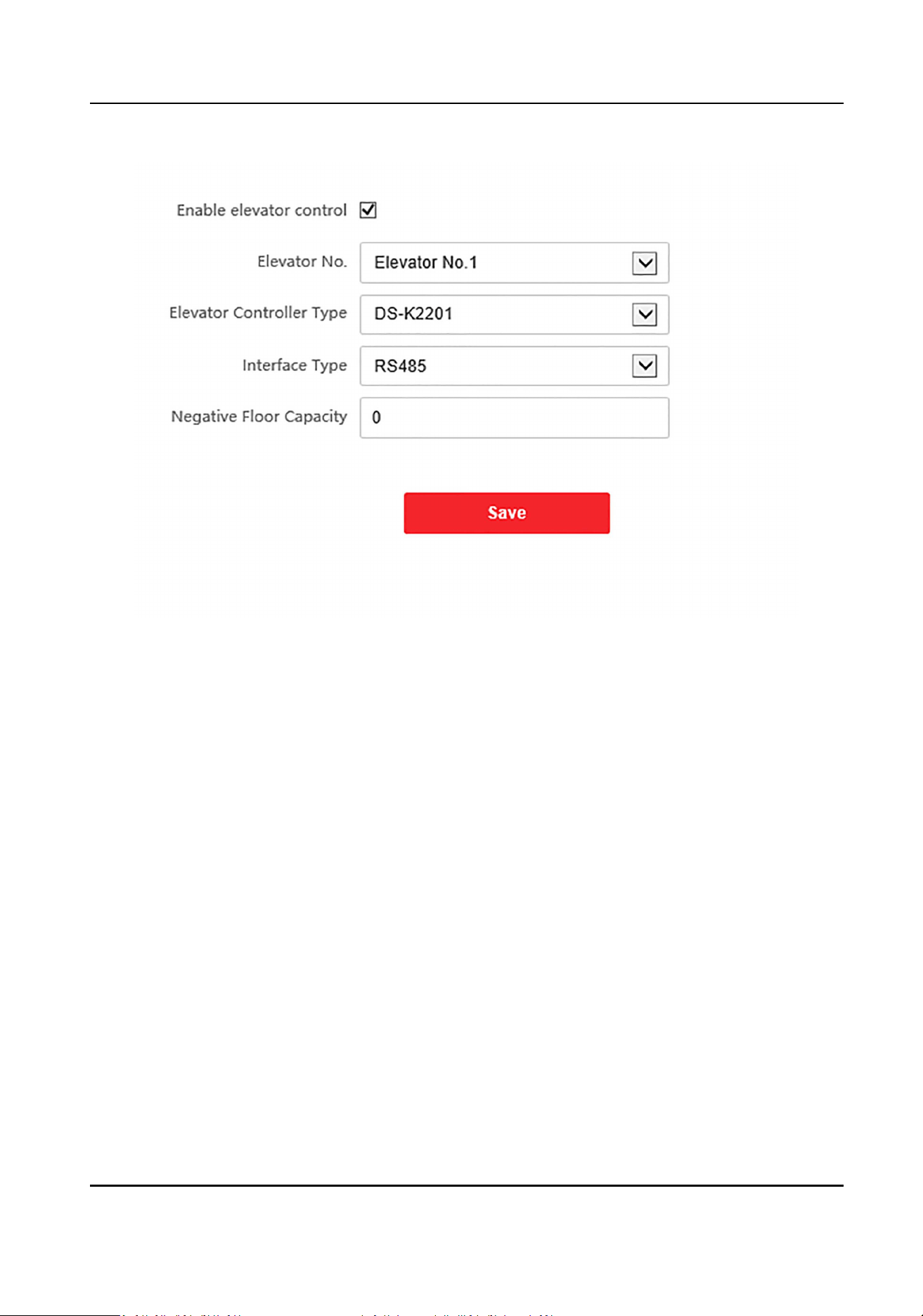

Elevator Control
8.6.24 Temperature Measurement Settings

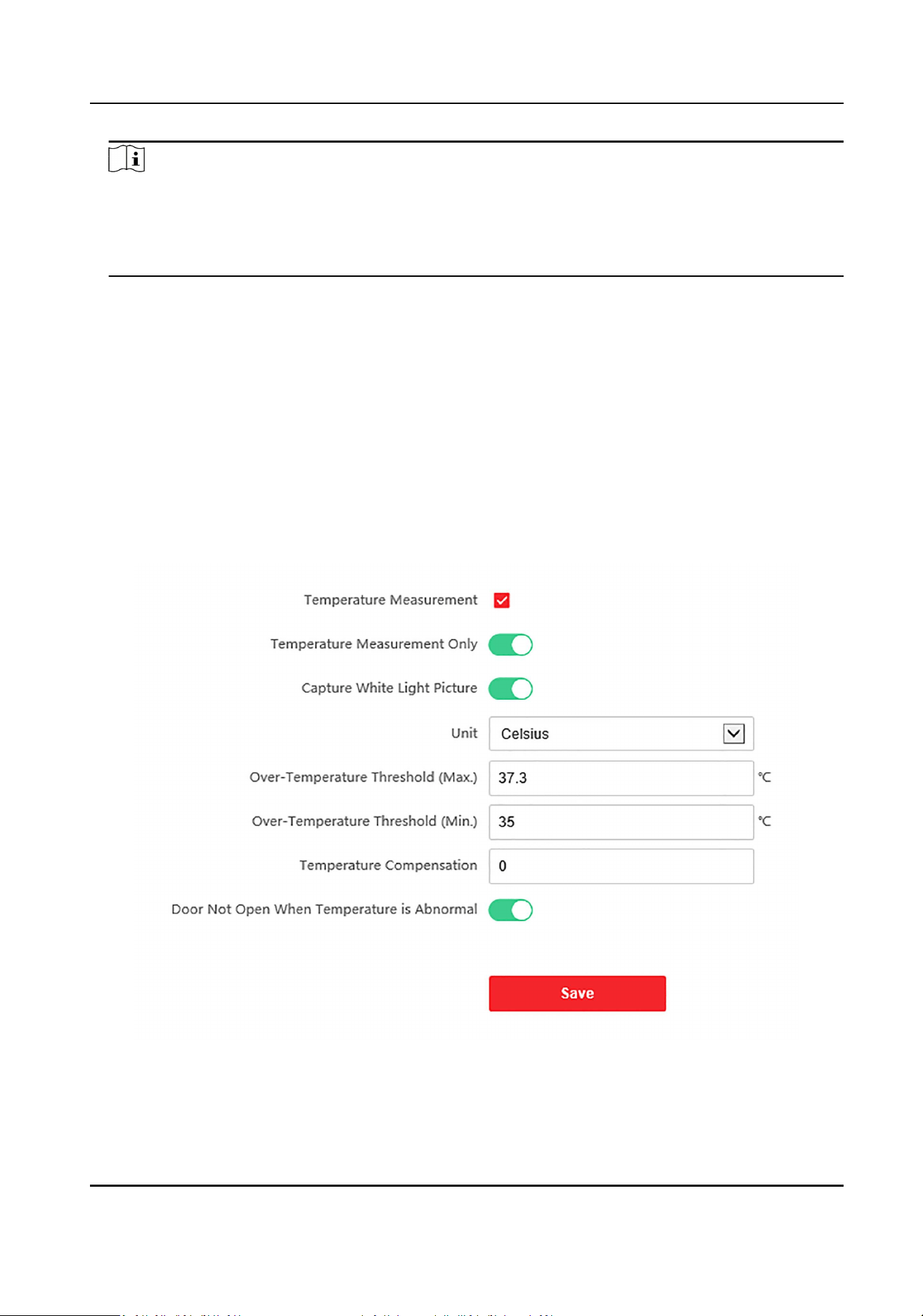

Temperature Measurement Settings

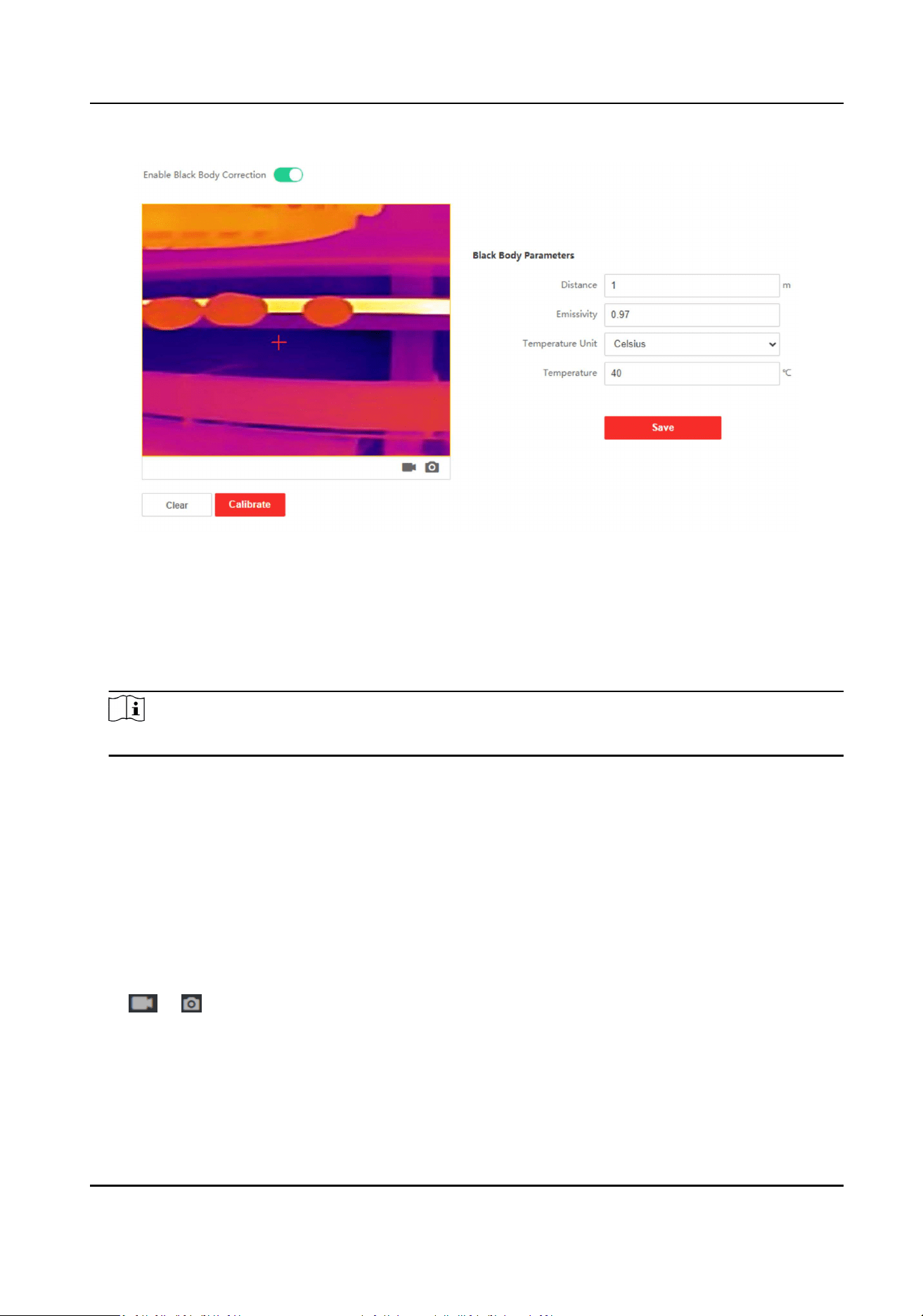

Black Body Settings
Draw Temperature Measurement Area

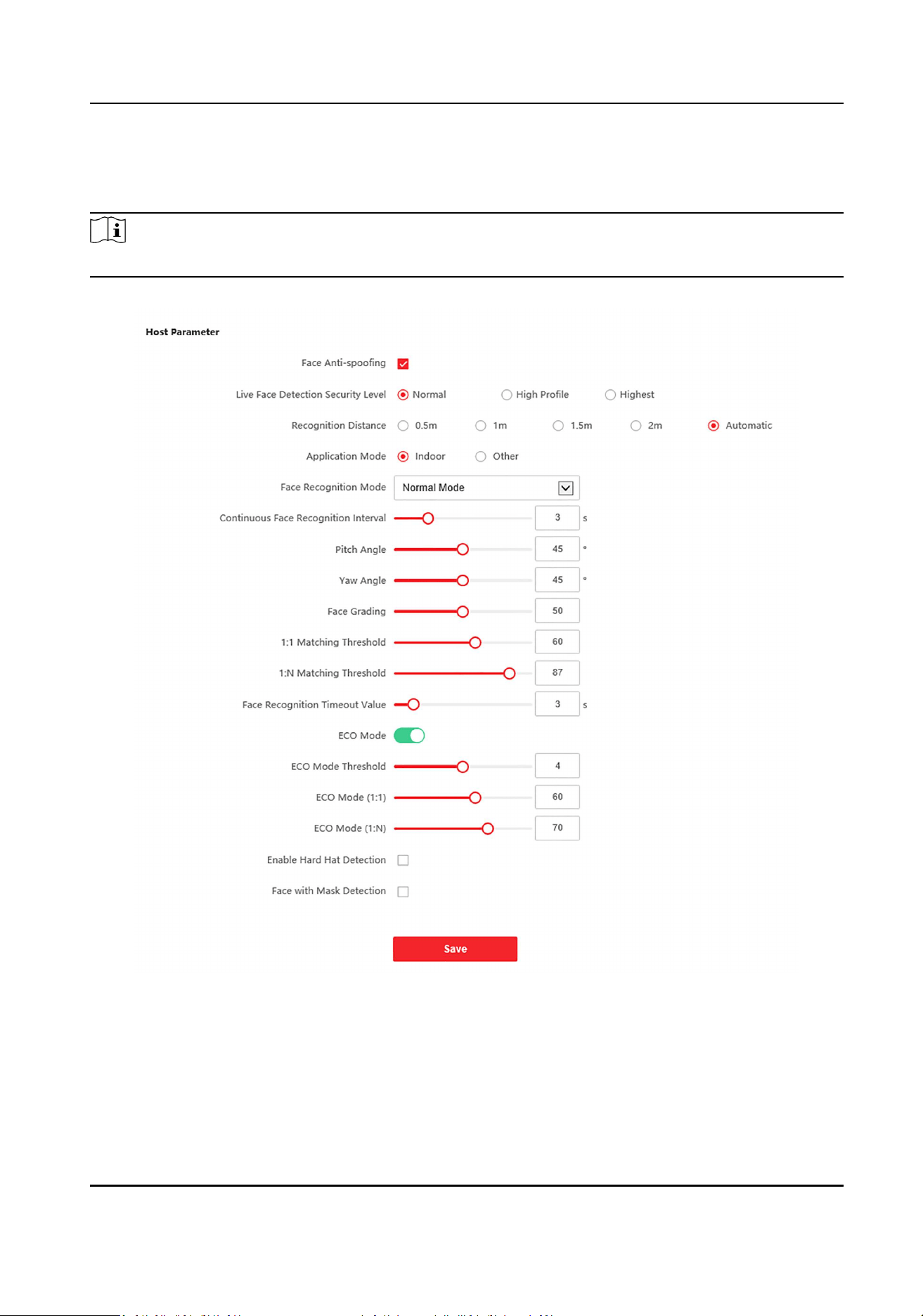

8.6.25 Set Biometric Parameters

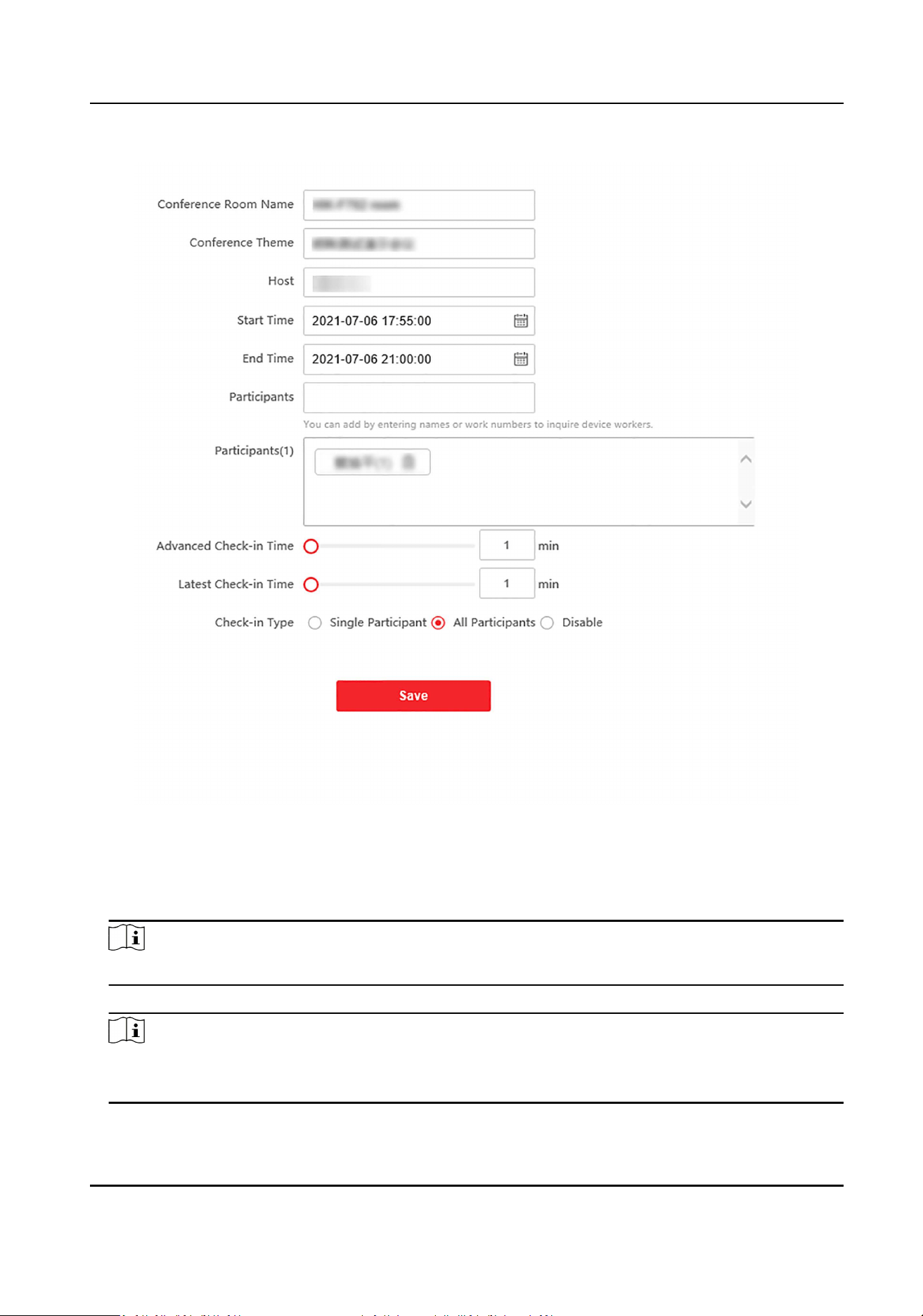

8.6.26 Set Meeting Plans

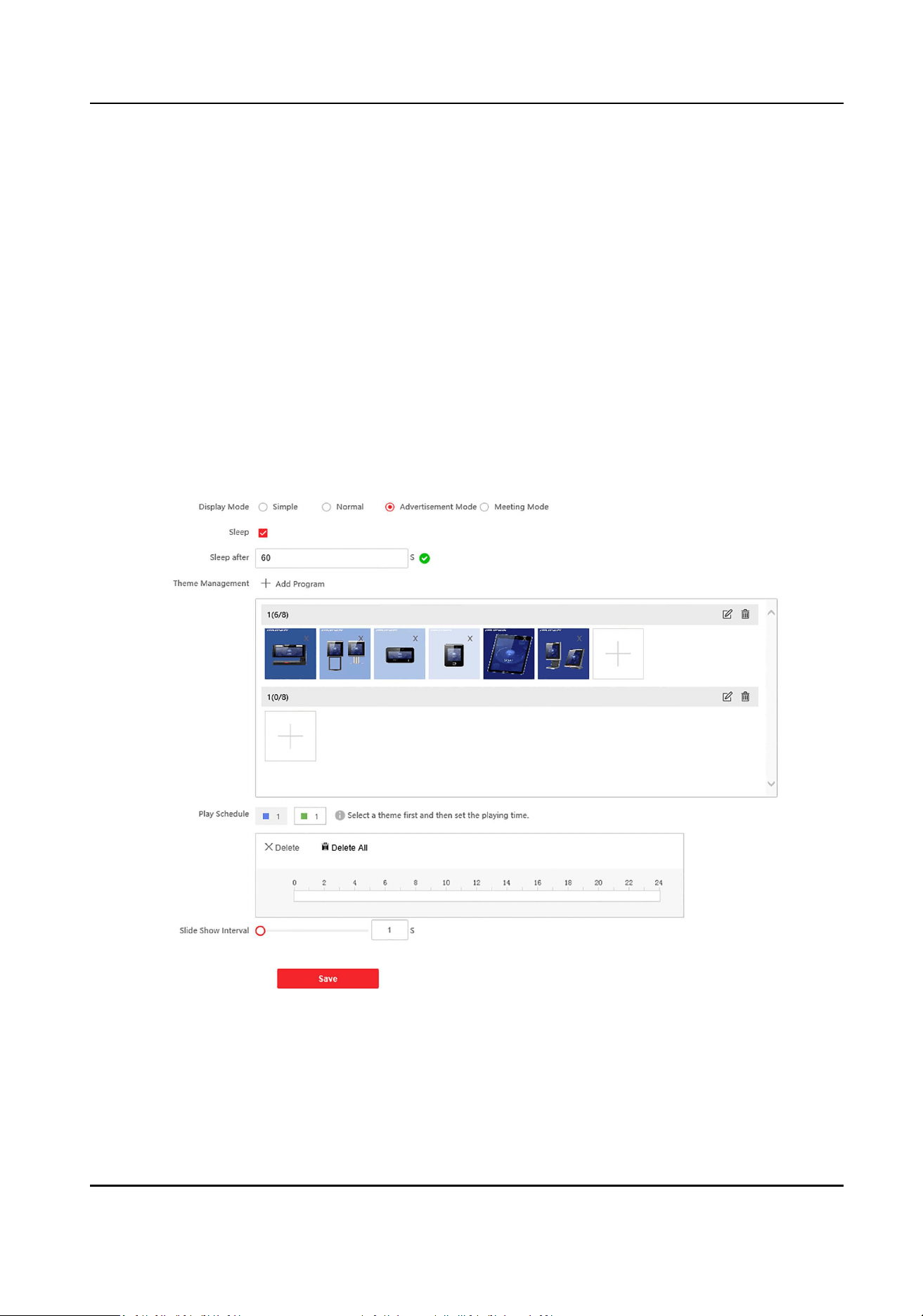

8.6.27 Set Notice Publication

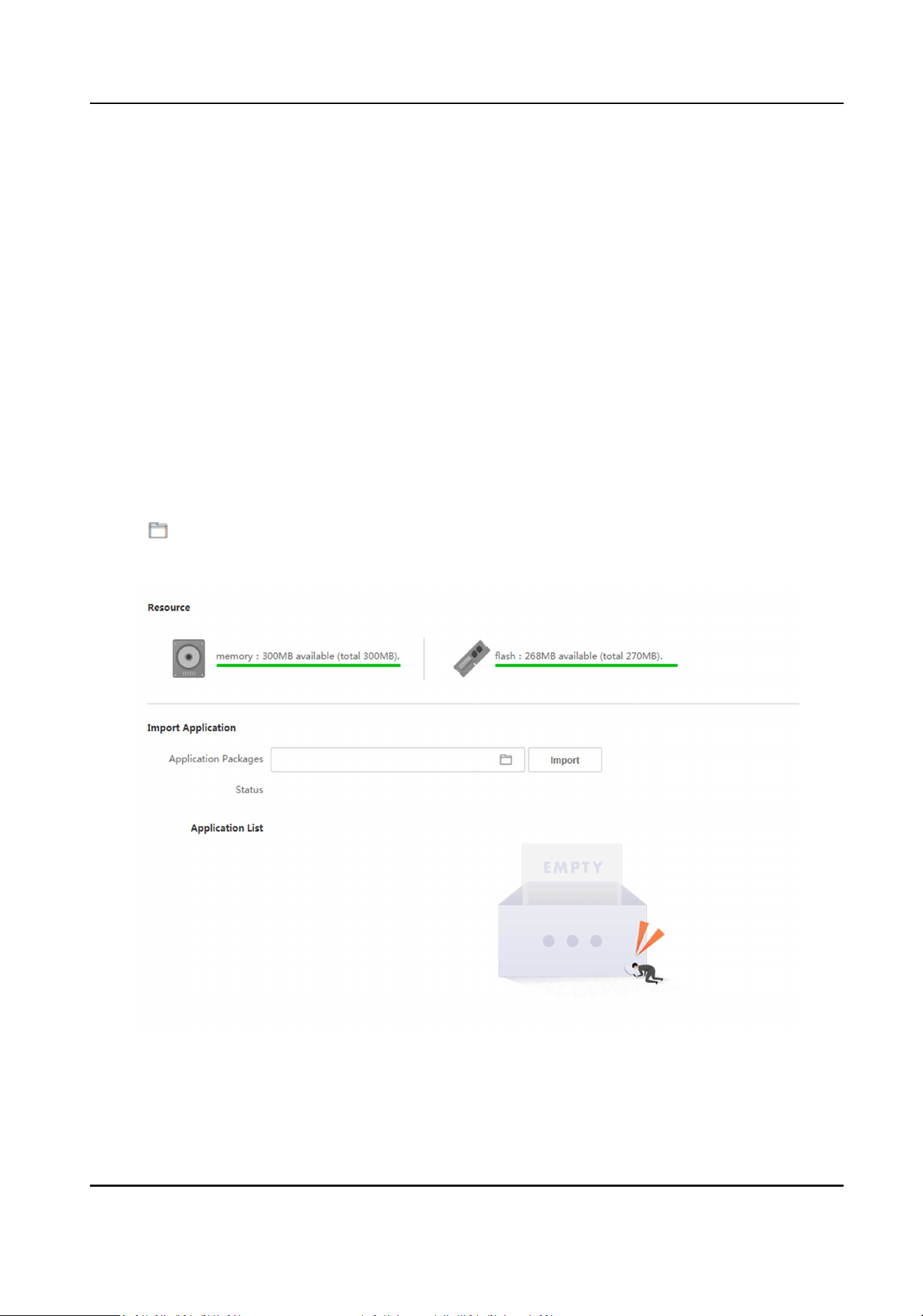

8.6.28 Set Open Platform
Chapter 9 Client Software Configuration

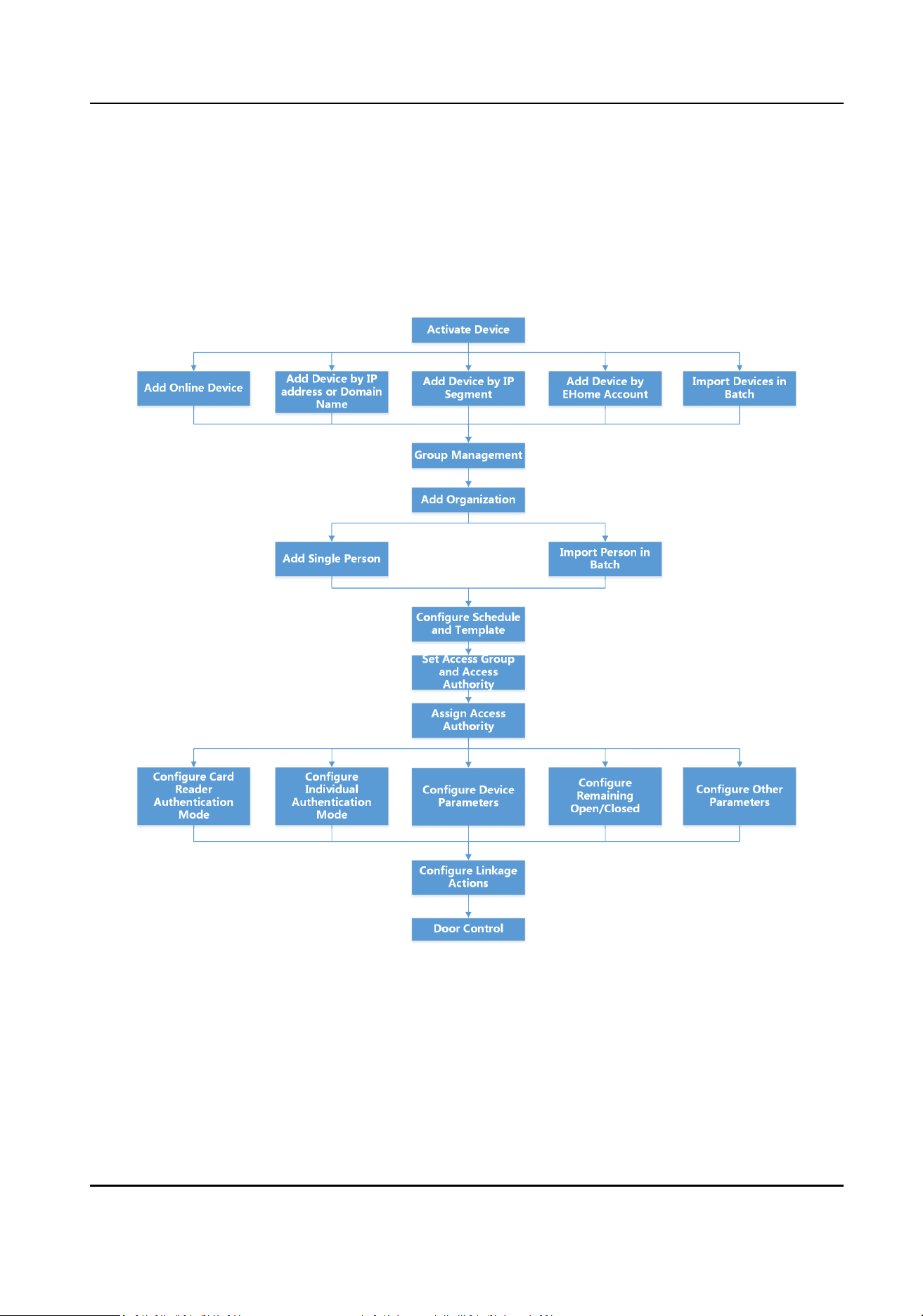

9.1 Configuration Flow of Client Software
9.2 Device Management
9.2.1 Add Device
Add Device by IP Address or Domain Name
Import Devices in a Batch
9.2.2 Reset Device Password
9.2.3 Manage Added Devices
9.3 Group Management
9.3.1 Add Group
9.3.2 Import Resources to Group

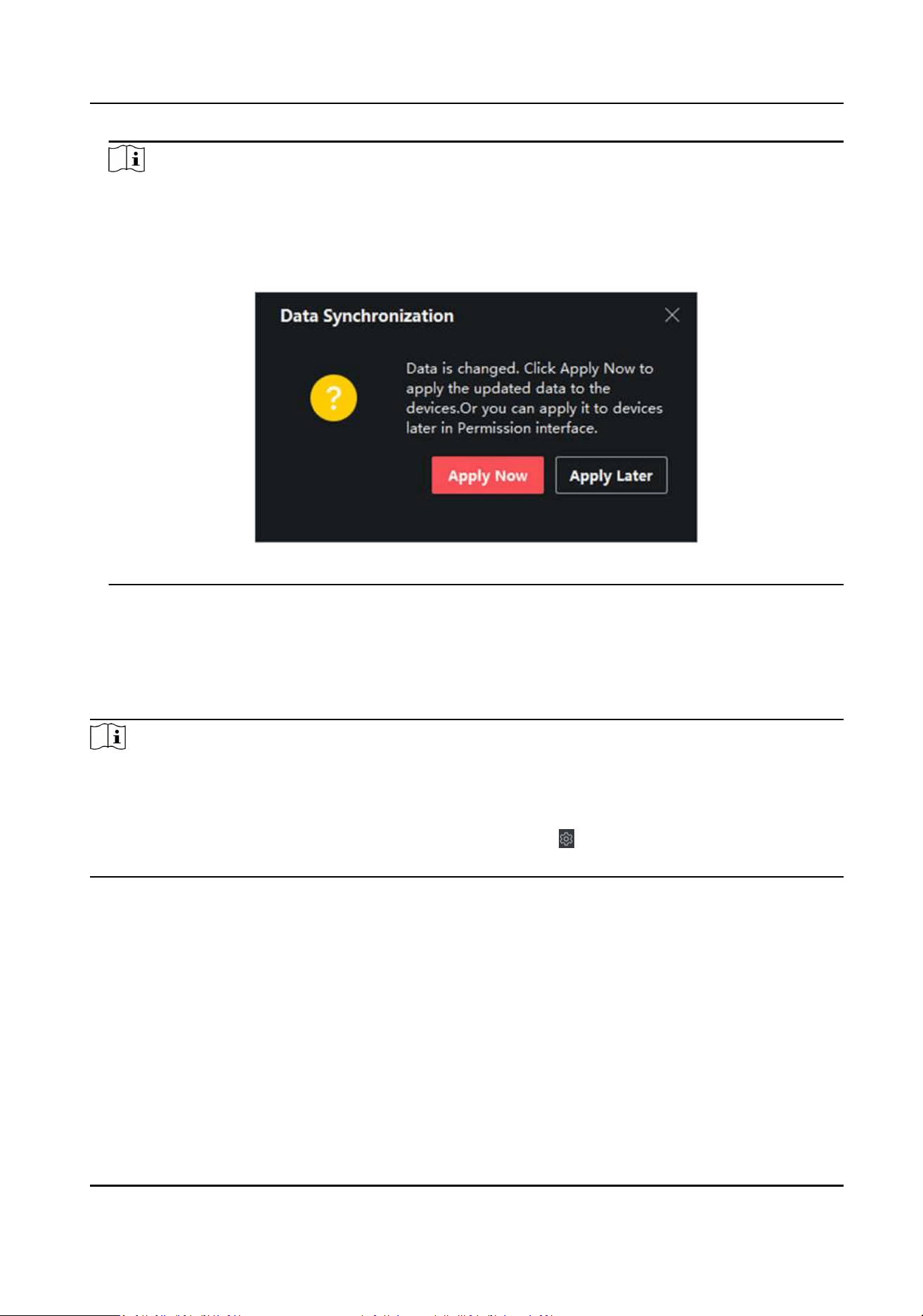

9.4 Person Management
9.4.1 Add Organization
9.4.2 Import and Export Person Identify Information
Import Person Information
Import Person Pictures
Export Person Information
Export Person Pictures
9.4.3 Get Person Information from Access Control Device
9.4.4 Issue Cards to Persons in Batch
9.4.5 Report Card Loss
9.4.6 Set Card Issuing Parameters
9.5 Configure Schedule and Template
9.5.1 Add Holiday
9.5.2 Add Template

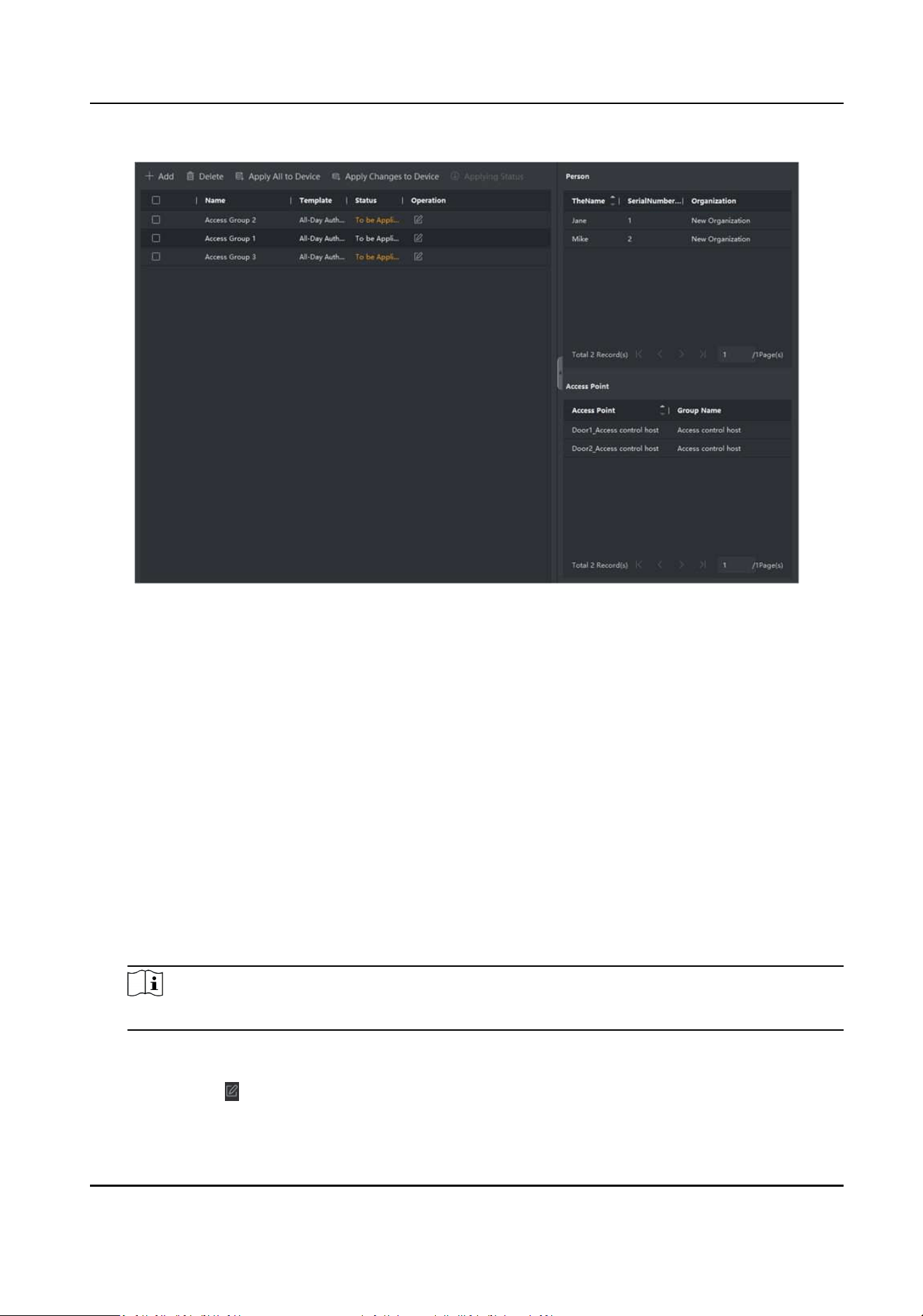

9.6 Set Access Group to Assign Access Authorization to Persons
9.7 Configure Advanced Functions
9.7.1 Configure Device Parameters
Configure Parameters for Access Control Device
Configure Parameters for Door/Elevator
Configure Parameters for Card Reader
Configure Parameters for Alarm Output
Configure Parameters for Lane Controller
9.7.2 Configure Device Parameters
Set Parameters for Face Recognition Terminal
Set RS-485 Parameters
Set Wiegand Parameters
Enable M1 Card Encryption
9.8 Door/Elevator Control
9.8.1 Control Door Status

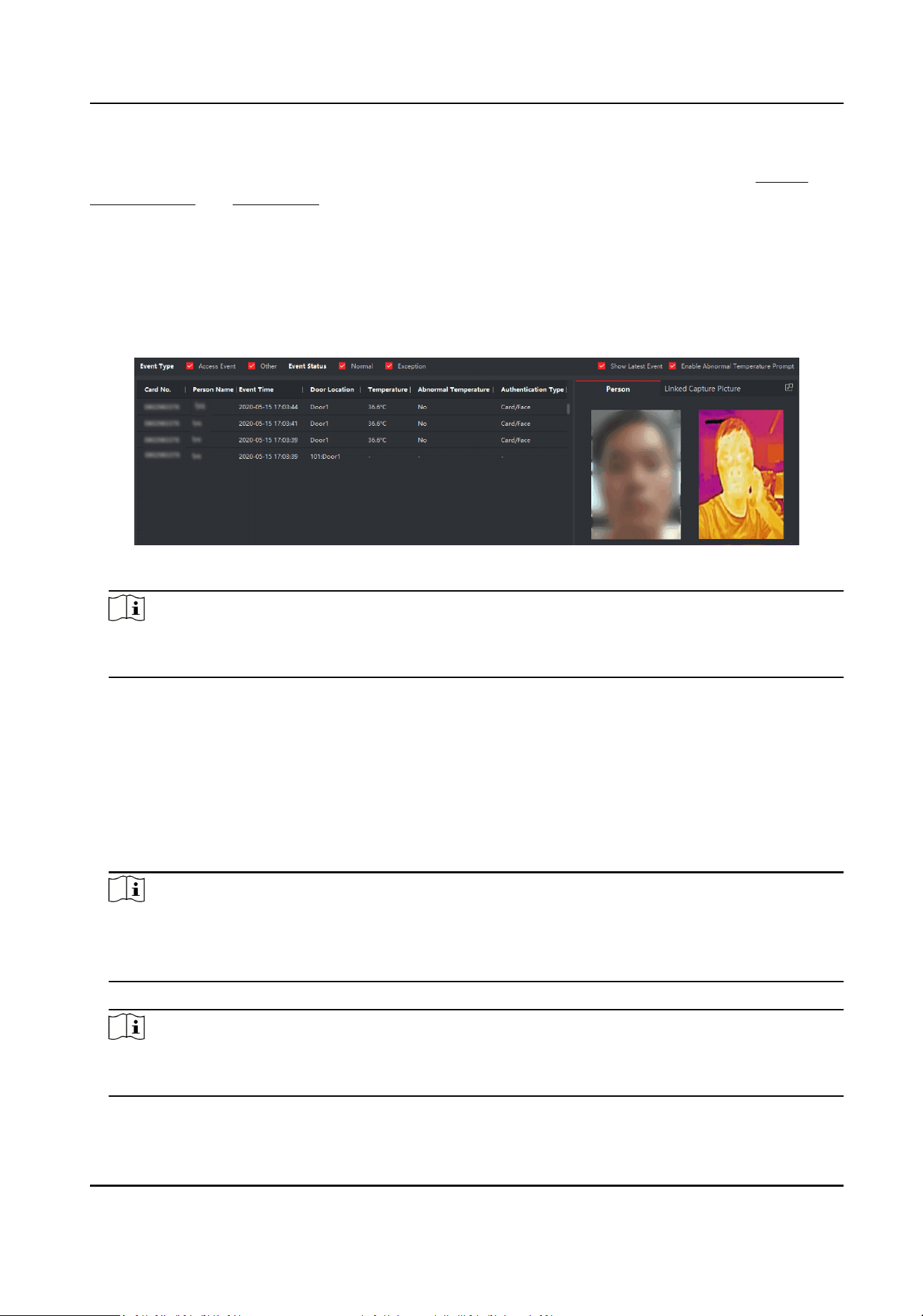

9.8.2 Check Real-Time Access Records
Appendix A. Tips for Scanning Fingerprint

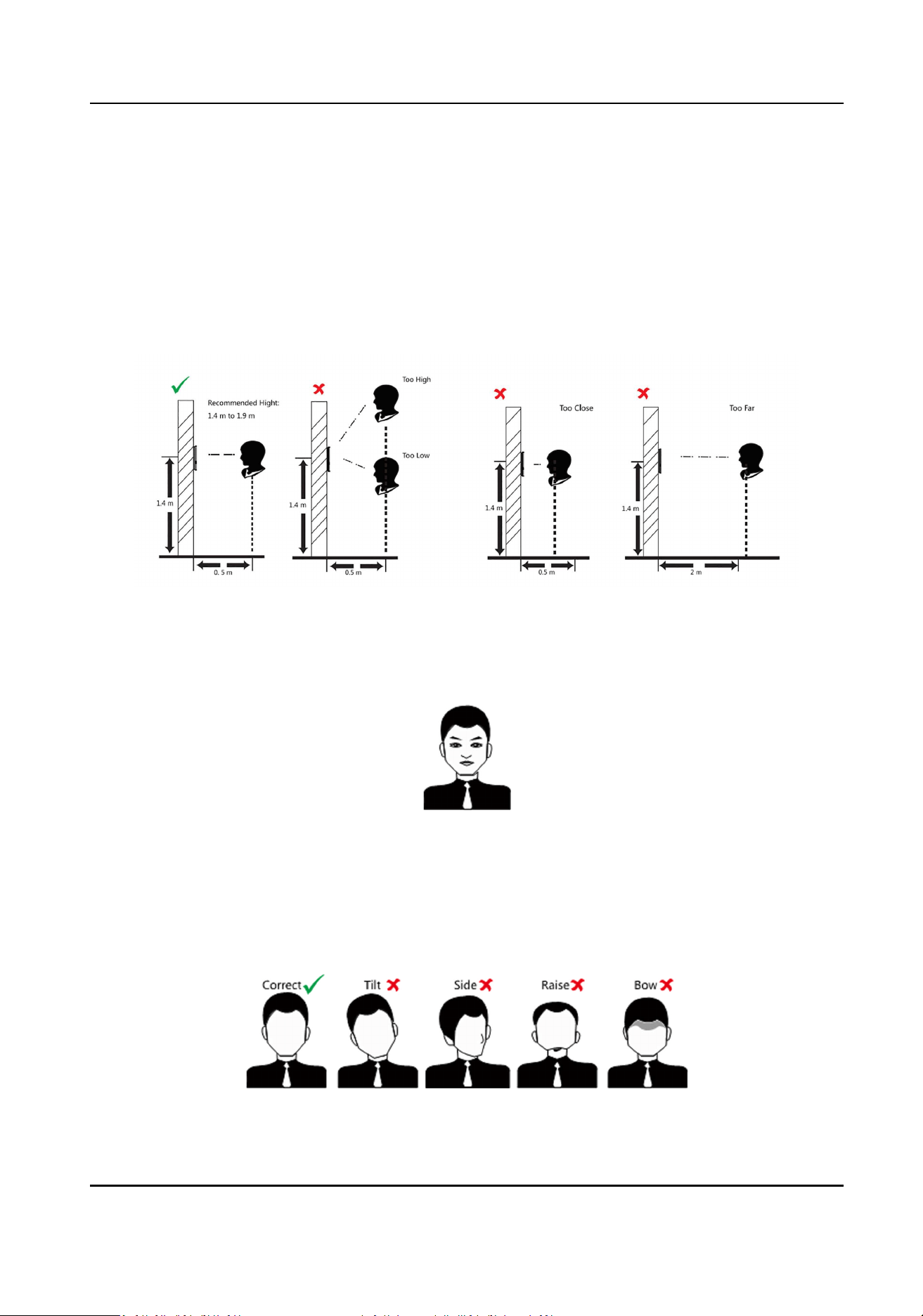

Appendix B. Tips When Collecting/Comparing Face Picture

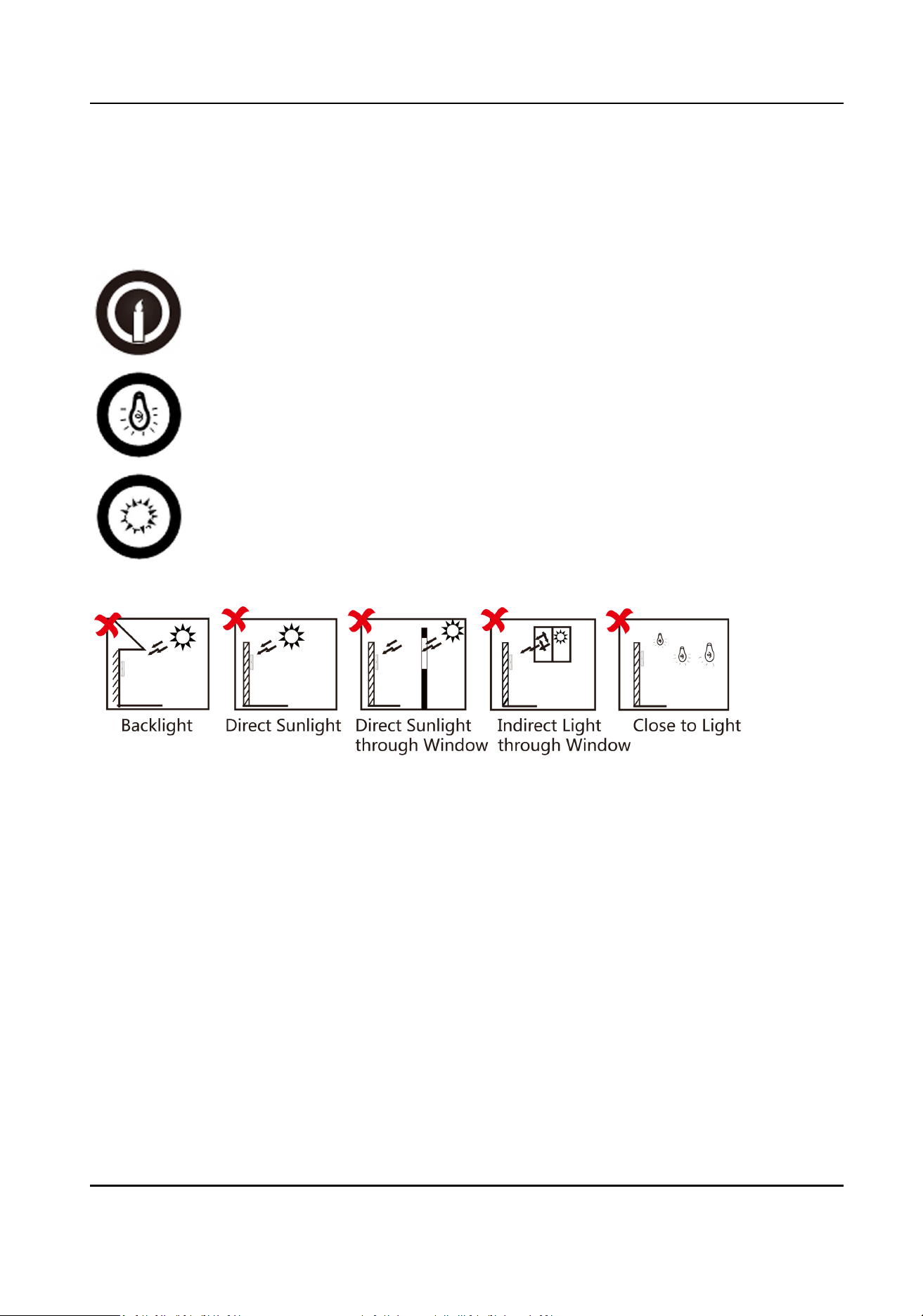

Appendix C. Tips for Installation Environment

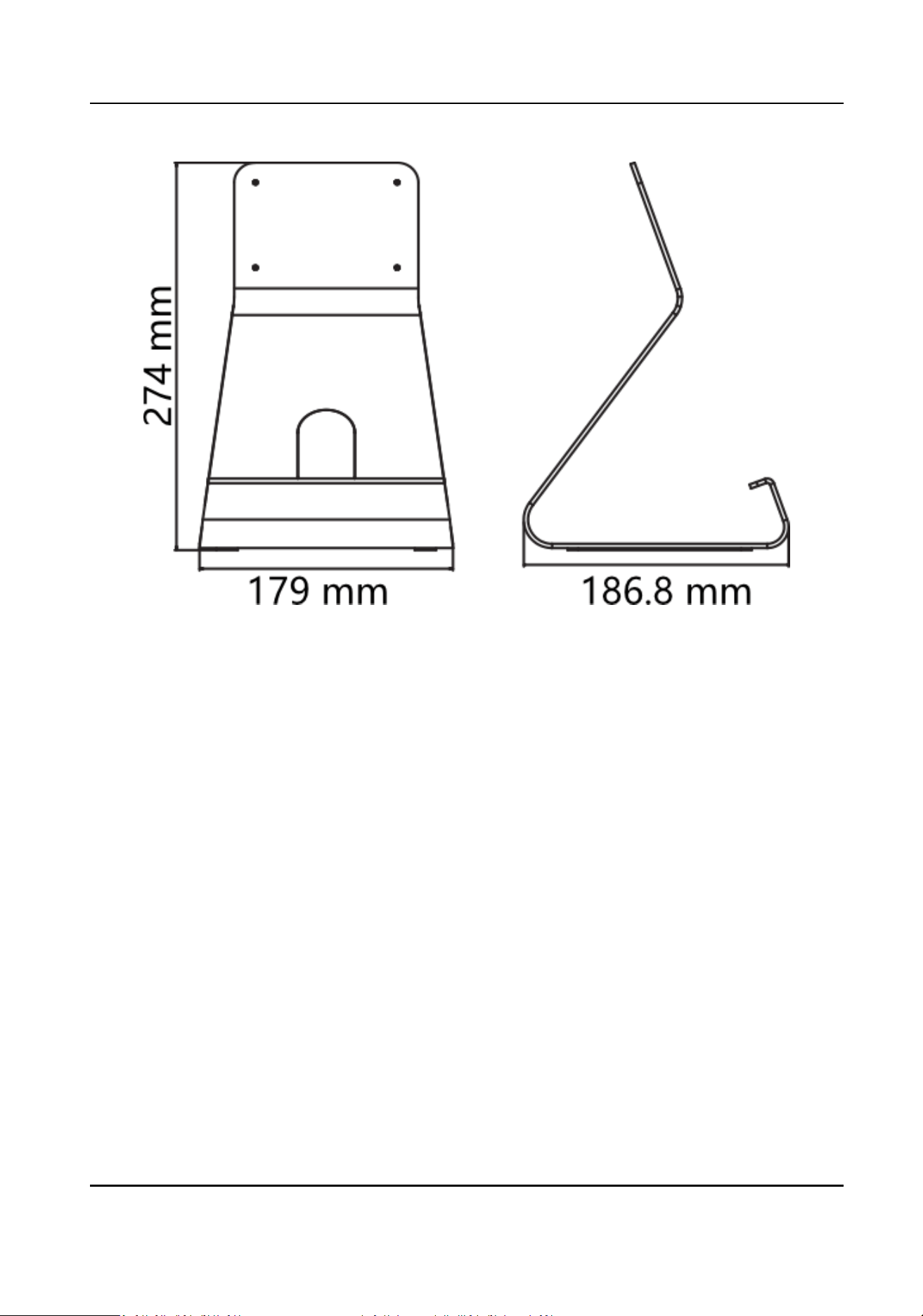

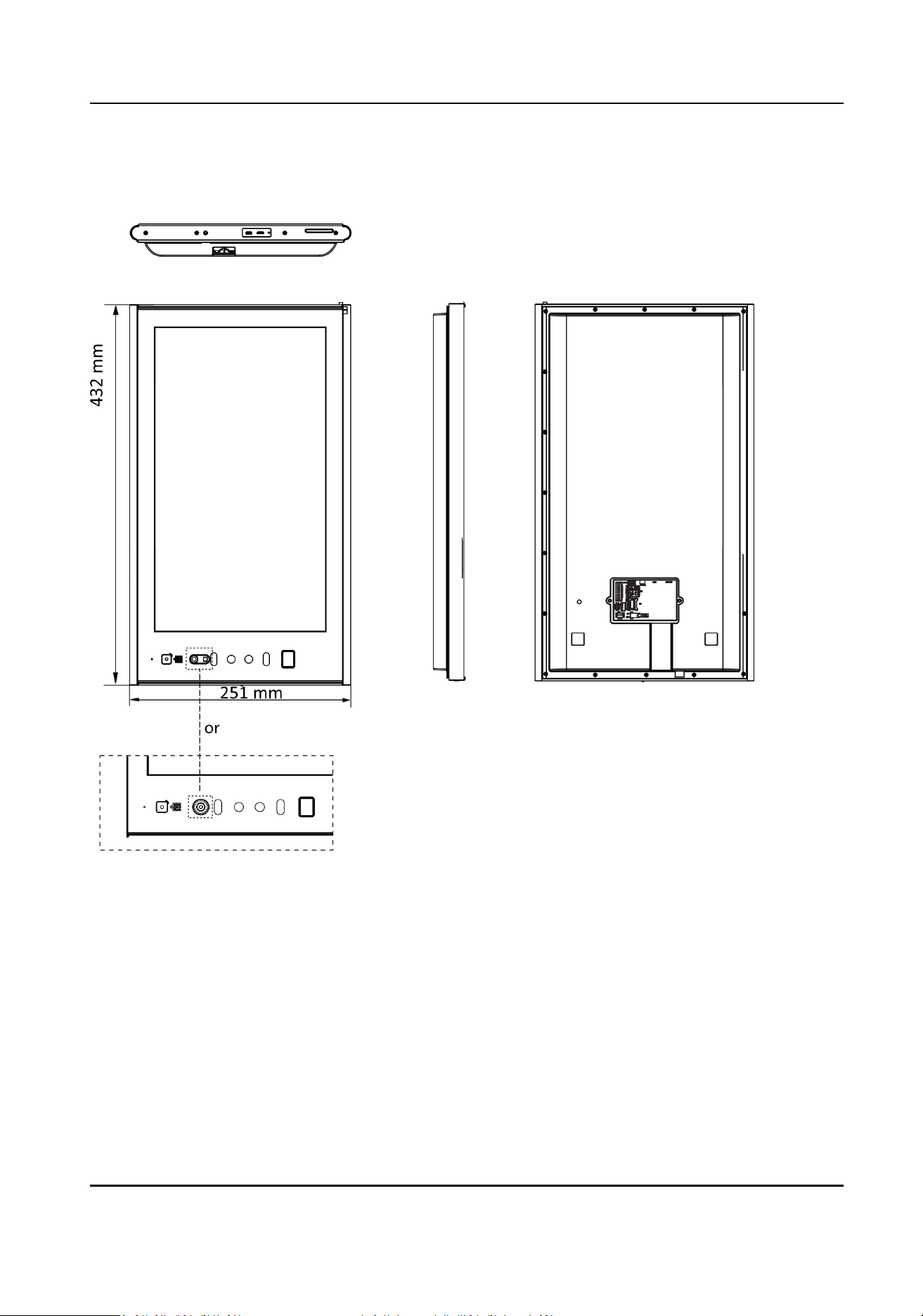

Appendix D. Dimension
Appendix E. Communication Matrix and Device Command
Page 1/178
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Page 34
Page 35
Page 36
Page 37
Page 38
Page 39
Page 40
Page 41
Page 42
Page 43
Page 44
Page 45
Page 46
Page 47
Page 48
Page 49
Page 50
Page 51
Page 52
Page 53
Page 54
Page 55
Page 56
Page 57
Page 58
Page 59
Page 60
Page 61
Page 62
Page 63
Page 64
Page 65
Page 66
Page 67
Page 68
Page 69
Page 70
Page 71
Page 72
Page 73
Page 74
Page 75
Page 76
Page 77
Page 78
Page 79
Page 80
Page 81
Page 82
Page 83
Page 84
Page 85
Page 86
Page 87
Page 88
Page 89
Page 90
Page 91
Page 92
Page 93
Page 94
Page 95
Page 96
Page 97
Page 98
Page 99
Page 100
Page 101
Page 102
Page 103
Page 104
Page 105
Page 106
Page 107
Page 108
Page 109
Page 110
Page 111
Page 112
Page 113
Page 114
Page 115
Page 116
Page 117
Page 118
Page 119
Page 120
Page 121
Page 122
Page 123
Page 124
Page 125
Page 126
Page 127
Page 128
Page 129
Page 130
Page 131
Page 132
Page 133
Page 134
Page 135
Page 136
Page 137
Page 138
Page 139
Page 140
Page 141
Page 142
Page 143
Page 144
Page 145
Page 146
Page 147
Page 148
Page 149
Page 150
Page 151
Page 152
Page 153
Page 154
Page 155
Page 156
Page 157
Page 158
Page 159
Page 160
Page 161
Page 162
Page 163
Page 164
Page 165
Page 166
Page 167
Page 168
Page 169
Page 170
Page 171
Page 172
Page 173
Page 174
Page 175
Page 176
Page 177
Page 178
Contents
Table of Contents
Search
Previous
Next
Bookmarks
DS-K1T690 Series F
ace
R
ecognion
T
erminal
User Manual
Loading ...
Loading ...
Loading ...
File type: PDF
File name: 15601513_ds-k1t690m-e1.pdf
File size: 10.75 MB
File Language: English
Pages: 178
Author: Hikvision
File created: 2024-04-22
Published: 2024-04-24
Updated: 2024-04-24
Download File
