1. SAFETY
1.1. GENERAL SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this cabinet
9 Locate cabinet in a suitable work area.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
WARNING! Use cabinet on level and solid ground, preferably concrete.
9 Keep the cabinet clean and tidy in accordance with good workshop practice.
9 Keep children and unauthorised persons away from the work area.
8 DO NOT use the cabinet for any purpose other than that for which it is designed.
8 DO NOT use the cabinet outdoors.
8 DO NOT place the cabinet in a damp or wet location or an area where there is condensation.
8 DO NOT clean the cabinet with any solvents which may damage the surfaces or the protective coating.
8 DO NOT move the cabinet when there are items placed inside.
8 DO NOT overload the cabinet.
2. INTRODUCTION
Industrial quality, double door, freestanding cabinet. Unit easy to assemble with minimal tools required. Durable, scu resistant design.
Reinforced steel doors with zinc plated locking bars provide 3 point locking mechanism. Supplied with two coded keys. Ideal for home,
oce, garage or workshop use.
3. SPECIFICATION
Model No: .................................................... APIC1800F
Overall Size (W x D x H): ..............900 x 450 x 1800mm
4. CONTENTS
Unpack the contents of the box and check against the parts list/diagram. If there are any parts missing, contact your local Sealey dealer.
PART NO. DESCRIPTION QTY
A1 Rear Panel 1
A2 Rear Panel 1
B1 Left Side Panel 1
B2 Right Side Panel 1
C1 Left Door 1
C2 Right Door 1
D Top 1
E Bottom 1
F Inner Face Plate 1
G Outer Face Plate 1
J Plastic Stop 4
K Locking Pin Locator 2
L Hinge Pin Locator 4
M Screw 18
N Hinge Pin 4
FULL HEIGHT INDUSTRIAL CABINET
MODEL NO: APIC1800F
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS &
CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO
MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR
FUTURE USE.
Refer to
instruction
manual
APIC1800F Issue 2 (H,F) 18/09/23
Original Language Version
© Jack Sealey Limited

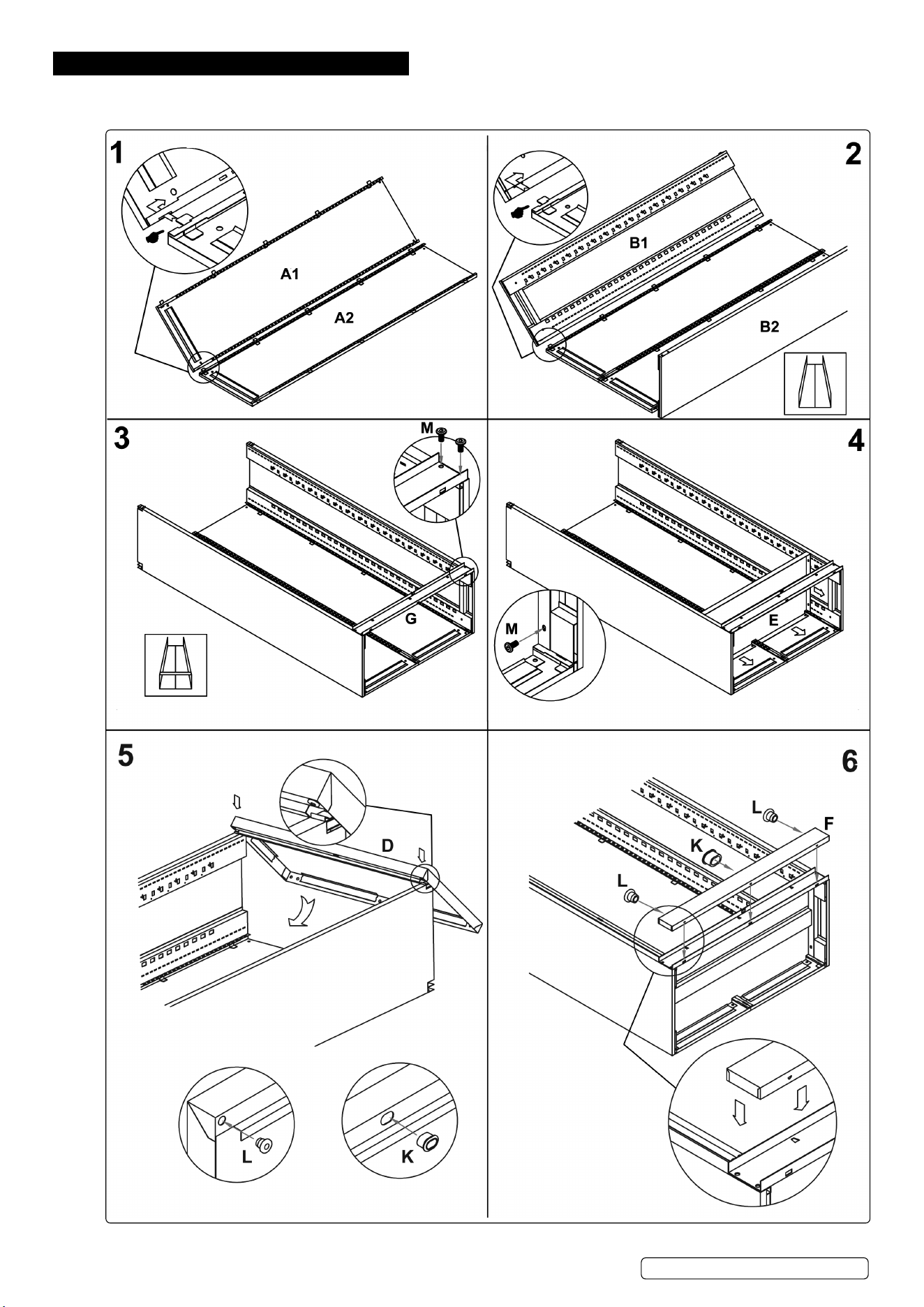

5. ASSEMBLY
Assemble the cabinet following the numbered sequence below, referencing the parts list and diagram overleaf.
Use a trestle table or a workbench for convenience if required.
APIC1800F Issue 2 (H,F) 18/09/23
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts without prior notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. When
the product becomes completely unserviceable and requires disposal, drain any uids (if applicable) into approved
containers and dispose of the product and uids according to local regulations.
