Network Speed Dome
Quick Start Guide

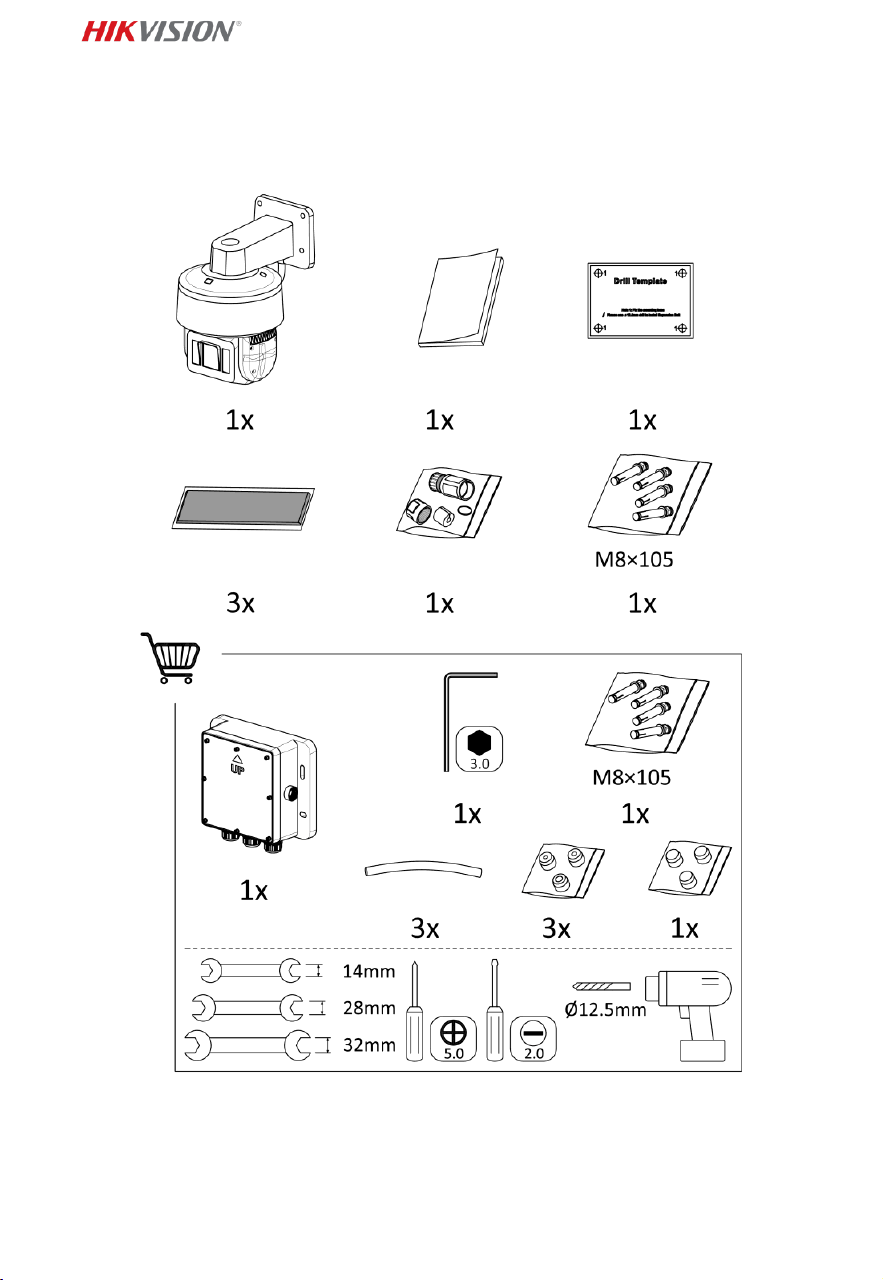

1

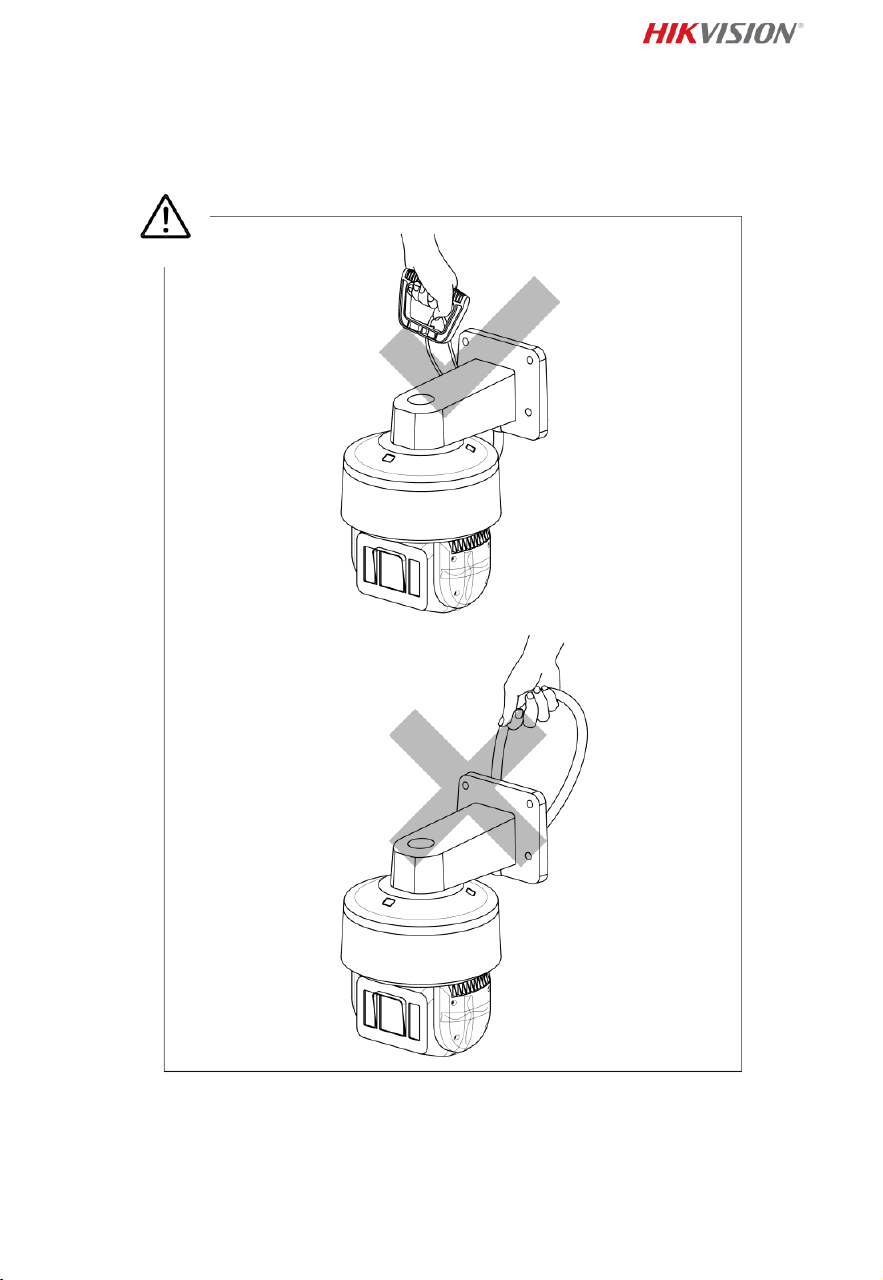

2
3
4

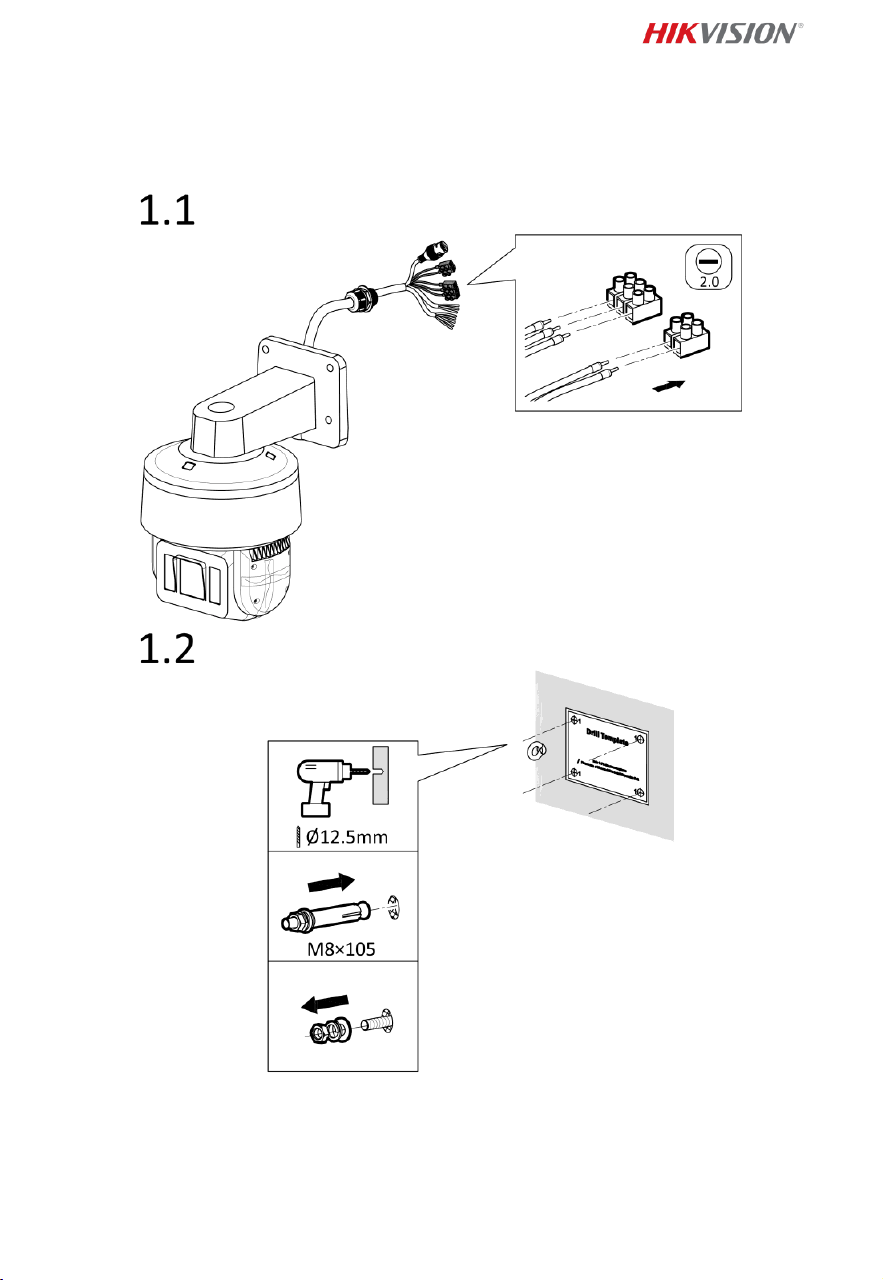

5

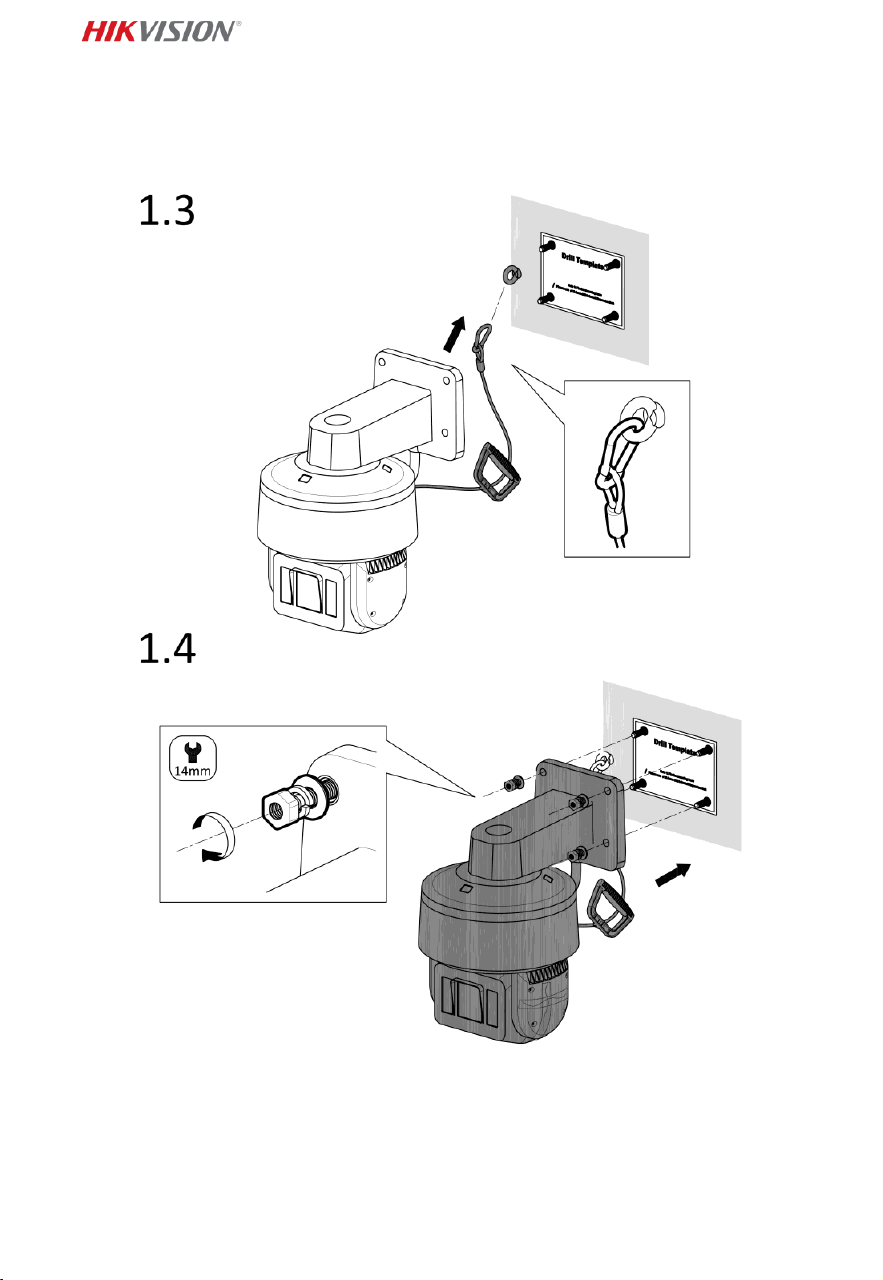

6
7

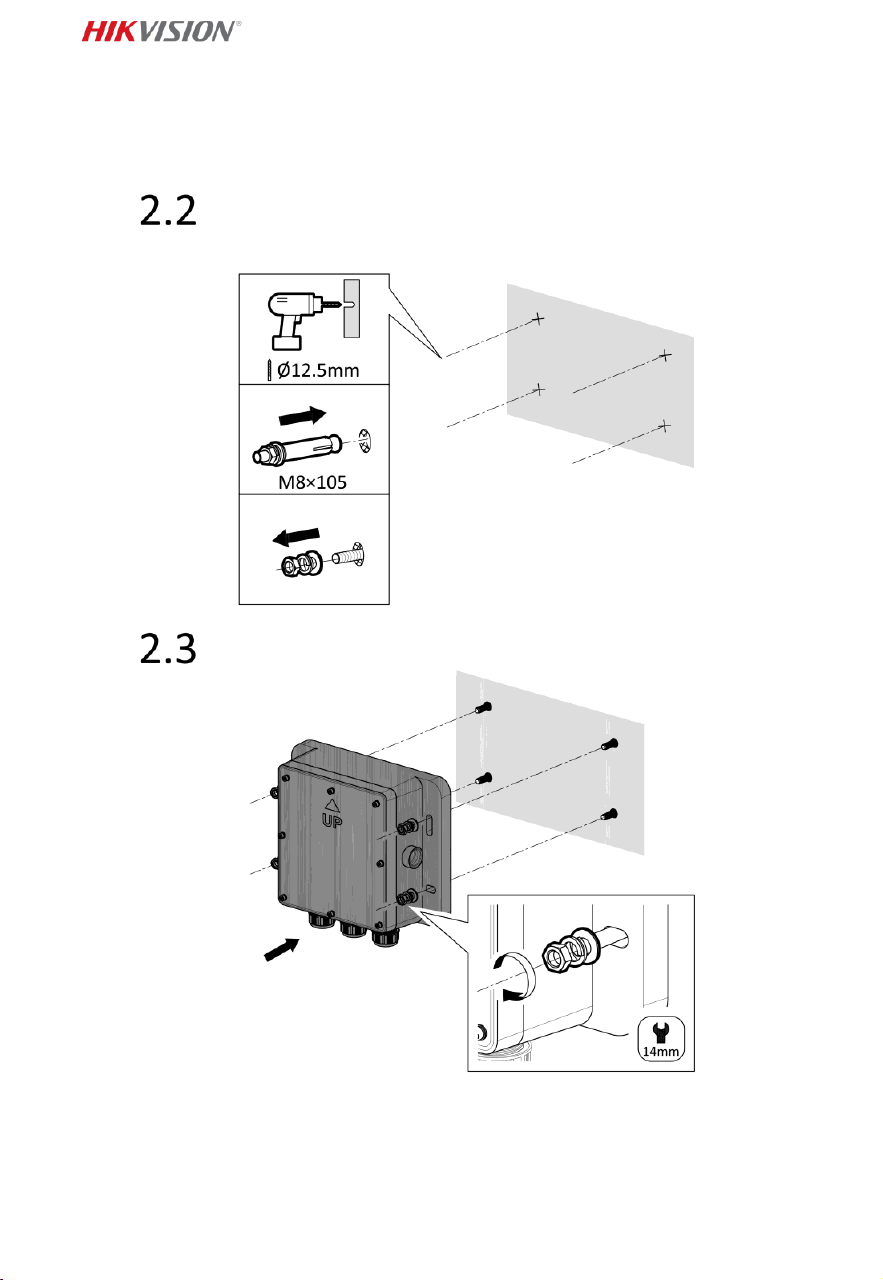

8
9
10

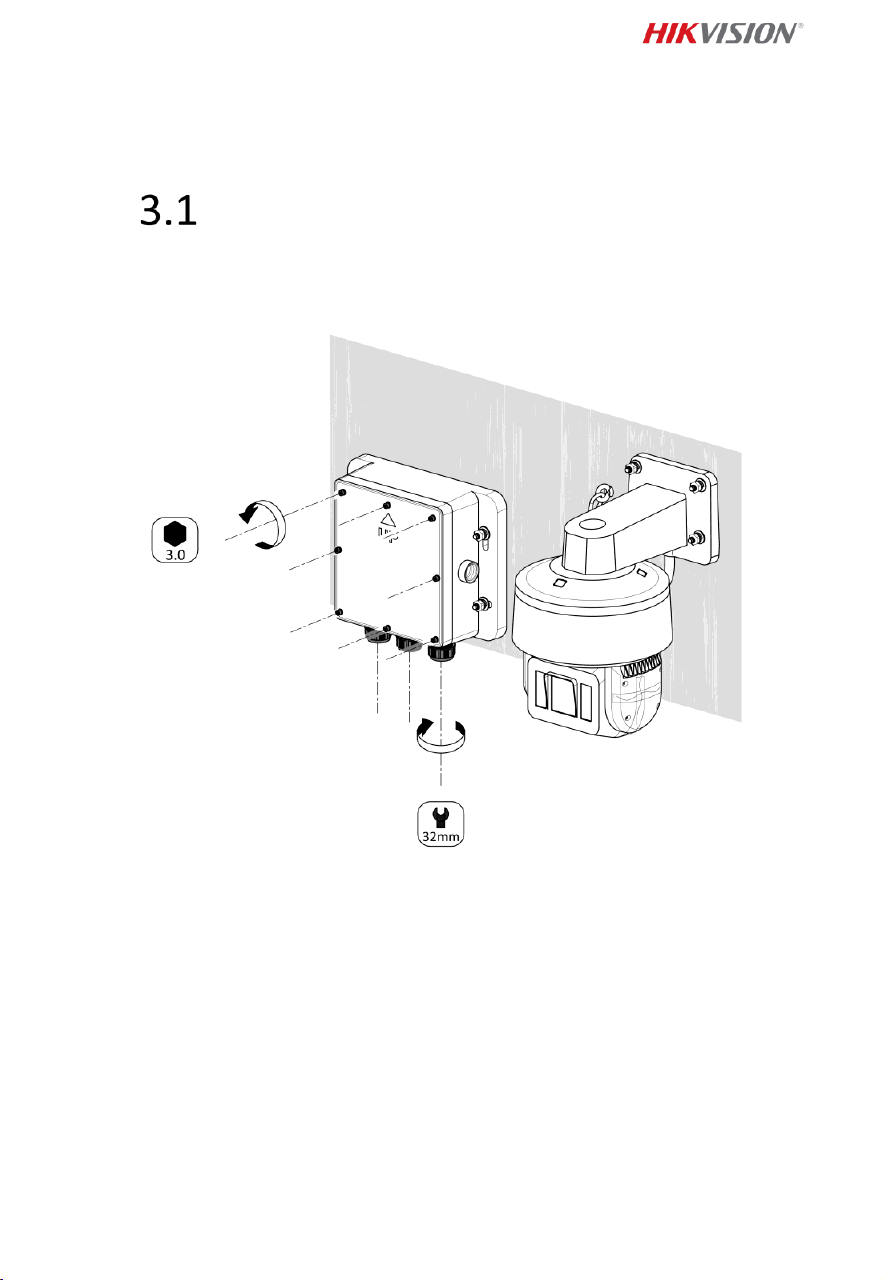

11

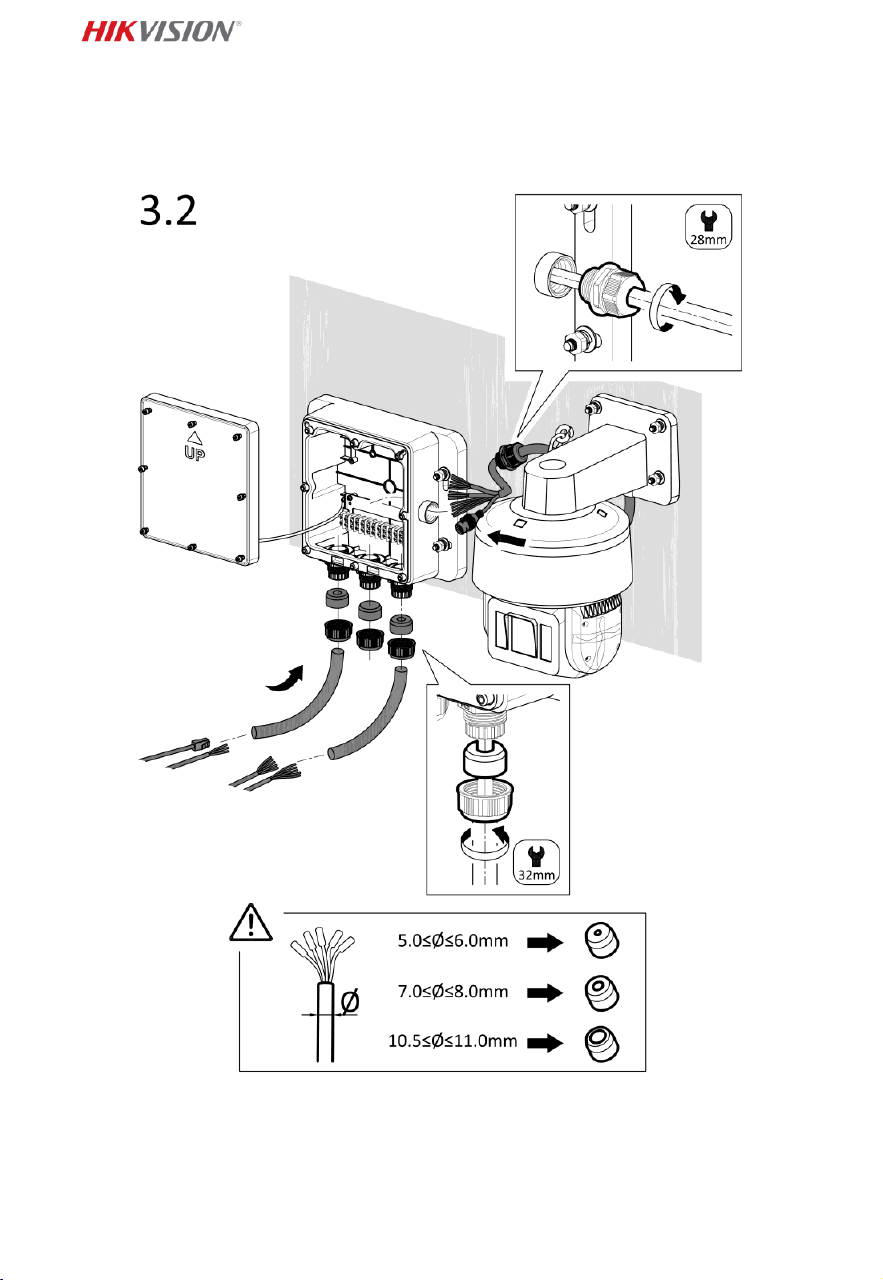

12
13
14

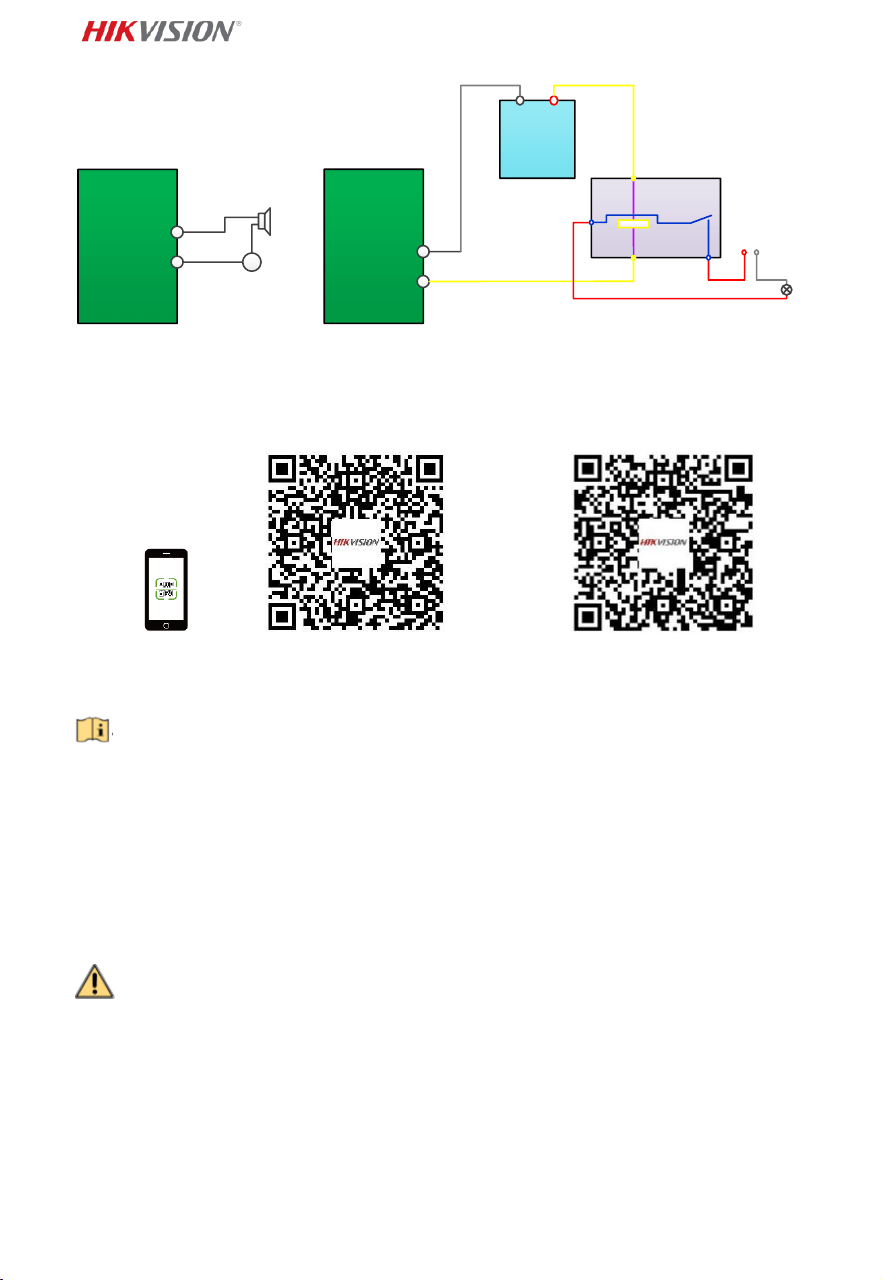

Alarm Output
①
OUT (n)
DC
OUT (n)
②
+
-
①
OUT (n)
OUT (n)
30 VDC
1A
③
GND OUT
~220V AC
L N
④
(10A 250VAC)
① Relay output
② DC load
③ Power supply
④ JQC-3FG relay

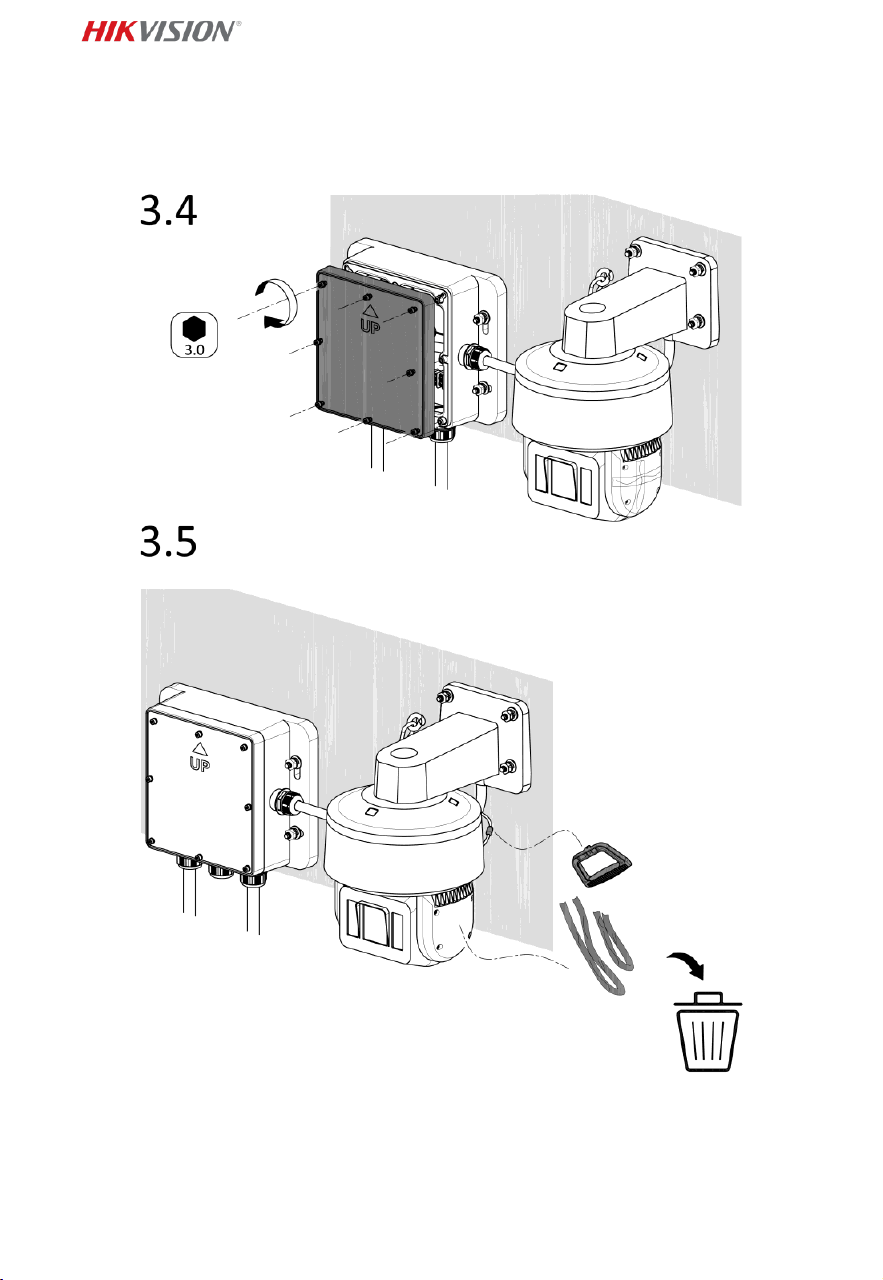

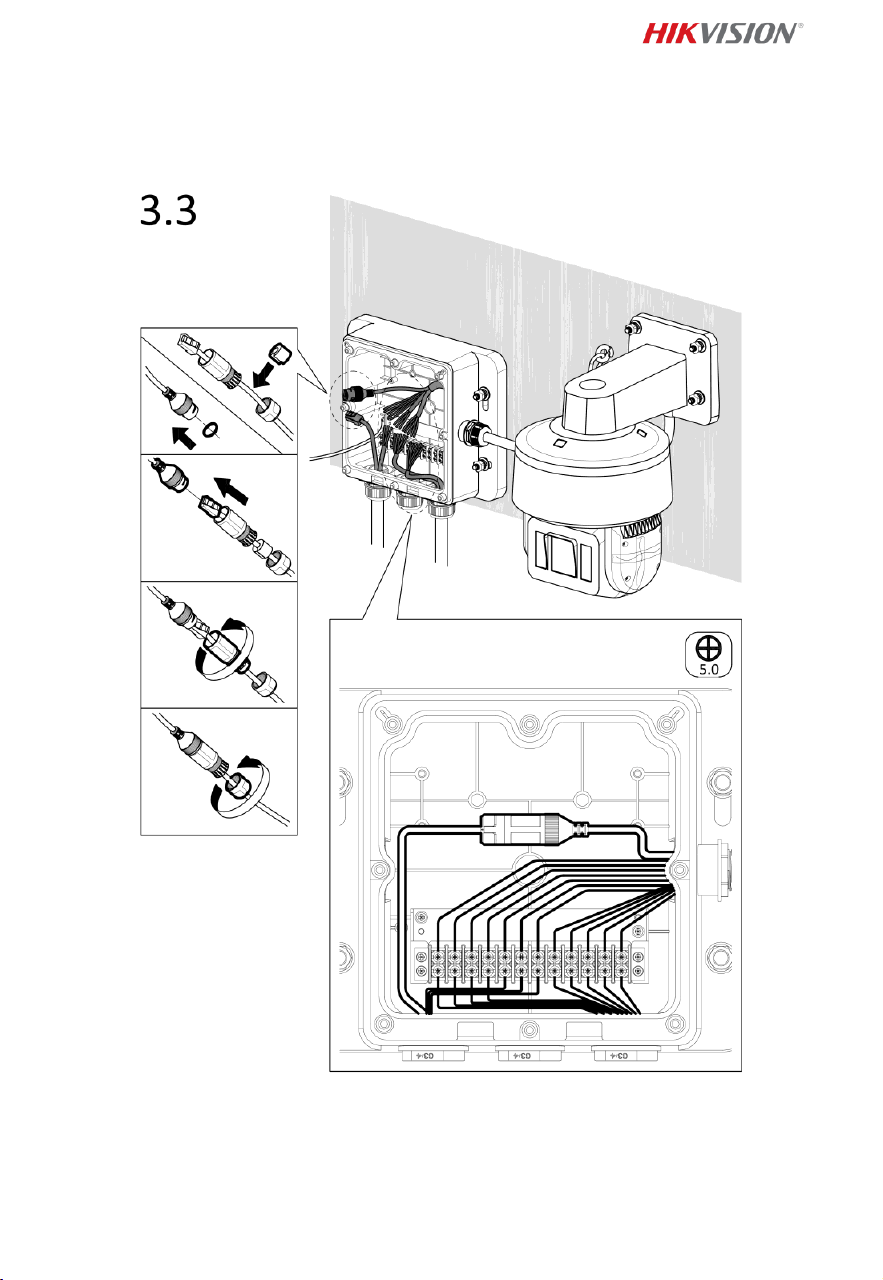

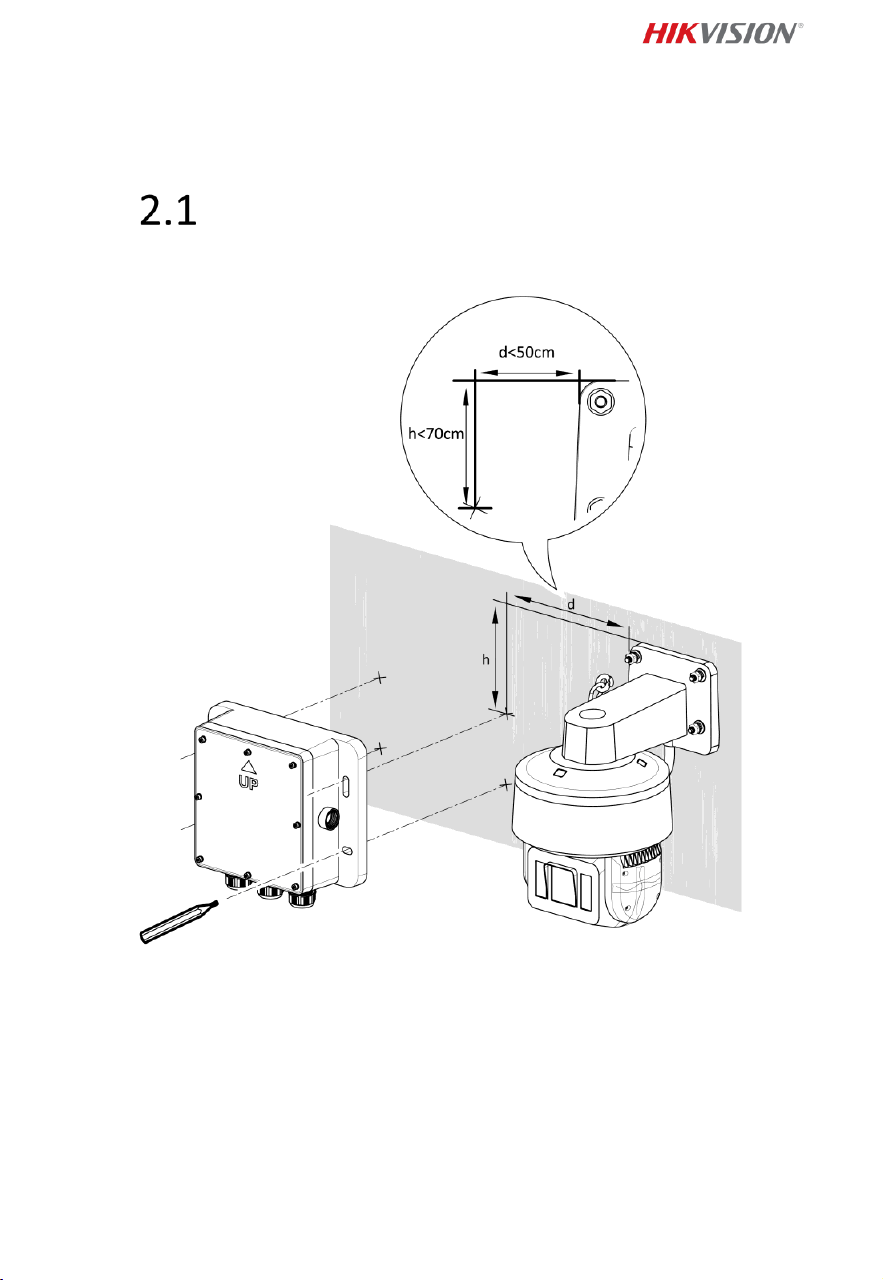

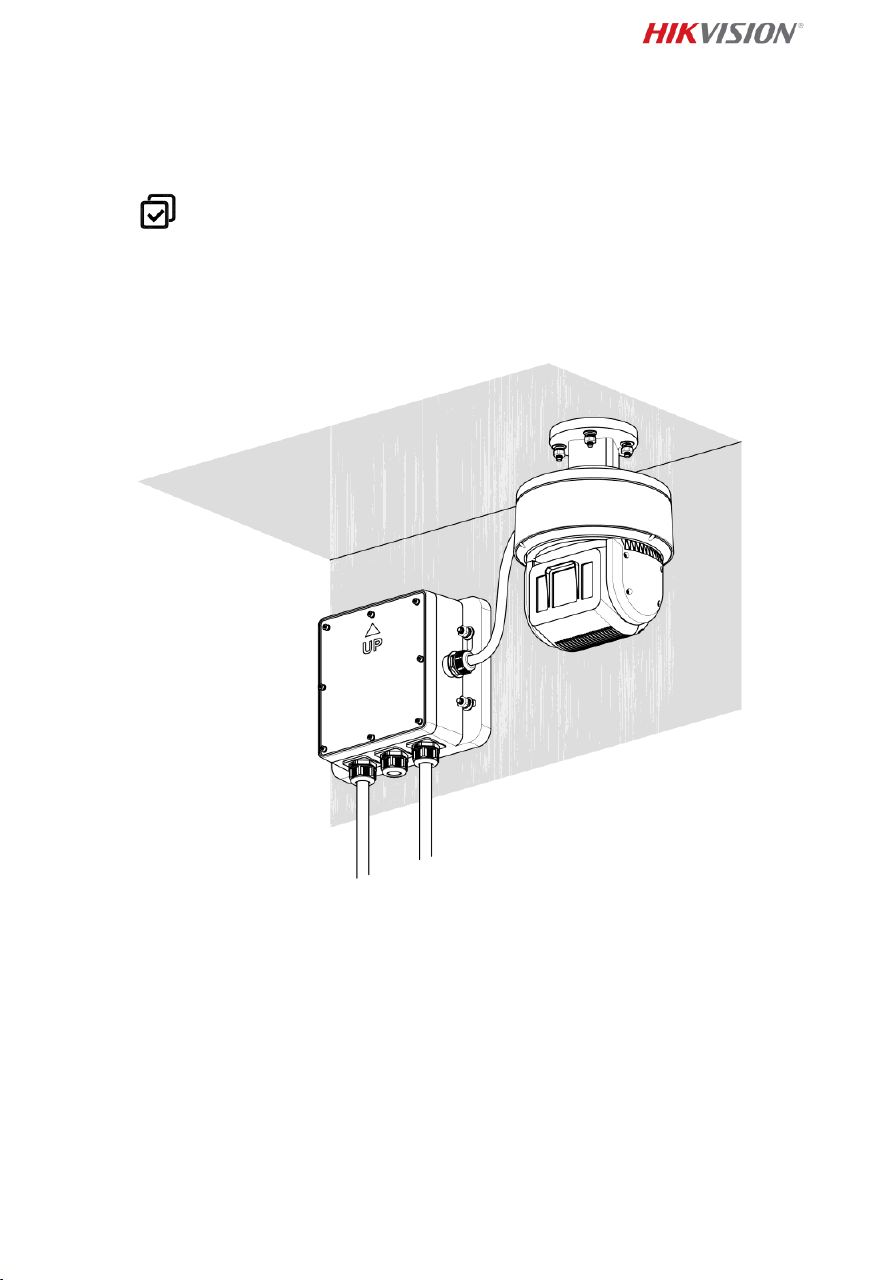

Protective Measures for Outdoor Installation
Activate and Access Network Camera
Product appearance is for reference only and may differ from the actual product.

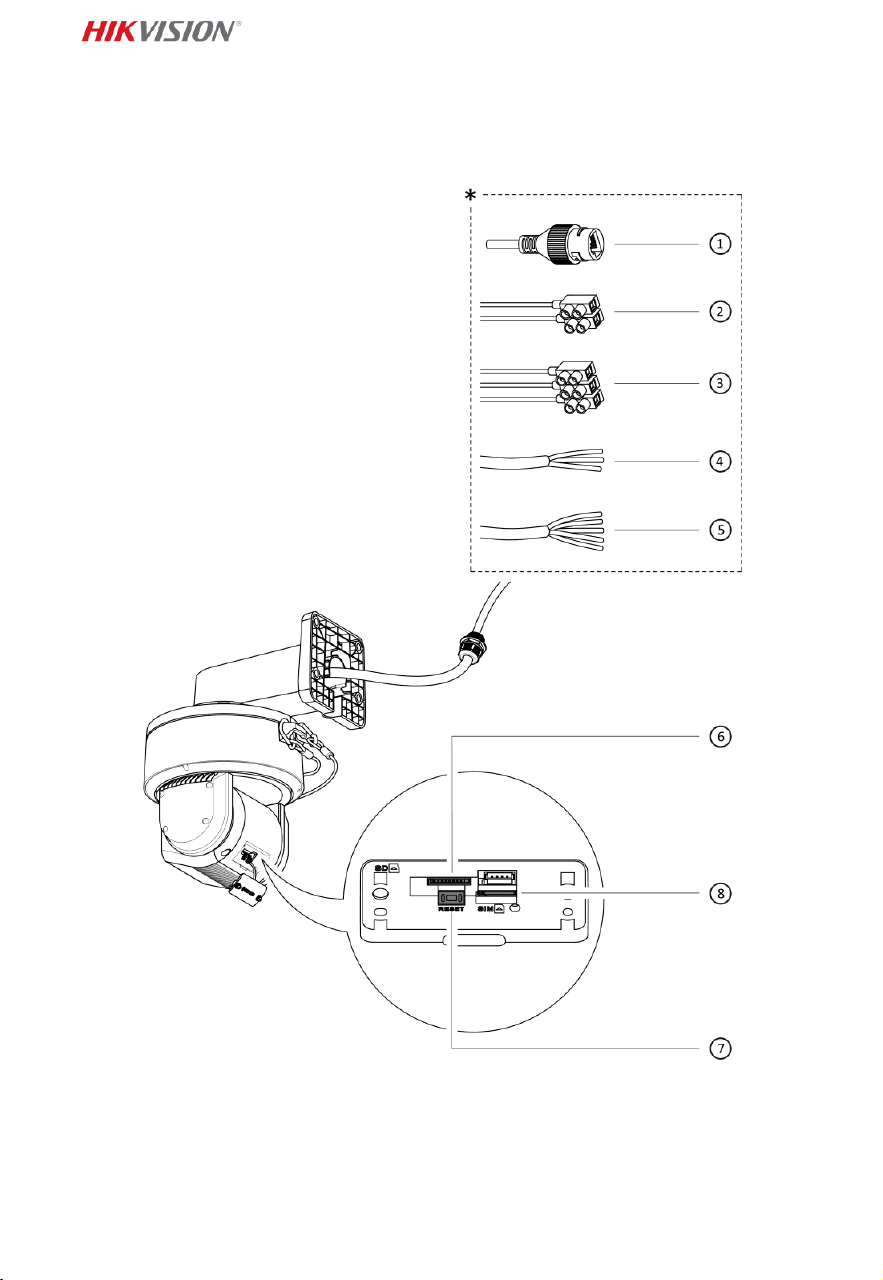

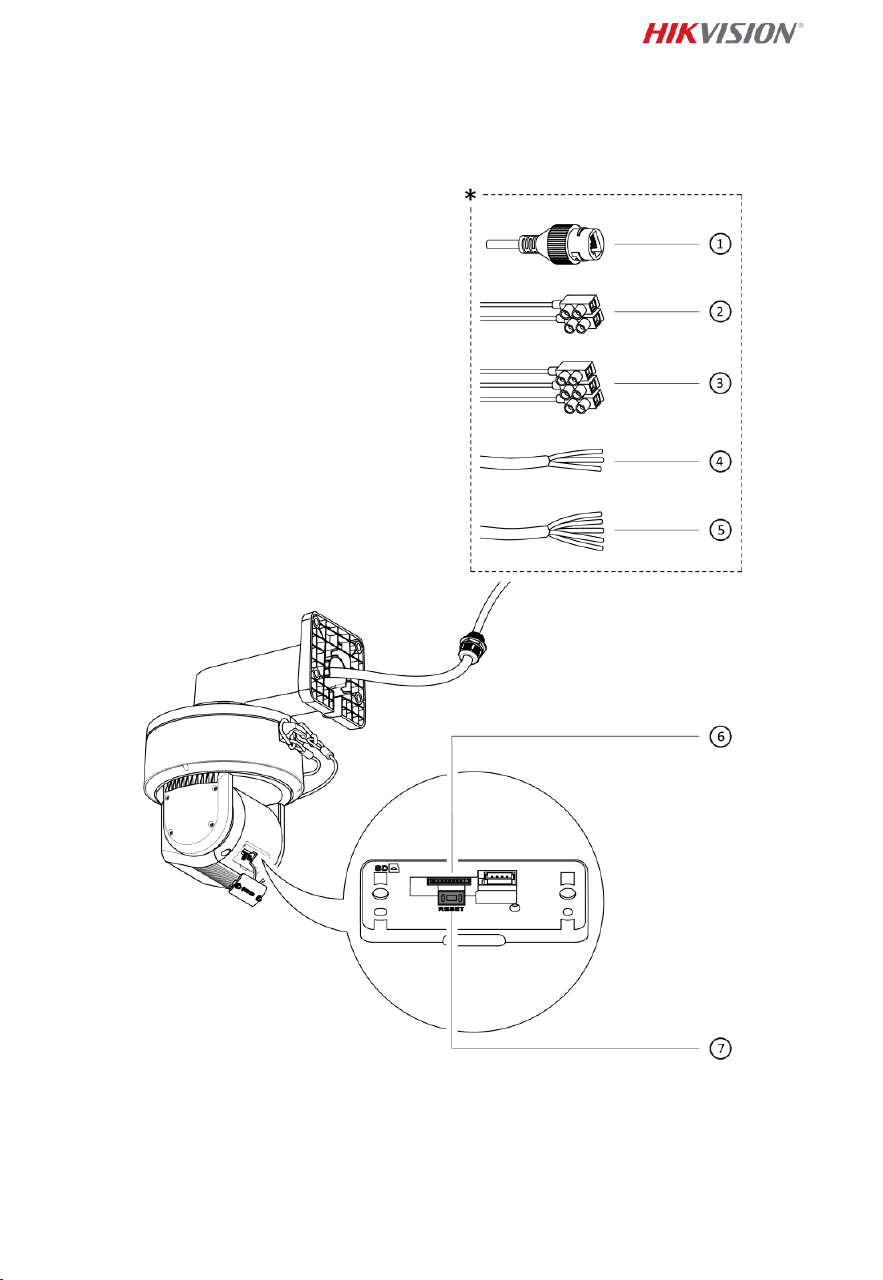

Interface (Page 3 to 4)
① Network interface
② RS-485
③ Power
④ Audio interface
⑤ Alarm interface
⑥ MicroSD card
⑦ Reset
⑧ SIM card slot
Note: The interface varies with the models. Please refer to the product datasheet for details.
Caution
Illuminator
Make sure that there is no reflective surface too close to the device lens. The light from the device may
reflect back into the lens causing reflection.
The beam of the light at the distance of 200 mm is classified as Risk Group 1 (RG1) of retinal blue light
hazard. The minimum safe distance is approximately 0.3 m away from the device.
Possible hazardous optical radiation emitted from this product. IR emitted from this product. DO NOT stare
at operating light source. May be harmful to the eyes.
If appropriate shielding or eye protection is not available, turn on the light only at a safe distance or in the
area that is not directly exposed to the light.
When assembling, installing or maintaining the device, DO NOT turn on the light, or wear eye protection.
15
