AIR HAMMER WITH CHISELS - MEDIUM STROKE
MODEL NO: SA12/S.V3
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
9 Follow all workshop safety rules, regulations, and conditions when using hammer.
WARNING! Disconnect the hammer from the air supply before changing accessories, servicing or performing any maintenance.
9 Keep the hammer clean and maintain it in good condition (use an authorised service agent).
9 Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9 Keep the work area clean and uncluttered. Ensure that there is adequate lighting.
9 Ensure chisels are correctly rated for the job. DO NOT use damaged or suspect chisels.
WARNING! Wear approved safety eye or face protection, ear defenders and, if dust is generated, respiratory protection.
9 Keep hands and body clear of the work when operating the hammer.
9 Maintain correct balance and footing. Ensure that the floor is not slippery and wear non-slip shoes.
9 Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery and contain and/or tie back long hair.
9 Keep children and unauthorised persons away from the work area.
9 Check moving parts alignment on a regular basis.
9 Secure unstable workpiece with a clamp, vice or other adequate holding device.
9 Avoid unintentional starting.
WARNING! Ensure that the correct air pressure is maintained and not exceeded.
9 Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure that all connections are secure.
8 DO NOT use the hammer for a task it is not designed to perform.
8 DO NOT operate the hammer if any parts are damaged or missing as this may cause failure and/or personal injury.
WARNING! DO NOT chisel into any materials containing asbestos.
8 DO NOT switch the hammer on whilst the chisel is in contact with the workpiece.
8 DO NOT carry the tool by the hose, or pull the hose from the air supply.
8 DO NOT hold the workpiece by hand. Use clamps or a vice (not included) to secure the workpiece. Available from your Sealey stockist.
8 DO NOT allow untrained persons to operate the hammer.
8 DO NOT operate the hammer when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8 DO NOT use hammer where there is flammable liquid, solid or gas such as paint solvent, including waste wiping or cleaning rags etc.
8 DO NOT leave the hammer operating unattended.
8 DO NOT carry the hammer with your finger on the trigger.
8 DO NOT direct air from the air hose at yourself or others.
9 When work is complete ensure that the air supply is turned off.
9 When not in use disconnect from the air supply and store in a safe, dry, childproof area.
2. i INTRODUCTION

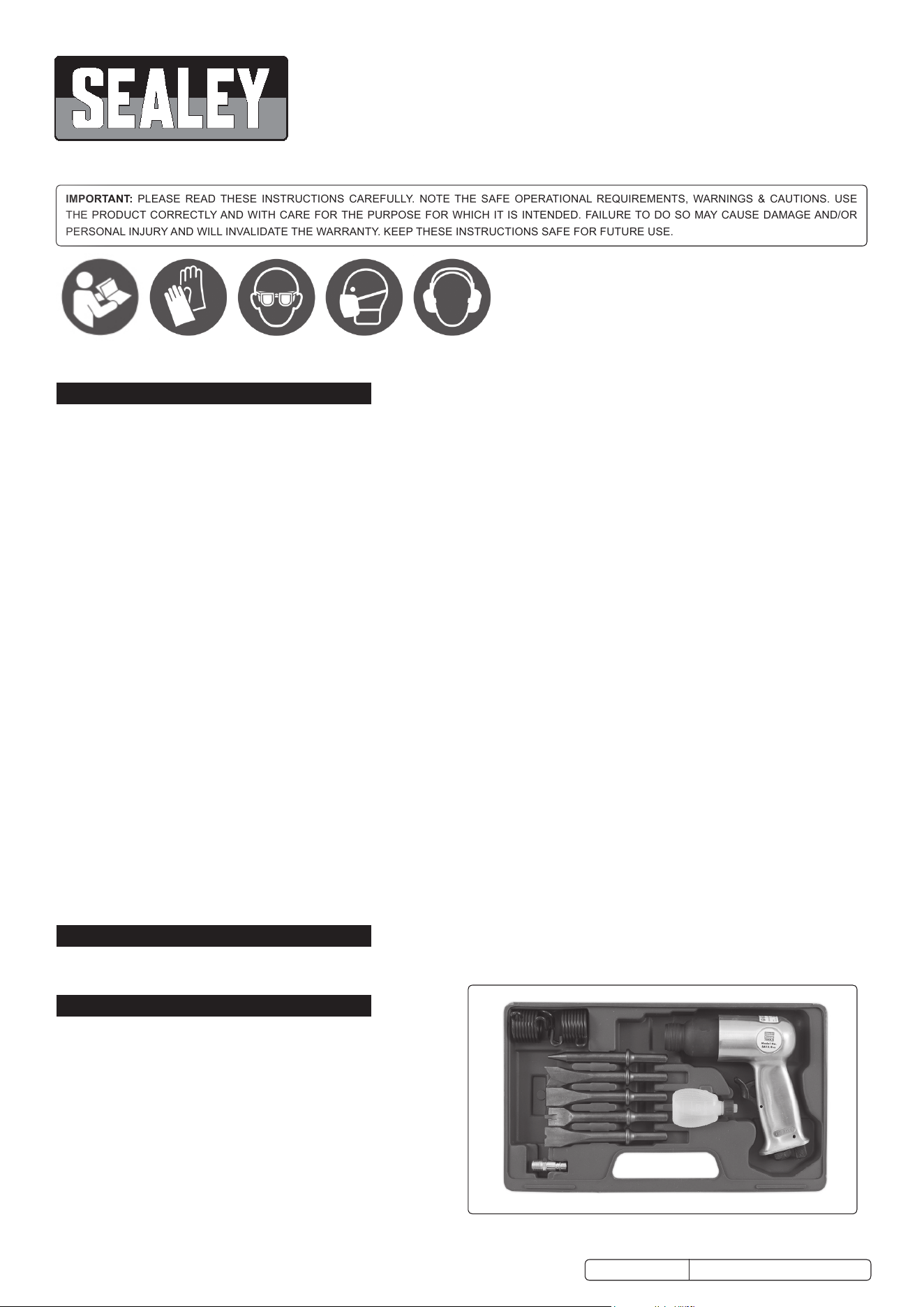

Quality medium stroke air hammer supplied in carry-case. Kit also includes spare spring retainer, weld buster, special panel cutter,
pointed chisel, muffler tail pipe remover and cold chisel.
3. i SPECIFICATION
Model No: ...................................................................SA12/S
Chisel Shank Size: ..................................0.401” Parker Taper
Free Speed: ............................................................ 4500bpm
Stroke: ......................................................................... 32mm
Air Consumption:............................................................ 4cfm
Operating Pressure: ...................................................... 90psi
Air Inlet Size: ............................................................. 1/4”BSP
Weight: .......................................................................... 1.2kg
Noise Power/Pressure: ........................................ 95/84dB(A)
Vibration/Uncertainty: ....................................... 13.40/1.5m/s²
SA12/S.V3 Issue 2 (H, 3, F)11/05/18
Original Language Version
© Jack Sealey Limited
Refer to
instruction
manual
Wear protective
gloves
Wear eye
protection
Wear face
mask
Wear ear
protection
4. AIRSUPPLY
4.1. AIR SUPPLY
WARNING! Ensure the air supply is clean and does not exceed 90psi while operating the hammer. Too high an air pressure and
unclean air will shorten the product life due to excessive wear, and may be dangerous causing damage and/or personal injury.
4.1.1. Ensure hammer valve (or trigger) is in the “off” position before connecting to the air supply.
4.1.2. You will require an air pressure of 90psi, and an air flow according to specification.
4.1.3. Drain the air tank daily. Water in the air line will damage the hammer.

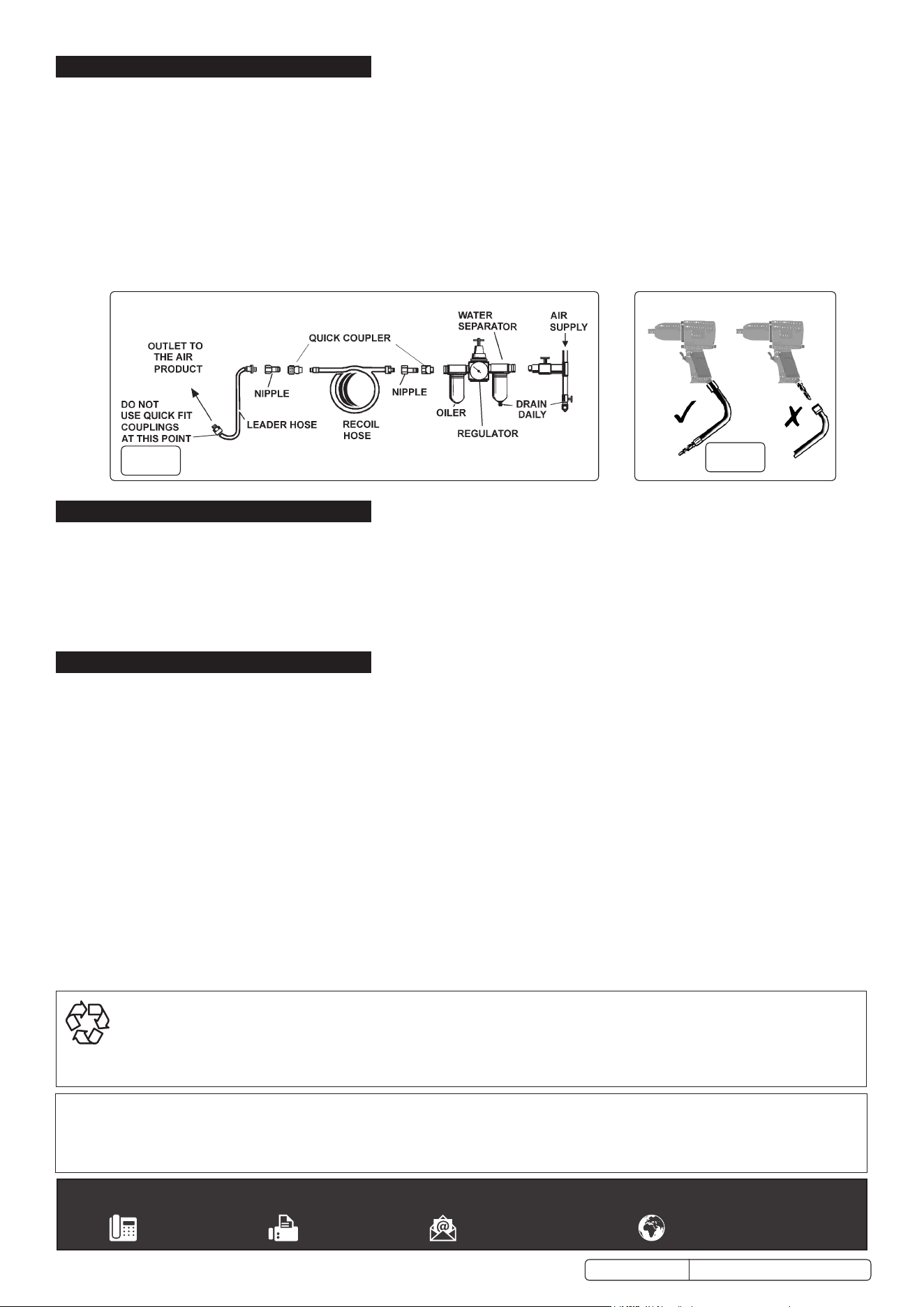

4.1.4. Clean air inlet filter weekly. Recommended hook-up procedure is shown in fig.1.
4.1.5. Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain that all connections are secure.
4.2. COUPLINGS (See gs.1 & 2).
Vibration may cause failure if a quick change coupling is connected directly to the hammer. To overcome this, connect a leader hose
to the hammer. A quick change coupling may then be used to connect the leader hose to the air line recoil hose.
5. OPERATION
NOTE: Numbers in brackets refer to parts list.
The air hammer is designed primarily for use on vehicle bodywork. We DO NOT recommend any other use. Ensure you read, understand
and follow the safety instructions in Section 1.
5.1. Attach the retaining spring (7) by screwing it onto the Cylinder (6).
5.2. Insert the chisel using the hooked end of the spring to hold the chisel in place.
5.3. Attached the tool to the air supply (see Section 4).
5.4. To operate the hammer, squeeze the trigger (8). The air regulator (13) may be used as a means of throttle control.
6. MAINTENANCE
WARNING! Disconnect the hammer from the air supply before changing chisels, servicing or performing any maintenance.
6.1. Keep the hammer oiled for optimum performance. Lubricate with a good grade of air tool oil such as Sealey ATO/500 or ATO/1000.
If there is no oiler in the air system then a teaspoon of oil can be poured into the air inlet of the hammer, or into the hose at the nearest
connection to the air supply. Then run the hammer for a short time.
Note: The following external factors may cause loss of power and effect hammer performance:
6.2. The air supply. Reduced compressor output, excessive drain on the air line, moisture or restrictions in air pipes or the use of hose
connectors having too small a bore. Correct as necessary.
6.3. The hammer. Grit or gum deposits in the tool. Correct by cleaning the air strainer and flushing out the tool with gum solvent oil or an
equal mixture of SAE No.10 oil and kerosene. If, despite taking action as above, the tool function is still impaired, contact your local
Sealey stockist.
Original Language Version
© Jack Sealey Limited
fig.
1
fig.
2
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
SA12/S.V3 Issue 2 (H, 3, F)11/05/18
WARNING! – Risk of Hand Arm Vibration Injury.
This tool may cause Hand Arm Vibration Syndrome if its use is not managed adequately.
This tool is subject to the vibration testing section of the Machinery Directive 2006/42/EC.
This tool is to be operated in accordance with these instructions.
This tool has been tested in accordance with: EN ISO 28927-2:2009 & BS EN ISO 15744:2008.
Declaration and verification of Vibration Emission figures are in accordance with EN 12096:1997
Measured vibration emission value (a): 13.4 m/s²
Uncertainty value(k): 1.5 m/s²
Please note that the application of the tool to a sole specialist task may produce a different average vibration emission. We recommend that a
specific evaluation of the vibration emission is conducted prior to commencing with a specialist task.
A health and safety assessment by the user (or employer) will need to be carried out to determine the suitable duration of use for each tool.
NB: Stated Vibration Emission values are type-test values and are intended to be typical.
Whilst in use, the actual value will vary considerably from and depend on many factors.
Such factors include; the operator, the task and the inserted tool or consumable.
NB: ensure that the length of leader hoses is sufficient to allow unrestricted use, as this also helps to reduce vibration.
The state of maintenance of the tool itself is also an important factor, a poorly maintained tool will also increase the risk of Hand Arm Vibration
Syndrome.
Health surveillance.
We recommend a programme of health surveillance to detect early symptoms of vibration injury so that management procedures can be modified
accordingly.
Personal protective equipment.
We are not aware of any personal protective equipment (PPE) that provides protection against vibration injury that may result from the
uncontrolled use of this tool. We recommend a sufficient supply of clothing (including gloves) to enable the operator to remain warm and dry and
maintain good blood circulation in fingers etc. Please note that the most effective protection is prevention, please refer to the Correct Use and
Maintenance section in these instructions. Guidance relating to the management of hand arm vibration can be found on the HSC website
www.hse.gov.uk - Hand-Arm Vibration at Work.
