DS-K1T502 Series
Access Control Terminal
Quick Start Guide
UD29348B-A
About this Document
● This Document includes instruc�ons for using and managing the Product. Pictures, charts, images and all other
informa�on hereina�er are for descrip�on and explana�on only.
● The informa�on contained in the Document is subject to change, without no�ce, due to rmware updates or
other reasons. Please nd the latest version of the Document at the Hikvision website (h�ps://
www.hikvision.com). Unless otherwise agreed, Hangzhou Hikvision Digital Technology Co., Ltd. or its aliates
(hereina�er referred to as "Hikvision") makes no warran�es, express or implied.
● Please use the Document with the guidance and assistance of professionals trained in suppor�ng the Product.
About this Product
This product can only enjoy the a�er-sales service support in the country or region where the purchase is made.
Acknowledgment of Intellectual Property Rights
● Hikvision owns the copyrights and/or patents related to the technology embodied in the Products described in
this Document, which may include licenses obtained from third par�es.
● Any part of the Document, including text, pictures, graphics, etc., belongs to Hikvision. No part of this
Document may be excerpted, copied, translated, or modied in whole or in part by any means without wri�en
permission.
● and other Hikvision’s trademarks and logos are the proper�es of Hikvision in various
jurisdic�ons.
● Other trademarks and logos men�oned are the proper�es of their respec�ve owners.
LEGAL DISCLAIMER
● TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS DOCUMENT AND THE PRODUCT DESCRIBED,
WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS IS" AND "WITH ALL FAULTS AND ERRORS".
HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY,
SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR
OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR
INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS
INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED
ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN
CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES OR LOSS.
● YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND
HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER
DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY
RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
● YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY
RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE
RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD
PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA
PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES,
INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR
PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY
NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
● IN THE EVENT OF ANY CONFLICTS BETWEEN THIS DOCUMENT AND THE APPLICABLE LAW, THE LATTER
PREVAILS.
Data Protec�on
● To protect data, the development of Hikvision Products incorporates privacy by design principles. For example,
for Products with facial recogni�on features, biometrics data is stored in your Products with encryp�on method;
for ngerprint Products, only ngerprint template will be saved, which is impossible to reconstruct a ngerprint
image.
● As a data controller/processor, you may process personal data, including collec�on, storage, use, processing,
disclosure, dele�on, etc. You are advised to pay a�en�on to and comply with applicable laws and regula�ons
related to the protec�on of personal data, including without limita�on, conduc�ng security controls to safeguard
personal data, such as, implemen�ng reasonable administra�ve and physical security controls, conduct periodic
reviews and the assessments of the eec�veness of your security controls.
© Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
2 Keypad
3 Environment Instruction
Installation Environment:
Support outdoor use.
Avoid backlight, direct sunlight, and indirect sunlight.
For Better recognition, there should be light source in or near the
installation environment.
The minimum bearing weight of the wall or other places should be 3
times heavier than the device weight.
Direct Sunlight
Direct Sunlight
through Window
Indirect Sunlight
through Window
Backlight
Close to Light
Keypad Name Description
Number
0 to 9 digits. You can enter the number when
authenticating or calling room.
Hold 5 to enable device hotspot. You can use mobile phone
to connect the hotspot and login the mobile web to
configure.
*
Clear all entered contents.
#
Confirm the entered contents.
Doorbell
Call button. You can enter a room number and press the
key to call. Or call the administrator or specified romm by
pressing the key directly (configuration is needed).
Scan the QR code to get the user
manual for detailed information.
Fingerprint + Card Series
Card + QR Code
81 mm
177 mm
24.1 mm
Card Presenting
Area and QR Code
Recognition Area
Debugging Port (For
debugging only)
Door Lock, Wiegand,
RS-485, and Power
Interface
Loudspeaker
Camera (Supported
by Parts of Device
Models)
MIC
Tamper
SD Card Slot
Alarm Input
and Output
Interface
Network
Interface
Card Series

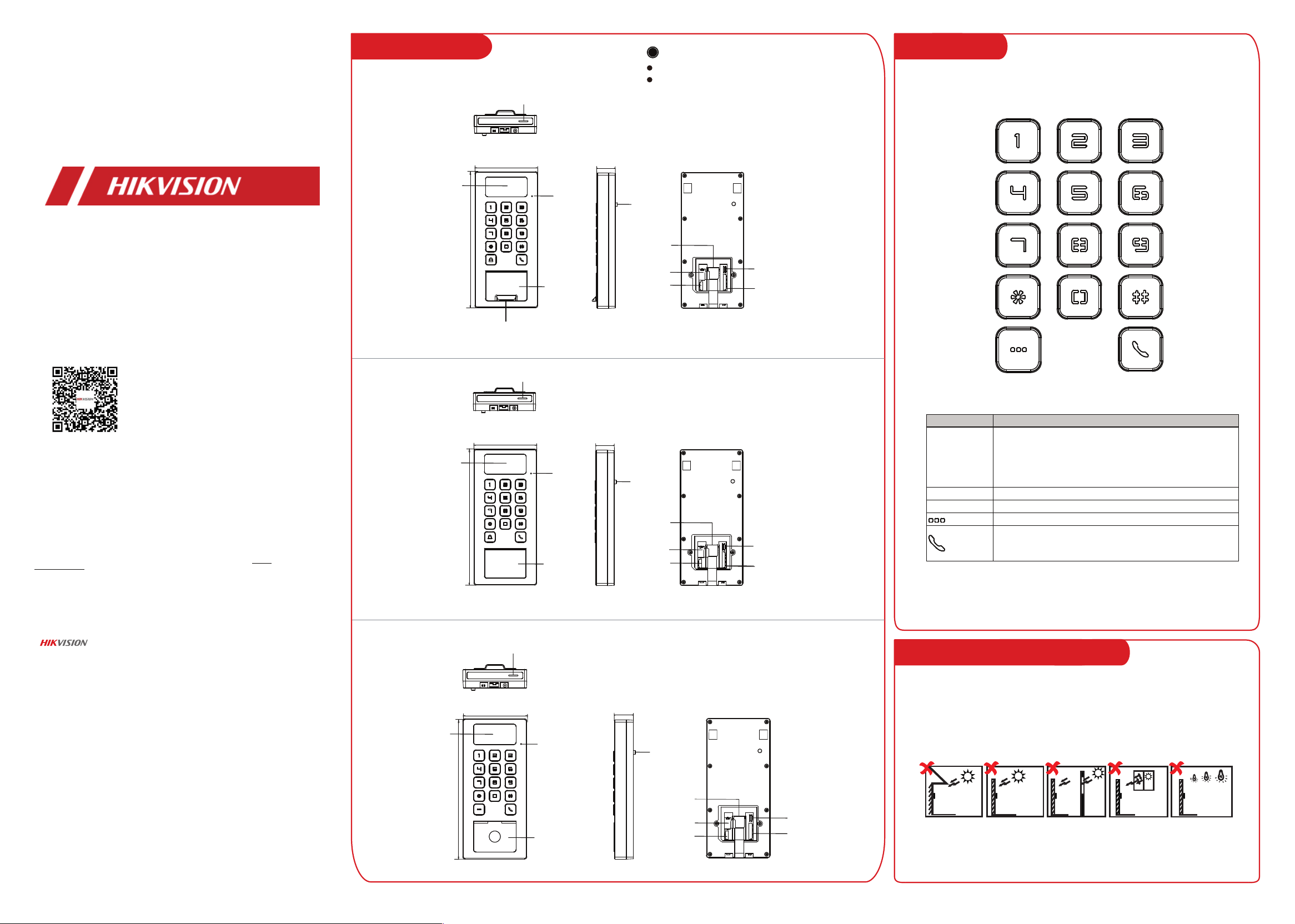

1 Appearance
Fingerprint Module
(Supported by Parts
of Device Models)
MIC
177 mm
81 mm
24.1 mm
Network
Interface
Loudspeaker
Camera (Supported
by Parts of Device
Models)
Card
Presenting
Area
Tamper
Debugging Port (For
debugging only)
Door Lock,
Wiegand, RS-485,
and Power Interface
SD Card Slot
Alarm Input
and Output
Interface
i
The figures are for reference only.
The Fingerprint + Card Series device supports
authentication via fingerprint and card. The Card
Series device supports authentication via card.
MIC
177 mm
81 mm
24.1 mm
Network
Interface
Loudspeaker
Camera (Supported
by Parts of Device
Models)
Card
Presenting
Area
Tamper
Debugging Port (For
debugging only)
SD Card Slot
Door Lock,
Wiegand, RS-485,
and Power Interface
Alarm Input
and Output
Interface

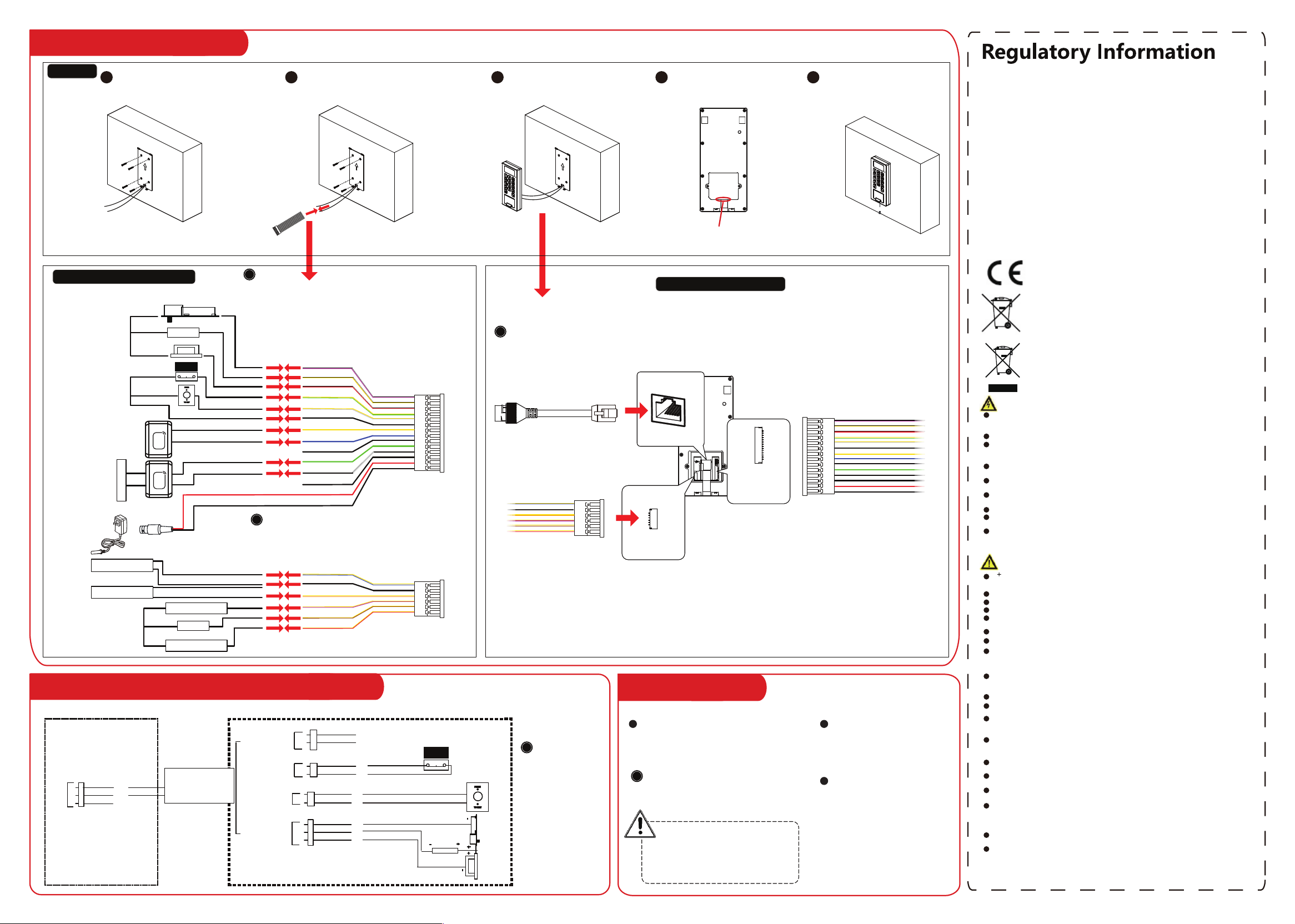

FCC Information
Please take attention that changes or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment. FCC
compliance: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
2006/66/EC (battery directive): This product contains a battery that cannot
be disposed of as unsorted municipal waste in the European Union. See the
product documentation for specific battery information. The battery is
marked with this symbol, which may include lettering to indicate cadmium
(Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to
your supplier or to a designated collection point. For more information see:
www.recyclethis.info
2012/19/EU (WEEE directive): Products marked with this symbol cannot be
disposed of as unsorted municipal waste in the European Union. For proper
recycling, return this product to your local supplier upon the purchase of
equivalent new equipment, or dispose of it at designated collection points.
For more information see: www.recyclethis.info
This product and - if applicable - the supplied accessories too are marked
with "CE" and comply therefore with the applicable harmonized European
standards listed under the RE Directive 2014/53/EU, the EMC Directive
2014/30/EU, the RoHS Directive 2011/65/EU.
Warning
In the use of the product, you must be in strict compliance with the electrical safety
regulations
of the nation and region.
CAUTION: To reduce the risk of fire, replace only with the same type and rating of fuse.
CAUTION: This equipment is for use only with Hikvision’s bracket. Use with other (carts,
stands, or carriers) may result in instability causing injury.
To prevent possible hearing damage, do not listen at high volume levels for long periods.
Please use the power adapter, which is provided by normal company. The power
consumption cannot be less than the required value.
Do not connect several devices to one power adapter as adapter overload may cause over-
heat or fire hazard.
Please make sure that the power has been disconnected before you wire, install or
dismantle the device.
When the product is installed on wall or ceiling, the device shall be firmly fixed.
If smoke, odors or noise rise from the device, turn off the power at once and unplug the
power cable, and then please contact the service center.
If the product does not work properly, please contact your dealer or the nearest service
center. Never attempt to disassemble the device yourself. (We shall not assume any
responsibility for problems caused by unauthorized repair or maintenance.)
Caution
identifies the positive terminal(s) of equipment which is used with, or generates
direct current. + identifies the negative terminal(s) of equipment which is used with,
or generates direct current.
No naked flame sources, such as lighted candles, should be placed on the equipment.
The USB port of the equipment is used for connecting to a USB flash drive only. The
serial port of the equipment is used for debugging only.
Burned fingers when handling the fingerprint sensor metal. Wait one-half hour atier
switching off before handling the parts.
Install the equipment according to the instructions in this manual.
To prevent injury, this equipment must be securely attached to the floor/wall in
accordance with the installation instruations.
Do not drop the device or subject it to physical shock, and do not expose it to high
electromagnetism radiation. Avoid the equipment installation on vibrations surface or
places subject to shock (ignorance can cause equipment damage).
Do not place the device in extremely hot (refer to the specification of the device for
the detailed operating temperature), cold, dusty or damp locations, and do not expose it
to high electromagnetic radiation.
The device cover for indoor use shall be kept from rain and moisture.
Exposing the equipment to direct sun light, low ventilation or heat source such as
heater or radiator is forbidden (ignorance can cause fire danger).
Do not aim the device at the sun or extra bright places. A blooming or smear may
occur otherwise (which is not a malfunction however), and affecting the endurance of
sensor at the same time.
Please use the provided glove when open up the device cover, avoid direct contact
with the device cover, because the acidic sweat of the fingers may erode the surface
coating of the device cover.
Please use a soti and dry cloth when clean inside and outside surfaces of the device
cover, do not use alkaline detergents.
Please keep all wrappers atier unpack them for future use. In case of any failure
occurred, you need to return the device to the factory with the original wrapper.
Transportation without the original wrapper may result in damage on the device and
lead to additional costs.
Improper use or replacement of the battery may result in hazard of explosion.
Replace with the same or equivalent type only.
Dispose of used batteries according to the instructions provided by the battery
manufacturer.
Biometric recognition products are not 100% applicable to anti-spoofing environments.
If you require a higher security level, use multiple authentication modes.
Please make sure that the biometric recognition accuracy will be affected by the
collected pictures' quality and the light in the environment, which cannot be 100%
correct.
Wiegand
Card Reader
Power Adaptor
(Self Purchased)
12 V Power
+
-
RS-485 Card Reader
Electric Dropbolt
Electric
Strike
Exit Button
Door Contact
Power 1
NC
COM
NO
SEN
BTN
GND
485+
485-
GND
W0
W1
GND
12VDC
GND
White/
Purple
(NC)
(NO)
(NC)
(NO)
(COM)
(COM)
White/
Yellow
White/
Red
Yellow/
Green
Yellow/
grey
Black
Yellow
Blue
Black
Green
White
Black
Red
Black
+
+
+ -
-
-
Alarm Input 1
Power 2
Alarm Output 1
Alarm Output 2
Alarm Input 2
AIN1
GND
AIN2
NC
COM
NO
(NC)
(NO)
Yellow/
Blue
Black
Yellow/
Organge
Yellow/
Purple
Yellow/
Brown
Yellow/
Red
+
-
4 Installation and Wiring
Secure the mounting plate on the wall
with 4 supplied screws (KA4X25).
1
Remove the back sheet and wire the
terminals and the cable. For details, see
the wiring diagram below.
Insert the terminals to the device.
For details, see the wiring diagram
below.
Apply silicone sealant among
the cable wiring area to keep
the raindrop from entering.
2 3 4
Align the device with the
mounting plate, and secure the
device on the mounting plate
with 1 supplied screw (KM3X6).
5
Apply Silicone Sealant
Door Lock,
Wiegand,
RS-485, and
Power Interface
Alarm Input and
Output Interface
Network Interface
Door Lock, Wiegand,
RS-485, and Power
Interface
Alarm Input and
Output Interface
Installation
Terminals and External Device Wiring
Terminals and Device Connection
• When connec�ng door contact and exit bu�on, the device and the RS-485
card reader should use the same common ground connec�on. The Wiegand
terminal here is a Wiegand output terminal. You should set the device’s
Wiegand direc�on to “output”.
• The alarm input device is sensor and so on. The alarm output device is
siren, strobe light, and so on.
• Wiring as you need. The power cable is nessary to wire.
• To prevent signal interference, the device and the door lock should not
share a 12 V power supply and power cord.
• Use a power supply of 12 V/2 A, 24 W.
• Do not wire the device to electricity directly.
• To prevent signal interference, the device and the door lock should
not share a 12 V power supply and power cord.
i
Wiring as you need. The power cable is nessary to wire.
i
i
5 Wiring (With Secure Door Control Unit)
• Make sure the device IP address and the computer's should be
in the same IP segment.
• Characters containing admin and nimda are not supported to
be set as activation password.
i
i
6 Configuration
Activate via Web
You can activate the device via the web browser.
Enter the device default IP address (192.0.0.64)
in the address bar of the web browser, and press
Enter.
You can batch import people on
platform (client software, etc.) and
set the device or the person's
authentication mode.
Manage People on Platform
Open Door
STRONG PASSWORD RECOMMENDED-We highly
recommend you create a strong password of your own
choosing (using a minimum of 8 characters, including
upper case letters, lower case letters, numbers, and
special characters) in order to increase the security of
your product. And we recommend you reset your
password regularly, especially in the high security
system, resetting the password monthly or weekly can
better protect your product.
You can use the credentials
(fingerprint, card, PIN, QR code) to
recognize. After recongition
completed, the door will be open.
Secure Door Control Unit
NC
COM
NO
C1
C2
C3
Face Recognition Terminal
Secure Door
Control Unit
Wiring Terminal
Power Input
Sensor Input
Exit Button
Lock Output
SENSOR
BUTTON
Black
GND
Green/Brown
Green/Black
Black
Black
White/Purple
White/Black
White/Red
Red
B1
B2
B 3
B4
(NC)
Power
(NO)
Door Contact
Exit Button
Electric
Dropbolt
Electric
Strike
Black
Yellow
Blue
GND
GND
GND
+12 V
A1
A2
+12 V
C1
C2
C3
485+
485-
GND
RS-485
• The secure door control unit
should connect to an external
power supply separately. The
suggested external power supply
is 12 V, 0.5 A.
• For scenarios with high safety
requirement, use the secure door
control unit wiring first. You can
ask the technical support to
purchase for the secure door
control unit separately.
• The picture here are parts of
the wiring. For details, see the
secure door control unit's user
manual.
